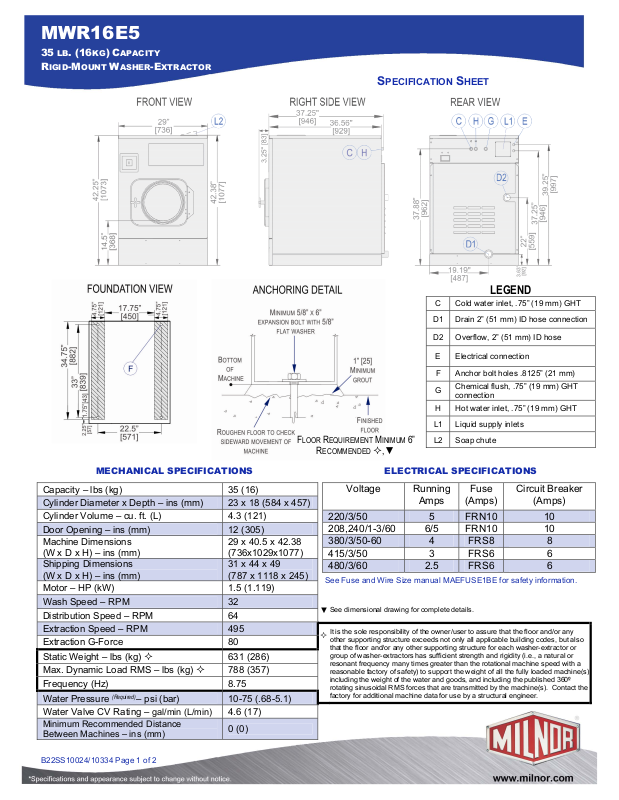

Milnor MWR16E5 Specifications
g
MWR16E5
35 LB. (16KG) CAPACITY
IGID-MOUNT WASHER-EXTRACTOR
R
SPECIFICATION SHEET
LEGEND
C Cold water inlet, .75” (19 mm) GHT
D1 Drain 2” (51 mm) ID hose connection
FLOOR REQUIREMENT MINIMUM 6”
MECHANICAL SPECIFICATIONS
Capacity – lbs (kg) 35 (16)
Cylinder Diameter x Depth – ins (mm) 23 x 18 (584 x 457)
Cylinder Volume – cu. ft. (L) 4.3 (121)
Door Opening – ins (mm) 12 (305)
Machine Dimensions
(W x D x H) – ins (mm)
Shipping Dimensions
(W x D x H) – ins (mm)
29 x 40.5 x 42.38
(736x1029x1077)
31 x 44 x 49
(787 x 1118 x 245)
Motor – HP (kW) 1.5 (1.119)
Wash Speed – RPM 32
Distribution Speed – RPM 64
Extraction Speed – RPM 495
Extraction G-Force 80
Static Weight – lbs (kg)
Max. Dynamic Load RMS – lbs (kg)
631 (286)
788 (357)
Frequency (Hz) 8.75
(Required)
Water Pressure
– psi (bar) 10-75 (.68-5.1)
Water Valve CV Rating – gal/min (L/min) 4.6 (17)
Minimum Recommended Distance
Between Machines – ins (mm)
0 (0)
D2 Overflow, 2” (51 mm) ID hose
E Electrical connection
F Anchor bolt holes .8125” (21 mm)
Chemical flush, .75” (19 mm) GHT
G
connection
H Hot water inlet, .75” (19 mm) GHT
L1 Liquid supply inlets
L2 Soap chute
R
ECOMMENDED , ▼
ELECTRICAL SPECIFICATIONS
Voltage Running
Amps
Fuse
(Amps)
Circuit Breaker
(Amps)
220/3/50 5 FRN10 10
208,240/1-3/60 6/5 FRN10 10
380/3/50-60 4 FRS8 8
415/3/50 3 FRS6 6
480/3/60 2.5 FRS6 6
See Fuse and Wire Size manual MAEFUSE1BE for safety information.
See dimensional drawing for complete details.
▼
It is the sole responsibility of the owner/user to assure that the floor and/or any
other supporting structure exceeds not only all applicable building codes, but also
that the floor and/or any other supporting structure for each washer-extractor or
group of washer-extractors has sufficient strength and rigidity (i.e., a natural or
resonant frequency many times greater than the rotational machine speed with a
reasonable factory of safety) to support the wei
including the weight of the water and goods, and including the published 360º
rotating sinusoidal RMS forces that are transmitted by the machine(s). Contact the
factory for additional machine data for use by a structural engineer.
ht of all the fully loaded machine(s)
B22SS10024/10334 Page 1 of 2
W
MWR16E5
35 LB. (16KG) CAPACITY
IGID-MOUNT WASHER-EXTRACTOR
R
Standard Features:
• 3 speeds
• E-P OneTouch
• Single-motor inverter drive
• Tall, lifting ribs
• Sealed ball bearings
• High M.A.F. (Mechanical Action Factor)
• Large cylinder perforations
• Fresh-water flushing chemical manifold
• Auto tension V-belt drive
• 3 liquid chemical injection ports
• Control reads in English/second language
• 5-year limited warranty on frame, cylinder & shell
®
programmable controller
SPECIFICATION SHEET
Optional Features:
• Lint trap
• Mounting base, 10” or 6”
hy Purchase Milnor?
• Greater cylinder perforated-area generates better wash quality, better rinsing and
better extraction. BENEFIT: Better extraction saves dryer fuel.
• Faster process times reduce fabric wear, promoting longer linen life!
BENEFIT: Saves linen replacement costs.
• Tall perforated ribs provide excellent lift and high drop.
BENEFIT: Greater mechanical action (M.A.F.) leads to better wash quality.
• 80-G high extract provides excellent moisture removal. Lower extract speeds are
available for uniforms, delicate textiles and blended fabrics.
BENEFIT: Better extraction saves dryer fuel.
• Simple, push-button controls allow for four separate wash formulas. Indicator
lights signal when machine is in operation and prompts operator when machine is
moving into final wash formula stage. Shortens training time of new employees.
BENEFIT: Fewer operator errors.
• Superior product support through local, highly-skilled dealers.
BENEFIT: Faster repairs mean less downtime.
Safe chemical injection
Superior cylinder design
Contact Milnor for your local, authorized dealer:
Pellerin Milnor Corporation
P.O. Box 400 ● Kenner, LA 70063
t: 504-467-9591 ● f: 504-468-3094
B22SS10024/10334 Page 2 of 2
Solid industrial frame
