The right sizes
These dryers can be used with washer-extractors or with CBW® tunnel washers.
Basket volumes available are 56.8 cu. ft. (1608 L), 108 cu. ft. (3058 L),
119 cu. ft. (3373 L) and 170 cu. ft. (4800 L). They’re ideal for loads ranging
from 110 lbs. (50 kg) to 550 lbs. (250 kg).
Why they save time and energy
• Goods circulate freely – as they dry, they move to the upper end; 56.8 – 170 cu. ft.
(1608 – 4800 L) cylinder enhances movement of hot air through the load.
• Huge open area – with about 65% of the perforated side sheet open, hot air ows
easily through the basket.
• Unique Energy Saver Seal™ – keeps air owing through the goods, without
escaping around the outside of the basket.
• Fixed tilt – places the heaviest goods, which are wettest, nearest heat entry.
• Fast unloading – no need to wait for mechanized tilting or operator attention, as
the basket is always tilted toward the unload end.
Milnor maintains proper hot
airflow with a low-friction seal
that rides on a polished band.
Efficiency is long-term
Most dryers are efcient when new. Milnor dryers
stay that way. This is possible because the seal is
placed circumferentially, not front-to-back as with
competitive dryers. Because competitive seals are
abraded by the reverse side of the basket perforations
– the “cheese grater” effect – they tend to wear out
quickly. This lets air escape around the outside of the
basket, wasting energy and time.
Insulation helps prevent heat loss, too (and improves
the work environment).
They boost productivity
Fast cycles mean more output. And so does fast
turnaround from one load to another. Milnor
conveyors and shuttles allow automated loading
when the dryer is ready, without operator attention.
This minimizes delays. Or, if you prefer, sling
loading can be employed (the xed tilt helps goods
fall to the back). Gravity unloading is automatic,
without an attendant, and there are no delays for
hydraulic tilting. Pass-through design is ideal for
streamlined workow.
Unique air path means a Milnor dryer gets
the most efficient use of hot air. These design
features are not found on other dryers.
Efficient,
space-saving design
An innovative, “mirror-mount” design feature
allows two dryers to install side-by-side. The
dryers can be ordered with motors and controls
mounted on either side of the unit, moving
service points to easily accessible areas. This
compactness makes good use of oor space.
Page 3

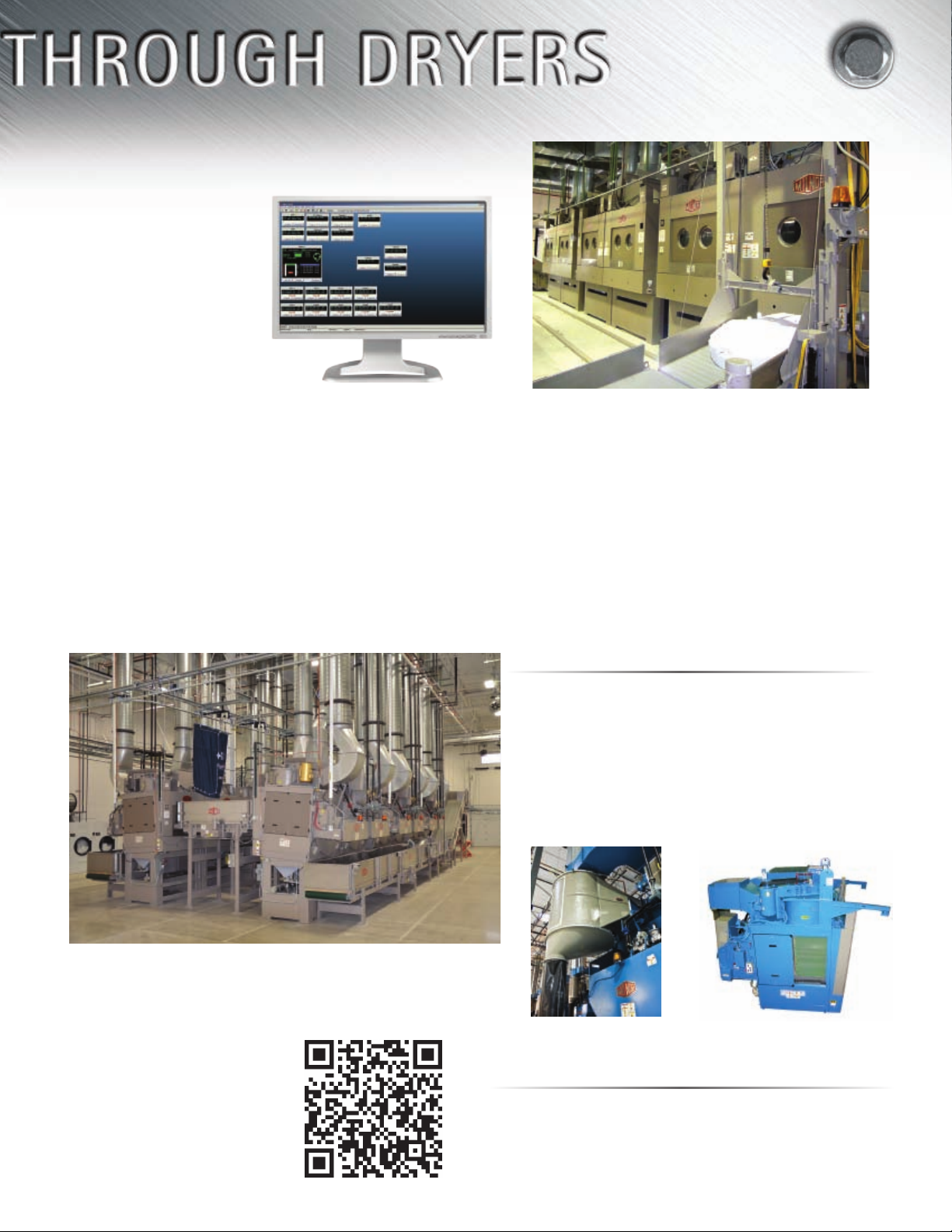

Control provides efficiency, information
Microprocessor control allows
eld-programming of dry
formulas. Up to 200 dry codes can
be programmed, accommodating
both full and small loads for
100 different goods types. Inlet
and outlet temperatures may
be programmed to optimize
drying times. Modulating gas
valve can maintain an inlet or
outlet temperature within one percent of the set point (does not rely on a high-re,
low-re scheme). Similar modulating temperature control is also available on steam
models (optional extra). The control provides cooldown, self-diagnostics, plus such
information as time in process, inlet and outlet temperatures, formula in progress,
number of loads processed by dry code, and cumulative average drying time for each
formula. Dryer controls can also be linked to a Mildata computer system for central
programming, system monitoring and production reporting.
These dryers help streamline
laundry production
Milnor dryers are pass-through machines that load at one end and
discharge at the other. They form an integral part of an automated
batch laundry processing system, along with a continuous batch
washer, an extraction system, and transport conveyors.
These fully-automatic dryers can also be used to streamline
operations with washer-extractor systems. Pass-through design
allows excellent workow, while automatic loading/unloading and
drying controls reduce operator attention.
Milnor now offers innovative, time-saving dryer pod configuration.
To see how the dryer pod
works, scan this code:
Automated lint removal systems
Milnor Lint Filter (MLF) Systems are available for all Milnor passthrough dryers. This MLF operates on differential back pressure.
The lint lter can be set to self-clean when back pressure reaches
the desired set point. The control cleans the screen only when
needed—optimizing dryer performance.
MLF 1010 external lint filter
has 36 ft2 surface area.
Milnor’s 64058 internal lint filter
has 11.8 ft2 surface area.
Quiet
Low noise levels (thanks to inverter-driven blower and smooth
drive system) enhance working conditions.
Page 4
SPECIFICATIONS
PASS-THROUGH DRYERS 50050 64058 64064 72072
Capacity range - lbs. (kg) 110
Basket volume – cu. ft. (L) 56.8 (1608) 108 (3058) 119 (3373) 170 (4800)
Filling Factor @ 1kg:25L
lbs. (kg) 141 (64) 269.7 (122.30) 297 (135) 423.4 (192)
lbs. per cu. ft. 2.5 2.5 2.5 2.5
Filling Factor @ 1
lbs. (kg) 177 (80) 337.1 (152.90) 371 (169) 529.2 (240)
lbs. per cu. ft. 3.1 3.1 3.1 3.1
Basket diameter – ins. (mm) 50
Basket depth** – ins. (mm) 50 (1270) 58 (1473) 64 (1626) 72 (1829)
Blower motor – HP (kW) 7.5 (5.59) 25 (18.64) 25 (18.64) 40 (30)
Basket drive motor – HP (kW) 1 (.745) 3 (2.23) 3 (3.23) 5 (3.72)
Combustion air motor – HP (kW) 0.5 (.375) 3 (2.25) 3 (3.23) 3 (2.25)
Approx. overall width* - ins. (mm) 78.38 (1990) 85 (2159) 85 (2159) 110.5 (2807)
Approx. overall depth* - ins. (mm) 101.5 (2578) 103.2 (2621) 109.2 (2774) 122 (3099)
Approx. overall height* - ins. (mm) 119 (3022) 146.75 (3727) 146.75 (3727) 156.93 (3986)
Approx. net weight* - lbs. (kg) 4,000 (1814) 5,360 (2431) 5,560 (2527) 10,000 (4536)
Capacity depends on type of goods —e.g., ranging from various fabrics/cotton goods to mats or wipers.
Specifications and appearance subject to change without notice. Contact factory for acoustics data.
*With standard accessories. **Non-stick coated basket optional.
kg:20L
(50) 200-320 (91-145) 200-350 (91-158) 400-550 (180-250)
(1270) 64 (1626) 64 (1626) 72 (1829)
Mode VI Dryer End
Point Technology:
Printed in U.S.A.
© Pellerin Milnor Corporation
Class 5-1 Brochure B22SL07001/11492

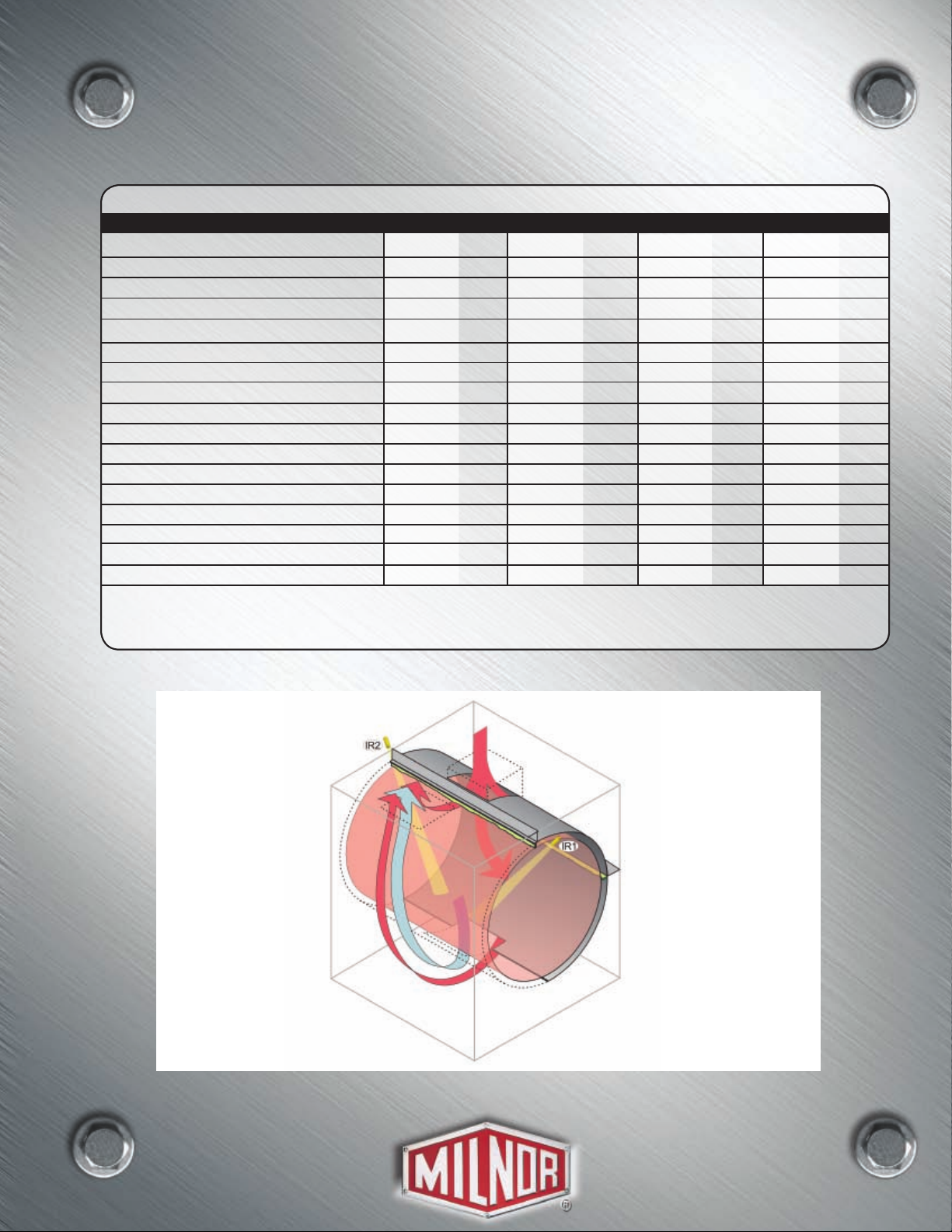

Milnor uses two
infrared sensors
in conjunction
with inlet/outlet
temperature proles
to determine
accurately when the
goods are dry.
Pellerin Milnor Corporation
P.O. Box 400, Kenner, LA 70063-0400 USA
504/712-7656 • 800/469-8780
Fax: 504/468-3094
E-mail: [email protected]
www.milnor.com
