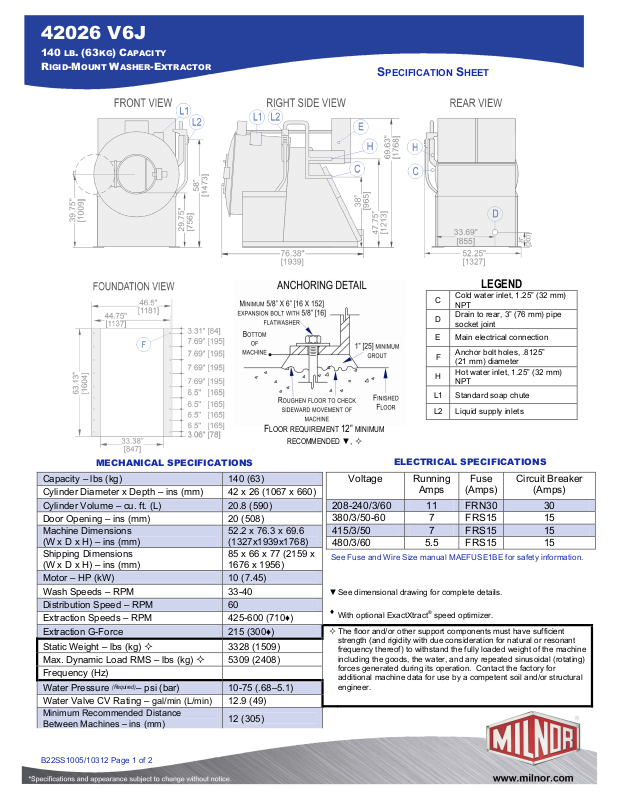

Milnor 42026 V6J Specifications

42026 V6J

140 LB. (63KG) CAPACITY

IGID-MOUNT WASHER-EXTRACTOR

R

SPECIFICATION SHEET

Capacity – lbs (kg) 140 (63)
Cylinder Diameter x Depth – ins (mm) 42 x 26 (1067 x 660)
Cylinder Volume – cu. ft. (L) 20.8 (590)
Door Opening – ins (mm) 20 (508)
Machine Dimensions

(W x D x H) – ins (mm)
Shipping Dimensions
(W x D x H) – ins (mm)

Motor – HP (kW) 10 (7.45)
Wash Speeds – RPM 33-40
Distribution Speed – RPM 60
Extraction Speeds – RPM 425-600 (710♦)
Extraction G-Force 215 (300♦)

Static Weight – lbs (kg) 
Max. Dynamic Load RMS – lbs (kg) 
Frequency (Hz)

Water Pressure
Water Valve CV Rating – gal/min (L/min) 12.9 (49)

Minimum Recommended Distance
Between Machines – ins (mm)

MECHANICAL SPECIFICATIONS

52.2 x 76.3 x 69.6
(1327x1939x1768)
85 x 66 x 77 (2159 x
1676 x 1956)

3328 (1509)
5309 (2408)

(Required)

– psi (bar) 10-75 (.68–5.1)

12 (305)

FLOOR REQUIREMENT 12” MINIMUM

RECOMMENDED ▼, 

Voltage Running

208-240/3/60 11 FRN30 30
380/3/50-60 7 FRS15 15
415/3/50 7 FRS15 15
480/3/60 5.5 FRS15 15

See Fuse and Wire Size manual MAEFUSE1BE for safety information.

▼ See dimensional drawing for complete details.

♦

With optional ExactXtract



The floor and/or other support components must have sufficient
strength (and rigidity with due consideration for natural or resonant
frequency thereof) to withstand the fully loaded weight of the machine
including the goods, the water, and any repeated sinusoidal (rotating)
forces generated during its operation. Contact the factory for
additional machine data for use by a competent soil and/or structural
engineer.

C

D

E Main electrical connection

F

H

L1 Standard soap chute

L2 Liquid supply inlets

ELECTRICAL SPECIFICATIONS

Amps

®

speed optimizer.

LEGEND

Cold water inlet, 1.25” (32 mm)
NPT
Drain to rear, 3” (76 mm) pipe
socket joint

Anchor bolt holes, .8125”
(21 mm) diameter

Hot water inlet, 1.25” (32 mm)
NPT

Fuse

(Amps)

B22SS1005/10312 Page 1 of 2

Circuit Breaker

(Amps)

W

42026 V6J

140 LB. (63KG) CAPACITY

IGID-MOUNT WASHER-EXTRACTOR

R

SPECIFICATION SHEET

Standard Features:

®

• RinSave

• 7 speeds

• E-P PLUS

water saving technology

(2 wash, 1 distribution, 1 RinSave, 3 extract)

®

programmable controller

• Back-lit LCD display

• Single-motor inverter drive

• Tall, lifting ribs

• Tapered roller bearings

• High M.A.F. (Mechanical Action Factor)

• Large cylinder perforations

• Fresh-water flushing chemical manifold

• Auto tension V-belt drive

• Six (6) liquid chemical injection ports

• Control reads in English/second language

• 5-year limited warranty on frame, cylinder & shell

hy Purchase Milnor?

• RinSave

more efficient rinsing. BENEFIT: Saves water, energy, and time.

• Larger cylinder volume than most competitive similar sized washer-extractors

provides greater productivity. More linen washed per day, or fewer hours required
to process. BENEFIT: Saves labor.

• Faster process times reduce fabric wear, promoting longer linen life!

BENEFIT: Saves linen replacement costs.

• Tall perforated ribs provide excellent lift and high drop.

BENEFIT: Greater mechanical action (M.A.F.) leads to better wash quality.

• 215-G high extract (300-Gs with optional ExactXtract

removal. Lower extract speeds are available for uniforms, delicate textiles and
blended fabrics. BENEFIT: Better extraction saves dryer fuel.

• E-P Plus Controller with back-lit LCD display allows operator to choose formulas

from real words, not codes. Standard controller features English/Spanish (other
languages optional). Controller also provides diagnostic and error messages.
Shortens training time of new employees.

BENEFIT: Fewer operator errors.

• Superior product support through local, highly-skilled dealers.

BENEFIT: Faster repairs mean less downtime.

®

water saver in conjunction with large cylinder perforations provides

®

)provides excellent moisture

Contact Milnor for your local, authorized dealer:

Pellerin Milnor Corporation

P.O. Box 400 ● Kenner, LA 70063

t: 504-467-9591 ● f: 504-468-3094

Optional Features:

• ExactXtract

®

extraction

optimizer control

• Steam

• 5 compartment flushing

supply injector

• Prison package

Safe chemical injection

Superior cylinder design

Solid industrial frame

B22SS1005/10312 Page 2 of 2
