Page 1

AIRANGER SPL

Instruction Manual PL-573 March 2001

33455730 Rev. 1.2

Page 2

Safety Guidelines

Warning notices must be observed to ensure personal safety as well as that of others, and to protect the product and the connected equipment. These warning notices are accompanied by a clarification of the level of caution to be observed.

Qualified Personnel

This device/system may only be set up and operated in conjunction with this manual. Qualified personnel are only authorized to install and operate this equipment in accordance with established safety practices and standards.

This product can only function properly and safely if it is correctly transported, stored, installed, set up, operated, and maintained.

Warning

Note

Always use product in accordance with specifications.

Disclaimer of Liability

This document is available in bound version and in electronic version. We encourage users to purchase authorized bound manuals, or to view electronic versions as designed and authored by Siemens Milltronics Process Instruments Inc. Siemens Milltronics Process Instruments Inc. will not be responsible for the contents of partial or whole reproductions of either bound or electronic versions.

MILLTRONICS®is a registered trademark of Siemens Milltronics Process Instruments Inc.

While we have verified the contents of this manual for agreement with the instrumentation described, variations remain possible. Thus we cannot guarantee full agreement. The contents of this manual are regularly reviewed and corrections are included in subsequent editions. We welcome all suggestions for improvement.

Technical data subject to change.

Contact SMPI Technical Publications at the following address:

Technical Publications Siemens Milltronics Process Instruments Inc. 1954 Technology Drive, P.O. Box 4225 Peterborough, Ontario, Canada, K9J 7B1 Email: techpubs@milltronics.com

For the library of SMPI instruction manuals, visit our Web site:

www.milltronics.com

Page 3

Table of Contents

Specifications.............................................................................................................5

Electronics.......................................................................................................5

Programmer ....................................................................................................6

Transducer......................................................................................................6

Options............................................................................................................6

Cable...............................................................................................................7

Introduction ................................................................................................................9

About this Manual............................................................................................9

About the AiRanger SPL...............................................................................10

Important AiRanger SPL Features................................................................13

Installation ................................................................................................................15

AiRanger SPL................................................................................................15

Mounting........................................................................................................16

Interconnection..............................................................................................17

Optional Smartlinx

System Diagram............................................................................................18

Communication .............................................................................................20

SmartLinx

Level System Synchronization......................................................................22

Power............................................................................................................22

Programming............................................................................................................25

Display...........................................................................................................25

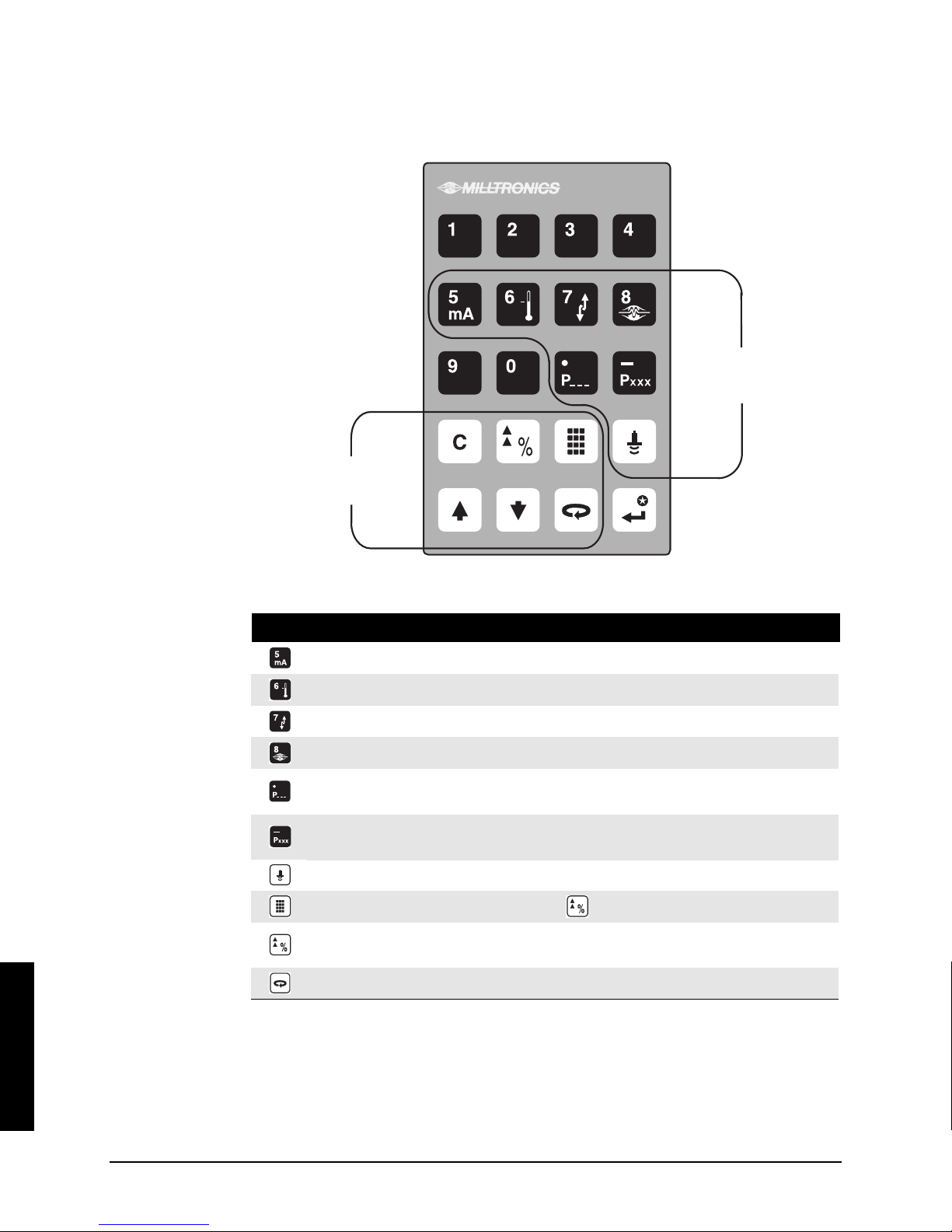

Keypad..........................................................................................................26

Program Mode Entry.....................................................................................27

Parameter Value Alteration...........................................................................27

Parameter Reset Features............................................................................27

Special Parameters.......................................................................................28

Programming Security...................................................................................28

Quick Start Parameters ...........................................................................................29

Operation ..................................................................................................................31

Display...........................................................................................................31

Keypad..........................................................................................................32

System Performance Evaluation................................................................... 33

Performance Test Results.............................................................................34

Application Parameters...........................................................................................35

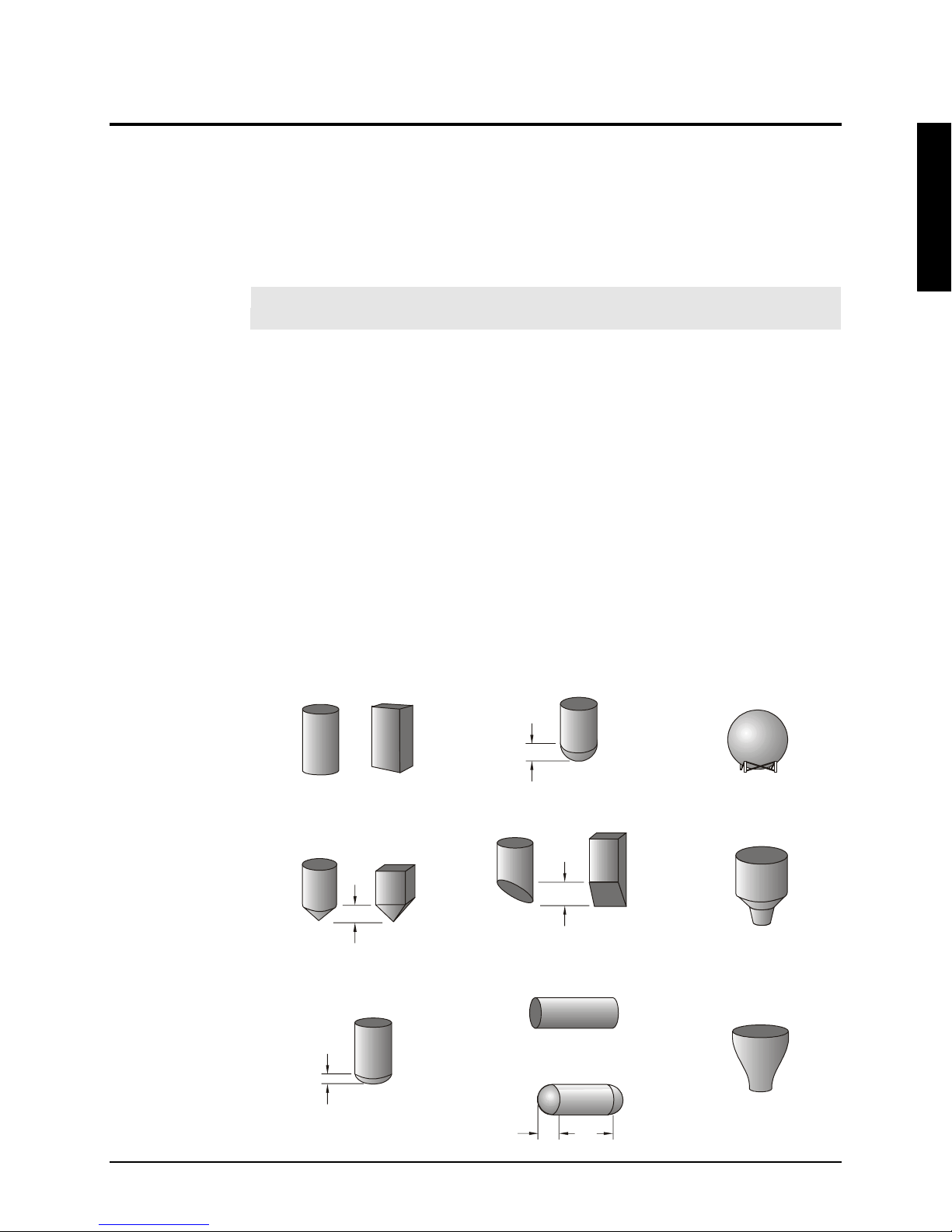

Volume Parameters (P050 to P055) .............................................................35

Failsafe Parameters (P070 to P072).............................................................39

Relay Parameters (P100 to P104, P110 to P113, P129)..............................41

mA Output Parameters (P200 to P203, P210 to P215, P219)......................48

Enhancement Parameters.......................................................................................51

Data Logging Parameters (P300 and P302).................................................52

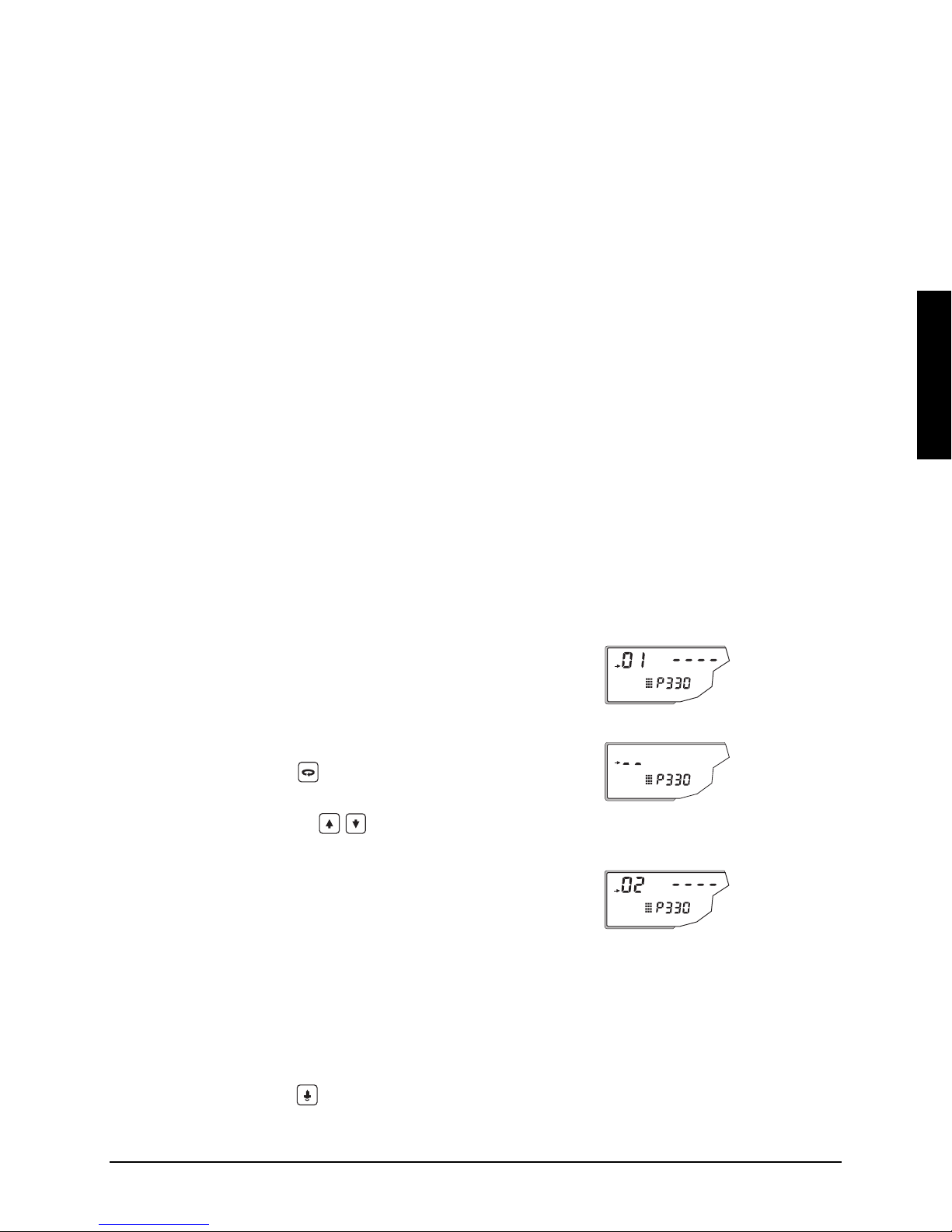

Profile Records (P330 to P337).....................................................................53

Installation Records (P340 to P342)..............................................................56

Range Calibration Parameters (P650 to P654).............................................56

Temperature Compensation Parameters (P660 to P664).............................59

Rate Parameters (P700 to P707)..................................................................60

Measurement Verification Parameters (P710 to P713).................................62

Module...........................................................................18

.....................................................................................................21

PL-573 AiRanger SPL Page 3

Page 4

Scanning Parameters (P725 to P729) ..........................................................64

Display Parameters (P730 to P733, P740) ...................................................65

Peri p h eral C o m m u n i c a t i o n S u p p ort P a r a m e t e r s (P740 to P749).....................67

SmartLinx

Parameters (P750 to P792).......................................................68

Echo Processing Parameters (P800 to P807) ..............................................69

Advanced Echo Processing (P810,P816-P825,P830-P835,P840-P845,P850-

P852).............................................................................................................72

Test Parameters (P900 to P913)...................................................................80

Measurement Parameters (P920 to P923)....................................................83

Master Reset (P999).....................................................................................85

Technical Reference ................................................................................................87

Transmit Pulse ..............................................................................................87

Echo Processing ...........................................................................................87

Distance Calculation......................................................................................88

Sound Velocity ..............................................................................................88

Volume Calculation .......................................................................................89

Measurement Response...............................................................................90

Application Examples....................................................................................91

Communication Support................................................................................98

Maintenance ........................................................................................................... 101

Troubleshooting Guide..........................................................................................103

Measurement Difficulties.............................................................................104

Flashing “LOE” Display ...............................................................................104

Fixed Reading.............................................................................................105

Wrong Reading ...........................................................................................106

Programming Charts .............................................................................................109

Page 4 AiRanger SPL PL-573

Page 5

Specifications

Electronics

Power:  ac:  100/115/200/230 V ac ±15%, 50/60 Hz, 31 VA

Specifications

Environmental:

Scan Points:

Range: Accuracy: Resolution: Memory: Programming: Display:

 location  indoor / outdoor  altitude  2000 m max  ambient temperature  –20 to 50°C (–5 to 122 °F)  relative humidity  suitable for outdoor (Type 4X / NEMA 4X / IP65

enclosure)

 installation category  II  pollution degree:  4

 1 point per AiRanger SPL max.  frequency independent

 Level Measurement:  0.3 m (1 ft) to 60 m (200 ft) max.  0.25% of range or 6 mm (0.24"), whichever is greater  0.1% of program range  EEPROM (non-volatile) no back-up battery required  via removable programmer or optional Dolphin Plus  Custom Graphics backlit LCD with 51 mm (2 in) x 127 mm (5 in) viewing

or 2 mm (0.08"), whichever is greater

area

Temperature Compensation:

 –50 to 150 °C (–58 to 302 °F)  integral transducer sensor  TS-3 temperature sensor  programmable fixed temperature

Temperature Error:

Outputs:

 with compensation: 0.09% of range  fixed temperature: 0.17% / °C deviation from programmed temperature.

 transducer drive: 150 to 315 V peak (transducer model dependent)  relays:  4 alarm/control relays

 1 form "C" SPDT contact per relay,  rated 5 A at 250 V ac, non-inductive

 analog:  1 output max.

 0.1% resolution

0-20 or 4-20 mA, scalable



 750 Ω, isolated, 30V rms

program range is defined as the empty distance to the face of the transducer (P006) plus any range extension (P801).

PL-573 AiRanger SPL Page 5

Page 6

Communications:  SmartLinx® compatible (see Options)

 RS-232 / 485 port  Dolphin compatible  proprietary bipolar current loop for BIC-2 communication

Specifications

Programmer

Enclosure:

Weight: Approvals:

 Type 4X / NEMA 4X / IP65  285 mm W x 209 mm H x 92 mm D (11.2" W x 8.2" H x 3.6" D)  polycarbonate

 2.7 kg (6 lb)  See device nameplate.

Power:  9 V (ANSI/NEDA 1604, PP3 or equivalent) Ambient Temperature: Keypad: Interface: Enclosure:

 –20 to 50°C (–5 to 122°F)  20 keys with tactile feedback  non-invasive, digital, infra-red  general purpose

 67 mm W x 100 mm H x 25 mm D (2.6" W x 4" H x 1" D)  ABS plastic

Weight:

 150 g (0.3 lb)

Transducer

Compatible Models:  ST Ultrason® , LR, STH and Echomax® series

 Refer to the associated instruction manual.

Options

Temperature Sensor:  TS-3 Buffered Interface Converter:

 BIC-II, SPL bipolar communication current loop to remote RS232 or RS422

port

SmartLinx

Dolphin Plus:

Modules

 protocol specific modules for interface with popular industrial communication

systems. Refer to associated product documentation.

 Milltronics Windows

-compatible interface and infrared ComVerter link

Refer to associated product documentation.

Page 6 AiRanger SPL PL-573

Page 7

Cable

Transducer: RG-62 A/U (or equivalent), 365m (1,200 ft) max.

See transducer instructions for short ex tensions (in grounded metal conduit, separate from other wiring)

mA Output: Belden 8760, shielded / twisted pair, 18 AWG (0.75 mm

maximum separation 1,500 m (5,000 ft) Synchronisation: Belden 8760, shielded / twisted pair, 18 AWG (0.75 mm Relays: No shielded cable necessary

) or equivalent

Specifications

Bipolar current loop: Belden 8760, shielded / twisted pair, 18 AWG (0.75 mm

maximum separation 1,500 m (5,000 ft) Temperature Sensor: Belden 8760 shielded / twisted pair, 18 AWG (0.75 mm

365 m (1200 ft) per TS-3 maximum RJ11 Link: No shielded cable necessary

maximum length 3 m (10 ft) RS-232 Link: Belden 8770, 3 conductor/shielded, 18 AWG (0.75mm

maximum separation 15m (50ft) RS-485 Link: Belden 8770, 3 conductor/shielded, 18 AWG (0.75mm

maximum separation 1200m (4000ft) Smartlinx

module: refer to the associated instruction manual.

) or equivalent

PL-573 AiRanger SPL Page 7

Page 8

Specifications

Page 8 AiRanger SPL PL-573

Page 9

Introduction

About this Manual

This instruction manual provides information specific to the AiRanger SPL (Single Point Level) monitor.

When references are made to other Milltronics products associated with an AiRanger SPL based level measurement system, refer to the associated product instruction manuals, if necessary.

After reading this Introduction and completing the physical Installation, first time system installers may wish to use the AiRanger SPL Quick Start Guide, PL-431 for step by step start up instructions.

Introduction

Specifications

Introduction

Installation

Programming

Quick Start Parameters

Operation

Application Parameters

Enhancement Parameters

Technical Reference

Troubleshooting Guide

Programming

Chart provides a convenient space to record all programming

lists the environmental, physical, and operational characteristics associated with the SPL.

introduces installers and operators to the SPL, with brief descriptions of key features.

provides a step by step procedure to install and interconnect a SPL based level measurement system.

defines program mode display and keypad functions, and general programming information.

details the minimum recommended programming required to prepare the SPL for RUN mode operation.

defines RUN mode display and keypad functions, including the RUN mode entry procedure and performance evaluation recommendations.

details the programmable features which may be used to alter Run mode display, failsafe, relay, and mA output operation.

defines the programmable features used to enhance RUN mode operation. (Typically used as directed by the Troubleshooting Guide).

provides detailed information for complex features and details 2 specific application examples.

provides a quick reference to installation modification and programming remedies to overcome challenging operating conditions.

for future reference.

REMEMBER!

"Programming is not complete until the Programming Chart is completed".

PL-573 AiRanger SPL Page 9

Page 10

Introduction

About the AiRanger SPL

Note:

The AiRanger SPL is to be used only in the manner outlined in this instruction manual.

This microprocessor based level monitor is designed specifically for bulk solids and liquid level measurement applications. A SPL level monitor, utilizing a single Milltronics ultrasonic transducer (ordered separately), accurately monitors vessel material level without material contact.

The

SPL

transmits electronic pulses to the ultrasonic transducer. The transducer converts the electronic pulses to ultrasonic pulses which are emitted from the transducer face in a narrow beam. The SPL measures the time from the pulse emission, to receiving the reflection (echo) from the material. Using the time measured, the SPL calculates the distance from the transducer face to the material.

The distance calculation is dependent upon the sound velocity within the vessel. When a Milltronics ultrasonic/temperature transducer is used, variable air temperatures are automatically compensated. For superior air temperature compensation, a Milltronics TS-3 temperature sensor may be used. A simple calibration feature compensates for atmospheres other than air.

homogeneous

(consistent composition)

The SPL is capable of monitoring wheat in 60 m (200 ft) high silo's, acetone in 45 gallon barrels, or almost anything in between.

This material and measurement range versatility is accomplished by utilizing Milltronics patented Sonic Intelligence measurement reliability, regardless of changing conditions within the vessel monitored.

Page 10 AiRanger SPL PL-573

. Sonic Intelligence provides high

Page 11

By utilizing ultrasonic echo ranging principles with Sonic Intelligence and velocity compensation, the SPL provides outstanding measurement accuracy, usually within

0.25% of range.

The distance calculation may be converted to space, material level, material volume, or remaining vessel capacity. The Reading chosen (and operating data) is displayed on the

Liquid Crystal Display

(LCD).

The relays and mA output may be used as preset (or programmed as desired) to activate alarms and/or operate remote monitoring equipment and/or process control equipment.

plant-wide

control system

network

Introduction

SmartLinx

0/4—20mA

(PLC or DCS)

bipolar

current loop

(remote)

RS-232 or 485

(local)

RS-232 or 422

As well, the SPL may be connected to a Milltronics

BIC-II

(Buffered Interface Converter) to provide RS-232C and/or RS-422 communications for host computers, Distributed Control Systems, and

special

(capable of operating as a host device)

Programmable Logic Controllers.

With the addition of a Milltronics Smartlinx module, the SPL is compatible with popular industrial control system standards.

Programming can be done locally using the portable programmer keypad, or remotely through optional Dolphin Plus software or SmartLinx

PL-573 AiRanger SPL Page 11

protocol specific ‘plug-in’ communications

Page 12

Introduction

The programmer transmits the keypad entries via infrared link to the SPL, and can be

•

removed when not in use. Dolphin allows programming either through the portable ComVerter and infrared link

•

or hardwired via the RS-232/485 communication port. SmartLinx

•

provides protocol specific hardware and software for interface with

popular industrial communication systems.

While the SPL is typically used to monitor material level in open or closed vessels, any process which requires a distance measurement (within the system range) is a candidate for SPL application.

Refer to Technical Reference / Application Examples for detailed descriptions of a small sample of process measurement requirements to which the SPL may be applied.

Throughout this manual (unless stated otherwise) references to material level also apply to any material or object surface to be monitored by the SPL.

Page 12 AiRanger SPL PL-573

Page 13

Important AiRanger SPL Features

Fixed Features

Enclosure:

Backlit LCD:

Programmer:

Communications:

Speed:

Reliability:

Chemical resistant, light weight, dust tight, liquid tight, easy to work with.

Large digits for Reading and programming value displays.

Illuminated LCD insures readability under all lighting conditions.

Custom Graphic Symbols for continuous indication of operating conditions.

20 tactile feedback keys for easy access to programming and operating functions.

Magnetic mounting and infrared interface permit removal on programming completion.

SmartLinx® Compatible

Communications ready when equipped with an appropriate Milltronics SmartLinx module.

Milltronics Peripherals

The communication port provides connection for RS232, RS-485 or Milltronics bipolar current loop. The current loop provides remote communication via Milltronics BIC II to the peripheral device. The BIC II converts the current loop to RS-232 or RS-422 signal

Dolphin Compatible Communications

Dolphin Plus is Milltronics’ Windows95

-compatible software. It offers local interface through the infrared ComVerter, or remote connection through the RS232 or RS-485 port. The software provides an easy means for programming, uploading, or downloading parameters.

Fast 16/32 bit microprocessor at 16.7 MHz clock speed. 1 vessel (point) per second scanning speed capability.

Surface Mount Technology (SMT), also provides for full features in a compact design. Sonic Intelligence

ensures all measurements are accurate and reliable. Immune to power interruptions. All programming is stored indefinitely. Dynamic operating data is retained for one hour and updated immediately on power resumption.

Introduction

PL-573 AiRanger SPL Page 13

Page 14

Programmable Features

Typically, a very small percentage of the programmable features require operator alteration. However, for demanding measurement requirements any operator programmable feature may be adjusted as desired.

Following is a list of some of the features that make the SPL easy to program, yet versatile enough to handle complex level measurement requirements.

General Features

Introduction

Direct Access:

Scroll Access:

Operation:

Material:

Response:

Units:

Additional Features (use as desired)

Volume:

Failsafe:

Relays:

mA Output:

Any operator programmable feature may be accessed directly.

Single button "scroll forward", single button "scroll back", to key features.

Select "level", "space", "distance", "difference", "average", or "tripper" operation.

Liquid or Solid; automatically adjusts echo processing with one entry.

Slow, medium, fast, surge, or immediate response to material level changes, one entry.

Display Readings in m, cm, mm, ft, in, %, or any other units desired.

8 pre-programmed tank shape options. 2 universal tank shape programming methods

Numerous failsafe options for process control equipment activation.

8 functions including level, rate of change, pump control, temperature and more. Fixed or independent on/off setpoints

Based on level, space, distance, or volume 4 range selections, 0-20, 4-20, 20-0, or 20-4 mA Adjustable range and over-range limits

Page 14 AiRanger SPL PL-573

Page 15

Installation

Note: Installation shall only be performed by qualified personnel, and in accordance with local governing regulations.

The following procedure applies to all SPL level monitor installations. See Application Examples for additional installation requirements. Also, refer to the instruction manuals of all other equipment connected to the SPL for additional installation instructions.

AiRanger SPL

Location

Inspect all potential mounting locations. Choose a location suited to the SPL polycarbonate enclosure and the following location recommendations.

The ideal SPL mounting location:

• is conformant to the units specifications

• provides clearance to swing open the front cover and perform the required wiring

connections

• provides access for viewing

• is vibration free

Installation

Avoid a location that is:

• exposed to continuous direct sunlight. (Otherwise, provide a sun shield.)

• close to high voltage or current runs, contactors, or SCR control drives

Cable/Conduit Entry Requirements

Determine the number of enclosure cable/conduit entries required for:

• Transducer

• TS-3 temperature sensor (if used)

• mA output (if used)

• Relays (if used)

• Synchronization (see Interconnection/Level System Synchronization)

• Power

• Communications: Smartlinx

Note:

Transducer cable must be run in a grounded metal conduit, separate from other wiring, (except TS-3 temperature sensor wiring, if applicable).

, RS-485, RS-232, bipolar.

PL-573 AiRanger SPL Page 15

Page 16

Mounting

Inspect all cartons and packaging for possible damage during shipment, before removing the SPL and associated equipment.

1. Loosen the 6 enclosure lid (captivated) screws and swing the lid open.

2. Remove the 4 Board B mounting screws (outer corners) and remove the circuit board assembly.

3. Drill sufficient holes in the enclosure bottom to meet enclosure cable/conduit entry requirements.

4. Attach the enclosure to the selected mounting surface. (4 predrilled screw holes provided.)

5. Attach the conduits/cable hubs to the enclosure. (Do not apply undue force.)

6. Reinstall the circuit board assembly.

Installation

209 mm

(8.2”)

172 mm

(6.8”)

285 mm

(11.2”)

267 mm

(10.5”)

Suitable location for conduit entrances.

Use water tight conduit hubs to maintain the enclosure rating.

lid screw (6 places)

programmer

(hinged)

mounting hole, 4.3 mm (0.17”)

diameter, access under lid

Warnings:

•

Non metallic enclosure does not provide grounding between

connections. Use grounding type bushings and jumpers.

•

This product is susceptable to electrostatic shock. Follow proper

grounding procedures.

106 mm

(4.2”)

lid

customer mounting screws

(4 places).

Transducer Mounting

Objects near the transducer face cannot be reliably detected. Mount the transducer above the highest material level (away from the nearest monitored object) by the following

Nearest Distance Transducer Types

0.45m (1.5ft) XCT-8, XCT-12

0.3m(1 ft) ST-H, ST-25, XRS-5, XKS-6, XPS-10, XPS-15, ST-50

0.6m (2 ft) XPS-30, XPS-40

0.9m (3 ft) ST-100, LR-21, XLT-30, XLS-30

1.2m.(4 ft) LR-13

1.8m (6 ft) XLT-60, XLS-60

Page 16 AiRanger SPL PL-573

Nearest Distance

Page 17

Interconnection

Before interconnecting system components to the SPL terminals, verify all components have been installed in accordance with the associated product instruction manuals.

Connect all associated equipment cable shields to the SPL shield connections. To avoid differential ground potentials, do not connect cable shields to ground (earth) elsewhere. Insulate (tape) cable shields at all shield junctions to prevent ground loops.

display

scope

connections

optional

SmartLinx

module

board A

EPROM

Installation

voltage

select

communication

mode LED

terminal block

board B

Warnings:

•

All field wiring must have insulation suitable for at least 250V.

•

Hazardous voltage present on transducer terminals during operation

•

Relay contact terminals are for use with equipment having no accessible

live parts and wiring having insulation suitable for at least 250V.

PL-573 AiRanger SPL Page 17

Page 18

Optional Smartlinx® Module

The SPL is software/hardware ready to accept an optional Milltronics Smartlinx communications module that provides an interface to one of several popular industrial communications systems.

Installation

Your SPL may be shipped to you without a SmartLinx later date.

If you are ready to install you SmartLinx procedure as outlined on page 21.

System Diagram

AiRanger SPL

optional SmartLinx

module, for installation at a

module, or want to change it, follow the

Milltronics transducer

mA output

relay output

see Specifications

Milltronics temperature sensor

customer device

customer alarm, pump or control device

point to point communication

fieldbus communication

Milltronics BIC-2, Dolphin, or customer device

industry control system such as PLC or DCS, SCADA, etc.

Note:

Maximum system capability. Not all components or their maximum quantity may be required.

Page 18 AiRanger SPL PL-573

Page 19

Transducer

to transducer

Temperature Sensor

Notes:

Transducer cable must be run in a grounded

•

metal conduit separate from other wiring (except TS-3 temperature sensor wiring, if applicable).

•

Hazardous voltage present on transducer terminals during operation.

Relays

to TS-3

All relays are certified for use in equipment where the short circuit capacity of the circuits in which they are connected is limited by fuses having ratings not exceeding the rating of the relays.

Note:

Relays are shown in deenergized state.

Note:

Use TS-3 temperature sensors only. Don't jumper the terminals if TS-3's are not used.

Installation

See Specifications for ratings.

PL-573 AiRanger SPL Page 19

to customer’s equipment

Page 20

mA Output

0/4-20mA isolated ouput to

Communication

Notes

•

via LED on the motherboard.

•

750Ω max

The communication protocol is automatically detected by the

Ground shield at one end only.

and shown

SPL

Installation

Serial

RS-232 RS-485

to customer device,

RS-232 port

15m (50 ft) max

to customer device,

RS-485 port

1200m (4,000 ft) max

Page 20 AiRanger SPL PL-573

Page 21

Bipolar Current

Connect the Milltronics BIC-II (if required) to the Peripheral Communications terminals as below.

refer to BIC-II instruction manual

SmartLinx

Refer to the appropriate SmartLinx® manual for installation and wiring.

Installation Procedure

With power off and SPL lid opened:

1. Remove the 4 LCD card screws and the card itself.

2. Remove the one dummy card screw and the card itself.

3. Mount the card by mating the connectors and secure the card in place using the two screws provided.

Note:

Refer to the Smartlinx® module documentation for any required hardware settings prior to replacing the LCD card or closing the SPL lid.

Belden 8760 (or equivalent), 18

AWG, 2 wire, shielded/twisted,

1500 (5000 ft) max.

to RS-232 or RS-422 host device, 15 m (50 ft), or 1200m (4,000 ft) max respectively.

Installation

4. Replace the LCD card and secure in place using the screws removed in Step 1.

PL-573 AiRanger SPL Page 21

LCD card

SmartLinx® module

dummy card

board A

Page 22

Installation

Level System Synchronization

Avoid mounting the SPL near another ultrasonic level monitor. Likewise, when more than one monitor is installed within a single plant/facility, ensure the transducer cables of each system are run in separate grounded metal conduits. If this system separation is impractical, or despite separation efforts measurement difficulties are encountered, system synchronization may be required.

To synchronize the SPL with another SPL…

1. Mount the level monitors together in one cabinet.

2. Ensure the level monitors share a common power (mains) supply, and ground (earth).

3. Interconnect the SYNC terminals of the level monitors to be synchronized.

Note:

To synchronize the SPL with other Milltronics ultrasonic level monitors, contact Milltronics or your local distributor.

Power

Note:

Before making the power connection, ensure proper voltage selection.

AC Supply Wiring

Voltage switch shown in the

Notes:

• The equipment must be protected by a 15 A fuse or circuit breaker in the

• A circuit breaker or switch in the building installation, marked as the disconnect

• Never operate the SPL with the enclosure lid open, or with the ground (earth)

• Ensure that any associated alarm or control equipment is disconnected until

‘OFF’ position. Select

appropriate voltage.

building installation.

switch, shall be in close proximity to the equipment and within easy reach of the operator.

wire disconnected.

satisfactory operation is verified.

100/115/200/230 V

50/60 Hz

Select voltage via switch.

Page 22 AiRanger SPL PL-573

Page 23

Programmer

Dolphin ComVerter

The hand programmer fits into the docking bay and is kept there by a magnet.

Use the hand programmer to change individual parameters.

The ComVerter fits into the docking bay similarly to the hand programmer and provides communications with a PC running Dolphin Plus (available separately).

Installation

PL-573 AiRanger SPL Page 23

Page 24

Installation

Page 24 AiRanger SPL PL-573

Page 25

Programming

Operator programmable features are identified by a Point Number and Parameter Number. The Point Number refers to the Relay Number as identified by the Point Type indicators. Parameter Numbers have a preset Parameter Value for each Point Number.

Programming is accomplished by altering the preset Parameter Values as required to obtain the RUN mode operation desired. All operator programmable features are defined in the Quick Start Parameters, Application Parameters, and Enhancement Parameters sections of this instruction manual.

Display

In the program mode, the Point Type, Point Number, Parameter Number, and Parameter Value (as well as a variety of other programming information) may be viewed.

Note that many indicators are specific to certain programming conditions and therefore, all indicators are not displayed at any given time.

auxiliary

function

scroll

access

tag

point type

transducer relay analog output

TS-3 index

relay in service

point number

program

mode

parameter value units

parameter

number

invalid

entry

Display Segment Description

Parameter Number the programmable feature the Parameter Value pertains to. Point Type the Point Number refers to a Relay, mA Output, or TS-3. Point Number the Relay or Index number the Parameter Value pertains to. Parameter Value the current value of the Parameter Number for the Point

Number displayed. Percent indicates the Parameter Value is displayed in percent. Invalid Entry indicates the value entered is questionable (are you sure?). Auxiliary Function indicates Auxiliary Function access (applies to only some

Parameter Numbers). Scroll Access Tag indicates the Parameter Value may be scroll accessed. Program Mode indicates the program mode is accessed.

Programming

PL-573 AiRanger SPL Page 25

Page 26

Keypad

In the program mode, use the SPL programmer keys to perform the identified functions.

numeric

key values

function keys

Programming

Key Description

shift access to Point Number, Parameter Number, or Parameter Value display.

input the numeric value into the accessed display. input a Parameter Value decimal point (moves Profile and TVT Pointers

left). input a negative Parameter Value (moves Profile and TVT Pointers right).

delete the current Parameter Value display (initiate a parameter reset). store the current Parameter Value in memory (complete a parameter

reset). switch the Parameter Value to % or Units (access Auxiliary Parameter

Function). increase the accessed display value.

decrease the accessed display value. take an ultrasonic measurement. enter the RUN mode.

Page 26 AiRanger SPL PL-573

Page 27

Program Mode Entry

Upon initial power application, the SPL displays "OFF".

To enter the program mode...

1. Ensure the enclosure lid is secured by the 6 captivated screws.

2. Place the infrared programmer in the enclosure lid recess (no wiring or fastening required).

3. Press

When the program mode is entered after RUN mode operation, all operating data is retained in memory. Relay status and mA output values are "held" at "last known" values (unless affected by a parameter alteration or

mode is re-entered. The RUN mode is automatically re-entered if the SPL is left unattended in the program mode for an extended period.

Parameter Value Alteration

In the program mode...

1. Press a. Key in the desired Parameter Number,

b. Press

(As preset, Quick Start Parameters, and previously altered parameters may be scroll accessed ).

2. Press a. Key in the desired Point Number,

as required to underline the Parameter Number display field and...

or as required

as required to underline the Point Number display field and...

direct access

(

(scroll access)

direct access

(

is pressed) until the RUN

or...

)

Programming

or...

)

b. Press

To alter the Parameter Value for all Point Numbers at once, select Point Number 00.

3. With the desired Parameter Number and Point Number displayed... Key in the desired Parameter Value and press

Notes:

• Record each Parameter Value alteration on the appropriate Programming Chart

for future reference, (especially should complete reprogramming be required).

• If Parameter Value alteration is not permitted, access the Lock parameter

(P000) and enter the security code (See Programming Security).

or as required

(scroll access)

Parameter Reset Features

On initial power up, all parameters are at "original" values. In many cases, when a Parameter Value is altered, associated Parameter Values are automatically altered accordingly. When a Parameter Number is accessed, if the preset Parameter Value displayed is acceptable, no entry is required.

PL-573 AiRanger SPL Page 27

Page 28

To return an operator adjusted Parameter Value to the preset value, with the appropriate Point Number and Parameter Number displayed press

To reset all parameters to preset values, refer to Master Reset (P999).

Note:

Perform a Master Reset (P999) if the SPL was "bench tested" using arbitrary Parameter Values before system installation, following an EPROM replacement, or whenever complete reprogramming is required.

Special Parameters

Some Parameter Values are for display purposes only and cannot be operator altered. These are referred to as this instruction manual, View Only parameters are identified by a "(V)" beside the Parameter Number.

Some Parameter Values must be common for all Point Numbers. These are referred to as

global

display automatically switches to Point Number 00, and returns to the Point Number previously selected when a non-global parameter is accessed. In the parameters sections of this manual, Global parameters are identified by a "(G)" beside the Parameter Number.

, .

view only

parameters. When a global parameter is accessed, the Point Number

parameters. In the parameters sections of

Programming

Programming Security

All operator programming is retained in non-volatile memory, immune to power interruptions. When programming is complete, the programmer may be removed and locked away to prevent inadvertent programming alteration. As well the Lock (P000) parameter may be used.

Security Parameter

P000 (G) Lock

Use this feature (if desired) to secure all programming from inadvertent alteration.

Direct access (cannot be scroll accessed) this parameter after all programming is complete and enter any value (other than 1954) to activate the programming Lock.

When Lock is activated, the SPL may be switched from the RUN mode to the program mode and the value of any parameter may be viewed but not altered. To unLock, direct access this parameter and enter the value "1954".

This parameter cannot be reset by pressing

Values:

1954 = off (Parameter Value alteration permitted)

-1 = control relays active during simulation

other = activated (programming secured)

Page 28 AiRanger SPL PL-573

Page 29

Quick Start Parameters

Alter the Quick Start Parameters as required to suit installation requirements.

Note:

If the Quick Start Guide (PL-431) was used, proceed to Application Parameters

Refer to Technical Reference Application Examples for assistance, if required.

P001 Operation

Enter the type of RUN mode operation desired. Select:

"level", display Empty (P006) to material level distance . "space", display Span (P007) to material level distance. "distance", display transducer face to material level distance. "out-of-service"the transducer is not fired, alarm relay(s) energize, pump relay(s) de-

energize, and mA output(s) go to the Empty vessel value.

Values:

0 = out-of-service 1 = level 2 = space 3 = distance (preset)

P002 Material

Enter the type of material to be monitored.

If the material presents a flat surface perpendicular to the transducer beam, select liquid.

Values:

1 = liquid or flat surface (preset) 2 = solid

P003 Measurement Response

Enter how quickly the SPL is to respond to changing measurements.

Note:

Slower Measurement Response improves stability and reliability.

Values:

1 = slow ( 0.1 m / min ) 2 = medium ( 1 m / min ) (preset) 3 = fast ( 10 m / min ) 4 = surge ( 1.7 m / sec ) 5 = immediate ( 17 m / sec )

Quick Start Param.

PL-573 AiRanger SPL Page 29

Page 30

P004 Transducer

Enter the type of transducer connected to the SPL.

Values:

0 = not entered 100 = ST-H 106 = XPS-40 1 = ST-25 101 = XCT-8 107 = XLT-30 2 = ST-50 102 = XPS-10 108 = XLT-60 3 = ST-100 103 = XCT-12 109 = XLS-30 4 = LR-21 104 = XPS-15 110 = XLS-60 5 = LR-13 105 = XPS-30 111 = XKS-6

P005 (G) Units

Enter the units of measure desired for programming Empty (P006) and Span (P007). Values:

1 = metres (m) (preset) 2 = centimetres (cm) 3 = millimetres (mm) 4 = feet (ft) 5 = inches (in)

112 = XRS-5

Quick Start Param.

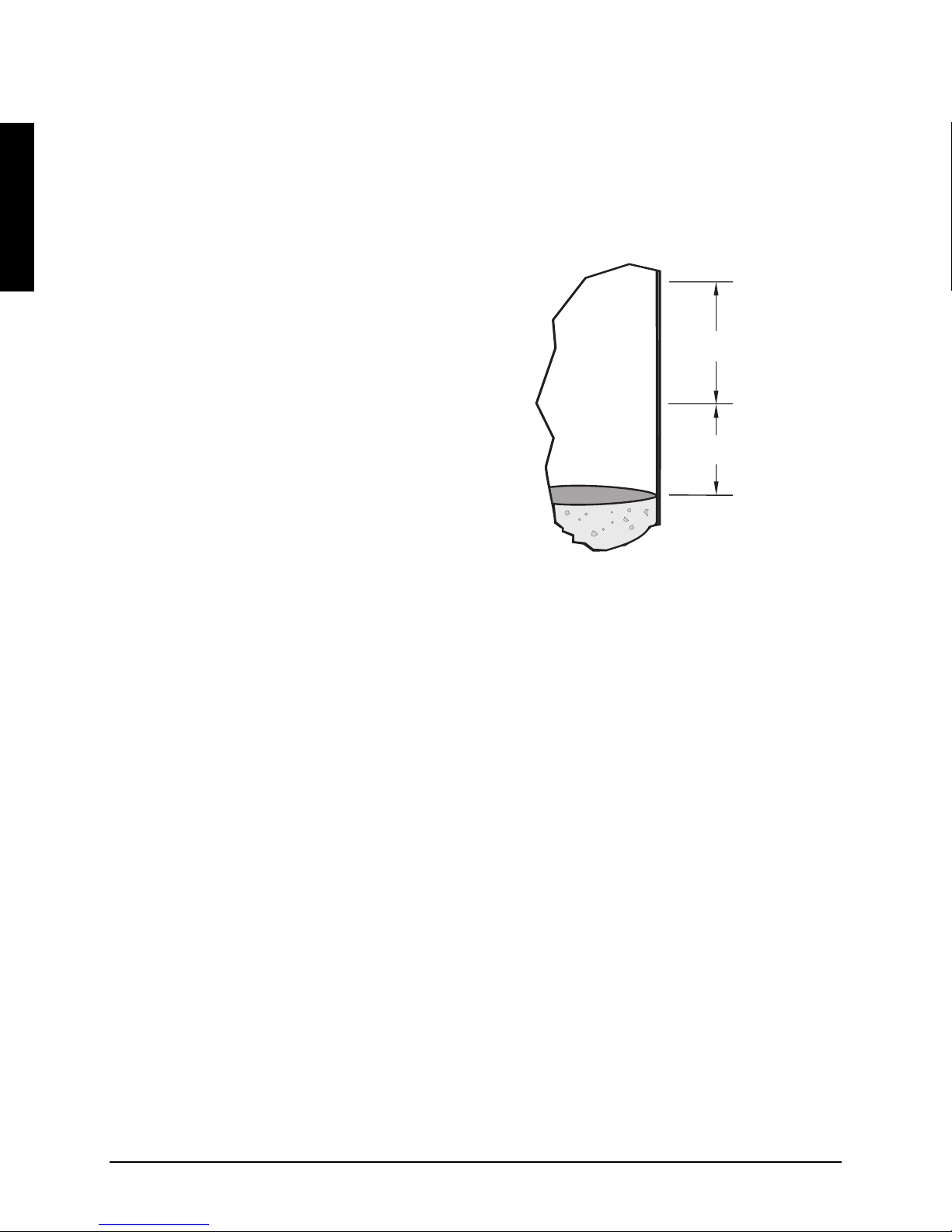

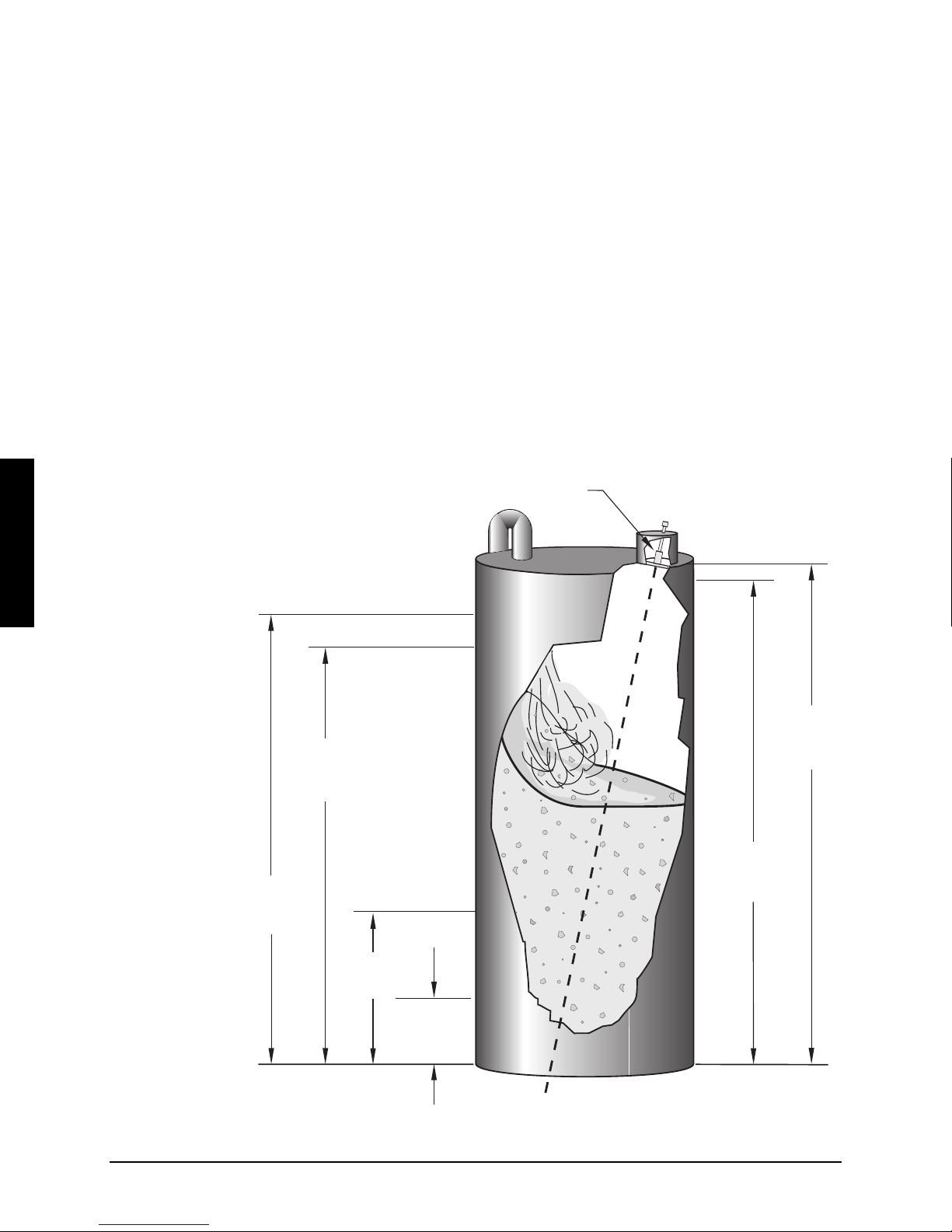

P006 Empty

P007 Span

Enter the

maximum distance

(transducer face to vessel bottom) to be measured, in Units.

This value is preset to 5.000 m (or equivalent Units programmed).

The value entered automatically sets Span (P007) to the maximum recommended value.

Values:

0.000 to 9999

Enter the maximum surface distance from Empty (P006).

Span is automatically preset to 1.1 x the blanking value (P800) less than the Empty value (P006), unless it is altered manually.

For "distance" Operation (P001 = 3), Span is preset to the Empty value (P006).

Enter a lower value if desired. If the automatic setting is not high enough, mount the transducer higher (see Installation Transducer Mounting) and enter the new Empty (P006) distance.

Values:

0.000 to 9999

Note:

With the Quick Start Parameters altered as required, proceed to Operation to identify / verify basic system performance.

Page 30 AiRanger SPL PL-573

Page 31

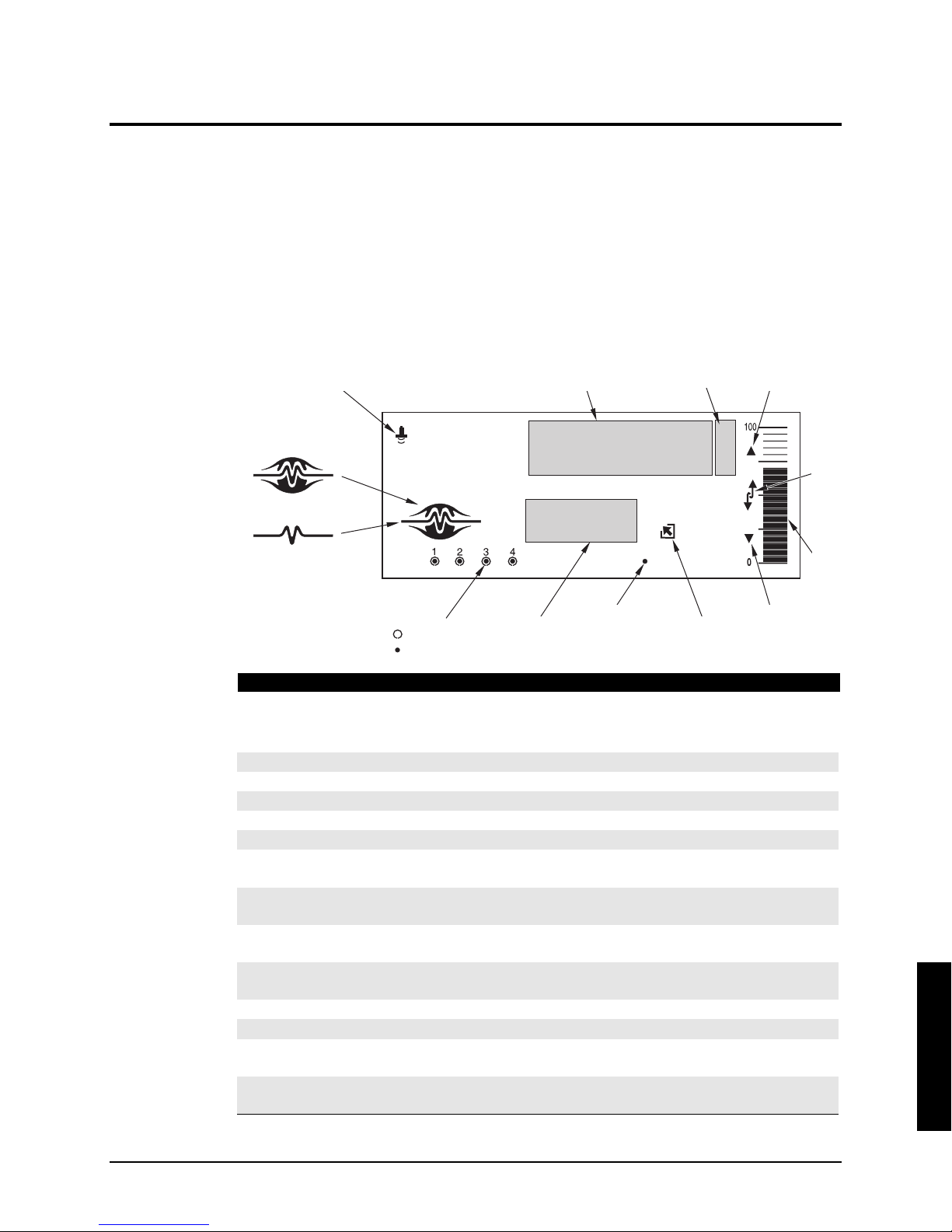

Operation

Display

With Quick Start parameter alteration complete, the SPL may be put into operation. (If Application or Enhancement Parameters are altered, Operation is altered accordingly from that indicated).

In the RUN mode, the following values and indicators may be observed.

Note that many indicators are specific to certain operating conditions and therefore, all indicators are not displayed at any given time.

transducer reading

normal

operation

failsafe

operation

number status

auxiliary

reading

transducer

active

units

data out

indicator

high alarm

indicator

low alarm

indicator

Display Segment Description

Transducer the current display pertains to a transducer measurement. Reading

displays the level, space, or distance (flashes error messages, if

any). Percent the Reading is in percent. High Alarm indicates level has risen above 80% (and not yet fallen below 75%). Low Alarm indicates level has fallen below 20% (and not yet risen above 25%). Filling Indicator indicates the vessel is filling. Emptying Indicator indicates the vessel is emptying.

Bar Graph Data Out Transducer Active Auxiliary Reading

indicates the

from 0 to 100%.

indicates the SPL is transmitting data to the Peripheral

Communications terminals.

indicate the Point Number scanned (independent from the

Point Number display).

as selected by the keypad (terminal numbers if transducer or

TS-3 is wired wrong).

absolute

(always a positive value) material level

Relay Number indicates the relays programmed for operation. Relay Status indicates the relay is de-energized (alarm is activated).

Normal Operation Failsafe Operation

indicates operating conditions are good and the Reading is

reliable.

indicates operating conditions are poor and the Reading may

be incorrect.

filling/ emptying indicator

bar graph

Operation

PL-573 AiRanger SPL Page 31

Page 32

Keypad

In the RUN mode, the following programmer keys perform the identified functions.

auxiliary

reading

keys

function

keys

Operation

Key Description

selects the Auxiliary Reading "mA output value". selects the Auxiliary Reading "vessel atmosphere temperature". selects the Auxiliary Reading "rate of material level change". selects the Auxiliary Reading "failsafe time left" (in percent).

selects the Auxiliary Reading "parameter value" (Key in any Parameter Number).

selects the Auxiliary Reading "material level" (may be operator altered via P731).

selects the Auxiliary Reading "distance" (material level to transducer face). initiates program mode access (see switches the Reading between "Units/percent of Span" (completes

program mode access). stops/starts the Point Number auto display scroll.

Page 32 AiRanger SPL PL-573

Page 33

System Performance Evaluation

For initial RUN mode entry (or after any programming alteration), do not use the SPL to operate process control equipment until satisfactory system programming and performance is verified.

1. Press

"----" may be displayed briefly while the SPL takes measurements and calculates the Reading.

If an alarm symbol is displayed, the corresponding relay is de-energized.

2. Press (P001).

* Objects close to the transducer face (0%) are not detectable.

3. Press Reading).

to enter the RUN mode...

Point # Alarm Indicator Relay #

1 High Alarm 1 1 Low Alarm 2

to display Readings in

Operation Level Space, Distance*

Empty to Full = 0 to 100% 100 to 0%

to observe the mA output value for the Point Number displayed (Auxiliary

(percent of Span, P007) based upon Operation

Operation Level Space, Distance*

Empty to Full = 4-20 mA 20-4 mA

* Objects close to the transducer face (4 mA) are not detectable.

4. Press activation).

Each time a valid measurement is made, this value (Auxiliary Reading) is reset to 100 and begins to fall toward 0 until the next valid measurement is made.

If the Failsafe Time Left reaches 0, the SPL flashes "LOE" in the Reading display.

All associated data is supplied to the Peripheral Communications terminals (27 and

28). If a BIC-II is connected, refer to Technical Reference BIC-II Support for message format and protocol information.

to observe the

Failsafe Time Left

(time left in percent before failsafe

Operation

PL-573 AiRanger SPL Page 33

Page 34

Performance Test Results

Monitor system performance carefully, under all anticipated operating conditions.

A. If the SPL performs exactly as required, copy all Parameter Value alterations to the

Programming Charts in the back of this instruction manual. (Altered Parameter Values may be scroll accessed). No further action is required. The SPL will continue performing reliably, with little or no maintenance.

B. If a measurement difficulty is encountered (the "LOE" display persists after start up),

or performance does not meet installation requirements, proceed to the Troubleshooting Guide

C. If the SPL provides accurate and repeatable measurements, however alternate

Reading units, failsafe action, relay, or mA output operation is desired, proceed to Application Parameters

If all operating conditions cannot be observed during the System Performance Evaluation, refer to Enhancement Parameters Reading Measurement (P920). Perform a Reading Measurement simulation to verify programming.

Ensure the Programming Charts are altered accordingly, and a new System Performance Evaluation is conducted, following any operation alteration or measurement difficulty remedy.

Note:

Connect (or enable) process control / alarm equipment to the SPL only after satisfactory performance is verified for all possible operating conditions.

Operation

Page 34 AiRanger SPL PL-573

Page 35

Application Param.

Application Parameters

P055)

P053)

This section identifies the SPL operator programmable features which may be used to modify the SPL display, failsafe, relay, and/or mA output operation.

Volume Parameters (P050 to P055)

If Readings proportional to volume are desired, adjust the following parameters.

Note:

If Volume Conversion is not required, proceed to Reading Parameters.

P050 Tank Shape

Enter the Tank Shape option that matches the vessel monitored.

If the Tank Shape option selected, requires additional vessel dimension entry, the associated parameters (as indicated below) may be scroll accessed.

When Operation is "level" (P001 = 1), material volume is calculated. Alternatively, when Operation is "space" (P001 = 2), remaining vessel capacity is calculated.

In the RUN mode, Readings are displayed in percent of (and mA outputs are proportional to) maximum volume. To convert Readings to volumetric units, see Max Volume (P051).

Values:

0 = volume calculation not required (preset)

flat bottom spherical bottom (P052)

1 =

conic or pyramidal bottom sloped bottom (P052) universal linear (P054 /

2 =

parabolic bottom flat end universal curved (P054 /

3 =

4 =

5 =

6 =

parabolic ends (P052 /

8 =

9 =

10 =

sphere

7 =

PL-573 AiRanger SPL Page 35

Page 36

P051 Max Volume

Use this feature to display the Reading in volumetric units rather than percent.

Enter the vessel volume between Empty (P006) and Span (P007).

e.g. 1 If the volume = 3650 m3, enter 3650. e.g. 2 If the volume = 267,500 US gallons, enter 267.5 (1000's of gallons).

Values:

Application Param.

P052 Tank Dimension A

0.000 to 9999

Enter the height of the tank bottom if P050 = 2,3,4, or 5, or the length of one end section of the tank if P050 = 7, in Units (P005).

Values:

0.000 to 9999

P053 Tank Dimension L

Enter the length of the tank (excluding both end sections) if P050 = 7, in Units (P005).

Values:

0.000 to 9999

P054 Level Breakpoints (Universal Volume Calculation)

Enter level breakpoints* (where volume is known) if P050 = 9 or 10. Values:

0.000 to 9999

P055 Breakpoint Volumes (Universal Volume Calculation)

Enter the volume* corresponding to each Level Breakpoint entered. Values:

0.000 to 9999 * To enter a Level Breakpoint or Breakpoint Volume...

1. Press

2. Scroll

3. Key in the desired level or volume value.

(

to display the index symbol,

or direct access the desired Breakpoint.

)

4. Press

Note:

Refer to Technical Reference Volume Calculation for breakpoint value selection.

Page 36 AiRanger SPL PL-573

Page 37

Reading Parameters (P060 to P062)

If Reading alteration is required, alter the following parameters to:

• alter the number of decimal places displayed.

• convert to units other than Units (P005), % of Span (P007), or Max Volume (P051).

• reference measurements to some point other than Empty (P006) or Span (P007).

Note:

If alteration is not required, proceed to Failsafe Parameters.

P060 Decimal Position

Enter the maximum number of decimal places to be displayed in the Reading.

In the RUN mode, the number of decimal places displayed is automatically adjusted (if necessary) to prevent the number of Reading digits from exceeding display capabilities.

This value is automatically altered when Units (P005) or Max Volume (P051) are altered.

Values:

0 = no digits after the decimal point 1 = 1 digit after the decimal point 2 = 2 digits after the decimal point 3 = 3 digits after the decimal point

Application Param.

P061 Convert Reading

Enter the value to multiply the Reading by, (before display).

This feature is preset to 1.000 (no conversion).

e.g. If the Reading is currently displayed in feet, to display in yards, enter 3.

Note:

Avoid entering a value that, when multiplied by the maximum current Reading, could exceed 5 digits before the Decimal Position.

Values:

-999 to 9999

PL-573 AiRanger SPL Page 37

Page 38

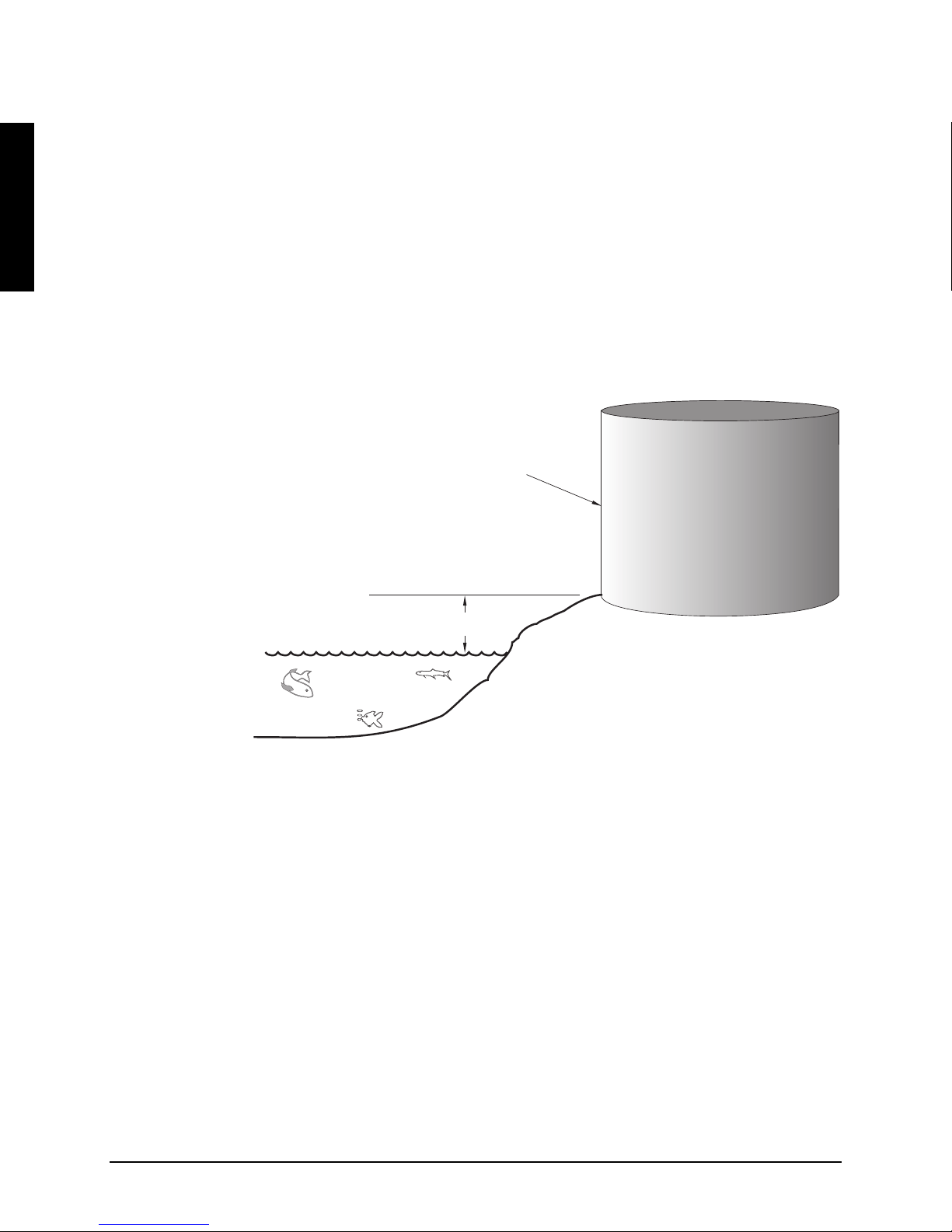

P062 Offset Reading

Enter the value to be added to the Reading, (before display).

This feature is preset to 0.000, (no offset).

e.g. To reference a material level to sea level, enter the distance in Units (P005),

between Empty (P006) and sea level. (Enter a negative value if Empty is

Application Param.

below sea level.)

This feature affects the SPL (and BIC-II, if used) Reading only. (Relays and mA output are not affected).

Values:

-999 to 9999

vessel

sea level

empty

(P006)

display offset (P062)

Page 38 AiRanger SPL PL-573

Page 39

Failsafe Parameters (P070 to P072)

As preset, in the event of a measurement or technical difficulty, the SPL holds the Reading, Bar Graph, mA output, and relays at their last "known" values.

To operate process control equipment under these conditions, alter the following parameters as required.

Note:

If alternate Failsafe Operation is not required, proceed to Relay Parameters.

P070 Failsafe Timer

Enter the time to elapse (in minutes), upon a difficulty, before failsafe operation is activated.

In the RUN mode, when a difficulty first occurs, the Reading, Bar Graph, relay status, and mA output are held at "last known" values and the Failsafe Timer is activated.

When a valid measurement is made before the timer expires, the SPL advances to the "new" material level (if changed) as and the timer resets.

If the timer expires (before a valid measurement is made), the SPL advances to the Failsafe Material Level (P071) as restricted by Failsafe Advance (P072).

normal

Application Param.

(per Measurement Response, P003)

When a valid measurement is made after the timer expires, the SPL advances to the "new" material level (if changed), as restricted by Failsafe Advance (P072) and the timer resets.

If the timer expires due to a measure ment diffic ulty, "L OE" flashes in the Reading display.

Technical difficulty messages flash in the Reading display before the timer expires. The offending terminal connections are displayed in the Auxiliary Reading display.

Display Cause

"LOE" weak echo (see TroubleShooting Guide). "Short" short circuited transducer cable, or defective transducer

"OPEn"

"Error"

Note:

While a short duration Failsafe Timer value may be required (when process control equipment is used) avoid entering a value so short as to cause nuisance activation.

This feature is automatically altered when Measurement Response (P003) is altered.

open circuited transducer cable, or Point Number is scanned but a transducer is not connected, or defective transducer

reversed Ultrasonic/Temperature transducer terminal connections or wrong Transducer (P004) entered.

Values:

0.000 to 9999

PL-573 AiRanger SPL Page 39

Page 40

P071 Failsafe Material Level

Select the material level to be reported when the Failsafe Timer expires.

"HOLd"

"High"

(preset) is selected, in the RUN mode, the "last known" material level is held.

"Low"

are selected, the SPL advances to the Span (P007) level or Empty

(P006) level as restricted by Failsafe Level Advance.

Application Param.

Select the Failsafe Material Level based upon the relay and/or mA output operation required during failsafe operation.

e.g. 1 To de-energize a high alarm relay (perhaps to stop material infeed), select

"High".

e.g. 2 To force an "empty vessel" mA output (perhaps to have pumps stopped),

select "Low".

To select High, Low, or HOLd...

1. Press

2. Press

3. Press

to display the Auxiliary Function symbol. or as required to scroll access the desired option.

Alternatively, a specific Failsafe Material Level within -50 to 150% of Span (P007) may be entered directly in Units (P005), or % of Span (P007).

Values:

-999 to 9999

P072 Failsafe Level Advance

Select the restriction applied to the SPL advance to (and from) the Failsafe Material Level.

When "restricted" (preset), the SPL advances to the Failsafe Material Level (and to the "new" material level when a valid measurement is made) as determined by the Measurement Response (P003) or the Max Fill/Empty Rate (P700/P701) values entered.

Alternatively, when "immediate" is selected, the Failsafe Material Level (or "new" material level) is assumed immediately.

Otherwise, when "fast back" is selected, the Failsafe Level Advance is restricted, however the advance to the new material level (when a valid measurement is made) is immediate.

Values:

1 = restricted 2 = immediate 3 = fast back

Page 40 AiRanger SPL PL-573

Page 41

Relay Parameters (P100 to P104, P110 to P113, P129)

If relays are to be used, alter the following parameters as required.

Note:

Otherwise, proceed to mA Output Parameters.

Relays may be programmed as Standard Alarms or for Custom Relay operation.

For

Standard Alarms

Up (P100) desired and alter the Standard Alarm (P101 to P104) parameters as required, before proceeding to Relay Failsafe (P129).

For Custom Relay operation, select the Relay Set Up (P100) which most closely matches your requirements, and alter the Custom Relay Parameters (P110 to P113) as required, before proceeding to Relay Failsafe.

P100 (G) Relay Set Up

This parameter presets relays to operate as Standard Alarms. The (relay / point number association) and Standard Alarm (P101 to P104) parameters are also preset.

Relay status during a measurement difficulty is dependent upon Failsafe programming. See Failsafe Parameters (P070 to P072) and Relay Failsafe (P129). As preset, relay status is "held" at "last known" material levels until a valid measurement is made.

Application Param.

(relays operate based on material level), select the Relay Set

Relay Allocation

Option Relay # Point # Standard Alarm (as % of Span, P007)

1 1 1 (High Alarm) P101 = 80.00%

2 1 (Low Alarm) P102 = 20.00% 3 not programmed 4 not programmed

2 1 1 (High Alarm) P101 = 80.00%

2 1 (High High Alarm) P103 = 90.00% 3 not programmed 4 not programmed

3 1 1 (Low Alarm) P102 = 20.00%

2 1 (Low Low Alarm) P104 = 10.00% 3 not programmed 4 not programmed

4 1 1 (High Alarm) P101 = 80.00%

2 1 (Low Alarm) P102 = 20.00% 3 1 (High High Alarm) P103 = 90.00% 4 1 (Low Low Alarm) P104 = 10.00%

PL-573 AiRanger SPL Page 41

Page 42

Independently altered Standard Alarms (P101 to P104), Relay Allocation (P110), Relay Function (P111) and Relay A/B Setpoints (P112/P113) are automatically reset when a Relay Set Up value is altered.

Values:

1 = Set Up 1 2 = Set Up 2 3 = Set Up 3

Application Param.

4 = Set Up 4

Standard Alarms (P101 to P104)

In the RUN mode, when the material level...

• rises to a High or High High Alarm value, the associated Alarm and Relay Status

indicators are displayed and the allocated relay(s) de-energize.

• falls 5% of Span (P007) below the High or High High Alarm value, the associated

Alarm and Relay Status indicators extinguish, and the allocated relay(s) energize.

• falls below the Low or Low Low Alarm value, the associated Alarm and Relay Status

indicators are displayed and the allocated relay(s) de-energize.

• rises 5% of Span (P007) above the Low and Low Low Alarm value, the associated

Alarm and Relay Status indicators extinguish, and the allocated relay(s) energize.

Note:

Enter all Standard Alarm material level values in Units (P005) or percent of Span (P007) as referenced to Empty (P006).

To display the current value (or enter a new value) in percent of Span,

Press

P101 High Alarm

as required to display the % symbol.

Enter the High Alarm material level for the Point Number displayed. Values:

-999 to 9999 (preset to 80.00% of Span or equivalent Units)

P102 Low Alarm

Enter the Low Alarm material level for the Point Number displayed. Values:

-999 to 9999 (preset to 20.00% of Span or equivalent Units)

P103 High High Alarm

Enter the High High Alarm material level for the Point Number displayed, (Relay Set Up 2 or 4 only).

Values:

-999 to 9999 (preset to 90.00% of Span or equivalent Units)

Page 42 AiRanger SPL PL-573

Page 43

P104 Low Low Alarm

Enter the Low Low Alarm material level for the Point Number displayed, (Relay Set Up 3 or 4 only).

Values:

-999 to 9999 (preset to 10.00% of Span or equivalent Units)

Notes:

• "OFF" is displayed if the Relay Set Up (P100) selected does

not use the Alarm parameter accessed.

"Ch" is displayed if a Custom Relay Parameter was previously operator

•

altered.

Use Relay A/B Setpoints (P112/P113) instead.

If Custom Relay operation is not required, proceed to Relay Failsafe (P129).

Custom Relays (P111 to P113)

P111 Relay Function

Use this feature if alternate relay function, designation, or operation is required.

Application Param.

When accessed, the Parameter Type display changes to the Relay symbol and the Point Number display changes to the Relay Number (corresponding to the SPL terminals).

Function Designation Operation

Level LL, L, H, or HH

In Bounds b1 or b2 * Out of

Bounds Rate r1 or r2 *

Temperature Not applicable

LOE Not applicable

Cable fault Not applicable Pump Not applicable With independent Relay A/B Setpoints

b1 or b2 *

Similar to Standard Alarms but with Relay A/B Setpoints

Alarms when level is between the Relay A/B Setpoints

Alarms when level is not between the Relay A/B Setpoints

Level rate of change alarm with Relay A/B Setpoints

Alarm is activated by independent Relay A/B Setpoints

Relay de-energizes in the event of Failsafe timer (P700) expiry

Relay de-energizes under transducer short or opened condition

* The Relay Designation is not displayed but is included in the BIC-II (if used) data

message.

PL-573 AiRanger SPL Page 43

Page 44

To enter a Relay Designation...

1. Press

2. Press

3. Press

Note:

When the Relay Function is altered, affected Alarm Parameters (P101 to P104)

Application Param.

display "ch" (changed) when accessed. Use the Relay A/B Setpoints (P112/P113) instead.

To reset the Relay Function to use Standard Alarms, enter the desired Relay Set Up (P100).

to display the Auxiliary Function symbol, or to scroll access the desired relay designation and... .

Values:

0 = off (relay always de-energized) 1 = level alarm (preset) 2 = in bounds alarm (not applicable to Point 3 differential level) 3 = out of bounds alarm (not applicable to Point 3 differential level) 4 = rate of change alarm 5 = temperature alarm 6 = LOE alarm 7 = transducer cable fault alarm 50 = pump control (non-sequenced)

Independent Relay Setpoints

Relay A and B Setpoint values set the critical points (based on the Relay Function) where, in the Run mode ...

Relay status indicators are switched "ON" and "OFF"

•

• Alarm Indicators (if programmed) are switched "ON" or "OFF"

Relays are "energized" and "de-energized"

•

For most Relay Functions, setpoint values represent material levels, entered in Units (P005) or percent of Span (P007) as referenced to Empty (P-006). Temperature alarm values are entered in degrees Celsius (°C).

Rate alarms are entered in Units / minute or percent of Span per minute. A positive value is entered for a filling rate alarm; negative for emptying.

Page 44 AiRanger SPL PL-573

Page 45

Setpoints Action When

In bounds

Out of bounds

Rate of change

Temperature

Pump

▲

A B Status Alarm Relay

On On de-energizes Level rises to 85%Level H or HH 85% 70% Off Off energizes Level falls to 70% On On de-energizes Level falls to 15%Level L or LL 15% 30% Off Off energiz es Level rises to 30%

80% 50%

-10% -5%

60 55

-30 -25

80% 20%

20% 80%

On On de-energizes Level falls to 78% Off Off energizes Level rises to 82% On On de-energizes Level rises to 52% Off Off energizes Level falls to 48% Off Off energiz es Level falls to 78% On On de-energizes Level rises to 82% Off Off energizes Level rises to 52% On On de-energizes Level falls to 48% Off Off de-energizes Fill rate increases to 10%/min+10% +5% On On energizes Fill rate decreases to 5%/min Off Off de-energizes Empty rate increases to

On On energizes

On On de-energizes Off Off energizes On On de-energizes Off Off energizes On On energiz es Start pump down on level at

Off Off de-energizes

On On energizes Start pump up on level at 20% Off Off de-energizes Stop pump up on level at 80%

Application Param.

10%/min

Empty rate decreases to

5%/min

Temperature rises to 60°C

Temperature falls to 55°C

Temperature falls to -30°C

Temperature rises to -25°C

80%

Stop pump down on level at

20%

* Values shown are for illustration purposes only. Enter values which apply to your particular installation.

P112 Relay A Setpoint

Enter the critical point for the desired action to occur (based on the Relay Function selected).

Values:

-999 to 9999

Note:

Relay A/B Setpoint values cannot be exactly equal.

PL-573 AiRanger SPL Page 45

▲

2% factory set deadband, adjustable via P116

Page 46

P113 Relay B Setpoint

Enter the critical point for the desired action to occur (based on the Relay Function selected).

Values:

-999 to 9999

P 116 Bound Alarm Deadband

Application Param.

For `in bounds' and `out of bounds' Relay Functions (P111 = 2 and 3

actual ‘on’

respectively),a deadband prevents relay chatter due to material level fluctuations at the upper or lower

P116, deadband

setpoint. Enter deadband in % of span or

units of P005. (Factory set at 2%).

setpoint

The deadband value is applied above and below the upper and

P116, deadband

lower bound setpoints.

actual ‘off’

e.g. in bounds, lower setpoint

P129 Relay Failsafe

Use this feature for relay failsafe operation independent from the Failsafe Material Level (P071).

When accessed, the Parameter Type display changes to the Relay symbol and the Point Number display changes to the Relay Number (corresponding to the SPL terminals)

Select:

"OFF" to have the relay respond to the Failsafe Material Level (P071). "HOLd” to hold the relay at the "last known" state until normal operation resumes, "dE" to have the relay de-energize immediately, or "En" to have the relay energize immediately.

When the Relay Function (P111) is set for:

• "alarm" (any option other than "pump"), this feature is preset to "OFF".

• "pump", this feature is preset to "dE".

Page 46 AiRanger SPL PL-573

Page 47

To select an independent Relay Failsafe option value:

1. Press

2. Press

3. Press

Values:

"OFF" "HOLd" "dE" "En"

to display the Auxiliary Function symbol, or to scroll access the failsafe options. , with the desired option displayed.

Application Param.

PL-573 AiRanger SPL Page 47

Page 48

mA Output Parameters (P200 to P203, P210 to P215, P219)

If SPL mA outputs are to be used, alter the following parameters as required.

Note:

Otherwise, proceed to Operations.

When a mA Output Parameter is accessed, the mA symbol is displayed in the Point

Application Param.

P200 mA Range

Type field and the mA output number (corresponding to the SPL terminals) is displayed in the Point Number field.

Enter the desired range of the mA output displayed.

Values:

0 = OFF 1 = 0 to 20 mA 2 = 4 to 20 mA (preset) 3 = 20 to 0 mA 4 = 20 to 4 mA

P201 mA Function

Use this feature to alter the automatic mA output/measurement relationship, if desired.

The mA Function automatically corresponds to "level", "space", or "distance" based upon Operation (P001). If a Tank Shape (P050) is programmed, the mA Function automatically corresponds to volume (unless the mA Allocation has been altered).

Values:

1 = level 2 = space 3 = distance 4 = volume

P203 (V) mA Value / Transducer

20 mA = high level (unless P001 = 2 or 3,

then 20 mA = low)

20 mA = low level (unless P001 = 2 or 3, then

20 mA = high)

View the current value of the mA output.

This is the Auxiliary Reading displayed when [mA] is pressed in the RUN mode.

Values:

0.000 to 22.00

Page 48 AiRanger SPL PL-573

Page 49

P210 0/4 mA Setpoint

Use this feature to reference the minimum mA output to any point in the measurement range.

Enter the material level (referenced to Empty, P006) corresponding to the minimum mA output.

This feature is preset to 0% or 100% of Span (P007) as determined by Operation (P001).

Typically, this value is entered in Units (P005) or percent of Span (P007). If mA Function is set for "volume", enter the value in the Max Volume (P051) units or in percent of Max Volume.

Values:

-999 to 9999

P211 20 mA Setpoint

Use this feature to reference the 20 mA output to any point in the measurement range.

Enter the material level (referenced to Empty, P006) corresponding to 20 mA.

This feature is preset to 0% or 100% of Span (P007) as determined by Operation (P001).

Application Param.

Typically, the value is entered in Units (P005) or percent of Span (P007). If mA Function is set for "volume", enter the value in the Max Volume (P051) units or as a percent of Max Volume.

Values:

-999 to 9999

P212 mA Min Limit

Use this feature to prevent the mA output from falling below the minimum acceptable mA input value (preset to 3.800 mA) of the device connected.

Values:

0.000 to 22.00

P213 mA Max Limit

Use this feature to prevent the mA output from exceeding the maximum acceptable mA input value (preset to 20.20 mA) of the device connected.

Values:

0.000 to 22.00

PL-573 AiRanger SPL Page 49

Page 50

P214 4 mA Trim

Use this feature (in combination with 20 mA Trim) if the device connected to the mA output displayed is out of calibration, yet device recalibration is impractical.

Adjust this value (preset to 0.000) as required to make the device connected indicate

4.000 mA when this parameter is accessed.

Values:

Application Param.

-1.00 to 1.000

P215 20 mA Trim

Use this feature (in combination with 4 mA Trim) if the device connected to the mA output displayed is out of calibration, yet device recalibration is impractical.

Adjust this value (preset to 0.000) as required to make the device connected indicate

20.00 mA when this parameter is accessed.

Values:

-1.00 to 1.000

P219 mA Failsafe

Use this feature if mA output failsafe operation, independent from the Failsafe Material Level (P071) is desired.

To select an independent mA Failsafe option value:

1. Press

2. Press

3. Press

to display the Auxiliary Function symbol, or to scroll access the failsafe options. , with the desired option displayed.

Values:

"OFF" to have the mA output respond to the Failsafe Material Level (P071). "HOLd" to hold the output at the "last known" value until normal operation resumes. "LO" to produce the "Empty" mA output immediately on Failsafe Timer (P070) expiry. "HI" to produce the "Span" mA output immediately on Failsafe Timer (P070) expiry.

Alternatively, to produce an immediate mA output at a specific value, enter the value required.

Values:

0.0 to 22.00

Page 50 AiRanger SPL PL-573

Page 51

Enhancement Parameters

This section identifies all SPL operator programmable features designed for altering operation to suit individual operator preferences or overcome measurement difficulties.

Typically, these parameters are only altered as directed by the Troubleshooting Guide. following parameters as required.

If RUN mode performance requires improvement, access and alter the

Note:

Otherwise, proceed to Operation.

Parameter category Purpose Page

Enhancement Param.

Data Logging

Profile Records

Installation Records

Range Calibration Temperature

Compensation Rate to override Measurement Response (P003) 60 Measurement Verification to override Measurement Response (P003) 62

Scanning

Display Parameters Peripheral

Communications Support SmartLinx Echo Processing to troubleshoot false echo detection 69

to view previous maximum Temperature records

intended for use by Milltronics Service Personnel

to identify length of service and power failure occurrence

to compensate for measurement offset and/or sound velocity

to override automatic temperature compensation features

to override automatic scanning delay or use Auxiliary Transducer

to override the preset display operating characteristics

Communication Support 67 Set up SmartLinx® Module 68

Advanced Echo Processing

Test Parameters Measurement

Parameters Master Reset to reset Parameter Values to factory settings 85

Note:

When an Enhancement Parameter is altered, return to the RUN mode to verify the performance desired is achieved, before making any other changes.

PL-573 AiRanger SPL Page 51

intended for use by Milltronics Service personnel

to verify Application Parameter programming 83

Page 52

Data Logging Parameters (P300 and P302)

View the maximum Temperature recorded in the RUN mode.

P300 (V) Temperature, Transducer Max

Use this feature if vessel temperature is monitored by an Ultrasonic/Temperature transducer to view the highest temperature recorded (in ° C).

Values:

-50 to 150

P302 (V) Temperature, Sensor Max

Use this feature if vessel temperature is monitored by a TS-3 Temp Sensor to view the highest temperature recorded (in ° C).

Enhancement Param.

When accessed, the TS-3 symbol is displayed in the Point Type field.

Values:

-50 to 150

Page 52 AiRanger SPL PL-573

Page 53

Profile Records (P330 to P337)

The following parameters are for authorized Milltronics service personnel or Instrumentation Technicians familiar with Milltronics echo processing techniques.

Use these features to record and save a total of up to 10 Echo profiles, initiated manually (P330), or automatically (P331 et al). See Scope displays (P810) for echo profile viewing hardware / software requirements.

If 10 Echo Profiles are already saved, addresses 1 through 10 are filled, the oldest automatically initiated record is overwritten. Manually initiated records are not automatically overwritten. All records are automatically deleted in the event of a power interruption.

When a record is displayed, results are based on current programming (which may have been altered since the record was saved). This permits the effect on the echo profile to be observed when changing an echo parameter.

P330 Profile Record

In addition to serving as a library for profile records, this parameter provides two functions:

• manually records and saves echo profiles

• displays an echo profile, recorded manually or automatically, e.g. via an oscilloscope.

To select a record address:

Starting with the initial parameter display:

Enhancement Param.

e.g. initial parameter display

Press

Pressing to 10, and displays the associated parameter.

Value

`- - - -' = no record ` x# ' = record

Where

X = A, automatically initiated

# = transducer number

= U, manually initiated

To manually record a profile:

Press scope buffer for display.

PL-573 AiRanger SPL Page 53

until the address index is enabled

selects the desired address, 1

e.g. address 2 selected, no record

saved

to cause the transducer* to fire. An echo profile is recorded into the internal

Page 54

To save a manual record:

Enhancement Param.

Press

to copy the echo profile record in the

scope buffer and save it in the selected address in the record library. The parameter value field displays the new record co-ordinates.

e.g. manually initiated record from

transducer 1 saved in address 2

To display a record

Press

to copy the echo

profile record in the selected address to the scope buffer, for display.

e.g. oscilloscope displays record in address 3

To delete a record:

Press

to delete the echo profile record

in the selected address. Parameter value returns to ` - - - - '.

e.g. record deleted, address 3 clear

* Access the Scope Displays (P810) parameter to select the Transducer.

P331 (G)

Auto Record Enable

Use this feature (if desired) to enable/disable the Auto Profile Record function. Values:

0 = off 1 = on

P333 (G)

Auto Record Interval

Enter the time (in minutes) to elapse after an Auto Profile Record is saved before another Auto Profile Record can be saved (subject to all other restrictions).

Values:

0.000 to 9999 (preset to 120 minutes)

Auto Record A/B Setpoint

Use Auto Record A Setpoint (P334) and Auto Record B Setpoint (P335) to define the boundaries within which the level must be, for the resultant Echo Profile to be considered for an Auto Profile Record.

If “ - - - - “ is displayed for either P334 or P335, Auto Profile Records are saved regardless of current level (subject to all other restrictions).

Page 54 AiRanger SPL PL-573

Page 55

Enter the level value in Units (P005) or percent of Span (P007) as referenced to Empty (P006).

(Ensure the % Symbol is displayed before attempting to enter a value in percent, see Programming / Keypad).

P334 (G)

P335 (G)

P336 (G)

Auto Record A Setpoint

Enter the critical level which, in conjunction with Auto Record B Setpoint, defines the boundaries for Auto Profile Records to be stored.

Values:

-999 to 9999

Auto Record B Setpoint

Enter the critical level which, in conjunction with Auto Record A Setpoint, defines the boundaries for Auto Profile Records to be stored.

Values:

-999 to 9999

Auto Record Filling/Emptying

Use this feature to restrict Auto Profile Records from being saved unless the level is rising, falling or either.

If the level changes at a rate in excess of the corresponding Filling/ Emptying Indicator (P702 / P703) values, the Echo Profile is saved subject to this and other Auto Profile Record restrictions).

Enhancement Param.

Values:

0 = Auto Profile Record on filling or emptying (preset). 1 = Auto Profile Record on filling only. 2 = Auto Profile Record on emptying only.

P337 (G)

Auto Record LOE Time

Use this feature to restrict Auto Profile Records from being saved unless an extended loss of echo (LOE) condition occurs.

If the LOE condition exceeds the period entered (in seconds) the Echo Profile is saved subject to this and other Auto Profile Record restrictions.

When set for “0” (preset), LOE is not required for an Auto Profile Record to be saved.

Values:

0.0 to 9999

PL-573 AiRanger SPL Page 55

Page 56

Installation Records (P340 to P342)

Enhancement Param.

P340 (V)

P341 (V)

P342 (V)

Date of Manufacture

View the date of manufacture of this SPL.

Values:

YY:MM:DD

Run Time

View the accumulated number of days this SPL has been operating, since the Date of Manufacture.

Values:

0.000 to 9999

Start Ups

View the accumulated number of times power has been applied to the SPL (following a power interruption), since the Date of Manufacture (P340).

Values:

1 to 9999

Range Calibration Parameters (P650 to P654)

P650 Offset Calibration

Use this feature if the Empty (P006) value was estimated or if the reported material level is consistently high or low by a fixed amount (e.g. 2 cm).

Before using this feature, verify the:

• Empty (P006) value (as measured or estimated) was entered correctly.

• Vessel atmosphere Temperature (P664) is correct.

• Offset Reading (P062) value (if used) was entered correctly.

To perform an Offset Calibration:

With the material at a high steady level...

1. Press

2. Repeat step 1 at least 5 times to overcome Echo Lock (P721) and verify repeatability.

3. Measure the actual distance* (e.g. with a tape measure).

4. Enter the actual value. (The Offset Correction amount is stored in P652).

to display the calculated distance*.

Values:

-999 to 9999

Page 56 AiRanger SPL PL-573

Page 57

P651 Sound Velocity Calibration

Use this feature if:

• The vessel atmosphere is other than "air".

• The vessel atmosphere temperature is unknown and a temperature sensing device is

not used.

• The Reading accuracy is acceptable at higher material levels only.

To perform a Sound Velocity Calibration:

With the material at a low steady level...

1. Allow sufficient time for the vapour concentration to stabilize.

2. Press

to display the calculated distance*.

3. Repeat step 2 at least 5 times to overcome Echo Lock (P721) and verify repeatability.

4. Measure the actual distance* (e.g. with a tape measure).

5. Enter the actual value. (Velocity parameters P653 and P654 are adjusted accordingly).

Repeat this procedure if the vessel atmosphere type, concentration, or temperature varies from that present when the last sound velocity calibration was performed.

Values:

-999 to 9999 * When Operation (P001) is set for:

• "level", the distance is from Empty (P006) to the material/object surface.

• "space" or "tripper", the distance is from Span (P007) to the material/object surface.

• "distance", the distance is from the transducer face to the material/object surface.

P652 Offset Correction

Enhancement Param.

View the amount of offset applied to the Reading.

This value is automatically adjusted when an Offset Calibration is performed.

Alternatively, if the amount of Offset Correction required is known (and performing an Offset Calibration is not desired), enter the amount to be added to the Reading before display.

Values:

-999 to 9999

P653 Velocity

View the current vessel atmosphere sound velocity.

This value is based on Velocity at 20°C (P654) for the current Temperature (P664), based on the sound velocity vs. temperature characteristics of "air".

When a Sound Velocity Calibration is performed, this value is automatically adjusted as required to suit the current atmosphere type, concentration, and temperature.

PL-573 AiRanger SPL Page 57

Page 58

Alternatively, if the current sound velocity is known, enter the current sound velocity. (Refer to Technical Reference Sound Velocity).

The units used are m/s if P005 = 1, 2, or 3 (ft/s if P005 = 4 or 5).

Values:

50.01 to 2001 m/s (164.1 to 6563 ft/s)

P654 Velocity at 20°C

View the current vessel atmosphere sound velocity normalized to 20°C (68°F).

This value is used to calculate Sound Velocity (P653), using Temperature (P664) based on the sound velocity vs. temperature characteristics of "air".

After a Sound Velocity Calibration, this value may be checked to verify whether the vessel atmosphere is "air" (typically 344.1 m/s or 1129 ft/s).

Enhancement Param.

Alternatively, if the vessel atmosphere sound velocity at 20°C (68°F) is known, and the sound velocity vs. temperature characteristics are similar to that of "air", enter the sound velocity.

The units used are m/s if P005 = 1, 2, or 3 (or ft/s if P005 = 4 or 5).

Values:

50.01 to 2001 m/s (164.1 to 6563 ft/s)

Page 58 AiRanger SPL PL-573

Page 59

Temperature Compensation Parameters (P660 to P664)

P660 Temp Source

This feature is preset to "AUTO". On firing the transducer, the SPL scans the TS-3 temperature sensor. If a TS-3 sensor is not connected, the temperature measurement from the ultrasonic/temperature transducer is used. If the transducer used does not have an integral temperature sensor, the Temp Fixed (P661) value is used.

If the temperature of the atmosphere within the transducer beam varies with distance from the transducer, connect a TS-3 Temperature Sensor and an ultrasonic/temperature transducer and select "average".

Values:

1 = AUTO 2 = Temp Fixed 3 = Ultrasonic/Temperature Transducer 4 = TS-3 Temperature Sensor 5 = Average 6 = TS-3 SENSOR # 1

Enhancement Param.

P661 Temp Fixed

Use this feature if a temperature sensing device is not used.

Enter the temperature (in°C) of the vessel atmosphere within the transducer beam. If the temperature varies with distance from the transducer, enter the average temperature. This value is preset to 20.00°C.

Values:

-50 to 150

P664 (V) Temperature

View the current vessel atmosphere temperature in C.

This is the value displayed when

If Temp Source (P660) is set to any value other than Fixed Temp, the value displayed is the temperature measured. If Temp Source is set to Fixed Temp, the P661 value is displayed.

Values:

-50 to 150

is pressed in the RUN mode.

PL-573 AiRanger SPL Page 59

Page 60

Rate Parameters (P700 to P707)

P700 Max Fill Rate

Adjust the SPL response to increases in the actual material level (or advance to a higher Failsafe Material Level, P071).

Enter a value slightly greater than the maximum vessel filling rate.

This value (in Units (P005) or % of Span (P007) per minute) is automatically altered when Measurement Response (P003) is altered. See Technical Reference Measurement Response.

Values:

0.000 to 9999

Enhancement Param.

P701 Max Empty Rate

Adjust the SPL response to decreases in the actual material level (or advance to a lower Failsafe Material Level, P071).

Enter a value slightly greater than the maximum vessel emptying rate.

This value (in Units (P005) or % of Span (P007) per minute) is automatically altered when Measurement Response (P003) is altered. See Technical Reference Measurement Response.

Values:

0.000 to 9999

P702 Filling Indicator

Enter the fill rate required to activate the LCD Material Filling indicator.

This value (in Units (P005) or % of Span (P007) per minute) is automatically set to 10% of the Max Fill Rate (P700).

Values:

-999 to 9999

P703 Emptying Indicator

Enter the empty rate required to activate the LCD Material Emptying indicator.

This value (in Units (P005) or % of Span (P007) per minute) is automatically set to 10% of the Max Empty Rate (P701) .

Values:

-999 to 9999

Page 60 AiRanger SPL PL-573

Page 61

P704 Rate Filter

Use this feature to avoid Rate Value (P707) fluctuations due to a "splashing" material surface.

This value is automatically altered when Measurement Response (P003) is altered. See Technical Reference / Measurement Response.

This value automatically alters the Rate Update Time (P705) and / or Rate Update Distance(P706). Alternatively, these parameter values may be altered independently.

Enter the time period/distance the Rate Value is averaged before display update.

Values:

0 = rate display not required 1 = continuously averaged and updated 2 = 1 minute or 50 mm (2 in) 3 = 5 minutes or 100 mm (3.9 in) 4 = 10 minutes or 300 mm (11.8 in) 5 = 10 minutes or 1000 mm (39.4 in)

P705 Rate Update Time

Enter the time period (in seconds) over which the material level rate of change is averaged before Rate Value update.

Values:

0.000 to 9999

P706 Rate Update Distance

Enter the material level change (in metres) to initiate a Rate Value update.

Enhancement Param.

Values:

0.000 to 9999

P707 (V) Rate Value

View the rate of material level change (in Units (P005) or % of Span (P007) per minute).

Note:

A negative rate indicates the vessel is emptying.

This is the value displayed when is pressed in the RUN mode.

Values:

-999 to 999

PL-573 AiRanger SPL Page 61

Page 62

Measurement Verification Parameters (P710 to P713)

P710 Fuzz Filter

Use this feature to stabilize the reported material level, due to material level fluctuations (such as a rippling or splashing liquid surface), within the Echo Lock Window (P713).

This value (in % of Span) is automatically altered when Measurement Response (P003) is altered. (See Technical Reference Measurement Response). The higher the value entered, the greater the fluctuation stabilized. (0 = off)

Values:

0 to 100

P711 Echo Lock

Enhancement Param.

Use this feature to select the measurement verification process.

This value is automatically altered when Material (P002) and/or Measurement Response (P003) is altered. (See Technical Reference Measurement Response).

When set for "maximum verification" or "material agitator", a new measurement outside of the Echo Lock Window (P713) must meet the sampling criterion (P712).

For "total lock", Echo Lock Window (P713) is preset to "0". The SPL continuously searches for the best echo according to the algorithm chosen (P820). If the selected echo is within the window, the window is then centered about the echo. If not, the window widens with each successive shot until the selected echo is within the window. The window then returns to its normal width.

When Echo Lock is turned "off" the SPL responds immediately to a new measurement as restricted by the Max Fill / Empty Rate (P700/P701), however measurement reliability is affected.

Values:

0 = off 1 = maximum verification 2 = material agitator 3 = total lock

P712 Echo Lock Sampling

The sampling criterion sets the number of consecutive echoes appearing above or below the echo currently locked onto, that must occur before the measurements are validated as the new reading (for Echo Lock P711 values: 1 or 2).

2, material agitator 5:2

Page 62 AiRanger SPL PL-573

P711 value P712 preset value

1, max verification 5:5

Page 63

e.g. : P711 = 2, material agitator

P712 = 5:2 A new reading will not be validated unless 5 consecutive measurements

higher or 2 consecutive measurements lower than the current readings occur.

Values:

x.y x= # of `above' echoes y = # of `below' echoes

Note:

Resetting P711 returns P712 to the respective preset values.

P713 Echo Lock Window

Use this feature to adjust the new measurement change permitted before Echo Lock is applied.

The Echo Lock Window is a "time window" (in msec) placed about the echo used to derive the Reading. When a new measurement falls within the window, the window is recentered and the new Reading is calculated. Otherwise, the new measurement is verified by Echo Lock (P711) before the SPL + updates the reading.

When "0" is entered (preset), the window is automatically calculated based on the Max Fill / Empty Rate ( P700 / P701). This calculation is automatically performed when Measurement Response (P003) is altered. See Technical Reference Measurement Response.

For slower Measurement Response (P003) values the calculated Echo Lock Window is narrow. For faster values the window becomes increasingly wider, (When "immediate" is selected the window is normally wide open).

Values:

0.000 to 9999

Enhancement Param.

PL-573 AiRanger SPL Page 63

Page 64

Scanning Parameters (P725 to P729)

P726 Level System Sync

Use this feature if another level measurement system is mounted near the SPL.

See Installation Interconnection / Level System Synchronization.

Values:

0 = not required 1 = synchronize level monitors (preset)

P728 Shot Delay

Use this feature if transient acoustic noise within the vessel is causing measurement difficulties.

Enhancement Param.

This value is automatically altered when Measurement Response (P003) is altered. (See Technical Reference / Measurement Response.)

Enter the delay between transmit pulse shots (in seconds).

Values:

0.1 to 4.0

P729 (V) Scan Time

View the time elapsed (in seconds) since the point displayed was last scanned. This value may be viewed as an Auxiliary Reading in the Run mode. See Operation / Keypad.

Values:

0.000 to 9999

Page 64 AiRanger SPL PL-573

Page 65

Display Parameters (P730 to P733, P740)

P730 (G) Auxiliary Reading

Use this feature to display operator selected Auxiliary Readings temporarily.

Select "OFF" to display Auxiliary Readings temporarily. Select "HOLd" to display Auxiliary Readings until another Auxiliary Reading is selected.

(See Operation / Keypad for RUN mode Auxiliary Reading selection.)

To select the Auxiliary Reading operation desired.

1. Press

2. Press

3. Press

If desired, also enter the Parameter Number to default in the Auxiliary Reading display.

to display the Auxiliary Function symbol. or to display the "OFF" or "HOLd" (preset) option as desired.

Values:

000 to 999

P731 (G) Auxiliary Reading Key

Use this feature to enable a specific Parameter Value to be monitored in the RUN mode.

Enter the Parameter Number whose value is to be displayed in the Auxiliary Reading field when

is pressed in the RUN mode.

Enhancement Param.

(See Operation Keypad for RUN mode Auxiliary Reading selection.)

Values:

000 to 999 (preset to Material Measurement, P921)

P732 (G) Display Delay

Use this feature if the secondary message and reading change too quickly.

Enter the delay (in seconds) before the display changes to the secondary message (if one is there). For example, “OPEN” or “ERROR”.

Values:

0.5 to 10 (preset to 1.5 seconds)

PL-573 AiRanger SPL Page 65

Page 66

P733 (G) Scroll Access

Use this feature to select the programming mode parameter scroll access option desired.

Select:

"off" to scroll access all operator accessible parameters. "smart" to scroll access Quick Start, previously altered, and tagged parameters. "tagged" to scroll access operator tagged parameters only.

Enhancement Param.

(Any accessed parameter may be

tagged

untagged

by pressing

is displayed when a previously tagged or altered parameter is accessed.

Values:

0 = off 1 = smart (preset) 2 = tagged

Page 66 AiRanger SPL PL-573

Page 67

Peripheral Communication Support Parameters (P740 to P749)

P740

P748

Peripheral Communications

Use this feature to select the

to communication message format.

SPL

Select:

“off” if the communication port is not used, to increase the

processing speed.

“normal” to have messages transmitted in a continuous string of characters.

(Requires less

“formatted” to have commas inserted between the message fields for easier

message dissemination (when viewed on a monitor).

Note:

Refer to Technical Reference / Communication Support if a Peripheral Communication is required.

processing time than formatted messages).

SPL

Enhancement Param.

Values:

0 = off 1 = normal essages (preset) 2 = formatted messages

RS485 Termination

P749

Single point termination may be required to minimize transmission reflections, on long cable runs typical of 500m or more. Turn on the termination if required.

Values:

0 = off 1 = on

Serial Bus Type (V)

Displays the type of communication bus the connection, the connected, the with.

defaults to RS-485. If a bus type other than RS-485 is

SPL

displays the type of bus it is, or is attempting to, communicate

SPL

is currently set for. If there is no

SPL

Displays:

232 = RS-232 485 = RS-485 (default setting when nothing is connected) bPL = bipolar current loop rJ11 = for Milltronics use

PL-573 AiRanger SPL Page 67

Page 68

SmartLinx® Parameters (P750 to P792)

Protocol Specific Parameters (P750-P789)

These parameters are specific to the SmartLinx® module installed. Refer to the module documentation for a list and description of the specific parameter requirements.

Enhancement Param.

P790

P791

P792

Hardware Error

Use this feature to display the results of ongoing hardware tests within the communications circuitry. If any test does not meet the PASS requirements, communication halts and tests are repeated until PASS requirements are met. Communications then resumes.

Displays:

PASS: no problem FAIL: faulty SmartLinx module or ERR1: unknown protocol, upgrade the

Bus Error

This feature indicates if an error condition is occurring on the bus.

SPL

software

Displays:

0 = no error

= error code, refer to the SmartLinx module documentation for explanation of the

error code

Bus Error Count

This register increments by 1 each time a bus error (P752) is reported. The resister is factory set at 0 and can be preset to any value. The register is reset to 0 by the master reset (P999).

Page 68 AiRanger SPL PL-573

Page 69

Echo Processing Parameters (P800 to P807)

P800 Near Blanking

Use this feature if the material level is incorrectly reported to be near the transducer face.

Near Blanking distance

The ultrasonically measurable) is automatically set to minimum, when the Transducer (P004) value is entered.

Near Blanking may be extended to overcome measurement difficulties which cannot otherwise be corrected by transducer location, mounting, or aiming modification. (e.g. partial acoustic beam obstruction, standpipe open end detection, etc.)

Extend Near Blanking to 150 mm (6 in) beyond the incorrect distance measured.

Ensure the Near Blanking distance is less than Empty (P006) - Span (P007).

To reset the automatic Near Blanking value press

Values:

0.000 to 9999

P801 Range Extension

Use this feature if an incorrect level is reported (when material level is lower than Empty, P006).

Range Extension is the distance in Units (P005) or % of Span (P007) beyond Empty, which is still ultrasonically measurable.

(distance from the transducer face which is not

Enhancement Param.

If Empty is substantially higher than the actual vessel bottom, increase Range Extension such that Empty plus Range Extension is greater than the transducer to vessel bottom distance.

This value is automatically preset to 20% of Span (P007).

Values:

0.000 to 9999

P802 Submergence Transducer

Use this feature when the transducer connected is equipped with a submergence shield.

If the transducer is submerged, the SPL detects that the monitored surface is within the Near Blanking (P800) distance, to activate failsafe operation (subject to Failsafe Parameter programming).

PL-573 AiRanger SPL Page 69

Page 70

Enhancement Param.

Values :

0 = off (preset) 1 = submergence transducer

P803 Shot/Pulse Mode

Use this feature to increase response independent from Measurement Response (P003).

Select "short and long" to have short and long acoustic shots fired each time a vessel is scanned. Select "short" to have only short shots fired if the Echo Confidence (P805) produced by a short shot exceeds the short Confidence Threshold (P804).

This value is automatically altered when Measurement Response (P003) is altered. See Technical Reference Measurement Response.

Values:

1 = short 2 = short and long

P804 Confidence Threshold

Use this feature when an incorrect material level is reported.

The short and long Confidence Thresholds are preset to 10 and 5 respectively. If the Echo Confidence (P805) of a particular echo exceeds the Confidence Threshold, that echo is considered for evaluation by Sonic Intelligence™.

Values:

x.y x = short (0 to 99), y = long (0 to 99)

P805 (V) Echo Confidence

Use this feature to monitor the effect of transducer aiming, location, and mechanical transducer / mounting isolation.

This is the value displayed when

Both short and long shot Echo Confidence is displayed.

"--" is displayed if the respective shot (short or long) was not included in the evaluation. "E" is displayed if the transducer cable is open or short circuited. "--:-- is displayed if no shots have been taken yet.

Values:

x:y x = short (0 to 99), y = long (0 to 99)

is pressed for 4 seconds in the RUN mode.

Page 70 AiRanger SPL PL-573

Page 71

P806 (V) Echo Strength

Use this feature to view the strength (in dB above 1 µV rms) of the echo selected to base the distance calculation upon.

Values:

0 to 99

P807 (V) Noise

Observe the average and peak ambient noise (in dB above 1 µV rms) being processed.

The noise level is a combination of transient acoustic noise and electrical noise (induced into the transducer cable or receiving circuitry itself).

Values:

x.y x = average (-99 to 99), y = peak (-99 to 99)

Enhancement Param.

PL-573 AiRanger SPL Page 71

Page 72

Enhancement Param.

Advanced Echo Processing (P810,P816-P825,P830-P835,P840-P845,P850-P852)

Note:

The following Echo Processing parameters are intended for use by authorized Milltronics Service personnel or Industrial Instrumentation Technicians familiar with Milltronics ultrasonic echo processing techniques.

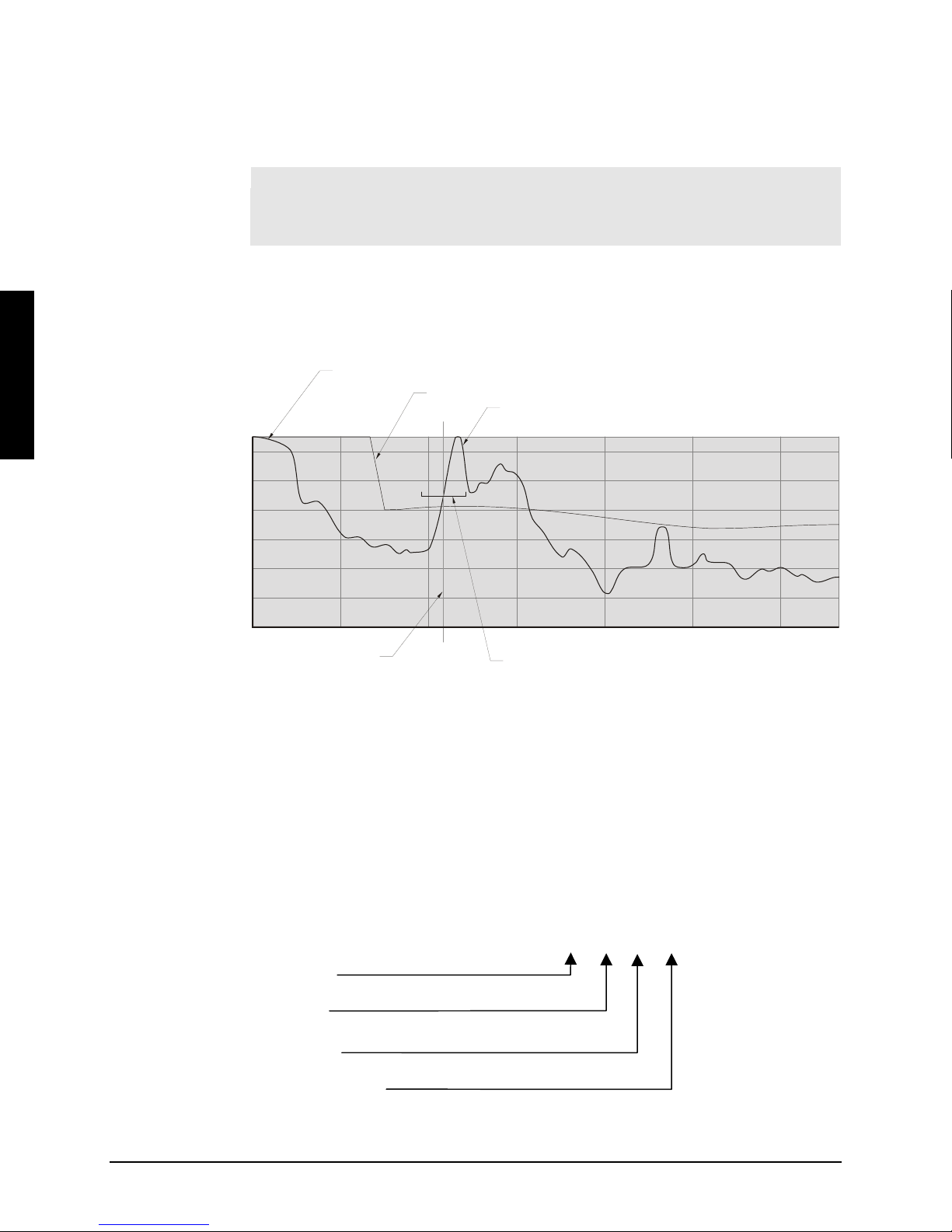

Anatomy of an Echo Profile

The relevant parts of an echo profile are listed here. These are visible in either Dolphin Plus or an oscilloscope.

echo profile

TVT curve

selected echo

echo marker

P810 Scope Displays

Use this feature to monitor the results of Echo Processing parameter alterations.

Connect an oscilloscope to Display Board TP4, TP5, and TP6.

Sweep = 10 µs/div. to 1 ms/div. (x 100 for real time); Amplitude = 1 V/div.; Trigger = external

Observe any combination of the following Scope Displays:

DISPLAY DISPLAY SYM BOL

Echo Profile

TVT Curve

Echo Marker

Echo Lock Window

echo lock window

P C n u

Page 72 AiRanger SPL PL-573

Page 73

To select the Scope Display desired...

1. Press

2. Press

3. Press

Alternatively, a 4 digit binary value may be entered, where a "0" turns the associated signal display "off", and a "1" turns the associated display "on".

e.g. 1110 = PCn_ = Echo Profile, TVT Curve, and Echo Marker displays on. See Technical Reference Echo Processing for Scope Display illustrations.

Use the Scope Displays after pressing result of Echo Processing parameter alterations. (Take several measurements to

verify measurement repeatability and overcome Echo Lock (P711) restrictions).

As preset, all displays are off.

P816 (V) Echo Time

Observe the time (in ms) between the transmit pulse and the processed echo.

Values:

0.000 to 9999

to display the Auxiliary Function symbol, or to scroll access the desired Reading display symbols.

with the desired display symbols displayed.

(in the program mode) to observe the

Enhancement Param.

Profile Pointer Parameters

When a Profile Pointer Parameter is accessed, the Echo Lock Window scope display changes to a Profile Pointer display. The Profile Pointer may be moved to a number of points on the Echo Profile, to gain specific information dependent upon the Profile Pointer Parameter used.

To move the Profile Pointer to a specific point, enter the desired value. The Profile Pointer will move to the nearest acceptable Echo Profile point. The Profile Pointer is preset to "0".

Alternatively, to scroll the Profile Pointer along the Echo Profile...

1. Press to display the Auxiliary Function symbol,

2. Press

When the Profile Pointer Parameters are exited and is entered, the Profile Pointer display automatically changes back to the Echo Lock

Window display.

P817 (V) Profile Pointer Time

Observe the time (in ms) between the transmit pulse and the Profile Pointer.

or to move the Profile Pointer to the left or right respectively.

is pressed or the RUN mode

Values:

0.000 to 9999

PL-573 AiRanger SPL Page 73

Page 74

Enhancement Param.

P818 (V) Profile Pointer Distance

Observe the distance (in P005 Units) between the transducer face and the Profile Pointer.

Values:

0.000 to 9999

P819 (V) Profile Pointer Amplitude

Observe the amplitude (in dB above 1 µV rms) of the Echo Profile at the Profile Pointer position.

Values:

0 to 99

P820 Algorithm

Use this feature to select the Intelligence™ echo selection is to be based on.

This value is automatically altered by Material (P002).

Algorithm(s)

(mathematical operations) which the Sonic

If the wrong echo is processed, select an alternate algorithm, while observing the resultant echo processing displays.

To select an Algorithm...

1. Press to display the Auxiliary Function symbol,

2. Press

3. Press

or to display the desired Reading display symbol(s), (when the desired Algorithm is displayed)

The material/vessel type most likely to benefit from a particular algorithm is included with the following option values.

Value Description

ALF long range Area, Largest, and First average (general purpose, solids)

A long range Area only (coarse, heaped solids) L long range Largest only (liquids, open vessels) F long range First only (liquids, closed vessel)

AL long range Area and Largest average (fine heaped solids)

AF long range Area and First average (coarse flat solids)

LF long range Largest and First average (general purpose, liquids)

bLF short range Largest or First (general purpose)

bL short range Largest only (solids and open vessel liquids) bF short range First only (closed vessel liquids)

Page 74 AiRanger SPL PL-573

Page 75

P821 Spike Filter

Activate the Spike Filter if interference spikes are observed on the long shot Echo Profile display.

Values:

0 = off 1 = on (preset)

P822 Narrow Echo Filter

Use this feature (when monitoring solids (P002 = 2) only) if an echo from a partial transducer beam obstruction (seams, ladder rungs, etc.) is processed.

Enter the width of false echoes (in ms), to be removed from the long shot Echo Profile.

When a value is keyed in, the nearest acceptable value is entered.

Values:

0 = off (preset), greater = wider

P823 Reform Echo

Use this feature if the reported material level fluctuates slightly though the material surface is still (when monitoring solid Material (P002 = 2) only).

Enter the amount (in ms) of long shot Echo Profile smoothing required to eliminate jagged peaks in the Echo Profile.

When a value is keyed in, the nearest acceptable value is entered.

Values:

0 = off (preset), greater = wider

Enhancement Param.

P825 Echo Marker Trigger

Use this feature when the reported material level fluctuates slightly, due to a variable rise in the leading edge of the true echo on the Echo Profile.

Enter the value (in percent of echo height) to ensure the Echo Lock Window intersects the Echo Profile at the sharpest rising portion of the Echo Profile representing the true echo. This value is preset to 50%.

Values:

5 to 95

PL-573 AiRanger SPL Page 75

Page 76

P830 TVT Type

Use this feature to select the TVT Curve most suited to the material and vessel.

This feature is automatically altered when Material (P002) is altered.

Do not select "TVT SLOPES" when the "bF or bLF" Algorithm (P820) is selected.

Values:

1 = TVT Short Curved 2 = TVT Short Flat 3 = TVT Long Flat 4 = TVT Long Smooth Front 5 = TVT Long Smooth 6 = TVT Slopes

Enhancement Param.

P831 TVT Shaper

Use this feature to turn the TVT Shaper "on" or "off".

Turn the TVT Shaper "on" before altering TVT Shaper Adjust. After TVT Shaper Adjust has been used to modify the TVT Curve (to avoid a false echo or pick up the true echo), this feature allows the TVT Shaper to be turned "on" and "off" while monitoring the effect.

Values:

0 = off 1 = on

P832 TVT Shaper Adjust

Use this feature to bias the shape of the TVT curve, in order to avoid it crossing false echoes from fixed objects.

Adjustment to this parameter is best done while viewing the echo profile on an oscilloscope (refer to P810). When using an oscilloscope, the Echo Lock Window display becomes the TVT Curve Pointer.

The TVT curve is divided into 40 breakpoints, accessible by enabling the point number as the breakpoint index field. Each breakpoint is normalized to a value of 0, as displayed in the parameter value field. By changing the breakpoint value, up or down, the intensity of the bias applied to that breakpoint of the curve is respectively changed. By changing the value of adjacent breakpoints, the effective bias to the shaper can be broadened to suit the desired correction. In the case of multiple false echoes, shaping can be applied along different points of the curve. Shaping should be applied sparingly in order to avoid missing the true echo.

To change a breakpoint ...

Page 76 AiRanger SPL PL-573

e.g. index, breakpoint1, value 0

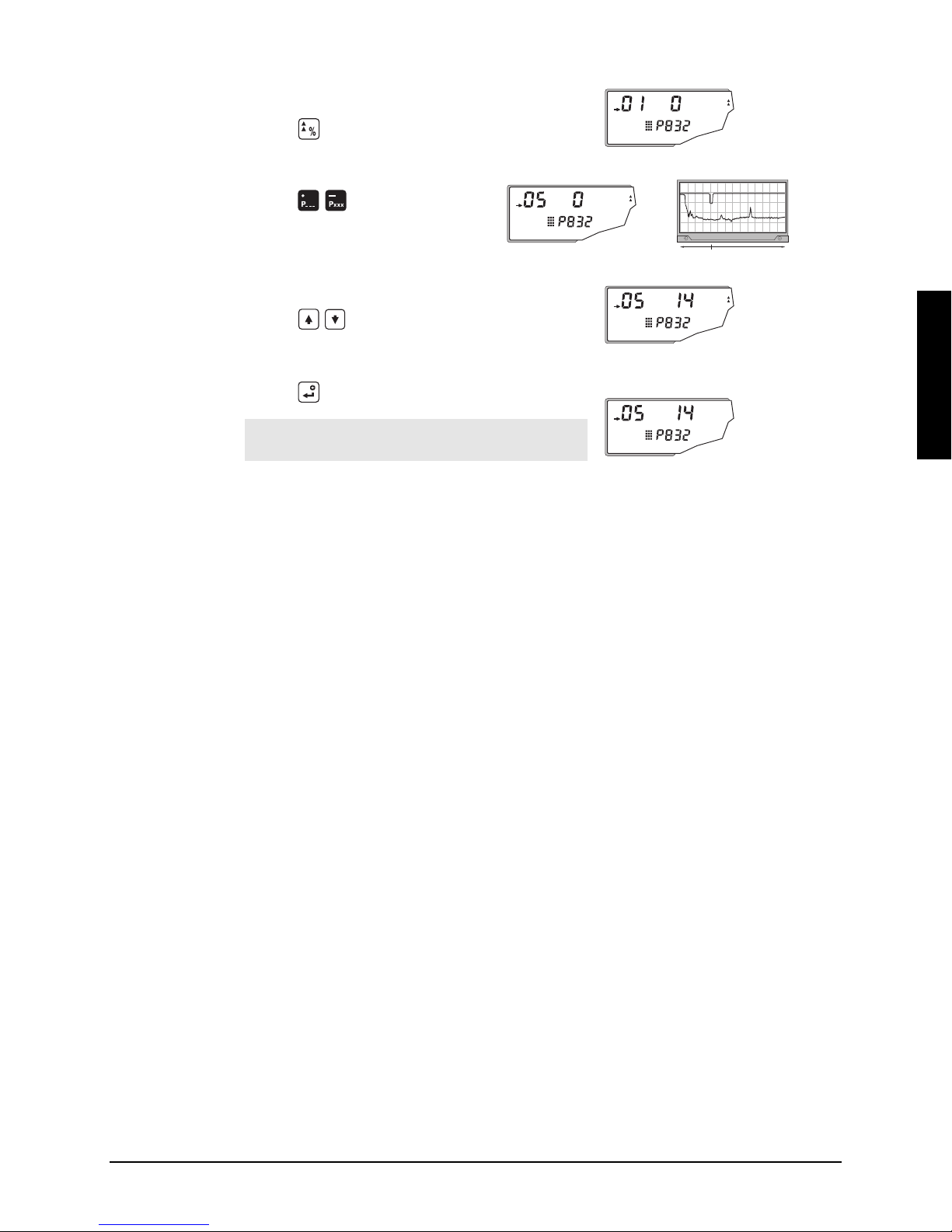

Page 77

Press to select the Auxiliary function

e.g. auxiliary function

Press breakpoint index through points 1

to 40, and move the curve pointer left or right respectively.

Press breakpoint, -50 to 50.

Press

to enter the change in value.

Note:

P831, TVT shaper, must be ‘on’.

P833 TVT Start Min

Use this feature to adjust the TVT Curve height to ignore false echoes (or pick up true echoes) near the start of the Echo Profile.

Enter the minimum TVT Curve start point (in dB above 1 µV rms).

This feature (preset to 45) should only be used if increased Near Blanking would extend farther than desired into the measurement range.

to scroll the

e.g. oscilloscope displays breakpoint 5, value 0

Enhancement Param.

to change the bias value of the

e.g. breakpoint 5, value 14

Values:

-30 to 225

P834 TVT Start Duration

Use this feature in conjunction with TVT Start Min (P833) to ignore false echoes (or pick up true echoes) near the start of the Echo Profile.

Enter the time (in ms) for the TVT Curve to decrease from the TVT Start Min (P833) point to the TVT Curve baseline.

Values:

0 to 9999

P835 TVT Slope Min

Enter the minimum slope (in dB/s) for the middle portion of the TVT Curve.

This feature (preset to 200) is used in conjunction with TVT Start Duration (when a long flat TVT Type is selected) to ensure the TVT Curve remains above false echoes which appear in the middle of the Echo Profile.

PL-573 AiRanger SPL Page 77

Page 78

Alternatively, if TVT Type is set for "TVT SLOPES" (P830 = 6), this value is preset to

2000.

Use this feature to adjust the slope declination, as required.

Values:

0 to 9999

P840 Short Shot Number

Enter the number of short shots to be fired (and results averaged) per transmit pulse.

Values:

0 to 100

P841 Long Shot Number

Enhancement Param.

Enter the number of long shots to be fired (and results averaged) per transmit pulse.

This value is automatically altered by Measurement Response (P003).

(See Technical Reference / Measurement Response).

Values:

0 to 200

P842 Short Shot Frequency

Use this feature to adjust the short shot transmit pulse frequency (in kHz).

This feature is automatically altered when Transducer (P004) is altered.

Values:

10.00 to 60.00

P843 Long Shot Frequency

Use this feature to adjust the long shot transmit pulse frequency (in kHz).

This feature is automatically altered when Transducer (P004) is altered.

Values:

10.00 to 60.00

P844 Short Shot Width

Use this feature to adjust the width (in ms) of the short shot transmit pulse.

This feature is automatically adjusted by Transducer (P004).

Values:

0.000 to 5.000

Page 78 AiRanger SPL PL-573

Page 79

P845 Long Shot Width

Use this feature to adjust the width (in ms) of the long shot transmit pulse.

This feature is automatically adjusted by Transducer (P004).

Values:

0.000 to 5.000

P850 Short Shot Bias

Use this feature to slant the echo evaluation in favour of the short shot echo when both short and long shots are evaluated (see Shot Mode, P803). This feature is preset to 20.

Values:

0 to 100

P851 Short Shot Floor

Enter the minimum echo strength (in dB above 1 µV rms), initiated from a short shot, to be considered for evaluation. This feature is preset to 50.

Values:

0 to 100

P852 Short Shot Range

Enter the maximum distance in Units (P005) to be measured using short shot echoes.

This feature is automatically altered when Transducer (P004) is altered.

Enhancement Param.

Values:

0.000 to 9999

PL-573 AiRanger SPL Page 79

Page 80

Test Parameters (P900 to P913)

Test Parameters are intended for use by Milltronics Service personnel.

P900 (V) Software Rev. #

Access this parameter to determine the EPROM Rev. # without removing the enclosure lid.

Values:

00.00 to 99.99

P901 (V) Memory

Enhancement Param.

Press

When the test is successful, "PASS" is displayed. Otherwise, one of the following values is displayed, indicating the type of memory failure.

Values:

PASS (memory test successful) F1 = RAM F2 = NOVRAM F3 = EEPROM F4 = EPROM

P902 (V) Watchdog

Press

On successful completion (in about 15 seconds) the SPL enters the RUN mode.

P903 (V) Display

Press

to activate the SPL memory test.

to reset the microprocessor.

to activate the display test.

All LCD segments and symbols are temporarily displayed.

P904 (G) Keypad

Press each keypad key in the following sequence:

As each key is pressed, the associated keypad number is displayed. On successful test completion "PASS" is displayed. "FAIL" is displayed if a key is pressed out of sequence or the programmer keypad malfunctions.

Page 80 AiRanger SPL PL-573

Page 81

P905 Transmit Pulse

Press

to supply repeated transmit pulses to the transducer and/or view the

transducer operating frequency (automatically altered by (P004) Transducer).

This feature may be used to monitor the transmit pulse with an oscilloscope connected to the transducer terminals.

Values:

10.00 to 60.00

P906 Communications

Press

to test the SPL communications circuitry.

Note:

Before activating this feature connect terminal block contacts 27 to 29 and 28 to

30.

On successful test completion, "PASS" is displayed. If "FAIL" is displayed, repeat the test. (The first test performed sets up the auto polarity function).

P907 Programmer Interface

Enhancement Param.

Press

to activate the programmer interface (two way infrared communications)

test.

On successful test completion, "PASS" is displayed. Otherwise, "FAIL" is displayed.

P910 Relay

Access this parameter to display the current state of the specified relay.

Press

to alter the relay state (energized / de-energized) or enter the value

corresponding to the specific relay state desired.

Values:

0 = de-energized 1 = energized

P911 mA Output Value

Access this parameter to display the current value of the mA output.

Additionally, this feature may be used to enter a desired value. The mA output is immediately forced to the value entered, regardless of any restrictions programmed.

Values:

0.000 to 25.00

PL-573 AiRanger SPL Page 81

Page 82

Enhancement Param.

P912 Transducer Temperature

Access this parameter to display the vessel temperature in °C (as monitored by the connected ultrasonic / temperature transducer). "Err" is displayed if the transducer is not equipped with an integral temperature sensor.

Values:

-50 to 150

P913 Sensor Temperature

Access this parameter to display the vessel temperature in °C (as monitored by the connected temperature sensor). "OPEn" is displayed if a TS-3 is not connected.

Values:

-50 to 150

Page 82 AiRanger SPL PL-573

Page 83

Measurement Parameters (P920 to P923)

Use these parameters to verify Application Parameter programming, when performing a dynamic material level test over at least 2 empty/fill cycles is impractical.

Access the following parameters to take an ultrasonic measurement and automatically:

display the corresponding Reading in the Parameter Value field.

•

set the mA output value accordingly.

•

• set the relay status accordingly.

• transmit the corresponding point data to the BIC-II (if used).

Note:

If measurements or simulation are desired, however SPL operation has not been verified, disable all associated process control equipment before accessing the following parameters.

To take an ultrasonic measurement, access one of the following parameters and press

(repeat 5 times to overcome Echo Lock, P711).

Enhancement Param.

Alternatively, press simulation, the SPL will operate as though the material level was repeatedly cycling

from full to empty to full, and so on, at a rate of 1% of Span (P007) per second. See Lock (P000) to activate control relays during simulation.

The simulation starts at level = 0, unless a specific level value was entered beforehand.

Press Holding the key increases (or decreases) the simulated rate of rise (or fall), to 4% of

Span per second.

Press

During a measurement or simulation, the SPL display responds as though in the RUN mode, however the value displayed in the Reading field is affected by the Measurement Parameter selected, and the material level is displayed in the Auxiliary Reading field.

P920 Reading Measurement

The Reading corresponds to all associated programming.

to switch to the rising (or for the emptying) simulation as required.

to end the simulation, when desired.

to simulate a rising and falling material level. During the

P921 Material Measurement

The Reading corresponds to the distance between Empty (P006) and the material level.

PL-573 AiRanger SPL Page 83

Page 84

P922 Space Measurement

The Reading corresponds to the distance between the material level and Span (P007).

P923 Distance Measurement

The Reading corresponds to the distance between the material level and the transducer face.

P924 Volume Measurement

The Reading corresponds to the volume calculation in percent of Max Volume (P051).

Enhancement Param.

Press

as required to display in Max Volume units.

P927 Distance Percent

Same as P923, plus alternate reading in % press

Page 84 AiRanger SPL PL-573

Page 85

Master Reset (P999)

P999 Master Reset

Global Master Reset

to clear all operator programming from memory.

•

after replacing the SPL EPROM with a different software revision number.

•

(reset all parameters to preset values) should be performed:

Following a Global Master Reset, complete reprogramming is required.

To perform a Global Master Reset:

1. With the Parameter Number field accessed, key in 999,

2. With the Point Number field accessed, key in 00,

3. Press

, “C.ALL" is displayed until the reset is complete.

Enhancement Param.

PL-573 AiRanger SPL Page 85

Page 86

Enhancement Param.

Page 86 AiRanger SPL PL-573

Page 87

Technical Reference

Transmit Pulse

The SPL transmit pulse consists of one or more electrical "shot" pulses, which are supplied to a transducer connected to the SPL terminals.

The transducer fires an acoustic "shot" for each electrical pulse supplied. After each shot is fired, sufficient time is provided for next (if applicable) shot is fired. After all shots of the transmit pulse are fired, the resultant echoes are processed.

The transmit pulse shot number, frequency, duration, delay, and associated measurement range are defined by parameters P803 and P840 to P852.

Echo Processing

echo

(shot reflection) reception, before the

Echo processing consists of echo enhancement, true echo selection, and selected echo verification.

Echo Enhancement is achieved by

reforming

signal representing the echo signal received).

True echo selection is achieved by establishing the criteria which a portion of the echo profile must meet to be considered the intended target).

Insignificant portions of the echo profile outside of the measurement range (Span P007 + Range Extension P801), below the TVT Curve (P830 to P835), and less than the Confidence Threshold (P804) and Short Shot Floor (P851) are automatically disregarded.

The remaining portions of the Echo Profile are evaluated using the Algorithm(s) (P820) and Short Shot Bias (P850) programmed. When a combination of Algorithms are used, the portion of the Echo Profile providing the best averaged Echo Confidence (P805), is selected as the true echo.

True echo verification is automatically achieved by comparing the position (relation in time after transmit) of the "new" echo to the previously accepted echo position.

(connecting fragmented echo peaks, P823) the

filtering

(removing noise, P821 and P822) and

true echo

echo profile

(echo reflected by the

(digitized

Technical Reference

If the new echo is within the Echo Lock Window (P713), the new echo is accepted and displays, outputs, and relays are updated as restricted by the Fuzz Filter (P710) and Rate Parameters (P700 to P703). If the new echo is outside of the Echo Lock Window, the new echo is not accepted until P711) requirements are satisfied.

PL-573 AiRanger SPL Page 87

Echo Lock

(measurement repeatability,

Page 88

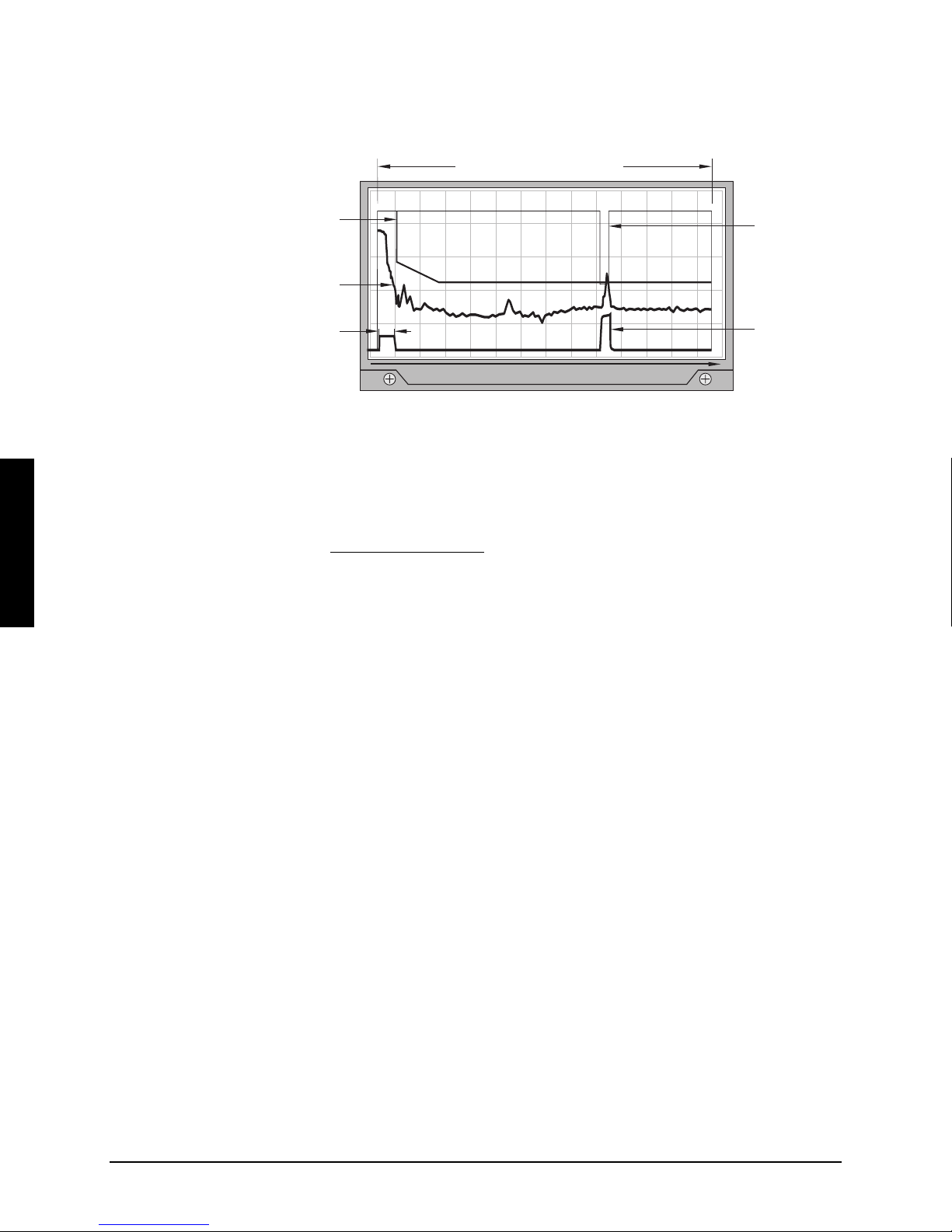

Echo Processing Displays (Scope Displays, P810)

span + range extension

(P007) (P801)

Technical Reference

TVT

curve

display

echo profile

display

near blanking

(P800)

Distance Calculation

To calculate the transducer to material level (object) distance, the

medium

transmission to reception time period. The result (round trip distance) is divided by 2.

Distance = Sound Velocity x Time

The Reading Value displayed is the result of performing any additional modification to the calculated distance (Operation P001, Units P005, Volume Conversion, P050 to P054, Reading Value, P060 to P063.)

(atmosphere) sound velocity (P653) is multiplied by the acoustic

echo lock window display

echo marker display

transmission

Sound Velocity

The sound velocity of the transmission medium is affected by the type, temperature, and vapour pressure of the gas or vapour present. As preset, the SPL assumes the vessel atmosphere is air at 20°C (68°F). Unless altered, the sound velocity used for the distance calculation is 344.1 m/s (1129 ft/s).

Variable air temperature is automatically compensated when a Milltronics ultrasonic/temperature transducer is used. If the transducer is exposed to direct sunlight a TS-3 temperature sensor should be used.

Also, if the temperature varies between the transducer face and the object monitored, a TS-3 temperature sensor, mounted near the material surface (solids) or submerged (liquids), should be used in combination with the ultrasonic/temperature transducer. Then when Temp Source, (P660) is set for "both", the transducer and TS-3 temperature measurements are averaged.

Atmosphere composition other than air can pose a challenge for ultrasonic level measurement. However, excellent results may be obtained if the atmosphere is

homogeneous

by performing a Sound Velocity Calibration (P651).

(well mixed), at a fixed temperature, and consistent vapour pressure,

Page 88 AiRanger SPL PL-573

Page 89

The SPL automatic temperature compensation is based on the sound velocity/temperature characteristics of "air" and may not be suitable for the atmosphere present. If the atmosphere temperature is variable, frequent Sound Velocity Calibrations may be required to maintain optimum measurement accuracy.

Sound Velocity calibration frequency may be determined with experience. If the sound velocity in two vessels is always similar, future calibrations may be performed on one of the vessels and the resultant Velocity (P653) entered directly for the other vessel.

If the sound velocity of a vessel atmosphere is found to be repeatable at specific temperatures, a chart or curve may be developed. Then, rather than performing a Sound Velocity Calibration each time the vessel temperature changes significantly, the anticipated Velocity (P653) may be entered directly.

Volume Calculation

The SPL provides a variety of volume calculation features (P050 to P055).

If the vessel to be monitored does not match any of the 8 preset Tank Shape calculations, a Universal Volume calculation may be used. Use the level/volume graph or chart provided by the vessel fabricator (or create one based on the vessel dimensions).

Technical Reference

From this graph, determine which Universal Volume calculation will provide the best results, and select the level vs volume breakpoints to be entered (32 max.). Generally, the more breakpoints entered, the greater the volume calculation accuracy.

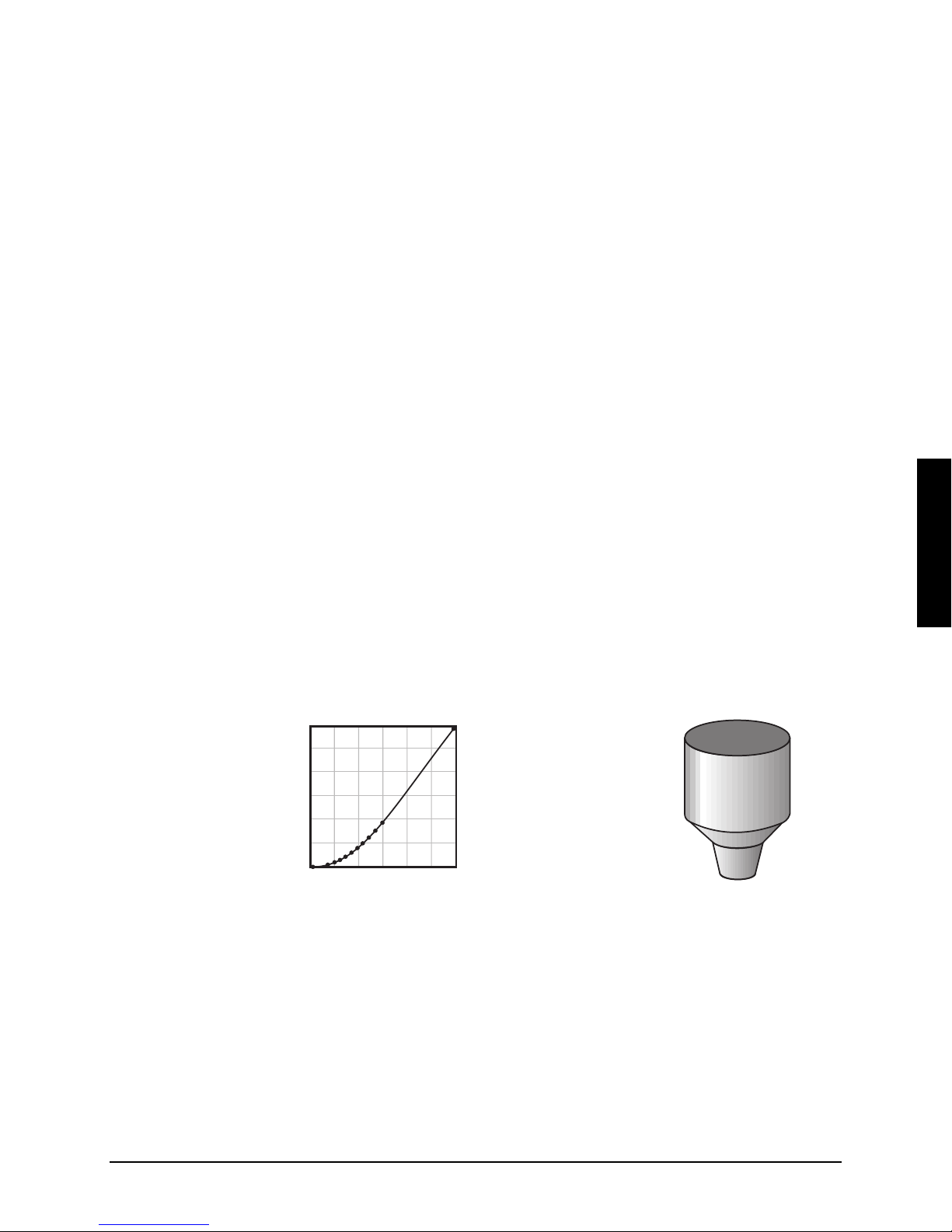

Universal, Linear (P050 = 9)

volume

level

This volume calculation creates a piece-wise linear approximation of the level/volume curve. This option provides best results if the curve has sharp angles joining relatively linear sections.

Enter a Level Breakpoint at each point where the level/volume curve bends sharply (2 minimum).

tank

For combination curves (mostly linear but include 1 or more arcs), ensure numerous breakpoints are entered along the arc, for best volume calculation accuracy.

PL-573 AiRanger SPL Page 89

Page 90

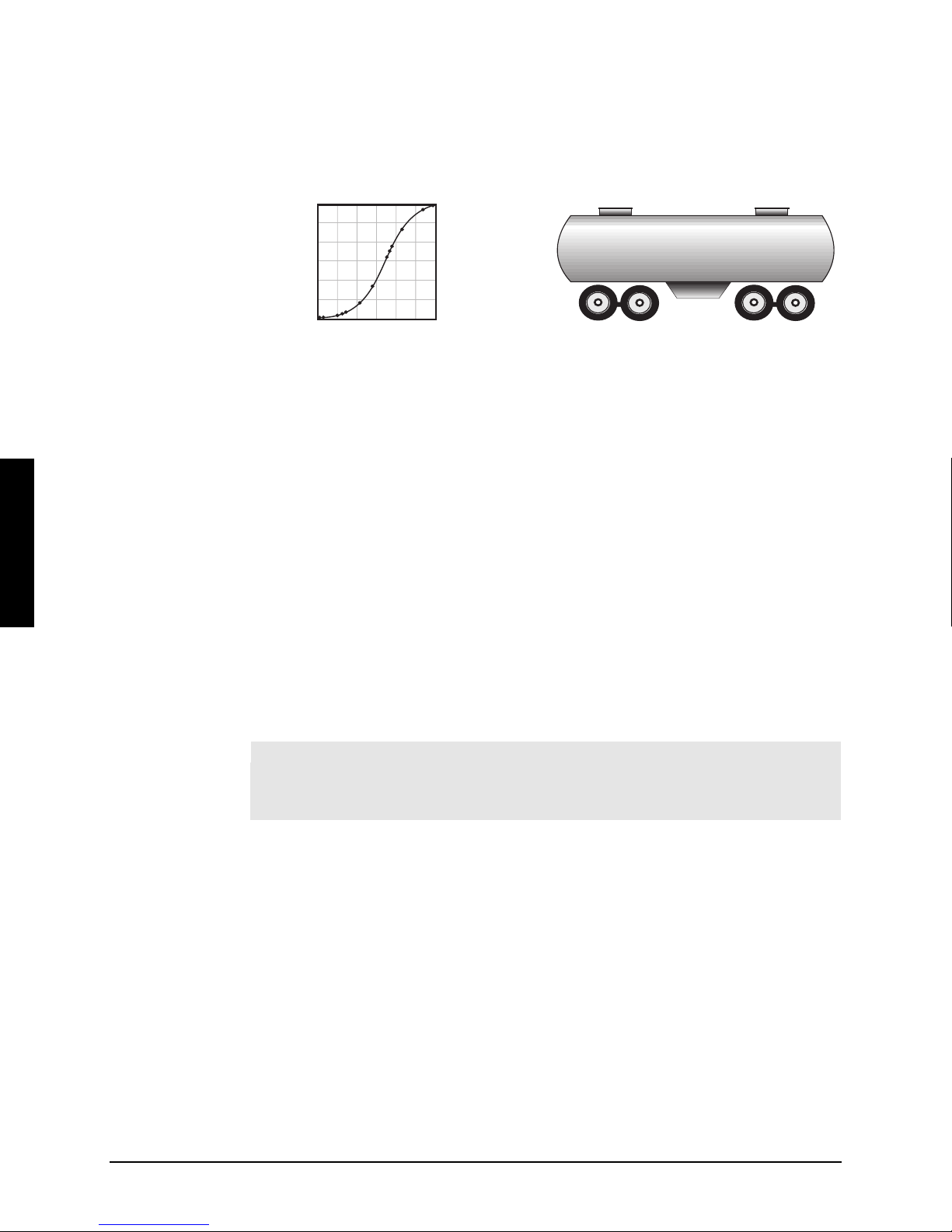

Universal, Curved (P050 = 10)

This volume calculation creates a cubic spline approximation of the level/volume curve. This option provides best results if the curve is non-linear, and there are no sharp angles.

level

Select at least enough breakpoints from the curve to satisfy the following:

• 2 breakpoints very near the minimum level

• 1 breakpoint at the tangent points of each arc

• 1 breakpoint at each arc apex

• 2 breakpoints very near the maximum level

For combination curves, ensure at least 2 breakpoints are entered immediately before and after any sharp angle (as well as 1 breakpoint exactly at the angle) on the curve.

tankervolume

Technical Reference

Measurement Response

The SPL Measurement Response (P003) to material level changes is designed to exceed the most demanding installation requirements.

If any of these parameters are independently altered, a Measurement Response parameter alteration automatically changes the independently altered value.

Note:

Slower Measurement Response provides greater measurement reliability. Faster independently set Max Fill/Empty Rates may be impeded by Echo Lock, Scan Delay and Shot Delay values.

The Measurement Response setting automatically adjusts various parameters affecting the SPL response to material level changes as in the table that follows.

Page 90 AiRanger SPL PL-573

Page 91

Parameter

Values Dependent on Measurement Response (P003) Value

# Name (Units) 1

P070 Failsafe Timer P700 Max Fill Rate P701 Max Empty Rate P702 Filling Indicator P703 Emptying Indicator P704 Rate Filter (option) 4 3 2 2 2 P710 Fuzz Filter (% of P007) 100 50 10 1 0 P711 Echo Lock (option) 1 or 2 P713 Echo Lock Window P728 Shot Delay (s) P803 Shot/Pulse Mode (option) P841 Long Shot Number (qty)

Application Examples

The following examples describe the use of SPL programmable features, to meet the needs of specific process measurement requirements.

(min)

(m/min)

(slow)

(medium)

(fast)

(surge)5(imm.)

100 10 1 0.1 0

0.1 1 10 100 1000

0.01 0.1 1 10 100

(dependent on Material, P002)

(dependent on P701/P702 and time since last valid measu rement)

0.5 0.5 0.5 0.2 0.1 2 2 2 1 1

10 5 2 1 1

0 0

Technical Reference

It is highly unlikely that your specific installation will match one of these examples exactly.

However, by reviewing the example (or combination of examples) that matches your installation best, the relationship between SPL features and process measurement requirements may be more easily recognized.

Example # Description

1 Level (or Material Volume) Measurement for a single vessel. 2

Space (or Remaining Vessel Capacity) Measurement for a single vessel.

PL-573 AiRanger SPL Page 91

Page 92

Example 1 - Level Measurement

Material Level

This is the most common application of the SPL level monitor.

For this example we'll assume the following:

• one 30 m high cement silo is to be monitored.

• the maximum vessel filling rate is 0.08 m per minute.

• alarm indicators are required when the cement level exceeds 25 m or falls below 10

m. filling equipment is to be automatically deactivated at 27 m.

•

• in the event of a measurement difficulty, failsafe operation is to be activated in 2

minutes.

• if the difficulty doesn't subside, the filling process is to be stopped before a spill

occurs.

• an XLT-30 transducer is mounted with its face flush with the top of the vessel.

• a TS-3 temperature sensor is connected to the Temp Sensor terminals.

transducer

Technical Reference

30.00 m (P006)

25.00 m (P101)

29.01 m (P007)

27.00 m (P103)

10.00 m (P102)

5.00 m (P104)

Page 92 AiRanger SPL PL-573

Page 93

Parameter Settings

Number Description Instructions

P001 Operation Enter "1" for P002 Material Enter "2" for P003 Measurement Response Enter "1" for P004 Transducer Enter "107" for P005 Units No entry required, (preset for

P006 Empty P007 Span No entry required, (preset to P070 Failsafe Timer P071 Failsafe Material Level Enter "HI" for

P072 Failsafe Advance No entry required. (preset to P100 Relay Set Up P101

P102 P103 P104

High

Alarm Enter "25" for

Low

Alarm Enter "10" for

High High Low Low

Alarm Enter "27" for

Alarm Enter "5" for

Enter "30" for transducer face to Empty equals

Enter "2" for failsafe activation after

minutes

Enter "4" for

alarm relays.

Low

level

solid

slow

(0.1 m/min).

XLT-30

30.00 metres

without a valid echo.

advance to Span on "LOE"

High, Low, High High, and Low

High

Alarm at

Low

Alarm at

High High

Low Low

Alarm at

metres

29.01 metres 2

restricted

25.00 m

10.00 m

27.00 m

5.000 m

Technical Reference

With process control equipment disabled, enter the RUN mode to monitor system performance and alarm programming. Otherwise, perform a Reading Measurement simulation (P920).

When satisfied with system performance and programming:

• connect a high alarm indicator to Relay #1 (see P100 = 4).

connect a low alarm indicator to Relay #2.

•

connect a high high alarm indicator and filling equipment stop/start control to Relay #3.

•

connect a low low alarm indicator to Relay # 4.

•

(Note that relays are de-energized in "power off" and "alarm" conditions).

For cement applications (or any very dusty dry solids), measurement difficulties during vessel filling are common. For this example (assume the maximum filling rate), failsafe operates as follows.

e.g.

09:15 am Echo lost at 6.00 m, low alarm is still on, failsafe countdown begins. 09:17 am Failsafe activated, actual level = 6.16 m, reported level = 6.00 m. 09:57 am Low alarm off, actual level = 9.36 m, reported level = 10.00 m. 12:27 pm High alarm on, actual level = 21.36 m, reported level = 25.00 m. 12:47 pm Infeed stopped, actual level = 22.96 m, reported level = 27.00 m.

PL-573 AiRanger SPL Page 93

Page 94

When the dust settles (and the echo is regained) the reported level advances toward the actual level. When the reported level reaches 25.55 m (5% of Span less than the high high alarm trip point), the high high alarm goes off, restarting the infeed and filling the vessel to 27.00 m.

Material Volume

To perform a volume conversion for the preceding example, we'll assume:

Technical Reference

• the vessel is cylindrically shaped with a flat bottom.

• the vessel volume for Empty to 29.01 m (Span) is 1457 m

Volume Parameter Settings

Number Description Instructions

P050 Tank Shape Enter "1" for P051 Max Volume Enter "1457" for

Now in the RUN mode the Reading represents material volume in m3.

vertical cylinder with flat bottom

1457 m

Page 94 AiRanger SPL PL-573

Page 95

Example 2 - Space Measurement

This mode of operation is commonly used when remaining vessel capacity is of more importance to the installation than the actual material level.

Space

For this example we'll assume the following:

• the vessel is a 3 ft diameter by 15 ft long cylinder (including the parabolic ends of 1.5

ft each). the maximum vessel filling rate is 1 ft per minute (slower at mid level).

•

a mA output scaled from 4 mA at Full to 20 mA at Empty is required for PLC

•

operation.

• in the event of a measurement difficulty, failsafe operation is to be activated in 6

seconds.

• if the difficulty doesn't subside, the mA output must immediately assume 22.00 mA.

• an XCT-8 transducer is mounted in a standpipe so that the face is 18 in. above the

vessel top. a TS-3 temperature sensor is mounted in the vessel to monitor liquid temperature.

•

Technical Reference

1.5ft

(P052)

4.50 ft

(P006)

3.00 ft

(P007)

12.00 ft (P053)

PL-573 AiRanger SPL Page 95

Page 96

Parameter Settings

Number Description Instructions

Technical Reference

P001 Operation Enter "2" for P002 Material No entry required (preset for

P003 Measurement Response P004 Transducer Enter "101" for

P005 Units Enter "4" for P006 Empty P007 Span Enter "3" for

P070 Failsafe Timer No entry required, (preset by P003).

Parameter Settings for mA Output

Number Description Instructions

P200 mA Range P213 mA Max Limit Enter "22" for

P219 mA Failsafe Enter "20.2" for

space

Enter "4" for Timer = 0.1 minutes).

Enter "4.5" for

1.5 ft in standpipe).

No entry required. (preset for

, P001 = 2.)

level

surge

(100 m/min, Failsafe

XCT-8

feet

4.50 ft

(3 feet diameter plus

3 ft

(vessel diameter).

22.00 mA

20.20 mA

liquid)

20 mA = low

Parameter Setting for Temperature Averaging

Number Description Instructions

P660 Temp Source

With process control equipment disabled, enter the RUN mode to monitor system performance and alarm programming. (A Reading Measurement simulation (P920) may be performed to verify mA output programming).

When satisfied with system performance and programming, connect the mA output to the Programmable Logic Controller (PLC).

Note that on "power off" the mA output drops to 0.00 mA. During a power interruption, the "last known" mA output value is maintained in memory for 1 hour minimum. If power is interrupted beyond 1 hour, on power resumption, the mA output immediately assumes the "new value".

Enter "5" for average XCT-8 and TS-3 temperatures.

Page 96 AiRanger SPL PL-573

Page 97

Remaining Vessel Capacity

To perform a volume conversion for the preceding example, complete the following programming.

Volume Parameter Settings

Number Description Instructions

P050 Tank Shape

P051 Max Volume

P052 Tank Dimension A

P053 Tank Dimension L

* This is the only tank shape where the Span (P007) value must exactly equal the vessel height.

Now in the RUN mode, the Reading Value and mA output will represent remaining vessel capacity in cubic feet. If the mA output is still to be scaled to "space" (distance from material to Full in feet) set the mA Function (P201) to "2".

Application Assistance

The preceding examples describe only two ways in which the SPL can be applied to process measurement requirements.

The SPL can be used to monitor almost any process (within the temperature, measurement range, and chemical immunity capabilities of the system) where a distance measurement or determination of presence vs. lack of presence of an object is desired.

Enter "7"* for

parabolic ends

Enter "117" for fabricators value).

Enter "1.5" for one parabolic end).

Enter "12" for excluding parabolic ends).

horizontal cylinder with

117 cubic feet

1.5 ft

(the horizontal length of

12 ft

(the horizontal length,

(Use vessel

Technical Reference

By thoroughly reviewing the Parameters sections, you may identify some interesting ways of using the SPL to monitor specific processes.

Milltronics has many years experience applying ultrasonic level measurement to a variety of processes in the mining, aggregate, lumber, grain, chemical, pulp and paper, water, and waste water industries.

If you encounter a difficulty applying the SPL to a process measurement requirement, or successfully apply the SPL to a "unique process" we may have never considered, contact Milltronics or your local distributor.

PL-573 AiRanger SPL Page 97

Page 98

Communication Support

The SPL provides digital communication to a peripheral device, such as a computer or PLC, in one of three modes via the communication port, terminals 26 through 32. The mode of communication is established by the configuration of the connection made at the SPL, RS-232, RS-485 or bipolar current loop.

Technical Reference

The SPL utilizes continuously transmitted at regular intervals (no poll is required) at 4800 baud. All data is transmitted in structured messages of ASCII characters consisting of 8 data bits, no parity, and 1 stop bit.

If Peripheral Communications (P740) is set for "formatted" messages, a comma is inserted between each message field (except immediately preceding the "End of Message" characters).

simplex convention

communication protocol. Data messages are

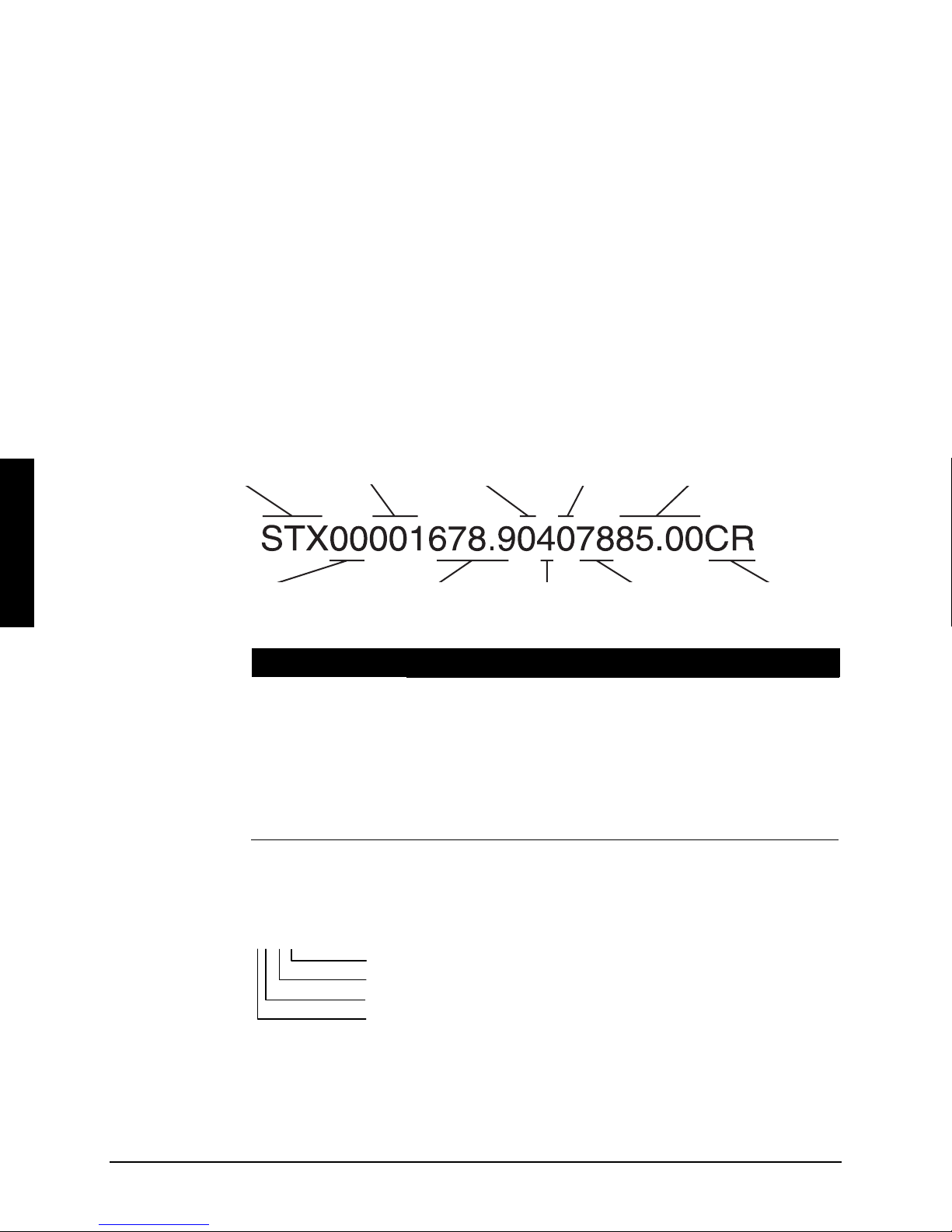

MT-00 Measurement Message

start of message point # status A status C percent

Field Name Definition

end of messagetemperaturestatus Breadingmessage type

Start Of Message STX ($02) Message Type

Point #

Reading

Status A 1 character, $0 to $F (convert to binary, e.g. temp, echo, and cable OK, not priority)

MSB LSB

# # # #

2 characters, 00 (indicates the following data pertains to a scan point measurement)

3 characters, 001 to 003 (e.g. the message pertains to Point Number 1)

5 characters, 0.000 to 9999. (e.g. reading = 678.9, DDDD. = no data, EEEE. = overflow)

1 = temp alarm 1 = loss of echo (failsafe expired) 1 = transducer cable fault 1 = priority point

Page 98 AiRanger SPL PL-573

Page 99

Status B 1 character, $0 to $F (convert to binary, e.g. scan point is in high alarm)

MSB LSB

# # # #

1 = low low alarm 1 = low alarm 1 = high alarm 1 = high high alarm

Status C 1 character, $0 to $F (convert to binary, e.g. scan point is not in rate or band alarm)

MSB LSB

# # # #

1 = rate alarm 2 1 = rate alarm 1 1 = band alarm 1 1 = band alarm 2

Field Name Definition

Technical Reference

Temp

Percent End Of Message CR ($0D)

MT-01 Hold Message

e.g.

Field Name Definition

Start Of Message STX ($02) Message Type

2 characters, $32 to $FA (convert to decimal and subtract 100, e.g. temperature = 20 °C)

5 characters, 00.00 to 9999. (e.g. current level = 85.00% of span, EEEE. = field overflow)

start of message end of messagemessage type

2 characters, 01 (indicates the

was removed from the

SPL

RUN mode)

End Of Message CR ($0D)

PL-573 AiRanger SPL Page 99

Page 100

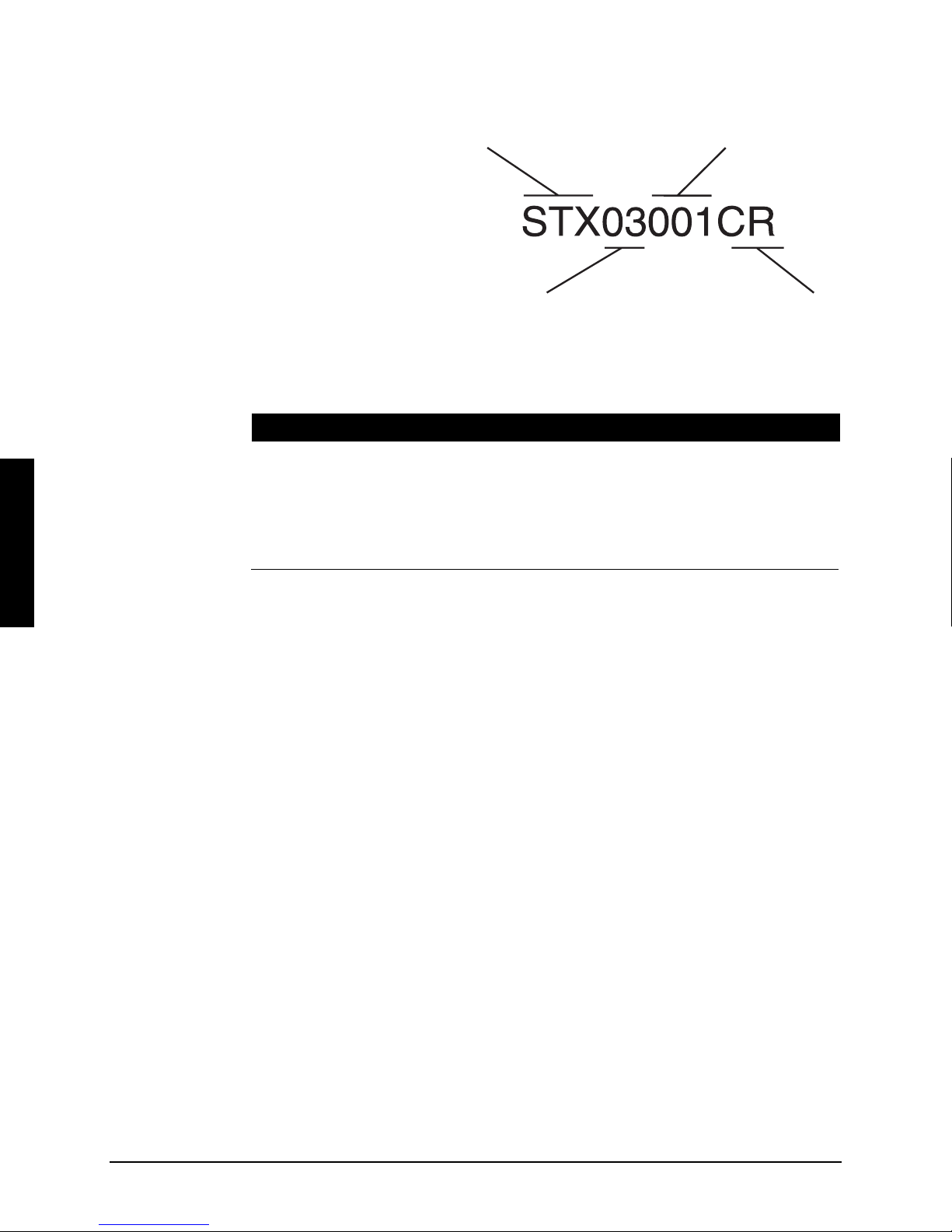

MT-03 Point Not Scanned

e.g.

Field Name Definition

Start Of Message STX ($02)

start of message point #

end of messagemessage type

Technical Reference

Message Type

2 characters, 03 (indicates the Point Number is not in

service) Point # 3 characters, 001 to 003 (e.g. Point Number 1) End Of Message CR ($0D)

Page 100 AiRanger SPL PL-573
