Instruction Manual March 2005
airanger
XPL PLUS
Page 2
Safety Guidelines: Warning notices must be observed to ensure personal safety as well as that of
others, and to protect the product and the connected equipment. These warning notices are
accompanied by a clarification of the level of caution to be observed.
Qualified Personnel: This device/system may only be set up and operated in conjunction with this
manual. Qualified personnel are only authorized to install and operate this equipment in accordance with
established safety practices and standards.
Unit Repair and Excluded Liability:
• The user is responsible for all changes and repairs made to the device by the user or the user’s
agent.
• All new components are to be provided by Siemens Milltronics Process Instruments Inc.
• Restrict repair to faulty components only.
• Do not reuse faulty components.
Warning: This product can only function properly and safely if it is correctly transported, stored,
installed, set up, operated, and maintained.
Note: Always use product in accordance with specifications.
Copyright Siemens Milltronics Process
Disclaimer of Liability
Instruments Inc. 2005. All Rights Reserved
This document is available in bound version and in
electronic version. We encourage users to purchase
authorized bound manuals, or to view electronic versions
as designed and authored by Siemens Milltronics Process
Instruments Inc. Siemens Milltronics Process Instruments
Inc. will not be responsible for the contents of partial or
whole reproductions of either bound or electronic
versions.
While we have verified the contents of this
manual for agreement with the
instrumentation described, variations
remain possible. Thus we cannot
guarantee full agreement. The contents of
this manual are regularly reviewed and
corrections are included in subsequent
editions. We welcome all suggestions for
improvement.
Technical data subject to change.
MILLTRONICS®is a registered trademark of Siemens Milltronics Process Instruments Inc.
Contact SMPI Technical Publications at the following add r ess:
Technical Publications
Siemens Milltronics Process Instruments Inc.
1954 Technology Drive, P.O. Box 4225
Peterborough, Ontario, Canada, K9J 7B1
Email: techpubs.smpi@siemens.com
• For a selection of Siemens Milltronics level measurement manuals, go to:
www. siemens.com/processautomation. Under Process Instrumentation, select
Measurement
• For a selection of Siemens Milltronics weighing manuals, go to:
www. siemens.com/processautomation. Under Weighing Technology, select
Weighing Systems
and then go to the manual archive listed under the product family.
and then go to the manual archive listed under the product family.
Level
Continuous
© Siemens Milltronics Process Instruments Inc. 2005
Page 3
Table of Contents
Introduction ....................................................................................................................................................1
About This Manual ..................................................................................................................................1
About the AiRanger XPL Plus ..............................................................................................................2
Important AiRanger XPL Plus Features .............................................................................................4
Installation ......................................................................................................................................................7
AiRanger XPL Plus ..................................................................................................................................7
Optional Cards ..........................................................................................................................................9
Interconnection ......................................................................................................................................10
Programming ...............................................................................................................................................15
Display ......................................................................................................................................................15
Keypad .....................................................................................................................................................16
Program Mode Entry ............................................................................................................................17
Parameter Value Alteration ................................................................................................................17
Programming Security .........................................................................................................................18
Quick Start Parameters ..........................................................................................................................19
Operation .......................................................................................................................................................23
Display ......................................................................................................................................................23
Keypad .....................................................................................................................................................24
System Performance Evaluation .......................................................................................................25
Performance Test Results ...................................................................................................................26
Application Parameters .........................................................................................................................27
Volume Parameters (P050 to P055) ...................................................................................................27
Reading Parameters (P060 to P062) ..................................................................................................29
Failsafe Parameters (P070 to P072) ..................................................................................................30
Relay Parameters (P100 to P104, P110 to P113, P129) ..................................................................33
mA Output Parameters (P200 to P203, P210 to P215, P219) ........................................................39
Enhancement Parameters ....................................................................................................................43
Data Logging Parameters (P300 and P302) ....................................................................................43
Profile Records (P330 to P337) ...........................................................................................................44
Installation Records (P340 to P342) ..................................................................................................47
Range Calibration Parameters (P650 to P654) ..............................................................................48
Temperature Compensation Parameters (P660 to P664) ............................................................51
Rate Parameters (P700 to P707) .......................................................................................................53
Measurement Verification Parameters (P710 to P713) ...............................................................55
Scanning Parameters (P720, P725 to P729) ...................................................................................57
Display Parameters (P730 to P734, P740) .......................................................................................59
SmartLinx Parameters ........................................................................................................................61
Echo Processing Parameters (P800 to P807) ................................................................................62
Advanced Echo Processing (P810,P816-P825,P830-P835,P840-P845,P850-P852) ..................65
Test Parameters (P900 to P913) .........................................................................................................72
i
Page 4
Measurement Parameters (P920 to P923) ......................................................................................74
Master Reset (P999) ............................................................................................................................77
Technical Reference ................................................................................................................................79
Transmit Pulse ........................................................................................................................................79
Echo Processing ....................................................................................................................................79
Distance Calculation ............................................................................................................................80
Sound Velocity .......................................................................................................................................80
Scanning ..................................................................................................................................................81
Volume Calculation ...............................................................................................................................81
Measurement Response .....................................................................................................................82
Application Examples ...........................................................................................................................83
BIC-II Support .........................................................................................................................................93
Maintenance ..........................................................................................................................................96
Troubleshooting Guide ..........................................................................................................................97
Measurement Difficulties ....................................................................................................................98
Specifications ......................................................................................................................................... 103
Programming Chart .............................................................................................................................. 105
Programming Chart ............................................................................................................................... 106
Programming Chart .............................................................................................................................. 107
Programming Chart .............................................................................................................................. 108
ii
Page 5
Introduction
About This Manual
This instruction manual provides information specific to the AiRanger XPL Plus (Ten Point
Level) monitor.
When references are made to other Siemens Milltronics products associated with an
AiRanger XPL Plus (XPL Plus) based level measurement system, refer to the associated
product instruction manuals, if necessary.
After reading this introduction and completing the physical installation, first time system
installers may wish to use the AiRanger XPL Plus Quick Start Guide for step-by-step start
up instructions.
Introduction
introduces installers and operators to the XPL Plus, with brief
descriptions of key features.
Introduction
mmmmm
Installation
Programming
Quick Start Parameters
Operations
Application Parameters
Enhancement Parameters
Technical Reference
Troubleshooting Guide
provides a step-by-step procedure to install and interconnect an
XPL Plus based level measurement system.
defines PROGRAM mode display and keypad functions, and general programming information.
details the minimum recommended programming required to prepare the XPL Plus for RUN mode operation.
defines RUN mode display and keypad functions, including the
RUN mode entry procedure and performance evaluation recommendations.
details the programmable features that may be used to alter XPL
Plus display, failsafe, SAM-20 relay, and AO-10 mA output operation.
defines the programmable features used to enhance RUN mode
operation. (Typically used as directed by the Troubleshooting
Guide).
provides detailed information for complex features and details 4
specific application examples.
provides a quick reference to installation modification and programming remedies to overcome challenging operating conditions.
Specifications
Programming Charts
Note: Programming is not complete until the Programming Charts are completed.
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 1
lists the environmental, physical, and operational characteristics
associated with the XPL Plus.
provides a convenient space to record all programming for future
reference. (May also be used as a complete parameter index.)
Page 6
About the AiRanger XPL Plus
The AiRanger XPL Plus is to be used only in the manner outlined in this instruction
manual.
The XPL Plus is a microprocessor based level monitor designed specifically for bulk
solids and liquid level measurement applications. An XPL Plus level monitor, utilizing a
single Siemens Milltronics ultrasonic transducer, accurately monitors vessel material
level without material contact. By using an additional transducer for each vessel, the XPL
Plus can monitor the material level in up to 10 vessels.
The XPL Plus transmits electronic pulses to each scanned ultrasonic transducer. The
transducer converts the electronic pulses to ultrasonic pulses which are emitted from the
transducer face in a narrow beam. The XPL Plus measures the time from the pulse
emission, to receiving the reflection (echo) from the material. Using the time measured,
the XPL Plus calculates the distance from the transducer face to the material.
mmmmm
The distance calculation is dependent upon the sound velocity within the vessel. When
Siemens Milltronics ultrasonic/temperature transducers are used, variable air
Introduction
temperatures are independently compensated for each vessel. For superior air
temperature compensation, a TIB-9 card may be used with individual Siemens Milltronics
TS-3 temperature sensors for each vessel. A simple calibration feature compensates for
homogeneous (consistent composition) atmospheres other than air.
L
1234
5
6078
mA
9
PP
C
S
12345678910
The XPL Plus is capable of monitoring wheat in 60 m (200 ft) high silos, acetone in 45
gallon barrels, or almost anything in between, in any combination. (Ensure the transducer
selected for each vessel suits the material and measurement range required).
This material and measurement range versatility is accomplished by utilizing Siemens
Milltronics patented Sonic Intelligence®. Sonic Intelligence provides high measurement
reliability, regardless of changing conditions within the vessel monitored.
Page 2 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 7
By utilizing ultrasonic echo ranging principles with Sonic Intelligence and velocity
compensation, the XPL Plus provides outstanding measurement accuracy, usually within
0.25% of range.
The distance calculation may be converted to space, material level, material volume, or
remaining vessel capacity Readings. The Reading chosen (and operating data) for each
vessel is displayed on the Liquid Crystal Display (LCD).
Up to three Siemens Milltronics Peripherals may be connected to the XPL Plus. The AO10, SAM-20 and/or BIC-II, respectively provide analog output , relays, and RS-232 or RS422 communication interface, as programmed by the XPL Plus.
With the addition of a Siemens Milltronics SmartLinx protocol specific ‘plug in’
communications module, the XPL Plus is compatible with popular industrial control
system standards.
Introduction
XPL Plus with SmartLinx
industrial control system
mmmmm
bus
proprietary Milltronics communications loop
Operator programming, via a Siemens Milltronics infrared programmer, is stored in nonvolatile memory, unaffected by power interruption. The infrared interface permits one
programmer to be used for any number of XPL Plus level monitors. Upon programming
completion, the removable programmer may be locked away, thereby securing all
programming.
While the XPL Plus is typically used to monitor material level in open or closed vessels,
any process which requires a distance measurement (within the system range) is a
candidate for XPL Plus application.
Refer to
Technical Reference
sample of process measurement requirements to which the XPL Plus may be applied.
Throughout this manual (unless stated otherwise) references to material level also apply
to any material or object surface to be monitored by the XPL Plus.
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 3
Application Examples for detailed descriptions of a small
Page 8
Important AiRanger XPL Plus Features
Fixed Features
Enclosure
LCD
Programmer
Scanning
Chemical resistant, light weight, dust tight, liquid tight, easy to work with.
Large digits for Reading and programming value displays.
Graphic Symbols for continuous indication of operating conditions.
20 tactile feedback keys or Dolphin (XPL Plus/RS-232C interface) each with
magnetic mounting and infrared interface (ordered separately).
Substantially reduces equipment costs for additional vessels (present or
future).
Communications
Siemens Milltronics Peripherals
mmmmm
Introduction
Speed
Proprietary bipolar communications with AO-10, SAM-20 and BIC-2
peripheral devices, for respective analog mA output, alarm control relays
and RS-232 or RS-422 interface.
and /or
SmartLinx Compatible
Communications ready when equipped with an appropriate Siemens Milltronics SmartLinx module.
Fast 16/32 bit microprocessor at 16.7 MHz clock speed.
1 vessel (point) per second scanning speed capability.
Reliability
Surface Mount Technology (SMT) also provides for full features in a compact design. Sonic Intelligence® ensures all measurements are accurate
and reliable. Immune to power interruptions, all programming is stored
indefinitely. Dynamic operating data is retained for one hour and updated
immediately on power resumption.
Page 4 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 9
Programmable Features
Typically, a very small percentage of the programmable features require operator
alteration. However, for demanding measurement requirements any operator
programmable feature may be adjusted as desired.
Following is a list of some of the features that make the XPL Plus easy to program, yet
versatile enough to handle complex level measurement requirements.
GENERAL FEATURES
Direct Access
Scroll Access
Operation
Material
Response
Units
Any operator programmable feature may be accessed directly.
Single button "scroll forward", single button "scroll back", to key features.
Select "level","space", or "distance" operation.
Liquid or Solid; automatically adjusts echo processing with one entry.
Slow, medium, fast, surge, or turbo response to material level changes,
one entry.
Display Readings in m, cm, mm, ft, in, %, or any other units desired.
ADDITIONAL FEATURES (use as desired)
Volume
Failsafe
Relays
(SAM-20 required)
mA Outputs
(AO-10 required)

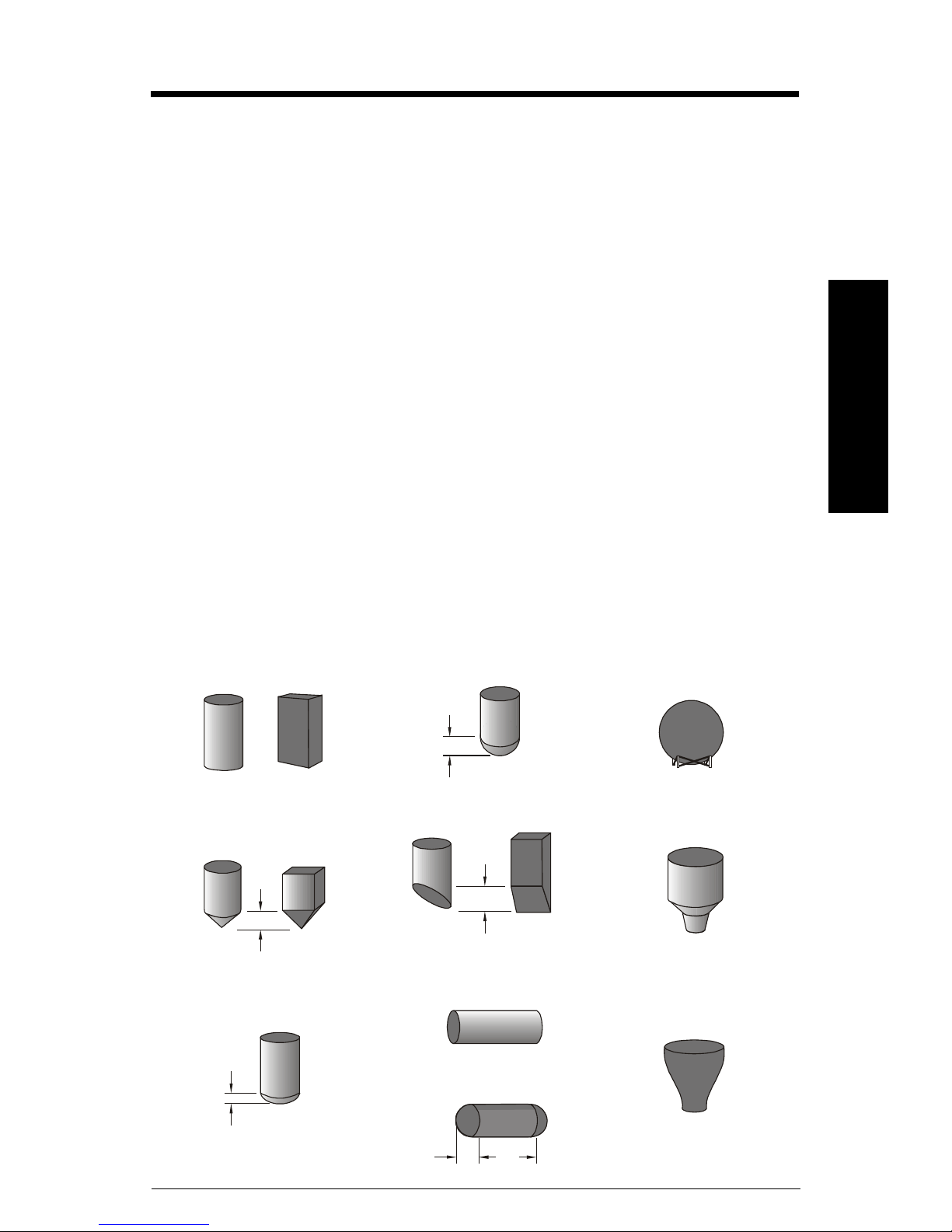

Eight pre-programmed tank shape options.
Two universal tank shape programming methods.
Numerous failsafe options for process control equipment activation.
7 alarm functions including level, rate of change, temperature and more.
Fixed or independent on/off setpoints.
Based on level, space, distance, or volume.
4 range selections, 0-20, 4-20, 20-0, or 20-4 mA.
Adjustable range and over-range limits.
Introduction
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 5
Page 10
Page 6 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 11
Installation
Installation shall only be performed by qualified personnel, and in accordance with
local governing regulations.
The following procedure applies to all XPL Plus level monitor installations. See
Reference
the instruction manuals of all other equipment connected to the XPL Plus for additional
installation instructions.
Application Examples for additional installation requirements. Also, refer to
AiRanger XPL Plus
Installation should only be performed by qualified personnel, and in accordance with all
governing regulations.
Location
Inspect all potential mounting locations. Choose a location suited to the XPL Plus
polycarbonate enclosure and the following location recommendations.
The ideal XPL Plus mounting location is where the
1. Ambient temperature is always within -20 to 50 °C (-5 to 122 °F).
2. XPL Plus front cover has sufficient room to swing open.
3. Operator and electronics are not exposed to the weather.
4. Cable length requirements are minimal.
5. Mounting surface is free from vibration.
Technical
Installation
mmmmm
Avoid mounting locations where the XPL Plus is
1. Exposed to direct sunlight. (Otherwise, provide a sun shield.)
2. Close to high voltage or current runs, contactors, or SCR control drives.
Cable / Conduit Entry Requirements
Determine the number of enclosure cable / conduit entries required for
•Transducers
• TS-3 temperature sensors (if used)
• BIC-II (if used)
• SAM-20 (if used)
• AO-10 (if used)
• Synchronization (see Interconnection-Level System Synchronization)
•Power
Note: Transducer cables must be run in a grounded metal conduit, separate
from other wiring, (except TS-3 temperature sensor wiring, if applicable).
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 7
Page 12
Mounting
This product is susceptible to electrostatic shock. Follow proper
grounding procedures.
Inspect all cartons and packaging for possible damage during shipment, before removing
the XPL Plus and associated equipment.
1. Loosen the six enclosure lid (captivated) screws and swing the lid open.
2. Remove the four board B mounting screws (outer corners) and remove the
circuit board assembly.
3. Drill sufficient holes in the enclosure bottom to meet enclosure cable / conduit
entry requirements.
4. Attach the enclosure to the selected mounting surface. (four predrilled screw
holes provided.)
5. Attach the conduit / cable hubs to the enclosure. (Do not apply undue force.)
6. Reinstall the circuit board assembly.
285 mm
267 mm
(10.5”)
1
209 mm
(8.2”)
172 mm
(6.8”)
mmmmm
2345678910
(11.2”)
AIRANGER
1234
5
6078
mA
9
PP
C
L
S
PLUS
106 mm
(4.2”)
Installation
Suitable location for conduit entrances.
Use water tight conduit hubs to maintain the enclosure rating.
mounting hole 4.3 mm (0.17”) diameter
access under lid (four places)
Note: Non-metallic enclosure does not provide grounding between conduit
connections. Use grounding type bushings and jumpers.
Transducer Mounting
Objects near the transducer face cannot be reliably detected. Mount the transducer
above the highest material level (away from the nearest monitored object) by the
following Nearest Distance.
Nearest Distance Transducer Types
0.5 m (1.65 ft)1
1
0.66 m (2.17 ft)
0.99 m (3.25 ft) ST-100, LR-21, XLT-30, XLS-30
1.32 m (4.33 ft) LR-13, XLT-60, XLS-60
1
This is the recommended minimum distance. However, it can be reduced under certain circumstances. Please check the appropriate transducer manual for details.
Page 8 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
XPS-30, XPS-40
ST-H, ST-25, XCT-8, XPS-10, XCT-12, XPS-15, ST-50
Page 13
Optional Cards
Communications Module
The XPL Plus is software / hardware ready to accept an optional Siemens Milltronics
SmartLinx communications module that provides an interface to one of several popular
industrial communications systems.
Your XPL Plus may be shipped to you without a SmartLinx module, for installation at later
date.
If you are ready to install your SmartLinx module, or want to change it, please follow the
procedure as outlined.
TIB-9 Card
The standard XPL Plus supports one Siemens Milltronics TS-3 temperature sensor. When
equipped with a TIB-9 card, the XPL Plus supports up to ten TS-3s.
Your XPL Plus may be shipped to you without a TIB-9 card, for installation at a later date.
If you are ready to install your TIB-9 card, please follow the procedure as outlined.
Installation Procedure
With power off and the XPL Plus lid opened:
1. Remove the four LCD card screws and the card itself.
2. If there is no TIB-9 card being installed, proceed to step 6, otherwise proceed
with step 3.
3. Remove the five board A screws, and lift off the board (though still attached by
ribbon connectors).
4. Mount the TIB-9 card by mating the connectors and secure the card in place
using the three screws provided.
5. Replace board A and secure in place using the screws removed in step 3.
6. If installing an optional SmartLinx module, mount the card by mating the
connectors and secure the card in place using the two screws provided.
Refer to the SmartLinx module documentation for any required hardware settings
prior to replacing the LCD card or closing the XPL Plus lid.
7. Replace the LCD card and secure in place using the screws removed in step 1.
LCD card
communications module
Installation
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 9
board A
TIB-9 card
Page 14
Interconnection
Before interconnecting system components to the XPL Plus terminals, verify all
components have been installed in accordance with the associated product instruction
manuals.
Connect all associated equipment cable shields to the XPL Plus shield connections. To
avoid differential ground potentials, do not connect cable shields to ground (earth)
elsewhere. Insulate (tape) cable shields at all shield junctions to prevent ground loops.
optional
SmartLinx
display
scope connections
module
board A
200 V
115 V
230 V
OFF
mmmmm
100 V
Installation
P12
board B
terminal block
XPL P LUS _________ _
optional
TIB-9
EPROM
SYNC
SW1
voltage
selection
All field wiring must have insulation suitable for at least 250 V.
Hazardous voltage is present on transducer terminals during
operation.
Page 10 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 15
System Diagram
r,
AiRanger XPL Plus
optional
SmartLinx
10
10
bipolar current
Milltronics communications
Milltronics transduce
see Specifications
Milltronics TS-3,
temperature sensor
Milltronics AO-10,
analog output
device
Milltronics SAM-20,
relay output device
Milltronics BIC-2,
buffered interface
converter
Installation
mmmmm
Maximum system capability. Not all components or their maximum
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 11
industry bus
industry control
system
quantity may be required.
Page 16
Transducer
To Transducers (10 max), RG62 A / U Coax, 365 m (1200 ft) / Transducer max.
Transducer cables must be run in a grounded metal conduit separate from
other wiring (except TS-3 temperature sensor wiring, if applicable).
Transducers
Hazardous voltage is present on transducer terminals during
operation.
Temperature Sensor
mmmmm
Installation
XPL Plus
(board B)
single Temp Sensor
to Temp Sensor #1
Use Belden 8760 (or equivalent ) 18 AWG, 2 wire shielded / twisted, 365 m (1200 ft) per TS-3 max.
Use TS-3 temperature sensors only. Don’t jumper the terminals if TS-3’s are not used.
TIB-9 card for multiple Temp Sensors (optional)
to additional Temp Sensors
Peripherals
The XPL Plus is compatible with the following Siemens Milltronics peripherals (3 max.):
• SAM-20: 20 relay satellite alarm module (2 max.)
• AO-10: 10 output analog output module (1 only)
• BIC-II: buffered XPL Plus to RS-232C / RS-422 interface (1 only)
Page 12 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 17
Connect the peripherals used, in a serial loop as follows:
Use Belden 8760 (or equivalent) 18 AWG, 2 wire shielded / twisted, 3000 m (10,000 ft) total loop length.
Level System Synchronization
Avoid mounting the XPL Plus near another ultrasonic level monitor. Likewise, when more
than one monitor is installed within a single plant / facility, ensure the transducer cables
of each system are run in separate grounded metal conduits. If this system separation is
impractical, or despite separation efforts measurement difficulties are encountered,
system synchronization may be required.
To synchronize the XPL Plus with an AiRanger DPL Plus or another XPL Plus perform the
following steps.
1. Mount the level monitors together in one cabinet.
2. Ensure the level monitors share a common power (mains) supply, and ground
(earth).
3. Interconnect the SYNC terminals of the level monitors to be synchronized.
To synchronize the XPL Plus with other Siemens Milltronics ultrasonic level
monitors (not listed) contact Siemens Milltronics or your local distributor.
Installation
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 13
Page 18
Power
Before making the power connection, ensure proper voltage selection.
L1
L2/N
50 51
52
SW1 switch shown in the
‘OFF’ position. Select
appropriate voltage.
100/115/200/230 V
50/60 Hz
select voltage via SW1.
Never operate the XPL Plus with the enclosure lid open, or with the ground (earth)
wire disconnected.
Ensure that any connected alarm or control equipment is disabled until satisfactory
system operation and performance is verified.
The equipment must be protected by a 15 A fuse or circuit breaker in the
mmmmm
Installation
A circuit breaker or switch in the building installation, marked as the disconnect
building installation.
switch, shall be in close proximity to the equipment and within easy reach
of the operator.
Page 14 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 19
Programming
Operator programmable features are identified by a Point Number and Parameter
Number. The Point Number refers to the Transducer (vessel) Number, Relay Number, mA
Output Number, or TS-3 Number as identified by the Point Type indicators. Parameter
Numbers have a preset Parameter Value for each Point Number.
Programming is accomplished by altering the preset Parameter Values as required to
obtain the RUN mode operation desired. All operator programmable features are defined
in the Quick Start Parameters, Application Parameters, and Enhancement Parameters
sections of this instruction manual.
Display
In the PROGRAM mode, the Point Type, Point Number, Parameter Number, and Parameter
Value (as well as a variety of other programming information) may be viewed.
Note that many indicators are specific to certain programming conditions and therefore,
all indicators are not displayed at any given time.
Auxiliary
Function
Scroll Access
Ta g
Number
Parameter
Value
Invalid Entry
Units
SAM- 20 Bank
Number
Point Type
Transd ucer
Relay
Analog Output
TS-3
Index
Point in Service
Parameter Number the programmable feature the Parameter Value pertains to.
Point Type the Point Number refers to a Transducer, Relay, mA Output, TS-3, or
Breakpoint.
SAM-20 Bank
Number
Point Number the Transducer, Relay, mA Output or TS-3 # the Parameter Value pertains to.
Parameter Value the current value of the Parameter Number for the Point Number displayed.
Units indicates the Parameter Value is displayed in: m, cm, mm, ft, in, or %.
Invalid Entry indicates the value entered is questionable.
Auxiliary Function indicates Auxiliary Function access (applies to only some Parameter
Scroll Access Tag indicates the Parameter Value may be scroll accessed.
PROGRAM mode indicates the PROGRAM mode is accessed.
Point in Service indicates the Point Numbers which will be scanned in the RUN mode.
identifies the SAM-20 the Relay Number displayed pertains to.
Numbers).
Point
Number
PROGRAM
mode
Para met er
Programming
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 15
Page 20
Keypad
In the PROGRAM mode, use the XPL Plus programmer keys to perform the identified
functions.
1234
Function Keys
0
9
–
5
6
78
Numeric Value Keys
mA
9
0
PP
C
shift access to the Point Number, Parameter Number, or Parameter Value display.
input a numeric value into the accessed display.
P
P
mmmmm
Programming
input a Parameter Value decimal point (moves Profile and TVT Pointers left).
input a negative Parameter Value (moves Profile and TVT Pointers right).
delete the current Parameter Value display (initiate a parameter reset).
store the current Parameter Value in memory (complete a parameter reset).
switch the Parameter Value to % or Units (access Auxiliary Parameter Function).
increase the accessed display value.
decrease the accessed display value.
take an ultrasonic measurement.
enter the RUN mode.
Page 16 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 21
Program Mode Entry
Upon initial power application, the XPL Plus displays "OFF". To enter the PROGRAM mode:
1. Ensure the enclosure lid is secured by the six captivated screws.
2. Place the infrared programmer in the enclosure lid recess (no wiring or
fastening required).
3. Press .
When the PROGRAM mode is entered after RUN mode operation, all operating data is
retained in memory. Relay status and mA output values are held at last known values
(unless affected by a parameter alteration or is pressed) until the RUN mode is reentered. The RUN mode is automatically re-entered if the XPL Plus is left unattended in
the PROGRAM mode for an extended period.
Parameter Value Alteration
In the PROGRAM mode:
1. Press as required to underline the Parameter Number display field and
a) key in the desired Parameter Number, (direct access) or
b) press or as required (scroll access).
(As preset, Quick Start Parameters and any previously altered parameter may be scroll
accessed.)
2. Press as required to underline the Point Number display field and
a) key in the desired Point Number, (direct access) or
b) press or as required, (scroll access).
To alter the Parameter Value for all Point Numbers at once, direct access
Point Number 00.
3. With the desired Parameter Number and Point Number displayed, key in the desired
Parameter Value and press
If Parameter Value alteration is not permitted, access the Lock parameter (P000)
and enter the security code (See Programming Security).
Programming
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 17
Page 22
Parameter Reset Features
On initial power up, all parameters are at "original" values. In many cases, when a
Parameter Value is altered, associated Parameter Values are automatically altered
accordingly. When a Parameter Number is accessed, if the preset Parameter Value
displayed is acceptable, no entry is required.
To return an operator adjusted Parameter Value to the preset value, with the appropriate
Point Number and Parameter Number displayed:
Press
To reset numerous parameters to preset values, refer to Master Reset (P999).
Perform a Master Reset (P999) if the XPL Plus was "bench tested" using arbitrary
Parameter Values before system installation, following an EPROM replacement, or
whenever complete reprogramming is required.
Special Parameters
Some Parameter Values are for display purposes only and cannot be operator altered.
These are referred to as view only parameters. In the parameters sections of this
instruction manual, view only parameters are identified by a "(V)" beside the Parameter
Number.
mmmmm
Some Parameter Values must be common for all Point Numbers. These are referred to as
global parameters. When a global parameter is accessed, the Point Number display
automatically switches to Point Number 00, and returns to the Point Number previously
selected when a non-global parameter is accessed. In the parameters sections of this
manual, global parameters are identified by a "(G)" beside the Parameter Number.
Programming Security
All operator programming is retained in non-volatile memory, immune to power
interruptions. When programming is complete, the programmer may be removed and
locked away to prevent inadvertent programming alteration. The Lock (P000) parameter
may also be used.
Security Parameter
P00 0 (G) LOCK
Programming
Use this feature (if desired) to secure all programming from inadvertent
alteration.
Direct access (cannot be scroll accessed) this parameter after all programming is complete and enter any value (other than 1954) to activate the programming Lock.
When Lock is activated, the XPL Plus may be switched from the RUN mode
to PROGRAM mode and the value of any parameter may be viewed but not
altered. To unLock, direct access this parameter and enter the value "1954".
This parameter cannot be reset by pressing
values: 1954 = off (Parameter Value alteration permitted)
Page 18 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
other = activated (programming secured)
Page 23
Quick Start Parameters
Alter the Quick Start Parameters as required to suit installation requirements.
If the Quick Start Guide was used, proceed to Application Parameters.
Refer to
P001 OPERATION
Technical Reference
Enter the type of RUN mode operation desired.
Select: "level", to display how full the vessel is (from Empty P006) .
values: 0 = out-of-service
Application Examples for assistance, if required.
"space", to display how empty the vessel is (from Span P007).
"distance", to display material surface distance from the transducer
face.
When "out-of-service" is selected, the transducer is removed from the
RUN mode scan sequence and all Peripherals hold "last known" values/
operating status for the Point Number displayed.
1 = level
2 = space
3 = distance (preset)
P002 MATERIAL
Enter the type of material to be monitored.
If the material presents a flat surface perpendicular to the transducer beam,
select liquid.
values: 1 = liquid or flat surface (preset)
2 = solid
Quick Start Parameters
mmmmm
7ML1998AN02.1 AiRanger XPL Plus – INSTRUCTION MANUAL Page 19
Page 24
P003 MEASUREMENT RESPONSE
Enter how quickly the XPL Plus is to respond to changing measurements.
Slower Measurement Response improves stability and reliability.
values: 1 = slow
2 = medium
3 = fast
4 = surge
5 = turbo
"Surge" and "turbo" are intended for equipment position monitoring. Use with
caution for level measurement. See Technical Reference Measurement
Response
P004 TRANSDUCER
Enter the type of transducer connected to the XPL Plus for the Point Number
displayed.
ULTRASONIC ULTRASONIC / TEMPERATURE
values: 0 = not entered
1 = ST-25
2 = ST-50
3 = ST-100
4 = LR-21
5 = LR-13
(0.1 m/min)
(1 m/min)
(10 m/min)
(1.7 m/sec)
(17 m/sec)
100 = ST-H
101 = XCT-8
102 = XPS-10
103 = XCT-12
104 = XPS-15
105 = XPS-30
106 = XPS-40
107 = XLT-30
108 = XLT-60
109 = XLS-30
110 = XLS-60
111 = XKS-6
112 = XRS-5
P005 (G) UNITS
Enter the units of measure desired for programming Empty (P006) and Span
(P007).
values: 1 = meters (m)
2 = centimeters (cm)
3 = millimeters (mm)
4 = feet (ft)
mmmmm
5 = inches (in)
Quick Start Parameters
Page 20 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
(preset)
Page 25

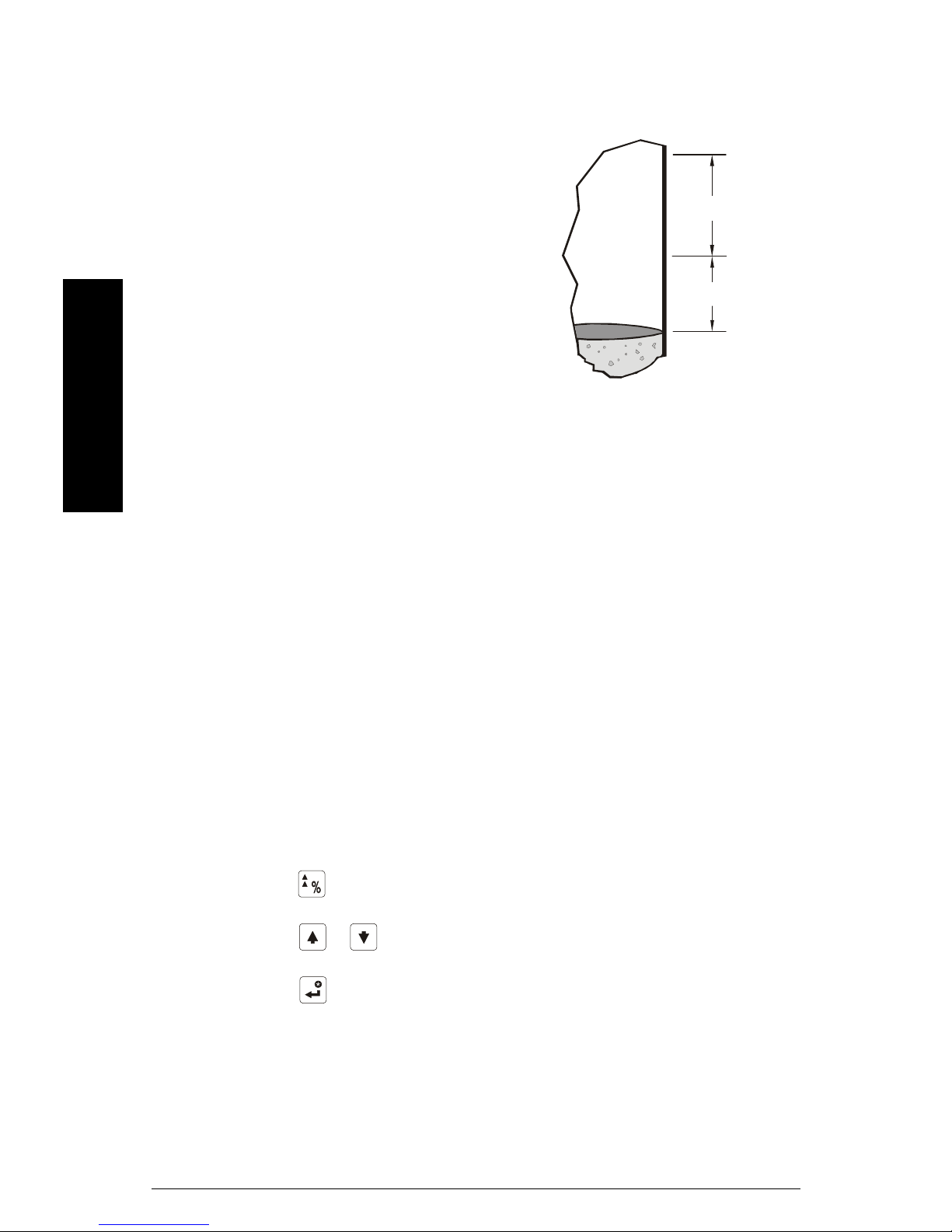

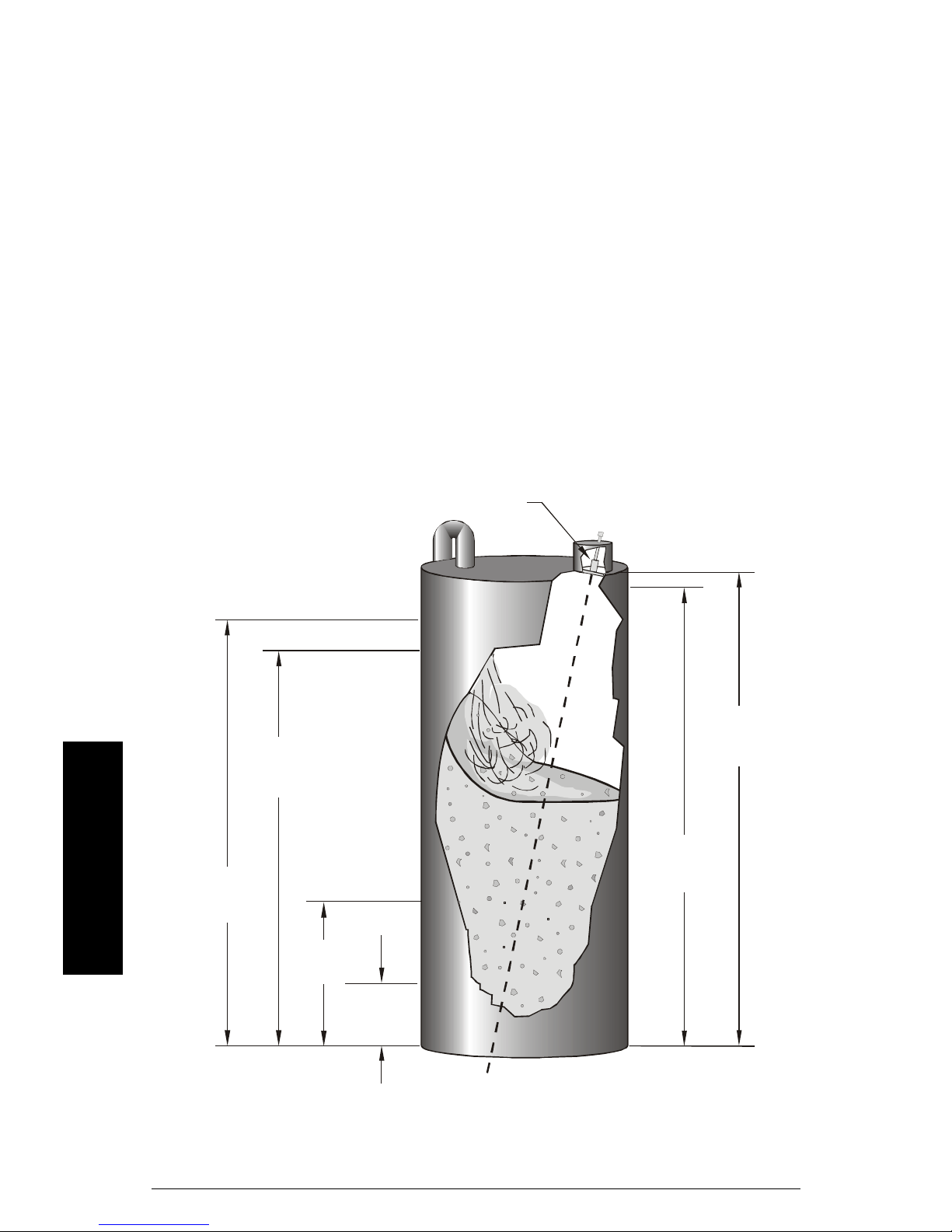

P006 EMPTY
Enter the
in Units.
This value is preset to 8.000 m (or equivalent Units programmed).
The value entered automatically sets Span (P007) to the maximum
recommended value.
values: 0.000 to 9999
P007 SPAN
Enter the maximum surface distance from Empty (P006).
Span is automatically preset to 1.1 x the blanking value (P800) less than the
Empty value (P006), unless it is altered manually.
For "distance" Operation (P001 = 3), Span is preset to the Empty value (P006).
Enter a lower value if desired. If the automatic setting is not high enough, see
Installation. Always prevent the monitored surface from entering the blanking
zone.
maximum distance
(transducer face to vessel bottom) to be measured,
values: 0.000 to 9999
With the Quick Start Parameters altered as required, proceed to Operation to
identify / verify basic system performance.
Quick Start Parameters
mmmmm
7ML1998AN02.1 AiRanger XPL Plus – INSTRUCTION MANUAL Page 21
Page 26
Page 22 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 27
Operation
With Quick Start parameter alteration complete, the XPL Plus may be put into operation.
(If application or enhancement parameters are altered, operation is altered accordingly
from that indicated.)
Display
In the RUN mode, the following values and indicators may be observed.
Note that many indicators are specific to certain operating conditions and therefore, all
indicators are not displayed at any given time.
Transd ucer
Normal
Operation
Failsafe
Operation
Point Number
Point in Service
Point Scanned
Auxiliary
Reading
Reading
Data Out
Milltronics Proprietary
Communications Loop
Units
Data In
Lo Lo Alarm
Priority
Point Scan
Indicator
Hi Hi Alarm
Filling/Emptying
Lo Alarm
Operation
mmmmm
Hi Alarm
Indicator
Bar Graph
Transducer the current display pertains to a transducer measurement.
Point Number the Point Number (1 to 10) the current display pertains to.
Reading displays the level, space, or distance (flashes error messages, if any).
Units the Reading is in m, cm, mm, ft, in, or %.
Hi Alarm indicates level has risen above 80% (and not yet fallen below 75%).
Lo Alarm indicates level has fallen below 20% (and not yet risen above 25%).
Hi Hi Alarm indicates level has risen above 90% (and not yet fallen below 85%).
Lo Lo Alarm indicates level has fallen below 10% (and not yet risen above 15%).
Filling Indicator indicates the vessel is filling.
Emptying Indicator indicates the vessel is emptying.
Bar Graph indicates the material level from 0 to 100%.
Data In indicates the XPL Plus is receiving data from the BIC-II (if used).
Data Out indicates the XPL Plus is transmitting data to the Peripheral Communications
terminals.
Auxiliary Reading as selected by the keypad (terminal numbers if transducer or TS-3 is wired
wrong).
Point in Service indicates the Point Numbers included in the scan sequence.
Point Scanned indicates the Point scanned (independent from the Point Number display).
Normal Operation indicates operating conditions are good and the Reading is reliable.
Failsafe Operation indicates operating conditions are poor and the Reading may be incorrect.
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 23
Page 28
mmmmm
Keypad
Operation
In the RUN mode, the following programmer keys perform the identified functions.
1234
Function Keys
6
7
5
mA
selects the Auxiliary Reading "mA output value for the Point Number displayed".
selects the Auxiliary Reading "vessel atmosphere temperature".
selects the Auxiliary Reading "rate of material level change".
5
mA
9
C
6
0
78
PP
Auxiliary Reading Keys
8
P
P
selects the Auxiliary Reading "failsafe time left" (in percent).
selects the Auxiliary Reading "parameter value" (Key in any Parameter Number).
selects the Auxiliary Reading "material level" (may be operator altered via P731).
selects the Auxiliary Reading "distance" (material level to transducer face).
initiates PROGRAM mode access (see ).
switches the Reading between "Units / percent of Span" (completes PROGRAM mode
access).
stops / starts the Point Number auto display scroll.
selects the next Point Number (and stops the auto display scroll).
selects the previous Point Number (and stops the auto display scroll).
places a Point Number on priority (See P720).
Page 24 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 29
System Performance Evaluation
For initial RUN mode entry (or after any programming alteration), do not use the XPL Plus
to operate process control equipment until satisfactory system programming and
performance is verified.
1. Press to enter the RUN mode.
"----" may be displayed briefly while the XPL Plus takes measurements and
calculates the Reading.
When a Transducer (P004) value is entered for Point # 1 only, the Reading and other data
is displayed continuously. When Transducer values are entered for more than one Point
Number, Readings and other data scroll display for each Point Number.
If an alarm symbol is displayed, the corresponding relay is de-energized.
POINT # ALARM INDICATOR SAM-20# RELAY #
1-10 Hi Alarm 1 1-10
1-10 Lo Alarm 1 11-20
1-10 Hi Hi Alarm 2 1-10
1-10 Lo Lo Alarm 2 11-20
2. Press to display Readings in % (percent of Span, P007) based upon Operation
Operation
mmmmm
(P001).
OPERATION LEVEL SPACE or DISTANCE*
Empty to Full = 0 to 100% 100 to 0%
* Objects close to the transducer face (0%) are not detectable.
3. Press to observe the mA output value for the Point Number displayed (Auxiliary
5
mA
Reading).
OPERATION LEVEL SPACE or DISTANCE*
Empty to Full = 4–20 mA 20–4 mA
* Objects close to the transducer face (4 mA) are not detectable.
4. Press to observe the
8
activation).
Each time a valid measurement is made for the Point Number displayed, this value
(Auxiliary Reading) is reset to 100 and begins to fall toward 0 until the next valid
measurement is made.
If the Failsafe Time Left reaches 0, the XPL Plus flashes "LOE" in the Reading display.
Failsafe Time Left
(time left in percent before failsafe
Note: All associated data is supplied to the Peripheral Communications terminals (42
and 43). If a BIC-II is connected, refer to
message format and protocol information.
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 25
Technical Reference
BIC-II Support for
Page 30
Performance Test Results
Monitor system performance carefully, under all anticipated operating conditions.
A. When the XPL Plus performs exactly as required, programming is complete.
mmmmm
Operation
B. If the XPL Plus measurements are accurate and reliable but alternate Reading,
units, failsafe, SAM-20 relay, or AO-10 mA output operation is desired, proceed to
Application Parameters.
C. Should system performance not meet installation requirements, (or the "LOE" display
persists after start up), proceed to the
If all operating conditions cannot be observed during the System Performance Evaluation,
refer to
Measurement simulation to verify programming.
Conduct a System Performance Evaluation following any installation modification or
Quick Start, Application, or Enhancement Parameter alteration.
With programming complete, copy all parameter alterations to the Programming Charts.
In the PROGRAM mode, all altered parameters may be quickly scroll accessed (skipping
by parameters left at preset values).
For normal operation, return to the RUN mode. The XPL Plus will perform reliably, with
little or no maintenance.
Enhancement Parameters
Connect (or enable) process control / alarm equipment to the XPL Plus only after
satisfactory performance is verified for all possible operating conditions.
Reading Measurement (P920). Perform a Reading
Troubleshooting Guide
.
Page 26 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 31
Application Parameters
Application Parameters are used to alter the XPL Plus display, failsafe, relay, and/or mA
output operation.
Volume Parameters (P050 to P055)
If Readings proportional to volume are desired, adjust the following parameters.
If Volume Conversion is not required, proceed to Reading Parameters.
P050 TANK SHAPE
Enter the Tank Shape option that matches the vessel monitored.
If the Tank Shape option selected requires additional vessel dimension entry, the
associated parameters (as indicated below) may be scroll accessed.
When Operation is "level" (P001 = 1), material volume is calculated. Alternatively,
when Operation is "space" (P001 = 2), remaining vessel capacity is calculated.
In the RUN mode, Readings are displayed in percent of (and mA outputs are
proportional to) maximum volume. To convert Readings to volumetric units, see
Max Volume (P051).
When monitoring solids, volume calculation accuracy may vary.
values: 0 = volume calculation not required (preset)
flat level bottom
1 =
or
half sphere bottom (P052)
4 =
A
Application Parameters
mmmmm
sphere
8 =
cone / pyramid bottom (P052)
or
2 =
A
parabola bottom (P052)
3 =
A
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 27
flat slope bottom (P052)
5 =
6 =
parabola ends (P052 / P052)
7 =
or
A
flat ends
A
L
Universal Linear (P054 / P055)
9 =
Universal Curved (P054 / P055)
10 =
Page 32
P051 MAX VOLUME
Use this feature to display the Reading in volumetric units rather than percent.
Enter the vessel volume between Empty (P006) and Span (P007).
e.g. 1
If the volume = 3650 m
3
, enter 3650.
e.g. 2 If the volume = 267,500 U.S. gallons, enter 267.5 (1000’s of gallons).
values: 0.000 to 9999
P052 TANK DIMENSION A
mmmmm

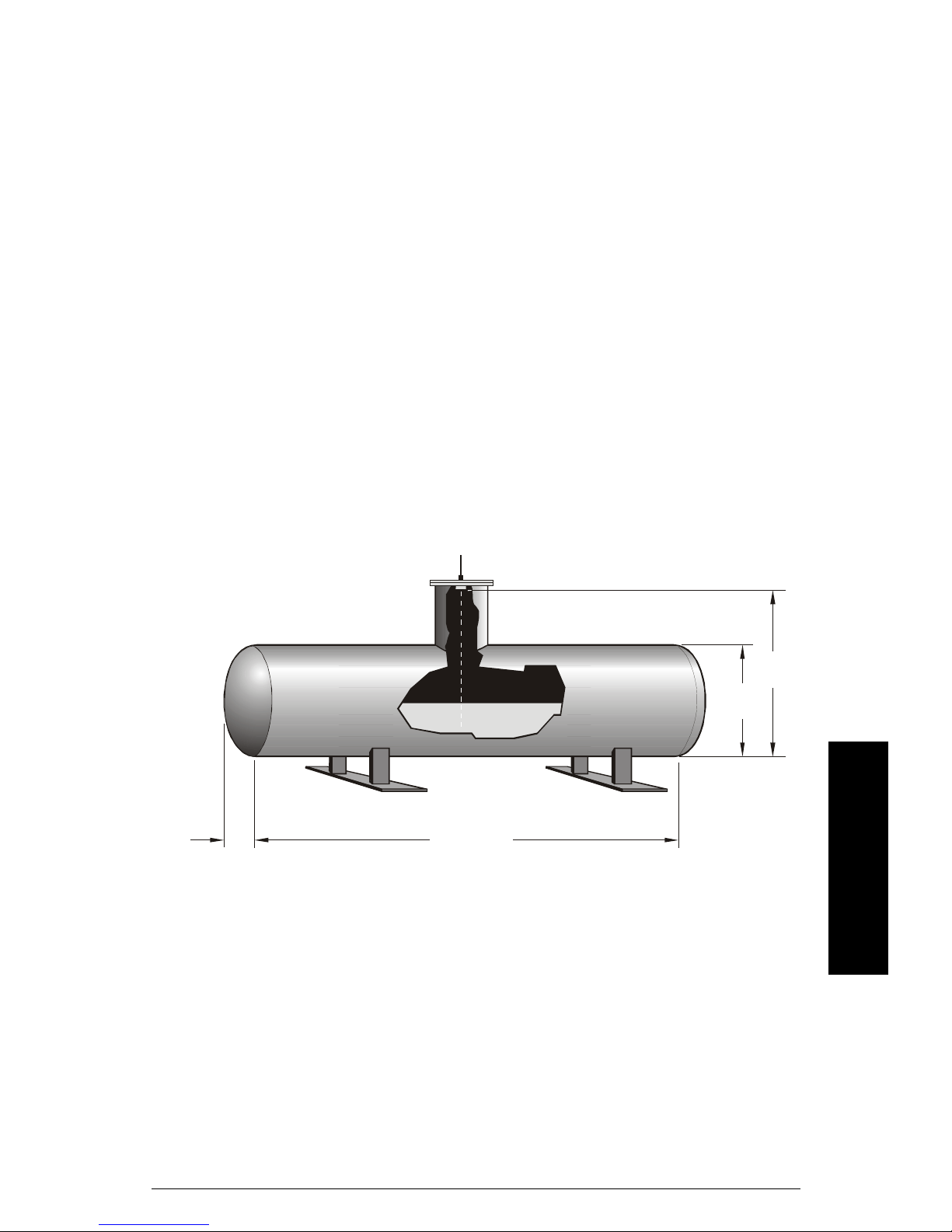

Enter the height of the tank bottom if P050 = 2,3,4, or 5, or the length of one end
section of the tank if P050 = 7, in Units (P005).
Application Parameters
values: 0.000 to 9999
P053 TANK DIMENSION L
Enter the length of the tank (excluding both end sections) if P050 = 7, in Units
(P005).
values: 0.000 to 9999
P054 LEVEL BREAKPOINTS ( Universal Volume Calculation )
Enter level breakpoints* (where volume is known) if P050 = 9 or 10
values: 0.000 to 9999
P055 BREAKPOINT VOLUMES ( Universal Volume Calculation )
Enter the volume* corresponding to each Level Breakpoint entered.
values: 0.000 to 9999

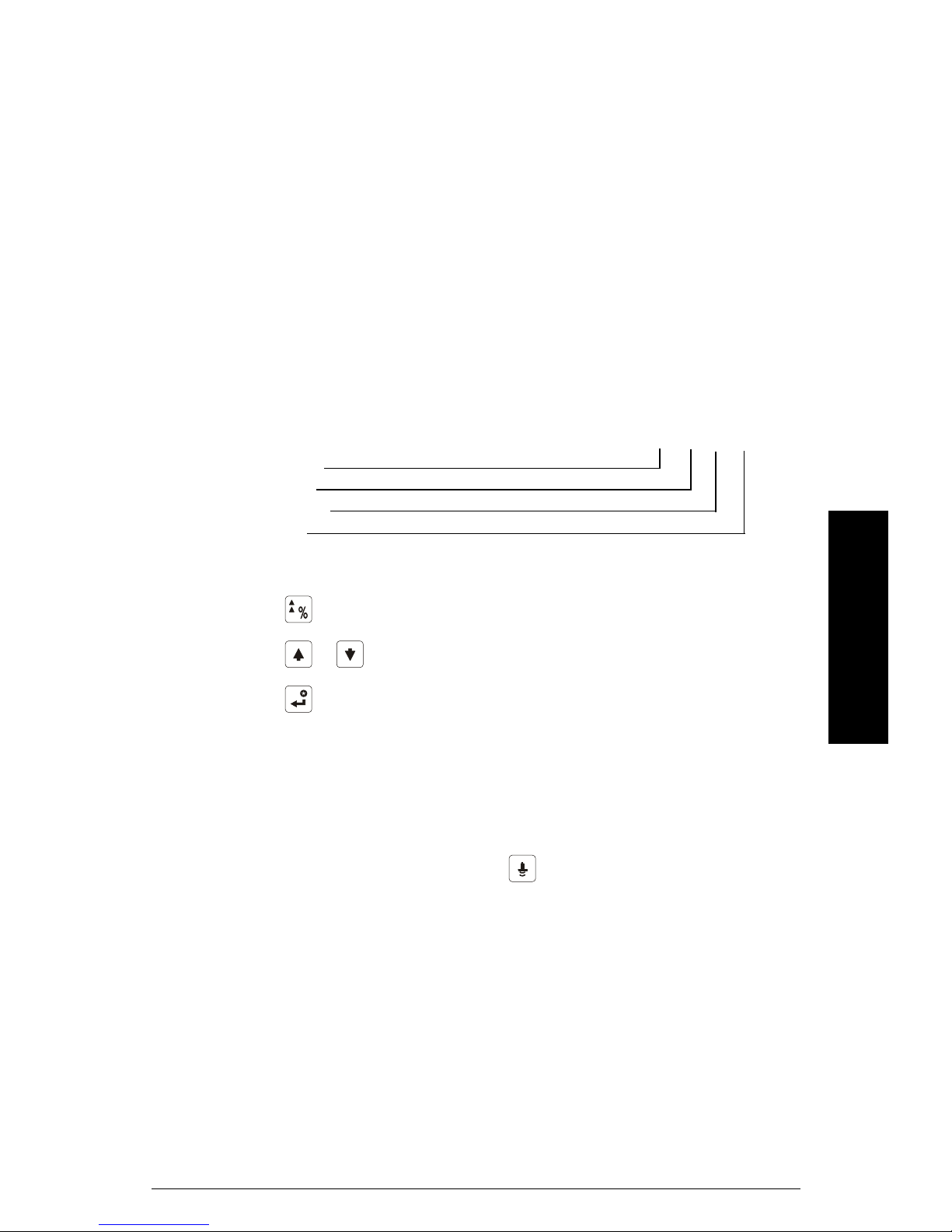

* Steps to enter a Level Breakpoint or Breakpoint Volume:
1.. Press to display the index symbol, .
2. Scroll ( or ) or direct access the desired Breakpoint.
3. Key in the desired level or volume value.
4. Press .
Refer to
Technical Reference
Volume Calculation for breakpoint value selection.
Page 28 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 33
Reading Parameters (P060 to P062)
If Reading alteration is required, alter the following parameters to:
a. alter the number of decimal places displayed.
b. convert to units other than Units (P005), % of Span (P007), or Max Volume
(P051).
c. reference measurements to some point other than Empty (P006) or Span (P007).
If alteration is not required, proceed to Failsafe Parameters.
P060 DECIMAL POSITION
Application Parameters
Enter the maximum number of decimal places to be displayed in the Reading.
In the RUN mode, the number of decimal places displayed is automatically
adjusted (if necessary) to prevent the number of Reading digits from exceeding
display capabilities.
This value is automatically altered when Max Volume (P051) is altered.
values: 0 = no digits after the decimal point
1 = 1 digit after the decimal point
2 = 2 digits after the decimal point
3 = 3 digits after the decimal point
P061 CONVERT READING
Enter the value to multiply the Reading by (before display).
This feature is preset to 1.000 (no conversion).
e.g. If the Reading is currently displayed in feet, to display in yards, enter 3.
mmmmm
Avoid entering a value that, when multiplied by the maximum current reading,
values: -999 to 9999
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 29
could exceed 5 digits before the Decimal Position
Page 34
P062 OFFSET READING
Enter the value to be added to the Reading, (before display).
This feature is preset to 0.000, (no offset).

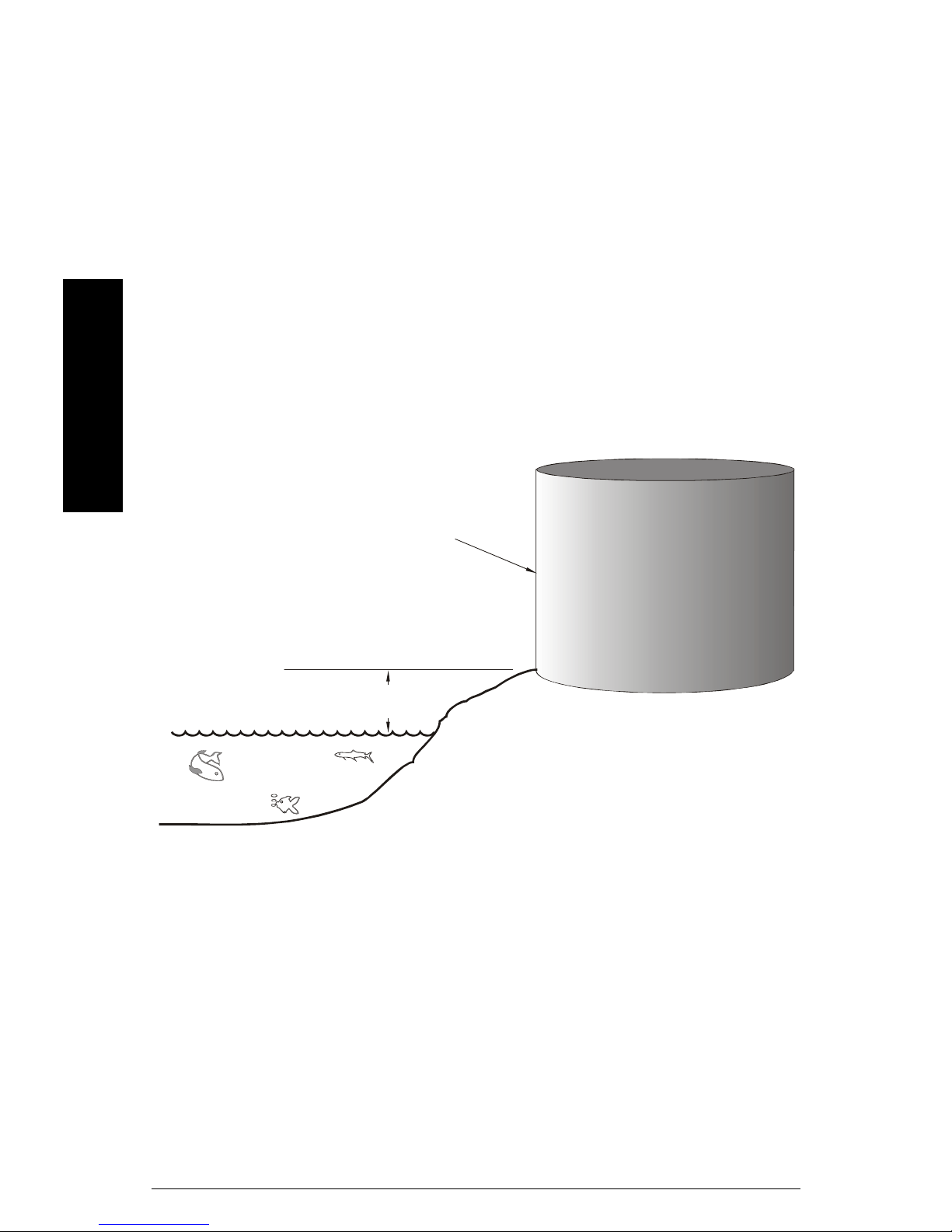

e.g. To reference a material level to sea level, enter the distance in Units
(P005), between Empty (P006) and sea level. (Enter a negative value if
Empty is below sea level.)
This feature affects the XPL Plus (and BIC-II, if used) Reading only. (Relays and
mA outputs are not affected).
values: -999 to 9999
mmmmm
Application Parameters
vessel
Empty
(P006)
sea
level
display offset
(P062)
Failsafe Parameters (P070 to P072)
As preset, in the event of a measurement or technical difficulty, the XPL Plus holds the
Reading, Bar Graph, SAM-20 relays (if used) and AO-10 mA outputs (if used), at their last
known values.
To operate process control equipment under these conditions, alter the following
parameters as required.
If alternate Failsafe Operation is not required, proceed to RELAY PARAMETERS.
Page 30 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 35
P070 FAILSAFE TIMER
Enter the time to elapse (in minutes), upon a difficulty, before failsafe operation
is activated.
In the RUN mode, when a difficulty first occurs, the Reading, Bar Graph, relay
status, and mA outputs are held at "last known" values and the Failsafe Timer is
activated.
When a valid measurement is made before the timer expires, the XPL Plus
advances to the "new" material level (if changed) as normal (per Measurement
Response, P003) and the timer resets.
If the timer expires (before a valid measurement is made), the XPL Plus
advances to the Failsafe Material Level (P071) as restricted by Failsafe Advance
(P072).
When a valid measurement is made after the timer expires, the XPL Plus
advances to the "new" material level (if changed), as restricted by Failsafe
Advance (P072) and the timer resets.
If the timer expires due to a measurement difficulty, "LOE" flashes in the Reading
display.
Technical difficulty messages flash in the Reading display before the timer
expires. The offending terminal connections are displayed in the Auxiliary
Reading display
DISPLAY CAUSE
Application Parameters
mmmmm
"LOE" weak echo (see
Troubleshooting Guide
Measurement
Difficulties)
"Short" short circuited transducer cable, or defective transducer
"OPEn" open circuited transducer cable, or Point Number is scanned but
a transducer is not connected, or defective transducer
"Error" reversed Ultrasonic/Temperature transducer terminal
connections or wrong Transducer (P004) entered.
While a short duration Failsafe Timer value may be required
(when process control equipment is used) avoid entering
a value so short as to cause nuisance activation.
This feature is automatically altered when Measurement Response (P003) is
altered.
values: 0.000 to 9999
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 31
Page 36
P071 FAILSAFE MATERIAL LEVEL
Select the material level to be reported when the Failsafe Timer expires.
If "HOLd" (preset) is selected, in the RUN mode, the last known material level is
held.
If "HI" or "LO" are selected, the XPL Plus advances to the Span (P007) level or
Empty (P006) level as restricted by Failsafe Level Advance.
Select the Failsafe Material Level based upon the relay and/or mA output
operation required during failsafe operation.
e.g. 1 To de-energize a high alarm relay (perhaps to stop material
infeed), select "HI".
mmmmm
e.g. 2 To force an "empty vessel" mA output (perhaps to have
pumps stopped), select "LO".
To select HI, LO, or HOLd:
Application Parameters
Press to display the Auxiliary Function symbol.
Press or as required to scroll access the desired option.
Press .
Alternatively, a specific Failsafe Material Level within -50 to 150% of Span (P007)
may be entered directly in Units (P005), or % of Span (P007).
values: -999 to 9999
P072 FAILSAFE LEVEL ADVANCE
Select the restriction applied to the XPL Plus advance to (and from) the Failsafe
Material Level.
When "restricted" (preset), the XPL Plus advances to the Failsafe Material Level
(and to the "new" material level when a valid measurement is made) as
determined by the Measurement Response (P003) or the Max Fill / Empty Rate
(P700 / P701) values entered.
Alternatively, when "immediate" is selected, the Failsafe Material Level (or "new"
material level) is assumed immediately.
Otherwise, when "fastback" is selected, the Failsafe Level Advance is restricted,
however the advance to the new material level (when a valid measurement is
made) is immediate.
values: 1 = restricted
Page 32 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
2 = immediate
3 = fastback
Page 37
Relay Parameters (P100 to P104, P110 to P113, P129)
If relays are to be used, alter the following parameters as required. Otherwise, proceed to
mA Output Parameters.
Relays may be programmed as Standard Alarms or for Custom Relay operation.
For Standard Alarms (relays operate based on material level), select the Relay Set Up
(P100) desired and alter the Standard Alarm (P101 to P104) parameters as required,
before proceeding to Relay Failsafe (P129).
For Custom Relay operation, select the Relay Set Up (P100) which most closely matches
your requirements, and alter the Custom Relay Parameters (P110 to P113) as required,
before proceeding to Relay Failsafe.
P100 (G) RELAY SET UP
This parameter presets relays to operate as Standard Alarms. The Relay
Allocation (relay / point number association) and Standard Alarm (P101 to
P104) parameters are also preset.
Application Parameters
mmmmm
SET UP SAM-20 # RELAY # POINT #
1 1 -10 1 - 10 (Hi Alarm) P101 = 80.00%
1
2
3
1 11 - 20 1 - 10 (Lo Alarm) P102 = 20.00%
2 1 -10 1 - 10 (Hi Hi Alarm) P103 = 90.00%
2 11 - 20 1 - 10 (Lo Lo Alarm) P104 = 10.00%
1 1 - 10 1 - 10 (Hi Alarm) P101 = 80.00%
1 11 - 20 1 - 10 (Hi Hi Alarm) P103 = 90.00%
2 1 - 10 1 - 10 (Lo Alarm) P102 = 20.00%
2 1 - 20 1 - 10 (Lo Lo Alarm) P104 = 10.00%
1 1 - 5 1 - 5 (Hi Alarm) P101 = 80.00%
1 6 - 10 1 - 5 (Lo Alarm) P102 = 20.00%
1 11 - 15 1 - 5 (Hi Hi Alarm) P103 = 90.00%
1 16 - 20 1 - 5 (Lo Lo Alarm) P104 = 10.00%
2 1 - 5 6 - 10 (Hi Alarm) P101 = 80.00%
2 6 - 10 6 - 10 (Lo Alarm) P102 = 20.00%
2 11 - 15 6 - 10 (Hi Hi Alarm) P103 = 90.00%
2 16 - 20 6 - 10 (Lo Lo Alarm) P104 = 10.00%
STANDARD ALARM (as %
of Span, P007)
Relay status during a measurement difficulty is dependent upon Failsafe
programming. (See Failsafe Parameters (P070 to P072) and Relay Failsafe (P129).
As preset, relay status is "held" at last known material levels until a valid
measurement is made.
Independently altered Standard Alarms (P101 to P104), Relay Allocation (P110),
Relay Function (P111) and Relay A / B Setpoints (P112/P113) are automatically
reset when a Relay Set Up value is altered.
values: 1 = Set Up 1
2 = Set Up 2
3 = Set Up 3
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 33
Page 38
Standard Alarms (P101 to P104)
In the RUN mode:
• when the material level rises to a Hi or Hi Hi Alarm value, the Alarm indicator
is displayed and the allocated relay(s) de-energize.
• when the material level falls 5% of Span (P007) below the Hi or Hi Hi Alarm
value, the Alarm indicator extinguishes, and the allocated relay(s) energize.
• when the material level falls below the Lo or Lo Lo Alarm value, the Alarm
indicator is displayed and the allocated relay(s) de-energize.
• when the material level rises 5% of Span (P007) above the Lo and Lo Lo Alarm
value, the Alarm indicator extinguishes, and the allocated relay(s) energize.
Enter all Standard Alarm material level values in Units (P005) or
percent of Span (P007) as referenced to Empty (P006).
mmmmm
Application Parameters
To display the current value (or enter a new value) in percent of Span
Press as required to display the % symbol.
P101 HI ALARM
Enter the Hi Alarm material level for the Point Number displayed.
values: -999 to 9999 (preset to 80.00% of Span)
P102 LO ALARM
Enter the Lo Alarm material level for the Point Number displayed.
values: -999 to 9999 (preset to 20.00% of Span)
P103 HI HI ALARM
Enter the Hi Hi Alarm material level for the Point Number displayed.
values: -999 to 9999 (preset to 90.00% of Span)
P104 LO LO ALARM
Enter the Lo Lo Alarm material level for the Point Number displayed.
values: -999 to 9999 (preset to 10.00% of Span)
"Ch" is displayed if a Custom Relay Parameter was previously operator altered.
Use Relay A / B Setpoints (P112 / P113) instead.
If Custom Relay operation is not required, proceed to Relay Failsafe (P129).
"OFF" is displayed if the Relay Set Up (P100) selected does not use the
Page 34 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Alarm parameter accessed.
Page 39
Custom Relays (P110 to P113)
P110 RELAY ALLOCATION
Use this feature to alter the Relay Set Up (P100) relay / point number association,
to have any relay operate based upon the operation of any point number.
When accessed, the Relay Symbol is displayed in the Point Type field and the
Relay Number (corresponding to the SAM-20 terminals) is displayed in the Point
Number field.
e.g. To allocate Relay 3 to Point 1, with Relay Number 3 displayed, enter 1.
If a relay is allocated to more than one Point Number, when any Point Number (in
the allocation range) is in alarm, the relay de-energizes.
Application Parameters
When Relay Allocation is altered, affected alarm (P101 to P104) parameters
display "ch" (changed), when accessed. Use the Relay A / B Setpoint (P112 /
P113) parameters.
values: x (x = single Point Number (1-10) to be allocated to the Relay Number)
x.y (x = first Point Number (1-10), y = last Point Number (1-10), in the
range)
P111 RELAY FUNCTION
Use this feature if alternate relay function, designation, or operation is required.
When accessed, the Relay Symbol is displayed in the Point Type field and the
Relay Number (corresponding to the SAM-20 terminals) is displayed in the Point
Number field.
FUNCTION DESIGNATION OPERATION
Level LL,L,H, or HH similar to Standard Alarms but with Relay A/B
Setpoints
In Bounds b1 or b2
Out of Bounds b1 or b2
Rate r1 or r2
Temperature no designation alarm is activated by independent Relay A/B
LOE no designation relay de-energizes in the event of Failsafe Timer
Cable Fault no designation relay de-energizes under transducer short or opened
* The Relay Designation is included in the BIC-II (if used) data message (not displayed).
* alarms when level is between the Relay A/B
Setpoints
* alarms when level is not between the Relay A/B
Setpoints
* level rate of change alarm with Relay A/B Setpoints
Setpoints
(P700) expiry
condition.
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 35
Page 40
To enter a Relay Designation:
1. Press to display the Auxiliary Function symbol.
2. Press or to scroll access the desired relay designation and.
3. Press .
When the Relay Function is altered, affected Standard Alarm Parameters (P101 to
P104) display "ch" (changed) when accessed. Use the Relay A / B Setpoints
(P112 / P113).
To reset the Relay Function to use Standard Alarms, enter the desired Relay Set
mmmmm
Up (P100).
values: 0 = off (relay always de-energized)
1 = level alarm (preset)
Application Parameters
2 = in bounds alarm (relays de-energized on alarm)
3 = out of bounds alarm (relays de-energized on alarm)
4 = rate of change alarm (relays de-energized on alarm)
5 = temperature alarm (relays de-energized on alarm)
6 = LOE alarm (relays de-energized on alarm, Relay A / B
Setpoints are not applicable)
7 = tranducer cable fault alarm
Independent Relay Setpoints
Relay A and B Setpoint values set the critical points (based on the Relay Function) where,
in the RUN mode
1. Alarm Indicators (if programmed) are switched "ON" and OFF"
2. Relays are "energized" and "de-energized"
For most Relay Functions, setpoint values represent material levels, entered in Units
(P005) or percent of Span (P007) as referenced to Empty (P006). Temperature alarm
values are entered in degrees Celsius (°C).
Rate alarms are entered in Units/minute or percent of Span per minute. A positive value is
entered for a filling rate alarm, negative for emptying.
Page 36 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 41
RELAY
FUNCTION
Level H or HH 85 % 70 % de-energizes level rises to 85%
Level L or LL 15 % 30 % de-energizes level falls to 15%
In Bounds** 80% 50% de-energizes level falls to 78%
Out of Bounds** 80% 50% energizes level falls to 78%
Rate of Change +10% +5% de-energizes fill rate increases to 10%/min
Temperature 60 55 de-energizes temperature rises to 60 °C
* Values shown are for illustration purposes only. Enter values which apply to your particular
SETPOINTS*
RELAY ACTION WHEN
A B
energizes level falls to 70%
energizes level rises to 30%
energizes level rises to 82%
de-energizes level rises to 52%
energizes level falls to 48%
de-energizes level rises to 82%
energizes level rises to 52%
de-energizes level falls to 48%
energizes fill rate decreases to 5%/min
-10% -5% de-energizes empty rate increases to 10%/min
energizes empty rate decreases to 5%/min
energizes temperature falls to 55 °C
-30 -25 de-energizes temperature falls to -30 °C
energizes temperature rises to -25 °C
installation.
**2% factory set hysterisis, adjustable via P116.
Application Parameters
mmmmm
Important! Relay A / B Setpoint values cannot be exactly equal.
P112 RELAY A SETPOINT
Enter the critical point for the desired action to occur (based on the Relay
Function selected).
values: -999 to 9999
P113 RELAY B SETPOINT
Enter the critical point for the desired action to occur (based on the Relay
Function selected).
values: -999 to 9999
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 37
Page 42
P 116 BOUND ALARM HYSTERISIS
For ‘in bounds’ and ‘out of bounds’ Relay
actual ’on’
Functions (P111 = 2 and 3 respectively), a
hysterisis or dead band prevents relay
P116, hysteresis
chatter due to material level fluctuations
at the upper or lower setpoint.
Enter hysterisis in % of span or units of
P005. (Factory set at 2%).
setpoint
P116, hysteresis
actual ’off’
The hysterisis value is applied above
and below the upper and lower bound
mmmmm
Application Parameters
P129 RELAY FAILSAFE
setpoints.
e.g. in bounds, lower setpoint
Use this feature for relay failsafe operation independent from the Failsafe
Material Level (P070).
When accessed, the Relay Symbol is displayed in the Point Type field and the
Relay Number (corresponding to the SAM-20 terminals) is displayed in the Point
Number field.
Select: "OFF" (preset) to have the relay respond to the Failsafe
Material Level (P701).
"HOLd" to hold the relay at the "last known" state until
normal operation resumes,
"dE" to have the relay de-energize immediately, or
"En" to have the relay energize immediately,
To select an independent Relay Failsafe option value:
1. Press
2. Press or
3. Press
to display to the Auxiliary Function symbol,
to scroll access the failsafe options.
with the desired option displayed.
values: "OFF"
"HOLd"
"dE"
"En"
Page 38 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 43
mA Output Parameters (P200 to P203, P210 to P215,
P219)
If AO-10 mA outputs are to be used, alter the following parameters as required.
Otherwise, proceed to Operation.
When a mA Output Parameter is accessed, the mA symbol is displayed in the Point Type
field and the mA Output Number (corresponding to the AO-10 terminals) is displayed in
the Point Number field.
P200 mA RANGE
Enter the desired range of the mA output displayed.
value: 0 = OFF
1 = 0 to 20 mA
2 = 4 to 20 mA
(preset)
3 = 20 to 0 mA
4 = 20 to 4 mA
P201 mA FUNCTION
Use this feature to alter the automatic mA output/measurement relationship, if
desired.
Application Parameters
mmmmm
20 mA = high level (unless P001 = 2 or 3, then 20
mA = low)
20 mA = low level (unless P001 = 2 or 3, then 20
mA = high)
The mA Function automatically corresponds to "level", "space", or "distance"
based upon Operation (P001). If a Tank Shape (P050) is programmed, the mA
Function automatically corresponds to volume (unless the mA Allocation has
been altered).
values: 1 = level
2 = space
3 = distance
4 = volume
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 39
Page 44
P202 mA ALLOCATION
Use this feature if Point Number to mA output allocation alteration is required.
Enter the Point Number(s) the mA output displayed, is to be based upon
As preset, AO-10 mA outputs 1-10 are allocated to Point Numbers 1-10
respectively
If two or more Point Numbers are allocated to a single mA output, the output
value represents the Multi-point Average. (The Quick Start Parameter values
should be identical for all points). See
Technical Reference
Application Examples
Example 3 - mA Multi Point Average.
When more than one mA output is allocated to the same Point Number, the mA
Setpoint parameters may be used to establish separate or overlapping mA
mmmmm
output spans. However, the mA Value/Transducer (P203) corresponds to the
lowest mA Output number only.
Application Parameters
values: x (x = single Point Number (1-10) to be allocated to the mA output
displayed.
x.y (x = first Point Number (1-10), y = last Point Number (1-10), in the
range)
P203 (V) mA VALUE/TRANSDUCER
View the current value of the mA output associated with the Point Number
displayed.
This is the Auxiliary Reading displayed when is pressed in the RUN mode
and does not include any adjustment made using the 4 or 20 mA Trim (P214,
P215) features.
If the Point Number is included in a mA Multi-point Average calculation, the
displayed value is the average obtained from all Point Numbers included in the
mA Allocation (P202) range.
If more than one mA output is allocated to the same Point Number, the value of
the lowest mA Output Number is displayed.
5
mA
values: 0.000 to 22.00
Page 40 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 45
P210 0/4 mA SETPOINT
Use this feature to reference the minimum mA output to any point in the
measurement range. Enter the material level (referenced to Empty, P006)
corresponding to the minimum mA output. This feature is preset to 0% or 100%
of Span (P007) as determined by Operation (P001).
Typically, this value is entered in Units (P005) or percent of Span (P007). If mA
Function is set for "volume", enter the value in the Max Volume (P051) units or in
percent of Max Volume.
values: -999 to 9999
P211 20 mA SETPOINT
Use this feature to reference the 20 mA output to any point in the measurement
range between Empty (P006) and Span (P007).
Enter the material level (referenced to Empty, P006) corresponding to 20mA.
Application Parameters
mmmmm
This feature is preset to 0% or 100% of Span (P007) as determined by Operation
(P001).
Typically, the value is entered in Units (P005) or percent of Span (P007). If mA
Function is set for "volume", enter the value in the Max Volume (P051) units or as
a percent of Max Volume.
values: -999 to 9999
P212 mA MIN LIMIT
Use this feature to prevent the mA output from falling below the minimum
acceptable mA input value (preset to 3.800 mA) of the device connected.
values: 0.000 to 22.00
P213 mA MAX LIMIT
Use this feature to prevent the mA output from exceeding the maximum
acceptable mA input value (preset to 20.20 mA) of the device connected.
values: 0.000 to 22.00
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 41
Page 46
P214 4 mA TRIM
Use this feature (in combination with 20 mA Trim) if the device connected to the
mA output displayed is out of calibration, yet device recalibration is impractical.
Adjust this value as required to make the device connected indicate 4.000 mA
when this parameter is accessed. Use of this feature does not affect the mA
Value / Transducer (P203) value displayed.
values: -1.00 to 1.000
P215 20 mA TRIM
Use this feature (in combination with 4 mA Trim) if the device connected to the
mmmmm
mA output displayed is out of calibration, yet device recalibration is impractical.
Adjust this value as required to make the device connected indicate 20.00 mA
when this parameter is accessed. Use of this feature does not affect the mA
Application Parameters
Value / Transducer (P203) value displayed.
values: -1.00 to 1.000
P219 mA FAILSAFE
Use this feature if mA output failsafe operation, independent from the Failsafe
Material Level (P071) is desired.
To select an independent mA Failsafe option value:
1. Press
2. Press or
3. Press
values: "OFF" to have the mA output respond to the Failsafe
to display the Auxiliary Function symbol.
to scroll access the failsafe options.
with the desired option displayed.
Material Level (P701) (F).
"HOLd" to hold the output at the "last known" value until
normal operation resumes.
"LO" to produce the "Empty" mA output immediately on
Failsafe Timer (P070) expiry.
"HI" to produce the "Span" mA output immediately on
Failsafe Timer (P070) expiry.
Alternatively, to produce an immediate mA output at a specific value, enter
the value required.
values: 0.000 to 22.00
Page 42 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 47
Enhancement Parameters
This section identifies all XPL Plus operator programmable features designed for altering
operation to suit individual operator preferences or overcome measurement difficulties.
Typically, these parameters are only altered as directed by the Troubleshooting Guide . If
RUN mode performance requires improvement, access and alter the following
parameters as required. Otherwise, proceed to Operation.
Parameter Category Purpose Page
Data Logging to view previous maximum Temperature records 50
Profile Records intended for use by Siemens Milltronics Service personnel 51
Installation Records to identify length of service and power failure occurrence 54
Range Calibration to compensate for measurement offset and/or sound velocity 55
Temperature Compensation to override automatic temperature compensation features 57
Rate to override Measurement Response (P003) 59
Measurement Verification to override Measurement Response (P003) 61
Scanning to override automatic scanning delay or use Aux. Transducer 63
Display Parameters to override the preset display operating characteristics 65
SmartLinx Parameters communications 67
Echo Processing to troubleshoot false echo detection 68
Advanced Echo Processing intended for use by Siemens Milltronics Service personnel 70
Test Parameters intended for use by Siemens Milltronics Service personnel 78
Measurement Parameters to verify Application Parameter programming 80
Master Reset to reset numerous Parameter Values 81
Enhancement Parameters
mmmmm
When an Enhancement Parameter is altered, return to the RUN mode to verify the
performance desired is achieved before making any other changes.
Data Logging Parameters (P300 and P302)
View the maximum temperature recorded in the RUN mode.
P300 (V) TEMPERATURE, TRANSDUCER MAX
Use this feature if vessel temperature is monitored by an Ultrasonic /
Temperature transducer to view the highest temperature recorded (in °C).
values: -50 to 150
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 43
Page 48
P302 (V) TEMPERATURE, SENSOR MAX
Use this feature if vessel temperature is monitored by a TS-3 Temp Sensor to
view the highest temperature recorded (in °C).
When accessed, the TS-3 symbol is displayed in the Point Type field and the
TS-3 Number (corresponding to the XPL Plus terminals) is displayed in the Point
Number field.
values: -50 to 150
Profile Records (P330 to P337)
The following parameters are for authorized Siemens Milltronics service personnel or
Instrumentation Technicians familiar with Siemens Milltronics echo processing
techniques.
Use these features to record and save a total of up to 10 Echo profiles, initiated manually
(P330), or automatically (P331 et al). See Scope displays (P810) for echo profile viewing
hardware / software requirements.
If 10 Echo Profiles are already saved, addresses 1 through 10 are filled, the oldest
automatically initiated record is overwritten. Manually initiated records are not
automatically overwritten. All records are automatically deleted in the event of a power
interruption.
mmmmm
When a record is displayed, results are based on current programming (which may have
been altered since the record was saved). This permits the effect on the echo profile to be
observed when changing an echo parameter.
Enhancement Parameters
Page 44 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 49

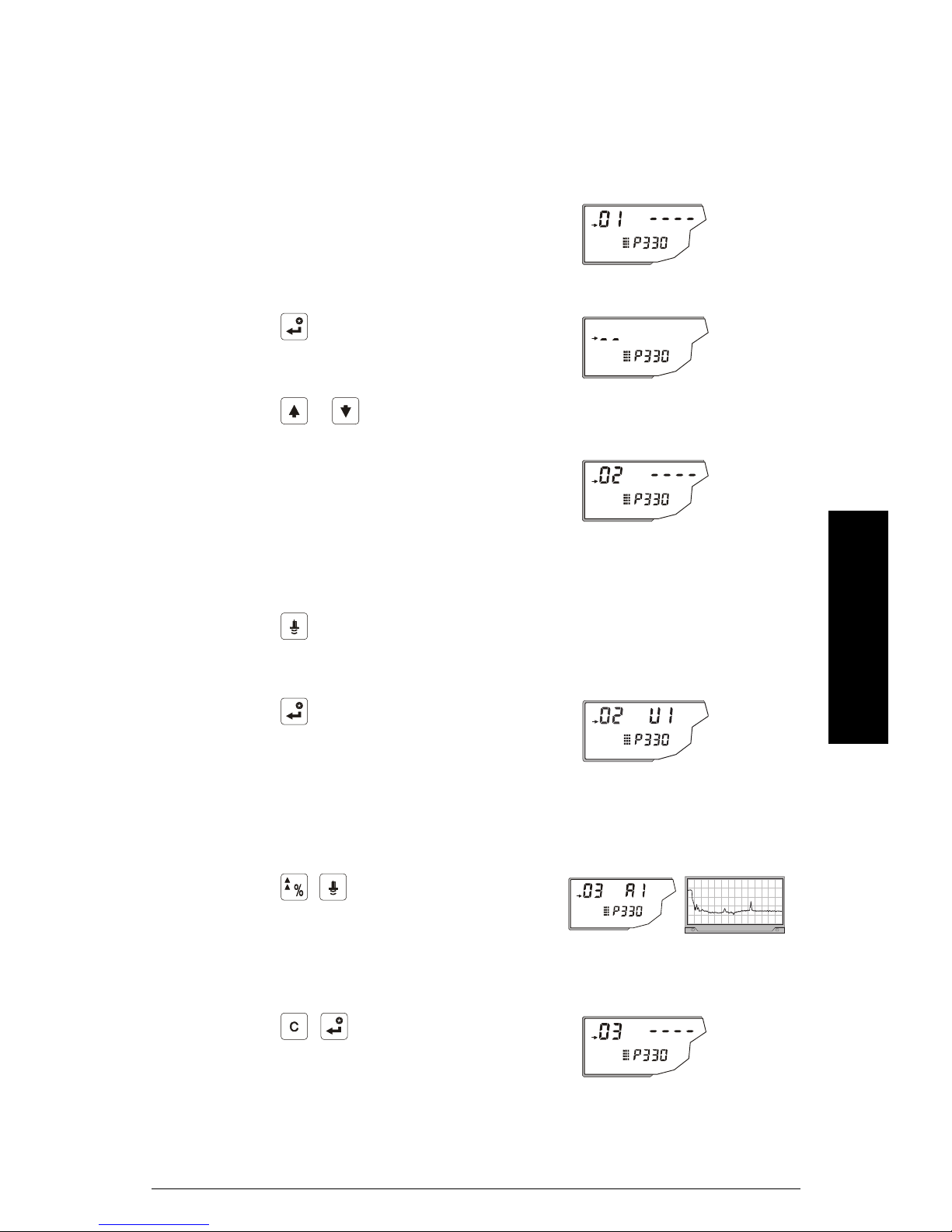

P330 PROFILE RECORD
In addition to serving as a library for profile records, this parameter provides two
functions:
• manually records and saves echo profiles
• displays an echo profile, recorded manually or automatically, e.g. via an
oscilloscope.
To select a record address:
Press until address index is enabled.
Press or to select the desired address, 1 to 10, and display the
‘- - - -’ = no record
‘ x# ’ = record
where: x = A, automatically initiated
= U, manually initiated
# = transducer number
To manually record a profile:
Press transducer* fires and echo profile is recorded into the internal scope
e.g. initial parameter display
associated parameter value:
Enhancement Parameters
e.g address 2 selected, no
record saved
mmmmm
buffer for display.
To save a manual record:
Press to copy the echo profile record in
the scope buffer and save it in the
selected address in in the record
library. The parameter value field
displays the new record ordinates.
e.g. manually initiated
record from transducder 1
saved in address 2
To display a record:
Press to copy the echo profile
record in the selected
address to the scope buffer,
for display.
e.g. oscilloscope displays record
in address 3
To delete a record:
Press to delete the echo profile
record in the selected
address. Parameter value
returns to ‘ - - - - ’
e.g.record deleted, address 3
clear
* Access the Scope Displays (P810) parameter to select the Transducer.
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 45
Page 50
P331 (G) AUTO RECORD ENABLE
Use this feature (if desired) to enable / disable the Auto Profile Record function.
values: 0 = off
1 = on
P332 (G) AUTO RECORD TRANSDUCER
Use this feature (if desired) to specify the Transducer Point Number for which
Auto Profile Records are saved.
This feature is preset to Point Number 1.
values: 0 = any Transducer
1 = Transducer 1 (preset)
2 = Transducer 2
P333 (G) AUTO RECORD INTERVAL
Enter the time (in minutes) to elapse after an Auto Profile Record is saved
before another Auto Profile Record can be saved (subject to all other
restrictions).
values: 0.000 to 9999 (preset to 120 minutes)
mmmmm
AUTO RECORD A / B Setpoints
Use Auto Record A Setpoint (P334) and Auto Record B Setpoint (P335) to define the
boundaries within which the level must be for the resultant Echo Profile to be considered
Enhancement Parameters
for an Auto Profile Record.
If "----" is displayed for either P334 or P335, Auto Profile Records are saved regardless of
current level (subject to all other restrictions).
Enter the level value in Units (P004) or percent of Span (P007) as referenced to Empty
(P006). (Ensure the % Symbol is displayed before attempting to enter a value in percent,
Programming
see
Keypad).
P334 (G) AUTO RECORD A SETPOINT
Enter the critical level which, in conjunction with Auto Record B Setpoint,
defines the boundaries for Auto Profile Records to be saved.
values: -999 to 9999
Page 46 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 51
P335 (G) AUTO RECORD B SETPOINT
Enter the critical level which, in conjunction with Auto Record A Setpoint,
defines the boundaries for Auto Profile Records to be saved.
values: -999 to 9999
P336 (G) AUTO RECORD FILLING / EMPTYING
Use this feature to restrict Auto Profile Records from being saved unless the
level is rising, falling or either.
If the level changes at a rate in excess of the corresponding Filling / Emptying
Indicator (P702 / P703) values, the Echo Profile is saved subject to this and other
Auto Profile Record restrictions.
values: 0 = Auto Profile Record on filling or emptying (preset)
1 = Auto Profile Record on filling only.
2 = Auto Profile Record on emptying only.
P337 (G) AUTO RECORD LOE TIME
Use this feature to restrict Auto Profile Records from being saved unless an
extended loss of echo (LOE) condition occurs.
If the LOE condition exceeds the period entered (in seconds) the Echo Profile is
saved, subject to this and other restrictions.
When set for "0" (preset), LOE is not required for an Auto Profile Record to be
saved.
values: 0.0 to 9999
Installation Records (P340 to P342)
Use these features to view data relating to this specific XPL Plus installation.
P340 (V) DATE OF MANUFACTURE
View the date of manufacture of this XPL Plus.
values: YY:MM:DD format
Enhancement Parameters
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 47
Page 52
P341 (V) RUN TIME
View the accumulated number of days this XPL Plus has been operating, since
the Date of Manufacture (P340).
This value is stored in EEPROM and updated once each day. Therefore, if the
XPL Plus is powered down at least once every 24 hour period, this value will
always be less than 1.
values: 0.000 to 9999
P342 (V) START UPS
View the accumulated number of times power has been applied to the XPL Plus
(following a power interruption), since the Date Of Manufacture.
values: 1 to 9999
Range Calibration Parameters (P650 to P654)
P650 OFFSET CALIBRATION
Use this feature if the Empty (P006) value was estimated or if the reported
material level is consistently high or low by a fixed amount (e.g. 2 cm).
mmmmm
Before using this feature, verify the
a) Empty (P006) value (as measured or estimated) was entered correctly.
b) Vessel atmosphere Temperature (P664) is correct.
c) Offset Reading (P062) value (if used) was entered correctly.
Enhancement Parameters
To perform an Offset Calibration:
With the material at a high steady level...
1. Press to display the calculated distance*.
2. Repeat step 1 at least 5 times to overcome Echo Lock (P721) and verify
repeatability.
3. Measure the actual distance* (e.g. with a tape measure).
4. Enter the actual value. (The Offset Correction amount is stored in P652).
values: -999 to 9999
.
Page 48 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 53
P651 SOUND VELOCITY CALIBRATION
Use this feature if:
a) The vessel atmosphere is other than air.
b) The vessel atmosphere temperature is unknown and a temperature sensing
device is not used.
c) The Reading accuracy is acceptable at higher material levels only.
To perform a Sound Velocity Calibration:
With the material at a low steady level perform the following steps.
1. Allow sufficient time for the vapour concentration to stabilize.
2. Press to display the calculated distance*.
3. Repeat step 2 at least 5 times to overcome Echo Lock (P721) and verify
repeatability.
4. Measure the actual distance* (e.g. with a tape measure).
5. Enter the actual value. (Velocity parameters P653 and P654 are adjusted
accordingly).
Repeat this procedure if the vessel atmosphere type, concentration, or
temperature varies from that present when the last sound velocity
calibration was performed.
Enhancement Parameters
values: -999 to 9999
* When Operation (P001) for the Point Number displayed is set for:
a) "level", the distance is from Empty (P006) to the material / object surface.
b) "space" or "tripper", the distance is from Span (P007) to the material / object
surface.
c) "distance", the distance is from the transducer face to the material / object
surface.
P652 OFFSET CORRECTION
View the amount of offset applied to the Reading.
This value is automatically adjusted when an Offset Calibration is performed.
Alternatively, if the amount of Offset Correction required is known (and
performing an Offset Calibration is not desired), enter the amount to be added to
the Reading before display.
values: -999 to 9999
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 49
Page 54
P653 VELOCITY
View the current vessel atmosphere sound velocity.
This value is based on Velocity at 20°C (P654) for the current Temperature (P664),
based on the sound velocity vs. temperature characteristics of air.
When a Sound Velocity Calibration is performed, this value is automatically
adjusted as required to suit the current atmosphere type, concentration, and
temperature.
Alternatively, if the current sound velocity is known, enter the current sound
velocity. (Refer to
The units used are m/s if P005 = 1, 2, or 3 (ft/s if P005 = 4 or 5).
values: 50.01 to 2001 m/s (164.1 to 6563 ft/s)
P654 VELOCITY AT 20°C
View the current vessel atmosphere sound velocity normalized to 20°C (68°F).
This value is used to calculate Sound Velocity (P653), using Temperature (P664)
based on the sound velocity vs. temperature characteristics of air.
Technical Reference
Sound Velocity).
After a Sound Velocity Calibration, this value may be checked to verify whether
the vessel atmosphere is air (typically 344.1 m/s or 1129 ft/s).
Alternatively, if the vessel atmosphere sound velocity at 20°C (68°F) is known,
and the sound velocity vs. temperature characteristics are similar to that of air,
mmmmm
enter the sound velocity.
The units used are m/s if P005 = 1, 2, or 3 (or ft/s if P005 = 4 or 5).
values: 50.01 to 2001 m/s (164.1 to 6563 ft/s)
Enhancement Parameters
Page 50 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 55
Temperature Compensation Parameters (P660 to
P664)
P660 TEMP SOURCE
This feature is preset to "AUTO". On scanning a transducer, the XPL Plus scans
the TS-3 temperature sensor* assigned to the transducer. If a TS-3 sensor is not
connected, the temperature measurement from the ultrasonic/temperature
transducer is used. If the transducer used does not have an integral temperature
sensor, the Temp Fixed (P661) value is used.
If the temperature of the atmosphere within the transducer beam varies with
distance from the transducer, connect a TS-3 temperature sensor* and an
ultrasonic / temperature transducer for the Point Number and select "average".
* Unless equipped with a TIB-9 Card, the XPL Plus provides input terminals for
only one TS-3 connection. When a TIB-9 card is installed, up to 10 TS-3
temperature sensors may be connected. Refer to
Interconnection.
If the atmosphere temperature of several vessels is identical, connect a TS-3
Temperature Sensor to terminals 21 and 22 and select "TS-3 SENSOR # 1". The
temperature measurement from the single TS-3 is used for the air temperature
measurement of all Point Numbers allocated to TS-3 number 1. (See
Temperature Sensor Allocation, P662).
Installation
TIB-9 Card and
Enhancement Parameters
values: 1 = AUTO
2 = Temp Fixed
3 = Ultrasonic / Temperature Transducer
4 = TS-3 Temperature Sensor
5 = Average
6 = TS-3 SENSOR # 1
P661 TEMP FIXED
Use this feature if a temperature sensing device is not used.
Enter the temperature (in °C) of the vessel atmosphere within the transducer
beam. If the temperature varies with distance from the transducer, enter the
average temperature. This value is preset to 20.00 °C.
values: -50 to 150
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 51
Page 56
P662 TEMPERATURE SENSOR ALLOCATION
As preset, TS-3 # 1-10 are allocated to Point Numbers 1-10 respectively.
To alter this allocation, enter the TS-3 # whose temperature measurement will
be used for the distance calculation of the Point Number displayed.
When more than one TS-3 temperature sensor is allocated to a Point Number,
the temperature measurements from each sensor are averaged for that vessel.
values: x (x = single Point Number (1-10) to be allocated to the TS-3 # displayed)
x.y (x = first Point Number (1-10), y = last Point Number (1-10), in the
range).
P663 TEMPERATURE TRANSDUCER ALLOCATION
As preset, Ultrasonic/Temperature Transducers 1-10 are allocated to Point
Number 1-10 respectively.
To alter this allocation, enter the Transducer # whose temperature measurement
will be used for the distance calculation of the Point Number displayed.
When more than one transducer is allocated to a Point Number, the temperature
measurements from each transducer are averaged for that vessel.
values: x (x = single Point Number (1-10) allocated to the Transducer #
displayed)
x.y (x = first Point Number (1-10), y = last Point Number (1-10), in the
range).
mmmmm
P664 (V) TEMPERATURE
Enhancement Parameters
View the current vessel atmosphere temperature in °C.
This is the value displayed when is pressed in the RUN mode.
6
If Temp Source (P660) is set to any value other than Fixed Temp, the value
displayed is the temperature measured. If Temp Source is set to Fixed Temp, the
P661 value is displayed.
values: -50 to 150
Page 52 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 57
Rate Parameters (P700 to P707)
P700 MAX FILL RATE
Adjust the XPL Plus response to increases in the actual material level (or
advance to a higher Failsafe Material Level, P071).
Enter a value slightly greater than the maximum vessel filling rate.
This value (in Units (P005) or % of Span (P007) per minute) is automatically
altered when Measurement Response (P003) is altered. See
Reference
values: 0.000 to 9999
P701 MAX EMPTY RATE
Adjust the XPL Plus response to decreases in the actual material level (or
advance to a lower Failsafe Material Level, P071).
Enter a value slightly greater than the maximum vessel emptying rate.
Measurement Response.
Te c hn i c a l
This value (in Units (P005) or % of Span (P007) per minute) is automatically
altered when Measurement Response (P003) is altered. See
Reference
values: 0.000 to 9999
P702 FILLING INDICATOR
Enter the fill rate to activate the LCD Material Filling indicator and Smart Scan
(P720).
This value (in Units (P005) or % of Span (P007) per minute) is automatically set to
10% of the Max Fill Rate (P700).
values: -999 to 9999
P703 EMPTYING INDICATOR
Enter the empty rate to activate the LCD Material Emptying indicator and Smart
Scan (P720).
This value (in Units (P005) or % of Span (P007) per minute) is automatically set to
10% of the Max Empty Rate (P701).
Measurement Response.
Enhancement Parameters
Te c hn i c a l
mmmmm
values: -999 to 9999
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 53
Page 58
P704 RATE FILTER
Use this feature to avoid Rate Value (P707) fluctuations due to a "splashing"
material surface. This value is automatically altered when Measurement
Response (P003) is altered. See
This value automatically alters the Rate Update Time (P705) and / or Rate Update
Distance (P706). Alternatively, these parameter values may be altered
independently.
Enter the time period/distance the Rate Value is averaged before display update.
values: 0 = rate display not required
1 = continuously averaged and updated
2 = 1 minute or 50 mm (2 in)
3 = 5 minutes or 100 mm (3.9 in)
4 = 10 minutes or 300 mm (11.8 in)
5 = 10 minutes or 1000 mm (39.4 in)
P705 RATE UPDATE TIME
Enter the time period (in seconds) over which the material level rate of change is
averaged before Rate Value update.
Technical Reference
Measurement Response.
values: 0.000 to 9999
mmmmm
P706 RATE UPDATE DISTANCE
Enter the material level change (in meters) to initiate a Rate Value update.
Enhancement Parameters
values: 0.000 to 9999
P707 (V) RATE VALUE
View the rate of material level change (in Units (P005) or % of Span (P007) per
minute).
(A negative rate indicates the vessel is emptying).
This is the value displayed when is pressed in the RUN mode.
7
values: 0.000 to 9999
Page 54 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 59
Measurement Verification Parameters (P710 to
P713)
P710 FUZZ FILTER
Use this feature to stabilize the reported material level, due to material level
fluctuations (such as a rippling or splashing liquid surface), within the Echo Lock
Window (P713).
This value (in % of Span, P007) is automatically altered when Measurement
Response (P003) is altered. (See
The higher the value entered, the greater the fluctuation stabilized. (0 = off)
values: 0 to 100
P711 ECHO LOCK
Use this feature to select the measurement verification process.
This value is automatically altered when Material (P002) and / or Measurement
Response (P003) is altered. (See Measurement Response).
Technical Reference
Measurement Response).
Enhancement Parameters
When set for "maximum verification" or "material agitator", a new measurement
outside of the Echo Lock Window (P713), must meet the sampling criterion
(P712).
For " total lock ", Echo Lock Window (P713) is preset to "0". The XPL Plus
continuously searches for the best echo according to the algorithm chosen
(P820). If the selected echo is within the window, the window is then centered
about the echo. If not, the window widens with each successive shot until the
selected echo is within the window. The window then returns to its normal
width.
When Echo Lock is "off", the XPL Plus responds immediately to a new
measurement as restricted by the Max Fill / Empty Rate (P700 / P701); however,
measurement reliability is affected.
values: 0 = off
1 = maximum verification
2 = material agitator
3 = total lock
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 55
Page 60
P712 ECHO LOCK SAMPLING
The sampling criterion sets the number of consecutive echoes appearing above
or below the echo currently locked onto, that must occur before the
measurements are validated as the new reading (for Echo Lock P711 values 1 or
2).
P711 value P712 preset value
1, ma x ver ifi cat ion
2, material agitator
5:5
5:2
e.g. P711 = 2, material agitator
P712 = 5:2
A new reading will not be validated unless 5 consecutive measurements higher
or 2 consecutive measurements lower than the current readings occur.
values:x.y x= # of ‘above’ echoes y = # of ‘below’ echoes
Resetting P711 returns P712 to the respective preset values.
P713 ECHO LOCK WINDOW
Use this feature to adjust the new measurement change permitted before Echo
Lock is applied.
The Echo Lock Window is a "time window" (in msec) placed about the echo used
to derive the Reading. When a new measurement falls within the window, the
mmmmm
window is recentered and the new Reading is calculated. Otherwise, the new
measurement is verified by Echo Lock (P711) before the XPL Plus updates the
Reading.
Enhancement Parameters
When "0" is entered (preset), the window is automatically calculated based on
the Max Fill / Empty Rate (P700 / 701). This calculation is automatically performed
when Measurement Response (P003) is altered. See Measurement Response.
For slower Measurement Response (P003) values the calculated Echo Lock
Window is narrow. For faster values the window becomes increasingly wider,
(When "TURBO" is selected the window is normally wide open).
values: 0.000 to 9999
Page 56 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 61
Scanning Parameters (P720, P725 to P729)
P720 SMART SCAN
Select the condition(s) to add / remove the Point Number displayed to the Priority
Point scan sequence (as indicated by the display symbol in the RUN mode).
In the RUN mode, if any of the conditions occur, Priority Point(s) are scanned
each time a non-priority point is scanned. Otherwise, all vessels are scanned in
numerical sequence.
Selecting "manual" allows the addition or removal of Priority Points by the
following methods:
• pressing on the local keypad
• sending an MT12 / MT13 message via the BIC-II (see
• sending the appropriate message via compatible industry bus
values: 0 = off (numerical sequence only) (preset)
1 = manual
2 = Filling Indicator (P702) value exceeded
3 = Emptying Indicator (P703) value exceeded
4 = Filling / Emptying Indicator value exceeded
5 = Filling Indicator or Failsafe Timer (P070) exceeded
6 = Emptying Indicator or Failsafe Timer (P070) exceeded
7 = Filling / Emptying Indicator or Failsafe Timer exceeded
8 = Failsafe Timer exceeded
P725 AUXILIARY TRANSDUCER
Use this feature if a long range transducer measurement range, but a short
range transducer Nearest Distance (see Installation Transducer Mounting) is
required. In the RUN mode, if the material level is within the short range
transducer measurement range, that measurement is processed. Otherwise, the
long range transducer measurement is used.
Technical Reference
)
Enhancement Parameters
mmmmm
With the long range transducer Point Number displayed, enter the short range
Point Number.
values: 0 to 10 (0 = off, preset)
P726 LEVEL SYSTEM SYNC
Use this feature if another level measurement system is mounted near the XPL
Plus.
Installation
See
values: 0 = not required
1 = synchronize level monitors (preset)
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 57
Interconnection-Level System Synchronization.
Page 62
P727 (G) SCAN DELAY
Use this feature to adjust the delay before the next point is scanned. Enter the
amount of delay in seconds. This value is automatically altered when
Measurement Response (P003) is altered. (See
Measurement Response).
values: 0.000 to 60.00
P728 SHOT DELAY
Use this feature if acoustic noise within the vessel is causing measurement
difficulties. Enter the delay between transmit pulse shots (in seconds). This
value is automatically altered when Measurement Response (P003) is altered.
Technical Reference
See
values: 0.1 to 4.0
P729 (V) SCAN TIME
View the time elapsed (in seconds) since the point displayed was last scanned.
This value may be viewed as an Auxilliary Reading in the Run mode (especially
useful when setting up Smart Scan, P720). See
Technical Reference
Measurement Response.
Operation
Keypad.
values: 0.000 to 9999
mmmmm
Enhancement Parameters
Page 58 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 63
Display Parameters (P730 to P734, P740)
P730 (G) AUXILIARY READING
Use this feature to display operator selected Auxiliary Readings temporarily.
Select "OFF" to display Auxiliary Readings temporarily. Select "HOLd" to display
Auxiliary Readings until another Auxiliary Reading is selected.
Operation
(See
To select the Auxiliary Reading operation desired:
1. Press to display the Auxiliary Function symbol.
2. Press or to display the "OFF" or "HOLd" (preset) option as desired.
3. Press .
If desired, also enter the Parameter Number to default in the Auxiliary Reading
display.
values: 000 to 999
P731 (G) AUXILIARY READING KEY
Use this feature to enable a specific Parameter Value to be monitored in the
RUN mode.
Enter the Parameter Number whose value is to be displayed in the Auxiliary
Reading field when is pressed in the RUN mode.
Keypad for RUN mode Auxiliary Reading selection.)
Enhancement Parameters
mmmmm
Operation
(See
values: 000 to 999 (preset to (P921) Material Reading)
P732 (G) DISPLAY DELAY
Use this feature if the Point Number display scrolls too quickly in the RUN mode.
Enter the delay (in seconds) before the display advances to the next Point
Number.
(Point Number display scrolling is independent from transducer scanning.)
values: 0.5 to 10 (preset to 1.5 seconds)
Keypad for RUN mode Auxiliary Reading selection.)
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 59
Page 64
P733 (G) SCROLL ACCESS
Use this feature to select the programming mode parameter scroll access option
desired.
Select: "off" to scroll access all operator accessible parameters (P000 to
"smart" to scroll access Quick Start, previously altered, and tagged
"tagged" to scroll access operator tagged parameters only.
If SmartLinx module is installed, the applicable protocol specific parameters
(P750 - P789) are preset as tagged.
P999).
parameters.
(Any accessed parameter may be
tagged
or
untagged
by pressing ).
7
is displayed when a previously tagged or altered parameter is accessed.
values: 0 = off
1 = smart (preset)
2 = tagged
P734 (G) SCANNING INDICATORS
Use this feature to have the Scan Point indicators display the Point Numbers
currently "on priority" (see SMART SCAN, P720). As preset, the Point Number
mmmmm
being scanned is displayed.
values: 1 = Point Number being scanned
2 = Point Numbers on priority
Enhancement Parameters
P740 PERIPHERAL COMMUNICATIONS
Use this feature to select the ASCII message format used in Siemens
Milltronics proprietary communications loop.
Select: "off" if peripherals are not used (increases the XPL Plus
"normal" to have messages transmitted in a continuous string of
"formatted" to have commas inserted between the message fields (for
Refer to Technical Reference BIC-II Support if a BIC-II is used.
values: 0 = off
1 = normal (preset)
2 = formatted messages
Page 60 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
processing speed).
characters (requires less XPL Plus processing time than
formatted messages).
easier message recognition e.g. when viewed on a
monitor).
Page 65
SmartLinx Parameters
P750 - P789 PROTOCOL SPECIFIC PARAMETERS
These parameters are specific to the SmartLinx module installed. Refer to
the module documentation for a list and description of the specific
parameter requirements.
P772 BAUD RATE
This feature specifies the rate of communication in Kbaud. Any value can be
entered, but only the values shown are supported.
4.8 = 4800 Baud (preset)
9.6 = 9600 Baud
19.2 = 19200 Baud
38.4 = 38400 Baud
P790 HARDWARE ERROR
Use this feature to display the results of ongoing hardware tests within the
communications circuitry. If any test does not meet the PASS requirements,
communication halts and tests are repeated until PASS requirements are met.
Communication then resumes.
Displays:
Enhancement Parameters
mmmmm
PA SS :
FAIL:
ERR1:
P791 BUS ERROR
This feature indicates if an error condition is occurring on the bus.
Displays: 0 = no error
P792 BUS ERROR COUNT
This register increments by 1 each time a bus error (P752) is reported. The
register is factory set at 0 and can be preset to any value. The register is reset to
0 by master reset (P999).
no problem
faulty SmartLinx module or XPL Plus
unknown protocol, upgrade XPL Plus software
# = error code, refer to the SmartLinx module documentation for
explanation of the error code
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 61
Page 66
Echo Processing Parameters (P800 to P807)
P800 NEAR BLANKING
Use this feature if the material level is incorrectly reported to be near the
transducer face.
The
Near Blanking distance
ultrasonically measurable) is preset to a value depending on the transducer
selected (P004).
blanking transducer
(distance from the transducer face which is not
0.3 m (1 ft)
0.45 m (1.5 ft)
0.6 m (2 ft)
0.9 m (3 ft)
1.2 m (4 ft)
Extend Near Blanking to overcome measurement difficulties which cannot be
corrected by transducer location, mounting, or aiming.
The causes of measurement difficulties which may be corrected include:
• a vessel obstruction partly blocking the transducer acoustic beam.
• a transducer standpipe mount that is too narrow for its length.
• a transducer mounting which is resonant at the transducer frequency.
Extend Near Blanking to 150 mm (6 in) beyond the incorrect distance measured.
mmmmm
Ensure the Near Blanking distance is less than Empty (P006) - Span (P007).
To reset the automatic Near Blanking value
Press .
ST-25, ST-50, ST-H, XPS-10, XPS-15
XCT-8, XCT-12
XPS-30
ST-100, LR-21, XPS-40, XLS-30, XLT-30
LR-13, XLS-60, XLT-60
Enhancement Parameters
values: 0.000 to 9999
P801 RANGE EXTENSION
Use this feature if an incorrect level is reported (when material level is lower
than Empty, P006).
Range Extension is the distance in Units (P005) or % of Span (P007) beyond
Empty, which is still ultrasonically measurable.
If Empty is substantially higher than the actual vessel bottom, increase Range
Extension such that Empty plus Range Extension is greater than the transducer
to vessel bottom distance.
This value is automatically preset to 20% of Span (P007).
values: 0.000 to 9999
Page 62 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 67
P802 SUBMERGENCE SHIELD ON TRANSDUCER
Use this feature (if desired) when the transducer connected is equipped with a
submergence shield.
When the transducer is submerged, the XPL Plus detects that the monitored
surface is within the Near Blanking (P800) distance, and immediately advances
to "zero" distance operating displays and outputs accordingly.
values: 0 = off (preset)
1 = submergence transducer
P803 SHOT / PULSE MODE
Use this feature to increase response independent from Measurement
Response (P003).
Select "short and long" to have short and long acoustic shots fired each time a
vessel is scanned. Select "short" to have only short shots fired if the Echo
Confidence (P805) produced by a short shot exceeds the short Confidence
Threshold (P804).
This value is automatically altered when Measurement Response (P003) is
altered. See
Technical Reference
Measurement Response.
Enhancement Parameters
values: 1 = short
2 = short and long
P804 CONFIDENCE THRESHOLD
Use this feature when an incorrect material level is reported.
The short and long Confidence Thresholds are preset to 10 and 5 respectively. If
the Echo Confidence (P805) of a particular echo exceeds the Confidence
Threshold, that echo is considered for evaluation by Sonic Intelligence®.
values: x.y x = short (0 to 99), y = long (0 to 99)
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 63
Page 68
P805 (V) ECHO CONFIDENCE
Use this feature to monitor the effect of transducer aiming, location, and
mechanical transducer / mounting isolation.
This is the value displayed when is pressed for 4 seconds in the RUN mode.
Both short and long shot Echo Confidence is displayed.
" -- " is displayed if the respective shot (short or long) was not included in the
evaluation.
" E " is displayed if the transducer cable is open or short circuited.
" --:-- " is displayed if no shots have been taken yet.
values: x:y x = short (0 to 99), y = long (0 to 99)
P806 (V) ECHO STRENGTH
Use this feature to view the strength (in dB above 1 µV RMS) of the echo
selected to base the distance calculation upon.
values: 0 to 99
P807 (V) NOISE
Observe the average and peak ambient noise (in dB above 1 µV RMS) being
processed.
8
mmmmm
The noise level is a combination of transient acoustic noise and electrical noise
(induced into the transducer cable or receiving circuitry itself).
values: x:y x = average (-99 to 99), y = peak (-99 to 99)
Enhancement Parameters
Page 64 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 69
Advanced Echo Processing (P810,P816-P825,P830P835,P840-P845,P850-P852)
The following Echo Processing parameters are intended for use by authorized
Siemens Milltronics Service personnel or Industrial Instrumentation Technicians
familiar with Siemens Milltronics ultrasonic echo processing techniques.
P810 SCOPE DISPLAYS
Use this feature to monitor the results of Echo Processing parameter alterations.
Connect an oscilloscope to Display Board TP1, TP2, and TP3.
Sweep = 10 µV/div. to 1 ms/div. (x 100 for real time); Amplitude = 1 V/div.; Trigger
= external
Observe any combination of the following Scope Displays:
DISPLAY DISPLAY SYMBOL
P C n u
Echo Profile
TVT Curve
Echo Marker
Echo Lock
Enhancement Parameters
To select the Scope Display desired perform the following steps:
Press to display the Auxiliary Function symbol.
Press or to scroll access the desired Reading display symbols.
Press with the desired display symbols displayed.
Alternatively, a 4 digit binary value may be entered, where a "0" turns the
associated signal display "off", and a "1" turns the associated display "on".
e.g. 1110 = PCn_ = Echo Profile, TVT Curve, and Echo Marker displays on.
See Technical Reference Echo Processing for Scope Display illustrations.
Use the Scope Displays after pressing (in the CAL mode) to observe the
result of Echo Processing parameter alterations. (Take several measurements to
verify measurement repeatability and overcome Echo Lock (P711) restrictions).
As preset, all displays are off.
mmmmm
P816 (V) ECHO TIME
Observe the time (in ms) between the transmit pulse and the processed echo.
values: 0.000 to 9999
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 65
Page 70
PROFILE POINTER PARAMETERS
When a Profile Pointer Parameter is accessed, the Echo Lock Window scope
display changes to a Profile Pointer display. The Profile Pointer may be moved to
a number of points on the Echo Profile, to gain specific information dependent
upon the Profile Pointer Parameter used.
To move the Profile Pointer to a specific point, enter the desired value. The
Profile Pointer will move to the nearest acceptable Echo Profile point. The
Profile Pointer is preset to "0".
Alternatively, to scroll the Profile Pointer along the Echo Profile
1. Press to display the Auxiliary Function symbol.
2. or
P
to move the Profile Pointer to the left or right respectively.
P
When the Profile Pointer Parameters are exited and is pressed or the RUN
mode is entered, the Profile Pointer display automatically changes back to the
Echo Lock Window display.
P817 (V) PROFILE POINTER TIME
Observe the time (in ms) between the transmit pulse and the Profile Pointer.
values: 0.000 to 9999
mmmmm
P818 (V) PROFILE POINTER DISTANCE
Enhancement Parameters
Observe the distance (in P005 Units) between the transducer face and the
Profile Pointer.
values: 0.000 to 9999
P819 (V) PROFILE POINTER AMPLITUDE
Observe the amplitude (in dB above 1µV) of the Echo Profile at the Profile Pointer
position.
values: 0 to 99
Page 66 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 71
P820 ALGORITHM
Use this feature to select the
Algorithm(s)
(mathematical operations) which the
Sonic Intelligence® echo selection is to be based on.
This value is automatically altered by Material (P002).
If the wrong echo is processed, select an alternate algorithm, while observing
the resultant echo processing displays.
To select an Algorithm perform the following steps:
1. Press to display the Auxiliary Function symbol.
2. Press or to display the desired Reading display symbol(s).
3. Press (when the desired Algorithm is displayed).
The material / vessel type most likely to benefit from a particular algorithm is
included with the following option values.
values: ALF
= long range Area, Largest, and First average (general
purpose, solids)
A
= long range Area only (coarse, heaped solids)
L
= long range Largest only (liquids, open vessels)
F
= long range First only (liquids, closed vessel)
AL
= long range Area and Largest average (fine heaped
solids)
AF
= long range Area and First average (coarse flat solids)
LF
= long range Largest and First average (general purpose,
liquids)
bLF
= short range Largest or First (general purpose)
bL
= short range Largest only (solids and open vessel liquids)
bF
= short range First only (closed vessel liquids)
Enhancement Parameters
mmmmm
P821 SPIKE FILTER
Activate the Spike Filter if interference spikes are observed on the long shot
Echo Profile display.
values: 0 = off
1 = on (preset)
P822 NARROW ECHO FILTER
Use this feature (when monitoring solids (P002 = 2) only) if an echo from a partial
transducer beam obstruction (seams, ladder rungs, etc.) is processed.
Enter the width of false echoes (in ms) to be removed from the long shot Echo
Profile.
When a value is keyed in, the nearest acceptable value is entered.
values: 0 = off (preset), greater = wider
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 67
Page 72
P823 REFORM ECHO
Use this feature if the reported material level fluctuates slightly though the
material surface is still (when monitoring solid Material (P002 = 2) only).
Enter the amount (in ms) of long shot Echo Profile smoothing required to
eliminate jagged peaks in the Echo Profile.
When a value is keyed in, the nearest acceptable value is entered.
values: 0 = off (preset), greater = wider
P825 ECHO MARKER TRIGGER
Use this feature when the reported material level fluctuates slightly, due to a
variable rise in the leading edge of the true echo on the Echo Profile.
Enter the value (in percent of echo height) to ensure the Echo Lock Window
intersects the Echo Profile at the sharpest rising portion of the Echo Profile
representing the true echo. This value is preset to 90% when P002=1 Liquid or
50% when P002=2 Solid.
values: 5 to 95
P830 TVT TYPE
mmmmm
Use this feature to select the TVT Curve most suited to the material and vessel.
This feature is automatically altered when Material (P002) is altered.
Do not select "TVT Slopes" when the "bF" or "bLF" Algorithm (P820) is selected.
Enhancement Parameters
values: 1 = TVT Short Curved
2 = TVT Short Flat
3 = TVT Long Flat
4 = TVT Long Smooth Front
5 = TVT Long Smooth
6 = TVT Slopes (see TVT Slope Min, P835)
P831 TVT SHAPER
Use this feature to turn the TVT Shaper "on" or "off".
Turn the TVT Shaper "on" before altering TVT Shaper Adjust. After TVT Shaper
Adjust has been used to modify the TVT Curve (to avoid a false echo or pick up
the true echo), this feature allows the TVT Shaper to be turned "on" and "off"
while monitoring the effect.
values: 0 = off
1 = on
Page 68 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 73
P832 TVT SHAPER ADJUST
Use this feature to bias the shape of the TVT curve, in order to avoid it crossing
false echoes from fixed objects.
Adjustment to this parameter is best done while viewing the echo profile on an
oscilloscope (refer to P810). When using an oscilloscope, the Echo Lock Window
display becomes the TVT Curve Pointer.
The TVT curve is divided into 40 breakpoints, accessible by enabling the point
number as the breakpoint index field. Each breakpoint is normalized to a value of
0, as displayed in the parameter value field. By changing the breakpoint value,
up or down, the intensity of the bias applied to that breakpoint of the curve is
respectively changed. By changing the value of adjacent breakpoints, the
effective bias to the shaper can be broadened to suit the desired correction. In
the case of multiple false echoes, shaping can be applied along different points
of the curve. Shaping should be applied sparingly in order to avoid missing the
true echo.

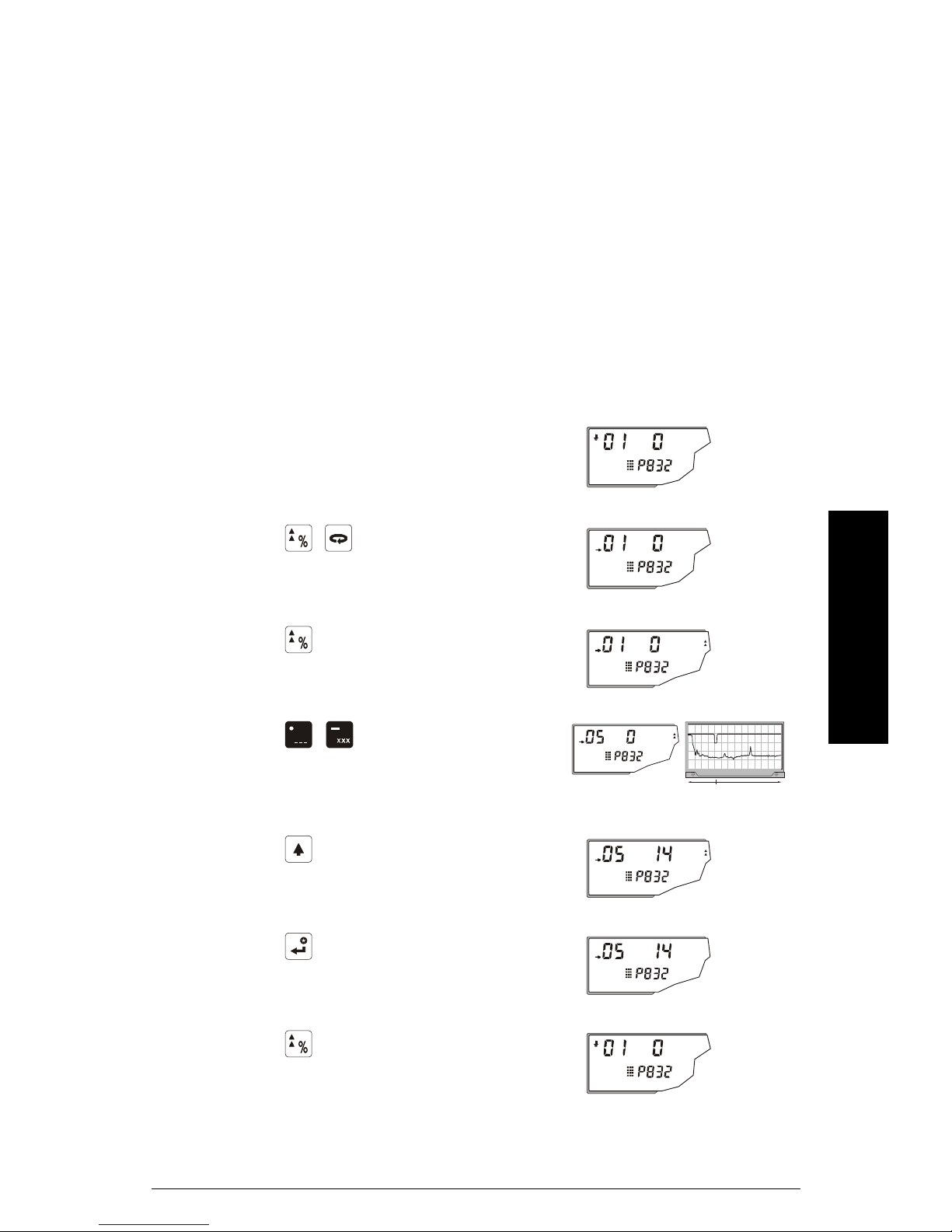

To change a breakpoint ...
with the desired transducer point selected
Press to set the point number to
e.g. transducer 1
Enhancement Parameters
index.
Press to select the Auxiliary function
Press to scroll the breakpoint
P
P
index through points 1 to 40, and move the
curve pointer left or right respectively.
Press to change the bias value of the
breakpoint, -50 to 50
Press to enter the change in value.
To select another transducer
e.g. index, breakpoint 1, value 0
auxiliary function
e.g. oscilloscope displays
breakpoint 5, value 0
e.g. breakpoint 5, value 14
mmmmm
Press to set the point number to
transducer. Select desired transducer point.
P831, TVT shaper, must be ‘ on ’.
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 69
e.g. return to transducer 1
Page 74
P833 TVT START MIN
Use this feature to adjust the TVT Curve height to ignore false echoes (or pick up
true echoes) near the start of the Echo Profile.
Enter the minimum TVT Curve start point (in dB above 1 µV RMS).
This feature (preset to 45) should only be used if increased Near Blanking would
extend farther than desired into the measurement range.
values: -30 to 225
P834 TVT START DURATION
Use this feature in conjunction with TVT Start Min (P833) to ignore false echoes
(or pick up true echoes) near the start of the Echo Profile.
Enter the time (in ms) for the TVT Curve to decrease from the TVT Start Min
(P833) point to the TVT Curve baseline.
values: 0 to 9999
P835 TVT SLOPE MIN
Enter the minimum slope (in dB / s) for the middle portion of the TVT Curve.
This feature (preset to 200) is used in conjunction with Minimum TVT Start Slope
mmmmm
(when a long flat TVT Type is selected) to ensure the TVT Curve remains above
false echoes which appear in the middle of the Echo Profile.
Alternatively, if TVT Type is set for "TVT Slopes" (P830 = 6), this value is preset to
Enhancement Parameters
2000. Use this feature to adjust the slope declination, as required.
values: 0 to 9999
P840 SHORT SHOT NUMBER
Enter the number of short shots to be fired (and results averaged) per transmit
pulse.
values: 0 to 100
P841 LONG SHOT NUMBER
Enter the number of long shots to be fired (and results averaged) per transmit
pulse.
This value is automatically altered when Measurement Response (P003) is
altered. (See
values: 0 to 200
Page 70 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Technical Reference
Measurement Response).
Page 75
P842 SHORT SHOT FREQUENCY
Use this feature to adjust the short shot transmit pulse frequency (in kHz).
This feature is automatically altered when Transducer (P004) is altered.
values: 10.00 to 60.00
P843 LONG SHOT FREQUENCY
Use this feature to adjust the long shot transmit pulse frequency (in kHz).
This feature is automatically altered when Transducer (P004) is altered.
values: 10.00 to 60.00
P844 SHORT SHOT WIDTH
Use this feature to adjust the width (in ms) of the short shot transmit pulse.
This feature is automatically altered when Transducer (P004) is altered.
values: 0.000 to 5.000
Enhancement Parameters
P845 LONG SHOT WIDTH
Use this feature to adjust the width (in ms) of the long shot transmit pulse.
This feature is automatically altered when Transducer (P004) is altered.
values: 0.000 to 5.000
P850 SHORT SHOT BIAS
Use this feature to slant the echo evaluation in favour of the short shot echo
when both short and long shots are evaluated (see Shot Mode, P803). This
feature is preset to 20.
values: 0 to 100
P851 SHORT SHOT FLOOR
Enter the minimum echo strength (in dB above 1 µV), derived from a short shot,
to be considered for evaluation. This feature is preset to 50.
values: 0 to 100
mmmmm
P852 SHORT SHOT RANGE
Enter the maximum distance in Units (P005) to be measured using short shot
echoes.
This feature is automatically altered when Transducer (P004) is altered.
values: 0.000 to 9999
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 71
Page 76
Test Parameters (P900 to P913)
Test Parameters are intended for use by Siemens Milltronics Service personnel.
P900 (V) SOFTWARE REV. #
Access this parameter to determine the EPROM Rev. # without removing the
enclosure lid.
values: 00.00 to 99.99
P901 (V) MEMORY
Press to activate the XPL Plus memory test.
When the test is successful, "PASS" is displayed. Otherwise, one of the following
values is displayed, indicating the type of memory failure.
values: PASS = memory test successful
F1 = RAM
F2 = NOVRAM
F3 = EEPROM
F4 = EPROM
P902 (V) WATCHDOG
mmmmm
Press to reset the microprocessor.
On successful completion (in about 10 seconds) the XPL Plus enters the RUN
mode.
Enhancement Parameters
P903 (V) DISPLAY
Press to activate the display test.
All LCD segments and symbols are temporarily displayed.
P904 (G) KEYPAD
Press each keypad key in the following sequence:
1 2 3 4
As each key is pressed, the associated keypad number is displayed. On
successful test completion "PASS" is displayed. "FAIL" is displayed if a key is
pressed out of sequence or the programmer keypad malfunctions.
5 6 7 8
mA
9 0
P
P
Page 72 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 77
P905 TRANSMIT PULSE
Press to supply repeated transmit pulses to the transducer and / or view the
transducer operating frequency (automatically altered by (P004) Transducer) for
the Point Number displayed.
This feature may be used to monitor the transmit pulse with an oscilloscope
connected to the transducer terminals.
values: 10.00 to 60.00
P906 COMMUNICATIONS
Press
to test the Siemens Milltronics proprietary communications circuit.
Before activating this feature, connect terminal block contacts 42 to 45 and 43 to 46.
On successful test completion, "PASS" is displayed. If "FAIL" is displayed, repeat
the test. (The first test performed sets up the auto polarity function).
P907 PROGRAMMER INTERFACE
Press to activate the programmer interface (two way infrared
communications) test.
On successful test completion, "PASS" is displayed. Otherwise, "FAIL" is
displayed.
P908 SCANNER
Press to activate the scanner test.
When activated, the on board transducer scanning relays energize and deenergize in sequence.
Enhancement Parameters
mmmmm
(The transmit pulse is not supplied to the transducer terminals during this test).
P910 RELAY
Access this parameter to display the current state of the specified SAM-20
relay.
Press to alter the relay state (energized / de-energized) or enter the value
corresponding to the specific relay state desired.
values: 0 = de-energized
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 73
1 = energized
Page 78
P911 mA OUTPUT VALUE
Access this parameter to display the current value of the specified AO-10 mA
output.
Additionally, this feature may be used to enter a desired value. The mA output is
immediately forced to the value entered regardless of any restrictions
programmed.
values: 0.000 to 25.00
P912 TRANSDUCER TEMPERATURE
Access this parameter to display the vessel temperature in °C (as monitored by
the connected temperature sensing transducer). "Err" is displayed if the
transducer is not equipped with an integral temperature sensor.
values: -50 to 150
P913 SENSOR TEMPERATURE
Access this parameter to display the vessel temperature in °C ( as monitored by
the connected temperature sensor ). "OPEn" is displayed if a TS-3 is not
connected.
values: -50 to 150
mmmmm
Measurement Parameters (P920 to P923)
Enhancement Parameters
Use these parameters to verify Application Parameter programming, when performing a
dynamic material level test over at least 2 empty / fill cycles for each vessel is impractical.
Access the following parameters to take an ultrasonic measurement and:
• display the corresponding Reading in the Parameter Value field.
• set the SAM-20 ( if used ) relay status accordingly.
• set the AO-10 (if used) mA output value accordingly.
• transmit the corresponding point data to the BIC-II (if used).
If measurements or simulation are desired but the XPL Plus operation has not been
verified, disable all associated process control equipment before accessing the
following parameters.
Page 74 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 79
To take an ultrasonic measurement, access one of the following parameters and perform
the following steps.
Press (repeat 5 times to overcome Echo Lock, P711).
Alternatively, press to simulate a rising and falling material level. During the
simulation, the system operates as though the material level was repeatedly cycling from
full to empty to full, and so on, at a rate of 1% of Span (P007) per second.
The simulation starts at level = 0, unless a specific level value was entered before hand.
Press to switch to the rising (or for the emptying) simulation as required.
Holding the key increases (or decreases) the simulated rate of rise (or fall), to
4% of Span per second.
Press to end the simulation, when desired.
During a measurement or simulation, the XPL Plus display responds as though in the RUN
mode, however the value displayed in the Reading field is affected by the Measurement
Parameter selected, and the material level is displayed in the Auxiliary Reading field.
P920 READING MEASUREMENT
The Reading corresponds to all associated programming.
Enhancement Parameters
P921 MATERIAL MEASUREMENT
The Reading corresponds to the distance between Empty (P006) and the
material level.
P922 SPACE MEASUREMENT
The Reading corresponds to the distance between the material level and Span
(P007).
P923 DISTANCE MEASUREMENT
The Reading corresponds to the distance between the material level and the
transducer face.
P924 VOLUME MEASUREMENT
The Reading corresponds to the volume calculation in percent of Max Volume
(P051).
Press
to display in Max Volume units.
mmmmm
P927 DISTANCE PERCENT
same as P923, plus alternate reading in % press .
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 75
Page 80
P990 PARAMETER COPY
Use this feature to copy the parameter set from another point.
Enter the point number to copy from.

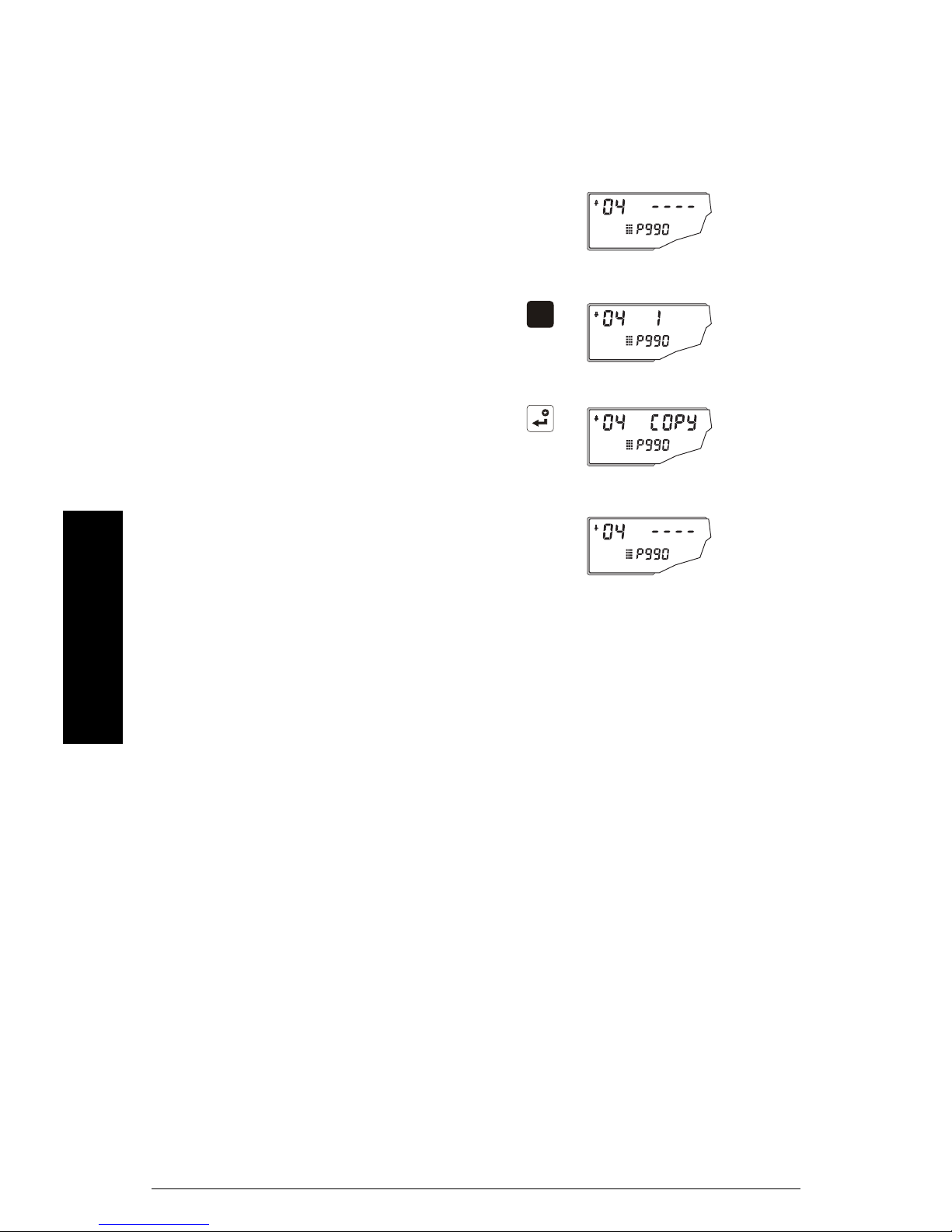

To copy a parameter set with the desired
transducer point selected:
e.g. point 4
Enter the point to copy from.
Press
1
e.g. copy from point 1
Press
copying
copy complete
mmmmm
Enhancement Parameters
Page 76 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 81
Master Reset (P999)
P999 MASTER RESET
Global Master Reset
A
performed:
• prior to initial programming if arbitrary Parameter Values were
used during a "bench test".
• after replacing the XPL Plus EPROM with a different software
revision number.
When performing a Master Reset, the bar graph will indicate progress
Following a Global Master Reset, complete reprogramming is required.
Point Number Master Reset
A
Point Number to preset values) should be performed if a Point Number is being
reassigned to a different vessel.
To perform a Global Master Reset:
1. With the Parameter Number field accessed, key in 999.
2. With the Point Number field accessed, key in 00.
3. Press , "C.ALL" is displayed until the reset is complete.
(reset all parameters to original values) should be
from 0 to 100%.
(reset the non-global parameters of the displayed
Enhancement Parameters
To perform a Point Number Master Reset:
1. With the Parameter Number field accessed, key in 999.
2. With the Point Number field accessed, key in the Point Number to be
reset (1 - 10).
3. Press , "C.ALL" is displayed until the reset is complete.
P999 is not accessible via SmartLinx Interface.
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 77
Page 82
Page 78 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 83
Technical Reference
Transmit Pulse
The XPL Plus transmit pulse consists of one or more electrical "shot" pulses, which are
supplied to the scanning relays. The scanning relays are activated as required, to supply
the transmit pulse to the appropriate transducer connected to the XPL Plus terminals.
The transducer fires an acoustic "shot" for each electrical pulse supplied. After each shot
echo
is fired, sufficient time is provided for
applicable) shot is fired. After all shots of the transmit pulse are fired, the resultant
echoes are processed.
The transmit pulse shot number, frequency, duration, delay, and associated measurement
range are defined by parameters P803 and P840 to P852.
Echo Processing
Echo processing consists of echo enhancement, true echo selection, and selected echo
verification.
(shot reflection) reception, before the next (if
Echo Enhancement is achieved by
reforming
representing the echo signal received).
True echo selection is achieved by establishing the criteria which a portion of the echo
profile must meet to be considered the
Insignificant portions of the echo profile outside of the measurement range (Empty
Distance P006 + Range Extension P801), below the TVT Curve (P830 to P835), and less
than the Confidence Threshold (P804) and Short Shot Floor (P851) are automatically
disregarded.
The remaining portions of the Echo Profile are evaluated using the Algorithm(s) (P820)
and Short Shot Bias (P850) programmed. When a combination of Algorithms are used,
the portion of the Echo Profile providing the best averaged Echo Confidence (P805), is
selected as the true echo.
True echo verification is automatically achieved by comparing the position (relation in
time after transmit) of the "new" echo to the previously accepted echo position.
If the new echo is within the Echo Lock Window ( P713 ), the new echo is accepted and
displayed, and SAM-20 relays and AO-10 mA outputs are updated as restricted by the
Fuzz Filter ( P710 ) and Rate Parameters ( P700 to P703 ). If the new echo is outside of the
Echo Lock Window, the new echo is not accepted until
repeatability, P711 ) requirements are satisfied.
(connecting fragmented echo peaks, P823) the
filtering
(removing noise, P821 and P822) and
true echo
echo profile
(echo reflected by the intended target).
Echo Lock
(digitized signal
( measurement
Technical Reference
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 79
Page 84

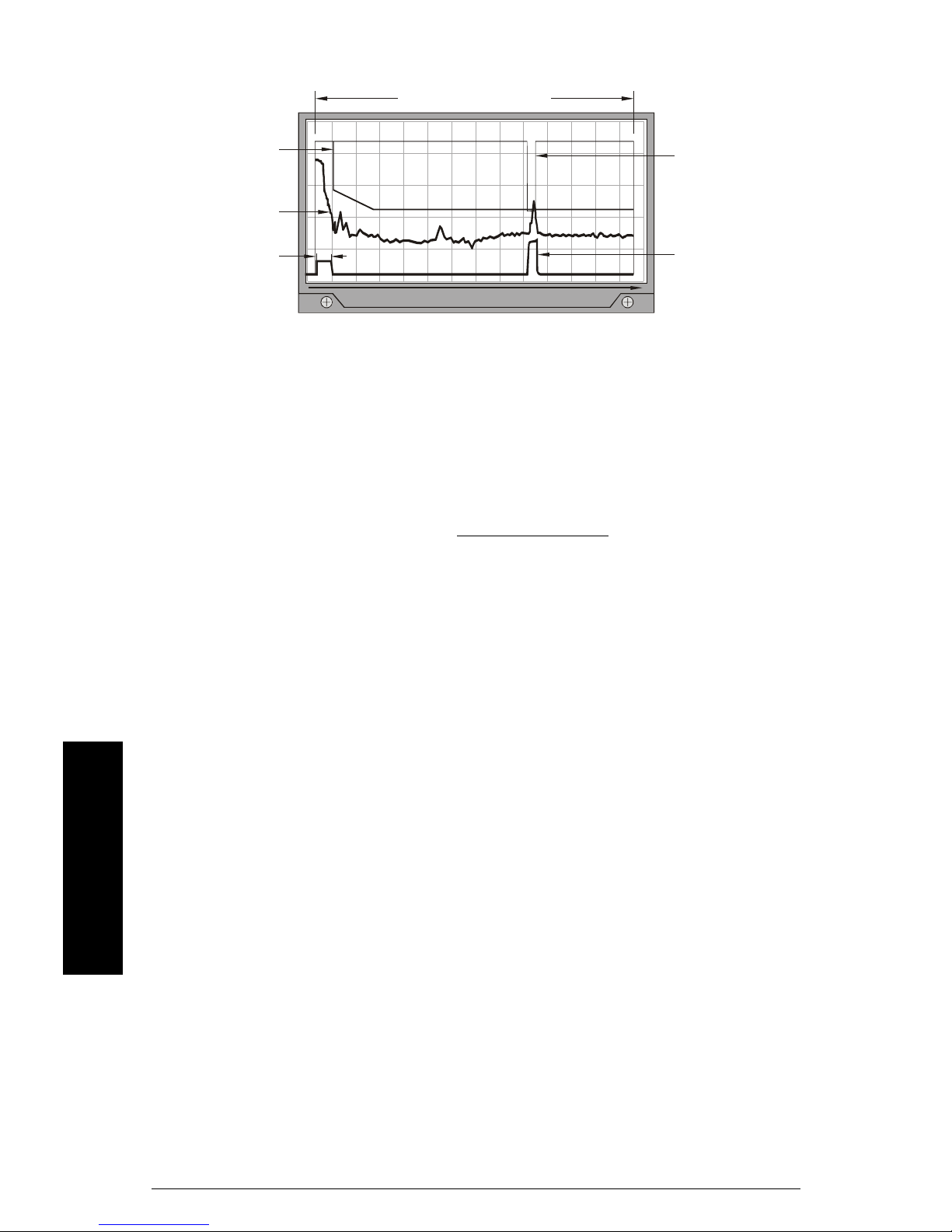

ECHO PROCESSING DISPLAYS (Scope Displays, P810)
Empty Distance (P006) +
Range Extension (P801)
TVT Curve
Echo Profile
Near Blanking
(P800)
Echo Lock
Window
Echo
Marker
msec x 100
Distance Calculation
To calculate the "round trip" transducer to material level (object) distance, the
transmission medium
transmission to reception time period. This result is divided by 2 to calculate the "one way"
distance.
The Reading Value displayed is the result of performing any additional modification to the
calculated distance (Operation P001, Units P-005, Volume Conversion, P050 to P054,
Reading Value, P060 to P063.)
(atmosphere) sound velocity (P653) is multiplied by the acoustic
Distance = Sound Velocity x Time
2
Sound Velocity
The sound velocity of the transmission medium is affected by the type, temperature, and
vapour pressure of the gas or vapour present. As preset, the XPL Plus assumes the
vessel atmosphere is air at 20°C (68°F). Unless altered, the sound velocity used for the
distance calculation is 344.1 m/s (1129 ft/s).
Variable air temperature is automatically compensated when a Siemens Milltronics
ultrasonic / temperature transducer is used. If the transducer(s) are exposed to direct
mmmmm
Technical Reference
sunlight, TS-3 temperature sensor(s) should be used.
Also, if the temperature varies between the transducer face and the object monitored, a
TS-3 temperature sensor, mounted near the material surface (solids) or submerged
(liquids), should be used in combination with the ultrasonic/temperature transducer. Then
when Temp Source, (P660) is set for "both", the transducer and TS-3 temperature
measurements are averaged.
If the air temperature within all vessels is identical, a single TS-3 temperature sensor may
be used to represent the temperature of all vessels if Temp Source (P660) is set to Temp
Sensor # 1.
Atmosphere composition other than air can pose a challenge for ultrasonic level
measurement. However, excellent results may be obtained if the atmosphere is
Page 80 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 85
homogeneous
performing a Sound Velocity Calibration (P651).
The XPL Plus automatic temperature compensation is based on the sound velocity /
temperature characteristics of air and may not be suitable for other atmospheres. If the
atmosphere temperature is variable, frequent Sound Velocity Calibrations may be
required to maintain optimum measurement accuracy.
Sound Velocity calibration frequency may be determined with experience. If the sound
velocity in several vessels is always similar, future calibrations may be performed on one
of the vessels and the resultant Velocity (P653) entered directly for the other vessels.
If the sound velocity of a vessel atmosphere is found to be repeatable at specific
temperatures, a chart or curve may be developed. Then, rather than performing a Sound
Velocity Calibration each time the vessel temperature changes significantly, the
anticipated Velocity (P653) may be entered directly.
(well mixed), at a fixed temperature, and consistent vapour pressure, by
Scanning
When echo processing is complete, (if more than one vessel is monitored) the scanning
relay changes state to supply the transmit pulse to the next transducer to be scanned,
after the Scan Delay (P727).
Scan Delay is automatically set by Measurement Response (P003). When high speed
scanning is required (sometimes the case for equipment position monitoring), the Scan
Delay may be reduced. Reduce the Scan Delay only as required, otherwise premature
scanning relay fatigue could occur.
All vessels are scanned sequentially unless a Point Number is "on priority" (see Smart
Scan, P720). If #1 of four vessels is on priority, the scanning sequence is 1,2,1,3,1,4,1,2,1,3,1,4
and so on.
Volume Calculation
The XPL Plus provides a variety of volume calculation features (P050 to P055).
If the vessel to be monitored does not match any of the eight preset Tank Shape
calculations, a Universal Volume calculation may be used. Use the level / volume graph or
chart provided by the vessel fabricator (or create one based on the vessel dimensions).
From this graph, determine which Universal Volume calculation will provide the best
results, and select the level vs volume breakpoints to be entered (32 max.). Generally, the
more breakpoints entered, the greater the volume calculation accuracy.
Technical Reference
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 81
Page 86
Universal, Linear (P050 = 9)
This volume calculation creates a piece-wise linear approximation of the level / volume
curve. This option provides best results if the curve has sharp angles joining relatively
linear sections.
volume
level
Enter a Level Breakpoint at each point where the level/volume curve bends sharply (two
minimum).
For combination curves (mostly linear but include one or more arcs), ensure numerous
breakpoints are entered along the arc, for best volume calculation accuracy.
Universal, Curved (P050 = 10)
This volume calculation creates a cubic spline approximation of the level/volume curve.
This option provides best results if the curve is non-linear, and there are no sharp angles.
volume
level
Select at least enough breakpoints from the curve to satisfy the following:
mmmmm
• two breakpoints very near the minimum level
• one breakpoint at the tangent points of each arc
• one breakpoint at each arc apex
Technical Reference
• two breakpoints very near the maximum level
For combination curves, ensure at least two breakpoints are entered immediately before
and after any sharp angle (as well as one breakpoint exactly at the angle) on the curve.
Measurement Response
The XPL Plus Measurement Response (P003) to material level change is designed to
exceed the most demanding installation requirements.
Page 82 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 87
The Measurement Response setting automatically adjusts various parameters affecting
the XPL Plus response to material level changes as follows:
PARAMETER
Number Name (Units) 1 (slow) 2 (medium) 3 (fast) 4 (surge) 5 (turbo)
P070 Failsafe Timer (min) 100 10 1 0.1 0
P700 Max Fill Rate (m/min) 0.1 1 10 100 1000
P701
P702
P703
P704 Rate Filter (option) 43222
P710 Fuzz Filter
P711 Echo Lock (option) 1 or 2 (dependent on Material, P002) 0 0
P713
P727 Scan Delay* (s)
P728 Shot Delay (s) 0.5 0.5 0.5 0.2 0.1
P803
P841
Max Empty
Rate
Filling
Indicator
Emptying
Indicator
Echo Lock
Window
Shot/Pulse
Mode
Long Shot
Number
(m/min) 0.1 1 10 100 1000
(m/min) 0.01 0.1 1 10 100
(m/min) 0.01 0.1 1 10 100
(% of
P007)
55320
(option)
(none)105211
VALUES DEPENDENT ON MEASUREMENT RESPONSE (P003)
VAL UE
100 50 10 1 0
(dependent on P701/P702 and time since last valid measurement)
22211
If any of these parameters are independently altered, a Measurement Response
parameter alteration automatically changes the independently altered value.
* Scan Delay (P727) is globally set for all Point Numbers to the value associated with the
fastest Measurement Response (P003) selected for any individual Point Number.
Slower Measurement Response provides greater measurement reliability. Faster
independently set Max Fill / Empty Rates may be impeded by Echo Lock, Scan Delay
and Shot Delay values.
Application Examples
The following examples describe the use of XPL Plus programmable features, to meet the
needs of specific process measurement requirements.
It is highly unlikely that your specific installation will match one of these examples
exactly.
However, by reviewing the example (or combination of examples) that matches your
installation best, the relationship between XPL Plus features and process measurement
requirements may be more easily recognized.
EXAMPLE 1. Level (or Material Volume) Measurement for a single vessel.
EXAMPLE 2. Space (or Remaining Vessel Capacity) Measurement for a single vessel.
EXAMPLE 3. Multi-point Average
EXAMPLE 4. Distance Measurement (less than 60 m).
Technical Reference
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 83
Page 88
Example 1 - Level Measurement
Material Level
This is the most common application of the XPL Plus level monitor.
For this example we’ll assume the following:
• one 30 m high cement silo is to be monitored.
• the maximum vessel filling rate is 0.08 m per minute.
• alarm indicators are required when the cement level exceeds 25 m or falls below
10 m.
• filling equipment is to be automatically deactivated at 27 m.
• in the event of a measurement difficulty, failsafe operation is to be activated in 2
minutes.
• if the difficulty doesn’t subside, the filling process is to be stopped before a spill
occurs.
• an XLT-30 transducer is mounted with its face flush with the top of the vessel.
• a TS-3 temperature sensor is connected to the Temp Sensor 1 terminals.
• a SAM-20 is connected as BANK 1 to the Peripheral Communications terminals.
transducer
30.00 m
25.00
(P101)
29.01 m
mmmmm
27.0 0 m
(P103)
(P007)
(P006)
Technical Reference
10.00 m
(P102)
5.00 m
(P104)
Page 84 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 89
Parameter Settings for Point # 1
P001 Operation Enter "1" for level.
P002 Material Enter "2" for solid.
P003 Measurement Response Enter "1" for slow (0.1 m/min).
P004 Transducer Enter "107" for XLT-30.
P005 Units No entry required, (preset for meters).
P006 Empty Enter "30" for transducer face to Empty equals
30.00 meters.
P007 Span No entry required, (preset to 29.01 meters above
Empty).
P070 Failsafe Timer Enter "2" for failsafe activation after 2 minutes
without a valid echo.
P071 Failsafe Material Level Enter "HI" for advance to Span on "LOE".
P072 Failsafe Advance No entry required, (preset to restricted).
P100 Relay Set Up Enter "3" for Hi, Lo, Hi Hi, and Lo Lo alarm relays.
P101 Hi Alarm Enter "25" for Hi Alarm at 25.00 m.
P102 Lo Alarm Enter "10" for Lo Alarm at 10.00 m.
P103 Hi Hi Alarm Enter "27" for Hi Hi Alarm at 27.00 m.
P104 Lo Lo Alarm Enter "5" for Lo Lo Alarm at 5.000 m.
With process control equipment disabled, enter the RUN mode to monitor system
performance and alarm programming. Otherwise, perform a Reading Measurement
simulation (P920).
When satisfied with system performance and programming:
• connect a high alarm indicator to SAM-20 Relay # 1 (see P100 = 3).
• connect a low alarm indicator to SAM-20 Relay # 6.
• connect a high high alarm indicator and filling equipment stop/start control to
SAM-20 Relay # 11.
• connect a low low alarm indicator to SAM-20 Relay # 16.
(Note that SAM-20 relays are de-energized in "alarm" conditions).
When monitoring dusty dry solids, measurement difficulties may be encountered,
(especially when pneumatic filling equipment is used). For this example (assume the
maximum filling rate), failsafe operates as follows.
e.g. 09:15 am Echo lost at 6.00 m, low alarm is still on, failsafe countdown begins.
09:17 am Failsafe activated, actual level = 6.16 m, reported level = 6.00 m.
09:57 am Low alarm off, actual level = 9.36 m, reported level = 10.00 m.
12:27 pm High alarm on, actual level = 21.36 m, reported level = 25.00 m.
12:47 pm Infeed stopped, actual level = 22.96,reported level = 27.00 m.
Technical Reference
mmmmm
When the dust settles (and the echo is regained) the reported level advances
toward the actual level. When the reported level reaches 25.55 m (5% of Span
less than the high high alarm trip point), the high high alarm goes off, restarting
the infeed and filling the vessel to 27.00 m.
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 85
Page 90
Material Volume
To perform a volume conversion for the preceding example, we’ll assume:
• the vessel is cylindrically shaped with a flat bottom.
• the vessel volume for Empty to 29.01 m (Span) is 1457 m3.
Volume Parameter Settings For Point # 1
P050 Tank shape Enter "1" for vertical cylinder with flat bottom.
P051 Max Volume
Enter "1457" for 1457 m
Now in the RUN mode the Reading represents material volume in m3.
3
.
mmmmm
Technical Reference
Page 86 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 91
Example 2 - Space Measurement
This mode of operation is commonly used when remaining vessel capacity is of more
importance to the installation than the actual material level.
Space
For this example we’ll assume the following:
• the vessel is a 3 ft diameter by 15 ft long cylinder (including the parabolic ends of
1.5 ft each).
• the maximum vessel filling rate is 1 ft per minute (slower at mid level).
• a mA output scaled from 4 mA at Full to 20 mA at Empty is required for PLC
operation.
• in the event of a measurement difficulty, failsafe operation is to be activated in
30 seconds.
• if the difficulty doesn’t subside, the mA output must immediately assume 22.00
mA.
• an XCT-8 transducer is mounted in a standpipe such that the XCT-8 face is 18 in.
above the vessel top.
• an AO-10 is connected to the Peripheral Communications terminals.
• a TS-3 temperature sensor is mounted in the vessel to monitor liquid
temperatures.
1.5 ft
(P052)
12.00 ft
(P053)
Parameter Settings For Point # 1
P001 Operation Enter "2" for space.
P002 Material No entry required (preset for liquid).
P003 Measurement Response No entry required. (preset for medium, 1 m/min).
P004 Transducer Enter "101" for XCT-8.
P005 Units Enter "4" for feet.
P006 Empty Enter "4.5" for 4.50 ft (3 feet diameter plus 1.5 ft in
standpipe).
P007 Span Enter "3" for 3 ft (vessel diameter).
P070 Failsafe Timer Enter ".1" for 6 seconds.
P071 Failsafe Material Level Enter "Lo" for advance to Empty on "LOE".
4.50 ft
(P006)
3.00 ft
(P007)
Technical Reference
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 87
Page 92
Parameter Settings For AO-10 mA Output # 1
P200 mA Range No entry required. (preset for 20 mA = low level,
P001 = 2.)
P213 mA Max Limit Enter "20.2" for 20.20 mA.
P219 mA Failsafe Enter "20.2" for 20.20 mA.
Parameter Settings For Temperature Averaging
P660 Temp Source Enter "5" for average XCT-8 and TS-3
temperatures.
With process control equipment disabled, enter the RUN mode to monitor system
performance and alarm programming. (A Reading Measurement simulation (P920) may
be performed to verify mA output programming).
When satisfied with system performance and programming, connect AO-10 mA output 1
to the Programmable Logic Controller (PLC).
Note that on XPL Plus "power off" the AO-10 mA output is "held" and on AO-10 "power off"
the mA output drops to 0.00 mA. During a power interruption, the "last known" mA output
value is maintained in memory for 1 hour minimum. If power is interrupted beyond 1 hour,
on power resumption, the mA output immediately assumes the "new value".
Remaining Vessel Capacity
To perform a volume conversion for the preceding example, the following programming is
required.
Volume Parameter Settings For Point # 1
P050 Tank Shape Enter "7"* for horizontal cylinder with parabolic
ends.
P051 Max Volume Enter "117" for 117 cubic feet (Use vessel
fabricators value).
P052 Tank Dimension A Enter "1.5" for 1.5 f t (the horizontal length of one
parabolic end).
mmmmm
Technical Reference
P053 Tank Dimension L Enter "12" for 12 ft (the horizontal length,
excluding parabolic ends).
* This is the only tank shape where the Empty (P007) value must exactly equal the vessel
height.
Now in the RUN mode, the Reading Value and AO-10 mA output represents remaining
vessel capacity in cubic feet. If the mA output is still to be scaled to "space" (distance from
material to Full in feet) set the mA Function (P201) to "2".
Page 88 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 93
Example 3 - mA Multi-point Average
This mode of operation may be used for bunkers with multiple material discharges and
tank farms where several tanks contain the same material. As well as monitoring the
amount of material in each bunker section (or tank) a mA output representing the
average measurement may be used to calculate total material or remaining capacity.
For this example we’ll assume the following:
• the bunker is 150 ft long by 60 ft deep max. and has 6 sections with individual
discharge outlets.
• the maximum filling/discharge rate for each bunker section is 3 inches per
minute.
• an XLS-30 transducer is mounted 65 ft above each discharge outltet.
• a mA output proportional to each bunker section material level is required by the
PLC.
• a mA output proportional to the average material level is required for total
material calculation.
• if a measurement difficulty occurs for greater than 2 minutes, 3.8 mA is required
by the PLC.
• the XLS-30’s are connected to the Transducer 1 to Transducer 6 terminals.
• an AO-10 is connected to the XPL Plus Peripheral Communications Terminals.

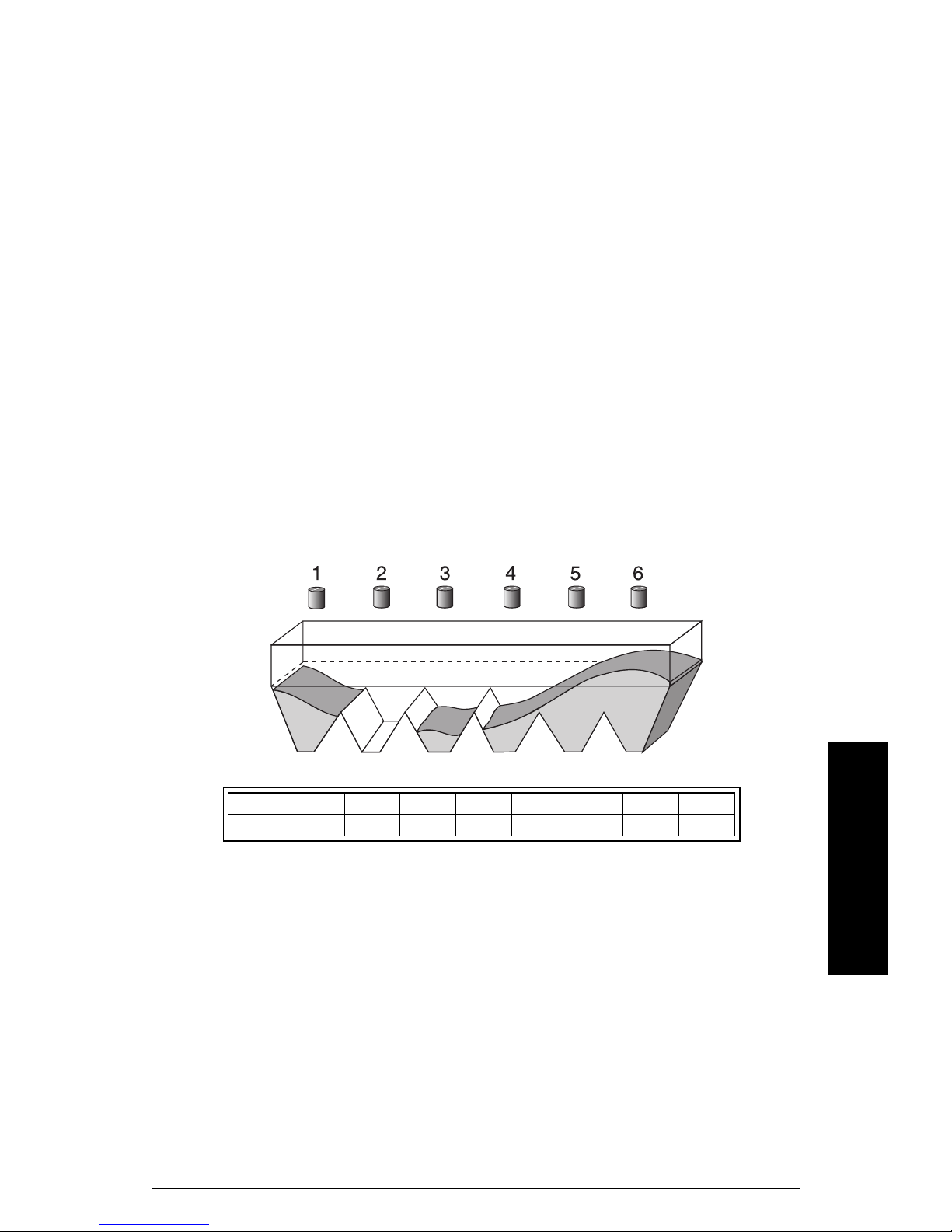

Point Numbers
(10 max)
mA Output #1234567 (avg.)
mA Output Value 14 mA 4 mA 7 mA 8 mA 16 mA 18 mA 11.2 mA
Parameter Settings For Point # 00 (Points 1 - 10)
P001 Operation Enter "1" for level.
P002 Material Enter "2" for solid.
P003 Measurement Response Enter "1" for slow, 0.1 m/min (4 in/min).
P004 Transducer Enter "109" for XLS-30.
P005 Units Enter "4" for feet.
P006 Empty Enter "65" for transducer face to Empty equals
65 ft.
P007 Span Enter "60" for max material level equals 60 ft.
P070 Failsafe Timer Enter "2" for 2 minutes
Technical Reference
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 89
Page 94
Parameter Settings For AO-10 mA Output # 00 (1 - 10)
P200 mA Range No entry required (Empty = 4 ma; Full = 20 mA
when P001 = 1).
P219 mA Failsafe Enter "3.8" for 3.8 mA output on "LOE".
Parameter Settings For Point # 7, 8, 9 and 10.
P999 Master Reset
Press with each unused Point
Number displayed.
Ensure Point Number 00 is not still displayed or all programming will be cleared .
Parameter Settings For AO-10 mA Output # 7
P202 mA Allocation Enter "1.6" for mA output # 7 equals the Point
Number 1 - 6 average.
With process control equipment disabled, enter the RUN mode to monitor system
performance. Otherwise, perform a Reading Measurement simulation (P920) to verify
programming.
When satisfied with system performance and programming:
• connect the AO-10 mA outputs 1 - 6 to the PLC as required.
• connect the AO-10 mA output 7 to the device indicating total material.
Note that on XPL Plus "power off" the AO-10 mA output is "held" and on AO-10 "power off"
the mA output drops to 0.00 mA. During a power interruption, the "last known" mA output
value is maintained in memory for 1 hour minimum. If power is interrupted beyond 1 hour,
on power resumption, the mA output immediately assumes the "new value".
Note: If a Tripper Car is used to fill each section of the bunker, see Example 4 as well.
mmmmm
Technical Reference
Page 90 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 95
Example 4 - Distance Measurement
This mode of operation may be used for equipment position monitoring up to 60 m (200 ft).
Operation is similar to Space Measurement operation except that measurements are
referenced to the transducer face.
For this example we’ll assume the following:
• Transducer 10 (an XLS-60) is mounted horizontally* facing the Tripper Car.
• when the Tripper Car is at the far end stop, the transducer face to Tripper Car
distance is 175 ft.
• when the Tripper Car is at the near end stop, the transducer face to Tripper Car
distance is 5 ft.
• the Tripper Car travels at 7 ft/min, and is normally maintained 14 ft from either
end stop.
• a mA output proportional to Tripper Car distance from the transducer is required
for PLC operation.
• if the PLC reads 3.8 mA, the Tripper Car is to immediately stop.
• an AO-10 is connected to the XPL Plus Peripheral Communications terminals.
*When an XLS or XLT series transducer is mounted horizontally, install a support plate
under the transducer to prevent possible mounting/conduit connection damage.

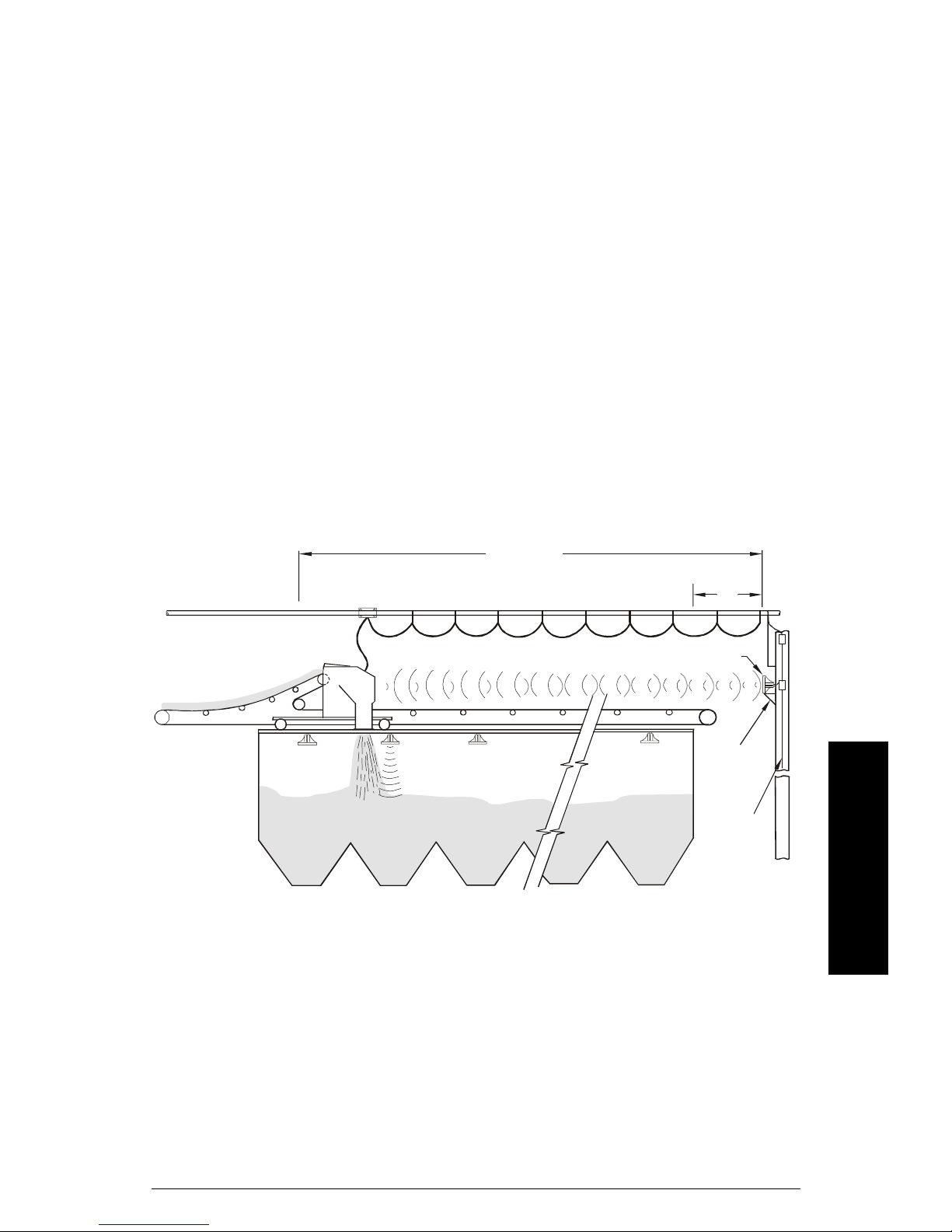

175 ft
5 ft
XLS-60
transducer
support
plate
to XPL
Technical Reference
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 91
Page 96
Parameter Settings For Point #10
P001 Operation No entry required (preset to "3" for distance).
P002 Material Enter "2" for solid.
P003 Measurement Response No entry required (preset to "2" for medium
response, 1 m/min).
P004 Transducer Enter "110" for XLS-60 Transducer.
P005 Units Enter "4" for feet.
P006 Empty Enter "175" for 175 foot transducer face to
Tripper Car max distance.
P007 Span No entry required (preset to Empty, P006 when
P001 = 3).
P070 Failsafe Timer Enter "2" for 2 minutes (14 ft at the maximum
travel rate).
Parameter Settings For AO-10 mA Output # 10
P200 mA Range No entry required (XLS-60 face=4mA*;
far=20mA when P001 = 3).
P219 mA Failsafe Enter "3.8" for 3.8 mA output on "LOE".
* Objects near the transducer face (4 mA) cannot be reliably detected. Use controls to
stop the Tripper Car before it approaches the transducers Nearest Distance. (See
Installation
Transducer Mounting.)
With the PLC disabled, enter the RUN mode (or perform a Reading Simulation, P920).
When satisfied with system performance and programming, connect AO-10 mA Output 10
to the PLC.
For a completely automated system, position the Tripper Car via the PLC, based upon
bunker material level, as monitored by the remaining XPL Plus Point Numbers. (See
EXAMPLE 3 - mA Multi-point Average). When both examples 3 and 4 are used, the PLC
may be programmed to operate as follows:
• fill bunker sections to predetermined levels based upon AO-10 mA output 1 - 6
values.
mmmmm
• shuttle Tripper Car to lowest bunker section level.
• if a bunker section "LOE" occurs (3.8 mA), shuttle to the next lowest bunker
section.
• if a Tripper Car "LOE" occurs (3.8 mA on mA Output 10), stop Tripper Car and
Technical Reference
material feed.
• when "LOE" subsides, restart material feed.
• when all bunker levels are full, stop material feed and "park" the Tripper Car.
Application Assistance
The preceding examples describe only a few ways in which the XPL Plus can be applied
to process measurement requirements.
Page 92 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 97
The XPL Plus can be used to monitor almost any process (within the temperature,
measurement range, and chemical immunity capabilities of the system) where a distance
measurement or determination of presence vs. lack of presence of an object is desired.
By thoroughly reviewing the PARAMETERS sections, you may identify some interesting
ways of using the XPL Plus to monitor specific processes.
e.g. 1 In a paper mill, one transducer may be used to monitor roll diameter, while another
monitors the presence of paper to the roll. The feed can be stopped based on the roll
diameter or a paper break. e.g. 2 For a truck loading station, one transducer can monitor
truck position while another monitors load height. The discharge can be stopped if
the truck is out of position or when it’s full, and the discharge chute can be
positioned a minimal distance from the load during filling to keep dust down.
Siemens Milltronics has many years experience applying ultrasonic level measurement
to a variety of processes in the mining, aggregate, lumber, grain, chemical, pulp and
paper, water, and waste water industries.
If you encounter a difficulty applying the XPL Plus to a process measurement
requirement, or successfully apply the XPL Plus to a "unique process" we may have never
considered, contact Siemens Milltronics or your local distributor.
BIC-II Support
As preset, the XPL Plus provides a digital output via the
mA bipolar serial current loop) terminals, capable of supporting the Siemens Milltronics
BIC-II.
The XPL Plus utilizes
simplex convention
communication protocol. Data messages are
continuously transmitted at regular intervals (no poll is required) at 4800 baud. All data is
transmitted in structured messages of ASCII characters consisting of eight data bits, no
parity, and one stop bit.
If Peripheral Communications (P740) is set for "formatted" messages, a comma is inserted
between each message field (except immediately preceding the "End of Message"
characters).

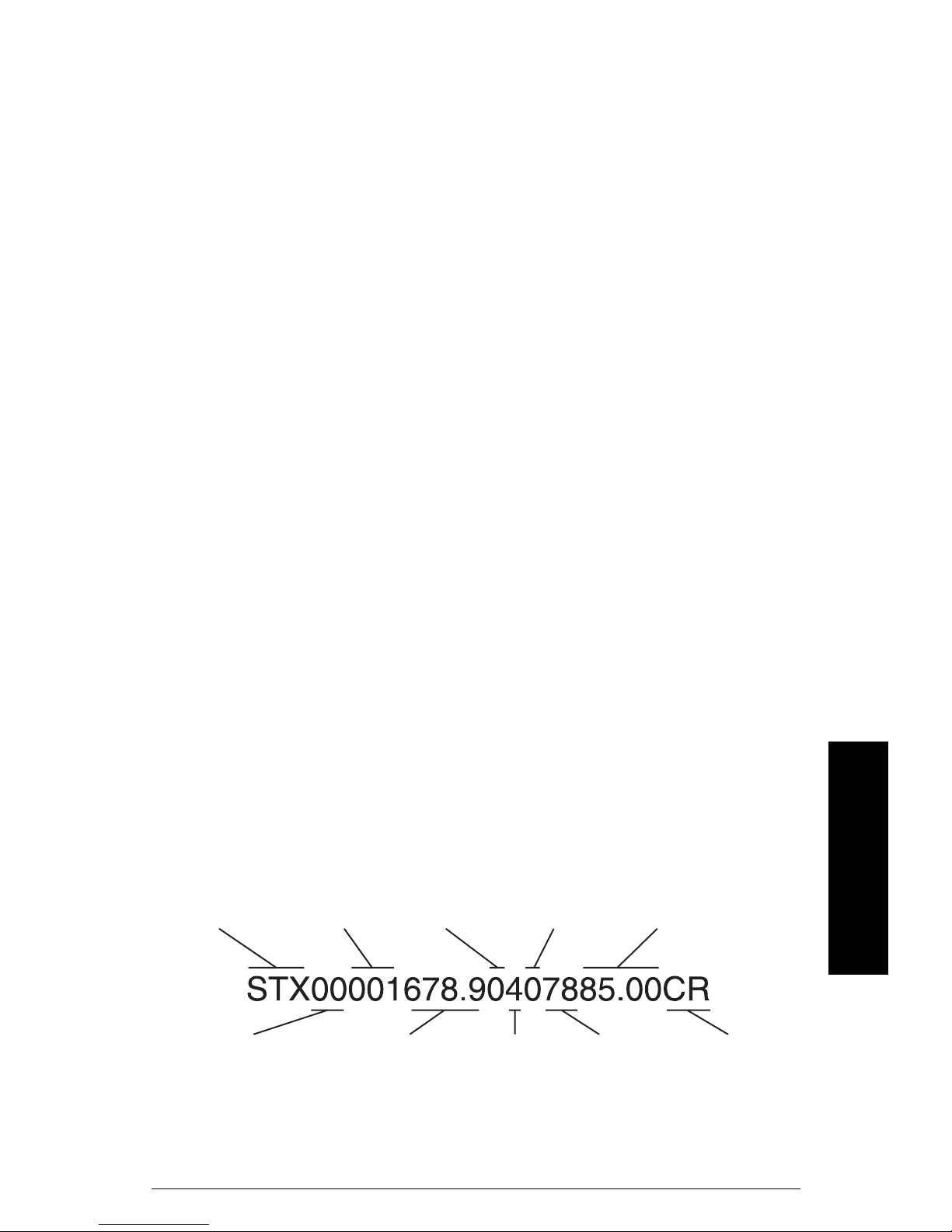

MT-00 Measurement Message
Status
Start of Message
Point #
A
Peripheral Communications
Status
C
Percent
(20
Technical Reference
mmmmm
e.g.
Message Type
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 93
Reading
Status
B
Temperature
End of Message
Page 98
Field Name Definition
STX $02 (Start Of Message)
Message Type
2 characters, 00 (indicates the following data pertains to a scan point
measurement)
Point # 3 characters, 001 to 010 (e.g. the message pertains to Point Number 1)
Reading
5 characters, 0.000 to 9999. (e.g. reading = 678.9, DDDD. = no data,
EEEE. = overflow)
Status A 1 character, $0 to $F (convert to binary, e.g. temp, echo, and cable OK, not
priority)
MSB LSB
####
1 = temp alarm
1 = loss of echo (f.s. expired)
1 = transducer cable fault
1 = priority point
Status B 1 character, $0 to $F (convert to binary, e.g. scan point is in high alarm)
MSB LSB
####
1 = low low alarm
1 = low alarm
1 = high alarm
1 = high high alarm
Status C 1 character, $0 to $F (convert to binary, e.g. scan point is not in rate or
band alarm)
MSB LSB
####
mmmmm
Technical Reference
Temp 2 characters, $32 to $FA (convert to decimal and subtract 100, e.g.
temperature = 20 °C)
1 = rate alarm 2
1 = rate alarm 1
1 = band alarm 1
1 = band alarm 2
Percent 5 characters, 00.00 to 9999. (e.g. current level = 85.00% of span, EEEE. =
field overflow)
CR $0D (End Of Message)
Page 94 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Page 99

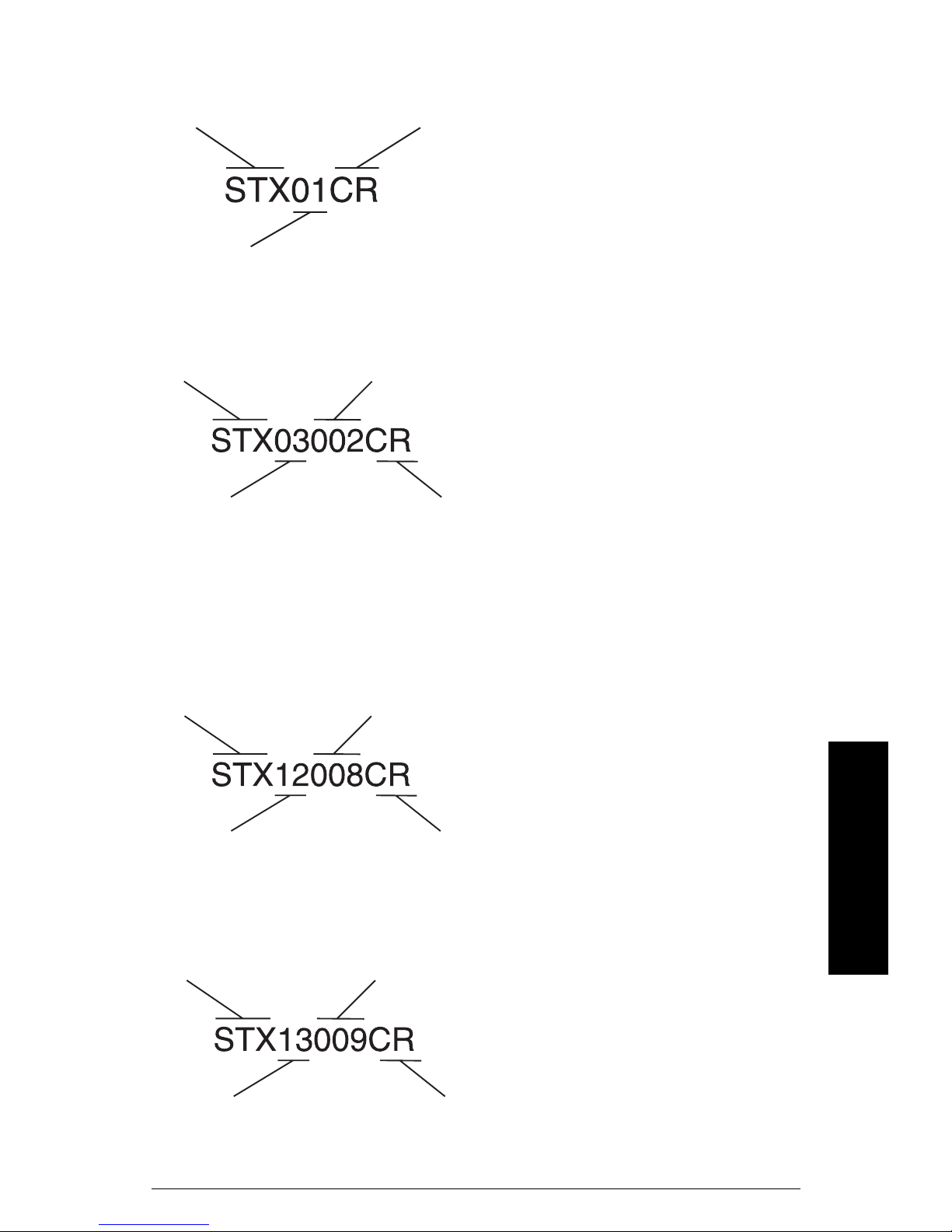

MT-01 Hold Message
Start of Message
e.g.
Message Type
MT-03 Point Not Scanned
Start of Message
Message Type
End of Message
Point #
End of Message
Field Name Definition
STX $02 (Start Of Message)
Message Type 2 characters, 01 (indicates the XPL
Plus was removed from the RUN
mode).
CR $0D (End Of Message)
Field Name Definition
STX $02 (Start Of Message)
Message Type 2 characters, 03 (indicates the
Point Number is not in service).
Point #
CR $0D (End Of Message)
3 characters, 001 to 010 (e.g. Point
Number 2)
If desired, the XPL Plus is capable of receiving data messages from the host device, to put
a vessel
"on" or "off" priority
. (See SMART SCAN, P720).
MT-12 Point On Priority
Start of Message
Point #
Field Name Definition
STX $02 (Start Of Message)
Message Type 2 characters, 12 (put point on prior-
ity).
Point # 3 characters, 001 to 010 (e.g. Point
Message Type
End of Message
CR $0D (End Of Message)
Number 8)
MT-13 POINT OFF PRIORITY
Start of Message
Point #
Field Name Definition
STX $02 (Start Of Message)
Message Type 2 characters, 13 (take point off pri-
ority).
Point # 3 characters, 001 to 010 (e.g. Point
Message Type
End of Message
CR $0D (End Of Message)
Number 9)
Technical Reference
mmmmm
7ML19981AN02 AiRanger XPL Plus – INSTRUCTION MANUAL Page 95
Page 100
Maintenance
The XPL Plus should require no maintenance, though good housekeeping practices in
and around the area of the enclosure are recommended.
Wipe out the area of the enclosure lid docking bay recess with a clean dry cloth (if
necessary) before installing the programmer.
Transducer inspection, to verify the effectiveness of the self cleaning design, is
recommended. If material build-up on the transducer face is observed, to maintain
maximum system performance, a schedule of regular cleaning should be adopted.
mmmmm
Technical Reference
Page 96 AiRanger XPL Plus – INSTRUCTION MANUAL 7ML19981AN02
Loading...
