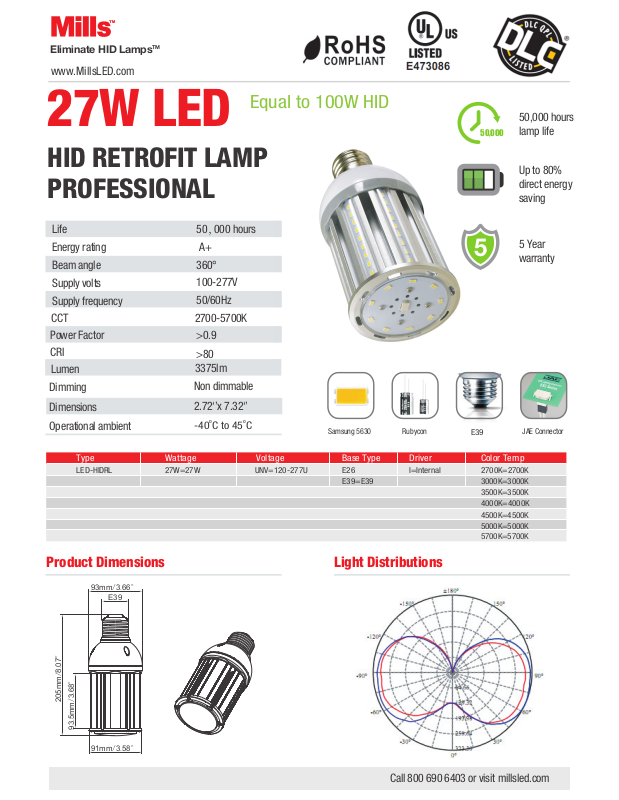

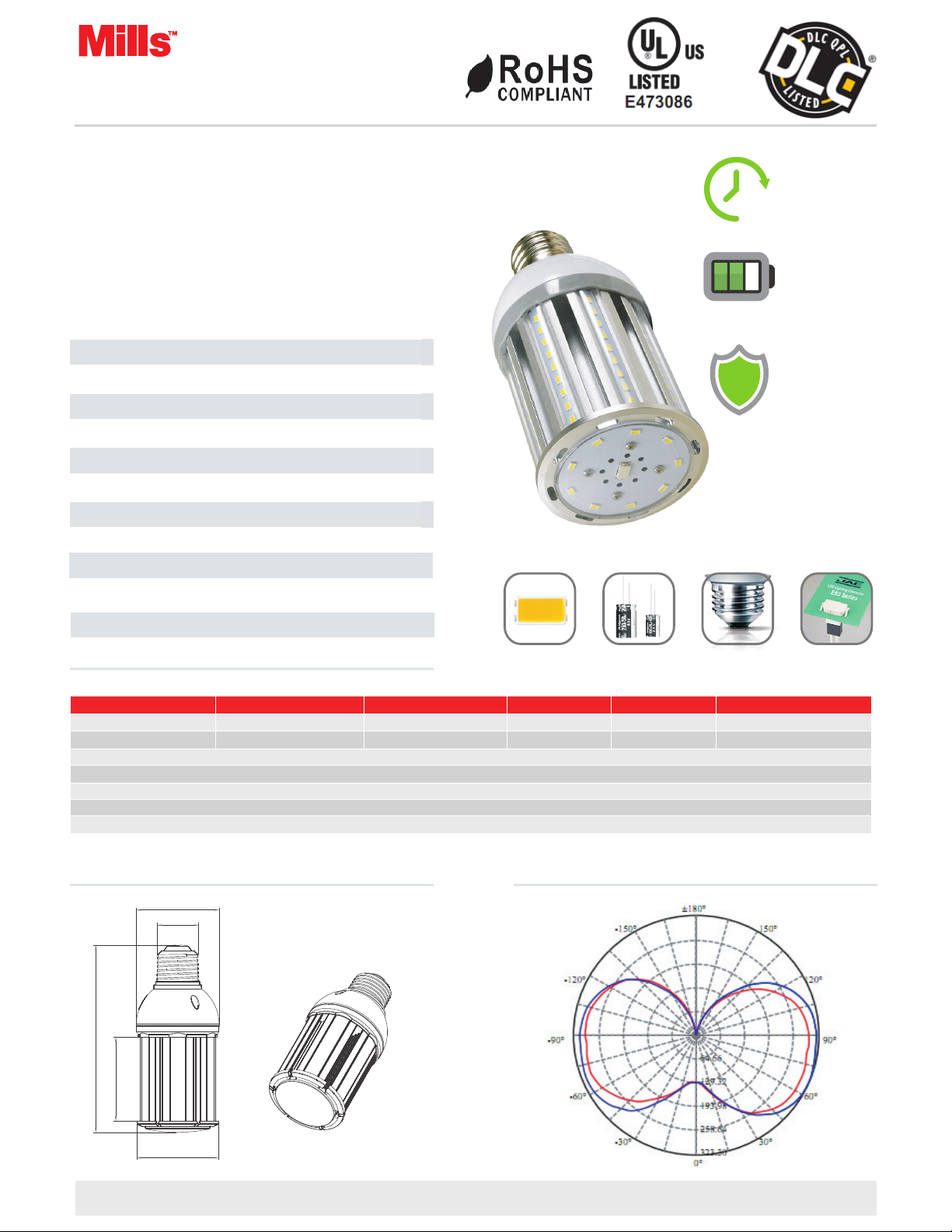

Page 1
Eliminate HID Lamps
TM
www.MillsLED.com
27W LED
Equal to 100W HID
50,000
50,000 hours
lamp life
HID RETROFIT LAMP
PROFESSIONAL
Life
Energy rating
Beam angle
Supply volts
Supply frequency
CCT
Power Factor
CRI
Lumen
Dimming
Dimensions
Operational ambient
50，000 hours
A+
360°
100-277V
50/60Hz
2700-5700K
>0.9
>80
3375lm
Non dimmable
2.72‘’x 7.32‘’
-40oC to 45oC
Up to 80%
direct energy
saving
5
Samsung 5630 JAE Connector
Rubycon
E39
E26
5 Year
warranty
Type Wattage Voltage Base Type Driver Color Temp
LED-HIDRL 27W=27W UNV=120-277U E26
E39=E39
I=Internal 2700K=2700K
3000K=3000K
3500K=3500K
4000K=4000K
4500K=4500K
5000K=5000K
5700K=5700K
snoitubirtsiD thgiLsnoisnemiD tcudorP
93mm/3.66"
E39
"
.07
8
/
205mm
93.5mm/3.68"
91mm/3.58"
Call 800 690 6403 or visit millsled.com
Page 2
Eliminate HID Lamps
moc.DELslli M.www

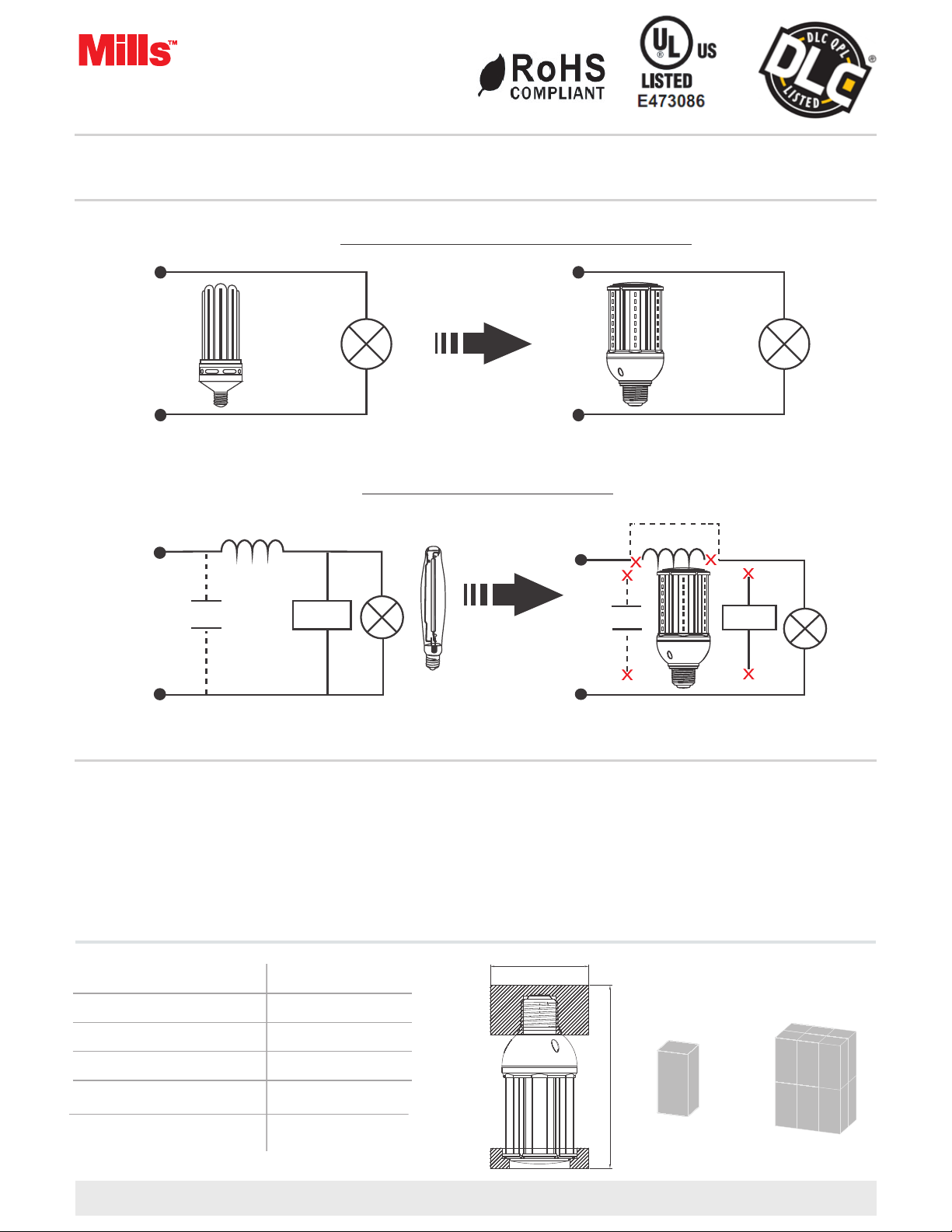

Wiring Diagrams
TM
Replacing Self Ballasted CFL Lamp
L
Self ballasted
N
Self Ballasted CFL Wiring Diagram
L
Capacitor
N
HPS/HID Wiring Diagram
CFL Lamp
Ballast
Ignitor
L
Replacing
with
N
LED Retrofit Lamp Wiring Diagram
Replacing HPS/HID Lamp
Replacing
with
HPS / HID
Lamp
N
LED Retrofit
Lamp
Ballast
L
Capacitor
LED Retrofit Lamp Wiring Diagram
Ignitor
Cautions
Mills HID retrofit lamps require 100V-277V input voltage.
Mills HID retrofit lamps require all ballasts, capacitors, and starters to be bypassed/removed.
Suitable for use in dry or damp locations only. Do not use where directly exposed to liquid, vapor, rain.
This device is not intended for use with emergency exits.
This device is not intended for use with dimmers or remote controls.
This device is suitable for enclosed fixtures
Packings
’‘ ’‘27.4
Packing Details
Pack Quantity
Net Weight
Gross Weight Per CTN
Box Size
CTN Size
12pcs
1.6lbs/726g
24lbs/10.9kg
4.96*4.96*9.17
15.55*10.47*19.13"
"
’‘ ’‘68.8
Call 800 690 6403 or visit moc.DELslli M
