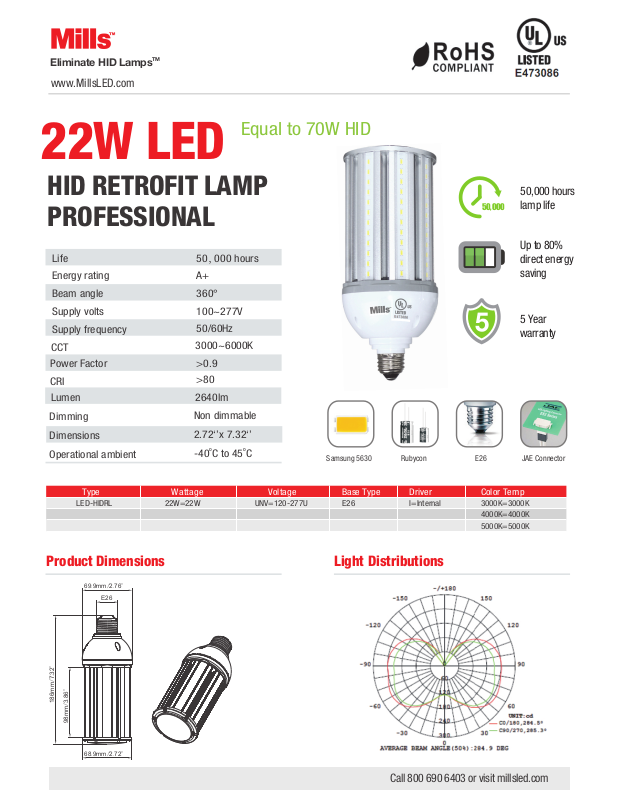

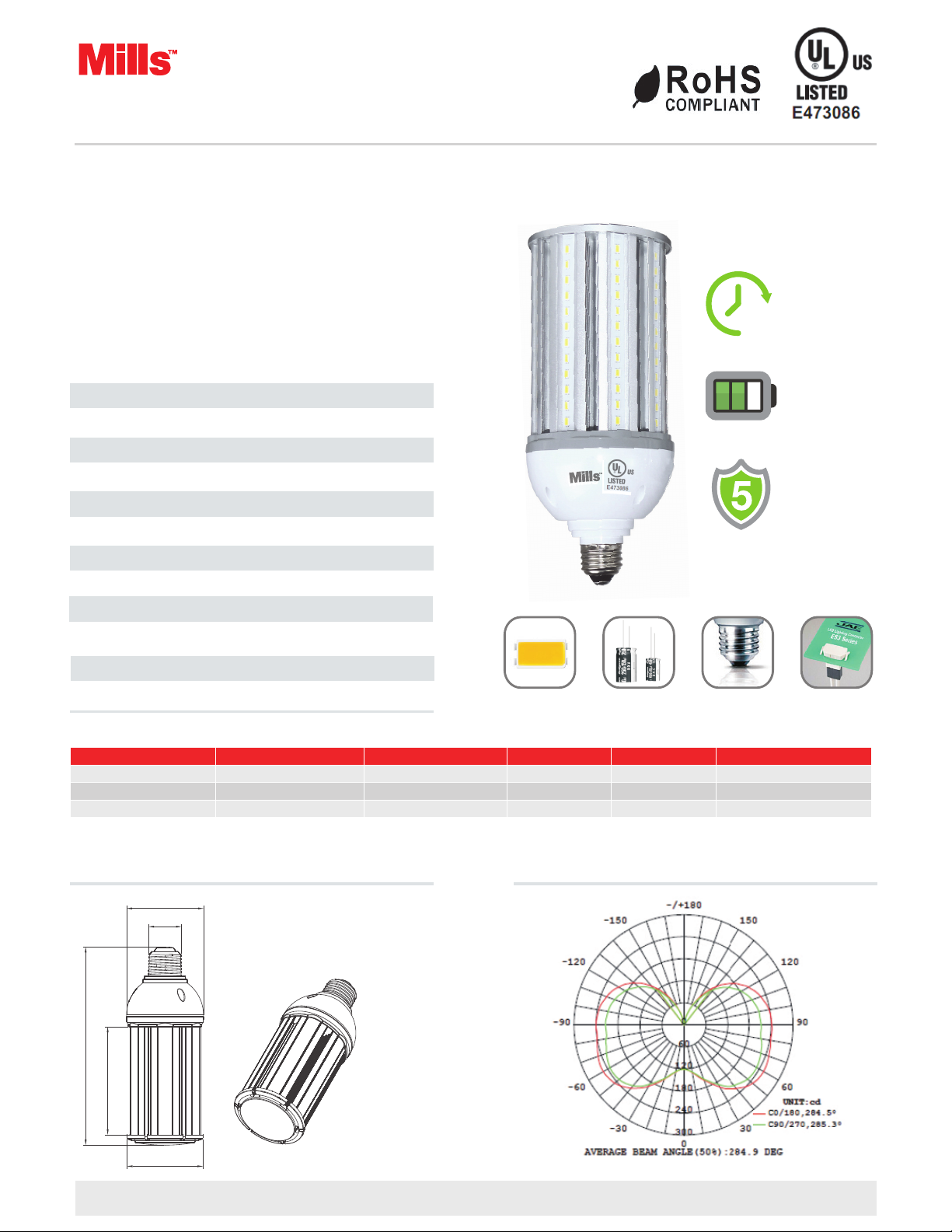

Page 1
Eliminate HID Lamps
TM
www.MillsLED.com
22W LED
Equal to 70W HID
HID RETROFIT LAMP
PROFESSIONAL
Life
Energy rating
Beam angle
Supply volts
Supply frequency
CCT
Power Factor
CRI
Lumen
Dimming
Dimensions
Operational ambient
50，000 hours
A+
360°
100~277V
50/60Hz
3000~6000K
>0.9
>80
2640lm
Non dimmable
2.72‘’x 7.32‘’
o
-40
C to 45oC
50,000 hours
50,000
lamp life
Up to 80%
direct energy
saving
5 Year
warranty
Samsung 5630 JAE Connector
Rubycon
E26
Type Wattage Voltage Base Type Driver Color Temp
LED-HIDRL 22W=22W UNV=120-277U E26 I=Internal 3000K=3000K
snoitubirtsiDthgiLsnoisnemiDtcudorP
69.9mm/2.76"
E26
7.32"
/
186mm
/3.86"
98mm
68.9mm/2.72"
Call 800 690 6403 or visit millsled.com
4000K=4000K
5000K=5000K
Page 2
Eliminate HID Lamps
www.MillsLED.com

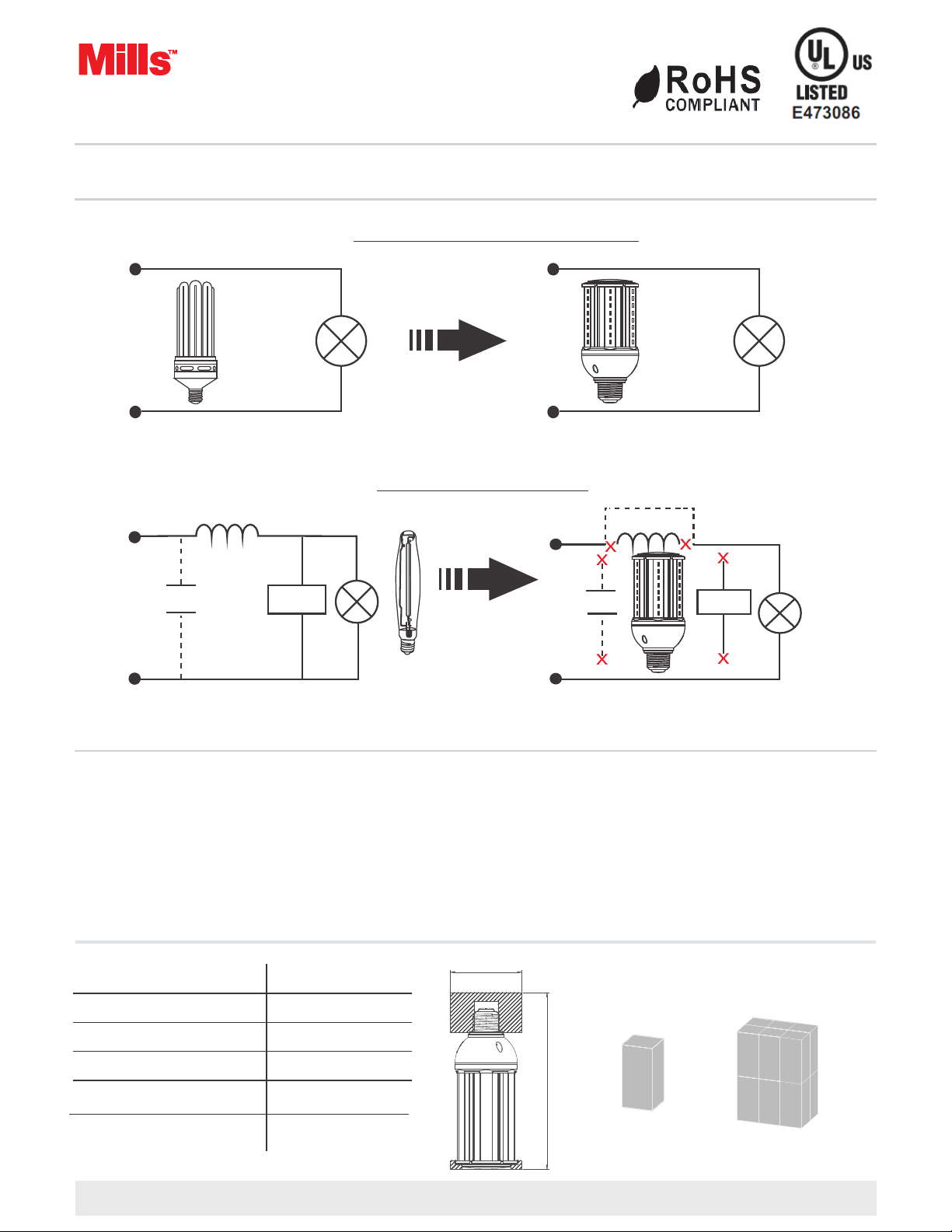

Wiring Diagrams
TM
Replacing Self Ballasted CFL Lamp
L
Self ballasted
N
Self Ballasted CFL Wiring Diagram
L
Capacitor
N
HPS/HID Wiring Diagram
CFL Lamp
Ballast
Ignitor
L
Replacing
with
N
LED Retrofit Lamp Wiring Diagram
Replacing HPS/HID Lamp
L
Replacing
with
HPS / HID
Lamp
N
LED Retrofit Lamp Wiring Diagram
LED Retrofit
Lamp
Ballast
IgnitorCapacitor
Cautions
Mills HID retrofit lamps require 100V-277V input voltage.
Mills HID retrofit lamps require all ballasts, capacitors, and starters to be bypassed/removed.
Suitable for use in dry or damp locations only. Do not use where directly exposed to liquid, vapor, rain.
This device is not intended for use with emergency exits.
This device is not intended for use with dimmers or remote controls.
This device is suitable for enclosed fixtures
Packings
Packing Details
Pack Quantity
Net Weight
Gross Weight Per CTN
Box Size
CTN Size
24pcs
0.8lbs/365g
23.2lbs/10.5kgs
83*83*215mm
350*265*450mm
80mm
198mm
Call 800 690 6403 or visit moc.DELslliM
