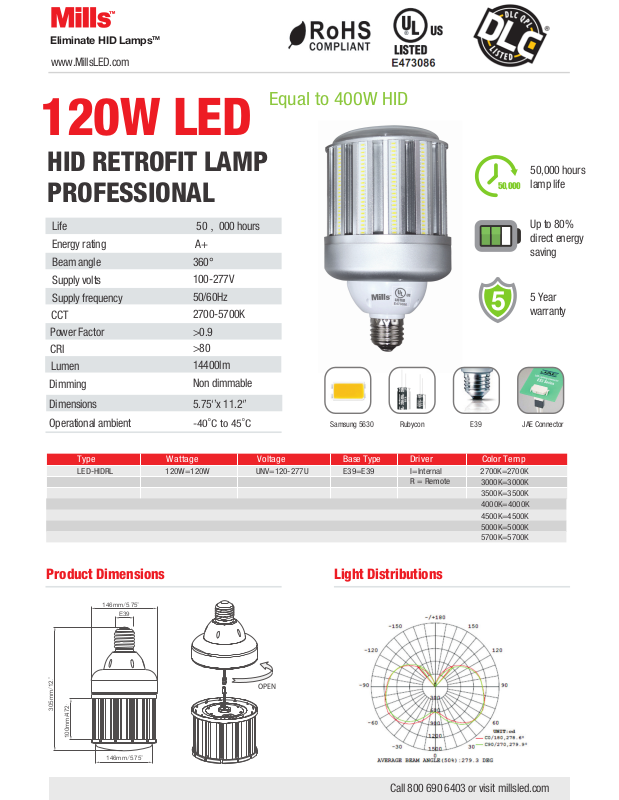

Page 1
Eliminate HID Lamps
TM
moc.DELslli M.www
120W LED
Equal to 400W HID
HID RETROFIT LAMP
PROFESSIONAL
Life
Energy rating
Beam angle
Supply volts
Supply frequency
CCT
Power Factor
CRI
Lumen
Dimming
Dimensions
Operational ambient
Type Wattage Voltage Base Type Driver Color Temp
LED-HIDRL 120W=120W UNV=120-277U E39=E39 I=Internal
50 ，000 hours
A+
360°
100-277V
50/60Hz
2700-5700K
>0.9
>80
14400lm
Non dimmable
5.75‘’x 11.2‘’
-40oC to 45oC
Samsung 5630 JAE Connector
Rubycon
2700K=2700K
R = Remote
50,000
E39
3000K=3000K
3500K=3500K
4000K=4000K
4500K=4500K
5000K=5000K
5700K=5700K
50,000 hours
lamp life
Up to 80%
direct energy
saving
5 Year
warranty
."
12
305mm/
"
72
.
100mm/4
snoitubirtsiD thgiLsnoisnemiD tcudorP
146mm/5.75"
E39
OPEN
146mm/5.75"
Call 800 690 6403 or visit millsled.com
Page 2
Eliminate HID Lamps
moc.DELslli M.www
Wiring Diagrams
TM
Replacing Self Ballasted CFL Lamp
L
Self ballasted
N
CFL Lamp
Self Ballasted CFL Wiring Diagram
Ballast
L
Capacitor
N
Ignitor
HPS/HID Wiring Diagram
L
Replacing
with
N
LED Retrofit Lamp Wiring Diagram
Replacing HPS/HID Lamp
L
Capacitor
Replacing
with
HPS / HID
Lamp
N
LED Retrofit
Lamp
Ballast
Ignitor
LED Retrofit Lamp Wiring Diagram
Cautions
Mills HID retrofit lamps require 100V-277V input voltage.
Mills HID retrofit lamps require all ballasts, capacitors, and starters to be bypassed/removed.
Suitable for use in dry or damp locations only. Do not use where directly exposed to liquid, vapor, rain.
This device is not intended for use with emergency exits.
This device is not intended for use with dimmers or remote controls.
This device is suitable for enclosed fixtures. MIN. lamp compartment dimensions ( 410 )D X ( 390 )H mm
Packings
Packing Details
Pack Quantity
Net Weight
Gross Weight Per CTN
Box Size
CTN Size
4pcs
4lbs/1828g
19.8lbs/9kg
7.28*7.28*13.27"
15.16*15.16*14.06"
’‘ ’‘90.7
‘’‘ ’‘18.11
Call 800 690 6403 or visit moc.DELslli M
