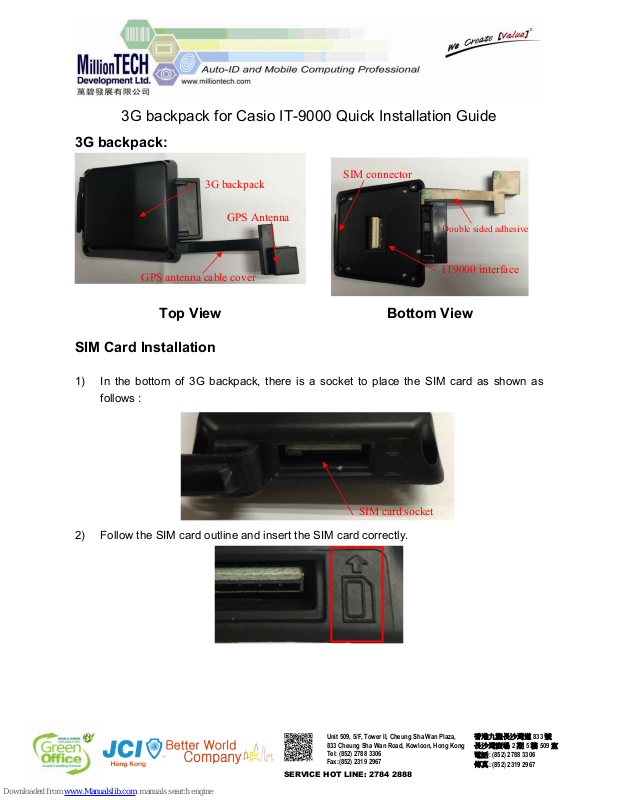

3G backpack for Casio IT-9000 Quick Installation Guide
3G backpack:
Top View Bottom View
SIM Card Installation

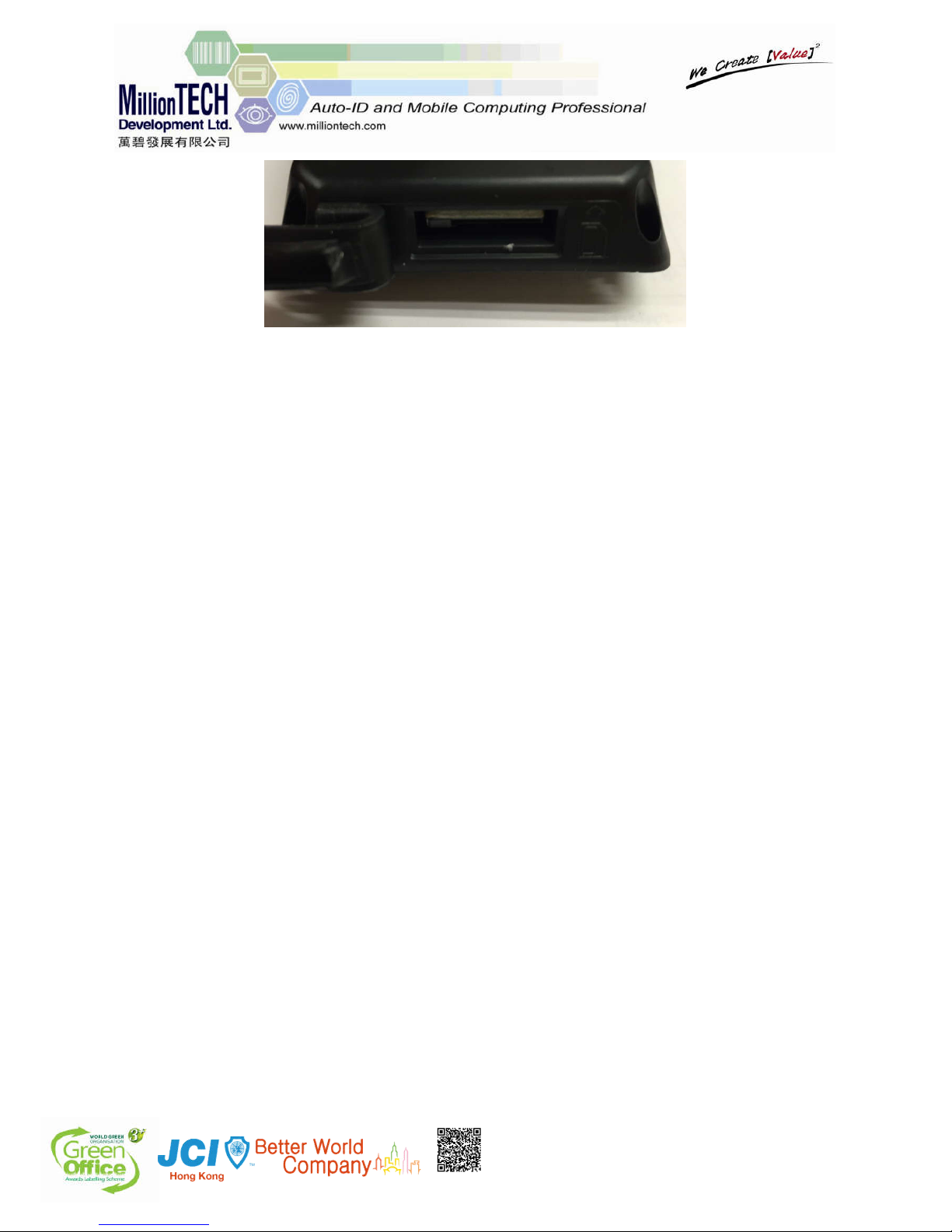

1) In the bottom of 3G backpack, there is a socket to place the SIM card as shown as
follows :
2) Follow the SIM card outline and insert the SIM card correctly.
GPS Antenna
3G backpack
SIM connector
IT9000 interface
Double sided adhesive
SIM card socket
GPS antenna cable cover
Unit 509, 5/F, Tower II, Cheung Sha Wan Plaza,
833 Cheung Sha Wan Road, Kowloon, Hong Kong
Tel: (852) 2788 3306
Fax:(852) 2319 2967
香港九龍長沙灣道 833 號
長沙灣廣場 2 期 5 樓 509 室
電話: (852) 2788 3306
傳真: (852) 2319 2967
3G backpack Installation
** IT-9000 must be powered off before installation or un-installation.

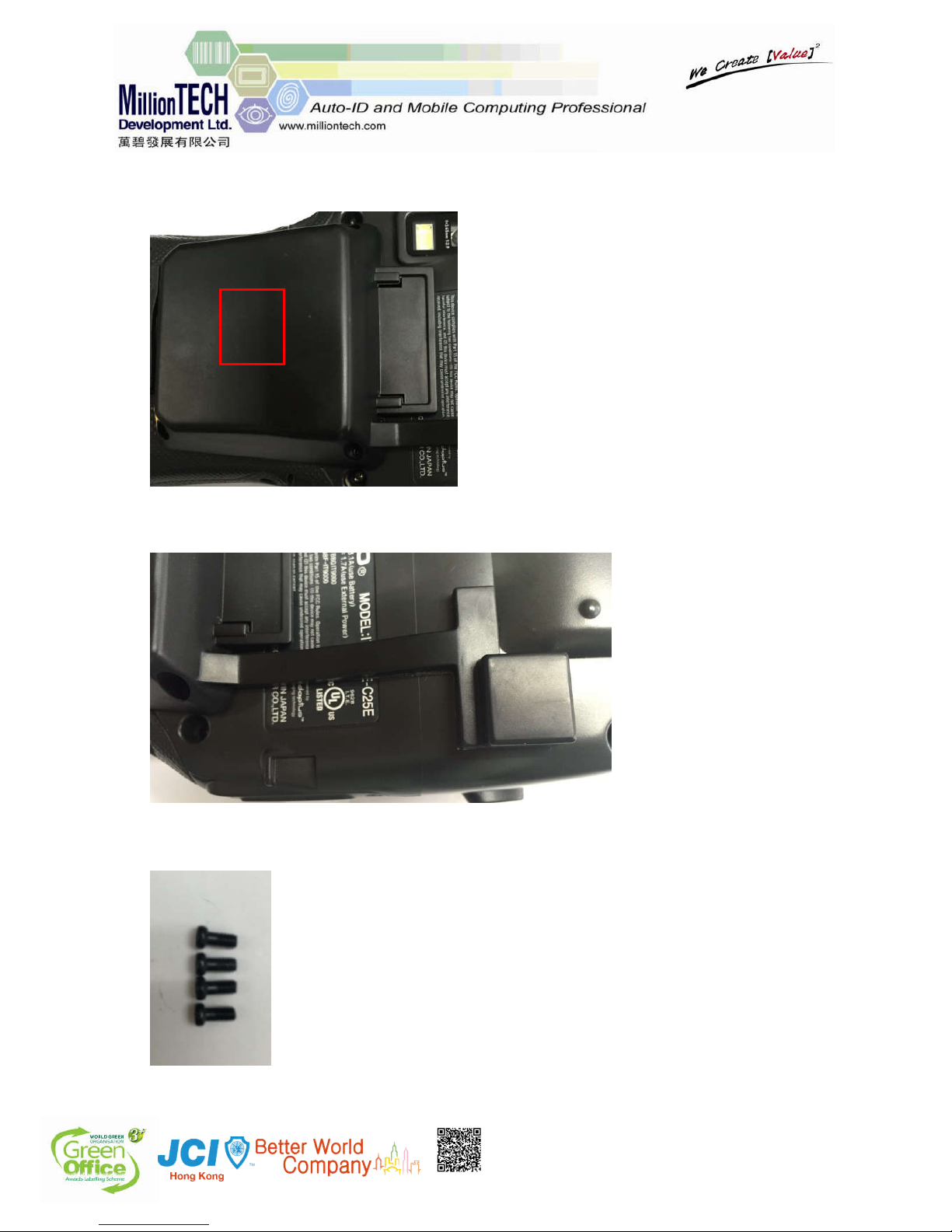

1. To attach the 3G backpack to IT9000, the IT9000 expansion connector cover shall be
removed.
2. Remove the protective sheet of double sided adhesive tape on GPS antenna.

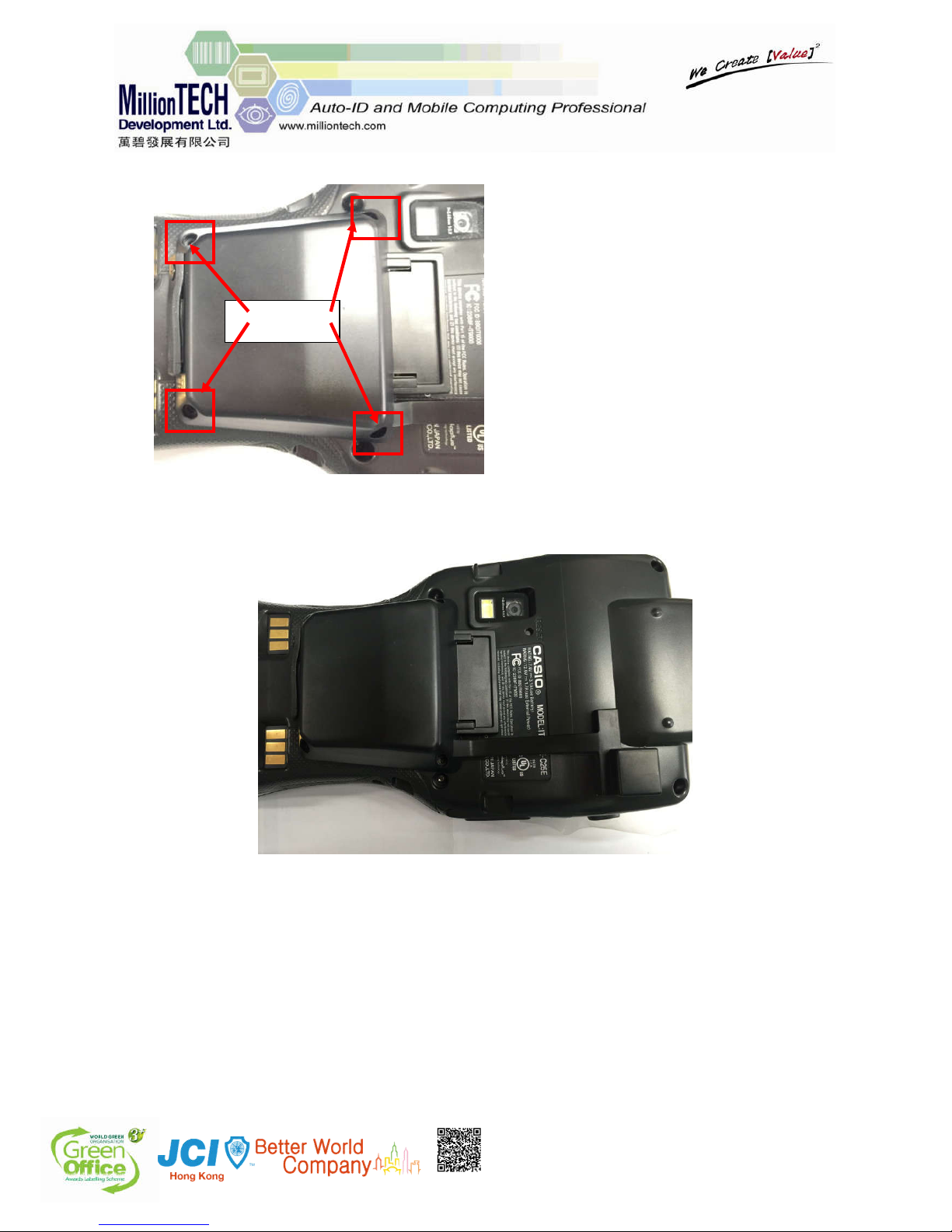

3. Turn over the terminal and place the 3G backpack on the IT-9000 expansion connector.
If the position is correct, you will find the connector is embedded.
IT-9000 expansion
connector
