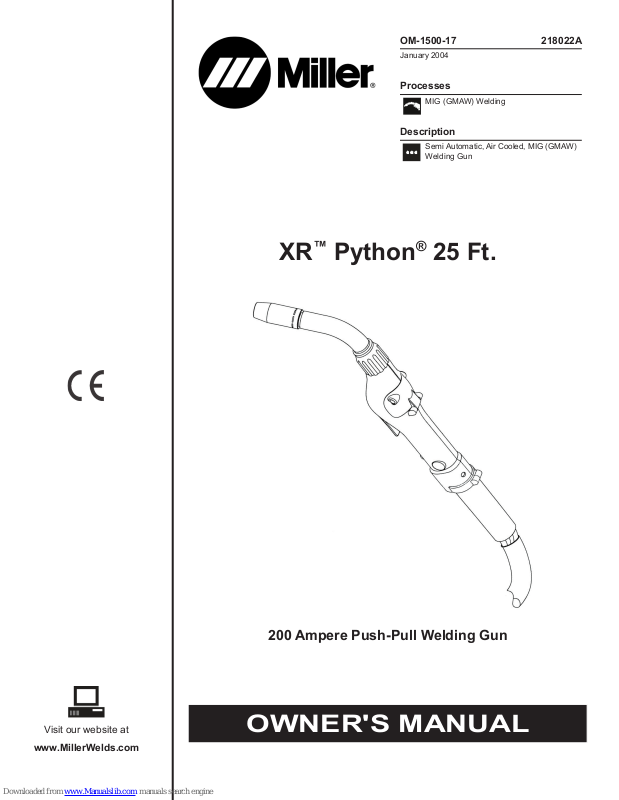

Page 1
OM-1500-17 218022A
January 2004
Processes
MIG (GMAW) Welding
Description
Semi Automatic, Air Cooled, MIG (GMAW)
Welding Gun
XR™ Python® 25 Ft.
Visit our website at
www.MillerWelds.com
200 Ampere Push-Pull Welding Gun
OWNER'S MANUAL
Page 2
Miller Electric manufactures a full line
of welders and welding related equipment.
For information on other quality Miller
products, contact your local Miller distributor to receive the latest full
line catalog orindividual catalog sheets. To locate your nearest
distributor or service agency call 1-800-4-A-Miller, or visit us at
www.MillerWelds.com on the web.
Thank you and
congratulations on choosing Miller. Now you can get
the job done and get it done right. We know you don’t have time to do
it any other way.
That’s why when Niels Miller first started building arc welders in 1929,
he made sure his products offered long-lasting value and superior
quality. Like you, his customers couldn’t afford anything less. Miller
products had to be more than the best they could be. They had to be the
best you could buy.
Today, the people that build and sell Miller products continue the
tradition. They’re just as committed to providing equipment and service
that meets the high standards of quality and value established in 1929.
This Owner’s Manual is designed to help you get the most out of your
Miller products. Please take time to read the Safety precautions. They
will help you protect yourself against potential hazards on the worksite.
We’ve made installation and operation quick
and easy. With Miller you can count on years
of reliable service with proper maintenance.
And if for some reason the unit needs repair,
there’s a Troubleshooting section that will
help you figure out what the problem is. The
parts list will then help you to decide the
exact part you may need to fix the problem.
Warranty and service information for your
particular model are also provided.
Miller is the first welding
equipment manufacturer in
the U.S.A. to be registered to
the ISO 9001:2000 Quality
System Standard.
Working as hard as you do
– every power source from
Miller is backed by the most
hassle-free warranty in the
business.
From Miller to You
Miller offers a Technical
Manual which provides
more detailed service and
parts information for your
unit. To obtain a T
echnical
Manual, contact your local
distributor. Your distributor
can also supply you with
Welding Process Manuals
such as SMAW, GTAW,
GMAW, and GMAW-P.
Miller offers a Technical
Manual which provides
more detailed service and
parts information for your
unit. To obtain a Technical
Manual, contact your local
distributor. Your distributor
can also supply you with
Welding Process Manuals
such as SMAW, GTAW,
GMAW, and GMAW-P.
Page 3
Table of Contents
SECTION 1 - Safety Precautions - Read Before Using ......................................... i
Symbol Usage................................................................................................... i
Arc Welding Hazards ........................................................................................ i
Additional Symbols For Installation, Operation and Maintenance ................... ii
Principle Safety Standards.............................................................................. iv
EMF Information ............................................................................................. iv
SECTION 2 - Denitions ....................................................................................... v
Warning Label.................................................................................................. v
Rating Label for CE Products ......................................................................... vi
Symbols ..........................................................................................................vii
Owners Damage Record ...............................................................................viii
SECTION 3 - Installation .......................................................................................1
Technical Specications................................................................................... 1
Support Equipment Required........................................................................... 1
Coolant Recommendations.............................................................................. 1
Gun Lead Connections .................................................................................... 1
SECTION 4 - Operation ....................................................................................... 1
General ............................................................................................................ 2
Controls and Settings....................................................................................... 2
Trigger Adjustment ........................................................................................... 2
Drive Roll and Idler Rolls ................................................................................. 2
SECTION 5 - Accessories..................................................................................... 3
Insulated Grooved Drive Roll Kits .................................................................... 3
Replacement Kits............................................................................................. 4
Conduits........................................................................................................... 4
Snake Skins ..................................................................................................... 4
Contact Tips..................................................................................................... 4
Diffusers........................................................................................................... 4
Nozzles ............................................................................................................ 4
Barrel................................................................................................................ 4
SECTION 6 - Maintenance.................................................................................... 5
Periodic Maintenance ...................................................................................... 5
Testing The Gun............................................................................................... 5
SECTION 7 - Recommended Spare Parts List ..................................................... 6
SECTION 8 - Troubleshooting............................................................................... 6
Troubleshooting Guide..................................................................................... 6
Troubleshooting Table...................................................................................... 7
SECTION 9 - Appendices ..................................................................................... 8
Mechanical / Parts Lists ................................................................................... 9
Electrical / Connector Pinout.......................................................................... 15
Safety .................................................................................................................. 16
Warranty.............................................................................................................. 18
Page 4
Declaration of Conformity for
European Community (CE) Products
This information is provided for units with CE certification (see rating label on unit).
Note
Manufacturer’s Name: Miller Electric Mfg. Co.
Manufacturer’s Address: 1635 W. Spencer Street
Appleton, WI 54914 USA
Declares that the product: XR-Control
conforms to the following Directives and Standards:
Directives
Low Voltage Directive: 73/23/EEC
Electromagnetic Compatibility (EMC) Directive: 89/336/EEC
Machinery Directives: 89/392/EEC, 91/368/EEC, 93/C 133/04, 93/68/EEC
Standards
Arc Welding Equipment Part I: Welding Power Sources: IEC 60974-1
(September 1998 – Second Edition)
Arc Welding Equipment: Wirefeed Systems: IEC 974-5
(September 1997 – Draft Revision)
Degrees of Protection Provided By Enclosures (IP Code): IEC 529:1989
(November 1989 - First Edition)
Insulation Coordination For Equipment With Low-Voltage Systems:
Part I: Principles, Requirements and Tests: IEC 664-1: 1992
(October 1992 – First Edition)
Electromagnetic Compatibility, (EMC): EN 50199
(August 1995)
Torches And Guns For Arc Welding, EN 50078
MK Products, Inc.
16882 Armstrong Ave.
Irvine, CA 92606
Python
®
Page 5
SECTION 1 – SAFETY PRECAUTIONS - READ BEFORE USING
som _nd_7/02
1-1. Symbol Usage
Means Warning! Watch Out! There are possible hazards
with this procedure! The possible hazards are shown in
the adjoining symbols.
Marks a special safety message.
Means “Note”; not safety related.
This group of symbols means Warning! Watch Out! possible
ELECTRIC SHOCK, MOVING PARTS, and HOT PARTS hazards.
Consult symbols and related instructions below for necessary actions
to avoid the hazards.
1-2. Arc Welding Hazards
The symbols shown below are used throughout this manual to
call attention to and identify possible hazards. When you see
the symbol, watch out, and follow the related instructions to
avoid the hazard. The safety information given below is only
a summary of the more complete safety information found in
the Safety Standards listed in Section 1-4. Read and follow all
Safety Standards.
Only qualified persons should install, operate, maintain, and
repair this unit.
During operation, keep everybody, especially children, away.
ELECTRIC SHOCK can kill.
Touching live electrical parts can cause fatal shocks
or severe burns. The electrode and work circuit is
electrically live whenever the output is on. The input
power circuit and machine internal circuits are also
live when power is on. In semiautomatic or automatic wire welding, the
wire, wire reel, drive roll housing, and all metal parts touching the
welding wire are electrically live. Incorrectly installed or improperly
grounded equipment is a hazard.
Do not touch live electrical parts.
Wear dry, hole-free insulating gloves and body protection.
Insulate yourself from work and ground using dry insulating mats
or covers big enough to prevent any physical contact with the work
or ground.
Do not use AC output in damp areas, if movement is confined, or if
there is a danger of falling.
Use AC output ONLY if required for the welding process.
If AC output is required, use remote output control if present on
unit.
Disconnect input power or stop engine before installing or
servicing this equipment. Lockout/tagout input power according to
OSHA 29 CFR 1910.147 (see Safety Standards).
Properly install and ground this equipment according to its
Owner’s Manual and national, state, and local codes.
Always verify the supply ground – check and be sure that input
power cord ground wire is properly connected to ground terminal in
disconnect box or that cord plug is connected to a properly
grounded receptacle outlet.
When making input connections, attach proper grounding conduc-
tor first – double-check connections.
Frequently inspect input power cord for damage or bare wiring –
replace cord immediately if damaged – bare wiring can kill.
Turn off all equipment when not in use.
Do not use worn, damaged, undersized, or poorly spliced cables.
Do not drape cables over your body.
If earth grounding of the workpiece is required, ground it directly
with a separate cable.
Do not touch electrode if you are in contact with the work, ground,
or another electrode from a different machine.
Use only well-maintained equipment. Repair or replace damaged
parts at once. Maintain unit according to manual.
Wear a safety harness if working above floor level.
Keep all panels and covers securely in place.
Clamp work cable with good metal-to-metal contact to workpiece
or worktable as near the weld as practical.
Insulate work clamp when not connected to workpiece to prevent
contact with any metal object.
Do not connect more than one electrode or work cable to any
single weld output terminal.
SIGNIFICANT DC VOLTAGE exists after removal of
input power on inverters.
Turn Off inverter, disconnect input power, and discharge input
capacitors according to instructions in Maintenance Section
before touching any parts.
Welding produces fumes and gases. Breathing
these fumes and gases can be hazardous to your
health.
FUMES AND GASES can be hazardous.
Keep your head out of the fumes. Do not breathe the fumes.
If inside, ventilate the area and/or use exhaust at the arc to remove
welding fumes and gases.
If ventilation is poor, use an approved air-supplied respirator.
Read the Material Safety Data Sheets (MSDSs) and the
manufacturer’s instructions for metals, consumables, coatings,
cleaners, and degreasers.
Work in a confined space only if it is well ventilated, or while
wearing an air-supplied respirator. Always have a trained watchperson nearby. Welding fumes and gases can displace air and
lower the oxygen level causing injury or death. Be sure the breathing air is safe.
Do not weld in locations near degreasing, cleaning, or spraying op-
erations. The heat and rays of the arc can react with vapors to form
highly toxic and irritating gases.
Do not weld on coated metals, such as galvanized, lead, or
cadmium plated steel, unless the coating is removed from the weld
area, the area is well ventilated, and if necessary, while wearing an
air-supplied respirator. The coatings and any metals containing
these elements can give off toxic fumes if welded.
XR™ Python® Owner's Manual Page i
Page 6
Arc rays from the welding process produce intense
visible and invisible (ultraviolet and infrared) rays
that can burn eyes and skin. Sparks fly off from the
weld.
ARC RAYS can burn eyes and skin.
Wear a welding helmet fitted with a proper shade of filter to protect
your face and eyes when welding or watching (see ANSI Z49.1
and Z87.1 listed in Safety Standards).
Wear approved safety glasses with side shields under your
helmet.
Use protective screens or barriers to protect others from flash and
glare; warn others not to watch the arc.
Wear protective clothing made from durable, flame-resistant mate-
rial (leather and wool) and foot protection.
Welding on closed containers, such as tanks,
drums, or pipes, can cause them to blow up. Sparks
can fly off from the welding arc. The flying sparks, hot
workpiece, and hot equipment can cause fires and
burns. Accidental contact of electrode to metal objects can cause
sparks, explosion, overheating, or fire. Check and be sure the area is
safe before doing any welding.
WELDING can cause fire or explosion.
Protect yourself and others from flying sparks and hot metal.
Do not weld where flying sparks can strike flammable material.
Remove all flammables within 35 ft (10.7 m) of the welding arc. If
this is not possible, tightly cover them with approved covers.
Be alert that welding sparks and hot materials from welding can
easily go through small cracks and openings to adjacent areas.
Watch for fire, and keep a fire extinguisher nearby.
Be aware that welding on a ceiling, floor, bulkhead, or partition can
cause fire on the hidden side.
Do not weld on closed containers such as tanks, drums, or pipes,
unless they are properly prepared according to AWS F4.1 (see
Safety Standards).
Connect work cable to the work as close to the welding area as
practical to prevent welding current from traveling long, possibly
unknown paths and causing electric shock and fire hazards.
Do not use welder to thaw frozen pipes.
Remove stick electrode from holder or cut off welding wire at
contact tip when not in use.
Wear oil-free protective garments such as leather gloves, heavy
shirt, cuffless trousers, high shoes, and a cap.
Remove any combustibles, such as a butane lighter or matches,
from your person before doing any welding.
FLYING METAL can injure eyes.
Welding, chipping, wire brushing, and grinding
cause sparks and flying metal. As welds cool,
they can throw off slag.
Wear approved safety glasses with side
shields even under your welding helmet.
BUILDUP OF GAS can injure or kill.
Shut off shielding gas supply when not in use.
Always ventilate confined spaces or use
approved air-supplied respirator.
HOT PARTS can cause severe burns.
Do not touch hot parts bare handed.
Allow cooling period before working on gun or
torch.
MAGNETIC FIELDS can affect pacemakers.
Pacemaker wearers keep away.
Wearers should consult their doctor before
going near arc welding, gouging, or spot
welding operations.
NOISE can damage hearing.
Noise from some processes or equipment can
damage hearing.
Wear approved ear protection if noise level is
high.
Shielding gas cylinders contain gas under high
pressure. If damaged, a cylinder can explode. Since
gas cylinders are normally part of the welding
process, be sure to treat them carefully.
CYLINDERS can explode if damaged.
Protect compressed gas cylinders from excessive heat, mechani-
cal shocks, slag, open flames, sparks, and arcs.
Install cylinders in an upright position by securing to a stationary
support or cylinder rack to prevent falling or tipping.
Keep cylinders away from any welding or other electrical circuits.
Never drape a welding torch over a gas cylinder.
Never allow a welding electrode to touch any cylinder.
Never weld on a pressurized cylinder – explosion will result.
Use only correct shielding gas cylinders, regulators, hoses, and fit-
tings designed for the specific application; maintain them and
associated parts in good condition.
Turn face away from valve outlet when opening cylinder valve.
Keep protective cap in place over valve except when cylinder is in
use or connected for use.
Read and follow instructions on compressed gas cylinders,
associated equipment, and CGA publication P-1 listed in Safety
Standards.
XR™ Python® Owner's Manual Page ii
Page 7

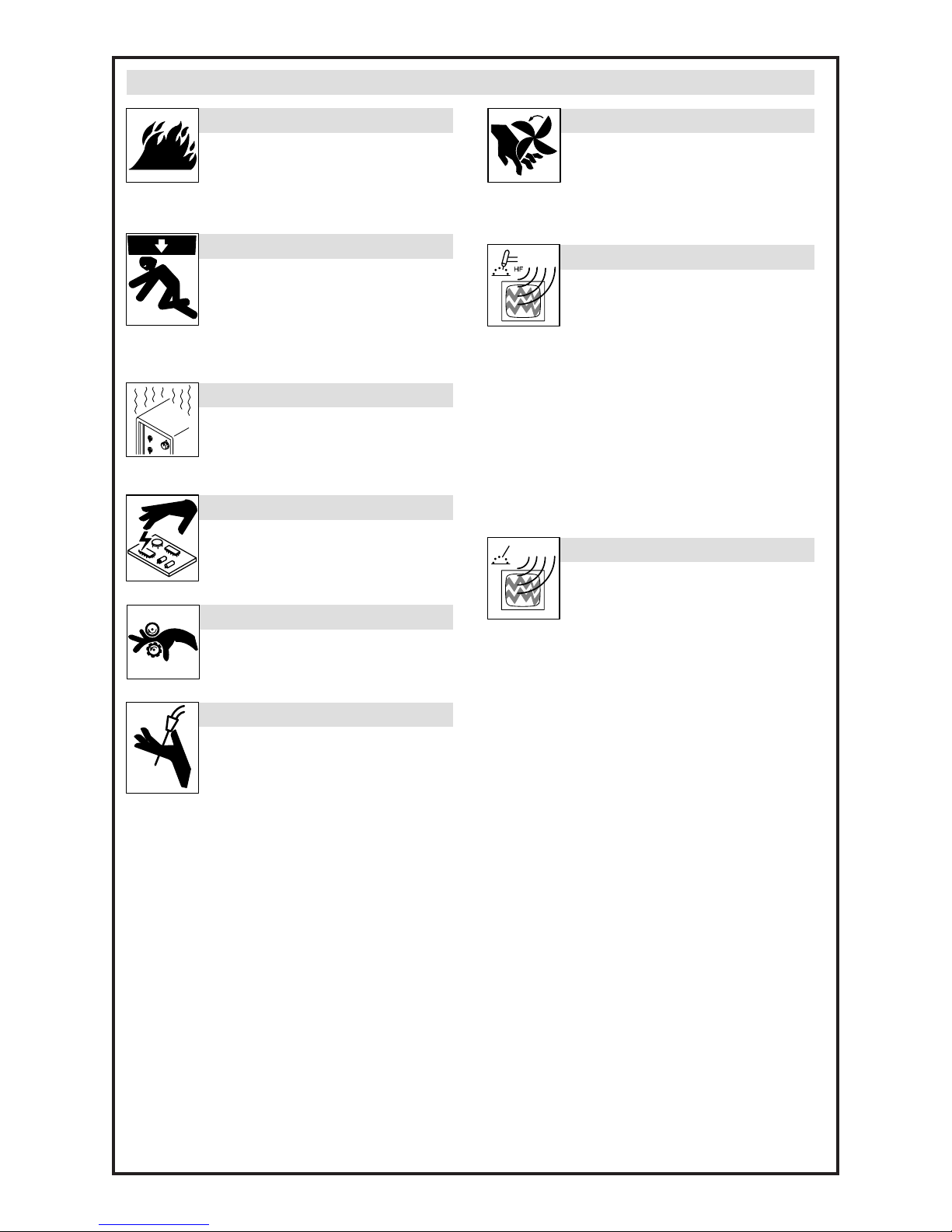

1-3. Additional Symbols For Installation, Operation, And Maintenance
FIRE OR EXPLOSION hazard.
Do not install or place unit on, over, or near
combustible surfaces.
Do not install unit near flammables.
Do not overload building wiring – be sure power supply system is
properly sized, rated, and protected to handle this unit.
FALLING UNIT can cause injury.
Use lifting eye to lift unit only, NOT running
gear, gas cylinders, or any other accessories.
Use equipment of adequate capacity to lift and
support unit.
If using lift forks to move unit, be sure forks are
long enough to extend beyond opposite side of
unit.
OVERUSE can cause OVERHEATING
Allow cooling period; follow rated duty cycle.
Reduce current or reduce duty cycle before
starting to weld again.
Do not block or filter airflow to unit.
STATIC (ESD) can damage PC boards.
Put on grounded wrist strap BEFORE handling
boards or parts.
Use proper static-proof bags and boxes to
store, move, or ship PC boards.
MOVING PARTS can cause injury.
Keep away from moving parts.
Keep away from pinch points such as drive
rolls.
WELDING WIRE can cause injury.
Do not press gun trigger until instructed to do
so.
Do not point gun toward any part of the body,
other people, or any metal when threading
welding wire.
MOVING PARTS can cause injury.
Keep away from moving parts such as fans.
Keep all doors, panels, covers, and guards
closed and securely in place.
H.F. RADIATION can cause interference.
High-frequency (H.F.) can interfere with radio
navigation, safety services, computers, and
communications equipment.
Have only qualified persons familiar with
electronic equipment perform this installation.
The user is responsible for having a qualified electrician prompt-
ly correct any interference problem resulting from the installation.
If notified by the FCC about interference, stop using the
equipment at once.
Have the installation regularly checked and maintained.
Keep high-frequency source doors and panels tightly shut, keep
spark gaps at correct setting, and use grounding and shielding to
minimize the possibility of interference.
ARC WELDING can cause interference.
Electromagnetic energy can interfere with
sensitive electronic equipment such as
computers and computer-driven equipment
such as robots.
Be sure all equipment in the welding area is
electromagnetically compatible.
To reduce possible interference, keep weld cables as short as
possible, close together, and down low, such as on the floor.
Locate welding operation 100 meters from any sensitive elec-
tronic equipment.
Be sure this welding machine is installed and grounded
according to this manual.
If interference still occurs, the user must take extra measures
such as moving the welding machine, using shielded cables,
using line filters, or shielding the work area.
XR™ Python® Owner's Manual Page iii
Page 8
1-4. Principal Safety Standards
Safety in Welding, Cutting, and Allied Processes, ANSI Standard Z49.1,
from American Welding Society, 550 N.W. LeJeune Rd, Miami FL 33126
(phone: 305-443-9353, website: www
.aws.org).
Recommended Safe Practices for the Preparation for Welding and Cutting of Containers and Piping, American Welding Society Standard
AWS F4.1, from American Welding Society, 550 N.W. LeJeune Rd, Miami, FL 33126 (phone: 305-443-9353, website: www
.aws.org).
National Electrical Code, NFPA Standard 70, from National Fire Protection Association, P.O. Box 9101, 1 Battery March Park, Quincy, MA
02269–9101 (phone: 617–770–3000, website: www.nfpa.org and www.
sparky.org).
Safe Handling of Compressed Gases in Cylinders, CGA Pamphlet P-1,
from Compressed Gas Association, 1735 Jefferson Davis Highway,
Suite 1004, Arlington, VA 22202–4102 (phone: 703–412–0900, website: www.cganet.com).
Code for Safety in Welding and Cutting, CSA Standard W117.2, from
Canadian Standards Association, Standards Sales, 178 Rexdale
Boulevard, Rexdale, Ontario, Canada M9W 1R3 (phone:
800–463–6727 or in Toronto 416–747–4044, website: www.csa–international.org).
Practice For Occupational And Educational Eye And Face Protection,
ANSI Standard Z87.1, from American National Standards Institute, 11
West 42nd Street, New York, NY 10036–8002 (phone: 212–642–4900,
website: www.ansi.org).
Standard for Fire Prevention During Welding, Cutting, and Other Hot
Work, NFPA Standard 51B, from National Fire Protection Association,
P.O. Box 9101, 1 Battery March Park, Quincy, MA 02269–9101 (phone:
617–770–3000, website: www.nfpa.org and www. sparky
.org).
OSHA, Occupational Safety and Health Standards for General Industry, Title 29, Code of Federal Regulations (CFR), Part 1910, Subpart Q,
and Part 1926, Subpart J, from U.S. Government Printing Office, Superintendent of Documents, P.O. Box 371954, Pittsburgh, PA 15250 (there
are 10 Regional Offices––phone for Region 5, Chicago, is
312–353–2220, website: www
.osha.gov).
1-5. EMF Information
Considerations About Welding And The Effects Of Low Frequency
Electric And Magnetic Fields
Welding current, as it flows through welding cables, will cause electromagnetic fields. There has been and still is some concern about such
fields. However, after examining more than 500 studies spanning 17
years of research, a special blue ribbon committee of the National
Research Council concluded that: “The body of evidence, in the
committee’s judgment, has not demonstrated that exposure to powerfrequency electric and magnetic fields is a human-health hazard.”
However, studies are still going forth and evidence continues to be
examined. Until the final conclusions of the research are reached, you
may wish to minimize your exposure to electromagnetic fields when
welding or cutting.
To reduce magnetic fields in the workplace, use the following
procedures:
1. Keep cables close together by twisting or taping them.
2. Arrange cables to one side and away from the operator.
3. Do not coil or drape cables around your body.
4. Keep welding power source and cables as far away from operator as practical.
5. Connect work clamp to workpiece as close to the weld as possible.
About Pacemakers:
Pacemaker wearers consult your doctor first. If cleared by your doctor,
then following the above procedures is recommended.
XR™ Python® Owner's Manual Page iv
Page 9
SECTION 2 – DEFINITIONS
1 1.1 1.2 1.3
3 3.1 3.2 3.3
4 4.1
+
2
2.1
2.2
+
+
5 6
+
2.3
S-178 936

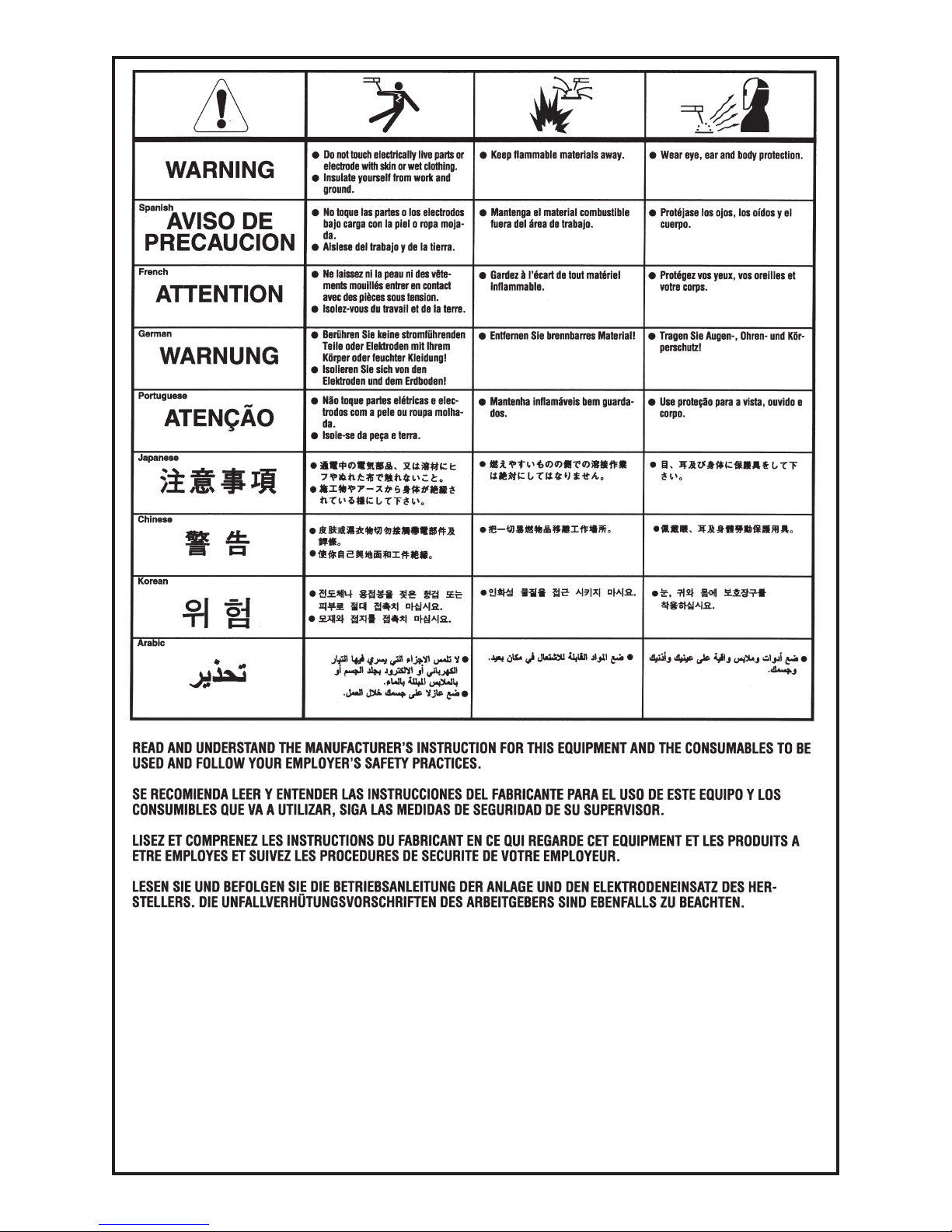

A. Warning! Watch Out! There
are possible hazards as
shown by the symbols.
B. Drive rolls can injure fingers.
C. Welding wire and drive parts
are at welding voltage during
operation – keep hands and
metal objects clear.
1 Electric shock can kill.
1.1 Wear dry insulating gloves.
Do not touch electrode with
bare hand. Do not wear wet or
damaged gloves.
1.2 Protect yourself from electric
shock by insulating yourself
from work and ground.
1.3 Disconnect input plug or
power before working on
machine.
2 Breathing welding fumes can
be hazardous to your health.
2.1 Keep your head out of the
fumes.
2.2 Use forced ventilation or local
exhaust to remove the fumes.
2.3 Use ventilating fan to remove
fumes.
3 Welding sparks can cause
explosion or fire.
3.1 Keep flammables away from
welding. Don’t weld near
flammables.
3.2 Welding sparks can cause
fires. Have a fire extinguisher
nearby and have a watch
person ready to use it.
3.3 Do not weld on drums or any
closed containers.
4 Arc rays can burn eyes and
injure skin.
4.1 Wear hat and safety glasses.
Use ear protection and button
shirt collar. Use welding
helmet with correct shade of
filter. Wear complete body
protection.
5 Become trained and read the
instructions before working on
the machine or welding.
6 Do not remove or paint over
(cover) the label.

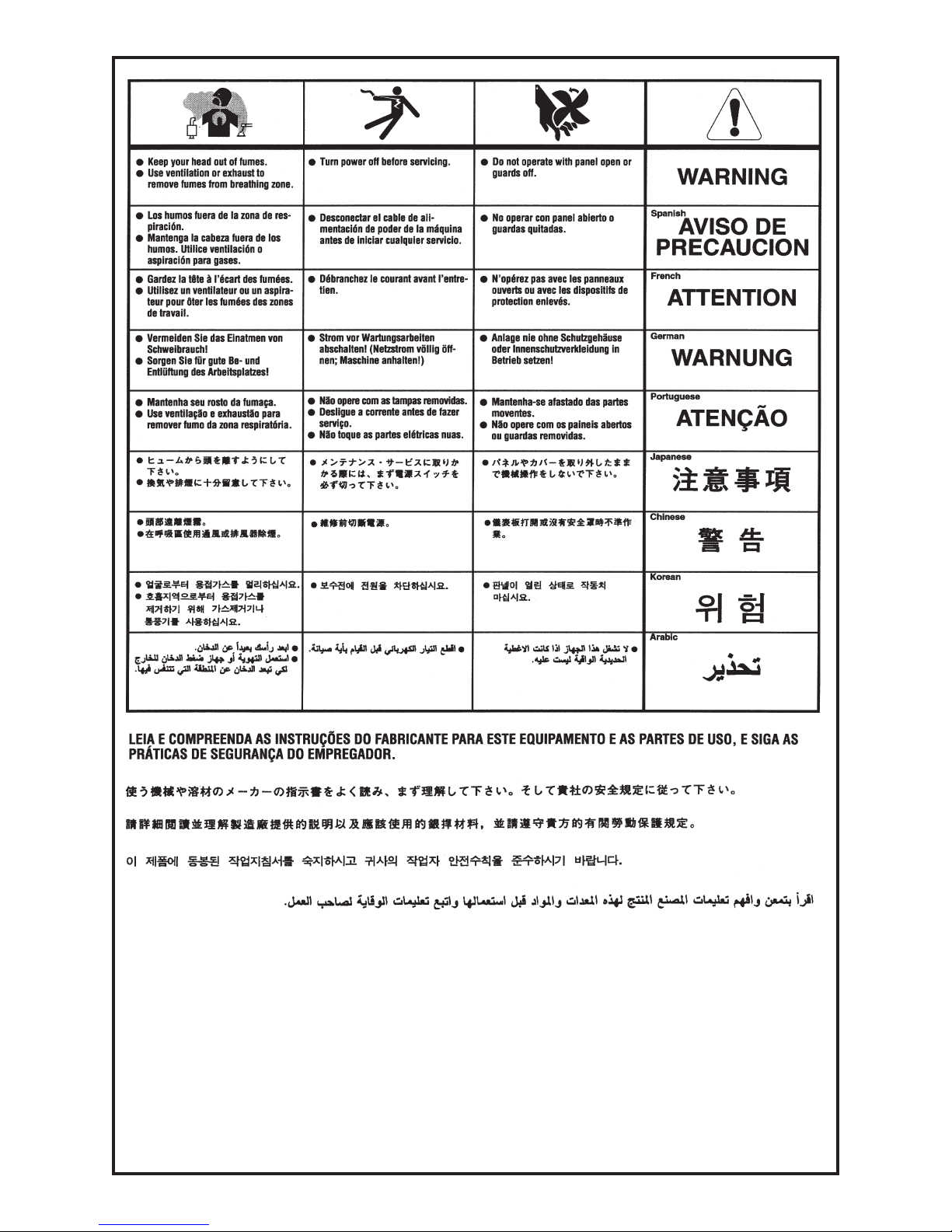

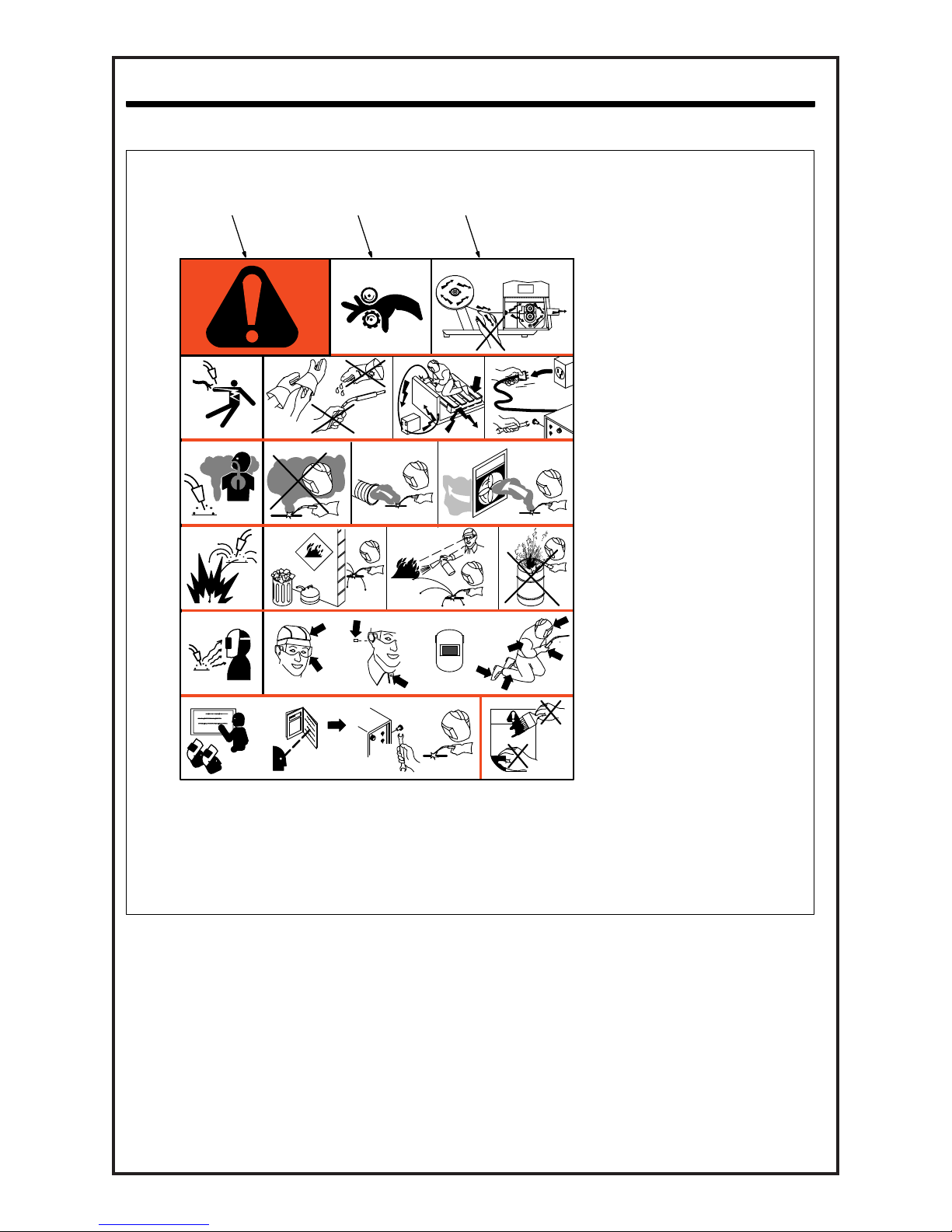

2-1. Warning Label Definitions
A B C
XR™ Python® Owner's Manual Page v
Page 10

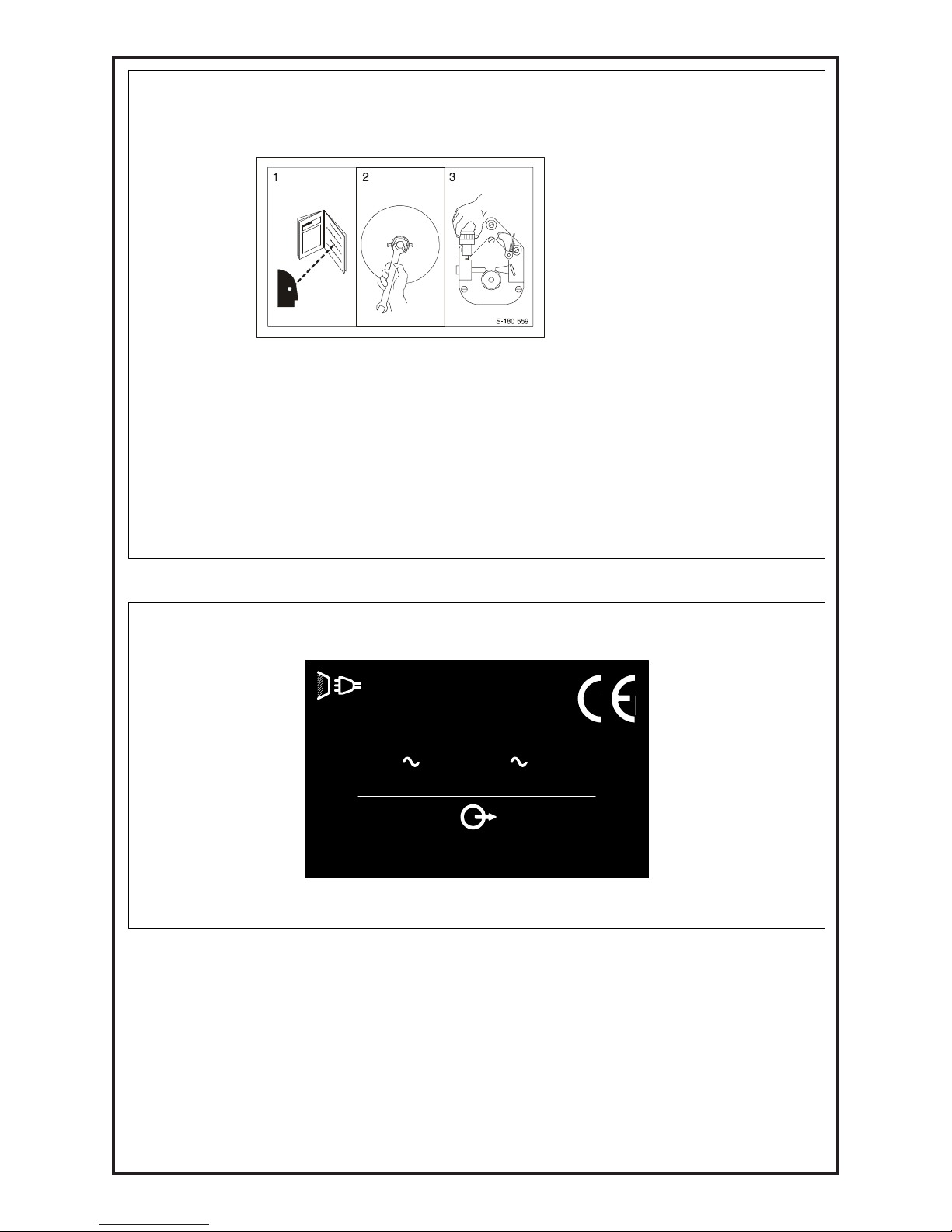

1 Read the Owner’s Manual.
2 Do not overtighten wire spool
brake pressure. Tighten only
until wire does not overspool
from wire supply spool.
3 Do not overtighten drive roll
pressure. Tighten only until
drive roll will not slip (motor
will not stall) on a stationary
wire.
ST-178 794-A
50/60
S/N:
24
5.0
Hz50/60
IP 23
V100 A400 X 100 %
V
U
1
=
A
I
1
=
1
U
2
=
I
2
=
2-2. Rating Label For CE Products
XR™ Python® Owner's Manual Page vi
Page 11

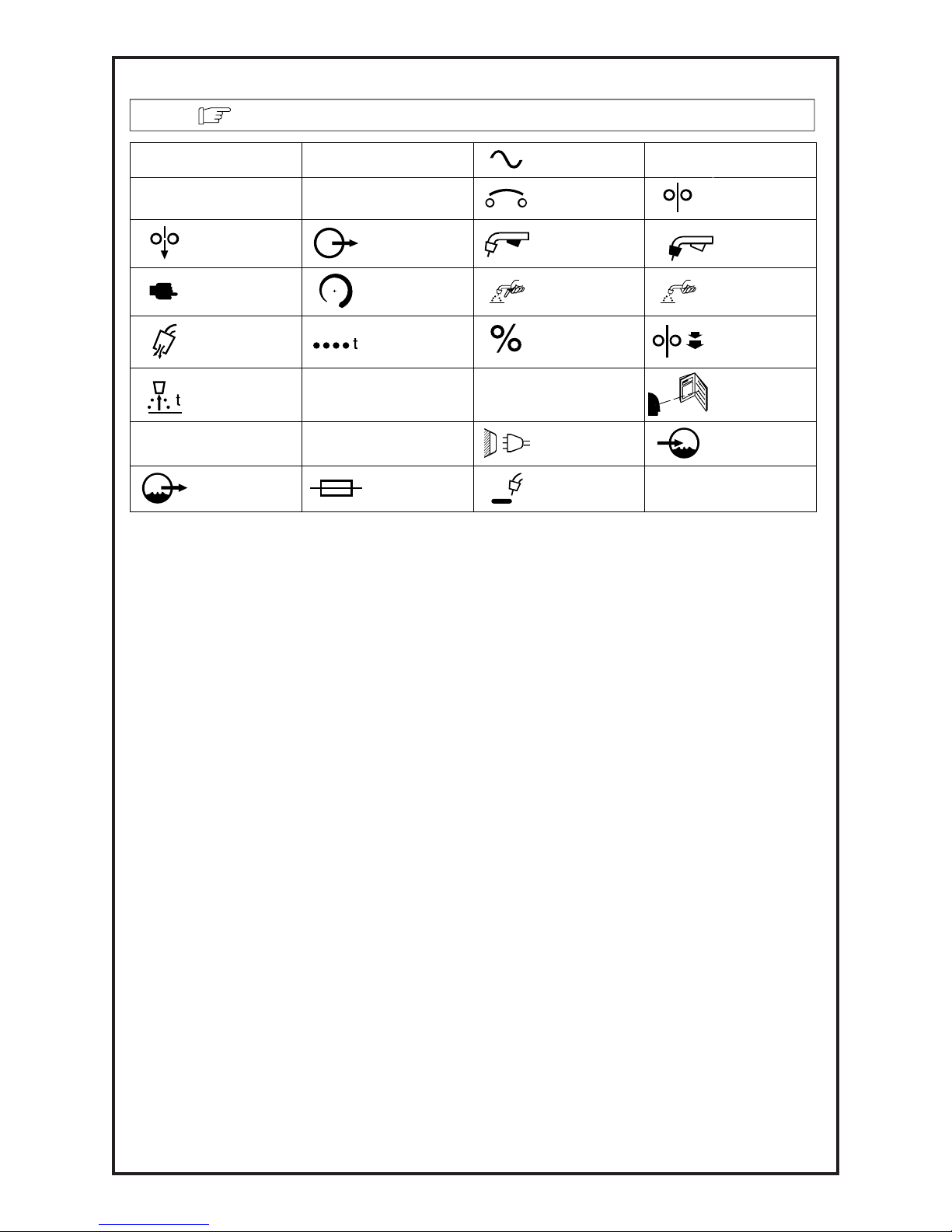

2-3. Symbols And Definitions
Some symbols are found only on CE products.
Note
A
Amperes
V
Volts
Alternating Current
X
Duty Cycle
IP
Degree Of
Protection
Hz
Hertz
Circuit Breaker
Wire Feed
Jog
Output
Trigger
Gun
Press To Set
Increase
Trigger Hold On
Trigger Hold Off
Purge
Spot Weld Time
Percent
Run-In
Burnback Time
U
1
Primary Voltage
U
2
Load Voltage
Read Instructions
I
1
Primary Current
I
2
Rated Current
Line Connection
Water (Coolant) In-
put
Water (Coolant)
Output
Fuse
Continuous
Spot Welding
XR™ Python® Owner's Manual Page vii
Page 12
Thank You
For selecting a quality product. We want you to take
pride in operating this product...as much pride as we
have in bringing the product to you!
When this equipment is shipped, title passes to the purchaser upon receipt by the
carrier
. Consequently, claims for material damaged in shipment must be made by the
purchaser against the transportation company at the time the shipment is received.
Please record your equipment identification information below for future reference. This
information can be found on your machine nameplate.
Model Name & Number _____________________
Code & Serial Number _____________________
Date of Purchase _____________________
Whenever you request replacements part
s for, or information on this equipment always
supply the information you have recorded above.
Please Examine Carton and Equipment For Damage Immediately
Read this Owner’s Manual completely before attempting to use this equipment. Save this manual
and keep it handy for quick reference. Pay particular attention to the safety instructions we
have provided
for your protection.
XR™ Python® Owner's Manual Page viii
Page 13
Section 3 Installation
Technical Specications
Wire Capacity
Aluminum and Cored Wire ........................... .030" - 1/16" (0.8 mm - 1.6 mm)
Solid and Hard Wire ..................................... .030" - .045" (0.6 mm - 1.2 mm)
Wire Speed (At rated feeder input voltage) .............70 - 875 ipm (22.2 mpm)
Duty Cycle - 100% (All ratings are using Argon gas) ............ 200 Amps Peak
Shipping Weight (approximate) ...................................... 19.29 lbs. (8.29 Kg)
Gun weight (less leads)....................................................... 2.5 lbs. (1.13 Kg)
Support Equipment Required
• C.V. or C.C. power source of sufcient capacity for your needs.
• Regulated gas supply and hoses.
• Properly sized power leads from power source to wire feeder and ground.
Gun Lead Connections
Power Cable
A #2 AWG power cable is used on the XR™ Python®. The gun end of
the cable has a tting crimped to the copper cable strands. This tting is
then threaded into the gun body. The cabinet end of the power cable is
incorporated into the Power Pin connector.
Conduit
The XR™ Python® comes standard with a poly-lined conduit, for feeding
aluminum wire. The longer tting with a shallow groove is used on the gun
end. A set screw located on top of the gun handle secures the conduit in
place. The cabinet end of the conduit is incorporated into the Power Pin
connector.
Gas Hose
The gas hose is pushed over a barbed tting on the gun body and secured
with a plastic tie wrap. The cabinet end of the gas hose is incorporated into
the Power Pin connector.

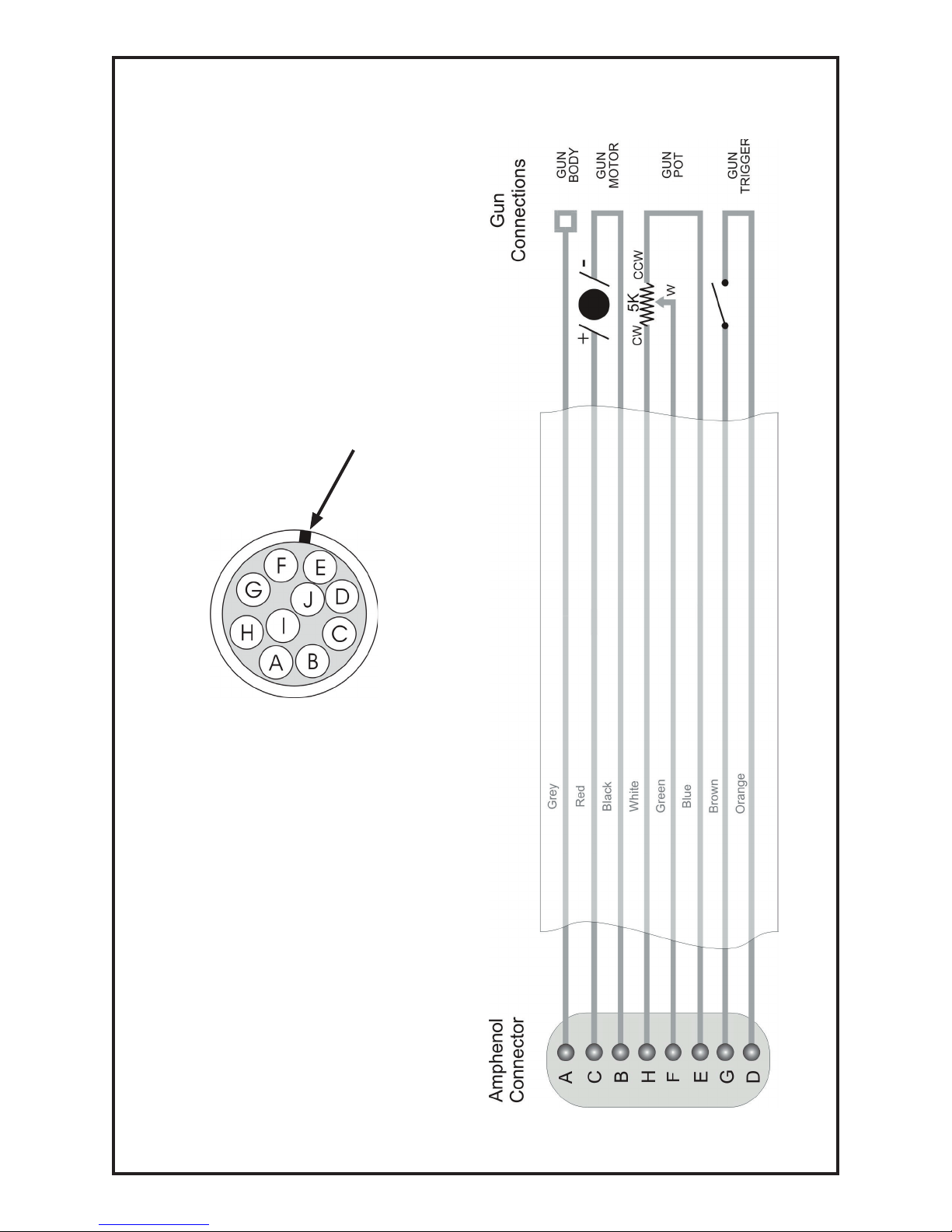

Electric Cable
A multi-conductor control cable is used on the XR™ Python®. The gun end
of the cable is secured with a cable clamp and the wires are connected to the
potentiometer, the micro switch, the motor and the gun body mechanically.
Slack is left in the electric cable as it exits the back of the gun to prevent
cable and/or wire breakage. The cabinet end of the control cable uses a 10Pin, "X" clocked Amphenol connector.
Section 4 Operation
General
The Python® maintains a constant, steady, uniform wire feed speed,
regardless of curved or looped wire conduit. The constant push exerted
by the slave motor in the cabinet, combined with the pull of the gun motor,
XR™ Python® Owner's Manual - Page 1
Page 14
causes the wire to literally oat friction-free through the wire conduit. The
24VDC gun motor is controlled by a three and three-quarter (3 3/4) turn
potentiometer in the gun handle.
Controls and Settings
Potentiometer
The laterally-positioned potentiometer is located in the lower end of the
handle, providing up to 875 ipm (22.2 mpm) with 3 3/4 turns.
Micro Switch
The micro switch assembly consists of a normally open micro switch and
solder-attached leads.
Trigger Sensitivity

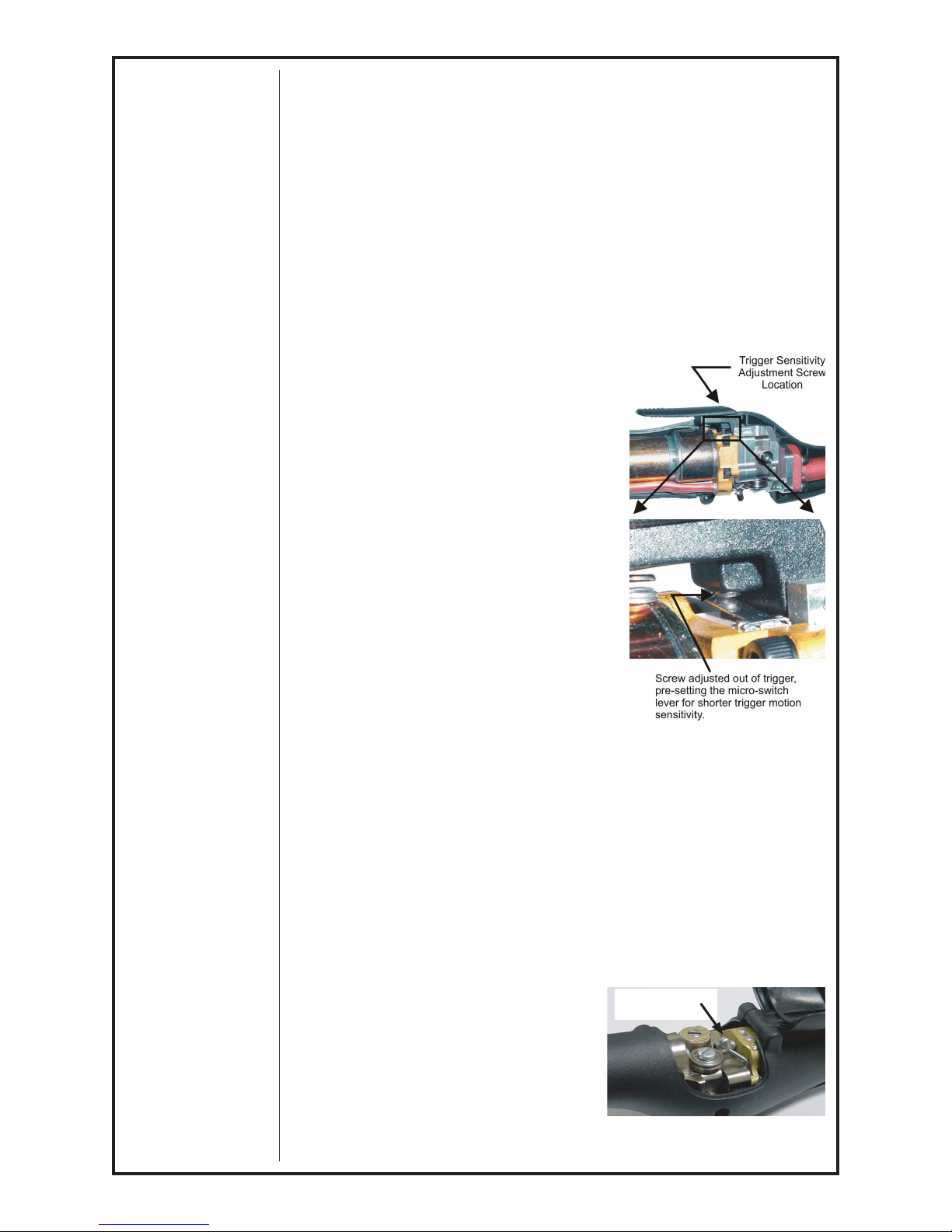

The amount of trigger level travel can be
shortened for a quicker or more responsive
action.
A more sensitive trigger lever is produced by
reducing the gap between the trigger lever
and the micro switch lever. By turning-in the
trigger sensitivity adjustment screw, it closed
the gap between the trigger lever and the
micro switch lever.
This will enable the operator to increase the
sensitivity of the trigger lever.
Sensitivity Adjustment
With the wire feeder turned on (with or
without welding wire loaded), turn the screw
in until the micro-switch is activated. Once
activated, the gun and wire feeder motors
will begin feeding wire. Retract the screw
accordingly until the system is deactivated
and adjusted to the operators' liking.
Drive Roll and Idler Rolls
The Python® comes standard with a knurled drive roll and a grooved idler
roll, which will handle both steel and aluminum wire with diameters from
.030-1/16 inch. Optional insulated V-groove drive rolls are also available for
aluminum wire if desired (see optional kits).
Drive roll tension is accomplished with a unique spring-loaded pressure
screw. The Python® comes from the factory with the pressure adjustment
screw preset.
Drive Roll Installation/Removal
Note: Neither of the handles needs to be
removed to access the drive or idler rolls.
1. Pull the cam lever away from the idler
roll. This will relieve the pressure against
the drive roll (as shown in Figure 1).
NO ADJUSTMENT REQUIRED FOR ANY WIRE SIZE AND ALLOY
Cam Lever
Figure 1
XR™ Python® Owner's Manual - Page 2
Page 15
2. Align the drive roll removal tool (P/N
931-0100) over the ats of the drive roll
(as shown in Figure 2). Hold the gun with
one hand or on a table top, with the other
hand give the removal tool a quick snapturn in the CLOCKWISE DIRECTION.
3. Once the drive roll is loose, continue to
spin drive roll in the clockwise direction to
remove the drive roll from the gun.
Figure 2
4. Install a new drive roll on the left-hand threaded shaft. The drive roll will
self-tighten when it is feeding wire.

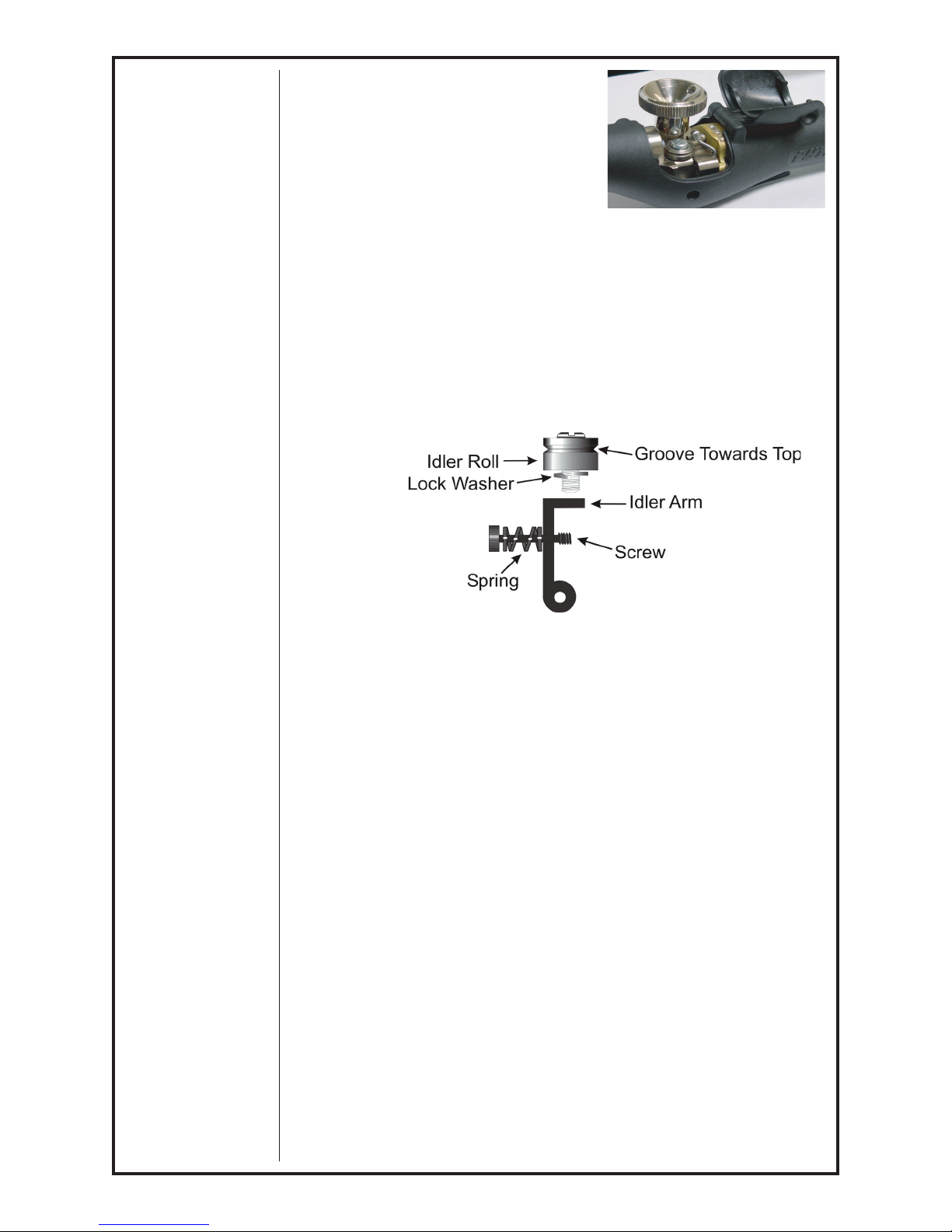

Idler Roll Installation and Removal (Reference Figure 3)
1. Using a slot type screwdriver, loosen idler screw, taking care not to lose
lock washer under idler roll.
2. Insert new idler roll and lock washer onto screw, insuring that idler groove
is toward top and lock washer is beneath.
3. Tighten screw until tight.
Figure 3
NOTE: Lock washer must be under idler roll or it will not turn freely.
Section 5 Options and Accessories
Insulated Drive Roll Kits
Used to prevent preheating of the wire which may soften it and clog the liner.
This picking up of current at the drive rolls rather than at the contact tip is
usually not a problem unless using too large of a contact tip or excessively
oxidized aluminum wire.
MK P/N Miller P/N
Insulated Groove Drive Roll Kit....................... 005-0640............215677
For .030" (0.8 mm) dia. aluminum wire. Includes insulated drive roll
P/N 511-0102 and idler roll assy. P/N 003-1870.
Insulated Groove Drive Roll Kit....................... 005-0641............215678
For .035" (0.9 mm) dia. aluminum wire. Includes insulated drive roll
P/N 511-0103 and idler roll assy. P/N 003-1870.
Insulated Groove Drive Roll Kit....................... 005-0642.............. N/A
For .040" (1.0 mm) dia. aluminum wire. Includes insulated drive roll
P/N 511-0104 and idler roll assy. P/N 003-1870.
Insulated Groove Drive Roll Kit....................... 005-0643............215687
For .045" (1.2 mm) dia. aluminum wire. Includes insulated drive roll
P/N 511-0105 and idler roll assy. P/N 003-1870.
Insulated Groove Drive Roll Kit....................... 005-0644............215684
For .062" (1.6 mm) dia. aluminum wire. Includes insulated drive roll
P/N 511-0106 and idler roll assy. P/N 003-1870.
XR™ Python® Owner's Manual - Page 3
Page 16
Replacement Kits
Handle Kit......................................................................................... 005-0699
Left and right handles, screws and drive roll door, as a replacement for all
Python® guns.
Trigger Kit......................................................................................... 005-0694
Trigger adjustment kit includes a spring and sensitivity adjustment screw
replacement for all Python® guns.
Micro Switch Kit............................................................................... 005-0701
Replacement micro switch assembly for all Python® guns.
Potentiometer Kit............................................................................. 005-0695
Replacement potentiometer assembly for all Python® guns.
Conduit
Flat spiral steel conduit for steel & cored wire ................................... 615-0216
Snake Skins
A Snake Skin protective cover is standard on the XR™ Python®. You may
order spare replacement covers to protect the lead assy of the gun when the
original becomes damaged or worn. It can easily be replaced in the eld by
means of a hook and loop type fastener.
Replacement Snake Skin .................................................................. 931-0122
Contact Tips
The XR™ Python® comes standard with genuine Miller FasTip Contact Tips.
For a complete listing of available contact tips for the XR™ Python®, please

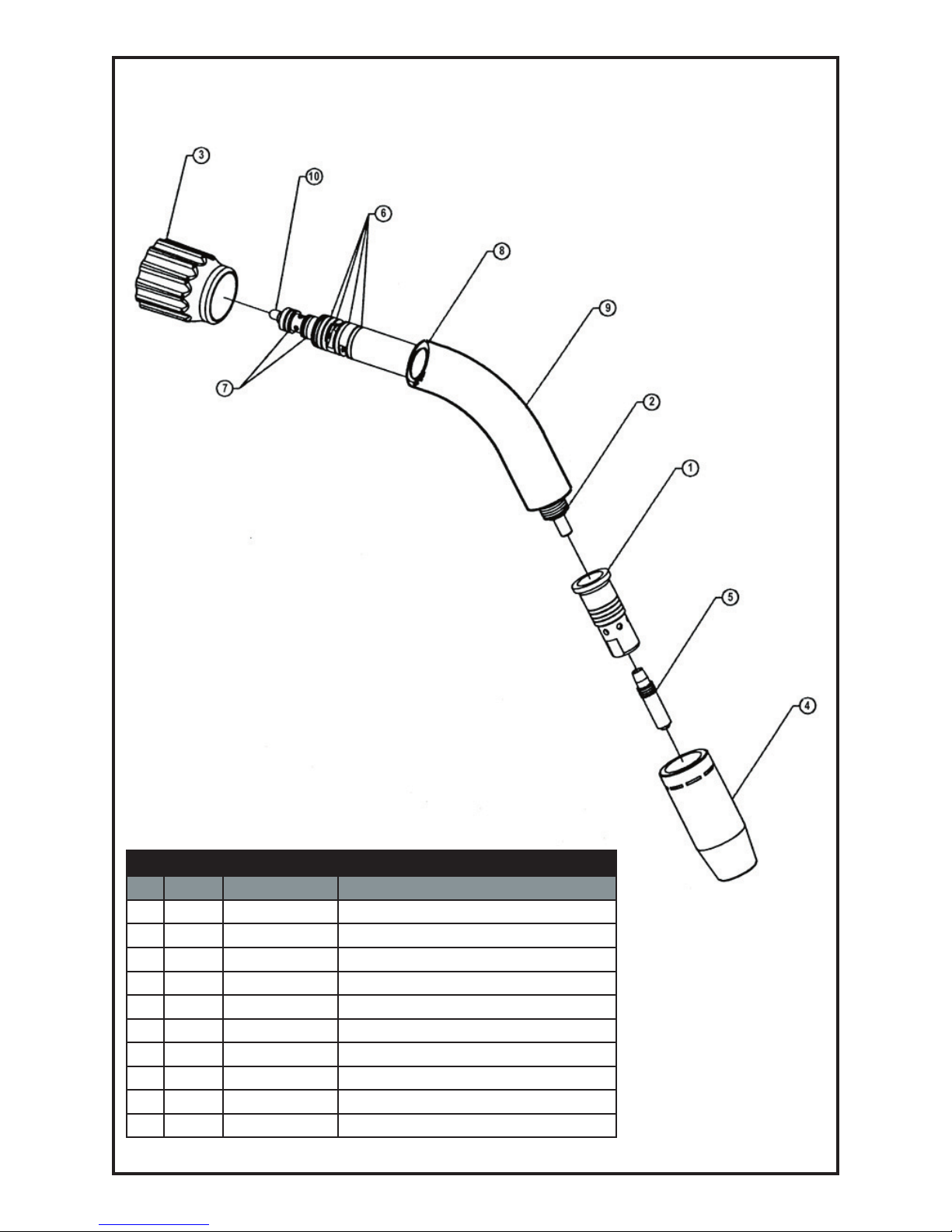

reference the XR™ Python® Barrel breakdown and Parts List later in this
manual.
Diffuser
The XR™ Python® comes standard with a genuine Miller Gas Diffuser. For a
complete listing of available diffusers for the XR™ Python®, please reference
the XR™ Python® Barrel breakdown and Parts List later in this manual.
Nozzle
The XR™ Python® comes standard with a genuine Miller Gas Nozzle. For a
complete listing of available nozzles for the XR™ Python®, please reference
the XR™ Python® Barrel breakdown and Parts List later in this manual.
Barrel
The XR™ Python® comes standard with a 60˚ curved barrel. The barrel
assembly locks to the Python® body using the patented EZ Lock™ system.
Barrel Removal and Installation
To remove the barrel assembly, loosen the patented EZ Lock™ taper lock nut
until it is clear of the threads. Pull barrel out of the gun body.
To replace a barrel assembly, push the barrel assembly into the gun body
until it stops. To assure proper seating of the barrel, open the drive/idler roll
door in the top of the handle. The rear face of the barrel should now be ush
with the gun body. Take care not to damage the o-rings when inserting into
the body. Tighten taper lock nut assembly rmly so that barrel cannot rotate
while welding.
Barrel Rotation
To rotate a barrel assembly, loosen the patented EZ Lock™ taper lock nut
assembly no more than 1 turn. Rotate barrel to the position of your choice
and re-tighten taper lock nut assembly rmly so that the barrel cannot rotate.
XR™ Python® Owner's Manual - Page 4
Page 17
WARNING: Do not attempt to weld without the barrel being tightly
secured in the gun body, or damage to the barrel or body may result.
Barrel Liner
The standard Teon liner in the XR™ Python® barrel is designed for
aluminum and other soft wire. A Steel liner is available for steel, cored and
other hard wires.
Liner Package, Teon Standard - Aluminum (5 pcs.) ........................ 931-0137
Liner, Spiral Steel - Steel and Hard Wires......................................... 615-0338
Section 6 Maintenance
Periodic Maintenance
Your XR™ Python® is designed to provide years of reliable service.
Maintenance of the gun will normally consist of a general cleaning of the wire
guide system, including barrels, drive rolls, and conduits at regular intervals.
Remove spatter build-up from inside of nozzles with a hardwood stick.
The only parts that are subject to normal wear are the conduit, contact tips,
nozzles, barrel liners, wire guides, drive and idler rolls. A supply of these
parts should be maintained on hand.
The number of units in operation and the importance of minimal down time
will determine to what extent spare parts should be stocked on hand. See
the recommended spare parts list for the most commonly replaced parts.
If repairs do become necessary, qualied shop maintenance personnel can
easily replace any part.
Maintenance Tools
Tool Part Number
Drive Roll Removal Tool 215676
Reference the table below for suggested Maintenance Tools used with the
XR™ Python® welding gun.
Testing The Gun
Reference the "X" clocked Amphenol diagram
on the XR™ Python® electrical diagram
for information about pin-outs and locations.
Motor Check
Remove the connector from the cabinet.
Using the Amphenol connector, check the resistance across pins “C” and
“B” (motor leads). The resistance across the motor should be between 5
- 10 ohms as the potentiometer is turned.
If an open circuit or short exist, check the motor leads and motor
independently.
Testing the Gun Potentiometer
Using the amphenol connector, check the resistance across pin “F”
(wiper) and pin “E”. The resistance should vary from 0 - 5K ohms as the
potentiometer is turned.
XR™ Python® Owner's Manual - Page 5
Page 18
Check the resistance across pin “F” (wiper) and pin “H”. The resistance
should vary from 5K - 0 ohms as the potentiometer is turned.
Testing the Micro Switch
Using the amphenol connector, check for continuity across pins “D” and “G”
when the trigger is pressed.
Section 7 Recommended Spare Parts
Listed in the table bale is the factory recommendation of the necessary spare
parts which should be kept on hand for maintaining proper operation of the
XR™ Python® welding gun.
Recommended Spare Parts List
Qty. Part No. Description
1 615-0008 Conduit
2 005-0694 Trigger Assy Kit
2 005-0695 Potentiometer Assy Kit
1 005-0699 Handle Kit
2 005-0701 Micro-Switch Assy Kit
10 511-0101 Drive Roll
5 005-0686 Idler Roll Kit
2 931-0137 Liner Package - 5 pieces each
A/R 206189 Contact Tips
A/R 198855 Nozzle
A/R 206195 Diffuser
This list, in no way, indicates that these parts are more likely to fail or cause
equipment damage. This is not an indication of premature failure or defect in
manufacture of said parts.
Section 8 Troubleshooting Guide
To aid in troubleshooting problems with your welding equipment, it is best
to understand the basic theory of operation for this Push-Pull System. The
slave motor in the feeder runs at a fast, constant speed, but has very low
torque. It is always trying to feed more wire than the gun motor wants,
and when the motor gets all it wants, it slows the slave motor, preventing
a bird’s nest. Because of the low torque produced by the slave motor, a
brake system is used to prevent wire overrun rather than tension. The drag
adjustment in the feeder is used simply to keep the wire slightly taut, so it will
not pull off the spool while feeding wire.
The high torque 24VDC gun motor is controlled by a solid state speed
control located in the feeder, and a pot located in the gun. The gun motor,
potentiometer, and micro switch are connected to the cabinet/control box via
a control cable and Amphenol connector. If this cable becomes damaged, a
variety of symptoms can occur, depending on which wire(s) break. To test,
check each wire for continuity and shorts.
Remember, the micro switch in the gun activates both the slave motor and
gun motor circuits in the cabinet. Therefore, if the slave motor and brake
solenoid operate, but the gun does not, look more toward the gun motor’s 24
V circuits, speed control, control cable, or the gun motor. If nothing operates,
look more toward the slave motor’s input, micro switch leads, or micro switch.
XR™ Python® Owner's Manual - Page 6
Page 19
Troubleshooting Table
Symptoms Cause Remedy
No wire feed at
gun, feeder not
operating, i.e. no
slave motor or
brake solenoid.
No wire feed
at gun, feeder
operating properly.
Wire feeds, but
welding wire is not
energized.
Wire feeds
erratically.
Wire feeds one
speed only.
Wire walks out of
drive rolls.
Circuit breaker in feeder/
control box open.
Micro-switch defective/not
being activated.
Broken electrical cable.
Circuit breaker in feeder/
control box open.
Bad potentiometer.
Broken electrical cable.
Bad speed control/PCB.
Loose or no cable
connections.
Contactor control cable
loose or in wrong
position.
Welding power source. Check power source.
Dirty or worn conduit.
Wrong size contact tip. See contact tip table.
Idler roll stuck.
Bad potentiometer. Check with meter.
Broken electrical cable.
Bad speed control.
Idler roll upside-down.
Rear wire guide missing. Replace wire guide.
Reset.
Replace switch. Check
switch for operation.
Check micro-switch wires
for continuity.
Check motor leads for
short. Reset.
Check potentiometer with
meter.
Check motor and
potentiometer wires for
continuity.
See specic feeder/
control box owner's
manual for speed control
operation.
Check all power
connections.
Check power supply
owner's manual for
location and type of
contactor signal required.
Blow out or replace
conduit.
Check for lock washer
under idler roll, or replace
if damaged.
Check potentiometer
wires for continuity or
short.
See specic feeder/
control owner's manual for
speed control operation.
Place groove in idler roll
toward top.
Consult wire feeder and welding power supply owners manuals for further
problem solving solutions.
XR™ Python® Owner's Manual - Page 7
Page 20
Section 9 Appendices
Diagrams / Parts List
XR™ Python® Parts View ........................................................ 9
XR™ Python® Bill of Material.................................................10
Python® Front Body Parts View ............................................. 11
XR™ Python® Barrel Parts View............................................12
XR™ Barrel Consumables Listing ......................................... 13
XR™ Python® Power/Gas Connector Parts View..................14
XR™ Python® Electrical/Pinout..............................................15
XR™ Python® Owner's Manual - Page 8
Page 21

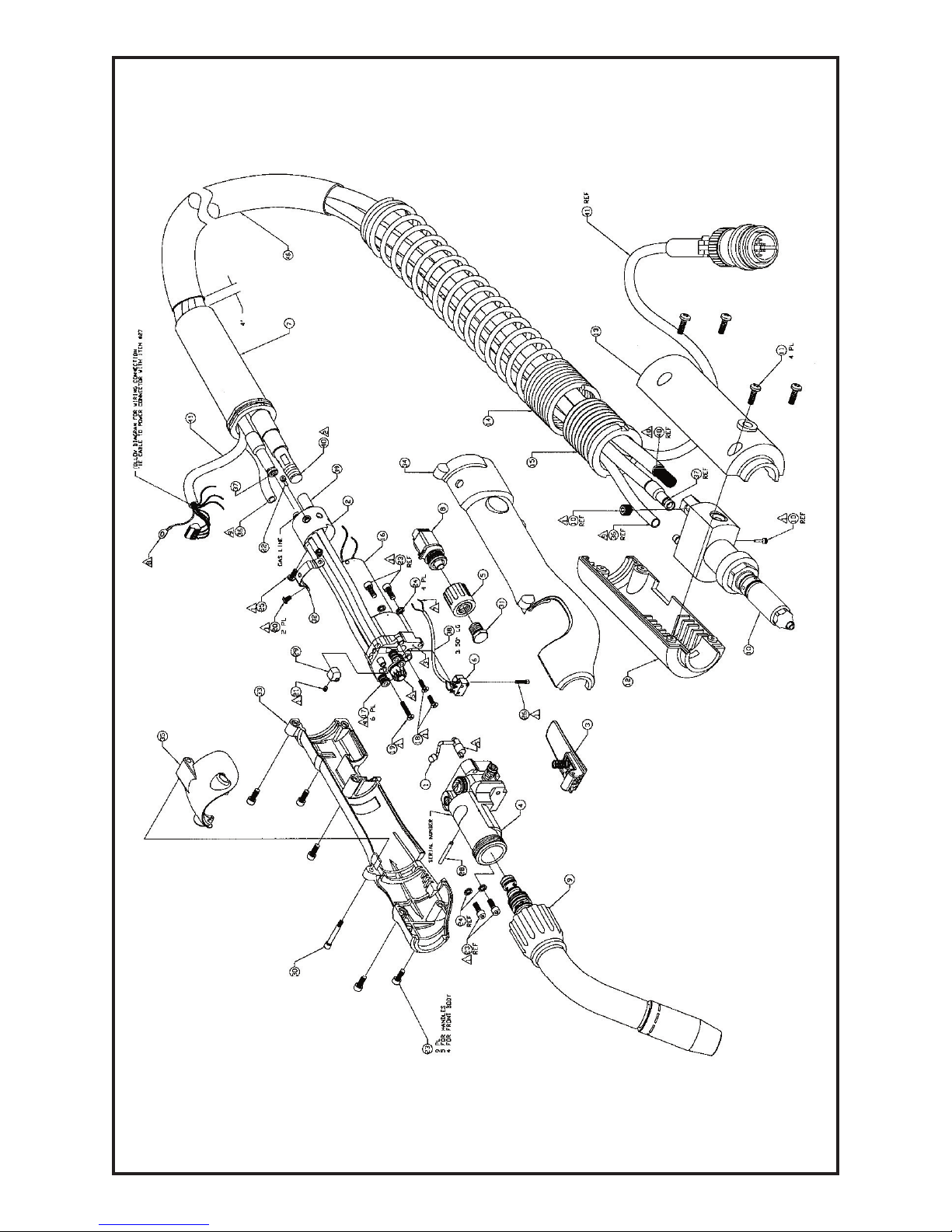

XR™ Python® - 25 Ft.
Model 195451
XR™ Python® Owner's Manual - page 9
Page 22
Parts List
®
XR™ Python
1 005-0699 Handle Kit; includes #23, 30 & 35
1 1 002-0629 Cam Idler Arm Assy 24 4 333-0005 #6 Spring Lock Washer
2 1 002-0631 Brazed Rear Body 25 1 336-0020 Screw PH Phil 4-40 x 5/16 SST
3 1 005-0694 Trigger Kit 26 1 338-0153 Screw SHC 1-72 X 3/8
4 1 003-2108 Front Body Assy 27 6 411-0045 Tie Wrap
No. Qty Part No. Description No. Qty Part No. Description
5 1 003-2125 Pot Knob Assy 28 1 421-0018 Dowel Pin 3/32 X 7/8 SST
6 1 005-0701 Micro Swx Kit 29 1 431-1591 Wire Guide
7 1 003-2153 Lead Assembly Boot 30 1 431-1622 Shoulder Screw 1/8 X 4-40
8 1 005-0695 Pot Assy Kit 31 1 431-1637 Hex Screw 3/8-20 X 3/8
9 1 003-2240 Barrel 60º, XR™ Python® 32 1 435-1585 Motor Strap
XR™ Python® Owner's Manual - page 10
10 1 003-2241 Power Pin Assy, XR™ Python® 33
11 4 145217 Screw, K40 x 12 34
12 1 189812 Housing, Power Pin Handle - Right 35 1 437-0253 Molded Door
13 1 189811 Housing, Power Pin Handle - Left 36 1 552-0225 Gas Hose, XR™ Python®
14 1 203562 Strain Relief Spring 37 1 615-0008 Conduit
15 1 203560 Spring Retainer 38 0.30 ft 737-0048 Tube Insulation 9 AWG, Clear
16 1 211-0077 Motor 39 1 751-0020 Cap Plug 0.218 ID X 0.50 LG
17 6 303-0096 O-Ring 2-007 Buna N 40 1 843-0620 Power Cable Assy, XR™ Python®
18 2 319-0254 Screw FH Phil 82 4-40 X 3/8 SST 41 1 843-0625 Control Cable Assy, XR™ Python®
19 1 319-0258 Screw FH Phil 82 4-40 X 5/8 SST 42 A/R 823-0029 Naolox Compound
20 2 320-0084 Screw Button 4-40 X 3/16 ST 43 A/R 823-0050 Thread Locking Cmpd Low Str
21 1 321-0424 Set Screw #4-40 X 1/8 SST 44 A/R 835-0006 Silicon Lubricant
22 1 321-1104 Set Screw Mod 45 A/R 835-0011 Compound Grease
23 9 328-0012 Screw SHC 6-32 x 3/8 46 1 931-0122 Snake Skin Cable Cover
Page 23

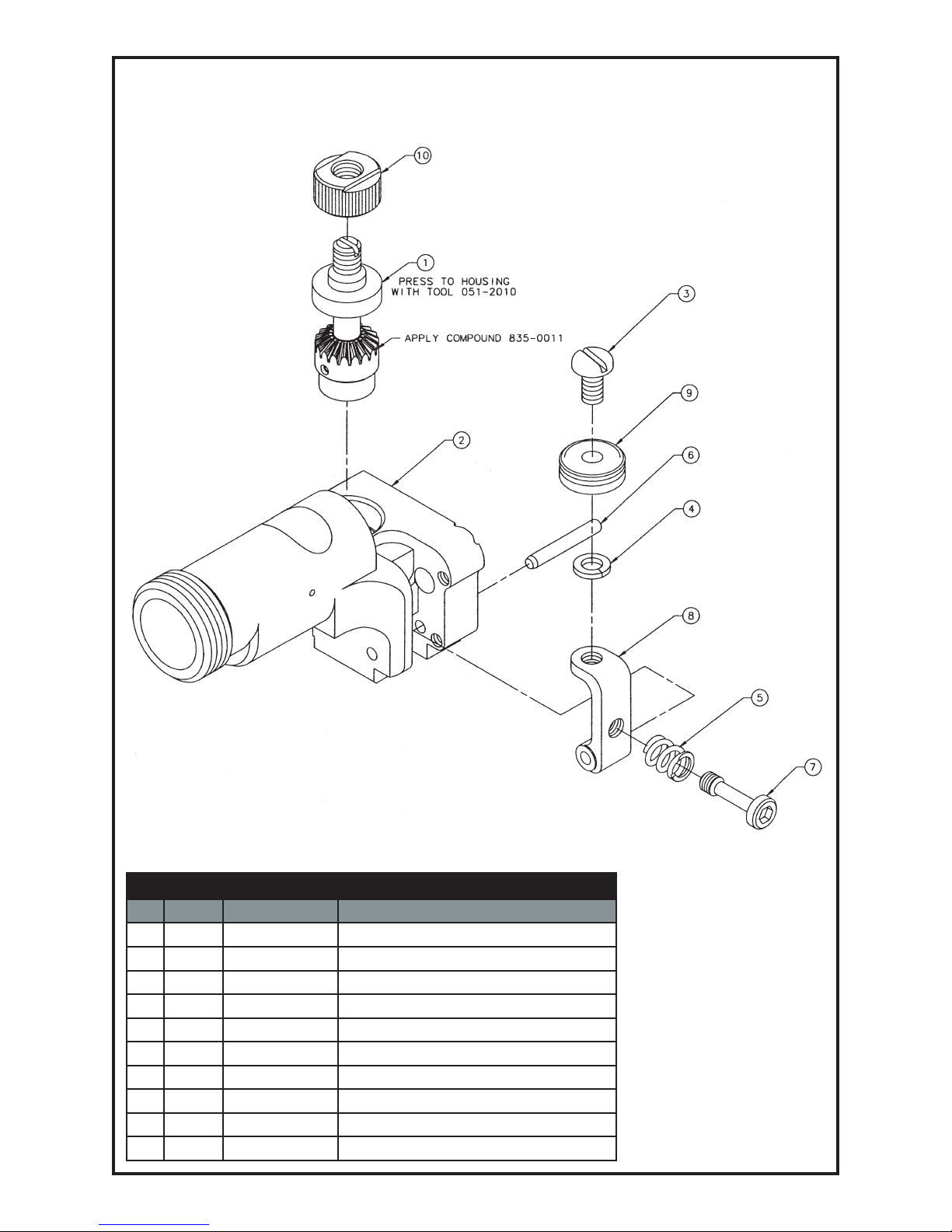

Python® Front Body Assembly
P/N 003-2108
Python® Front Body Assembly
No. Qty. Part Number Description
1 1 003-2083 Output Shaft Assembly
2 1 003-2106 Body Assembly
3 1 325-0206 10-24 x 3/8 PH Screw
4 1 333-0082 # 10 Lock Washer
5 1 419-0092 0.29 x 0.047 x 0.32 Comp. Spring
6 1 421-0525 1/8 x 7/8 SST Dowel Pin
7 1 431-1663 Idler Adjusting Screw
8 1 431-1598 Idler Arm
9 1 511-0001 Idler Wire Feed Assembly
10 1 511-0101 Drive roll
XR™ Python® Owner's Manual - page 11
Page 24
XR™ Python® Barrel Assembly - 60°
P/N 003-2240
XR™ Python® 60º Barrel Assembly
No. Qty. Part Number Description
1 1 206195* Diffuser, 1/8 Tip Recess
2 1 002-0652 Assy Barrel Bend XR Python
3 1 003-2213 Assy Taper Lock Barrel
4 1 198855* Nozzle, Copper, 5/8" Orice
5 1 206189* .052 Heavy Duty FasTip
6 4 303-0010 O-Ring, 0.489 ID x 0.629 OD
7 2 303-0094 O-Ring, 0.301 ID x 0.070 WT
8 1 313-0091 Retaining Ring
9 1 261-0157 Barrel Insulator
10 0.66ft. 931-0137 Liner, Teon Package - 5 pcs.
* Standard
XR™ Python® Owner's Manual - page 12
Page 25
XR™ Replacement Consumables
Item P/N Description
4 176238
4 176240
4 176242
4 199610
4 199611
4 199612
4 199613
4 199614
4 199615
4 199616
4 199617
4 198855
4 199618
4 207313
4 209035
4 209036
5 206177
5 206179
5 206180
5 206181
5 206182
5 206186
5 206187
5 206188
5 206189
5 206190
5 206191
5 209026
5 209027
5 209028
5 209029
5 209030
1 206195
1 210664
1 206196
A
NOZZLE, spot at
A
NOZZLE, spot inside corner
A
NOZZLE, spot outside corner
NOZZLE, screw on brass 1/2" orice
NOZZLE, screw on brass 3/4" orice straight
NOZZLE, screw on brass 3/4" orice straight heavy duty
NOZZLE, screw on brass 5/8" orice
NOZZLE, screw on brass 5/8" orice heavy duty
NOZZLE, screw on copper 1/2" orice
NOZZLE, screw on copper 3/4" orice straight
NOZZLE, screw on copper 3/4" orice straight heavy duty
NOZZLE, screw on copper 5/8" orice (standard on 300 & 400 amp models)
NOZZLE, screw on copper 5/8" orice (standard on 500 & 600 amp models)
NOZZLE, screw on copper 5/8" orice tapered 15/16 OD
B
NOZZLE, screw on copper 3/8" orice tapered
B
NOZZLE, screw on copper 1/2" orice tapered
Standard FasTip Contact Tips - 0.281 OD
.035 (0.9 mm)/.030 (0.8 mm) aluminum wire
.045 (1.2 mm)/.040 (1.0 mm) aluminum wire
.052 (1.3 mm) / 3/64 (1.2 mm) aluminum wire
1/16 (1.6 mm)
.068 (1.7 mm) or (1.6 mm) aluminum wire
Heavy Duty FasTip Contact Tips - 0.312 OD
.035 (0.9 mm) / .030 (0.8 mm) aluminum wire
.040 (1.0 mm) / .035 (0.9 mm) aluminum wire
.045 (1.2 mm) / .040 (1.0 mm) aluminum wire
.052 (1.3 mm) or 3/64 (1.2 mm) aluminum wire
1/16 (1.6 mm)
.068 (1.7 mm) or (1.6 mm) aluminum wire
Tapered FasTip Contact Tips
.035 (0.9 mm) / .030 (0.8 mm) aluminum wire
.040 (1.0 mm) / .035 (0.9 mm) aluminum wire
3/64 (1.2 mm)
.052 (1.3 mm)
1/16 (1.6 mm)
1/8 tip recess - for all standard and heavy duty FasTip contact tips (standard)
1/4 tip recess - for all standard and heavy duty FasTip contact tips
Flush tip - for standard and heavy duty FasTip contact tips
NOZZLES
CONTACT TIPS
GAS DIFFUSERS
A
Requires diffuser 209099, used with any standard or heavy duty FasTip contact tip.
B
Requires diffuser 206195, 206196 or 210664, used with any tapered FasTip contact tip.
XR™ Python® Owner's Manual - page 13
Page 26

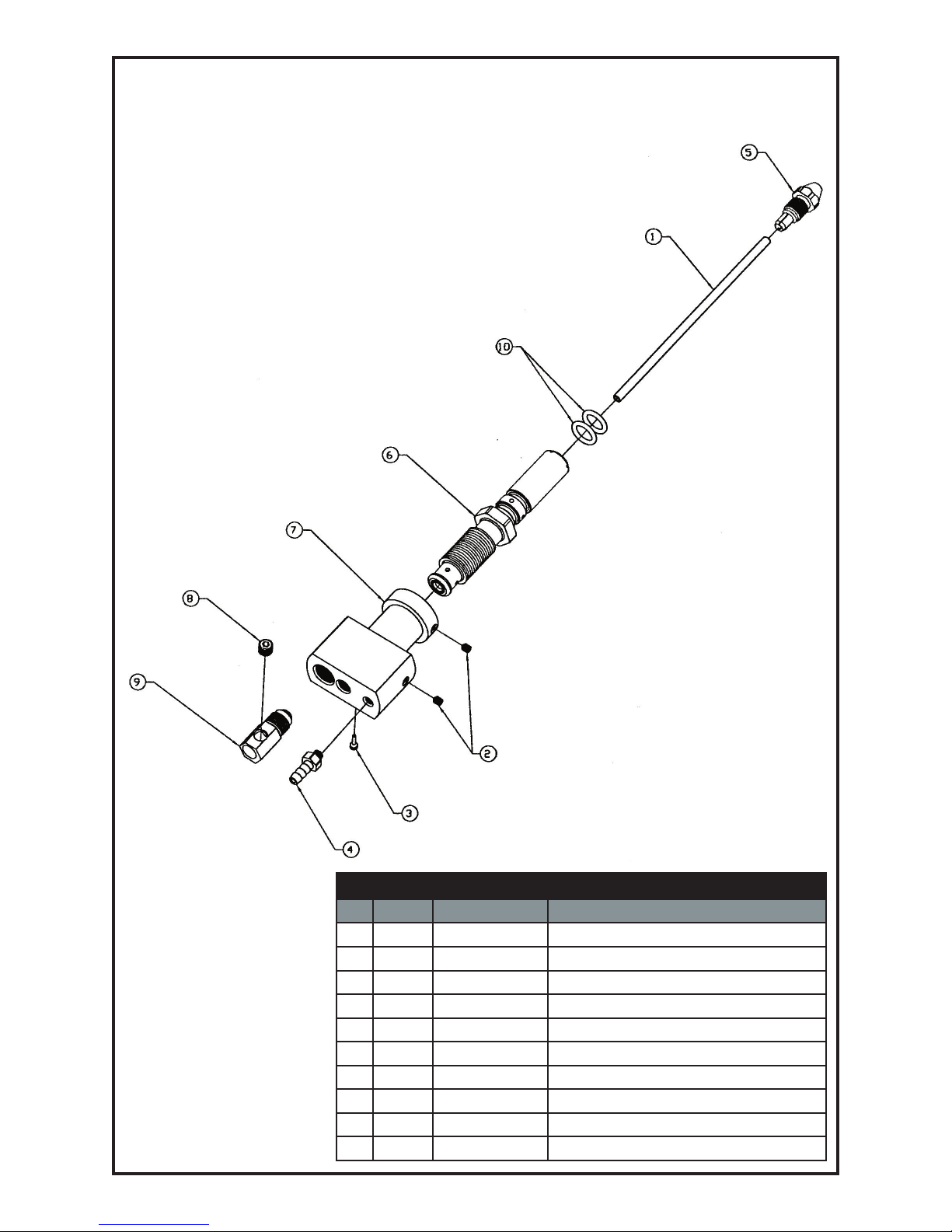

XR™ Python® Power/Gas Connector
P/N 003-2241
XR™ Python® Power/Gas Connector
No. Qty. Part Number Description
1 0.45ft 615-0351 Teon Tube Liner
2 2 602172 Set Screw, 10-32 x 18
3 1 321-1104 Set Screw, Mod Conduit
4 1 202513 Gas Hose Fitting
5 1 202216 Outlet Wire Guide
6 1 193896 Power Pin Assy
7 1 431-1743 Power Gas Connector, MODIFIED
8 1 141694 Set Screw, 5/16-18 x 0.37
9 1 137495 Power Weld Fitting
10 2 079974 O-Ring, 0.5 ID
XR™ Python® Owner's Manual - page 14
Page 27
XR™ Python® Electrical Schematic/
Connector Pinout
Polarizing Key
"X" Clocked Amphenol Connector
Viewed from back of connector
XR™ Python® Owner's Manual - page 15
Page 28
Safety Warnings
XR™ Python® Owner's Manual - page 16
Page 29
XR™ Python® Owner's Manual - page 17
Page 30
Warranty Questions?
Call
3 YEAR
LIMITED WARRANTY
Effective February 1, 2003
This warranty supersedes all previous MK Products warranties and is
exclusive, with no other guarantees or warranties expressed or implied.
1-800-4-A-MILLER
for your local Miller
distributor.
Your distributor also gives
you...
Service
You always get the fast,
reliable response you need.
Most replacement parts can
be in your hands in 24 hours.
Support
Need fast answers to the
tough welding questions?
Contact your distributor. The
expertise of the distributor
and Miller is there to help you,
every step of the way.
LIMITED WARRANTY - MK Products,Inc., Irvine, California
warrants that all new and unused equipment furnished by
MK Products is free from defects in workmanship and material as of the time and place of delivery by MK Products.
No warranty is made by MK Products with respect to trade
accessories or other items manufactured by others. Such
trade accessories and other items are sold subject to the
warranties of their respective manufacturers, if any.
MK Products’ warranty does not apply to components having
normal useful life of less than one (1) year, such as relay
points, wire conduit, tungsten, and welding gun parts that
come in contact with the welding wire, including gas cups,
gas cup insulators, and contact tips where failure does not
result from defect in workmanship or material.
MK Products’ shall, exclusively remedy the limited warranty
or any duties with respect to the quality of goods, based
upon the following options:
(1) repair
(2) replacement
(3) where authorized in writing by MK Products, the reason-
able cost of repair or replacement at our Irvine, California
plant; or
(4) payment of or credit for the purchase price (less reasonable depreciation based upon actual use) upon return of
the goods at customer’s risk and expense. Upon receipt
of notice of apparent defect or failure, MK Products shall
instruct the claimant on the warranty claim procedures to
be followed.
As a matter of general policy only, MK Products may honor
an original user’s warranty claims on warranted equipment
in the event of failure resulting from a defect within the
following periods from the date of delivery of equipment
to the original user:
1. Guns.................................................................. 1 year
2. Repairs .......................................................... 90 days
A copy of the invoice showing the date of sale must
accompany products returned for warranty repair or
replacement.
All equipment returned to MK Products for service must
be properly packaged to guard against damage from shipping. MK Products will not be responsible for any damages
resulting from shipping.
Normal surface transportation charges (both ways) for
products returned for warranty repair or replacement will
be borne by MK Products, except for products sold to
foreign markets.
ANY EXPRESS WARRANTY NOT PROVIDED HEREIN
AND ANY IMPLIED WARRANTY, GUARANTY, OR REPRESENTATION AS TO PERFORMANCE, AND ANY REMEDY
FOR BREACH OF CONTRACT WHICH, BUT FOR THIS
PROVISION, MIGHT ARISE BY IMPLICATION, OPERATION OF LAW, CUSTOM OF TRADE, OR COURSE OF
DEALING, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR OF FITNESS FOR PARTICULAR
PURPOSE, WITH RESPECT TO ANY AND ALL EQUIPMENT FURNISHED BY MK PRODUCTS, IS EXCLUDED
AND DISCLAIMED BY MK PRODUCTS.
EXCEPT AS EXPRESSLY PROVIDED BY MK PRODUCTS
IN WRITING, MK PRODUCTS ARE INTENDED FOR
ULTIMATE PURCHASE BY COMMERCIAL/INDUSTRIAL
USERS AND FOR OPERATION BY PERSONS TRAINED
AND EXPERIENCED IN THE USE AND MAINTENANCE
OF WELDING EQUIPMENT AND NOT FOR CONSUMERS
OR CONSUMER USE. MK PRODUCTS WARRANTIES
DO NOT EXTEND TO, AND NO RE-SELLER IS AUTHORIZED TO EXTEND MK PRODUCTS’ WARRANTIES TO
ANY CONSUMER.
USE OF OTHER THAN
CONSUMABLES, PARTS, AND ACCESSORIES MAY
INVALIDATE YOUR PRODUCT WARRANTY.
GENUINE
MK PRODUCTS’
Classication of any item into the foregoing categories
shall be at the sole discretion of MK Products. Notication
of any failure must be made in writing within 30 days of
such failure.
Warranty on the XR Python Welding Gun is recognized and administered by the
original equipment manufacturer, hence forth known as MK Products, Inc.
16882 Armstrong Ave.
Irvine, CA 92606
Tel (949)863-1234
Fax (949)474-1428
www.mkproducts.com
DATE: February 1, 2003
Page 31
PRINTED IN USA � 2003 Miller Electric Mfg. Co. 1/03
Miller Electric Mfg. Co.
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
International Headquarters–USA
USA Phone: 920-735-4505 Auto-Attended
USA & Canada FAX: 920-735-4134
International FAX: 920-735-4125
European Headquarters –
United Kingdom
Phone: 44 (0) 1204-593493
FAX: 44 (0) 1204-598066
www.MillerWelds.com
Model Name Serial/Style Number
Purchase Date (Date which equipment was delivered to original customer.)
Distributor
Address
City
State Zip
Please complete and retain with your personal records.
Always provide Model Name and Serial/Style Number.
Call 1-800-4-A-Miller or see our website at www.MillerWelds.com
to locate a DISTRIBUTOR or SERVICE AGENCY near you.
Welding Supplies and Consumables
Options and Accessories
Personal Safety Equipment
Service and Repair
Replacement Parts
Training (Schools, Videos, Books)
Technical Manuals (Servicing Information
and Parts)
Circuit Diagrams
Welding Process Handbooks
Contact the Delivering Carrier to:
For Service
Owner’s Record
File a claim for loss or damage during
shipment.
For assistance in filing or settling claims, contact
your distributor and/or equipment manufacturer’s
Transportation Department.
Contact your Distributor for:
Miller Electric Mfg. Co.
An Illinois Tools Works Company
1635 Spencer Street
Appleton, WI 54914 USA
International Headquarters-USA
USA Phone: 920-735-4505 Auto-Attended
USA & Canada FAX: 920-735-4125
European Headquarters-United
Kingdom
Phone: 44 (0) 1204-593493
FAX: 44 (0) 1204-598066
www.MillerWelds.com
Loading...
