Millenium MPS-400 User Manual

MPS-400

e-drum module

user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de

20.07.2015, ID: MPS-400

Table of contents

1 General notes............................................................................................................................................... 5

2 Safety instructions..................................................................................................................................... 7

3 Features....................................................................................................................................................... 10

4 Installation.................................................................................................................................................. 11

5 Operating elements............................................................................................................................... 14

6 Operation.................................................................................................................................................... 21

6.1 Functions............................................................................................................................................. 21

6.2 Playing, customising and accompanying songs.................................................................. 24

6.3 Creating drum kits .......................................................................................................................... 26

6.4 Adjusting pad settings................................................................................................................... 31

7 Technical specifications....................................................................................................................... 38

8 Cleaning....................................................................................................................................................... 40

9 Protecting the environment.............................................................................................................. 41

Table of contents

MPS-400

3

10 Appendix..................................................................................................................................................... 42

10.1 Voice list............................................................................................................................................ 42

10.2 Kit list.................................................................................................................................................. 51

10.3 Song list............................................................................................................................................. 53

10.4 MIDI implementation................................................................................................................... 54

Table of contents

e-drum module

4

1 General notes

This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to other users, be sure
that they also receive this manual.

Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.

This section provides an overview of the symbols and signal words used in this user manual.Symbols and signal words

General notes

MPS-400

5

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an

immediate dangerous situation that will result in death or
serious injury if it is not avoided.

CAUTION! This combination of symbol and signal word indicates a pos‐

sible dangerous situation that can result in minor injury if it
is not avoided.

NOTICE! This combination of symbol and signal word indicates a pos‐

sible dangerous situation that can result in material and
environmental damage if it is not avoided.

Warning signs Type of danger

Warning – danger zone.

General notes

e-drum module

6

2 Safety instructions

Drum modules are intended to be used for converting digital trigger signals from drum pads
to various percussion sounds. Use the unit only as described in this manual. Any other use or
use under other operating conditions is considered to be improper and may result in personal
injury or property damage. No liability will be assumed for damages resulting from improper
use.

This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.

Intended use

Safety instructions

MPS-400

7

DANGER!
Danger for children

Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!

Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!

Never let children unattended use electrical devices.

CAUTION!
Possible hearing damage

With loudspeakers or headphones connected, the device can produce volume
levels that may cause temporary or permanent hearing impairment.

Do not operate the device permanently at a high volume level. Decrease the
volume level immediately if you experience ringing in your ears or hearing
impairment.

Safety

Safety instructions

e-drum module

8

NOTICE!
Operating conditions

This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.

NOTICE!
External power supply

The device is powered by an external power supply. Before connecting the
external power supply, ensure that the input voltage (AC outlet) matches the
voltage rating of the device and that the AC outlet is protected by a residual cur‐
rent circuit breaker. Failure to do so could result in damage to the device and pos‐
sibly the user.

Unplug the external power supply before electrical storms occur and when the
device is unused for long periods of time to reduce the risk of electric shock or
fire.

Safety instructions

MPS-400

9

3 Features

n 307 voices
n 20 pre-installed drum kits, 30 user kits
n 50 pre-installed songs
n Click function
n Flexible assignment of the pad voices
n Programming of various pad parameters like touch velocity, sensitivity etc.
n Reverb effect and voice tuning
n Individual adjustment of accompaniment and drum track
n Headphones, AUX and MIDI connections

Features

e-drum module

10

4 Installation

Setup and installation of the pads and pedals are described in detail in the included setup
guide. Finally, check that all connecting cables between the pads and the drum module are
connected correctly.

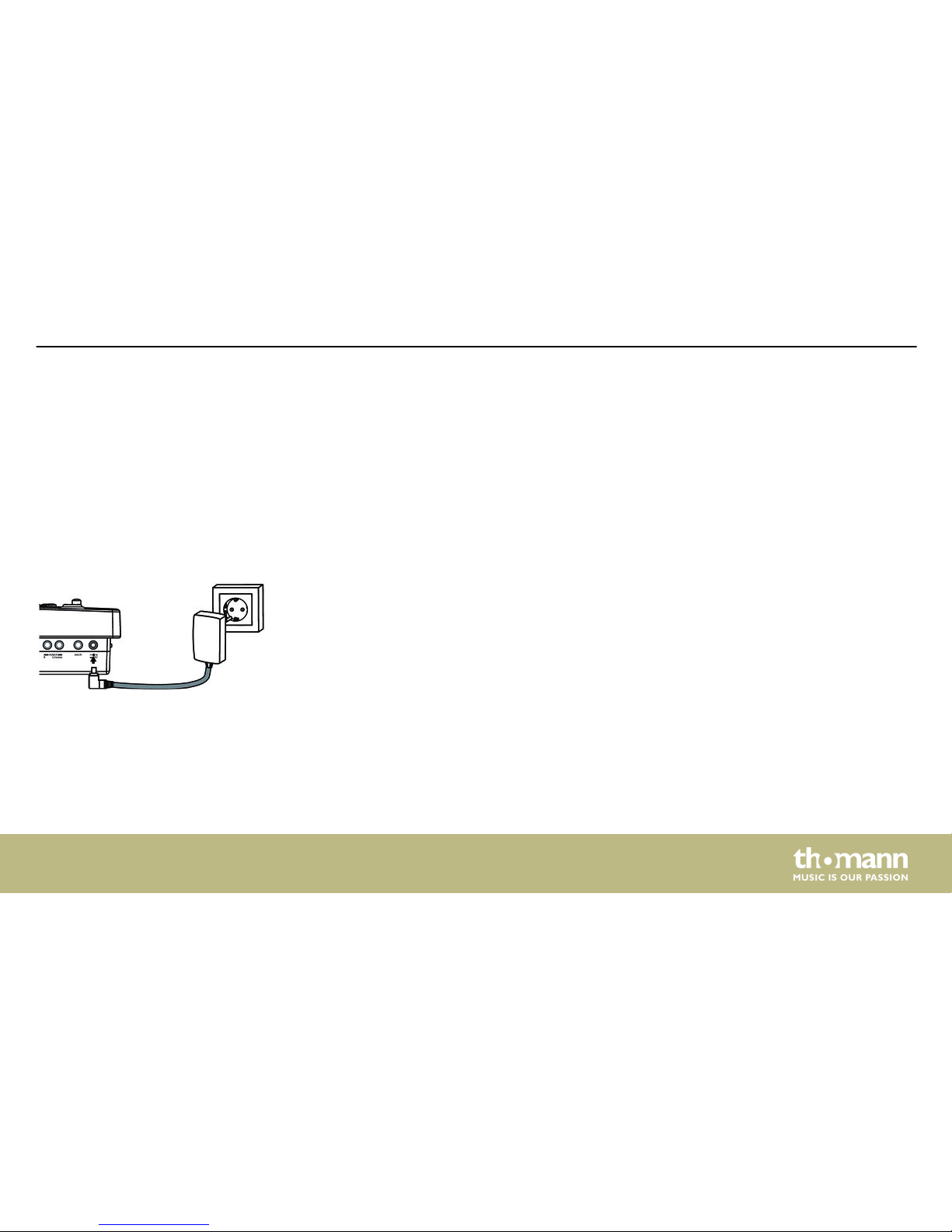

Connect the supplied power adapter to the 9 V input of the device and then insert the mains
plug into a mains wall outlet.

Setup, connecting pads and
pedals

Connecting the power supply

Installation

MPS-400

11

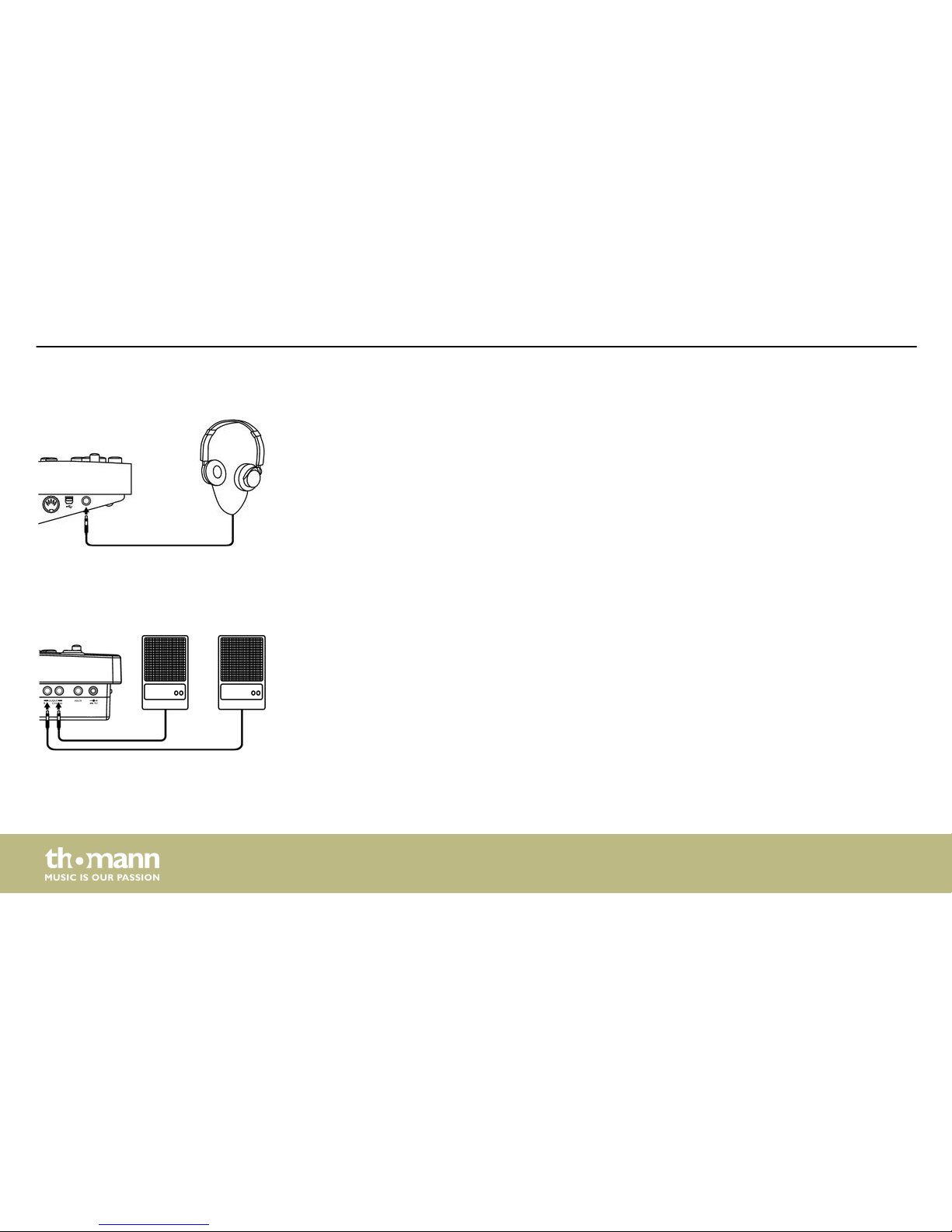

Connect your stereo headphones to the PHONES output of the drum module.

Connect the inputs of your amplifier or powered speaker to the ‘OUTPUT’ sockets of the drum
module. When using a mono amp, connect its input to the ‘L/MONO’ output socket of the
module.

Connecting headphones

Connecting audio devices

Installation

e-drum module

12

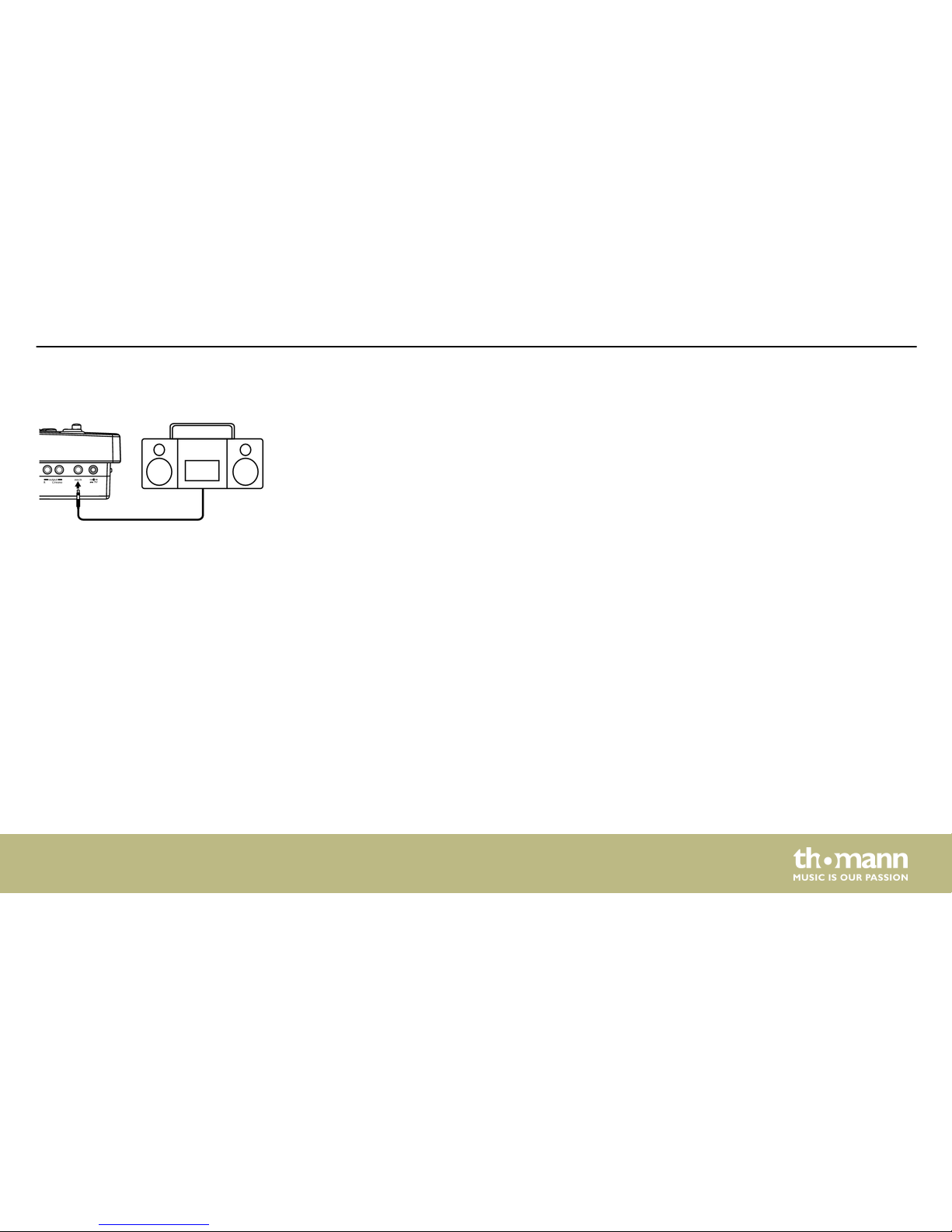

Connect CD or MP3 player to the ‘AUX IN’ input of the drum module.

Connect external MIDI devices to the ‘MIDI IN/OUT’ connections of the drum module.

Connect external MIDI devices or your computer to the USB connection of the drum module.

Connecting CD or MP3 player

Connecting MIDI devices

Connecting USB devices

Installation

MPS-400

13

5 Operating elements

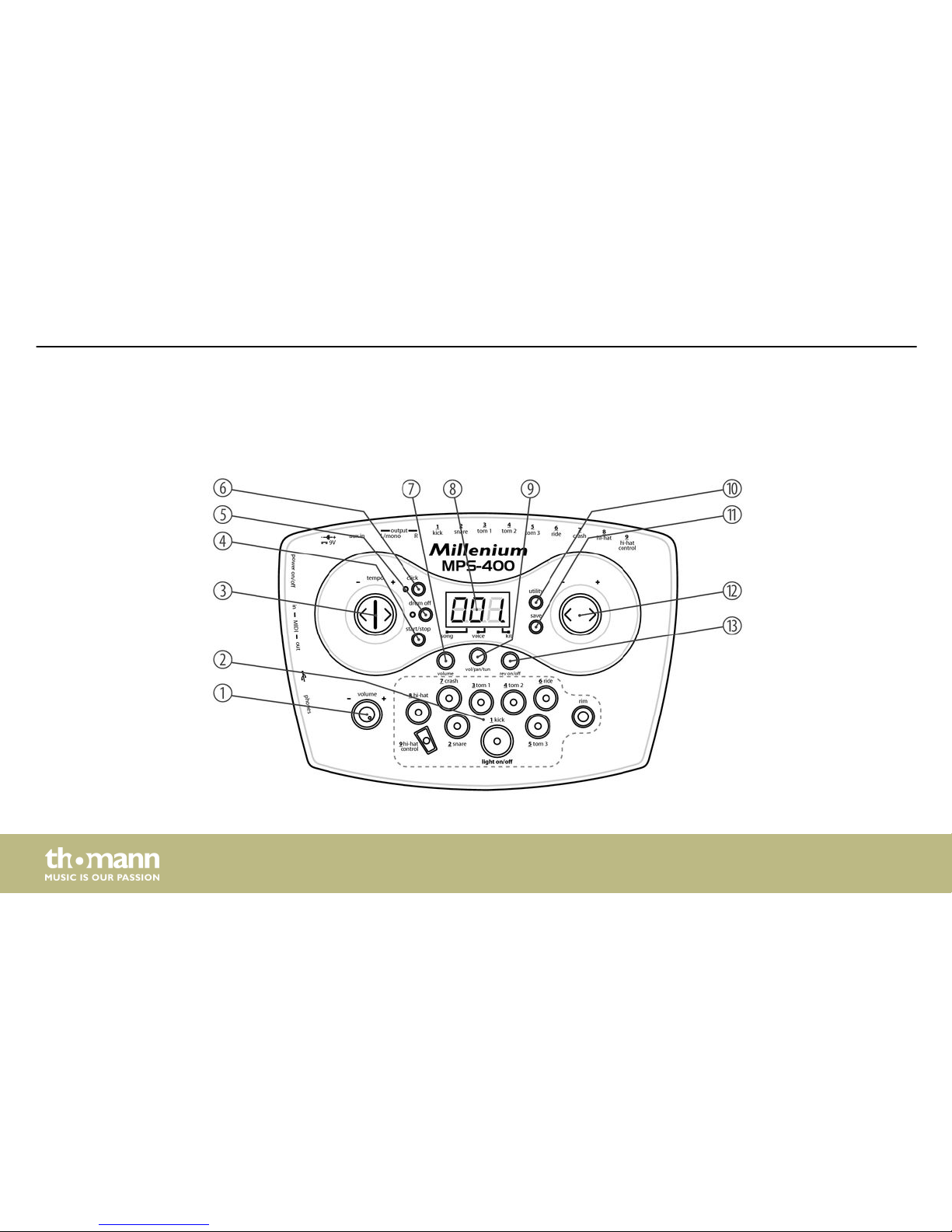

Front panel

Operating elements

e-drum module

14

1 [volume]

Volume control for headphones and line out.

2 Pad selection field

Buttons with integrated indicator LED for activating and playing the pads.

3 [tempo –/+]

Button for adjusting the metronome and playback tempo. Press the [–] or [+] button briefly to increase or decrease
the indicated value by one. Keep the [–] or [+] button pressed to increase or decrease the value quickly.

4 [start/stop]

Button for starting and stopping song playback.

5 [drum off]

Button for muting the drum part.

6 [click]

Button for turning the metronome on or off.

Operating elements

MPS-400

15

7 [song — volume]

Button for opening the Song menu and volume indication.

8 3-digit LED display.
9 [voice — vol/pan/tun]

Button for opening the Voice menu and volume indication.

10 [utility]

Button for opening the Utility menu.

11 [save]

Button for saving settings.

12 [–] / [+]

Button for song and kit selection and for adjusting of the various parameters and values. Press the [–] or [+] button
briefly to increase or decrease the indicated value by one. Keep the [–] or [+] button pressed to increase or decrease
the value quickly.

13 [kit — rev on/off]

Button for opening the Kit menu and for turning the reverb effect on or off.

Operating elements

e-drum module

16

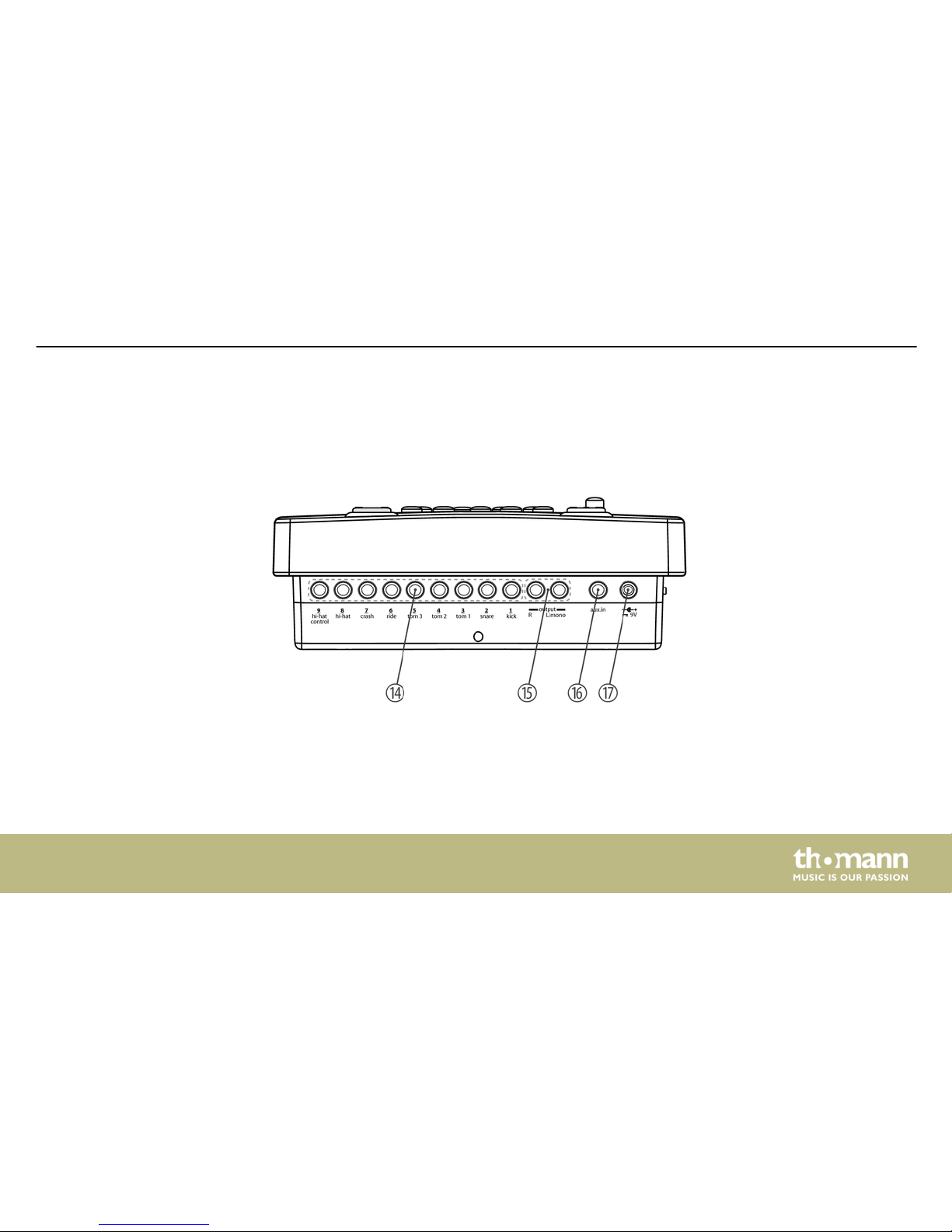

Rear panel

Operating elements

MPS-400

17

14 Connection sockets for the pads.
15 – output – R / L/mono

Output to connect external audio devices (mono / stereo).

16 aux.in

Input for external audio devices like MP3 or CD player.

17 9 V

Connection socket for the power supply adapter.

Operating elements

e-drum module

18

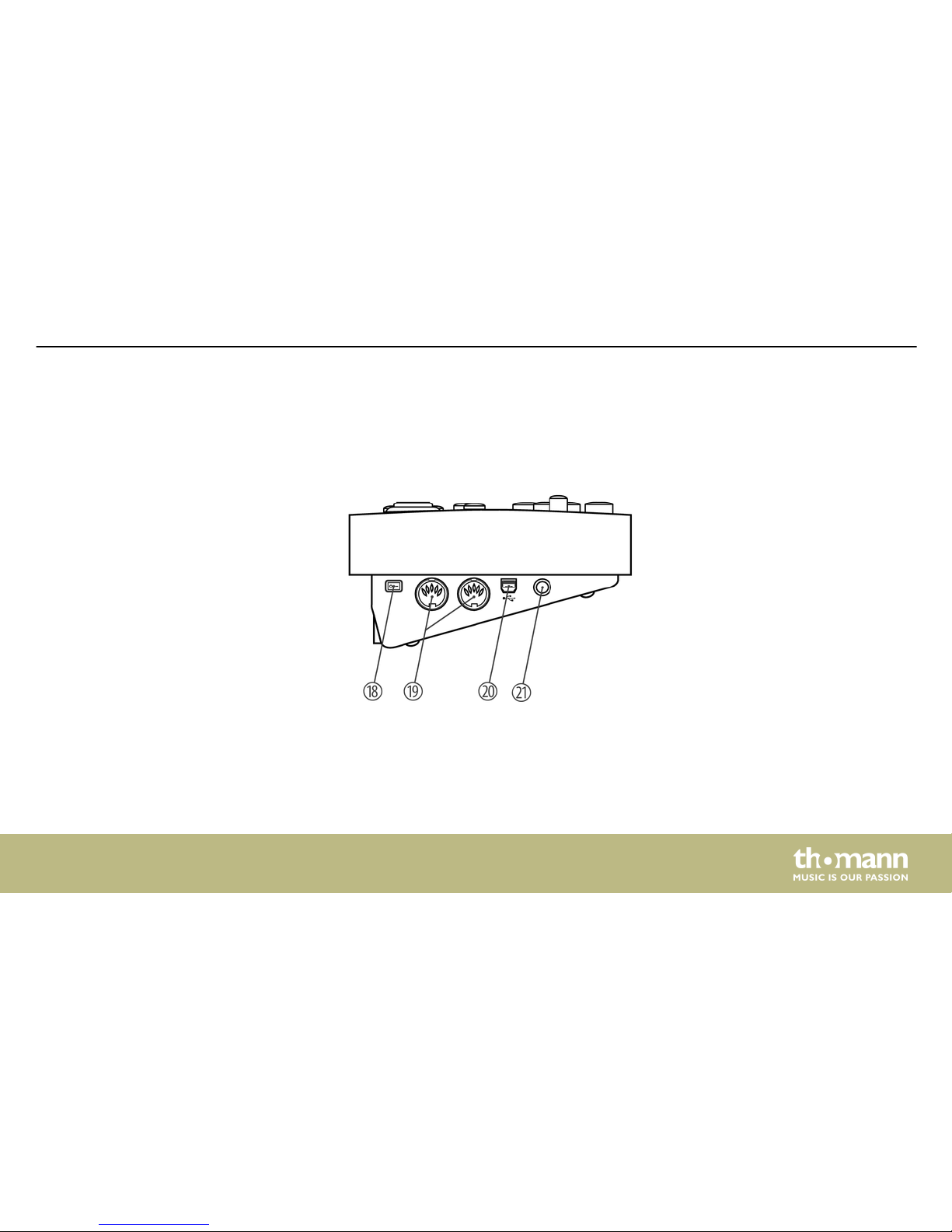

Side view

Operating elements

MPS-400

19

18 power on/off

Main switch to turn the device on or off.

19 in–MIDI–out

Connection sockets for an external MIDI device.

20 Connection socket for USB cable.
21 phones

Headphones socket.

Operating elements

e-drum module

20

6 Operation

6.1 Functions

Check for proper connection of all cables before switching the unit on.
Before switching the unit on, turn the [volume] control down to minimum.

Automatic switchoff
– When the device is not used, it will switch off automatically after 30 minutes. To

switch it on again, switch to the ‘OFF’ position and then to the ‘ON’ position.
Deactivating the automatic switchoff
– To deactivate the automatic switchoff, press and hold the [START/STOP] button

while you switch on the device.

Use the main switch [power on/off] on the side panel to turn the unit on.

Switching on

Operation

MPS-400

21

To set the volume, hit a pad while slowly turning the [volume] control clockwise.

A drum kit is a compilation in which each trigger is assigned to a certain sound and several
sound parameters. By selecting a drum kit, you can tailor the sound of your e-drum kit in sec‐
onds to the desired style of music. In addition to the 20 preset drum kits, you can create and
save 30 user drum kits (see Ä Chapter 10.2 ‘Kit list’ on page 51).

1. Press the [kit] button.

ð

The display shows the current kit number and the KIT LED lights up.

2. Use the [–] and [+] buttons to select the desired kit.

In Kit menu, you can turn the reverb effect for the selected drum set on or off.

1. Press the [kit] button again.

ð

The display shows the current setting in ‘roN’ or ‘roF’ format.

2. Use the [–] and [+] buttons to toggle between both options.

3. Press the [kit] button again to return to kit number display.

Adjusting the volume

Selecting a drum kit

Reverb effect

Operation

e-drum module

22

1. Press the [click] button to turn the Click function on.

ð

The indicator LED flashes, the Click comes with click sound by default.

2. Press the [click] button again to change the click sound to ‘human voice’.

3. Press the [click] button a third time to turn the Click function off.

After switching on, you can change the click volume in a range of 0 to 16 using the [–] and [+]
buttons. To do so, keep the [click] button pressed. The display shows the set value in ‘Cxx’
format.

Use the [tempo –/+] button to change the click tempo in a range of 30 to 280 beats per minute.
Use the [–/+] button to set the time signature to 2/4, 3/4, 4/4, 5/4 or 6/8.

To reset the click tempo to the default value ‘110’ press the middle of the [tempo –/+]
button.

The click function can be turned on or off during playback.

Click function

Operation

MPS-400

23

Click tempo and time signature are automatically adjusted during song playback.

6.2 Playing, customising and accompanying songs

Your digital drum set offers 50 pre-installed songs in total. When turning the drum module on,
song ‘001’ is shown on the display by default.

1. Press the [song — volume] button.

ð

The display shows the song number, the Song LED on the 3-digit display lights up.

2.

Use the [–] and [+] buttons to select the desired song (see

Ä

Chapter 10.3 ‘Song list’

on page 53).

1. Select the desired song as described above.

2. Start or stop the playback with [start/stop].

Selecting a song

Playing a song

Operation

e-drum module

24

During playback, the indicator LEDs of the played pads light up. Press the [kick]
button to turn the function on or off.

1. Press the [song — volume] button.

ð

The display shows the song volume in ‘Axx’ format.

2. Use the [–] and [+] buttons to adjust the volume in a range of 00 to 32.

1. Press the [song — volume] button repeatedly until the display shows the song number

again.

2. Use the [tempo –/+] button to adjust the playback tempo (setting range: 30 to 280 beats

per minute).

Adjusting song volume

Adjusting the playback tempo

Operation

MPS-400

25

To reset the playback speed to the default value (display value ‘110’) press the middle
of the [tempo –/+] button.

After two seconds, the display automatically returns to the song number indication.

Any time during song playback, the drum track can be muted.

1. Press the [drum off] button to mute the drum sound of the song.

ð

The indicator LED lights up as long as the part is muted.

2. Press the [drum off] to unmute the drum track.

6.3 Creating drum kits

The 307 pre-installed voices of the drum module can be freely programmed to the connected
pads. In other words, you can create your own drum kits and store them in the unit. The fol‐
lowing sections describe how to create your own kits.

Muting the drum sound

Operation

e-drum module

26

To programme a certain voice to a pad, proceed as follows:

1. Press the [voice — vol/pan/tun] button.

ð

The display indicates the current voice number, the Voice LED on the 3-digit display
lights up.

2. Press the button of the pad you want to programme a certain voice for. Alternatively,

you can directly activate the pad by playing it.

ð

The display shows the number of the currently assigned voice. The indicator LED of
the pad lights up.

3.

Select the desired voice using the [–]/[+] button (see Ä Chapter 10.1 ‘ Voice list’
on page 42).

4. Repeat steps 2 to 3 to assign the other pads as desired.

Press the [rim] button in the pad selection field to programme a rim voice to the snare
pad or an edge voice to the crash or ride cymbal.

Assigning a voice

Operation

MPS-400

27

You may adjust the volume of the individual pads independently from the others. To do so,
proceed as follows:

1. Press the [voice — vol/pan/tun] button repeatedly, until the display shows the volume of

the current selection in ‘Lxx’ format.

2. Press the button of the pad whose volume you want to change. Alternatively, you can

directly activate the pad by playing it.

ð

The indicator LED of the pad lights up.

3. Adjust the volume using the [–]/[+] button (setting range: 0 to 32).

4. Repeat steps 2 to 3 to adjust the volume of the other pads as desired.

Adjusting the volume of the
pads

Operation

e-drum module

28

You may adjust each pad within the stereo panorama independently from the others. To do so,
proceed as follows:

1. Press the [voice — vol/pan/tun] button repeatedly, until the display shows the setting of

the current selection in ‘P x’ format.

2. Press the button of the pad whose panorama setting you want to change. Alternatively,

you can directly activate the pad by playing it.

ð

The indicator LED of the pad lights up.

3. Adjust the panorama setting using the [–]/[+] button (setting range: from P-8 = left via

0 = centre to P8 = right).

4. Repeat steps 2 to 3 to adjust the panorama setting of the other pads as desired.

Adjusting the R/L panorama of
the pads

Operation

MPS-400

29

You may adjust the pitch of each pad independently from the others. To do so, proceed as fol‐
lows:

1. Press the [voice — vol/pan/tun] button repeatedly, until the display shows the setting of

the current selection in ‘t x’ format.

2. Press the button of the pad whose pitch you want to change. Alternatively, you can

directly activate the pad by playing it.

ð

The indicator LED of the pad lights up.

3. Adjust the pitch using the [–]/[+] button (setting range: t -8 to t 8).

4. Repeat steps 2 to 3 to adjust the pitch setting of the other pads as desired.

After you have assigned all the pads with the desired voices and adjusted the settings for
volume, panorama and pitch you can save the settings as a user kit in the unit. To do so, pro‐
ceed as follows:

1. Press the [save] button.

ð

The display shows the first unused memory slot (‘021’ ).

2. Select the desired memory slot using the [–]/[+] (range: 021 to 050).

3. Press the [save] button again to save your user kit as the desired number.

Adjusting the pitch of the pads

Storing settings

Operation

e-drum module

30

Any unsaved changes are discarded when you turn the drum module off.

6.4 Adjusting pad settings

You can change various pad and device parameters using the utility menu. Press the [utility]
button to open the menu and to jump to the following parameter (see table).

Parameter, display Description Value range

Gain Touch sensitivity of the pads 01 … 16
Rim Sensitivity Rim sensitivity 1 … 8
Crosstalk Crosstalk 01 … 16

Operation

MPS-400

31

Parameter, display Description Value range

Curve Dynamic range 1 … 6
Splash Sensitivity Touch sensitivity of the hi-hat –4 … 4
Local To determine, which MIDI signals are processed

(connected pads or external MIDI sequencer)

ON/OFF

MIDI OUT Format Determines the MIDI output format intern/GM

1. Press the [utility] button until the display shows the current touch sensitivity in format

‘Exx’ .

2. Press the button of the pad whose touch sensitivity you want to change. Alternatively,

you can directly activate the pad by playing it.

3. Adjust the touch sensitivity using the [–]/[+] button.

4. Repeat steps 2 to 3 to adjust the touch sensitivity of the other pads as desired.

5. Press [utility] to jump to the next parameter.

Touch sensitivity of the pads

Operation

e-drum module

32

1. Press the [utility] button until the display shows the current touch sensitivity of the Rim

triggers in format ‘rEx’ .

2. Activate the crash or ride cymbal, or the snare by keystroke or direct playing.

3. Adjust the Rim sensitivity using the [–]/[+] button.

4. Repeat steps 2 to 3 to adjust all rim triggers as desired.

5. Press [utility] to jump to the next parameter.

If you select a pad without rim trigger the display shows the value ‘rE-’ and you can't
make any changes.

When several pads are mounted on the same rack, vibrations may be transferred to other pads
and, thus, unwanted sounds are triggered when striking a pad. This crosstalk can be prevented
by the temporary suppression of the trigger signal.

Rim sensitivity

Crosstalk

Operation

MPS-400

33

1. Press the [utility] button until the display shows the current signal suppression time in

‘oxx’ format.

2. Press the button of the pad whose signal suppression time you want to change. Alterna‐

tively, you can directly activate the pad by playing it.

3. Adjust the signal suppression time using the [–]/[+] button.

4. Repeat steps 2 to 3 to adjust the signal suppression time of the other pads as desired.

5. Press [utility] to jump to the next parameter.

The signal suppression time should be set as short as possible.

Via the drum module, you can adjust the dynamic range, i.e. the signal-to-noise ratio of each
pad.

Dynamic range

Operation

e-drum module

34

1. Press the [utility] button until the display shows the current dynamic setting in ‘CUx’

format .

2. Press the button of the pad whose dynamic range you want to change. Alternatively,

you can directly activate the pad by playing it.

3. Adjust the dynamic using the [–]/[+] button.

4. Repeat steps 2 to 3 to adjust the dynamic of the other pads as desired.

5. Press [utility] to jump to the next parameter.

1. Press the [utility] button until the display shows the current touch sensitivity of the hi-hat

in ‘Fxx’ format.

2. Adjust the touch sensitivity using the [–]/[+] button.

3. Press [utility] to jump to the next parameter.

You can use the ‘Local’ setting to determine whether the drum module processes the MIDI sig‐
nals of the connected pads (default setting ‘Lon’ ) or the signals of an external MIDI sequencer
(‘Lof’ ).

Touch sensitivity of the hi-hat

MIDI processing

Operation

MPS-400

35

1. Press the [utility] button until the display shows the current setting ‘Lon’ or ‘Lof’ .

2. Use the [–]/[+] button to toggle between ‘Lon’ and ‘Lof’ .

3. Press [utility] to jump to the next parameter.

Use the ‘MIDI output’ setting to determine whether the drum module outputs MIDI signals in
its own format (default setting ‘P–n’ ) or in GM format (‘--n’ ). Choose its own proprietary MIDI
format if you want to use the drum module as a sound module. If you connect an external MIDI
device, choose the GM format.

1. Press the [utility] button until the display shows the current setting ‘P–n’ or ‘--n’ .

2. Use the [–]/[+] button to toggle between ‘P–n’ and ‘--n’ .

Save your settings with [save].

Any unsaved changes are discarded when you turn the drum module off.

MIDI output format

Saving settings

Operation

e-drum module

36

To reset the unit to factory defaults proceed as follows:

1. Switch the device off.

2. Keep the [tempo –/+] button pressed while switching the unit on.

When resetting the unit to factory defaults all user settings and adjustments are irre‐
trievably deleted.

Resetting to factory defaults

Operation

MPS-400

37

7 Technical specifications

Number of voices 307
Drum kits 20 preset kits

30 user kits

Songs 50 preset songs

Technical specifications

e-drum module

38

Connections Headphones (1/4" phone socket)

AUX in (1/4" phone socket)
Mono/stereo outlet (1/4" phone socket)
1 × Kick pad
1 × Snare pad
3 × Tom pads
1 × Crash pad
1 × Ride pad
1 × Hi-hat
1 × Hi-hat control
MIDI in/out

Operating voltage supply

Power adapter (DC 9 V )

Technical specifications

MPS-400

39

8 Cleaning

Clean the accessible parts of the device regularly. The frequency of cleaning depends on the
operating environment: moist, smoky or particularly dirty environments may cause a higher
accumulation of dirt on the components of the device.

n Use a dry soft cloth for cleaning.
n Remove stubborn stains with a slightly damp cloth.
n Never use cleaners containing alcohol or thinner.
n Never put any vinyl items on the device, as vinyl can stick to the surface or lead to its disco‐

louration.

Device parts

Cleaning

e-drum module

40

9 Protecting the environment

For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.

Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that

they are collected for recycling. Please follow the notes and markings on the packaging.

This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE). Do not dispose with your normal household waste.

Dispose of this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.

Disposal of the packaging mate‐
rial

Disposal of your old device

Protecting the environment

MPS-400

41

10 Appendix

10.1 Voice list

No. Name No. Name No. Name
KICK 009 Jazz Kick 2 018 1969s Kick

001 Standard Kick 1 010 Jazz Kick 3 019 1971s Kick
002 Standard Kick 2 011 Bigband Kick 020 1976s Kick
003 Rock Kick 1 012 Funk Kick 021 Pwrbd Kick
004 Rock Kick 2 013 Fusion Kick 022 R&B Kick
005 Rock Kick 3 014 Hiphop Kick 1 023 House Kick 1
006 Room Kick 1 015 Hiphop Kick 2 024 House Kick 2
007 Room Kick 2 016 Hiphop Kick 3 025 House Kick 3
008 Jazz Kick 1 017 Hiphop Kick 4 026 Drumbass Kick

Appendix

e-drum module

42

No. Name No. Name No. Name

027 808 Kick SNARE 051 Jazz Snare 1
028 909 Kick 039 Star Snare 1 052 Jazz Snare 1 Rim
029 Electronic Kick 040 Star Snare Rim 053 Jazz Snare 2
030 Step Kick 041 Standard Snare 1 054 Jazz Snare 2 Rim
031 Teckno Kick 042 Standard Snare Rim 055 Jazzlatin Snare
032 Voic Kick 043 Standard Snare 2 056 Bush Snare
033 Lowfi Kick 044 Rock Snare 1 057 Bigband Snare
034 Junkyard Kick 045 Rock Snare Slick 058 Funk Snare 1
035 Disco Kick 046 Rock Snare 2 059 Funk Snare Stick
036 Industry Kick 047 Rock Snare 3 060 Funk Snare 2
037 Noise Kick 048 Room Snare 1 061 Fusion Snare
038 Cartoon Kick 049 Room Snare Rim 062 Fusion Snare Stick
050 Room Snare 2 063 Pwrbd Snare

Appendix

MPS-400

43

No. Name No. Name No. Name

064 Hiphop Snare 1 077 1971s Snare Stick 090 808 Snare
065 Hiphop Snare 2 078 1976s Snare 091 909 Snare
066 Ringo Snare 079 1976s Snare Stick 092 Electronic Snare
067 Ringo Snare Rim 080 R&B Snare 093 Junkyard Snare
068 Lowfi Snare 081 R&B Snare Stick 094 Junkyard Snare Stick
069 Lowfi Snare Stick 082 House Snare 1 095 Noise Snare
070 506 Snare 083 House Snare Rim 096 Industry Snare
071 506 Snare Rim 084 House Snare 2 097 Industry Snare Stick
072 506 Low Snare 085 Step Snare 098 Voice Snare
073 506 Low Snare Rim 086 Step Snare Stick 099 Voice Snare Stick
074 1969s Snare 087 Teckno Snare 1 100 Cartoon Snare
075 1969s Snare Stick 088 Teckno Snare 2
076 1971s Snare 089 Drumbass Snare

Appendix

e-drum module

44

No. Name No. Name No. Name
TOM 113 Room Tom 1 126 Brush Tom 2

101 Standard Tom 1 114 Room Tom 2 127 Brush Tom 3
102 Standard Tom 2 115 Room Tom 3 128 Brush Tom 4
103 Standard Tom 3 116 Room Tom 4 129 Brush Tom 5
104 Standard Tom 4 117 Room Tom 5 130 Brush Tom 6
105 Standard Tom 5 118 Room Tom 6 131 Funk Tom 1
106 Standard Tom 6 119 Jazz Tom 1 132 Funk Tom 2
107 Rock Tom 1 120 Jazz Tom 2 133 Funk Tom 3
108 Rock Tom 2 121 Jazz Tom 3 134 Fusion Tom 1
109 Rock Tom 3 122 Jazz Tom 4 135 Fusion Tom 2
110 Rock Tom 4 123 Jazz Tom 5 136 Fusion Tom 3
111 Rock Tom 5 124 Jazz Tom 6 137 1969s Tom 1
112 Rock Tom 6 125 Brush Tom 1 138 1969s Tom 2

Appendix

MPS-400

45

No. Name No. Name No. Name

139 1969s Tom 3 152 Hiphop Tom 4 165 Electronic Tom 5
140 1971s Tom 1 153 Hiphop Tom 5 166 Electronic Tom 6
141 1971s Tom 2 154 Hiphop Tom 6 167 Step Tom 1
142 1971s Tom 3 155 808 Tom 1 168 Step Tom 2
143 1976s Tom 1 156 808 Tom 2 169 Step Tom 3
144 1976s Tom 2 157 808 Tom 3 170 909 Tom 1
145 1976s Tom 3 158 808 Tom 4 171 909 Tom 2
146 Old Tom 1 159 808 Tom 5 172 909 Tom 3
147 Old Tom 2 160 808 Tom 6 173 Cartoon Tom 1
148 Old Tom 3 161 Electronic Tom 1 174 Cartoon Tom 2
149 Hiphop Tom 1 162 Electronic Tom 2 175 Cartoon Tom 3
150 Hiphop Tom 2 163 Electronic Tom 3 176 Junkyard Tom 1
151 Hiphop Tom 3 164 Electronic Tom 4 177 Junkyard Tom 2

Appendix

e-drum module

46

No. Name No. Name No. Name

178 Junkyard Tom 3 190 Standard Ride 21" 203 Orchestra Ride
179 Noise Tom 1 191 Standard Ride 21" Bell 204 Teckno Ride 1
180 Noise Tom 2 192 Rock Ride 21" 205 Teckno Ride 2
181 Noise Tom 3 193 Rock Ride 21" Bell 206 Junkyard Ride 1
182 Voices Tom 1 194 Bigband Ride 207 Junkyard Ride 2
183 Voices Tom 2 195 Bigband Ride Bell 208 Cartoon Ride
184 Voices Tom 3 196 Jazz Ride Bell 209 Voices Ride
185 Industry Tom 1 197 Slap Ride 210 Standard Ride 21" Rim
186 Industry Tom 2 198 Slap Ride Bell 211 Rock Ride 21" Rim
187 Industry Tom 3 199 1969s Ride 212 1969s Ride Rim
188 Timpani 200 1969s Ride Bell 213 Pop Ride Rim
RIDE 201 Pop Ride 214 Ska Ride Rim
189 Standard Ride 20" 202 Ska Ride

Appendix

MPS-400

47

No. Name No. Name No. Name
CRASH 227 Hiphop Crash 240 909 Crash 2

215 Standard Crash 1 228 Hiphop Crash Bell 241 Junkyard Crash 1
216 Standard Crash 2 229 China Crash 242 Junkyard Crash 2
217 Standard Crash 3 230 China Crash Bell 243 Noise Crash 1
218 Standard Crash 1 Bell 231 Orchestra Crash 1 244 Noise Crash 2
219 Standard Crash 2 Bell 232 Orchestra Crash 2 245 SFX Crash 1
220 Standard Crash China 233 Orchestra Crash Bell 246 SFX Crash 2
221 Standard Splash 8" 234 Mute Crash Bell 247 Industry Crash
222 Standard Splash 8" Bell 235 Drumbass Crash 1 248 Industry Crash Bell
223 Rock Crash 20" 236 Drumbass Crash 2 249 Standard Crash 4
224 Rock Splash 8" 237 808 Crash 1 250 Standard Crash 5
225 Jazz Splash 10 " 238 808 Crash 2
226 Jazz Splash 10 " Bell 239 909 Crash 1

Appendix

e-drum module

48

No. Name No. Name No. Name
HI-HAT 263 Junkyard Hi-hat 274 Standard Clap

251 Standard Hi-hat 1 264 Noise Hi-hat 275 Tambourine
252 Standard Hi-hat 2 265 Industry Hi-hat 276 Standard Cow Bell
253 Rock Hi-hat 277 Mute Cow Bell
254 Pop Hi-hat PERCUSSION 278 Rock Cow Bell
255 Brush Hi-hat 266 High Q 279 Vibraslap
256 1969s Hi-hat 267 Slap 280 Hi Bongo
257 Ska Hi-hat 268 Scratch Push 281 Low Bongo
258 House Hi-hat 269 DJ SFX 282 Mute Hi Conga
259 808 Hi-hat 270 Sticks 283 Open Hi Conga
260 909 Hi-hat 271 Square Click 284 Low Conga
261 Cartoon Hi-hat 272 Metro Click 285 High Timbale
262 Voices Hi-hat 273 Metro Bell 286 Low Timbale

Appendix

MPS-400

49

No. Name No. Name No. Name

287 High Agogo 294 Long Guiro 301 Open Triangle
288 Low Agogo 295 Claves 302 Shaker
289 Cabasa 296 Hi Wood Block 303 Jingle Bell
290 Maracas 297 Low Wood Block 304 Belltree
291 Short Whistle 298 Mute Cuica 305 Castanets
292 Long Whistle 299 Open Cuica 306 Mute Surdo
293 Short Guiro 300 Mute Triangle 307 Open Surdo

Appendix

e-drum module

50

10.2 Kit list

No. Name No. Name No. Name
Pre-installed kits 011 1969songo User kits

001 Fusion 012 1971s 021 M-box
002 Standard 013 1976disco 022 Step
003 Room 014 909 023 Industry
004 Rock 015 Drumbass 024 Lowfi
005 Hiphop 016 Funk 025 Metal
006 Electronic 017 Hiphop-3 026 Pop-rock
007 Cartoon 018 House-2 027 Fusion
008 House 019 Vintage 028 Standard
009 Jazz 020 Junkyard 029 Room
010 Brush 030 Rock

Appendix

MPS-400

51

No. Name No. Name No. Name

031 Hiphop 038 1971s 045 Vintage
032 Electronic 039 1976disco 046 Junkyard
033 Cartoon 040 909 047 M-box
034 House 041 Drumbass 048 Step
035 Jazz 042 Funk 049 Industry
036 Brush 043 Hiphop-3 050 Lowfi
037 1969songo 044 House-2

Appendix

e-drum module

52

10.3 Song list

No. Name No. Name No. Name

001 Funk 1 012 Bluegrass 023 Ballad 1
002 Fusion 1 013 Mambo 024 Boogie
003 Latin Jazz 014 Beguine 025 Punk
004 Dance 015 Drum´n Bass 026 Rock´n Roll 2
005 Big Band 016 Jazz 027 Metal
006 Slow Fusion 017 Bossa 028 16 Beat
007 Samba 018 Pop 029 Rumba
008 Modern Jazz 019 Rock´n Roll 1 030 Shuffle
009 Country 020 House 031 Swing
010 Reggae 021 Hip Hop 032 Blues 1
011 Salsa 022 6/8 Ballad 033 Blues 2

Appendix

MPS-400

53

No. Name No. Name No. Name

034 Fusion 2 040 Disco 046 6/8 R&B
035 Funk 2 041 8 Beat 047 Pop Rock
036 Acid Fusion 042 Funk 3 048 Hard Rock
037 Folk Pop 043 Slow Rock 049 Pop Ballad
038 Latin 044 R&B 1 050 New Age
039 Ballad 2 045 R&B 2

10.4 MIDI implementation

Function Transmitted Recognized Remarks

Basic channel Default Ch 10 1-16

Changed No No

Appendix

e-drum module

54

Function Transmitted Recognized Remarks

Mode Default No No

Messages No No
Altered ******** ********

Note number 0…127 0…127

True voice ******** 0…127

Velocity Note ON Yes (99H, V=1…127) 0…127

Note OFF Yes (99H, V=0) 0…127

Aftertouch Keys No No

Channels No No
Pitch bender No Yes
Control change 0 No Yes Bank select

1 No Yes Modulation

5 No Yes Portamento time

Appendix

MPS-400

55

Function Transmitted Recognized Remarks

6 No Yes Data entry

7 No Yes Volume

10 No Yes Pan

11 No Yes Expression

64 No Yes Sustain pedal

65 No Yes Portamento ON/OFF

66 No Yes Sostenuto pedal

67 No Yes Soft pedal

80 No Yes Reverb program

81 No Yes Chorus program

91 No Yes Reverb level

93 No Yes Chorus level

120 No Yes All Sound Off

Appendix

e-drum module

56

Function Transmitted Recognized Remarks

121 No Yes Reset All Controllers

123 No Yes All Notes Off
Program change Yes Yes
System exclusive No Yes
System common Song Position No No

Song Select No No

Tune No No
System real time Clock Yes No START and STOP only

Command Yes No
Aux messages Local ON/OFF No No

All Notes OFF No No

Appendix

MPS-400

57

Function Transmitted Recognized Remarks

Active Sense Yes No

System reset No No

Appendix

e-drum module

58

Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
