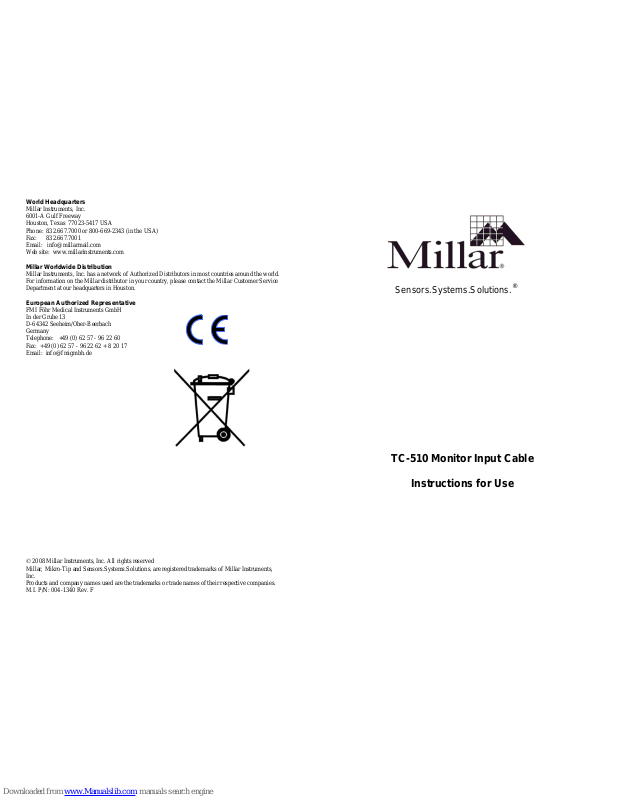

Millar TC-510 User Manual

World Headquarters

Millar Instruments, Inc.
6001-A Gulf Freeway
Houston, Texas 77023-5417 USA
Phone: [phone] or 800-669-2343 (in the USA)
Fax: [phone]
Email: [e-mail]
Web site: www.millarinstruments.com

Millar Worldwide Distribution

Millar Instruments, Inc. has a network of Authorized Distributors in most countries around the world.
For information on the Millar distributor in your country, please contact the Millar Customer Service
Department at our headquarters in Houston.

European Authorized Representative

FMI Föhr Medical Instruments GmbH
In der Grube 13
D-64342 Seeheim/Ober-Beerbach
Germany
Telephone: [phone] - 96 22 60
Fax: [phone] - 96 22 62 + 8 20 17
Email: [e-mail]

© 2008 Millar Instruments, Inc. All rights reserved
Millar, Mikro-Tip and Sensors.Systems.Solutions. are registered trademarks of Millar Instruments,
Inc.
Products and company names used are the trademarks or trade names of their respective companies.
M.I. P/N: 004-1340 Rev. F

Sensors.Systems.Solutions.®

TC-510 Monitor Input Cable

Instructions for Use

1

Definition of Symbols

Attention, consult accompanying documents

Date of Manufacture

Catalog Number

Serial Number

Batch Code

EU Declaration of Conformity

Waste Electrical and Electronic Equipment

Device Description

Millar Instruments offers an assortment of TC-510 pressure control unit output cables for a variety of
monitors and recorders. An unterminated cable M.I. P/N: 850-3008 is offered for the user to wire
their connector for the appropriate input on their monitor.

Cleaning

Wipe the cable and connectors clean with a soft wet gauze or tissue. If extremely dirty, the cable may
be soaked in a solution of Alconox

®

or other mild detergent.

CAUTION:

Do not immerse the electrical connector.

Routine Inspection

Conductive liquid entering the cable connectors can cause erratic operation and possible corrosion of
wires within the connectors. The connector pins should be routinely inspected for corrosion.

2

Millar Limited Warranty

Millar Instruments, Inc. (Millar) warrants all of its cables to be free from defects in workmanship and
materials at the time of shipment to the original purchaser.

Millar hereby excludes all warranties not herein stated, whether express or implied by operation of
law or course of dealing or trade usage or otherwise, including but not limited to any implied
warranties of fitness or merchantability.

Since handling, storage, cleaning and sterilization of the product, as well as factors relating to patient
diagnosis, treatment, catheterization procedures, and other matters beyond Millar’s control, directly
affect the product and the results obtained from its use, Millar shall not be liable for any incidental or
consequential loss, damage, or expense arising directly or indirectly from the use of this product.

Specifications subject to change without notice.

9 PIN D-SUB

MONITOR

1

9

7

5

RED

BLACK

GREEN

WHITE

SHIELD

+

- EXCITATION

+ SIGNAL

- SIGNAL

Cable Schematic
