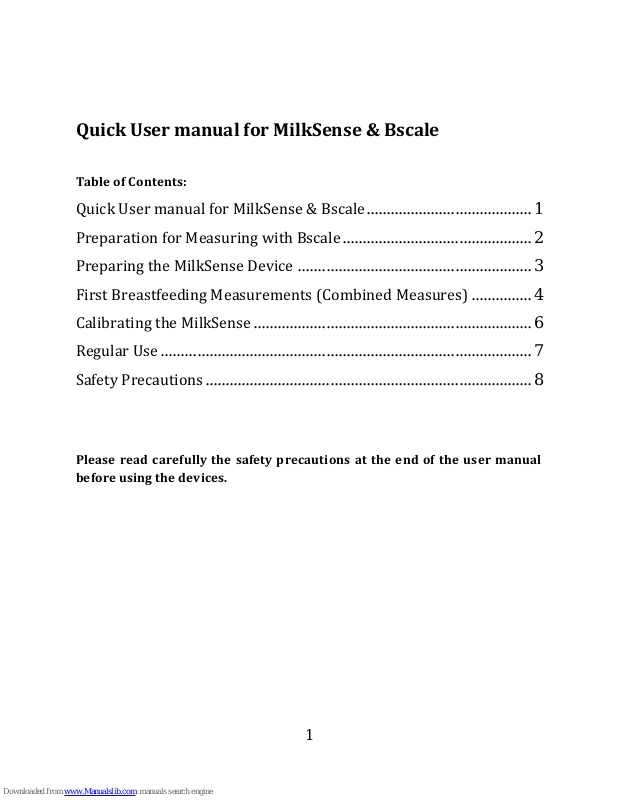

Quick User manual for MilkSense & Bscale
Table of Contents:
Quick User manual for MilkSense & Bscale ......................................... 1
Preparation for Measuring with Bscale ............................................... 2
Preparing the MilkSense Device .......................................................... 3
First Breastfeeding Measurements (Combined Measures) ............... 4
Calibrating the MilkSense ..................................................................... 6
Regular Use ............................................................................................ 7
Safety Precautions ................................................................................. 8
Please read carefully the safety precautions at the end of the user manual
before using the devices.
Page 2
2
Preparation for Measuring with Bscale
Software Installation
Install the MilkSense PC Suite software from the included CD:
1. Run the setup.exe file and click OK on the dialogue boxes that appear.
2. Once you run the software, it is recommended that you select a new data
file name (choose File New in the menu bar).
3. Enter the name of the child in the main screen.
_____________________________________________________________________________________________
Weighing Empty Infant Seat
1. Connect the Bscale to the infant seat.
Tighten the grip by pulling the strip (A) and
place the handle in its socket (B).
2. Connect the Bscale to the computer using
the USB cable provided.
3. Launch the program.
4. Click the button.
5. Change the Measuring Type to Weigh Empty Seat
(click the down arrow to open the drop-
down menu and select the option from the list).
6. Weigh the infant seat by raising it, as
illustrated in the figure (ensure that the
scale is hung in midair not resting on
anything). The software window will display
the weight. Place the infant seat and click
OK.
Page 3
3
Preparing the MilkSense Device
1. Insert 3 AAA alkaline batteries into the back of the
device. Pay attention to the direction in which the
batteries are placed. Wrong placing might damage
the device.
2. Filling the device with liquid: Use the supplied
liquid to moisten the sponge until it is completely
soaked. Re-soak the sponge twice a week.
_____________________________________________________________________________________________
Placing the device on the breast
The electrodes should be laid horizontally on the top
of the breast and above the areola, directly above the
nipple. It is important to place the device accurately
by aiming the locator bar to the upper edge of the
aureole.
In Case of Fallen Breast
Elongate the Locator bar until the electrodes’ height is above the fold of the
breast.
Page 4
4
First Breastfeeding Measurements (Combined Measures)
The first breastfeeding measurements are used to calibrate the MilkSense
according to the structure of your breast. Calibration is done by comparing the
weight of your body before and after breastfeeding to the values measured by the
MilkSense. In order to optimally calibrate the device, perform at least three
combined measures with MilkSense and Bscale per breast. To calibrate, perform
the following steps:
1. Weigh the baby
Put the baby in the infant seat and measure its weight using the Bscale (as
detailed in steps 1-6 on page 2). In step 5, set the Measuring Type to Weigh
Baby .
Page 5
5
2. Measure with MilkSense
The measurement is taken while sitting in the following way:
2.1 Using the 3rd finger, press the measuring button
until the screen displays the letter L or R (for
the left or right breast, accordingly).
2.2 Press the device against the breast in the exact
location set by directing the locator bar to the top
border of the areola. When the green light on the side
of the screen is lit, the measurement will begin
automatically and end after 10 seconds. Once the
measurement is complete, the screen will display the
notification “REF”. Now you can place the device in the
cradle and start breastfeeding your baby.
Page 6
6
2.3 After breastfeeding, measure once again with the MilkSense. When the
second measurement is complete, the milk value will appear on the screen.
As long as the device is not fully calibrated, this value does not necessarily
reflect the breastfed amount.
2.4 Weigh the baby using the Bscale (steps 1-6). In step 5, set the Measuring Type
to Weigh Baby for Milk.
Calibrating the MilkSense
It is possible to calibrate the device only after performing 3 combined
measures. As said, to reach optimized calibration it is recommended to
perform at least 3 combined measures for each breast.
1. Launch the MilkSense PC Suite software.
2. Connect the MilkSense to the computer using the supplied USB cable.
3. Using the mouse, click the button.
4. Click the button. This button will be active only after
performing three first combined measures.
Changes in breast structure and milk production rate may affect the calibration
as time passes. To maintain measurement accuracy, it is recommended that you
perform additional combined measures with MilkSense and Bscale from time to
time by repeating steps 3-4 above.
Page 7
7
Regular Use
MilkSense Regular use
After the calibration is complete, start using the MilkSense alone to measure the
amount of milk your baby consumes using the following steps:
1. Before breastfeeding, measure the breast with the MilkSense (ensure that
the electrodes are soaked with liquid and be sure to place the device
accurately in the proper location). The screen will show the notification
“REF”. Click the button with the breast icon to display an estimated amount
of the available milk content.
2. Breastfeed freely. When you are done breastfeeding, measure the breast
again. The screen will show the estimated amount of breast milk consumed.
3. Persistent measures during the day will allow you to keep track of daily
breastfeeding. Use the computer software to follow breastfeeding trends. All
you need to do is connect the MilkSense to the computer using the USB cable
and click the button.
Bscale Regular Use
The Bscale will allow you to follow changes in your baby’s weight. Place the baby
in the infant seat and weigh using the Bscale (follow steps 1-6, see page 2). In
step 5, set the Measuring type to Weigh Baby .
The system will automatically deduct the infant seat weight recorded during
setup.
Page 8
8
Safety Precautions
Safety Precautions MilkSesnse
Danger:
Never use the MilkSense device in combination with any other medical electronic aid such
as: (1) Electronic implant heart pacemakers.
(2) Electronic life support systems.
(3) Electrocardiogram equipment.
The breastfeeding monitor device may cause these devices to malfunction.
Take care to secure the baby while handling the MilkSense device.
Warning:
The device is not a substitute for medical supervision. Be sure to undergo routine
checkups of yourself and your baby at the appropriate clinic.
Avoid relying on the device alone in any important decision about your baby care; do
not stop breastfeeding or overrule baby illness based on apparent low feeding.
Pay attention to signs of behavioral changes exhibited by your baby and not just to the
readings registered by the device. Inadequate breastfeeding poses the immediate risk of
dehydration of the baby. Seek an immediate medical consultation in any case of
behavioral changes of your baby. Be aware that improper use of the device may show
false readings of the milk intake. Refer to the instructions for proper calibration.
The device is not suitable for premature babies.
Keep the device and its accessories out of the reach of children. The device and its
accessories contain small parts that pose choking hazard.
If the electrode solution should accidently get in yours or the baby's eyes, immediately
rinse with plenty of clean water.
Avoid touching the electrodes when the device is connected by a USB cable to the PC.
Remove batteries from the device when it will not be in use for a long period of time to
prevent battery spill inside the device.
Caution:
Avoid wetting the sponge with any fluid other than the specific fluid supplied.
The device is not suitable for monitoring other parts of the body, only the breast.
Do not disassemble, repair, or remodel the device.
Keep the electrode solution away from heat sources.
For reasons of hygiene, avoid sharing the device with others.
Safety Precautions Bscale
The Bscale device must be disconnected from the baby seat when the seat is being used
in the car, or while being in motion.
Avoid use when any part is broken.
The Bscale and the MilkSense devices are not a substitute for medical supervision. Be
sure to undergo routine checks of yourself and your baby at the appropriate clinic.
Choking hazard: the device contains small parts.
Maximum weight of baby + seat should be less than 20Kg. Avoid undue movements that
may put your baby at risk.
