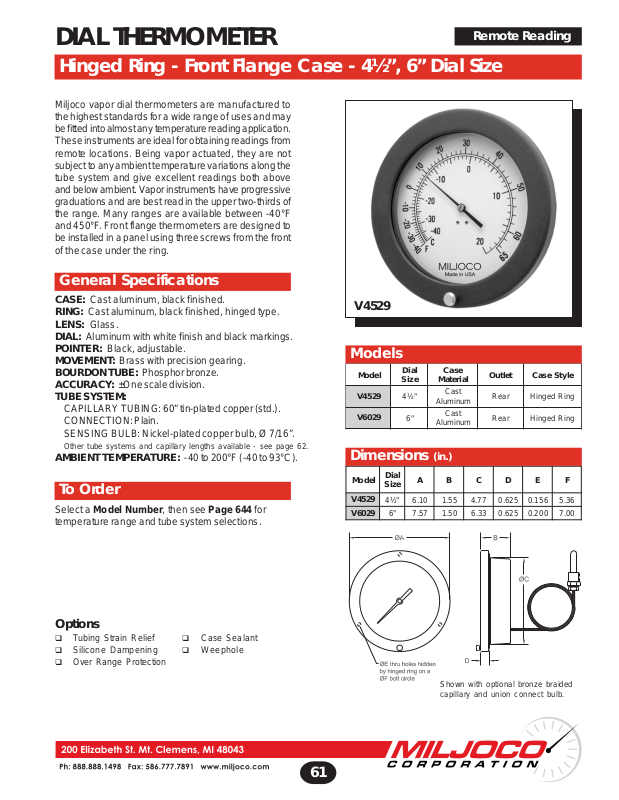

DIAL THERMOMETER
Remote Reading
Hinged Ring - Front Flange Case - 4½”, 6” Dial Size
Miljoco vapor dial thermometers are manufactured to
the highest standards for a wide range of uses and may
be fitted into almost any temperature reading application.
These instruments are ideal for obtaining readings from
remote locations. Being vapor actuated, they are not
subject to any ambient temperature variations along the
tube system and give excellent readings both above
and below ambient. V apor instruments have progressive
graduations and are best read in the upper two-thirds of
the range. Many ranges are available between -40°F
and 450°F . Front flange thermometers are designed to
be installed in a panel using three screws from the front
of the case under the ring.
General Specifications
CASE: Cast aluminum, black finished.
RING: Cast aluminum, black finished, hinged type.
LENS: Glass.
DIAL: Aluminum with white finish and black markings.
POINTER: Black, adjustable.
MOVEMENT: Brass with precision gearing.
BOURDON TUBE: Phosphor bronze.
ACCURACY: ±One scale division.
TUBE SYSTEM:
CAPILLARY TUBING: 60” tin-plated copper (std.).
CONNECTION: Plain.
SENSING BULB: Nickel-plated copper bulb, Ø 7/16”.
Other tube systems and capillary lengths available - see page 62.
AMBIENT TEMPERA TURE: -40 to 200°F (-40 to 93°C).
To Order
Select a Model Number, then see Page 644 for
temperature range and tube system selections.
V4529
Models
ledoM
9254V
9206V
laiD
eziS
"½4
"6

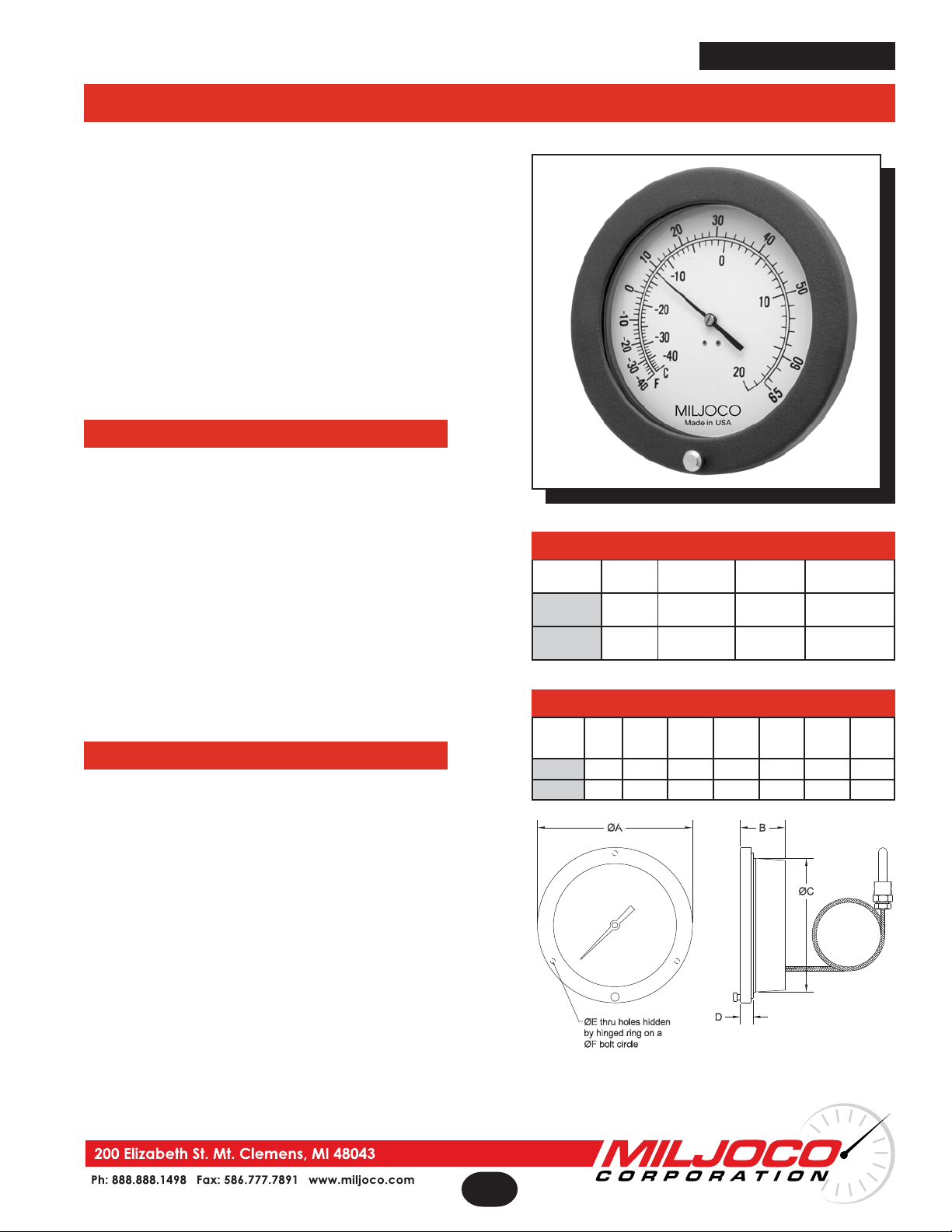

Dimensions (in.)
laiD
ledoM
9254V
9206V
ABCDEF
eziS
"½401.655.177.4526.0651.063.5
"675.705.133.6526.0002.000.7
esaC
lairetaM
tsaC
munimulA
tsaC
munimulA
teltuOelytSesaC
raeRgniRdegniH
raeRgniRdegniH
Options
Tubing Strain Relief Case Sealant
Silicone Dampening Weephole
Over Range Protection
Shown with optional bronze braided
capillary and union connect bulb.
61
