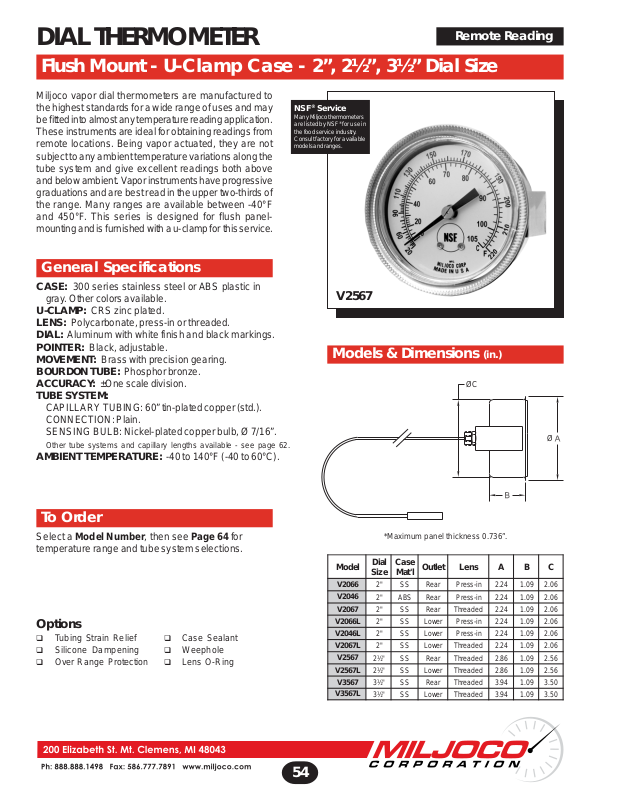

DIAL THERMOMETER
Remote Reading
Flush Mount - U-Clamp Case - 2”, 2½”, 3½” Dial Size
Miljoco vapor dial thermometers are manufactured to
the highest standards for a wide range of uses and may
be fitted into almost any temperature reading application.
These instruments are ideal for obtaining readings from
remote locations. Being vapor actuated, they are not
subject to any ambient temperature variations along the
tube system and give excellent readings both above
and below ambient. V apor instruments have progressive
graduations and are best read in the upper two-thirds of
the range. Many ranges are available between -40°F
and 450°F. This series is designed for flush panelmounting and is furnished with a u-clamp for this service.
General Specifications
CASE: 300 series stainless steel or ABS plastic in
gray . Other colors available.
U-CLAMP: CRS zinc plated.
LENS: Polycarbonate, press-in or threaded.
DIAL: Aluminum with white finish and black markings.
POINTER: Black, adjustable.
MOVEMENT: Brass with precision gearing.
BOURDON TUBE: Phosphor bronze.
ACCURACY: ±One scale division.
TUBE SYSTEM:
CAPILLARY TUBING: 60” tin-plated copper (std.).
CONNECTION: Plain.
SENSING BULB: Nickel-plated copper bulb, Ø 7/16”.
Other tube systems and capillary lengths available - see page 62.
AMBIENT TEMPERA TURE: -40 to 140°F (-40 to 60°C).
NSF® Service
Many Miljoco thermometers
are listed by NSF
the food service industry.
Consult factory for available
models and ranges.
®
for use in
V2567
Models & Dimensions (in.)
Ø C
Ø
To Order
Select a Model Number, then see Page 64 for
temperature range and tube system selections.
Options
Tubing Strain Relief Case Sealant
Silicone Dampening Weephole
Over Range Protection Lens O-Ring
54
*Maximum panel thickness 0.736”.
laiD
ledoM
6602V
"2SSraeRni-sserP42.290.160.2
6402V
"2SBAraeRni-sserP42.290.160.2
7602V
"2SSraeRdedaerhT42.290.160.2
L6602V
"2SSrewoLni-sserP42.290.160.2
L6402V
"2SSrewoLni-sserP42.290.160.2
L7602V
"2SSrewoLdedaerhT42.290.160.2
7652V
L7652V
7653V
L7653V
esaC
eziS
"½2SSraeRdedaerhT68.290.165.2
"½2SSrewoLdedaerhT68.290.165.2
"½3SSraeRdedaerhT49.390.105.3
"½3SSrewoLdedaerhT49.390.105.3
teltuOsneLABC
l'taM
