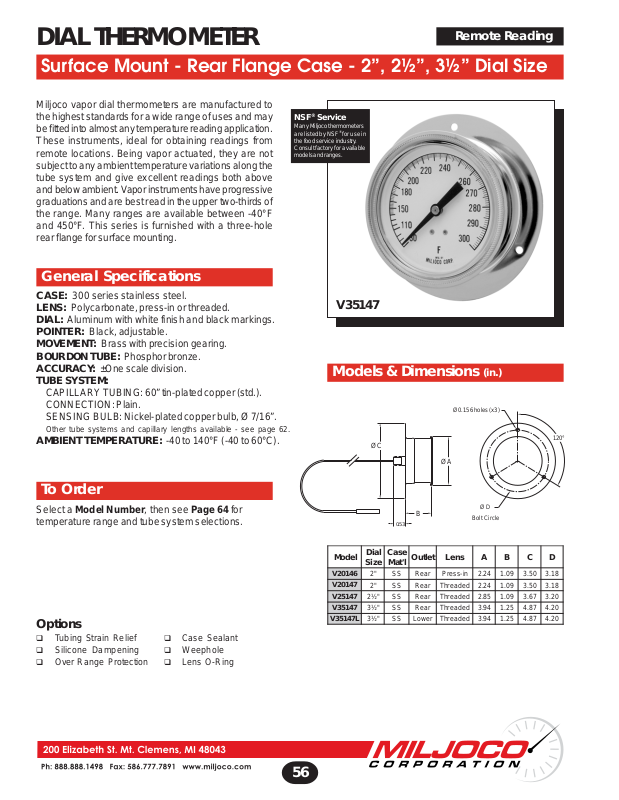

DIAL THERMOMETER
Remote Reading
Surface Mount - Rear Flange Case - 2”, 2½”, 3½” Dial Size
Miljoco vapor dial thermometers are manufactured to
the highest standards for a wide range of uses and may
be fitted into almost any temperature reading application.
These instruments, ideal for obtaining readings from
remote locations. Being vapor actuated, they are not
subject to any ambient temperature variations along the
tube system and give excellent readings both above
and below ambient. V apor instruments have progressive
graduations and are best read in the upper two-thirds of
the range. Many ranges are available between -40°F
and 450°F. This series is furnished with a three-hole
rear flange for surface mounting.
General Specifications
CASE: 300 series stainless steel.
LENS: Polycarbonate, press-in or threaded.
DIAL: Aluminum with white finish and black markings.
POINTER: Black, adjustable.
MOVEMENT: Brass with precision gearing.
BOURDON TUBE: Phosphor bronze.
ACCURACY: ±One scale division.
TUBE SYSTEM:
CAPILLARY TUBING: 60” tin-plated copper (std.).
CONNECTION: Plain.
SENSING BULB: Nickel-plated copper bulb, Ø 7/16”.
Other tube systems and capillary lengths available - see page 62.
AMBIENT TEMPERA TURE: -40 to 140°F (-40 to 60°C).
NSF® Service
Many Miljoco thermometers
are listed by NSF® for use in
the food service industry.
Consult factory for available
models and ranges.
V35147
Models & Dimensions (in.)
Ø 0.156 holes (x3)
Ø C
Ø A
120°
To Order
Select a Model Number, then see Page 64 for
temperature range and tube system selections.
Options
Tubing Strain Relief Case Sealant
Silicone Dampening Weephole
Over Range Protection Lens O-Ring
56
B
0.53
laiD
ledoM
64102V
74102V
74152V
74153V
L74153V
esaC
eziS
"2SSraeRni-sserP42.290.105.381.3
"2SSraeRdedaerhT42.290.105.381.3
"½2SSraeRdedaerhT58.290.176.302.3
"½3SSraeRdedaerhT49.352.178.402.4
"½3SSrewoLdedaerhT49.352.178.402.4
teltuOsneLABCD
l'taM
Ø D
Bolt Circle
