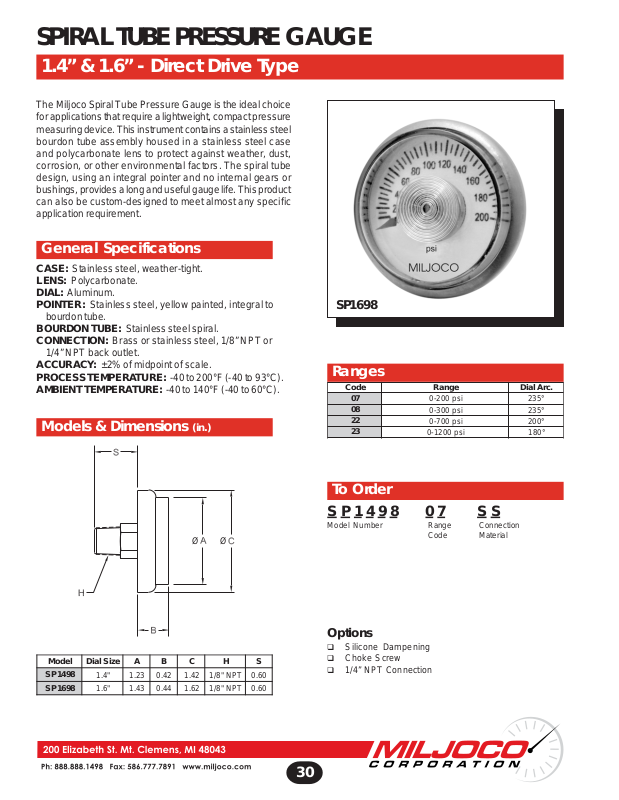

SPIRAL TUBE PRESSURE GAUGE
1.4” & 1.6” - Direct Drive Type
The Miljoco Spiral Tube Pressure Gauge is the ideal choice
for applications that require a lightweight, compact pressure
measuring device. This instrument contains a stainless steel
bourdon tube assembly housed in a stainless steel case
and polycarbonate lens to protect against weather, dust,
corrosion, or other environmental factors. The spiral tube
design, using an integral pointer and no internal gears or
bushings, provides a long and useful gauge life. This product
can also be custom-designed to meet almost any specific
application requirement.
General Specifications
CASE: St ainless steel, weather-tight.
LENS: Polycarbonate.
DIAL: Aluminum.
POINTER: S tainless steel, yellow painted, integral to
bourdon tube.
BOURDON TUBE: Stainless steel spiral.
CONNECTION: Brass or stainless steel, 1/8” NPT or
1/4” NPT back outlet.
ACCURACY: ±2% of midpoint of scale.
PROCESS TEMPERATURE: -40 to 200°F (-40 to 93°C).
AMBIENT TEMPERA TURE: -40 to 140°F (-40 to 60°C).
Models & Dimensions (in.)
SP1698
Ranges
70
80
22
32
edoCegnaR.crAlaiD
isp002-0°532
isp003-0°532
isp007-0°002
isp0021-0°081
Ø
Ø
ledoMeziSlaiDABCHS
8941PS
8961PS
"4.132.124.024.1TPN"8/106.0
"6.134.144.026.1TPN"8/106.0
To Order
S P 1 4 9 8 0 7 S S
Model Number Range Connection
Code Material
Options
Silicone Dampening
Choke Screw
1/4” NPT Connection
30
