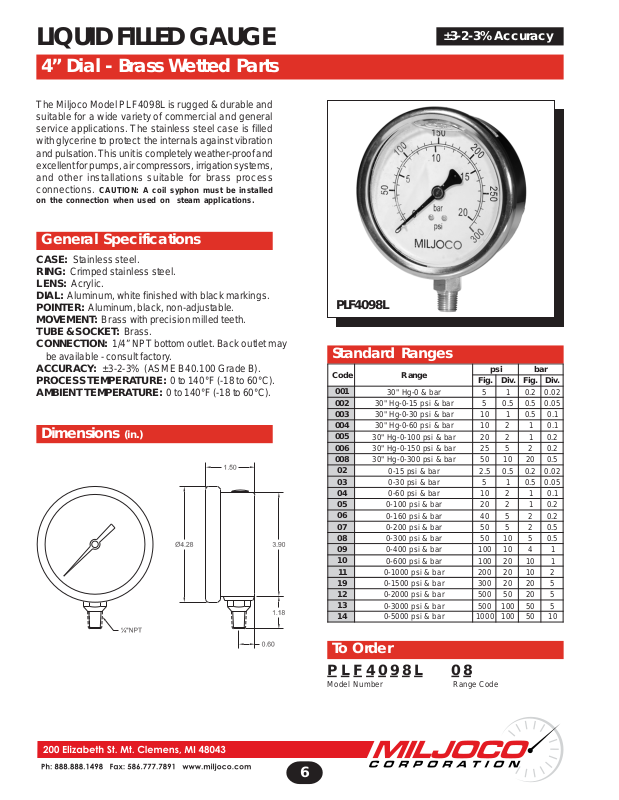

LIQUID FILLED GAUGE
4” Dial - Brass Wetted Parts
The Miljoco Model PLF4098L is rugged & durable and
suitable for a wide variety of commercial and general
service applications. The stainless steel case is filled
with glycerine to protect the internals against vibration
and pulsation. This unit is completely weather-proof and
excellent for pumps, air compressors, irrigation systems,
and other installations suitable for brass process
connections.
on the connection when used on steam applications.
General Specifications
CASE: Stainless steel.
RING: Crimped stainless steel.
LENS: Acrylic.
DIAL: Aluminum, white finished with black markings.
POINTER: Aluminum, black, non-adjust able.
MOVEMENT: Brass with precision milled teeth.
TUBE & SOCKET : Brass.
CONNECTION: 1/4” NPT bottom outlet. Back outlet may
be available - consult factory .
ACCURACY : ±3-2-3% (ASME B40.100 Grade B).
PROCESS TEMPERATURE: 0 to 140°F (-18 to 60°C).
AMBIENT TEMPERATURE: 0 to 140°F (-18 to 60°C).
Dimensions (in.)
CAUTION: A coil syphon must be installed
±3-2-3% Accuracy
PLF4098L
Standard Ranges
edoCegnaR
100
200
300
400
500
600
800
20
30
40
50
60
70
80
90
01
11
91
21
31
41
rab&0-gH"03512.020.0
rab&isp51-05.25.02.020.0
rab&isp03-0515.050.0
rab&isp06-001211.0
rab&isp001-002212.0
rab&isp061-004522.0
rab&isp002-005525.0
rab&isp003-0050155.0
rab&isp004-00010141
rab&isp006-000102011
rab&isp0001-000202012
rab&isp0051-000302025
rab&isp0002-000505025
rab&isp0003-0005001055
rab&isp0005-000010010501
isprab
.giF.viD.giF.viD
rab&isp51-0-gH"0355.05.050.0
rab&isp03-0-gH"030115.01.0
rab&isp06-0-gH"0301211.0
rab&isp001-0-gH"0302212.0
rab&isp051-0-gH"0352522.0
rab&isp003-0-gH"030501025.0
To Order
P L F 4 0 9 8 L 0 8
Model Number Range Code
6
