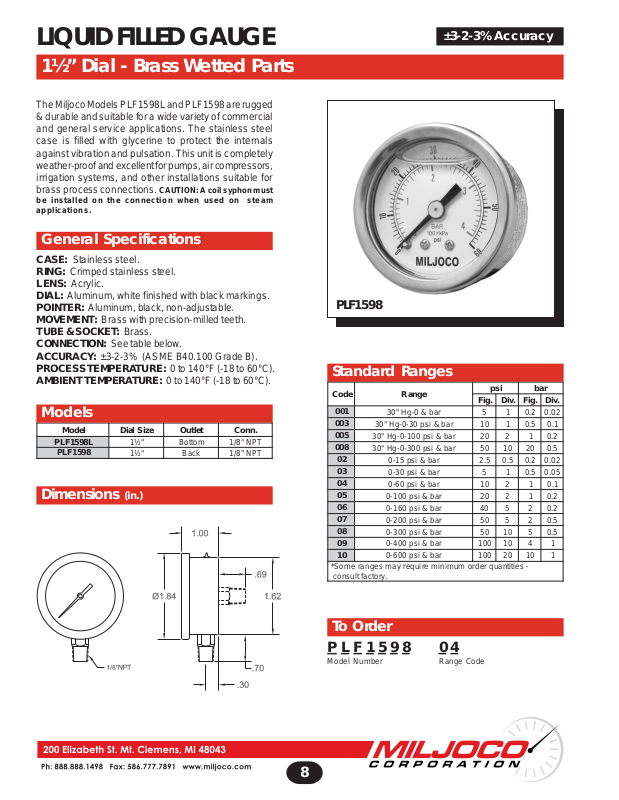

LIQUID FILLED GAUGE
1½” Dial - Brass Wetted Parts
The Miljoco Models PLF1598L and PLF1598 are rugged
& durable and suitable for a wide variety of commercial
and general service applications. The stainless steel
case is filled with glycerine to protect the internals
against vibration and pulsation. This unit is completely
weather-proof and excellent for pumps, air compressors,
irrigation systems, and other installations suitable for
brass process connections.
be installed on the connection when used on steam
applications.
General Specifications
CASE: Stainless steel.
RING: Crimped stainless steel.
LENS: Acrylic.
DIAL: Aluminum, white finished with black markings.
POINTER: Aluminum, black, non-adjustable.
MOVEMENT: Brass with precision-milled teeth.
TUBE & SOCKET : Brass.
CONNECTION: See table below.
ACCURACY: ±3-2-3% (ASME B40.100 Grade B).
PROCESS TEMPERATURE: 0 to 140°F (-18 to 60°C).
AMBIENT TEMPERATURE: 0 to 140°F (-18 to 60°C).
Models
ledoMeziSlaiDteltuO.nnoC
L8951FLP
8951FLP
Dimensions (in.)
CAUTION: A coil syphon must
"½1mottoBTPN"8/1
"½1kcaBTPN"8/1
±3-2-3% Accuracy
PLF1598
Standard Ranges
edoCegnaR
100
300
500
800
20
30
40
50
60
70
80
90
01
.yrotcaftlusnoc
rab&0-gH"03512.020.0
rab&isp51-05.25.02.020.0
rab&isp03-0515.050.0
rab&isp06-001211.0
rab&isp001-002212.0
rab&isp061-004522.0
rab&isp002-005525.0
rab&isp003-0050155.0
rab&isp004-00010141
rab&isp006-000102011
isprab
.giF.viD.giF.viD
rab&isp03-0-gH"030115.01.0
rab&isp001-0-gH"0302212.0
rab&isp003-0-gH"030501025.0
-seititnauqredromuminimeriuqeryamsegnaremoS*
To Order
P L F 1 5 9 8 0 4
Model Number Range Code
