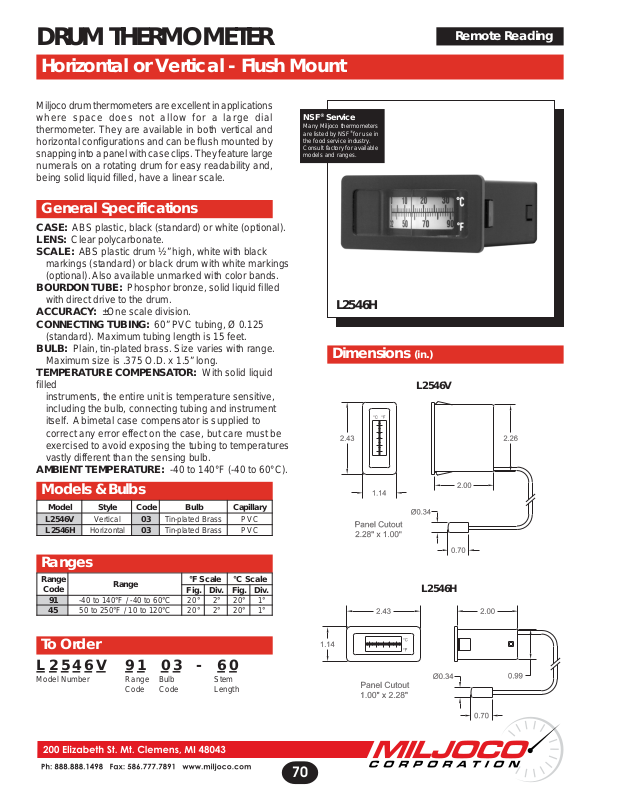

DRUM THERMOMETER
Horizontal or Vertical - Flush Mount
Miljoco drum thermometers are excellent in applications
where space does not allow for a large dial
thermometer. They are available in both vertical and
horizontal configurations and can be flush mounted by
snapping into a panel with case clips. They feature large
numerals on a rotating drum for easy readability and,
being solid liquid filled, have a linear scale.
General Specifications
CASE: ABS plastic, black (st andard) or white (optional).
LENS: Clear polycarbonate.
SCALE: ABS plastic drum ½” high, white with black
markings (standard) or black drum with white markings
(optional). Also available unmarked with color bands.
BOURDON TUBE: Phosphor bronze, solid liquid filled
with direct drive to the drum.
ACCURACY: ±One scale division.
CONNECTING TUBING: 60” PVC tubing, Ø 0.125
(standard). Maximum tubing length is 15 feet.
BULB: Plain, tin-plated brass. Size varies with range.
Maximum size is .375 O.D. x 1.5” long.
TEMPERA TURE COMPENSATOR: With solid liquid
filled
instruments, the entire unit is temperature sensitive,
including the bulb, connecting tubing and instrument
itself. A bimetal case compensator is supplied to
correct any error effect on the case, but care must be
exercised to avoid exposing the tubing to temperatures
vastly different than the sensing bulb.
AMBIENT TEMPERA TURE: -40 to 140°F (-40 to 60°C).
NSF® Service
Many Miljoco thermometers
are listed by NSF® for use in
the food service industry.
Consult factory for available
models and ranges.
Remote Reading
L2546H
Dimensions (in.)
L2546V
Models & Bulbs
ledoMelytSedoCbluByrallipaC
V6452L
H6452L
30
lacitreV
30
latnoziroH
ssarBdetalp-niTCVP
ssarBdetalp-niTCVP
Ranges
egnaR
edoC
19
54
egnaR
C°06ot04-/F°041ot04-°02°2°02°1
C°021ot01/F°052ot05°02°2°02°1
elacSF°elacSC°
.giF.viD.giF.viD
To Order
L 2 5 4 6 V 9 1 0 3 - 6 0
Model Number Range Bulb Stem
Code Code Length
L2546H
70
