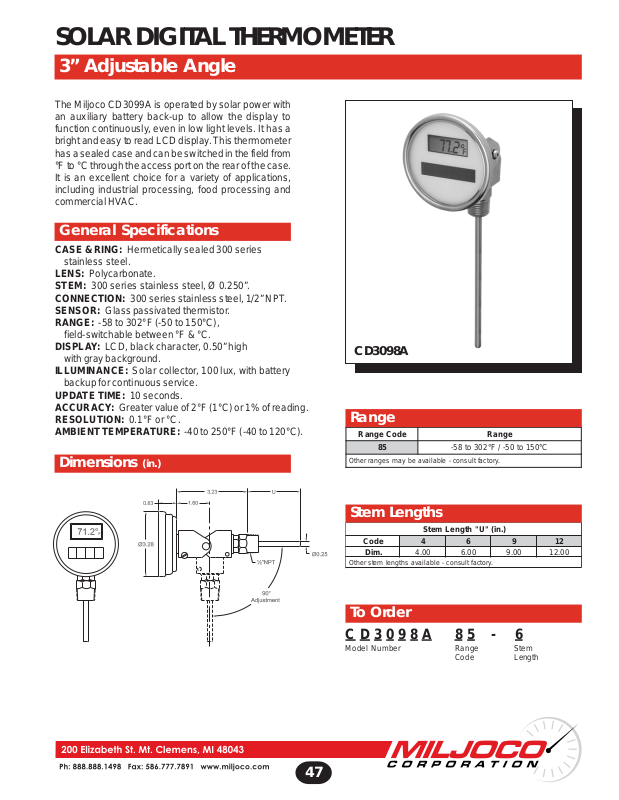

SOLAR DIGITAL THERMOMETER
3” Adjustable Angle
The Miljoco CD3099A is operated by solar power with
an auxiliary battery back-up to allow the display to
function continuously , even in low light levels. It has a
bright and easy to read LCD display . This thermometer
has a sealed case and can be switched in the field from
°F to °C through the access port on the rear of the case.
It is an excellent choice for a variety of applications,
including industrial processing, food processing and
commercial HV AC.
General Specifications
CASE & RING: Hermetically sealed 300 series
stainless steel.
LENS: Polycarbonate.
STEM: 300 series stainless steel, Ø 0.250”.
CONNECTION: 300 series stainless steel, 1/2” NPT.
SENSOR: Glass passivated thermistor .
RANGE: -58 to 302°F (-50 to 150°C),
field-switchable between °F & °C.
DISPLAY: LCD, black character , 0.50” high
with gray background.
ILLUMINANCE: Solar collector, 100 lux, with battery
backup for continuous service.
UPDA TE TIME: 10 seconds.
ACCURACY: Greater value of 2°F (1°C) or 1% of reading.
RESOLUTION: 0.1°F or °C.
AMBIENT TEMPERATURE: -40 to 250°F (-40 to 120°C).
Dimensions (in.)
CD3098A
Range
edoCegnaRegnaR
58
C°051ot05-/F°203ot85-
.yrotcaftlusnoc-elbaliavaebyamsegnarrehtO
47
Stem Lengths
).ni("U"htgneLmetS
edoC
.miD
4 6 9 21
00.400.600.900.21
.yrotcaftlusnoc-elbaliavashtgnelmetsrehtO
To Order
C D 3 0 9 8 A 8 5 - 6
Model Number Range Stem
Code Length
