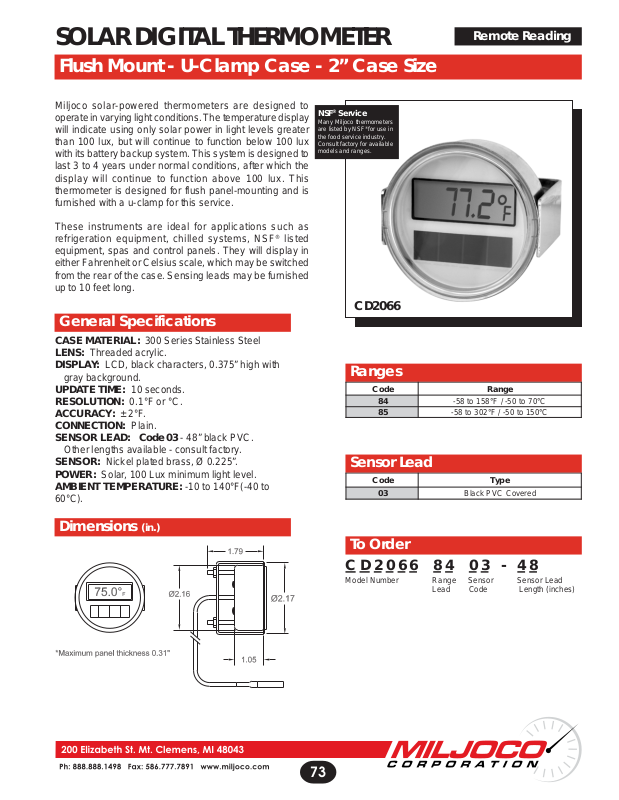

SOLAR DIGITAL THERMOMETER
Flush Mount - U-Clamp Case - 2” Case Size
Remote Reading
Miljoco solar-powered thermometers are designed to
operate in varying light conditions. The temperature display
will indicate using only solar power in light levels greater
than 100 lux, but will continue to function below 100 lux
with its battery backup system. This system is designed to
last 3 to 4 years under normal conditions, after which the
display will continue to function above 100 lux. This
thermometer is designed for flush panel-mounting and is
furnished with a u-clamp for this service.
These instruments are ideal for applications such as
refrigeration equipment, chilled systems, NSF® listed
equipment, spas and control panels. They will display in
either Fahrenheit or Celsius scale, which may be switched
from the rear of the case. Sensing leads may be furnished
up to 10 feet long.
General Specifications
CASE MA TERIAL: 300 Series Stainless S teel
LENS: Threaded acrylic.
DISPLA Y: LCD, black characters, 0.375” high with
gray background.
UPDA TE TIME: 10 seconds.
RESOLUTION: 0.1°F or °C.
ACCURACY: ± 2°F.
CONNECTION: Plain.
SENSOR LEAD: Code 03 - 48” black PVC.
Other lengths available - consult factory .
SENSOR: Nickel plated brass, Ø 0.225”.
POWER: Solar, 100 Lux minimum light level.
AMBIENT TEMPERA TURE: -10 to 140°F(-40 to
60°C).
NSF® Service
Many Miljoco thermometers
are listed by NSF® for use in
the food service industry.
Consult factory for available
models and ranges.
CD2066
Ranges
48
58
Sensor Lead
30
edoCegnaR
C°07ot05-/F°851ot85-
C°051ot05-/F°203ot85-
edoCepyT
derevoCCVPkcalB
Dimensions (in.)
To Order
C D 2 0 6 6 8 4 0 3 - 4 8
Model Number Range Sensor Sensor Lead
Lead Code Length (inches)
73
