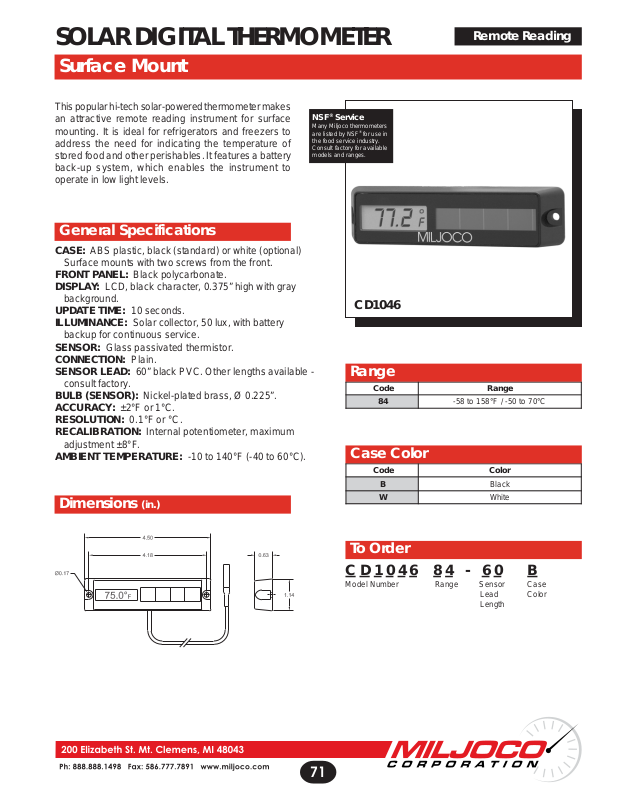

SOLAR DIGITAL THERMOMETER
Surface Mount
Remote Reading
This popular hi-tech solar-powered thermometer makes
an attractive remote reading instrument for surface
mounting. It is ideal for refrigerators and freezers to
address the need for indicating the temperature of
stored food and other perishables. It features a battery
back-up system, which enables the instrument to
operate in low light levels.
General Specifications
CASE: ABS plastic, black (st andard) or white (optional)
Surface mounts with two screws from the front.
FRONT P ANEL: Black polycarbonate.
DISPLA Y: LCD, black character, 0.375” high with gray
background.
UPDA TE TIME: 10 seconds.
ILLUMINANCE: Solar collector, 50 lux, with battery
backup for continuous service.
SENSOR: Glass passivated thermistor.
CONNECTION: Plain.
SENSOR LEAD: 60” black PVC. Other lengths available -
consult factory .
BULB (SENSOR): Nickel-plated brass, Ø 0.225”.
ACCURACY: ±2°F or 1°C.
RESOLUTION: 0.1°F or °C.
RECALIBRATION: Internal potentiometer, maximum
adjustment ±8°F.
AMBIENT TEMPERA TURE: -10 to 140°F (-40 to 60°C).
Dimensions (in.)
NSF® Service
Many Miljoco thermometers
are listed by NSF® for use in
the food service industry.
Consult factory for available
models and ranges.
CD1046
Range
Case Color
W
edoCegnaR
48
edoCroloC
B
C°07ot05-/F°851ot85-
kcalB
etihW
71
To Order
C D 1 0 4 6 8 4 - 6 0 B
Model Number Range Sensor Case
Lead Color
Length
