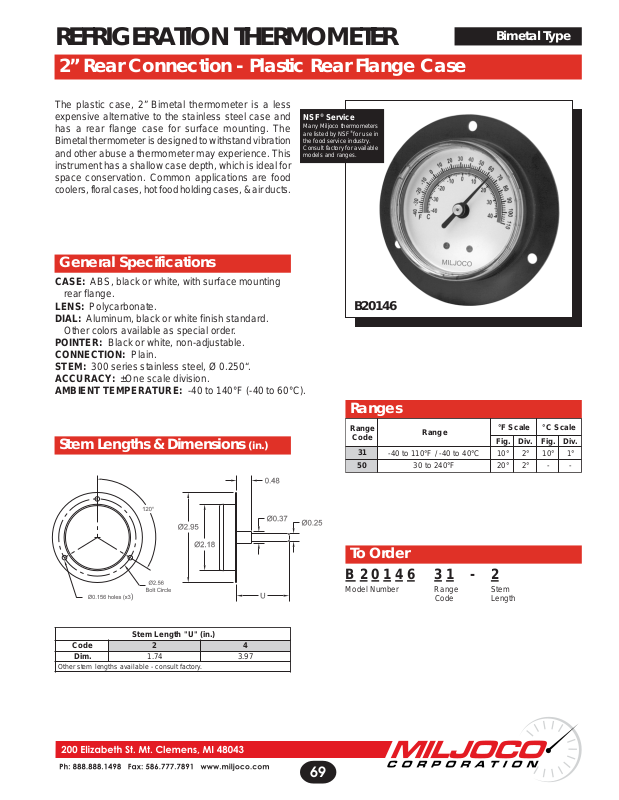

REFRIGERATION THERMOMETER
2” Rear Connection - Plastic Rear Flange Case
The plastic case, 2” Bimetal thermometer is a less
expensive alternative to the stainless steel case and
has a rear flange case for surface mounting. The
Bimetal thermometer is designed to withstand vibration
and other abuse a thermometer may experience. This
instrument has a shallow case depth, which is ideal for
space conservation. Common applications are food
coolers, floral cases, hot food holding cases, & air ducts.
General Specifications
CASE: ABS, black or white, with surface mounting
rear flange.
LENS: Polycarbonate.
DIAL: Aluminum, black or white finish standard.
Other colors available as special order .
POINTER: Black or white, non-adjustable.
CONNECTION: Plain.
STEM: 300 series stainless steel, Ø 0.250“.
ACCURACY: ±One scale division.
AMBIENT TEMPERA TURE: -40 to 140°F (-40 to 60°C).
NSF® Service
Many Miljoco thermometers
are listed by NSF® for use in
the food service industry.
Consult factory for available
models and ranges.
B20146
Bimetal Type
Stem Lengths & Dimensions (in.)
).ni("U"htgneLmetS
edoC
.miD
2 4
47.179.3
.yrotcaftlusnoc-elbaliavashtgnelmetsrehtO
Ranges
egnaR
edoC
13
05
egnaR
C°04ot04-/F°011ot04-°01°2°01°1
F°042ot03°02°2--
To Order
B 2 0 1 4 6 3 1 - 2
Model Number Range Stem
Code Length
elacSF°elacSC°
.giF.viD.giF.viD
69
