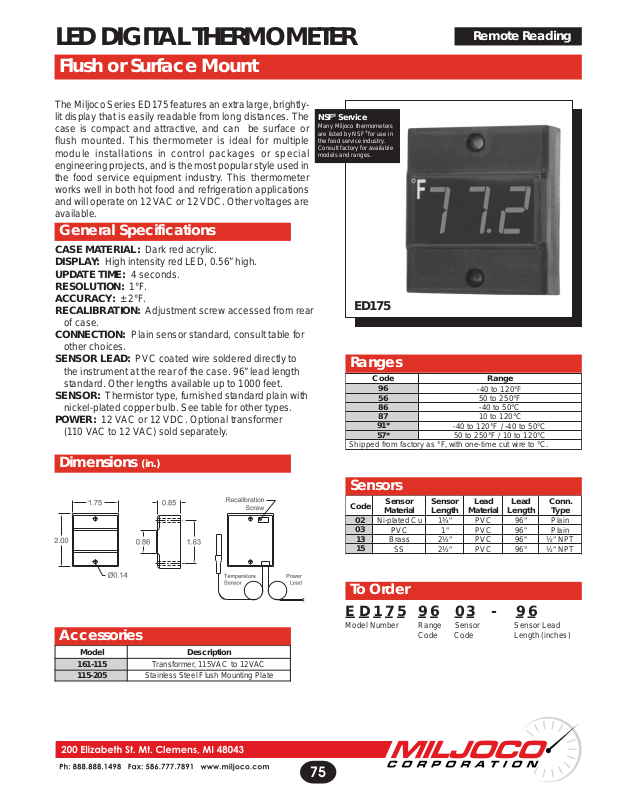

LED DIGITAL THERMOMETER
Flush or Surface Mount
The Miljoco Series ED175 features an extra large, brightlylit display that is easily readable from long distances. The
case is compact and attractive, and can be surface or
flush mounted. This thermometer is ideal for multiple
module installations in control packages or special
engineering projects, and is the most popular style used in
the food service equipment industry. This thermometer
works well in both hot food and refrigeration applications
and will operate on 12 V AC or 12 VDC. Other voltages are
available.
General Specifications
CASE MA TERIAL: Dark red acrylic.
DISPLA Y: High intensity red LED, 0.56” high.
UPDA TE TIME: 4 seconds.
RESOLUTION: 1°F.
ACCURACY: ± 2°F.
RECALIBRATION: Adjustment screw accessed from rear
of case.
CONNECTION: Plain sensor standard, consult table for
other choices.
SENSOR LEAD: PVC coated wire soldered directly to
the instrument at the rear of the case. 96” lead length
standard. Other lengths available up to 1000 feet.
SENSOR: Thermistor type, furnished standard plain with
nickel-plated copper bulb. See table for other types.
POWER: 12 V AC or 12 VDC. Optional transformer
(110 VAC to 12 V AC) sold sep arately.
NSF® Service
Many Miljoco thermometers
are listed by NSF® for use in
the food service industry.
Consult factory for available
models and ranges.
ED175
Ranges
edoCegnaR
69
65
68
78
*19
*75
Remote Reading
F°021ot04-
F°052ot05
C°05ot04-
C°021ot01
C°05ot04-/F°021ot04C°021ot01/F°052ot05
.C°oteriwtucemit-enohtiw,F°sayrotcafmorfdeppihS
Dimensions (in.)
Accessories
ledoMnoitpircseD
511-161
502-511
Sensors
edoC
20
30
31
51
rosneS
lairetaM
uCdetalp-iN"¾1CVP"69nialP
CVP"1CVP"69nialP
ssarB"½2CVP"69TPN"½
SS"½2CVP"69TPN"½
rosneS
htgneL
daeL
daeL
lairetaM
htgneL
.nnoC
epyT
To Order
E D 1 7 5 9 6 0 3 - 9 6
Model Number Range Sensor Sensor Lead
CAV21otCAV511,remrofsnarT
etalPgnitnuoMhsulFleetSsselniatS
Code Code Length (inches)
75
