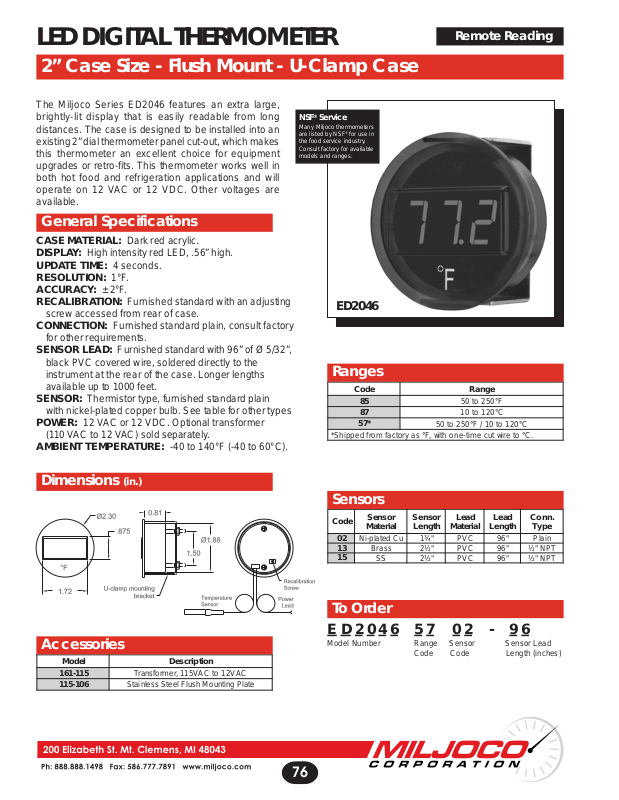

LED DIGITAL THERMOMETER
2” Case Size - Flush Mount - U-Clamp Case
The Miljoco Series ED2046 features an extra large,
brightly-lit display that is easily readable from long
distances. The case is designed to be installed into an
existing 2” dial thermometer panel cut-out, which makes
this thermometer an excellent choice for equipment
upgrades or retro-fits. This thermometer works well in
both hot food and refrigeration applications and will
operate on 12 VAC or 12 VDC. Other voltages are
available.
General Specifications
CASE MA TERIAL: Dark red acrylic.
DISPLA Y: High intensity red LED, .56” high.
UPDA TE TIME: 4 seconds.
RESOLUTION: 1°F.
ACCURACY: ± 2°F.
RECALIBRATION: Furnished standard with an adjusting
screw accessed from rear of case.
CONNECTION: Furnished standard plain, consult factory
for other requirements.
SENSOR LEAD: Furnished standard with 96” of Ø 5/32”,
black PVC covered wire, soldered directly to the
instrument at the rear of the case. Longer lengths
available up to 1000 feet.
SENSOR: Thermistor type, furnished standard plain
with nickel-plated copper bulb. See table for other types
POWER: 12 V AC or 12 VDC. Optional transformer
(110 VAC to 12 V AC) sold sep arately.
AMBIENT TEMPERA TURE: -40 to 140°F (-40 to 60°C).
NSF® Service
Many Miljoco thermometers
are listed by NSF
the food service industry.
Consult factory for available
models and ranges.
®
for use in
ED2046
Ranges
58
78
edoCegnaR
*75
Remote Reading
F°052ot05
C°021ot01
C°021ot01/F°052ot05
.C°oteriwtucemit-enohtiw,F°sayrotcafmorfdeppihS*
Dimensions (in.)
Accessories
ledoMnoitpircseD
511-161
601-511
Sensors
edoC
20
31
51
rosneS
lairetaM
uCdetalp-iN"¾1CVP"69nialP
ssarB"½2CVP"69TPN"½
SS"½2CVP"69TPN"½
rosneS
htgneL
daeL
daeL
lairetaM
htgneL
.nnoC
epyT
To Order
E D 2 0 4 6 5 7 0 2 - 9 6
Model Number Range Sensor Sensor Lead
CAV21otCAV511,remrofsnarT
etalPgnitnuoMhsulFleetSsselniatS
Code Code Length (inches)
76
