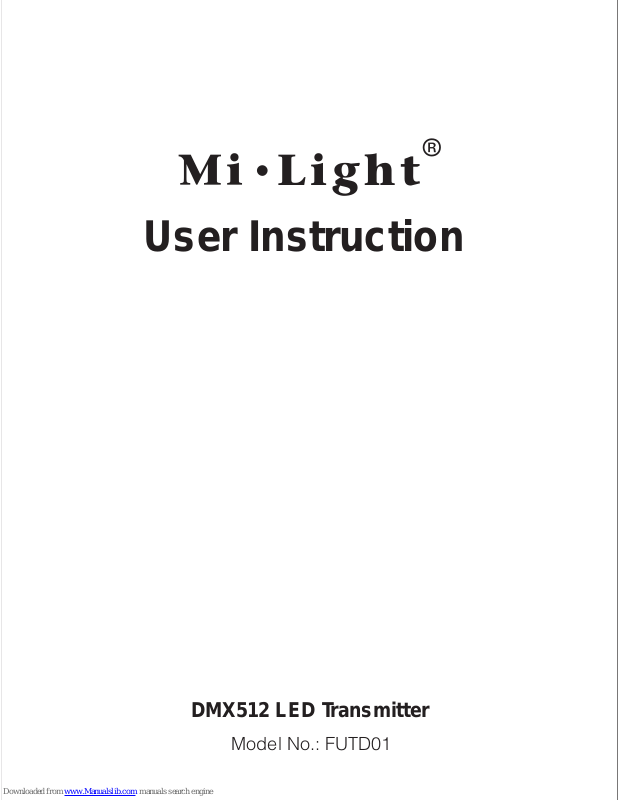

DMX512 LED Transmitter
Model No.: FUTD01
User Instruction
1. Functions
DMX512 led transmitter can send standard DMX512 protocol data by wireless. It is
used to transmit the wireless data between DMX512 control panel and our DMX512
light bulb or led strip light controller series. By adopting the 2.4G global ISM frequency,
the data is more reliable and has no delay during the transmitting.
Each DMX light bulb／strip controller or each group of DMX light bulbs/ strip controllers
use 5 DMX 512 communication channels, these 5 channels can adjust the brightness
of red, green, blue, warm white, cool white, from 0% to 100%. Our DMX transmitter can
control 16 light bulbs/strip light controllers, or 16 groups of light bulbs/strip light
controllers at the same time, it can transmit the DMX512 data of 80 channels at the
same time.
Voltage: DC5V-500mA
Frequency: 2400-2483.5MHz
Transmitting Method: GFSK
Power: 6dBm
Distance: 30m
Size: 18.8*4.7*2.3mm
2. Parameters
3. Functions of Keys
8.8.8.8
+
SET
-
Male Connector Set Digital Screen
Indicator
Antenna
1. Hold ‘SET’ until dXXX blinks.
2. Choose the address by pressing ‘+’ or ‘-’, there are totally 512 addresses.
3. After choosing the address, hold ‘SET’ until dXXX stops blinking.
5. Set the Address
Link:
Choose the zone for the DMX light bulb first by pressing ‘+’ or ‘-’, e.g. ‘CH12’ means
zone 12. Turn off the DMX light bulb, turn on again, within 3 seconds press SET three
times, the light bulb blinks slowly three times with green color, now the light bulb is
linked in zone 12, there are totally 16 zones.
UNLINK:
Turn off the DMX light bulb, turn on again, within 3 seconds press SET five times, the
light bulb blinks quickly 10 times with red color, now the unlink is done.
6. LINK/UNLINK
4. How to Use
8.8.8.8
+
SET
-
DMX512
Control Panel
Connect
DMX512 Transmitter
2.4GHz Wireless Signal
1
Zone
2
Zone
Limitless
Limitless
15
Zone
16
Zone
Limitless
Limitless
Made in China
To adjust the first channel of any light under any zone(CHXX) or any address (dXXX),
there are two steps to follow, first choose this light bulb, then find out the red color
channel, you can get it from the blow formula
1. When the result Q is not a whole number, and the reminder is E, then press Q+1
under Scanner and choose this light bulb, then the red is the E channel, green is the
E+1 channel, blue is the E+2 channel, warm white is the E+3 channel, cool white is
the E+4 channel.
2. When the result Q is a whole number, then press this number under Scanner and
choose this light bulb, then the red is the 16
th
channel, green is the 1st channel, blue
channel is the 2
nd
channel, warm white is the 3rd channel, cool white is the 4th
channel.
[ dXXX+(CHXX-1)×5 ] ÷ 16 = Q
7. How to Use
