User Instruction
Model No.: FUTC01 / C02
RGB+CCT Smart LED Garden Light
IP Rate: IP65
RGB+CCT
16 Millions of colors to choose
Color temperature
2700~6500K
Dimmable
Saturation control
2.4G RF wireless transmission
technology
Remote control
Control distance 30m
Smart phone App control
Mi-Light WiFi ibox is needed
Waterproof and dustproof
grade IP65
Beam Angle 15°
Illumination distance Greater than 10m
Made in China

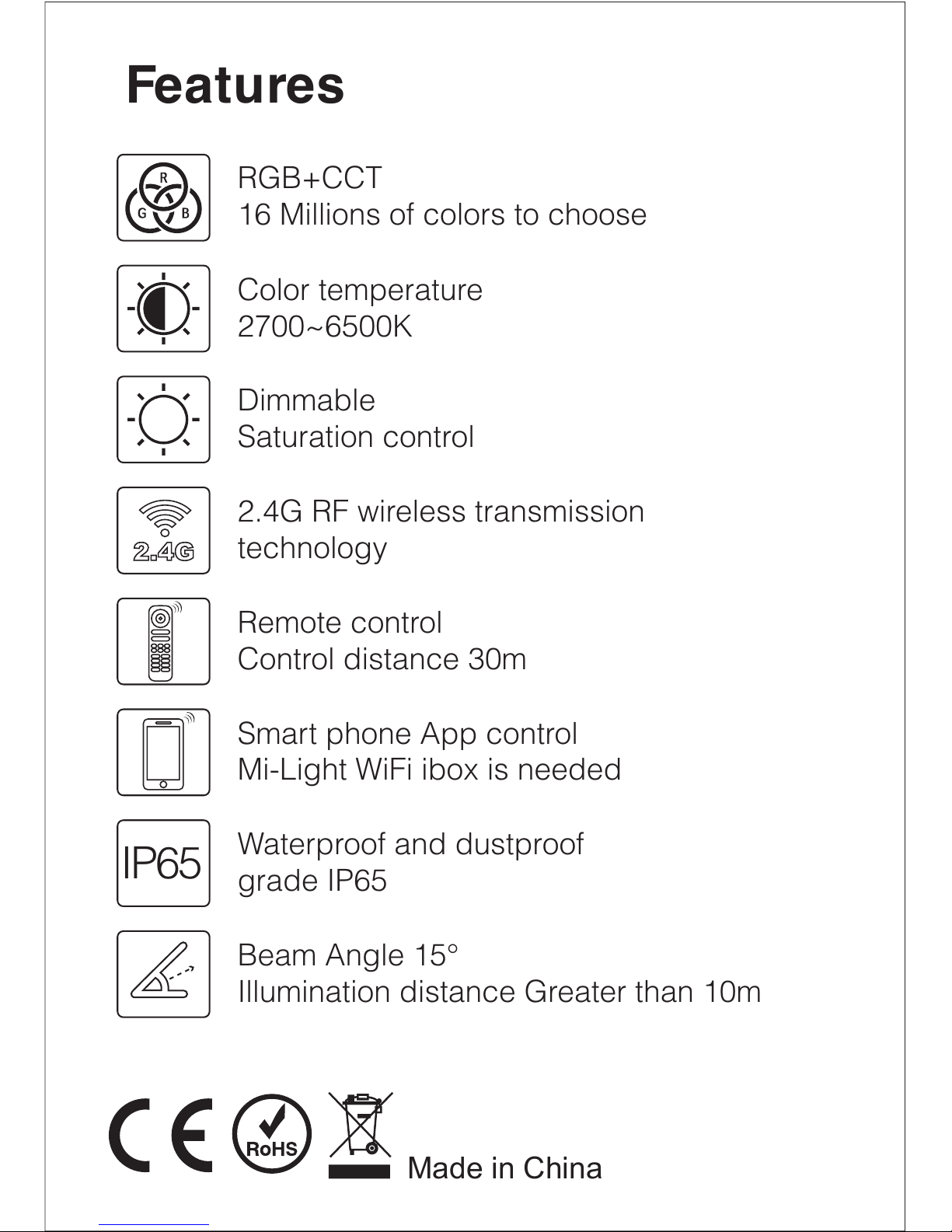

Features
IP65
AC86~265V / 50~60Hz
DC 24V
Model No. FUTC01
Input Voltage
Power
Color temperature
Luminous Flux
Light Efficiency
CRI
PF
Lifespan
Beam Angle
Illumination distance
IP Rate
MateriaI
9W
2700K~6500K
700LM
80LM/W
>80
——
50000 hours
15°
>10m
IP65
AIuminum
FUTC02
9W
2700K~6500K
700LM
80LM/W
>80
>0.5
50000 hours
15°
>10m
IP65
AIuminum

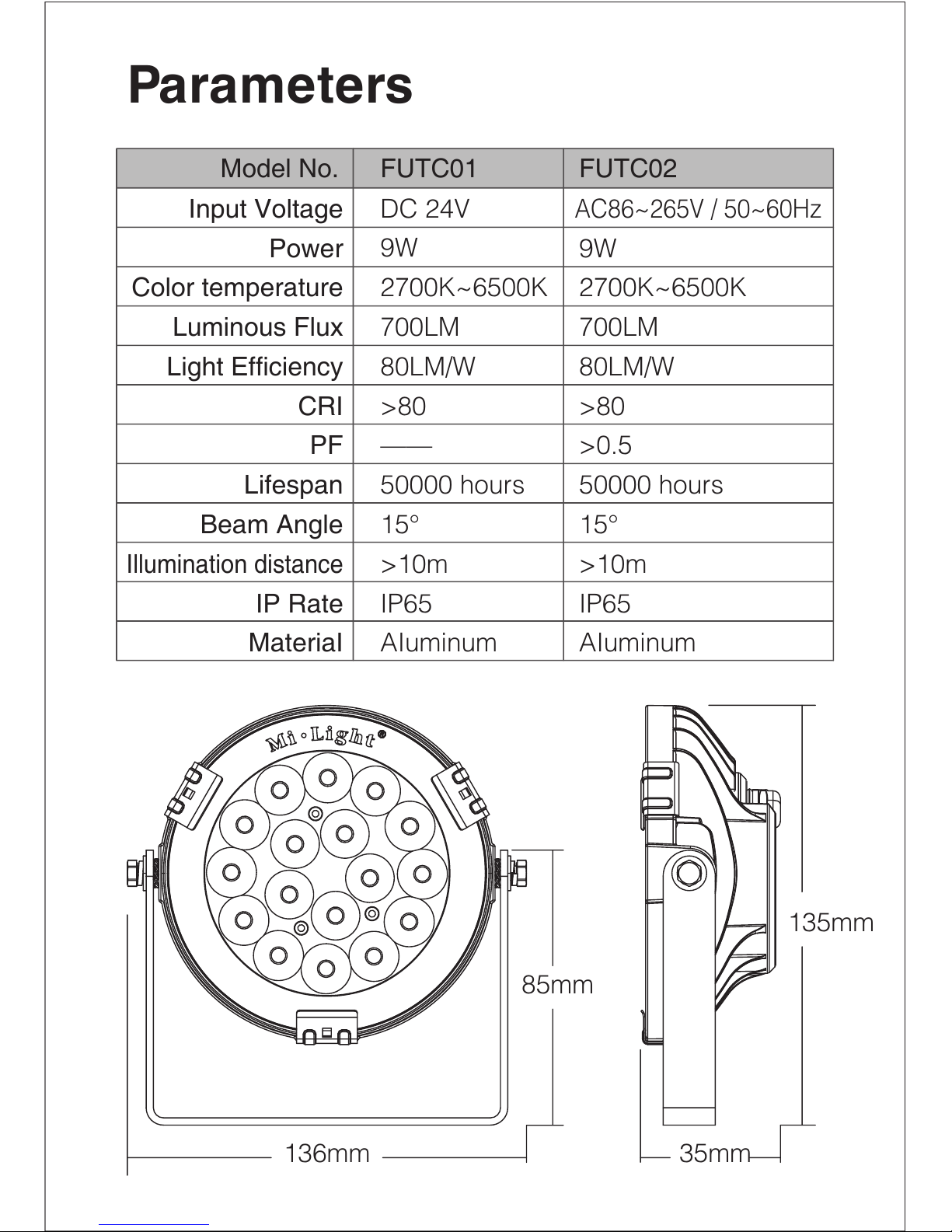

Parameters
136mm
85mm
35mm
135mm
Auto-transmitting Auto-transmitting

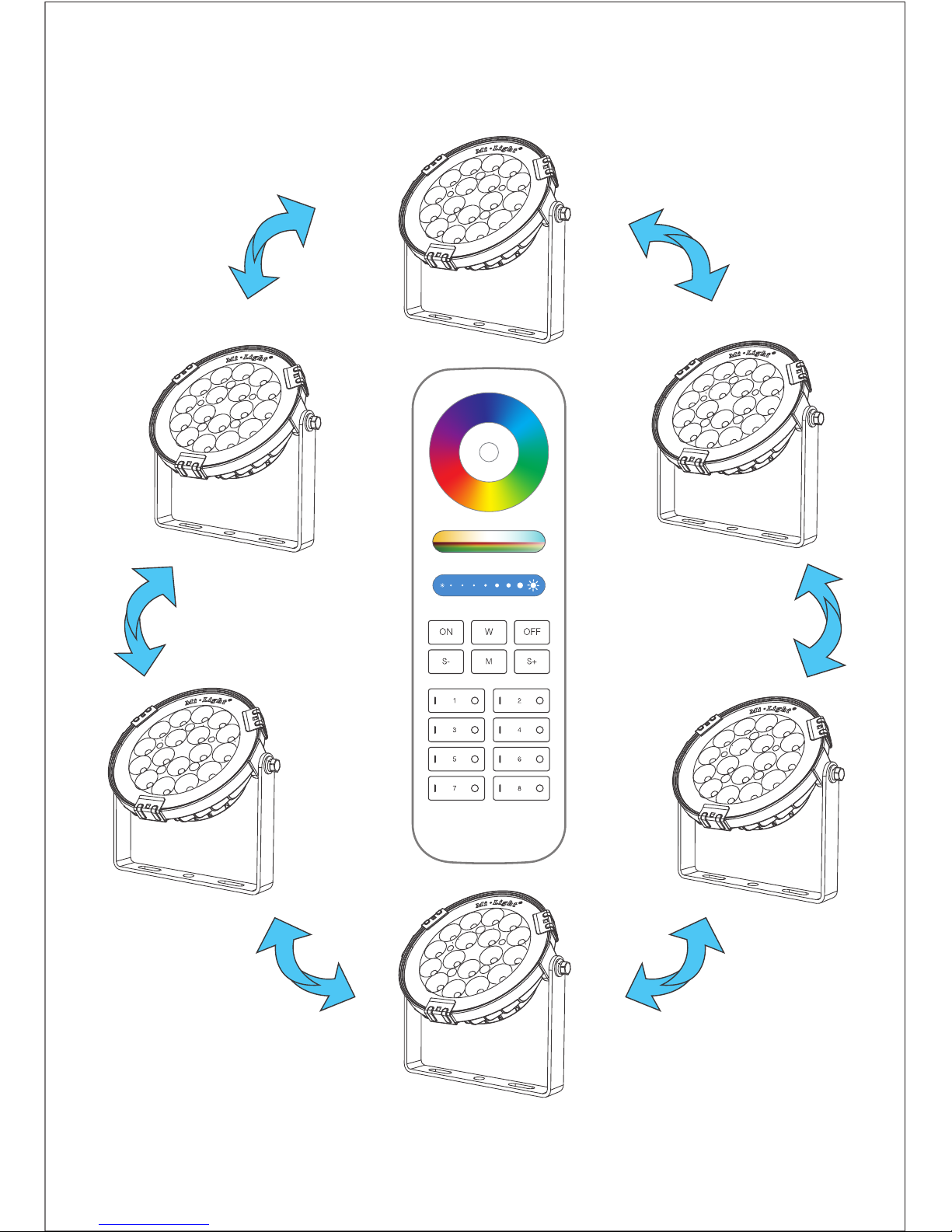

Auto-transmitting Diagram
One Garden Light can transmit the signals from the remote control
to another Garden Light within 30m, as long as there is a Garden
Light within 30m, the remote control distance can be limitless.
Auto-synchronization function
Different Garden Light can work synchronously when they are
started at different times, controlled by the same remote, under
same dynamic mode and with same speed.
1. Indicating Auto-transmitting.
2. Controller will be auto-synchronizing in the same
dynamic modes and within 30m controlling distance.
Remark:
Distance 30m Distance 30m Distance 30m
FUTC01 Connection diagram
Input Voltage DC 24V, don't need to distinguish polarity
on the connection
FUTC02 Connection diagram
Power Supply
AC
DC 24V
DC 24V
Link: Switch off the power, then switch on again
after 5 seconds, press " " 3 times within 3 seconds;
the light will blink 3 times slowly when it is done.
Unlink: Switch off the power, then switch on again
after 5 seconds, press corresonding " " or master
ON button 5 times within 3 seconds;the light will
blink 10 times quickly when it is done.
Link / Unlink
Master ON
Color Ring
Speed+
Speed-
Saturation
Control
Master OFF
Indicator
Color
temperatureLine
Brightness
Dimming
Mode
Zone ON
(Link/Unlink)
Zone OFF
FUT092
Compatible with FUT089 / FUT092 remote controls
(Purchased separately)
Caution
Color Ring
Speed+
Mode
Speed-
White light
Saturation
Indicator light
Master OFF
Master ON
/ CCT Control
Brightness
Dimming
“ ” Zone ON
(Link/Unlink)
“ ” Zone OFF
FUT089
Amateur do not dismantle and install the light
Users must be correct, strict and solid to install the
light; do not use the light on strenuous vibration area.
The lighting will be heating on working, pls do not
cover the lighting housing.
