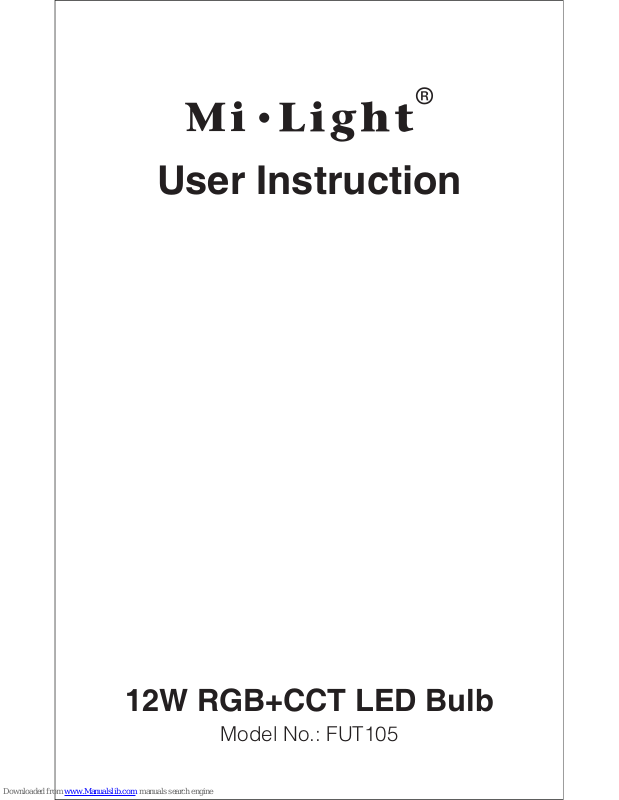

12W RGB+CCT LED Bulb
User Instruction
Model No.: FUT105
12W RGB+CCT LED Bulb is a newest developed smart lighting
system. This lamp is with 16million colors and 9 dynamic modes
controlled by wireless remote, and with wireless control,
auto-synchronization function. Also smartphone and 4G controllable
with “Mi.Light” WiFi bridge. The lamp is made of aluminum alloy,
and imported PC cover with high light transmitting rate, eye-protection
function, and with fashionable appearance,durablility, energy
saving and environment protection, etc features. Widely used on
home, hotel, shopping mall and supermarket,etc.
Model No: FUT105
Power: 12W
Voltage: AC86~265V 50~60Hz
Color Temperature: 2700~6500K
Luminous Flux: 1100LM
Light Efficiency: 90/W
Product Introduction
Technical Parameters
Φ74mm
140mm
CRI: >80
PF: >0.5
Lifespan: 50000 Hours
Beam angle: 220°
Size: Φ74*140mm
Control Distance: 30m
Remote Control Button Introduction
FUT089 Button Introduction
1. Long press “Master OFF” or “Zone OFF” to night light mode.
2. Under white light mode, touch “Saturation / CCT” to change color
temperature.
Under color light mode, touch “Saturation / CCT” to change color
saturation.
3. Touch “Color Ring” to change the colors.
4.
Press “Speed+” to accelerate the dynamic mode speed continously
until to fastest speed.
5.
Press “Speed-” to lower the dynamic mode speed continously until
to lowest speed.
Color Ring
Speed+
Mode
Speed-
White light
Saturation
Indicator light
Master OFF
Master ON
/ CCT Control
Brightness
Dimming
“ ” Zone OFF
“ ” Zone ON
(Link/Unlink)
Model No.: FUT089
FUT092 Button Introduction
1. Long press “Master OFF” or “Zone OFF” to night light mode.
2. Touch “Color temperature line” to white light mode and adjust
color temperature.
3. Touch “Color Ring” to change the colors.
4. Press “Speed+” to accelerate the dynamic mode speed
continously until to fastest speed.
5. Press “Speed-” to lower the dynamic mode speed continously
until to lowest speed.
FUT089 / FUT092 Link/Unlink
Link: Switch off the power, then switch on again after 5 seconds,
press " " 3 times within 3 seconds; the light will blink 3 times slowly
when it is done.
Unlink: Switch off the power, then switch on again after 5 seconds,
press corresonding " " or master ON button 5 times within 3 seconds;
the light will blink 10 times quickly when it is done.
Master ON
Color Ring
Speed+
Speed-
Saturation
Control
Master OFF
Indicator
Color
temperatureLine
Brightness
Dimming
Mode
Zone ON
(Link/Unlink)
Zone OFF
Model No.: FUT092
Link:
Click the zones button you want to link, the corresponding
indicating lamp will shine.
Turn off the power, then turn on again after 5 seconds, press “ ”
3 times within 3 seconds. The LED light blinks 3 times slowly
when it
is done.
...
Model No.: B8
B8 Link/Unlink
Unlink: Click the zones button you want to link, the corresponding
indicating lamp will shine.
Turn off the power, then turn on again after
5 seconds,
press “ ”
5 times within 3 seconds.
The LED light blinks
10 times swiftly
when
it is done
.
...
Mode
Speed+
Mode
Speed-
Dimming
Slider
White
Mode
Color Ring
60S
Delay OFF
8-zone
All zones
Saturation
/ CCT Control
Dynamic Mode Sheet
Number
1
2
3
4
5
6
7
8
9
Dynamic Mode Brightness Speed Saturation
White light gradual
change+Flash 3times
Blue light gradual
change+Flash 3times
Green light gradual
change+Flash 3times
Red light gradual
change+Flash 3times
Jump to change
randomly
Seven color jump
to change
RGB gradual change
White light Gradual
change
Seven color gradual
change
Adjustable Adjustable
Adjustable
Adjustable
Unadjustable
Unadjustable
1.
When install the light, pls switch off the power to make sure the safty.
2. The working power is high voltage alternating current, so it must
be far away from people and must with ground connection.
Attention
Made in China
