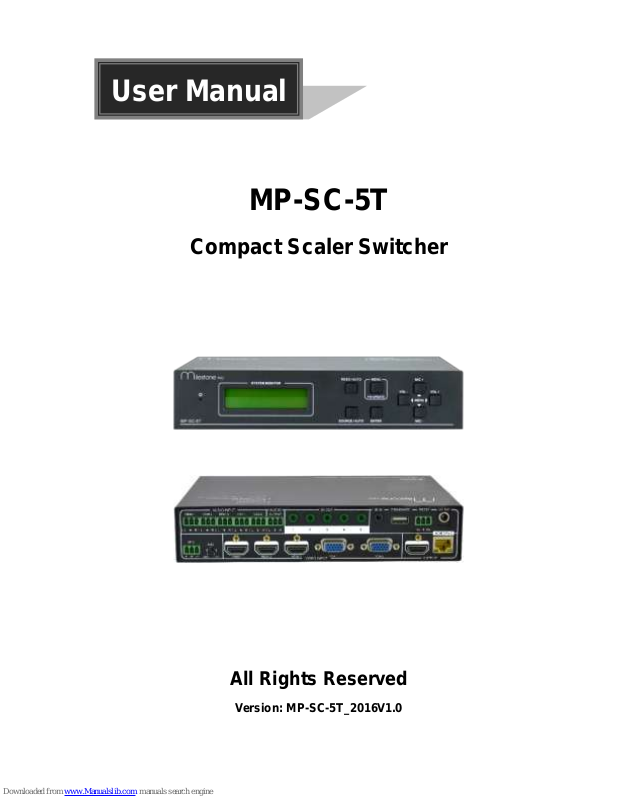

MP-SC-5T
Compact Scaler Switcher
All Rights Reserved
Version: MP-SC-5T_2016V1.0
User Manual
Compact Scaler Switcher (with PoC)
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
Compact Scaler Switcher (with PoC)
NOTICE:
1. Please read this user manual carefully before using this product.
2. The item PoC is short for Power over Cable, and when the power adapter is
connecting with HDMI Twisted Pair PoC Receiver, MP-SC-5T can’t be energized
through PoC.
3. The receiver works with MP-SC-5T can only be HDMI Twisted Pair PoC Receiver.
4. The item “far-end” means the device (e.g. display device, 3rd party RS232 device
etc) connected with HDMI Twisted Pair PoC Receiver.
5. Take notice to 4.6 Instructions of VGA Converting Cable when using.
6. Pictures shown in this manual are for reference only, different model and
specifications are subject to real product.
This manual is for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till April 2016. Any changes of
functions and parameters since then will be informed separately. Please refer to the
dealers for the latest details.
All rights reserved. No part of this publication may be copied or reproduced without
the prior written consent.
Compact Scaler Switcher (with PoC)
Contents
1. Introduction ................................................................................................................. 1
1.1 Introduction to MP-SC-5T .................................................................................. 1
1.2 Features ............................................................................................................ 1
1.3 Package Contents ............................................................................................. 1
2. Product Appearance ................................................................ ................................ ... 2
2.1 Front Panel ........................................................................................................ 2
2.2 Rear Panel ......................................................................................................... 4
3. System Connection ................................ ................................ ................................ ..... 5
3.1 Usage Precautions ............................................................................................ 5
3.2 System Diagram ................................................................................................ 5
3.3 Connection Procedure ....................................................................................... 6
3.4 Connection of Microphone ................................................................................. 6
3.5 Application ......................................................................................................... 9
4. System Operations ..................................................................................................... 9
4.1 Operations of Front Panel Buttons .................................................................... 9
4.1.1 Resolution Adjusting ................................................................................ 9
4.1.2 Switching Operations ............................................................................... 9
4.1.3 Volume Adjusting ................................................................................... 10
4.1.4 Used in OSD Menu ................................................................................ 11
4.1.5 Software updating: ................................................................................. 11
4.2 Operations of IR .............................................................................................. 12
4.2.1 IR Remote ............................................................................................. 12
4.2.2 IR Operations ........................................................................................ 13
4.3 Operations of CEC Function ............................................................................ 14
4.4 Operations of RS232 Control ........................................................................... 15
4.4.1 Installation/uninstallation of RS232 Control Software ............................ 15
4.4.2 Basic Settings ........................................................................................ 15
4.4.3 RS232 Communication Commands ...................................................... 16
4.4.4 Control MP-SC-5T or 3rd Party Device from Local ................................ 24
4.4.5 Control MP-SC-5T from Local or Remote .............................................. 25
4.5 Operations in OSD Menu................................................................................. 25
Compact Scaler Switcher (with PoC)
4.5.1 Option .................................................................................................... 26
4.5.2 Picture ................................................................................................... 27
4.5.3 Sound .................................................................................................... 27
4.5.4 Setup ..................................................................................................... 28
4.6 Instructions of VGA Converting Cable ............................................................. 29
5. Specification ............................................................................................................. 30
6. Panel Drawing .......................................................................................................... 32
7. Troubleshooting & Maintenance ............................................................................... 32
8. After-sales Service .................................................................................................... 34
Compact Scaler Switcher (with PoC)
1
1. Introduction
1.1 Introduction to MP-SC-5T
MP-SC-5T is a compact mini scaler switcher with 5 video inputs (3 HDMI, 2 VGA) and 6
audio inputs (3 HDMI audio & 2 VGA audio: switched following the video; 1 MIC audio
input). As the VGA input supports VGA, YPbPr and C-video, so the scaler switcher is
compliant with multiple video signals.
MP-SC-5T scales & switches any video signal to HDMI output and HDBaseT output
(supports PoC, connects with HDMI Twisted Pair PoC Receiver, max transmission
distance is 60 meters).
And with 1 IR IN, 5 IR OUT & 1 RS232, IR & RS232 signal can be transmitted
bi-directionally between MP-SC-5T and HDMI Twisted Pair PoC Receiver.
1.2 Features
Compliant with HDCP
Supports CEC, with commands to enable/disable this function
Supports video source auto-switching function
Bi-directional IR & RS232 control
Output resolutions selectable to assure preferred output, and supports various
output resolutions, such as 1920x1200, 1920x1080, 1600x1200, 1360x768,
1280x800, 1280x720, 1024x768
VGA video supports C-video, YPbPr and VGA
Supports online software upgrading
48V phantom power to support condenser microphone
MIC port supports balance/unbalance signal, suppress the external noise effectively
3-level MIC input, supports condenser microphone, dynamic microphone and
wireless microphone
Controllable via button, IR & RS232
Powerful OSD function
1.3 Package Contents
1 x MP-SC-5T
2 x Mounting ears (for MP-SC-5T)
1 x HDMI Twisted Pair PoC Receiver（MPTP-T70R）
2 x Mounting ears (for MPTP-T70R)
5 x Screws (black color)
7 x Captive screw connectors
Compact Scaler Switcher (with PoC)
2
1 x IR receiver (with carrier wave)
1 x IR emitter
2 x VGA to YPbPr cables
2 x RS232 cable
8 x Plastic cushions
1 x IR remote (Cell battery is not included)
1 x Power Adapter (DC 12V)
1 x User Manual
Notes：Please confirm if the product and the accessories are all included, if not, please
contact with the dealers.
2. Product Appearance
2.1 Front Panel
① Power indicator
Illuminate red when power on, turn green in standby mode.
② LCD screen
Show real-time system working status
③ SOURCE/AUTO
Used as video source selection button, press to select one source, press again
to select next source, switching circularly between HDMI1, HDMI2, HDMI3,
VGA1 and VGA2. The LCD screen will show the name of selected source.
Used as switching mode selection button, press and hold for 7 seconds or more
to enter in Auto-switching mode, press and hold for 7 seconds or more again to
enter in Manual-switching mode.
Note: Setting any VGA port to AV or YPbPr in Manual-switching mode, the system will
not be able to enter in Auto-switching mode. While in Auto-switching mode, setting any
VGA port to AV or YPbPr will automatically enter in Manual-switching mode, and the
LCD screen and RS232 control software will prompt “Not support!”.
RESO / AUTO
SOURCE / AUTO
MENU
ENTER
MENU
VOL - VOL +
MIC +
MIC -
SYSTEM MONITOR
MP-SC-5T
FW UPDATE
1
3
4
10
5
6
7
9 8
2
Compact Scaler Switcher (with PoC)
3
④ ENTER
Confirm selection in menu.
⑤ RESO/AUTO
Manual-switching mode: Press this button to select the resolution of HDMI local
output & HDBaseT output manually. The resolution can be selected among
1920x1200, 1920x1080, 1600x1200, 1360x768, 1280x800, 1280x720,
1024x768.
Auto-switching mode: Press and hold this button for 7 seconds or more to enter
this mode. This Scalar Switcher will read the highest resolution of far-end display
device as the resolution of HDMI local output & HDBaseT output.
If the HDBaseT output isn’t connected to far-end device, this Scalar Switcher will
automatically select the highest resolution of local HDMI display.
Press and hold for 7 seconds or more again can back to Manual-switching mode.
⑥ MENU/FW UPDATE
Used as menu button, press it to enter in OSD menu.
Used as software updating button, press and hold for 7 seconds or more to
enter in software updating procedure.
⑦ VOL-
Used as volume down button.
Used as direction button NEXT in menus.
⑧ VOL+
Used as volume up button.
Used as direction button PREVIOUS in menus.
⑨ MIC+
Used as MIC volume up button.
Used as direction button MOVE UP in menus.
⑩ MIC-
Used as MIC volume down button.
Used as direction button MOVE DOWN in menus.
Note: Pictures shown in this manual are for reference only, different model and
specifications are subject to real product.
Compact Scaler Switcher (with PoC)
4
2.2 Rear Panel
① AUDIO INPUT
Including 3 HDMI audio & 2 VGA audio inputs
User can choose any one audio (embedded HDMI audio or external input audio) for
HDMI audio input by sending RS232 commands.
② AUDIO OUTPUT
Audio output port, the audio comes from the input audio corresponding to the
selected video source and mixed with MIC audio.
③ IR OUT
5 in total, connect with IR emitters to control local source devices or MP-SC-5T from
remote, switched along with corresponding video source.
④ IR IN
Connects with IR receiver (with carrier wave only), to receive IR signal send by the
IR remote or remote controller of other input/output device.
⑤ FIRMWARE
USB port, connects with USB flash disk or other storage which is with update file
inside, to update the system firmware.
⑥ RS232
Serial control port, 3-pin captive screw connector, connect with a control device
(such as a computer) to control MP-SC-5T or other devices connected with HDMI
Twisted Pair PoC Receiver.
⑦ DC 12V
Power port, connect with DC 12V power adapter.
⑧ MIC
a) MIC port
Connect with microphone
b) Dial switch
Including 3 levels: 48V phantom power mode (connect with condenser
microphone), MIC mode (connect with dynamic microphone) and LINE mode
(connect with wireless microphone or line audio).
MIC
OUTPUTVIDEO INPUT
IR OUT
VGA 2
RS232FIRMWARE
HDMI 1
AUDIO INPU T
VGA 2
HDMI 1 HDMI 2
HDMI 3
HDMI 2
OUTP UT
RL
MIC
IR IN
HDMI 3 VGA 1
VGA 1
HDBT/Po C
1 2 3 4 5
48V LINE
Tx Rx
DC 12V AUDIO
RL RL RL RL RL
1
2
3
9
a
b
c
d
4
5
6
7
8
10
Compact Scaler Switcher (with PoC)
5
⑨ VIDEO INPUT
Video input ports, include 3 HDMI inputs & 2 VGA inputs.
VGA ports support YPbPr, C-video and VGA format. Factory default is VGA format.
⑩ OUTPUT
a) HDMI local output
b) HDBaseT output, support PoC.
HDBaseT output boasts green and yellow indicator. The green indicator will blink when
power. If connect a receiver (such as MPTP-T70R) to this output successfully, the
yellow indicator will light up, and the green indicator will keeps blinking.
The two ports share the same audio signal, and the audio signal is mixed with MIC
audio and HDMI embedded audio (output audio). If disabling HDMI embedded audio
output, there will be no audio output through these ports.
Note: Pictures shown in this manual are for reference only, different model and
specifications are subject to real product.
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment and has a prop temperature and
humidity.
2) All of the power switches, plugs, sockets and power cords should be insulated and
safe.
3) All devices should be connected before power on.
3.2 System Diagram
D
V
D
Rs23 2
cont rol pan el
PC
HDTV
DV Camera
PC
Laptop
MIC
Proj ector
Receiver
Compact Scaler Switcher (with PoC)
6
3.3 Connection Procedure
Step1. Connect HDMI source devices (e.g. Blue-ray DVD) to HDMI input ports of
MP-SC-5T with HDMI cable. Connect VGA source devices (e.g. PC) to VGA
input ports of MP-SC-5T with VGA cable.
Step2. Connect audio sources to corresponding AUDIO INPUT ports on MP-SC-5T with
audio cable. The audio of HDMI can be embedded or external by sending the
right command.
Step3. Connect a HDMI display device to HDMI output port of MP-SC-5T with HDMI
cable.
Step4. Connect HDMI Twisted Pair PoC Receiver to HDBaseT output port of MP-SC-5T
with twisted pair.
Step5. Connect speaker, headphone or amplifier to AUDIO OUTPUT port of MP-SC-5T.
Step6. Connect control device (e.g. PC) to RS232 port of MP-SC-5T or HDMI Twisted
Pair PoC Receiver (bi-directional RS232 control, either end is available).
Step7. Both MP-SC-5T and HDMI Twisted Pair PoC Receiver have IR IN and OUT.
When one model is connected with IR receiver, the other model should connect
with an IR transmitter.
For example: When “IR IN” of MP-SC-5T connects with an IR receiver, the IR
transmitter must connect to IR OUT of HDMI Twisted Pair PoC Receiver.
The IR signal can be transmitted bi-directionally between MP-SC-5T and
HDMI Twisted Pair PoC Receiver.
Step8. Select MIC level and connect right microphone to MIC input port. MIC audio will
be transmitted to AUDIO OUTPUT port and mixed with source audio.
Step9. Connect DC12V power adaptor to the power port (HDMI Twisted Pair PoC
Receiver is able to get power from MP-SC-5T with PoC function).
Note: MP-SC-5T supports unidirectional PoC, i.e., If the power adapter is connecting
with MP-SC-5T, HDMI Twisted Pair PoC Receiver can get power from MP-SC-5T; but
when the power adapter is connecting with HDMI Twisted Pair PoC Receiver,
MP-SC-5T can not get power from HDMI Twisted Pair PoC Receiver.
3.4 Connection of Microphone
MP-SC-5T provides with one 3-level microphone input port, to accommodate different
microphone input modes, including 48V phantom power mode, MIC mode & LINE mode.
48V phantom power input
48V phantom power input has a good frequency characteristic, high input impedance
and high sensitivity.
When switching to “48V”, the MIC input will provide a 48V phantom power. This is only
Compact Scaler Switcher (with PoC)
7
used for condenser microphone.
Connect the microphone in this way: “+” connects to positive, “-” connects to negative
and “ ” to ground.
MIC input
MIC input has a low frequency characteristics, and wide frequency response.
When switch to “MIC”, the microphone input is used for connecting with dynamic
microphone. There are two different connection methods:
1) Unbalanced connection:
“+” and “ ” connect to ground, and “-” connects to signal.
“-” and “ ” connect to ground, and “+” connects to signal.
2) Balanced connection: “+” connects to positive, “-” connects to negative and “ ”
connects to ground.
Compact Scaler Switcher (with PoC)
8
LINE input
LINE input has a low frequency characteristics, and wide frequency response.
When switch to “LINE”, the microphone input is used for connecting with line audio or
wireless microphone output. There are two different connection methods:
1) Unbalanced connection:
“+” and “ ” connect to ground, and “-” connects to signal.
“-” and “ ” connect to ground, and “+” connects to signal.
2) Balanced connection: “+” connects to positive, “-” connects to negative and “ ”
connects to ground.
Compact Scaler Switcher (with PoC)
9
3.5 Application
MP-SC-5T has a good application in various occasions, such as computer realm,
monitoring, conference room, big screen displaying, television education, command &
control center and smart home etc.
4. System Operations
4.1 Operations of Front Panel Buttons
Front panel buttons can be used for output resolution adjusting, switching operations,
software updating, volume adjusting and other operations in menus.
4.1.1 Resolution Adjusting
Resolution supports auto-adjusting and manual-adjusting. Press and hold for
RESO/AUTO button for 7 seconds or more to switch between auto-adjusting/
manual-adjusting mode.
Note:
1. In auto-adjusting mode, MP-SC-5T will choose the resolution of the display device at
the far-end as the preferred resolution.
If you need to choose the resolution of local HDMI display device:
Cut off the power of MP-SC-5T and disconnect MP-SC-5T and HDMI Twisted Pair
PoC Receiver.
Turn on the power of MP-SC-5T.
Gets the resolution of local HDMI output device.
Connect HDMI Twisted Pair PoC Receiver to MP-SC-5T.
2. In auto-switching mode, front panel button control is not available, but IR and RS232
control are able to switch modes.
4.1.2 Switching Operations
Video signals support auto-switching and manual-switching. Press and hold for
SOURCE/AUTO button for 7 seconds or more to enter in auto-switching/
manual-switching mode.
The display result is showed as below:
The display result will be showed for 2 seconds.
IN: HDMI1 AUTO
1280 X 720
IN: HDMI1 MANUAL
1280 X 720
Compact Scaler Switcher (with PoC)
10
The auto-switching mode abides by the following principles:
New input principle
Once detecting a new input signal, MP-SC-5T would switch to this new signal
automatically.
Power rebooting principle
MP-SC-5T offers the function to remember the last displayed signal when rebooting.
Once rebooted, MP-SC-5T will automatically enter auto-switching mode, and then
detect all inputs and memorize their connection status for future rebooting using.
If the last displayed signal is still available, MP-SC-5T will output the signal. If not,
there will be no signal on output devices.
Signal removing principle
Once removing the current display signal, MP-SC-5T will detect all input signals with
priority from INPUT 1 to INPUT 5. It will transfer the signal firstly detected to be
available to output devices.
Notice: Auto-switching function works only when inputting new signal, removing a signal
or power rebooting. With any VGA port set to AV or YPbPr, the system will be not able to
enter in Auto-switching mode.
Operation Examples:
Connect INPUT 2, INPUT 4, and INPUT 5 ports with source devices, select INPUT 4
to outputs.
Press and hold for the front key SOURCE/AUTO for 7 seconds or more to enter in
auto-switching mode.
No signal removing or new input, MP-SC-5T just works in auto-switching mode, and
take no action (Output from INPUT 4)
Connect INPUT 3 with a source device, and then it will choose INPUT 3 to output.
Remove the signal of INPUT 3, MP-SC-5T will detect from INPUT 1 to INPUT 5. And
when it detects that input 2 is available, it will choose INPUT 2 to output.
Cut off the power of MP-SC-5T, then reboot. As MP-SC-5T is in auto-switching mode,
it will choose INPUT 2 to output.
4.1.3 Volume Adjusting
Not in OSD menu, press VOL – to decrease line volume, VOL + to increase.
Not in OSD menu, press MIC – to decrease MIC volume, MIC + to increase.
Auto-switching function
Compact Scaler Switcher (with PoC)
11
4.1.4 Used in OSD Menu
Press MENU button to enter in OSD menu, and use UP, DWON, LEFT, RIGHT button
to navigate, press ENTER button to confirm selection. MENU button also can be used to
exit present menu level by level until exit the OSD menu.
4.1.5 Software updating:
MP-SC-5T supports software updating via USB flash disk.
Procedures:
1) Copy the file “MERGE_51T.bin” to the root directory of a USB flash disk. (Make sure
the file is copied to the root directory for normal use. The “MERGE_51T.bin” file is
provided/ authorized by our engineering department.
2) Plug the USB flash disk to the MP-SC-5T USB port on its front panel.
3) Press the button “MENU” for 7 seconds or more to update the software
automatically.
Or press this button for 1 second to open the OSD menu “Option” Select
“Software Update” to enter in update procedure.
Or send command 50689% to update software.
Compact Scaler Switcher (with PoC)
12
4.2 Operations of IR
4.2.1 IR Remote
As IR signal can be transmitted bi-directionally between MP-SC-5T and HDMI Twisted
Pair PoC Receiver, it is able to use the IR remote at the far-end to control MP-SC-5T or
HDMI source devices (via CEC function buttons).
① Standby button
Enter/ exit standby mode
② Input channel selection buttons
INPUT 1 is for HDMI1, INPUT 2 for
HDMI2…INPUT 5 for VGA2.
AUTO: Enable/disable auto-switching mode.
③ Volume adjusting buttons
MIC-/+: turn down/ up MIC volume
LINE-/+: turn down/ up line volume
MIC MUTE: mute/ unmute MIC audio
LINE MUTE: mute/ unmute line audio
④ Menu operation buttons
MENU: press to enter in OSD menu or used to
return to previous menu. EXIT: exit OSD menu.
OK: confirm button. Navigation buttons:
UP/DWON/LEFT/ RIGHT button, for value setting
or page-turn, Buttons in area a are also able to
work in CEC mode to enter the menu of HDMI
source device. P.P, ZOOM, S.M: shortcut button,
to select display mode.
⑤ Resolution selection buttons
Select resolution by pressing corresponding
button.
AUTO: Enable/disable auto-switching mode.
⑥ CEC function buttons
(For HDMI input signal which supports CEC only)
Including PLAY, PAUSE, STOP, MENU, REV
(reverse) and FWD (forward)
Buttons in section also work when entered CEC
too.
Compact Scaler Switcher (with PoC)
13
4.2.2 IR Operations
The 5 IR OUT ports correspond to the 5 video inputs separately, and the IR signals are
switched following the corresponding video source.
1) Control far-end device from local
Control MP-SC-5T or far-end display device from local through corresponding IR
remote.
2) Control local device from remote
Control MP-SC-5T or local device from local through corresponding IR remote.
Compact Scaler Switcher (with PoC)
14
4.3 Operations of CEC Function
MP-SC-5T supports CEC, it can be turned on/ off by sending RS232 commands or OSD
menu operations. The default setting is ON.
Commands pertaining to CEC: “50686%” (enable CEC) and “50687%” (disable CEC)
HDMI INPUT ports 1~3 support CEC, if the connected source devices also support CEC
and their CEC are on, users can control the source device via the IR remote of
MP-SC-5T.
The working status related to CEC and STANDBY is showed as below:
Situation
Working Status
CEC: on, Standby: on
Press STANDBY button on IR remote, MP-SC-5T enters in
standby mode, so do all HDMI source devices.
Press STANDBY button again on IR remote, MP-SC-5T exits
standby mode, the HDMI source devices start working too.
CEC: on, Standby: off
Press STANDBY button on IR remote, MP-SC-5T enters in
standby mode, HDMI 1~3 source devices keep on.
CEC: on
Use CEC function buttons, ▲,▼, , and OK buttons on
IR remote to control HDMI source devices, include play,
pause, fast forward, fast reverse and operations in menu.
CEC: off
Unable to control HDMI source devices through IR remote
Compact Scaler Switcher (with PoC)
15
CEC: Control HDMI source devices by IR remote of MP-SC-5T
4.4 Operations of RS232 Control
As RS232 can be transmitted bi-directionally between MP-SC-5T and HDMI Twisted
Pair PoC Receiver, so it is able to control a third party RS232 device from local or
control MP-SC-5T from remote. When to control a third party RS232 device, the baud
rate of this device should be 2400, 4800, 9600, 19200, 38400, 57600 or 115200.
4.4.1 Installation/uninstallation of RS232 Control Software
Installation Copy the control software file to the computer connected with
MP-SC-5T.
Uninstallation Delete all the control software files in corresponding file path.
4.4.2 Basic Settings
First to connect MP-SC-5T with all input devices and output devices needed, then to
connect it with a computer which is installed with RS232 control software. Double-click
the software icon to run this software.
Here we take the software CommWatch.exe as example. The icon is showed as below:
The interface of the control software is showed as below:
O
K
Z
O
O
M
S
.
M
M
E
N
U
E
X
I
T
I
N
P
U
T
1
P
.
M
1
0
8
0
P
7
2
0
P
M
E
N
U
I
N
P
U
T
5
I
N
P
U
T
2
I
N
P
U
T
3
I
N
P
U
T
4
A
U
T
O
S
c
a
l
e
r
S
w
i
t
c
h
e
r
A
U
T
O
P
L
A
Y
/
P
A
U
S
E
S
T
O
P
R
E
V
F
W
D
I
N
P
U
T
S
O
U
R
C
E
C
E
C
C
O
N
T
R
O
L
M
I
C
M
U
T
E
M
I
C
L
I
N
E
L
I
N
E
M
U
T
E
Compact Scaler Switcher (with PoC)
16
Please set the parameters of COM number, bound rate, data bit, stop bit and the parity
bit correctly, and then you are able to send command in Command Sending Area.
4.4.3 RS232 Communication Commands
Communication protocol: RS232 Communication Protocol
Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none
Command
Function
Feedback Example
Switch Commands
50701%
Switch to HDMI 1 input
Switch to HDMI 1
50702%
Switch to HDMI 2 input
Switch to HDMI 2
50703%
Switch to HDMI 3 input
Switch to HDMI 3
50704%
Switch to VGA 1/YPbPr 1/AV 1 input
Switch to VGA 1/YPbPr 1/AV 1
50705%
Switch to VGA 2/YPbPr 2/AV 2 input
Switch to VGA 2/YPbPr 2/AV 2
50680%
Select VGA 1 for INPUT 4
Input 4 Set & Switch to VGA 1
50681%
Select YPbPr 1 for INPUT 4
Input 4 Set & Switch to AV 1
Parameter Configuration area
Monitoring area, indicates if the
command sent works.
Command Sending area
Compact Scaler Switcher (with PoC)
17
Command
Function
Feedback Example
50682%
Select AV 1 for INPUT 4
Input 4 Set & Switch to AV 1
50683%
Select VGA 2 for INPUT 5
Input 5 Set & Switch to VGA 2
50684%
Select YPbPr 2 for INPUT 5
Input 5 Set & Switch to YPbPr 2
50685%
Select AV 2 for INPUT 5
Input 5 Set & Switch to AV 2
50785%
Enable auto-switching
Auto Switching
50786%
Disable auto-switching
Manual Switching
Audio Commands
50600%
MUTE line audio
LINE Mute
50601%
UnMute line audio
LINE Unmute
50602%
Line audio volume up
LINE Volume: xx (xx=00~60)
50603%
Line audio volume down
LINE Volume: xx (xx=00~60)
50720%
Mute LINE audio & MIC audio
LINE Mute
MIC Mute
50721%
Unmute LINE audio & MIC audio
LINE Unmute
MIC Unmute
50722%
Mute MIC audio
MIC Mute
50723%
Unmute MIC audio
MIC Unmute
50694%
Enable Mic precedence
Mic precedence: enable
图像输出调整关闭
Exit Output Position Adjust
50695%
Disable Mic precedence
Mic precedence: disable
图像整体向右移动
Output Position Adjust X xx
50696%
Check Mic precedence status
Mic precedence: XXXX (XXXX=
enable / disable)
图像整体向左移动
Output Position Adjust X xx
50724%
MIC volume up
MIC Volume: xx (xx=00~60)
50725%
MIC volume down
MIC Volume: xx (xx=00~60)
508xx%
Set MIC volume
MIC Volume: xx (xx=00~60)
50706%
Choose embedded audio as HDMI 1
audio input
HDMI 1 Audio from Embedded
50707%
Choose external audio as HDMI 1
audio input
HDMI 1 Audio from LINE
50708%
Choose embedded audio as HDMI 2
audio input
HDMI 2 Audio from Embedded
Compact Scaler Switcher (with PoC)
18
Command
Function
Feedback Example
50709%
Choose external audio as HDMI 2
audio input
HDMI 2 Audio from LINE
50710%
Choose embedded audio as HDMI 3
audio input
HDMI 3 Audio from Embedded
50711%
Choose external audio as HDMI 3
audio input
HDMI 3 Audio from LINE
Resolution Commands
50619%
Change the resolution to 1360X768
HD
Resolution: 1360x768
50626%
Change the resolution to 1024X768
XGA
Resolution: 1024x768
50627%
Change the resolution to 1280X720
720P
Resolution: 1280x720
50628%
Change the resolution to 1280X800
WXGA
Resolution: 1280x800
50629%
Change the resolution to 1920X1080
1080P
Resolution: 1920x1080
50620%
Change the resolution to1920X1200
WUXGA
Resolution: 1920x1200
50621%
Change the resolution to1600X1200
UXGA
Resolution: 1600x1200
Setup Commands
50604%
Lock the front panel buttons
Front Panel lock
50605%
Unlock the front panel buttons
Front Panel Unlock
501xx%
Set the volume to xx.
LINE Volume: xx (xx=00~60)
502xx%
Set the brightness to xx.
Brightness: xx (xx=00~99)
503xx%
Set the contrast to xx.
Contrast: xx (xx=00~99)
504xx%
Set the saturation to xx.
Saturation: xx (xx=00~99)
Compact Scaler Switcher (with PoC)
19
Command
Function
Feedback Example
505xx%
Set the sharpness to xx.
Sharpness: xx (xx=00~99)
50607%
Adjust the color temperature
Color Temperature: xx
(xx= Cool/ Medium/ Warm/
User.)
50608%
Set the aspect ratio
Aspect Ratio: xx (xx= 16:9/ 4:3/
auto/ panorama/ justscan/
zoom1/ zoom2, when the input
source is VGA format, xx can
only be 4:3, 16:9 or Panorama)
50614%
Set the picture mode
Picture Mode: xx (xx= dynamic/
standard/ mild/ user)
50615%
Set SM audio mode
Sound Mode: xx (xx= standard/
music/ movie/ sports/ user)
50655%
Freeze output image
Freeze: enable
50656%
Cancel the freezing of output image
Freeze: disable
50646%
Enable MIC Volume Icon display
Volume Icon: enable
50647%
Disable MIC Volume Icon display
Volume Icon: disable
50648%
Enable HDMI embedded audio output
Embedded Audio Output: enable
50649%
Disable HDMI embedded audio output
Embedded Audio Output: disable
50761%
Not display mute icon of LINE audio
LINE Mute Icon: disable
50762%
Display mute icon of LINE audio
LINE Mute Icon: enable
50763%
Not display mute icon of MIC audio
MIC Mute Icon: disable
50764%
Display mute icon of MIC audio
MIC Mute Icon: enable
50765%
Display freeze icon
Freeze Icon: enable
50766%
Not display freeze icon
Freeze Icon: disable
50644%
Display channel status
Input Icon: enable
50645%
Not display channel status
Input Icon: disable
50650%
Check the channel status
Input Icon: xx
50606%
Auto-adjust the input parameter(VGA
only)
VGA Input Auto
Compact Scaler Switcher (with PoC)
20
Command
Function
Feedback Example
50699%
Check the system version
Version Vx.x.x
50688%
Enable MIC noise detecting
MIC detect: enable
50689%
Disable MIC noise detecting
MIC detect: disable
50690%
Check MIC noise detecting statue
MIC detect: XXXX
50791%
HDCP Active
HDCP Active
50792%
HDCP Manual
HDCP Manual
50793%
Enable HDCP output
HDCP ON
50794%
Disable HDCP output
HDCP OFF
50795%
Inquire HDCP/ Active HDCP
HDCP Active
Inquire HDCP/ Manual HDCP
HDCP Manual
HDCP OFF/ON
50767%
Restore default EDID
EDID: initial
50768%
Bypass EDID data from output to input
EDID: bypass
50769%
Upload custom EDID data to the
switcher
EDID: user
50770%
Inquire EDID status
EDID: initial
EDID: bypass
EDID: user
50782%
EDID management, copy the best
resolution data of one output to HDMI
input
EDID manage
Resolution:1920x1080
50787%
Enable serial control mode 1: control
Scaler & far-end from local RS232
RS232 Mode 1: RS232 Control
Scaler & Remote
50788%
Enable serial control mode 2: control
Scaler from local RS232 and far-end)
RS232 Mode 2: RS232 &
Remote Control Scaler
50697%
Exit standby mode
Wake up!
50797%
Enter standby mode
Go to standby!
50698%
Software update
50617%
Reset to factory defaults
Factory Reset
Menu Commands
Compact Scaler Switcher (with PoC)
21
Command
Function
Feedback Example
50609%
OK for OSD selection
Key: ok
50610%
LEFT button
Key: left
50611%
RIGHT button
Key: right
50612%
UP button
Key: up
50613%
DOWN button
Key: down
50616%
MENU button (enter OSD)
OSD: Enter
50618%
EXIT button (exit OSD)
OSD: Exit
Inquire Commands
50630%
Check the volume level
LINE Volume: xx (xx=00~66)
MIC Volume: xx (xx=00~66)
50631%
Check the input source
Input: xx (xx= HDMI1/ HDMI2/
HDMI3/ VGA1/ VGA2/ YPbPr1/
YPbPr2/ AV1/ AV2)
50632%
Check the output resolution
Resolution: xx (xx=1920×1200/
1920×1080/ 1600×1200/ 1360
×768/ 1280×800/ 1280×720/
1024×768
50633%
Check the image mode
Picture Mode: xx (xx= Dynamic/
Standard/ Mild/ User)
50634%
Check the audio mode
Sound Mode: xx (xx= Standard/
Music/ Movie/ Sports/ User)
50635%
Check the image aspect ratio
Aspect Ratio: xx (xx= 16:9/ 4:3/
auto/ panorama/ justscan/
zoom1/ zoom2, when the input
source is VGA format, xx can
only be 4:3, 16:9 or Panorama)
50636%
Check the brightness
Brightness: xx (xx=00~99)
50637%
Check the contrast
Contrast: xx (xx=00~99)
50638%
Check the saturation
Saturation: xx (xx=00~99)
50639%
Check sharpness
Sharpness: xx (xx=00~99)
50640%
Check the color temperature
Color Temperature: xx
Compact Scaler Switcher (with PoC)
22
Command
Function
Feedback Example
(xx= Cool/ Medium/ Warm/
User.)
50651%
Check Volume Icon display status
Volume Icon: xxxx
50652%
Check Digital audio output status
Embedded Audio Output:
enable/disable
50712%
Check the audio input sources for
HDMI 1, 2, 3
HDMI1 Audio from XXXX port
HDMI2 Audio from XXXX port
HDMI3 Audio from XXXX port
50751%
Check whether the LINE audio is mute
or not
LINE Mute/Unmute
50752%
Check whether the MIC audio is mute
or not
MIC Mute/Unmute
50753%
Check the freeze status
Freeze: enable/disable
50754%
Check the panel locked status
Front Panel Lock/UnLock
50783%
Display statues including MIC, LINE
audio, Resolution, Output Audio
on/off, Manual/ Auto-switching modes
Line Volume:XX
Mic Volume:XX
Input:XXXX
Resolution:XXXX
Digital Sound Ouput: XXXX
Switch status: XXXX
Adjustment Commands
50678%
Enable screen output adjusting
Enter Output Position Adjust
50679%
Disable screen output adjusting
Exit Output Position Adjust
50670%
Move the image to left
Output Position Adjust X xx
50671%
Move the image to right
Output Position Adjust X xx
50672%
Move the image up
Output Position Adjust Y XX
50673%
Move the image down
Output Position Adjust Y xx
50674%
Stretch left from left side (increase
image width)
Output Width Adjust xx
50675%
Pull right from left side (decrease
Output Width Adjust xx
Compact Scaler Switcher (with PoC)
23
Command
Function
Feedback Example
image width)
50676%
Stretch upwards from bottom side
(decrease image height)
Output Height Adjust xx
50677%
Stretch downwards from bottom side
(increase image height)
Output Height Adjust xx
50730%
Turn off HDMI output
HDMI power off
50731%
Turn on HDMI output
HDMI power on
50732%
Turn off HDBT output
HDBT power off
50733%
Turn on HDBT output
HDBT power on
50734%
Turn on HDMI& HDBT output
synchronously
HDMI HDBT power on
CEC Commands
50687%
Disable CEC
HDMI CEC OFF
50686%
Enable CEC
HDMI CEC ON
50901%
Play&pause
CEC cmd: play&pause
图像整体向上移动
Output Position Adjust Y XX
50902%
Stop
CEC cmd: stop
图像整体向下移动
Output Position Adjust Y xx
50903%
Menu
CEC cmd: menu
图像左侧向左拉伸
Output Width Adjust xx
50904%
Retreat
CEC cmd: rev
图像左侧向右拉伸
Output Width Adjus xx
50905%
Forward
CEC cmd: fwd
图像下侧向上拉伸
Output Height Adjust xx
50906%
Up
CEC cmd: up
图像下侧向下拉伸
Output Height Adjust xx
50907%
Down
CEC cmd: down
图像左侧向右拉伸
Output Width Adjus xx
50908%
Left
CEC cmd: left
图像下侧向上拉伸
Output Height Adjust xx
50909%
Right
CEC cmd: right
50910%
Conform command
CEC cmd: select
50911%
Exit command
CEC cmd: exit
Note:
1. Turn on/ off HDCP auto-management by sending serial commands.
Compact Scaler Switcher (with PoC)
24
a) When HDCP is set to active, whether output source is with HDCP depends on
input source. If the input source is with HDCP, so is the output and vice versa.
b) When HDCP is set to Manual, whether the output is with HDCP depends on the
statue of HDCP. Turn off HDCP, then the output is without HDCP and vice versa.
2. Screen output adjusting avails only when the screen output adjusting is on. Send
command 50678% to turn on.
3. CEC commands with grey background avails only when CEC is on.
4. MIC precedence: In Mute mode, if the MIC noise detecting is on, the device will
unmute MIC automatically given the outer noise exceeds the limit of noise detecting.
Send 50696% to enable MIC precedence, then the device will not be able to change
the mute mode no matter how loud the noise is.
4.4.4 Control MP-SC-5T or 3rd Party Device from Local
Firstly, connect the RS232 port of MP-SC-5T to RS232 port of PC.
Secondly, send command 50787% (serial control mode 1, factory default) via RS232
communication software.
Lastly, send the right command of MP-SC-5T or other remote RS232 device connected
in present system. Connect as below:
Control MP-SC-5T or 3rd party device from local
Compact Scaler Switcher (with PoC)
25
4.4.5 Control MP-SC-5T from Local or Remote
Control MP-SC-5T from local
Firstly, connect the RS232 port of MP-SC-5T to RS232 port of PC.
Secondly, send command 50788% via RS232 communication software.
Lastly, send the right command to control MP-SC-5T. Connect as below:
Control MP-SC-5T from local
Control MP-SC-5T from remote
Firstly, connect the RS232 port of far-end RS232 device to RS232 port of PC.
Secondly, send command 50788% via RS232 communication software.
Lastly, send the right command to control MP-SC-5T. Connect as below:
Control MP-SC-5T from remote
4.5 Operations in OSD Menu
Compact Scaler Switcher (with PoC)
26
MP-SC-5T provides a powerful OSD operation menu, contains 4 parts: optional settings,
image settings, audio settings and system setting etc.
Press MENU button on front panel (or MENU button on IR remote/send command
50616%) to enter in OSD menu, so it is able to do some settings through the OSD
menu.
4.5.1 Option
Includes Output Adjust, Input4/5 Select, HDMI1/2/3 Audio select, and Software Update
(USB)
Output Adjust: Adjust output image position (X: horizontal direction and Y: vertical
direction), ratio aspect (width and height), polarity adjustment (H Polarity and V Polarity)
and output setting (HDMI on/off and HDBT on/off).
Input4 Select: Select video source format for VGA input, includes AV 1 (C-video signal),
VGA 1 (VGA signal) and YPbPr 1 (Component video signal). Press ENTER to switch
among the options, and press Input 4 on the IR remote to confirm the selection.
Input5 Select: Select video source for VGA input, includes AV 2 (C-video signal), VGA 2
(VGA signal) and YPbPr 2 (Component video signal). Press ENTER to switch among
the options, and press Input 5 on the IR remote to confirm the selection.
For INPUT4 & INPUT5, when change for new format signal:
1. Firstly, please select a format through this menu (the signal format changed while
the video source is still the same).
2. Secondly, switch off the present signal channel (e.g. switch to another channel).
3. Thirdly, switch to channel INPUT4/INPUT5 again.
HDMI1 Audio Select: switch between Embedded and Line to choose the desired audio
output port for HDMI1.
Compact Scaler Switcher (with PoC)
27
HDMI2 Audio Select: switch between Embedded and Line to choose the desired audio
output port for HDMI2.
HDMI3 Audio Select: switch between Embedded and Line to choose the desired audio
output port for HDMI3.
Software Update (USB): Insert the USB flash disk with updating file to USB port of
MP-SC-5T, to update the software through this menu.
4.5.2 Picture
Including Picture Mode, Color Temperature, Aspect Ratio, Noise Reduction, Screen and
Color Range.
Please check the picture below:
Picture mode: Includes Dynamic, Standard, Mild, and User. Only in User mode, will it
be able to set the image contrast, brightness, color and sharpness.
Color Temperature: Includes Cool, Medium, Warm and User. And only in User mode, it
is able to set values for Red, Green and Blue (RGB).
Aspect Ratio: Includes Native, 4:3, 16:9, Zoom1, Zoom2, Just Scan, and Panorama.
VGA format only supports 4:3, 16:9 and Panorama.
Noise Reduction (not for VGA format): Includes Off, Low, Middle, High and Default.
Screen: (not for HDMI source): Includes Auto Adjust, Horizontal, Vertical, Size, and
Phase.
Color Range (not for HDMI format): 16~235 or 0~255, use ENTER button to select the
desired color range.
4.5.3 Sound
Including Sound Mode, Surround Sound and EQ
Please check the picture below:
Compact Scaler Switcher (with PoC)
28
Sound mode: Includes Standard, Music, Movie, Sports and User. Only User
mode supports to set treble and bass.
Surround Sound: Includes Off, Surround and SRS Trusurround XT.
EQ: To adjust the sound balance.
4.5.4 Setup
Including OSD Language, Restore Factory Default, Blending, HDMI CEC, OSD
Duration and version inquiry
OSD Language: Supports 7 languages, including English (default), Chinese etc.
Restore Factory Default: Restores to original system state
Blending: Includes Low, Middle, High and Off. Use ENTER button to select.
HDMI CEC: Enable/disable CEC and auto-standby function. Default: CEC on,
Compact Scaler Switcher (with PoC)
29
STANDBY on. Only when CEC is on, will it be able to set auto-standby status.
OSD Duration: Includes 5 s, 10 s, 15 s and Off. “s” is for Second.
VERSION: Displays software version
4.6 Instructions of VGA Converting Cable
As VGA source supports YPbPr and C-video source, MP-SC-5T provides with 2 VGA
converting cables to compliant with these signals.
When need to select these signals as input source, please switch to channel INPUT 4
(or INPUT 5), and then set the signal type in OSD. And then switch to other input
channel and connect INPUT 4 (or INPUT 5) with corresponding source device. At last,
please switch to INPUT4 (or INPUT 5) again.
Connect with Component Video (YPbPr) Source
A. Operation Examples:
1. Via front panel buttons & OSD
Press MENU button on front panel to enter in OSD, and then enter in OPTION
setting menu: set “INPUT 4 Select” to YPbPr1, and “INPUT 5 Select” to YPbPr2.
After setting, press SOURCE/AUTO button on front panel to switch to YPbPr1 or
YPbPr2 source.
2. Via RS232 commands
Send command 50681% (or 50684%) to switch to YPbPr1 (or YPbPr2) source.
3. Via IR remote & OSD
Press MENU button on IR remote to enter in OSD, and then enter in OPTION
setting menu: set “INPUT 4 Select” to YPbPr1, and “INPUT 5 Select” to YPbPr2.
After setting, press INPUT 4 (or INPUT 5) button to switch to YPbPr1 (or YPbPr2)
source.
B. Connecting the VGA converting cable like this:
Connect with Composite Video (C-VIDEO) Source
A. Operation Examples:
1. Via front panel buttons & OSD
Press MENU button on front panel to enter in OSD, and then enter in OPTION
setting menu: set “INPUT 4 Select” to AV1, and “INPUT 5 Select” to AV2. After
Compact Scaler Switcher (with PoC)
30
setting, press SOURCE/AUTO button on front panel to switch to AV1 or AV2
source.
2. Via RS232 commands
Send command 50682% (or 50685%) to switch to YPbPr1 (or YPbPr2) source.
3. Via IR remote & OSD
Press MENU button on IR remote to enter in OSD, and then enter in OPTION
setting menu: set “INPUT 4 Select” to AV1, and “INPUT 5 Select” to AV2. After
setting, press INPUT 4 (or INPUT 5) button to switch to AV1 (or AV2) source.
B. Connecting the VGA converting cable like this:
5. Specification
Video Input
Video Output
Input
3 HDMI
2 VGA
Output
1 HDMI
1 HDBaseT
Input
Connector
3 female HDMI
2 female VGA (15 pin)
Output
Connector
1 female HDMI
1 RJ45
Video Signal
HDMI, YPbPr, C-video,
VGA
Video Signal
1 HDMI
1 HDBaseT
IR Input
IR Output
Input
1 IR IN
Output
5 IR OUT
Input
Connector
3.5mm mini jack
Output
Connector
3.5mm mini jack
Video General
Resolution
1920x1200,
1920x1080,
1600x1200, 1360x768,
1280x800, 1280x720,
1024x768
Bandwidth
HDMI:4.95Gbps(1.65Gb
ps per color)
C-Video:150MHz
YPbPr: 170MHz
VGA: 375MHz
Maximum
Pixel Clock
165MHz
Video
Impedance
75Ω
Gain
0dB
Input / Output
Level
0.5V~2.0Vp-p
HDCP
Compliant with DVI & HDMI 1.3 standards
Audio Input
Audio output
Compact Scaler Switcher (with PoC)
31
Input
3 Dual-mono stereo
audio for HDMI
2 Dual-mono stereo
audio for VGA (Support
C-VIDEO, YPbPr, VGA)
Output
1 stereo
Input
Connector
3P captive (3.81mm)
Output
Connector
3P captive (3.81mm)
Input
Impedance
>10kΩ
Output
Impedance
70Ω
Audio General
Frequency
Response
20Hz~20K Hz
Stereo
Channel
Separation
>80dB @1KHz
Control Parts
Control/
Remote
IR remote, Buttons &
RS232
Pin
Configuration
2 = TX, 3 = RX, 5 =
GND
General
Temperature
-10 ~ +40℃
Humidity
10% ~ 90%
Power
Supply
DC12V ± 0.5V
Power
Consumption
8W, supply power to
MP-SC-5T and HDMI
Twisted Pair PoC
Receiver separately
16W, MP-SC-5T
supplies power to HDMI
Twisted Pair PoC
Receiver
Dimension
(W*H*D)
220x 44x 148mm
Weight
0.65Kg
Compact Scaler Switcher (with PoC)
32
6. Panel Drawing
7. Troubleshooting & Maintenance
Problems
Causes
Solutions
Output image with
snowflake
Bad quality of the
connecting cable
Try another high quality
cable.
Fail or loose connection
Make sure the connection
is good
No output image when
switching
No signal at the input /
output end
Check with oscilloscope or
multimeter if there is any
signal at the input/ output
end.
Fail or loose connection
Make sure the connection
is good
The switcher is broken
Send it to authorized
dealer for repairing.
RESO / AUTO
ENTER
VOL - VOL +
MIC +
MIC -
SYSTEM M ONITOR
MP-S C-5T
FW UPDATE
Smart EDID Ma nage ment
Auto Switching
IR Call Back
HDBaseT Int egrated with PoC
CEC Control
MP-SC-5T
5-in put Scaler Switcher with HDBaseT Integr ated
MIC
OUTPUTVIDEO IN PUT
IR OUT
VGA 2
RS232
FIRMWA RE
HDMI 1
AUDIO INP UT
VGA 2
HDMI 1 HDM I 2
HDMI 3
HDMI 2
OUTPUT
RL
MIC
IR IN
HDMI 3 V GA 1
VGA 1
HDBT/P oC
1 2 3 4 5
48V LINE
Tx Rx
DC 12V AUDIO
RL RL RL RL RL
220 mm
4
4 m
m
1
4
8 m
m
11
8 m
m
Compact Scaler Switcher (with PoC)
33
POWER indicator doesn’t
work or no respond to any
operation
Fail connection of power
cord.
Make sure the power cord
connection is good.
EDID management does
not work normally
The HDMI cable is broken
at the output end.
Change for another HDMI
cable which is in good
working condition.
There is a blank screen on
the display when switching
The display does not
support the resolution of
the video source.
Switch again.
Manage the EDID data
manually to make the
resolution of the video
source automatically
compliant with the output
resolution.
Static becomes stronger
when connecting the video
connectors
Bad grounding
Check the grounding and
make sure it is connected
well.
Cannot control the device
by control device (e.g. a
PC) through RS232 port
Wrong RS232
communication parameters
Type in correct RS232
communication
parameters.
Broken RS232 port
Send it to authorized
dealer for checking.
Cannot control the device
by front panel buttons while
can control it through
RS232 port
The front panel buttons are
locked
Send command 50605% to
unlock the front panel
buttons.
Cannot control the device
by RS232 / IR remote /
front panel buttons
The device has already
been broken.
Send it to authorized
dealer for repairing.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.
Compact Scaler Switcher (with PoC)
34
8. After-sales Service
If there appear some problems when running MP-SC-5T, please check and deal with the
problems referring to this user manual. Any transport costs are borne by the users
during the warranty.
1) Product Limited Warranty: We warrants that our products will be free from defects
in materials and workmanship for three years, which starts from the first day you
buy this product (The purchase invoice shall prevail).
Proof of purchase in the form of a bill of sale or receipted invoice which is evidence
that the unit is within the Warranty period must be presented to obtain warranty
service.
2) What the warranty does not cover:
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear
Use of supplies or parts not meeting our specifications
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized
Any other causes which does not relate to a product defect
Delivery, installation or labor charges for installation or setup of the product
3) Technical Support: Email to our after-sales department or make a call, please
inform us the following information about your cases.
Product version and name.
Detailed failure situations.
The formation of the cases.
Remarks: For any questions or problems, please try to get help from your local
distributor.
Loading...
