Milestone VMS User Manual

Download

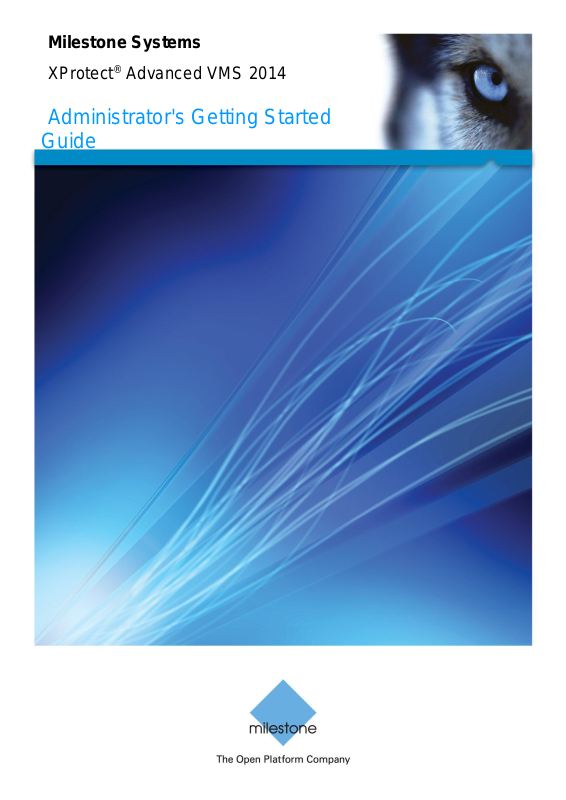

Page 1
Milestone Systems
XProtect® Advanced VMS 2014
Administrator's Getting Started
Guide
Page 2
Administrator's Getting Started Guide
www.milestonesys.com Contents
Contents
ABOUT THIS GUIDE ......................................................................... 5
PRODUCT OVERVIEW ..................................................................... 6
ABOUT LICENSES ........................................................................... 7
SYSTEM REQUIREMENTS ............................................................... 8
INSTALLATION OVERVIEW ............................................................. 9
INSTALLATION PRECONDITIONS ................................................ 10
DETERMINE INSTALLATION METHOD ................................................................... 10
DETERMINE SQL SERVER TYPE ......................................................................... 10
SELECT SERVICE ACCOUNT ............................................................................... 11
ACTIVE DIRECTORY .......................................................................................... 11
CUSTOMIZE IIS ................................................................................................. 11
ABOUT VIRUS SCANNING ................................................................................... 12
REGISTER SOFTWARE LICENSE CODE ................................................................ 13
INSTALL THE SYSTEM .................................................................. 14
INSTALL YOUR SYSTEM - SINGLE SERVER OPTION ............................................... 14
INSTALL YOUR SYSTEM - DISTRIBUTED OPTION .................................................... 15
INSTALL YOUR SYSTEM - CUSTOM OPTION .......................................................... 15
INSTALL THE RECORDING SERVER ...................................................................... 17
INSTALLATION FOR WORKGROUPS...................................................................... 18
CONFIGURE THE SYSTEM IN MANAGEMENT CLIENT ............... 19
CHANGE SOFTWARE LICENSE CODE .................................................................. 20
Page 3
Administrator's Getting Started Guide
www.milestonesys.com Contents
INSTALL CLIENTS .......................................................................... 21
INSTALL XPROTECT SMART CLIENT SILENTLY ..................................................... 21
INSTALL MILESTONE MOBILE SERVER ................................................................ 22
DOWNLOAD MANAGER/DOWNLOAD WEB PAGE ...................... 23
PORTS USED BY THE SYSTEM .................................................... 25
FAILOVER RECORDING SERVERS (REGULAR AND HOT STANDBY)
......................................................................................................... 27
INSTALL A FAILOVER RECORDING SERVER ................................ ........................... 27
SETUP AND ENABLE FAILOVER RECORDING SERVERS .......................................... 27
ASSIGN FAILOVER RECORDING SERVERS ............................................................ 28
FAILOVER MANAGEMENT SERVER............................................. 29
MANAGEMENT CLIENT OVERVIEW ............................................. 30
ABOUT LOGIN AUTHORIZATION ........................................................................... 30
MANAGEMENT CLIENT WINDOW ......................................................................... 30
PANES OVERVIEW ............................................................................................. 32
MENU OVERVIEW .............................................................................................. 33
PRODUCT COMPARISON CHART ................................................ 35
INDEX .............................................................................................. 36
Page 4
Administrator's Getting Started Guide
www.milestonesys.com
Copyright, trademarks and disclaimer
Copyright, trademarks and disclaimer
Copyright
2014 Milestone Systems A/S. Trademarks XProtect is a registered trademark of Milestone Systems A/S. Microsoft and Windows are registered trademarks of Microsoft Corporation. App Store is a service
mark of Apple Inc. Android is a trademark of Google Inc. All other trademarks mentioned in this document are trademarks of their respective owners. Disclaimer This text is intended for general information purposes only, and due care has been taken in its
preparation. Any risk arising from the use of this information rests with the recipient, and nothing herein should be
construed as constituting any kind of warranty. Milestone Systems A/S reserve the right to make adjustments without prior notification. All names of people and organizations used in the examples in this text are fictitious. Any resemblance
to any actual organization or person, living or dead, is purely coincidental and unintended. This product may make use of third party software for which specific terms and conditions may apply.
When that is the case, you can find more information in the file 3rd_party_software_terms_and_conditions.txt located in your Milestone surveillance system installation folder.
Page 5
Administrator's Getting Started Guide
www.milestonesys.com
5
About this guide

About this guide

This guide briefly explains how to install your XProtect system as well as how to configure some of its basic features.
For detailed feature descriptions, procedures for configuration and maintenance, download the XProtect Advanced VMS manual from the Milestone website.
Your XProtect product also provides a very comprehensive built-in help system, that you can access by pressing F1 in the Management Client.
Check our website for updates to make sure you install the most recent version of our software.
Page 6
Administrator's Getting Started Guide
www.milestonesys.com
6

Product overview

Product overview
This XProtect system is a fully distributed solution, designed for large multi-site and multiple server installations requiring 24/7 surveillance, with support for devices from different vendors. The solution offers centralized management of all devices, servers, and users, and empowers an extremely flexible rule system driven by schedules and events.
Your system consists of the following main elements:
The management server - the center of your installation, consists of multiple servers One or more recording servers One or more Management Clients The Download Manager One or more XProtect® Smart Clients.  One or more XProtect Web Clients and/or Milestone Mobile clients if needed
Your system also includes fully integrated Matrix functionality for distributed viewing of video from any camera on your surveillance system to any computer with XProtect Smart Client installed.
Your XProtect system installation can take place on virtualized servers or on multiple physical servers in a distributed setup.
The system also offers the possibility of including the standalone XProtect® Smart Client – Player when you export video evidence from the XProtect Smart Client. XProtect Smart Client – Player allows recipients of video evidence (such as police officers, internal or external investigators, etc.) to browse and play back the exported recordings without having to install any software on their computers.
Your system can handle an unlimited number of cameras, servers, and users and across multiple sites if required. Your system can handle IPv4 as well as IPv6.
Page 7
Administrator's Getting Started Guide
www.milestonesys.com
7

About licenses

About licenses
When you purchase the system, you also purchase a certain number of licenses for the number of hardware devices, for example video encoders or cameras, that you want to run on the system. One hardware device license enables you to run as many camera, speaker, microphone, input, output and metadata devices that the hardware device consists of. It also enables you to run the hardware device multiple times on one site or multiple times on multiple sites.
You need a camera license for each enabled interconnected camera in a Milestone Interconnect setup.
If you purchase XProtect Access Control Module, you need a license for each door you want to configure for access control.
At first, when you have installed the various system components, configured the system, and added recording servers and cameras through the Management Client, the surveillance system runs on temporary licenses which need to be activated before a certain period ends. This is known as the grace period. You also need to activate licenses if you later add more cameras to the system.
When the new surveillance system is working, Milestone recommends that you activate your licenses before you make the final adjustments. If you do not activate your licenses before the grace period expires, all recording servers and cameras without activated licenses stop sending data to the surveillance system.
Page 8
Administrator's Getting Started Guide
www.milestonesys.com
8

System requirements

System requirements
Important: Your system no longer supports Microsoft® Windows® 2003 (however, you can still
run/access clients from computers with Windows 2003). Important: Your system no longer supports Microsoft® Windows® 32-bit OS (however, you can still
run/access XProtect Web Client and XProtect Smart Client from computers with Windows 32-bit OS). For information about the minimum system requirements to the various components of your system,
go to www.milestonesys.com/systemrequirements.
Page 9
Administrator's Getting Started Guide
www.milestonesys.com
9

Installation overview

Installation overview
In general, your installation is handled by one common installer. Depending on your selections, this installer installs all or some of the following components:
Management server, the center of your system installation. Typically installed on a dedicated
server.
Recording server, used for recording video feeds, communicating with cameras via video
device drivers and other devices. Typically installed on one or more separate computers. The video device drivers are automatically installed along with the recording server.
Management Client, used for configuration and day-to-day management of the system.
Typically installed on the system administrator's computer or similar.
XProtect Smart Client, feature-rich client used for accessing live and recorded video and
other features from your XProtect system. Must be installed on users' computers.
Service channel, enables automatic and transparent configuration communication between
servers and clients in your system. By default installed on the management server but, if you need to increase performance, it can be installed on another server.
Event server, handles alarms and maps. Does not have to be installed on the management
server, better performance can often be achieved by installing it on another dedicated server.
Log server, provides the necessary functionality for logging information from your system. By
default installed on the management server but, if you need to increase performance, it can be installed on another server.
When installing the event server or log server, the URL address of the management server is expressed like this: http//123.123.123.123. If installing the event server or log server on the management server itself, this should be specified as localhost. The address can also include a port, like this: http://123.123.123.123:2356 or http://Localhost:2356.
The common installer saves all components on the management server's download web page. Once you have run the installer, single components can be (re-)installed from the management server download web page.
Follow these links to get through the basic installation:
Installation preconditions (on page 10) Install the system (on page 14) Configure the system in Management Client (on page 19) Install clients (on page 21) Install a failover recording server (on page 27)
Page 10
Administrator's Getting Started Guide
www.milestonesys.com
10

Installation preconditions

Installation preconditions
Read the installation preconditions before you start the actual installation.

Determine installation method

As part of the installation wizard, you must decide which installation method to use. Your selection depends on the organization needs, but has typically been determined when purchasing the system.
The options are:
Single Server: installs all management server components, recording server, and XProtect
Smart Client on the current computer. You only need to make a minimum of selections and all components are preselected in the un-editable component list. The SQL server is not in the list, but is also installed on the current computer.
Distributed: installs only the management server components on the current computer. This
means that the recording server and XProtect Smart Client are not visible in the un-editable component list. You must install the recording server, XProtect Smart Client, and SQL server on other computers.
Custom: allows you to select freely among all management server components, recording
server, and XProtect Smart Client to install on the current computer. By default, recording server is unselected in the component list, but you can edit this. Depending on your selections you must install the unselected component afterwards on other computers including the SQL
For easy user and group management, Milestone recommends that you have Microsoft Active Directory® in place before you install your system. If you add the management server to the Active Directory after installing, you must re-install the management server, and replace users with new users defined in the Active Directory.
server.

Determine SQL server type

Read the following information to determine which SQL server type is right for your organization: The Microsoft SQL Server Express Edition is a "lightweight" version of a full SQL server. It is easy to
install and prepare for use, and is often sufficient for systems with less than 300 cameras. If you plan to perform frequent/regular backups of your database, Milestone recommends using an
existing SQL server on the network (you must have administrator rights on the SQL server). For large installations (300 cameras or more), Milestone recommends using a full-scale existing SQL
server on a dedicated computer on the network. Milestone recommends that you install the database on a dedicated hard disk drive that is not used for
anything else but the database. Installing the database on its own drive prevents low disk performance.
If you select Distributed or Custom as part of the installation wizard, you must decide what to do regarding the SQL server.
If you do not have an SQL server installed, the options are:
Page 11
Administrator's Getting Started Guide
www.milestonesys.com
11
Installation preconditions
Install SQL Server 2008 Express on this computer.  Use an existing SQL Server on the network: When you use a dedicated computer for the
SQL database on the network, the list of SQL servers that your account can access appears.
If you have an SQL server installed, the options are:
Use the installed Microsoft SQL Server Express database on this computer.  Use an existing SQL Server on the network: When you use a dedicated computer for the
SQL database on the network, the list of SQL servers that your account can access appears. You are also asked whether you want to create a new database, use an existing database, or
overwrite an existing database.
o Create new database: For a new installation. o Use existing database: If you are installing the database as part of upgrading to a newer
version of the system, and you want to use your existing database.

Select service account

As part of the installation wizard, you are asked to specify the service account that will access the management server and the recording server to manage the services:
 With a predefined network service account (This predefined user account), the service
always runs when the server (computer) are running - no matter which account is used. The account matters for access to various resources.
With a particular user account (This account), the service uses the specified user account to
run the service under the same account as the management server. If the server acting as management server is a member of a domain, you should either select the suggested Network Service or specify a user account for the domain.
If you use network drives, always specify a particular user account (with access to the network drives). Otherwise, the relevant service cannot access the required network drives.

Active Directory

If you want to add users through the Active Directory service, a server with Active Directory installed, and acting as domain controller, must be available on your network.
If you do not install Active Directory, follow Installation for workgroups (on page 18) when you start the installation.

Customize IIS

If you install on Windows Server 2008, Milestone recommends that you customize the standard IIS installation:
1. In Windows Start menu, select Control Panel, then select Programs and Features.
Page 12
Administrator's Getting Started Guide
www.milestonesys.com
12
Installation preconditions
Product
TCP ports
XProtect® Corporate, XProtect® Expert
80, 8080, 7563, 25, 21, 9993
2. In the Programs and Features window, click Turn Windows features on or off. This opens the Windows Features window (window name may be different depending on which operating system you are installing the service channel on).
3. In the Windows Features window, expand Internet Information Services.
4. Expand and select Web Management Tools, then expand and select IIS 6 Management Compatibility, then select IIS Metabase and IIS 6 configuration compatibility.
5. Expand and select World Wide Web Services, then expand and select Application Development Features, then select the following:
.NET Extensibility ASP ASP.NET ISAPI Extensions ISAPI Filters.
6. Expand and select Security, then select Windows Authentication.
7. Click OK.

About virus scanning

As is the case with any other database software, if an antivirus program is installed on a computer running XProtect® software, it is important that you exclude specific file types and locations, as well as certain network traffic. Without implementing these exceptions, virus scanning uses a considerable amount of system resources. On top of that, the scanning process can temporarily lock files which likely results in a disruption in the recording process or even database corruption.
When you need to perform virus scanning, do not scan Recording Server directories containing recording databases (by default c:\mediadatabase\, as well as all folders under that location). Avoid also to perform virus scanning on archive storage directories. In older versions of the software, the databases are by default located in the installation folder, each being a subfolder with the MAC address of the device recorded.
Create the following additional exclusions:
File types: .blk, .idx, .pic, .pqz, .sts, .ts C:\Program Files\Milestone or C:\Program Files (x86)\Milestone and all subdirectories. Exclude network scanning on TCP ports:
Page 13
Administrator's Getting Started Guide
www.milestonesys.com
13
Installation preconditions
Product
TCP ports
XProtect® Enterprise, XProtect® Professional, XProtect® Express, XProtect® Essential, XProtect® Basis+
80, 25, 21, 1234, 1237, 22331 XProtect® Mobile
8081
XProtect® Transact
9001
Product
Processes
XProtect Corporate, XProtect Expert
VideoOS.Recording.Service.exe, VideoOS.Server.Service.exe, VideoOS.Administration.exe
XProtect Enterprise, XProtect Professional, XProtect Express, XProtect Essential, XProtect Basis+
RecordingServer.exe, ImageServer.exe, ManagementApplication.exe, ImageImportService.exe, RecordingServerManager.exe, VideoOS.ServiceControl.Service.exe, VideoOS.Event.Server.exe
XProtect Mobile
VideoOS.MobileServer.Service.exe
XProtect Transact
VideoOS.Transact.TransactService.exe
or
Exclude network scanning of the following processes:
Organizations may have strict guidelines regarding virus scanning, however it is important that the above locations and files are excluded from virus scanning.

Register Software License Code

Before installing, you must have the name and location of the license file, that you received from Milestone.
The Software License Code (SLC) is printed on your order confirmation. Milestone recommends that you register your SLC before installation.
1. Go to the Milestone Systems A/S website at www.milestonesys.com.
2. In the top-menus, locate Register your software.
3. Log in to the software registration system with your user name and password. If you have not used the software registration system before, click the New to the system?
link for registering yourself as a user and then log in.
4. In the software registration system, click the Add SLC link.
5. Type your SLC. When asked whether you want to add the SLC to your account, click OK.
6. Once you have added your SLC, log out.
Page 14
Administrator's Getting Started Guide
www.milestonesys.com
14
Install the system

Install the system

Select one of the installation options:
Install your system - Single Server option (on page 14) Install your system - Distributed option (on page 15) Install your system - Custom option (on page 15)

Install your system - Single Server option

1. If you are installing a version downloaded from the Internet, run the MilestoneAdvancedXProtectVMSSystemInstaller.exe file from the location where you saved it.
Alternatively, insert the software DVD. If the dialog box does not open automatically, run the MilestoneAdvancedXProtectVMSSystemInstaller.exe file from the DVD.
2. The installation files unpack. Depending on your security settings, one or more Windows security warnings appear. Accept these and the unpacking continues.
3. When done, the Milestone Advanced XProtect VMS dialog box appears, a) Select the Language to use during the installation (this is not the language your system
uses once installed, this is selected later). Click Continue.
b) In Type the location of the license file, enter your license file from your XProtect
provider. Alternatively, use the browse function to locate it. The system verifies your license file before you can continue. Click Continue.
c) Read the Milestone End-user License Agreement. Select the I accept the terms in the
license agreement check box. Optionally, select the Sign me up for the Customer Experience Improvement Program check box. Follow the on-screen Read more link for
further information on this.
4. Select Single Server. A list of components to install appears (you cannot edit this list). Click Continue.
5. Select Files location for the program file. In Product language, select the language in which your XProtect product should be installed. Click Install.
6. The software now installs. When done, you see a list of successfully installed components. Click Close.
Microsoft® IIS is automatically installed during the process. Afterwards, you may be prompted to restart your computer. Do so and after restart, depending on your security settings, one or more Windows security warnings may appear. Accept these and the installation completes.
7. When done, your installation completes and you can continue with configuration, see Configuration process (see "Configure the system in Management Client" on page 19).
Page 15
Administrator's Getting Started Guide
www.milestonesys.com
15
Install the system

Install your system - Distributed option

1. If you are installing a version downloaded from the Internet, run the MilestoneAdvancedXProtectVMSSystemInstaller.exe file from the location where you saved it.
Alternatively, insert the software DVD. If the dialog box does not open automatically, run the MilestoneAdvancedXProtectVMSSystemInstaller.exe file from the DVD.
2. The installation files unpack. Depending on your security settings, one or more Windows security warnings appear. Accept these and the unpacking continues.
3. When done, the Milestone Advanced XProtect VMS dialog box appears,
a) Select the Language to use during the installation (this is not the language your system uses
once installed, this is selected later). Click Continue. b) In Type the location of the license file, enter your license file from your XProtect
provider. Alternatively, use the browse function to locate it. The system verifies your license file before you can continue. Click Continue.
c) Read the Milestone End-user License Agreement. Select the I accept the terms in the
license agreement check box. Optionally, select the Sign me up for the Customer Experience Improvement Program check box. Follow the on-screen Read more link for
further information on this.
4. Select Distributed. A non-editable list of components to be installed appears. Click Continue.
5. Select the type of SQL server database you want. Also specify the name of the SQL server. Click Continue.
6. Select either Create new database or Use existing database and name the database. If you choose the latter, select to Keep or Overwrite existing data. Click Continue.
7. Select Files location for the program file. In Product language, select the language in which your XProtect product should be installed. Click Install.
8. The software now installs. When done, you see a list of successfully installed components. Click Close.
Microsoft® IIS is automatically installed during the process. Afterwards, you may be prompted to restart your computer. Do so and after restart, depending on your security settings, one or more Windows security warnings may appear. Accept these and the installation completes.
9. Install the recording server on a separate computer, see Install the recording server (on page
17).

Install your system - Custom option

Note that with this option you can select or clear all of the components to install, except the management server. The management server is by default selected in the component list and is always installed. If one is already installed, it is updated.
Page 16
Administrator's Getting Started Guide
www.milestonesys.com
16
Install the system
1. If you are installing a version downloaded from the Internet, run the MilestoneAdvancedXProtectVMSSystemInstaller.exe file from the location where you saved it.
Alternatively, insert the software DVD. If the dialog box does not open automatically, run the MilestoneAdvancedXProtectVMSSystemInstaller.exe file from the DVD.
2. The installation files unpack. Depending on your security settings, one or more Windows security warnings appear. Accept these and the unpacking continues.
3. When done, the Milestone Advanced XProtect VMS dialog box appears,
a) Select the Language to use during the installation (this is not the language your system uses
once installed, this is selected later). Click Continue. b) In Type the location of the license file, enter your license file from your XProtect
provider. Alternatively, use the browse function to locate it. The system verifies your license file before you can continue. Click Continue.
c) Read the Milestone End-user License Agreement. Select the I accept the terms in the
license agreement check box. Optionally, select the Sign me up for the Customer Experience Improvement Program check box. Follow the on-screen Read more link for
further information on this.
4. Select Custom. A list of components to be installed appears. Apart from the management server, all elements in the list are optional. The recording server is by default deselected, but you can change this if needed. Click Continue.
5. Select the type of SQL server database you want. If relevant, also specify the name of the SQL server. Click Continue.
6. Select either Create new database or Use existing database and name the database. If you choose the latter, select to Keep or Overwrite existing data. Click Continue.
7. Select either This predefined account or This account to select the service account. If needed, enter a password and confirm this. Click Continue.
8. If you have more than one available IIS website, you can select any of these. However, if any of your websites have HTTPS binding, select one of these. Click Continue.
9. Select Files location for the program file. In Product language, select the language in which your XProtect product should be installed. Click Install.
10. The software now installs. When done, you see a list of successfully installed components. Click Close.
Microsoft® IIS is automatically installed during the process. Afterwards, you may be prompted to restart your computer. Do so and after restart, depending on your security settings, one or more Windows security warnings may appear. Accept these and the installation completes.
11. Depending on your selections, install the remaining servers on other computers:
a) Go to the Management server's download web page from Windows' Start menu.
b) Select Programs, Milestone, Administrative Installation Page and copy the Internet
address.
Page 17
Administrator's Getting Started Guide
www.milestonesys.com
17
Install the system
c) Log into each of the computers to install:.
Log server. Event server. Management Client.
d) Open an Internet browser, paste the address of the Management server's download web
page into the address field and download the relevant installer.
e) Run the installer.
12. Install the recording server on a separate computer, see Install the recording server (on page
17).

Install the recording server

Once you have installed the management server, download the separate recording server installer from the management server's web page.
See Install a failover recording server (on page 27) if you want to install a failover server.
1. On the management server, go to the Management server's download web page from Windows' Start menu.
2. Select Programs, Milestone, Administrative Installation Page and copy the Internet address.
3. Log into the computer where you want to install the recording server.
4. Open an Internet browser, paste the address of the Management server's download web page into the address field and select the Recording Server installer. Save the installer somewhere appropriate and run it from here or run it directly from the web page.
5. Select the Language you want to use during the installation. Click Continue.
6. Select:
Typical: to install a recording server with default values, or Custom: to install a recording server with custom values.
7. Specify the recording server settings:
o Name. o Management server address. o Path to save recordings, and click Continue.
8. If you selected Custom:
a) Specify the number of recording servers you want to install on this computer. Click Continue.
Page 18
Administrator's Getting Started Guide
www.milestonesys.com
18
Install the system
b) Specify the service account. If needed, enter a password and confirm this. Click
Continue.
9. Select Files location for the program file. In Product language, select the language in which to install your system. Click Install.
10. The software now installs. When done, you see a list of successfully installed components. Click Close.
When you have installed the recording server, you can check its state from the Recording Server service icon.
11. When done, your installation completes and you can continue with configuration, see Configuration process (see "Configure the system in Management Client" on page 19).

Installation for workgroups

If you do not use a domain setup with an Active Directory server, but a workgroup setup, do the following when you install:
1. Log in to Windows using a common administrator account.
2. Depending on your needs, start the management or recording server installation and click Custom.
3. Depending on what you selected in step 2, select to install the Management or Recording Server service using a common administrator account.
4. Finish the installation.
5. Repeat steps 1-4 to install any other systems you want to connect. They must all be installed using a common administrator account.
This approach cannot be used when upgrading workgroup installations, see Alternative upgrade for workgroup.
Page 19
Administrator's Getting Started Guide
www.milestonesys.com
19
Configure the system in
Management Client
You have finished the initial installation of your system. See Install the system (on page 14).
Change the trial SLC to a permanent SLC (if required). See Change Software License Code (on page 20).
Log in to the Management Client.
Authorize use of your system's recording servers. See Authorize a recording server.
Verify that each recording server's storage areas meets your needs. See About storage and archiving.
Verify that each recording server's archiving settings meets your needs. See Archive settings properties.
Detect the hardware (cameras or video encoders) to add to each recording server. See Add hardware.
Configure each recording server's individual cameras. See About camera devices.
Enable storage and archiving for individual cameras or a group of cameras. This is done from the individual cameras or from the device group.
See Attach a device or group of devices to a storage.
Enable and configure devices. See Working with devices.

Configure the system in Management Client

Here are the tasks typically involved in setting up the system. Even if information is presented as a checklist, a completed checklist does not in itself guarantee that
the system matches the exact requirements of your organization. To make the system match the needs of your organization, Milestone recommends that you monitor and adjust the system continuously.
For example, it is a good idea to test and adjust the motion detection sensitivity settings of individual cameras under different physical conditions (day/night, windy calm weather, and so on) once the system is running. The setup of rules, which determines most of the actions performed by the system (including when to record video), is another example of configuration which to a large extent depends on your organization's needs.
Page 20
Administrator's Getting Started Guide
www.milestonesys.com
20
Configure the system in
Management Client
The behavior of the system is to a large extent determined by rules, such as when cameras should record, when PTZ (pan-tilt-zoom) cameras should patrol, when notifications should be sent.
Create rules. See About rules and events.
Add roles to the system. See About roles.
Add users and/or groups of users to each of the roles. See Assign/remove users and groups to/from roles.
Activate licenses. See Activate licenses (online) or Activate licenses (offline).

Change Software License Code

If you run your installation on a trial Software License Code (SLC) during the first period, you can change it into a permanent SLC without any un- or reinstallation actions.
Important: This must be done locally on the management server. You cannot do this from the Management Client.
1. On the management server, go to the notification area of the taskbar.
2. Right-click the Management Server icon and select Change License.
3. Click Import License.
4. Next, select the SLC license file saved for this purpose. When done, the selected license file location is added just below the Import License button.
5. Click OK and you are now ready to register SLC. See Register Software License Code (on page 13).
Page 21
Administrator's Getting Started Guide
www.milestonesys.com
21

Install clients

Install clients

Install XProtect Smart Client silently

You can deploy XProtect Smart Client or your surveillance software to users’ computers using tools
such as Microsoft Systems Management Server (SMS). Such tools let you build up databases of hardware and software on local networks. The databases can then, among other things, be used for distributing and installing software applications, such as XProtect Smart Client, over local networks.
1. Locate the Smart Client installation program (.exe) file - MilestoneXProtectSmart Client.exe or MilestoneXProtectSmart Client_x64.exe for 32-bit and 64-bit versions respectively. You find the file in a subfolder under the folder httpdocs. The httpdocs folder is located under the folder in which your Milestone surveillance software is installed.
The path is typically:
C:\Program Files\Milestone\XProtect Management Server\IIS\httpdocs\XProtect Smart Client Installer\[version number] [bit-version]\All Languages\en-US
For example:
C:\Program Files\Milestone\XProtect Management Server\IIS\httpdocs\XProtect Smart Client Installer\2014 (32-bit)\All Languages\en-US
2. Run a silent installation using one of the following two options:
a Run with default parameter settings:
To run a silent installation using the default values for all parameters, start a command prompt (cmd.exe) in the directory where the installation program is located and execute following command:
>MilestoneXProtectSmart Client.exe -–quiet
This performs a quiet installation of the XProtect Smart Client using default values for parameters such as target directory and so on. To change the default settings, see below.
b Customize default parameters using an xml argument file as input:
To customize the default installation settings, an xml file with modified values must be provided as input. To generate the xml file with default values, open a command prompt in the directory where the installation program is located and execute following command:
>MilestoneXProtectSmart Client.exe --generateargsfile=args.xml
Open the generated args.xml file, using for example Windows Notepad, and perform any changes needed. Then, to run silent installation using these modified values, execute following command in the same directory.
>MilestoneXProtectSmart Client.exe --arguments=args.xml --quiet
Page 22
Administrator's Getting Started Guide
www.milestonesys.com
22
Install clients

Install Milestone Mobile server

All XProtect system components, including the Milestone Mobile server, are available for separate download and installation from the management server's download web page (controlled by XProtect Download Manager):
1. On the management server, go to the Management server's download web page from Windows' Start menu, select Programs, Milestone, Administrative Installation Page.
2. Select the Milestone Mobile server installer. Save the installer somewhere appropriate and run it from here or run it directly from the web page.
3. Follow the instructions on the screen to install.
Once you have installed the Milestone Mobile server, you can use Milestone Mobile client and XProtect Web Client with your system. To reduce the overall use of system resources on the computer running the management server, install the Milestone Mobile server on a separate computer. For more information about how to do this, see the Milestone Mobile server manual, available on the Milestone website.
For more information about XProtect Download Manager, see Download Manager/download web page (on page 23).
Page 23
Administrator's Getting Started Guide
www.milestonesys.com
23
Download Manager/download
web page

Download Manager/download web page

The management server has a built-in web page. This web page enables administrators and end users to download and install required XProtect system components from any location, locally or remotely.
The web page is capable of displaying two sets of content, both by default in a language version matching the language of the system installation:
One web page is targeted at administrators, enabling them to download and install key
system components. Most often the web page is automatically loaded at the end of the management server installation and the default content is displayed. On the management server, you can access the web page from Windows' Start menu, select Programs, Milestone, Administrative Installation Page. Otherwise you can enter the URL:
http://[management server address]:[port]/installation/admin/
Page 24
Administrator's Getting Started Guide
www.milestonesys.com
24
Download Manager/download
web page
where [management server address] is the IP address or host name of the management server, and [port] is the port number which you have configured IIS to use on the management server. If not accessing the web page on the management server itself, log in with an account which has administrator rights on the management server.
One web page is targeted at end users, providing them access to client applications with
default configuration. On the management server, you can access the web page from Windows' Start menu, select Programs, Milestone, Public Installation Page. Otherwise you can enter the URL:
http://[management server address]:[port]/installation/
where [management server address] is the IP address or host name of the management server, and [port] is the port number which Iyou have configured IIS to use on the management server.
The two web pages automatically has some default content so you can use them straight away after the installation process. As administrator however, by using the Download Manager, you can customize what should be displayed on the web pages. You can also move components between the two versions of the web page, that is between the one targeted at system administrators and the one targeted at end users. To move a component, right-click it, and select the web page version you want to move the component to.
Even if you in Download Manager can control which components users can download and install, you cannot use it as a users' rights management tool. Such rights are determined by roles defined in the Management Client.
On the management server, you can access the XProtect Download Manager from Windows' Start menu, select Programs, Milestone, XProtect Download Manager.
Page 25
Administrator's Getting Started Guide
www.milestonesys.com
25
Ports used by the system
Port number
Protocol
Used by
Purpose
20 and 21
FTP
Recording servers
Listening for event messages from devices.
25
SMTP
Recording servers
Listening for event messages from devices and for sending images to the surveillance system server via e-mail.
80
HTTP
The IIS on the management server
Running the Management Server service.
443
HTTPS
Management server and service channel
Authentication of basic users.
554
RTSP
Recording servers
Traffic that controls streaming from cameras.
1024 and higher
(except the ports mentioned below)
HTTP
Recording servers
Outbound only. Traffic between cameras and servers.
1234
TCP/UDP
Event Server
Listening for generic events from external systems or devices.
1235
TCP
Event Server
Listening for generic events from external systems or devices.
1433
TCP
All processes in the system (among others management server, log server and event server)
Communication with the SQL Server. 5210
TCP
Recording servers and failover recording servers
Merging of databases after a failover recording server has been running.
5432
TCP
Recording servers
Listening for event messages from devices.
7563
TCP
Recording servers and XProtect Smart Client
Communication with the ImageServer interface. Also handling of PTZ camera control commands
and for retrieving image streams from clients etc.
7609
HTTP
Report server and Data Collector Server service
Communication between the two. The port must always be kept open on the server
running the Data Collector Server service.
8080
UDP
Management server
Communication between internal processes on the server.

Ports used by the system

If nothing else is mentioned, the ports are both inbound and outbound. The port numbers are the default numbers. You can change the port numbers if needed.
Page 26
Administrator's Getting Started Guide
www.milestonesys.com
26
Ports used by the system
Port number
Protocol
Used by
Purpose
8844
UDP
Failover recording servers
Communication between the servers.
8990
TCP
Management server
Monitoring the status of the failover server service.
9090
TCP
Event Server
Listening for analytics events from external systems or devices.
9993
TCP
Recording servers and management server
Communication between the two.
11000
TCP
Failover recording servers
Polling the state of recording servers.
12345
TCP
Management server and XProtect Smart Client
Communication between the system and Matrix recipients.
You can change the port number in Management Client.
22331
TCP
Event server, XProtect Smart Client and Management Client
Communication between the event server and the two others.
52111
TCP
XProtect Screen Recorder and recording servers
Communication between the two. You can change the port number in Management
Client.
65101
UDP
Recording servers
Listening for event notifications from the drivers.
Page 27
Administrator's Getting Started Guide
www.milestonesys.com
27
Failover recording servers
(regular and hot standby)

Failover recording servers (regular and hot standby)

Install a failover recording server

Important: During the installation process, you are asked to specify a user account under which the Failover Server service should run. This user account must have administrator rights in the system.
Note also that if you run workgroups, you should ignore the normal installation guidelines for installing recording servers and use the alternative installation method for workgroups.
Once you have installed the management server using the common installer, download the separate recording server installer from the management server's web page. As part of this installer, specify if you want to install a standard recording server or a failover recording server.
1. Go to the Management server's download web page and select the Recording Server installer. Save the installer somewhere appropriate and run it from here or run it directly from the web page.
2. Select the Language you want to use during the installation. Click Continue.
3. From the selection list, select Failover to install a recording server as a failover recording server.
4. Specify failover recording server properties. Click Continue.
5. When installing a failover recording server you must use the particular user account labeled This account. If needed, enter a password and confirm this. Click Continue.
6. Select Files location for the program file. In Product language, select the language in which to install your system. Click Install.
7. The software now installs. When done, you see a list of successfully installed components. Click Close.
When you have installed the failover recording server, you can check its state from the Failover Server service icon.

Setup and enable failover recording servers

Important: If you have disabled the failover recording server, you must enable it before it can take over from the standard recording servers.
Do the following to enable a failover recording server and edit its basic properties:
1. In the Site Navigation pane, select Servers > Failover Servers. This opens a list of installed failover recording servers and failover groups.
2. In the Overview pane, select the required failover recording server.
Page 28
Administrator's Getting Started Guide
www.milestonesys.com
28
Failover recording servers
(regular and hot standby)
3. Right-click and select Enabled. The failover recording server is now enabled.
4. To edit failover recording server properties, go to the Info tab.
5. When done, go to the Network tab. Here you can define the failover recording server's public IP address and more. This is relevant if you use NAT (Network Address Translation) and port forwarding. See the standard recording server's Network tab for more information.
To see the status of a failover recording server, hold your mouse of the icon in the system tray. A tooltip appears containing the text entered in the Description field of the failover recording server. This may help you determine which recording server the failover recording server is configured to take over from.
Important: The failover recording server pings the management server on a regular basis to verify that it is online and able to request and receive the configuration of the standard recording servers when needed. If you block the pinging, the failover recording server is not able to take over from the standard recording servers.

Assign failover recording servers

On the Failover tab of a recording server, you can choose between 3 different types of failover setups: a No failover setup b A primary/secondary failover setup c A hot standby setup.
If you select b and c, you must select the specific server/groups. With b, you can also select a secondary failover group. If the recording server becomes unavailable, a failover recording server from the primary failover group takes over. If you have also selected a secondary failover group, a failover recording server from the secondary group takes over in case all failover recording servers in the primary failover group are busy. This way you only risk not having a failover solution in the rare case when all failover recording servers in the primary, as well as in the secondary, failover group are busy.
1. In the Site Navigation pane, select Servers > Recording Servers. This opens a list of recording servers.
2. In the Overview pane, select the wanted recording server, go to the Failover tab.
3. To choose failover setup type, select either None, Primary failover server group/Secondary failover sever group or Hot standby server. You cannot select the same failover group as both primary and secondary failover group nor select regular failover servers already part of a failover group as hot standby servers.
4. Next, click Advanced failover settings. This opens the Advanced Failover Settings window, listing all devices attached to the selected recording server. If you selected None, Advanced failover settings are available. Any selections are kept for later failover setups.
5. To specify the level of failover support, select Full Support, Live Only or Disabled for each device in the list. Click OK.
6. In the Failover service communication port (TCP) field, edit the port number if needed.
Page 29
Administrator's Getting Started Guide
www.milestonesys.com
29

Failover management server

Failover management server
Multiple management servers may be relevant for your organization in case you want to establish a failover management server. This is basically done by configuring management servers in a clustering setup as described in the XProtect Advanced VMS manual.
Page 30
Administrator's Getting Started Guide
www.milestonesys.com
30

Management Client overview

Management Client overview

About login authorization

If you encounter a second dialog during login, you need additional login authorization to get access to the Management Client.
When you log into the Management Client, you may be asked to for additional authorization of your login. You need a person who has the rights to authorize you to enter their credentials in the authorization login window.
If you do not know who can authorize you, ask your system administrator.

Management Client window

The Management Client window is divided into panes. The number of panes and layout depend on your:
system configuration task available functions.
Below are some examples of typical layouts:
When you work with recording servers and devices:
Page 31
Administrator's Getting Started Guide
www.milestonesys.com
31
Management Client overview
When you work with rules, time and notification profiles, users, roles:
When you view logs:
Page 32
Administrator's Getting Started Guide
www.milestonesys.com
32
Management Client overview

Panes overview

The illustration outlines a typical window layout. You can customize the layout so it may look different on your computer.
1. Site Navigation pane and Federated Sites Hierarchy pane
2. Overview pane
3. Properties pane
4. Preview pane
Site Navigation pane: This is your main navigation element in the Management Client. It reflects the name, settings and configurations of the site that you have logged in to. The site name is visible at the top of the pane. The features are grouped into categories that reflect the functionality of the software.
Federated Site Hierarchy pane: This is your navigation element that displays Milestone Federated Architecture sites and their parent/child links.
The parent server that you are logged in to, your home site, is always at the top. If you adopt its point of view, you can view all its linked children and downwards in the parent/child hierarchy.
Overview Pane: Provides an overview of the element you have selected in the Site Navigation pane, for example a detailed list. When you select an element in the Overview pane, it typically displays the properties in the Properties pane. When you right-click elements in the Overview pane you get access to the management features.
Properties pane: Displays properties of the element selected in the Overview pane. Often, properties are displayed across a number of tabs:
Example of properties displayed on tabs
Page 33
Administrator's Getting Started Guide
www.milestonesys.com
33
Management Client overview
Name
Description
Reset Application Layout
Reset the layout of the different panes in the Management Client to their default settings.
Preview Window
Toggle the Preview pane on and off when working with recording servers and devices.
Preview pane: The Preview pane appears when you work with recording servers and devices. It shows preview images from the selected cameras or displays information about the state of the device. The example shows a camera preview image with information about the resolution and data rate of the camera's live stream:
By default, the information shown with the camera preview images concerns live streams. This is displayed in green text above the preview. If you want recording stream information instead (red text), select View > Show Recording Streams in the menu.
Performance can be affected if the Preview pane displays preview images from many cameras at a high frame rate. To control the number of preview images, and their frame rate, select Options > General in the menu.

Menu overview

Example only - some menus change depending on context.

File menu

You can save changes to the configuration and exit the application. You can also back up your configuration, see About backing up system configuration.

Edit menu

You can undo changes.

View menu

Page 34
Administrator's Getting Started Guide
www.milestonesys.com
34
Management Client overview
Name
Description
Show Recording Streams
By default, the information shown with preview images in the Preview pane concerns live streams of the cameras. If you want information about recording streams instead, select Show
Recording Streams.
Federated Site Hierarchy
By default, the Federated Site Hierarchy pane is enabled.
Site Navigation
By default, the Site Navigation pane is enabled.
Name
Description
Refresh
Is always available and reloads the requested information from the management server.
Name
Description
Registered Services
Manage registered services. See About the service channel.
Enterprise Servers
Add XProtect Enterprise servers to your system and manage the integration of the added servers. See About XProtect Enterprise servers.
You can also use the feature to migrate from an XProtect Enterprise system to XProtect Corporate. This is described in a separate document.
Only supported if your system:
- runs XProtect Corporate
- uses IPv4
- works with XProtect Enterprise servers running XProtect Enterprise version 6.0 and up
Effective Roles
View all roles of a selected user or group. Only relevant if you run XProtect Corporate.
Options
Opens the Options dialog box, which lets you define and edit global system settings.
Only relevant if you run XProtect Corporate.

Action menu

The content of the Action menu differs depending on the element you have selected in the Site Navigation pane. The actions you can choose from are the same as when you right-click the element.
The elements are described in Management Client elements.

Tools menu

Help menu

You can access the help system and information about the version of the Management Client.
Page 35
Administrator's Getting Started Guide
www.milestonesys.com
35

Product comparison chart

Name
XProtect Expert
XProtect Corporate
Milestone Interconnect
Remote site
Central/remote site
Milestone Federated Architecture
Remote site
Central/remote site
Recording server failover and hot stand-by recording server
-
✓
Remote connect services
-
✓
Multi-stage video storage
XProtect Corporate database
Live databases + 1 archive
XProtect Corporate database Live databases + unlimited
archives
Reduce frame rate (grooming)
-
✓
Video data encryption (recording server)
-
✓
Database signing (recording server)
-
✓
SNMP trap (notification)
- ✓ Time controlled user access rights
-
✓
Bookmark function
Manual only
Manual and rule-based
Overall security
Client user rights
Client user rights/ administrator user rights
XProtect Management Client profiles
-
✓
XProtect Smart Client profiles
3
Unlimited
XProtect Smart Wall
optional
✓
Evidence lock
-
✓
Product comparison chart
XProtect Advanced VMS comes in two versions:
XProtect Expert XProtect Corporate
The complete feature list of the XProtect Advanced VMS products is available on the product overview page on the Milestone website.
Below is a list of the differences between the two products:
Page 36
Administrator's Getting Started Guide
www.milestonesys.com
36
Index
Install the system • 9, 15, 20

Index

A
About licenses • 7 About login authorization • 32 About this guide • 5 About virus scanning • 12 Active Directory • 11 Assign failover recording servers • 29
C
Change Software License Code • 20, 21
Configure the system in Management Client •
9, 15, 19, 20
Copyright, trademarks and disclaimer • 4 Customize IIS • 12
Install XProtect Smart Client silently • 22
Install your system - Custom option • 15, 16 Install your system - Distributed option • 15, 16 Install your system - Single Server option • 15
Installation for workgroups • 11, 19 Installation overview • 9 Installation preconditions • 9, 10
M
Management Client overview • 32 Management Client window • 32 Menu overview • 35
P
Panes overview • 34 Ports used by the system • 26
D
Determine installation method • 10 Determine SQL server type • 10
Download Manager/download web page • 23,
24
F
Failover management server • 31 Failover recording servers (regular and hot
standby) • 28
I
Install a failover recording server • 9, 18, 28 Install clients • 9, 22 Install Milestone Mobile server • 23 Install the recording server • 16, 18
Product comparison chart • 37 Product overview • 6
R
Register Software License Code • 13, 21
S
Select service account • 11
Setup and enable failover recording servers •
28
System requirements • 8
Page 37
About Milestone Systems Founded in 1998, Milestone Systems is the global
industry leader in open platform IP video management software. The XProtect platform delivers powerful surveillance that is easy to manage, reliable and proven in thousands of customer installations around the world. With support for the widest choice in network hardware and integration with other systems, XProtect provides best-in-class solutions to video enable organizations – managing risks, protecting people and assets, optimizing processes and reducing costs. Milestone software is sold through authorized and certified partners. For more information, visit:
www.milestonesys.com.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
