Page 1

MPM-88-IR-N

4K HDBaseT 8x8 Matrix Switcher

Version: MPM-88-IR-N_2016V1.0

User Manual

Page 2

4K HDBaseT 8x8 Matrix Switcher

Preface

Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product.

This manual is only for operation instruction only, not for any maintenance usage.

Trademarks

Product model and logo are trademarks. Any other trademarks mentioned in this manual are acknowledged as the properties of the trademark owner. No part of this publication may be copied or reproduced without prior written consent.

FCC Statement

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. It has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation.

Operation of this equipment in a residential area is likely to cause interference, in which case the user at their own expense will be required to take whatever measures may be necessary to correct the interference

Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment.

Page 3

4K HDBaseT 8x8 Matrix Switcher

SAFETY PRECAUTIONS

To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference.

 Unpack the equipment carefully and save the original box and packing material for

possible future shipment

 Follow basic safety precautions to reduce the risk of fire, electrical shock and injury

to persons.

 Do not dismantle the housing or modify the module. It may result in electrical shock

or burn.

 Using supplies or parts not meeting the products’ specifications may cause damage,

deterioration or malfunction.

 Refer all servicing to qualified service personnel.  To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this

product near water.

 Do not put any heavy items on the extension cable in case of extrusion.  Do not remove the housing of the device as opening or removing housing may

expose you to dangerous voltage or other hazards.

 Install the device in a place with fine ventilation to avoid damage caused by

overheat.

 Keep the module away from liquids.  Spillage into the housing may result in fire, electrical shock, or equipment damage. If

an object or liquid falls or spills on to the housing, unplug the module immediately.

 Do not twist or pull by force ends of the optical cable. It can cause malfunction.  Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to

the device before cleaning.

 Unplug the power cord when left unused for a long period of time.  Information on disposal for scrapped devices: do not burn or mix with general

household waste, please treat them as normal electrical wastes.

Page 4

4K HDBaseT 8x8 Matrix Switcher

Contents

1. Introduction ................................................................................................................. 1

1.1 Introduction to the MPM-88-IR-N ....................................................................... 1

1.2 Features ............................................................................................................ 1

1.3 Package List ...................................................................................................... 1

2. Product Appearance of the MPM-88-IR-N .................................................................. 2

2.1 Front Panel ........................................................................................................ 2

2.2 Rear Panel ......................................................................................................... 3

3. System Connection ................................ ................................ ................................ ..... 4

3.1 System Applications .......................................................................................... 4

3.2 Usage Precautions ................................................................ ............................ 4

3.3 Connection Diagram ................................................................ .......................... 4

3.4 Connection Procedure ....................................................................................... 5

3.5 Connection with HDBaseT Receiver.................................................................. 6

4. System Operations ..................................................................................................... 7

4.1 Front Panel Button Control ................................................................................ 7

4.1.1 Switching I/O connection ......................................................................... 7

4.1.2 EDID Management .................................................................................. 7

4.1.3 Inquiry ...................................................................................................... 9

4.1.4 Clear operation ........................................................................................ 9

4.2 IR Control ........................................................................................................ 10

4.2.1 Usage of IR Remote .............................................................................. 10

4.2.2 IR Carrier ............................................................................................... 11

4.2.3 Control Far-end Device locally............................................................... 11

4.2.4 Control Local Device Remotely ............................................................. 12

4.3 RS232 Control ................................................................................................. 14

4.3.1 Connection with RS232 Communication Port ........................................ 14

4.3.2 Installation/uninstallation of RS232 Control Software ............................ 14

4.3.3 Basic Settings ........................................................................................ 14

4.3.4 RS232 Communication Commands ...................................................... 15

4.3.5 Control through 9-pin RS232 port .......................................................... 22

4.3.6 Control through 3-pin RS232 port .......................................................... 22

Page 5

4K HDBaseT 8x8 Matrix Switcher

4.4 TCP/IP Control................................................................................................. 24

4.4.1 Control Modes ....................................................................................... 24

4.4.2 Control via TCP/IP communication software ......................................... 25

4.4.3 GUI for TCP/IP control ........................................................................... 26

4.4.4 Port Management .................................................................................. 29

4.5 Firmware Update via USB ............................................................................... 30

5. Specification ............................................................................................................. 31

6. Troubleshooting & Maintenance ............................................................................... 33

7. After-sales Service ................................................................................................ .... 35

Page 6

4K HDBaseT 8x8 Matrix Switcher

1. Introduction

1.1 Introduction to the MPM-88-IR-N

MPM-88-IR-N is a professional 8x8 HDBaseT Matrix Switcher that accommodates 8 HDMI IN (HDMI1.4 & HDCP2.2 compliant) & 8 IR IN.

Select HDMI input by front panel buttons, IR, RS232, or GUI. The selected source is delivered to HDMI Output 1~4 (switched synchronously with HDBaseT output 1~4) & HDBaseT outputs 1~8 (easy extension to 70m at 1080p and 40m at 4Kx2K on a single CAT5e/6 connection with HDBaseT receivers, with PoC).

It also features EDID management.

1.2 Features

 8 HDMI Input support HDMI 1.4 &HDCP2.2, and compliant with lower standards,

capable to transmit 4Kx2K@60Hz & 1080p 3D

 Support manual input HDCP auto-detecting and output manual HDCP management  4 HDMI Output support HDMI1.4& HDCP1.4, transmit 4Kx2K signal for 8m  8 HDBaseT outputs for easy extension to 70m at 1080p and 40m at 4Kx2K over

single CAT5e/6 cable, support PoC

 LCD screen shows real-time I/O connection status, switching status, HDCP status,

and output resolution.

 Controllable via front panel, TCP/IP, and bi-directional IR& RS232  Built-in GUI for TCP/IP control  Powerful EDID management  Support off memory for reliable operation  Convenient firmware upgrade through Micro USB port  Easy installation with rack-mounting design

1.3 Package List

 1 x MPM-88-IR-N

 2 x Mounting ears (6 x Screws)

 1 x RS232 cable

 1 x IR Receiver (5V, with carrier)

 4 x Rubber Feet (4 x Screws)

 1 x IR remote

 1 x Power cord

 16 x Pluggable Terminal Blocks

 1 x User manual

 Confirm if the product and the accessories are all included, if not, please contact

with the dealers.

Page 7

4K HDBaseT 8x8 Matrix Switcher

2. Product Appearance of the MPM-88-IR-N

2.1 Front Panel

No.

Name

Description

①

Firmware

Micro USB port for firmware updating

②

Power Indicator

Illuminate red when power on; light yellow in standby mode

③

In-built IR sensor, receive IR signals sent from IR remote.

④

LCD Screen

Display real-time operation status.

⑤

INPUTS/ Menu buttons

 Normal mode: input selection buttons ranging from 1~8.  Inquiry mode (buttons 1~4): Press “ENTER” for more than 3

seconds to enter this mode. Dial to select different menus, to select different options.

⑥

OUTPUTS buttons/ EDID Management buttons

 Normal mode: output selection buttons ranging from 1~8  EDID Invoking mode: press and hold EDID button for 3

seconds or more to enter this mode, buttons 1~6 correspond to the 6 embedded EDID data separately. Press any of the 6 buttons to invoke embedded EDID data.

⑦

Function buttons

ALL: Select all inputs/ outputs

EDID: EDID management button

CLEAR: Withdraw an operation before it comes into effect

ENTER:

 Confirm operation  Press for 3 seconds to enter in Inquiry mode.

SYST EM MONI TOR

CLEAR

ALL

OUTPUTS

INPUTS

1 2

6 7 8

ENTER

FIRM WARE

EDID

MPM-88-IR-N

Page 8

4K HDBaseT 8x8 Matrix Switcher

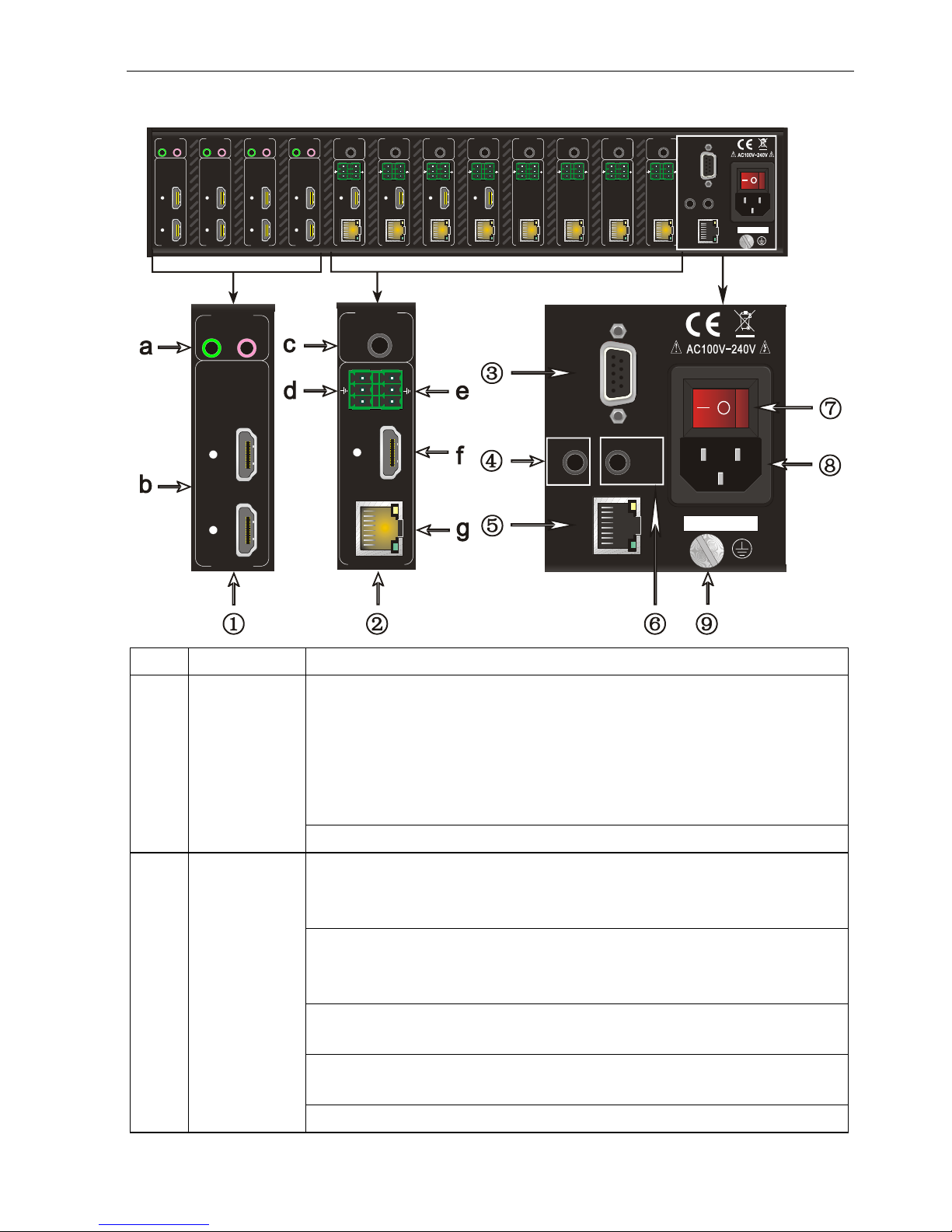

2.2 Rear Panel

No.

Name

Description

①

INPUTS

a. IR OUT: connect with IR emitters, making up an IR matrix

with the IR IN sockets on the far-end receivers. IR signal can be switched synchronously with the AV signal, or separately. In default setting, the 8 IR OUT corresponds with the 8 IR IN throughly, i.e. IR OUT1→IR IN1,…IR OUT8→IR IN8.

b. HDMI: HDMI input ports, connect with HDMI sources.

②

OUTPUTS

c. IR IN: Connect with IR receiver (with carrier), work with IR

OUT on the corresponding far-end receiver, cannot be switched separately.

d. RS232: serial control ports, support bi-directional control

with RS232 port on corresponding HDBT receiver, cannot be switched separately.

e. AUDIO: stereo audio output ports, output de-embedded

HDMI audio

f. HDMI: Local HDMI output ports, synchronously switched

with HDBaseT Output 1~4

g. HDBaseT: work with HDBaseT receivers to extend

232

/IP

LL IN

HDCP2.2

RS232

TCP/I P

IR ALL IN

IR EYE

HDMI 8

HDMI 7

IR OUT

INPUT

HDBas eT

RS232 AUDIO

OUTPU T 1

Tx Rx

HDMI

HDBas eT

RS232 AUDIO

OUTPU T 2

Tx Rx

HDMI

HDBas eT

RS232 AUDIO

OUTPU T 3

Tx Rx

HDMI

HDBas eT

RS232 AUDIO

OUTPU T 4

Tx Rx

HDMI

HDBas eT

RS232 AUDIO

OUTPU T 5

Tx Rx

HDBas eT

RS232 AUDIO

OUTPU T 6

Tx Rx

HDBas eT

RS232 AUDIO

OUTPU T 7

Tx Rx

HDBas eT

RS232 AUDIO

IR INIR INIR INIR INIR INIR INIR INIR IN

OUTPU T 8

Tx Rx

HDMI 6

HDMI 5

IR OUT

INPUT

HDMI 4

HDMI 3

IR OUT

INPUT

HDMI 2

HDMI 1

IR OUT

INPUT

7 85 63 41 2

HDCP2.2

I 2

I 1

IR OUT

INPUT

aseT

RS232 AUDIO

OUTPUT 1

IR IN

Page 9

4K HDBaseT 8x8 Matrix Switcher

signals and energize far-end HDBaseT receiver on a single CAT5e/6 cable.

③

RS232

Serial control port, connect with control device such as a PC.

④

IR ALL IN

Input port for IR control signal, connect with IR receiver (with carrier), delivers the received IR signal to all the 8 far-end receivers.

⑤

TCP/IP

TCP/IP port for unit control

⑥

IR EYE

Connect with extended IR receiver, use the IR remote to control the MPM-88-IR-N.

⑦

Power Trigger

Press the button to turn on/off the matrix. The indicator turns red when power on.

⑧

Power port

Connect to an AC 100V~240V power adapter via the included power cord

⑨

GROUND

Connect to grounding, make the unit ground well.

Note: Pictures shown in this manual are for reference only, different model and specifications are subject to real product.

3. System Connection

3.1 System Applications

As its good performance in control and transmission, the MPM-88-IR-N can be widely used in computer realm, monitoring, large screen displaying, conference system, television education and bank securities institutions etc.

3.2 Usage Precautions

1) System should be installed in a clean environment and has a prop temperature and

humidity.

2) All of the power switches, plugs, sockets and power cords should be insulated and safe.

3) All devices should be connected before power on.

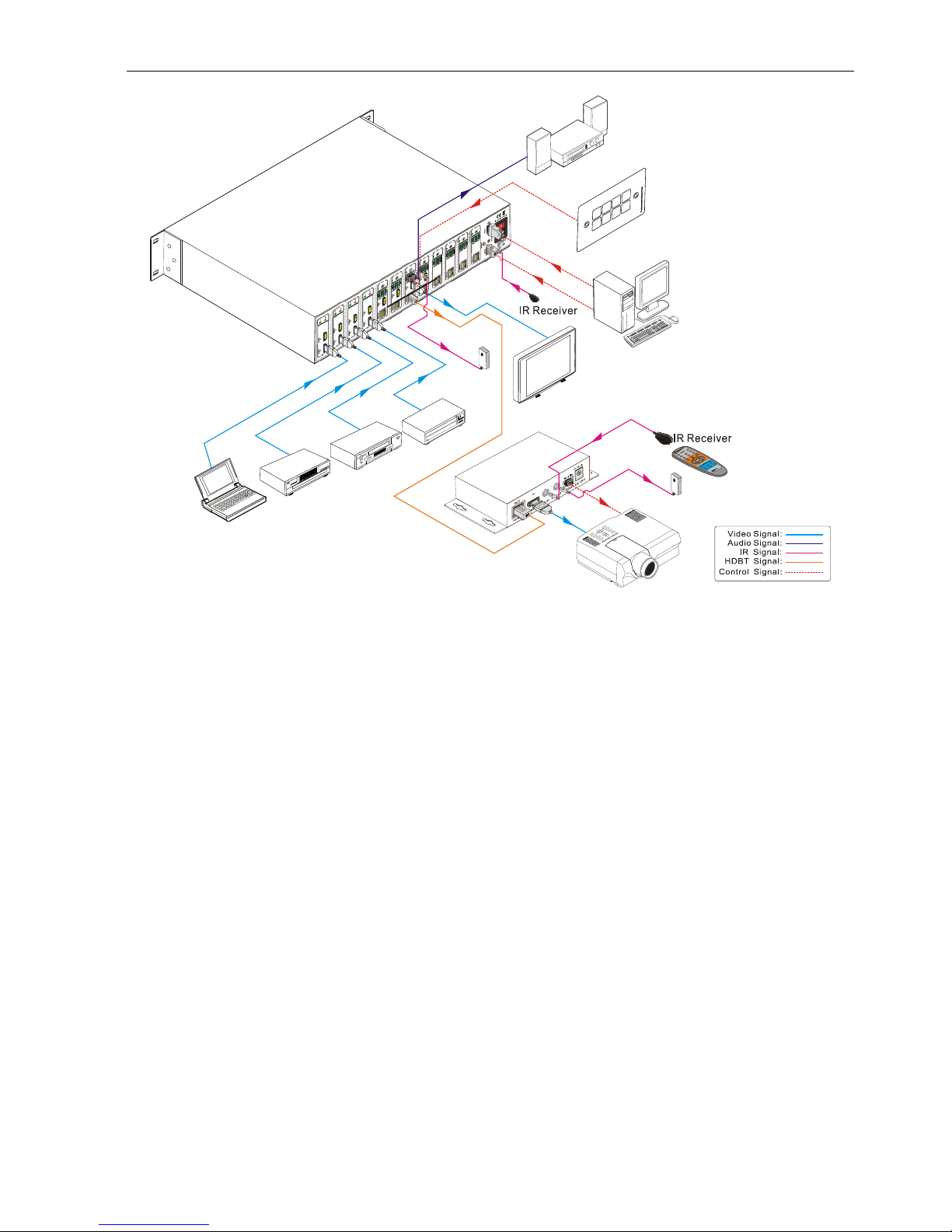

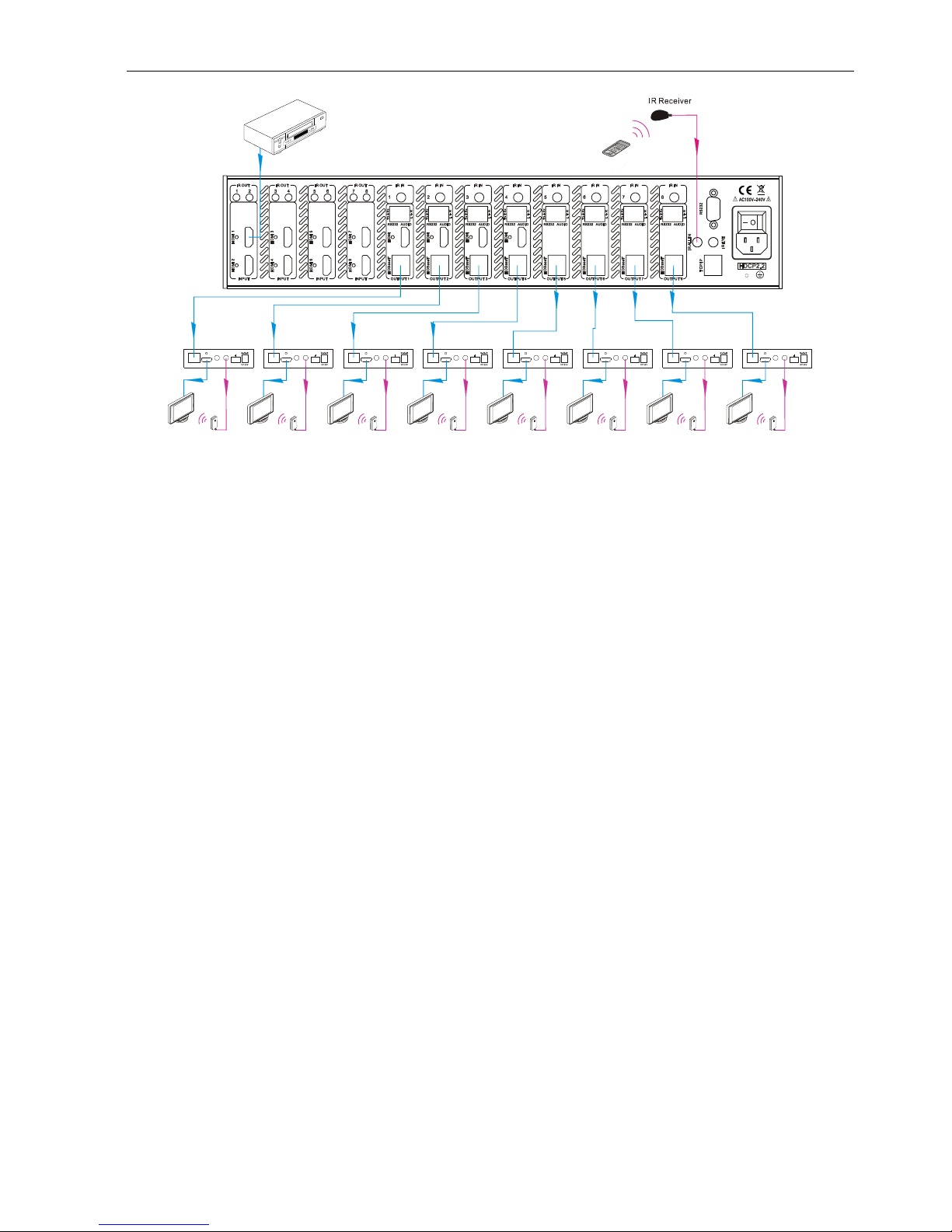

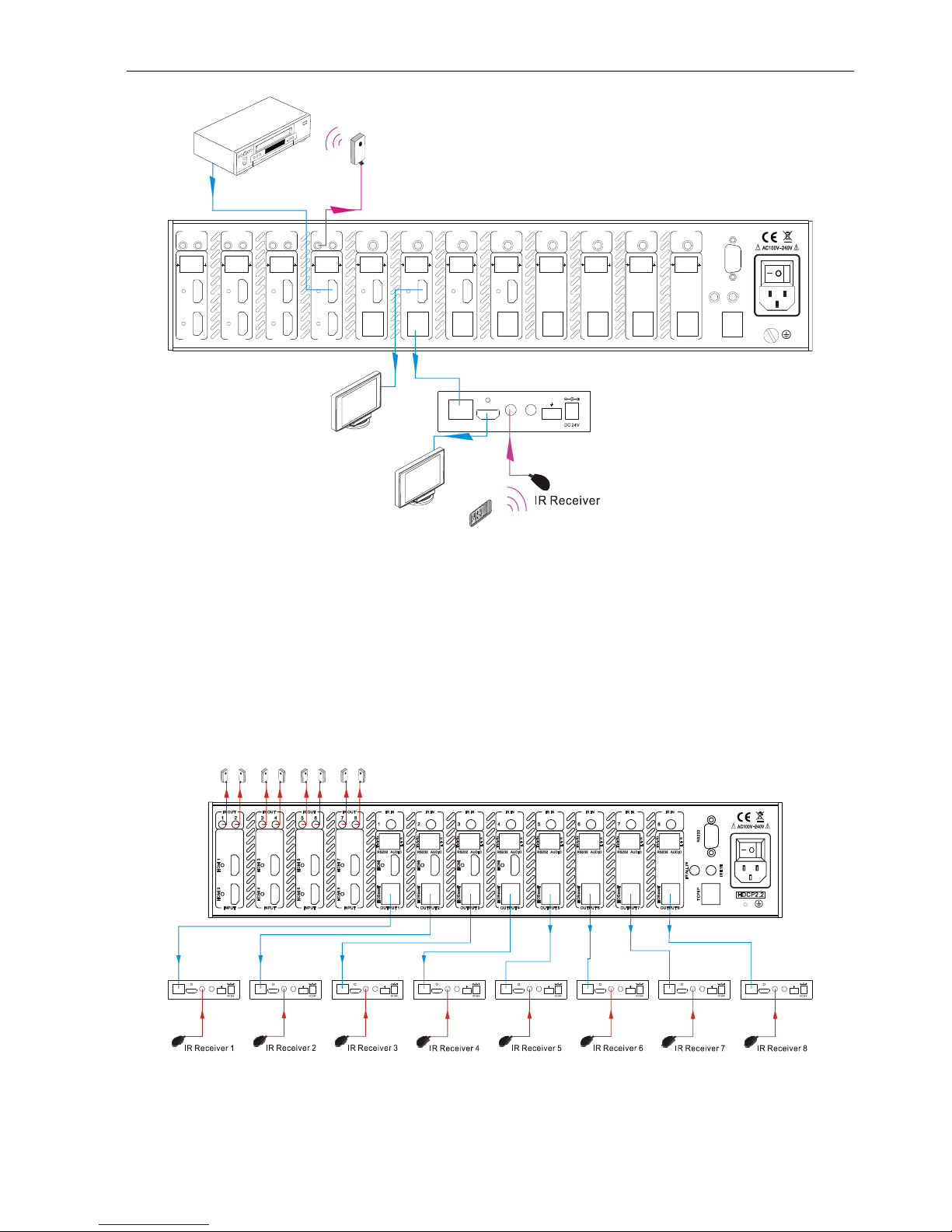

3.3 Connection Diagram

Page 10

4K HDBaseT 8x8 Matrix Switcher

3.4 Connection Procedure

1) Connect HDMI sources (e.g. DVD) to HDMI inputs of the MPM-88-IR-N with HDMI

cables.

2) Connect HDBaseT receivers (e.g. MPTP-T70R) to the HDBaseT Output ports with straight-through CAT5e/6.

3) Connect HDMI displays (e.g. HDTV) to HDMI outputs of the MPM-88-IR-N or the receivers with HDMI cables

4) Connect speakers/earphones to AUDIO output ports

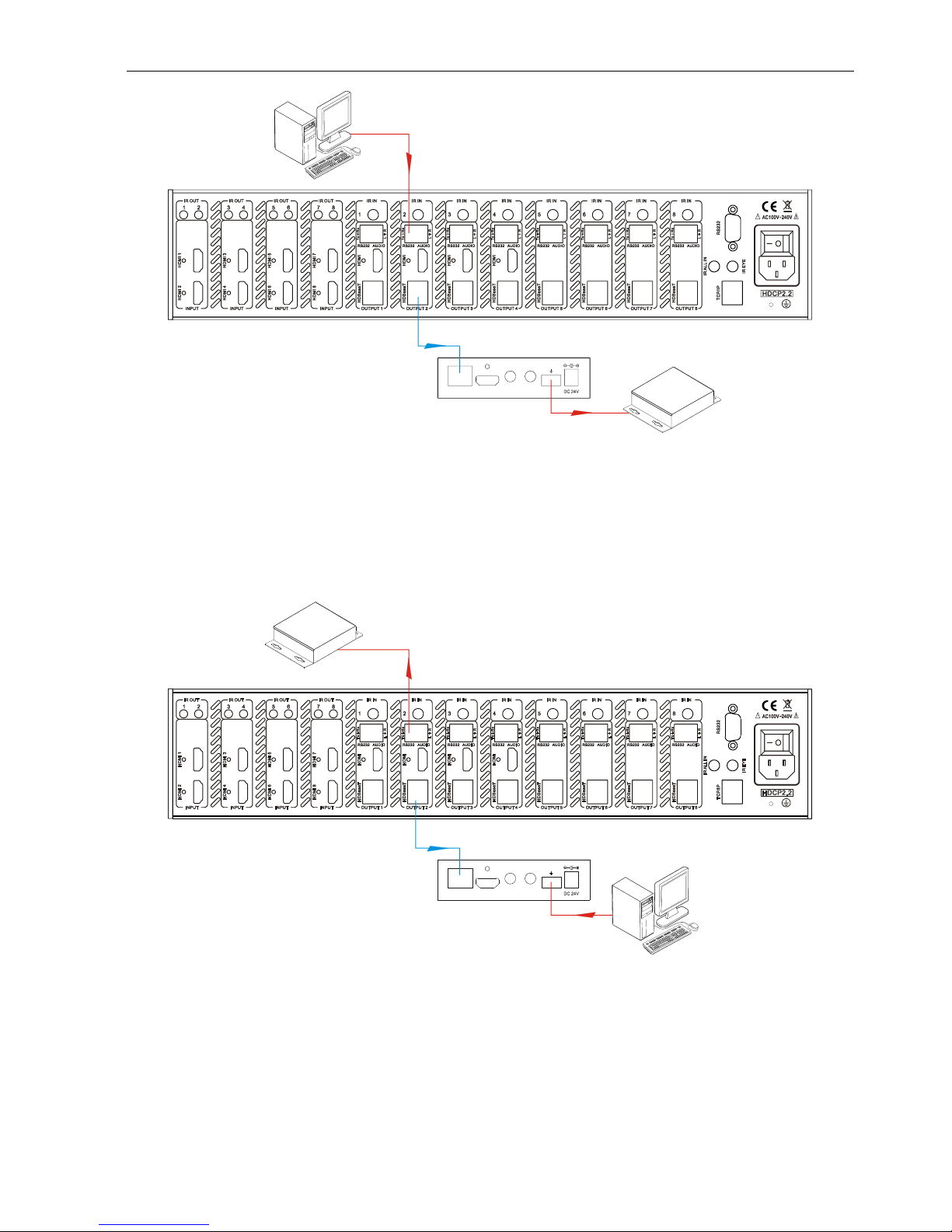

5) Connect control device (e.g. a PC) to the RS232 port of either MPM-88-IR-N or

far-end receivers. RS232 signal can be transmitted bi-directionally between MPM-88-IR-N and far-end receivers.

6) MPM-88-IR-N can collect IR signal sent by the included IR remote via its built-in IR sensor or through external IR receiver connected to the IR IN/ IR EYE/ IR ALL IN port. The IR signal can be transmitted bi-directionally between MPM-88-IR-N and far-end receivers.

7) Insert AC 100V~240V power outlet to power port of MPM-88-IR-N and switch on the power trigger.

Note: IR receivers connected to IR IN should be with carrier. If not, send

IR Transmitter

VCR

STB

DVD

Speaker

Laptop

RS232

control panel

HDTV

PoC

IR Remote

Projector

Page 11

4K HDBaseT 8x8 Matrix Switcher

command %0900. or %0901.to activate native carrier mode or force carrier mode in the IR matrix launched between MPTP-88-IR-N and far-end receivers.

3.5 Connection with HDBaseT Receiver

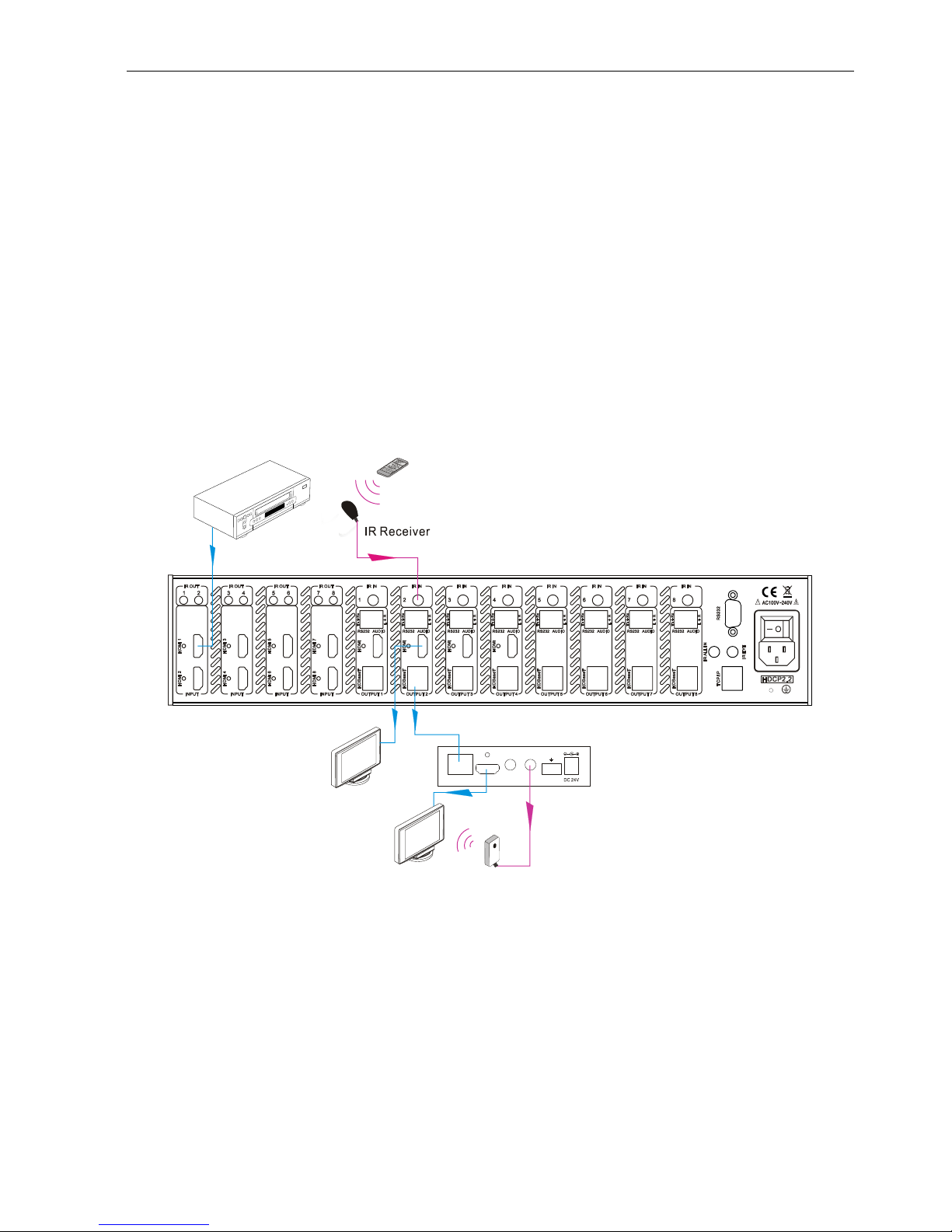

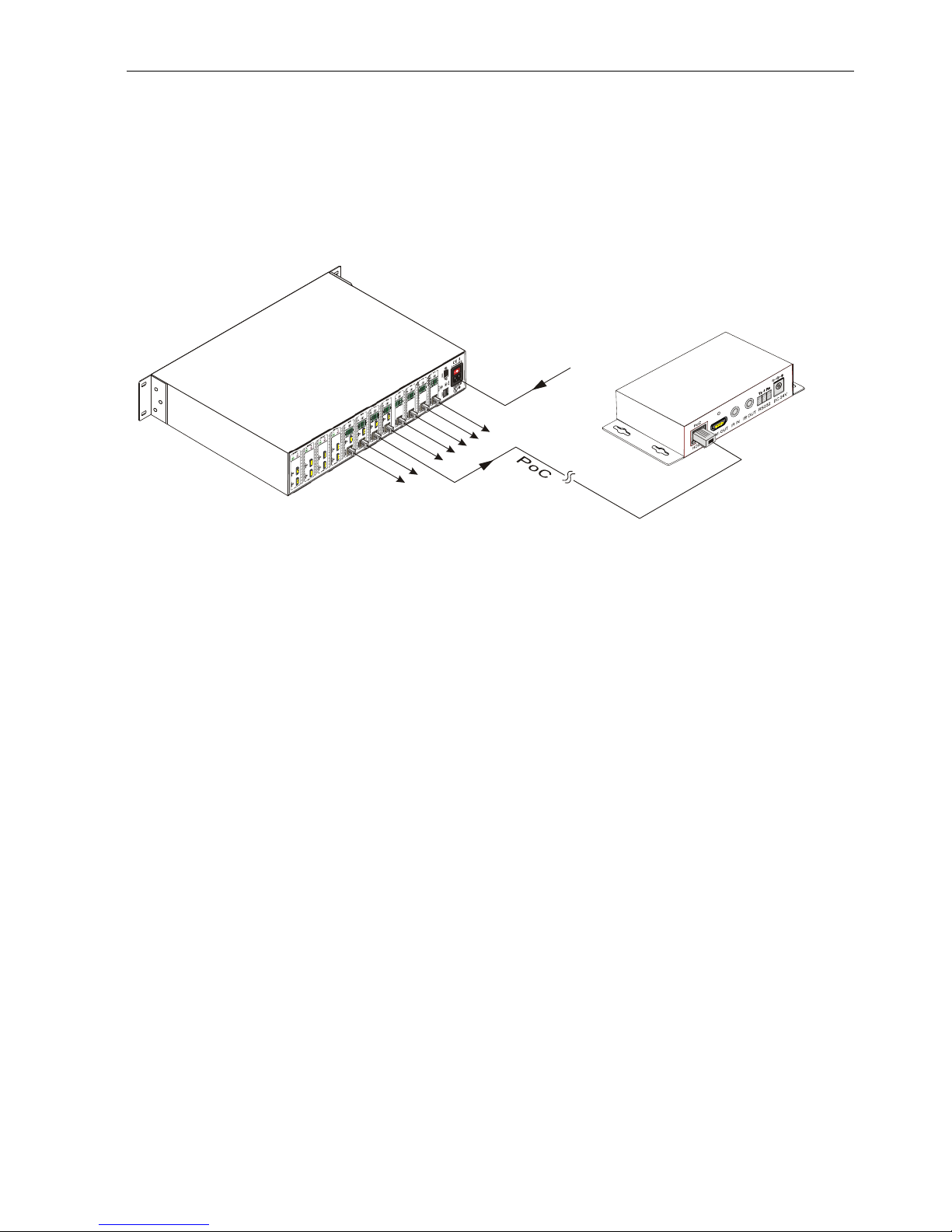

MPM-88-IR-N boasts 8 HDBaseT output ports which support PoC solution, through which AV signal, IR& RS232 control signal, as well as power are transmitted on single CAT5e/6.

AC 100V ~ 240V

MPTP-T70R

Page 12

4K HDBaseT 8x8 Matrix Switcher

4. System Operations

4.1 Front Panel Button Control

The operation examples are showed in 2.1 Front Panel. Here we make a brief introduction to the system operations.

4.1.1 Switching I/O connection

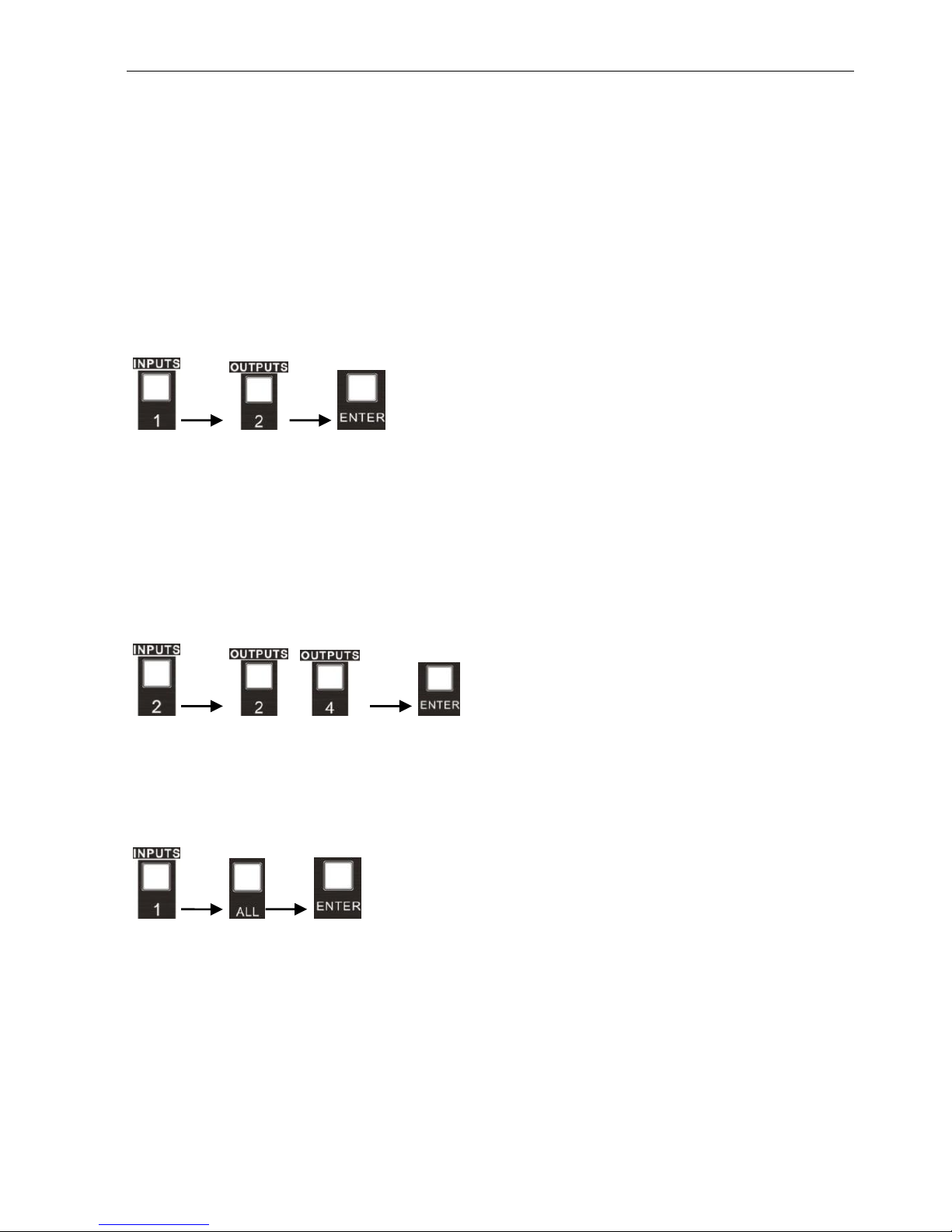

1) To convert one input to an output:

Operation: “input” + “output” + “ENTER” Example: input 1 to output 2

Note: In default status, 8 IR OUT sockets correspond with 8 HDMI INPUTS. When you convert an HDMI input to an output, the corresponding IR OUT will be switched synchronously.

2) To convert an input to several outputs:

Operation: “input” + “output” + “output” +… + “ENTER” Example: Switch input 2 to output 2, 4

3) To convert an input to all outputs:

Operation: “input” + “ALL” + “ENTER” Example: Convert input 1 to all outputs

Note: Indicators of the pressed buttons will blink green for three times if the conversion is done, then it will be off. If the conversion failed, they will be off immediately.

4.1.2 EDID Management

MPM-88-IR-N features EDID management to maintain compatibility between all devices. It can be controlled via EDID learning and EDID invoking.

EDID Learning (from output):

Page 13

4K HDBaseT 8x8 Matrix Switcher

 One input port learns the EDID data of one output port

Operation: Press “EDID”, “INPUTS”+“OUTPUTS”+“ENTER”. Example: Input 2 learns EDID data from output 4

 All input ports learn EDID data from one output port Operation: Press “EDID”, “ALL”+“OUTPUTS”+“ENTER” Example: All input ports learn EDID data from output 4

EDID invoking:

There are six types of embedded EDID data. The chart below illustrates the detailed information of the embedded EDID data:

Output Button

EDID Data

1080P 3D 2CH

1080P 3D Multichannel

1080P 2D 2CH

1080P 2D Multichannel

3840x2160 2D（30Hz）

4096x2160 2D（30Hz）

Format: Press and hold “EDID” for 3 seconds, “INPUTS”+“OUTPUTS”+“ENTER”. Operations:  Set EDID data for one input Operation: Press “EDID” (hold for 3 seconds to enter in EDID setting status),

“INPUTS”+“OUTPUTS”+“ENTER”. Example: Set the EDID data of INPUT 4 to the forth type of embedded EDID data:

Press (hold for 3 seconds) .

Page 14

4K HDBaseT 8x8 Matrix Switcher

4.1.3 Inquiry

 Check status Press and hold the button “ENTER” for 3 seconds, it will enter into system inquiry menu.

Use Left and Right direction button to navigate checking the previous/next items.

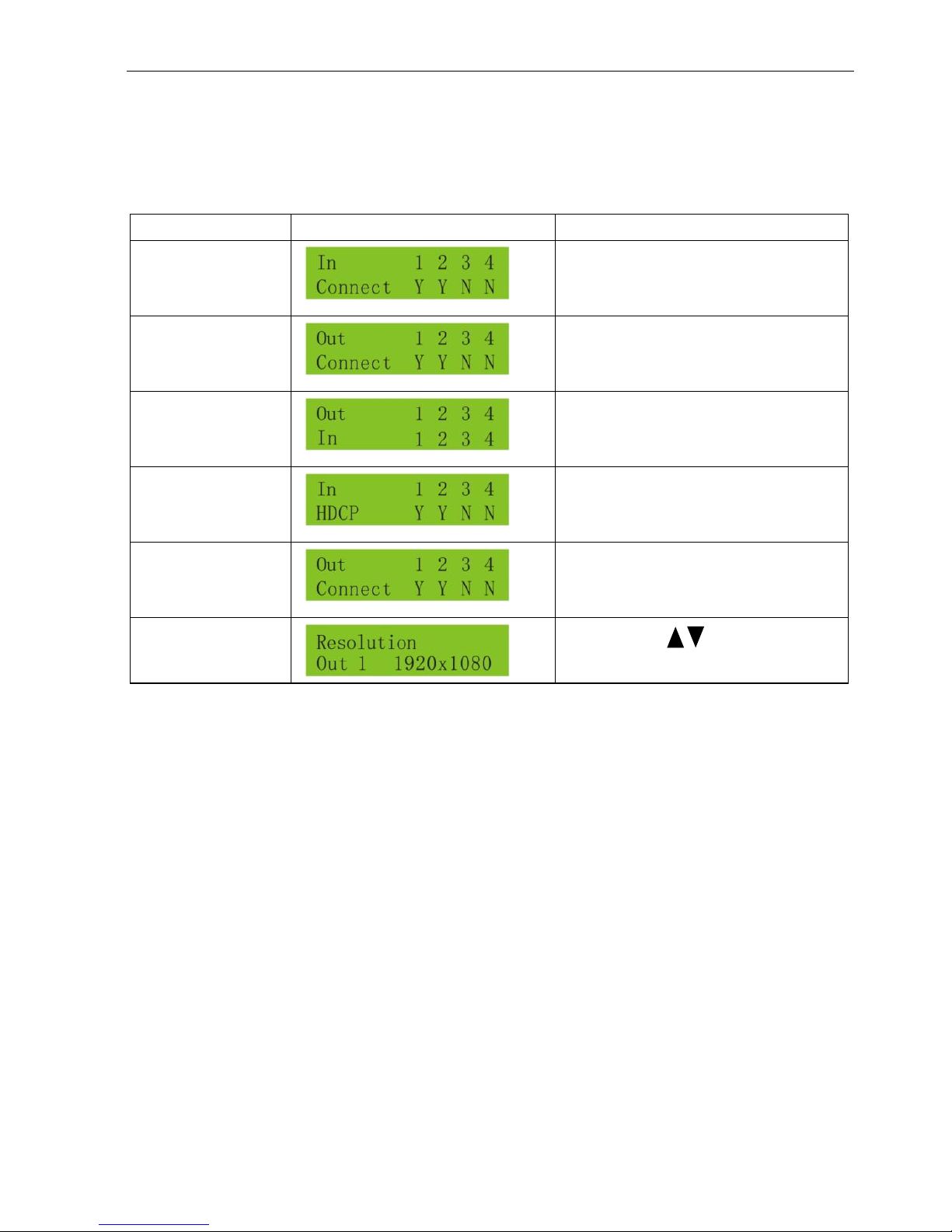

Function Items

Example

Description

Check the connection status of inputs

Y means the corresponding port is connected with input device, N means not.

Check the connection status of outputs

Y means the corresponding port is connected with output device, N means not.

Correspondence between inputs and outputs

Shows the correspondence between the 8 inputs and 8 outputs.

Check if the input is with HDCP

Y means the input signal is with HDCP, N means not.

Check if the output is with HDCP

Y means the output signal is with HDCP, N means not.

Check the output resolution

Use button to check the 8 output resolutions separately.

 Output check Press any output button to check its corresponding input. Example: Check which one is the corresponding input for output 2. (Presume Output 2

corresponds to Input 1.) Operation: Press Output 2 button, LCD screen display “AV: 1->2 IR: 1->2”, and

indicators of input 1 and output 2 turn on and last for 3 seconds. Then output 2 corresponds to input 1.

4.1.4 Clear operation

When you switch output channel, learn EDID data, or set EDID data, press Clear button to withdraw the operation before you press “ENTER” to carry it on. When you press it, the matrix will return to the previous status.

Page 15

4K HDBaseT 8x8 Matrix Switcher

4.2 IR Control

By using IR & HDBaseT transmission technology, the MPM-88-IR-N has some functions as follows:

1) Control far-end output device from local.

2) Control local input/output device remotely.

3) Control the MPM-88-IR-N locally/remotely.

4.2.1 Usage of IR Remote

① Standby button, press it to enter/ exit standby

mode

② Input channels, range from 1~8,

corresponding IR signal switched synchronously when switching input channels.

③ Menu buttons, ALL, EDID and CLEAR, same

with the corresponding front panel buttons. Please refer to 4.1 Front Panel Button Control for details.

④ : Navigation buttons.

ENTER: Confirm button.

⑤ Output channels, range from 1~8.

Each channel has 1 IR IN, 1 HDBaseT, 1 RS232, and 1 AUDIO outputs, and channel 1~4 have HDMI outputs.

Note: With this IR remote, MPM-88-IR-N can be controlled by the built-in IR, the extended IR receiver connected to the “IR EYE”/”IR ALL IN” and the IR receiver on the far-end receiver.

Page 16

4K HDBaseT 8x8 Matrix Switcher

4.2.2 IR Carrier

IR receivers connected to IR IN of HDBT receiver& IR ALL IN of MPM-88-IR-N can be with carrier or without carrier.

IR signals to be emitted via IR OUT port of the switcher should be with carrier. So, it is recommended to utilize IR receivers with carrier. If the IR receiver is not with carrier, send command “%0901.” to enter infrared carrier enforcing mode.

4.2.3 Control Far-end Device locally

Connect an IR receiver to IR IN/ IR ALL IN on the switcher, and use the IR Remote of far-end device to control the device locally.

 1 to 1: (through IR IN)

Connect an IR receiver with carrier to the IR IN port of MPM-88-IR-N, users can control far-end output display via its IR remote locally. See the figure below:

Control far-end device from Local

Note: The IR receiver connected to IR IN must be with IR carrier

 1 to All: (through IR ALL IN)

Connect an IR receiver to the IR ALL IN port of MPM-88-IR-N, the IR signal received from IR ALL IN port will be transmitted to all the 8 connected far-end HDBT receivers. See as below:

HDMI OU THDBT IN

Tx Rx

RS232IR IN IR OU T

PoC

DVD

HDTV

IR Remote

HDTV

MPTP-T70R

Page 17

4K HDBaseT 8x8 Matrix Switcher

Control far-end device through IR ALL IN port

Note: Send command “%0901.” to enter infrared carrier enforcing mode if the IR Receiver connected to IR ALL IN is not with carrier.

4.2.4 Control Local Device Remotely

Connect IR receiver(s) to IR IN on far-end HDBT receiver(s), and IR Emitter(s) to IR OUT port of the switcher, and use the IR Remote of local source to control the device remotely.

 1 to 1:

Connect an IR receiver to IR IN on far-end HDBT receiver, and an IR Emitter to IR OUT port of the switcher. Use the IR Remote of local source to control the device remotely. See below:

MPTP-T70R 1 MPTP-T70R 2 MPTP-T70R 3 MPTP-T70R 4 MPTP-T70R 5 MPTP-T70R 6 MPTP-T70R 7 MPTP-T70R 8

HDMI OUTHDBT IN

Tx Rx

RS232IR IN IR OUT

PoC

HDMI OUTHDBT IN

Tx Rx

RS232IR IN IR OUT

PoC

HDMI OUTHDBT IN

Tx Rx

RS232IR IN IR OUT

PoC

HDMI OUTHDBT IN

Tx Rx

RS232IR IN IR OUT

PoC

HDMI OUTHDBT IN

Tx Rx

RS232IR IN IR OUT

PoC

HDMI OUTHDBT IN

Tx Rx

RS232IR IN IR OUT

PoC

HDMI OUTHDBT IN

Tx Rx

RS232IR IN IR OUT

PoC

HDMI OUTHDBT IN

Tx Rx

RS232IR IN IR OUT

PoC

HDTV

IR Tran smitter

HDTV

IR Tran smitter

HDTV

IR Tran smitter

HDTV

IR Tran smitter

HDTV

IR Tran smitter

HDTV

IR Tran smitter

HDTV

IR Tran smitter

HDTV

IR Tran smitter

DVD

IR Remote

Page 18

4K HDBaseT 8x8 Matrix Switcher

Control local device from remote

Note: Send command “%0901.” to enter infrared carrier enforcing mode if the IR Receiver connected to IR IN of the receiver is not with carrier.

 Multiple to Multiple: (IR Matrix)

The 8 “IR OUT” ports and the 8 “IR IN” ports on the far-end receivers make up an 8x8 IR matrix. See as below:

IR Matrix

The 8 IR IN ports correspond with 8 HDMI input ports separately in default mode.

HDMI OU THDBT IN

Tx Rx

RS232IR IN IR O UT

PoC

RS232

TCP/I P

IR ALL IN

IR EYE

HDMI 8

HDMI 7

IR OUT

INPUT

HDBas eT

RS232 AUDIO

OUTPU T 1

Tx Rx

HDMI

HDBas eT

RS232 AUDIO

OUTPU T 2

Tx Rx

HDMI

HDBas eT

RS232 AUDIO

OUTPU T 3

Tx Rx

HDMI

HDBas eT

RS232 AUDIO

OUTPU T 4

Tx Rx

HDMI

HDBas eT

RS232 AUDIO

OUTPU T 5

Tx Rx

HDBas eT

RS232 AUDIO

OUTPU T 6

Tx Rx

HDBas eT

RS232 AUDIO

OUTPU T 7

Tx Rx

HDBas eT

RS232 AUDIO

IR INIR INIR INIR INI R INIR INIR INIR IN

OUTPU T 8

Tx Rx

AUDIO

LRL

HDMI 6

HDMI 5

IR OUT

INPUT

AUDIO

LRL

HDMI 4

HDMI 3

IR OUT

INPUT

AUDIO

LRL

HDMI 2

HDMI 1

IR OUT

INPUT

AUDIO

LRL

DVD

HDTV

IR Transmitter

MPTP-T70R

HDMI OUTHDBT IN

Tx Rx

RS232IR IN IR OUT

PoC

HDMI OUTHDBT IN

Tx Rx

RS232IR IN IR OUT

PoC

HDMI OUTHDBT IN

Tx Rx

RS232IR IN IR OUT

PoC

HDMI OUTHDBT IN

Tx Rx

RS232IR IN IR OUT

PoC

HDMI OUTHDBT IN

Tx Rx

RS232IR IN IR OUT

PoC

HDMI OUTHDBT IN

Tx Rx

RS232IR IN IR OUT

PoC

HDMI OUTHDBT IN

Tx Rx

RS232IR IN IR OUT

PoC

HDMI OUTHDBT IN

Tx Rx

RS232IR IN IR OUT

PoC

IR Transmitter

MPTP-T70R 1 MPTP-T70R 2 MPTP-T70R 3 MPTP-T70R 4 MPTP-T70R 5 MPTP-T70R 6 MPTP-T70R 7 MPTP-T70R 8

Page 19

4K HDBaseT 8x8 Matrix Switcher

Switching Operation: [x1]R[x2]

x1: Corresponding to the 8 IR OUT ports of the matrix x2: Corresponding to the IR IN port at the 8 far-end HDBT receivers Example: Send command “3R2.” to emit IR signal received from IR Receiver

connected to the 2nd HDBT receiver via IR OUT 3.

4.3 RS232 Control

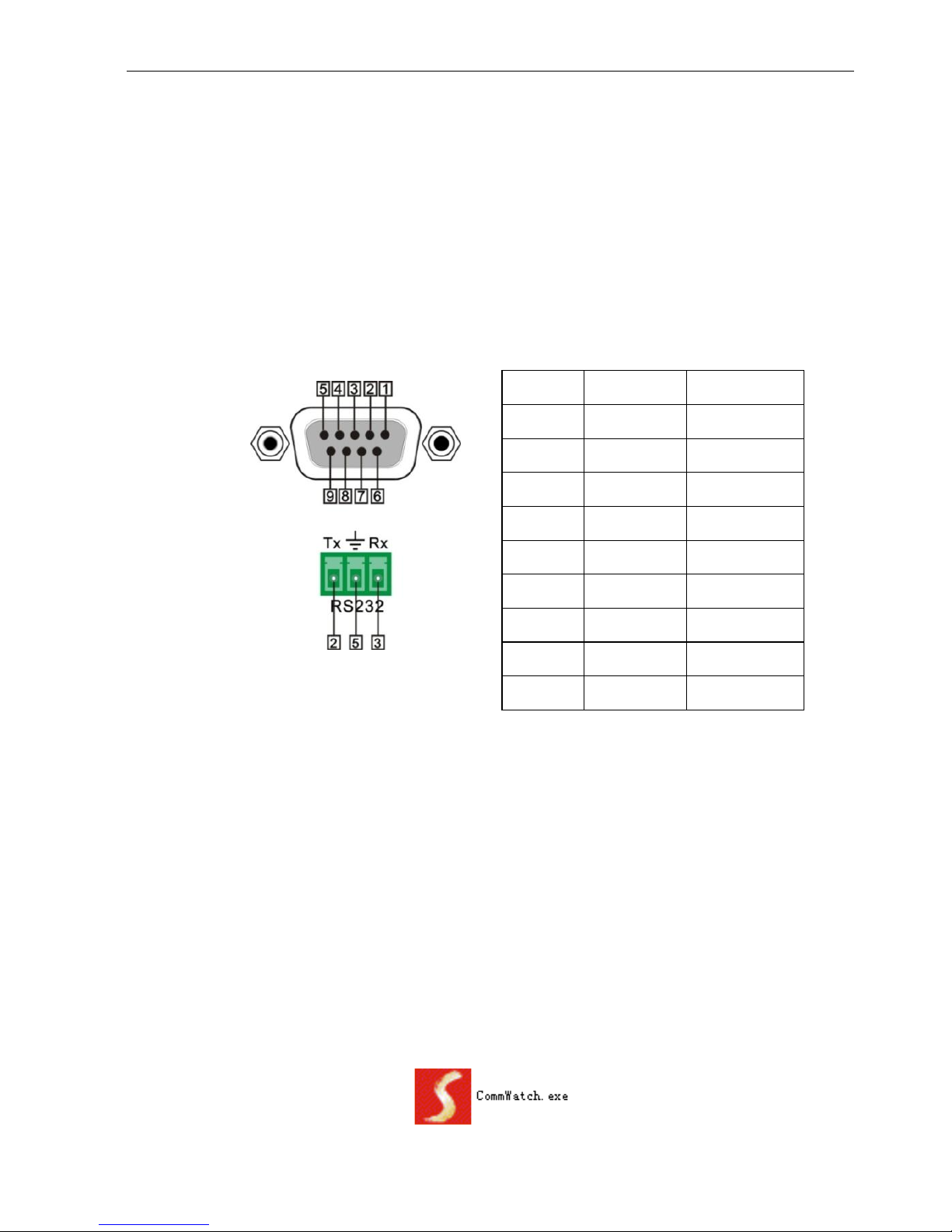

4.3.1 Connection with RS232 Communication Port

MPM-88-IR-N boasts 3-pin pluggable terminal block for serial control. The definition of its pins is listed in the table below.

No.

Function

N/u

Unused

Transmit

Receive

N/u

Unused

Gnd

Ground

N/u

Unused

N/u

Unused

N/u

Unused

N/u

Unused

Connect MPM-88-IR-N to the control device (e.g. a PC) with RS232 cable and set the parameters in the right manner, the control device is capable to control MPM-88-IR-N via designed software.

4.3.2 Installation/uninstallation of RS232 Control Software

 Installation Copy the control software file to the computer connected with

MPM-88-IR-N.

 Uninstallation Delete all the control software files in corresponding file path.

4.3.3 Basic Settings

Firstly, connect MPM-88-IR-N with an input device and an output device. Then, connect it with a computer which is installed with RS232 control software. Double-click the software icon to run this software.

Here we take the software CommWatch.exe as example. The icon is showed as below:

Page 20

4K HDBaseT 8x8 Matrix Switcher

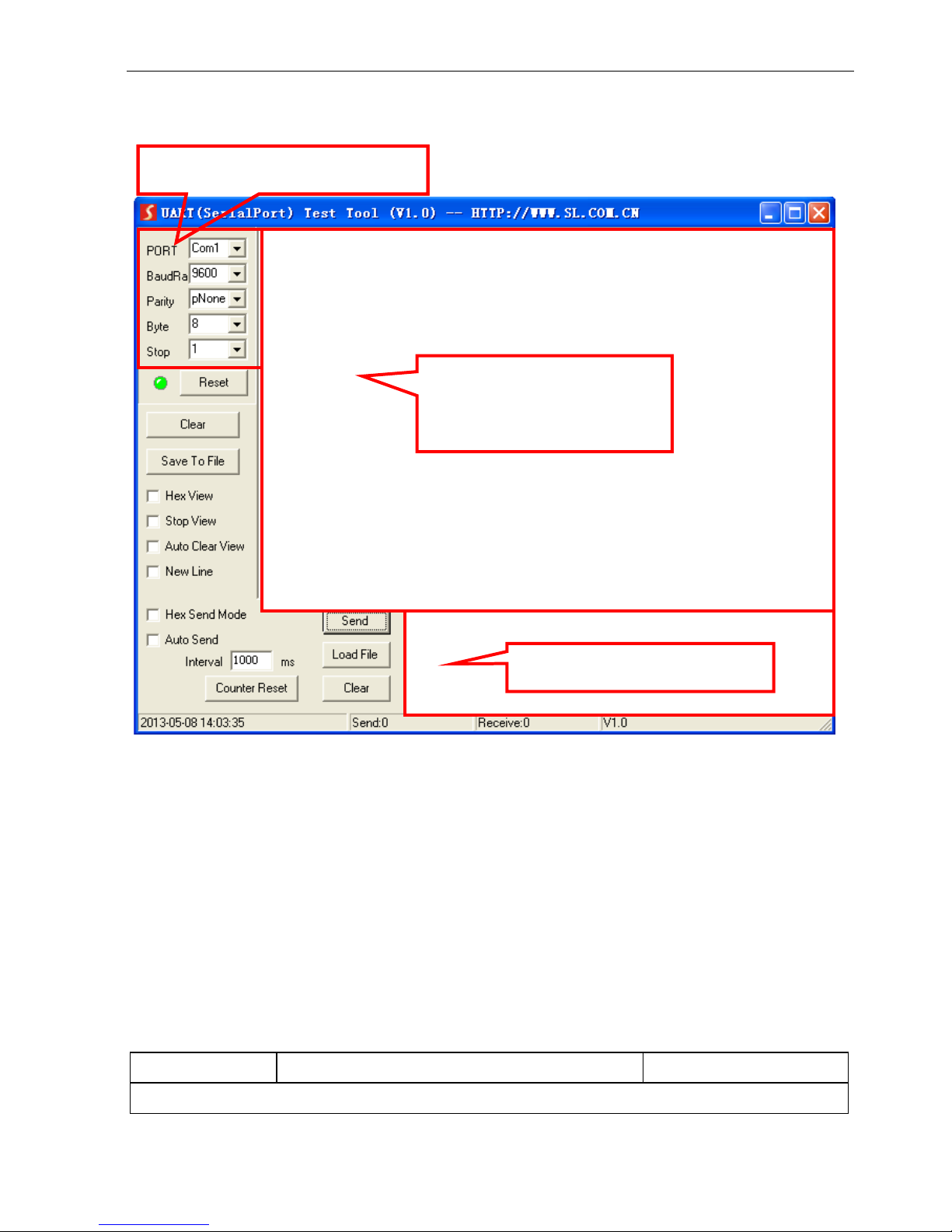

The interface of the control software is showed as below:

Please set the parameters of COM number, baud rate, data bit, stop bit and the parity bit correctly, only then will you be able to send command in Command Sending Area.

4.3.4 RS232 Communication Commands

Note:

1) Case-sensitive.

2) Please disconnect all the twisted pairs before sending command EDIDUpgrade[X].

3) In the commands, “[”and “]” are symbols for easy reading and do not need to be

typed in actual operation.

4) End the commands with the ending symbols “.” and “;”.

Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none

Command

Function

Feedback Example

System Commands

Parameter Configuration area

Monitoring area, indicates whether the command sent works.

Command Sending area

Parameter Configuration area

Monitoring area, indicates whether the command sent works.

Command Sending area

Page 21

4K HDBaseT 8x8 Matrix Switcher

Command

Function

Feedback Example

/*Type;

Inquire the models information.

MPM-88-IR-N

/%Lock;

Lock the front panel buttons on the Matrix.

System Locked!

/%Unlock;

Unlock the front panel buttons on the Matrix.

System Unlock!

/^Version;

Inquire the version of firmware

VX.X.X

/:MessageOff;

Turn off the feedback command from the com port. It will only show simple words like “SWITCH OK!”.

/:MessageOff; /:MessageOn;

Turn on the feedback command from the com port.

/:MessageOn;

Demo.

Switch to the “demo” mode, convert input and output in turn like1B1, 1B2, …8B7, 8B8, 1B1… and so on .The switching interval is 2 seconds.

Demo Mode AV: 1-> 1 AV: 1-> 2 AV: 1-> 3 AV: 1-> 4 AV: 1-> 5 AV: 1-> 6 AV: 1-> 7 AV: 1-> 8 AV: 2-> 1 …

Undo.

To cancel the previous operation.

Undo Ok! Out 1 2 3 4 In 1 1 1 1 Out 5 6 7 8 In 1 1 1 1

Operation Commands

[x]All.

Transfer signals from the input channel [x] to all output channels

X To All. (X=1~8)

All#.

Transfer all input signals to the corresponding output channels respectively like 1->1, 2->2…

All Through. All$.

Switch off all the output channels.

All Closed.

[x]#.

Transfer signals from the input channel [x] to the output channel [x].

X Through. (X=1~8)

[x]$.

Switch off the output channel [x].

X Closed. (X=1~8)

[x]@.

Switch on the output channel [x].

X Open. (X=1~8)

All@.

Switch on all output channels.

All Open.

Page 22

4K HDBaseT 8x8 Matrix Switcher

Command

Function

Feedback Example

[x1]V[x2].

Transfer the AV signal from the input channel [x1] to one or several output channels ([x2], separate output channels with comma).

AV: X1-> X2 (X1/X2=1~8)

[x1]B[x2].

Transfer the AV and IR signal from input channel [x1] to one or several output channels ([x2], separate output channels with comma).

AV: X1-> X2 (X1/X2=1~8)

Status[x].

Check the I/O connection status of output [x]

AV: Y-> X (X=1~8, Y=1~8)

Status.

Inquire the input channel to the output channels one by one.

AV: 1-> 1 AV: 2-> 2 AV: 3-> 3 AV: 4-> 4 AV: 5-> 5 AV: 6-> 6 AV: 7-> 7 AV: 8-> 8

Save[Y].

Save the present operation to the preset command [Y], ranges from 0 to 9.

Save To FY (Y=0-9)

Recall[Y].

Recall the preset command [Y].

Recall From FY (Y=0-9)

Clear[Y].

Clear the preset command [Y].

Clear FY (Y=0-9)

PWON.

Work in normal mode.

PWON

PWOFF.

Enter into standby mode and cut off the power supply to HDBaseT receivers.

PWOFF

STANDBY.

Enter into standby mode. (Do not cut off the power supply to HDBaseT receivers, press other buttons or send other commands to start.)

STANDBY

/%[Y]/[X]:[Z].

HDCP management command. [Y] is for input (value: I) or output (value: O); [X] is the number of the port, if the value of X is ALL, it means all ports; [Z] is for HDCP compliant status, the value may be 1 (HDCP compliant) or 0 (not HDCP compliant).

/%[Y]/[X]:[Z].

[x1]R[x2].

Transfer the IR signal from output channel [x1] to input channel [x2].

IR: X1-> X2 (X1/ X2=1~8)

Page 23

4K HDBaseT 8x8 Matrix Switcher

Command

Function

Feedback Example

DigitAudioON[ x].

Enable HDMI audio output of port x.

 X=1, 2, 3, 4, 5, 6, 7, 8, enable this

port.

 X=9, enable all the 8 ports.

DigitAudio ON with [x] x=1~8 or ALL

DigitAudioOF F[x].

Disable HDMI audio output of port x.

 X=1, 2, 3, 4, 5, 6, 7, 8, disable this

port.

 X=9, disable all the 8 ports.

DigitAudio OFF with [x] x=1~8 or ALL

/+[Y]/[X]:******.

Set communication between PC and HDBaseT receiver. ① Y is for RS232 port (connect with

RS232 port of HDBaseT receiver)

a. Y = 1~8, send this command to the

corresponding HDBaseT receiver to control far-end device.

b. Y = 9, send this command to all

HDBaseT receivers to control all far-end devices.

c. Y = A~H, send this command to the

corresponding HDBaseT receiver connected to HDBT OUT 1~8 when the switcher is powered on

d. Y = I~P, send this command to the

corresponding HDBaseT receiver connected to HDBT OUT 1~8 when the switcher is powered off

② X is for baud rate, its value ranges

from 1 to 7 (1--2400, 2--4800, 3--9600, 4--19200, 5--38400, 6—57600, 7--115200)

③ ***** is for data (max 48 Byte)

******

EDIDH[x]B[y].

Input port [y] learns the EDID from output port [x]. If the EDID data is available and the audio part supports not only PCM mode, then force-set it to support PCM mode only. If the EDID data is not available, then set it as initialized EDID data.

EDIDH[x]B[y]

EDIDPCM[x].

Set the audio part of input port [x] to PCM format in EDID database.

EDIDPCM[x]

Page 24

4K HDBaseT 8x8 Matrix Switcher

Command

Function

Feedback Example

EDIDG[x].

Get EDID data from output [x] and display the output port number.

Hexadecimal EDID data and carriage return character

EDIDMInit.

Restore the factory default EDID data of every input.

EDIDMInit.

EDIDM[X]B[Y].

Manually EDID switching. Enable input[Y] to learn the EDID data of output[X]. If the EDID data is not available, then set it as initialized EDID data.

EDIDM[X]B[Y]

EDIDUpgrade [x].

Upgrade EDID data via the RS232 port. [x] is the input port, when the value of X is 9, it means to upgrade all input ports. When the switcher receives the command, it will show a message to prompt you to send EDID file (.bin file). Operations will be canceled after 10 seconds. Please cut off all connections of HDBaseT ports.

Please send the EDID file

EDID/[x]/[y].

Set the EDID data of input port [x] to built-in EDID No.[y]. [y]=1~6, correspond to the 6 embedded EDID data

EDID/[x]/[y]

UpgradeIntED ID[x].

Upgrade one of the 6 embedded EDID data, x is the serial number for EDID data

1. 1080P 3D 2CH

2. 1080P 3D Multichannel

3. 1080P 2D 2CH

4. 1080P 2D Multichannel

5. 3840x2160 2D (30Hz)

6. 4096x2160 2D (30Hz) When the switcher gets the command, it will show a message to send EDID file (.bin file). Operations will be invalid after 10 seconds.

Please send the EDID file

GetIntEDID[x].

Return the embedded EDID data ranked x, [x]=1~6

GetInPortEDI D[X].

Return the EDID data of input [x], [x]=1~8

%0801.

Auto HDCP management, activate carrier native mode

%0801

Page 25

4K HDBaseT 8x8 Matrix Switcher

Command

Function

Feedback Example

%0900.

Switch to carrier native mode.

Carrier native

%0901.

Switch to force carrier mode.

Force carrier

%0911.

Reset to factory default.

Factory Default

%9951.

Check the command sent by port 1 when PWON.

Port 1:data when PWON

%9952.

Check the command sent by port 2 when PWON.

Port 2:data when PWON

%9953.

Check the command sent by port 3 when PWON.

Port 3:data when PWON

%9954.

Check the command sent by port 4 when PWON.

Port 4:data when PWON

%9955.

Check the command sent by port 5 when PWON.

Port 5:data when PWON

%9956.

Check the command sent by port 6 when PWON.

Port 6:data when PWON

%9957.

Check the command sent by port 7 when PWON.

Port 7:data when PWON

%9958.

Check the command sent by port 8 when PWON.

Port 8:data when PWON

%9941.

Check the command sent by port 1 when PWOFF.

Port 1:data when PWOFF

%9942.

Check the command sent by port 2 when PWOFF.

Port 2:data when PWOFF

%9943.

Check the command sent by port 3 when PWOFF.

Port 3:data when PWOFF

%9944.

Check the command sent by port 4 when PWOFF.

Port 4:data when PWOFF

%9945.

Check the command sent by port 5 when PWOFF.

Port 5:data when PWOFF

%9946.

Check the command sent by port 6 when PWOFF.

Port 6:data when PWOFF

%9947.

Check the command sent by port 7 when PWOFF.

Port 7:data when PWOFF

%9948.

Check the command sent by port 8 when PWOFF.

Port 8:data when PWOFF

%9961.

Check the system locking status.

System Locked/ Unlock!

%9962.

Check the status while in standby mode.

STANDBY/PWON/ PWOFF

Page 26

4K HDBaseT 8x8 Matrix Switcher

Command

Function

Feedback Example

%9963.

Check the working mode of infrared carrier.

Carrier native/ Force carrier

%9964.

Check the IP address.

IP:192.168.0.178 (default)

%9971.

Check the connection status of the inputs.

In 1 2 3 4 Connect N Y Y Y In 5 6 7 8 Connect N Y Y Y

%9972.

Check the connection status of the outputs.

Out 1 2 3 4 Connect N Y Y Y Out 5 6 7 8 Connect N Y Y Y

%9973.

Check the HDCP status of the inputs.

In 1 2 3 4 HDCP N N Y Y In 5 6 7 8 HDCP N N Y Y

%9974.

Check the HDCP status of the outputs.

Out 1 2 3 4 HDCP N N Y Y Out 5 6 7 8 HDCP N N Y Y

%9975.

Check the I/O connection status.

Out 1 2 3 4 In 1 2 3 4 Out 5 6 7 8 In 5 6 7 8

%9976.

Check the output resolution.

Resolution Out 1 0000x0000 Out 2 1920x1080 Out 3 1920x1080 Out 4 1920x1080 Out 5 0000x0000 Out 6 1920x1080 Out 7 1920x1080 Out 8 1920x1080

%9977.

Check the status of digital audio of output channels.

Out 1 2 3 4 Audio Y Y Y Y Out 5 6 7 8 Audio Y Y Y Y

Page 27

4K HDBaseT 8x8 Matrix Switcher

Command

Function

Feedback Example

%9978.

Check the HDCP compliant status of the inputs.

In 1 2 3 4 HDCPEN Y Y Y Y In 5 6 7 8 HDCPEN Y Y Y Y

4.3.5 Control through 9-pin RS232 port

Connect a control device to the 9-pin RS232 port of the switcher, users are able to control the switcher& far-end device. See the figure below:

Control the switcher& 3rd-party Device through 9 pin female RS232 port

 Control the switcher: send RS232 commands directly  Control 3rd party: send command: “/+[Y]/[X]:******.” (Refer to for detailed

information.)

4.3.6 Control through 3-pin RS232 port

Connect the RS232 (3-pin pluggable terminal block) port in any zone to PC, and connect the controlled RS232 device (3rd party device) to the corresponding (same zone as PC) receiver, see below:

HDMI OU THDBT IN

Tx Rx

RS232IR IN IR O UT

PoC

MPTP-T70R

3rd party

Page 28

4K HDBaseT 8x8 Matrix Switcher

Control far-end device from local

 Control the MPM-88-IR-N from remote Connect the RS232 (3-pin pluggable terminal block) port in any zone to controlled

device (3rd party device), and connect PC to the corresponding (same zone as controlled device) receiver, see below:

Control local device from remote

HDMI OU THDBT IN

Tx Rx

RS232IR IN IR O UT

PoC

3rd party

MPTP-T70R

HDMI OU THDBT I N

Tx Rx

RS232IR IN IR O UT

PoC

3rd party

MPTP-T70R

Page 29

4K HDBaseT 8x8 Matrix Switcher

4.4 TCP/IP Control

MPM-88-IR-N boasts option TCP/IP port for IP control. Default settings: IP: 192.168.0.178; Subnet Mast: 255.255.255.0; Gateway: 192.168.0.1;

Serial Port: 8080. IP& gateway can be changed as you need, Serial Port cannot be changed. Connect the ethernet port of control device and TCP/IP port of MPM-88-IR-N, and set

same network segment for the 2 devices, users are able to control the device via web-based GUI or designed TCP/IP communication software.

4.4.1 Control Modes

MPM-88-IR-N can be controlled by PC without ethernet access or PC(s) within a LAN.  Controlled by PC without ethernet access

Connect a computer to the TCP/IP port of the MPM-88-IR-N, and set its network segment to the same as the MPM-88-IR-N’s.

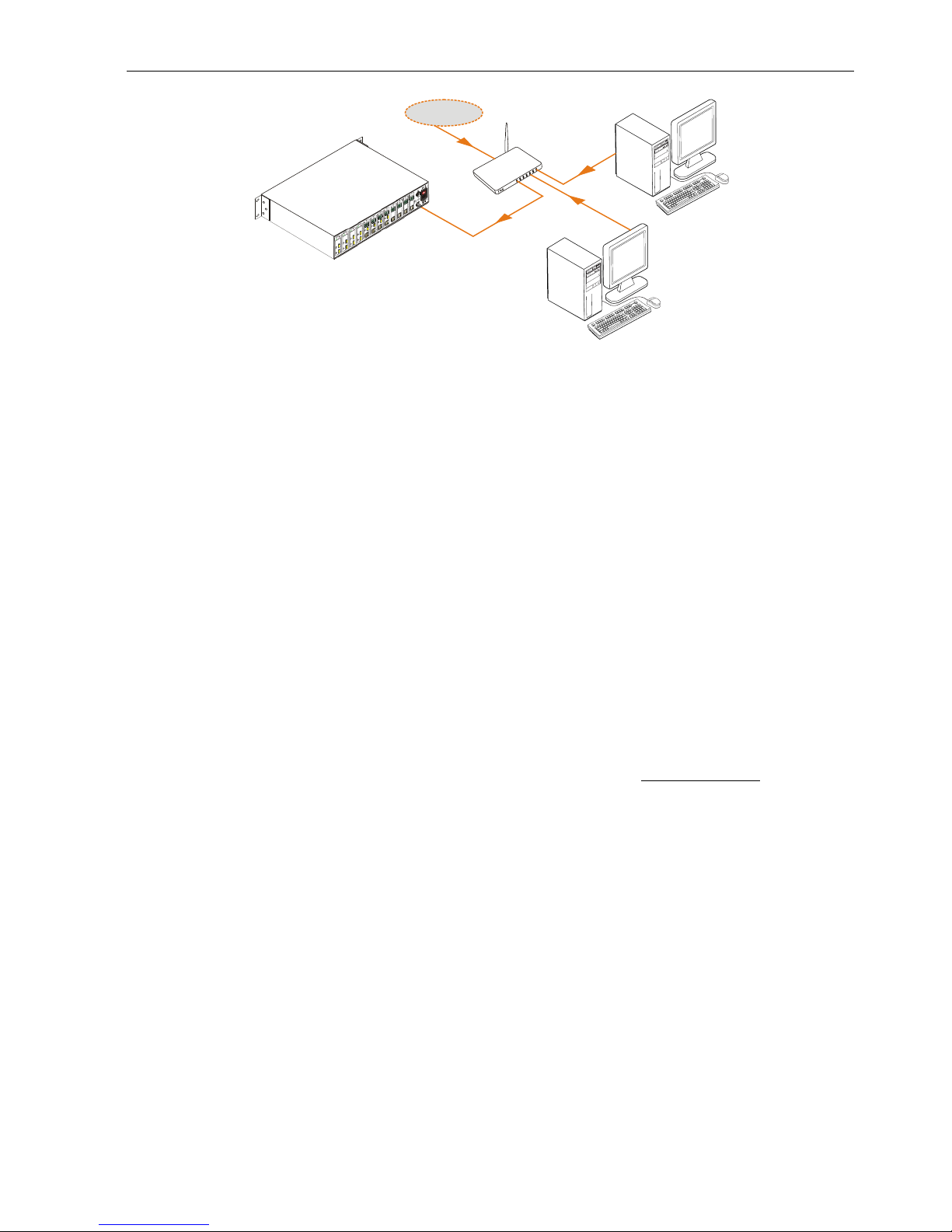

 Controlled by PC(s) in LAN Connect MPM-88-IR-N, a router and several PCs to setup a LAN (as shown in the following figure). Set the network segment of MPM-88-IR-N to the same as the router’s, then PCs within the LAN are able to control MPM-88-IR-N.

Same network segment as the switcher

Page 30

4K HDBaseT 8x8 Matrix Switcher

Follow these steps to connect the devices: Step1. Connect the TCP/IP port of the MPM-88-IR-N to Ethernet port of PC with

twisted pair.

Step2. Set the PC’s network segment to the same as the MPM-88-IR-N’s. Do please

remember the PC’s original network segment.

Step3. Set the MPM-88-IR-N’s network segment to the same as the router. Step4. Set the PC’s network segment to the original ones. Step5. Connect the MPM-88-IR-N and PC(s) to the router. PC(s) within the LAN is

able to control the MPM-88-IR-N asynchronously.

4.4.2 Control via TCP/IP communication software

(Exampled by TCPUDP software)

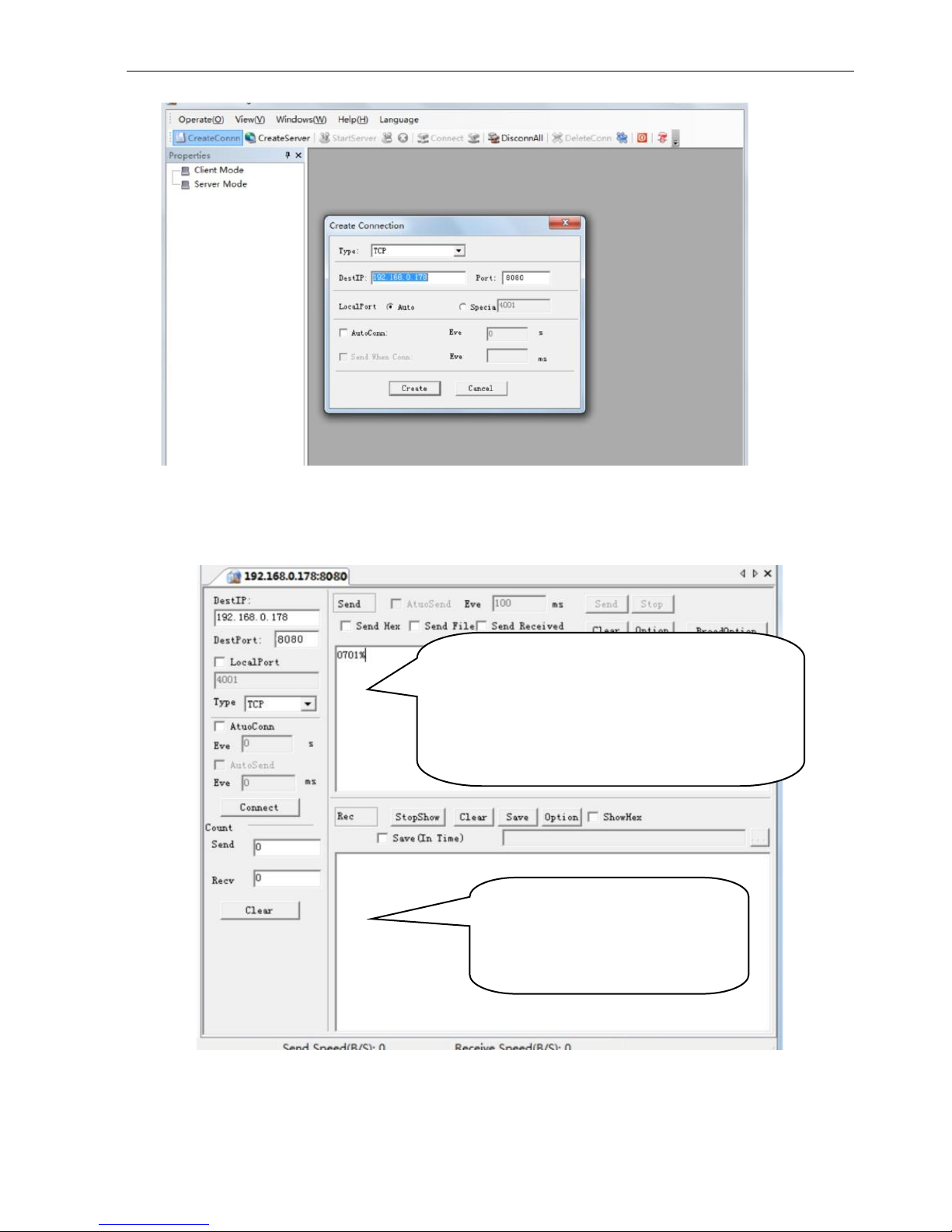

1) Connect a computer and MPM-88-IR-N to the same network. Open the TCPUDP software (or any other TCP/IP communication software) and create a connection, enter the IP address and port of MPM-88-IR-N (default IP: 192.168.0.178, port:8080):

Router

Internet

Cat5e Cat6/

Page 31

4K HDBaseT 8x8 Matrix Switcher

2) After connect successfully, we can enter commands to control the MPM-88-IR-N, as

below:

4.4.3 GUI for TCP/IP control

MPM-88-IR-N provides with built-in GUI for convenient TCP/IP control. GUI allows users

Here you will receive the feedback when a command is sent.

Enter your command here. Commands are the same with RS232

commands listed in 4.3.4 RS232 Communication Commands

Page 32

4K HDBaseT 8x8 Matrix Switcher

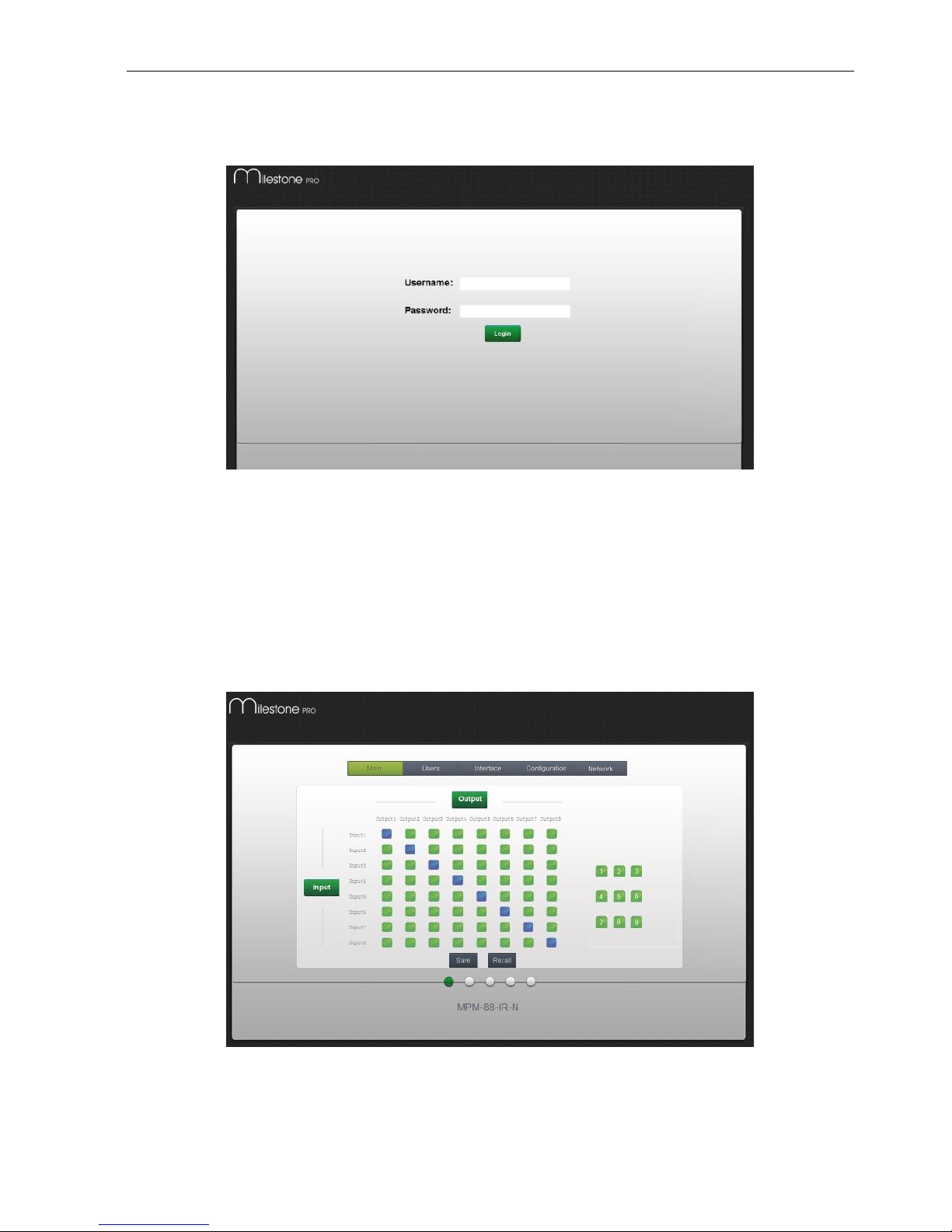

to interact with MPM-88-IR-N through graphical icons and visual indicators. Type 192.168.0.178 in your browser, it will enter the log-in interface shown as below:

There are 2 selectable accounts to log in. Type the right name and password in relative column and click Login to enter the main interface.

 Name: admin; Password: admin (default setting, changeable via GUI)  Name: user; Password: user (default setting, changeable via GUI)

Log in as admin can access more configuration interfaces than user. Main: Interface shown after logging in, provide intuitive I/O connection switching. See

the screenshot below:

The button matrix displays every possible connection between every input and output, users can carry on the connections by clicking corresponding button.

Buttons 1~9 at the right-bottom corner provides quick saving and recall for overall

Page 33

4K HDBaseT 8x8 Matrix Switcher

connection status. Users: Display or modify credential settings, front panel lock, and GUI version.

If there is any modification, press Save to restore the settings, or press Cancel to withdraw.

Interface: Set title bar label, LCD readout, and button labels, press Save to save the settings

Configuration: Set HDCP Cmpliance status for every input, and manage EDID. See the screenshot below:

Page 34

4K HDBaseT 8x8 Matrix Switcher

Network: Inquire and configure network settings including MAC address, IP address,

subnet mask, and Gateway

Note: Log in as user access main interface only.

4.4.4 Port Management

Type the designed website 192.168.0.178:100 (Default, changeable via GUI) in your browser. Enter correct username and password (same with GUI name and password) to log in the WebServer:

Here is the main configuration interface of the WebServer:

Page 35

4K HDBaseT 8x8 Matrix Switcher

In this interface, you can:

 Change website display language  Modify network settings: Go to Internet Settings -> WAN  Upgrade TCP/IP module: Go to Administration -> Upload Program -> Select

program file -> Start upgrading Reboot the device after upgrading.

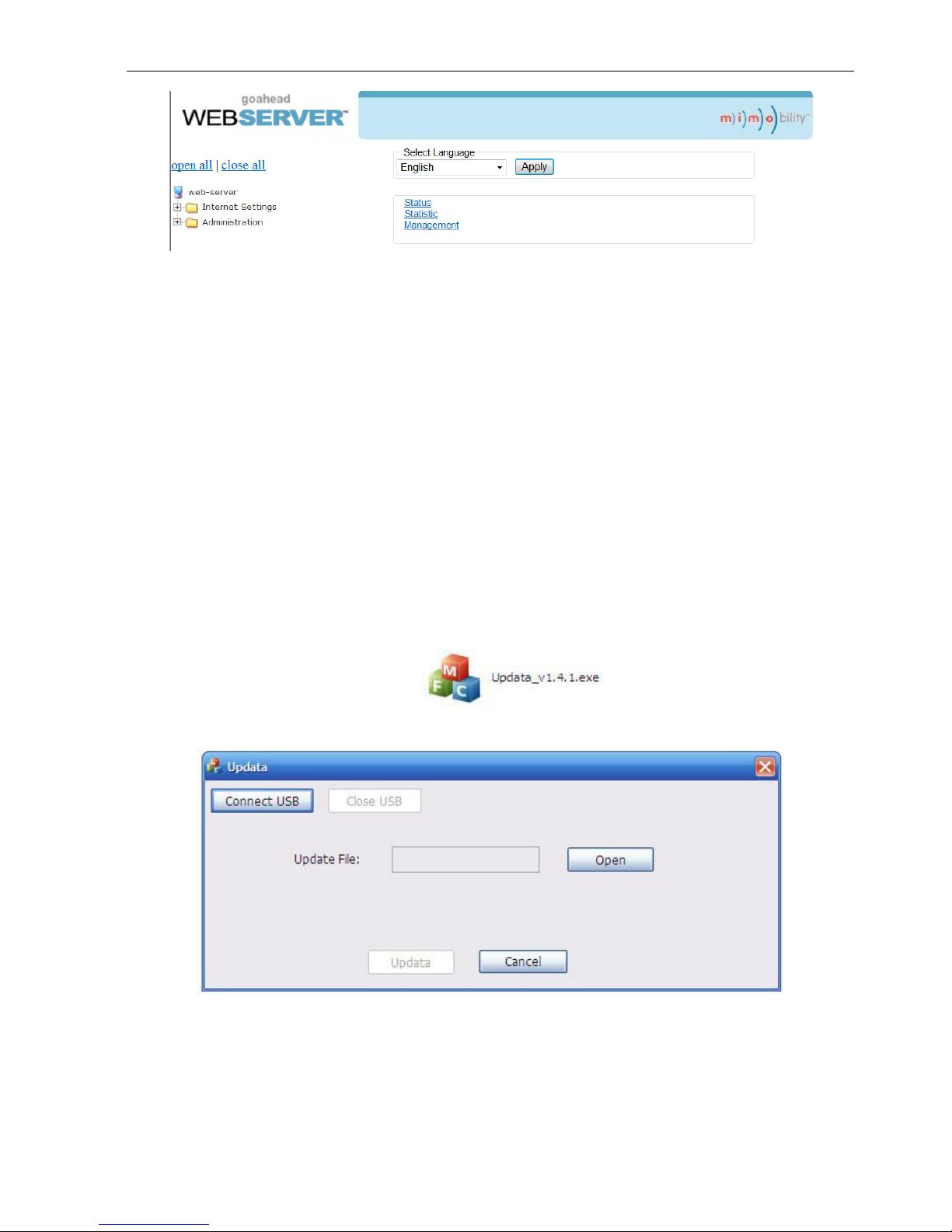

4.5 Firmware Update via USB

MPM-88-IR-N boasts a USB port for online firmware upgrade on the front panel. Follow these steps to upgrade firmware:

Step1. Copy the upgrade software and the latest upgrade file (.bin) to PC. Step2. Connect the USB ports of MPM-88-IR-N and the PC via USB cable. Step3. Double-click the update software icon (see as below).

It will enter the upgrade interface shown as below:

Step4. Click Connect USB. Step5. Click Open to load the upgrade file, then click Updata to start firmware

upgrading.

Note: To ensure available control, the COM number of the PC should be 1~9.

Page 36

4K HDBaseT 8x8 Matrix Switcher

5. Specification

Video Input

Video Output

Input

8 HDMI

Output

4 HDMI 8 HDBaseT

Input Connector

Female HDMI

Output Connector

Female HDMI

Female RJ45(with LED indicators)

Input Level

T.M.D.S. 2.9V~3.3V

Output Level

T.M.D.S. 2.9V~3.3V

Input Impedance

100Ω (Differential)

Output Impedance

100Ω (Differential)

HDBaseT Output

Up to

70m1080P@60Hz/ 40m4Kx2K@30Hz

Video General

Gain

0 dB

Bandwidth

10.2 Gbit/s

Video Signal

HDMI (or DVI-D)

Maximum Pixel Clock

225MHz

Resolution Range

Up to 4Kx2K, 1080P 3D

Switching Speed

200ns (Max.)

Max Pixel Clock

225MHz

EDID Management

In-built EDID data and manual EDID management

Audio General

Output Signal

Analog audio

Output Connector

3-pin pluggable terminal block

PCM Format

Distortion: 0.1%

32Ω/70mW@1KHz,

0.1% 16Ω/105mW

@1KHz

Frequency Response

20Hz~20KHz

CMRR

>90dB @20Hz ~ 20KHz

Control Parts

Control Ports

8 IR OUT (green and

red)

8 IR IN (black) 1 IR EYE (black) 1 IR ALL IN (black) 1 TCP/IP (female RJ45) 1 RS232 (9 pin female) 8 RS232s (3-pin

pluggable terminal

Panel Control

Front panel buttons

Page 37

4K HDBaseT 8x8 Matrix Switcher

blocks)

IR Control

In-built IR sensor,

Extended IR receiver

RS232 Control

9 pin female

TCP/IP Control

Works with In-built web GUI

General

Power Supply

100V~240V AC

Power Consumption

110W (full load)

Temperature

-10 ~ +40℃

Reference Humidity

10% ~ 90%

Dimension (W*H*D)

437 x 87.8 x 380 mm

Weight

5.4Kg

Page 38

4K HDBaseT 8x8 Matrix Switcher

6. Troubleshooting & Maintenance

Problems

Causes

Solutions

Color losing or no video signal output

The connecting cables may not be connected correctly or it may be broken.

Check whether the cables are connected correctly and in working condition.

Fail or loose connection

Make sure the connection is good

No output image when switching

No signal at the input / output end

Check with oscilloscope or multimeter if there is any signal at the input/ output end.

Fail or loose connection

Make sure the connection is good

Input source is with HDCP while the HDCP compliance is switched off.

Send command /%[Y]/[X]:1. or change HDCP compliance status in GUI.

The display doesn’t support the input resolution.

Switch for another input source or enable the display to learn the EDID data of the input.

Cannot control the device via front panel buttons

Front panel buttons are locked.

Send command /%Unlock; or select unlock in GUI interface to unlock

Cannot control the device via IR remote

The battery has run off.

Change for new battery.

The IR remote is broken.

Send it to authorized dealer for repairing.

Beyond the effective range of the IR signal or not pointing at the IR receiver

Adjust the distance and angle and point right at the IR receiver.

The IR receiver connected to IR IN/ IR ALL IN port is not with carrier

Change for an IR receiver with carrier.

Power Indicator remains off when powered on

Fail or loose power connection

Check whether the cables are connected correctly

Page 39

4K HDBaseT 8x8 Matrix Switcher

EDID management does not work normally

The HDMI cable is broken at the output end.

Change for another HDMI cable which is in good working condition.

There is a blank screen on the display when switching

The display does not support the resolution of the video source.

Switch again.

Manage the EDID data manually to make the resolution of the video source automatically compliant with the output resolution.

Cannot control the device by control device (e.g. a PC) through RS232 port

Wrong connection

Check to ensure the connection between the control device and the unit

Wrong RS232 communication parameters

Type in correct RS232 communication parameters: Baud rate:9600; Data bit: 8; Stop bit: 1; Parity bit: none

Broken RS232 port

Send it to authorized dealer for checking.

Static becomes stronger when connecting the video connectors

Bad grounding

Check the grounding and make sure it is connected well.

Cannot control the device by RS232 / IR remote / front panel buttons

The device has already been broken.

Send it to authorized dealer for repairing.

If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support.

Page 40

4K HDBaseT 8x8 Matrix Switcher

7. After-sales Service

If there appear some problems when running the device, please check and deal with the problems reference to this user manual.

1) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years, which starts from the first day the product leaves warehouse (check the SN mark on the product). Proof of purchase in the form of a bill of sale or receipted invoice must be presented to obtain warranty service.

2) What the warranty does not cover:

 Warranty expiration.  Factory applied serial number has been altered or removed from the product.  Damage, deterioration or malfunction caused by:

 Normal wear and tear  Use of supplies or parts not meeting our specifications  No certificate or invoice as the proof of warranty.  The product model showed on the warranty card does not match with the

model of the product for repairing or had been altered.

 Damage caused by force majeure.  Servicing not authorized  Other causes which does not relate to a product defect

 Delivery, installation or labor charges for installation or setup of the product

3) Technical Support: Email to our after-sales department or make a call, please inform us the following information about your cases.

 Product version and name.  Detailed failure situations.  The formation of the cases.

Remarks: For any questions or problems, please try to get help from your local distributor.
