Page 1
MP-HD-44A-N
4K 4x4 HDMI Matrix Switcher
All Rights Reserved
Version: MP-HD-44A-N_2016V1.0
User Manual
Page 2
4K 4x4 HDMI Matrix Switcher
Preface
Read this user manual carefully before using this product. Pictures shown in this manual
is for reference only, different model and specifications are subject to real product.
This manual is designed for MP-HD-44A-N & MP-HD-44A (without TCP/IP port). Pay
attention to the different details when reading this manual.
This manual is only for operation instruction only, not for any maintenance usage.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this manual
are acknowledged as the properties of the trademark owner. No part of this publication
may be copied or reproduced without prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.
Page 3
4K 4x4 HDMI Matrix Switcher
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
Page 4
4K 4x4 HDMI Matrix Switcher
Contents
1. Introduction ................................................................................................................. 1
1.1 Introduction to the MP-HD-44A-N ...................................................................... 1
1.2 Features ............................................................................................................ 1
1.3 Package List ...................................................................................................... 1
2. Product Appearance of MP-HD-44A-N ................................................................ ....... 2
2.1 Front Panel ........................................................................................................ 2
2.2 Rear Panel ......................................................................................................... 3
3. System Connection ................................ ................................ ................................ ..... 4
3.1 Usage Precautions ............................................................................................ 4
3.2 Connection Diagram .......................................................................................... 4
3.3 Connection Procedure ....................................................................................... 4
3.4 System Applications .......................................................................................... 5
4. System Operations ..................................................................................................... 5
4.1 IR Control .......................................................................................................... 5
4.2 RS232 Control ................................................................................................... 6
4.2.1 Installation/uninstallation of RS232 Control Software .............................. 6
4.2.2 Basic Settings .......................................................................................... 6
4.2.3 RS232 Communication Commands ........................................................ 7
4.2.4 EDID Management ................................................................................ 12
4.2.4.1 Via RS232 commands ................................................................. 12
4.2.4.2 Via 4-pin EDID DIP switcher ........................................................ 12
4.3 TCP/IP Control................................................................................................. 13
4.3.1 Control Modes ....................................................................................... 13
4.3.2 Control MP-HD-44A-N via TCP/IP communication software ................. 15
4.3.3 Control MP-HD-44A-N via web-based GUI ........................................... 16
4.3.3.1 Scene Menu ................................................................................ 17
4.3.3.2 Control Menu ............................................................................... 17
4.3.3.3 Configuration Properties .............................................................. 18
4.3.4 TCP/IP Configuration ................................ ................................ ............. 22
4.3.5 GUI Update............................................................................................ 23
4.4 Firmware Upgrade through USB port ................................ .............................. 24
Page 5
4K 4x4 HDMI Matrix Switcher
5. Specification ............................................................................................................. 25
5.1 Supported Resolution ...................................................................................... 25

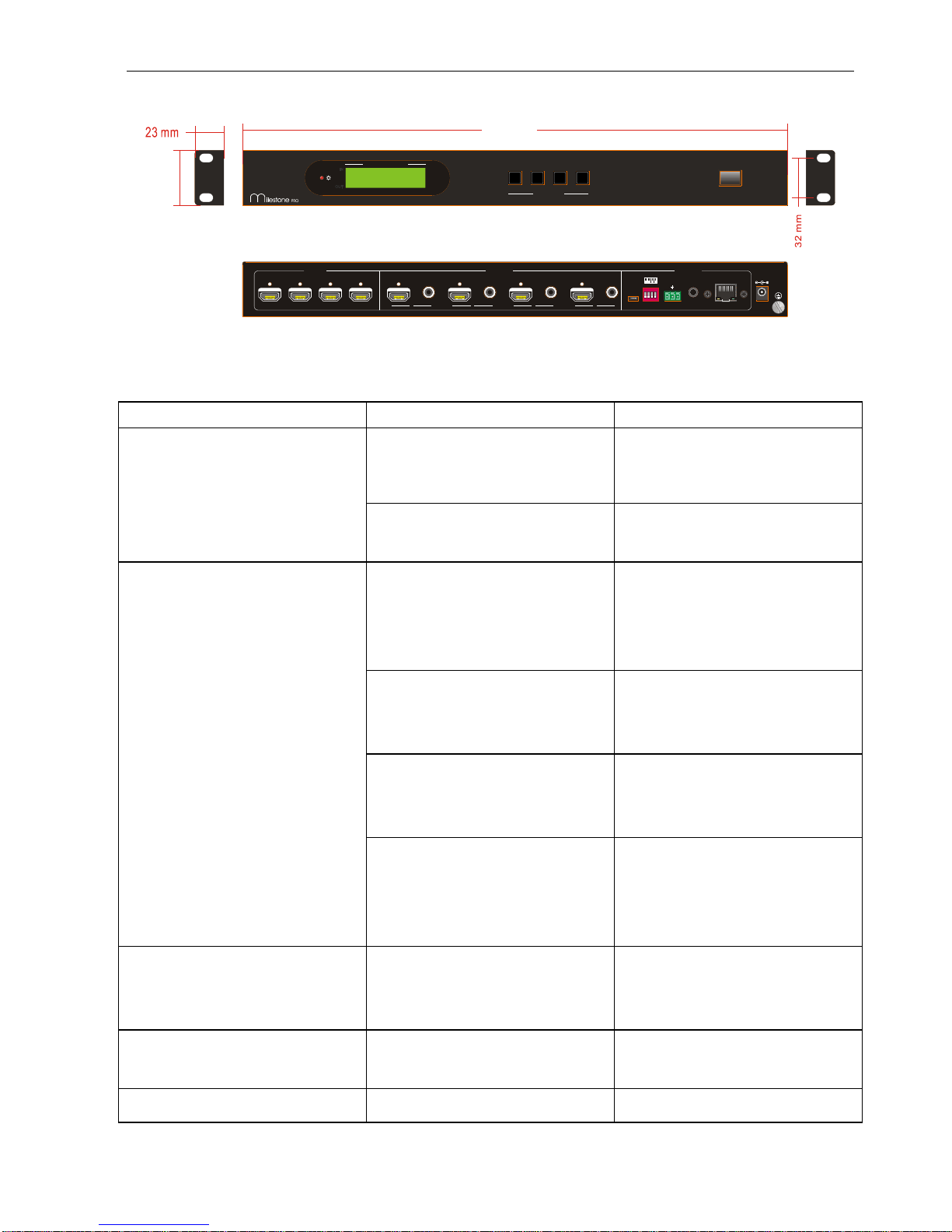

6. Panel Drawing .......................................................................................................... 26
7. Troubleshooting & Maintenance ............................................................................... 26
8. After-sales Service .................................................................................................... 28
Page 6
4K 4x4 HDMI Matrix Switcher
1
1. Introduction
1.1 Introduction to the MP-HD-44A-N
MP-HD-44A-N is a professional 4x4 HDMI Matrix Switcher that features receiving up to
4 HDMI2.0& HDCP2.2 compliant signal and output 4 HDMI1.4& HDCP1.4 compliant
signal. It provides 4 auxiliary audio ports for de-embedded HDMI audio output. It also
boasts powerful EDID management to ensure reliable AV distribution and routing.
The unit is controllable via front panel buttons, IR, RS232, or TCP/IP (optional).
1.2 Features
4x4 HDMI matrix with 4 de-embedded HDMI audio ports;
HDMI input ports: support HDMI 2.0, support signal up to 4Kx2K@60Hz & 1080p 3D,
compliant with lower HDMI standards; HDCP2.2 compatible;
HDMI output ports: support HDMI 1.4, capable to transmit 2560x1080 (60Hz) signal,
compliant with lower HDMI standards; HDCP1.4 compatible
Transmit 4Kx2K@60Hz signal up to 15m;
SPDIF ports for de-embedded HDMI audio output;
Powerful EDID management;
Controllable via front panel button, IR, RS232& optional TCP/IP;
LCD screen shows real-time I/O connection status;
Convenient firmware upgrade through Micro USB port;
Easy installation with rack-mounting design.
1.3 Package List
1 x MP-HD-44A-N
2 x Mounting ears
6 x Screws
1 x IR receiver
1 x Pluggable Terminal Block
1 x Power adaptor(DC 12V/2A)
4 x Plastic cushions
1 x IR remote
1 x User manual
Confirm if the product and the accessories are all included, if not, please contact
with the dealers.
Page 7
4K 4x4 HDMI Matrix Switcher
2
2. Product Appearance of MP-HD-44A-N
2.1 Front Panel

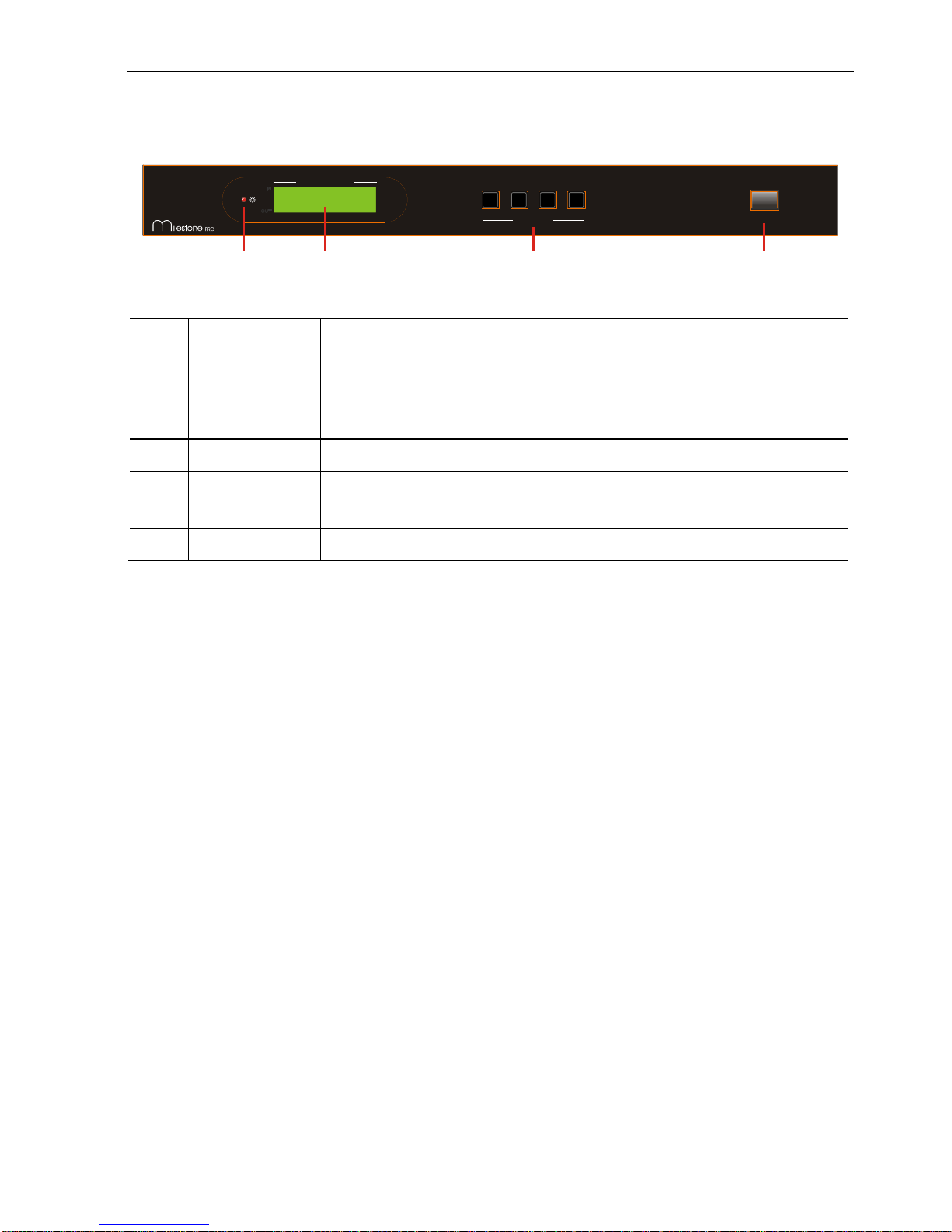

Figure 2- 1 Front Panel
No.
Name
Description
①
Power
Indicator
Illuminate red when power on;
Turn green in standby mode;
Blink red when upgrading.
②
LCD Screen
Display real-time operation status.
③
OUTPUTS
Output selection buttons, press the buttons to switch input
cyclely for the output
④
Power Trigger
Press to power on/off the switcher
SYSTE M MONI TOR
OUTPUTS
POWER
1 2
3
4
MP-HD-44A-N
① ② ③ ④
Page 8
4K 4x4 HDMI Matrix Switcher
3
2.2 Rear Panel

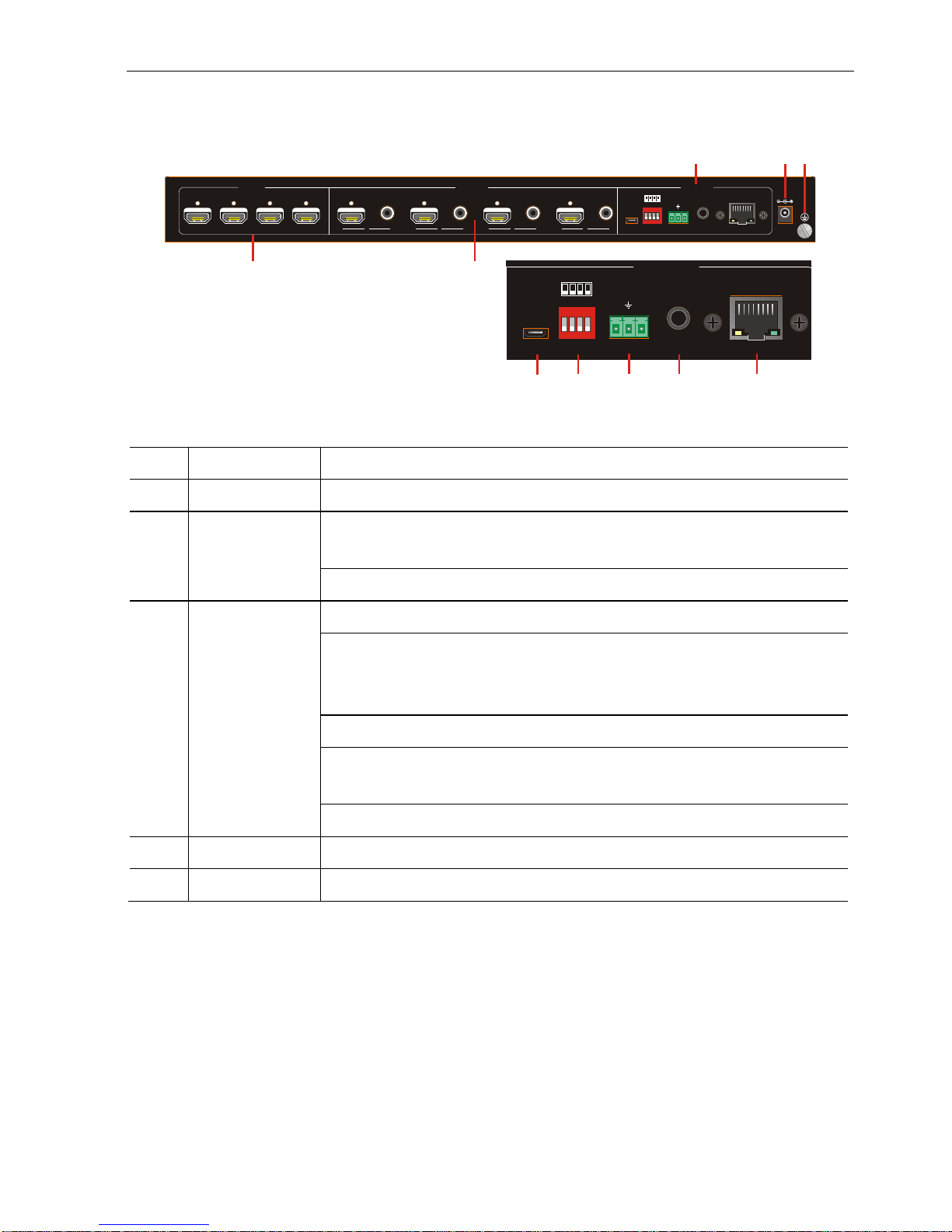

Figure 2- 2 Rear Panel
No.
Name
Description
①
INPUTS
HDMI input ports, 4 in total, connect with HDMI sources
②
OUTPUTS
SPDIF: audio output ports for de-embeded HDMI audio, 4
in total
HDMI: 4 in total, connect with HDMI displays
③
Control
a) Firmware: Micro USB port for firmware upgrade
b) EDID Switcher: 4-pin EDID DIP switchers to set EDID
data, “1” stands for “On”, “0” stands for “Off”. Refer to 4.4
EDID Management for more detials.
c) RS232: Serial control port, connect with control device
d) IR IN: input port for IR control signal, connect with IR
receiver
e) TCP/IP: (optional) TCP/IP port for unit control
④
DC 12V
Connect with DC 12V 2A power adaptor
⑤
Ground
Connect to ground
Pictures shown in this manual are for reference only.
1 2 3 4
ON DIP
FIRMW ARE DC 12V TCP/I PEDID IR IN
On
Off
1 2 3 4
1
0
R S232
Tx Rx
SPDIF
43211 2 3 4
SPDIF SPDIF SPDIF
INPU TS
OUTP UTS CONT ROL
③ ④⑤
① ②
1 2 3 4
ON DIP
FIRMWARE TCP/IPEDID IR IN
On
Off
1 2 3 4
1
0
R S232
Tx Rx
CONTROL
a b c d e
Page 9
4K 4x4 HDMI Matrix Switcher
4
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment with prop temperature and
humidity.
2) All of the power switches, plugs, sockets and power cords should be insulated.
3) All devices should be connected before power on.
3.2 Connection Diagram

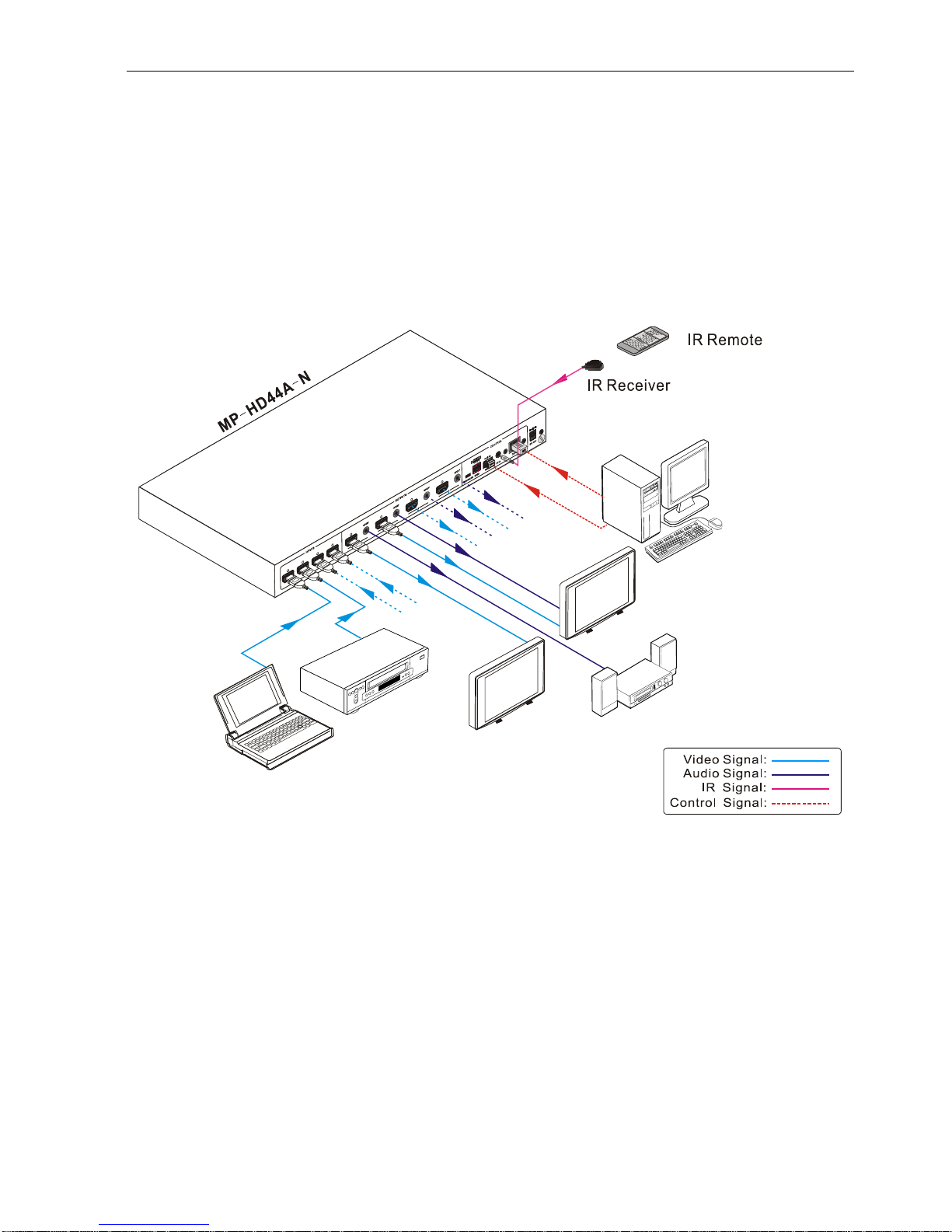

Figure 3- 1 Connection diagram
3.3 Connection Procedure
Step1. Connect HDMI sources (e.g. DVD) to HDMI INPUTs with HDMI cables.
Step2. Connect HDMI displays (e.g. HDTV) to HDMI OUTPUTs with HDMI cables;
Step3. Connect speakers/ amplifiers to the AUDIO OUTPUTs with audio cables;
Step4. Connect the RS232 ports of control device (e.g. a PC) and MP-HD-44A-N to
enable serial control.
Step5. Connect the TCP/IP ports of control device (e.g. a PC) and MP-HD-44A-N to
enable IP control.
Step6. Insert an IR receiver to the IR IN port to enable IR control.
Speaker
PC
DVD
Laptop
HDTV
HDTV
Page 10
4K 4x4 HDMI Matrix Switcher
5
Step7. Plug a DC 12V power adapter to the power port of MP-HD-44A-N.
1) When connecting to HDMI2.0 sources, make sure the HDMI cable is compliant with
HDMI2.0 to ensure reliable transmission;
2) Connect amplifiers that are capable to decode HDMI audio to the SPDIF ports, or
there will be no output on the amplifiers.
3.4 System Applications
As its good performance in control and transmission, the MP-HD-44A-N can be widely
used in computer realm, monitoring, large screen displaying, conference system,
television education and bank securities institutions etc.
4. System Operations
4.1 IR Control
Connect an IR receiver to the IR IN port of the switcher, users can control it through the
included IR remote. Here is a brief introduction to the IR remote:

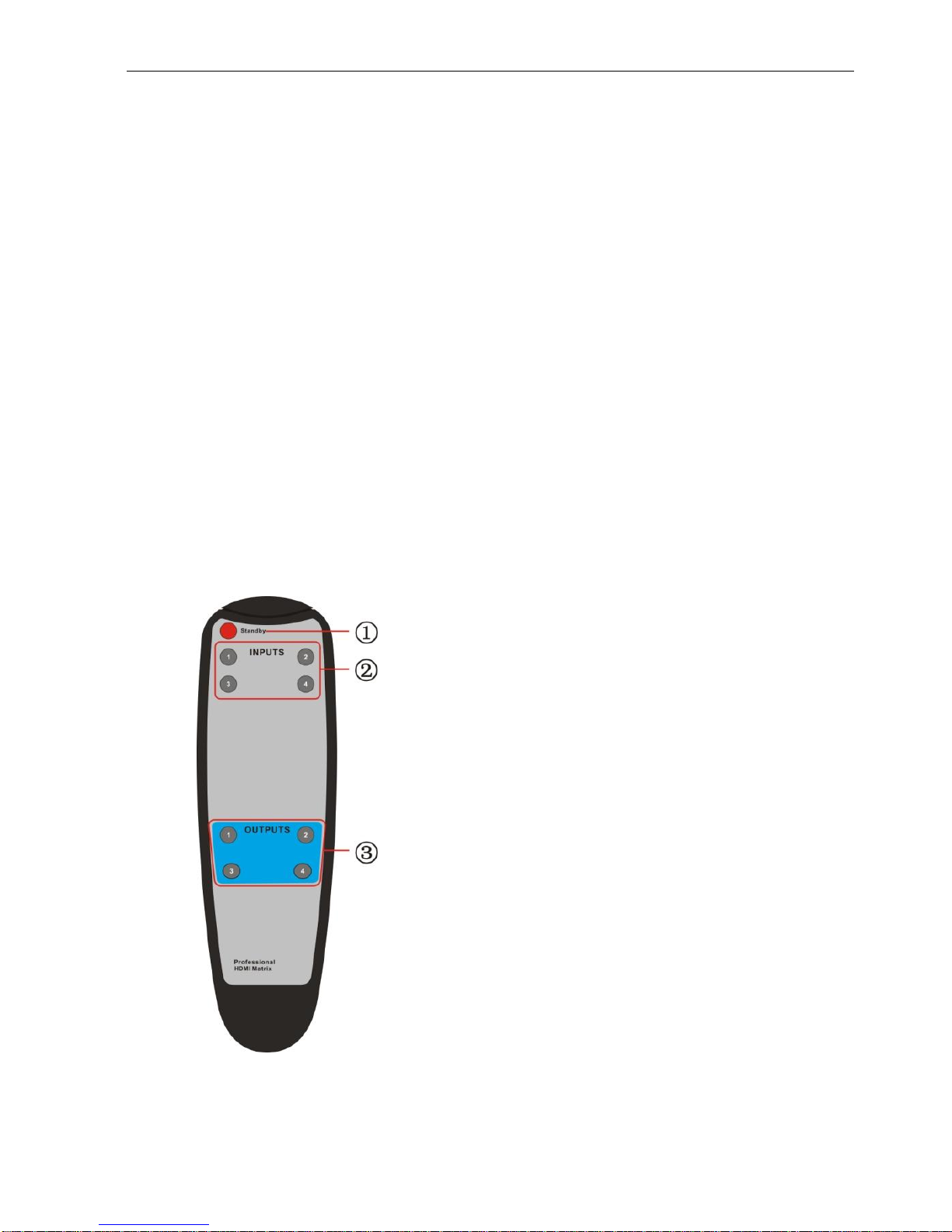

Figure 3- 2 IR Remote
① Standby: Enter/ exit standby mode
② INPUTS: Buttons for input selection
③ OUTPUTS: Buttons for output selection
I/O Switch Format: INPUT + OUTPUT
Page 11
4K 4x4 HDMI Matrix Switcher
6
4.2 RS232 Control
4.2.1 Installation/uninstallation of RS232 Control Software
Installation Copy the control software file to the computer connected with
MP-HD-44A-N.
Uninstallation Delete all the control software files in corresponding file path.
4.2.2 Basic Settings
Firstly, connect MP-HD-44A-N with necessary input devices and output devices. Then,
connect it with a PC installed RS232 control software. Double-click the software icon to
run this software.

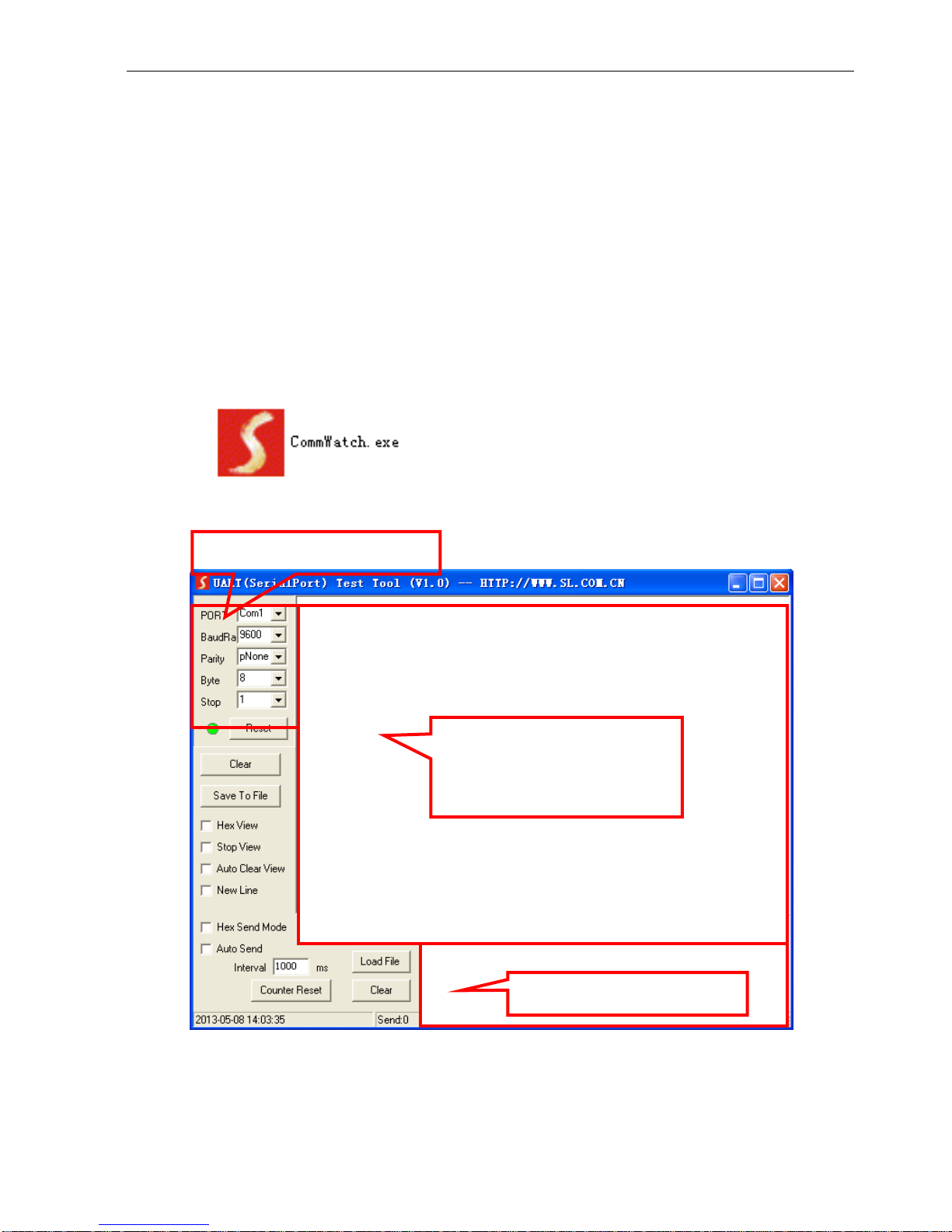

Here we take the software CommWatch.exe as example. The icon is showed as below:
Figure 4- 1 Icon of CommWatch
The interface of the control software is showed as below:
Figure 4- 2 Control Interface of CommWatch
Set the parameters (baud rate, data bit, stop bit and parity bit) correctly to ensure
reliable RS232 control.
Parameter Configuration
Monitoring area, indicates
whether the command
sent works.
Command Sending area
Page 12
4K 4x4 HDMI Matrix Switcher
7
4.2.3 RS232 Communication Commands
1) Case-sensitive.
2) “[“, “]” in the commands are for easy recognition only and not necessary in real
operations. Other symbols including “.”, “,”, “/”, “%”, “;”, “^”. are parts of the
commands.
3) Feedbacks listed in the column “Feedback Example” are only for reference,
feedbacks may vary according to different operations.
4) Dial the EDID switcher to “1111” before sending commands pertaining to software
EDID management (with grey background). Refer to 4.4 EDID Management for
detailed information.
Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none
Command
Function
Feedback Example
System Commands
/%Lock;
Lock the front panel buttons.
System Locked!
/%Unlock;
Unlock the front panel buttons.
System Unlock!
/^Version;
Inquire the firmware version
VX.X.X
/:MessageOff;
Turn off command feedback from the
com port. It will only show simple words
like “SWITCH OK!”.
/:MessageOff;
/:MessageOn;
Turn on command feedback from the
com port.
/:MessageOn;
/:FeedbackON;
Enable command feedback on LCD
monitor on the front panel (default).
/:FeedbackON;
/:FeedbackOFF;
Disable command feedback on LCD
monitor on the front panel (default).
/:FeedbackOFF;
Operation Commands
Undo.
Cancel the previous operation.
Undo Ok!
Demo.
Switch to the “demo” mode, convert
input and output in turn like 1B1,
1B2, …4B3, 4B4, 1B1… and so on .The
switching interval is 2 seconds.
Switch to normal mode by pressing any
front panel button or sending any other
command
Demo Mode
Page 13
4K 4x4 HDMI Matrix Switcher
8
Command
Function
Feedback Example
[x]All.
Transfer signal from input x to all
outputs
1 To All.
All#.
Transfer all inputs to corresponding
outputs, like 1->1, 2->2…
All Through.
[x]#.
Transfer signal from input x to output x.
1 Through.
All@.
Switch on all outputs.
All Open.
[x]@.
Switch on output x.
1 Open.
All$.
Switch off all outputs, but except coaxial
outputs for digital audio.
All Closed.
[x]$.
Switch off output x.
1 Closed.
[x]B[y1],[y2],[y3]
.
Transfer AV signal from input x to output
y1, y2, y3
1B2
BlackscreenON[
x].
Switch on input x.
BlackscreenON1.
BlackscreenOF
F[x].
Switch off input x.
BlackscreenOFF1.
Save[y].
Save the present operation status to
preset command y, y=0~11.
Save To F1
Recall[y].
Recall preset command y, y=0~11.
Recall From F1
Clear[y].
Clear preset command y, y=0~11.
Clear F1
EDIDG[x].
Get EDID data from output x and
display it on com port.
EDIDM[X]B[y].
Enable input x to learn the EDID data
from output y. If the EDID data is not
available, the matrix will set it to initial
EDID data.
EDIDM3B1
EDIDC[x]B[y].
Capture the EDID data of output x and
save it as No.y EDID, y=1~10,12~14
EDIDC3B1
EDIDExtract[x][y].
Invoke No.y EDID data saved through
COM port to input x, y=1~10,12~14
Pick up success
UpgradeSoftwar
eEDID[y].
Save the EDID data to No.y EDID,
invoke the EDID by sending command
EDIDExtract[x][y].
Please send the EDID
file
Upgrade success
EDIDUpgrade[x]
.
Upgrade the EDID data of input x
(x=1~4: upgrade the EDID of single
input; x=9: upgrade the EDID of all
inputs)
Send EDID file (.bin) within 10 seconds.
Please send the EDID
file
Upgrade success
Page 14
4K 4x4 HDMI Matrix Switcher
9
Command
Function
Feedback Example
UpgradeIntEDI
D[x].
Used for programing customized EDID
data x=12~14, please refer to 4.2.4
EDID Management for more details.
Please send the
EDID file
EDID/[x]/[y].
Invoke embeded EDID data No.y to
input x, y=1~10
y=1~10
EDID information
1
720P 2D 5.1CH
2
720P 3D 5.1CH
3
720P 2D 2CH
4
720P 3D 2CH
5
1080P 3D 5.1CH
6
1080P 2D 5.1CH
7
1080P 3D 2CH
8
1080P 2D 2CH
9
2160P 2D 5.1CH
10
2160P 2D 2CH
EDID/4/3
EDIDPCM[x].
Set the audio of input x to PCM in EDID
database.
EDIDPCM1
EDIDH[x]B[y].
Copy the EDID data from output x to
input y
If the EDID data is available and the
audio part supports not only PCM
format, then force-set it to only support
PCM. If the EDID data is not available, it
will set to initial EDID.
EDIDH1B1
PWON.
Work normally.
PWON
STANDBY.
Enter standby mode.
(Return to normal mode via front panel
buttons/ any other command/ IR
remote)
STANDBY
/%[x]:[y].
Manage HDCP status of outputs
“x” stands for output port, can be 1~4 or
ALL. When x=ALL, it means manage
HDCP status of all outputs.
“y” stands for HDCP status, can be 1
(with HDCP) or 0 (not with HDCP).
/%ALL:0.
%0801.
Enable auto HDCP management
(HDCP Active)
%0801.
Page 15
4K 4x4 HDMI Matrix Switcher
10
Command
Function
Feedback Example
%0911.
Reset to factory default.
Switch mode: all through; scene/ HDCP
status remains the same.
The customized EDID data will be
deleted automatically.
Factory Default
DigitAudioON[x]
.
Enable the SPDIF audio output of
output x.
x=1~4, enable the SPDIF audio
output of single output port.
x=9, enable the SPDIF audio output
of all output ports.
DigitAudio ON
with Output 4
DigitAudioOFF[
x].
Disable the SPDIF audio output of
output x.
x=1~4, disable the SPDIF audio
output of single output port.
x=9, disable the SPDIF audio output
of all output ports.
DigitAudio OFF
with Output 4
Inquiry Commands
Status[x].
Check the input channel for output x
AV: 1->1
Status.
Check the input channel for all outputs
AV:1->1
…
AV: 4-> 4
%9961.
Return the keylock status.
System
Unlock!/System
Locked!
%9962.
Check the power status
PWON
%9963.
Check the audio format of EDID
database for input x
IN1: PCM
…
IN4: PCM
%9964.
Check the IP and subnet mask of the
switcher.
IP 192.168.0.178
SB 255.255.255.0
DHCP 0
%9971.
Inquire connection status for all inputs,
N means there is no source, Y means
there is connected source.
In 1 2 3 4
Connect N Y Y N
%9972.
Inquire connection status for all outputs,
N means there is no display, Y means
there is connected display.
Out 1 2 3 4
Connect Y Y N N
Page 16
4K 4x4 HDMI Matrix Switcher
11
Command
Function
Feedback Example
%9973.
Check the inputs HDCP status, N
means it’s not with HDCP, Y means it’s
with HDCP.
In 1 2 3 4
HDCP N Y Y N
%9974.
Check the outputs HDCP status, N
means it’s not with HDCP, Y means it’s
with HDCP.
Out 1 2 3 4
HDCP N Y Y N
%9975.
Check the I/O switch status.
In 1 2 3 4
Out 1 2 3 4
%9977.
Check the status of digital audio of all
outputs, N is for “off”, Y is for “on”.
Out 1 2 3 4
Audio N N Y Y
Page 17
4K 4x4 HDMI Matrix Switcher
12
4.2.4 EDID Management
MP-HD-44A-N provides with convenient EDID management to create effective
communication between the display and sources.
In factory default status (Status: 0000), MP-HD-44A-N pass through the signals directly,
input& output device process the signal automatically. You can invoke other saved EDID
data by adjusting the 4-pin EDID DIP switcher or sending corresponding RS232
command.
4.2.4.1 Via RS232 commands
Dial the switchers to “1111” to enable software EDID management.
Invoking embedded EDID data:
Send command “EDID[X]B[y].” to enable input to invoke embedded EDID data of
MP-HD-44A-N . For example, send “EDID[4]B[3]” , the INPUT device (4) will gain
embedded EDID data is that 720P 2D 2CH.
EDID Copy:
Send command “EDIDM[X]B[y].” to enable input to copy the EDID data of a display. For
example, send “EDIDM[1]B[4]” , the INPUT device (1) will gain EDID data from
OUTPUT device(4).
Program Customized EDID data:
Besides 10 kinds of embedded EDID, this product can program 3 kinds of customized
EDID data.
① The EDID dial switch should be make sure on the “1111” status.
② Copy customized EDID data file (.bin) to the control device (e.g. a PC)
③ Running the RS232 control software, and then send the command
EDIDUpgrade[X], X is 12, 13, or 14, for example, send EDIDUpgrade[12].
④ According the prompt and send custom EDID data file.
⑤ When prompt “Update success”, the custom EDID data are set successfully.
⑥ Send the command EDID[1]B[12], the 1 input channel can invoke this new
customized EDID data.
4.2.4.2 Via 4-pin EDID DIP switcher
Beside EDID can be managed via RS232 commands, MP-HD-44A-N boasts a 4-pin
EDID DIP switcher to manage EEID. DIP switcher to manage EEID. Dial the switchers
to invoke demanded EDID data
Embedded EDID data: 10 sets in total, the chart below illustrate the 10 Embedded
EDID data.
Custom EDID data: max at 3 sets
The chart below shows switcher status for custom EDID No.12~14.
Page 18
4K 4x4 HDMI Matrix Switcher
13
No.
Switcher
Status
EDID information
Embedded EDID data
1
0001
720P 2D 5.1CH
2
0010
720P 3D 5.1CH
3
0011
720P 2D 2CH
4
0100
720P 3D 2CH
5
0101
1080P 3D 5.1CH
6
0110
1080P 2D 5.1CH
7
0111
1080P 3D 2CH
8
1000
1080P 2D 2CH
9
1001
2160P 2D 5.1CH
10
1010
2160P 2D 2CH
Customized EDID data
12
1100
Customizable
13
1101
Customizable
14
1110
Customizable
Note:
1) EDID information listed in the above chart is factory default data. Embedded
EDID data can be updated by sending command UpgradeIntEDID[x].
2) Embedded EDID data can also be invoked via command EDID/[x]/[y].
4.3 TCP/IP Control
4.3.1 Control Modes
TCP/IP default settings: IP is 192.168.0.178, Gateway is 192.168.0.1, and Serial Port is
8080. IP can be changed as you need, Serial Port cannot be changed.
Controlled by single PC
Connect a computer to the TCP/IP port of the MP-HD-44A-N, and set its network
segment to the same as the default IP of the MP-HD-44A-N (192.168.0.178).
Page 19
4K 4x4 HDMI Matrix Switcher
14

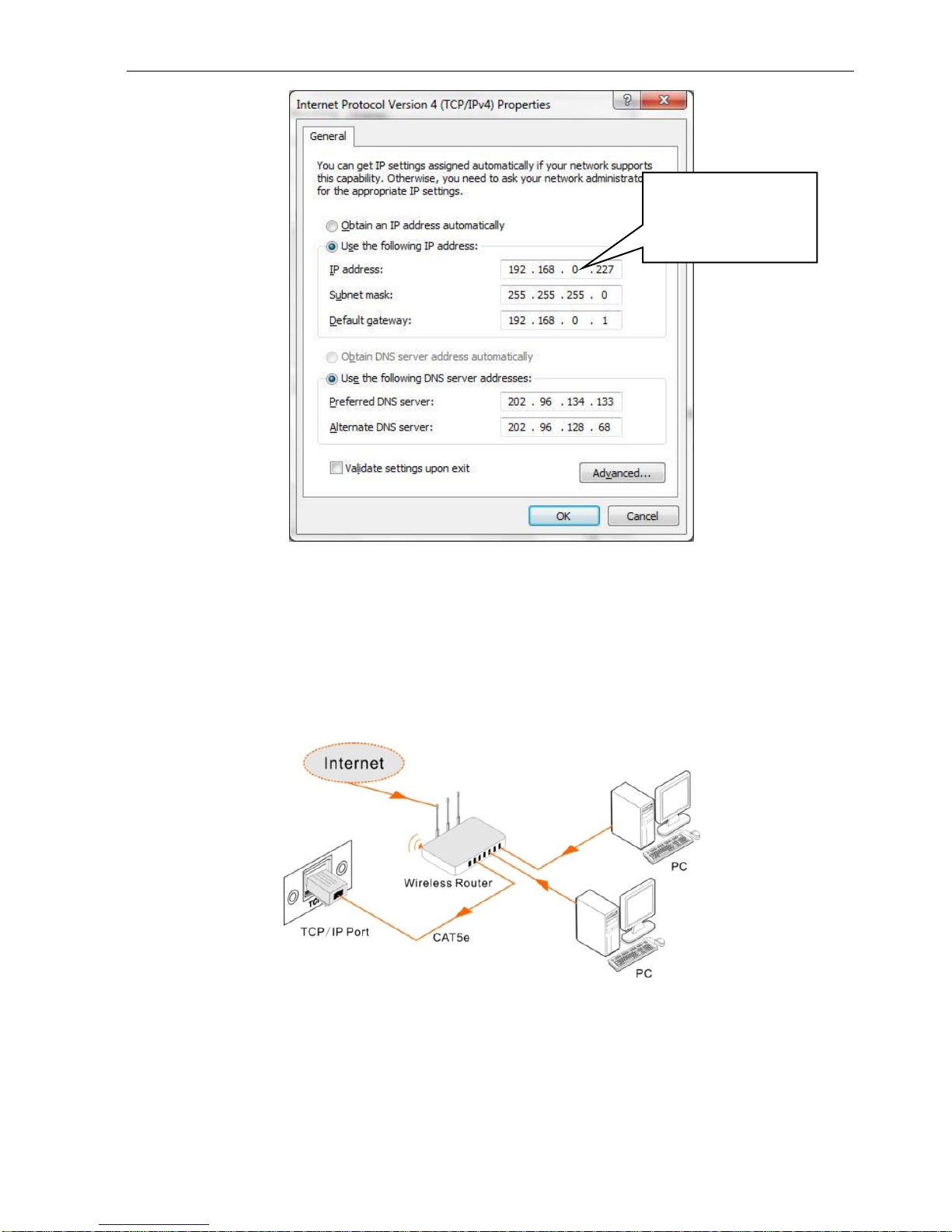

Figure 4- 3 Modify the IP of PC
Controlled by PC(s) in LAN
The MP-HD-44A-N can be connected with a router to make up a LAN with the PC(s),
this make it able to be controlled in a LAN. When control, just make sure the
MP-HD-44A-N’s network segment is the same with the router. Please connect as the
following figure for LAN control.
Figure 4- 4 Connect to LAN
Step1. Connect the TCP/IP port of the MP-HD-44A-N to Ethernet port of PC with
twisted pair.
Step2. Set the PC’s network segment to the same as the MP-HD-44A-N. Do please
remember the PC’s original network segment.
Same network
segment as the
switcher
Page 20
4K 4x4 HDMI Matrix Switcher
15
Step3. Set the MP-HD-44A-N’s network segment to the same as the router.
Step4. Set the PC’s network segment to the original one.
Step5. Connect the MP-HD-44A-N and PC(s) to the router. In the same LAN, each PC
is able to control the MP-HD-44A-N asynchronously.
Then it’s able to control the device via a TCP/IP communication software.

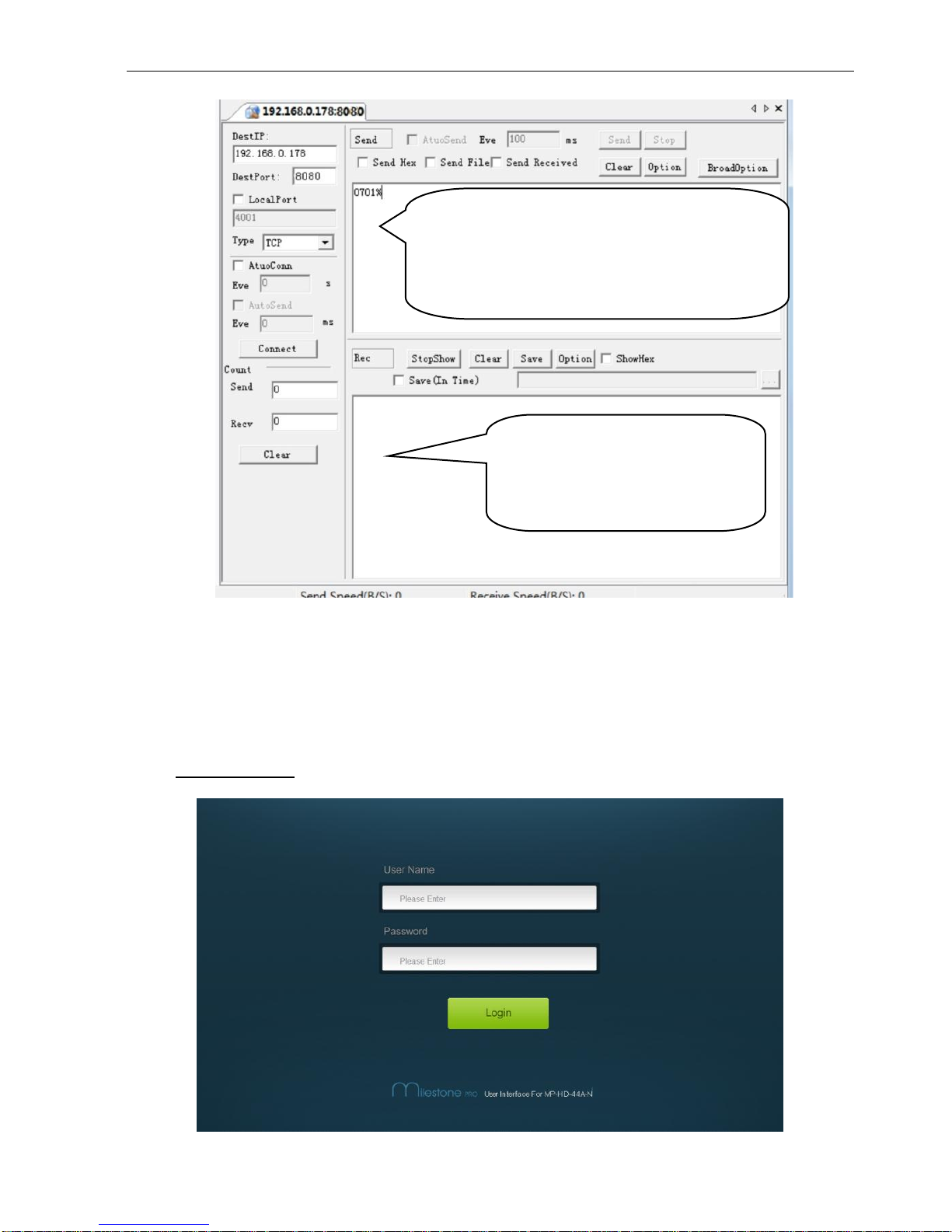

4.3.2 Control MP-HD-44A-N via TCP/IP communication software
(Exampled by TCPUDP software)

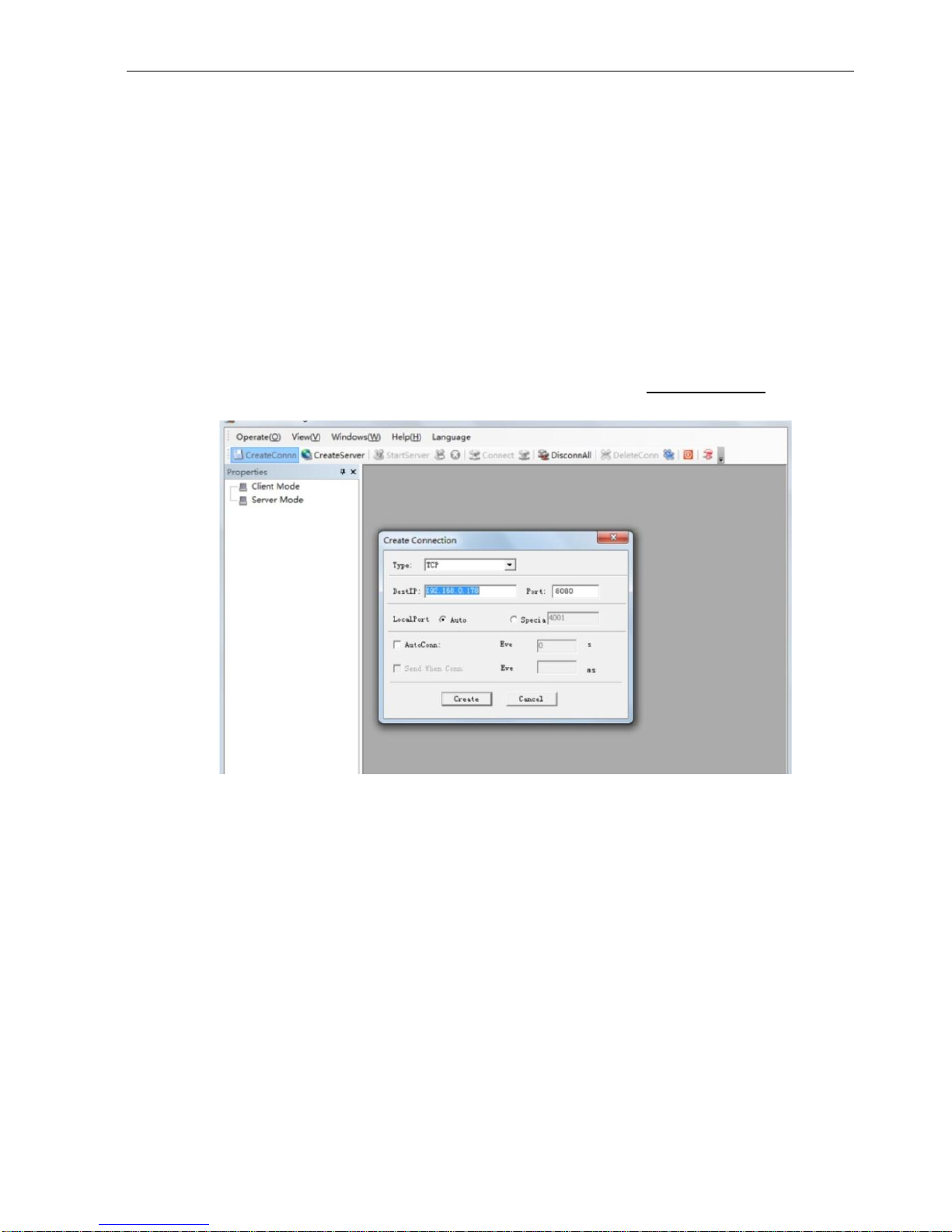

1) Connect a computer with TCPUDP software to MP-HD-44A-N. Open the TCPUDP
software (or any other TCP/IP communication software) and create a connection,
enter the IP address and port of MP-HD-44A-N (default IP: 192.168.0.178,
port:8080):
Figure 4- 5 Connect to TCPUDP
2) Enter commands in designed area to control MP-HD-44A-N, see as below:
Page 21
4K 4x4 HDMI Matrix Switcher
16
Figure 4- 6 Control interface of TCPUDP
4.3.3 Control MP-HD-44A-N via web-based GUI
In addition to control MP-HD-44A-N via communication software MP-HD-44A-N can be
controlled via web-based GUI It allows users to interact with MP-HD-44A-N through
graphical icons and visual indicators.
Type 192.168.0.178 in your browser, it will enter the log-in interface shown as below:
Here you will receive the
feedback after a command
is sent.
Enter your command here.
Commands are the same with RS232
commands listed in 4.2.3 RS232
Communication Commands
Page 22
4K 4x4 HDMI Matrix Switcher
17
Figure 4- 7 Login GUI
This system divides into administrator and user mode.
Administrator mode: User name: admin; Password: admin (default setting)
User mode: User name: user; Password: user (default setting).
Note: Log in as admin can access more configuration interfaces than user. Here is a
brief introduction to the interfaces.

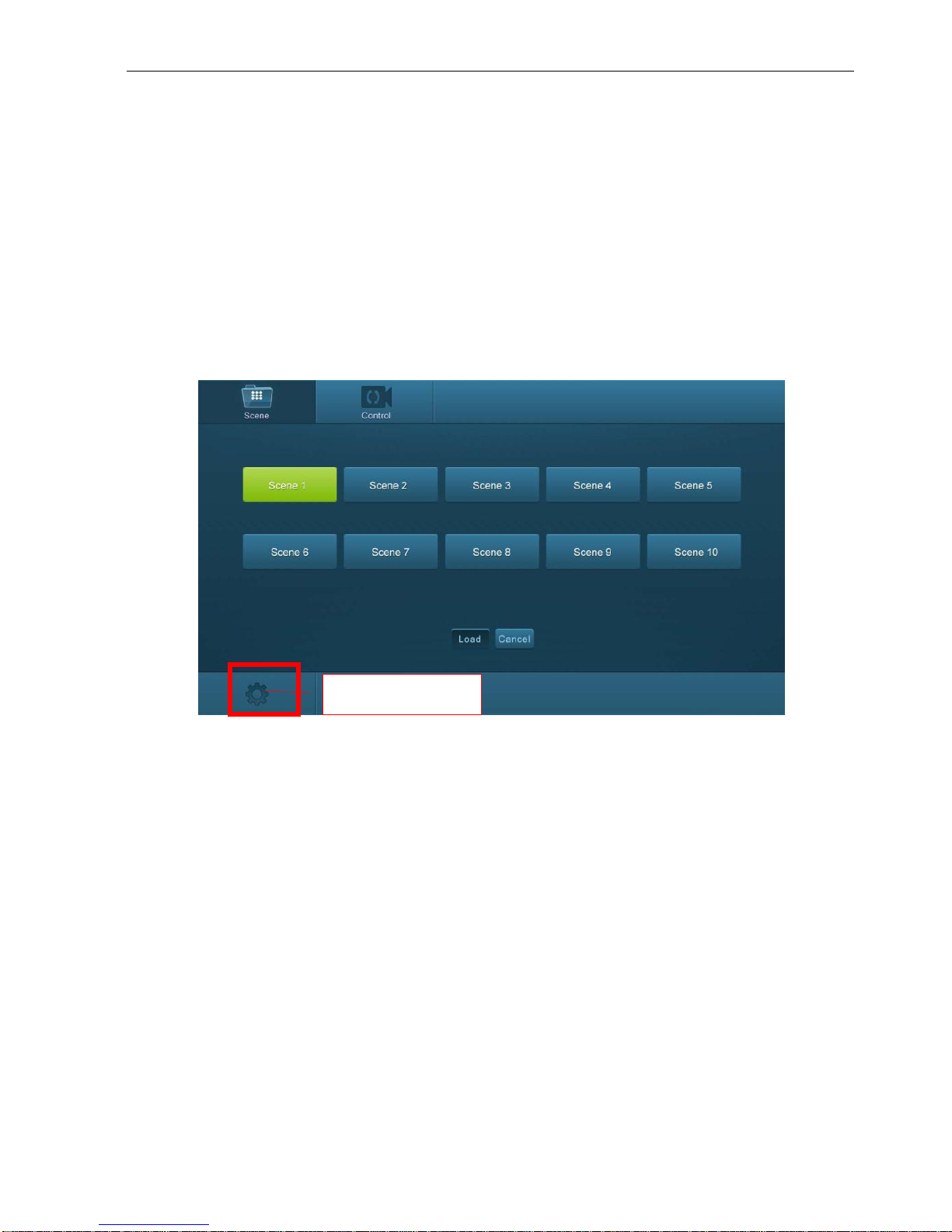

4.3.3.1 Scene Menu
Type the user name: admin, password: admin, and then click LOGIN, it will show the
Scene menu as shown below:
Figure 4- 8 Scene Menu
All ten scenes are shown in above interface.
select a scene and then click”Load” can invoke the selected scene.
Click “cancel” to cancel the current operation.

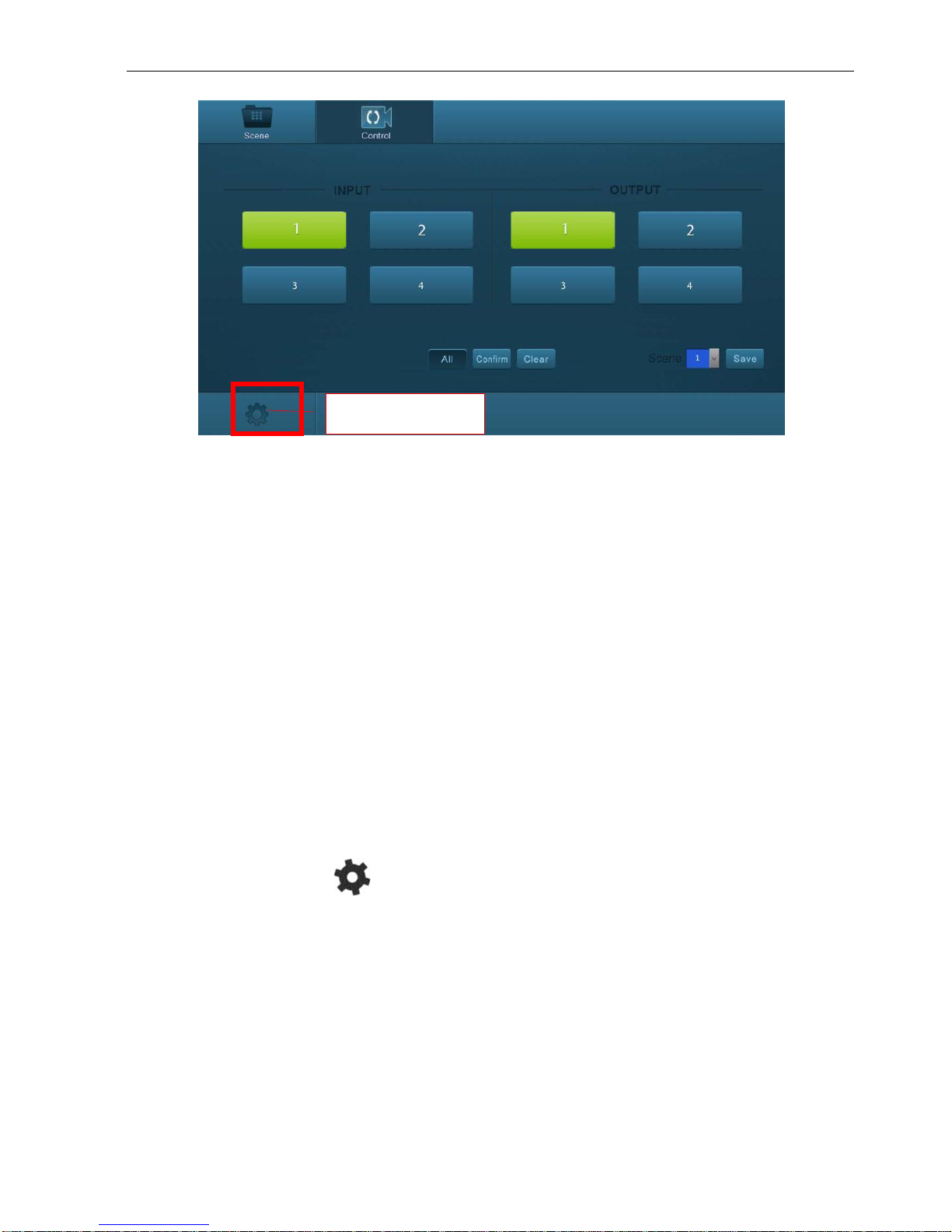

4.3.3.2 Control Menu
Click “Control” to enter the following interface, it provide intuitive I/O connection
switching.
Setting Button
Page 23
4K 4x4 HDMI Matrix Switcher
18
Figure 4- 9 Control Menu
The button matrix displays every possible connection between every input and output;
users can carry on the connections by clicking corresponding button.
Buttons 1~4 at the right-bottom corner provides quick saving and recall for overall
connection status. For example:
Step1: Select button1 at INPUT column
Step2: Step2: Select button 1 at OUTPUT column (If all OUTPUT ports in needed, you
only need to click “All”.)
Step3: Choose a scene that you want to save.
Step4: Click “Confirm” to save the setting or Click “Clear” to clear set up.
4.3.3.3 Configuration Properties
1. Configuration:
1) Click setting button to enter configuration interfaces.
Setting Button
Page 24
4K 4x4 HDMI Matrix Switcher
19

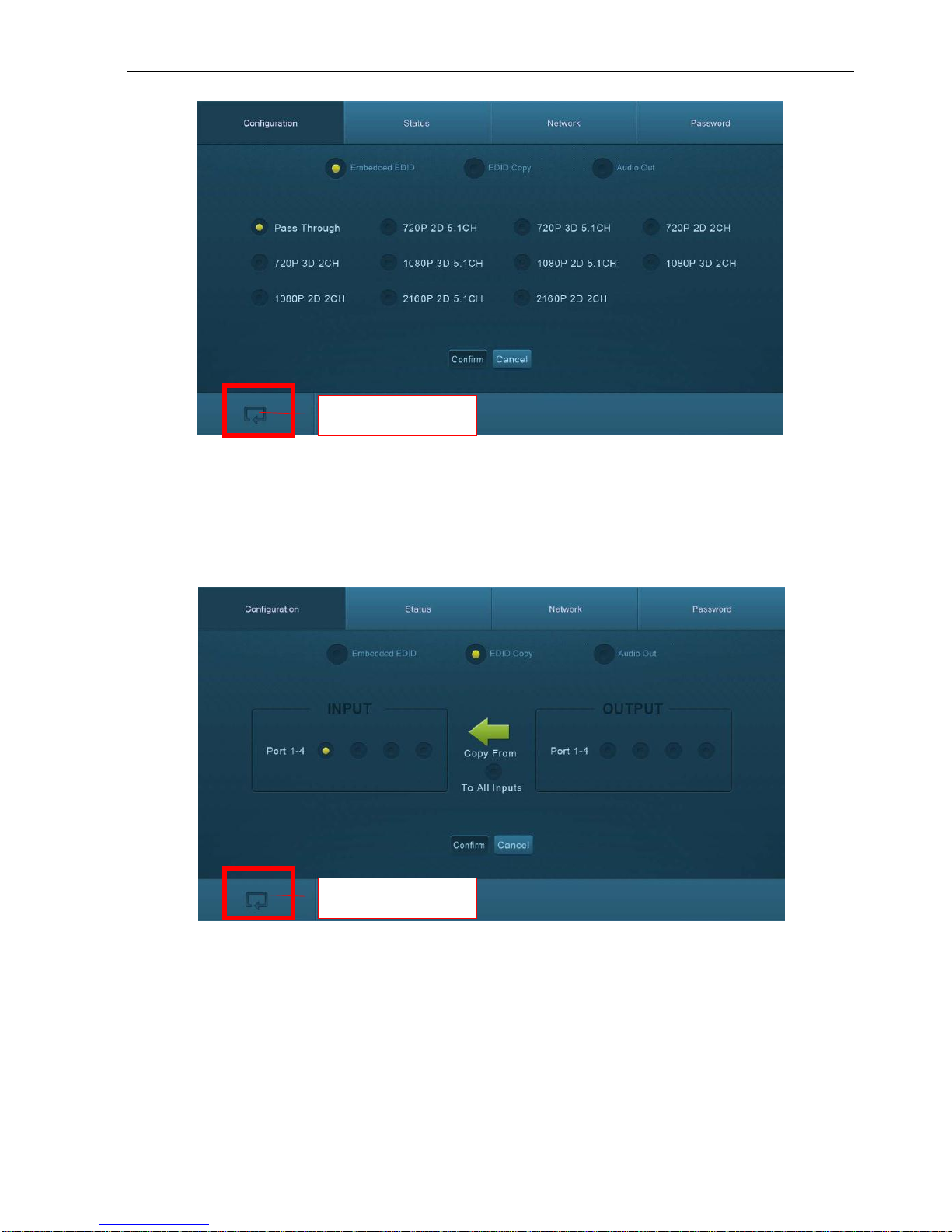

Figure 4- 10 Embedded EDID
All embedded EDID of MP-HD-44A-N are shown in the above interface. User can select
EDID in accordance with actual needs.
2) Select “EDID Copy” to enter the following interface:
Figure 4- 11 Copy EDID
The EDID of INPUT device can be gained from OUTPUT devices.
Step1: Select one OUTPUT device that you want to copy its EDID.
Step2: Select one or more input devices that need to gain EDID. When select To All
inputs, all input devices will copy the EDID from output device.
Step3: Click “Confirm” to save the setting or click “Cancel” to cancel operation.
Return Button
Return Button
Page 25
4K 4x4 HDMI Matrix Switcher
20

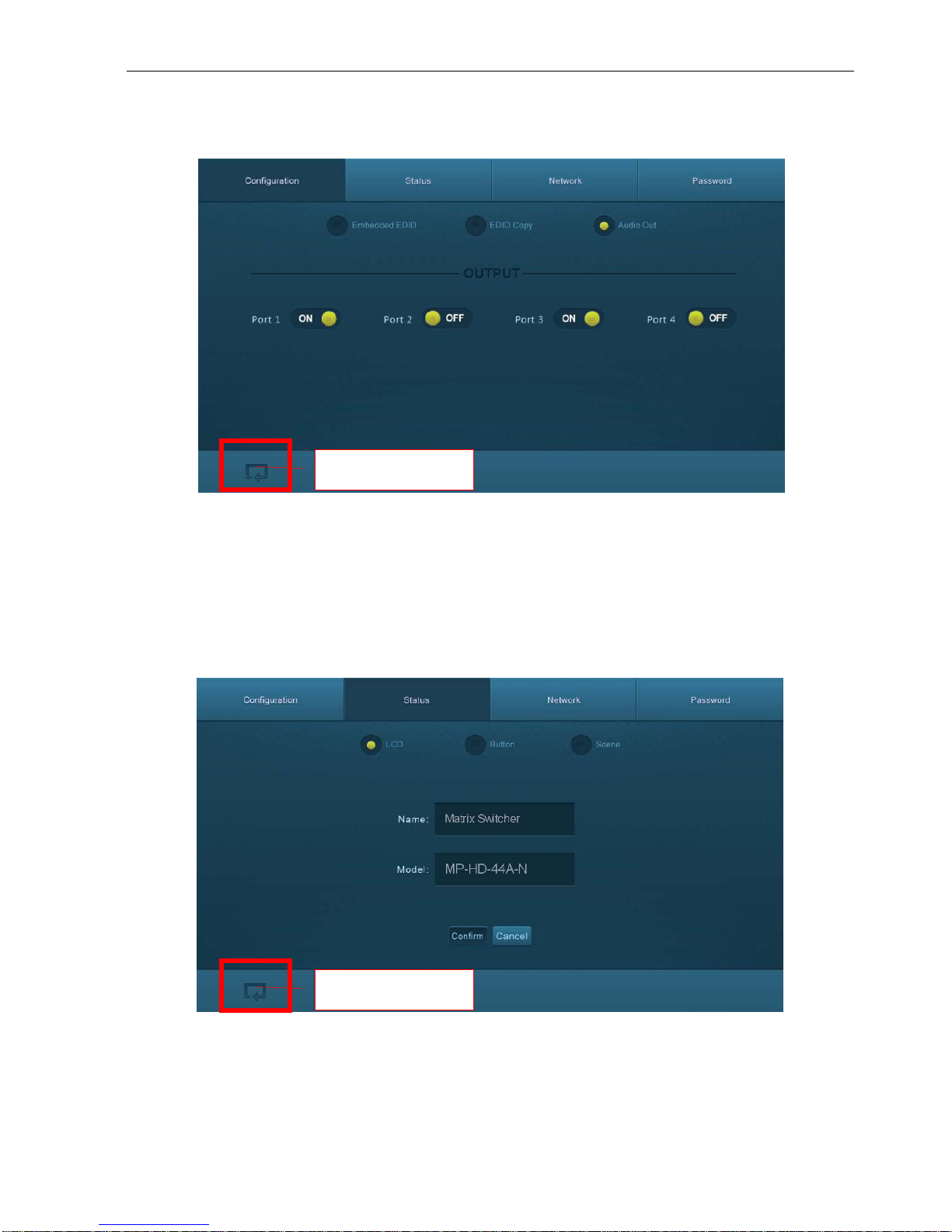

3) Select “Audio Out” to enter the following interface to turn on/off the Audio Output
passage.
Figure 4- 12 Audio EDID
2. Status:
1) At the top of the interface, click “Status” to enter the following interface to modify the
name and mode of this machine, and then they will be display in LCD screen.
Figure 4- 13 Status- LCD

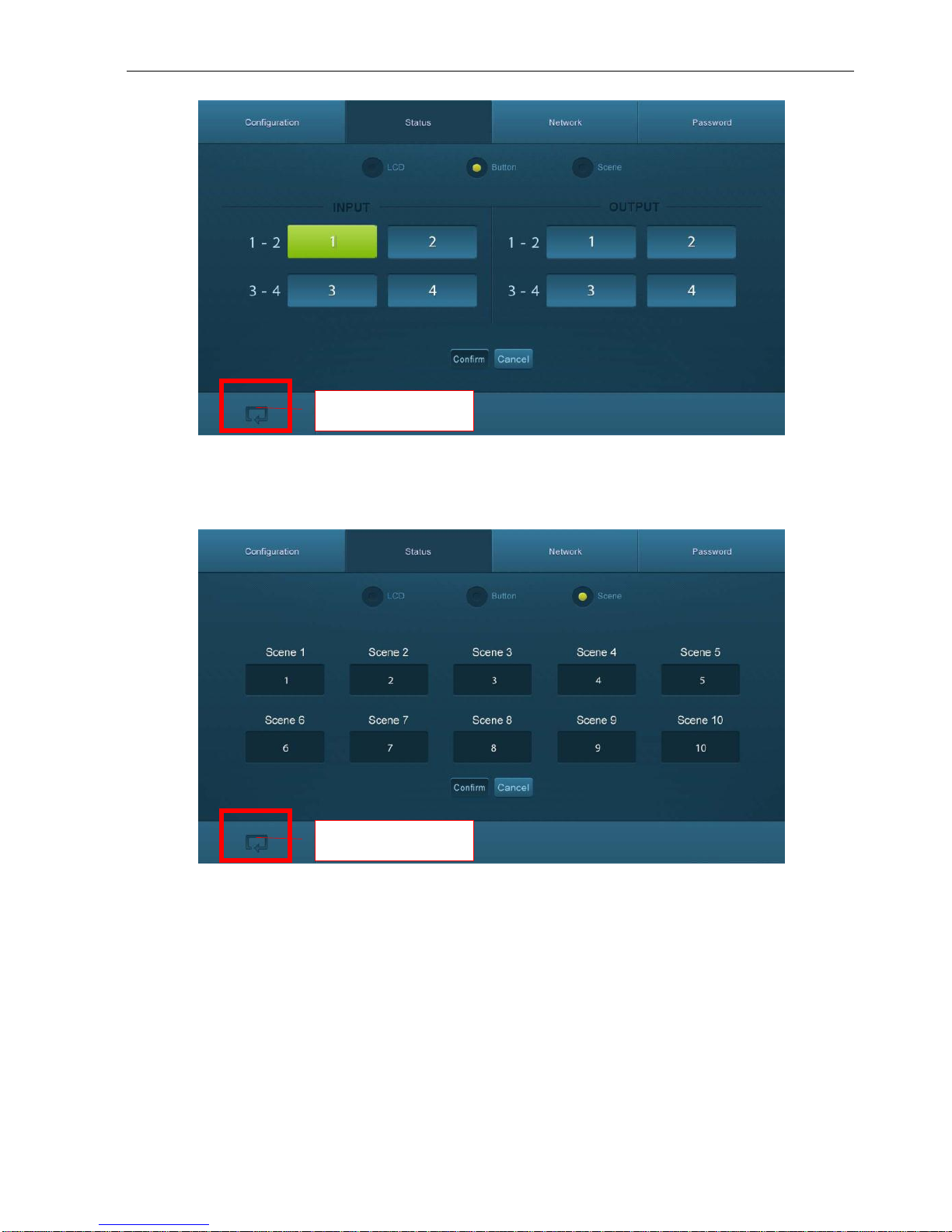

2) Select “Button” to enter the following interface to modify the name of buttons.
Return Button
Return Button
Page 26
4K 4x4 HDMI Matrix Switcher
21
Figure 4- 14 Status- Button
3) Select “Scene” to enter the following interface to modify the name of scenes.
Figure 4- 15 Status-Scene

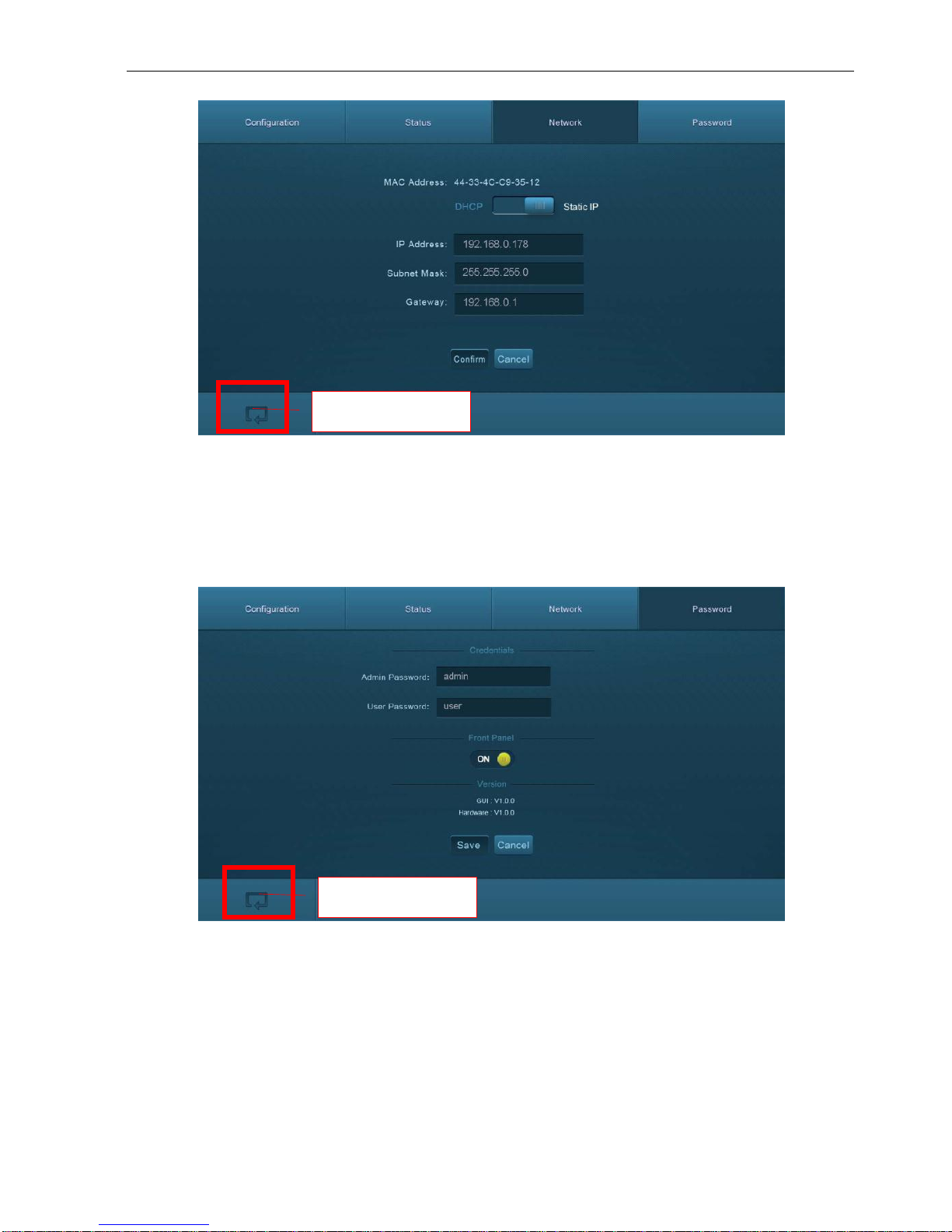

3. Network:
At the top of the interface, click “Network” to enter the following interface to inquire and
configure network settings including MAC address, IP address, subnet mask, and
Gateway.
Return Button
Return Button
Page 27
4K 4x4 HDMI Matrix Switcher
22
Figure 4- 16 Network
5. Password
At the top of the interface, click “Password” to enter the following interface to inquire
and modify the admin or user password.
Figure 4- 17 Passwork
In the above interface, turn on the Front Panel to lock all buttons of machine, they
cannot be operated.
4.3.4 TCP/IP Configuration
IP address, subnet mask, and Gateway of MP-HD-44A-N can be modified via GUI from
the above description, but beyond that users can configure the IP port, including IP reset,
password reset, and IP module firmware update on the WebServer.
Return Button
Return Button
Page 28
4K 4x4 HDMI Matrix Switcher
23

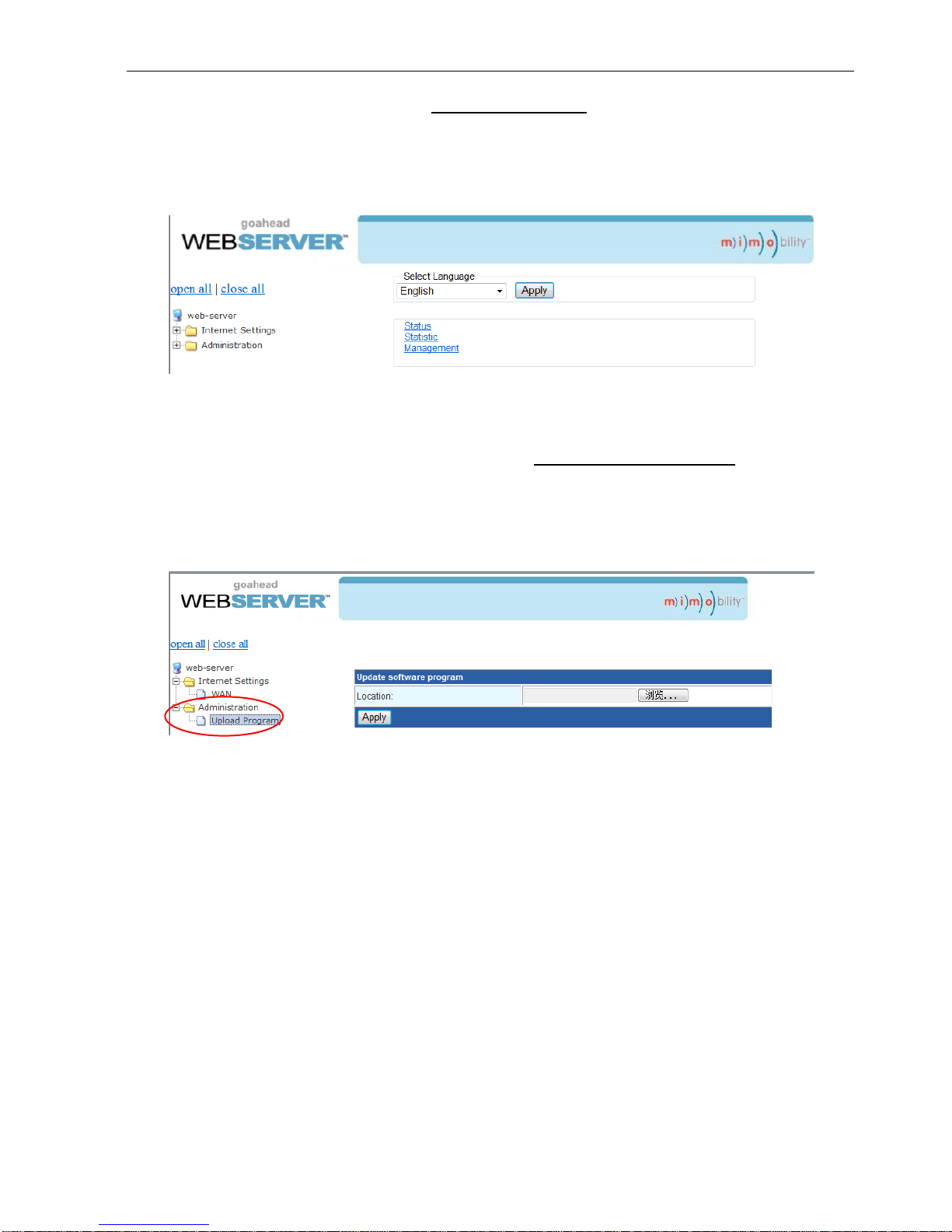

Type the designed website (Default: 192.168.0.178:100, changeable) in your browser.
Enter correct username and password to log in the WebServer:
Username: admin; Password: admin
Here is the main configuration interface of the WebServer:
Figure 4- 18 TCP/IP Configuration
4.3.5 GUI Update
GUI for MP-HD-44A-N supports online update in http://192.168.0.178:100. Type the
username and password (the same as the GUI log-in settings, modified password will
be available only after rebooting) to log in the configuration interface. After that, click
Administration at the source menu to get to Upload Program as shown below:
Figure 4- 19 GUI Update
Page 29
4K 4x4 HDMI Matrix Switcher
24

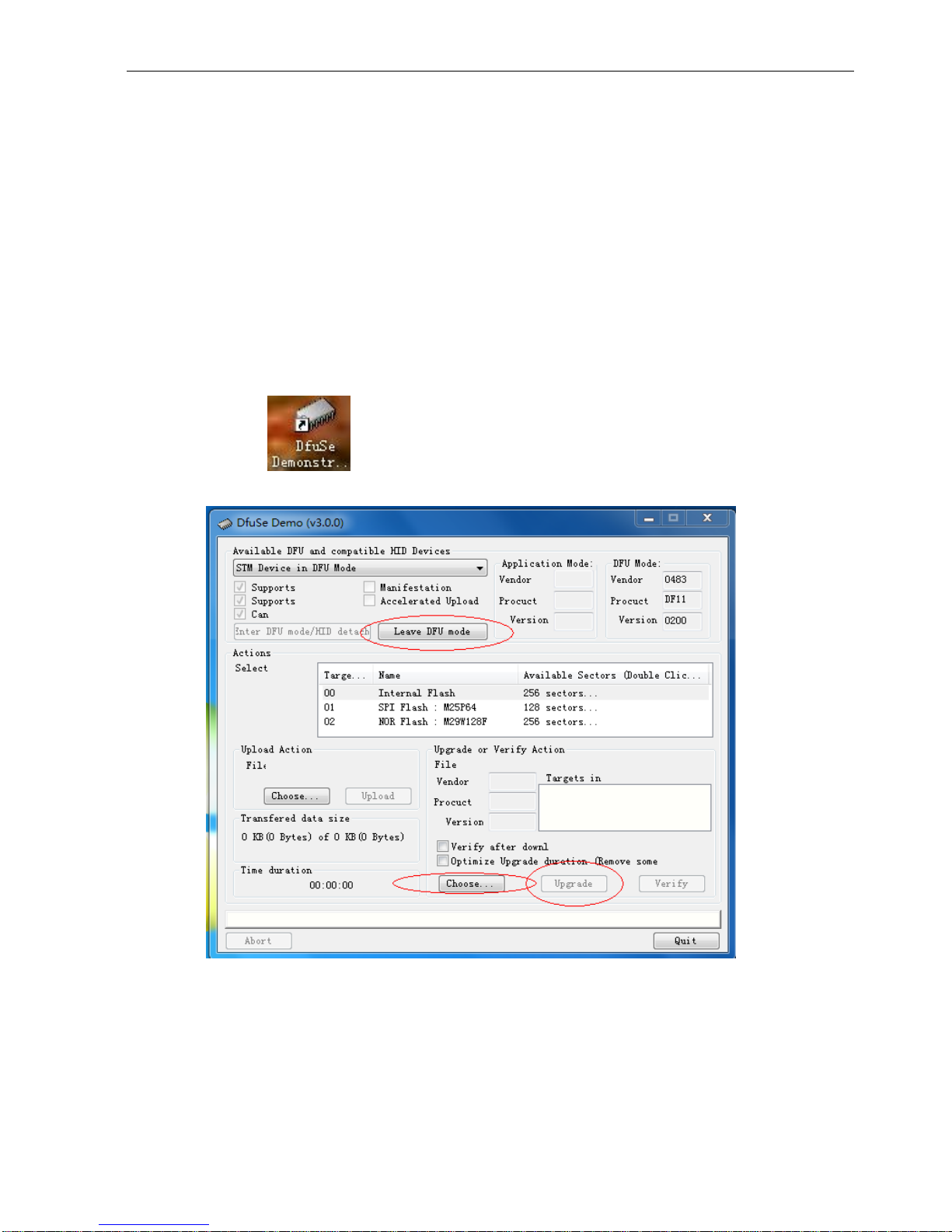

4.4 Firmware Upgrade through USB port
MP-HD-44A-N boasts a USB port for firmware upgrade on the rear panel.
Preparation: copy the upgrade software DfuSe Demonstration& upgrade file (.dfu) to
control PC.
Steps to upgrade the device:
Step1. Connect the control PC to the USB port of MP-HD-44A-N.
Step2. Reboot MP-HD-44A-N to enter upgrade mode. Press and hold button 2& 3 when
rebooting. The power indicator will keep blinking in upgrade mode.
Step3. Double-click the icon of upgrade software DfuSe Demonstration (see the figure
below).
Figure 4- 20 Icon of DfuSe Demonstration
It will pop up the following window:
Figure 4- 21 Upgrade firmware via DfuSe Demonstration
Step4. Click Choose… to load desired upgrade file (.dfu).
Step5. Click Upgrade to start.
Make sure the button Leave DFU mode is available to ensure control PC and
MP-HD-44A-N are connected sucessfully.
Page 30
4K 4x4 HDMI Matrix Switcher
25
5. Specification
Input
Output
Input
4 HDMI
Output
4 HDMI, 4 SPDIF audio
Input
Connector
Female Type-A HDMI
Output
Connector
Female Type-A HDMI
3.5mm RCA connector
Standards
HDMI2.0& HDCP2.2
Standards
HDMI1.4& HDCP1.4
Control Ports
Control Ports
1 IR IN (3.5mm jack)
1 TCP/IP (female RJ45)
1 RS232 (3-pin pluggable terminal block)
General
EDID
Management
In-built EDID data and manual EDID management
Audio Signal
Dolby Digital, DTS, DTS-HD
Max
Resolution
4Kx2K, 1080P 3D
Transmission
Distance
4Kx2K@60Hz ≤15m
Power
Supply
DC 12V 2A
Power
Consumption
13.3W (Full Load)
4.4W (Standby)
Dimension
(W*H*D)
436 x 44 x 235 mm
Weight
1.77Kg
Temperature
0 ~ 50℃
Reference
Humidity
10% ~ 90%
Recommend using quality HDMI cables in order to attain prefered transmission
distance and effects.
5.1 Supported Resolution
Display Ratio
Resolutions
4K
4096x2160 (30,50,60 Hz), 3840x2160 (24,25,30 50 60 Hz)
21:9
2560x1080 (60Hz)
16:9
1920x1080(1080P 3D), 1600x900, 1366x768, 1280x720, 1024x576
(60Hz)
16:10
1920x1200,1680x1050, 1440x900, 1360x768,1280x800 (60Hz)
4:3
1600x1200,1400x1050, 1280x1204,1024x768, 800x600,640x480
(60Hz)
Page 31
4K 4x4 HDMI Matrix Switcher
26
6. Panel Drawing
7. Troubleshooting & Maintenance
Problems
Causes
Solutions
Color losing or no video
signal output
The connecting cables may
not be connected correctly
or it may be broken.
Check whether the cables
are connected correctly
and in working condition.
Fail or loose connection
Make sure the connection
is good
No output image when
switching
No signal at the input /
output end
Check with oscilloscope or
multimeter if there is any
signal at the input/ output
end.
Fail or loose connection
Make sure the connection
is good
Input source is with HDCP
while the HDCP
compliance is switched off.
Send command /%[x]:[1].
to change HDCP
compliance status.
The display doesn’t
support the input
resolution.
Switch for another input
source or enable the
display to learn the EDID
data of the input.
No output on the amplifiers
connected to audio output
ports
The amplifiers are not able
to decode HDMI audio
Change for amplifiers that
are capable to decode
HDMI audio.
Cannot control the device
via front panel buttons
Front panel buttons are
locked.
Send command /%Unlock;
to unlock
Cannot control the device
The battery has run off.
Change for new battery.
SYSTE M MONITO R
OUTPU TS
POWER
1 2
3
4
1 2 3 4
ON DIP
FIRMWAR E DC 12V TCP/IPEDID I R IN
On
Off
1 234
1
0
R S232
Tx Rx
SPDIF
43211 2 3 4
SPDIF SPDIF SPDIF
INPUT S
OUTPU TS CONTR OL
MP-H D-44 A-N
436 mm
4
4 m
m
Page 32
4K 4x4 HDMI Matrix Switcher
27
via IR remote
The IR remote is broken.
Send it to authorized
dealer for repairing.
Beyond the effective range
of the IR signal or not
pointing at the IR receiver
Adjust the distance and
angle and point right at the
IR receiver.
Power Indicator remains off
when powered on
Fail or loose power
connection
Check whether the cables
are connected correctly
EDID management does
not work normally
The HDMI cable is broken
at the output end.
Change for another HDMI
cable which is in good
working condition.
There is a blank screen on
the display when switching
The display does not
support the resolution of
the video source.
Switch again.
Manage the EDID data
manually to make the
resolution of the video
source automatically
compliant with the output
resolution.
Cannot control the device
by control device (e.g. a
PC) through RS232 port
Wrong connection
Check to ensure the
connection between the
control device and the unit
Wrong RS232
communication parameters
Type in correct RS232
communication
parameters: Baud
rate:9600; Data bit: 8; Stop
bit: 1; Parity bit: none
Broken RS232 port
Send it to authorized
dealer for checking.
Static becomes stronger
when connecting the video
connectors
Bad grounding
Check the grounding and
make sure it is connected
well.
Cannot control the device
by RS232 / IR remote /
front panel buttons
The device has already
been broken.
Send it to authorized
dealer for repairing.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.
Page 33
4K 4x4 HDMI Matrix Switcher
28
8. After-sales Service
If there appear some problems when running the device, please check and deal with the
problems reference to this user manual.
1) Product Limited Warranty: We warrants that our products will be free from defects
in materials and workmanship for three years, which starts from the first day the
product leaves warehouse (check the SN mark on the product).
Proof of purchase in the form of a bill of sale or receipted invoice must be presented
to obtain warranty service.
2) What the warranty does not cover:
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear
Use of supplies or parts not meeting our specifications
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized
Other causes which does not relate to a product defect
Delivery, installation or labor charges for installation or setup of the product
3) Technical Support: Email to our after-sales department or make a call, please
inform us the following information about your cases.
Product version and name.
Detailed failure situations.
The formation of the cases.
Remarks: For any questions or problems, please try to get help from your local
distributor.
Loading...
