MP-DA4HD-4K
4K HDMI Splitter 1x4
All Rights Reserved
Version: MP-DA4HD-4K_2016V1.0
User Manual
Page 2
4K HDMI Splitter 1x4
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
Page 3
4K HDMI Splitter 1x4
Contents
1. Introduction ................................................................................................................. 1
1.1 Introduction to MP-DA4HD-4K ........................................................................... 1
1.2 Features ............................................................................................................ 1
1.3 Package List ...................................................................................................... 1
2. Panel Description ........................................................................................................ 2
2.1 Front Panel ........................................................................................................ 2
2.2 Rear Panel ......................................................................................................... 2
3. System Connection ................................ ................................ ................................ ..... 3
3.1 Usage Precautions ............................................................................................ 3
3.2 System Diagram ................................................................................................ 3
3.3 Connection Procedures ..................................................................................... 3
3.4 EDID Management ............................................................................................ 4
3.5 Application ......................................................................................................... 4
3.6 Firmware Upgrade ............................................................................................. 4
4. Specification ............................................................................................................... 5
4.1 Supported Input Video Formats ......................................................................... 6
5. Panel Drawing ............................................................................................................ 6
6. Troubleshooting & Maintenance ................................................................................. 7
7. After-sales Service ...................................................................................................... 8
Page 4
4K HDMI Splitter 1x4
1
1. Introduction
1.1 Introduction to MP-DA4HD-4K
MP-DA4HD-4K is a HDMI splitter featuring the capability to repeat HDMI or DVI source
to 4 displays synchronously. Compliance with HDMI 1.4& HDCP1.4, MP-DA4HD-4K
provides comprehensive resolution capacities up to 4K& 1080p 3D. It’s capable to
automatically recognize the resolution and HDCP compliant status of the input signal.
Input signal will be automatically equalized for reliable transmission with proper EDID
Management.
Moreover, MP-DA4HD-4K supports convenient online update through USB port.
1.2 Features
4 simultaneous HDMI outputs
Support Hot-plug
Compliant with HDMI 1.4, capable to transmit 1080p 3D& 4K signal
Transmit 1080p HDMI up to 15m
High bandwidth: 10.2Gbps
HDCP compliant
Auto-identify input resolution
Support EDID management, automatically adopt the resolution of the first detected
display from port 1~4
Intuitive indicator for connection status& input HDCP compliance status
Convenient online firmware update
1.3 Package List
1 x MP-DA4HD-4K
2 x Mounting ears (separate from MP-DA4HD-4K)
4 x Screws
4 x Plastic cushions
1 x Power Adapter (DC 5V 1A)
1 x User Manual
Notes：Please confirm if the product and the accessories are all included, if not, please
contact with the dealers.
Page 5
4K HDMI Splitter 1x4
2

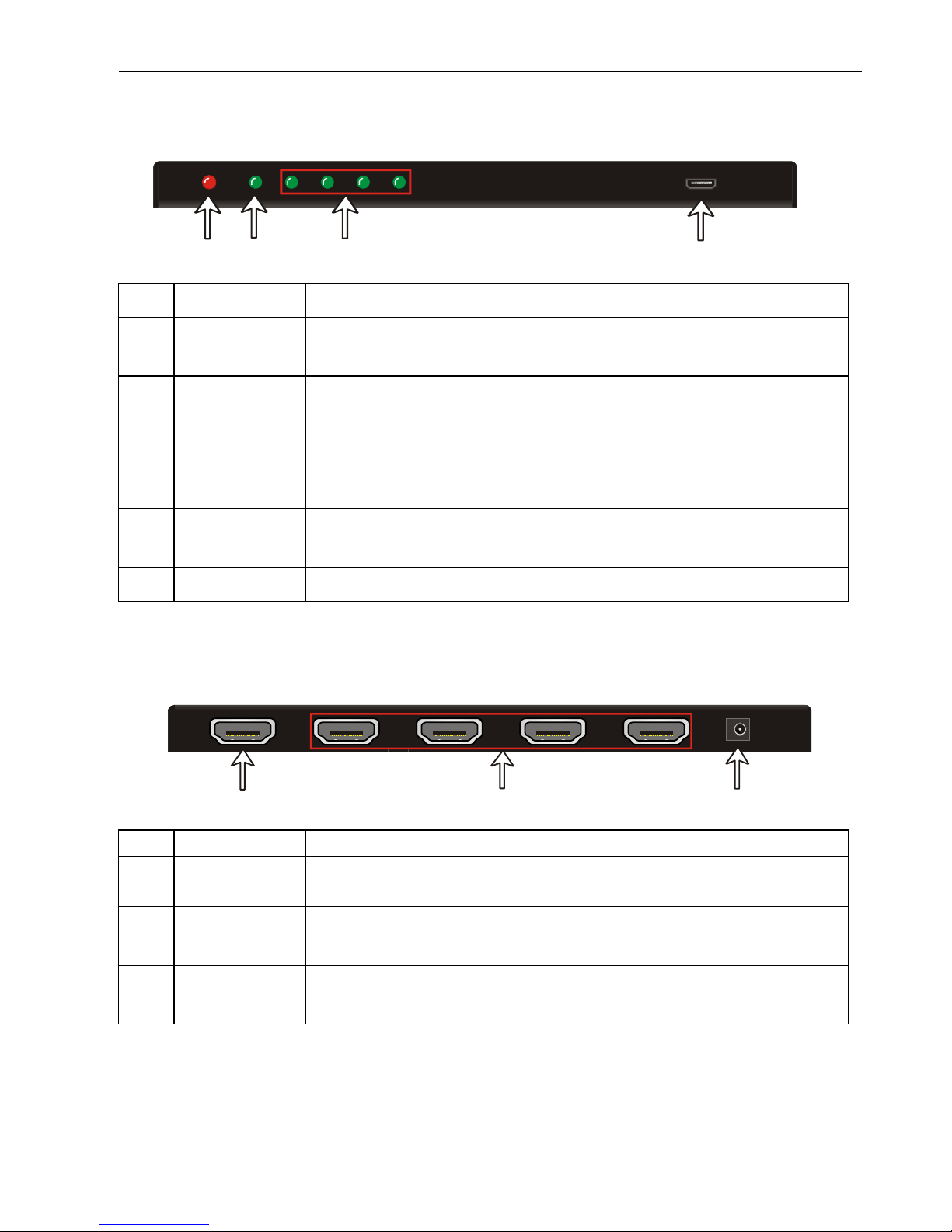

2. Panel Description
2.1 Front Panel
No.
Name
Description
①
Power
indicator
Illuminate red once powered on
②
Input HDCP
compliant
Indicator
Indicate the HDCP compliant status of the input signal
Iluminate green when the input signal is with HDCP
Blink green when the input signal is not with HDCP
Remain off when there is no input signal
③
Output signal
Indicators
Illuminate green when there is HDMI output, correspond to
HDMI OUTPUT 1~4 separately
④
FIRMWARE
USB port, used for firmware update.
Note: Output HDCP compliant status depends on input signal. When the input signal is
with HDCP, then output signal is with HDCP and vice versa.
2.2 Rear Panel
No.
Name
Description
①
IN
HDMI input port. connect with HDMI or DVI source device such
as DVD/ Blue-ray
②
OUT
HDMI output ports, connect to HDMI displays, automatically
capture the input resolution
③
DC 5V
Power socket, plug a DC 5V power adapter into this socket and
tighten the screw.
Note:
a) Pictures shown in this manual are for reference only, different model and
specifications are subject to real product.
b) HDMI signal contains both HDMI video signal and embedded audio signal (PCM,
FIRM WARE
① ② ③ ④
① ② ③
Page 6
4K HDMI Splitter 1x4
3
Dolby Digital, DTS, DTS-HD), while DVI signal contains solely video signal.
c) MP-DA4HD-4K is capable to switch input signal format according to the displays.
For example, when the input signal is HDMI and the display can only support DVI
signal, MP-DA4HD-4K will switch the signal into DVI format.
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment and has a prop temperature and
humidity.
2) All of the power switches, plugs, sockets and power cords should be insulated and
safe.
3) All devices should be connected before power on.

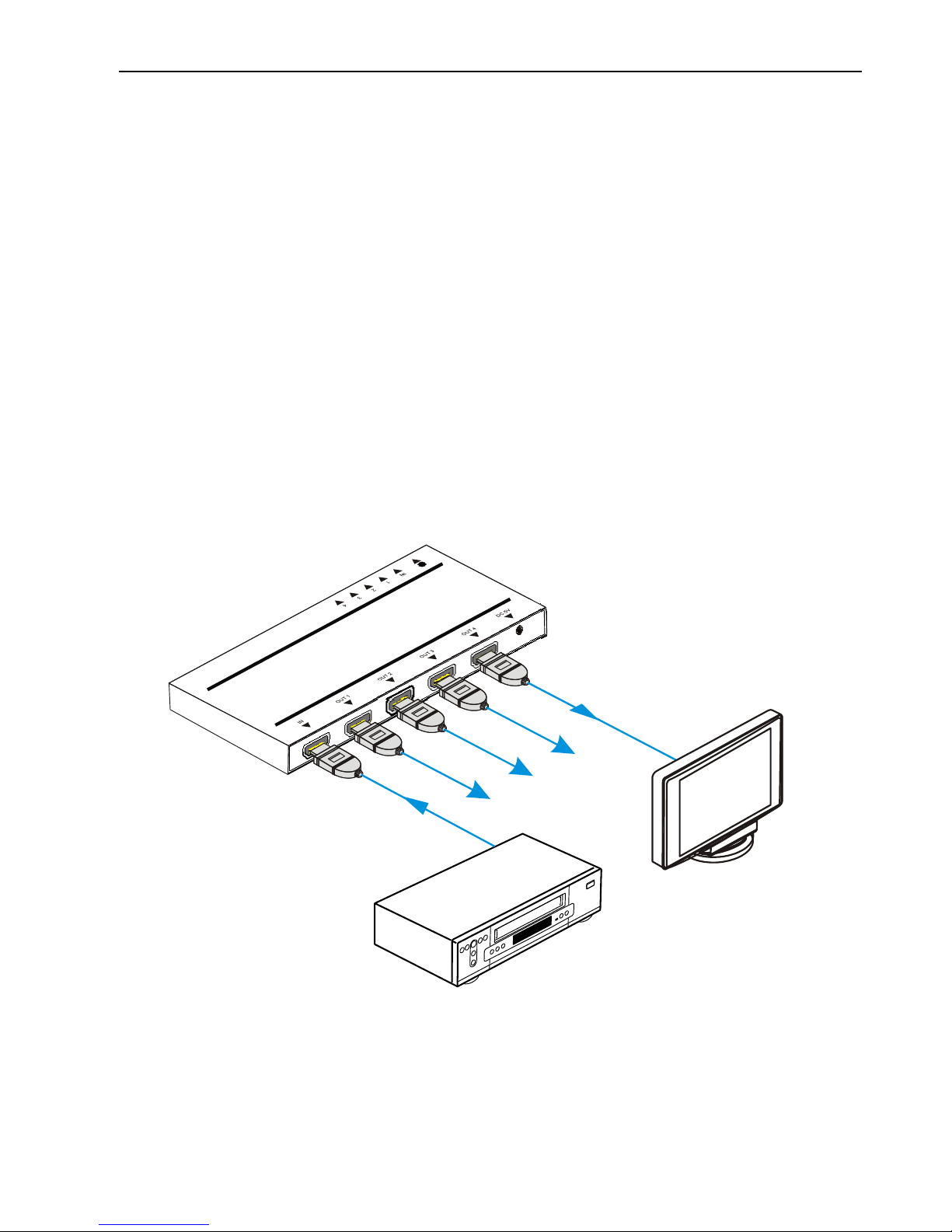

3.2 System Diagram
The following diagram illustrates typical input and output connections that can be
utilized with MP-DA4HD-4K:
3.3 Connection Procedures
Step1. Connect a HDMI/ DVI source device (e.g. Blue-ray DVD) to the HDMI INPUT
socket of MP-DA4HD-4K with HDMI cable.
Step2. Connect HDMI displays to HDMI OUTPUT sockets of MP-DA4HD-4K with HDMI
cable.
DVD
HDTV
M
P
-
D
A
4
H
D
-
4
K
Page 7
4K HDMI Splitter 1x4
4
Step3. Plug a DC 5V power adapter to the power port of MP-DA4HD-4K.
Note: All the ports support hot-plug. It’s important to know that hot plugging a display
may result in splash screen at all connected output devices.
3.4 EDID Management
MP-DA4HD-4K comprises 1 HDMI input port & 4 HDMI output ports, EDID management
helps distributing and routing signals from the source at the resolution of the first
detected display (detecting from output 1~4).
For example: when output 1 connects with a 1080p display, MP-DA4HD-4K will select
1080p as output resolution and distribute 1080p signal to displays connected to output
1~4.
Note: If the displays connected to output 2~4 don’t support 1080p signal, there will be
no output on the displays.
3.5 Application
MP-DA4HD-4K has a good application in various occasions, such as computer realm,
monitoring, conference room, big screen displaying, television education, command &
control center and smart house etc.
3.6 Firmware Upgrade
MP-DA4HD-4K boasts a USB port for online firmware upgrade. Follow these steps to
upgrade firmware:
Step1. Copy the latest upgrade file (.hex) to PC.
Step2. Connect the USB ports of MP-DA4HD-4K and the PC via USB cable.

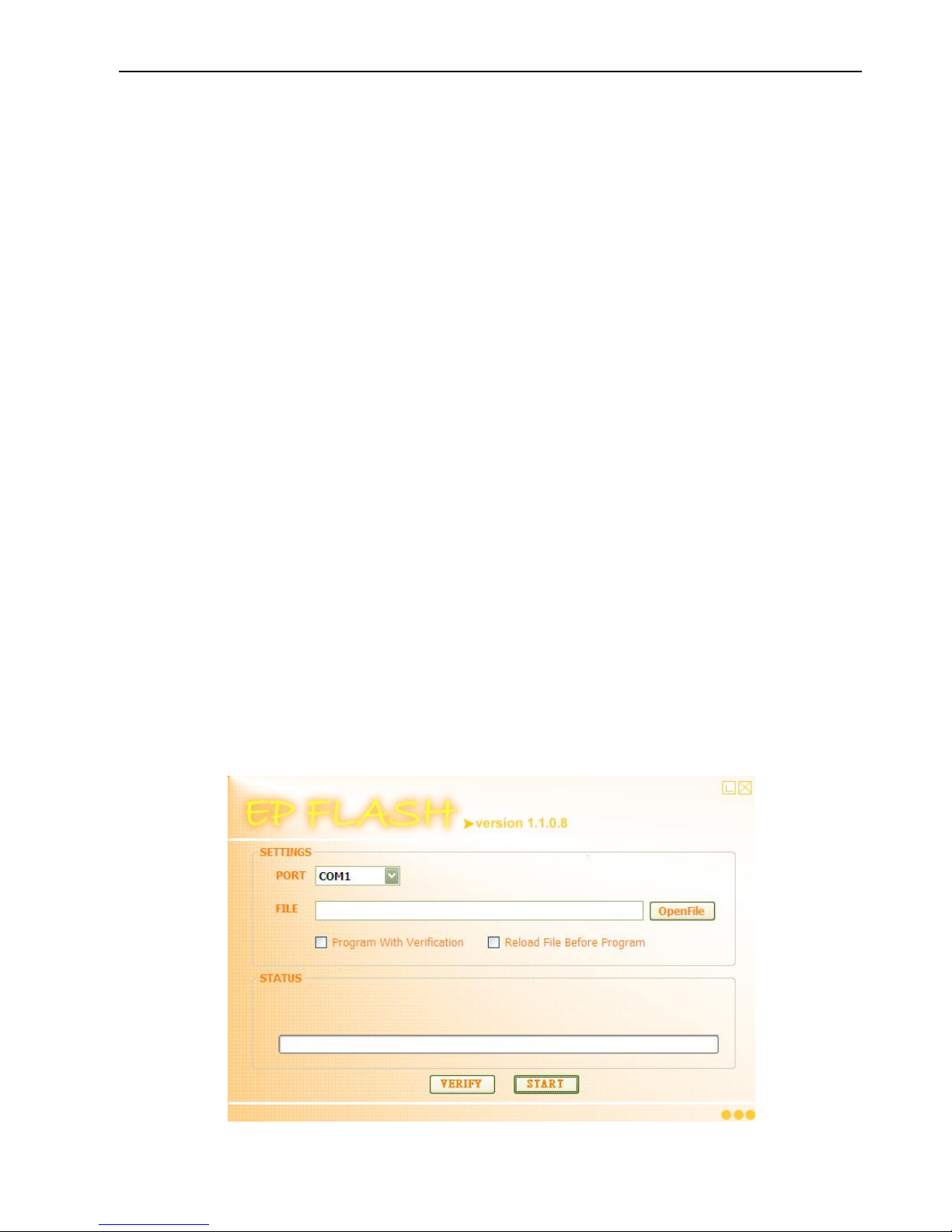

Step3. Double-click the file icon, it will enter the upgrade interface shown as below:
Page 8
4K HDMI Splitter 1x4
5
Step4. Select the right port number in the dropdown list of PORT, and click OpenFile to
load the upgrade file. Click Start to start firmware upgrading.
4. Specification
Video Input
Input
1 HDMI
Input Connector
1 female type A HDMI 1.4
Min/ Max Signal Level
T.M.D.S. 2.9V~3.3V
Input Impedance
Differential 100Ω
Video Output
Output
4 HDMI
Output Connector
1 female type A HDMI 1.4
Min/ Max Signal Level
T.M.D.S. 2.9V~3.3V
Output Impedance
Differential 100Ω
Video General
Max data rate
10.2Gbit/s
Max Resolution
4Kx2K, 1080P 3D@60Hz
Max Pixel Clock
340MHz
Gain
0dB
HDCP
Compliant with HDCP1.4
EDID
In-built EDID management
General
Temperature
-10 ~ +40℃
Reference
Humidity
10% ~ 90%
Power
DC 5V 1A
Power
Consumption
3.6W (Max)
Dimension
(W*H*D)150x11x70mm
Weight
0.12kg
Page 9
4K HDMI Splitter 1x4
6
4.1 Supported Input Video Formats
Input Resolution
HDMI
DVI
720 x 480@60Hz
720 x 480I@30Hz
720 x 576@50Hz
720 x 576I@25Hz
1280 x720@50Hz
1280 x720@60Hz
1920 x 1080@25Hz
1920 x 1080@50Hz
1920 x 1080@60Hz
1920 x 1080I@25Hz
1920 x 1080I@30Hz
3840 x 2160@25Hz
3840 x 2160@30Hz
1080P 3D@60Hz
Note: MP-DA4HD-4K supports 4k& 3D HDMI signals, please adopt quality HDMI cables
compliant with HDMI1.4 for better transmission when connecting 4K or 3D sources.

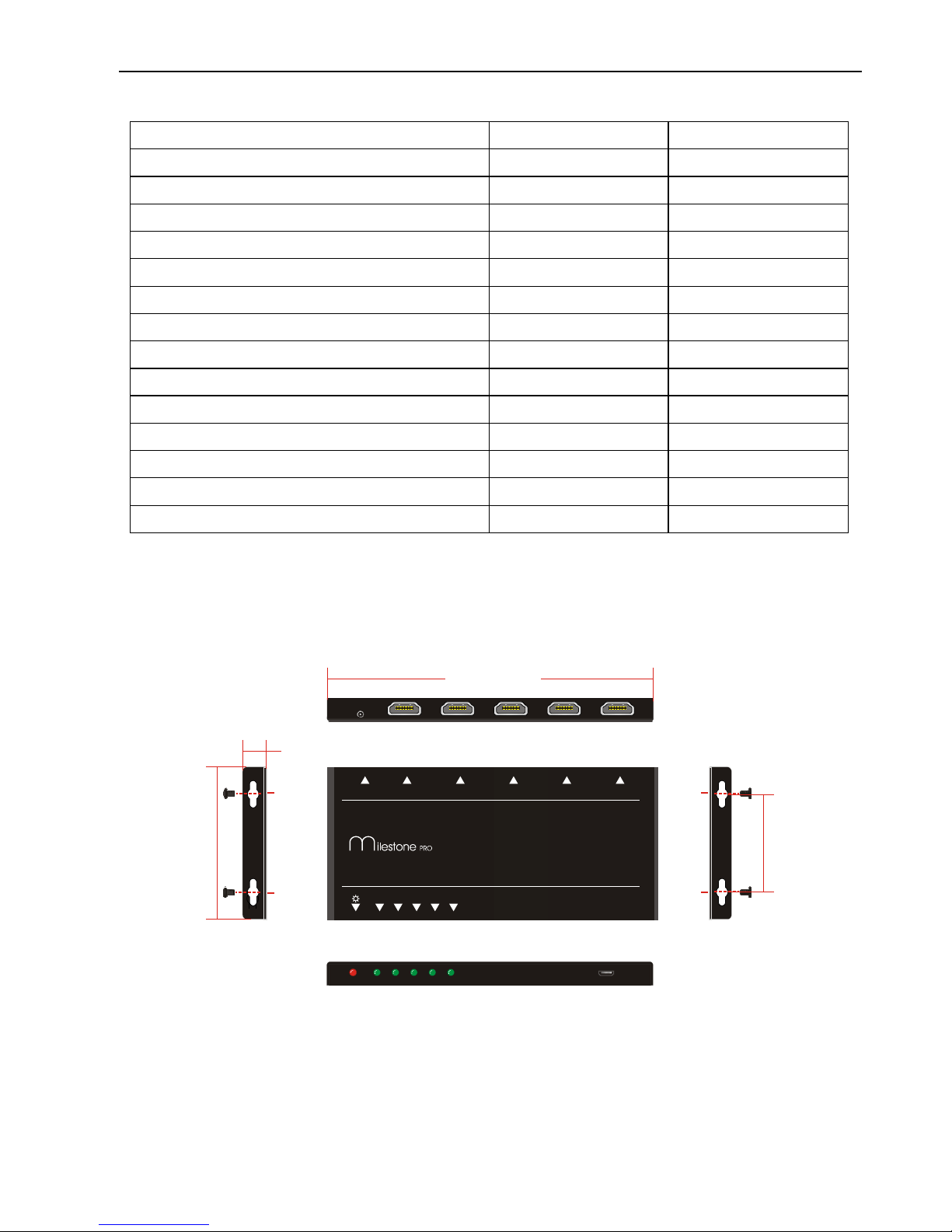

5. Panel Drawing
MP-DA4HD-4K
IN 1 2
3 4
OUT 2
OUT 1
IN
OUT 3
OUT 4
DC 5V
FIRM WARE
0
m
m
4
5
m
m
150 mm
11 mm
Page 10
4K HDMI Splitter 1x4
7
6. Troubleshooting & Maintenance
Problems
Causes
Solutions
Color losing or no video
signal output in HDMI
display
The connecting cables may
not be connected correctly
or it may be broken.
Check whether the cables
are connected correctly
and in working condition.
The display is not
compatible with the present
output resolution.
Make sure the resolution of
the display(s) is compatible
with the present resolution.
No HDMI signal output in
MP-DA4HD-4K while local
HDMI input is in normal
working state
The connecting cables may
not be connected correctly
or it may be broken.
Check whether the cables
are connected correctly
and in working condition.
Splash screen in output
devices
Poor quality of the
connecting cable
Change for another cable
of good quality.
Static becomes stronger
when connecting the video
connectors
Bad grounding
Check the grounding and
make sure it is connected
well.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.
Page 11
4K HDMI Splitter 1x4
8
7. After-sales Service
If there appear some problems when running MP-DA4HD-4K, please check and deal
with the problems referring to this user manual. Any transport costs are borne by the
users during the warranty.
1) Product Limited Warranty: We warrant that our products will be free from defects
in materials and workmanship for three years, which starts from the first day you
buy this product (The purchase invoice shall prevail).
Proof of purchase in the form of a bill of sale or receipted invoice which is evidence
that the unit is within the Warranty period must be presented to obtain warranty
service.
2) What the warranty does not cover (servicing available for a fee):
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear
Use of supplies or parts not meeting our specifications
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized
Any other causes which does not relate to a product defect
Delivery, installation or labor charges for installation or setup of the product
3) Technical Support: Email to our after-sales department or make a call, please
inform us the following information about your cases.
Product version and name.
Detailed failure situations.
The formation of the cases.
Remarks: For any questions or problems, please try to get help from your local
distributor.
Loading...
