MILESTONE
HELPING
PATIENTS
MacroPATH e MacroPATH Basic
QX Series
Digital Imaging System for the grossing room
Operator Manual - MM161-001
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
3
Thank you for choosing one of our systems and welcome to the ever more crowded club of Milestone
laboratory instrumentation users.
We feel confident that you will be fully satisfied adding this new device to your laboratory.
We recommend to ready carefully this operator manual and to always keep it within reach for convenient and
quick referencing.
For any clarification or request for assistance, please contact our representative in your country:
Or contact
Milestone s.r.l.
Via Fatebenefratelli, 1/5
24010 Sorisole (BG) Italy
Tel. +39.035.412 8264
Fax +39.035.575498
web site www.milestonemed.com
e-mail marketing@milestonemedsrl.com
Read carefully this manual before using the instrument.
MM161-001- MacroPATH and MacroPATH Basic QX Series - Operator Manual
2018-11
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
4
INDEX
INDEX ................................................................................................................................................................ 4
1. INTRODUCTION ........................................................................................................................................ 6
1.1. Symbols used .................................................................................................................................... 6
1.2. Introduction to MacroPATH and MacroPATH Basic .......................................................................... 6
1.3. Technical Specifications .................................................................................................................... 7
1.4. Transport and storage conditions ...................................................................................................... 8
1.5. Warning information ........................................................................................................................... 9
1.6. Antivirus ............................................................................................................................................. 9

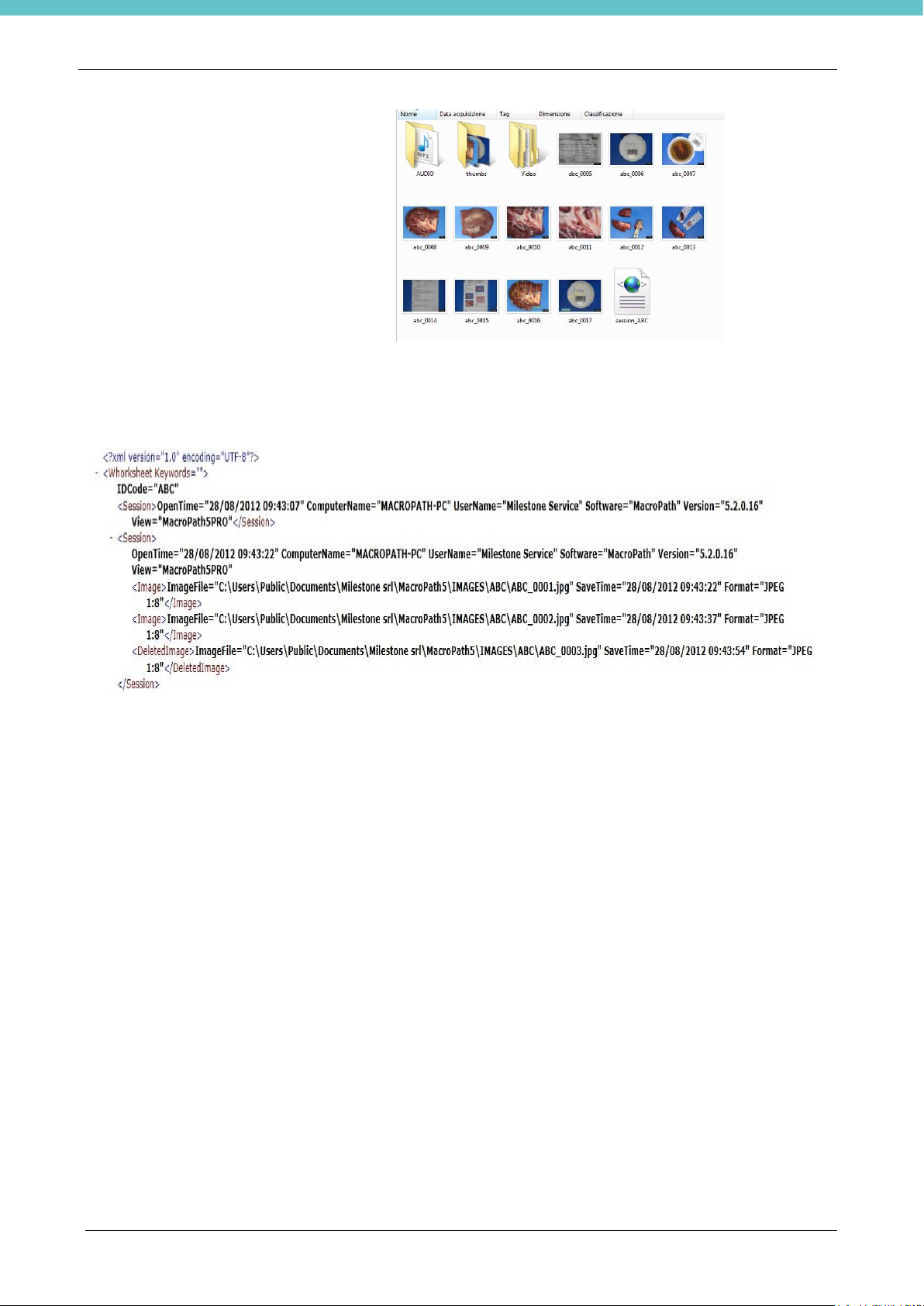

1.7. MacroPATH data backup (PICTURES OF FILES) .......................................................................... 10
1.8. Milestone remote connection ........................................................................................................... 10
1.9. MacroPATH and MacroPATH Basic labels ..................................................................................... 10
2. INSTALLATION ........................................................................................................................................ 11
2.1. Unpacking and checking MacroPATH and MacroPATH Basic components .................................. 11
2.2. Overview of PC Monitor (only for MacroPATH) ............................................................................... 13
2.3. Camera Overview ............................................................................................................................ 14
2.4. Table stand installation for MacroPATH PC Monitor ....................................................................... 15
2.4.1. PC Monitor connections ........................................................................................................... 16
2.5. Camera Lens Installation ................................................................................................................. 17
2.5.1. Camera Orientation ................................................................................................................. 18
2.5.2. Camera connections ................................................................................................................ 19
2.6. How to change the language of the Operating System and Keypad .............................................. 20
2.7. Software installation (only for MacroPATH BASIC) ......................................................................... 22
2.7.1 License activation ........................................................................................................................ 26
2.8. Foot pedal control configuration (only for MacroPATH Basic) ........................................................ 27
3. WORKING WITH MacroPATH ................................................................................................................. 28
3.1. Start MacroPATH ............................................................................................................................. 28
3.2. Log in and Log out ........................................................................................................................... 28
3.3. Overview of the functions ................................................................................................................ 29
3.3.1. Shortcut Keys........................................................................................................................... 30
3.3.2. Multifunctional buttons ............................................................................................................. 31

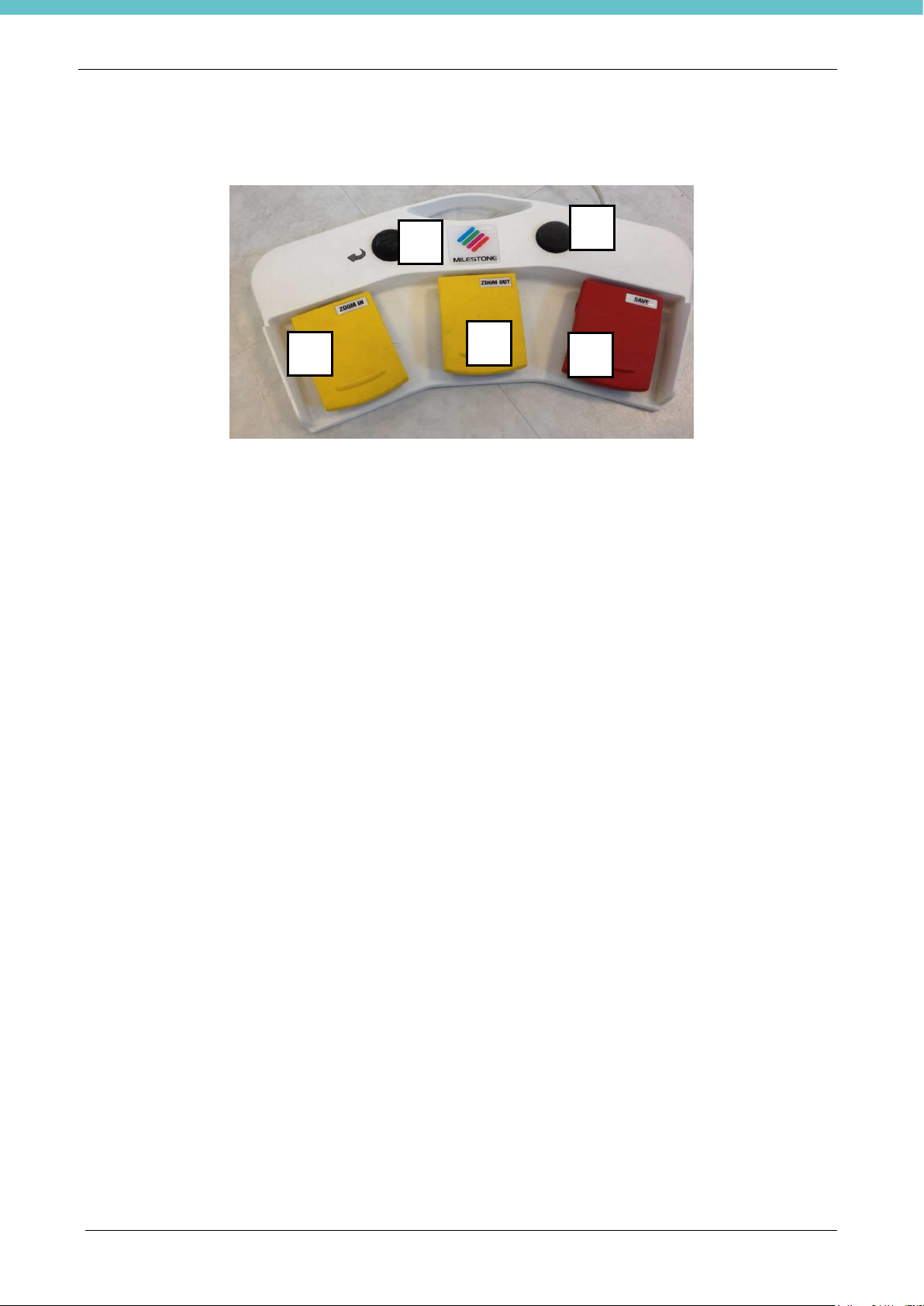

3.3.3. Foot pedal control .................................................................................................................... 32
3.4. How to operate ................................................................................................................................ 33
3.4.1. Create a file .............................................................................................................................. 33
3.4.2. Edit a file .................................................................................................................................. 33
3.4.3. Files area Functions ................................................................................................................ 34
3.4.4. LIVE area Function .................................................................................................................. 37
3.4.5. Create/retrieve a case ............................................................................................................. 38
3.4.6. Save Image/Video/Audio ......................................................................................................... 38

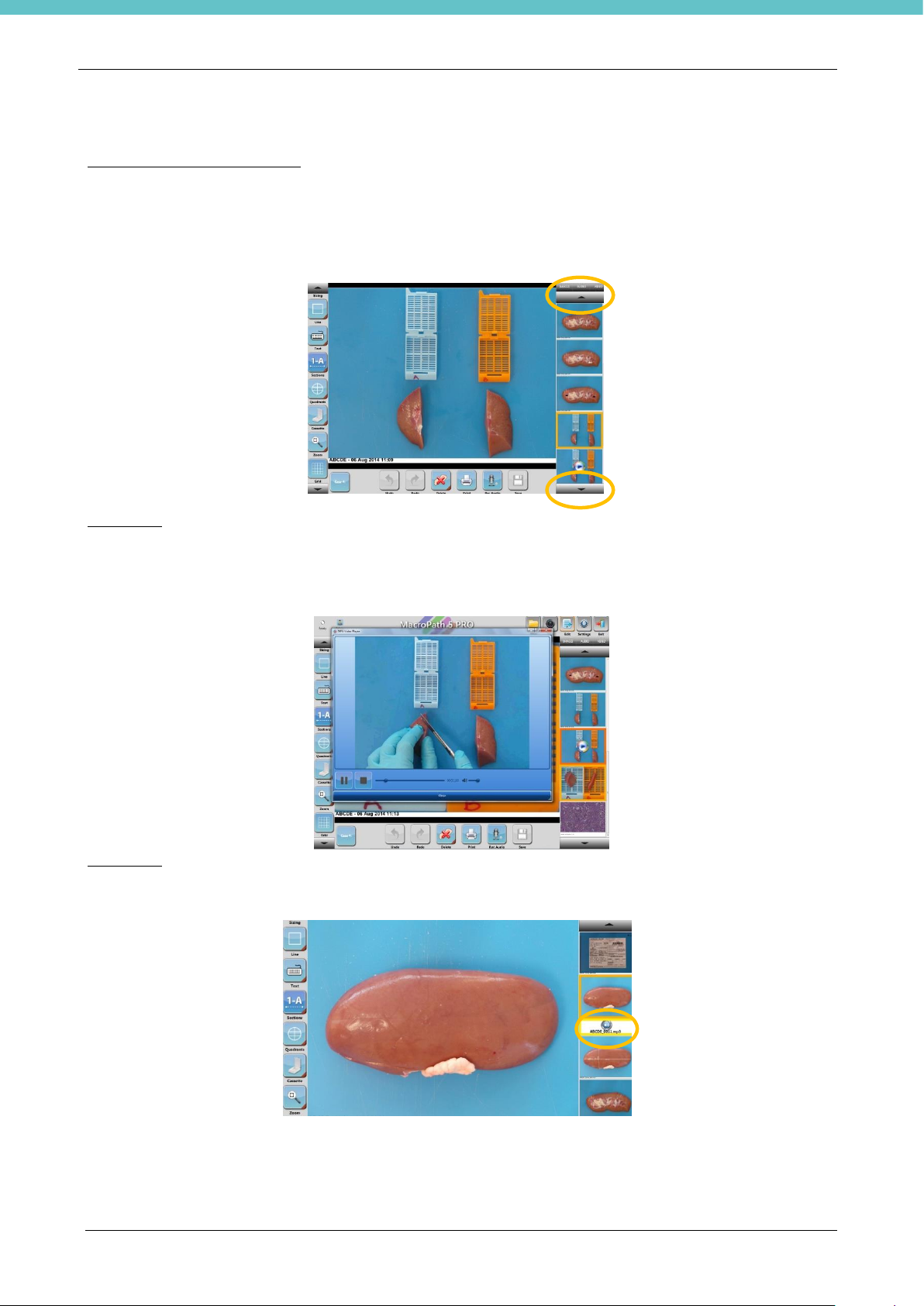

3.4.7. Thumbnails .............................................................................................................................. 39
3.4.8. Basic camera settings .............................................................................................................. 40
3.4.8.1 Advanced Camera Setting ....................................................................................................... 40

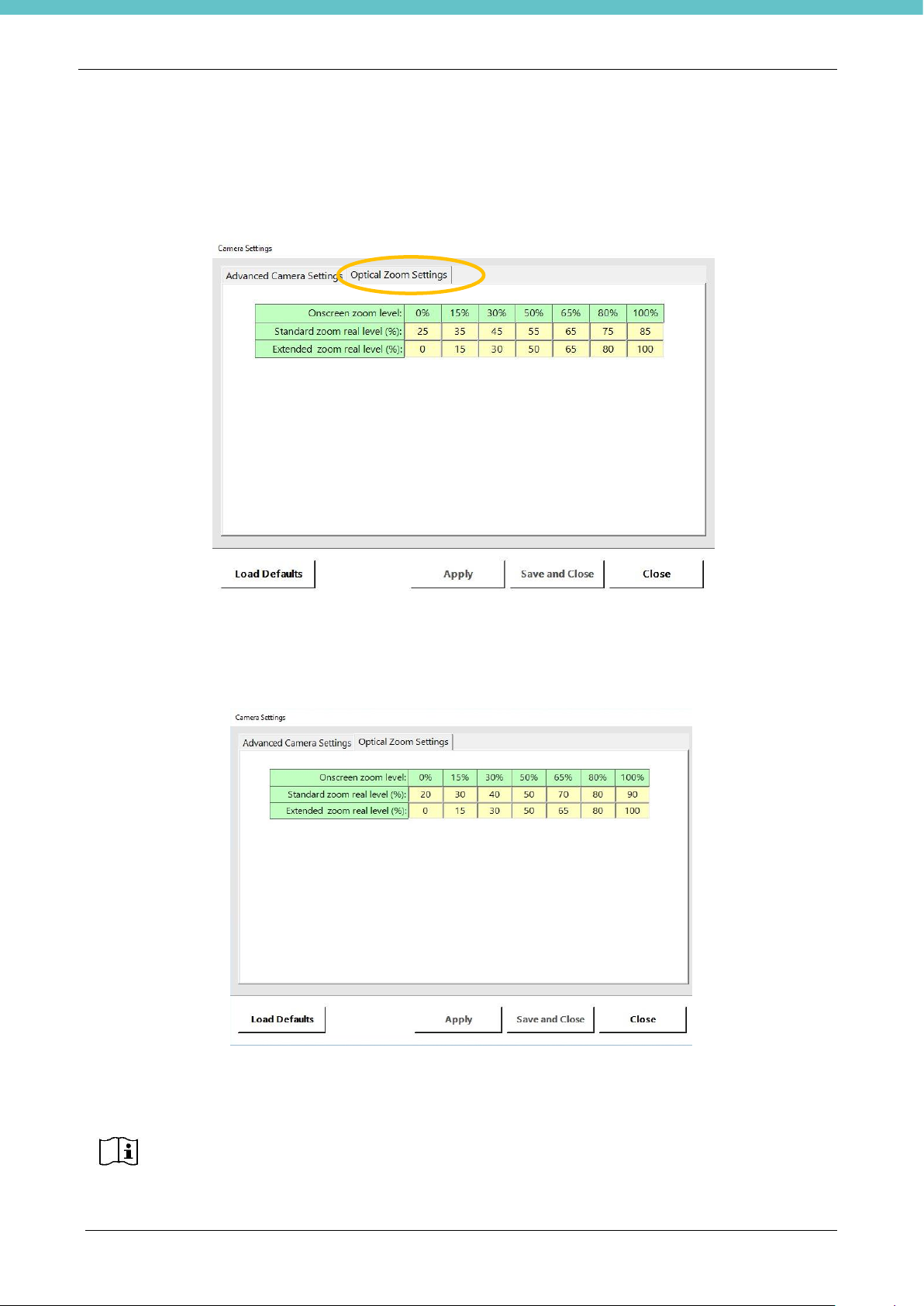

3.4.8.2 Optical Zoom Settings ............................................................................................................. 42
3.5. EDIT Functions ................................................................................................................................ 43

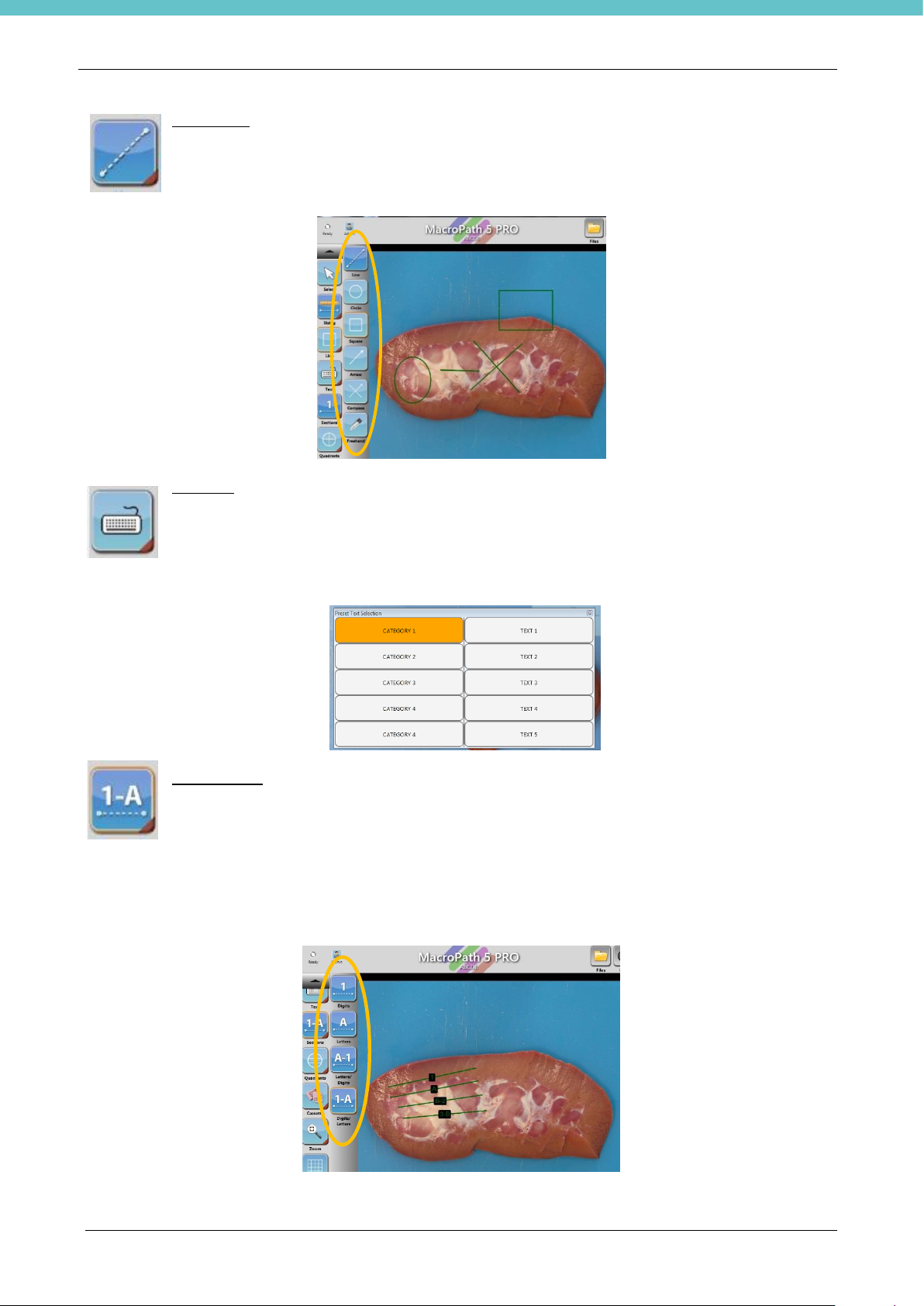

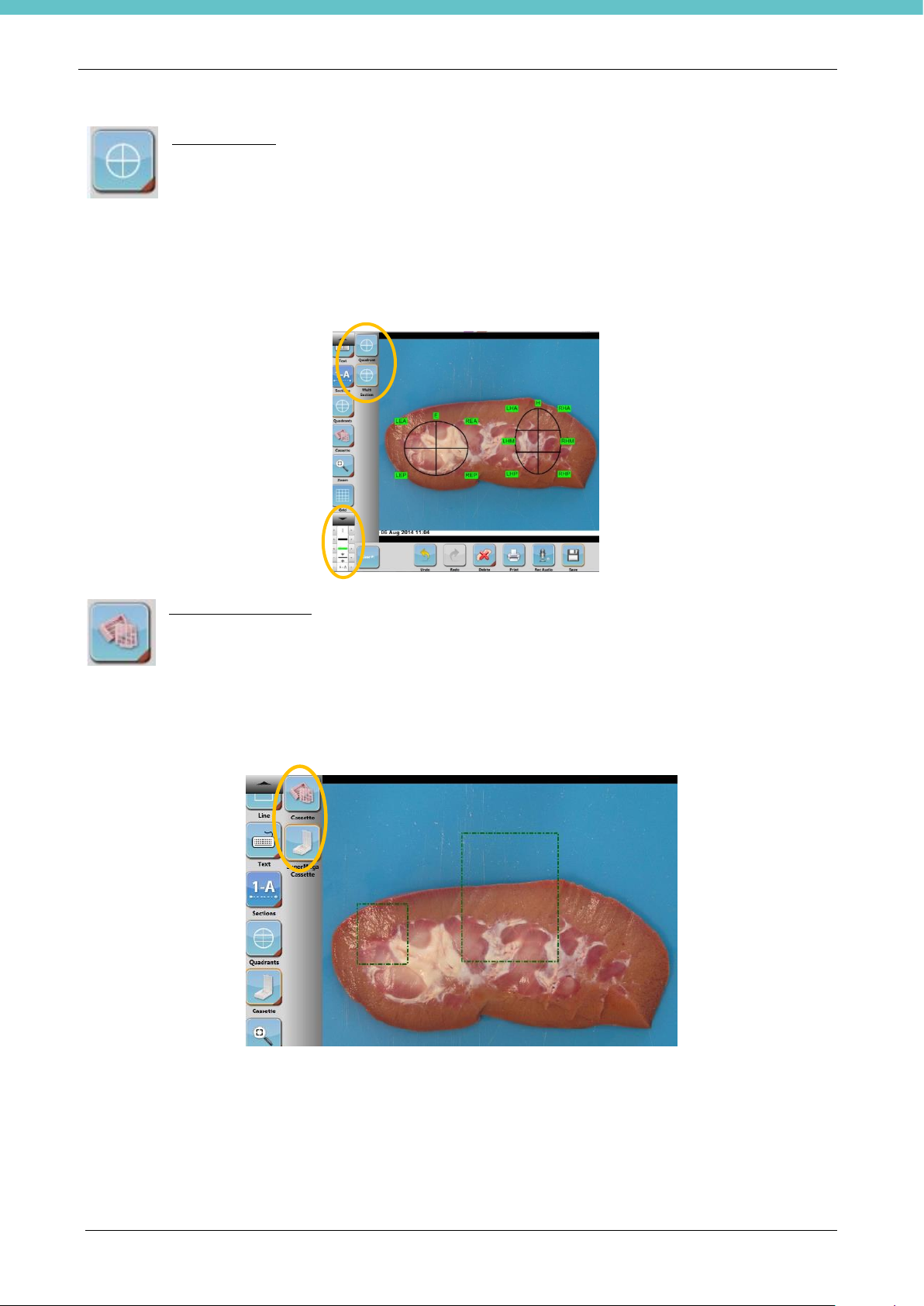

3.5.1. Tools ........................................................................................................................................ 44
3.5.2. Display utilities ......................................................................................................................... 48
3.5.3. Utility functions ......................................................................................................................... 49
3.6. SETTINGS ....................................................................................................................................... 50

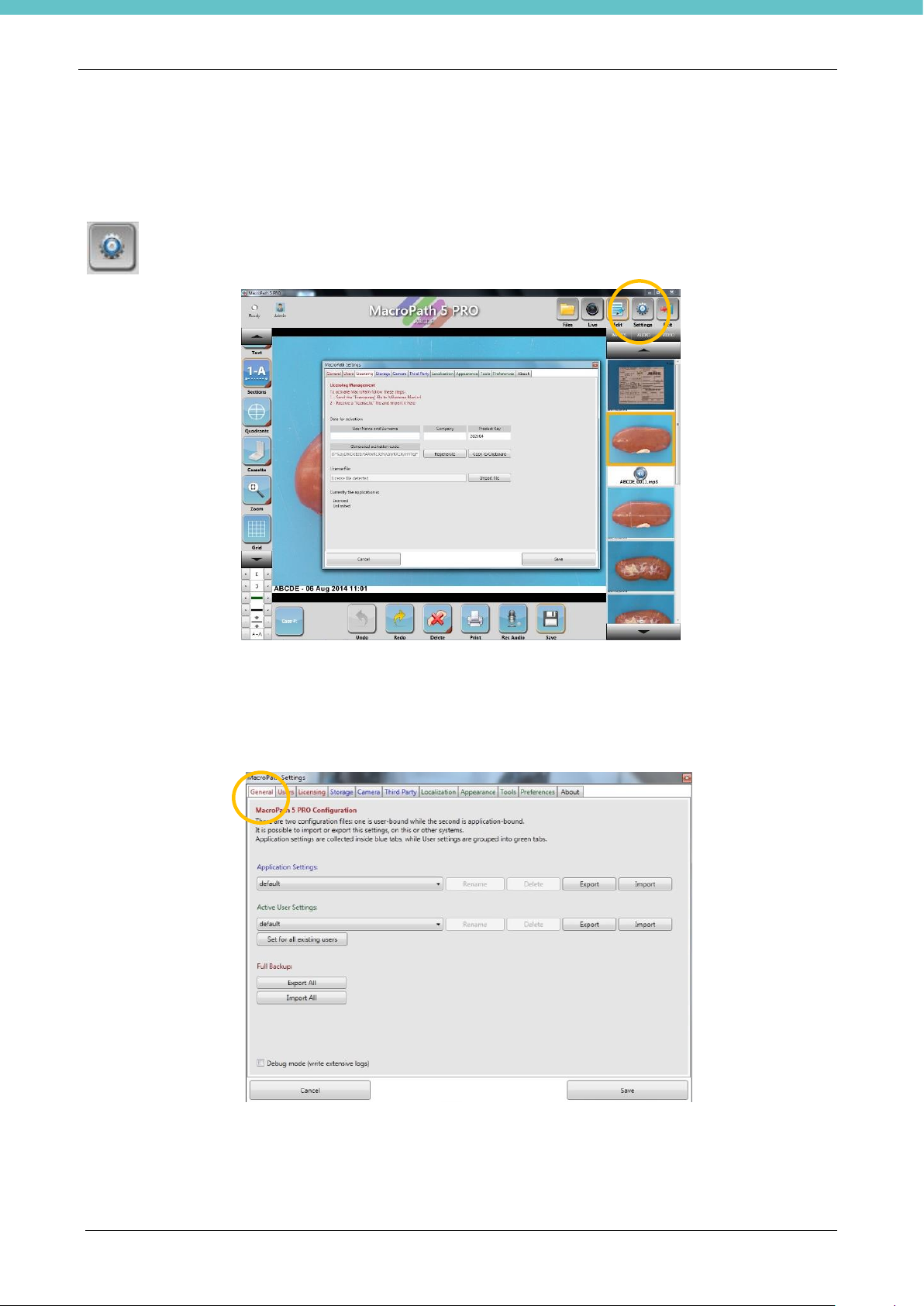

3.6.1. General Settings ...................................................................................................................... 50

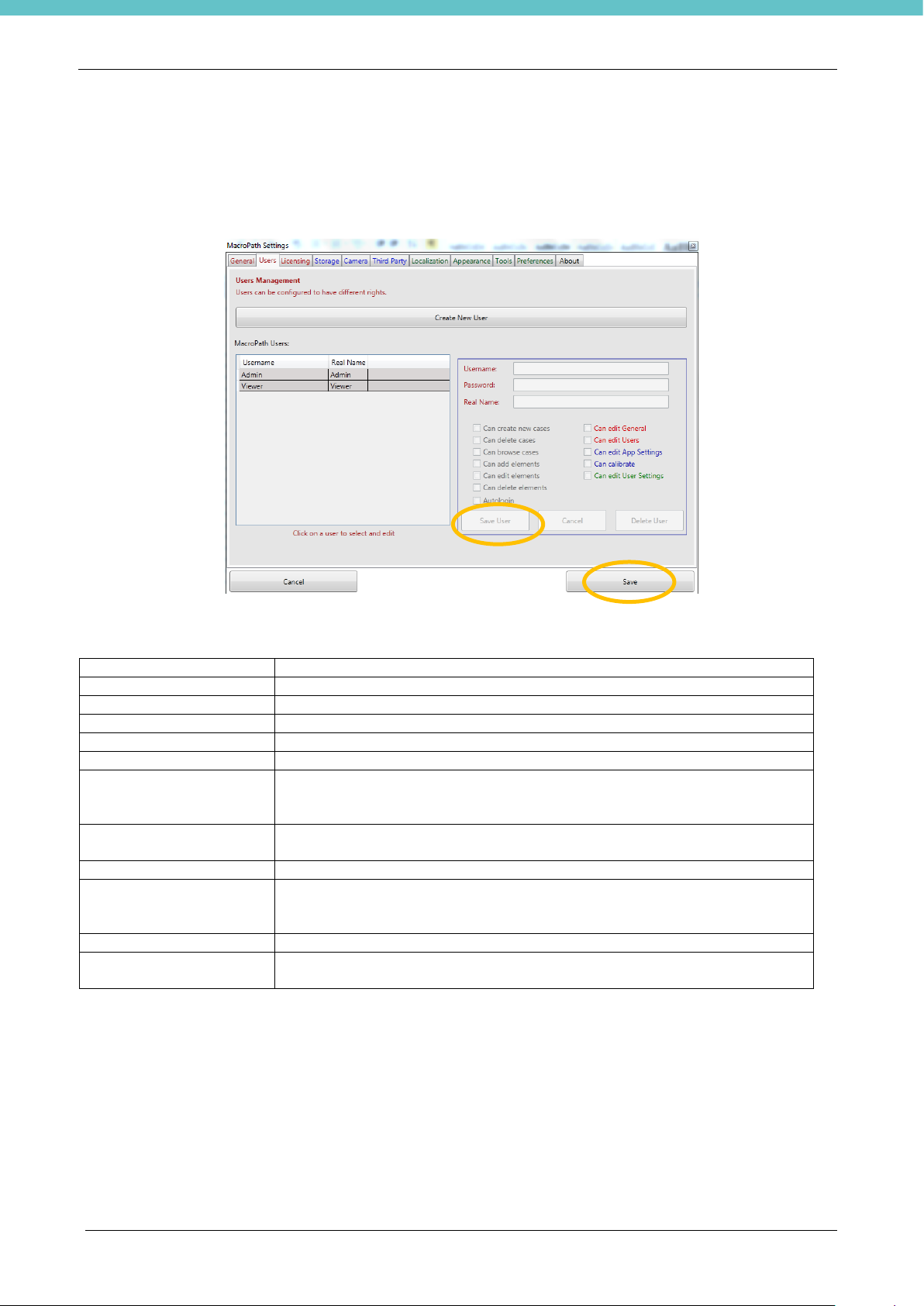

3.6.2. User Settings ........................................................................................................................... 51
3.6.3. Licensing settings .................................................................................................................... 52

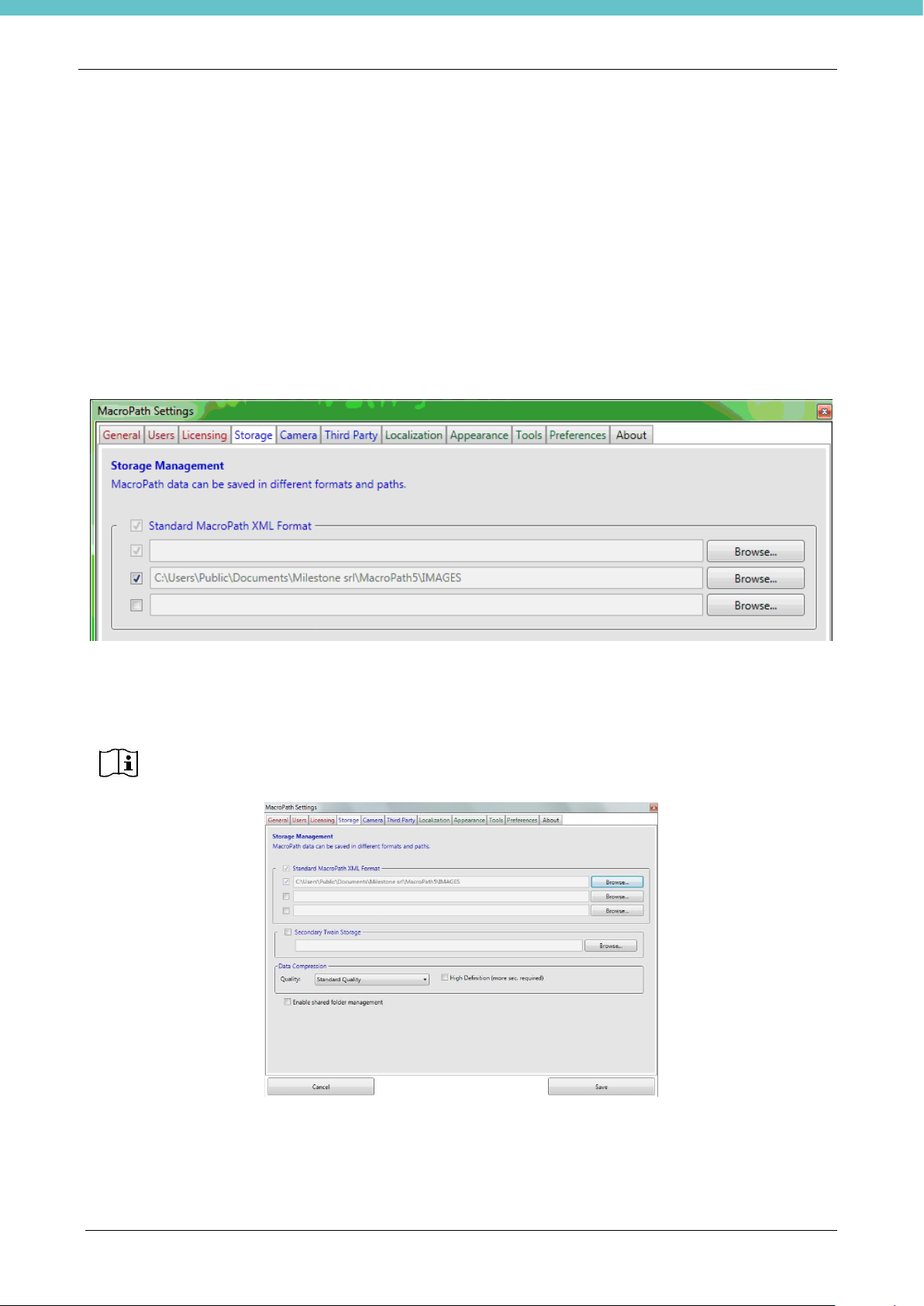

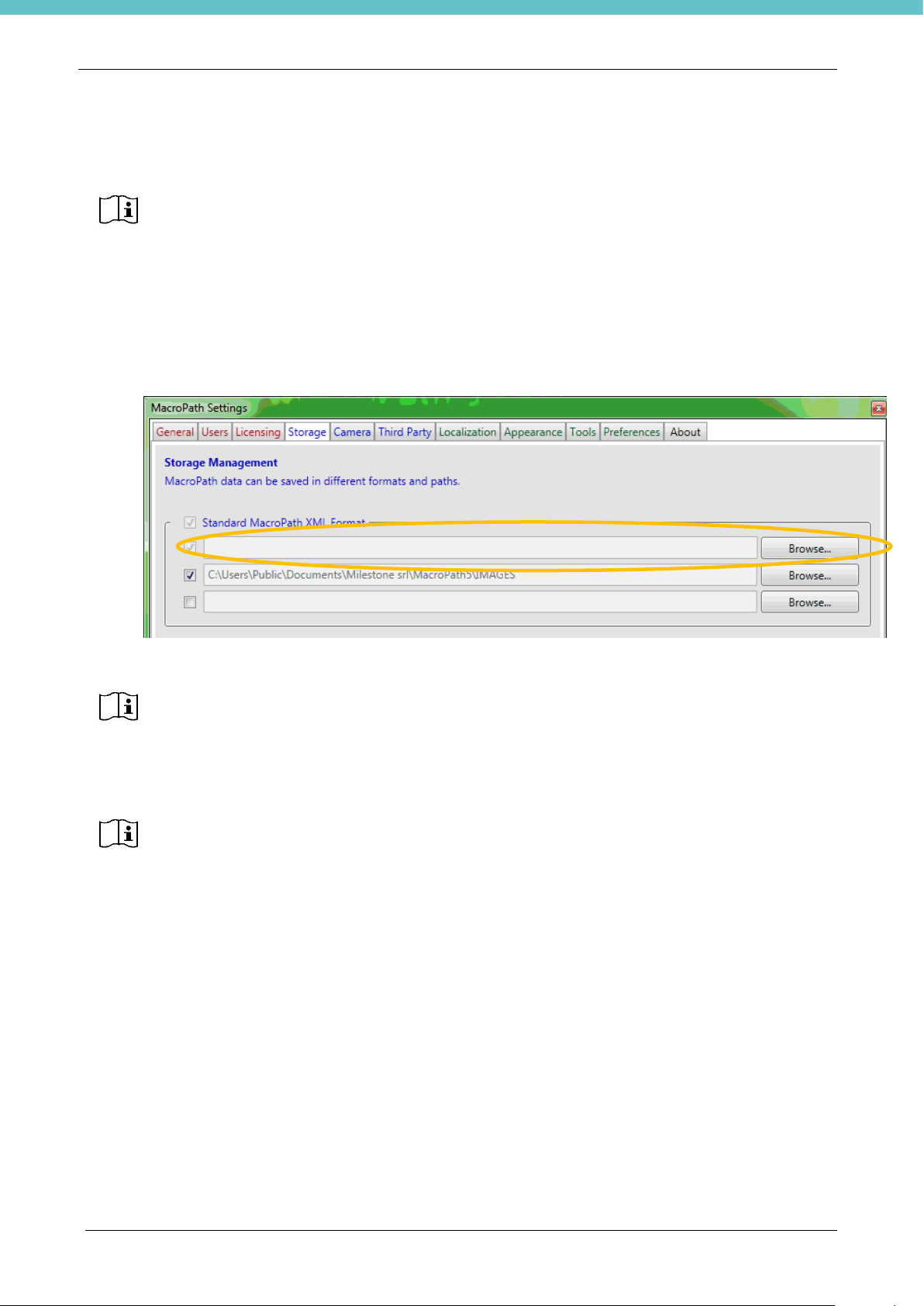

3.6.4. Data storage settings ............................................................................................................... 53
3.6.5. Camera Settings ...................................................................................................................... 54

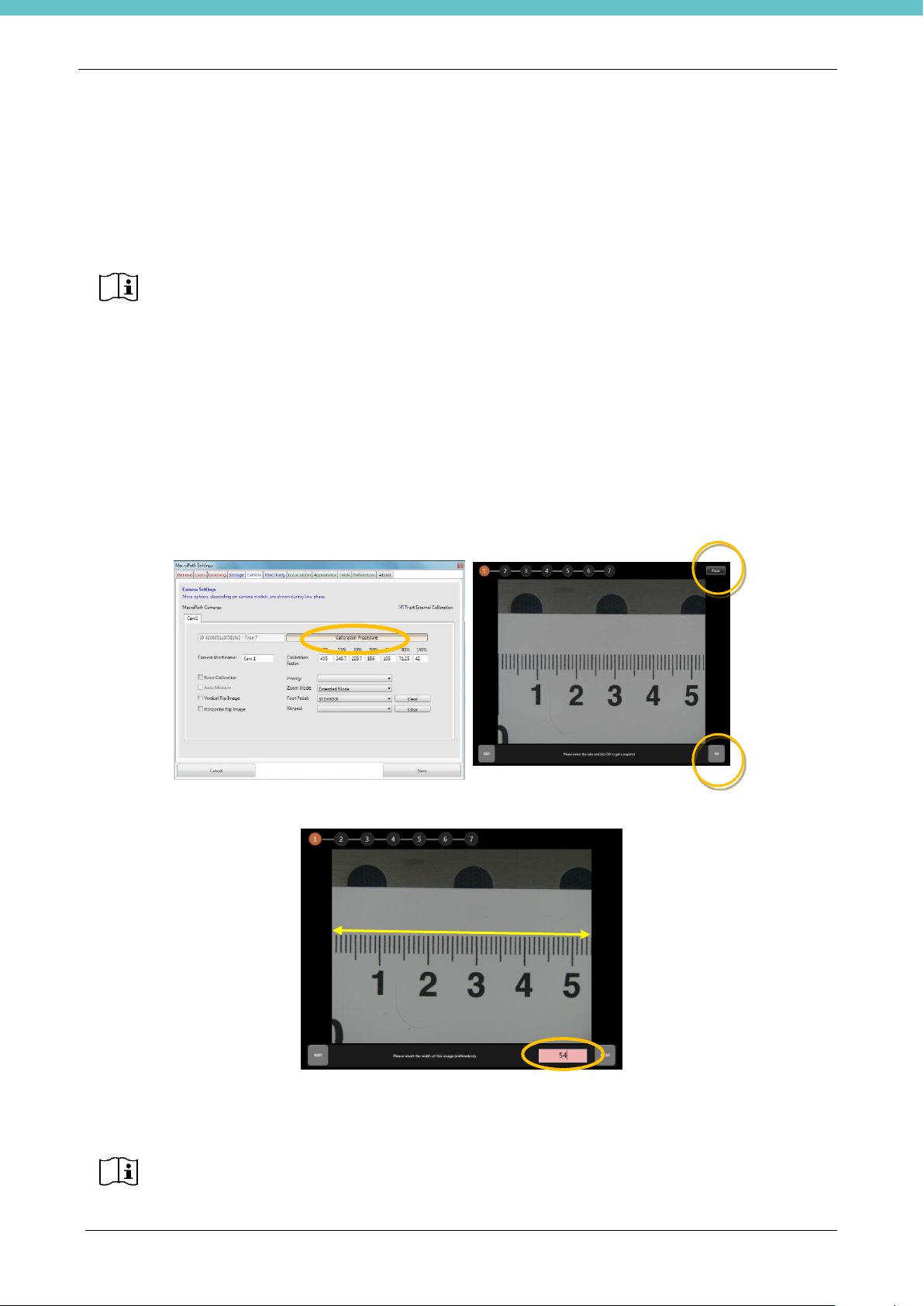

3.6.6. Calibration ................................................................................................................................ 55
3.6.7. Third-party settings .................................................................................................................. 56

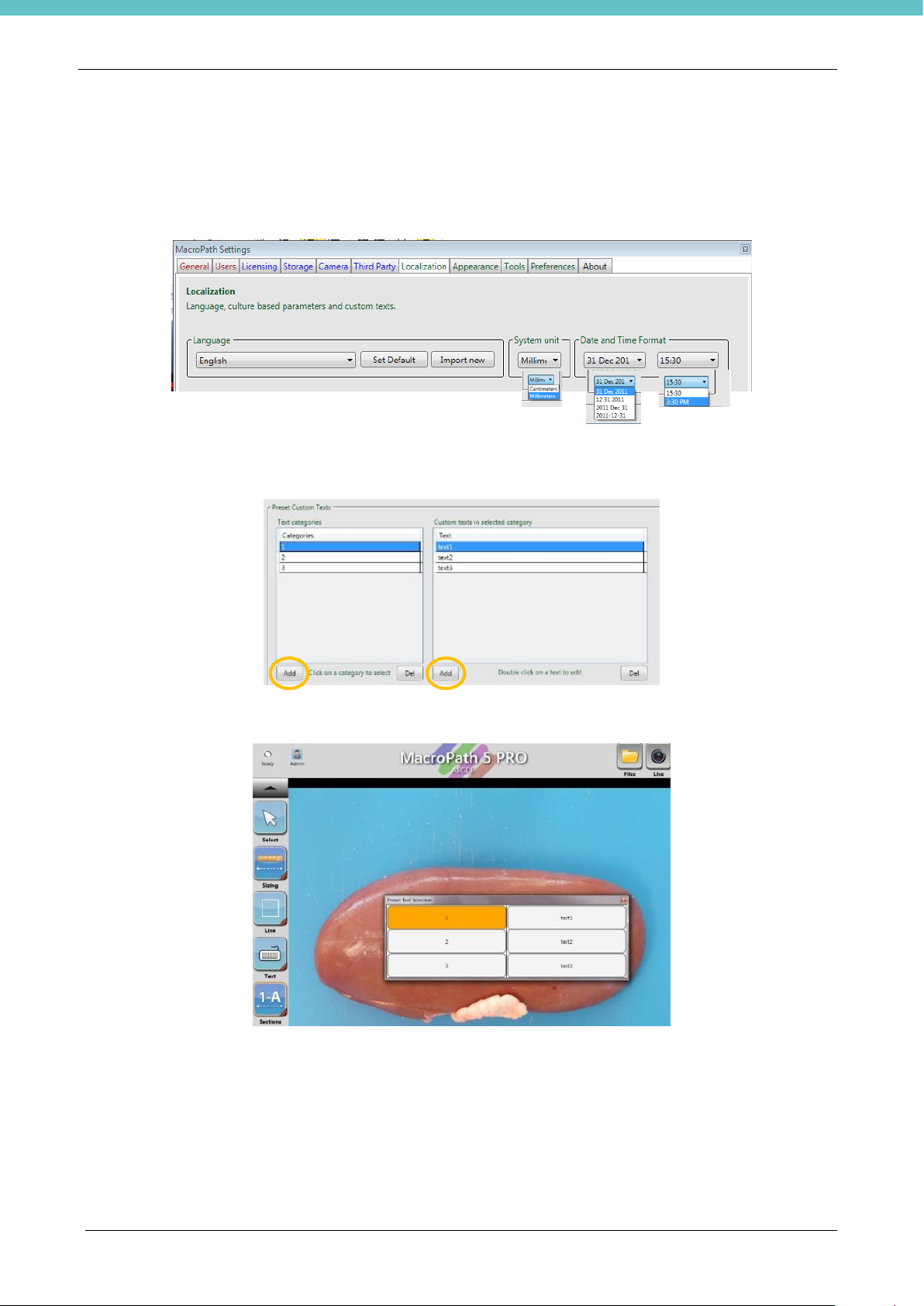

3.6.8. Language, date and units of measure settings ........................................................................ 59

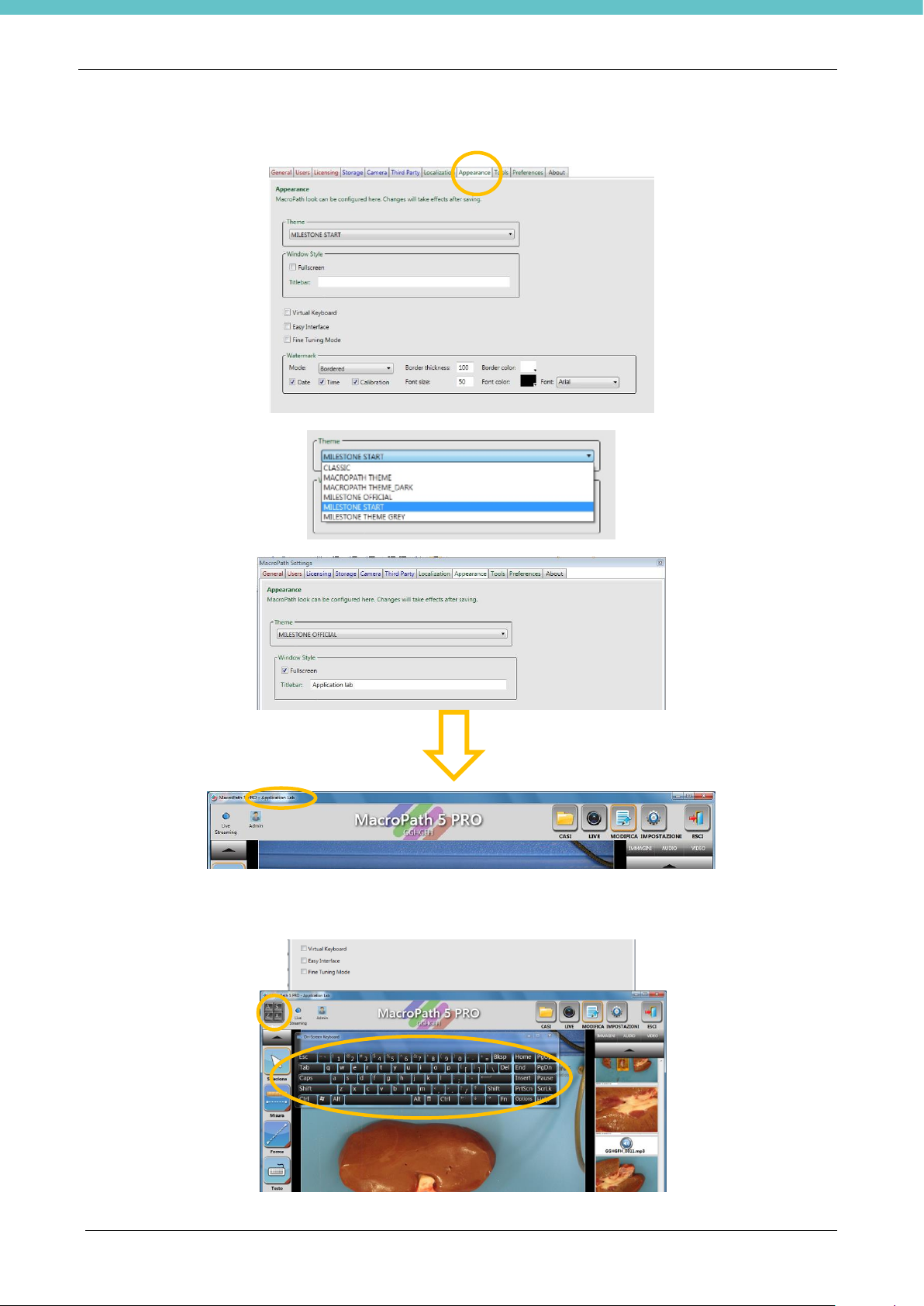

3.6.9. Appearance Settings ............................................................................................................... 60

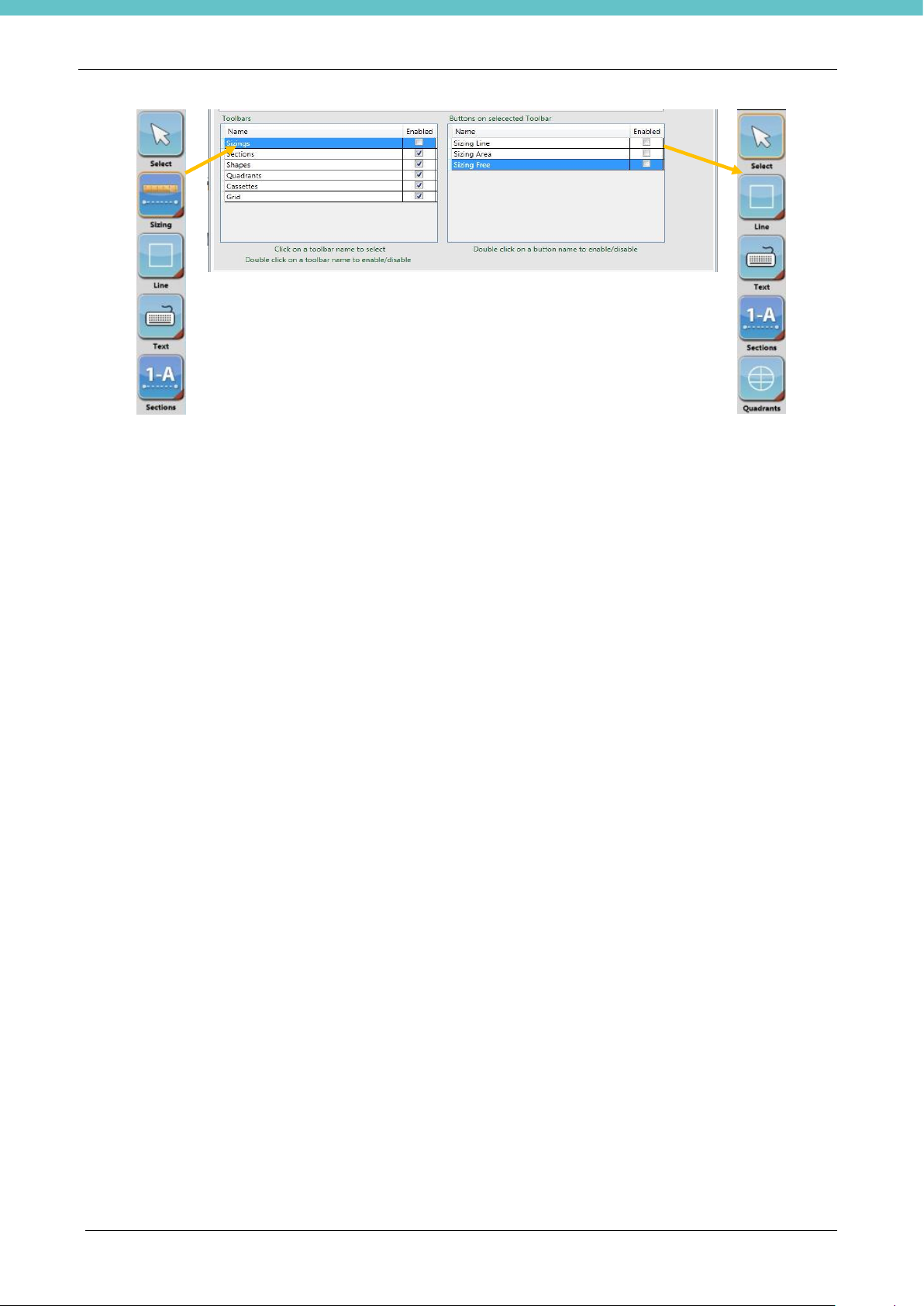

3.6.10. Edit tools settings ..................................................................................................................... 62

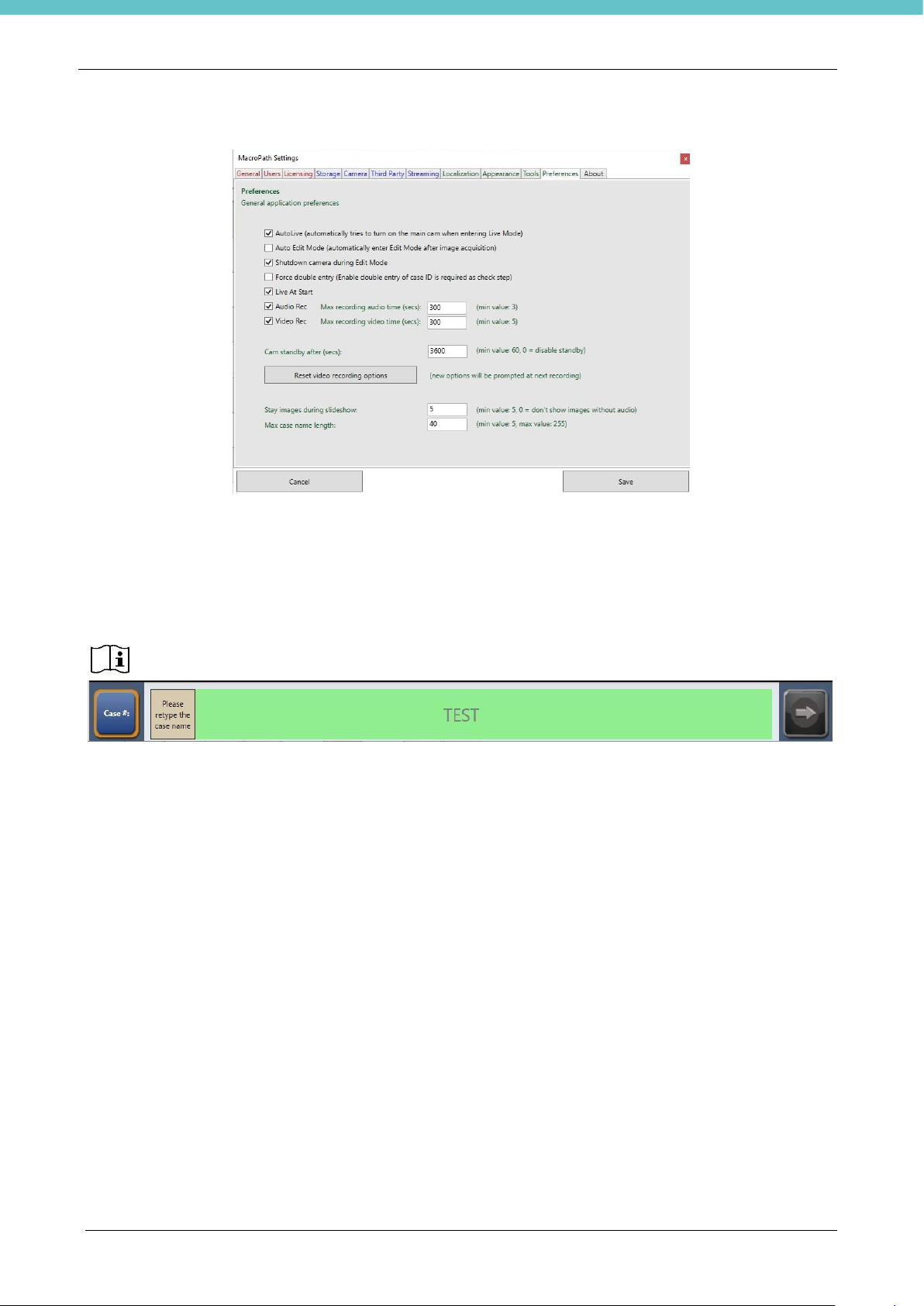

3.6.11. Preferences settings ................................................................................................................ 64
4. MacroPATH as MULTISTATION VIEWER .............................................................................................. 65
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
5
4.1. How to install MacroPATH as viewer .............................................................................................. 65
4.2. PC settings for MacroPATH Viewer ................................................................................................ 66

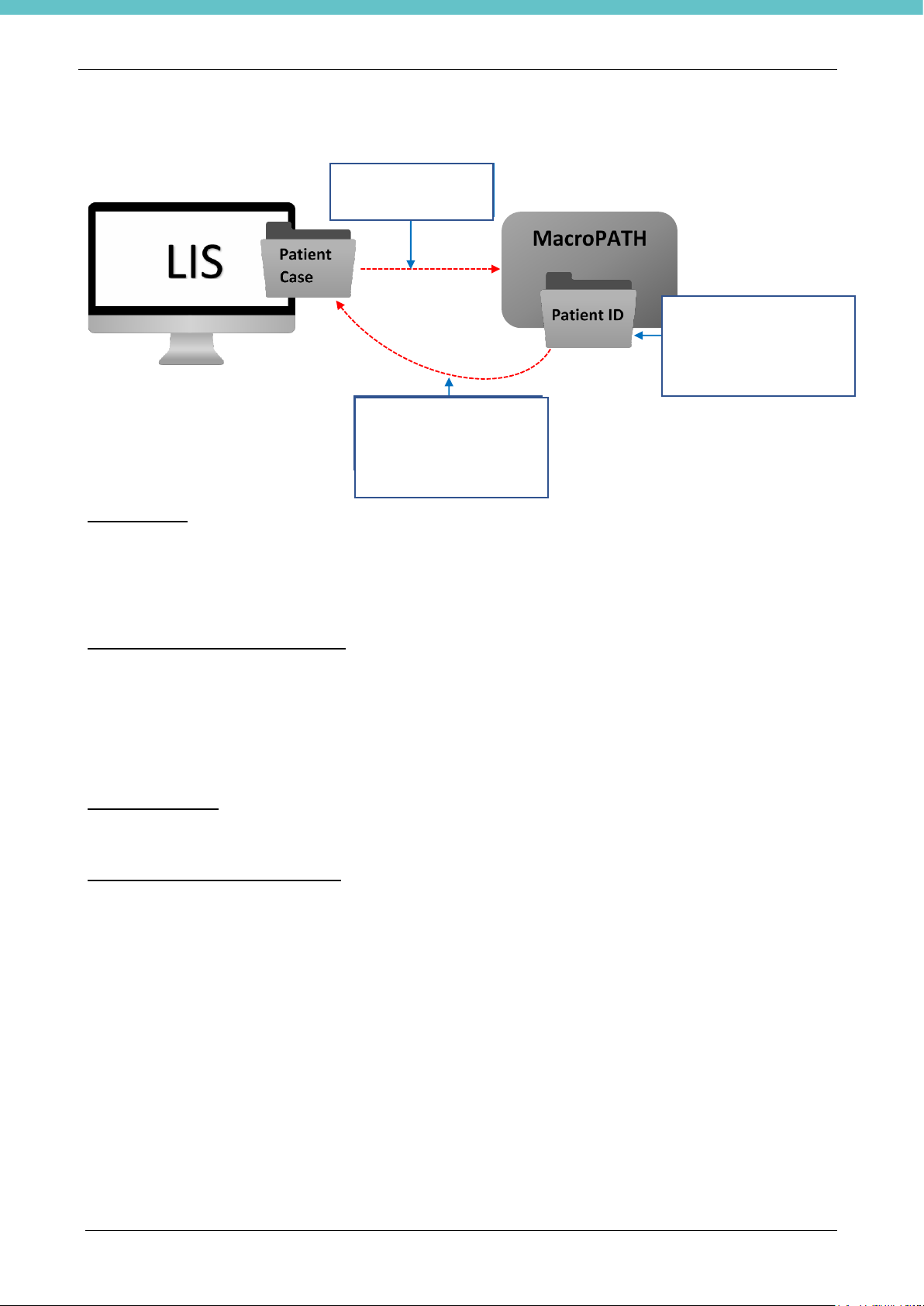

4.3. Integrating MacroPATH with LIS systems ....................................................................................... 67
5. MAINTENANCE ....................................................................................................................................... 71
5.1. MacroPATH cleaning up .................................................................................................................. 71

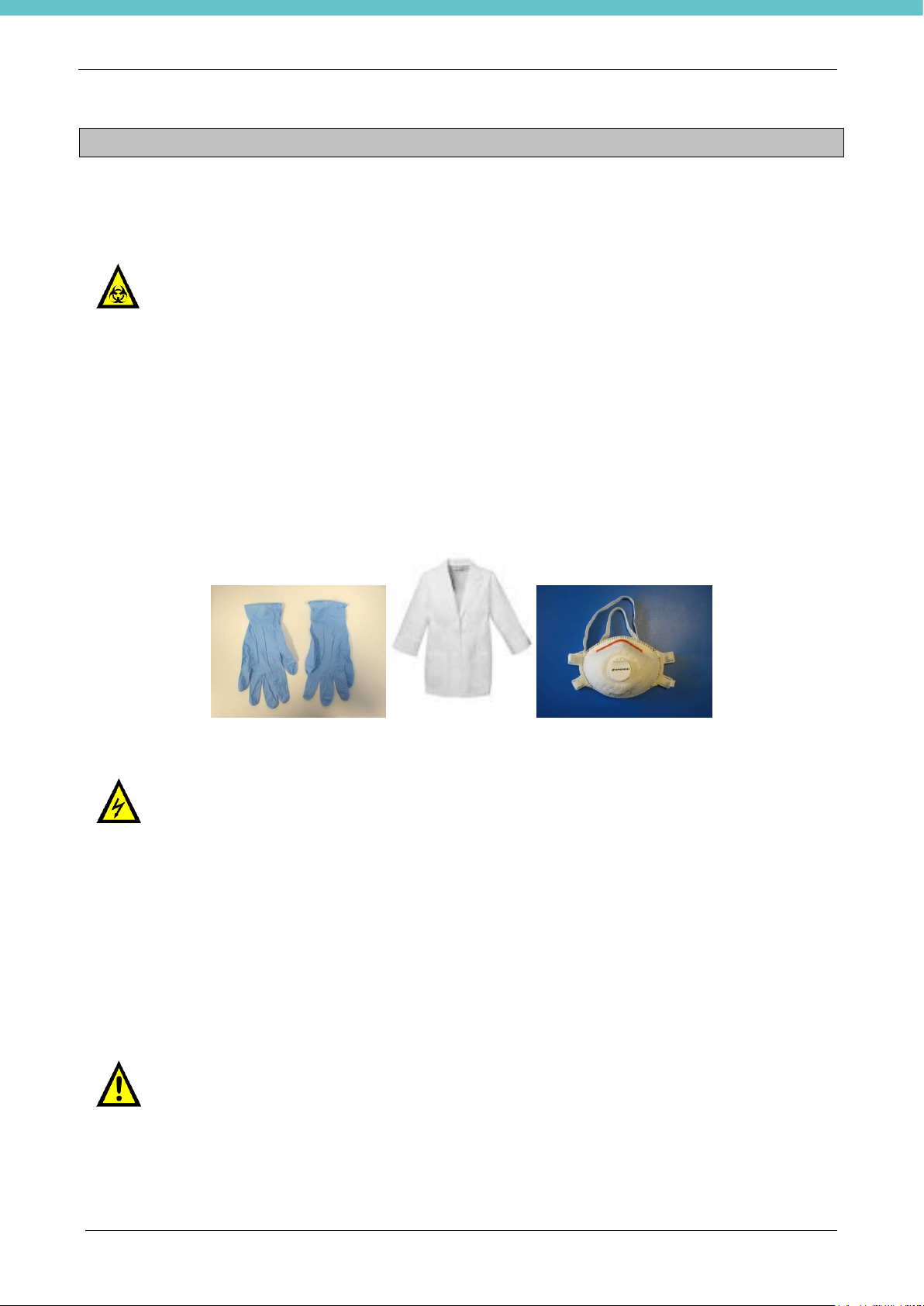

5.2. Safety precautions ........................................................................................................................... 71
5.2.1. PC Screen and Camera ........................................................................................................... 71
5.2.2. Keyboard and mouse ............................................................................................................... 72
5.2.3. Foot pedal control .................................................................................................................... 72
5.2.4. Touch-Pen ............................................................................................................................... 72
6. OPTIONAL PARTS .................................................................................................................................. 73
6.1. Table top camera holder .................................................................................................................. 73

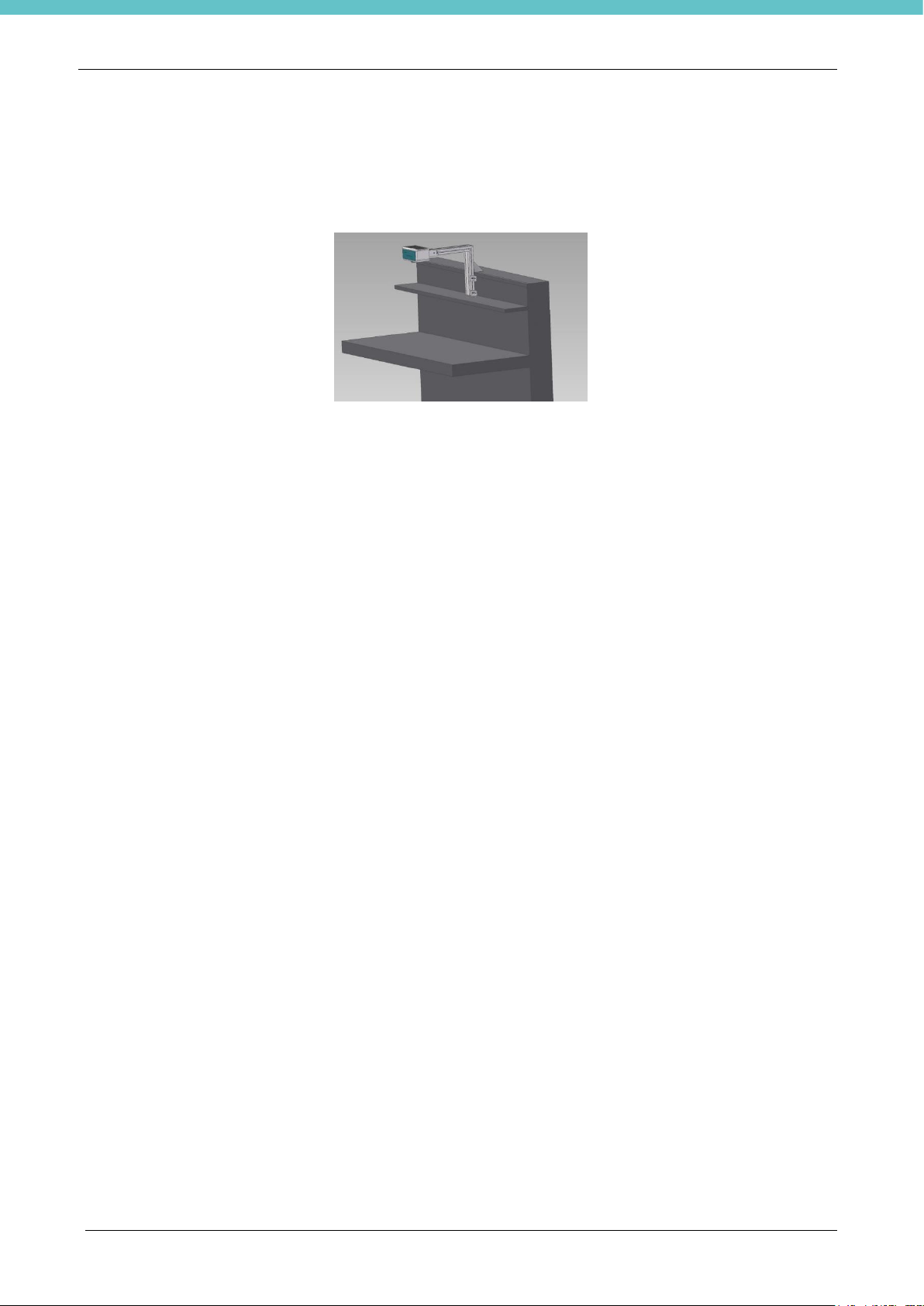

6.2. Camera holder for hood type Grossing Station ............................................................................... 75

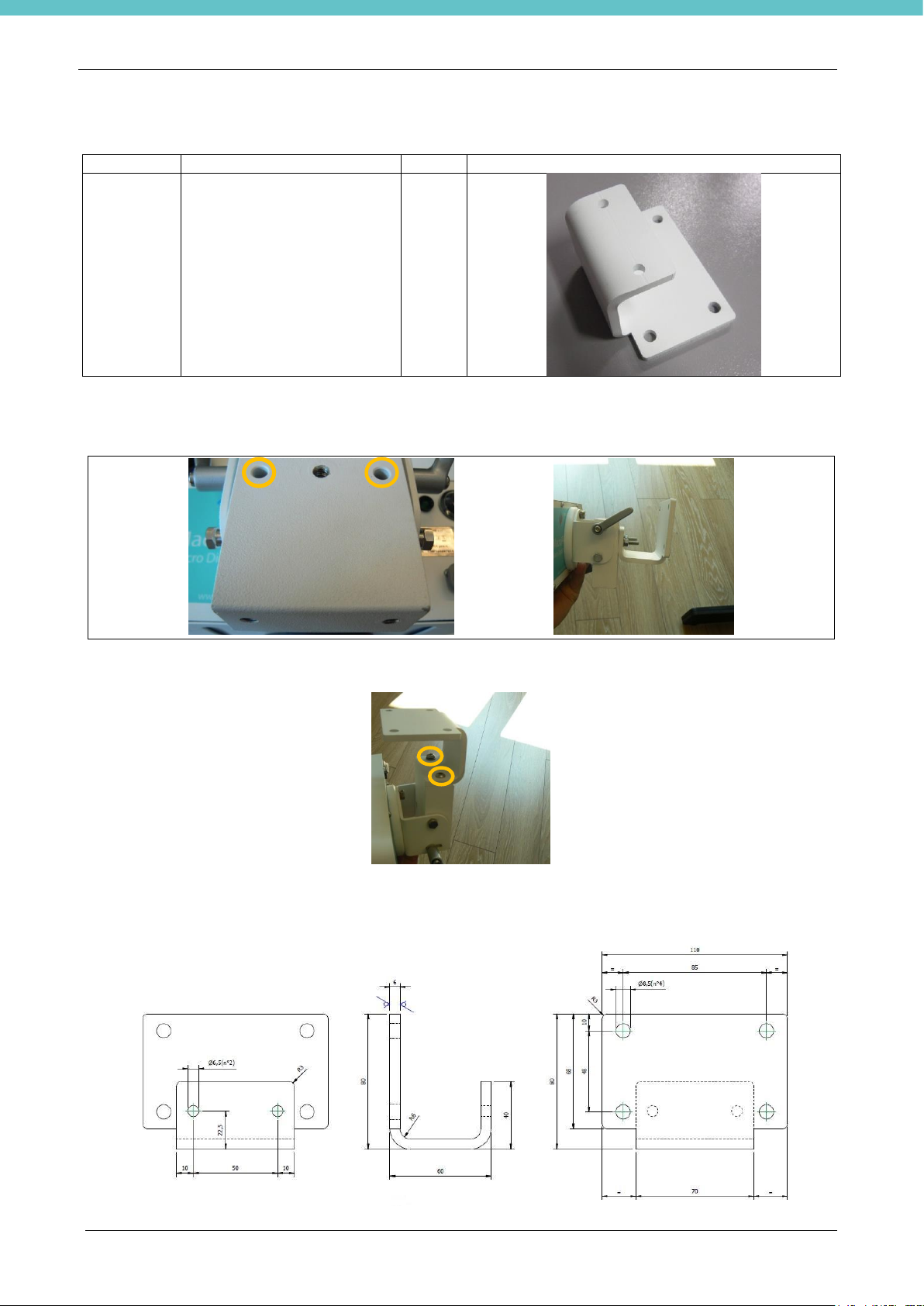

6.3. “C” bracket for MacroPATH camera ................................................................................................ 77

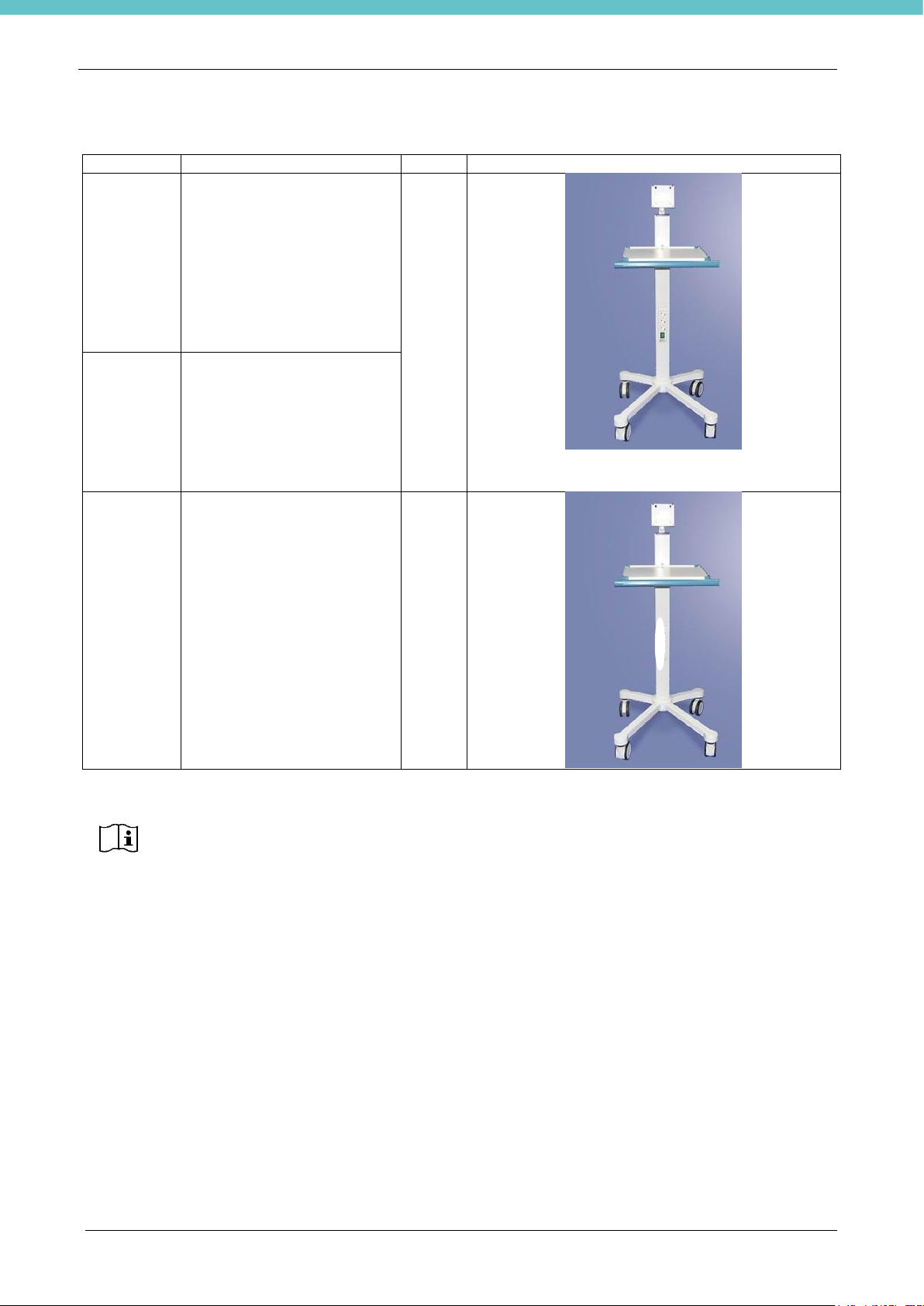

6.4. Floor Type Terminal Holder on wheels ............................................................................................ 78
6.5. Camera wall mount bracket ............................................................................................................. 79
6.6. Tube clamp camera mount .............................................................................................................. 81
6.7. Camera centring plate ..................................................................................................................... 83

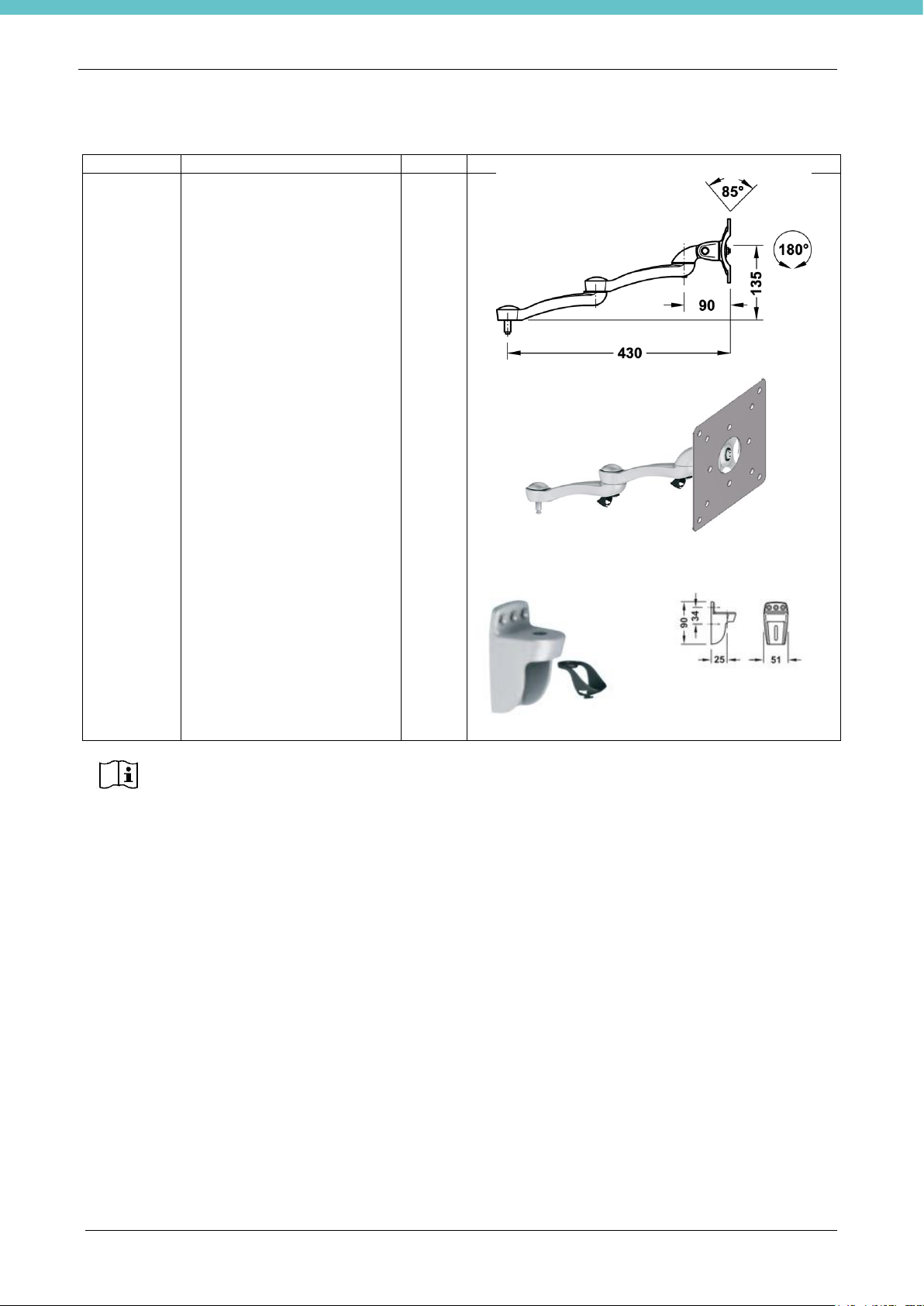

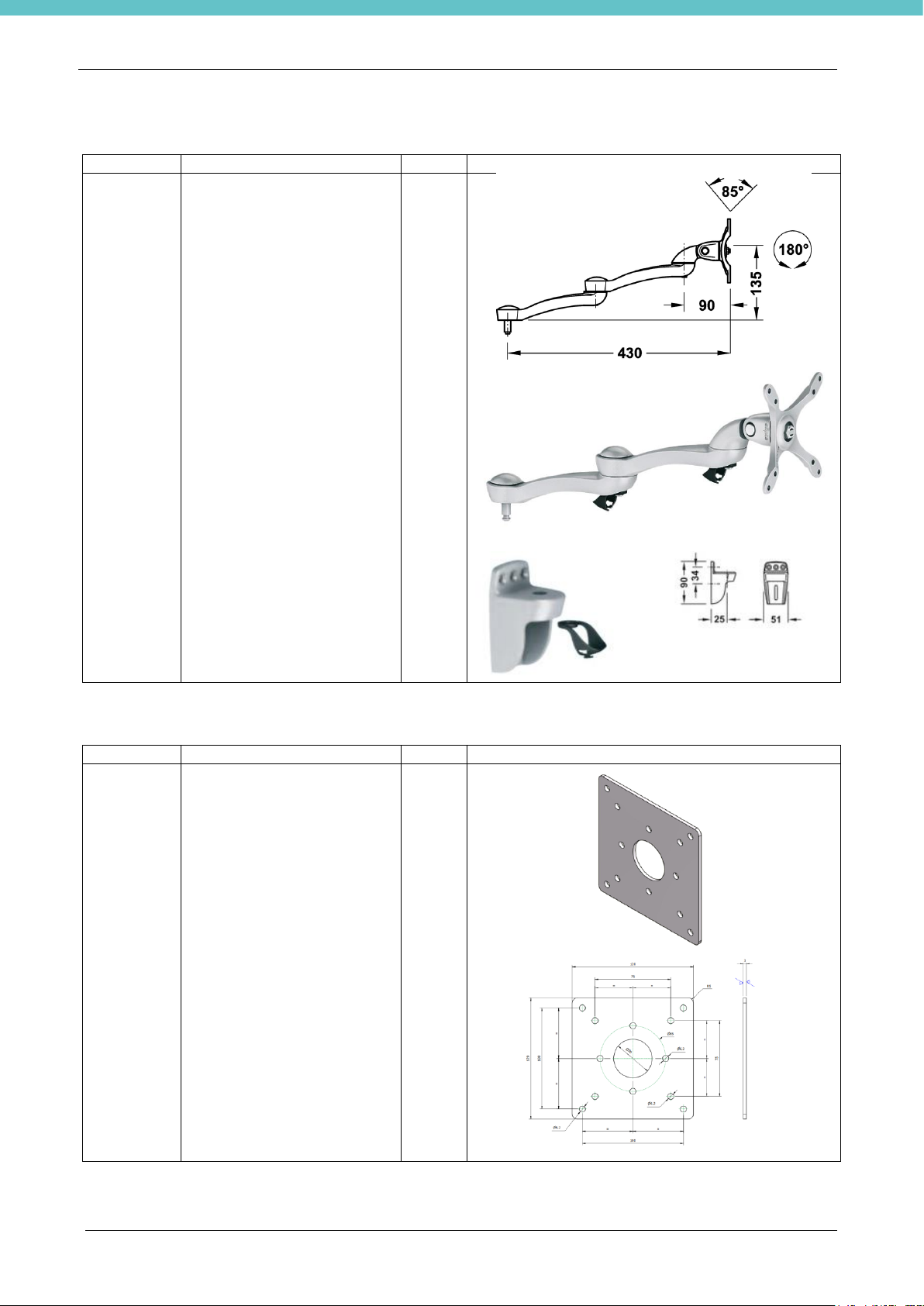

6.8. Unit consisting of 3-jointed arm with VESA plate 75x75mm and 100x100mm ............................... 84

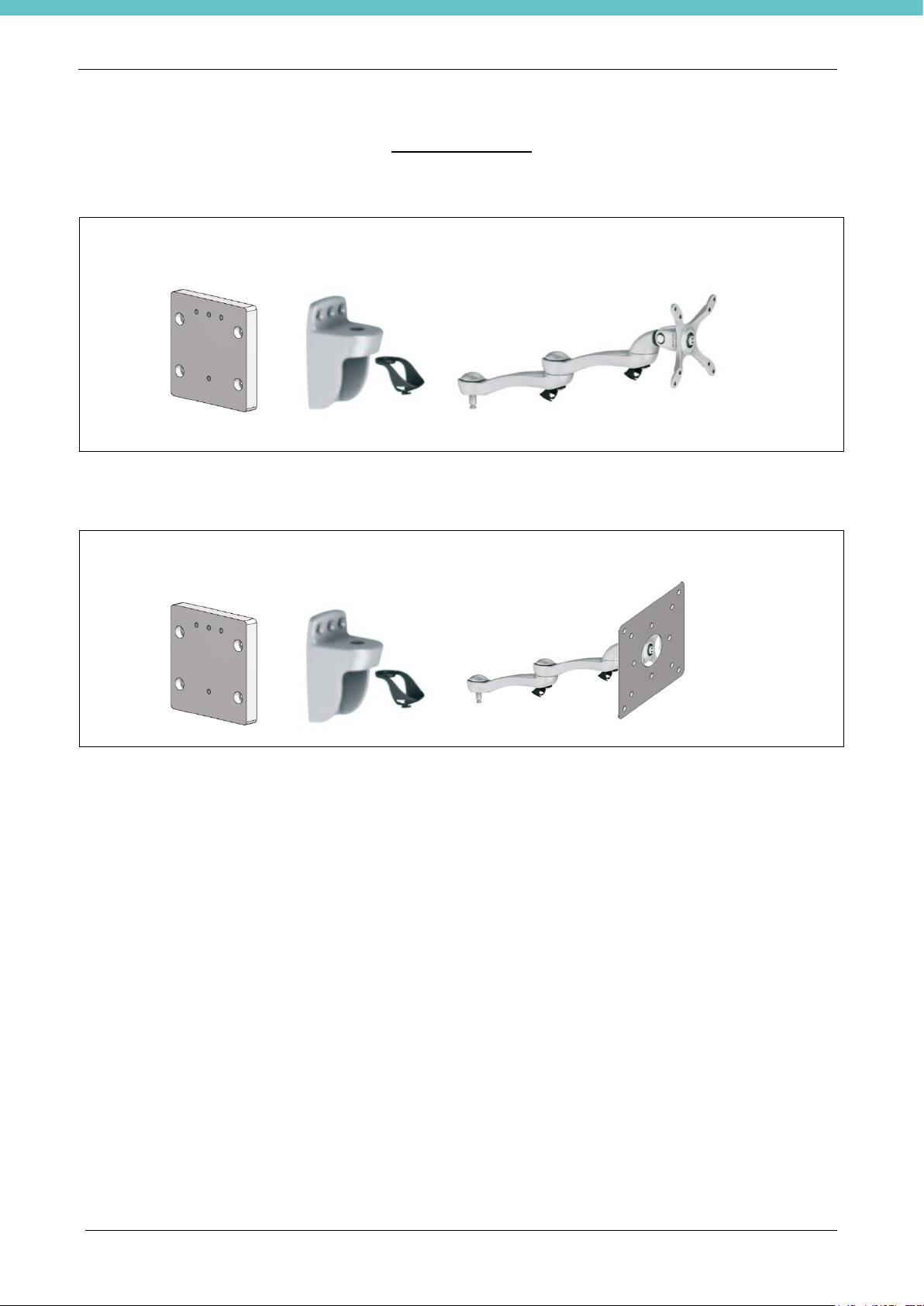

6.9. 3-jointed arm with wall-mounting ..................................................................................................... 85
6.10. Adapter Plate VESA 75/100mm ...................................................................................................... 85

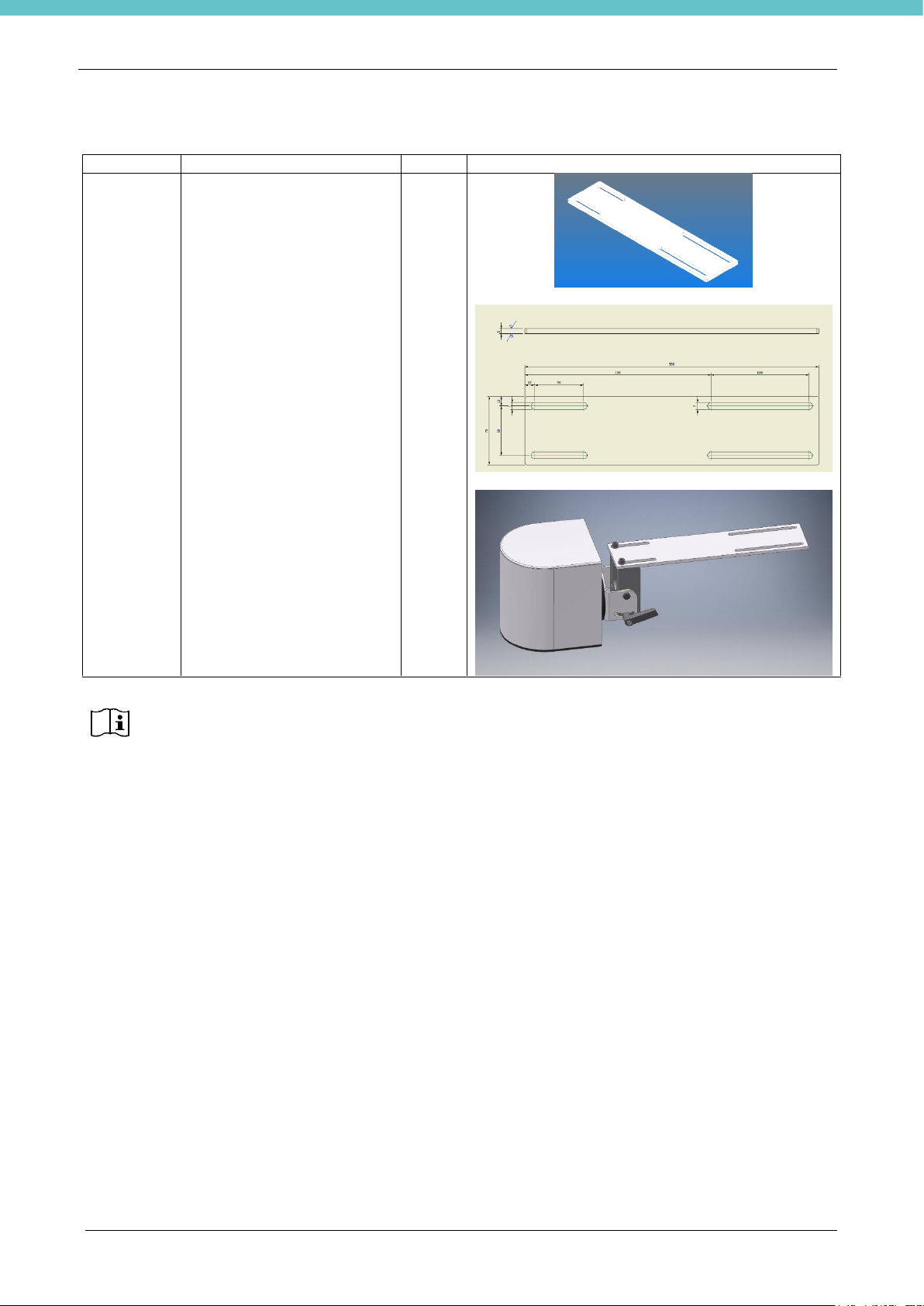

6.11. Reinforcement plate for VESA arm ................................................................................................. 86
6.12. USB bar code readers ..................................................................................................................... 88

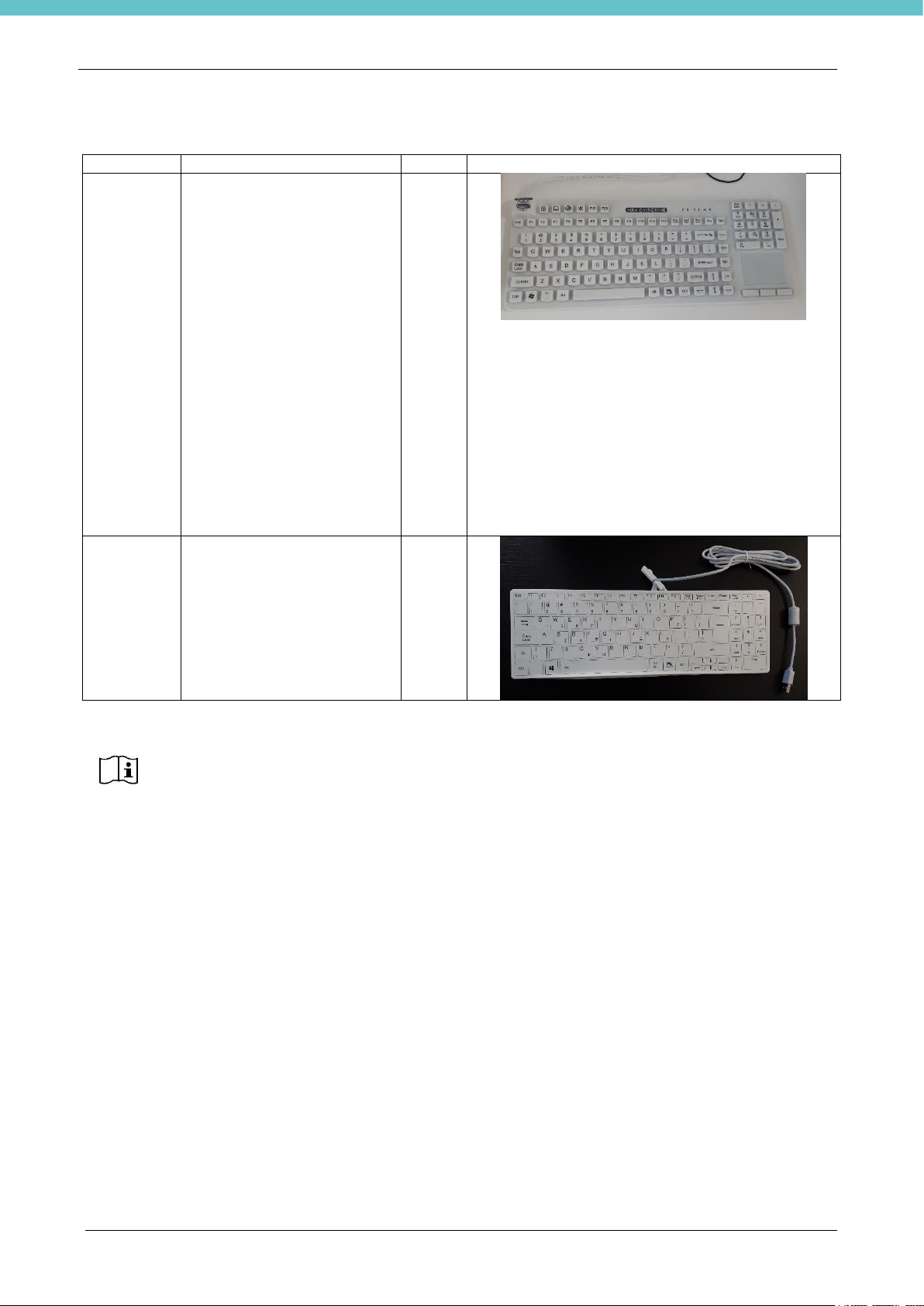

6.13. USB Waterproof (sealed) keyboard ................................................................................................. 89

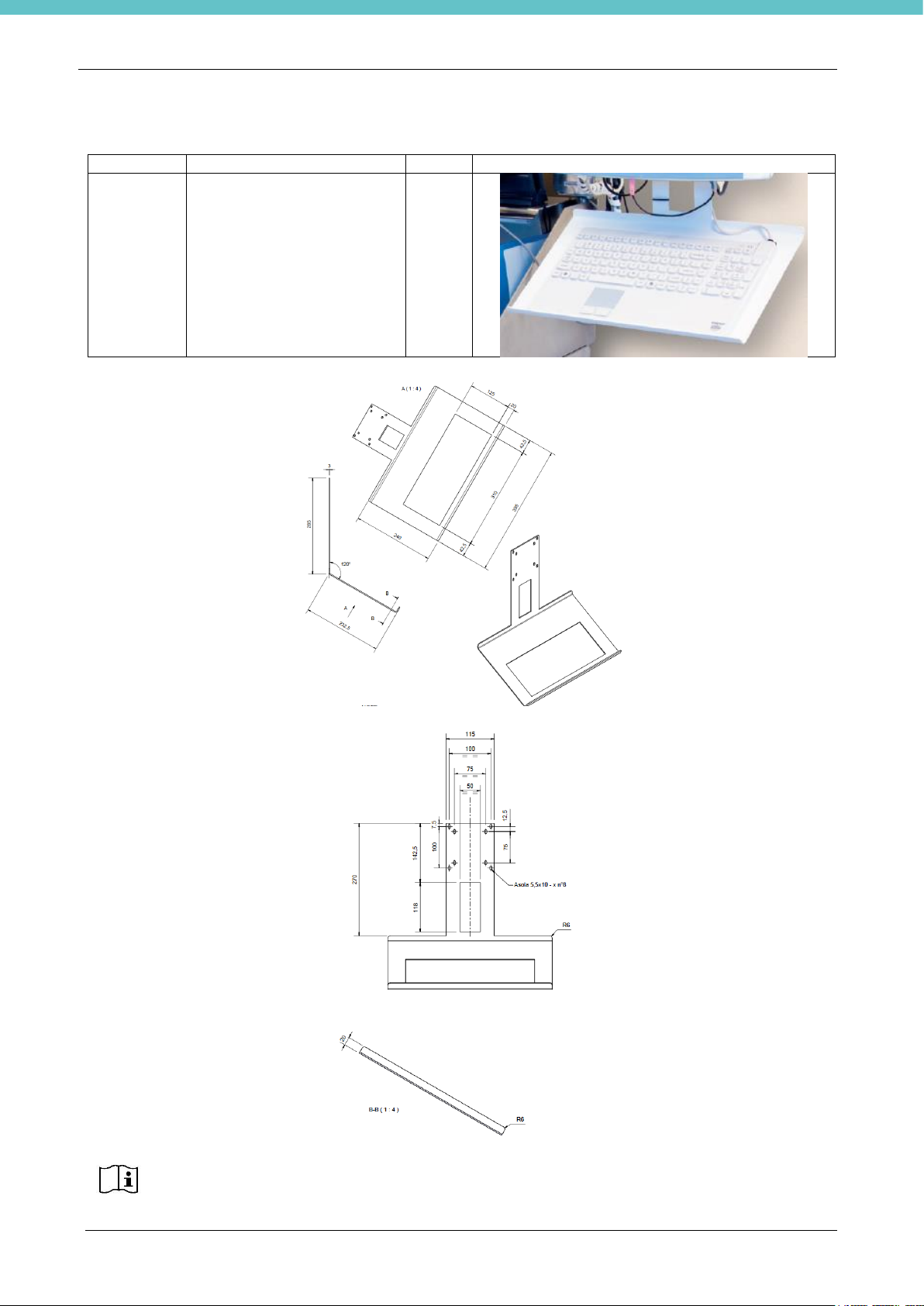

6.14. Keyboard support with VESA connection ........................................................................................ 90

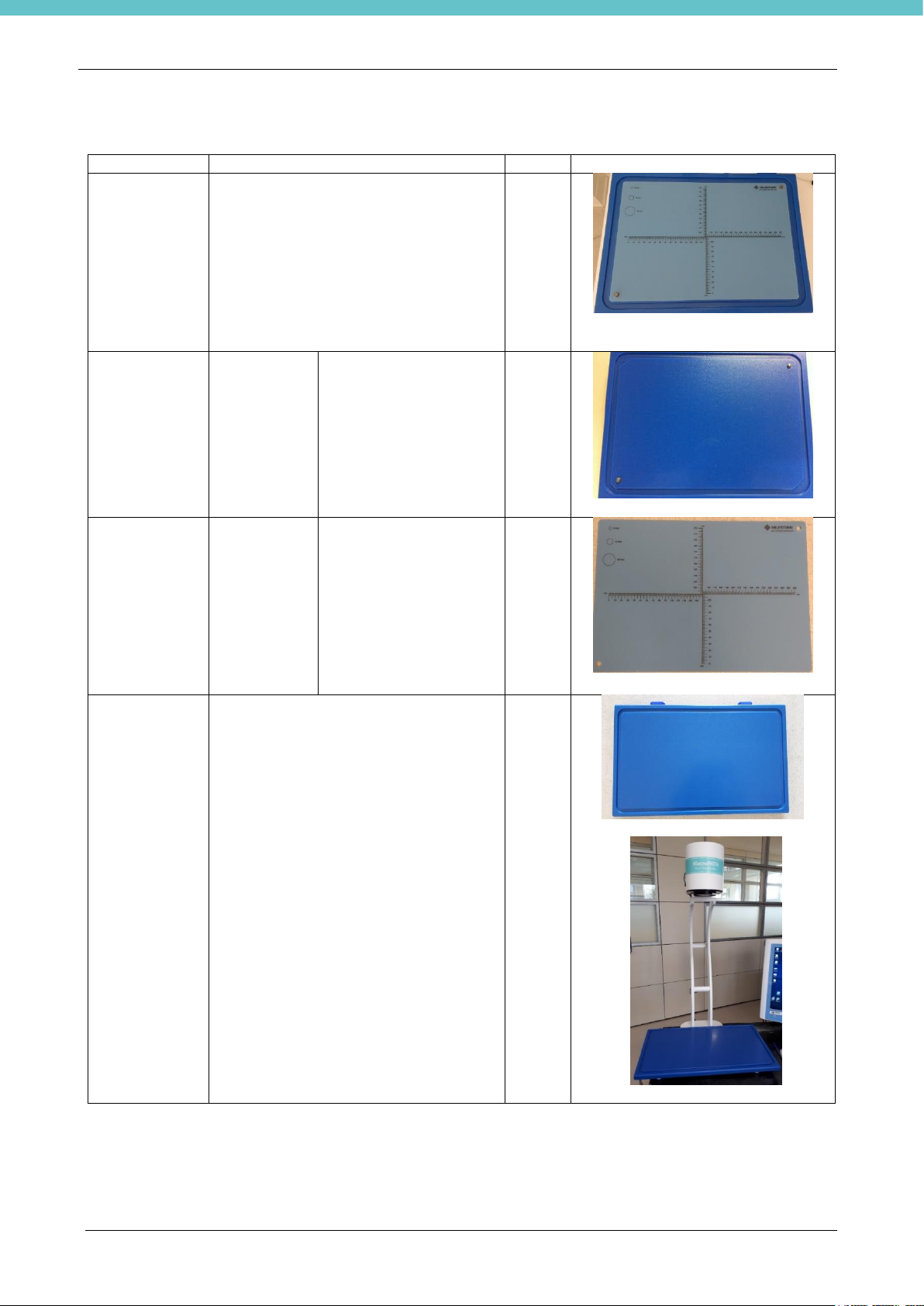

6.15. Macrostand ...................................................................................................................................... 91

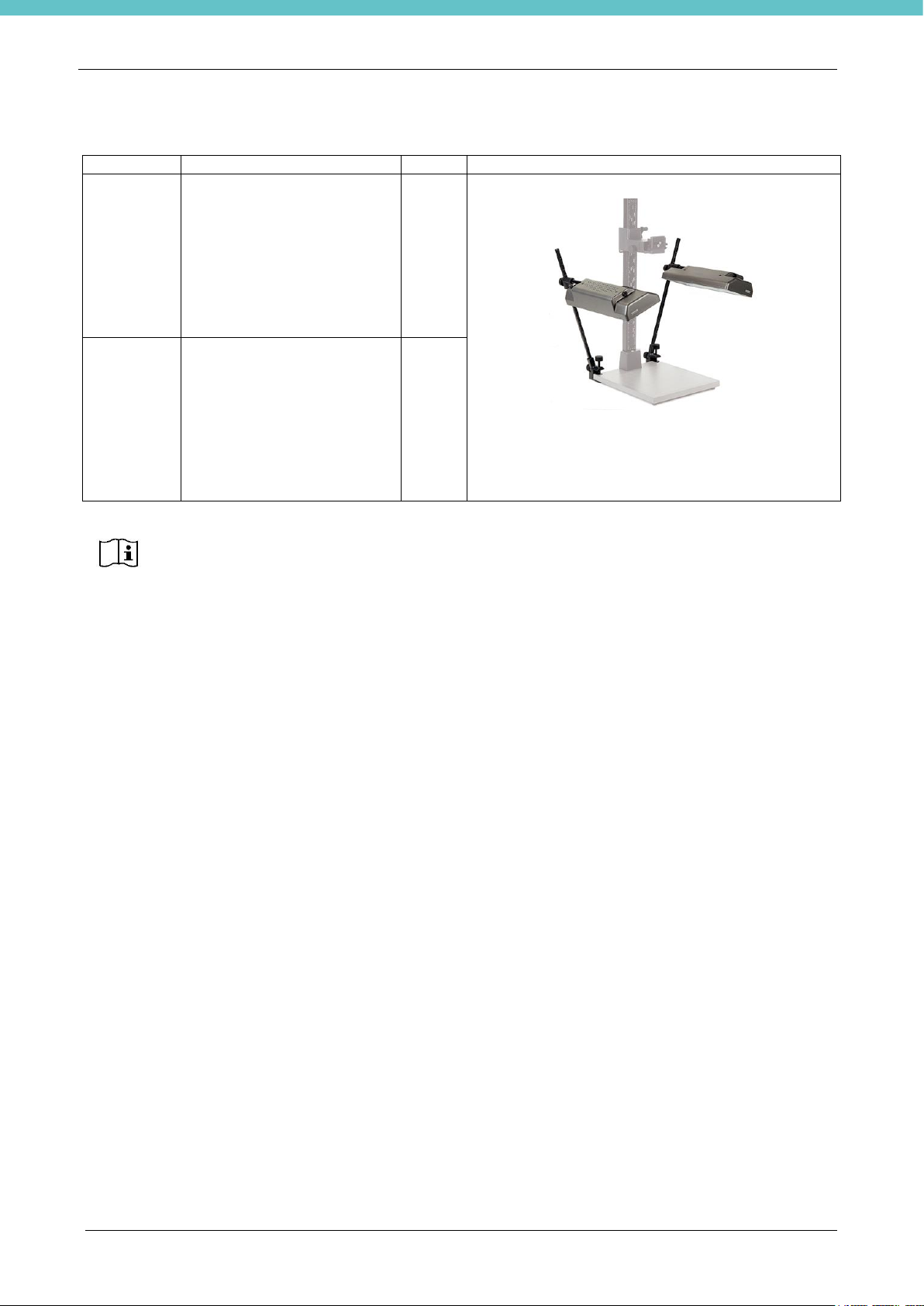

6.16. Macro Stand Dry Area 230V and Macro Stand Dry Area 115V .................................................. 93
6.17. Foot Pedal Control ........................................................................................................................... 94

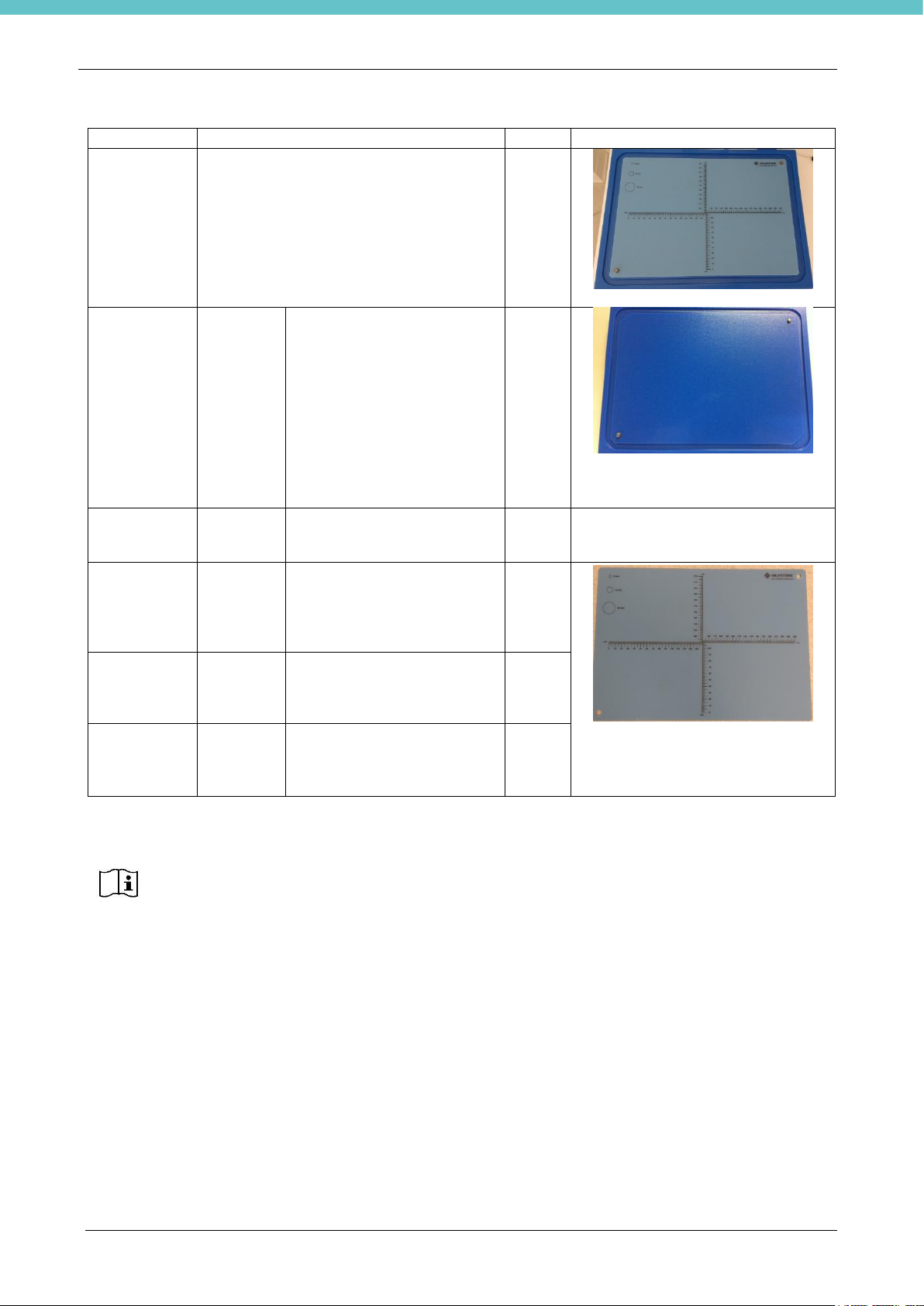

6.18. Sizing Ruler...................................................................................................................................... 94
6.19. Wire microphone .............................................................................................................................. 94
6.20. Licenses ........................................................................................................................................... 95

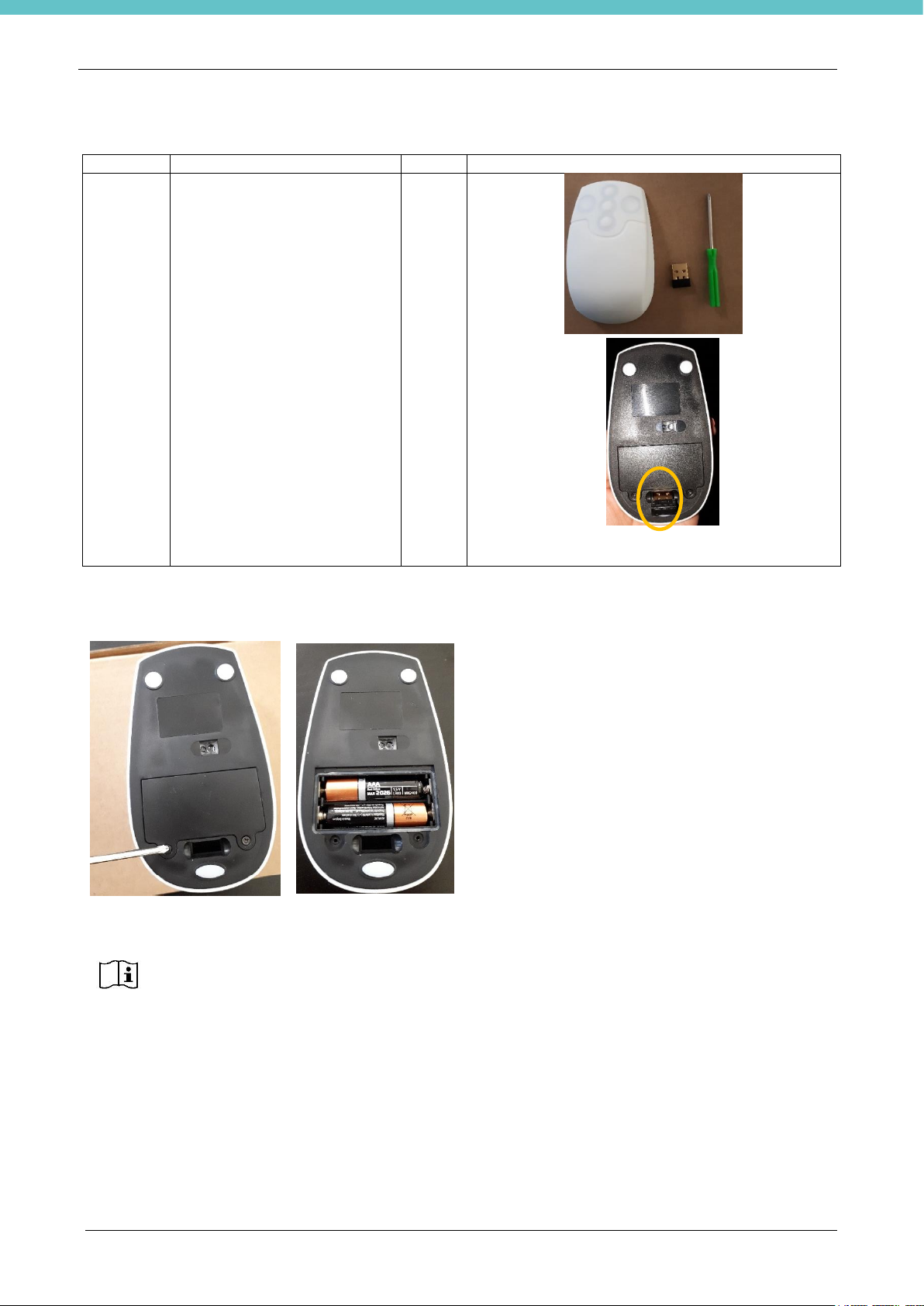

6.21. Mouse wireless laser in silicone ...................................................................................................... 96
6.22. POINT-OF-CARE CONTROL TERMINAL 19” ................................................................................ 97
6.23. Kit Camera MacroPATH .................................................................................................................. 98
6.24. Polarised lens for Camera ............................................................................................................... 99
7. TROUBLESHOOTING for MacroPATH ................................................................................................. 100
7.1. Milestone Remote connection ....................................................................................................... 100
7.1.1. How to install the Milestone Remote Connection software (for MacroPATH Basic) ............. 101
7.1.2. How to start the remote connection. ...................................................................................... 103
7.2. The camera is not working ............................................................................................................. 103
7.3. The Live function is not working .................................................................................................... 104
7.4. The foot pedal control is not working ............................................................................................. 105
7.5. The Touch Pen is not working ....................................................................................................... 106
7.6. Touch-Pen and Touch Screen calibration ..................................................................................... 106
7.7. Return for repair to Manufacturer .................................................................................................. 113
7.8. PC Recovery Software .................................................................................................................. 113
8. DISPOSAL OF THE MacroPATH UNIT ................................................................................................. 122
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
6
1. INTRODUCTION
1.1. Symbols used
The instructions marked with this symbol are important and must be read carefully.
An instruction accompanied by this WARNING symbol means you need to proceed
with caution. Failure to follow the instruction may endanger the user or cause damage
to the instrument.
Biohazard.
CE logo: this instrument complies with European Community directives.
IVD medical device according to directive 98/79/EC.
Symbol of the European WEEE directive (2002/96/EC):
electric/electronic material, do not dispose of in the environment.
Manufacturer.
Fragile
1.2. Introduction to MacroPATH and MacroPATH Basic
MacroPATH and MacroPATH Basic were designed to obtain images of histological samples and to ensure
their complete, safe and reliable handling.
MacroPATH and MacroPATH Basic differ by the fact that MacroPATH Basic does not include the PC Monitor
(see chapter 2.1).
The system has been designed for use in a laboratory and can therefore withstand the harshest laboratory
conditions (indoor use only).
MacroPATH's measurement function is strictly linked to the calibration performed by the
operator and is not controlled by the unit's software. That is why the measurements of
the sample obtained with MacroPATH CANNOT be taken into account for diagnostic
purposes. These values are purely indicative.

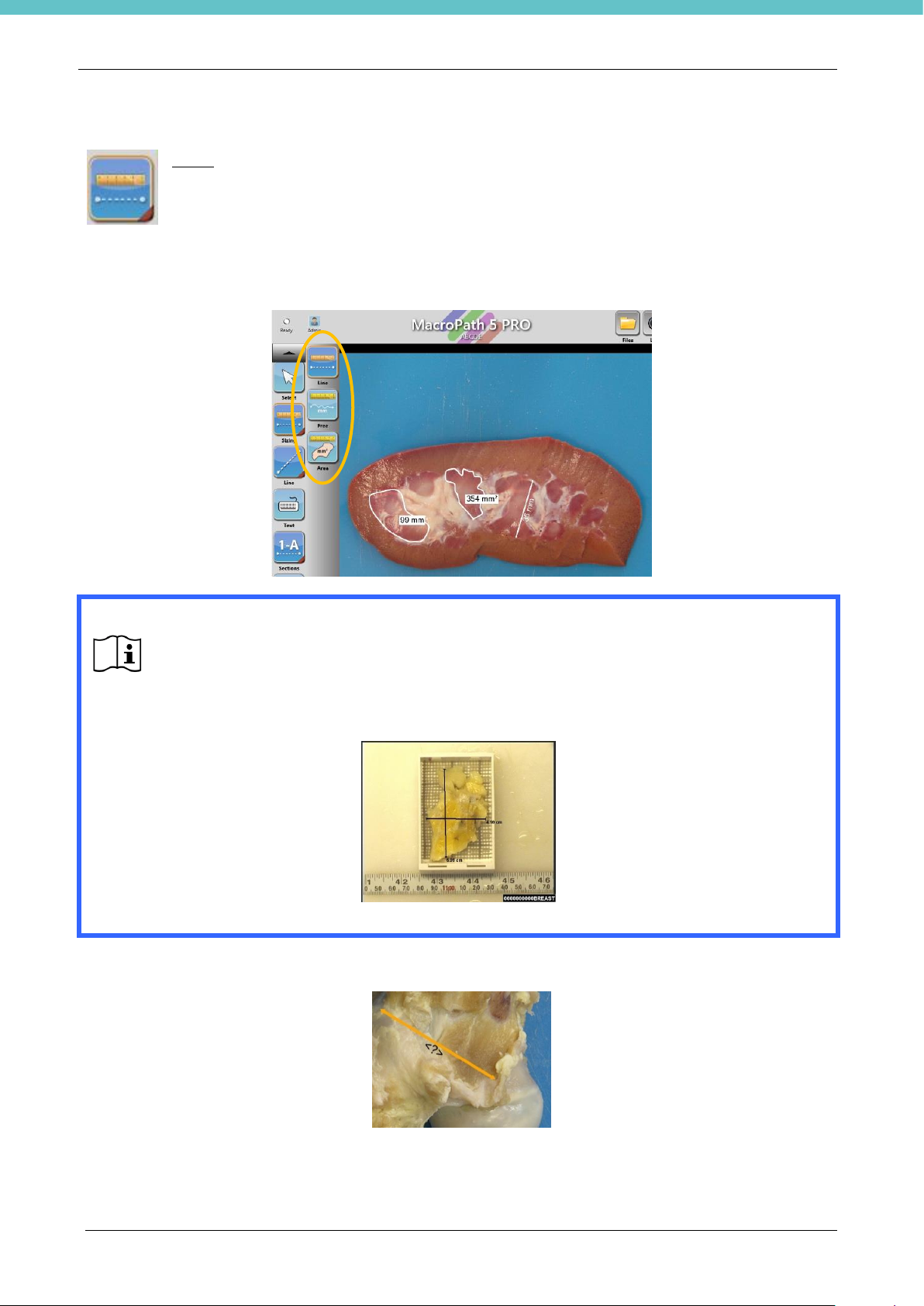

Indeed, a ruler must be placed near the sample (see image below) or a gauge must be used to obtain
a diagnostic value for the growth of the tumour, the extent of the lesion, etc.
The system must be calibrated in order to perform measurements with MacroPATH (refer to chapter 3.6.6
for the calibration procedure).
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
7
1.3. Technical Specifications
Hardware (PC) (only for MacroPATH):
- CPU: Intel® Core™ i7 Processor 2.6 GHz
- RAM: 8GB DDR-4
- Hard disk: 500GB (SSD)
- Touch-pen: USB cable, tip of 1.5 mm diameter.
- Screen: 19" TFT LCD 1280X1024 16.7M Colour
IP 65 front panel
- Fanless
- Wi-Fi 802.11 A/B/G with Bluetooth v4.1 (*)
(*) subject to restrictions of use according to local radio frequency regulations to be checked before enabling
this function.
- available I/O (refer to chapter 2.2)
• 2x RS-232/422/485 Serial ports
• 2x Gigabit Ethernet LAN ports (RJ-45)
• 6x USB 2.0 ports
• 2x USB 3.0 ports
• 1x HDMI (max resolution 4096x2304@24Hz)
• 1x DP Display port (max resolution 4096x2304@60Hz)
• 2 X built-in 2W speakers
• Audio Mic-in 3.5mm jack input
• Line OUT 3.5mm jack
- Dimensions: LxHxD 470.5 x 415.2 x 75.6mm (18.52” x 16.34” x 2.97”)
- Weight: 7.4Kg (16.3lb)
- PC power supply: Input: 100-240V 47-63Hz 1.2-0.5A
Output: 18V DC 5.55A MAX
Software
- Operating System: Windows 10 Enterprise 64 bit
- MacroPATH SW: MacroPATH 5 including Milestone license
- image capture in JPEG format
- video capture in AVI format
- voice recording in MP3 format
- Microsoft Windows 10 and Microsoft Word are registered Microsoft Corporation Brands
- MacroPATH 5 software: Installed (with license) Possibility of managing up to five cameras (of the same
kind).
Minimum Hardware (PC) specifications (only for MacroPATH basic – PC Monitor not included):
- System: - Windows 7® Pro 32/64bit service pack1 or
- Windows 7® Ultimate 32/64bit service pack1 or
-recommended: Windows 10 Enterprise 64bit or Window 10 PRO 32/64bit
- CPU: Dual core processor 2.0 GHz
- RAM: 4 GB
- Hard disk: 250 GB
- USB: 4x2.0 ports
- LAN: 1 Gigabit LAN to connect the PC to the network
- Audio output (if requested)
- The USB ports are disabled when the PC is switched off.
- The hardware needs to be able to support the following software and drivers without any limitations to their
installation (the packages are supplied by Milestone)
- Additional libraries: - Microsoft .NET framework 4.0
- SQL Server Compact Edition 3.5
- Microsoft Visual C++ 2010 x86 Redistributable
- Windows Media Player 11 or 12
- Additional drivers: - Foot pedal driver
- Camera driver
- The software without libraries and/or drivers is not installed correctly and is to be considered incomplete.
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
8
Camera:
- Camera resolution: max 20.1 Megapixel
- Video resolution: 1024 x 768 (HD) – 15-16 FPS, audio 352Kbps, 22kHz
- Audio rec.: 128 kbps
- Focus: Automatic
- White balance: Automatic
- Zoom: Optical 30x
- Fitted with a set of 3 lenses with different close up levels: +1 - +1.3 - +1.5
- Weight: 2.8Kg (6.1lb) (+250g camera power supply)
- Camera power supply:Input: 100-240V 50/60Hz 0.6A
Output: 24V DC 1.04A 25W MAX
- Included: Camera Support for photographic stand
- Built-in LED lighting
- Dimensions: 137 x 162 x 211mm (5.39” x 6.37” x 8.30”)
- USB data cable length: 4.5m (4.92yd)
Foot pedal control
- USB foot pedal control with 5 buttons
- IP X5
Environmental Conditions:
Operating temperature: 15°C – 30°C (59°F – 86°F)
Relative humidity: 10% - 80% non-condensing
1.4. Transport and storage conditions
Temperature: -20°C up to +60°C (-4°F +140°F)
Humidity: up to 80% (up to 50% at 40°C) non-condensing
The manufacturer reserves the right to change and/or improve specifications without
notice and without incurring any obligation.
Before turning MacroPATH on (when coming from a storage room), the unit must be
allowed to reach the environmental conditions (at least half an hour).
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
9
1.5. Warning information
Use of the equipment in manners other than specified may void the warranty provided by the manufacturer.
PERSONAL DATA SAFETY
The Device described herein is not intended for managing personal data of natural persons. Personal data of
natural persons shall not be inserted into the Device during the use of the Device. The organization that uses
the Device shall implement appropriate measures to ensure that no personal data of natural persons are
inserted into the Device. All the data referred to a person and inserted into the device shall use, at least, the
“pseudonymization”, in such a manner that the personal data can no longer be attributed to a specific data
subject without the use of additional information, provided that such additional information is kept separately
and is subject to technical and organizational measures to ensure that the personal data are not attributed to
an identified or identifiable natural person.
DO NOT open the camera box. Opening it shall void the warranty.
The PC must only be connected to a 3-pole socket (it must have ground connection protections). This note
does not apply to the camera’s power supply.
Connect the system after installation and disconnect the system before cleaning up.
The equipment must be connected to sockets that are clearly visible to the operator.
The unit is not provided with spare fuses. If the system is not working properly, please contact your local
representative or the manufacturer (always provide the serial number of the unit, see label on the back of the
PC unit for MacroPATH whereas for MacroPATH Basic the label is on the back of the camera).
All of the system’s components must be supplied solely by the manufacturer.
In the event of malfunction, please shut down the PC and the camera’s power supply, then switch them on
again. If the system is still not working properly, please contact your local representative or the manufacturer.
In the event of a malfunction:
1) Switch off the PC. Unplug the PC from the main socket.
2) Turn the camera off. Unplug the power supply cable from the main socket.
3) Disconnect all optional parts (foot pedal control, keypad, bar code reader, camera, camera power
supply).
4) Clean and disinfect all parts of the unit as described in chapter 5.1
5) Place all parts of the equipment into the package supplied by the manufacturer (original package).
6) Send the unit to the manufacturer for repair.
1.6. Antivirus
Milestone recommends installing antivirus software. As Milestone does not install antivirus software, the user
can choose the preferred version according to their needs.
Pay attention when setting up the Antivirus so that the data flow on the USB/LAN protocols and accesses to
the Hard Disk are not restricted.
It is very important to switch the MacroPATH camera and PC off before disconnecting the
camera’s USB connection, to avoid damaging the camera’s interface card.
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
10
1.7. MacroPATH data backup (PICTURES OF FILES)
The image size with the suggested settings is 1.5MB/image (see chapter 3.4.8).
1.8. Milestone remote connection
MacroPATH comes with software to set up the connection to the Milestone customer support service when
technical support is required. To access it, refer to chapter 7.1.
1.9. MacroPATH and MacroPATH Basic labels
For the explanations of the symbols, refer to chapter 1.1.
Refer to the label attached to the device for device identification.
Milestone strongly recommends storing all files and their pictures on a server with an
automated backup procedure.
Contact your local network/IT manager.
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
11
2. INSTALLATION

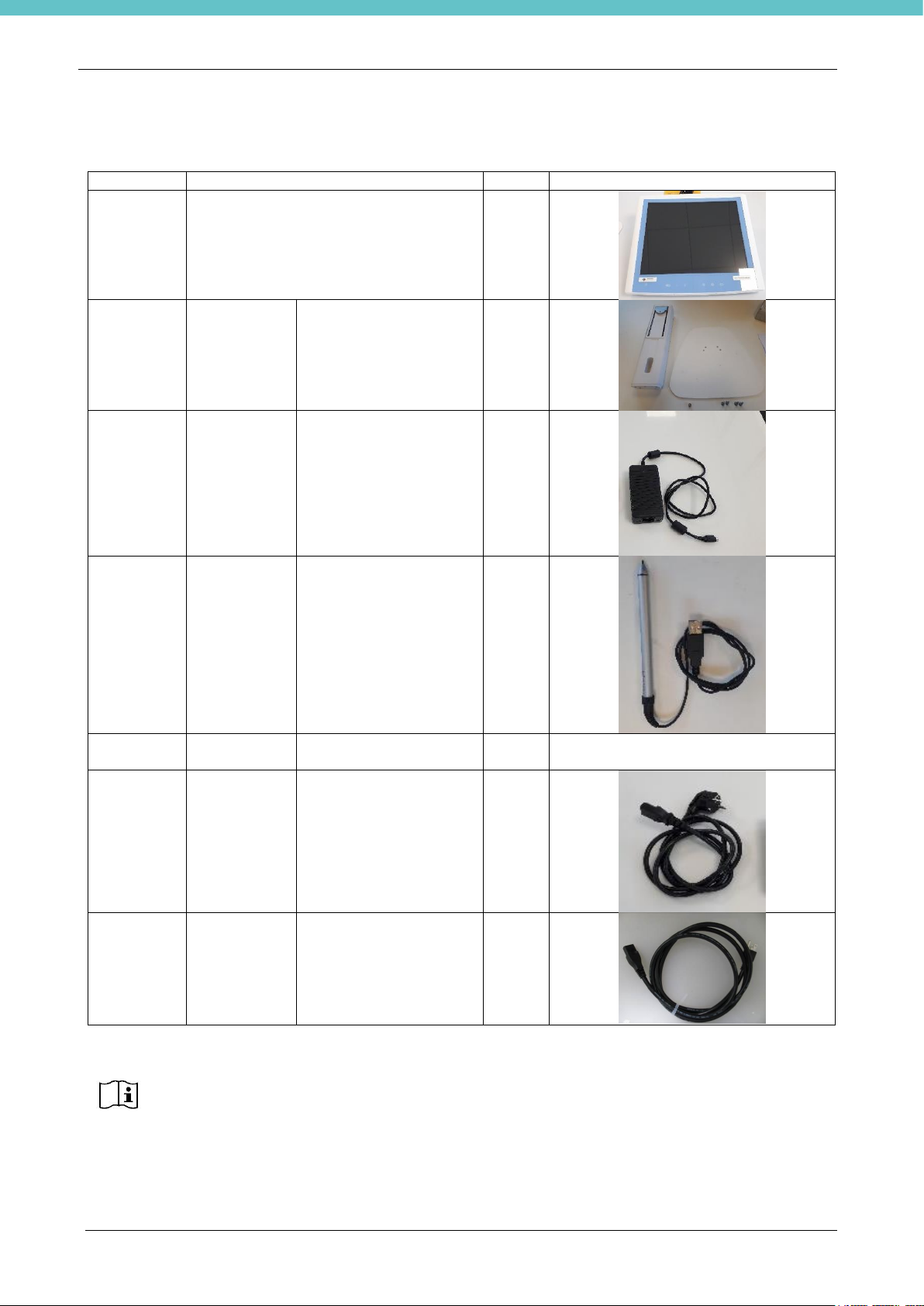

2.1. Unpacking and checking MacroPATH and MacroPATH Basic components
This section illustrates the installation procedures and preliminary operations. Please read the following
chapters carefully before operating MacroPATH.
When unpacking check that all the parts are there.

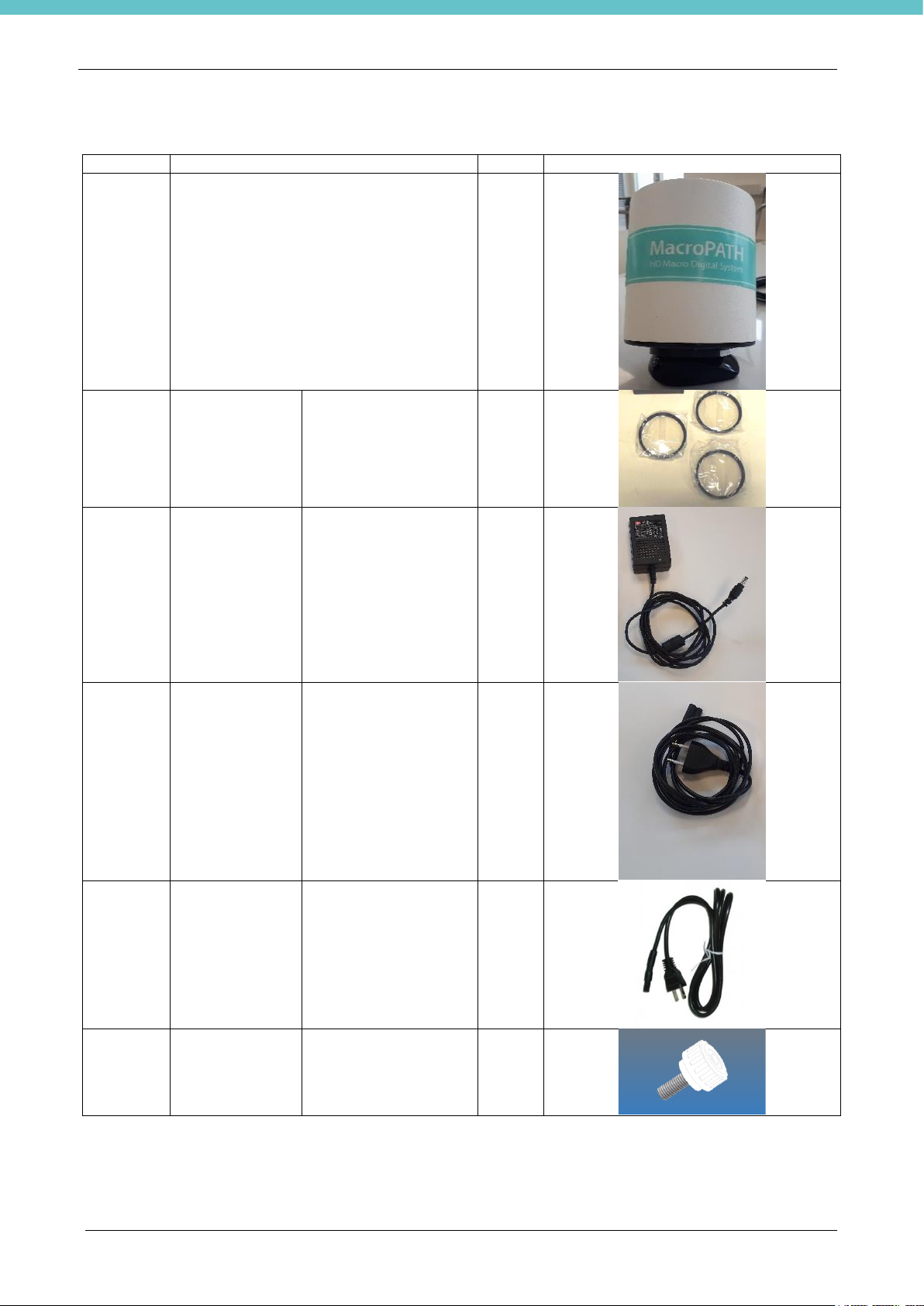

MacroPATH (REF 370600) and MacroPATH Basic (REF 370605/SK) include the following parts (as
already specified, MacroPATH Basic does not include the “All in one PC”):
DESCRIPTION
Q.ty
POINT-OF-CARE CONTROL TERMINAL (“All
in one PC”) + Touch-Pen (there are two small
black keys on the touch-pen for the enter
command and right click of the mouse)
(not included with MacroPATH Basic)
1+1
Table stand for “All in one PC”
(not included with MacroPATH Basic)
1
“All in one PC” power supply with Schuko cable
included
(not included with MacroPATH Basic)
1
“All in one PC” power supply cable
115V~ (NEMA 5-15 C13)
(not included with MacroPATH Basic)
1
Camera + Set of 3 lenses (lens +1,5 already
installed)
1
Camera power supply with cable included
1
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
12
115V~ Camera power supply cable NEMA 1-15
C8
1

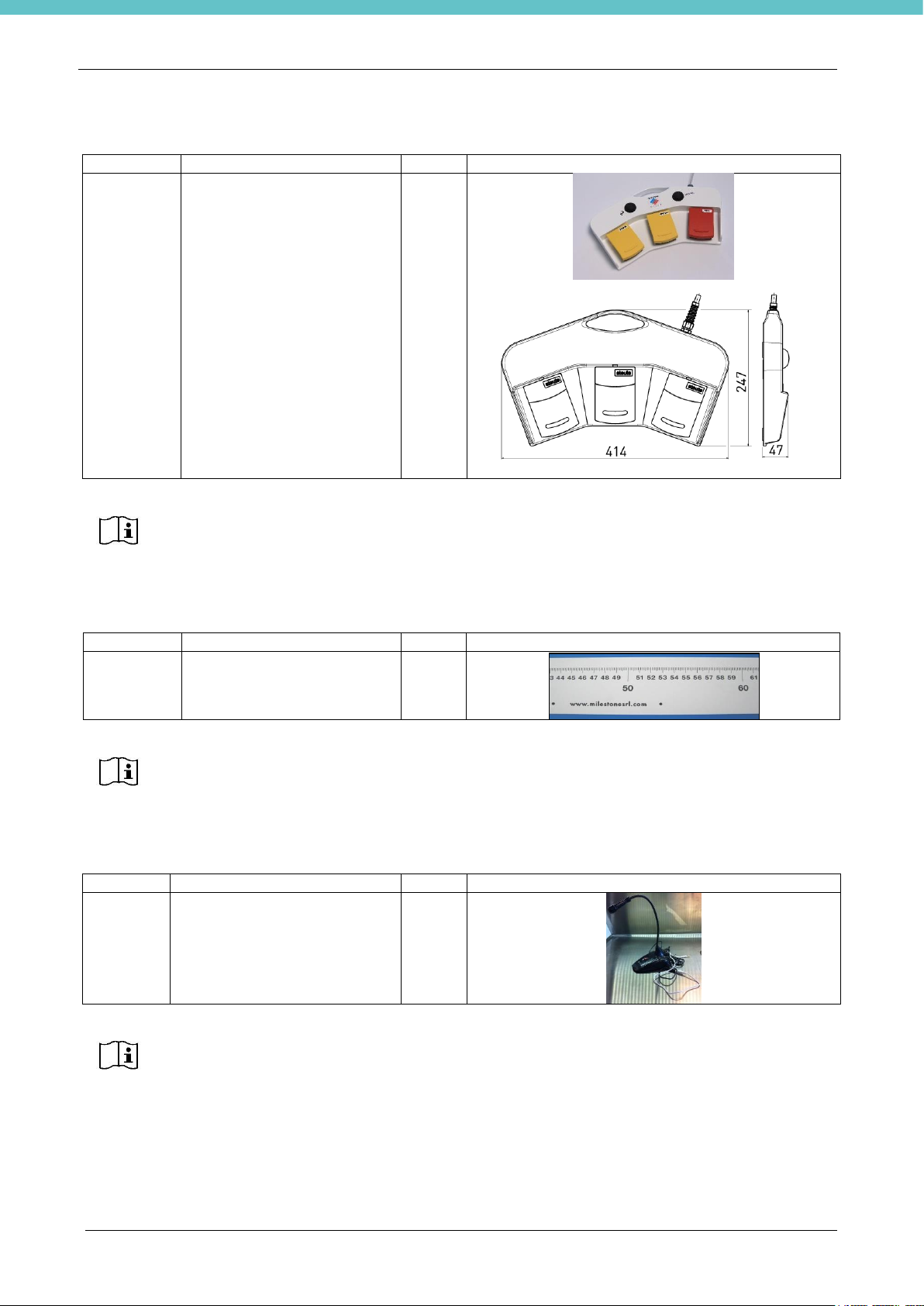

Foot pedal control
1
Wire microphone
1
Sizing Ruler
1
Set of Allen screws
1
Included with both MacroPATH and
MacroPATH Basic:
Bootable 8GB USB key containing:
- Operator manual in electronic format
- Recovery software (see chapter 7.8)
1
Only included with MacroPATH:
32Gb USB key containing:
- MacroPATH pro-x 5 FULL software
- Operating system image software
1
Only included with MacroPATH Basic:
8GB USB key containing:
- MacroPATH pro-x 5 FULL software
1
For the optional parts, see Chapter 6.
In addition to the MacroPATH software in digital format, Milestone provides two USB keys
for every unit, containing the operating system and the relevant drivers. We strongly
recommend storing the USB keys in a safe place, as Milestone is not in a position to
supply other USB keys or copies thereof.
The pictures are only an example.
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
13
2.2. Overview of PC Monitor (only for MacroPATH)
Description:
A) 2x RS-232/422/485 Serial ports
B) 2x Gigabit Ethernet LAN ports (RJ-45)
C) 6x USB 2.0 ports
D) 2x USB 3.0 ports
E) 1x HDMI (max resolution 4096x2304@24Hz)
F) 1x DP Display port (max resolution 4096x2304@60Hz)
G) 2 X built-in 2W speakers
H) Audio Mic-in 3.5mm jack input
I) Audio 3.5mm jack output
J) Power supply inlet
K) Reading lights
L) Equipotential terminal
Description:
1) On/Off
2) Enable/disable touch-screen
3) Volume
4) Brightness
5) Reading lights on/off
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
14
For PC installation, carefully remove the film from the touch-screen to prevent damaging it.
It is advisable to turn the PC off completely at least once a week.
2.3. Camera Overview
A) Lens
B) LED light
C) Green power supply LED
A-B-C-D) Adjustments
E) Photographic fitting
F) LED lighting on/off
G) Power supply inlet
H) USB data cable

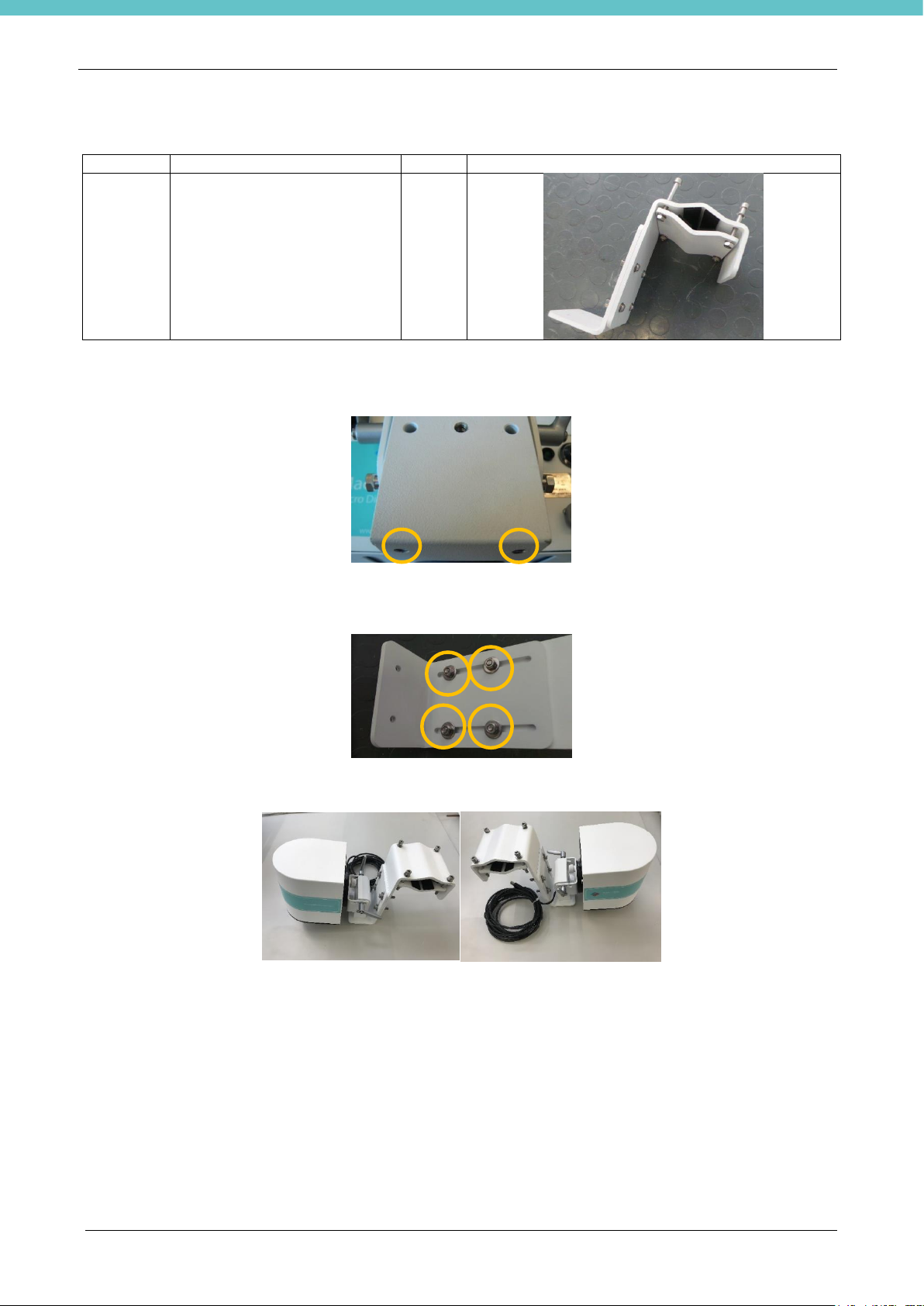

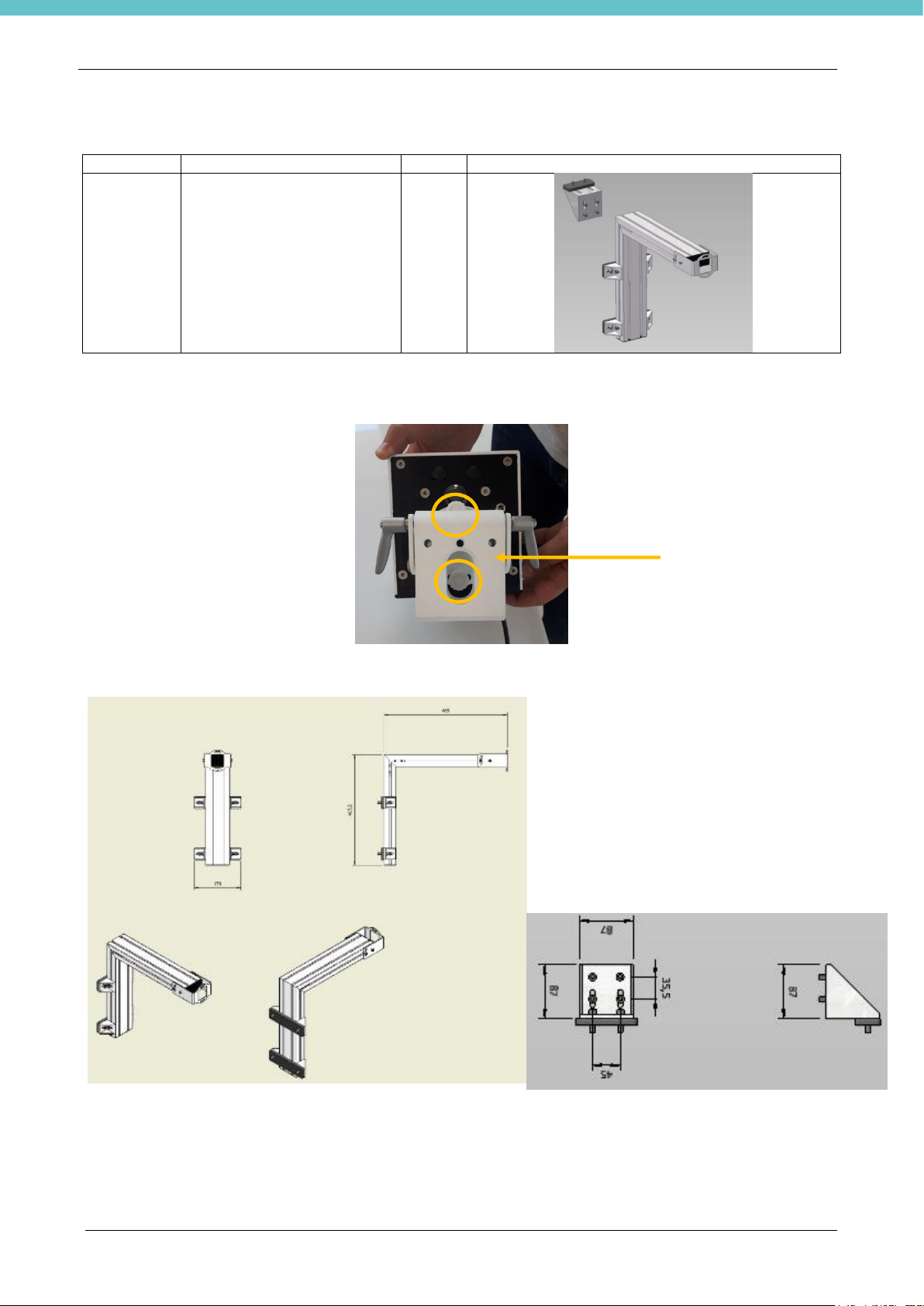

For the camera installation/clamping supports, refer to chapter 6.
Before turning MacroPATH on (when coming from a storage room), the unit must be
allowed to reach the environmental conditions (at least half an hour).
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
15
2.4. Table stand installation for MacroPATH PC Monitor
Installing MacroPATH is easy and only takes a few minutes. Make sure that the power supply is not
connected during installation.
Table support installation as follows:
- Use the 4 screws provided to clamp the base to the column:
- Insert the PC Monitor into the column and secure it with the supplied screw:
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
16
The stand is already adjusted for the weight of the PC Monitor. If necessary, it is possible to adjust the
up/down (figure 1) and right/left (figure 2) force of the contrast springs.
Figure 1 Figure 2
2.4.1. PC Monitor connections
The power supply line needs a ground connection (Class I device)
Power supply line protection: 10A - C curve residual current circuit breaker, residual current: 30mA.
Connect the power supply cable to the PC Monitor panel and then to the power socket.
Connect the USB foot pedal control to the USB port marked in brown.
Connect the microphone to the MIC-IN connector (pink 3.5mm jack)
Connect the other USB applications to the vacant ports (e.g. bar code, keypads, etc.)
Now that all of the connections are set up, install the cable cover panel (when the PC Monitor is installed on
the table support, it is not possible to insert the central screw).
Upon completing installation, MacroPATH can be turned on with the appropriate button.
Make sure that the audio microphone switch is ON before use.
MICROPHONE
POWER SUPPLY
FOOT PEDAL
CAMERA
TOUCH PEN
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
17
2.5. Camera Lens Installation
The camera kit comes with three different 82mm lenses +1 - +1.3 - +1.5 (close ups).
With these lenses it is possible to change the focusing distances.
To install a lens, simply screw it onto the threaded end of the camera shroud.
GUIDE FOR ESTABLISHING THE DISTANCE OF THE CAMERA FROM THE SPECIMEN AND
WHAT TYPE OF LENS TO USE FOR OPTIMAL FOCUSING
Lens
Allowed Distances
Recommended
distance
Minimum
Maximum
None
188cm (74”)
infinite
200cm (78”)
+1
66cm (25”)
102 cm (40”)
95cm (37”)
+1.3
56cm (22”)
79cm (31”)
75cm (29”)
+1.5
50cm (19”)
69cm (27”)
65cm (25”)
The autofocus ability of the camera depends on environmental conditions. The values above are
experimental results obtained from Milestone tests captured at 100% of zoom level.
Lens +1.5 is mounted on the camera by default; upon installation it is possible to change it
if required, according to the information in the table below.
If the polarised lens is also provided as optional part (refer to chapter 6.24) first install the
polarised lens then also screw in the appropriate lens, ensuring it is the outermost one
The supplied lenses (+1, +1.3, +1.5) cannot be combined using more than one at a time.
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
18
2.5.1. Camera Orientation
On the back of the camera there are 2 levers to adjust the up/down tilt of the camera (see figure).
Loosen the levers until you find the best position and then tighten them up again.
On the back of the camera there are 2 knobs to adjust the right/left tilt of the camera (see figure).
Loosen the knobs until you find the right position and then tighten them up again.
To secure the camera you can use at least one pair of anchoring points (see figure).
The support can be rotated by 180° (take the knobs out, turn the support and put the knobs back in).
Alternatively, you can use the photographic fitting.
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
19
2.5.2. Camera connections
Connect the power supply as pictured:
Connect the USB data cable to the relevant PC USB port.
Power supply line protection: 10A - C curve circuit breaker
Connect the cable to the power supply and to the mains.
When all of the connections are set up, the green LED turns on.
The camera is one of the PC’s “USB devices”. Therefore, if you have a USB device (such
as a USB key) connected to the PC, and you wish to disconnect it, be careful not to
disconnect the camera from the PC. If it happens, follow the procedure described in
chapter 7.2.
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
20
2.6. How to change the language of the Operating System and Keypad
Not applicable for MacroPATH Basic.
The Operating System and keypad of the PC Monitor supplied by Milestone are in English. Follow the
instructions in this chapter ONLY IF you wish to change the language.
Follow these instructions to change the language of the Operating System:
- enter Windows Settings and click “Time & Language”.
- on the left-hand menu click “Region & Language”.
- click “Add a language”, choose the desired language from the displayed menu and click “Next” and “Install”
in the message after that. Spanish is chosen in the example below.
- when installation is complete, the chosen language will show under “Preferred languages”.
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
21
- reboot the PC and the newly chosen language will be set in the operating system.
Follow these instructions to change the language on the Keypad. Spanish is chosen in this example.
- The status bar on the bottom left shows the default keypad language (ENG - English), click to enter these
settings.
- The following panel is displayed, choose the language for the keypad. Spanish is chosen for the keypad in
the example below.
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
22
2.7. Software installation (only for MacroPATH BASIC)

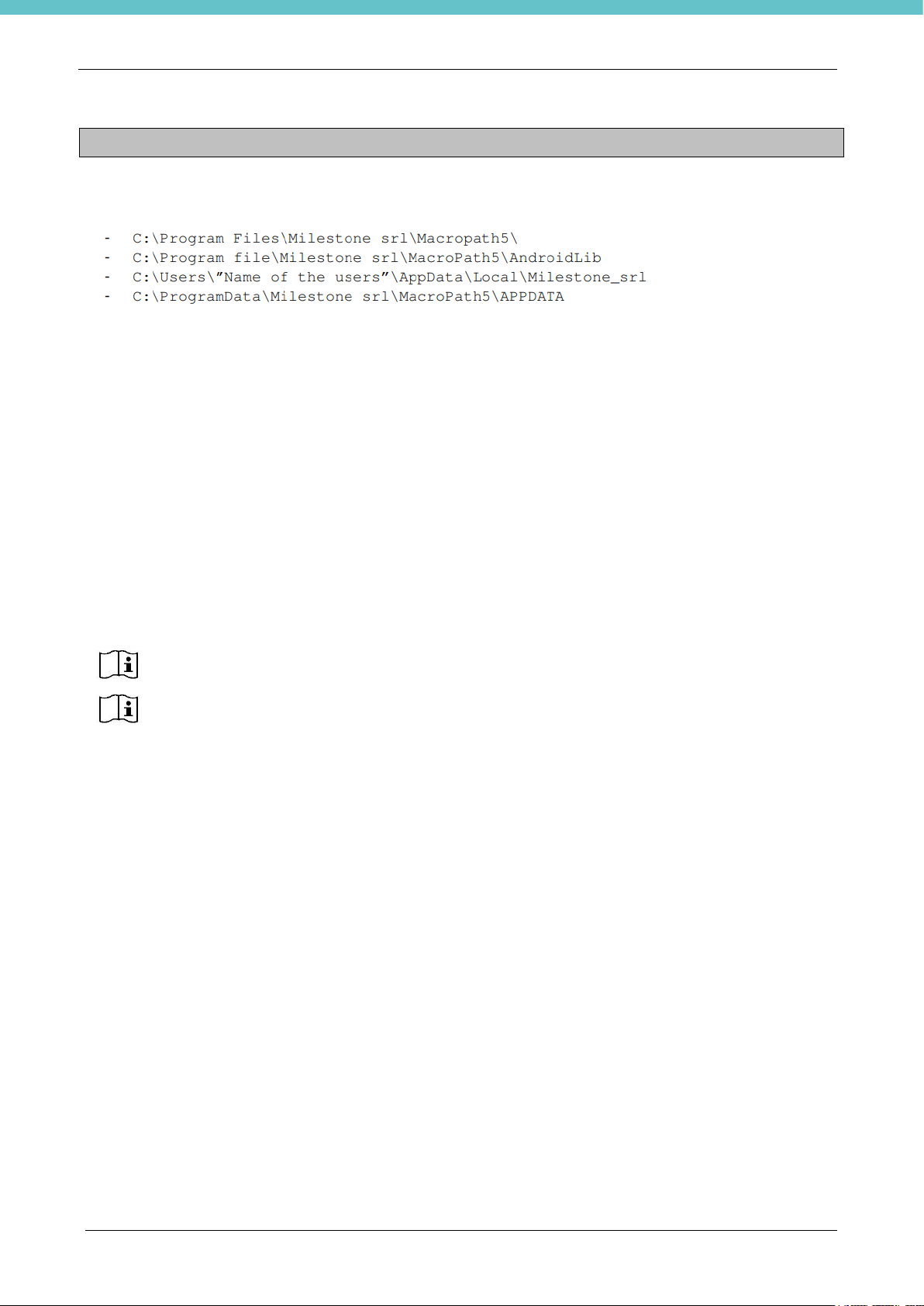

For correct MacroPATH operation, the user must have full access in read/write/edit mode for the following
folders:
To see the path C:\ProgramData\Milestone srl\MacroPath5\APPDATA you need to enable hidden folders
The software is provided in electronic format. Select the MacroPATH 5 PRO folder.
As administrator, run the internal file Setup.bat (right click and select Run as administrator).
Click Install when the window shown here on the right
opens up.
The camera drivers will be installed.
The installation request message might show several
times, always confirm it.
Click Accept when the window shown here on the
right opens up.
Microsoft .NET Framework 4 will be installed (if not
installed already).
Installing the software without libraries and/or drivers DOES NOT result in appropriate
installation and is considered incomplete.
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
23
Click Next when the window shown here on the right
opens up.
Select the installation folder and click Next.
Click Next when the window shown here on the right
opens up.
The software is now installed, click Close.
Foot pedal driver installation will start, click Next.
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
24
The drivers are installed, click Finish.
During the installation procedure, if the SQL Server Compact Edition 3.5 library was not already installed on
the PC, the following message could appear:
In this case it is required to proceed with the installation manually as follows:
Select “Packages” and “SQL Server Compact Edition”
and run the file.
When installation is completed, an icon appears on the desktop.
Right-click on MacroPATH 5 PRO icon and select “Properties”:
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
25
Select “Compatibility” and “Run this program as an administrator”.
Finally click “Apply” and OK.
It is now possible to launch the MacroPATH PRO software with a free 90-day license.
Follow the instructions provided in chapter 2.7.1 to get an unlimited license.
The first time the program is launched, the message shown below might be displayed:
Click OK to go ahead with camera driver installation.
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
26

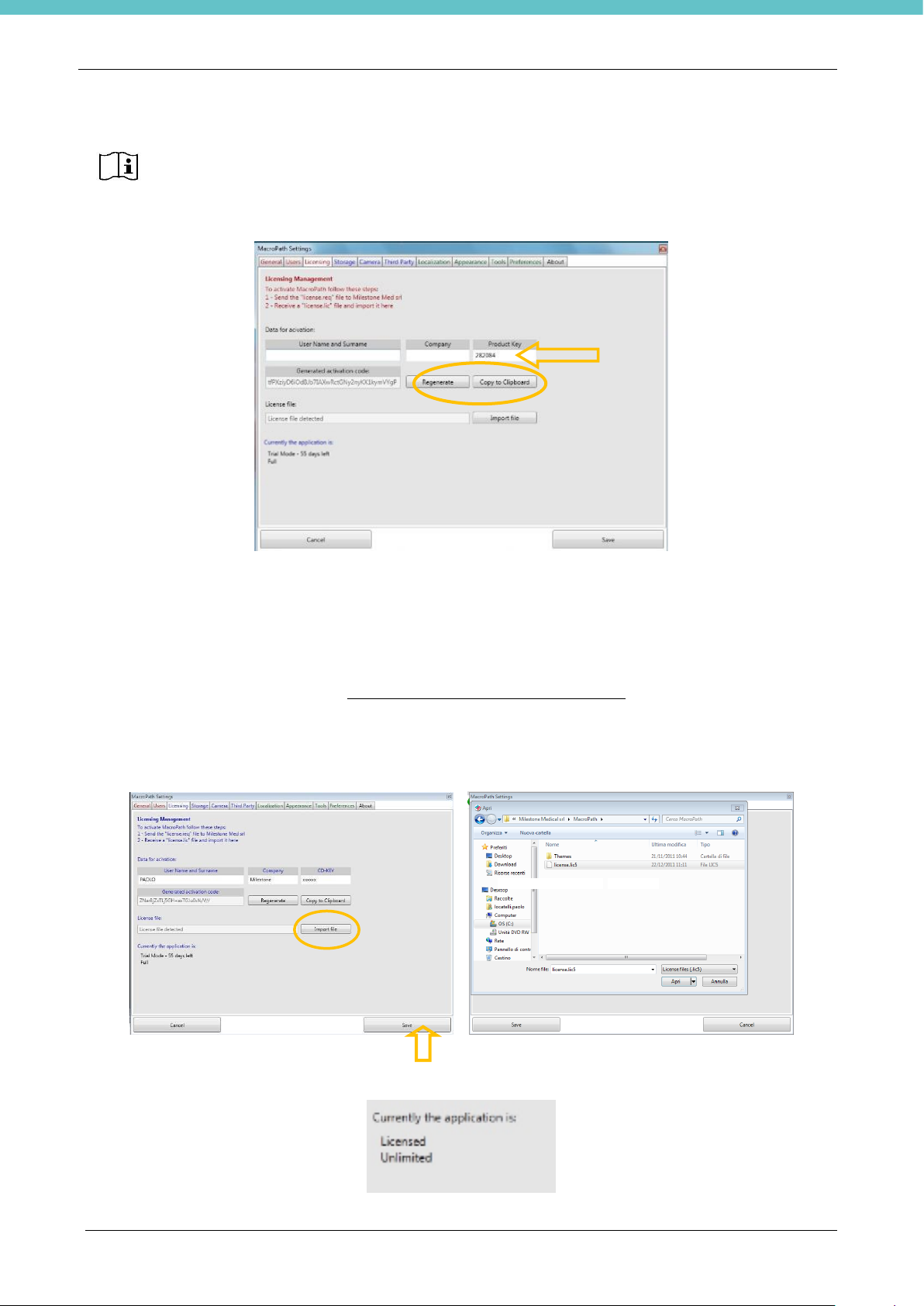

2.7.1 License activation
Launch the MacroPATH software following the instructions provided in chapter 3.1. Then click
“Settings – Licensing” and enter the data required to activate the license, as explained below.
• Enter the Product key printed on the key containing the MacroPATH software (in the space marked by the
arrow in the figure above).
• Then click “Regenerate” (circled in the figure above).
• Click “Copy to Clipboard” to copy the machine’s ID (circled in the figure above).
• Paste into a text file or directly in the body of an e-mail.
• Describe the reason why a new license is required.
• Send an e-mail to customer support customersupport@milestonemedsrl.com also providing the serial
number of the camera and the software version.
• When you get the reply, save the file you receive from customer support.
• Click “Import file” (circled in the figure below) and select the saved “license.req5” file.
• Click “Save” at the bottom right of the Settings page (marked by the arrow in the figure below).
• Restart the MacroPATH software (it is not necessary to completely reboot the PC) and check that the
license status on the Settings page is “Unlimited” as shown below.
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
27
2.8. Foot pedal control configuration (only for MacroPATH Basic)
After connecting the foot pedal control to a USB port on the PC, follow these instructions:
go to “Settings” by clicking the appropriate icon, then select “Camera” (refer to chapter 3.6.5). Select the
serial number under “Foot pedal” - each foot pedal control has its own serial number:
If two or more serial numbers are displayed, check whether any external instrument is connected to the PC
using the same drivers. However, the serial number is found on the foot pedal control. Select the appropriate
serial number, save and restart the software. If the foot pedal control is still not working, follow the
instructions in chapter 7.4.
The serial number of the foot pedal control starts with the letters ST and is printed on a
little sticker on the pedal.
DO NOT enter any serial number on the Keypad. Click “Clear” if this field is not empty.
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
28
3. WORKING WITH MacroPATH
It is very easy to work with MacroPATH. All functions are described in the following chapters.
3.1. Start MacroPATH
Let Windows start up and double click on the MacroPATH Pro icon on the desktop.
You can use your fingers or the provided touch pen for greater screen selection precision.
3.2. Log in and Log out
As a default setting, when the MacroPATH software is
launched, the user is logged in as Administrator.
To disable this function, the “auto log-in” field must be
unchecked (see chapter 3.6.2).
You need to be logged in as Administrator to use the main
functions. “Service” log-in is available for authorised personnel
only.
Do not disconnect the camera if the PC is on
Milestone does not guarantee operation with any touch-pen other than the one provided
with the unit.
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
29
3.3. Overview of the functions
MacroPATH functions are grouped in 4 areas: FILES, LIVE, EDIT and SETTINGS.
AREA
FUNCTION
FILES
To browse, delete, add notes and present the existing files
LIVE
To capture images, videos and audio files
EDIT
To edit the captured images
SETTINGS
To modify settings of the FILES, LIVE and EDIT areas
The following screen is available only for complete MacroPATH software (but not for the Viewer user).
A
STATUS ICON
This displays the software status
B
LOG IN
This displays the current user and allows the user to log out by clicking it.
C
EXIT
To exit the MacroPATH application and go back to the PC operating system.
D
FILE NAME
Shows the name of the current file.
E
LIVE
To go back to the live display of the sample of the camera disabled by
default, value set at 0 seconds).
F
IMAGE, VIDEO,
AUDIO FILTERS
To filter the thumbnails.
G
CAMERA BUTTON
To turn the camera on/off and open the camera settings window (by holding
the icon down).
H
MAIN SCREEN
Sample observation area.
I
ZOOM and
STATUS BAR
Click on the button or directly on the touch-screen, to zoom in/out as required
(from 0% to
100% in 7 steps). This function is also possible with the foot pedal control.
L
FILE #
File name/number entry area, as needed: either with the bar code or keypad.
M
ENTER
Required if the file number is entered manually.
M
I
H
C F E D B
A
L
G
MacroPATH and MacroPATH Basic QX Series
MM161-001 – Operator Manual
30
3.3.1. Shortcut Keys
Some functions can also be performed using certain buttons on the keypad (see table below):
Availability
Hold down
Shortcut
Key
Function
Always available
CTRL left +
ALT left +
1:
Files
2:
Live
3:
Edit
4:
Settings
5:
Exit
6:
Logout
FILES
Q:
Show file
W:
Reset search
E:
Print file
R:
Present file
T:
Add notes
LIVE
A:
Capture
S:
Record Video
D:
Record Audio
F:
Autofocus
G:
Zoom +
H:
Zoom –
EDIT
Ctrl Left + Alt Left + Shift
Left +
Q:
Select
W:
Line size
E:
Area size
R:
Free sizing
T:
Line
Y:
Circle
U:
Square
I:
Arrow
O:
Compass
P:
Freehand
A:
Text
S:
Section (1)
D:
Section (A)
F:
Section (A-1)
G:
Section (1-A)
H:
Quadrant
J:
Multisection
K:
Zoom region
L:
Zoom IN
Z:
Zoom OUT
X:
Zoom FIT
C:
Undo
V:
Redo
B:
Print
N:
Record Audio
M:
Save
Loading...
