Operator's Manual
116 pgs7.43 Mb0

Milestone KOS Operator's Manual

Download
Page 1
KOS
Rapid Microwave Labstation
Operator Manual - MM073
Page 2
Page 3
KOS
3
Thank you for choosing one of our systems and welcome to the ever more crowded club of Milestone laboratory instrumentation users. We feel confident that you will be fully satisfied with the addition of this new instrument to your laboratory. We recommend carefully reading this operator manual and to always keep it within reach for convenient and quick referencing. For any clarification or request for assistance, please contact our representative in your country:
Or contact: Milestone s.r.l.
Via Fatebenefratelli, 1/5 24010 Sorisole (BG) Italy Tel. +39.035.412 8264 Fax +39.035.575498 web site www.milestonemedsrl.com e-mail marketing@milestonemedsrl.com
Carefully read this manual before using the instrument.
MM078-006 – KOS – Operator Manual 2018-05
Page 4
KOS
4
SUMMARY
SUMMARY ........................................................................................................................................................ 4
1. INTRODUCTION ........................................................................................................................................ 6
1.1. Symbols used .................................................................................................................................... 6
1.2. Intended uses .................................................................................................................................... 7
1.3. Technical specifications ..................................................................................................................... 7
1.3.1. Microwave unit ........................................................................................................................... 7
1.3.2. Touch control terminal ............................................................................................................... 8
1.3.3. GPR/K module ........................................................................................................................... 8
1.4. Transport and storage conditions ...................................................................................................... 8
1.5. Warning information ........................................................................................................................... 9
1.6. Instrument labeling explanation ......................................................................................................... 9
1.7. Compatible reagents ........................................................................................................................ 10
1.8. Waste disposal of the equipment .................................................................................................... 11
1.9. Waste disposal of reagents ............................................................................................................. 11
2. SETTING UP THE INSTRUMENT ........................................................................................................... 12
2.1. Introduction to KOS ......................................................................................................................... 12
2.2. Space requirements ......................................................................................................................... 13
2.3. Unpacking and checking list ............................................................................................................ 14
2.4. Final placement ............................................................................................................................... 15
2.4.1. Product overview ..................................................................................................................... 15
2.5. Fume extraction system ................................................................................................................... 17
2.6. Power supply ................................................................................................................................... 18
2.7. Internet connection .......................................................................................................................... 19
2.7.1. How to start the Remote Assistance ....................................................................................... 21
2.8. Reagents.......................................................................................................................................... 22
2.9. Log IN and Log OUT ........................................................................................................................ 23
2.10. Set date and time ............................................................................................................................. 25
2.11. Set language .................................................................................................................................... 26
3. KOS HISTOMODULES AND OPTIONAL PARTS ................................................................................... 27
3.1. Histoprocessing (up to 3mm thickness) ........................................................................................... 27
3.2. Antigen retrieval ............................................................................................................................... 32
3.3. Decalcification and/or fixation .......................................................................................................... 35
3.4. Special stains ................................................................................................................................... 43
3.5. GHM/K Gross hardening ................................................................................................................. 44
3.6. Summary table ................................................................................................................................. 45
4. OPERATE WITH KOS.............................................................................................................................. 47
4.1. Touch control ................................................................................................................................... 47
4.2. Run programs .................................................................................................................................. 48
4.2.1. Histoprocessing ....................................................................................................................... 48
4.2.2. Decalcification .......................................................................................................................... 54
4.2.2.1 Decalcification with multiple module ........................................................................................ 57
4.2.3. Special stains ........................................................................................................................... 59
4.2.4. Antigen retrieval ....................................................................................................................... 61
4.2.4.1 GPR/K Module ......................................................................................................................... 64
4.2.5. Fixation .................................................................................................................................... 69
4.2.6. Gross hardening ...................................................................................................................... 70
4.3. Retrieving saved processing results ................................................................................................ 71
4.3.1. How to delete a saved processing ........................................................................................... 71
4.4. How to modify a program ................................................................................................................. 72
4.5. Delete modified programs ................................................................................................................ 75
4.6. Edit modified programs .................................................................................................................... 76
4.7. Create and modify favorite display .................................................................................................. 78
4.7.1. Delete from favorite list ............................................................................................................ 79
4.8. Notes ................................................................................................................................................ 80
4.9. Compliance ...................................................................................................................................... 81
4.10. Help .................................................................................................................................................. 81
4.11. KOS system settings ....................................................................................................................... 82
4.11.1. Reagents management ........................................................................................................... 83
4.11.2. User management ................................................................................................................... 84
Page 5
KOS
5
4.11.3. Owner Settings ........................................................................................................................ 86
4.11.4. Remote Assistance .................................................................................................................. 87
5. REPORTING ............................................................................................................................................ 88
5.1. Export processing from the terminal to the USB ............................................................................. 88
5.2. Install the LogViewer ....................................................................................................................... 89
5.2.1. Open process........................................................................................................................... 89
5.2.2. Print process ............................................................................................................................ 91
6. MAINTENANCE ....................................................................................................................................... 92
6.1. Introduction ...................................................................................................................................... 92
6.2. After each run .................................................................................................................................. 92
6.2.1. Rack cleaning procedure ......................................................................................................... 93
6.3. Weekly ............................................................................................................................................. 94
6.4. Monthly ............................................................................................................................................ 94
6.5. Every six month ............................................................................................................................... 94
6.6. Yearly ............................................................................................................................................... 95
7. TECHNICAL TROUBLESHOOTING ........................................................................................................ 96
8. GOOD PROCESSING PRACTICE .......................................................................................................... 97
8.1. Specimens ....................................................................................................................................... 97
8.2. Fixation ............................................................................................................................................ 97
8.3. Beware ............................................................................................................................................. 98
8.4. Reagents.......................................................................................................................................... 99
8.5. Microwave alcohols quality .............................................................................................................. 99
8.6. Tissue processing selection guidelines ......................................................................................... 100
8.7. Bone decalcification guidelines...................................................................................................... 102
A. APPENDIX ......................................................................................................................................... 103
A.1. MW tissue processing troubleshooting guide ................................................................................ 103
A.2. MW decalcification troubleshooting guide ..................................................................................... 110
A.3. Summary........................................................................................................................................ 111
B. APPENDIX ......................................................................................................................................... 112
B.1. How to manage samples while an alarm is occurring during histoprocessing .............................. 112
Page 6
KOS
6
1. INTRODUCTION
1.1. Symbols used
An instruction accompanied by this symbol provides a cautionary statement: WARNING. Failure to follow the instruction may endanger the USER or cause damage to the instrument.
An instruction accompanied by this symbol provides a caution against electric shock. Be sure to follow the instruction to prevent accidents resulting from electric shock.
Biohazard.
Surface at danger temperature (more than 70°C, 158°F) do not touch.
Potentially flammable.
Laser source Class II.
Acid.
Aquatic pollution.
CE logo: this instrument complies with European community directives.
IVD medical device according to 98/79/EC directive.
Please read carefully this instruction.
Please read SERVICE Manual (operation for SERVICE only).
WEEE European directive symbol (2002/96/EC). Electric/electronic device do not throw out in the environment.
Manufacturer.
Fragile.
Page 7
KOS
7
1.2. Intended uses
The Milestone KOS and its optional parts have been engineered for laboratory use and can therefore withstand the harshest laboratory conditions for continuous use in Histological sample preparation procedures. The instrument is intended for laboratory use (indoor use) only. The KOS Unit is specifically designed to semi automatically execute these processes for histopathological applications:
Fixation, post-fixation  Dehydration and clearing  Paraffin WAX infiltration  Antigen retrieval  Special staining  Decalcification
The Milestone KOS must be operated exclusively with the reagents listed in “Compatible reagents” chapter
1.7.
Any other use of the instrument is considered improper and may void the warranty provided by the manufacturer.
1.3. Technical specifications
Working Temperature: 15°C–30°C (59°F–86°F) Humidity (relative): up to 80% Maximum altitude: 2000m
This unit is developed to comply with the CAP-College of American Pathologists checklist for microwave instruments requirements.
1.3.1. Microwave unit
Microwave Power: Max 800 Watt. Power Emission: The Power Emission (Pulse Width) is controlled by the KOS software. The microwave
power output is regulated in 10 Watt increments. Control of microwave power is made by modification of the In and Out phase of the Magnetron.
Power supply: 230 V ~ 50 Hz, 8A (see table below) 230 V ~ 60 Hz, 8A (see table below) 115 V ~ 60 Hz , 15A (see table below)
Safety Pack: Reagents and Organic solvent detector sensor, Humidity detection sensor, MW leakage sensor Camera: Analogic camera 50Hz (PAL model) and 60Hz (NSTC model), front panel 5.6" color camera monitor For more detail refer to chapter 2.6.
Page 8
KOS
8
1.3.2. Touch control terminal
It is possible to operate the unit by simply touching the icons on the screen. Characteristics: TK-WIN10CEi-TFT-LCD color display
Resolution 800x600 pixels, 8’’ Touch screen Mass storage CF 512MB RAM 256 MB CPU 500MHz Windows™ CE.NET 6.0
Programs: Multiple pre-stored programs, with customizable USER defined programs I/O-Interface: 2x USB port 2.0, 1x LAN Ethernet 10/100 Mbps RJ-45
The two USB PORTS are located adjacent to the main power switch, on the back side of KOS unit.
1.3.3. GPR/K module Characteristic: Maximum solution volume: 750 ml
Slide capacity: 40 slides max. Over pressure safety valve: to release pressure at 2 bar (130-135ºC). Maximum working Temperature: 120ºC
1.4. Transport and storage conditions
Temperature: -20°C (-4°F) up to +60°C (140°F) Humidity: up to 80% (up to 50% at 40°C – 104°F) non-condensing
Before turning the KOS on (when coming from a storage room) please let the unit reach working environmental conditions (at least half an hour).
The manufacturer reserves the right change and/or improve specifications without notice and without incurring in obligation.
The manufacturer reserves the right change and/or improve specifications without notice and without incurring in obligation.
Page 9
KOS
9
1.5. Warning information
Main power plugs are considered disconnecting device. Disconnect all plugs from the socket outlet before assembling of the system and before cleaning.
Equipment shall be connected to main a power socket outlet which is accessible and visible by the operator. Equipment is provided with replaceable fuses, however their replacement is to be performed by properly
authorized service personnel. If the system is still not properly working, please contact the local authorized and trained service representative of the manufacturer.
All parts of the equipment including optional parts shall be supplied only by the manufacturer. Should the equipment be used in different ways than those specified by the manufacturer, the warranty provided by the manufacturer may be void.
DO NOT OPEN THE CHASSIS! Failure to follow the instruction in the documentation might lead to a reduction of device safety. If the equipment is not working properly, please contact your supplier or the manufacturer.
Do not remove the instrument, accessories, panels or cover. Only authorized and
qualified SERVICE personnel may repair the instrument and access the instrument’s
internal components.
It is important that normal standards for safety and good laboratory practices are applied. Always use common sense and the best known practice when operating the instrument. Failure to follow the instructions in the documentation might lead to a reduction of device safety. The Competent Authority owning the instrument has primary responsibility for accident-free operation together with designated personnel who operates SERVICE or repair it.
To avoid damage to the instrument, use only the reagents listed in section 1.7 Compatible Reagents. Failure to follow the instructions in the documentation might lead to a reduction of device safety.
Use caution when handling hot, molten WAX.
METAL PARTS Never introduce metal parts into the MAIN CAVITY. High voltage discharges may cause uncontrolled increases of temperature, which could damage the unit and result in incorrect tissue processing also. Failure to follow the instructions in the documentation might lead to a reduction of device safety.
Be careful: exhaust reagents are toxic and carcinogenic. Handle with care and follow the local standard regulations.
Caution – laser radiation. Class II: if opening, do not fix the beam. When opening the door, a laser beam appears to facilitate the correct positioning of the histomodule.
1.6. Instrument labeling explanation
Page 10
KOS
10
For symbols explanation see chapter 1.1.
Note only for Canada: this symbol indicates the compliance with the requirements of CAN/CSA-C22.2 No. 61010-1, 2nd edition, including Amendment 1.
1.7. Compatible reagents
Fixatives
Dehydration
Clearing
Decalcification
Impregnation
Other
Milestone FineFIX®
Milestone JFC
solution
Ethylenediaminetetraacetic acid
(EDTA) 20%
WAX, Histology
grade
Saline solution
Formalin, buffered or unbuffered
Milestone
Prowave®
solution
Formic acid 12%
Histochemical
stain for
histology
Formalin
saline
Ethanol
Milestone MoL-DEACALCIFIER
Sodium citrate 10mM, pH 6.0
Isopropanol
Tris/EDTA pH
9.0
Please refer to chapter 8.4 for purity grade of reagents.
DO NOT USE REAGENTS DIFFERENT FROM THOSE LISTED ABOVE. In case of doubts please contact: application@milestonemedsrl.com.
Reagents other than those listed above may damage some components of the instrument. Do not use acetone, benzene or trichlorethane in the instrument! Fixatives containing mercuric salts, acetic or picric acid will corrode metallic components in the instrument and shorten instrument life. If you choose to work with such fixatives, it is essential to perform a rack cleaning cycle with multiple water rinses each time after use, to minimize damage.
Page 11
KOS
11
1.8. Waste disposal of the equipment
This instrument is an in-vitro medical device and it is usually installed in a laboratory where specimens and other biological tissues are present. For your safety, it is therefore required to clean and disinfect before entering in contact with it. You must also wear gloves when operating with the system. It is required in case of return that the unit is cleaned and disinfected before sending it back to Milestone s.r.l. Non-disinfected devices will be no longer accepted and you will be contacted to get the relative disinfection cost. International health rules require that shipments of biohazard materials are not done in standard packages (risk of sanctions).
It is recommended the use of polyphenolic based disinfectants For further information, please contact the manufacturer: marketing@milestonemedsrl.com.
Complying with directive 2012/19/EC of the European Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment (WEEE), the separate collection environmental managed of equipment is mandatory. It is necessary to return the used equipment to the distributor or to inquire about the presence of a local empowered system for collection and disposal of WEEE. The in-observance of Directive 2012/19/EC or of the local law which acknowledge it can have potential effects on the environment and human health.
This symbol indicates separate collection
for electrical and electronic equipment
If additional requirements on accident prevention and environmental protection exist in the country of operation, this instruction manual must be supplemented by appropriate instructions to ensure compliance to such requirements.
1.9. Waste disposal of reagents
For further information please refer to the MSDS (Material Data Safety Sheet) provided by your supplier.
Do not remove the side panels of the unit during the cleaning operations.
Before doing any operation disconnect the power supply. Do not use direct or high-pressure water to clean the instrument.
For safety reason, any operation without the individual protective devices must be avoided.
Handle with care and store in a cold dry space using a tightly closed container. Vapors may collect in empty containers. Treat empty containers as hazardous. Waste material should be disposed of in an approved incinerator or in a designated landfill site, in compliance with all federal, provincial and local government regulation. Some reagents can have potential health effects and cause environmental pollution if not correctly disposed.
Page 12
KOS
12
2. SETTING UP THE INSTRUMENT
2.1. Introduction to KOS
The KOS is a unit provided with state-of-art microwave Hardware/Software, that allows obtaining consistent and reproducible results in the histopathology laboratory, for high throughput tissue processing and other histological applications. The system and its parts have been engineered for laboratory use and can therefore withstand the harshest laboratory conditions for continuous use in Histological sample preparation procedures. This manual refers to KOS, microwave Labstation and its application is suitable for NON vacuum processing of tissue specimens with a maximum thickness of up to 3 mm.
The KOS concept
Microwave
Tissue
Processor
Specially
developed
Histomodules
A set of prestored
programs

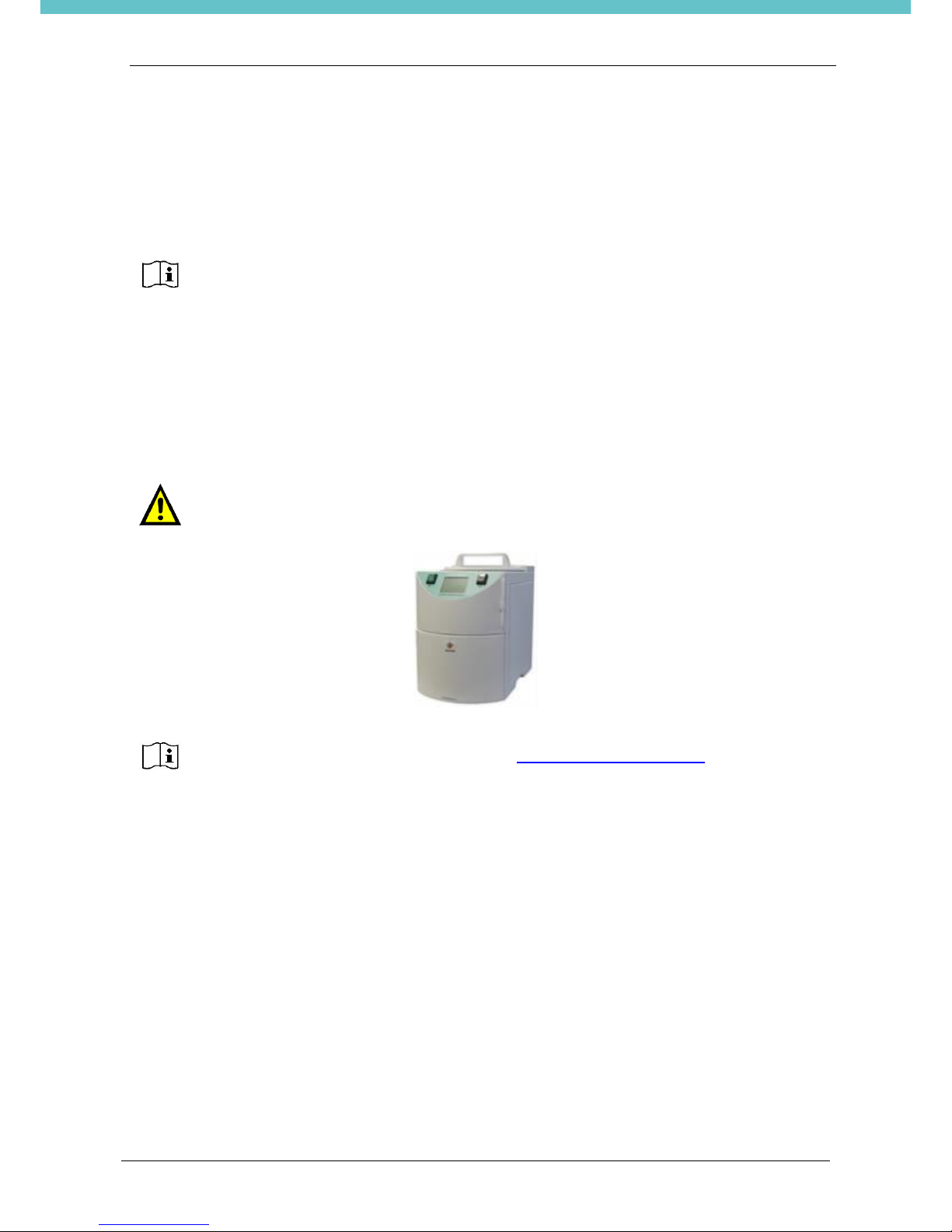

Milestone KOS is a precision instrument that requires the utmost care when it is unpacked and installed.
The weight of KOS is approximately 40kg (88lb) at least 2 people should remove the microwave unit from its box and locate it on the bench.
Page 13
KOS
13
Provide a vibration free bench of at least 0.55m in width and 0.8m in depth, suitable for a weight of 50kg and place the KOS on it.
Make sure the unit is not placed against any side surface limiting the air cooling inlet/exhaust: let at least a distance of 10cm for each side.
Never install the KOS unit under a fume hood. The presence of acids or caustic reagents may contaminate the air flow used for ventilating the electronic components, exposing them to possible corrosion or shorting of circuits.
CONNECTING CABLES
Never connect or remove cables when power to the unit is switched
on, to avoid risk of damage.
METAL PARTS
Never introduce metal parts into the microwave chamber.
High voltage discharges may cause uncontrolled increases in temperature, which could damage the unit.
CLEANING CAVITY AND DOOR
Periodically inspect and clean cavity, door seals and hinges. Do not use aggressive cleaning materials. If
microwave exposed surfaces are not kept clean, local “hot Spots” are generated with possible corrosion of the metal
surface.
FOOD
Never heat food in a microwave oven used for laboratory procedures.
2.2. Space requirements
Unit dimensions:
UNIT
Width: 340mm (14in)
Height: 550mm (22in)
Depth: 530mm (21in)
CAVITY
Width: 240mm (10in)
Height: 265mm (11in)
Depth: 290mm (11.7in)
Space dimensions required to locate the unit:
Width: 970mm (38in)
Height: 920mm (36in)
Depth: 1090mm (43in)
NO
Page 14
KOS
14
2.3. Unpacking and checking list
When unpacking, check that all parts correspond to the packing list included in the shipment. Utmost care must be made during unpacking of KOS, to avoid scratching or damage of the external coating. Check if your KOS part number corresponds to the voltage supply of the laboratory, please refer to chapter 1.3.1.
KOS is delivered in a carton box (weight 50kg-110lb) with these dimensions:
Width
600mm (23.6in)
Height
900mm (35.4in)
Depth
800mm (31.5in)
A separate carton box (W480mm/19in-H100mm/4in-D480mm/19in) is positioned over the main carton box: remove and keep it apart. This box contains optional parts which will be used during the installation of the KOS. Lift the main carton box up to facilitate KOS removal. The KOS comes protected by a plastic bag to prevent problems of moisture infiltration during transportation.
Then open the box (or boxes) with parts (optional). The KOS unit includes the following items:
1. Microwave unit complete with integrated Touch Control terminal
2. Power cord (x1)
3. Plastic hose + metal cable clamp
4. Operator Manual in electronic format
5. USB Data Traveler Optional parts: Histomodules are supplied according to customer specific order (to be ordered apart).
POWER CORD
Code 67109 (115V ~ 60Hz)
Code 70304 (230V ~ 50/60 Hz)
PLASTIC HOSE and
METAL CABLE CLAMP
Code 50332
Code 64757
Page 15
KOS
15
2.4. Final placement
Now KOS unit can be positioned in its final place of use. When the instrument is positioned, it must be firmly placed. Make sure that the bench is level. Insert the positioning plate (Code 67210) in the KOS as shown below, with the mark TOP visible.
During the KOS SETUP the microwave unit should not be connected to the main power supply.
2.4.1. Product overview
The picture below shows the front view of the KOS system. Pull the handle towards the operator to open the door. On door opening, microwave emission is turned off by 4 safety mechanical switches.
An overview of the back side of KOS is shown in the following picture.
Main power
Switch &
USB ports
Door handle
Charcoal
filters
Terminal
& Cavity
monitor
Exhaust hose
connection
Power cord
connector and fuses
Page 16
KOS
16
The KOS has dedicated software, based on Windows CE (Microsoft Windows CE is a trademark of Microsoft Corporation). Use the touch screen pen to select the desired menu function. The picture below shows the internal cavity of the KOS. The KOS is neither a kitchen type nor a commercially modified kitchen type microwave unit. It is a rugged, heavy duty professional system, designed to guarantee many years of trouble free and safe operation.
0
1
3
4
6
7
9
,
-
INFRA-RED SENSOR
Fully automatic non
contact temperature control
100% walk-away
operation
EXHAUST FAN
No toxic vapors to
laboratory
Extraction of
vapors to fume
hood
R E A R
F R O N T
AUTO START
MAGNETIC STIRRER Homogeneous
temperature
distribution within the solution eliminating
“Hot Spots”
All cassettes are processed under the
same preset conditions
Touch screen
Terminal control
R E A R
F R O N T
Page 17
KOS
17
2.5. Fume extraction system
The instrument is equipped with carbon filters (Code 67223) to avoid the releasing of fumes into the laboratory environment. The carbon filter absorbs reagent fumes to prevent their diffusion into the laboratory atmosphere. To ensure the filters are effectively operating, they must be periodically replaced (see chapter 6.5 for details).
The KOS is vented, according to CAP requirements, through the external exhaust outlet positioned on the back of the instrument, with a hose dedicated to the external fume extraction system (if any).
In case of connection to an external fume extraction system, the customer is required to adapt the hose connector. The plastic hose supplied has these characteristics:
Length: 2.5m(98in)  External diameter: 55mm(2.15in)  Internal diameter: 50mm(2in)
Connect the black exhaust hose of 2.5m (Code 50332) to the exhaust outlet located on the back panel of the unit.
Use the metal cable clamp (Code 64757) to fix the hose to the exhaust outlet connection. Use a screw driver to tighten the metal cable clamp.
Now connect the other side of tube the fume extractor of the laboratory.
Either the carbon filters or an external fume extraction system must be properly installed at all times, according to local regulations in force on laboratory safety.
If the instrument is not connected to the laboratory fume extraction system, all fixation steps must be carried out under the fumehood.
The external fume extraction system must permit an air flux of 36m3/h (cube meter per hour), (21cfm).
Page 18
KOS
18
2.6. Power supply
Power supply line needs to have a ground connection (Class I device). Power line protection: 115V version: Miniature circuit breaker curve C, 15A, residual current device: 30mA. 230V version: Miniature circuit breaker curve C, 10A, residual current device: 30mA.
230V version: a schuko terminated power cord is provided. 115V version: a NEMA 5-15P terminated power cord is provided.
Plug/socket must be visible during the normal use and easily accessible.
Check if Voltage and Frequency on the back label of the KOS correspond to the power supply outlet in your laboratory.
POWER SUPPLY
KOS
REF
115 V ~ 60 Hz, 15A
67050/W
230 V ~ 50 Hz, 8A
67051/W
230 V ~ 60 Hz, 8A
67052/W
Now you can connect the power supply cable and switch the KOS ON, using the main power switch located on the back side panel of the microwave unit.
KOS is now ready for use.
Page 19
KOS
19
2.7. Internet connection
It is necessary to connect KOS to Internet to get Remote Assistance SERVICE.
IT IS NOT ADMITTED TO RUN PROGRAMS WITH KOS WHILE USING REMOTE ASSISTANCE CONNECTION. PROCESSES IN REMOTE ASSISTANCE ARE FOR TESTING USE ONLY, NEVER PLACE SPECIMEN INSIDE KOS.
In order to access the remote assistance (as described in the chapter 4.11.4), following data are needed from the Information Technology Department/Network ADMINISTRATOR of the laboratory:
- LAN connection with standard RJ45 Ethernet cable and connector
- Dedicated IP address and Subnet Mask (strongly preferred to DHCP SERVICE); only port 80 has to be enabled without limitations
- LAN gateway and DNS server addresses
- At least 150kb/s real transfer rate (uploading and downloading).
When connecting KOS to remote assistance, it is necessary that Firewall, traffic data filters and all software are disabled. Milestone s.r.l. strongly suggests not to use the DHCP SERVICE, but fix the IP address in order to properly set up the LAN defenders.

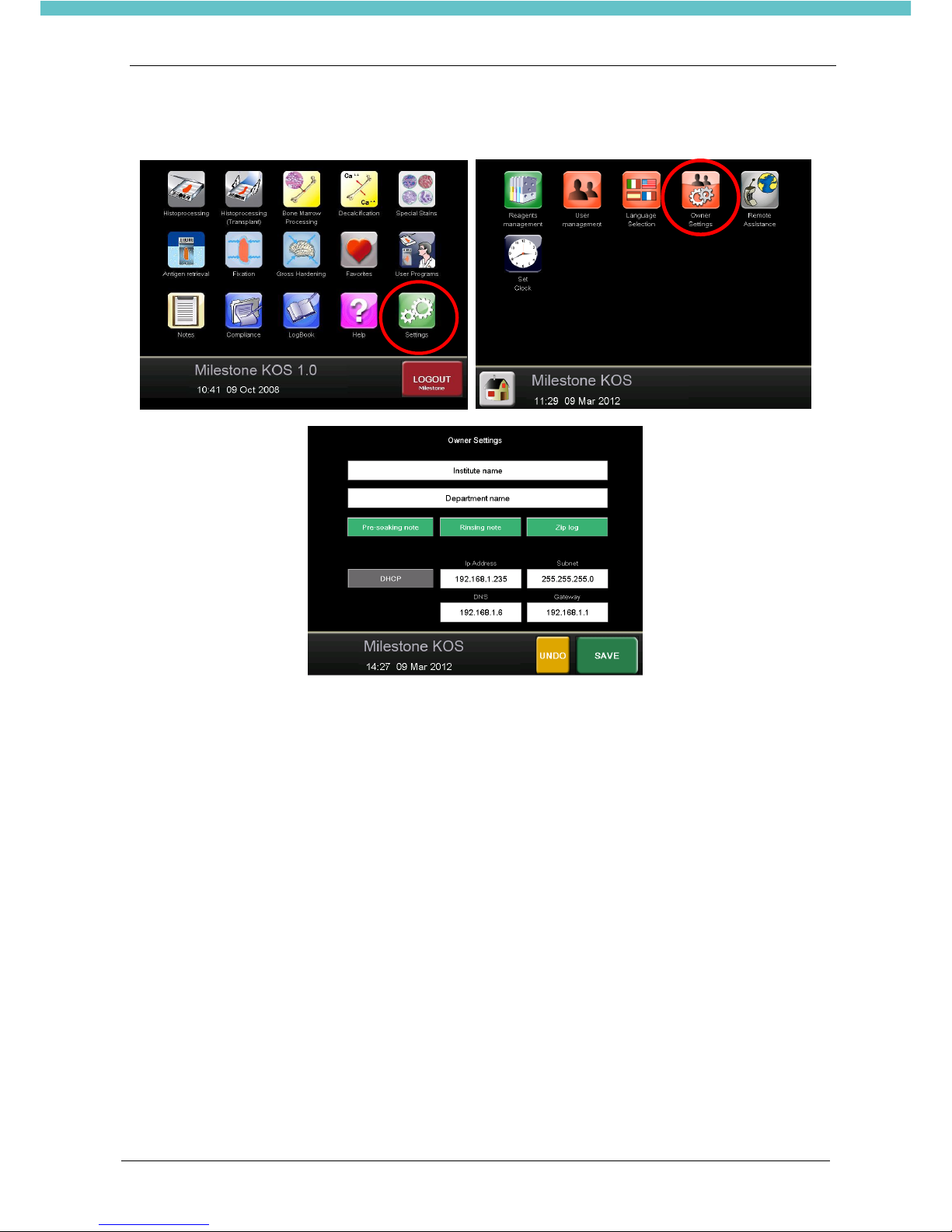

From Log-in screen click on ADMINISTRATOR and insert the password (issued as a separate document inserted in the Operator Manual).
The Administrator HOME PAGE appears. Press SETTINGS to access the administrator screen and then press “OWNER SETTINGS”.
Page 20
KOS
20
The following screen appears. Enter the data required supplied by the Network Administrator. For example:
A keyboard appears when clicking on any white box; insert the number required and then press directly the green arrowed check box (in the figure below). Fill all white boxes with data network.
Press SAVE to store data, as shown below on the left and the message on the right appears.
Press Ok and restart the Unit, as indicated in the figure above.
IP Address
192.168.1.200
Subnet Mask
255.255.255.0
DNS server address
192.168.1.6
Default Gateway add.
192.168.1.1
Page 21
KOS
21

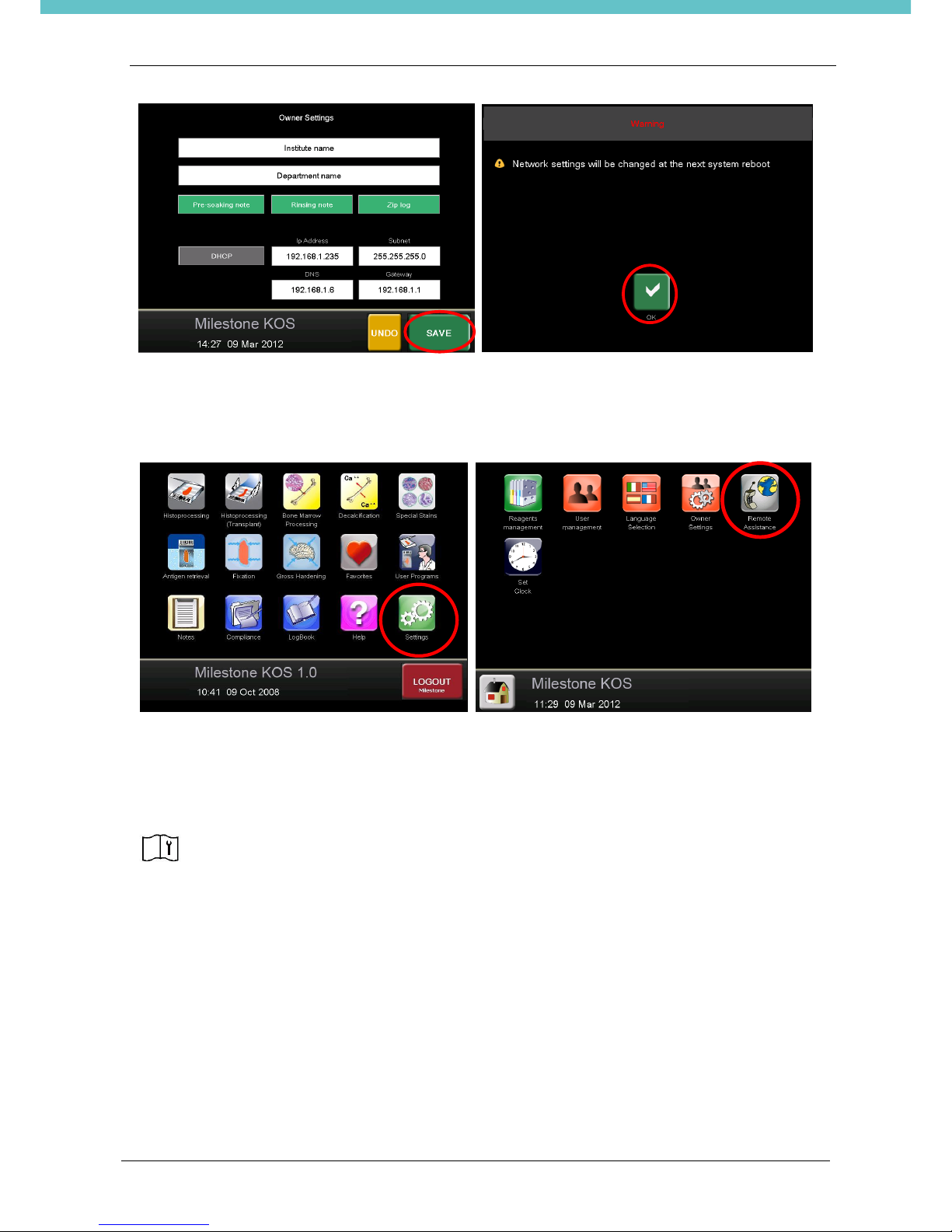

2.7.1. How to start the Remote Assistance
In administrator screen, press “Settings” icon from the MAIN MENU, as indicated below.
The following screen appears and on selecting the REMOTE ASSISTANCE button, the icon turns in pink and is automatically activated. See below.
Once activated, do not press the REMOTE ASSISTANCE icon again (to avoid multiple activations) until you reboot the machine. Now remote service works with your instrument.
Do not disconnect nor restart the instrument during the remote connection.
ALWAYS COMMUNICATE THE SERIAL NUMBER (S.N.) OF THE UNIT. MILESTONE CANNOT CONNECT TO UNIT WITHOUT THE S.N. THAT IS AVAILABLE IN “HELP” ICON IN MAIN SCREEN.
Page 22
KOS
22
2.8. Reagents
Complete the set up with reagents, by providing at least: PROCESSING REAGENTS:
HISTOMODULE
4K
15K
30K
45K
55K
110K
REAGENTS’ QUANTITY
200mL
900mL
1,4L
1,9L
2L
3L
Formalin, FineFIX  Absolute Ethanol  Exhausted Ethanol for rinsing  Absolute Isopropanol  JFC-for processing of larger fatty tissues (3mm), use of Milestone JFC solution is recommended  1,1 kg (24,25lb) for 110K, 0.7kg (1.54lb) for 45K-160g (0.35lb) for 4K WAX, Histology grade
DECALCIFICATION REAGENTS:
HISTOMODULE
4K
15K
30K
45K
110K/60M
55K/8SM
MDM
REAGENTS’
QUANTITY
200mL
900mL
1,4L
1,9L
3L
2L
1,5L
EDTA 20% OR Formic acid 12%
ANTIGEN RETRIEVAL REAGENTS:
HISTOMODULE
16KS
20KS
40KS
80KS
GPR/K20S
GPR/K40S
REAGENTS’ QUANTITY
100ml
1L
2L
3L
550ml
750ml
Sodium citrate 10 mM, pH 6.0  Tris/EDTA pH 9.0
SPECIAL STAINING REAGENTS:
Histochemical stain for histology: 100ml
FIXATION REAGENT:
HISTOMODULE
4K
15K
30K
45K
55K
110K
REAGENTS’ QUANTITY
200mL
900mL
1,4L
1,9L
2L
3L
Formalin, FineFIX
GROSS HARDENING REAGENTS:
Formalin, FineFIX, OR Saline solution: 3L
The above reagents must be onsite and available at time installation of unit.
The above reagents quantities are just a guideline, real quantities to be determined during process, according to number of cassettes placed in the rack, samples type/size used.
Refer to chapter 8.4 for purity grade of reagents.
Page 23
KOS
23

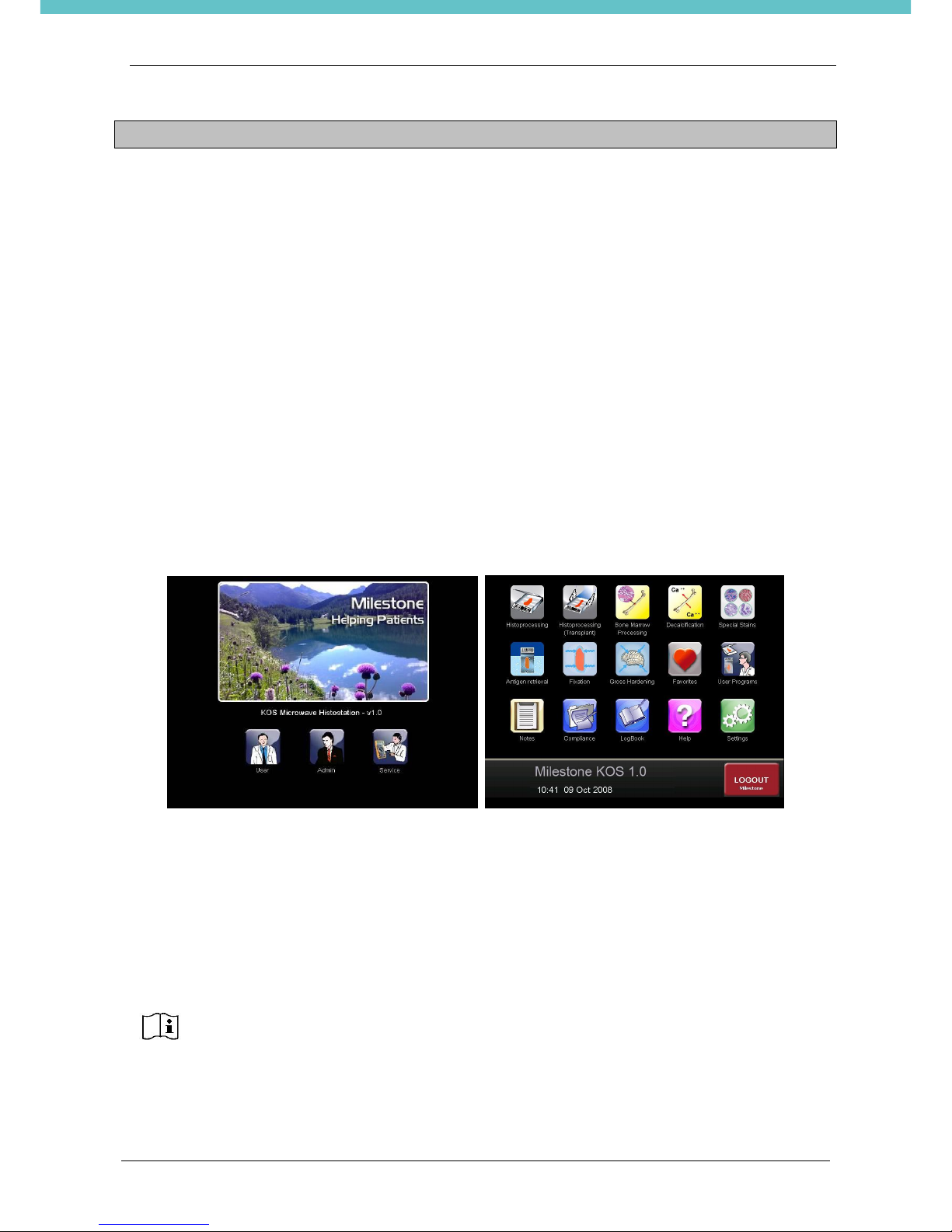

2.9. Log IN and Log OUT
When the system is switched on, the LOG IN screen appears. Log in as Administrator is necessary to use the
main functions. Therefore press “Administrator” button, insert the password (issued as a separate document
inserted in the Operator Manual) and press the green arrowed check box (see below).
The Administrator HOME PAGE appears. As default, it shows the main programs. From any screen, click on the Home icon circled in red (figure below) to go back to the home page.
Administrator and Service can customize the HOME PAGE under the Users management, choosing between “Favorites” and “Main functions” (see below). Go into the SETTINGS screen and select USER MANAGEMENT to create a new user.
SERVICE Log-in is available for authorized personnel only (ADMINISTRATOR can access to a restricted SERVICE functions. SERVICE has complete access to the unit functionalities).
Page 24
KOS
24

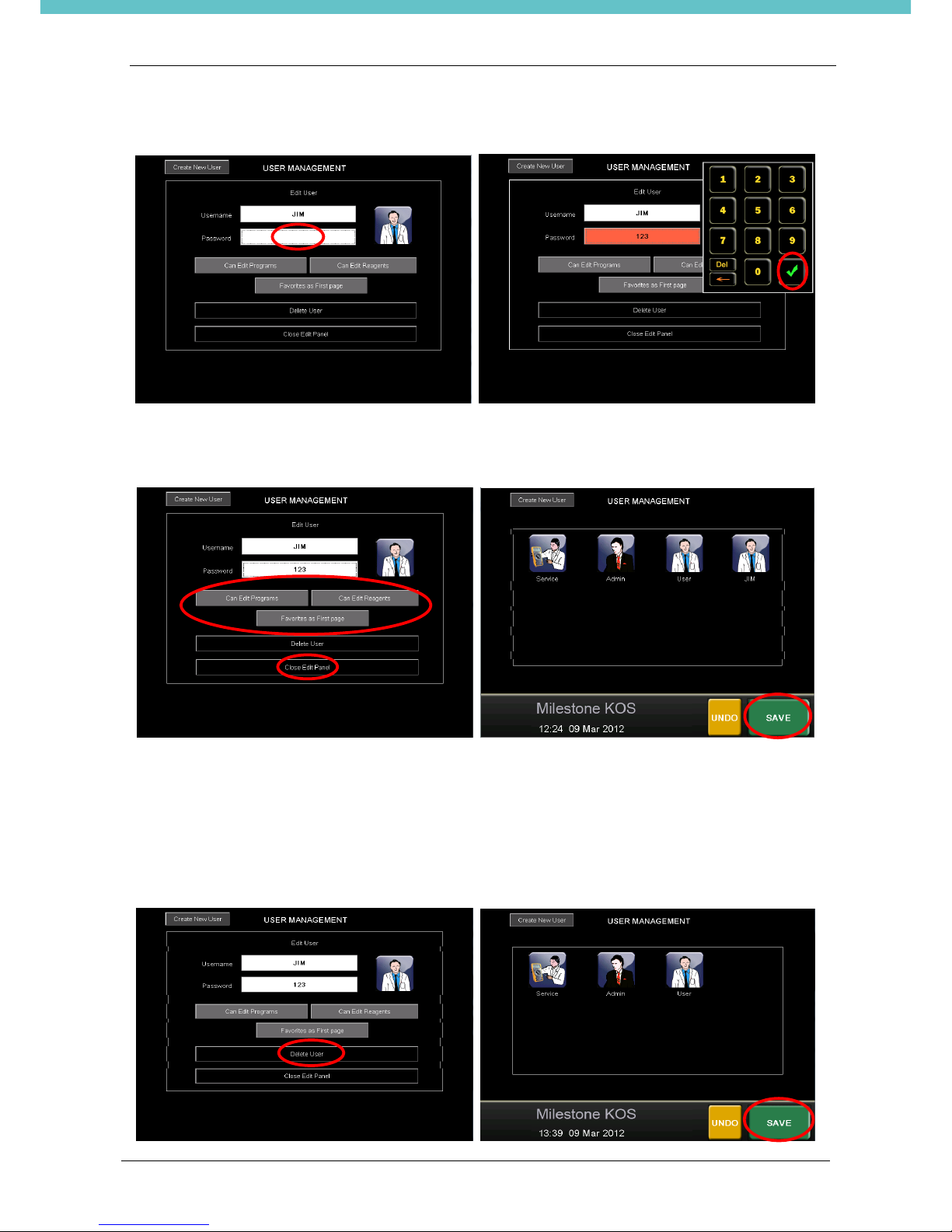

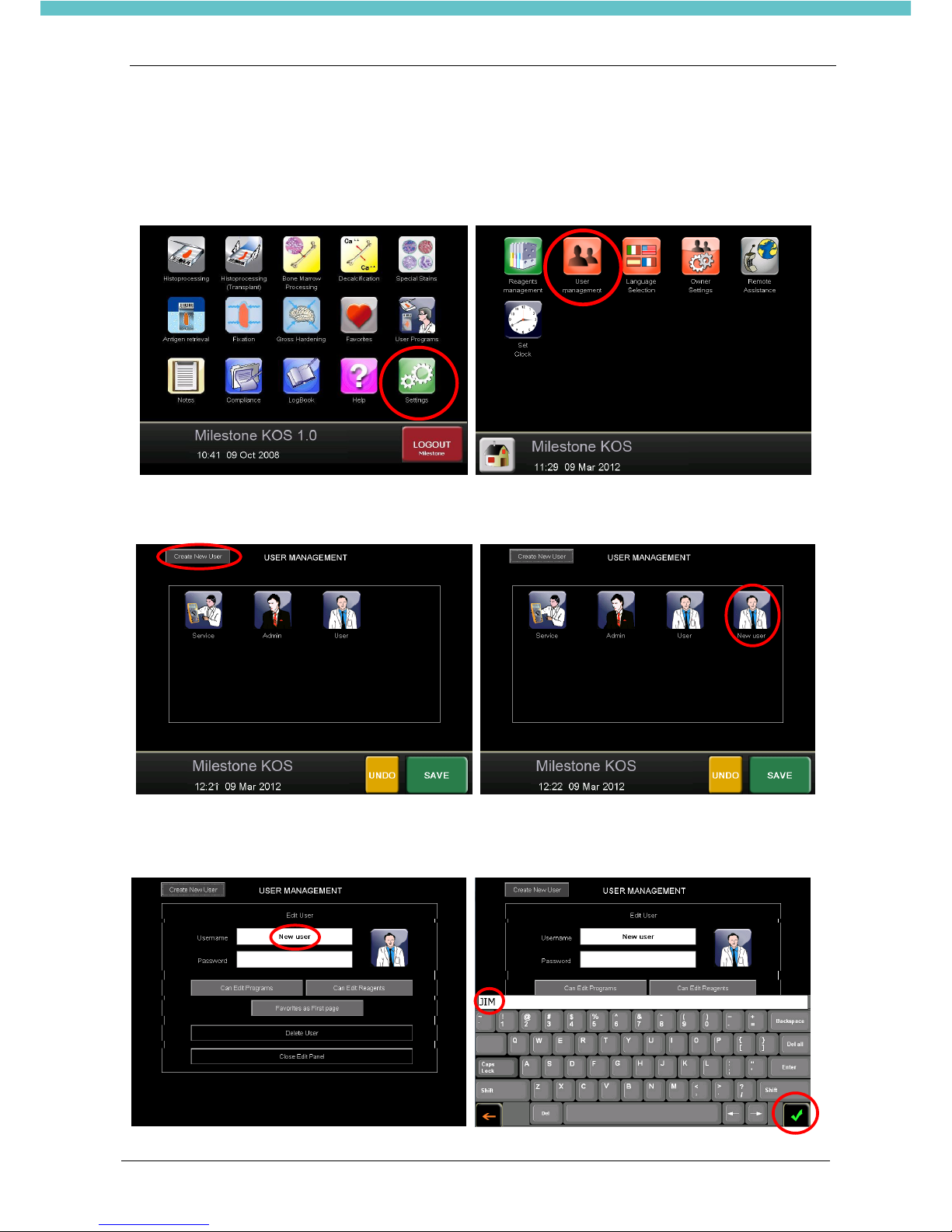

The User setting screen appears. Select CREATE A NEW USER; then press the NEW USER icon.
Enter the user name and password in the fields circled below (right). In this page, select (all icons turn GREEN when activated):
Click on the icon circled in red, as shown below to return to the Main Programs screen
Can edit programs
Enable user to create and modify programs
Can edit reagents
Enable user to create and modify reagents details (Ex: max number of processed cassettes)
Favorite as first page
Your home page shows the FAVORITES programs as default.
Page 25
KOS
25
2.10. Set date and time
The SET CLOCK screen is accessed only by ADMINISTRATOR. Select SETTINGS icon from the MAIN MENU, then SET CLOCK button.
Use the +/- buttons to set the right date and clock, after selection of these parameters touch SAVE to make changes valid.
Page 26
KOS
26
2.11. Set language
Select SETTINGS icon from the MAIN MENU, then LANGUAGE SELECTION as indicated below.
After selection of the language, touch SAVE to make changes valid. See below figure left. A message appears advising that the language will be changed at the first system reboot, as shown below. Press Ok and restart the Unit.
Page 27
KOS
27

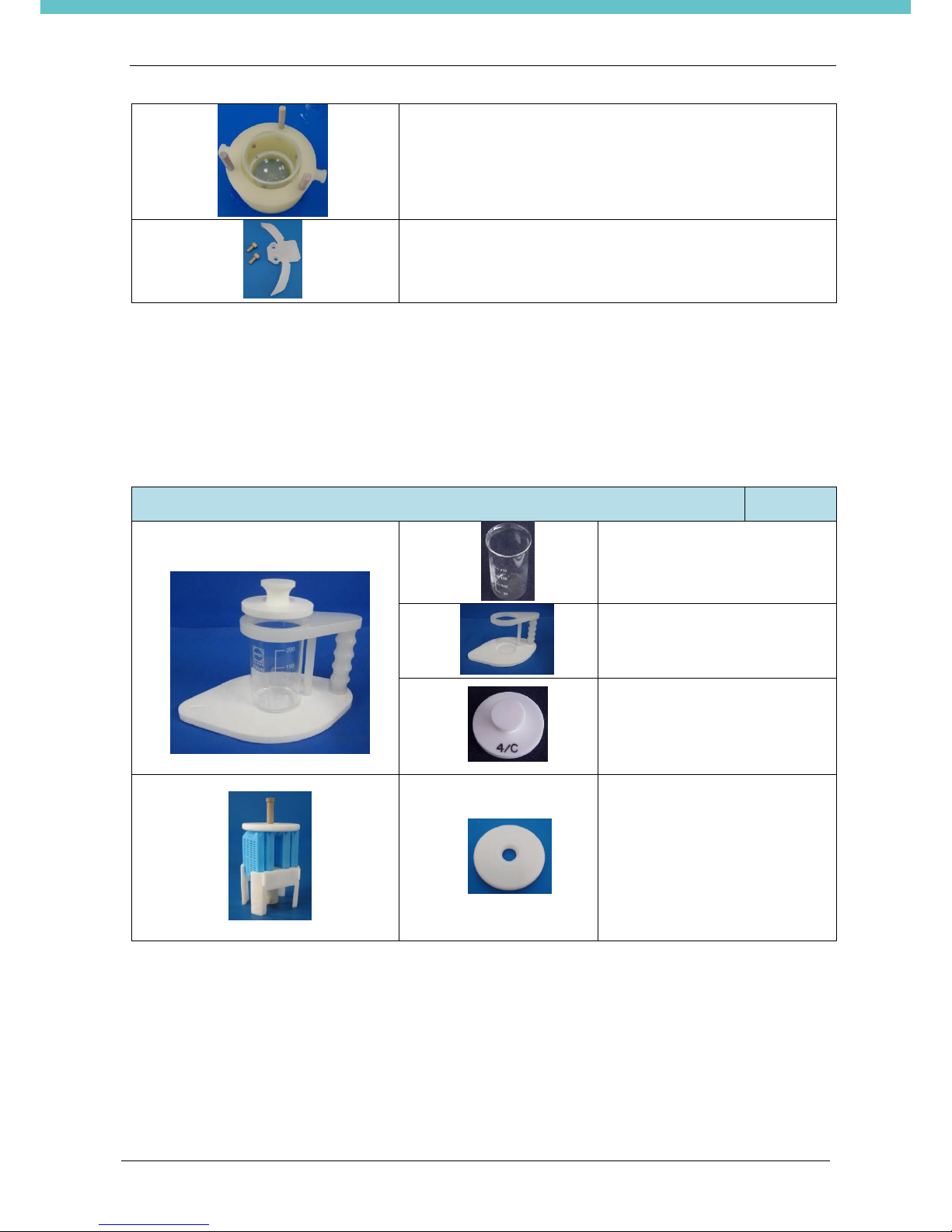

3. KOS HISTOMODULES AND OPTIONAL PARTS
3.1. Histoprocessing (up to 3mm thickness)

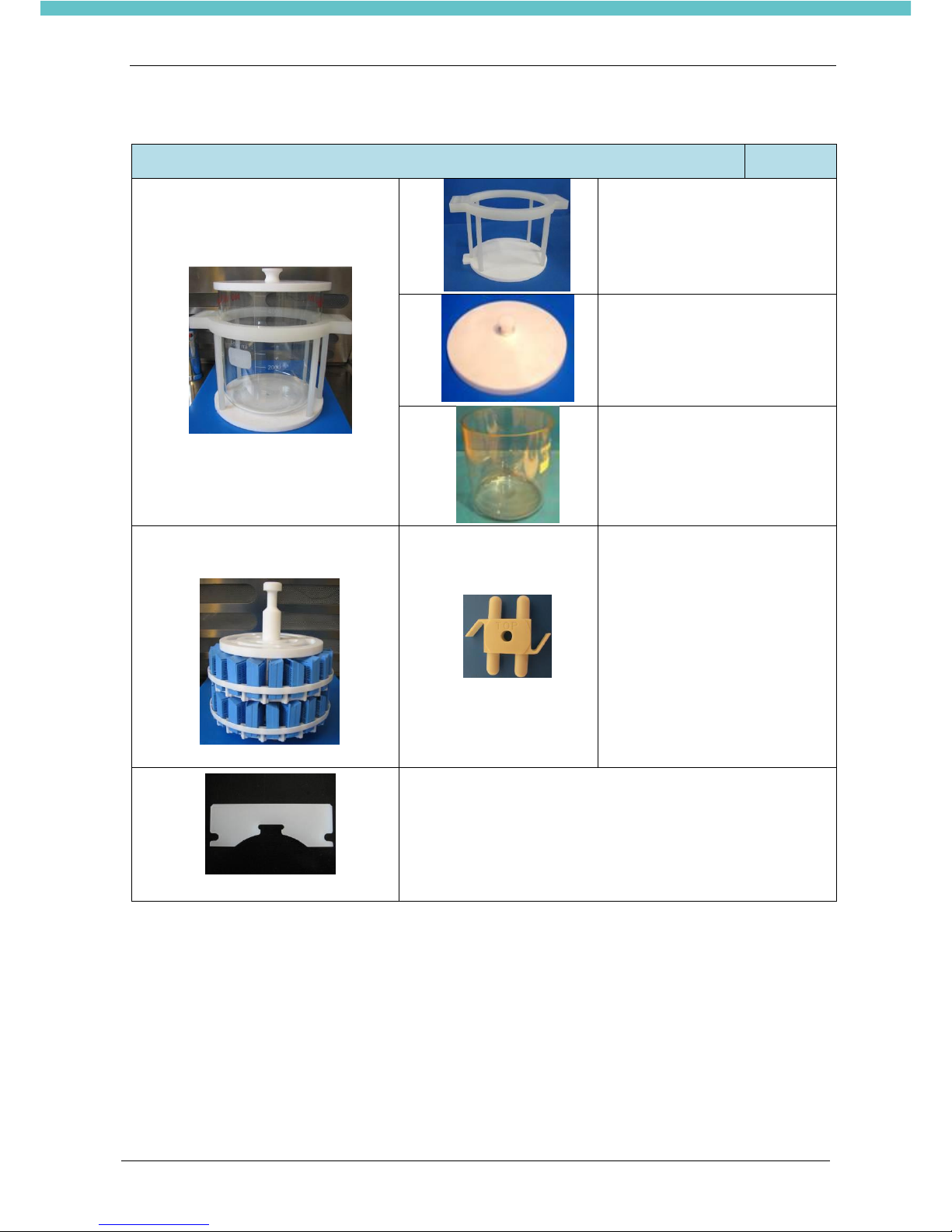

4 CASSETTES
4/K HISTOMODULES KIT for histoprocessing of up to 4 cassettes.
Includes A-B-C
REF 67390
Histomodule 4K for fixation, JFC, ethyl
alcohol and isopropanol (qty. 3)
includes A1-A2-A3
A
Code 67300
A1
Glass container
Code 60578
A2
Holder for histomodule 4K
Code 67306
A3
Cover
Code 67311
Histomodule 4K for WAX (qty. 1)

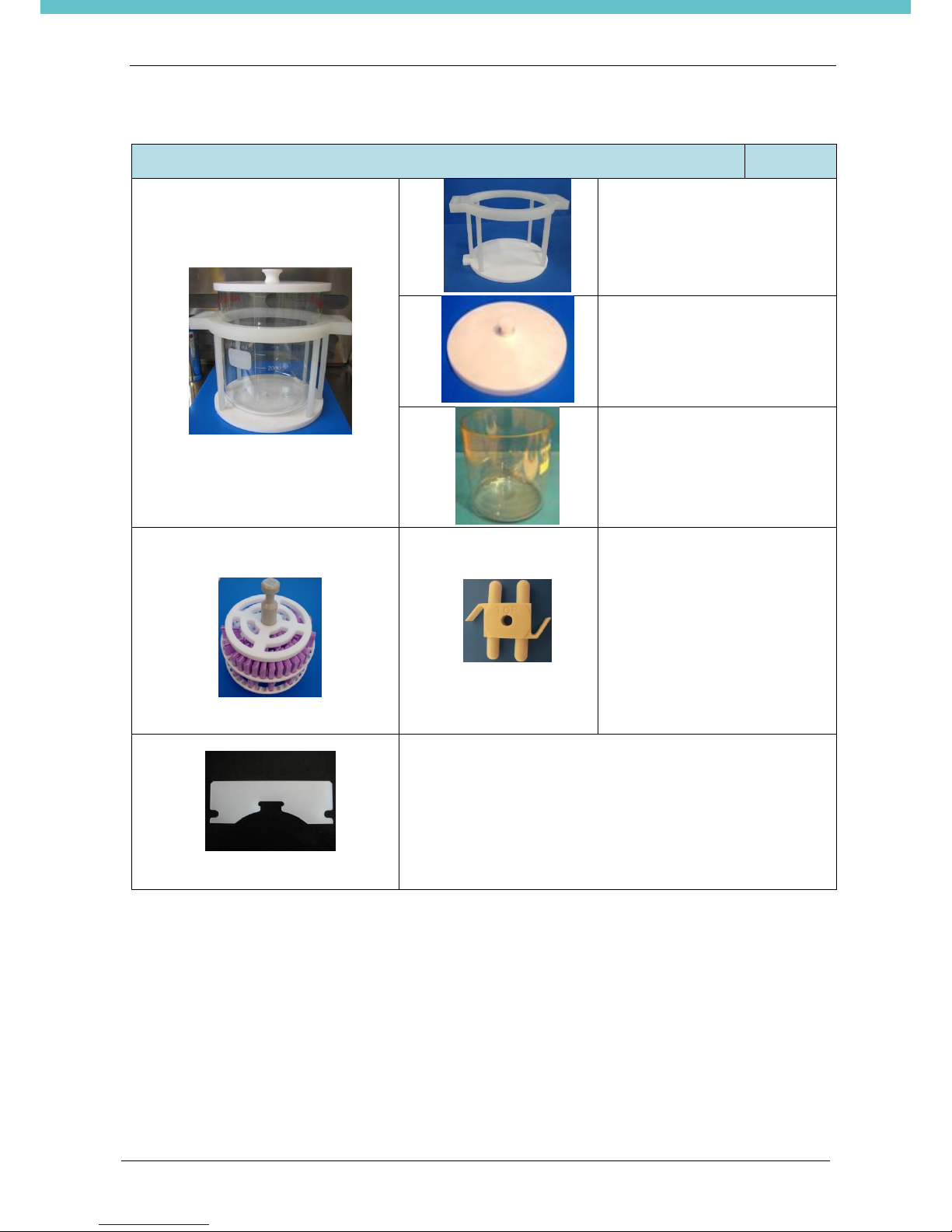

includes B1-B2-B3-B4
B
Code 67360
B1
Glass container
Code 60578
B2
Heating disk Code 60575
B3
Holder for histomodule 4K
Code 67306
B4
Cover for WAX 4K
Code 67315
Rack 4K complete (qty. 1)
C
Code 67301
C1
Cover disk
Code 67374
To be used with positioning plate Code 67210 (supplied with unit).
Page 28
KOS
28
45 CASSETTES
45/K HISTOMODULES KIT for histoprocessing of up to 45 cassettes.
Includes A-B-C
REF 67391
Histomodule 45K for fixation, JFC,
ethyl alcohol and isopropanol (qty. 1)
includes A1-A2-A3
A
Code 67320
A1
Glass container
Code 67336L
A2
Holder for histomodule 45K
Code 67326
A3
Cover
Code 67330
Histomodule 45K for WAX (qty. 1)
includes B1-B2-B3-B4
B
Code 67370
B1
Glass container
Code 67399
B2
Heating disk
Code 67313
B3
Holder for histomodule 45K
Code 67326
B4
Cover for WAX 45K
Code 67332
Rack 45K complete (qty. 1)
includes C1
C
Code 67325
C1
Magnetic stirrer complete
Code 65594
With pin
Code 67392
To be used with positioning plate Code 67210 (supplied with unit).
Page 29
KOS
29

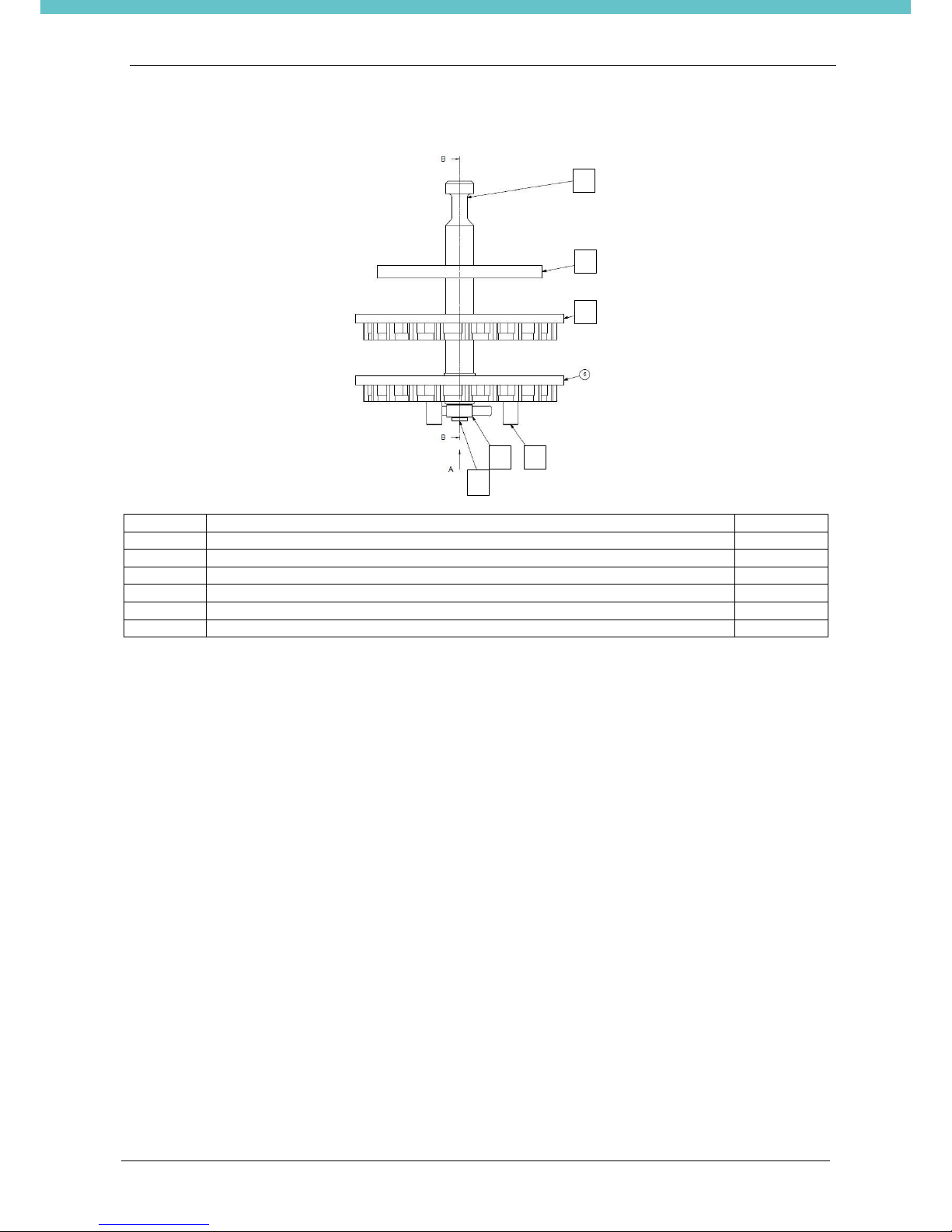

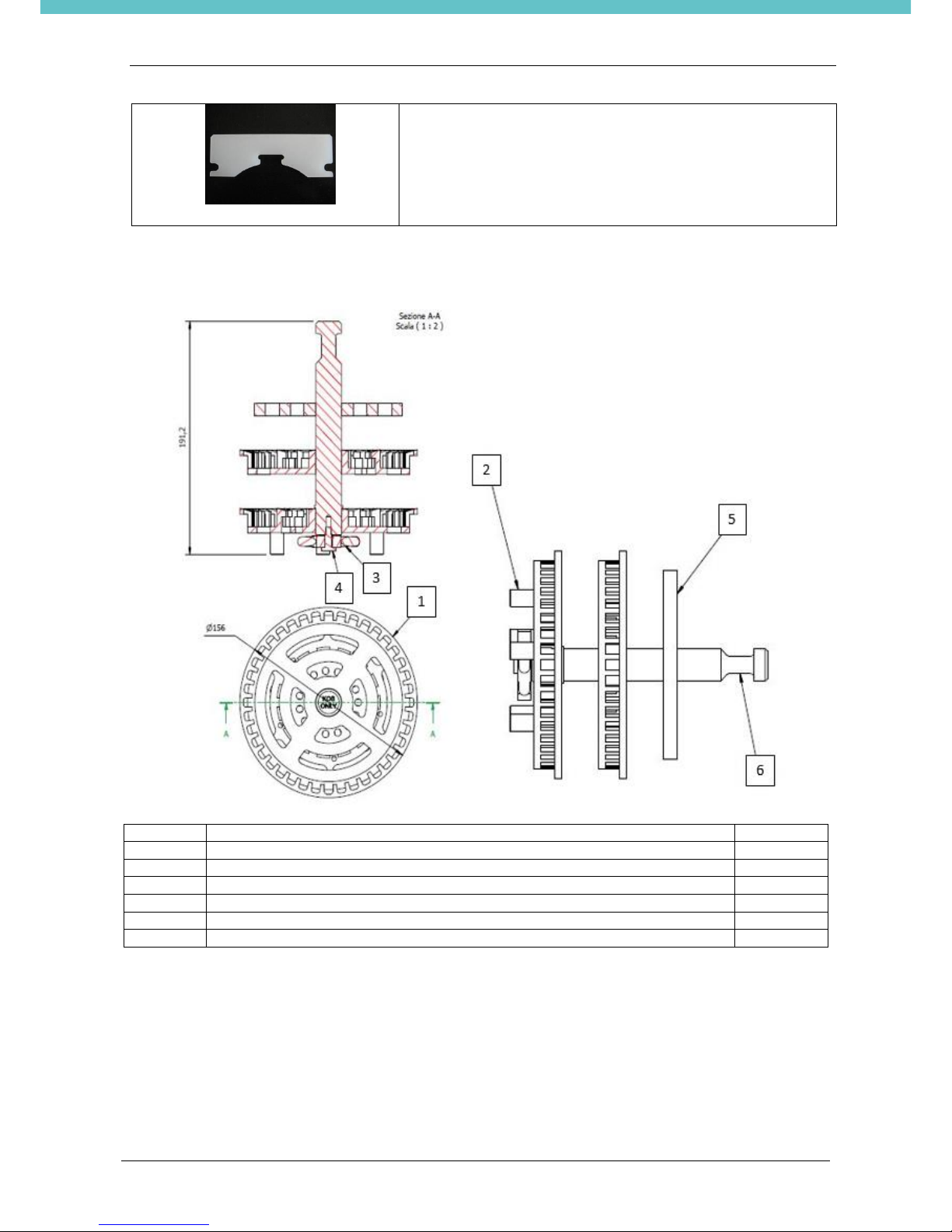

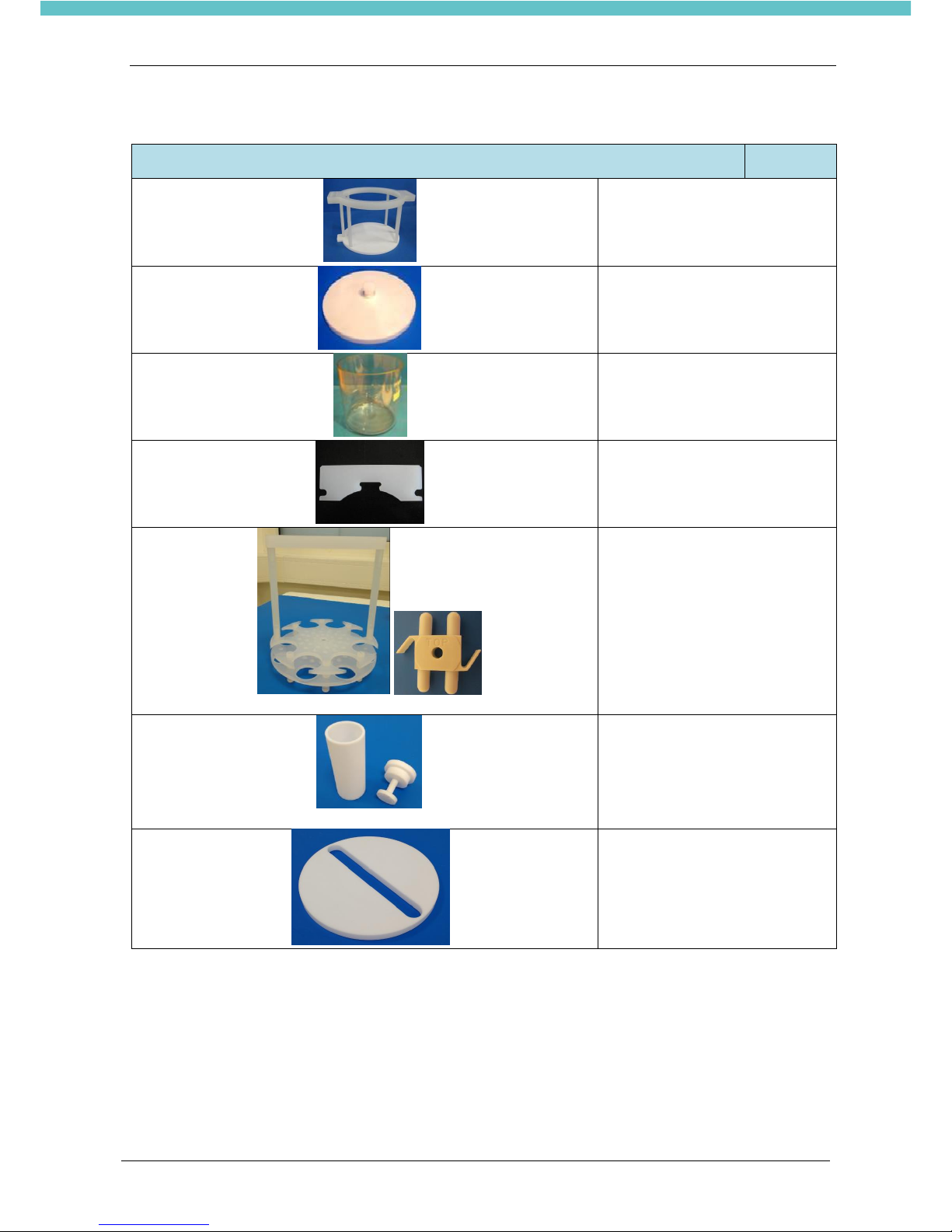

The 45K rack is composed by:
Number
Description
Code
1
Rack cover disc
67323
2
15 cassettes layer
67322
3
Rack foot
67389
4
Complete stirrer
65594
5
Pin for stirrer
67392
6
Column with stirrer and layer
67348
1
2
3
5
4
6
Page 30
KOS
30

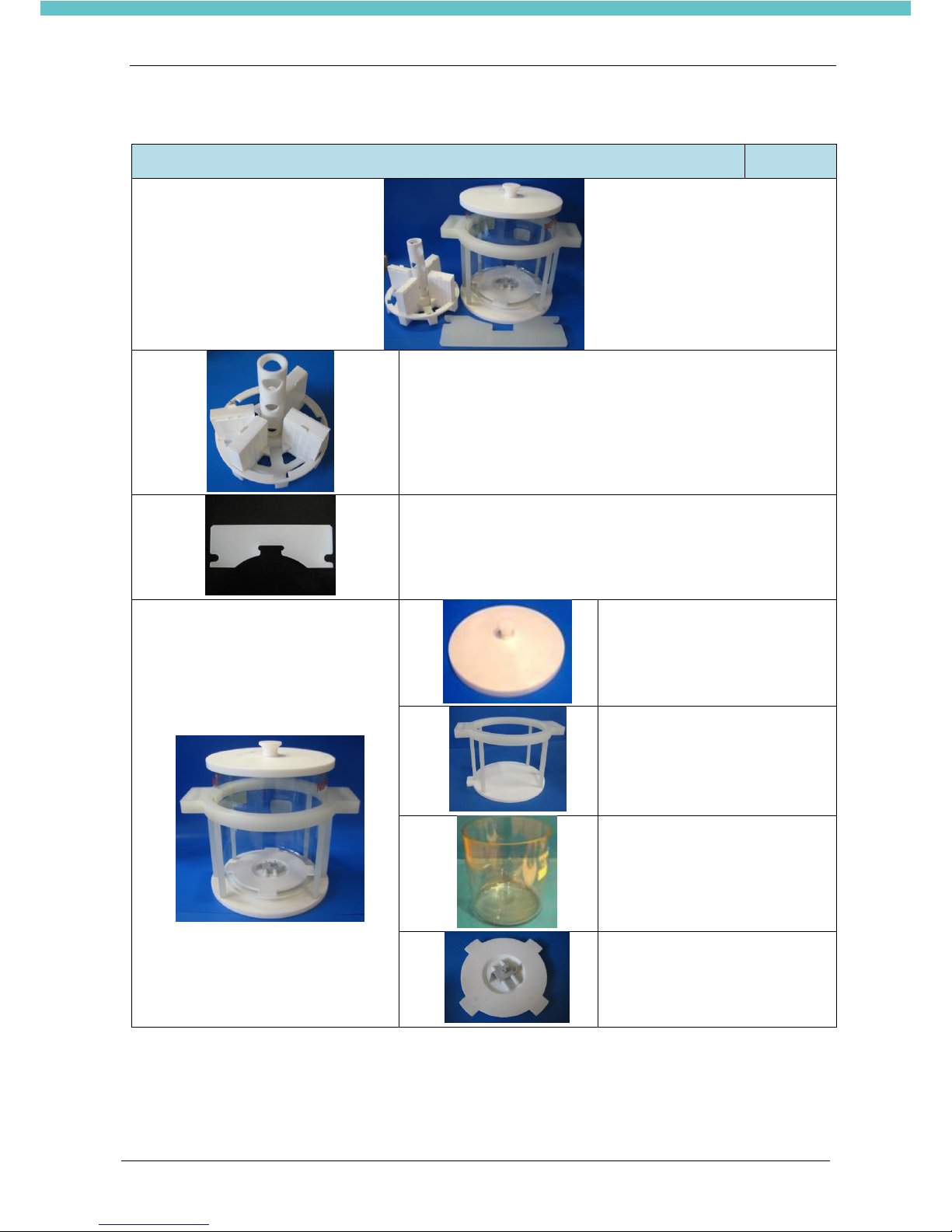

110 CASSETTES

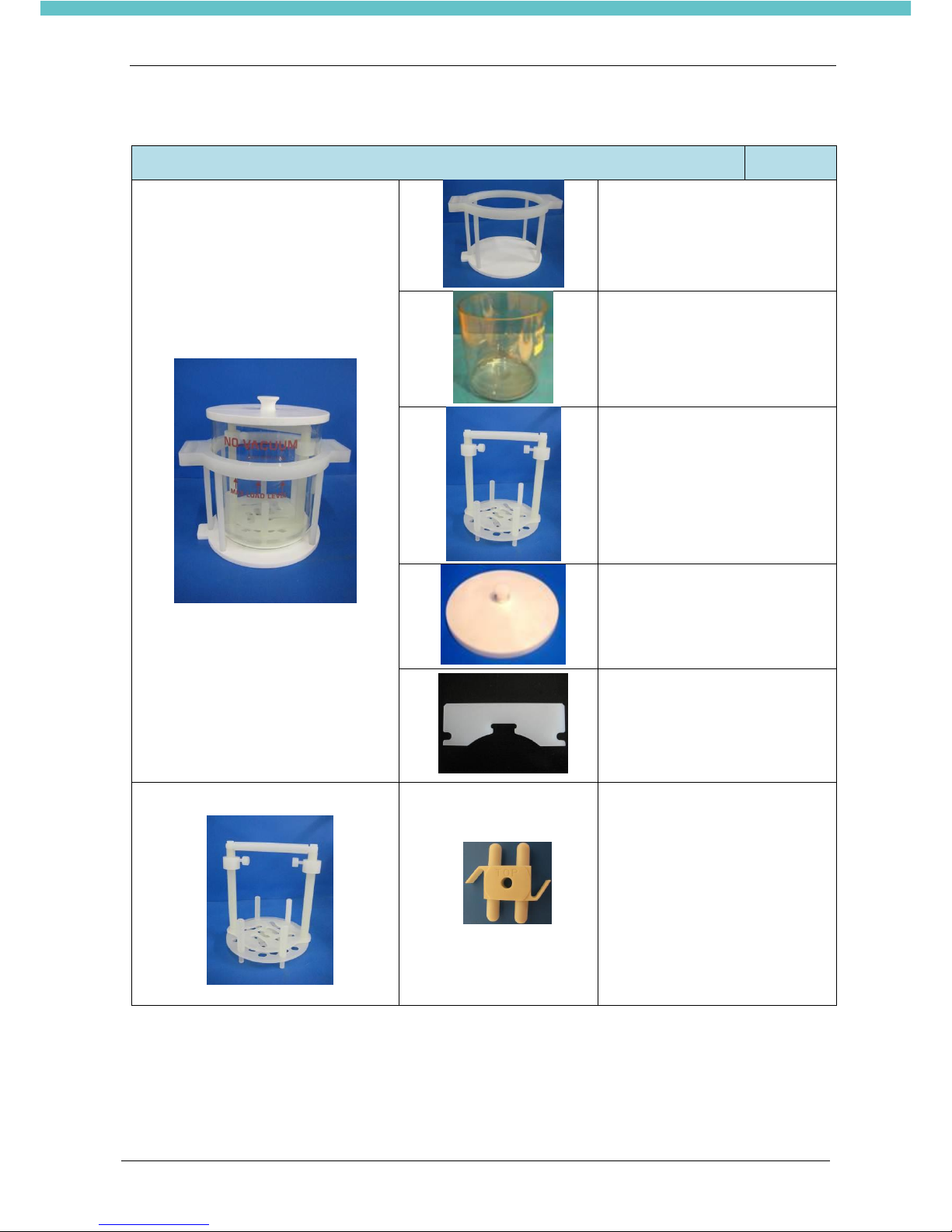

110/K KIT HISTOMODULES for histoprocessing of up to 110 cassettes.
Includes A-B-C-D
REF 67470
Histomodule for 110 cassettes
includes A1-A2-A3
A
Code 67474
A1
Holder GHM-KOS
Code 67385
A2
Cover for GHM-KOS
Code 67383
A3
Glass container
Code 67473
Histomodule for 110K for WAX
includes B1-B2-B3-B4
B
Code 67475
B1
Glass container
Code 67473
B2
Heating disk
Code 60259
B3
Holder GHM-KOS
Code 67385
B4
Cover for WAX 110K
Code 67476
Rack 110 cassettes
include C1
C
Code 67471
C1
Complete stirrer
Code 65594
With pin Code 67392
Page 31
KOS
31
D
Code 67384
Positioning plate GHM-KOS multifunctional
Code 67384
To be used with positioning plate GHM-KOS multifunctional Code 67384 (supplied with the KIT). The 110K rack is composed by:
Number
Description
Code
1
55 cassettes layer
101482
2
Rack foot
67389
3
Complete stirrer
65594
4
Pin for stirrer
67392
5
Rack cover disk
60433
6
Column with stirrer and layer
67478
Page 32
KOS
32
3.2. Antigen retrieval

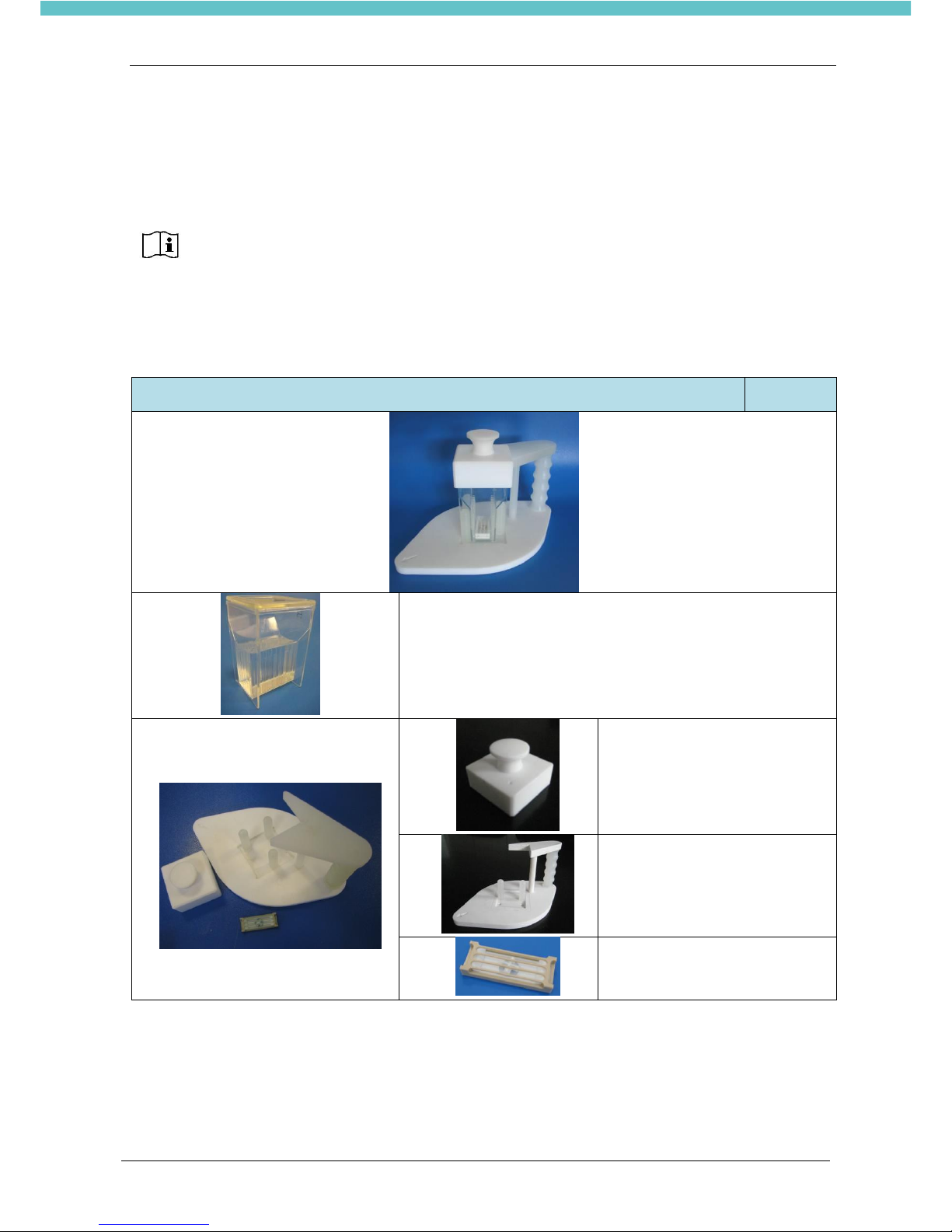

16 SLIDES
Histomodule 16KS for up to 16 slides complete.
Includes A-C
REF 67350
A
TPX coupling jar
Code 67337
Safety carrier complete
includes C1-C2-C3
C
Code 67373
C1
Cover coupling jar
Code 67404
C2
Safety carrier
Code 67405
C3
Stirrer with base mounted
Code 67402A
To be used with positioning plate Code 67210 (supplied with unit).
Antigen Retrieval procedures performed in a microwave oven are described in issued US patents. For this reason, Milestone microwave units sold in the US market with protocols for Antigen Retrieval are not available in the software. Therefore the procedures, methods, accessories, software information regarding Antigen Retrieval included in this Operation Manual are NOT valid for the US market only. Milestone s.r.l. provides microwave hardware suitable for carrying out a number of processes. Milestone does not provide any licenses or implied licenses to conduct any specific processes. It is responsibility of the user of the Microwave unit to ensure that a given process does not infringe any US patents.
Page 33
KOS
33

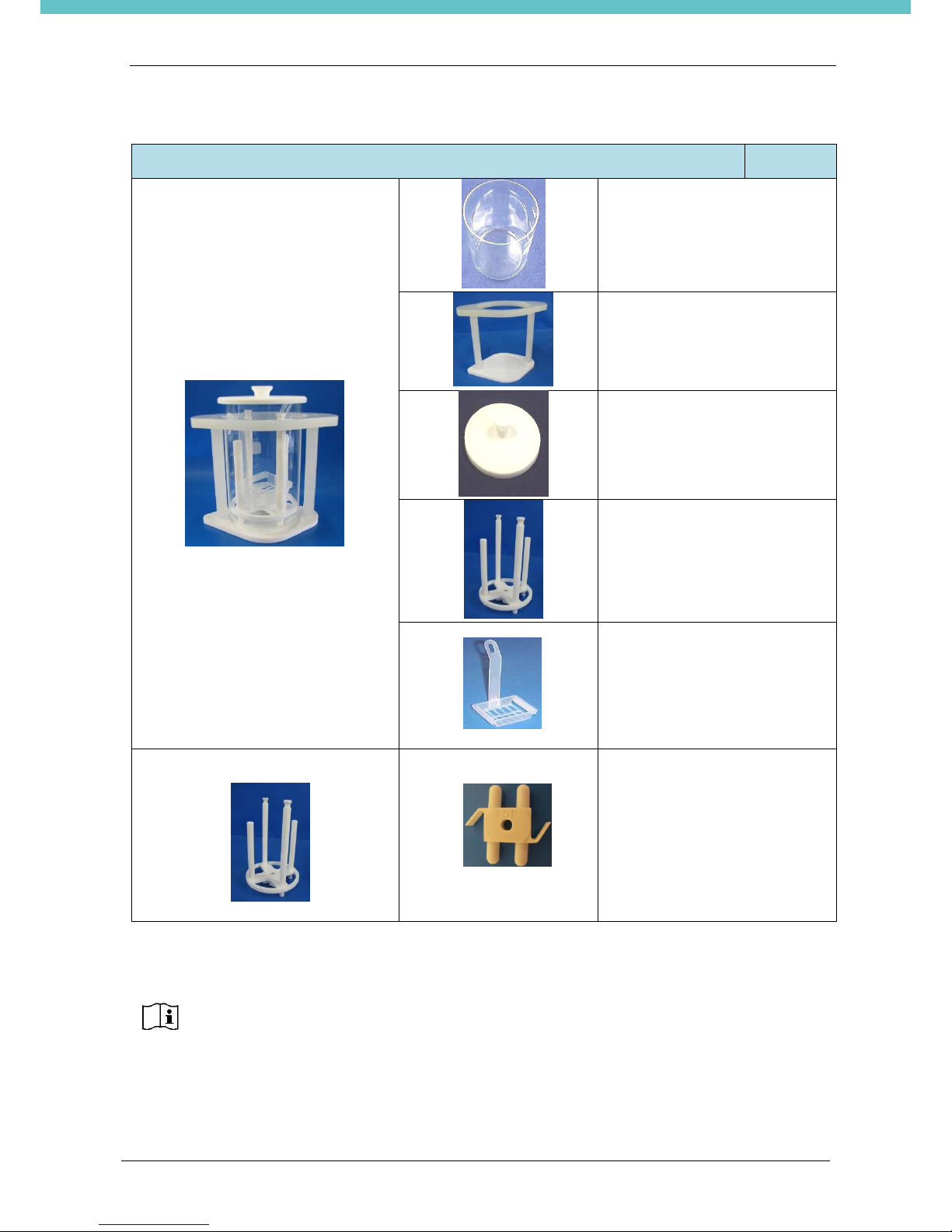

40 SLIDES
Histomodule 40KS for up to 40 slides complete, with N 2 racks for 20 slides.
Includes A-B-C-D-E
REF 67355
A
Glass container
Code 67336
B
Holder for histomodule 45K
Code 67326
C
Cover
Code 67330
D
Holder for rack for 20 slides
complete
Code 67371
E
Qty. 2 of Rack 20 slides
Code 40156/2.
Holder for rack for 20 slides
complete includes D1
D
Code 67371
D1
Magnetic stirrer complete
Code 65594
With pin
Code 67369
To be used with positioning plate Code 67210 (supplied with unit).
It is possible to order the rack Code 40156/2 in quantity 4 to run up to 80 slides.
Page 34
KOS
34
20/40 SLIDES HIGH PRESSURE
Histomodule GPR/K for up to 40 slides complete, with N 2 racks for 20 slides.
Includes A-B-C-D-E-F-G-H
REF
67415
A
Cooling tube
Code 60103
B
Qty. 2 of Rack 20 slides
Code 40156/2.
C
Positioning plate GHM-KOS multifunctional
Code 67384
D
Glass vessel
Code 67425
E
Cover complete
Code 67422
With screw Code 67428 (qty. 3)
F
Stirring plate
Code 67429
Page 35
KOS
35
G
Container
Code 67416
H
Adapter support Code 67426 e due viti Code 67427
To be used with positioning plate GHM-KOS multifunctional Code 67384 (supplied with the KIT).
3.3. Decalcification and/or fixation
4 CASSETTES
Decalcification and fixation of up to 4 cassettes.
Includes A-B
REF 67480
Histomodule 4K for fixation and
decalcification (qty. 1)
includes A1-A2-A3
A
Code 67300
A1
Glass container
Code 60578
A2
Holder for histomodule 4K
Code 67306
A3
Cover
Code 67311
Rack 4K complete (qty. 1)
B
Code 67301
B1
Cover disc
Code 67374
To be used with positioning plate Code 67210 (supplied with unit).
Page 36
KOS
36

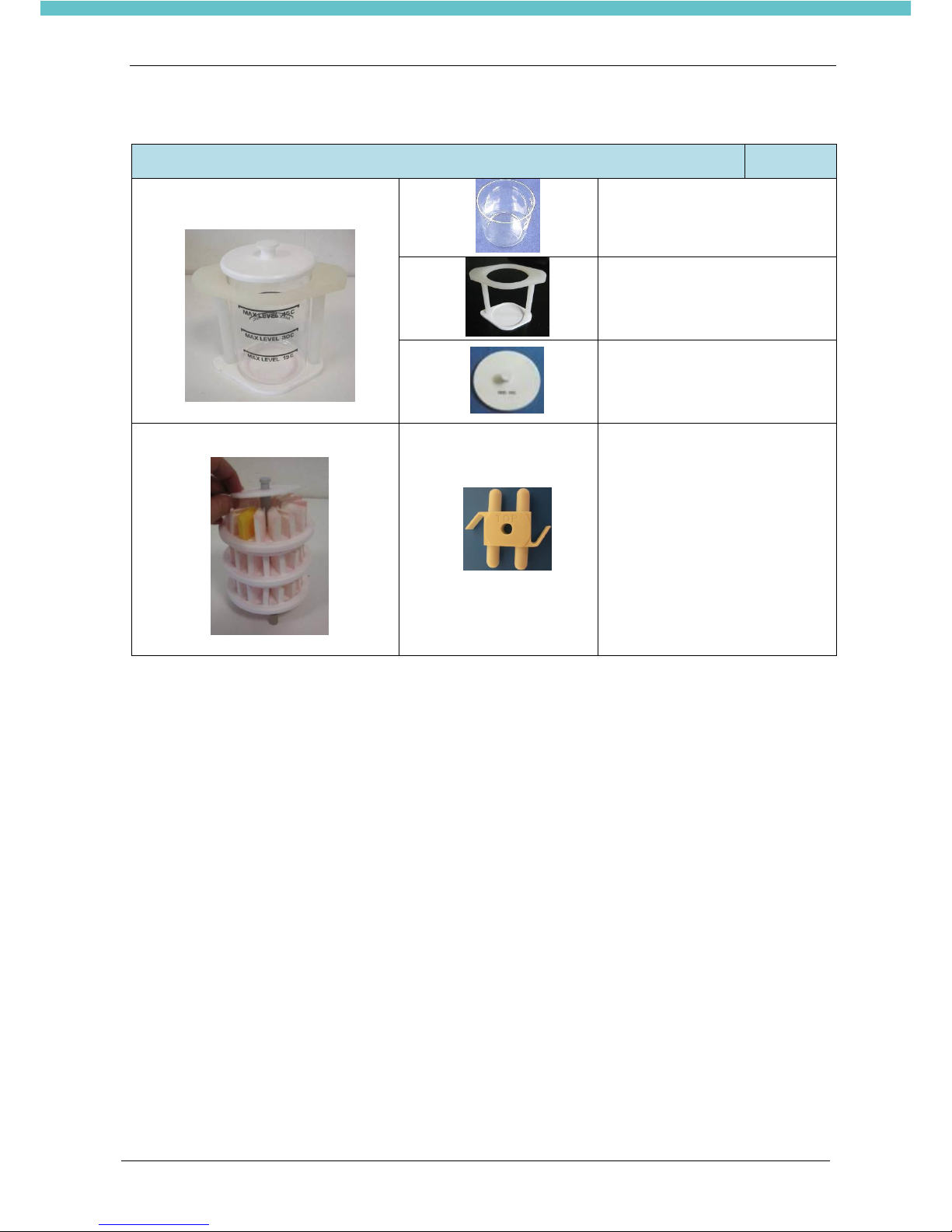

45 CASSETTES
Decalcification and fixation of up to 45 cassettes.
Includes A-B
REF 67481
Histomodule 45K for fixation and
decalcification (qty. 1)
includes A1-A2-A3
A
Code 67320
A1
Glass container
Code 67336L
A2
Holder for histomodule 45K
Code 67326
A3
Cover
Code 67330
Rack 45K complete (qty. 1)
includes B1
B
Code 67325
B1
Magnetic stirrer complete
Code 65594
with pin
Code 67392
To be used with positioning plate Code 67210 (supplied with unit).
Page 37
KOS
37
110 CASSETTES
110/K KIT HISTOMODULES for decalcification and fixation of up to 110 cassettes.
Includes A-B-C
REF 67482
Histomodule for 110 cassettes
includes A1-A2-A3
A
Code 67474
A1
Holder GHM-KOS
Code 67385
A2
Cover for GHM-KOS
Code 67383
A3
Glass container
Code 67473
Rack 110 cassettes
include B1
B
Code 67471
B1
Complete stirrer
Code 65594
With pin Code 67392
C
Code 67384
Positioning plate GHM-KOS multifunctional
Code 67384
To be used with positioning plate GHM-KOS multifunctional Code 67384 (supplied with the KIT).
Page 38
KOS
38
60 MEGA CASSETTES
Starter Kit for mega cassettes for decalcification.
Includes A-B-C
REF 67410
Histomodule 60 mega cassettes
includes A1-A2-A3
A
Code 67409
A1
Holder GHM-KOS
Code 67385
A2
Cover for GHM-KOS
Code 67383
A3
Glass container
Code 67388
Rack 60 mega cassettes
includes B1
B
Code 60430
B1
Magnetic stirrer complete
Code 65594
with pin
Code 67392
C
Code 67384
Positioning plate GHM-KOS multifunctional
Code 67384
To be used with positioning plate GHM-KOS multifunctional Code 67384 (supplied with the KIT).
Page 39
KOS
39

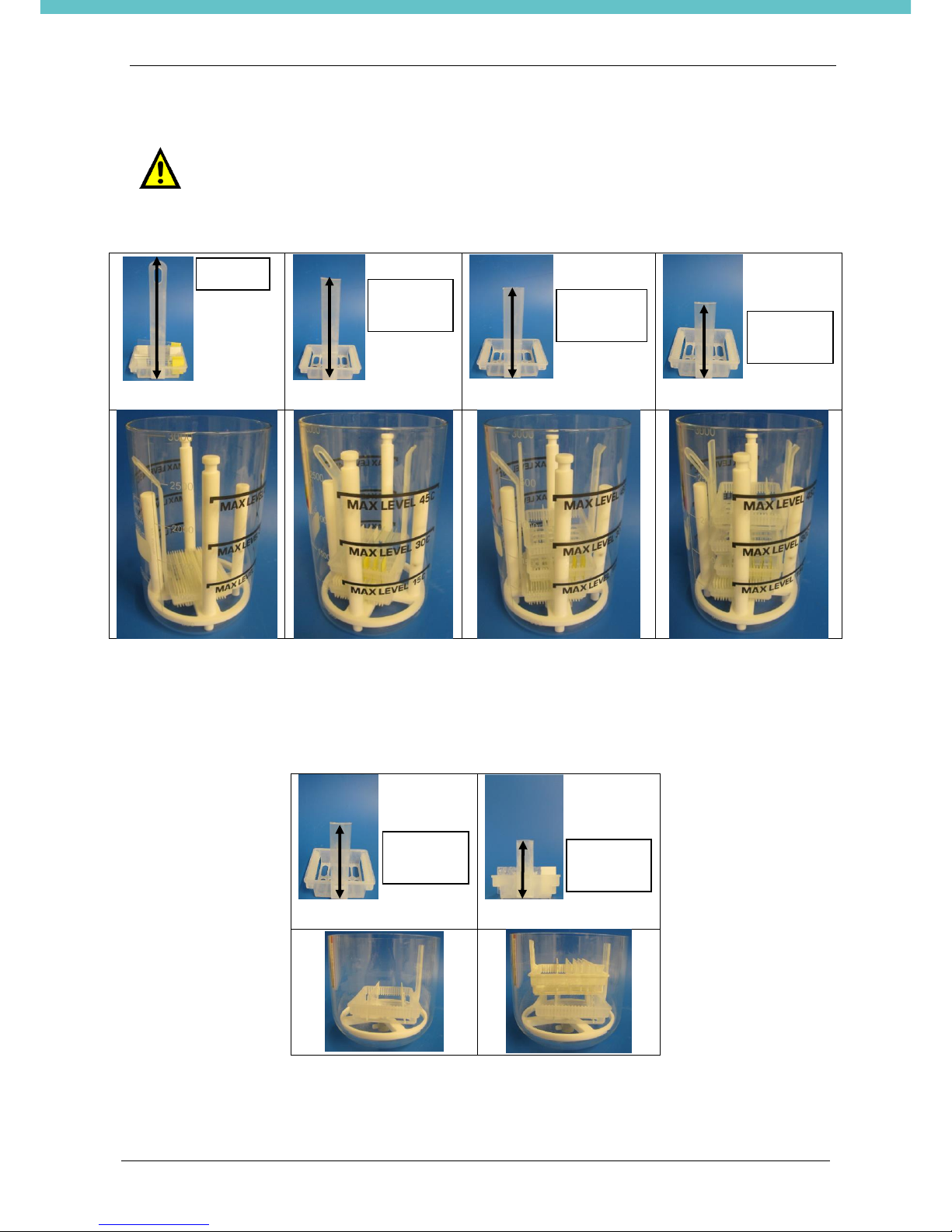

The 60 MEGA CASSETTES rack is composed by:
Number
Description
Code
1
Column with stirrer and layer
60435
2
Rack cover disk
60433
3
30 mega cassettes layer
60432
4
Rack foot
67389
5
Stirrer
65594
6
Pin for stirrer
67392
1
6
5
4
3
2
Page 40
KOS
40
8 SUPER MEGA CASSETTES
KIT 16 mega or 8 super mega cassettes for decalcification.
Includes A-B-C
REF 67317
A
Rack 16 mega or 8 super mega cassettes
Code 60301
B
Multifunctional Positioning plate
Code 67384
Histomodule for 16 mega or 8 super
mega cassettes for KOS unit
includes C1-C2-C3-C4
C
Code 67407
C1
Cover for GHM-KOS
Code 67383
C2
Holder GHM-KOS
Code 67385
C3
Glass container
Code 67388
C4
PTFE plate and new magnetic
stirrer complete
Code 60380
To be used with positioning plate GHM-KOS multifunctional Code 67384 (supplied with the KIT).
Page 41
KOS
41

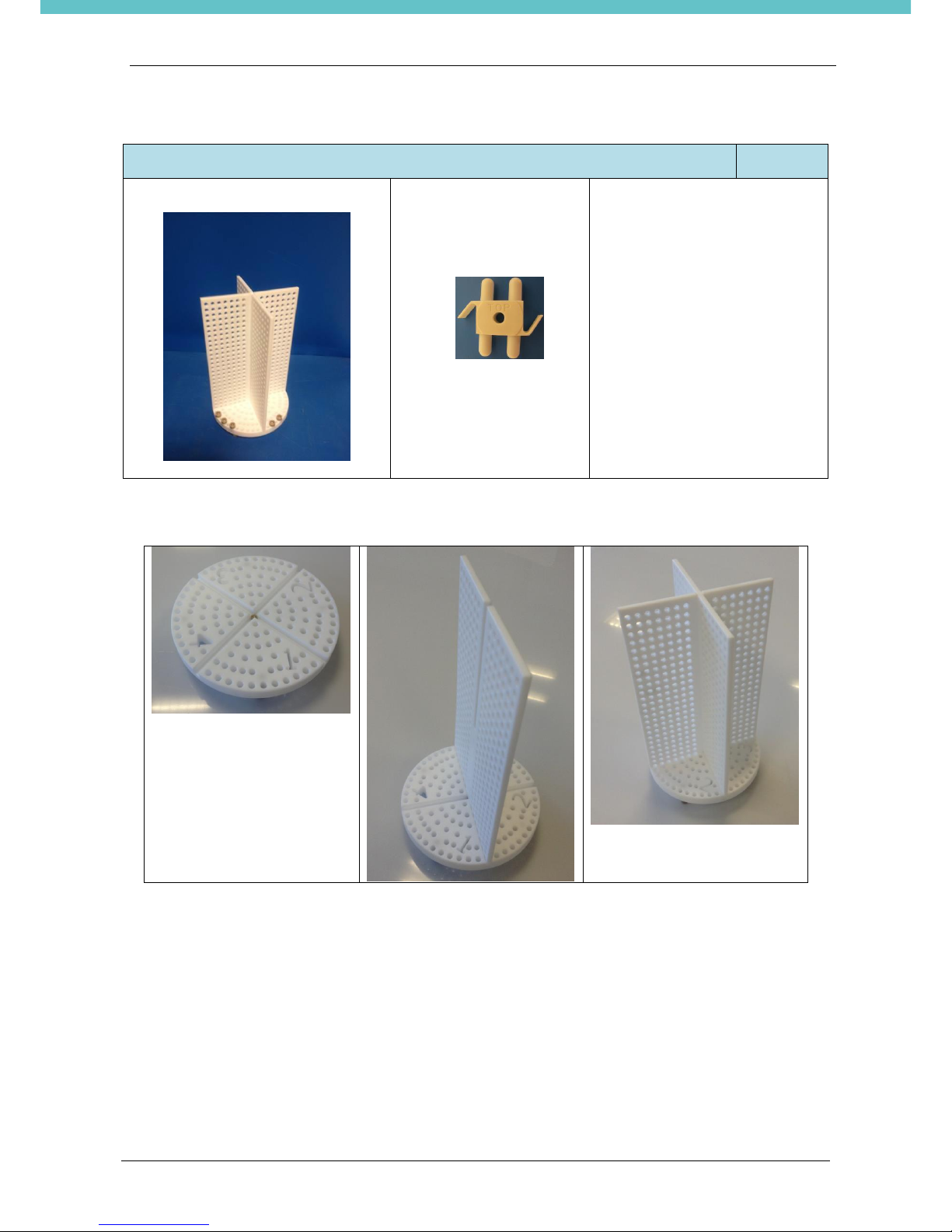

INTERNAL DIVIDER
Internal divider suitable for histomodule Code 67320 for decalcification of large
specimens.
REF 67443
Internal divider complete (qty. 1)
includes A1
REF 67443
A1
Magnetic stirrer complete
Code 65594
With pin
Code 67369
To be used with positioning plate Code 67210 (supplied with unit).
Page 42
KOS
42
MULTIPLE DECALCIFICATION MODULE
Decalcification up to 16 cassette in 8 different reagents.
Includes A-B-C-D-E-F-G
REF 67450
A
Holder GHM-KOS
Code 67385
B
Cover for GHM-KOS
Code 67383
C
Glass Container
Code 67469
D
Multifunctional Positioning plate
Code 67384
E
Code 67451
8 positions rack
(Code 67452)
with stirrer Code 65594
and pin Code 67392
F
Code 67462
Q.ty 8 of Containers for cassettes
or samples (Code 67462)
Composed by Container Code 67463 and cover Code 67464
G
Rack cover disk
(Code 67467)
To be used with positioning plate GHM-KOS multifunctional Code 67384 (supplied with the KIT).
Page 43
KOS
43

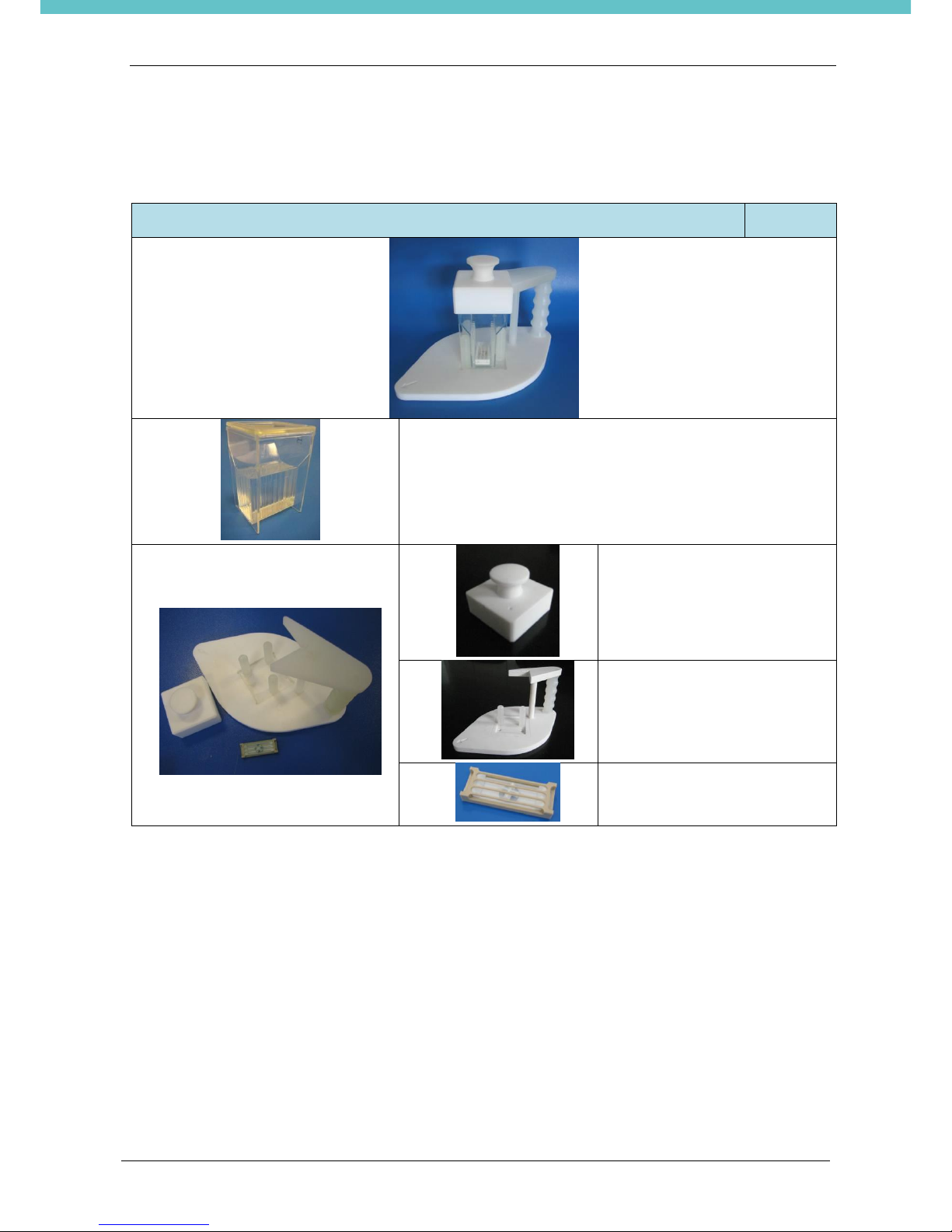

3.4. Special stains
16 SLIDES
Histomodule 16KS for up to 16 slides complete.
Includes A-C
REF 67350
A
TPX coupling jar
Code 67337
Safety carrier complete
includes C1-C2-C3
C
Code 67373
C1
Cover coupling jar
Code 67404
C2
Safety carrier
Code 67405
C3
Stirrer with base mounted
Code 67402A
To be used with positioning plate Code 67210 (supplied with unit).
Page 44
KOS
44
3.5. GHM/K Gross hardening
GHM/K histomodule for whole organs fixation complete.
Includes A-B-C-D-E
REF 67394
A
Holder GHM-KOS
Code 67385
B
Glass container
Code 67388
C
Gross Hardening Module GHM-
KOS
Code 67375
D
Cover for GHM-KOS
Code 67383
E
Positioning Plate GHM-KOS
multifunctional
Code 67384
Gross Hardening Module GHM-KOS
complete includes C1
C
Code 67375
C1
Magnetic stirrer complete
Code 65594
with pin
Code 37369
To be used with positioning plate GHM-KOS multifunctional Code 67384 (supplied with KIT).
Page 45
KOS
45
3.6. Summary table
HISTOMODULE
CODE/REF
APPLICATION
45K
67320 (Code)
Tissue processing of up to 45 cassettes, for the fixation, JFC, ethyl alcohol and isopropanol steps, decalcification and high temperature procedures.
45K WAX
67370 (Code)
Tissue processing of up to 45 cassettes, only for the WAX step.
4K
67300 (Code)
Tissue processing of up to 4 cassettes, for the fixation, JFC, ethyl alcohol and isopropanol steps and decalcification.
4K WAX
67360 (Code)
Tissue processing of up to 4 cassettes, only for the WAX step.
110 cassettes
67474 (Code)
Tissue processing of up to 110 cassettes, for the fixation, JFC, ethyl alcohol and isopropanol steps and decalcification.
110 cassettes WAX
67475 (Code)
Tissue processing of up to 110 cassettes, only for the WAX step.
16KS
67350 (REF)
Special stains (histochemical) and high temperature procedures for up to 16 slides.
40KS
67355 (REF)
Antigen retrieval for up to 40 slides complete, with Nr. 2 racks for 20 slides each. N.B. Order Nr.4 racks for 20 slides each to run up to 80 slides.
GHM/K
67394 (REF)
Gross hardening of organs for reliable uniform gross sectioning of whole organs.
GPR/K
67415 (REF)
Antigen retrieval under pressure at high temperature for up to 40 slides complete, with Nr. 2 racks for 20 slides each.
8SM
67407 (Code)
Histomodule 8 super mega cassettes for decalcification.
60M
67409 (Code)
Histomodule 60 mega cassettes for decalcification.
MDM
67474 (Code)
Histomodule for multi-decalcification up to 16 cassettes.
RACK
CODE
APPLICATION
Rack for 45 cassettes
67325
(CODE)
Histoprocessing, Decalcification, Fixation.
Rack for 4 cassettes
67301
(CODE)
Histoprocessing, Decalcification, Fixation.
Rack 110 cassettes
67471
(CODE)
Histoprocessing, Decalcification, Fixation.
Rack for 20 slides
40156/2 (CODE)
High Temperature Procedures up to 120°C. Supplied in quantity 2. Order Nr.4 racks for 20 slides each, to run up to 80 slides.
Rack for 60 mega cassettes
60430
(CODE)
Decalcification.
Rack for 8 super mega cassettes
60301
(CODE)
Decalcification.
Internal divider
67443
(REF)
Decalcification.
MDM
67451
(CODE)
Decalcification.
Page 46
KOS
46
POSITIONING PLATE
CODE
APPLICATION
Standard
67210
Positioning plate specific for 45K, 4K, 16KS, 40KS cassettes modules.
GHM-KOS multifunctional
67384
Positioning plate multifunctional specific for GHM/K, GPR/K, 60 mega cassettes, 8 super mega cassettes modules, 110 cassettes, MDM.
It’s possible to run EM processing of samples by ordering the Starter Kit for EM processing
and polymerization for KOS Unit (Operation manual MM078). To operate your KOS for EM processing, ask for authorization to Milestone s.r.l, mail:
marketing@milestonemedsrl.com; customersupport@milestonemedsrl.com
Page 47
KOS
47

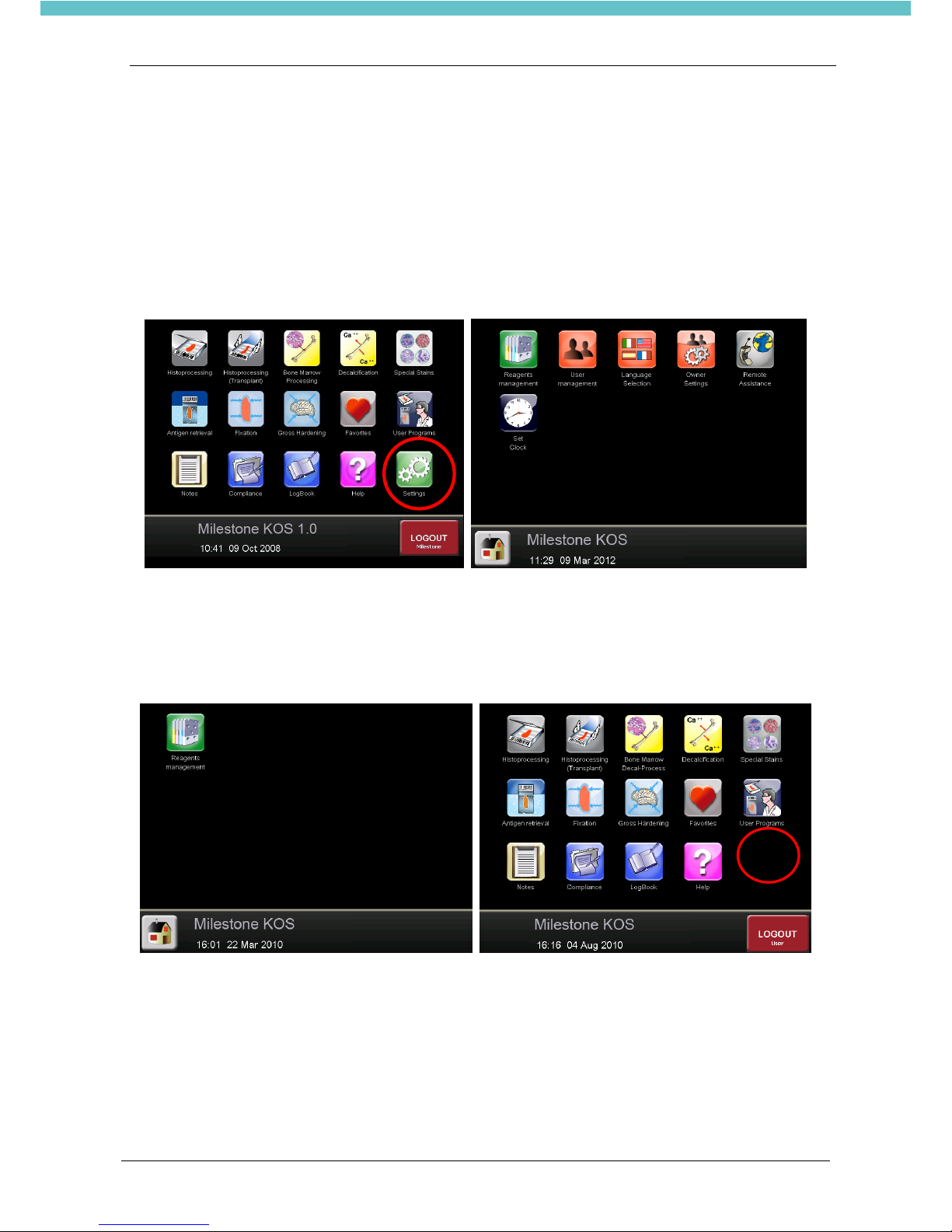

4. OPERATE WITH KOS
The KOS is controlled by an integrated touch control terminal, which is based on Windows CE operating system.
The system has numerous pre-stored programs for tissue processing, high temperature procedures, decalcification, fixation, gross hardening and special stains, with ability to store numerous customer defined programs.
Power output is automatically controlled by a PID (Proportional Integrative Derivative) algorithm, which allows the operator to set up the desired parameters (Time and Temperature) by simply drawing a curve. If a pre­stored program is used, it is only required to adjust the time of the procedure in relation to the specifications of the application.
The KOS allows the user to gain consistency and reproducibility of high quality results thanks to the working procedures based on the concept of TIME at TEMPERATURE. The unit will always reproduce the same conditions of temperature in the set times, by automatically adjusting the power level.
The KOS also allows the use of procedures based on the concept of TIME at POWER. The unit will always reproduce the same conditions of power in the set times, by automatically adjusting the temperature level.
The following sections will show how to run, modify and create a program with the Touch Control terminal. If additional information is required on the operation of the software for each of the sections below, contact
your local application support from your distributor.
4.1. Touch control
On switching the power to KOS, the unit will run through a system check and enter the main login screen user mode. The operator is required to log-in by touching the icon that relates to login (as an operator), either as a USER, ADMINISTRATOR or SERVICE, then entering the password using the numeric keyboard.
On accepting the numeric entry login code, the MAIN MENU will appear consisting of touch screen icons that are for specific applications, along with a number of ancillary functions.
For added security, the system enables different authorized users to logon by having a LOGOUT function key at the bottom right of the screen and to prevent unauthorized use.
Milestone s.r.l recommends that these instructions are kept near the instrument to facilitate operations and better understanding of the software functions, especially when operating the unit for the first time.
Page 48
KOS
48
4.2. Run programs
4.2.1. Histoprocessing

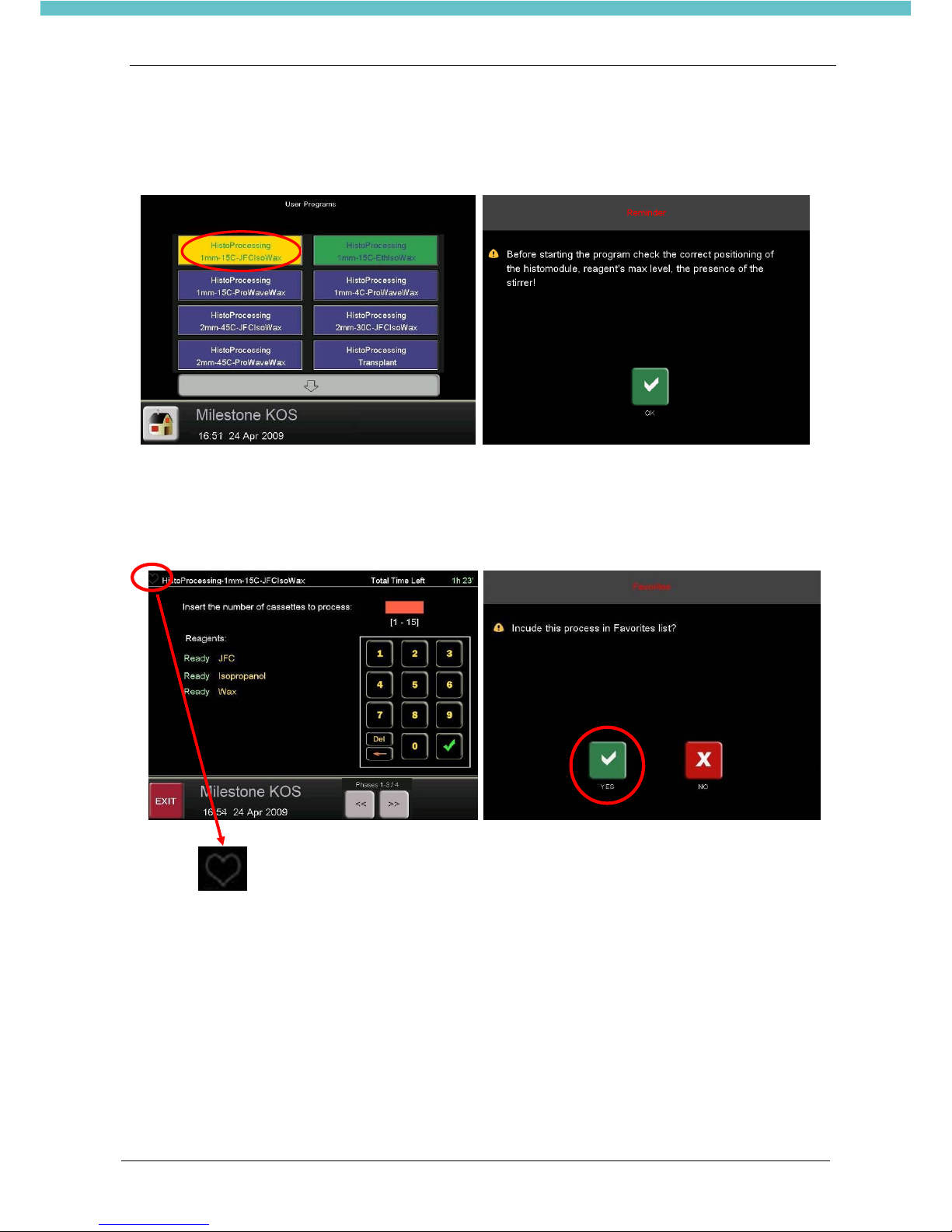

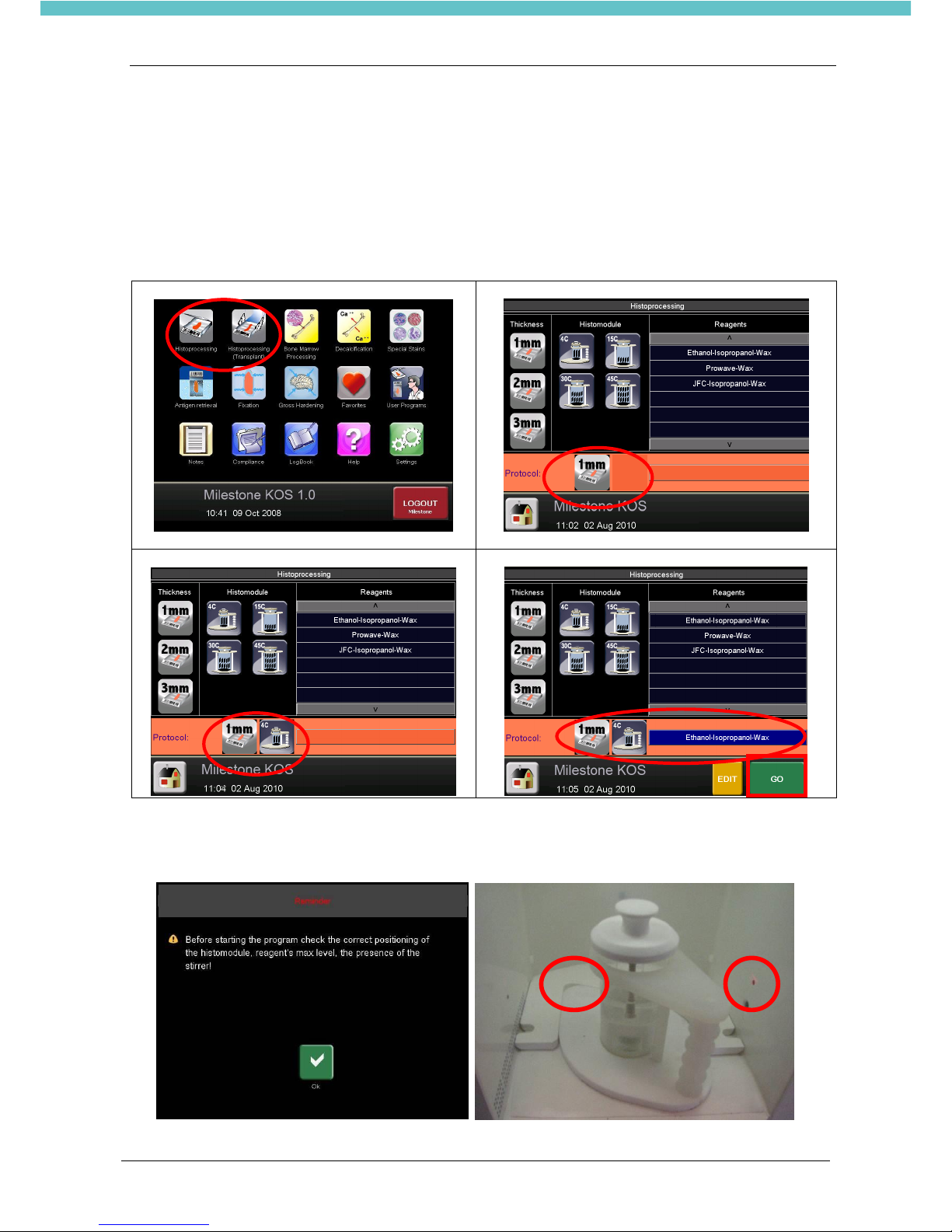

From the main menu screen, it is possible to select preset tissue processing. Select the HISTOPROCESSING icon for routine samples and the HISTOPROCESSING TRANSPLANT icon for transplant biopsies, as indicated below. On selecting HISTOPROCESSING, the screen on the right appears. Using the touch screen, select the sample THICKNESS (1, 2 or 3 mm), the HISTOMODULE (4C, 15C, 30C or 45C) and the REAGENTS protocol to be used, see the example below:
THICKNESS: 1mm
HISTOMODULE: 4C
REAGENTS: Ethanol-Isopropanol-WAX
Now select the active green “GO” icon: a REMINDER screen appears (see the image below on the left). The histomodule must match the positioning plate to be in proper position inside the cavity (left circle figure below). For further confirmation, check that the laser beam centers the rack (right circle).
The correct level of reagents depends on the number of cassettes used:
Page 49
KOS
49

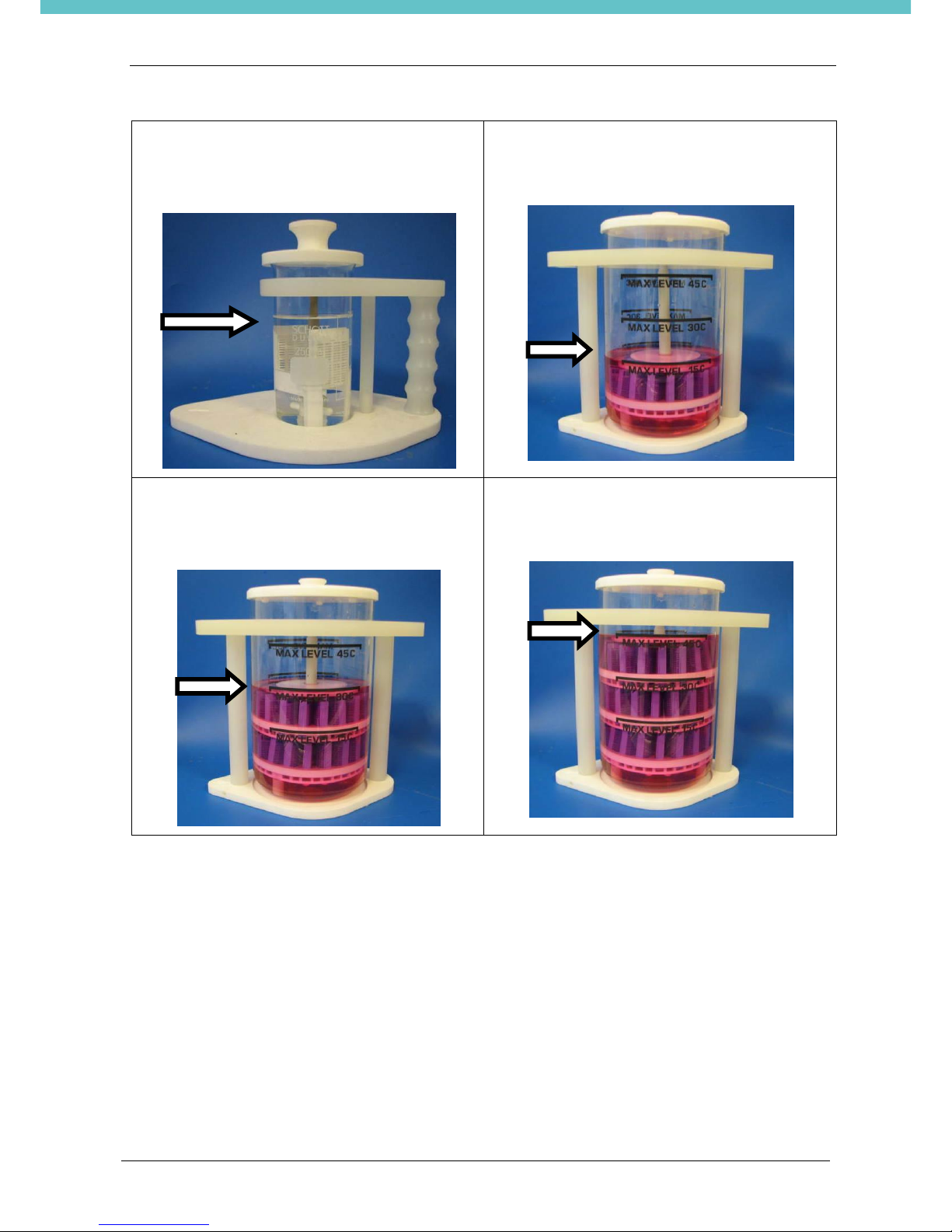

4C: the correct level is approximately 1cm (0.39
inch) above the cassettes (reagent about 200ml).
15C: the correct level is labeled on the Histomodule
(reagent about: 900ml 1 cassette-
850ml 15 cassettes)
30C: the correct level is labeled on the Histomodule
(reagent about: 1400ml 16 cassettes-
1350ml 30 cassettes)
45C: the correct level is labeled on the Histomodule
(reagent about: 1900ml 31 cassettes-
1850ml 45 cassettes)

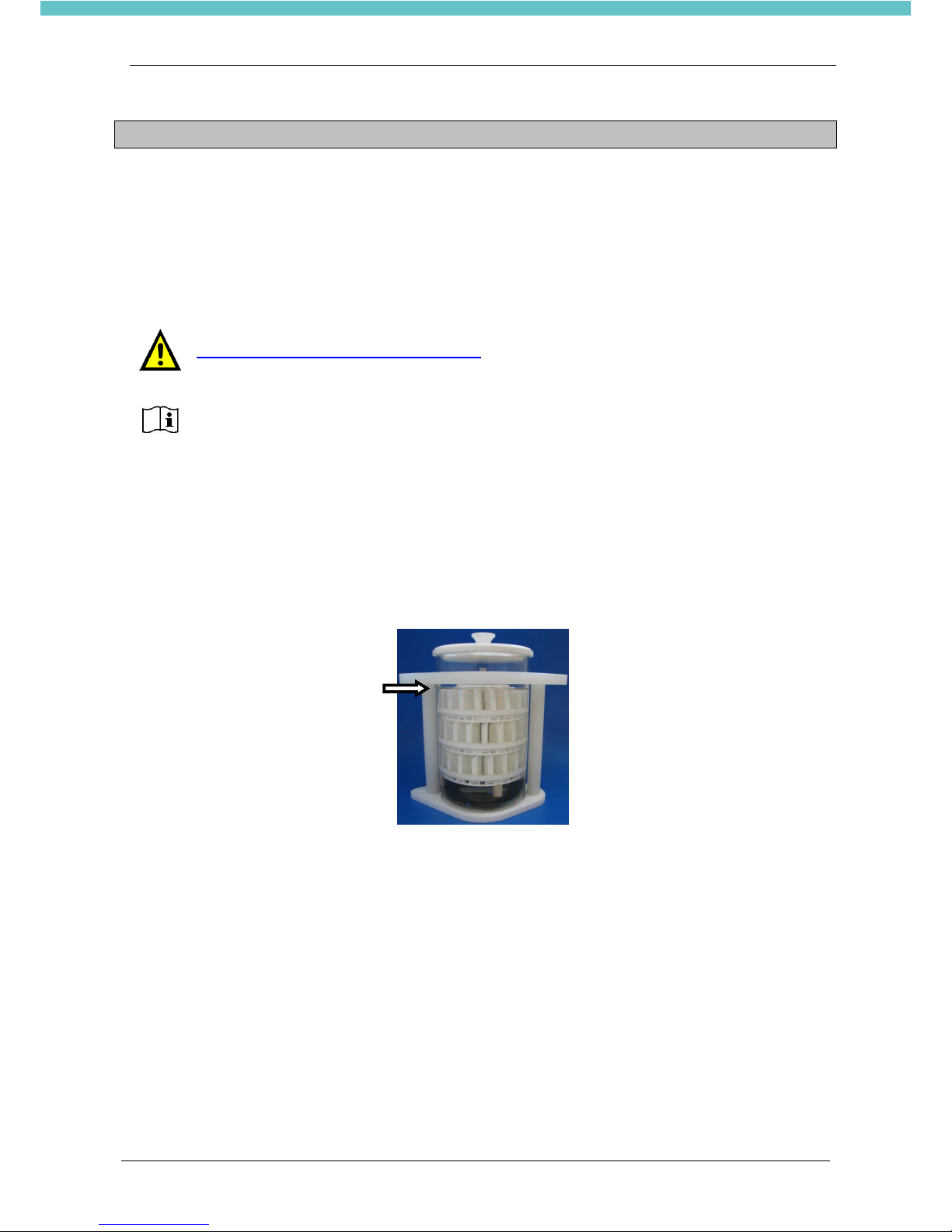

Load the RACK with cassettes and position the CASSETTE FIXING DISK on top. The fixing disk must always be used, in order to avoid possible spilling out of cassettes from the rack during the processing.
Position the module to fit with the positioning plate, when the module is correctly positioned, the reagent level is adequate and the magnetic stirrer is present, select OK in the REMINDER screen. See left figure next page.

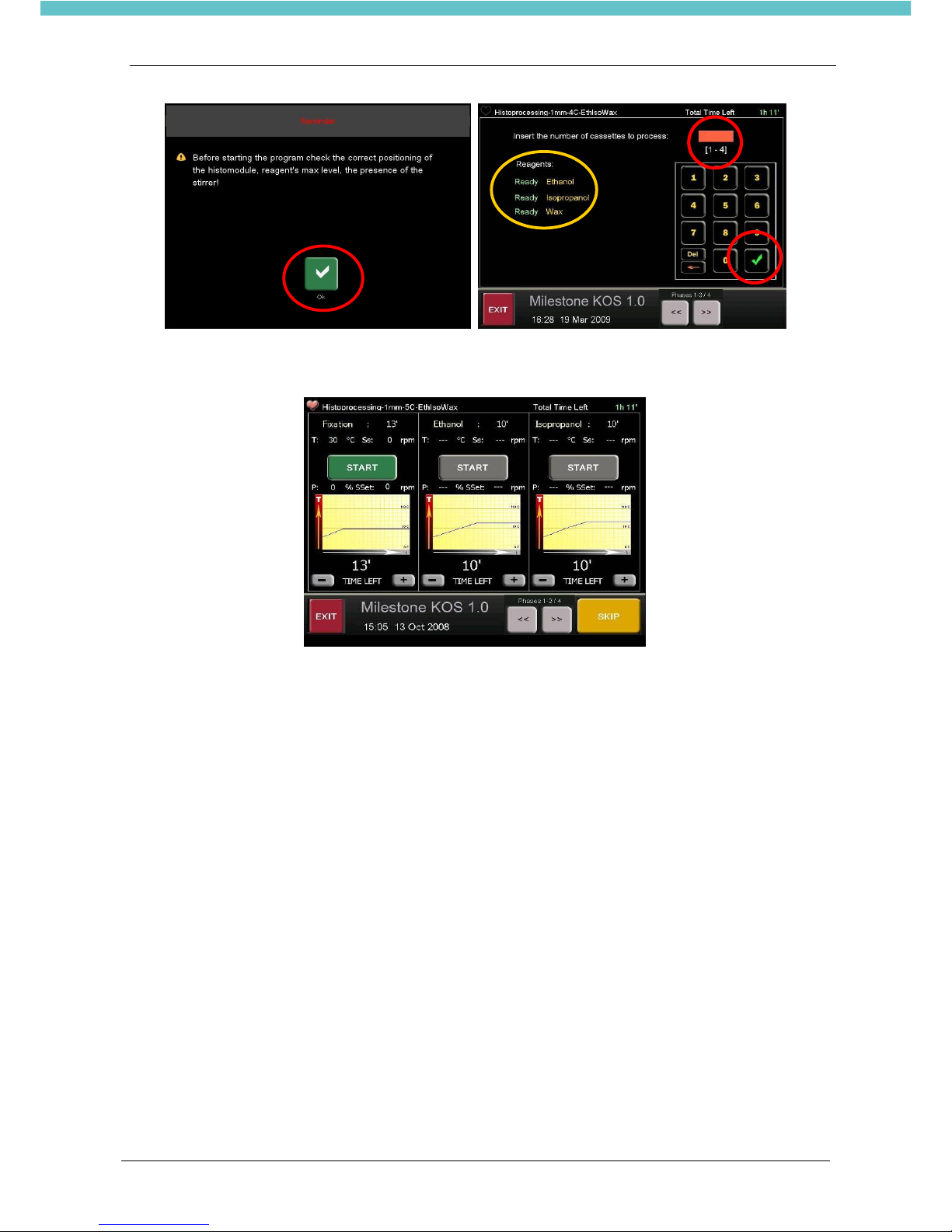

The screen on the right (next page) appears displaying a keypad: ENTER the number of cassettes to process. The Reagent Management System will be automatically updated and the number of cassettes selected will be added to the cassettes already processed, so that also the status of the different reagents is kept automatically updated up to their expiration time. For further information see also the chapter 4.11.1. The yellow circle below displays the status of reagents. In this example, it is shown as READY, in other cases it can be NEAR LIMIT or EXPIRED.
Page 50
KOS
50
After entering the number of cassettes to process, press the green arrowed check box. A display of the processing phases appears.
ICONS explanation:
START: highlighted in green will start the selected phase. When highlighted in gray color, it is not active. SKIP: will advance the START icon to the next reagent phase: this allows manually start of a program
at any phase required, if wishing to bypass a reagent phase. Note that the SKIP function will deactivate the previous phase by displaying COMPLETED, so do not use this function unless certain that this is what is required.
<< >>: to scroll the screen and see all reagent phases.
-/+: to SUBTRACT/ADD time to a selected phase, either running or to be run. EXIT: to cancel and exit an application. A message appears requiring confirmation to abort the
process or not. By choosing OK, user is required also to save any data up to the point of exiting.
Page 51
KOS
51

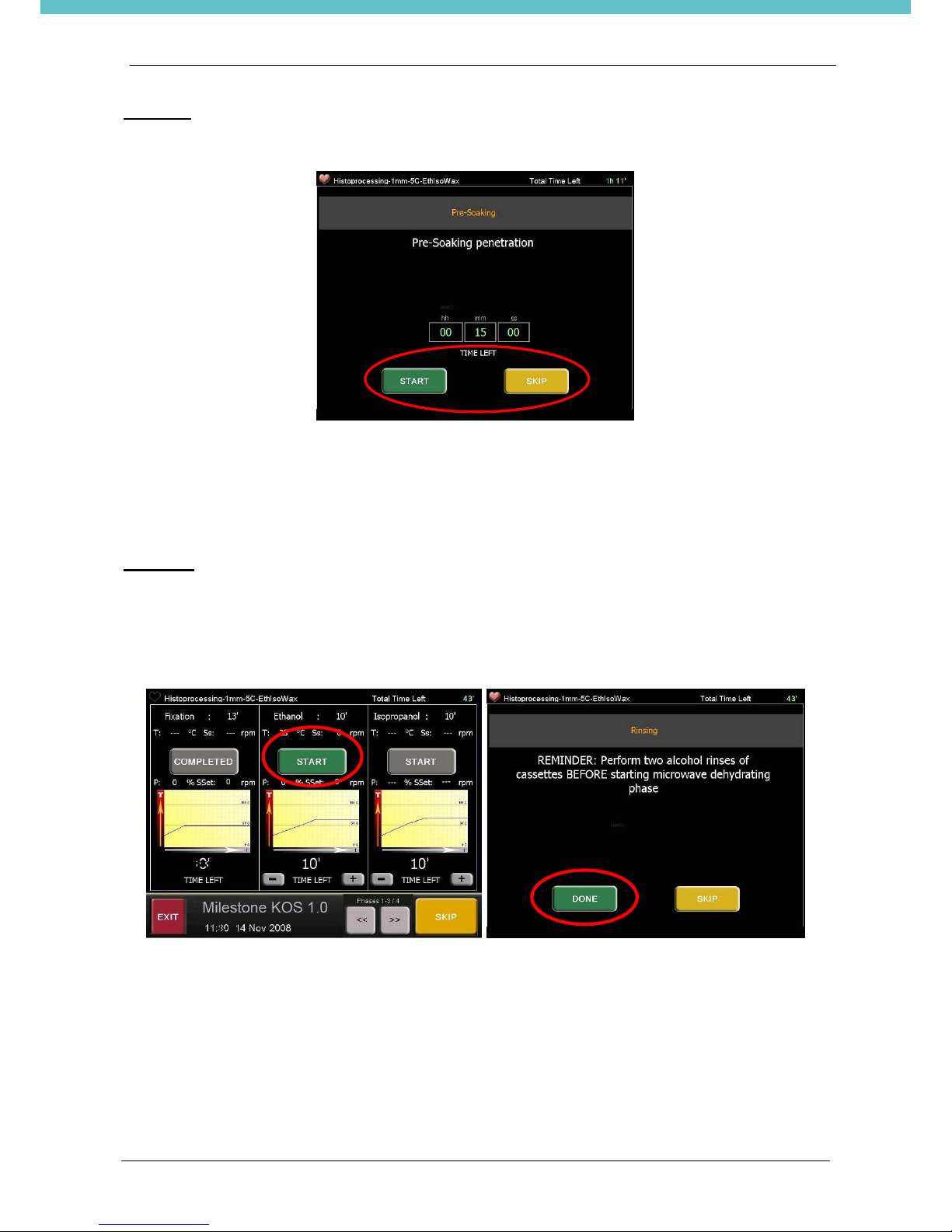

FIXATION
Start the tissue processing by first loading the cassettes into the rack and begin from FIXATION. Fixation must be preceded by a Pre-soaking step at room temperature in formalin.
If the samples have been already fixed out of the KOS, bypass the pre-soaking step selecting the SKIP icon. Otherwise, if samples have not been fixed yet, include the pre-soaking step pressing the START icon. On completion of the Pre-soaking step, the Fixation phase will automatically start. During the microwaving phase in formalin, a RED line, representing the real time temperature curve, will follow the BLUE preset temperature curve. On completion of Fixation an audio alarm will sound (the operator can silence it on the screen).
ETHANOL

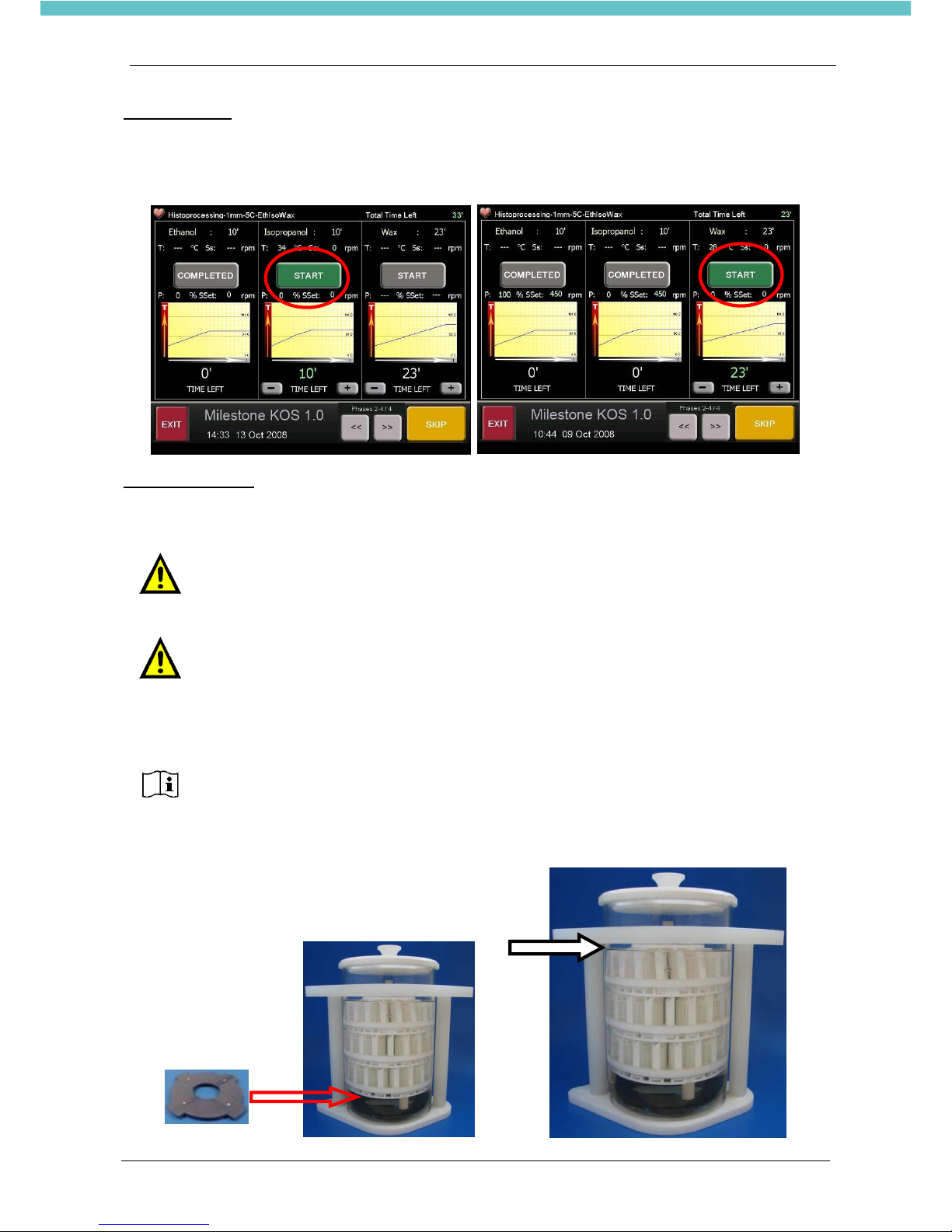

The screen now displays the GREEN START icon to the Ethanol phase. Transfer cassette rack to the ethanol module. Select START for the Ethanol phase. The GREEN START icon will advance to a REMINDER screen, advising the operator to rinse the fixed samples in two changes of 100% ethanol, to remove formalin and water residue carryover. On completion of the RINSING step, select DONE. See below right figure.
The screen will advance the GREEN START icon to the Ethanol Phase. On completion of DEHYDRATION and AUDIO ALARM sounds, cancel it.
Page 52
KOS
52
ISOPROPANOL
The screen now advances the GREEN START icon to the Isopropanol phase. Transfer cassette rack to the Isopropanol module. On completion of the Isopropanol phase an audio alarm sounds, cancel it. The GREEN START icon will advance to the WAX phase.
WAX Impregnation

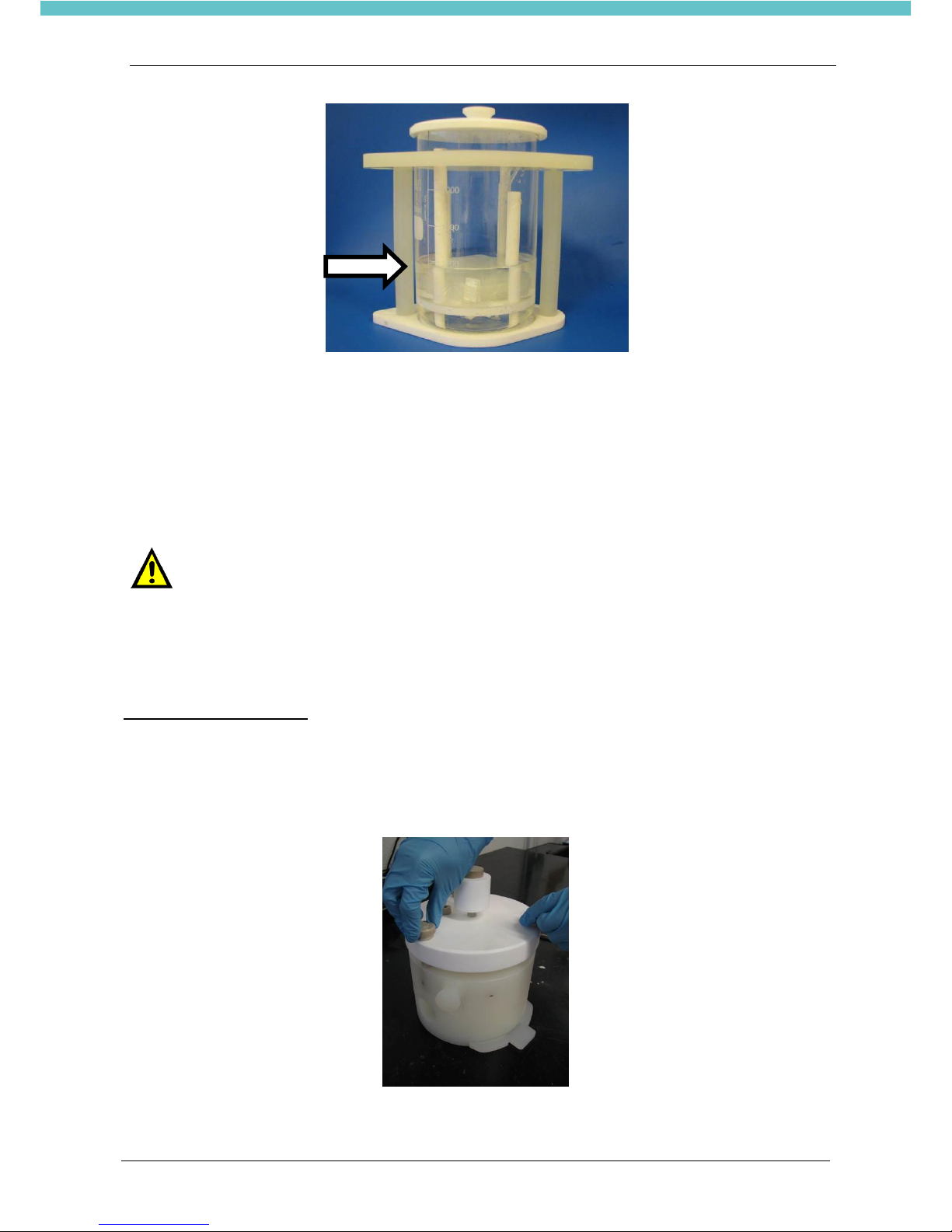

Now move the WAX module, currently sitting in your paraffin oven, to the KOS unit and transfer the cassette rack into the WAX module.
For WAX phase, remember to insert the HEATING DISK in the glass container before positioning the rack, as shown below, figure on the left. Failure to do this will damage the samples. For further information, see the chapter 3.
It is allowed to PUT ONLY MELTED WAX INSIDE the KOS. Do NOT MELT WAX INSIDE KOS unit as this will damage the heating disk (warranty voided). Melt wax only in an external oven. When not in use, keep wax melted in an external oven so that it is ready for use.
When using rack 15K, 30K or 45K the paraffin level must be ready for use with up to 3 layers of cassettes (figure below on the right). The level of WAX should reach the limit indicated on the glass (rack included, for any number of cassettes processed) but not exceed it. Put approximately 0.7 kg of paraffin to reach the proper level of paraffin.
When using rack 4K, the correct level of paraffin is approximately 1cm (0.39 inch) above the cassettes.
Page 53
KOS
53
Now START the WAX program: on completion of the WAX phase, an audio alarm sounds and this screen appears, asking to SAVE a report of the process. This report can be accessed later.
On completion of run and removal of rack, top up WAX level (the loss is due to tissue absorption and carry over from rack). The WAX module is removed and taken to the embedding center where the cassettes are embedded. The processing procedure is now complete and another processing run can be started.
SCREENSAVER
Touch the graphical display of a running program to activate the SCREENSAVER, that displays the time remaining of the currently running phase. To exit screensaver and go back into the graphical display, touch the screen and the user name appears, enter the login PASSWORD in the white box by touching it.
Page 54
KOS
54
4.2.2. Decalcification

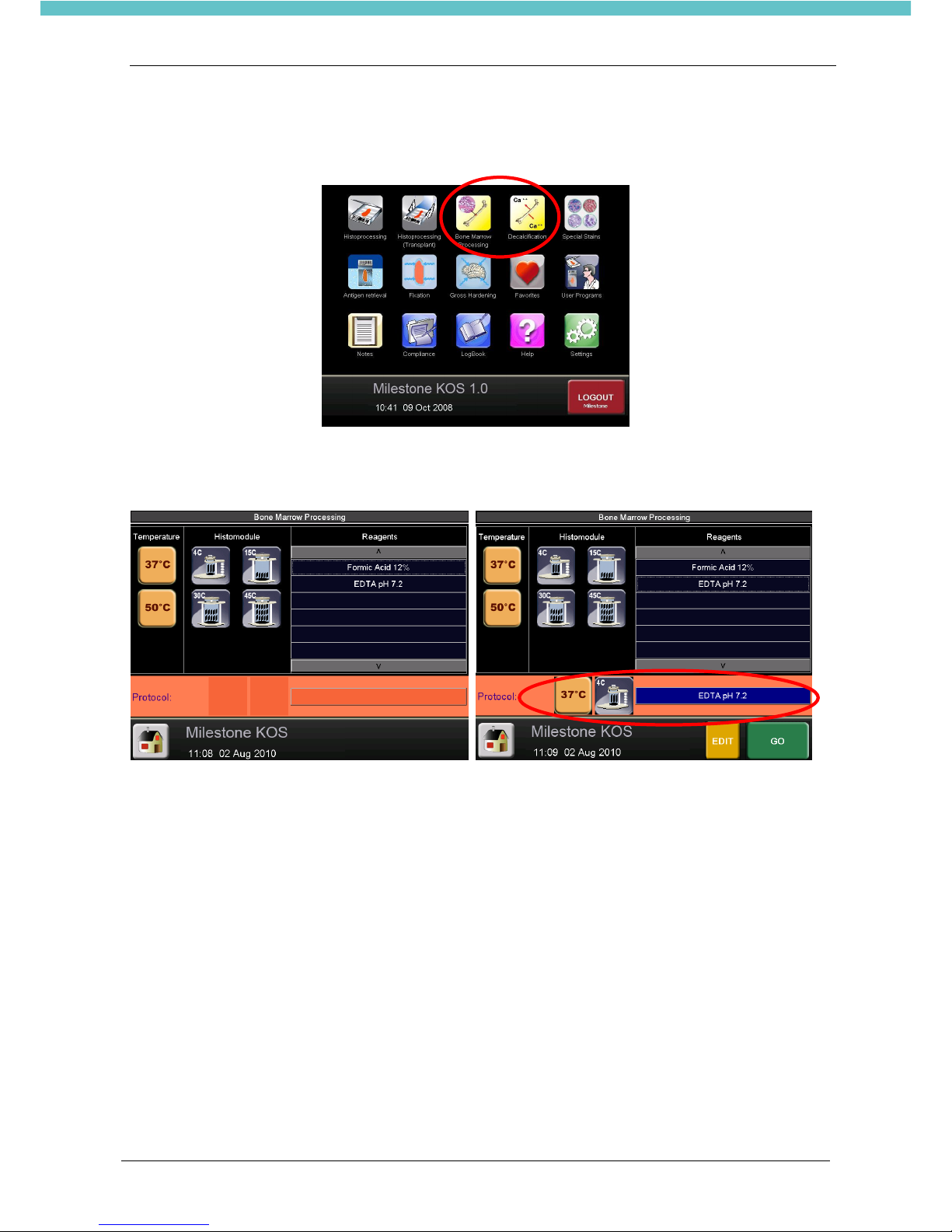

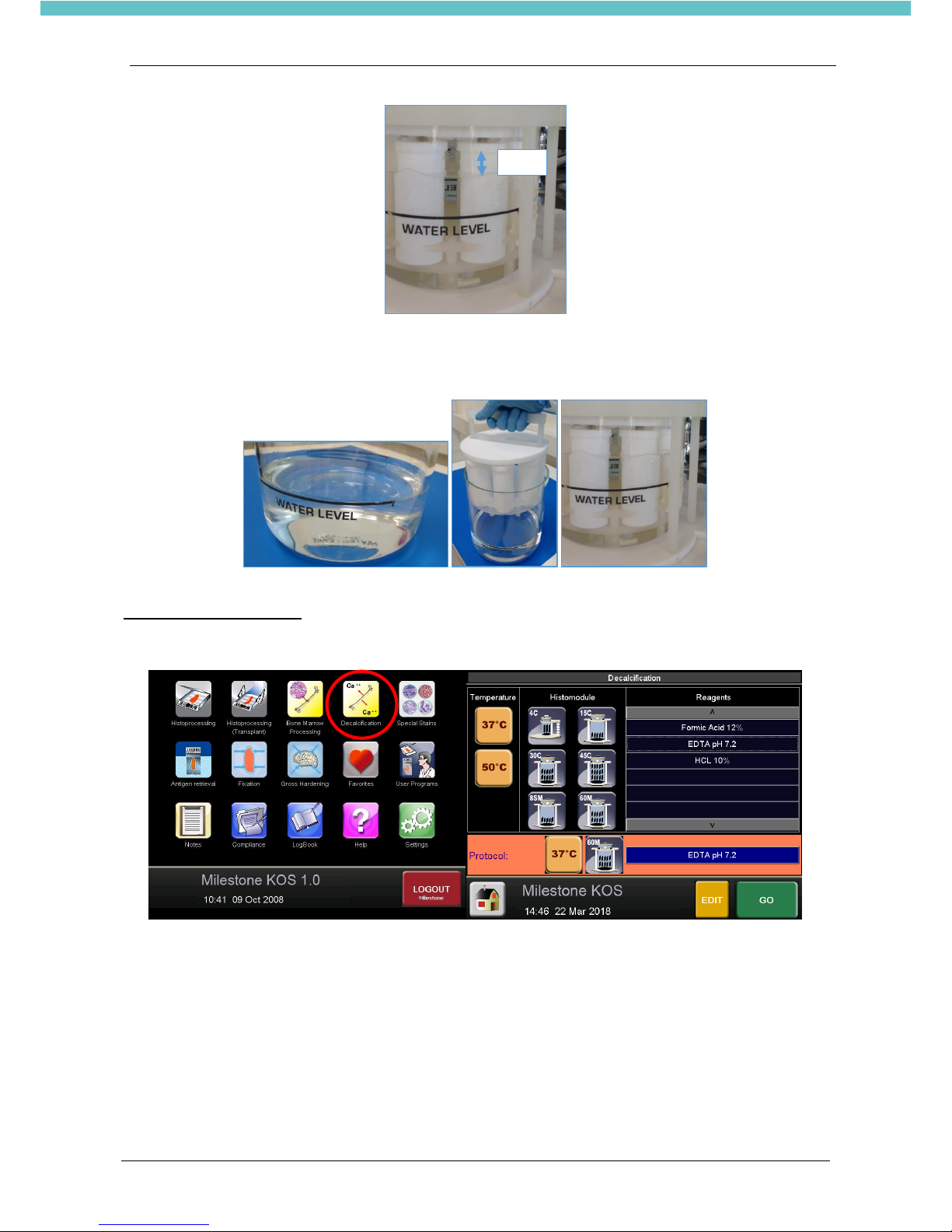

From the MAIN MENU screen select the DECALCIFICATION icon to be used. Note that BONE MARROW PROCESSING includes tissue processing after the decalcification, whereas DECALCIFICATION for larger bones will do ONLY the decalcification phase.
Select the BONE MARROW PROCESSING icon, the screen on the left appears. The correct sequence is: first select the TEMPERATURE, second the HISTOMODULE, then the DECALCIFICATION REAGENT to use.
Press GO to reveal the program or select the EDIT icon, to copy and customize the parameters needed. Press GO and the system will automatically show the entire sequence. Several screen prompts advise the action to take at each phase and step. At the beginning this message appears (see below left figure). Check and confirm. Then user is requested to enter the number of cassettes to be decalcified (right figure).
Page 55
KOS
55

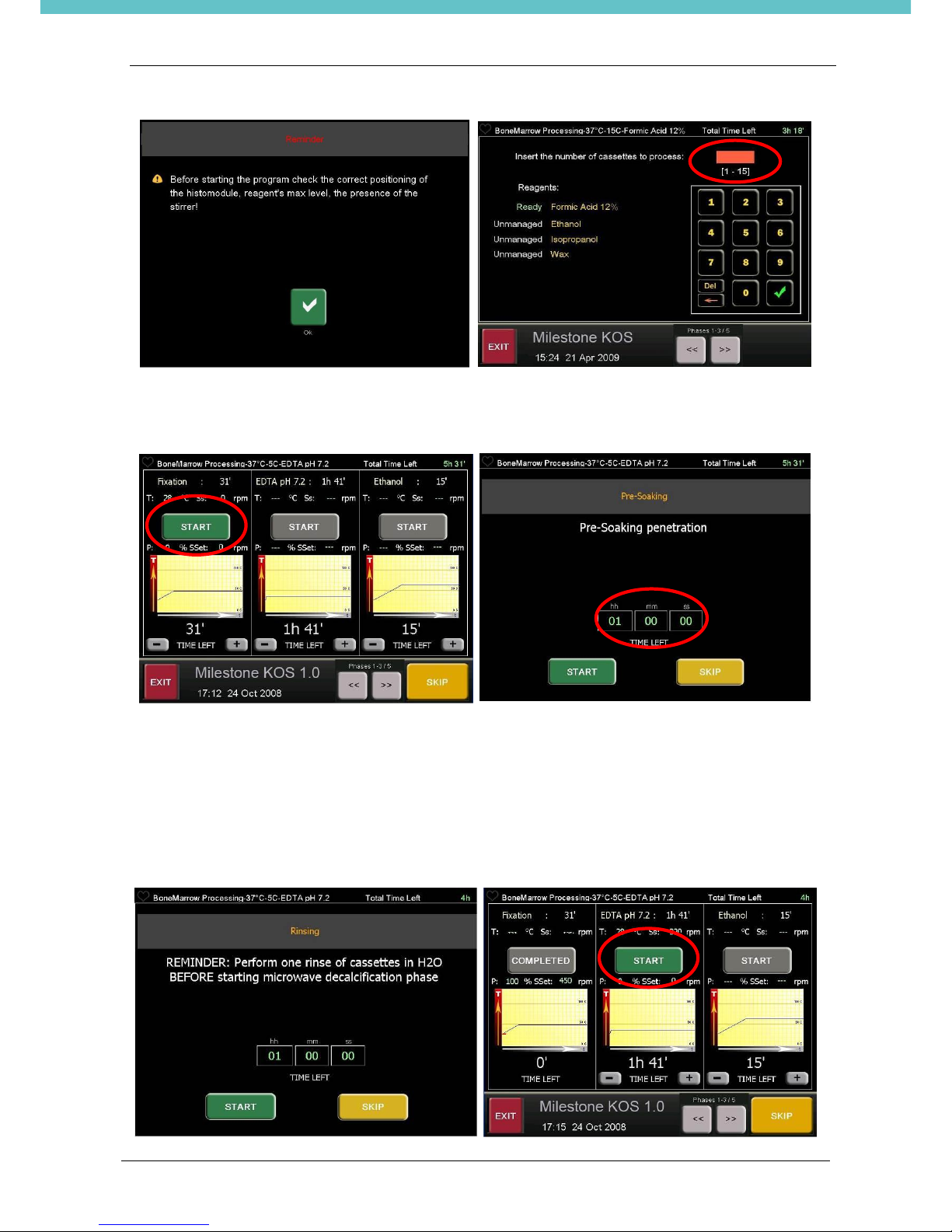

Now the FIXATION phase is displayed. Press START and a screen appears, indicating the PRE-SOAKING PENETRATION time of tissues in fixative, before the microwave fixation phase.
If tissues have been previously fixed, it is possible to SKIP the fixation phase and proceed to the DECALCIFICATION phase, by using the SKIP icon on the bottom of the screen. Otherwise press the START icon to begin the fixation phase. On completion of pre-soaking time in fixative, the system will AUTOMATICALLY START the microwave FIXATION phase. On completion of FIXATION an AUDIO ALARM sounds, cancel the alarm. A screen appears reminding to perform a rinse in water before commencing the DECALCIFICATION phase (left figure below). On completion of the rinsing time in water, an AUDIO ALARM sounds, cancel it. Now select the START icon for DECALCIFICATION (right figure below).
Page 56
KOS
56

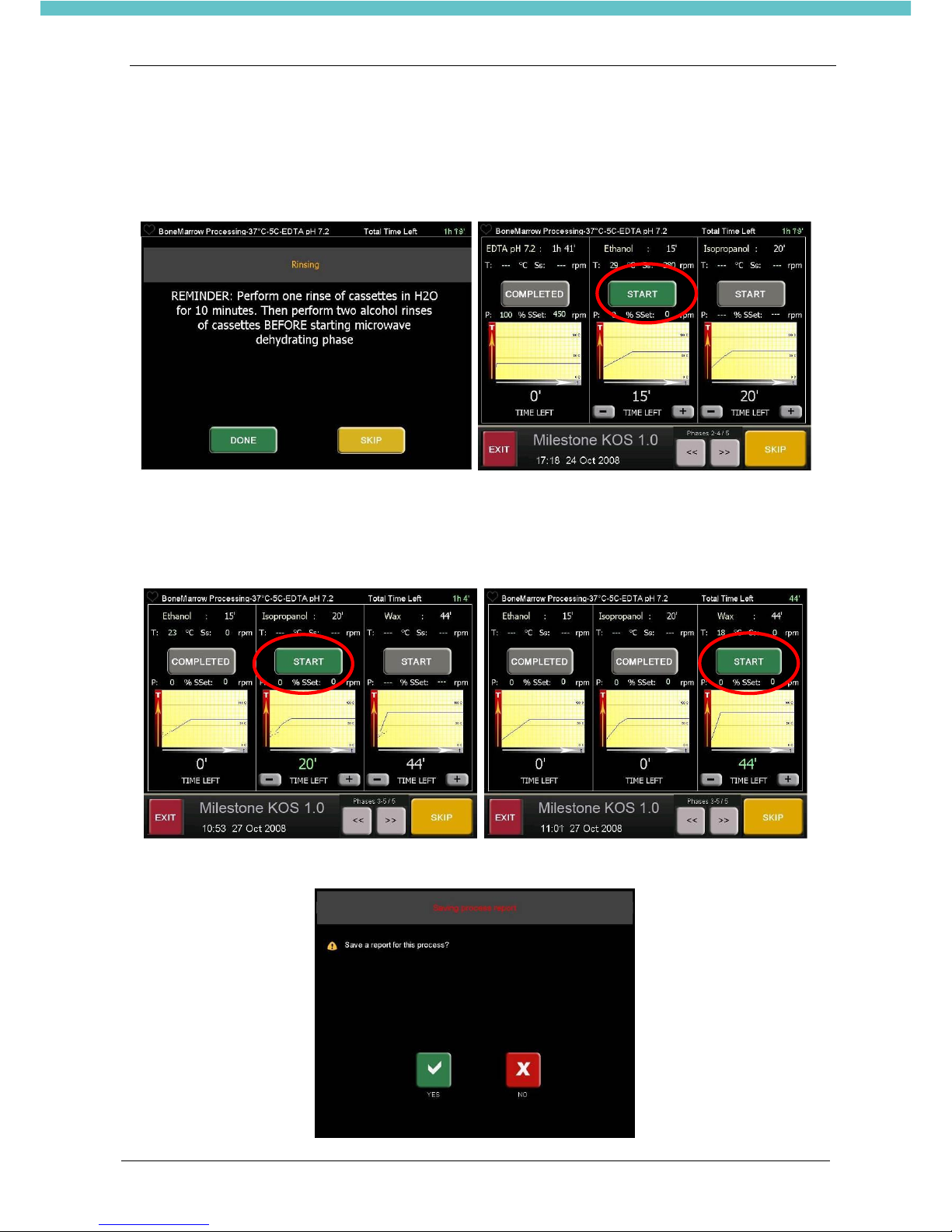

On completion of the DECALCIFICATION an AUDIO ALARM sounds, cancel it. Now BEFORE starting the DEHYDRATION phase, a message advises to perform a rinse in water for 10 minutes followed by two quick rinses in ethanol (figure below left), press START to perform it. Press SKIP icon to bypass this rinsing, if not required. Start the DEHYDRATION phase by clicking on START icon (figure below right).
On completion of DEHYDRATION an AUDIO ALARM sounds, cancel it. Select the ISOPROPANOL clearing phase and press START (figure below left). On completion of clearing in ISOPROPANOL an AUDIO ALARM sounds, cancel it. Get the WAX module out from the paraffin oven. Please refer to the WAX phase described in the chapter 4.2.1 for proper use of WAX Histomodule. Then START the WAX phase (figure below right).
On completion of the last phase (WAX phase), the AUDIO ALARM sounds and a screen appears asking whether to SAVE a report for this process or not.
Page 57
KOS
57

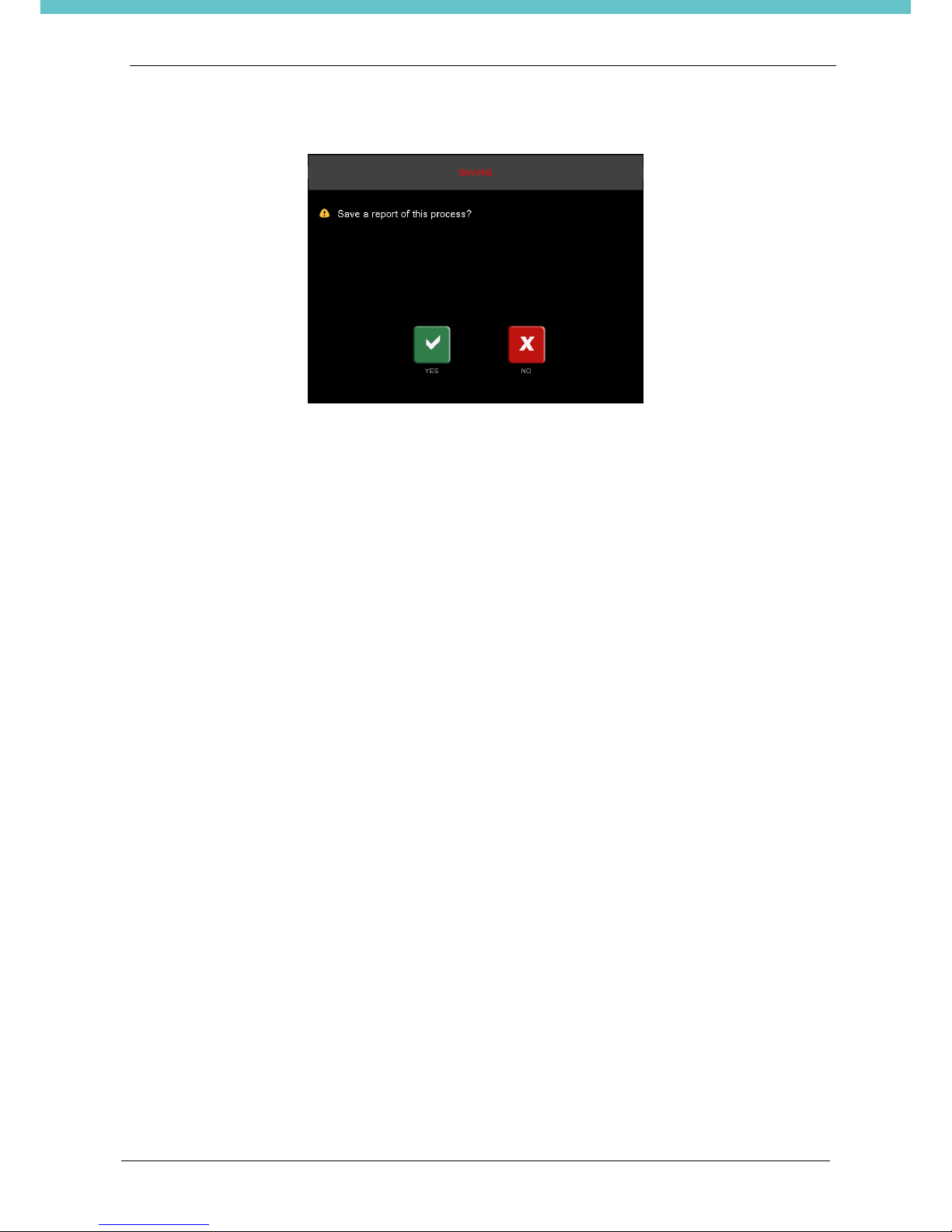

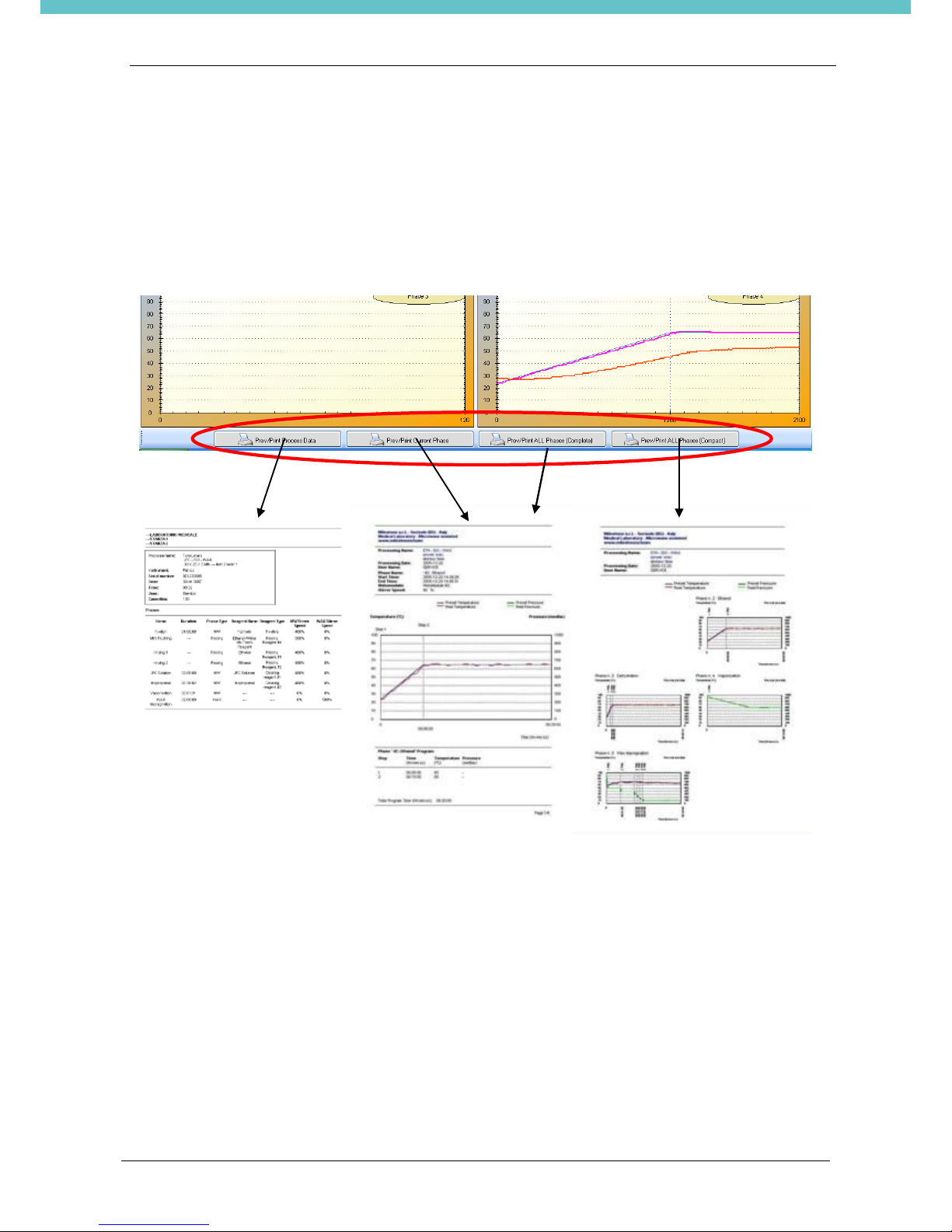

This report is essential for documenting the entire procedure just completed, which can be retrieved for review and printing at a later date. Now transfer the cassettes to the embedding center and return the WAX module to the paraffin oven. On completion of embedding, clean the cassette rack, so it is ready for the next run (see the Rack cleaning procedure chapter 6.2.1).
4.2.2.1 Decalcification with multiple module

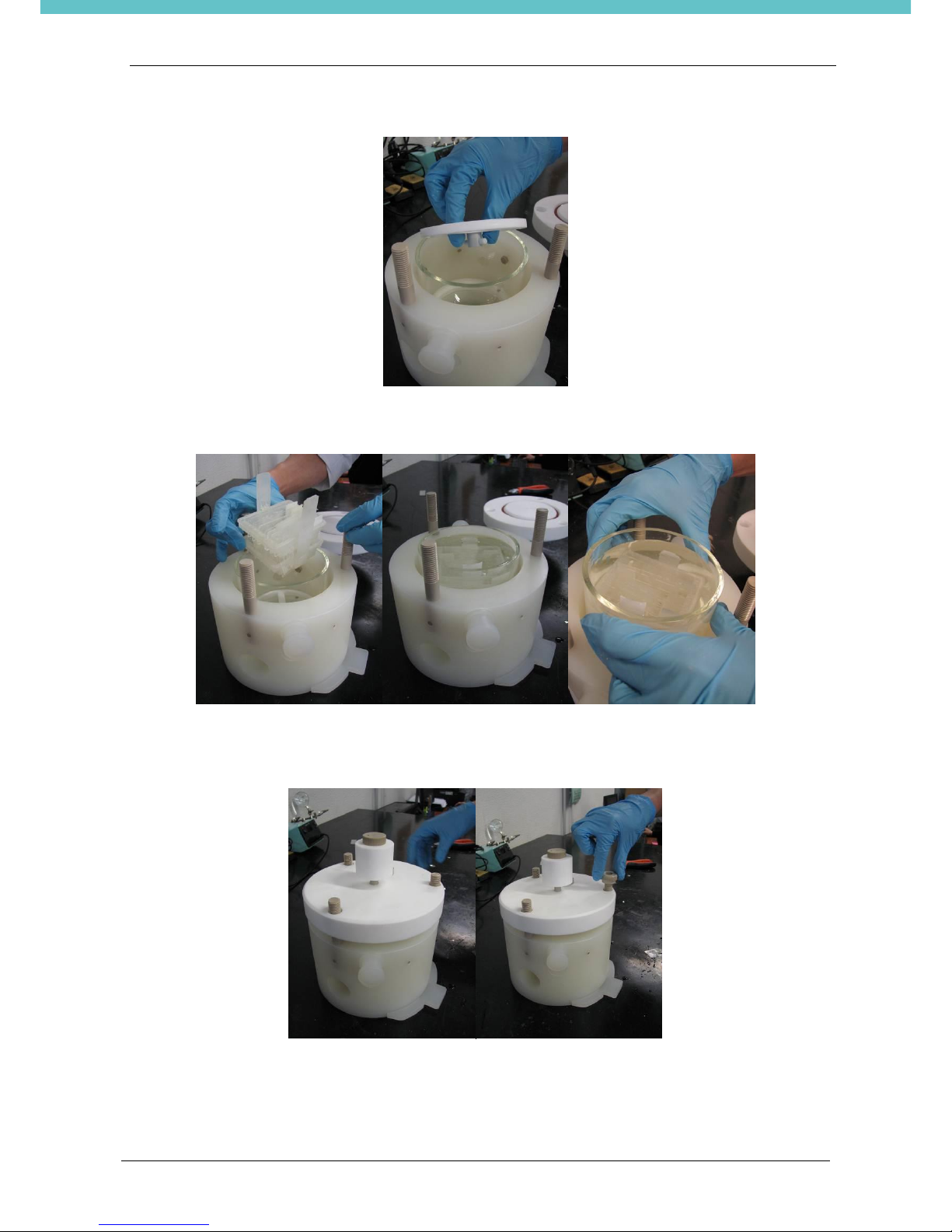

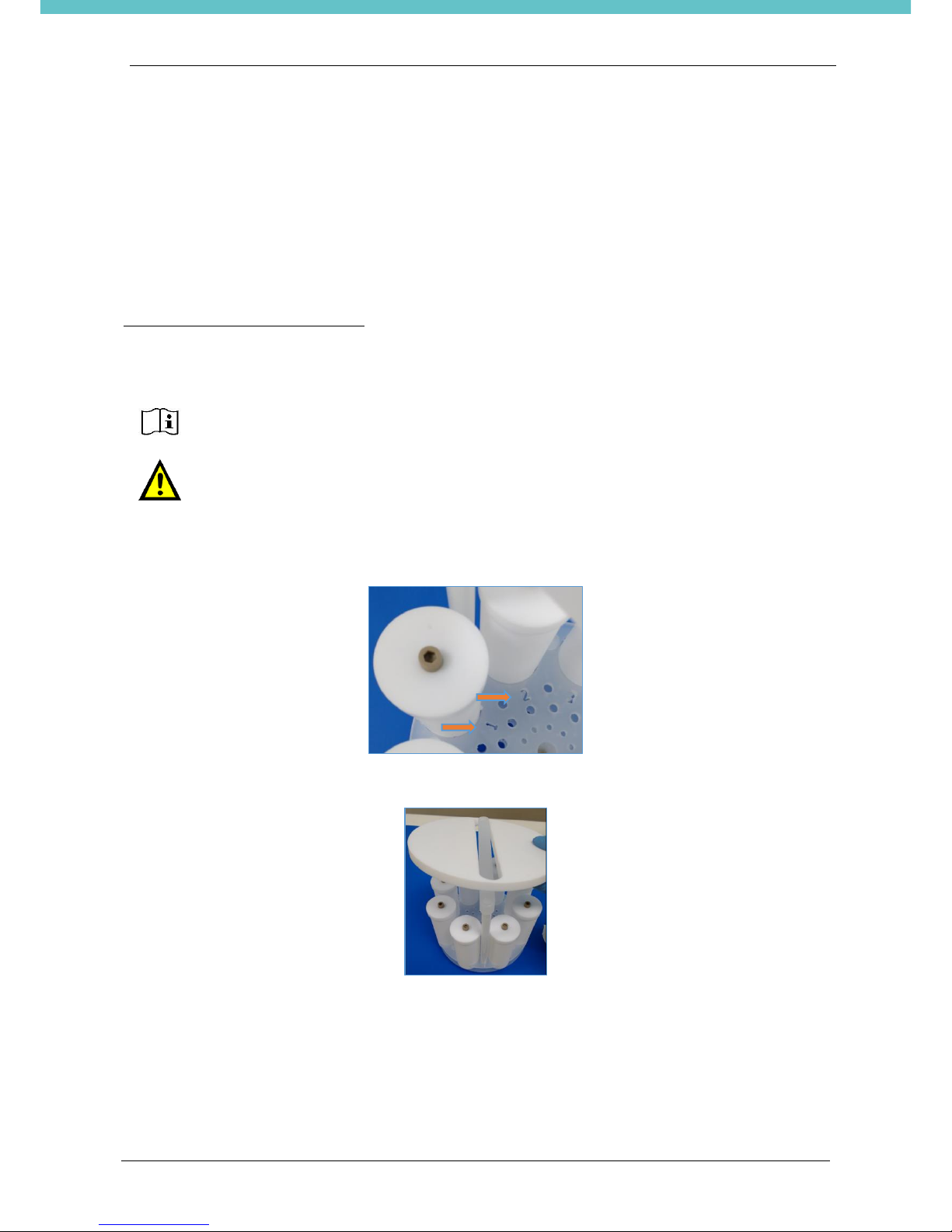

The multiple decalcification module requires a special procedure both for its preparation and the protocol creation.
Sample and Histomodule preparation Put the bone sample in cassette or mega cassette, then transfer the cassette in the container.
Add the reagent until the complete cassette/s covering (about 40ml) and close the container with its cover equipped with plunger. Insert the container into the rack. It is possible to recognize the container position using the numbers engraved in the rack layer.
Fix the containers to the rack, adding the rack cover disk:
Insert the rack into the glass container and add water up to 1cm below the containers cover.
It is possible to insert up to two cassettes or one megacassette in each of the 8 multiple decalcification module containers.
Samples must be well fixated before decalcification.
Page 58
KOS
58
It is also possible to put the water before the rack inserting. Fill the glass container up to the level marked on the glass container, when the rack will be inserted, the water level will be the correct one.
Dedicated protocol creation From the MAIN MENU’ select the DECALCIFICATION icon.
Then select the decalcification temperature, the 60M histomodule and one of the decalcification reagent used. Press GO to see the program, or press EDIT to copy and change the protocol parameters. Follow the instruction in chapter 4.2.2 and 4.4.
1cm
Page 59
KOS
59
4.2.3. Special stains

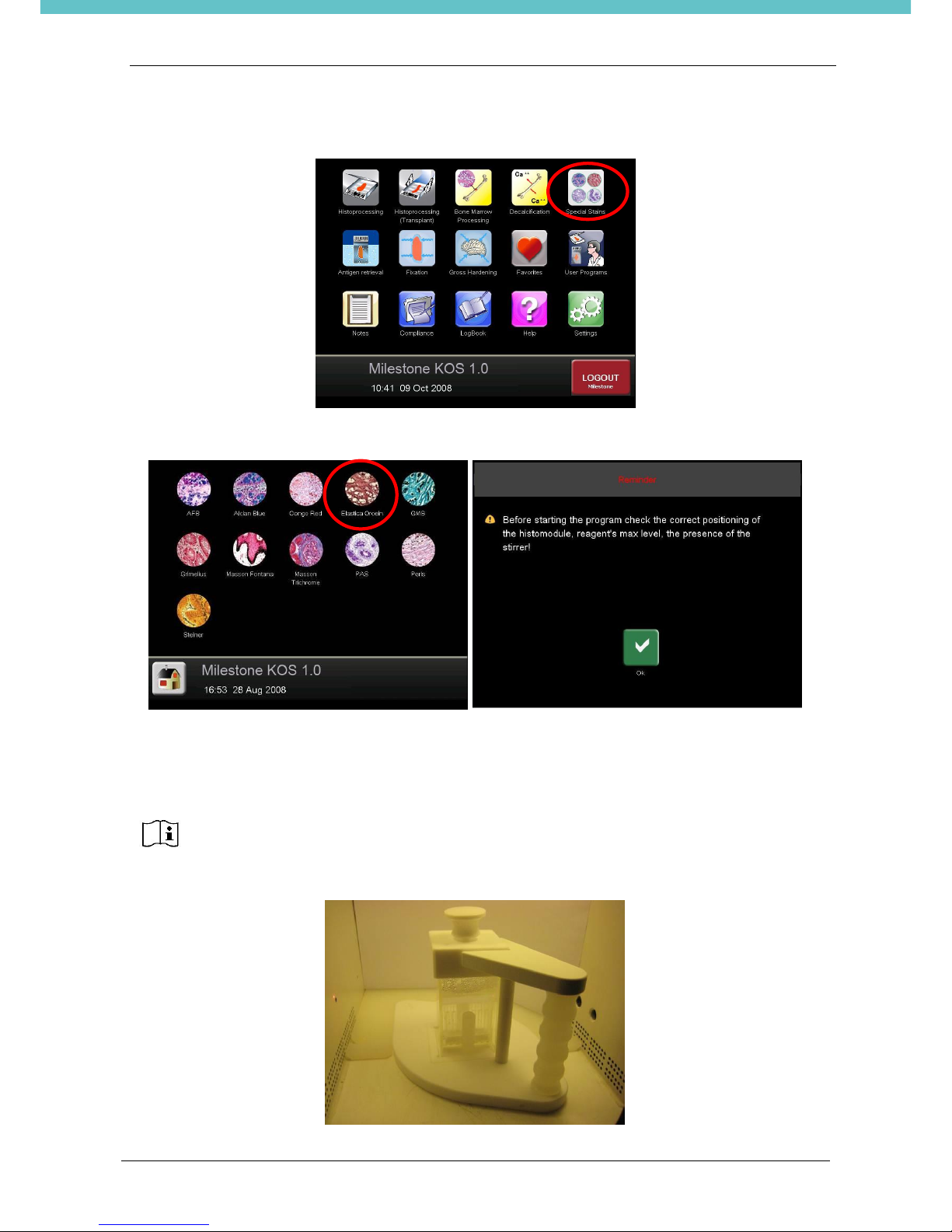

From the MAIN MENU screen, select SPECIAL STAINS icon shown below.
Select a stain, in the example below ELASTIC ORCEIN (figure left). A reminder screen appears (figure right).
Select OK to go into the working program screen, showing the FULL STEP BY STEP PROCEDURE, from dewaxing to mounting of slides.
This detailed procedure is ideally suited for junior techs under training in the procedure. For the experienced user the procedure can be customized to show only the MAIN steps. For more details see the chapter 4.4. Please remember that:
• all non-microwave steps are performed outside the KOS unit
• all microwave steps are performed inside the KOS unit.
Page 60
KOS
60

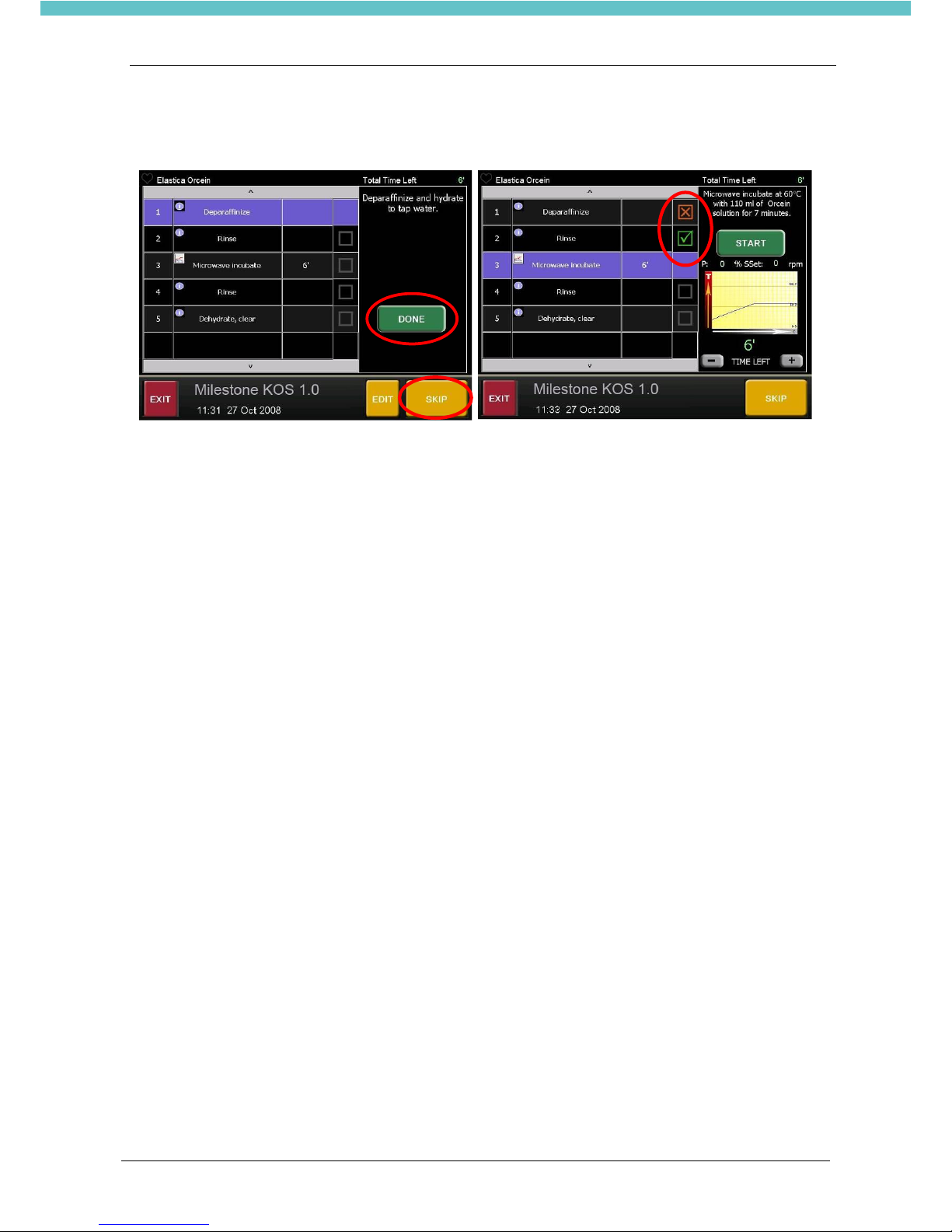

In the screen below, move through each step by pressing DONE when completed, resulting in a green arrowed check box. By pressing the SKIP icon, the step is bypassed resulting in a red crossed check box. In both cases, the program will advance to the next step.
Go through all steps until the procedure is completed; a screen will appear asking to SAVE a report of this process, essential for documenting the entire staining procedure performed.
Page 61
KOS
61
4.2.4. Antigen retrieval
Histomodule 40KS
1°
2°
3°
4°
1. First rack is put on the bottom of the glass, no need of cutting the handle.
2. Second rack requires cutting at 13.5cm (5.32in) from the bottom.
3. Third rack requires cutting at 11cm (4.33in) from the bottom.
4. Fourth rack requires cutting at 7.5cm (2.96in) from the bottom.
Histomodule GPR/K
1°
2°
1. First rack requires cutting at 7.5cm (2.96in) from the bottom.
2. Second rack requires cutting must be cut at 5cm (1.97in) from the bottom.
Use of rack for 20 slides inside histomodule 40KS or GPR/K requires a slight modification of the handle of these racks in order to have them perfectly fit inside the glass container. These racks are supplied entire, with the long handle. Pictures below indicate the height user had to cut the handle of the racks:
Entire
13.5cm
(5.32in)
11cm
(4.33in)
7.5cm
(2.96in)
7.5cm
(2.96in)
5cm
(1.97in)
Page 62
KOS
62

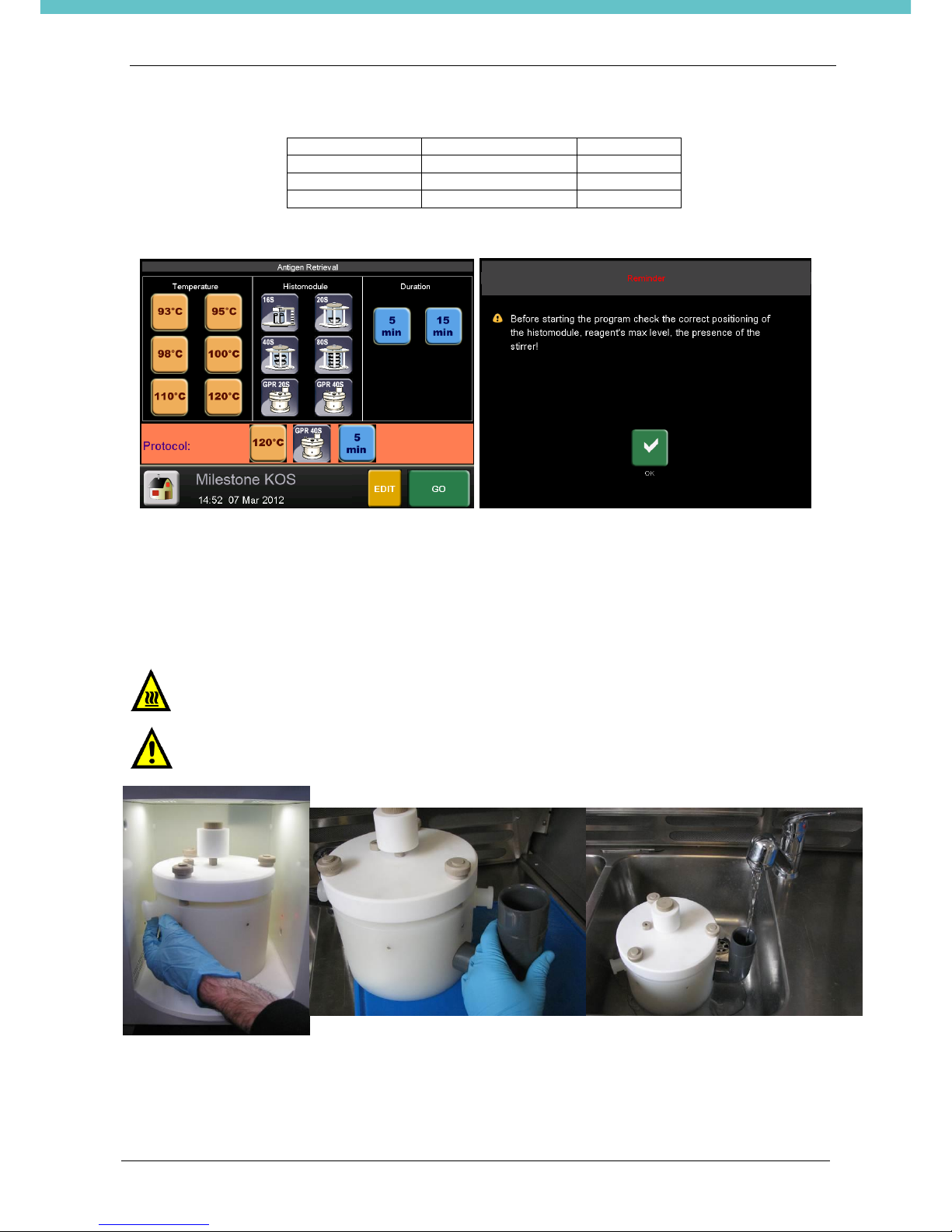

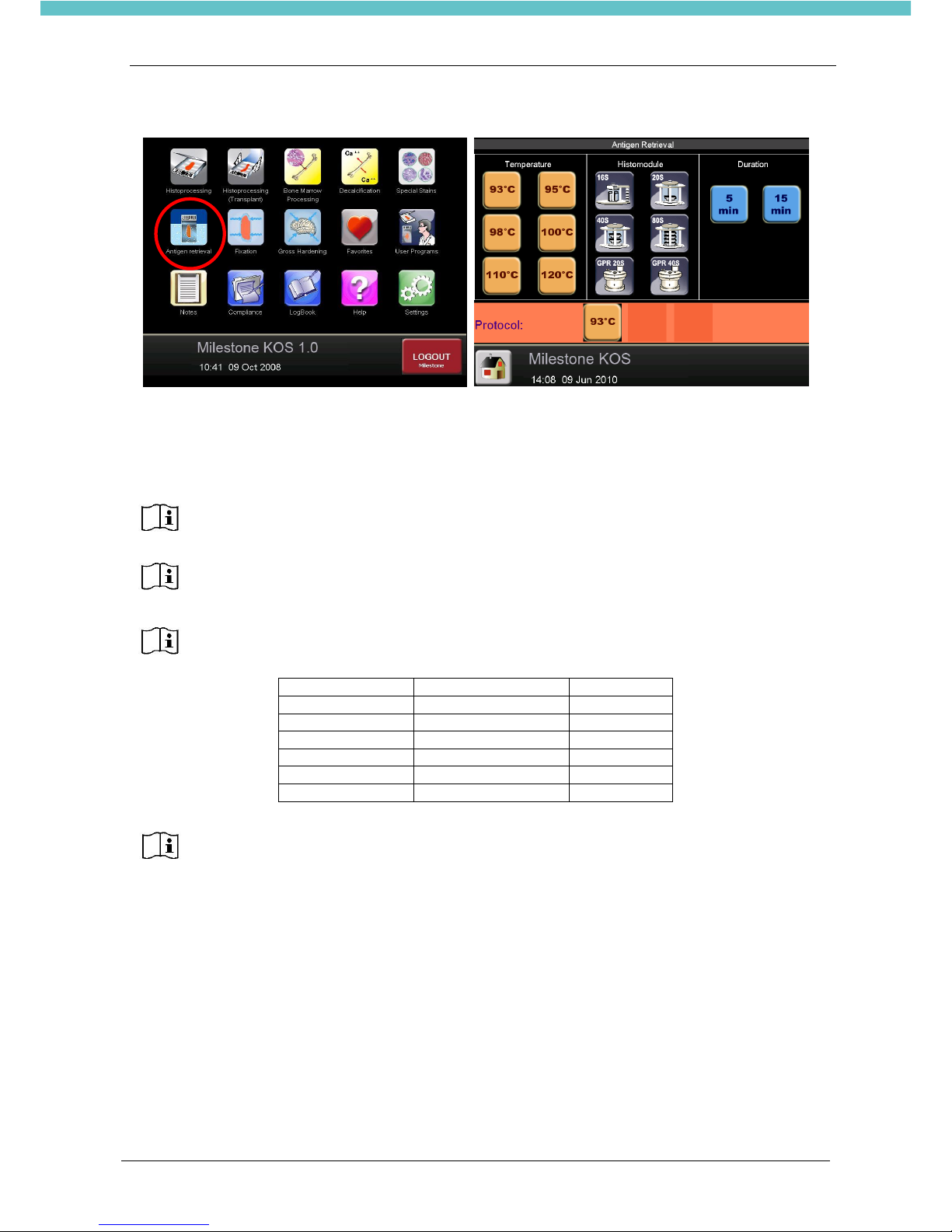

From the MAIN MENU screen, select ANTIGEN RETRIEVAL, the screen on the right appears.
Using the touch screen function select:
Temperature (93°C, 95°C, 98°C, 100°C, 110°C, 120°C),  Histomodule (16S, 20S, 40S, 80S, GPR 20S or GPR 40S),  Duration (5min or 15min).
TEMPERATURE
HISTOMODULE
DURATION
93° C
16S
15MIN
95° C
20S-40S-80S
15MIN
98° C
20S-40S-80S
15MIN
100° C
GPR 20S-GPR 40S
5MIN
110° C
GPR 20S-GPR 40S
5MIN
120° C
GPR 20S-GPR 40S
5MIN
The duration (5min or 15min) refers to the Time at Temperature (93°C, 95°C, 98°C, 100°C, 110°C, 120°C).
When using more than 40 slides but less than 80 slides, select the program relating to the Histomodule 80S.
The default protocols for Antigen Retrieval are reported in the table below.

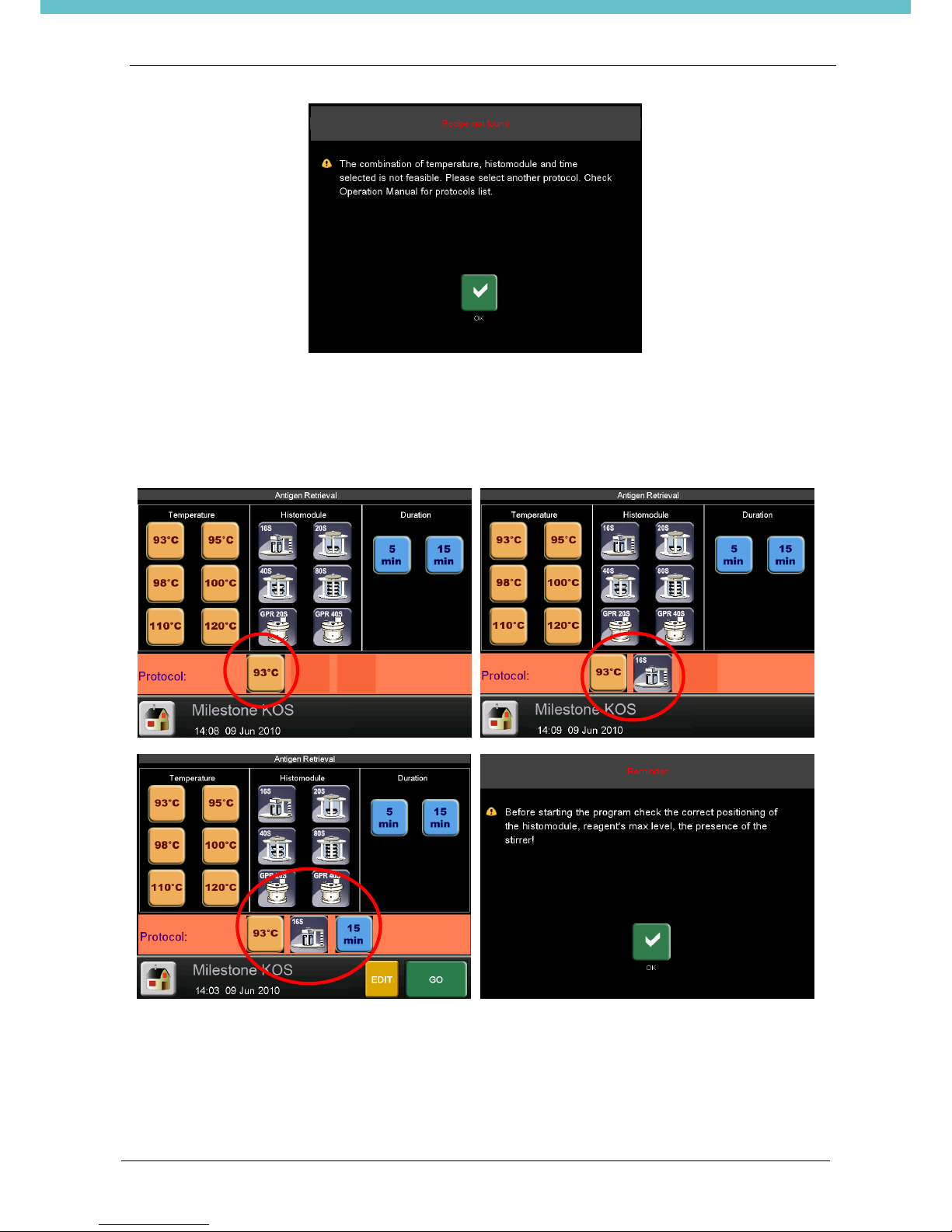

The following message appears when it is not selected a default program:
Page 63
KOS
63
Click OK to go back to the home screen and choose a default protocol. For example, select:
TEMPERATURE: 93°C HISTOMODULE: 16S DURATION: 15min
Press GO to reveal the program or select the EDIT icon, to copy and customize the parameters needed. Press GO and the system will automatically show the confirmation screen (see above right figure). On selecting OK on the REMINDER screen, the working program screen opens. The correct level of reagents corresponds approximately to 1 cm (0.39 inch) above the slides.
Page 64
KOS
64
4.2.4.1 GPR/K Module
Under Pressure High Temperature Antigen Retrieval up to 120°C.
OPERATING PROCEDURE

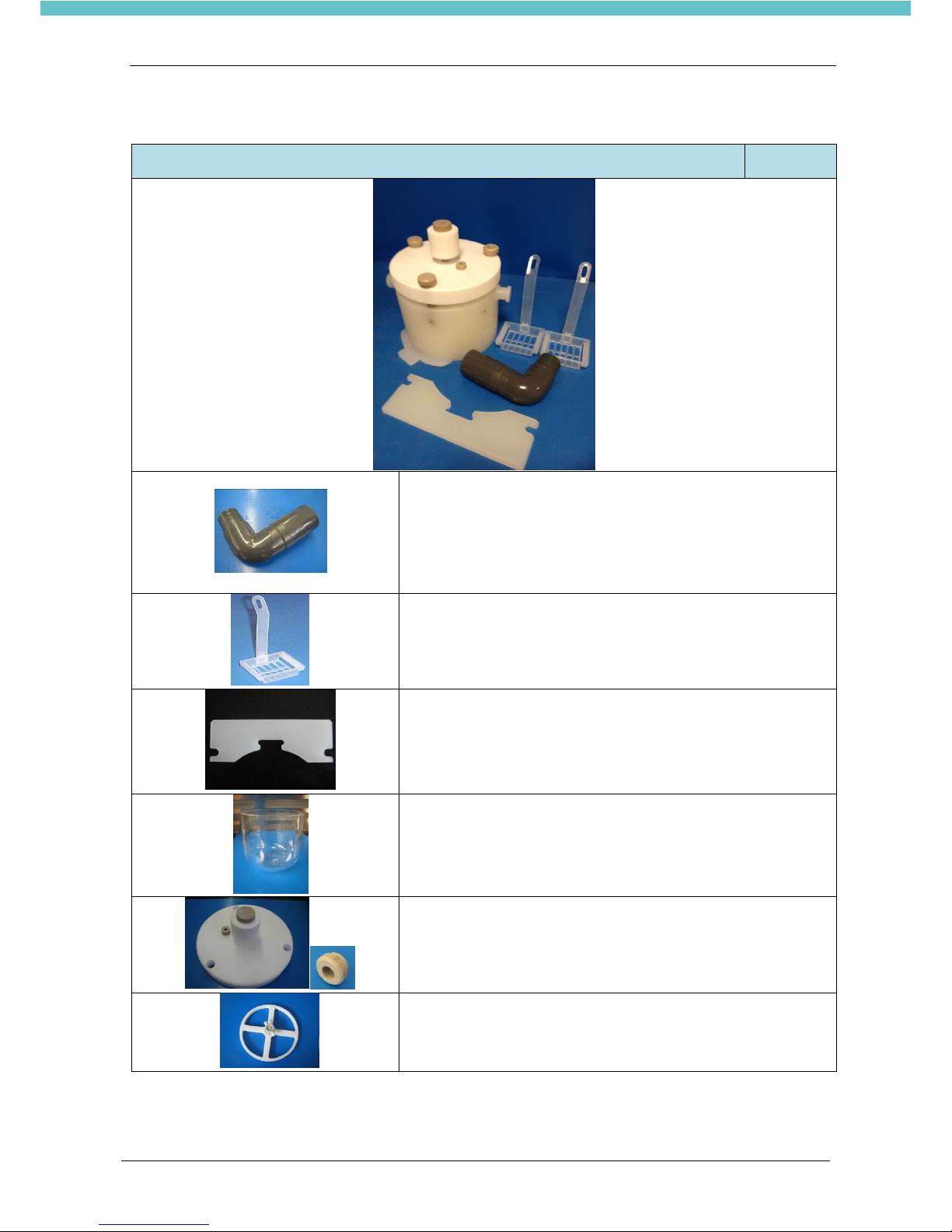

Assemble GPR/K as follows:
1. Remove cover of GPR/K by first removing the pressure locking nuts by hand. Proceed as follows: slightly unscrew ALL the nuts, make sure NOT to totally unscrew or remove any of them; when all nuts are partially unscrewed, proceed with taking them away one by one.
DO NOT run programs with a maximum temperature set higher than 120°C.
Never open the locking nuts of the pressure reactor unless it has been cooled down: without proper cooling a sudden pressure release of hot vapors will occur.
DO NOT open the pressure release valve of the unit unless it has been cooled down: risk of hot vapors leakage that can affect operators safety.
DO NOT use glass reactor if cracked or damaged: replace it immediately.
DO NOT touch hot glass container before cooling, risk of burning.
When operating with the GPR/K, wear suitable laboratory grade coat, gloves, safety eye glasses.
Page 65
KOS
65
2. Insert the stirrer bar into the glass pressure vessel.
3. Insert slide rack with appropriately cut handle, add sufficient ER solution to cover the slides
(approximately 550 ml for 20 slides and 750 ml for 40 slides).

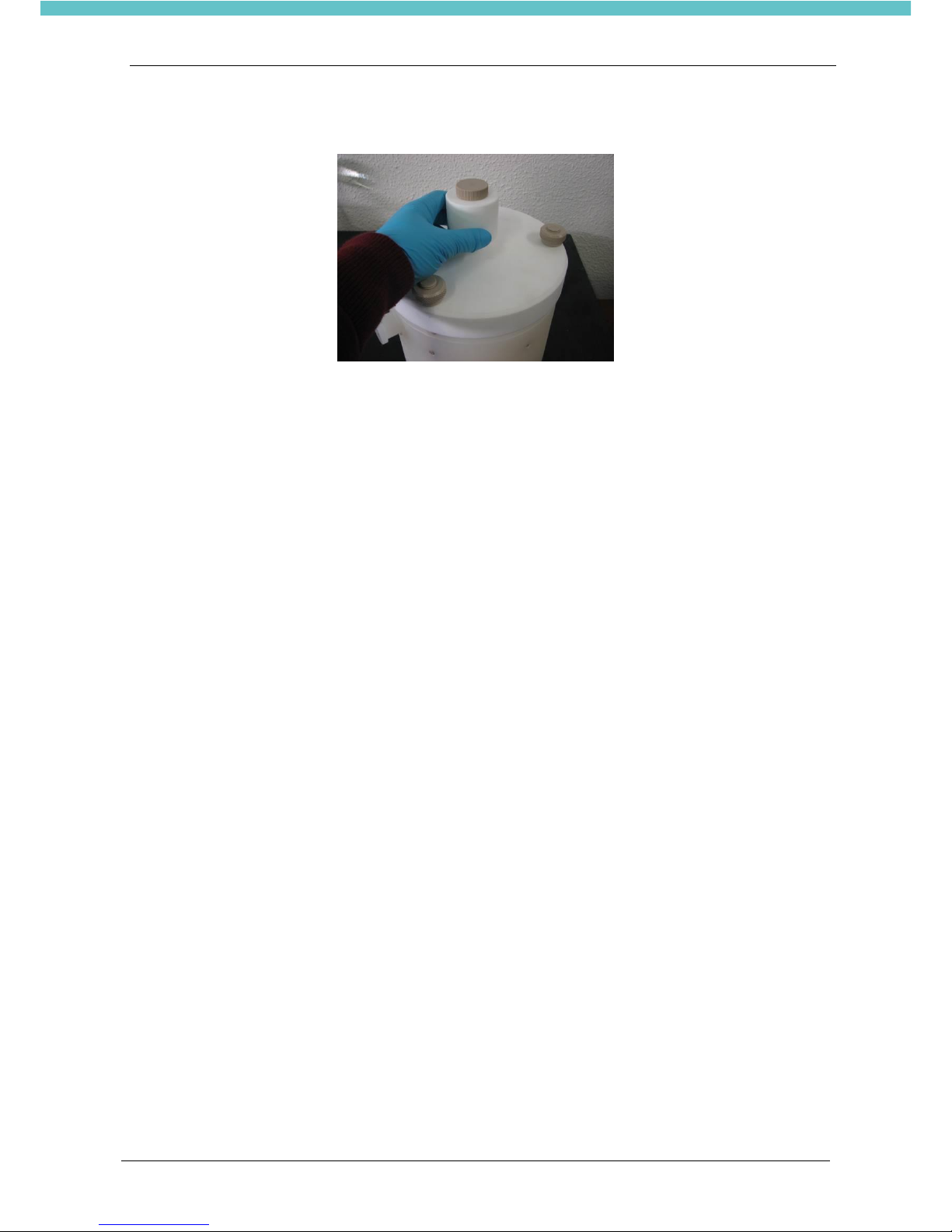

4. Reposition the cover on the glass vessel and the pressure locking nuts into position and secure by
hand. Proceed as follows: slightly screw ALL the nuts, make sure NOT to totally screw any of them; make sure that all nuts are totally screwed.
Page 66
KOS
66

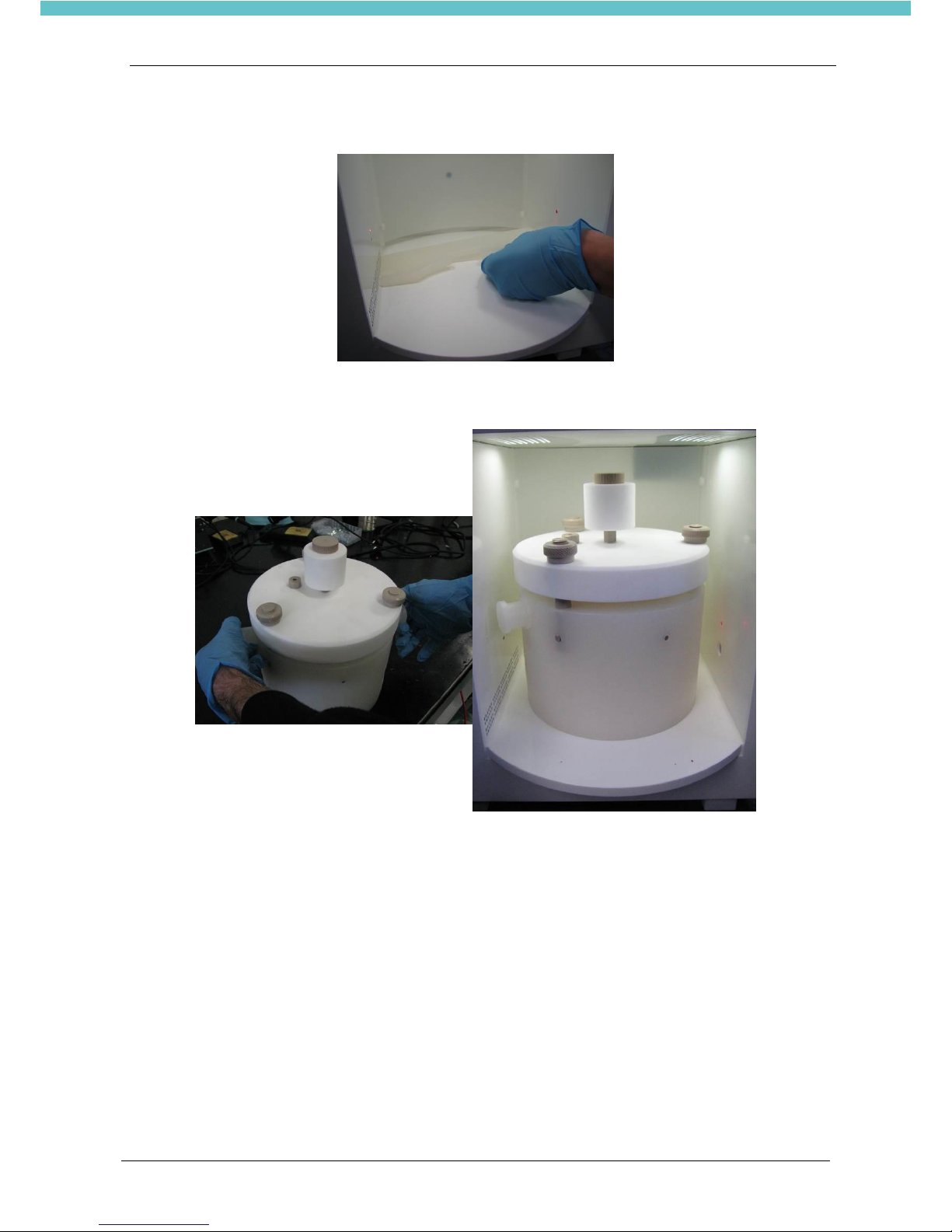

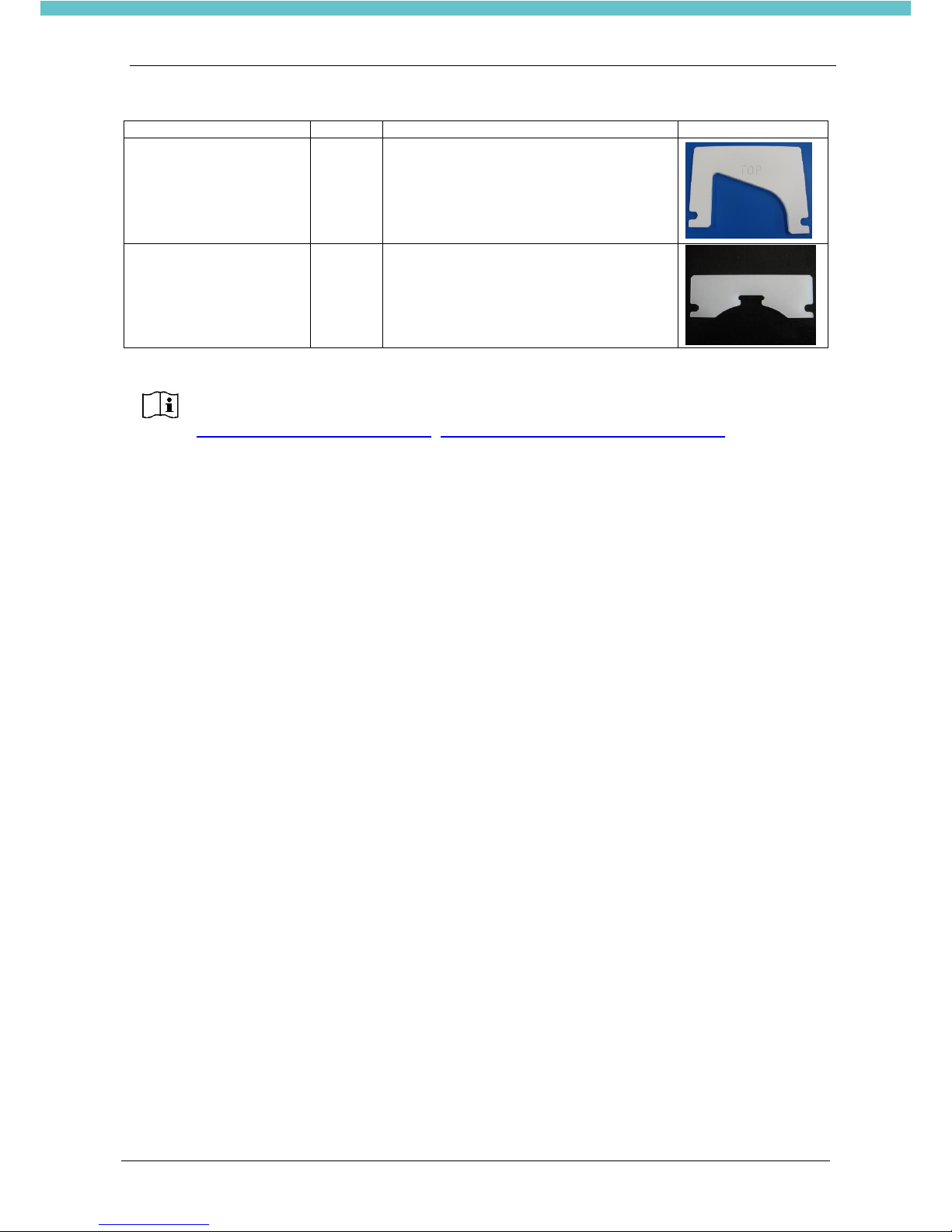

5. Insert positioning plate (Code 67384) in the cavity. It should rest firmly against the back wall of the
cavity.
6. Lift the GPR/K using the safety handles and insert it into the cavity, firmly against the positioning plate
to fit perfectly; the right position is shown in the picture below.
Page 67
KOS
67
7. Choose the protocol:
TEMPERATURE
HISTOMODULE
DURATION
100° C
GPR20S-GPR40S
5MIN
110° C
GPR20S-GPR40S
5MIN
120° C
GPR20S-GPR40S
5MIN
For example:
Run the program by pressing the GO icon and the system automatically shows the confirmation screen (see above right figure). Select OK to go to the working program screen.
On completion of Antigen program, the system warns the operator to SAVE a report of the Antigen program just completed.
8. Open the door, take the GPR/K out and slide in the cooling tube, turn on the water flow.
Let it cool down for 5 minutes to get pressure back to normal.
Take care of wearing gloves and safety eye glasses.
HIGH PRESSURE INSIDE.
Page 68
KOS
68
9. After cooling carefully lift the over pressure safety valve up. This assures the pressure is back to
normal. Then it is possible to open the locking nuts.
10. Utmost attention must be paid when opening the GPR/K. If glass container does not separate from
the cover (because of the vacuum generated during the cooling phase), do not force it but lift the over pressure safety valve up to let air in.
11. Take the slide racks out.
Page 69
KOS
69
4.2.5. Fixation

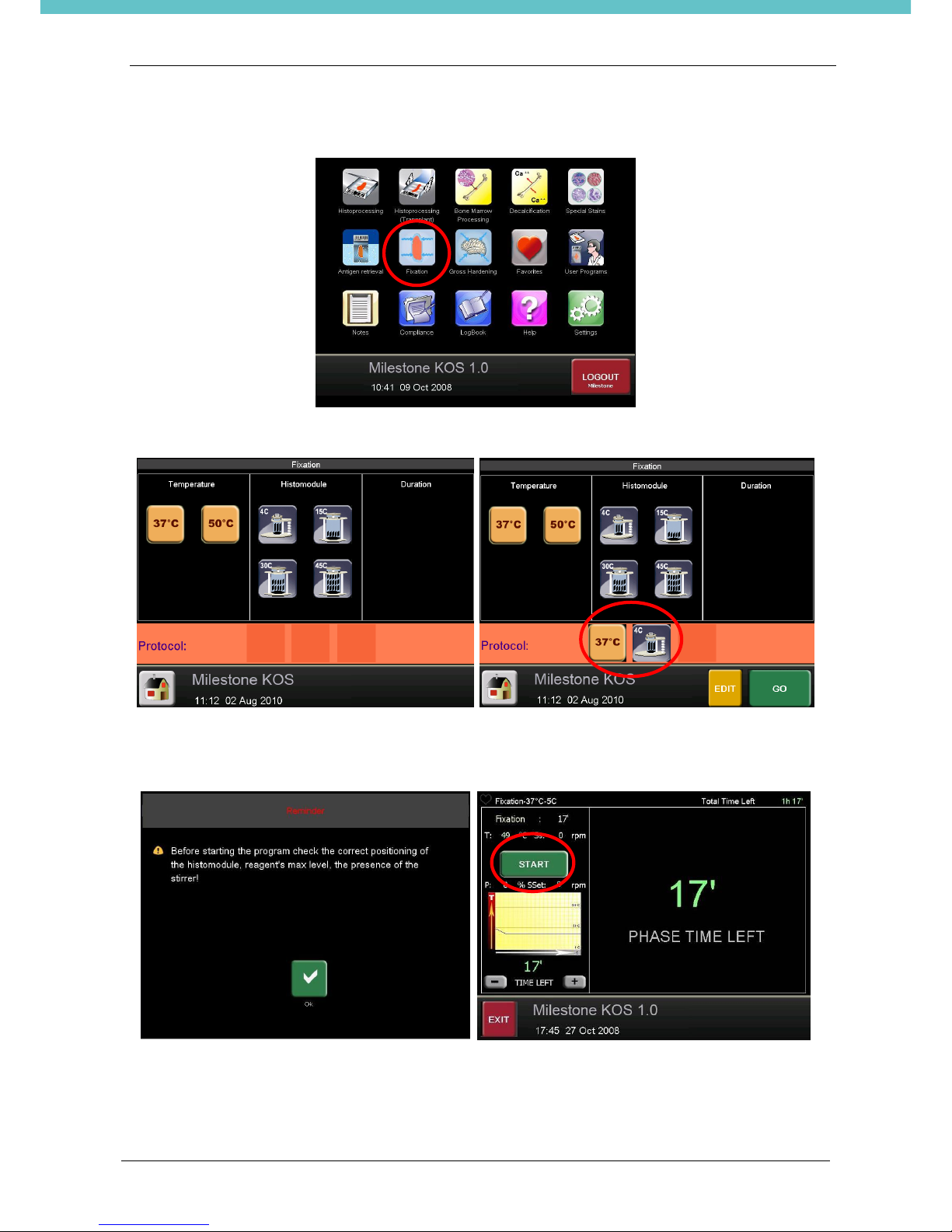

From the MAIN MENU screen, select FIXATION icon shown below.
The following screen appears: choose the fixation temperature and the histomodule to be used.
Press GO to reveal the program or select the EDIT icon to copy and customize the parameters needed. On selecting GO the reminder screen appears (figure below left), press OK and the working program screen is displayed (figure below right).
Pressing START, the system screen reminds a PRE-SOAKING penetration step, if required. On completion of the pre-soaking time, the program will AUTOMATICALLY START the microwave fixation phase. On completion of FIXATION, the system will display the screen requesting the operator to SAVE a report of the fixation program just completed.
Page 70
KOS
70
4.2.6. Gross hardening

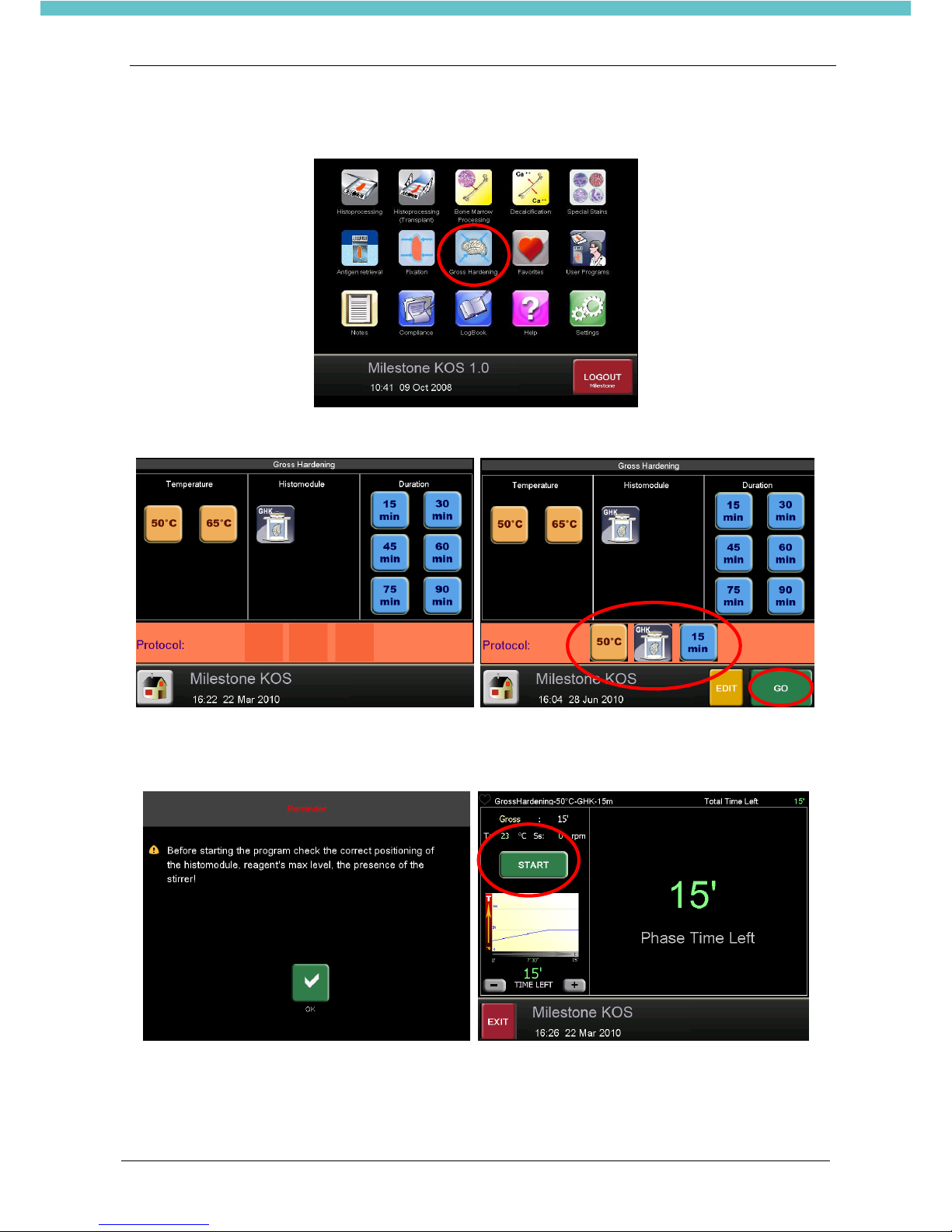

From the MAIN MENU screen, select GROSS HARDENING icon shown below.
The following screen appears: select the process temperature, the histomodule and the duration.
Press GO to reveal the program or select the EDIT icon to copy and customize the parameters needed. On selecting GO the reminder screen appears (figure below left), press OK and the working program screen is displayed (figure below right).
On completion of GROSS HARDENING, the system will display a screen requesting the operator to SAVE a report of the program just completed.
Page 71
KOS
71
4.3. Retrieving saved processing results

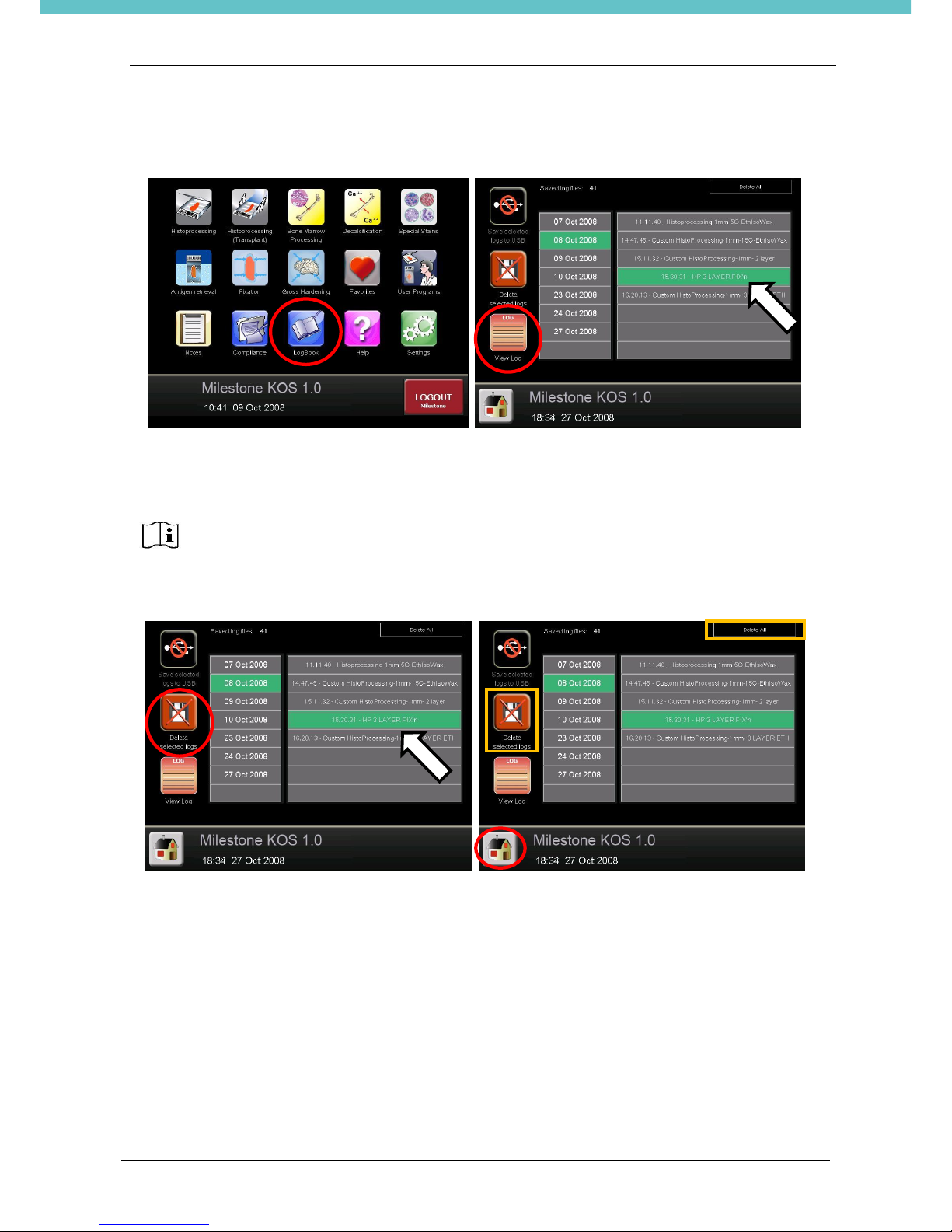

From the MAIN SCREEN, select LOG BOOK and the screen on the right appears: results, filed by DATE, and stored in the system are shown on the left.
Select a date and the relative list of results is displayed on the right. To view a specific file, select it and press View Log: the process executed is shown.
At the end, exit using the HOME icon, as shown below.
4.3.1. How to delete a saved processing
To DELETE a file or several files saved under a specific date, select and click on it/them, then press DELETE SELECTED LOGS icon. “DELETE ALL” function: can be used to clear directly of all files that have been downloaded to a laptop via USB Key. See the figure above, yellow rectangle.
More detailed viewing information, as well as printing features, can be accessed using the Export function displayed below. The exported files can then be viewed using our LOG VIEWER Software (supplied apart). For further information see chapter 5.2.
Page 72
KOS
72
4.4. How to modify a program

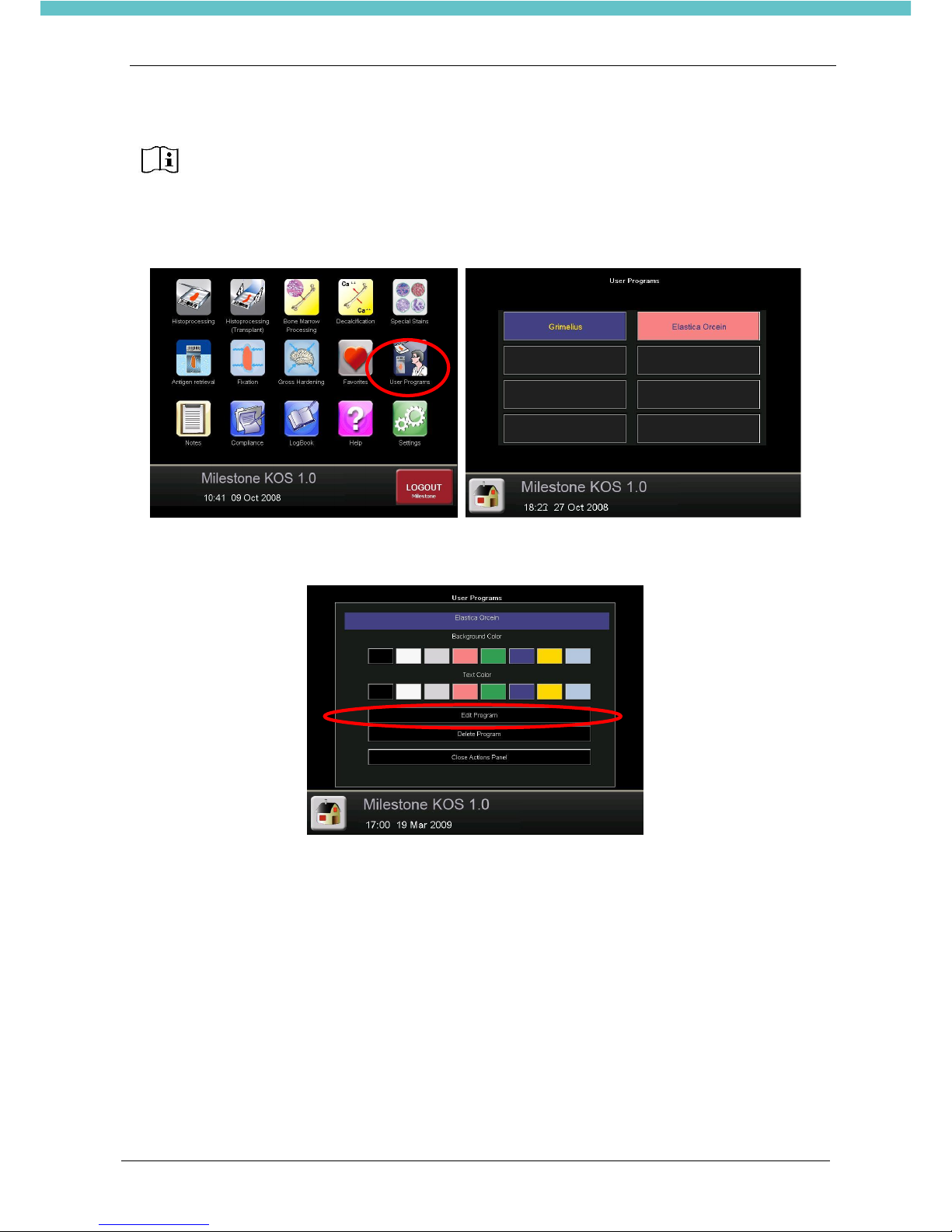

To create a program irrespective of the application, select an existing program from the main menu below. On selecting the application, for example Histoprocessing Transplant, choose the processing protocol to be used as template. This procedure is similar to tissue processing procedure, but YELLOW “EDIT” icon must be selected instead of GREEN “GO” icon. See below.

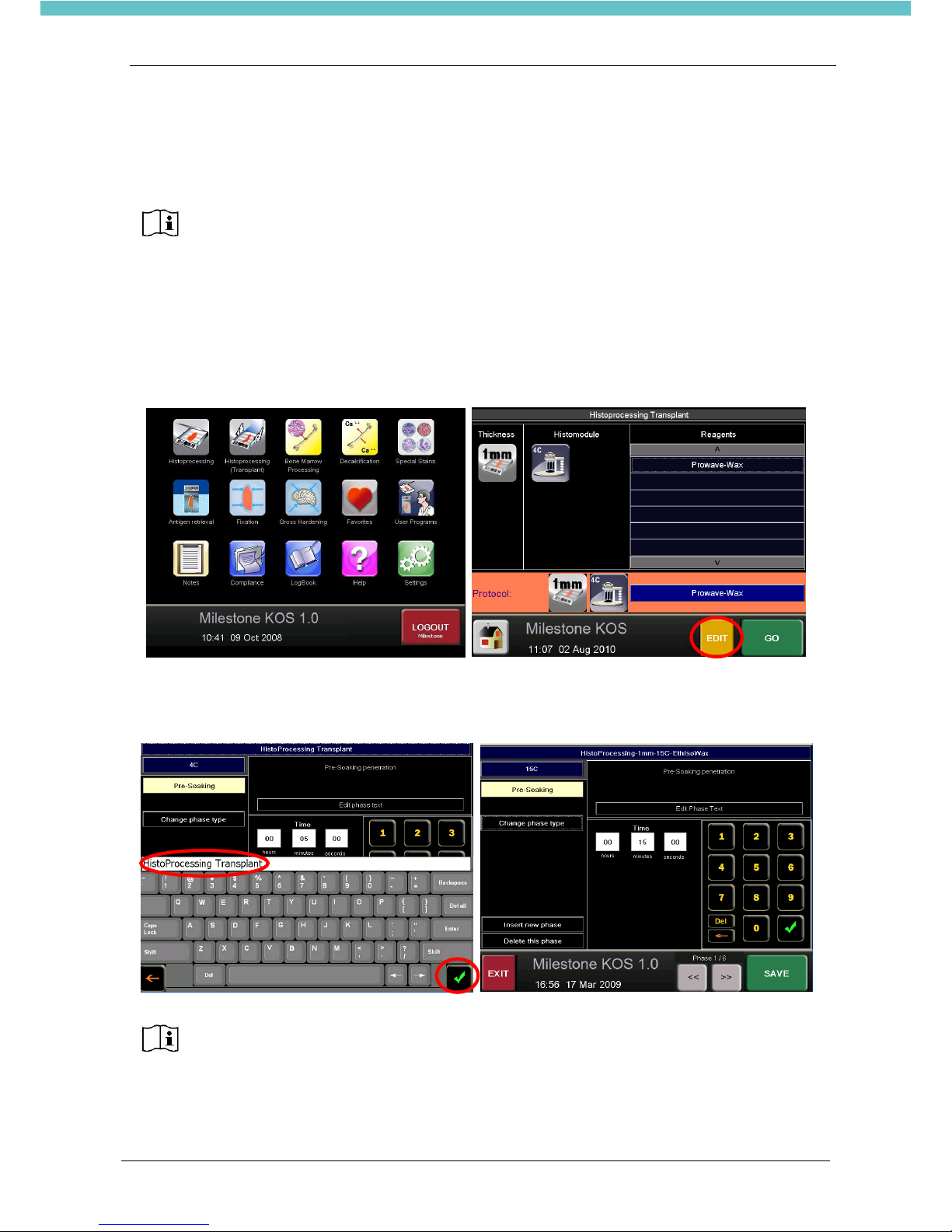

Click on EDIT icon, the following edit screen appears. To change the program name, enter the new one with the keyboard and press the green arrowed check box. Otherwise press directly the check box, if the name displayed is correct, as shown in the figure below.
Before modifying any program, please remember to never change the ramping times, the heating rate (max power) and the default stirrer speed. Should any of these parameters be modified, contact your local application support from your supplier.
Modified applications are not listed under the corresponding icons of origin, but in a separate list under User Programs icon. For this reason it is severely recommended that any modified program is named appropriately.
For each step you can enter a maximum of 48 hours 59 minutes and 59 seconds and each phase can be up to 13 steps.
Do not use keyboard symbols to create a new program name (for example *, /, #). Use numbers, letters and only the symbol “-“.
Page 73
KOS
73
Then the following edit screen appears. See the image below.

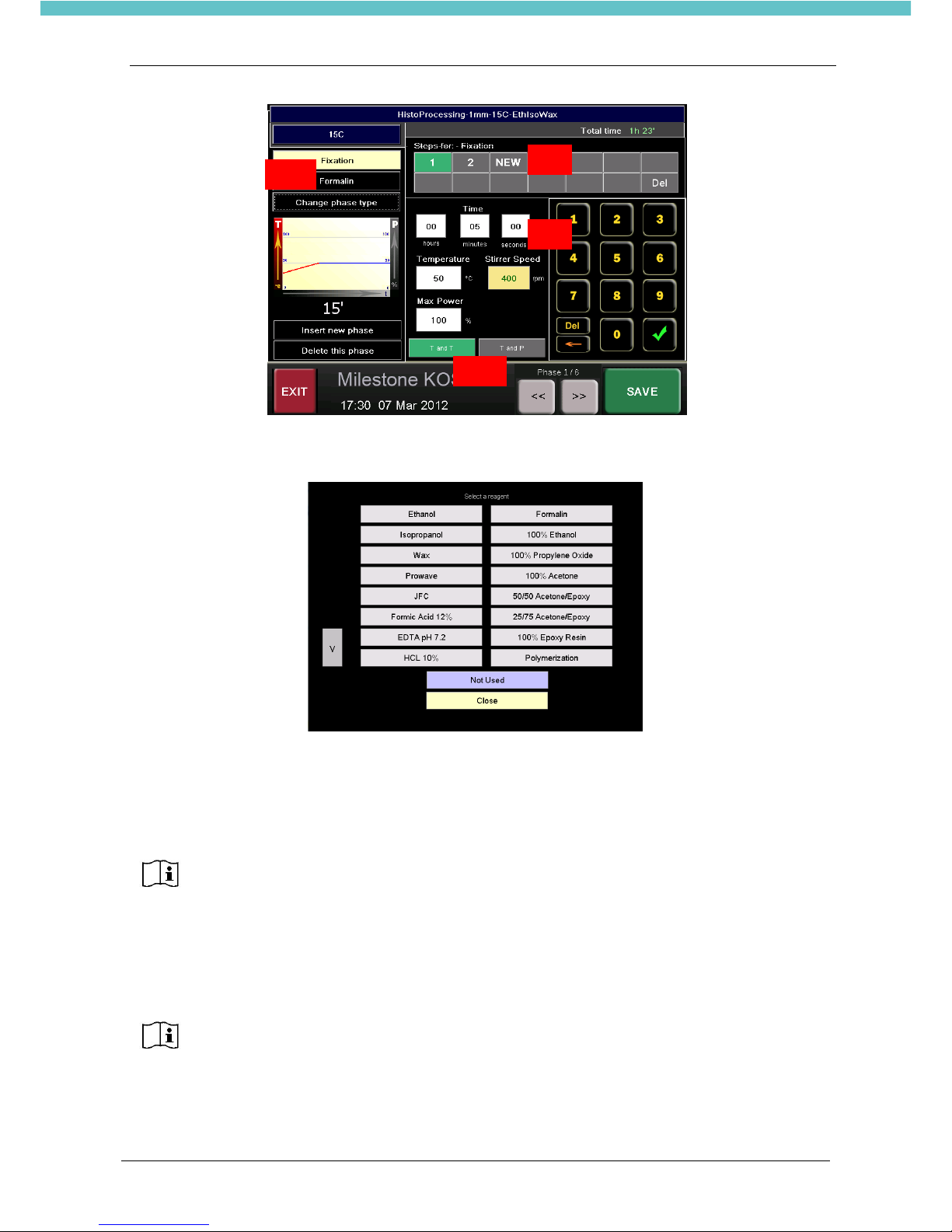

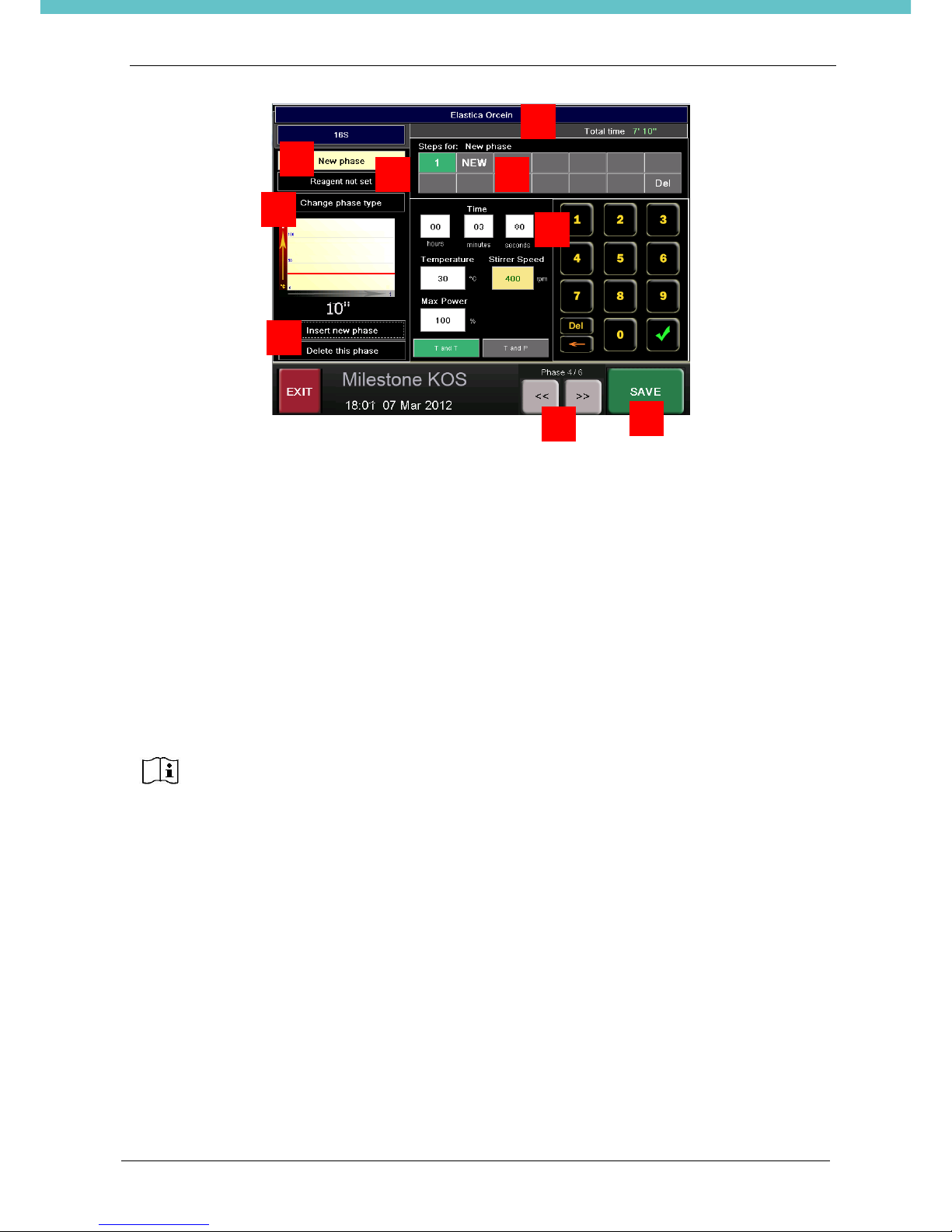

Edit Screen Function Areas
1. Histomodule in use (modification not allowed).
2. Current Name of Program in use: touch it to change the program name (a keyboard is displayed).
3. Phase function and edit box for text changes.
4. Numeric keypad for entering numerical values of point 6.
5. ENTER key for the numeric touch pad.
6. Entry boxes for phase time: they turn PINK on contact. Use the numeric keypad of point 4 to enter the
values required.
7. Type of phase to be modified: click and select either Microwave, Timer or Information, as shown below.
8. For changes that require the addition or deletion of phases of a program.
9. EXIT screen/program in use.
10. Scroll bar to move to phases that require changes.
11. SAVE icon to save final changes.
The following edit screen is visible when viewing phases with microwave steps.
1
2
3
4
5
6
7
8
9
10
11
Page 74
KOS
74
12. Name of current reagent in use. Touch the icon to display a list of reagents and choose one, as shown
in the figure below.
13. Setting the different steps of a phase.
14. It is possible, if required, to change time, temperature, etc parameters of all the steps of a phase by
touching the corresponding numeric entry boxes (they turn pink) and inserting the desired values by keypad.
15. This icon allows setting up a TIME at POWER procedure. It is possible to set: Stirrer Speed, Fixed
Power and Max Temperature, as shown in the figure above. Let default value set to 0°C, if control of Max Temperature parameter is not required. Entering of any value causes starting of an audio alarm if this value is exceeded during a test/run.
When all necessary changes have been completed, press SAVE.
Before changing any program, please remember never to change the ramping times, the heating rate (max power) and the default stirrer speed. Should any of these parameters be modified, contact your local application support from your supplier.
Leaving the Max Temperature parameter set to 0°C, it is equivalent to letting the unit run at the default value of 120°C.
12
13
14
15
Page 75
KOS
75
4.5. Delete modified programs

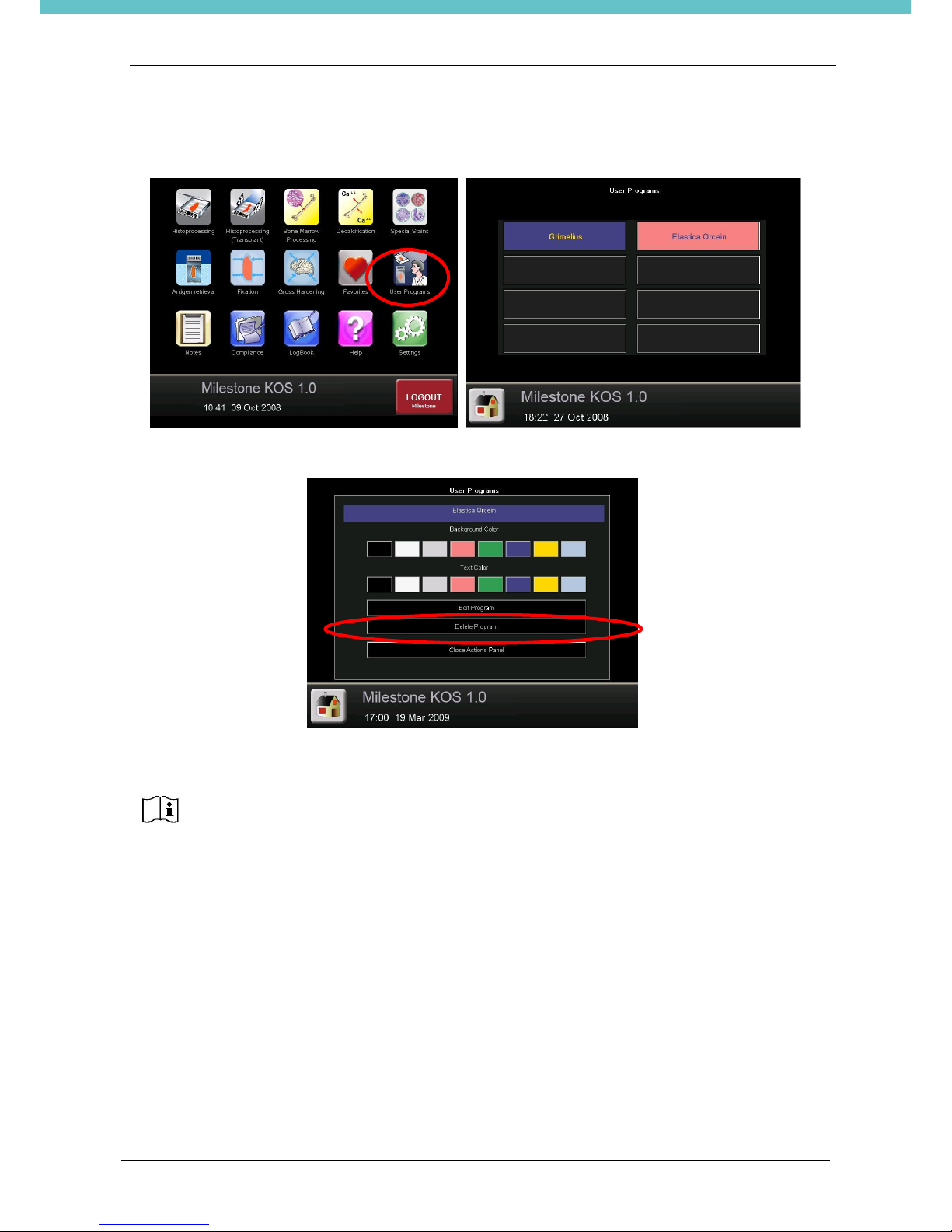

Modified programs can be deleted as follows: from the main screen select the USER PROGRAMS icon, the list of user programs stored is displayed. See the image below.
Select the program to be deleted by touching and holding the touch until a new screen appears.
In this screen cancel a program by pressing “Delete Program”, resulting in removal of the stored user program.
In this screen it is also possible to edit programs that have been already modified or created. Any change made to an existing program will not be overwritten, but will create an additional program, as indicated in the next chapter.
Page 76
KOS
76
4.6. Edit modified programs
Here are the instructions how to MODIFY an existing application already customized and listed under the USER PROGRAMS icon. First select the USER PROGRAMS icon. This will open the list of customized application programs.
Now select and keep holding the touch on the program to be delete (in this example Elastica Orcein icon), until the EDIT screen appears.
If required, it is also possible to change the color of the TEXT and the BACKGROUND. Now select the EDIT PROGRAM text box, as indicated above, to go into the EDIT SCREEN for changes to the application. The edit window in the next page shows extensive editing capabilities.
Before modifying any program, please remember to never change the ramping times, the heating rate (max power) and the default stirrer speed. Should any of these parameters be modified, contact your local application support from your supplier.
Page 77
KOS
77
Edit Screen Function Areas:
1. Selected when it is required to add a new phase.
2. Name of current reagent in use. Touch the icon to display a list of reagents and choose one.
3. On selection allows operator to change the name of the application through a pop up keyboard display.
4. Setting the different steps of a phase.
5. It is possible to change time, temperature, etc parameters of all steps of a phase, by touching the
corresponding numeric entry boxes: they turn pink, insert the desired values by keypad.
6. Type of the phase to be modified: click and select either Microwave, Timer or Information.
7. For DELETING or INSERTING a phase.
8. SCROLL arrows to select the desired phase.
9. SAVE changes made.
Milestone s.r.l recommends that these instructions are kept near the instrument to facilitate operations and better understanding of the software functions, especially when operating the unit for the first time.
1
2 3 4 5 6
7
8
9
Page 78
KOS
78
4.7. Create and modify favorite display
To create a FAVORITE protocol, select the program of your interest (in this case, USER PROGRAM). Now SELECT, for example, the first program (yellow icon) and a message requires to confirm that the positioning plate, the reagent and the stirrer are OK.
Select OK to go to the application startup, showing the keyboard to enter the number of cassettes to be processed. Do NOT enter cassette numbers now, but select the HEART black icon positioned on the top left of the screen. The following screen appears, asking for confirmation that the application has to be added to the FAVORITES. See below.
Selecting YES, the system goes back to the program ready to continue it, if required. If NOT, select the EXIT icon and go to the Favorites screen. That adds the selected USER PROGRAM to the FAVORITES list.
Page 79
KOS
79
4.7.1. Delete from favorite list
This procedure is similar to that to create a favorite program. Enter in favorites screen (see example below), and select the program icon to delete. A message requires to confirm that the positioning plate, the reagent and the stirrer are OK, as indicated below.
Select OK to go to the application startup, showing the keyboard to enter the number of cassettes to be processed. Do NOT enter cassette numbers now, but select the HEART icon positioned on the top left of the screen. The following screen appears, asking for confirmation that the application is to be deleted from the FAVORITES. See below.
After deletion from the FAVORITES screen, the system goes back to the program ready to continue it, if required. If NOT, select the EXIT icon and go to the Favorites screen.
Page 80
KOS
80

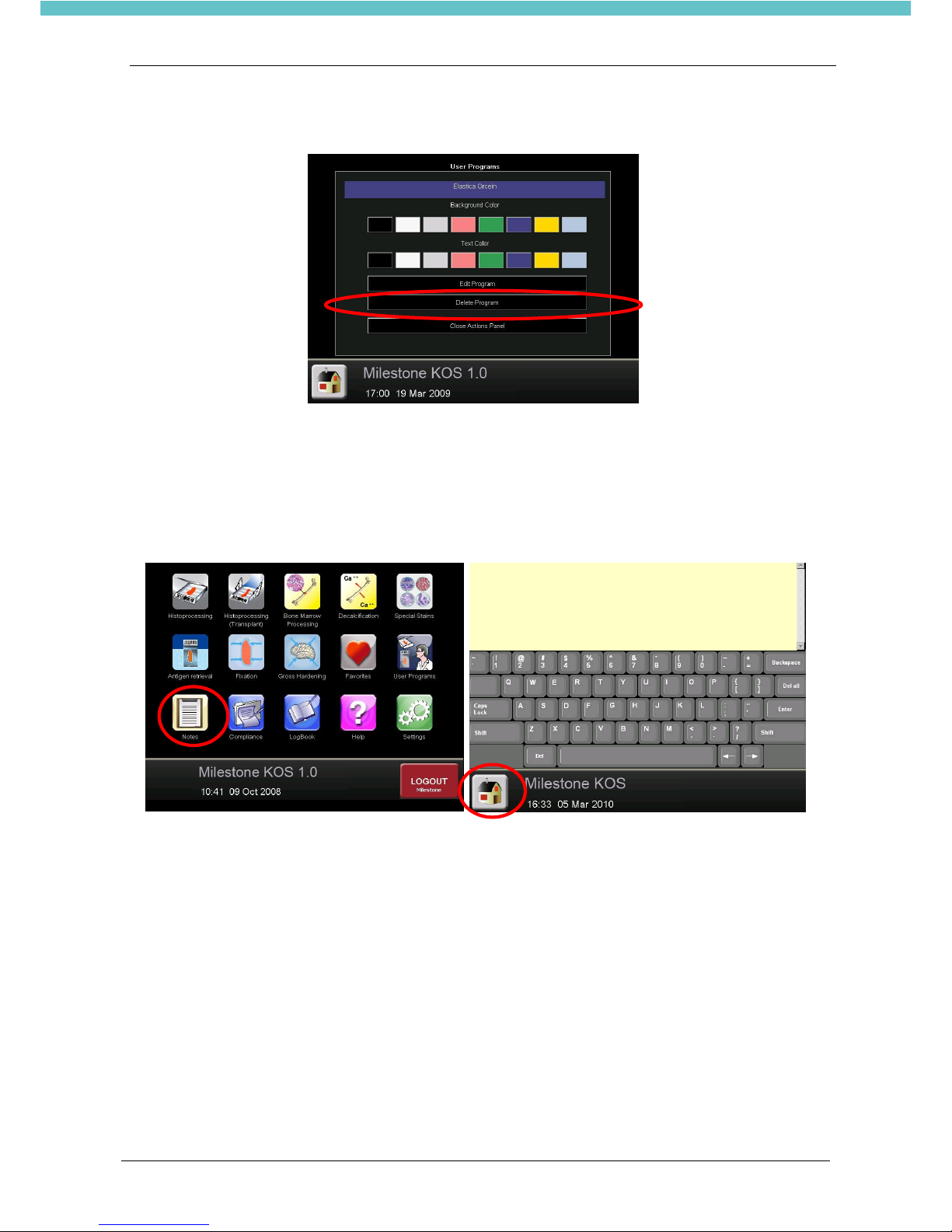

Another way to delete a program from the FAVORITES screen is to enter into USER PROGRAM and follow the instructions indicated in chapter 4.5 and delete as indicated.
If you DELETE any user PROGRAM as indicated above, this will delete that program from the FAVORITES.
4.8. Notes
This screen allows writing any notes required. From the main screen below select NOTES, as indicated below. The screen on the right appears and notes can be entered by using the keyboard.
Click on Home icon to go back to MAIN SCREEN on completion of notes, as shown above.
Page 81
KOS
81

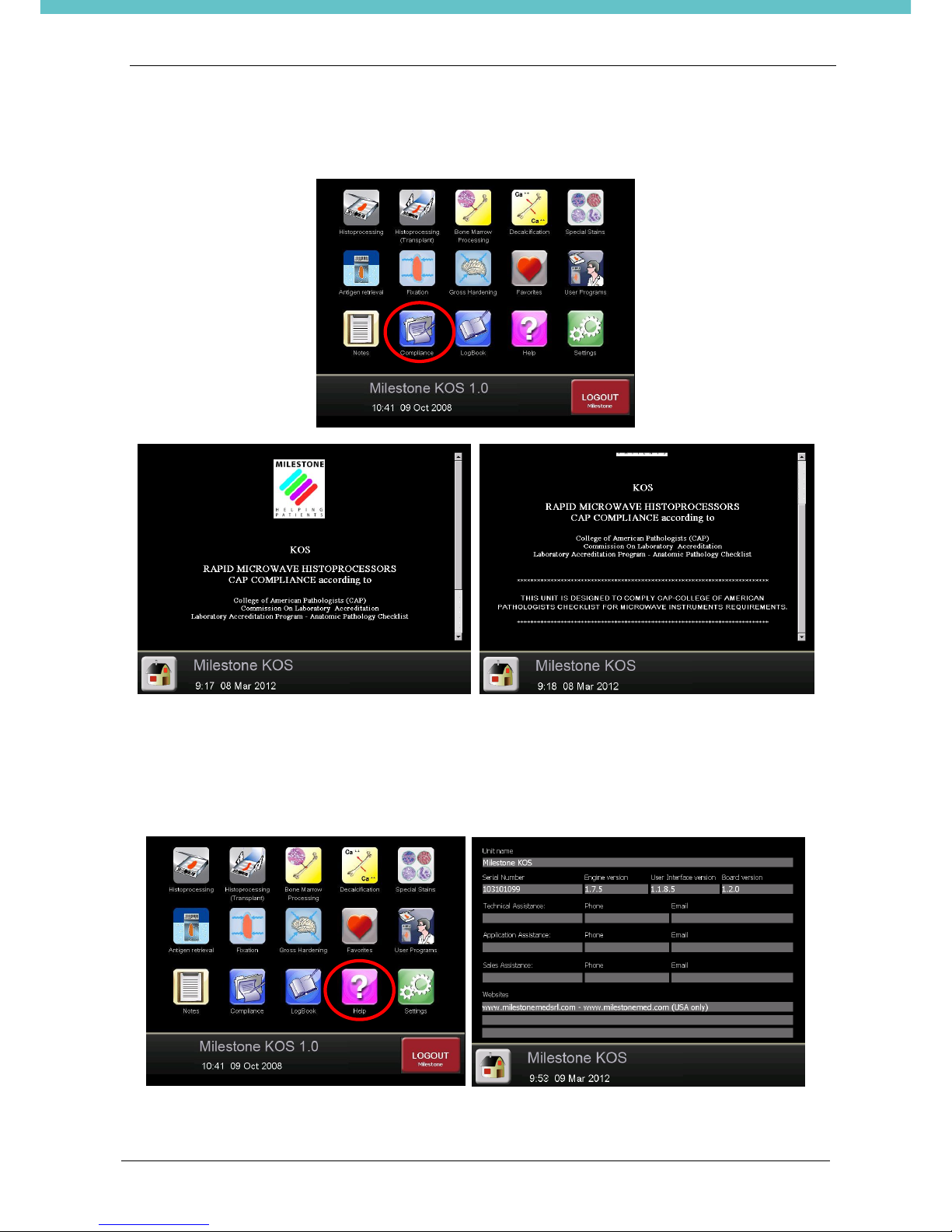

4.9. Compliance
This function allows viewing that KOS complies with the CAP regulations. From the main screen below select COMPLIANCE and the following messages appear.
4.10. Help
HELP function provides a series of useful information. From the main screen below select HELP. The screen on the right appears showing: Unit name, Serial Number, Software version (Engine, User Interface and Board) and other details (Technical, Application and Sales Assistance and website), where available.
Page 82
KOS
82
4.11. KOS system settings
Select the SETTINGS icon, as shown below and: If ADMINISTRATOR is logged, the following screen appears.
The Administrator can access to:
Reagents management  User management  Language selection  Owner settings  Remote assistance  Set Clock
If a USER is logged and is enabled to manage reagents, the following screen appears. A User is allowed to open only:
Reagent management, if authorized (see left figure).
If a USER is logged but is not enabled to manage reagents, the SETTINGS icon disappears in Main screen, see right figure.
Page 83
KOS
83

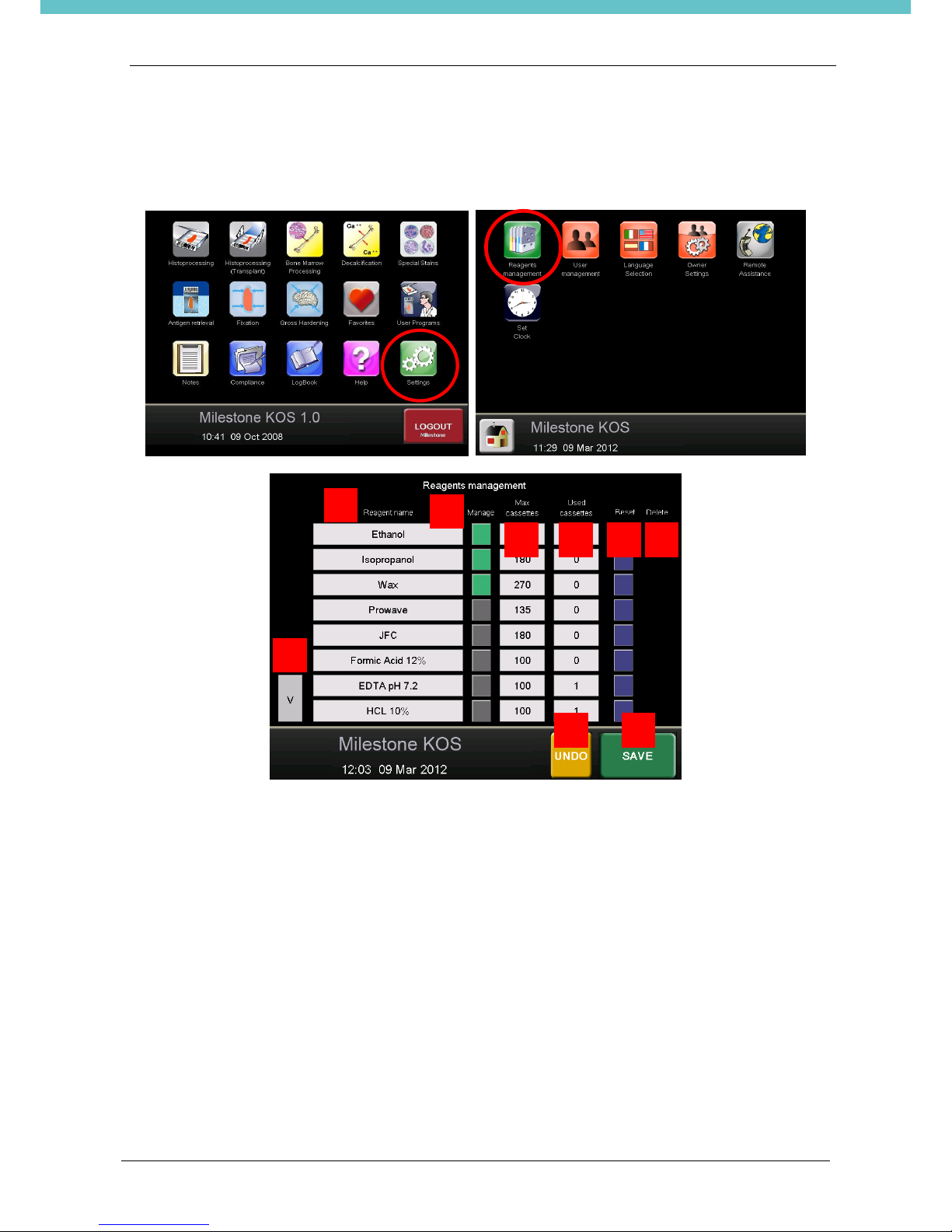

4.11.1. Reagents management
REAGENTS MANAGEMENT is accessible by the ADMINISTARTOR. Other users can access only if authorized by the administrator (set up in USER MANAGEMENT, as described in the chapter 4.11.2). An authorized operator can select the SETTINGS icon indicated below figure left. Select the REAGENTS MANAGEMENT, as indicated below figure right.
1. Reagent: list of reagents available, touch the reagent icon to change the text display, if required.
2. Manage: touch this square icon to activate the reagent management for that reagent (indicated by the
color change to GREEN). Press this icon again to deactivate this management function (indicated by the color change to grey).
3. Max Cassettes: this feature is activated by touch and opens the numeric keypad to enter the max
number of cassettes/slides to be processed.
4. Used Cassettes: when the number of cassettes/slides processed reaches the maximum value set,
the system alerts you to change the reagent required.
5. Reset: to be carried out by the operator when the max number of cassettes/slides processed has been
reached and the reagent has been changed. The operator is required to reset the value to zero using the numeric keypad.
6. Delete: it is displayed as active, as shown below, when NEW reagents are added to the listing of
reagents. It is not active for preset reagents, as they are protected.
7. V and Λ: is the upward and downward scroll function of the reagent listing.
8. UNDO: to restore previous values in case a correction/editing is no more required.
9. SAVE: to save all changes made in the REAGENT MANAGEMENT screen.
1 2 3 4 5
6
7
8
9
Page 84
KOS
84
4.11.2. User management
The USER MANAGEMENT screen can be accessed by the ADMINISTRATOR only in order to CREATE or MODIFY the list of AUTHORIZED USERS enabled, through a series of numeric password, to access to KOS functions. In this section, Administrator can also modify existing password. From the Main Menu select SETTINGS icon and enter in USER MANAGEMENT screen.
Select CREATE NEW USER icon: a New User is added to the User Management screen. Select NEW USER icon: a keyboard is displayed on the screen.
Administrator has to enter NAME and PASSWORD for the New User (see JIM user in the example below).
Selecting the USERNAME box, enter the New User NAME, for example “JIM” using the numeric keyboard and
press the green arrowed check box to confirm.
Page 85
KOS
85
Selecting the PASSWORD box, enter the ACCESS CODE value, for example “123” using the numeric keypad and press the green arrowed check box to confirm.
By selecting the three grey icons in the figure below, the ADMINISTRATOR can also give the user the access to reagents management, to programs management and to set the user’s Favorites page as First Page (icons turn GREEN when activated).
Select CLOSE EDIT PANEL in the figure above to exit the USER MANAGEMENT screen. In the following screen select SAVE to make all the changes active. On selecting SAVE the system will exit to the SETTINGS screen. This completes the process of creating a users list.
Administrator is authorized to delete an existing user: go to USER MANAGEMENT screen, select the USER icon to cancel and touch on DELETE USER icon, as indicated in the next figures. On completion the system goes to USER MANAGEMENT screen. Select SAVE , as shown below.
Page 86
KOS
86
4.11.3. Owner Settings
From the main screen below select SETTINGS, then OWNER SETTINGS.
In this page it is possible to set:
1. Institute name: that owns the unit.
2. Department name: that owns the unit.
Touching any of the two dialogue boxes, a keyboard emulator appears, enter the text required.
3. Pre-soaking note: when activated (GREEN color), a reminder screen appears before any fixation phase,
reminding to perform pre-soaking in fixative (for example, see the chapter 3.1).
Touch this button to inactivate it (GRAY color); in this case the pre-soaking reminder screen will never appear.
4. Rinsing Note: when activated (GREEN color), a reminder screen appears before any ethanol and
decalcification phase, reminding to perform a rinse (for example, see the chapter 4.2.2).
Touch this button to inactivate it (GRAY color); in this case the rinsing reminder screen will never appear.
5. Zip logs: when activated (GREEN color), all programs are stored in zip format. Touch the button to
inactivate it (GRAY color). In this case all programs are stored in xml format.
See the chapter 5.1 Export processing from the terminal to the USB.
6. For how to set the Network settings see the chapter 2.7. When you make changes, the SAVE icon must be pressed before exiting the OWNER SETTINGS screen.
A message appears, press Ok and restart the Unit, as indicated in the figure below.
Page 87
KOS
87
4.11.4. Remote Assistance
The REMOTE ASSISTANCE screen is accessed only by ADMINISTRATOR. Select SETTINGS icon from the MAIN MENU, then REMOTE ASSISTANCE button (refer to chapter 2.7.1).
Once activated it is not possible to press the REMOTE ASSISTANCE icon again (to avoid multiple activations) until you reboot the machine. At this point remote service works with your instrument. Do not disconnect nor restart the instrument during the remote connection.
ALWAYS COMMUNICATE THE SERIAL NUMBER (S.N.) OF THE UNIT. MILESTONE CANNOT CONNECT TO UNIT WITHOUT THE S.N. THAT IS AVAILABLE IN “HELP” ICON IN MAIN SCREEN.
Page 88
KOS
88
5. REPORTING
KOS provides the documentation necessary for the report activity of the Laboratory. In fact it is possible to export a document including all necessary information like the real time and temperature performed by the unit.

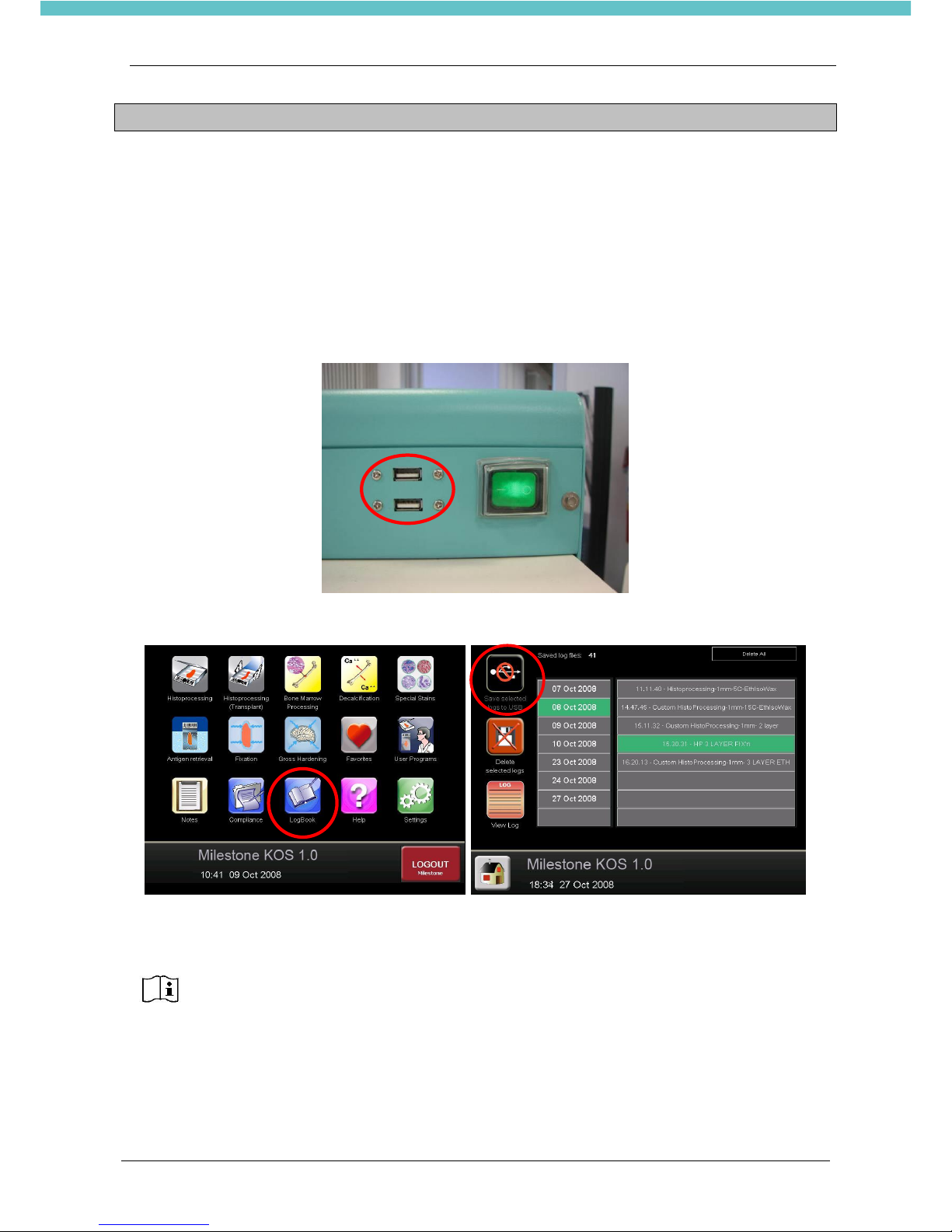

5.1. Export processing from the terminal to the USB
Insert the USB memory stick in its slot (back side of the Unit). It is supplied by Milestone with the unit, as it allows the downloading of stored data, as well as containing the viewing Software for opening the Stored graphics data from the processing runs. Allow around 30 seconds for the USB to be recognized. If using a USB Key other than that supplied by Milestone, ensure it has a capacity less than 1 Gbyte with ample memory space.
From the MAIN SCREEN select LOG BOOK, selecting LOG BOOK the screen on the right appears.
This allows to export all the saved processed graphics: select the logs of interest and press the “Export Saved
processing” button.
Alternatively choose Delete selected or Delete ALL if you want to definitely eliminate one file only or every file saved, respectively.
Page 89
KOS
89
5.2. Install the LogViewer
5.2.1. Open process
On your laptop or desktop computer open the LogViewer folder and double click on the “Setup.exe”
icon to install the program. Then, double click on the “ReportViewerSP1Eng.exe” icon in the LogViewer
folder to install the printing data program on your desktop. The LogViewer software is now ready to work.
Plug the USB memory stick where the processes are stored and copy them on the key.  Open the LogViewer software (going to “Start Menu\All programs\Milestone srl\Milestone LogViewer”
or clicking on the “LogViewer” icon created on your desktop).

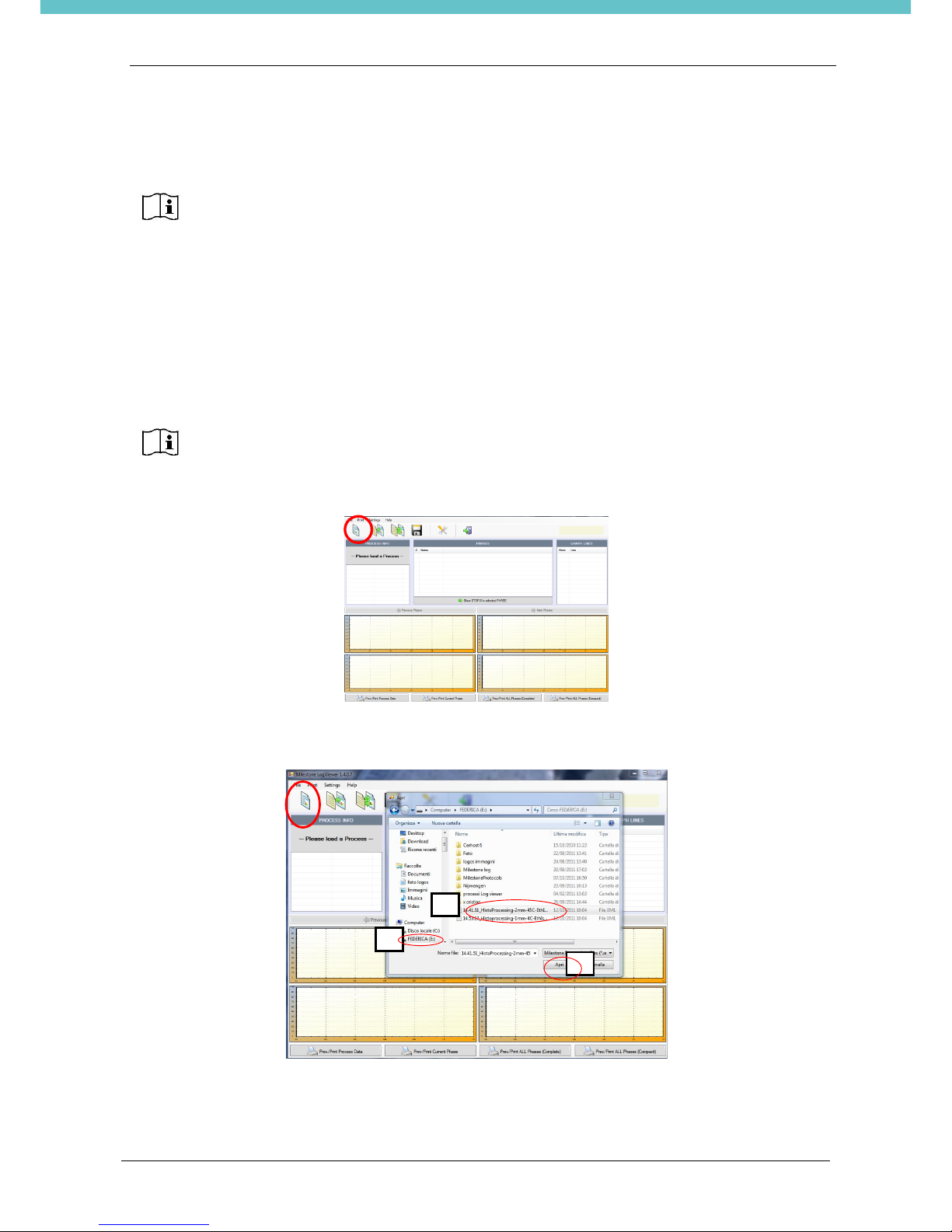

Plug the USB key in your PC and select ”Open” icon to import a single process.
Selecting ”Open” icon appears the following screen. Select the USB key with the process stored 1,
select the single process 2, then press “Open” 3.
If you have Microsoft Windows Vista or better installed on your PC, the ReportViewer software is not needed.
HELP FILE: select “Help” and “How to” from the menu to view detailed instructions about
the software.
Page 90
KOS
90

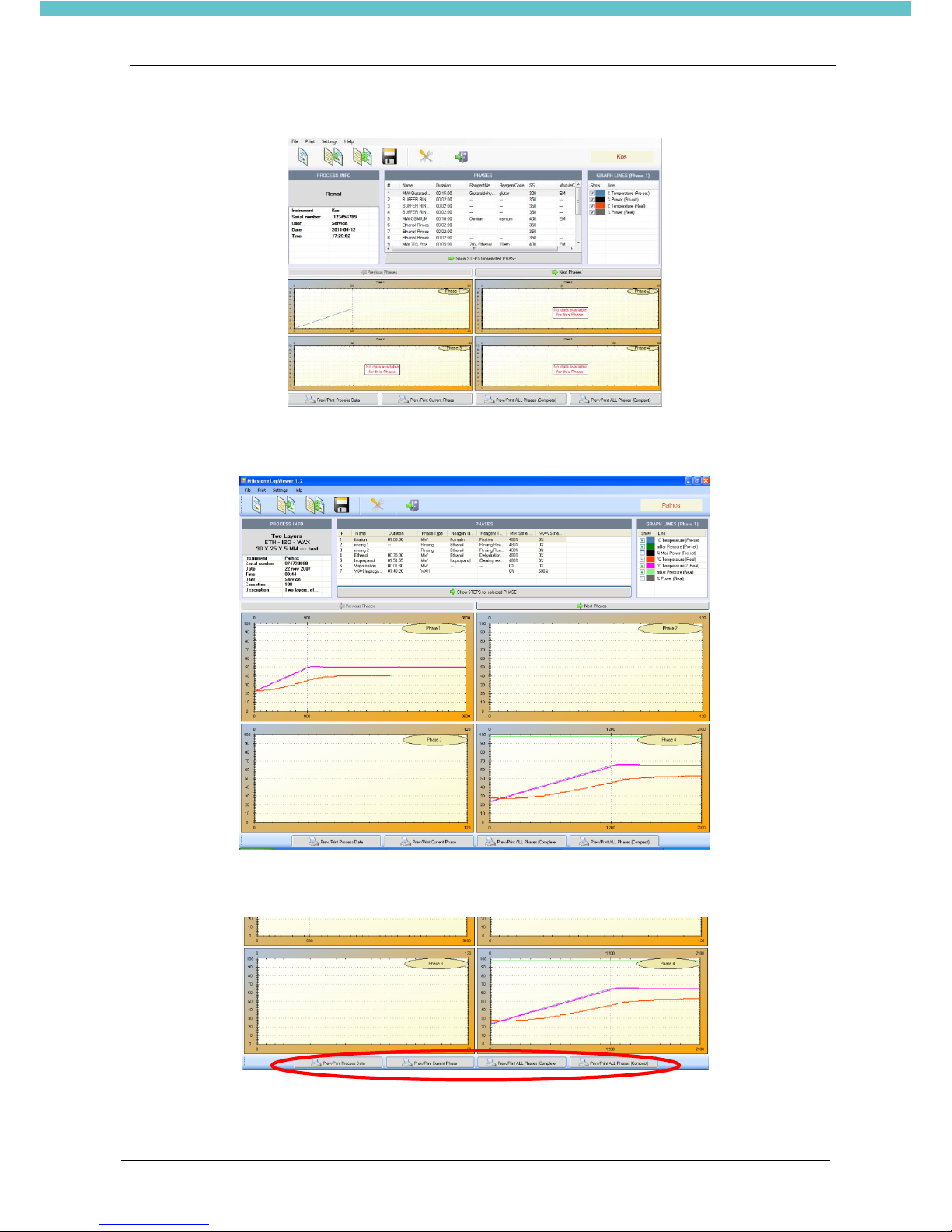

The processing curves done will be shown as in the picture below.
The fields describe the data of interest such as: phases done, starting time, reagent used and number
of cassettes. Click directly on one curve to enlarge it, or on the arrows to view next phases.
Once the file has been opened, preview/printing of the curves is possible by selecting the appropriate
buttons as below:
Printing of Process Data, Current Phase, All Phases in full or compact view is possible by pressing the respective button.
Page 91
KOS
91
5.2.2. Print process
Before printing, choose “Printing options” under “Settings” menu and customize the settings, if
necessary.
Modification of the heading of the pages, edit of the label is also possible under “Printing options”
menu.
Select one run and press “Print process data” or “Print current phase” to print out the curve (red Circle).
Press “Print ALL phase “ icon, choose the “complete” (one phase – one page) or the “compact” (one
page) format to print out the whole processing.
Page 92
KOS
92
6. MAINTENANCE
6.1. Introduction
Maintenance of KOS is carried out at two levels: The FIRST is at laboratory level: a simple routine maintenance can prevent the likelihood of more serious problems. Minimal routine maintenance is required by laboratory personnel that use KOS. The following procedure is recommended to ensure optimal performance of KOS. The SECOND level of maintenance is technically more detailed and is beyond the scope of normal laboratory personnel. The unit requires once a year a technical preventive maintenance to maintain the high performance and prevent any malfunction.
Contact annually your local distributor or Milestone offices directly:
customersupport@milestonemedsrl.com for how to perform Preventive Maintenance and
regular inspections in order to maintain your KOS within safe operative standards.
6.2. After each run
1. Ensure that KOS is generally kept clean after each use. Do not use abrasives or sharp instruments
that may damage surfaces.
2. Clean as soon as possible the rack (from WAX) after every processing cycle to remove completely
the WAX.
3. Ensure that the WAX level reaches the MAX level.
The paraffin level volume must be ready for use with up to 3 layers of cassettes. The level of wax should reach the limit indicated on the glass (rack included, for any number of cassettes processed) and it must not exceed that level. To achieve the proper level of paraffin, you must enter approximately 0.7kg (1.54lb) of paraffin. If you use the rack 4K, the correct level of paraffin is approximately 1cm (0.39 inch) above the cassettes. On completion of run and removal of rack, top up wax level due to tissue absorption and carry over loss from rack.
4. Check the reagent quality and change them when expired or dirty.
When required, remove the built-in stirrer by rotating the screw clockwise.
Page 93
KOS
93
6.2.1. Rack cleaning procedure
This procedure takes only few minutes and allows an optimal removal of WAX traces away from KOS RACK after processing. There are two different operating ways:
FIRST WAY (room temperature)
1. Just after the end of WAX phase, when the rack is still warm, remove cassettes and place the rack
into a glass container of about 2 liters.
2. Now agitate the rack by moving it up and down until it is completely clean.
3. Take the rack out from the container and dry it using normal laboratory wipes.
4. Alternatively, let the solution evaporate from the rack placing it under the fume hood.
5. Check that the rack is clean and, if required, repeat the sequence as described above.
6. Afterwards rinse the rack into alcoholic solution. SECOND WAY: HistosMATE It is possible to clean the rack inside the HistosMATE instrument (Milestone s.r.l.).
XYLENE to clean the rack is NOT allowed when using the HistosMATE.
Fill it up with approx. 2 liters of cleaning solution (ex. Iso-Paraffin such as Regenx®, or
MicroClean® in Europe or Clear Rite3® in USA or xylene or equivalent WAX cleaning as a
sort of aromatic alternative) enough to cover all the three layers.
Milestone has developed an AUTOMATIC rack cleaner: the HistosMATE. For further info open our website page www.milestonemedsrl.com or contact our representative in your country.
Page 94
KOS
94

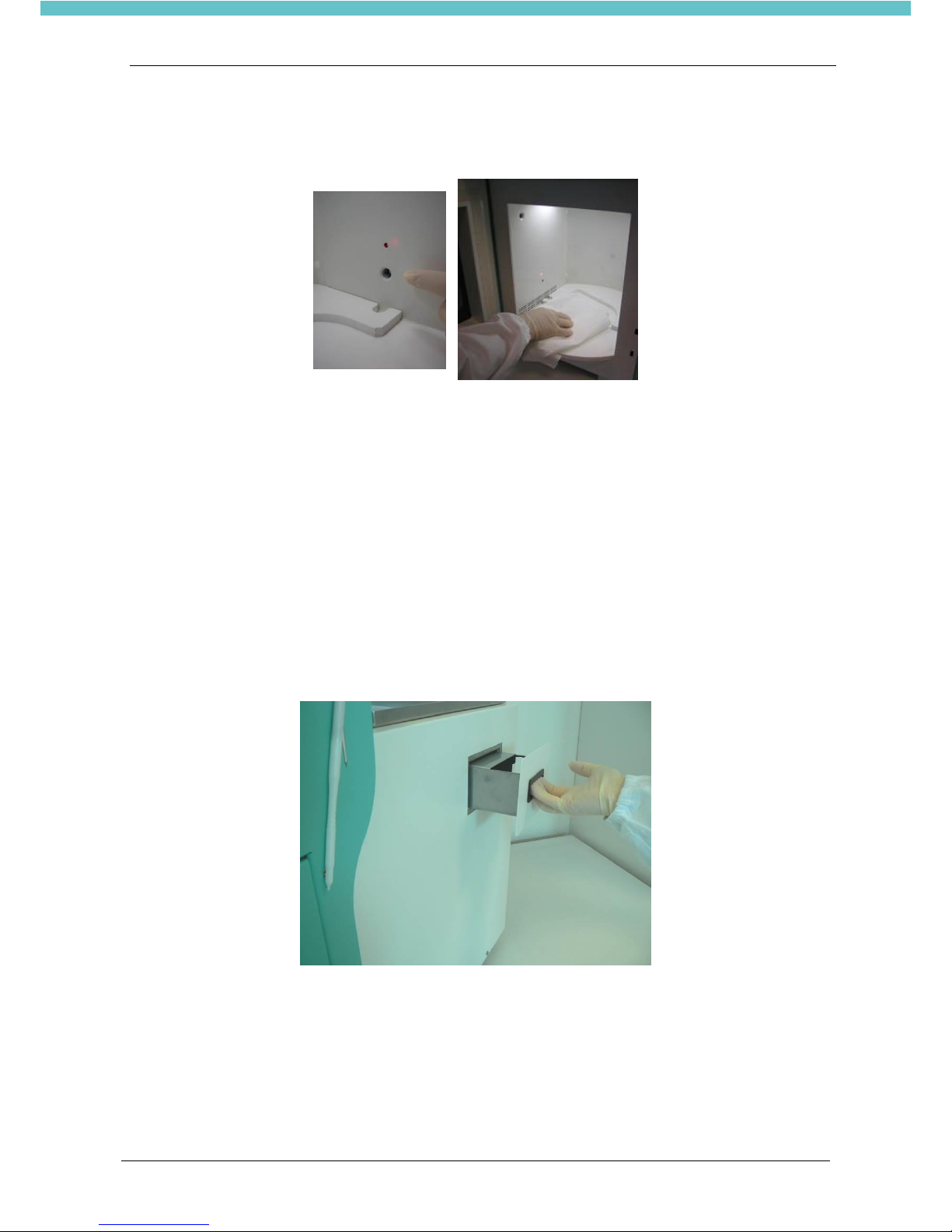

6.3. Weekly
Check that the infra-red temperature sensor surface is not dirty. Wipe out the inner surface of the Microwave unit with Isopropanol to remove any residues of dirt.
6.4. Monthly
Replace wax if severely contaminated by reagent or physically dirty
6.5. Every six month
KOS is equipped with two charcoal filters (Code 67223) for your safety and for good laboratory environment. In case your KOS is connected to an external fume extractor, these two filters should be changed EVERY
YEAR. Otherwise, if there is no external fumes extractor, we recommend to change them EVERY 6 MONTHS.
How to proceed:
The charcoal filters are positioned on the lateral side of KOS (see the figure below).  Remove the panel by hand and then the two filters.
Page 95
KOS
95
6.6. Yearly
Call your SERVICE support for preventive maintenance contract.

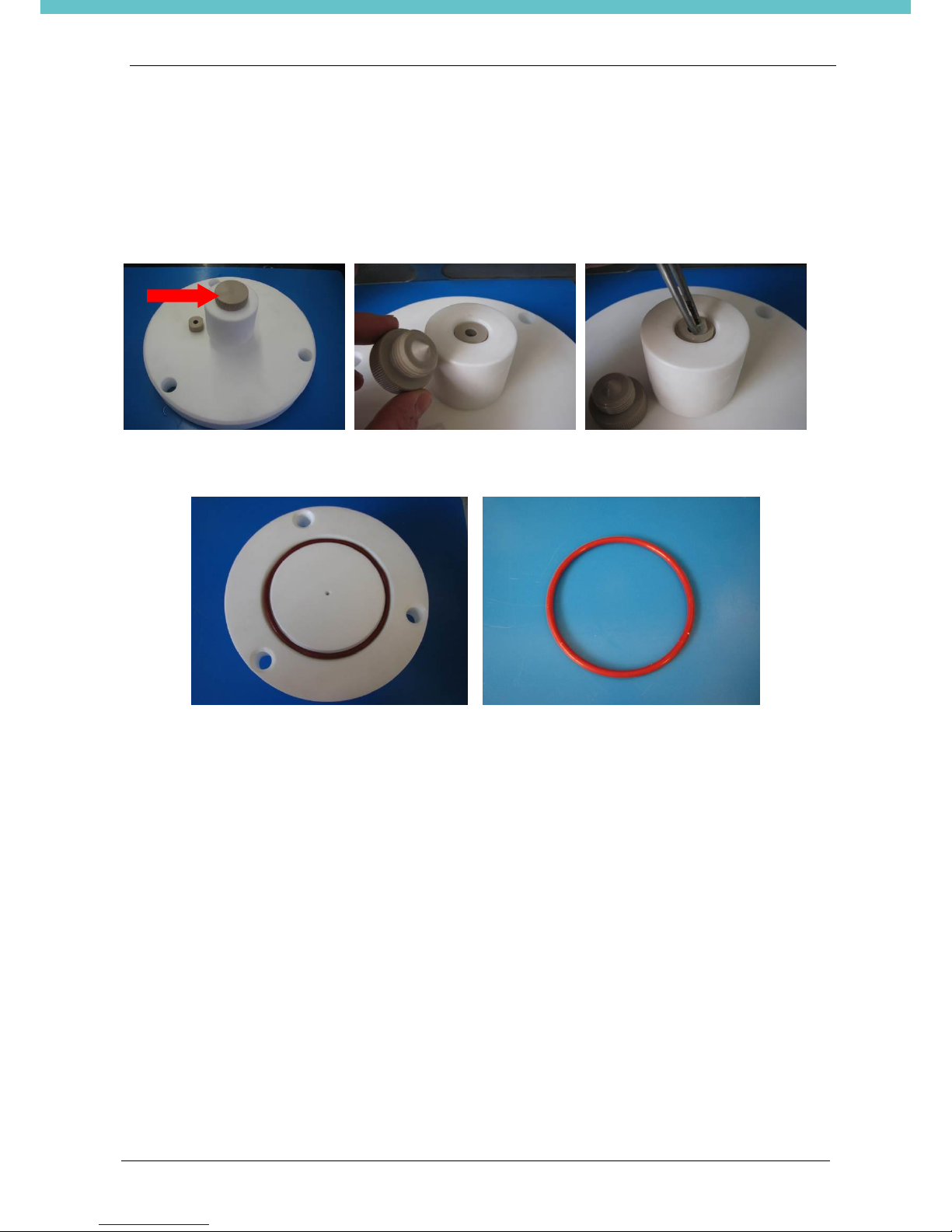

ONLY FOR GPR/K MODULE:
Unscrew the top brown plastic cover, slide out the transparent silicon tube and replace it (Code 60109), if damaged.
Replace (yearly or whenever the ring shows signs of damage) the red sealing ring (Code 67424) of the GPR/K cover.
Page 96
KOS
96
7. TECHNICAL TROUBLESHOOTING
The following table provides the KOS operator and service technician with possible causes in the event a problem develops with the unit.
PROBLEM
DIAGNOSIS
Difficulties in switching on the Touch Control: display dark or fully lightened or crossed by vertical and horizontal lines.
-Repeat switching Off/On the MAIN Kos SWITCH on the unit.
The unit does not switch on.
-2 Fuses 8AT-250V power mains grid or 2 Fuses 15AT-125V (6.3 x 32mm).
-Check if you power to the unit from the power line. Main Switch broken. (Service technician).
There is no microwave emission.
-The door of the unit is not well closed.
-Heating transformer. (Service technician).
-Door-handle switches. (Service technician).
-The magnetron or its fan is malfunctioning which causes magnetron overheating and activation of the temperature sensor located on it. (Service technician).
After 5 seconds magnetron heating time the program does not start and the display shows “DOOR NOT CLOSED”.
-The door is not perfectly closed.
-Door-handle switches. (Service technician).
Temperature Alarm Display.
-Check the correct positioning of Histomodule.
-Check the presence of the stirrer.
-Check the correct reagent volume level in use.
Humidity Vapor Alarm Display.
-Check the presence of the histomodule lid and that is in correct position.
-Check the presence of the stirrer.
Solvent Vapor Alarm Display.
-Check the presence of the histomodule lid and that is in correct position.
-Check the presence of the stirrer.
Here is a list of errors that may appear during KOS processing. You will be asked to ignore any warning that appears or not, to decide whether to continue or stop the phase of the process.
ERRORS
DESCRIPTION
COM error
Shut down and restart the machine. If the problem persists, contact your Service support.
Communication error, please reboot
Shut down and restart the machine. If the problem persists, contact your Service support.
Communication error, the application is running without the Engine component. If this is not intended for administration purposes, please restart.
Shut down and restart the machine. If the problem persists, contact your Service support.
Delta T Limit Reached
The difference between the preset temperature and the real temperature exceeds 10°C.
Temperature exceeds tolerance limits
The temperature measured during a process exceeds the tolerance limit of 130°C.
Door open, close and click Ok to continue
The door of KOS is open and it is necessary to close it to continue the process.
Humidity Sensor Alarm
The humidity measured during a process exceeds the setting limit.
MW Leakage Sensor Alarm
The MW leakage measured during a process exceeds the setting limit.
Organic Solvent Sensor Alarm
The organic solvent concentration measured during a process exceeds the setting limit.
The exhaust fan speed is too low
Shut down and restart the machine. If the problem persists, contact your Service support.
Page 97
KOS
97
8. GOOD PROCESSING PRACTICE
8.1. Specimens
Size
1. Processing times are a direct function of specimens size.
Milestone factory stored protocols are based on following standardized sizes (for standard cassette of internal dimensions: 30 x 25 x 5 mm, external dimensions: 40 x 28 x 6 mm):
Transplant (Small biopsy cylinders of about 0.5mm diameter)  1mm (Small biopsy cylinders of about 1mm diameter)  2mm (Biopsy 10 x 5 x 2mm)  3mm (Biopsy 15 x 10 x 3mm)
2. As a general rule, user must take in consideration that each additional 1mm thickness will require about 1
hour processing (for example: 1mm takes 1 hour; 2mm takes 2 hours, 3mm takes 3 hours). Universal biopsy cassette can accommodate up to 5mm thick samples. Make sure that the thickness is the one specified for the processing protocol selected. Milestone has developed the CheckLITE, a user-friendly, non-contact device that automatically signals with a green light when the specimen is cut at the desired thickness. For further information on CheckLite, contact Milestone s.r.l. at marketing@milestonemedsrl.com or your local distributor.
Protocol and Type of specimen
Select the appropriate protocol in relation to the size of specimens to be processed.
1. With Milestone technology, different types of specimens can be simultaneously processed (kidney, heart,
colon, liver) in the same run. The time at temperature pre-stored protocols are suited for the most sensitive
tissue.
2. Specimens with different thickness but all up to 3mm can be simultaneously run. While the temperature is
set for the most sensitive tissue, the processing time is set for the thickest specimen. This means that, if 1, 2, 3mm thick specimens are to be processed together, the 3mm protocol must be selected.
3. Biopsies of ≤ 1mm thickness (like renal or gastric biopsies) require separate processing, because of their
small size, for that purpose we have developed the Transplant programs.
Fatty tissues
Fatty tissues are some of the most difficult tissues to process. Milestone s.r.l. has patented a very effective reagent, the JFC solution (Ethanol, Isopropanol and long chain Hydrocarbon) which, in combination with microwaves technology, assures best results. For further information on JFC Solution, contact Milestone s.r.l. at marketing@milestonemedsrl.com or your local distributor.
8.2. Fixation
Fixation is the all important first step of tissue processing. Tissues that have not been optimally fixed can give bad morphology and processing artifacts.
Before starting the dehydration/clearing steps, tissue must be properly fixed. Fixation can be carried out either using formalin or Milestone s.r.l. formalin-free FineFIX solution. For further information on FineFIX, contact Milestone s.r.l. at marketing@milestonemedsrl.com or your local distributor.
Tissue can be fixed overnight at room temperature. For faster fixation result, Milestone s.r.l. microwave units have a preset protocol. The Microwave time required for each mm of thickness is of about 10 minutes at 50°C.
Page 98
KOS
98

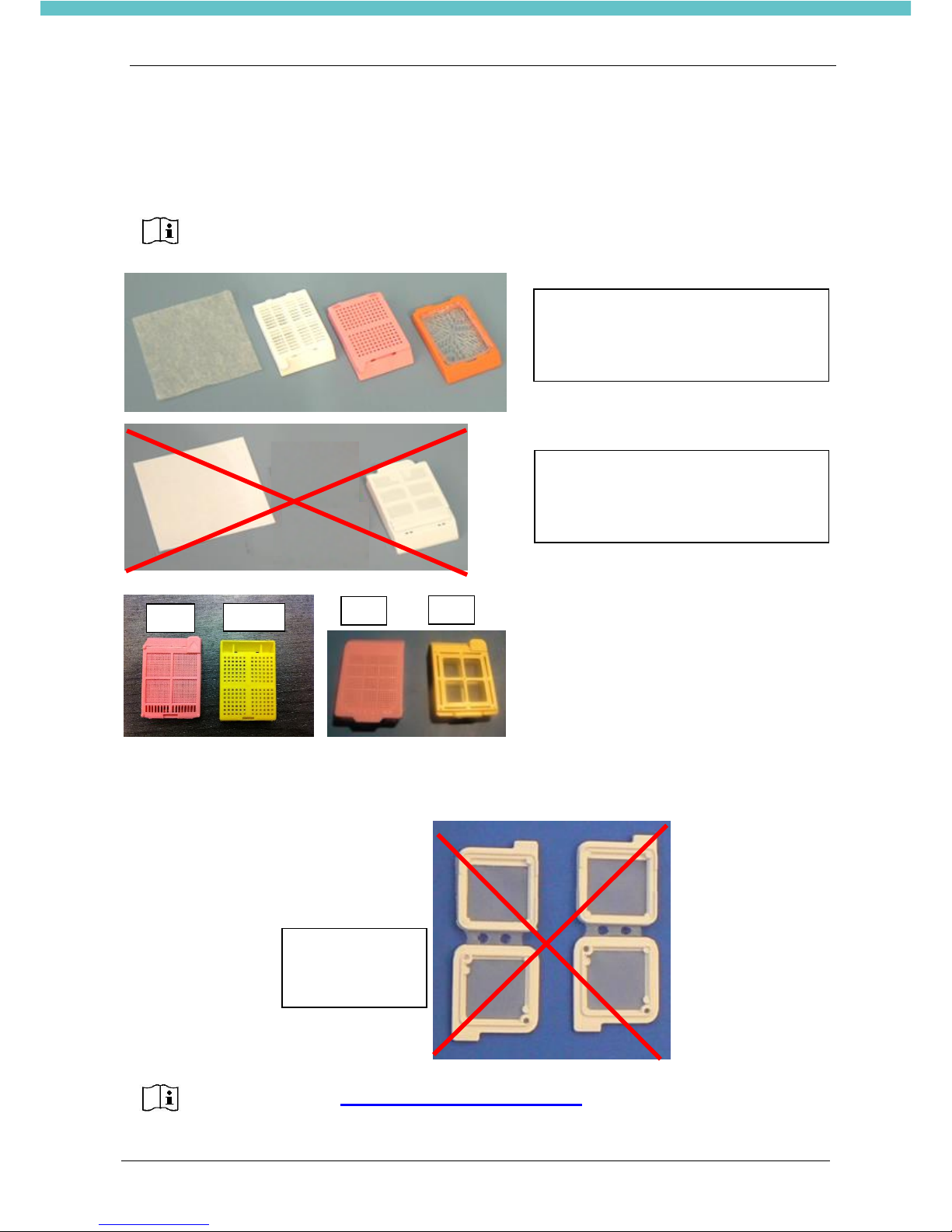

8.3. Beware
The use of inserts like thick paper or the use of small mesh cassette negatively influences the correct flow of the reagent through the cassette. Use only histology papers or cassette with large mesh to allow proper unobstructed flow of reagent.
The use of Nylon made cassettes (like Mesh Cassettes shown in the picture below) in our microwave units must be avoided. For this reason, we suggest you contact your customer/s to advise that the use of Nylon made cassettes in our microwave units must be avoided.
In case sponges are used, increasing of the Ethanol, JFC, Isopropanol and Wax processing time by half of the preset time is recommended. Use ONLY Histology sponges.
If the Laboratory is already using particular kind of cassettes, please contact either our application support: application@milestonemedsrl.com with details of the type of cassettes utilized, so that we can check whether they are suitable to be used in our microwave units.
NO
YES
NO
NO
NO
Histology paper – Biopsy large mesh
cassette
YES
Thick paper – small mesh cassette
NO
Page 99
KOS
99
8.4. Reagents
Make sure to follow the software reagents’ reuse settings. Check them daily to minimize inconsistent results. Purity of reagents:
1. When the water concentration in the reagents is more than 3% volume, a progressive loss of dehydrating
effect takes place. This problem can be caused by an overshooting limit of “maximum number of cassette to process” or “Max number of processing cycle to use” for the respective reagents.
2. Insufficient cleaning of the rack after processing can contaminate reagents with traces of paraffin. Wax can be reused several times because is left uncontaminated after every protocol.
Make sure to follow the software Wax’ reuse settings. Milestone has collected some cause/effect scenarios that affect tissue quality.
For further information see MW tissue processing troubleshooting guide and MW decalcification troubleshooting guide in chapter A.1 and A.2.
8.5. Microwave alcohols quality
Introduction
The purpose of this document is to recommend procedures to overcome issues associated with inconsistency of microwave tissue processing brought about by water contamination of the microwave ethanol, at a few laboratory sites, employing SPONGE BIOPSY PADS.
Background
Feedback from laboratory sites employing a combination of tissue cassettes, with and without sponge biopsy pads, showed that the processing artifacts are a result of water contamination of the microwave ethanol step. Sponge biopsy pad cassettes have the effect of retaining more fluid (formalin) than without sponges and therefore easily raising the water levels in the subsequent alcohol steps.
A secondary effect of sponge use is that retention of fluid occurs for other reagents in use and will impact on the process time (under processing) necessitating longer times to remove fluids: in this case, the action would be to select the next longer processing program time available, after the small biopsy program. The quality of tissue processing results is a reflection of effective fixation and quality of reagents used, whether for conventional or microwave processing, noting that even with conventional processors the last alcohol of the processor must be 100% (reagent grade), to avoid processing artifacts.
Alcoholic reagents loaded must be 99% reagent grade.
Page 100
KOS
100
Conclusions:
1. Introduction of sponges into cassettes increases retention of formalin may necessitate a reduction of
reagents expiration limits.
2. Use the NEXT SIZE up processing time program, when dealing with sponges present in cassettes, to avoid
under processing.
3. If the first phase of the process in Pathos Delta is alcohol and not formalin, introduce an extra (third)
sequential Rinsing Alcohol (100% Reagent Grade):- as a first rinse in the grossing room, for accumulating wet tissue cassettes containing sponge biopsy pads for processing.
8.6. Tissue processing selection guidelines
Ethanol-Isopropanol-WAX
1. Ethanol-Isopropanol recommended as the standard routine method for small to medium-large size
biopsies.
2. Fat content of the tissue is kept to a minimum (< 2mm thickness).
3. Very Cost effective for general tissue-processing.
4. Strongly recommended for processing of Renal/Gastric, breast core biopsies and equivalent tissue
size.
JFC-Isopropanol-WAX
1. JFC-ISO sequence is strongly recommended for high fat content such as Breast / Lipoma up to full
size cassette in less than 4 hours.
PROWAVE-WAX
1. PROWAVE is a “one step” solution that can be used for tissues where overnight fixation time is
uncertain, since PROWAVE can also act as a secondary fixative.
2. Ideally suited for non-fatty tissues (up to 3mm thick) or moderate lipid content tissues (up to 2mm
thick).
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
