General description

The PELCO KBD300A is a video control station that enables the user to view and control cameras and video
recorders at local and remote facilities.

A full description of the PELCO KBD300A is found in a separate document,
Pelco_KBD300A_Universal_Keyboard_manual.pdf.

The PELCO KBD300A SmartClient Plug-in enables using the PELCO KBD300A to perform a subset of Milestone
XProtect Smart Client functionality instead of using the SmartClient User Interface.

There is no “one to one” mapping of PELCO KBD300A functions to SmartClient functions and vice versa. Some
PELCO KBD300A functionality is not applicable for SmartClient, and SmartClient contains functionality not
implemented by the PELCO KBD300A.

The reader should have knowledge of the PELCO KBD300A operation. Reading the document that is mention
above can give you this knowledge.

www.milestonesys.com Page 5 General description

XProtect® Pelco KBD300A Keyboard Smart Client Plug-in

Installation

The Smart Client plugin for Pelco KBD300A keyboard comes with an installer. To install the plug-in, do the
following:

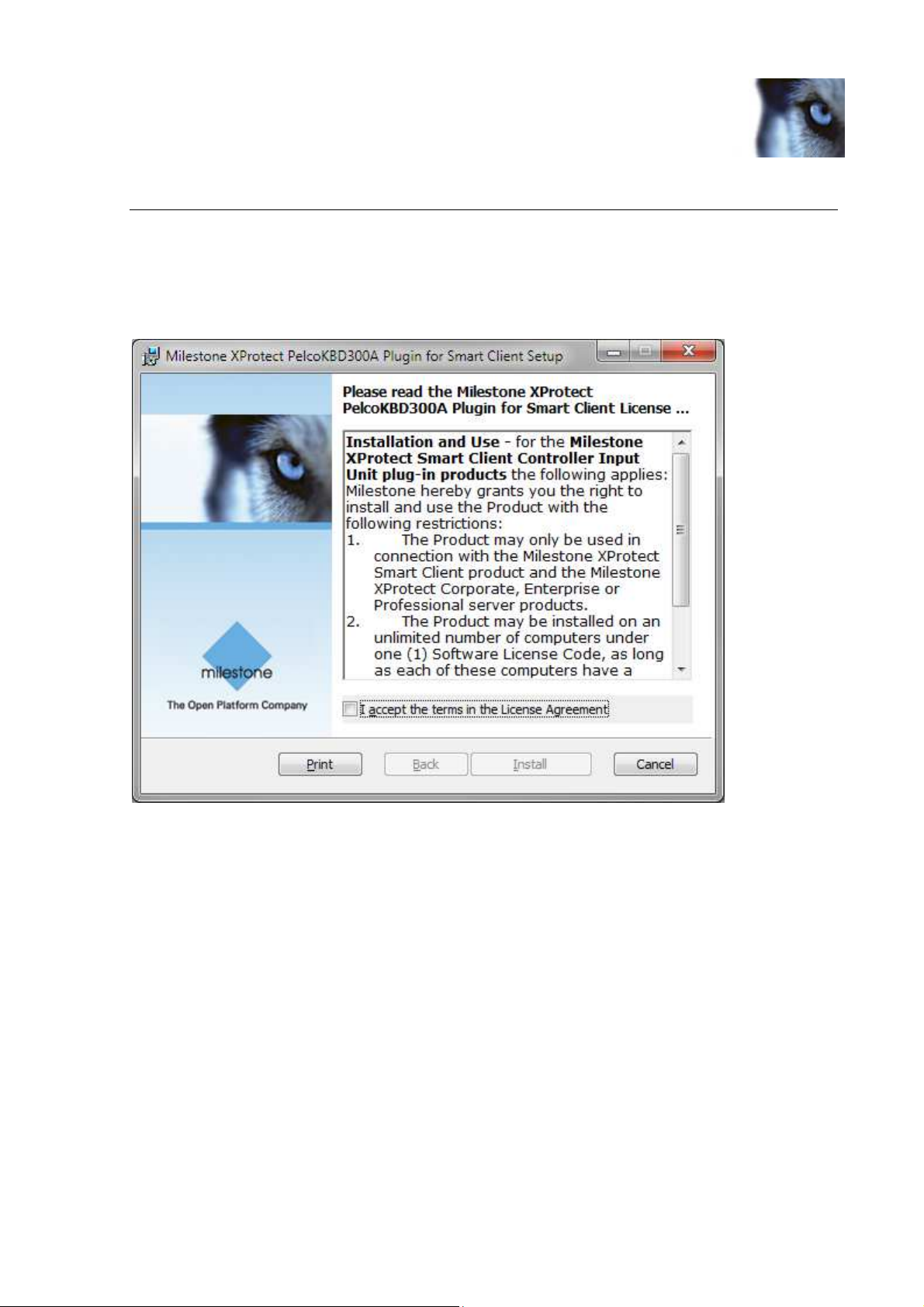

1. Double-click Milestone_PelcoKBD300A_Plugin_Installer_x64.msi. This will start the installation wizard.

2. When the installation wizard starts, click Next, and complete the wizard.

During installation, the following files are installed:

• plugin.def

• VideoOS.RemoteClient.Plugin. PelcoKBD300A.dll (Plugin only)

• VideoOS.RemoteClient.Plugin. PelcoKBD300A.dll.config (Plugin only)

• VideoOS.Keyboards.KeyboardPluginBase.dll

• VideoOS.Keyboards. PelcoKBD300A Plugin.dll

• Docs\Pelco_KBD300A_Universal_Keyboard_manual.pdf

• Docs\ MilestoneXProtectSmartClient_Pelco_KBD300A_Controller_Plug-in_Users_Guide_en-US.pdf (this

file)

• Docs\ Pelco_KBDKIT_Series_Remote_Keyboard_Wiring_Kit.pdf

www.milestonesys.com Page 6 Installation

XProtect® Pelco KBD300A Keyboard Smart Client Plug-in

Keyboard installation mode

The KBD300A Universal Keyboard has many operational features and can be used in numerous operational
modes. In this document, CM6700 ASCII MODE is used (for cable connections, refer to
Pelco_KBD300A_Universal_Keyboard_manual.pdf: INSTALLATION – CM6700 ASCII MODE)

For installation at a PC that is served by a COM port or USB communications facility, use an RS-422 connection
at the KBD keyboard and an RS-422 Converter to transfer to RS-232, then Serial to USB Converter connect to
PC.

www.milestonesys.com Page 7 Keyboard installation mode

XProtect® Pelco KBD300A Keyboard Smart Client Plug-in

Configuration & Licensing

To show the configuration window of the plug-in, do the following:

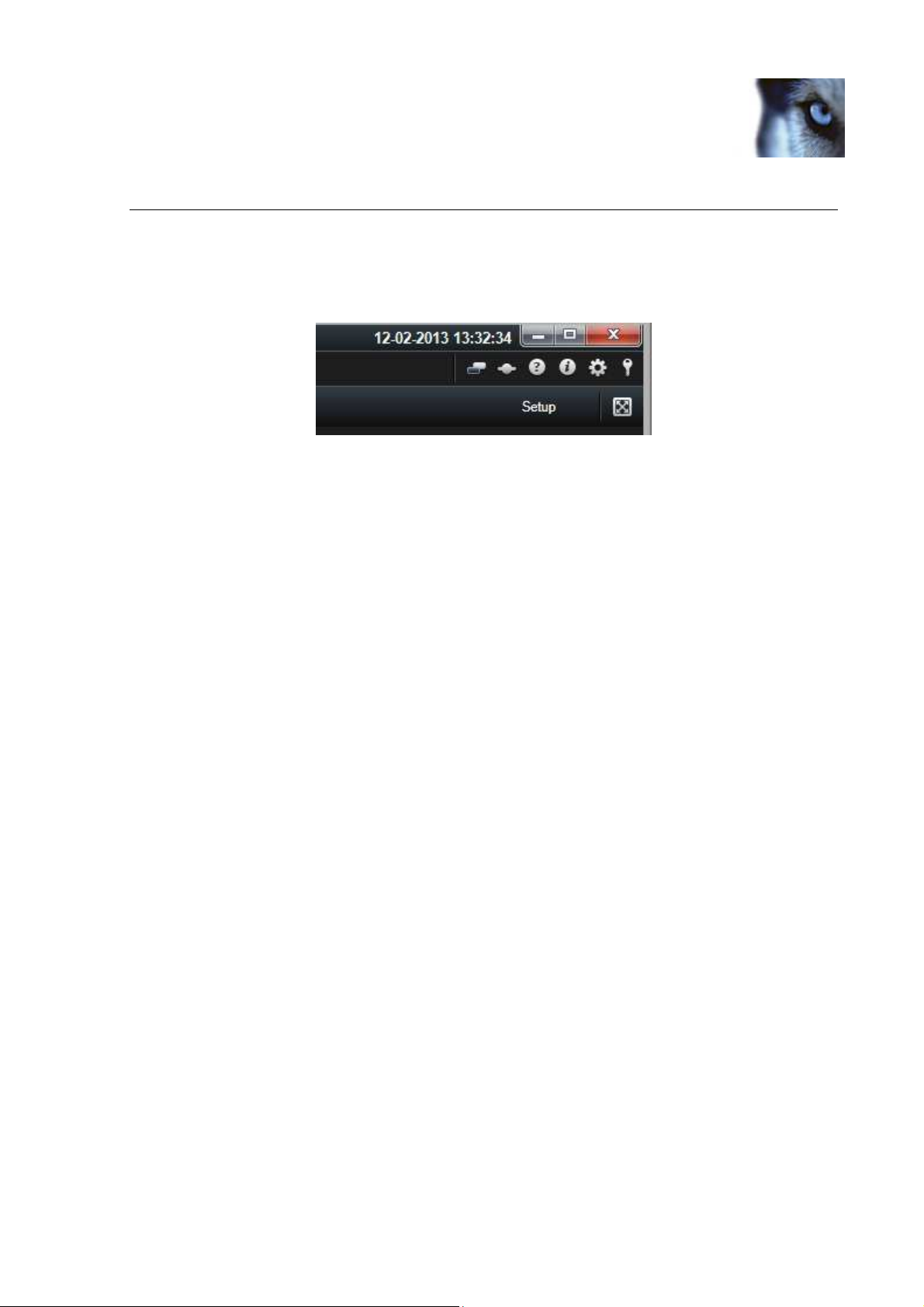

1. Click the Options button in the top right corner of the Smart Client.

2. In the popup Options form, select Pelco KBD300A Keyboard Setup.

License File

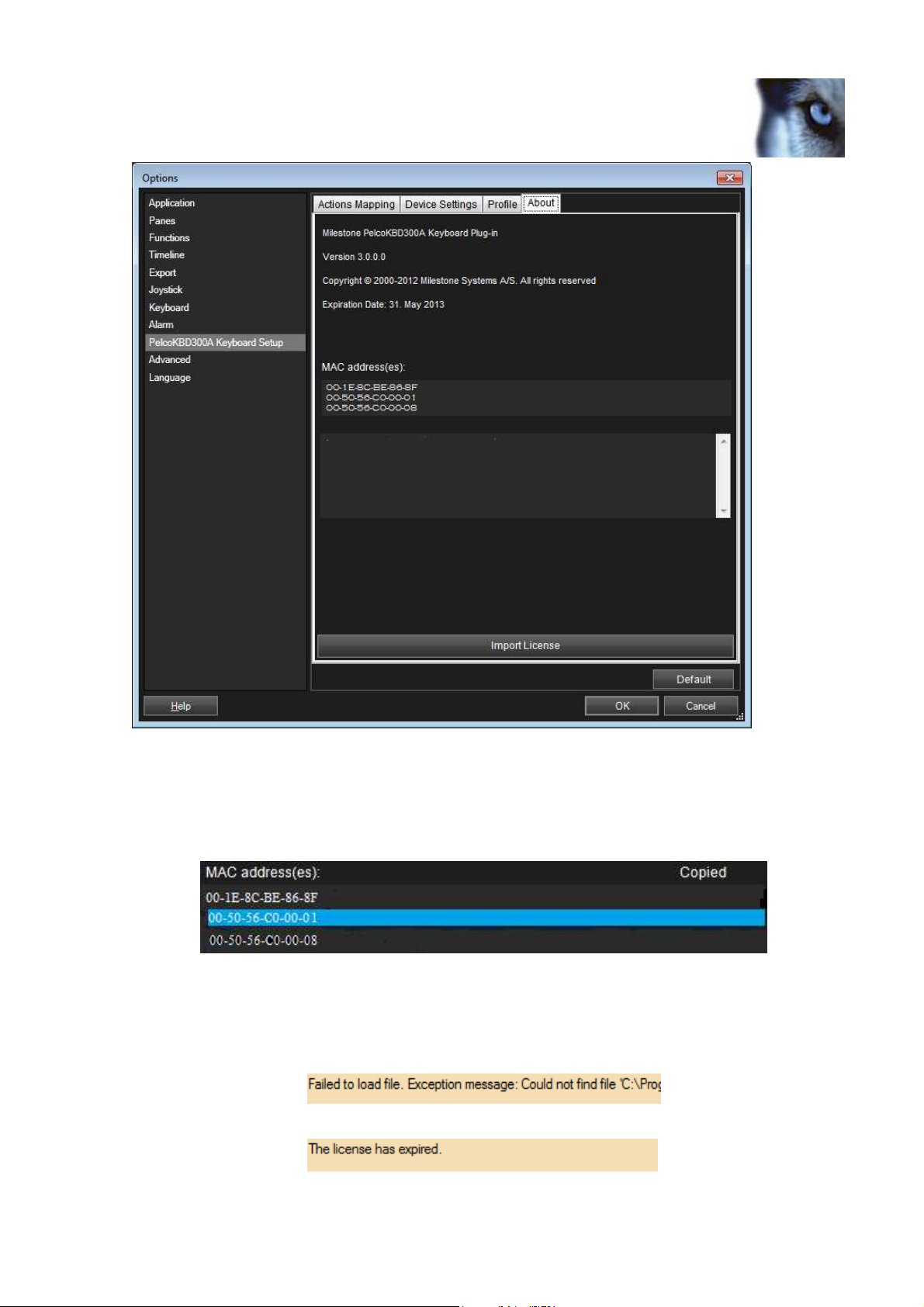

The ‘About’ tab shows additional information related to the plug-in such as licensing info, version etc.
The license file can be imported by clicking the ‘Import License’ button located in the ‘About’ tab. After importing,

the plug-in will verify the chosen license file and enable functionality immediately if the verification is successful.
Note: The user importing the license file must have appropriate user rights to the plug-in folder. Therefore it’s

advisable to launch the Smart Client using ‘Run as administrator’ when the license file is imported.
If so desired, the license file (PelcoKBD300AKeyboard.lic) can also be manually copied to one of the following

default installation folders:

• 32 bit operating system: C:\Program Files\Milestone\ XProtect Smart Client\
MIPPlugins\VideoOS.Keyboards. PelcoKBD300A \

• 64 bit operating system and 32 bit Smart Client: C:\Program Files (x86)\Milestone\XProtect Smart
Client\MIPPlugins\VideoOS.Keyboards. PelcoKBD300A Plugin \

• 64 bit Smart Client: C:\Program Files\Milestone\ XProtect Smart
Client\MIPPlugins\VideoOS.Keyboards. PelcoKBD300A Plugin \

A license file can be temporary or permanent, tied to a MAC address or to a SLC.

www.milestonesys.com Page 8 Configuration & Licensing

XProtect® Pelco KBD300A Keyboard Smart Client Plug-in

Note: MAC addresses are listed in the About dialog, accessed by right click on the system menu of Axis T8310
Keyboard Setup dialog: To acquire a permanent license file, please submit a purchase order, containing the SLC
of the XProtect Server and the MAC address of the computer where the keyboard is attached, through the
Milestone Online Order System.

Missing License File Error Messages

Error messages will be displayed on the Keyboard Setup form only if license checking fails. Examples:

• If no license file was found:

• If license has expired:

’

www.milestonesys.com Page 9 Configuration & Licensing

XProtect® Pelco KBD300A Keyboard Smart Client Plug-in

Joystick Options

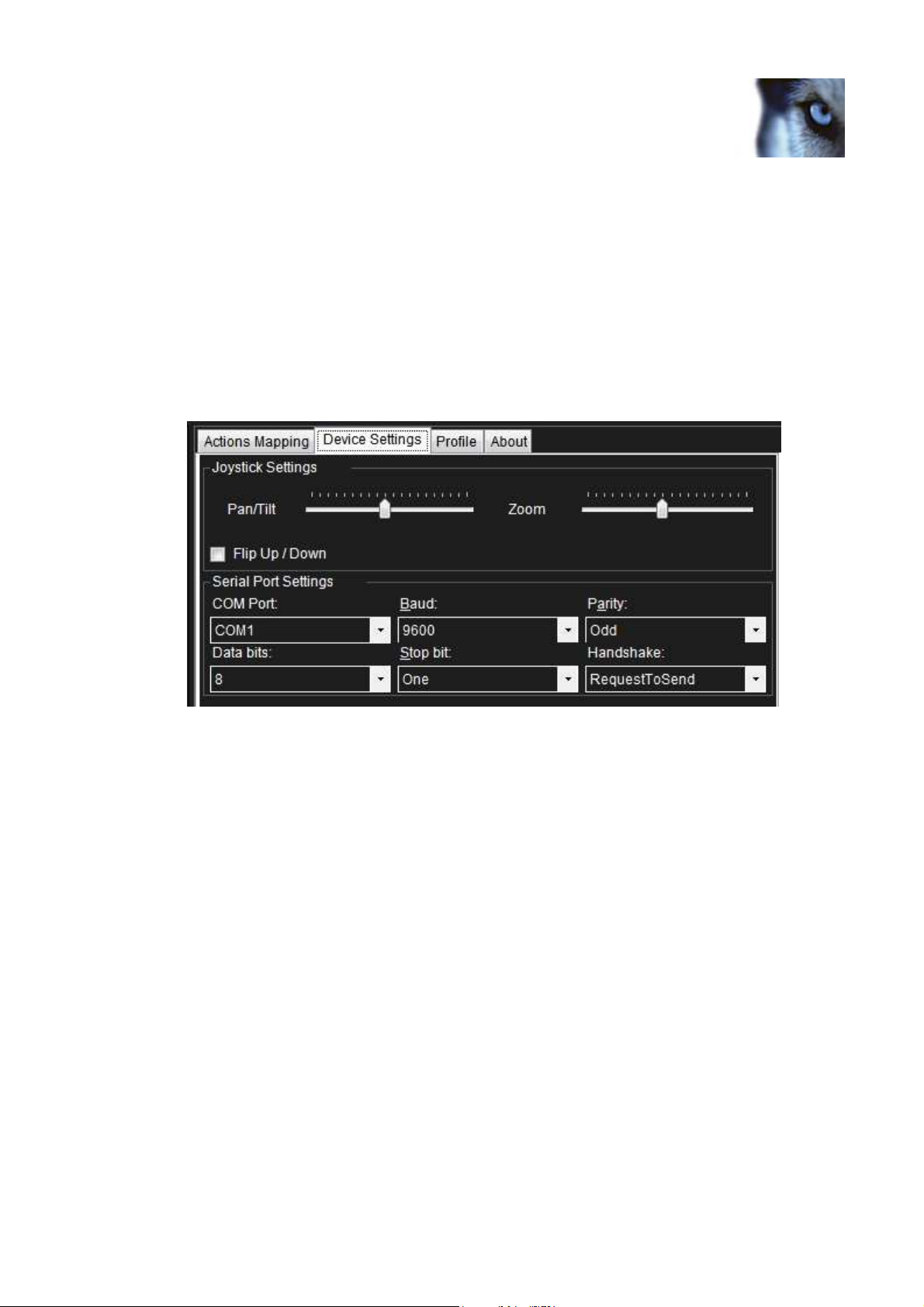

For joystick setup, please go to Device Settings tab.
The joystick tilt direction on the PELCO KBD300A is:

• Joystick forward -> Tilt up

• Joystick backwards -> Tilt down

This is the opposite of the default for a normal joystick.

The ‘Flip Up / Down’ switch enables the user to invert Tilt direction to match standard joystick.

By adjusting Pan/Tilt and Zoom TrackBar, PTZ sensitivity can be changed as well.

Serial Port Properties Setup

• COM Port: Select the COM (Serial) port the PELCO KBD300A is connected to. The Drop-Down list
displays a list of all COM port on the computer.

• Baud, Parity, Data Bits, Stop Bits, and Handshake: These must be the same values that are defined on
the PELCO KBD300A by the system administrator.

Configurable Actions

The Pelco KBD300A SmartClient Plug-in contains a method for sending User-defined instructions to the
SmartClient. Currently, the number of configurable actions is configurable but limited to 640.

The actions are defined using the setup module, described later in this document. They are activated by pressing
a number and following ACK key (configurable, e.g. can be changed to F1, F2…) on the Pelco KBD300A.

www.milestonesys.com Page 10 Configuration & Licensing

XProtect® Pelco KBD300A Keyboard Smart Client Plug-in

Example: pressing digits 1 and 2 on the numeric keypad followed by ’ACK’ (default), send the instruction that is
defined as number 12 in the generic actions list to the SmartClient. If no instruction is defined for generic action
12, nothing happens.

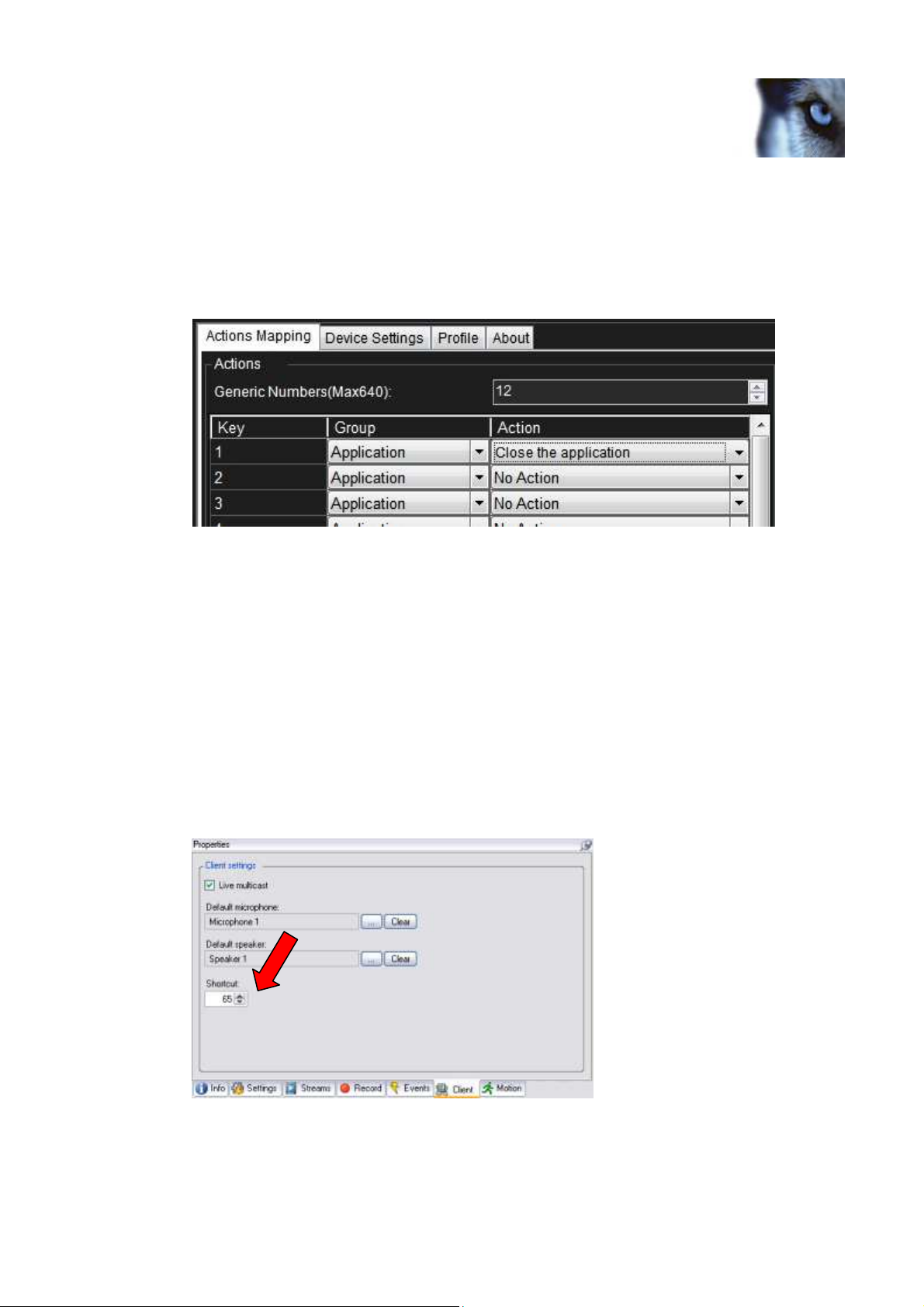

In the Keyboard Setup dialog you define the instructions (actions) that are executed when you press a number (1

- 12) followed by the ACK key. The Drop-Down button appears on the selected row. A click on this button displays
a list of all available SmartClient instructions, where you can select one to assign to the current rows number. The
list looks like the below example of a possible assignment.

You can configure the number of configurable generic actions by changing the value of the NumericUpDown.
The highlighted number is the number of configurable actions displayed in the setup form. In the example above

this number is 12.

Example of Select Camera

To configure “Select Camera” function,

• Make sure camera number (shortcut) is defined, which are used to identify each camera. This can be
defined in the Management Client (XPCO)/Management Application(XPE), each camera's shortcut
number is specified in the Shortcut field in the Client .

To access the Client tab, select the required camera in the overview pane, then select the Client tab in
the properties pane.

• Configure action from the setup module. This action is set to CAM by default.

• The function can be activated by pressing a number followed by pressing CAM on the device. E.g. press

65 and CAM will switch to camera with shortcut ‘65’.

www.milestonesys.com Page 11 Configuration & Licensing

XProtect® Pelco KBD300A Keyboard Smart Client Plug-in

Example of Select Monitor

To configure “Select Monitor” function,

• Make sure view number (shortcut) is defined, which are used to identify each view. This can be defined
in the Smart Client on the Setup tab.

Specify the required shortcut number in the Shortcut field.

• Configure action from the setup module. This action is set to MON by default.

• The function can be activated by pressing a number followed by pressing MON on the device. E.g.

press 21 and MON will switch to view with shortcut ‘21’.

Profile Options

The current setting is stored privately on the server. But it can be transferred to the shared profile, meaning that
the settings will be applied to everyone who intends to use this profile.

www.milestonesys.com Page 12 Configuration & Licensing

XProtect® Pelco KBD300A Keyboard Smart Client Plug-in

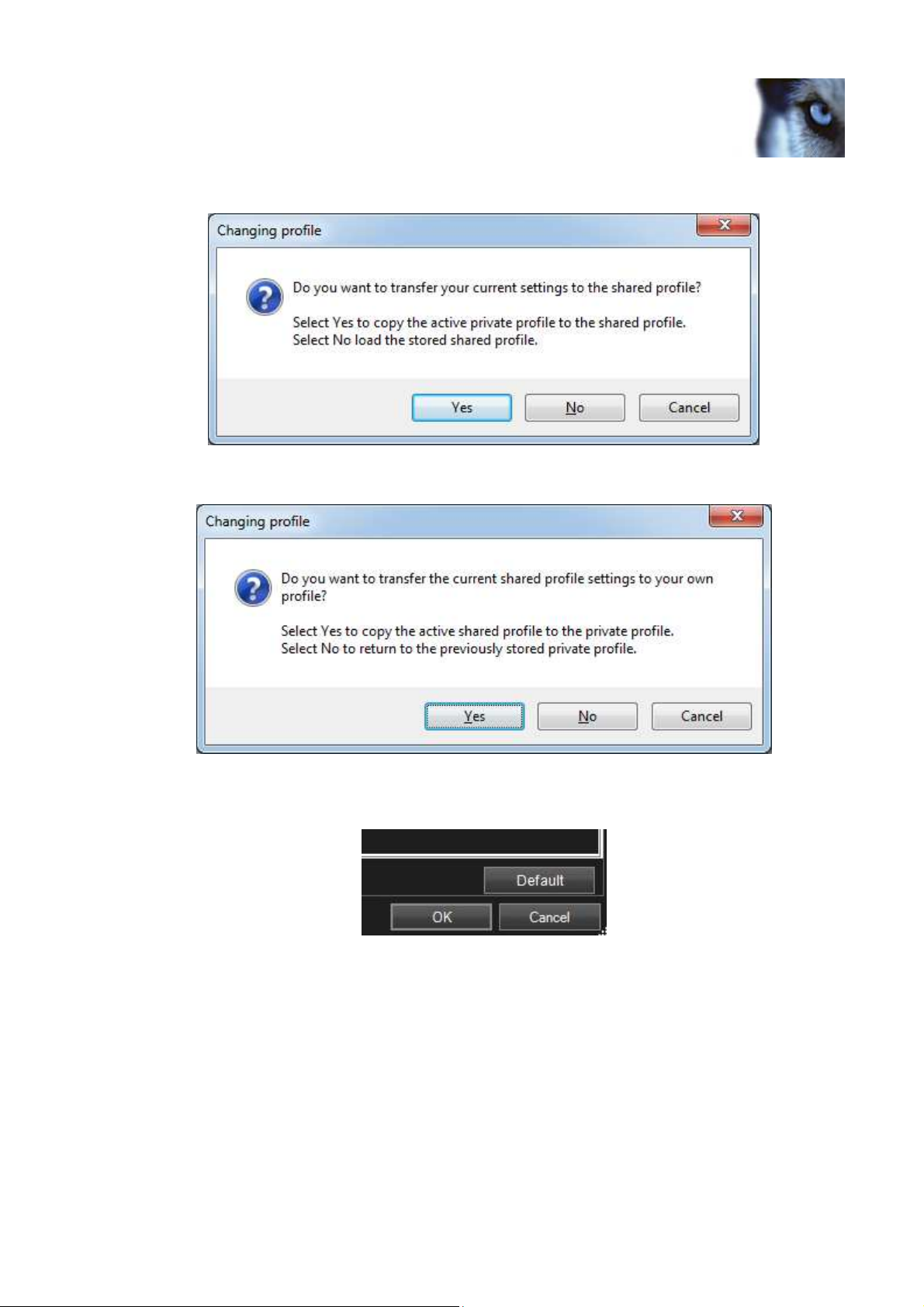

A message dialog will be displayed if profile changes. For example, changing profile from ‘Private’ to ‘Shared’

Example from ‘Shared’ to ‘Private’

Profile can also be imported from previous version by clicking the ‘Import’ button on right bottom of the Setup
form. This button is only visible if the previous profile exists.

Profile can always be reset to default by clicking the ‘Default’ button.

www.milestonesys.com Page 13 Configuration & Licensing

XProtect® Pelco KBD300A Keyboard Smart Client Plug-in

Default Settings

Default settings can be activated by pressing the “Default settings” button from the Setup Form.
The default setting including:

• COM Port: “COM1”.

• Baud: 9600, Parity: Odd, Data bits: 8, Stop Bits: 1, and Handshake: RequestToSend

• Generic numbers:

o all not assigned

• PELCO KBD300A spec:

o ACK - Select Generic number.
o Joystick - default joystick move motions such as pan left/right/stop, tile up/down/stop, and zoom

in/out

o NEAR/FAR - Focus up/down/stop
o OPEN/CLOSE – Iris up/down/stop
o HOLD – Playback stop
o FORWARD/REVERSE – Forward playback /Reverse playback
o NEXT/PREV – Next image/Previous image
o MON – Select monitor
o CAM – select camera
o F1 – Show live
o F2 – Show browse
o F3 – Show setup

www.milestonesys.com Page 14 Default Settings

XProtect® Pelco KBD300A Keyboard Smart Client Plug-in

Index

—C—

Configurable Actions .............................................................................................................................................. 10

Copyright ................................................................................................................................................................. 4

—D—

Default Settings...................................................................................................................................................... 14

Disclaimer ................................................................................................................................................................ 4

—I—

Installation ................................................................................................................................................................ 6

—J—

Joystick options ...................................................................................................................................................... 10

Joystick Options ..................................................................................................................................................... 12

—L—

Licensing .................................................................................................................................................................. 8

Error Messages .................................................................................................................................................. 13

—S—

Serial Port setup .................................................................................................................................................... 10

—T—

Target Audience ....................................................................................................................................................... 2

Trademarks .............................................................................................................................................................. 4

www.milestonesys.com Page 15 Index

Milestone Systems offices are

located across the world. For
details about office addresses,
phone and fax numbers, visit
www.milestonesys.com.
