About this Document
This Manual explains how to use and manage Milesight network cameras on your network.
Previous experience of networking will be of use when using the products. This manual applies to
the following camera models, except where otherwise indicated.
Please read this manual carefully before operation and retain it for future reference.
Megapixel
Type
1.3MP 2MP 3MP 5MP
Mini Dome Camera MS-C2181-P
MS-C2681-P
MS-C3581-P MS-C3586-P MS-C3688-P
IR Mini Dome Camera MS-C2182-P
MS-C2682-P
MS-C3582-P MS-C3587-P MS-C3689-P
Mini Bullet Camera
MS-C2163-PN
MS-C3263-PN
MS-C3363-PN
MS-C3367-PN
MS-C3567-PN
-
Motorized Mini Bullet
MS-C2163-FPN
MS-C3263-FPN
MS-C3363-FPN
MS-C3367-FPN
MS-C3567-FPN
Mini Cube Camera
MS-C2191-PW MS-C3291-PW MS-C3596-PW -
Vandal-proof Mini Dome
MS-C2173-P
MS-C3273-P
MS-C3373-P
MS-C3377-P
MS-C3577-P
IR Dome Camera
MS-C2172-P
MS-C3272-P
MS-C3372-P
MS-C3376-P
MS-C3576-P
-
Varifocal IR Dome Camera
MS-C2172-VP
MS-C3272-VP
MS-C3372-VP
MS-C3576-VP
MS-C3376-VP
--
Varifocal Bullet Camera
MS-C2162-VP
MS-C3262-VP
MS-C3362-VP
MS-C3566-VP
MS-C3366-VP
-
Remote Focus Zoom Bullet Camera
MS-C2162-FP
MS-C3262-FP
MS-C3362-FP
MS-C3566-FP
MS-C3366-FP
-
New Remote Focus Zoom Bullet
Camera
MS-C2162-F(I)PNMS-C3262-F(I)PN
MS-C3362-F(I)PN
MS-C3366-F(I)PN
MS-C3566-F(I)PN
-
Box Camera
MS-C2151-PM - MS-C3356-PM MS-C3658-PM
External Varifocal Bullet Camera
MS-C2162-EP
MS-C3262-EP
MS-C3363-EP
MS-C3366-EP
MS-C3566-EP
-
Page 3
User Manual
www.milesight.com
Copyright Statement
This manual may not be reproduced in any form or by any means to create any derivative such
as translation, transformation, or adaptation without the prior written permission of Milesight
Technology Co., Ltd(Hereinafter referred to as Milesight).
Milesight reserves the right to change this manual and the specifications without prior notice.
The latest specifications and user documentation for all Milesight products are available on our
official website www.milesight.com
WarningsSerious injury or death may be caused if any of these warnings are neglected.
CautionsInjury or equipment damage may be caused if any of these cautions are neglected.
WarningsPlease follow these safeguards to
prevent injury or death.
CautionsPlease follow these precautions to
prevent potential injury or material damage.
Warning
This installation must be conducted by a qualified service person and should strictly
comply with the electrical safety regulations of the local region
To avoid risk of fire and electric shock, do keep the product away from rain and moisture
Do not touch components such as heat sinks, power regulators, and processors, which
may be hot
Source with DC 12V or PoE
Please make sure the plug is firmly inserted into the power socket
When the product is installed on a wall or ceiling, the device should be firmly fixed
If the product does not work properly, please contact your dealer. Never attempt to
disassemble the camera yourself
Cautions
Make sure that the power supply voltage is correct before using the camera
Do not store or install the device in extremely hot or cold temperatures, dusty or damp
locations, and do not expose it to high electromagnetic radiation
Only use components and parts recommended by manufacturer
Do not drop the camera or subject it to physical shock
To prevent heat accumulation, do not block air circulation around the camera
Laser beams may damage image sensors. The surface of image sensors should not be
exposed to laser beam where a laser beam equipment is used
Use a blower to remove dust from the lens cover
Page 4
User Manual
www.milesight.com
Use a soft, dry cloth to clean the surfaceof the camera. Stubborn stains can be removed
using a soft cloth dampened with a small quantity of detergent solution, then wipe dry
Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the
surface finishes
Save the package to ensure availability of shipping containers for future transportation
Environmental Protection
Please recycle this device in a responsible manner. Refer to local environmental regulations for
proper recycling. Do not dispose of devices in unsorted municipal waste.
Page 5
User Manual
www.milesight.com
Table of Contents
Chapter I Product Description
..............................................................................................................
1
1.1 Product Overview
....................................................................................................................
1
1.2 Key Features
............................................................................................................................
1
1.3 Hardware Overview
.................................................................................................................
2
1.4 Hardware Installation
..............................................................................................................
5
1.5 System Requirements
..............................................................................................................
8
Chapter II Network Connection
............................................................................................................
9
2.1 Setting the camera over the LAN
............................................................................................
9
2.1.1 Connect the camera to the PC directly
.........................................................................
9
2.1.2 Connect via a Switch or a Router
..................................................................................
9
2.2 Setting the camera over the WAN
.........................................................................................
10
2.2.1 Static IP Connection
....................................................................................................
10
2.2.2 Dynamic IP Connection
...............................................................................................
10
Chapter III Accessing the Network Camera
........................................................................................
12
3.1 Assigning An IP Address
.........................................................................................................
12
3.1.1 Assigning An IP Address Using IPCTools
......................................................................
12
3.1.2 Assign An IP Address Manually
...................................................................................
16
3.2 Accessing from the Web Browser
.........................................................................................
19
3.2.1 Access over IE Browser
................................................................................................
19
3.3 Accessing from Milesight VMS (Video Management Software)
...........................................
21
Chapter IV System Operation Guide
...................................................................................................
23
4.1 Live Video
..............................................................................................................................
23
4.2 Playback
.................................................................................................................................
25
4.3 Basic Settings
.........................................................................................................................
27
4.3.1 Video
............................................................................................................................
27
4.3.2 Image
...........................................................................................................................
29
4.3.3 Audio
...........................................................................................................................
31
4.3.4 Network
.......................................................................................................................
32
4.3.5 Wi-Fi*
..........................................................................................................................
34
4.3.6 Date &Time
..................................................................................................................
36
4.4 Advanced Settings
.................................................................................................................
37
4.4.1 SIP
................................................................................................................................
37
4.4.2 UPNP
............................................................................................................................
39
4.4.3 DDNS
............................................................................................................................
40
4.4.4 PPPoE
...........................................................................................................................
40
4.4.5 VLAN
............................................................................................................................
41
4.4.6 SMTP
............................................................................................................................
42
4.4.7 FTP
...............................................................................................................................
42
4.4.8 Alarm
...........................................................................................................................
43
4.4.9 Snapshot
......................................................................................................................
45
Page 6
User Manual
www.milesight.com
4.4.10 Privacy Masking
.........................................................................................................
45
4.4.11 ROI
.............................................................................................................................
46
4.4.12 Record Schedule
........................................................................................................
46
4.4.13 Storage
.......................................................................................................................
47
4.4.14 PTZ
.............................................................................................................................
49
4.4.15 User
...........................................................................................................................
49
4.4.16 Access List
..................................................................................................................
51
4.4.17 Logs
............................................................................................................................
52
4.5 System
...................................................................................................................................
52
4.6 Maintenance
..........................................................................................................................
53
Chapter V Services
................................................................................................................................
0
Page 7
User Manual
www.milesight.com
1
Chapter I Product Description
1.1 Product Overview
Milesight provides a consistent range of cost-effective and reliable network cameras to fully
meet your requirements. Based on embedded LINUX operating system, Milesight network
cameras could be easily accessed and managed either locally or remotely with great reliability.
With the TI DaVinci processor and built-in high-performance DSP video processing modules, the
cameras pride on low power consumption and high stability. They support state-of-the-art H.264
video compression algorithm and industry-leading HD dual-stream technology to achieve the
highest level of video image quality under the limited network resources. It is fully functional,
supporting for flexible and comprehensive alarm linkage mechanism, day and night auto switch,
smart PTZ control and privacy masking, etc.
In practical applications, Milesight network camera could either work independently in the local,
or be networked to form a powerful safety monitoring system. It is widely used in fields such as
finance, education, industrial, civil defense, health care for security’s sake.
1.2 Key Features
Based on LINUX OS with high reliability
H.264/MPEG-4/MJPEG video compression capability
G.711/AAC audio compression capability
Support ONVIF, PSIA protocol
Dual-stream
Power over Ethernet
Audio input/output, alarm input/output(built-in for box cameras, optional for bullet and
dome cameras)
IR cut filter with auto switch, true day/night
Built-in WEB server, support IE/Firefox/Chrome/Safari browser
Real-time video electronic amplification
Three-privilege levels of users for flexible management
SD/SDHC card local storage support, expand the edge storage(applicable for box and
Dome cameras)
Local PAL/NTSC signal output
Standard RS-485 interface, multiple PTZ control protocol
Motion detection, privacy masking, network fault detection and image snapping
UPNP protocol for the easy management of IPC
True Wide Dynamic Range (Optional feature according to the model selected)
Page 8
User Manual
www.milesight.com
2
1.3 Hardware Overview
1. Box Camera
*Error LED
Power LED
*Reset Button
Ethernet Port
BNC Video Out
Power Connector (DC12V)
Alarm Output
RS-485 PTZ control
Alarm Input
Antenna for WIFI (Optional)
Audio Input
SD/SDHC Card Slot
Audio Output
Figure1-1
*Note:
1) Error LED: Error LED is on when the device starts up or runs error.
2) Reset Button: Press ‘Reset’ button for 5 seconds, the device will be restored to factory default.
3) The network camera provides a general I/O terminal block which is used to connect external
input/output devices. Please refer to the following instruction for the connection method.
Page 9
User Manual
www.milesight.com
3
Figure1-2
2. Bullet Camera
Figure 1-3
*Note:
1) The network camera provides a general I/O terminal block which is used to connect external
input/output devices. Please refer to the following instruction for the connection method.
Power Connector (DC 12V)
Alarm Input/ Output
RS-485 PTZ control
Ethernet Port
Lens
Video Output
Light Sensor
IR LED
Audio Output
Lens
Audio Input
Page 10
User Manual
www.milesight.com
4
Figure 1-4
3. Dome Camera
Video Output
Power Connector (DC 12V)
Audio Output
Audio Input
RS-485 PTZ control
Alarm Input/ Output
Ethernet Port
Figure 1-5
*Note:
1) The network camera provides a general I/O terminal block which is used to connect external
Page 11
User Manual
www.milesight.com
5
input/output devices. Please refer to the following instruction for the connection method.
Figure 1-6
1.4 Hardware Installation
1. Connect the camera to the network and power using one of the methods listed below:
1) Basic connection (without PoE):
Step 1: connect the DC 12V end of the power adapter to the power port of the camera and
connect the other end to a wall outlet;
Step 2: connect the camera to a switch using an Ethernet cable.
Figure 1-7 Box Camera
Page 12
User Manual
www.milesight.com
6
Figure 1-8 Bullet Camera
Figure1-9 Dome Camera
2) Power over Ethernet (PoE) connection. PoE will be automatically detected when the Ethernet
cable is connected. The camera can either be connected to a PoE-enabled switch or a non-PoE
switch.
A. Connect the camera to a PoE switch using a single Ethernet cable.
Page 13
User Manual
www.milesight.com
7
Figure 1-10 Box Camera
Figure 1-11 Bullet Camera
Figure 1-12 Dome Camera
B. Connect the camera to a non-PoE switch using the PoE injector
Step 1: Connect the camera to a PoE injector using an Ethernet cable.
Step 2: Connect the PoE injector to the non-PoE switch using an Ethernet cable.
Step 3: Connect the PoE injector to a power outlet.
Page 14
User Manual
www.milesight.com
8
Figure 1-13 Box Camera
Figure 1-14 Bullet Camera
Figure 1-15 Dome Camera
The power LED will light steady red when the camera is connected to a power source
2. Optionally connect external input/output devices, such as alarm devices.
3. Optionally connect an active speaker or external microphone.
4. Optionally connect the camera to a monitor using a BNC cable.
1.5 System Requirements
Operating Syestem:Windows XP/7/Vista/Server 2000/Server 2008
CPU: 1.66GHz or higher
RAM:1G or higher
Graphic memory:128MB or more
Internet protocol: TCP/IP (IPv4)
Web Browsers:Interner Explorer 8.0 and above version,Mozilla Firefox ,Google Chrome and
Safari.
Page 15
User Manual
www.milesight.com
9
Chapter II Network Connection
There are several methods to connect the camera to the network.
2.1 Setting the camera over the LAN
Connecting the camera to a switch or a router is the most common connection method. The
camera must be assigned an IP address that is compatible with its LAN.
2.1.1 Connect the camera to the PC directly
In this method, only the computer connected to the camera will be able to view the camera. The
camera must be assigned a compatible IP address to the computer. Details are shown as below
figure.
Figure 2-1 Connect the camera to the PC directly
2.1.2 Connect via a Switch or a Router
Refer to the following figure to set network camera over the LAN via the switch or router.
Figure 2-2 Connect via a Switch or a Router
Page 16
User Manual
www.milesight.com
10
2.2 Setting the camera over the WAN
The camera could be connected to the WAN directly. You need to set the static or dynamic WAN IP
address assigned by the ISP (Internet Service Provider).
2.2.1 Static IP Connection
Connecting the network camera with static IP directly
You can also save the static IP in the camera and directly connect it to the internet without using a
router. Details are as follow.
Figure2-3 Connecting the network camera with static IP directly
Connecting the network camera via a router
Steps:
1. Connect the network camera to the router.
2. Assign a LAN IP address, the subnet mask and the gateway.
3. Save the static IP in the router.
4. Set port mapping, E.g., 80, 8000 and 554 ports. The steps for port mapping vary depending on different
routers. Please call the router manufacturer for assistance with port mapping.
5. Visit the network camera through a web browser or Milesight VMS over the internet.
Figure 2-4 Connecting the network camera via a router using static IP
2.2.2 Dynamic IP Connection
Connecting the network camera via a router
Page 17
User Manual
www.milesight.com
11
Steps:
1. Connect the network camera to the router.
2. In the camera, assign a LAN IP address, the subnet mask and the gateway.
3. In the router, set port mapping. E.g. 80, 8000 and 554 ports. The steps for port mapping vary
depending on different routers. Please call the router manufacturer for assistance with port
mapping.
4. Apply a domain name from a domain name provider.
5. Configure the DDNS settings in the setting interface of the router.
6. Visit the camera via the domain name.
Figure 2-5 Connecting the network camera via a router using dynamic IP
Page 18
User Manual
www.milesight.com
12
Chapter III Accessing the Network Camera
3.1 Assigning An IP Address
The camera must be assigned an IP address to be accessible. The default IP address of Milesight
network camera is 192.168.5.190. The default user name is admin, and password is ms1234.
You can either change the IP address of the camera via IPCTools or manually. Please connect the
camera in the same LAN of your computer.
3.1.1 Assigning An IP Address Using IPCTools
IPCTools is a software tool which can automatically detect multiple online Milesight network
cameras connected in the LAN, set IP addresses, and manage firmware upgrades. It’s
recommended when assigning IP addresses for multiple cameras.
Step 1: Install IPCTools (The software could be downloaded from CD.)

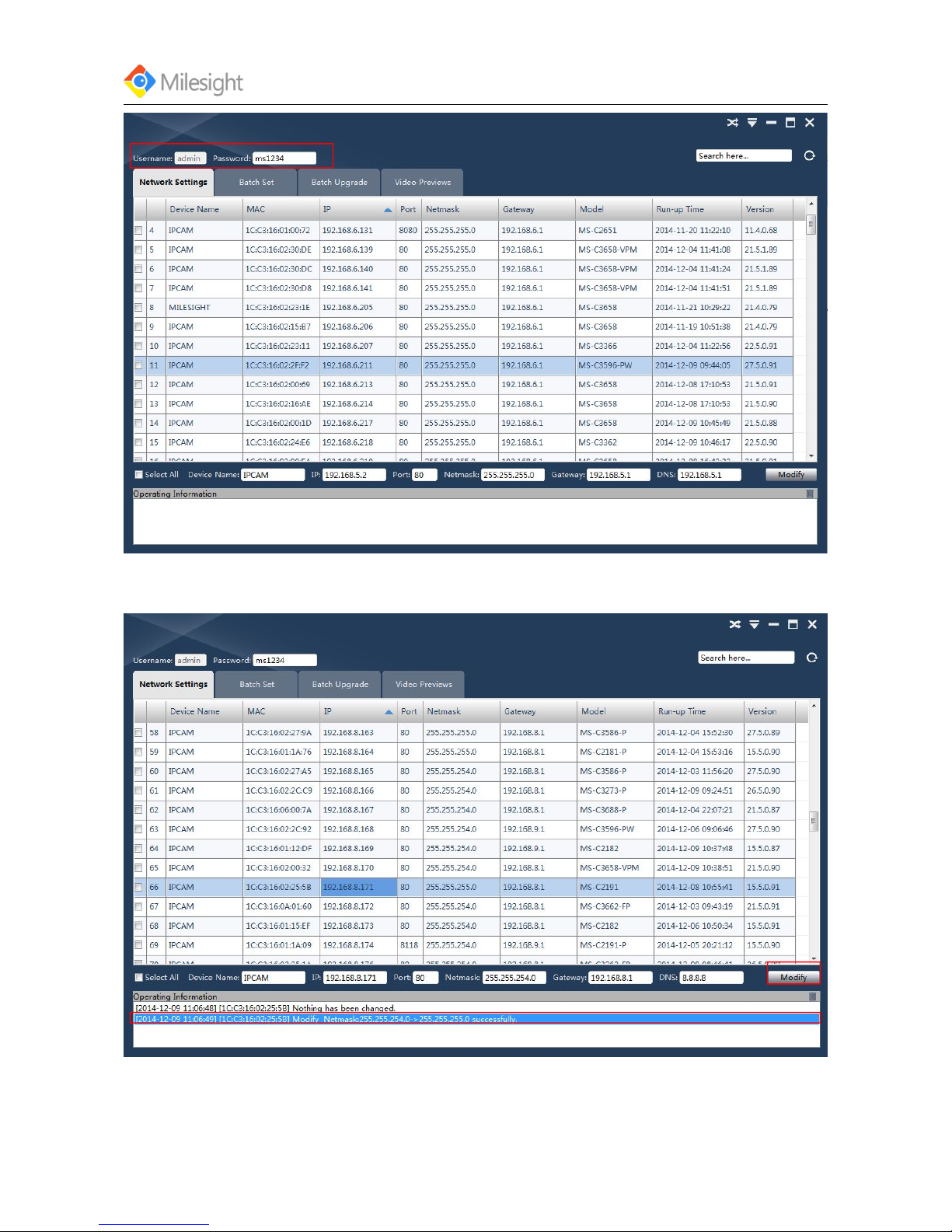

Step 2: Start IPCTools, and the device information including IP address, MAC address, Port number,
Netmask, and Gateway of all Milesight network cameras will be displayed. Details are
shown as Figure 3-1.
Figure 3-1
Step 3: Select a camera or multiple cameras according to the MAC address.
Page 19
User Manual
www.milesight.com
13
Figure 3-2 Select single camera
Figure 3-3 Select multiple cameras
Step 4: Type the User Name and Password (if they are not default value.)
Page 20
User Manual
www.milesight.com
14
Figure 3-4

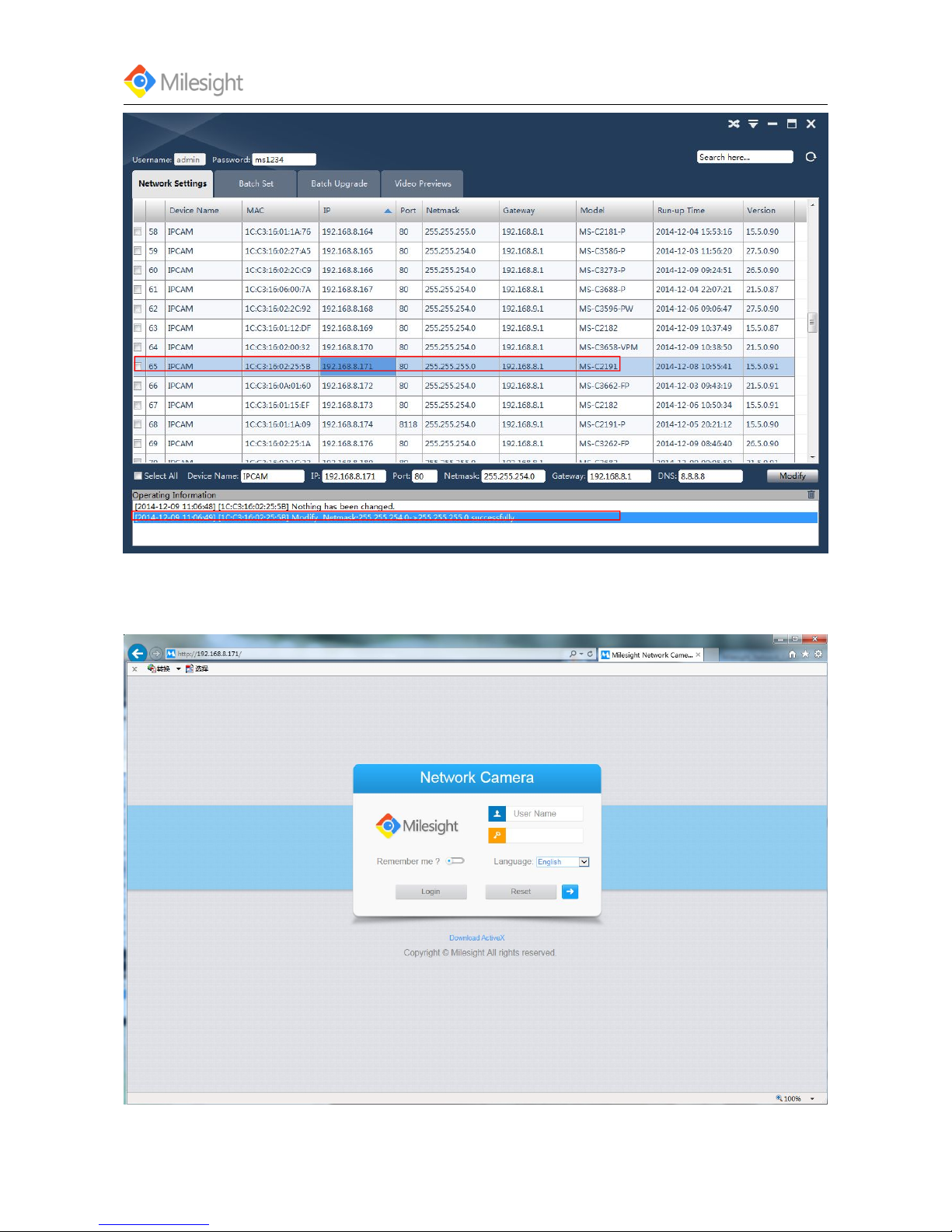

Step 5: Change the IP address or other network values, and then click “Modify” button.
Figure 3-5
Step 6: Change the IP address successfully.
Page 21
User Manual
www.milesight.com
15
Figure 3-6 Change IP address successfully
Step 7: By double clicking the selected camera, you can access the camera via web browser directly.
The Internet Explorer window will pop up.
Page 22
User Manual
www.milesight.com
16
Figure 3-7
3.1.2 Assign An IP Address Manually
If the network segments of the computer and that of the camera are different, please follow the
steps to change the IP address:
Step 1: Change the IP address of computer to 192.168.5.0 segment.
a. Start-> Control Panel->Network and Internet Connection->Network Connection->Local Area
Connection, and double click it. (See Figure3-8)

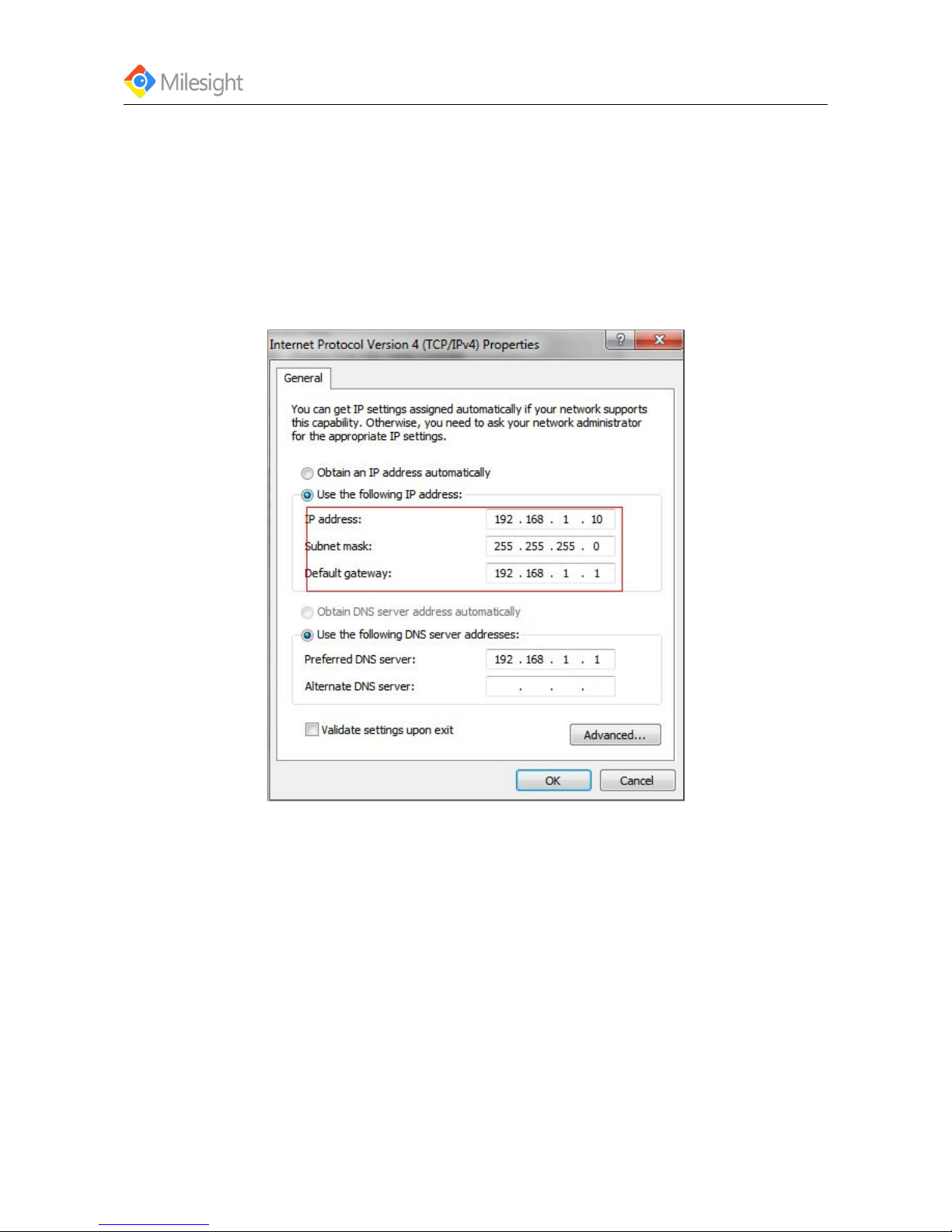

Figure 3-8

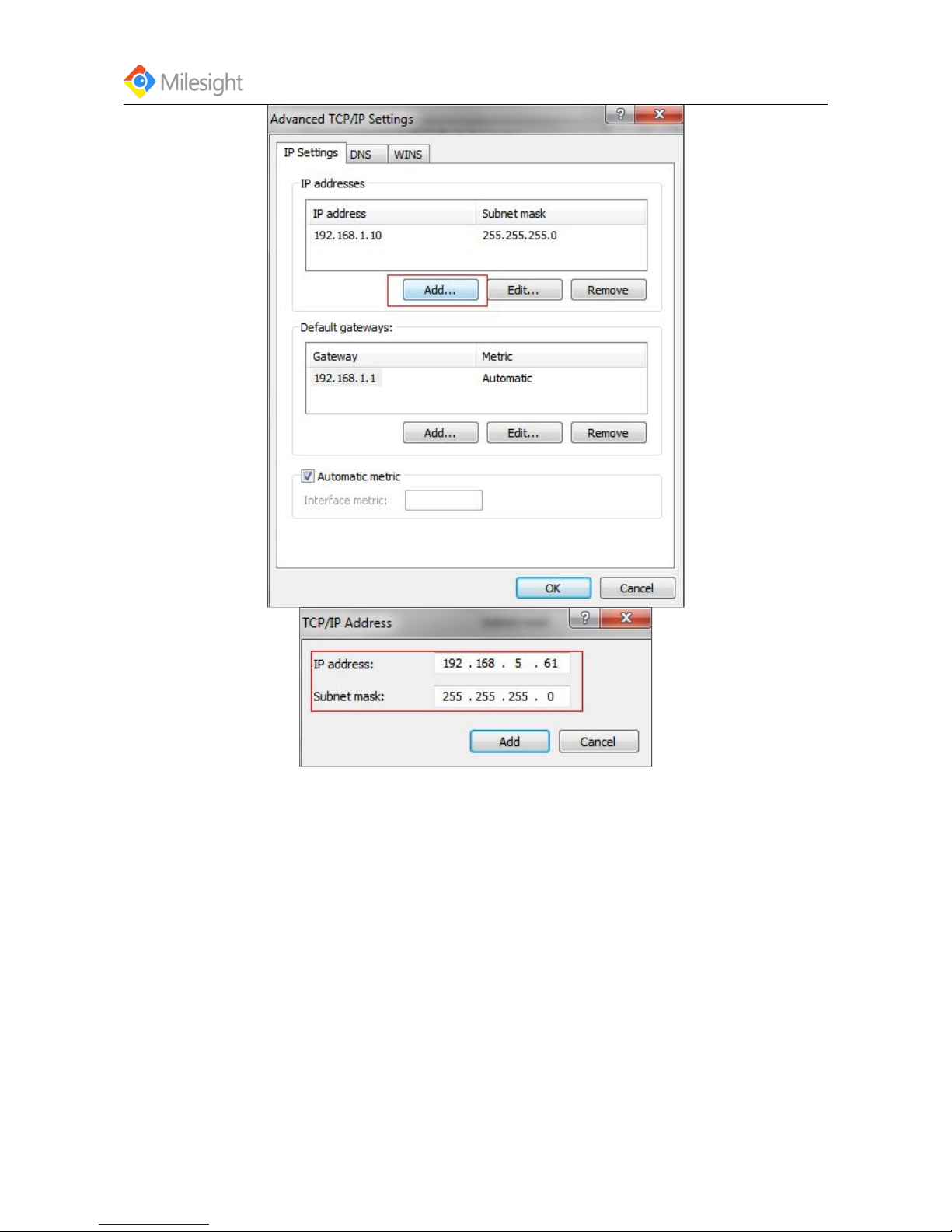

b. Click “Advanced”, and then click “IP settings”->”IP address”->”Add” (See Figure 3-9). In the
popup window, enter an IP address with a same segment with Milesight network camera (e.g.:
192.168.5.61, but please note that this IP address shall not conflict with the IP address on the
existing network), see Figure 3-9.
Page 23
User Manual
www.milesight.com
17
Figure 3-9
Step.2: Start the browser. In the address bar, enter the default IP address of the camera:
http://192.168.5.190.
Step.3: Enter the user name and password when the login page appears.
Default user name: admin
Default password: ms1234
Page 24
User Manual
www.milesight.com
18
Figure 3-10
Step.4: After login, please select the “Configuration””Basic Settings””Network”. The Network
Settings page appears. (Shown as Figure 3-11)
Figure 3-11
Page 25
User Manual
www.milesight.com
19
Step.5: Change the IP address or other network values. Then click “Save” button.
Step.6: The change of default IP address is completed.
3.2 Accessing from the Web Browser
The camera can be used with the most standard operating systems and browsers. The
recommended browsers are Internet Explorer, Firefox, Chrome, Safari.
3.2.1 Access over IE Browser

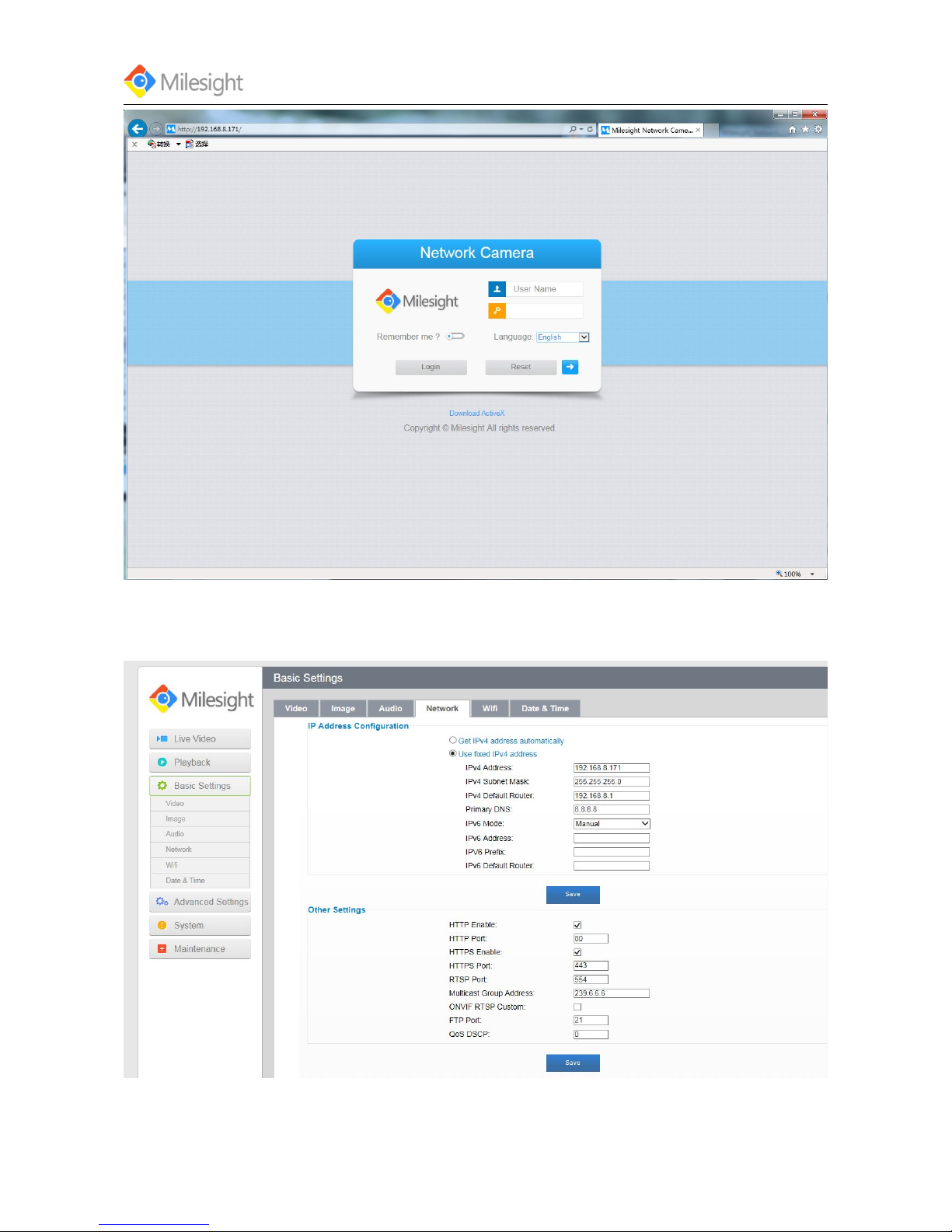

Launch the IE browser and enter the IP address of the camera.
Enter the User Name and Password and click “Login”.
Note: The default user name is “admin”, password is “ms1234”

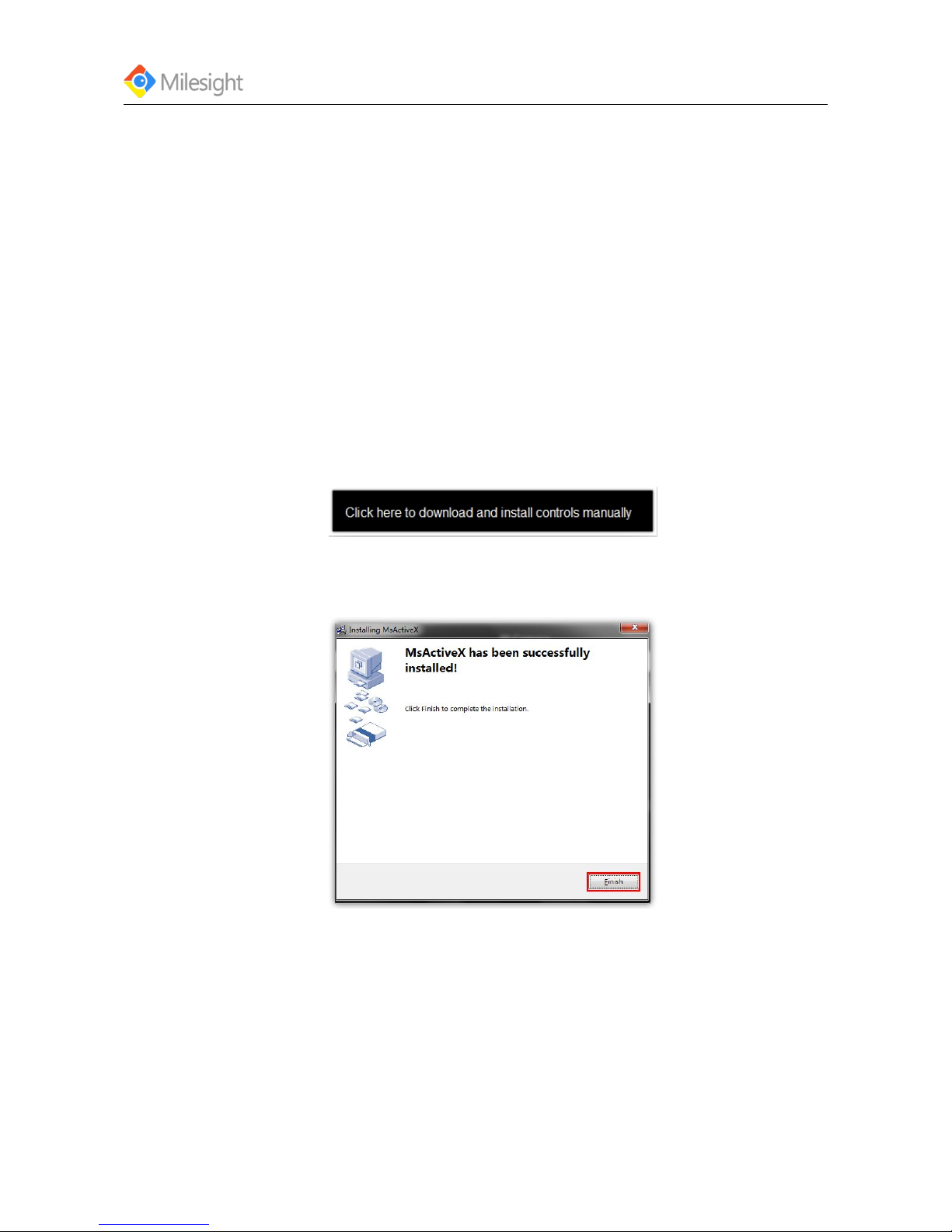

At the first time to log on the device, the browser will prompt to install controls, please click
'Click here to download and install controls manually' as Figure 3-12.
Figure 3-12
Follow the prompts to install the controls, when it`s finished, it will pop out a window as
Figure 3-13. Please click 'Finish' and refresh the browser, then you will see the video.
Figure 3-13
Note: If IE9or higher version browser is used, it is suggested that the Milesight camera web link
should be added as a trusted site. See the instructions as below:

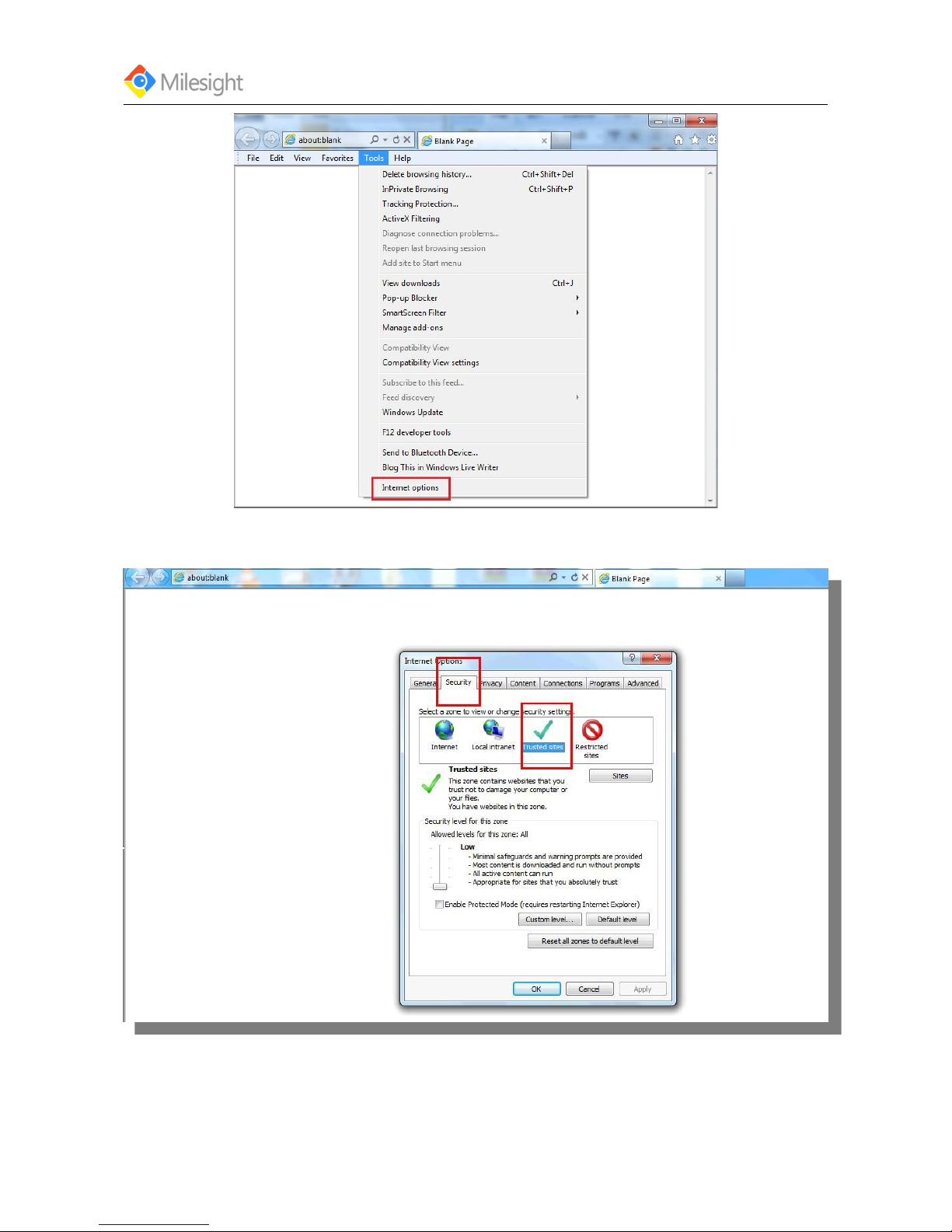

Step 1: Start the IE9 or higher version browser, and select “Tools”select“Internet Options”.
Page 26
User Manual
www.milesight.com
20
Figure 3-14

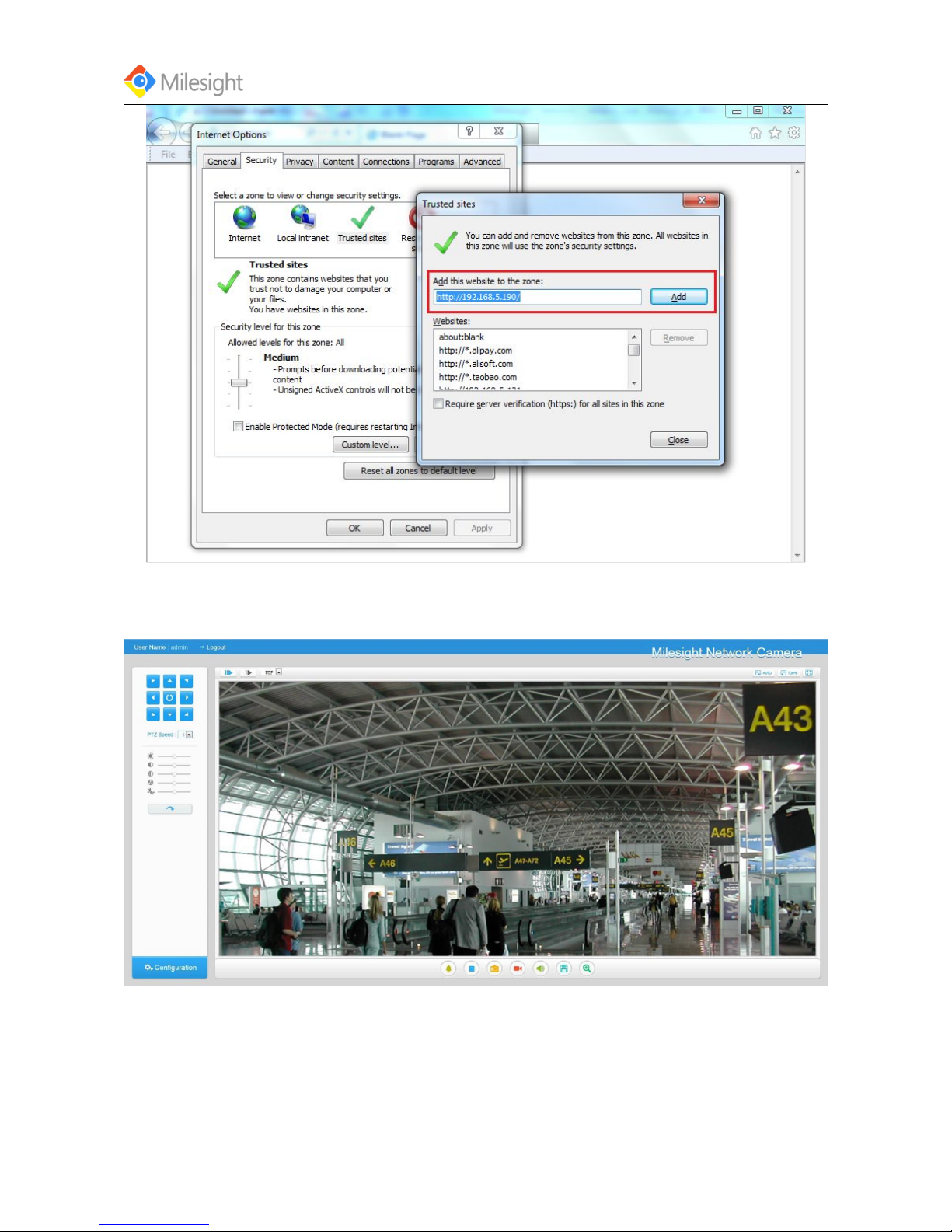

Step 2: Select “Security””Trusted
Figure 3-15
Step 3: Enter the IP address of the camera in the blank and click “Add”
Page 27
User Manual
www.milesight.com
21
Figure 3-16
Step4: Enter the IP address. After logging on IP camera`s web GUI successfully, user is allowed to
view live video as bellow.
Figure 3-17
3.3 Accessing from Milesight VMS (Video Management Software)
MilesightVMS(ONVIF compatible) is a handy and reliable application designed to work with IP
Page 28
User Manual
www.milesight.com
22
cameras in order to provide video surveillance, recording settings and event management
functions. The interface of MilesightVMS is very easy to use, intuitive, with easy access to the most
common activities, such as viewing live video, searching through recordings and exporting videos
and snapshots. It's able to integrate with other devices through ONVIF and you can connect up to
64 cameras. It is designed to work on Windows XP/7/8/Vista/Server 2000/Server 2008.The
software is contained in the CD or could be downloaded from our website www.milesight.com.
Please install Milesight VMS; then launch the program to add the camera to the channel list. For
detailed information about how to use the software, please refer to user manual of Milesight VMS.

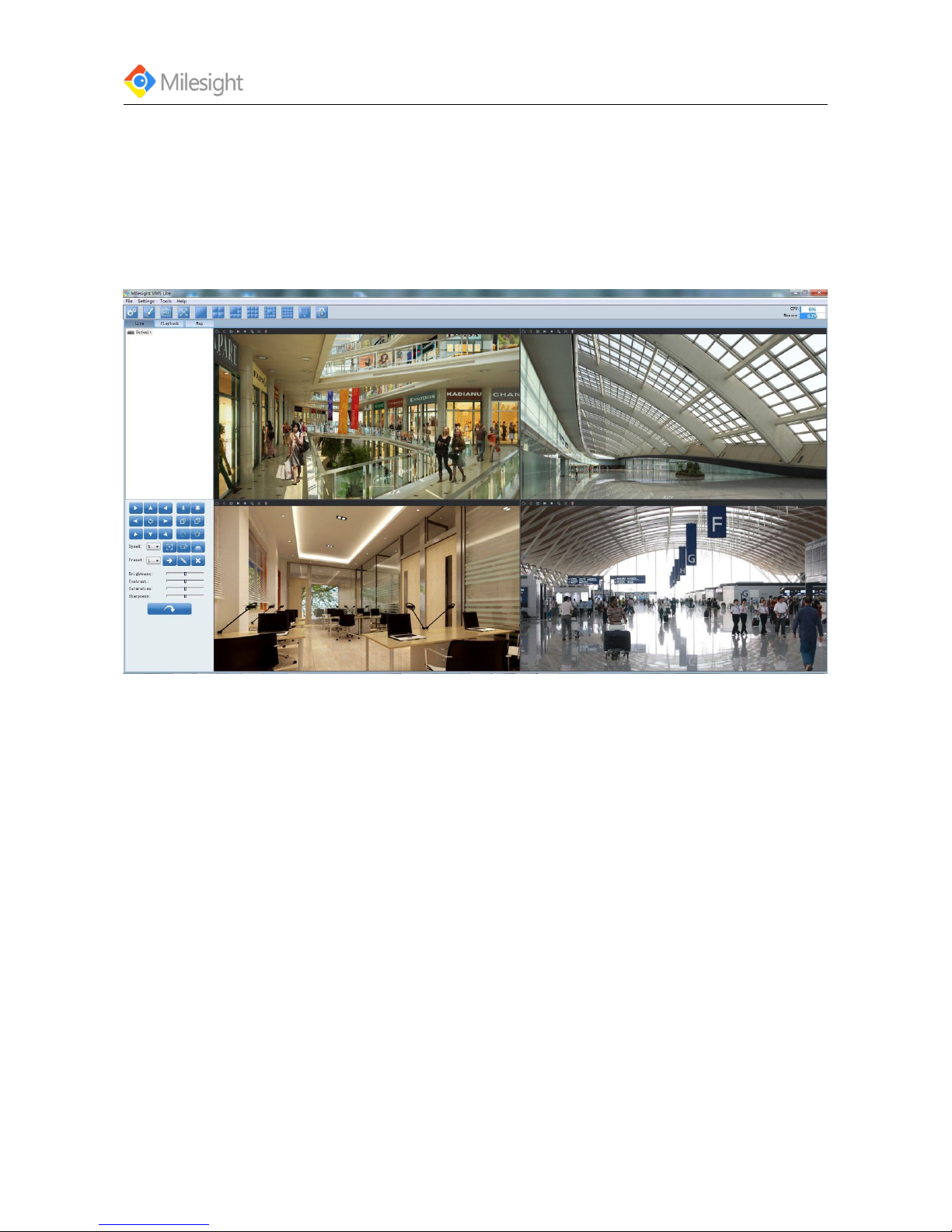

Figure 3-18
Page 29
User Manual
www.milesight.com
23
Chapter IV System Operation Guide
4.1 Live Video
After logging on the network camera web GUI successfully, user is allowed to view live video as
bellow.

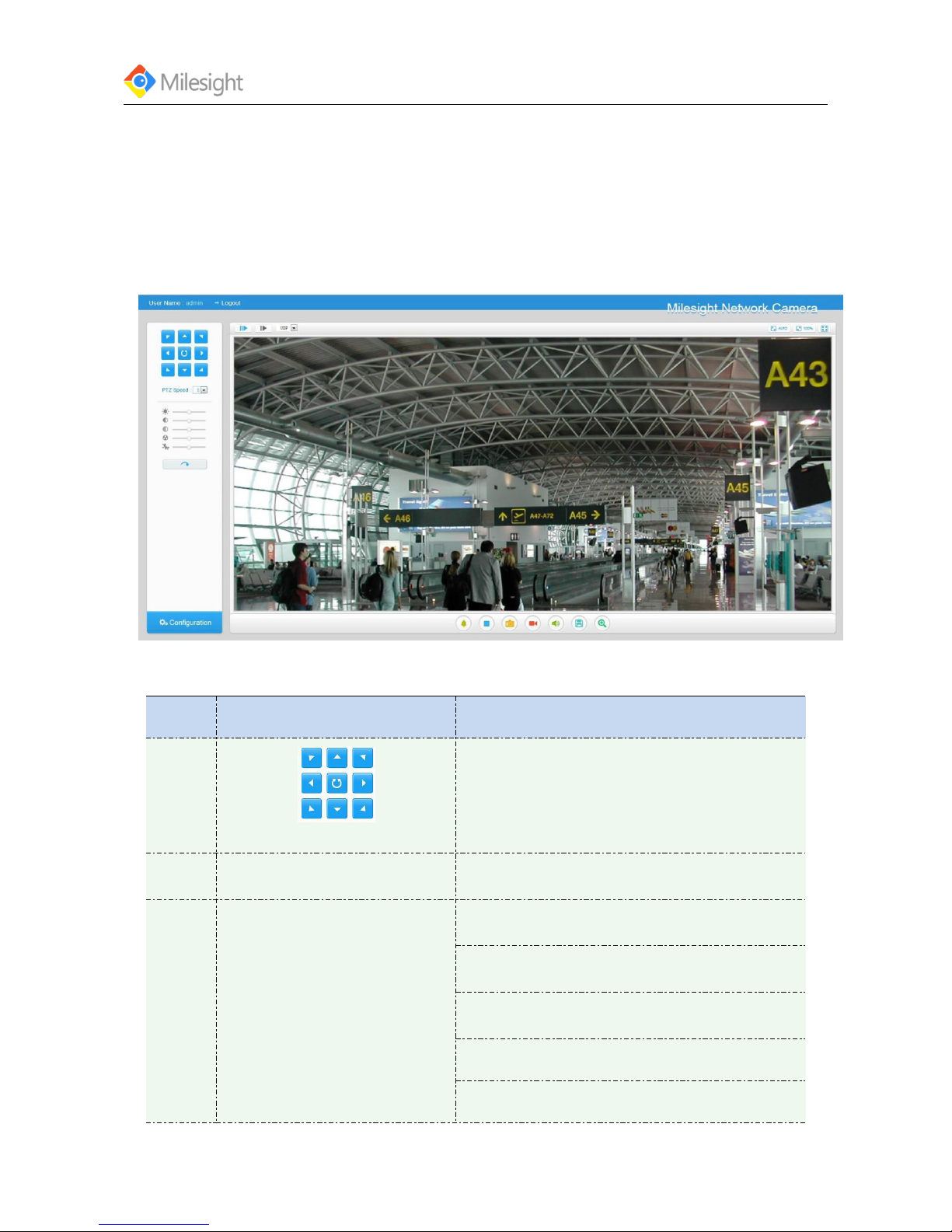

Figure 4-1 Live view interface

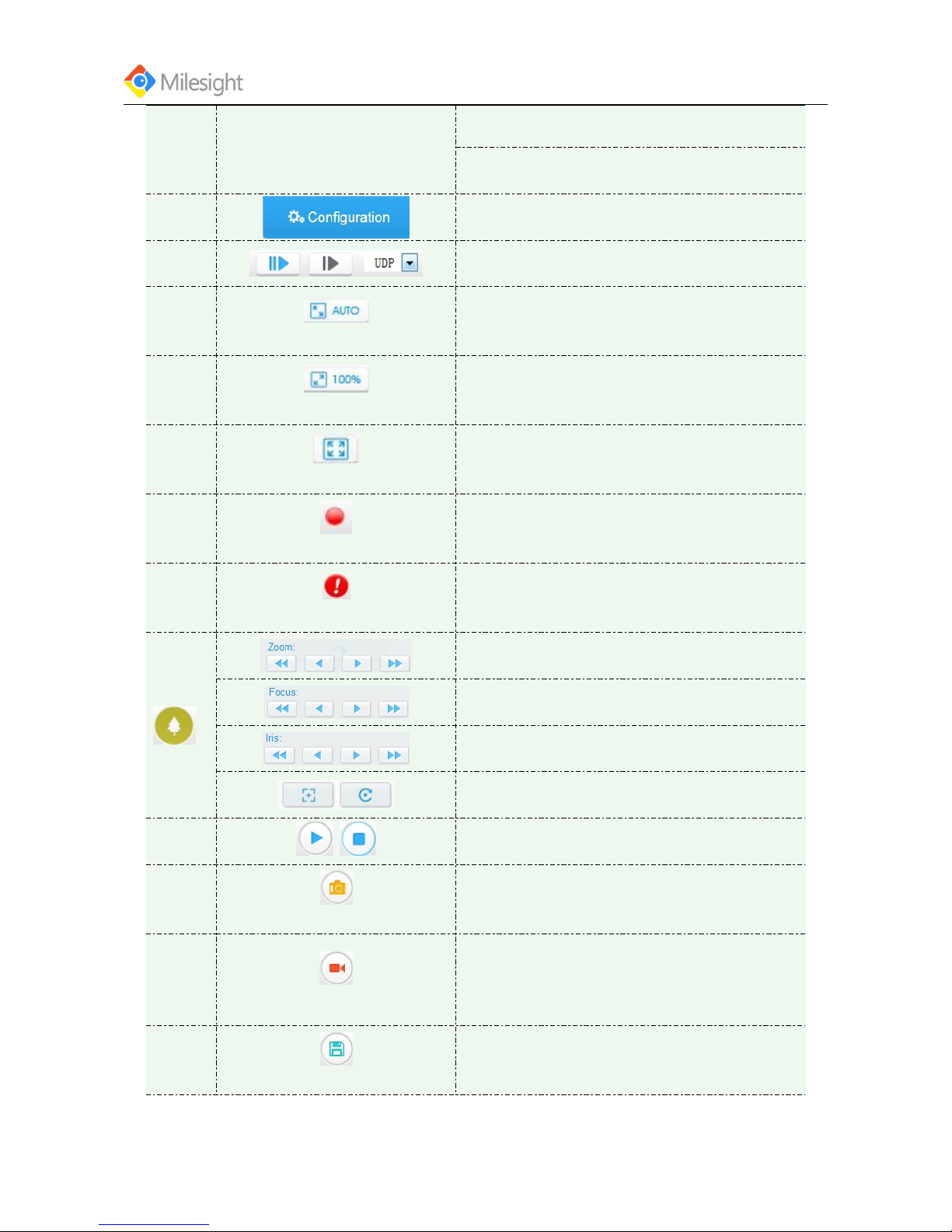

Table 4-1 Description of the buttons
No. Parameter Description
○
1
PTZ Control
Navigation key is used to control the direction.
The rotation key is used for auto-rotation
○
2
PTZ Speed PTZ rotation speed control
○
3
Image Adjustment
Brightness A brighter scene appears, if a
higher level of brightness is chosen
ContrastThe difference in color and light
between parts of an image
Saturation A more vivid scene appears, if a
higher level of saturation is chose
Sharpness Make image more sharp
Noise Reduction Level Adjust the noise
Page 30
User Manual
www.milesight.com
24
reduction level
Default Settings Restore brightness,
contrast and saturation to default settings
○
4
Click to access the configuration page
○
5
Choose the Stream to show on the current
video window
○
6
Window size
Click to display images in a window size
○
7
Real size
Click to display images in a real size
○
8
Full Screen
Click to display images in a full-screen
○
9
Recording
When an alarm causes recording, the icon will
turn red
○
10
Alarm
When enabled, an alarm occurs, the icon will
turn red
Adjust the focal length of the lens
Adjust focus of the lens
Adjust the size of IRIS
Auxiliary Focus and Lens Initialization
○
12
/
Start/Stop live view
○
13
Capture
Click to capture the current image and save to
the configured path. Default path is
C:VMS\+-1\ IMAGE-MANUAL
○
14
Start Recording
Click to start recording video and save to the
configured path. Default path is C:
VMS\+-1\MS_Record. Click again to stop
recording
○
15
Saving Path Settings
Set the saving path for capture and recording
Page 31
User Manual
www.milesight.com
25
○
16
Play Audio
Enable Audio Input/output. It can also be set
in Audio configuration page
○
17
Enable Zoom
When enabled, you can zoom in on a specific
area of video image with your mouse wheel
○
18
E-PTZ
Able to use PTZ to move the position(only
support under 720P with MS-C26XX or
MS-C36XX)
4.2 Playback
Purpose:
This section explains how to view the remotely recorded video files stored in the SD cards or the
network disks.
Steps:
1. Click Playback on the menu bar to enter playback interface.

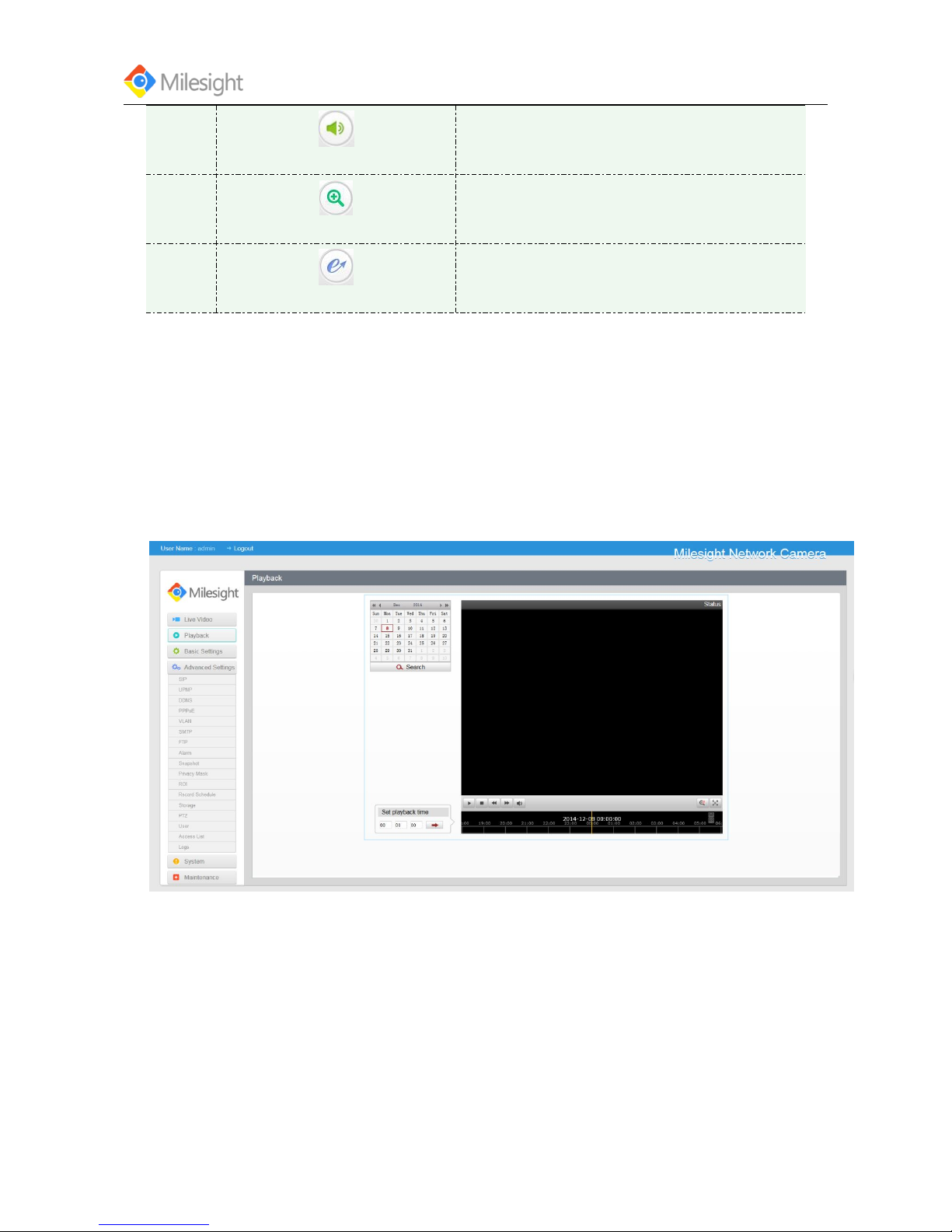

Figure 4-2 Playback interface

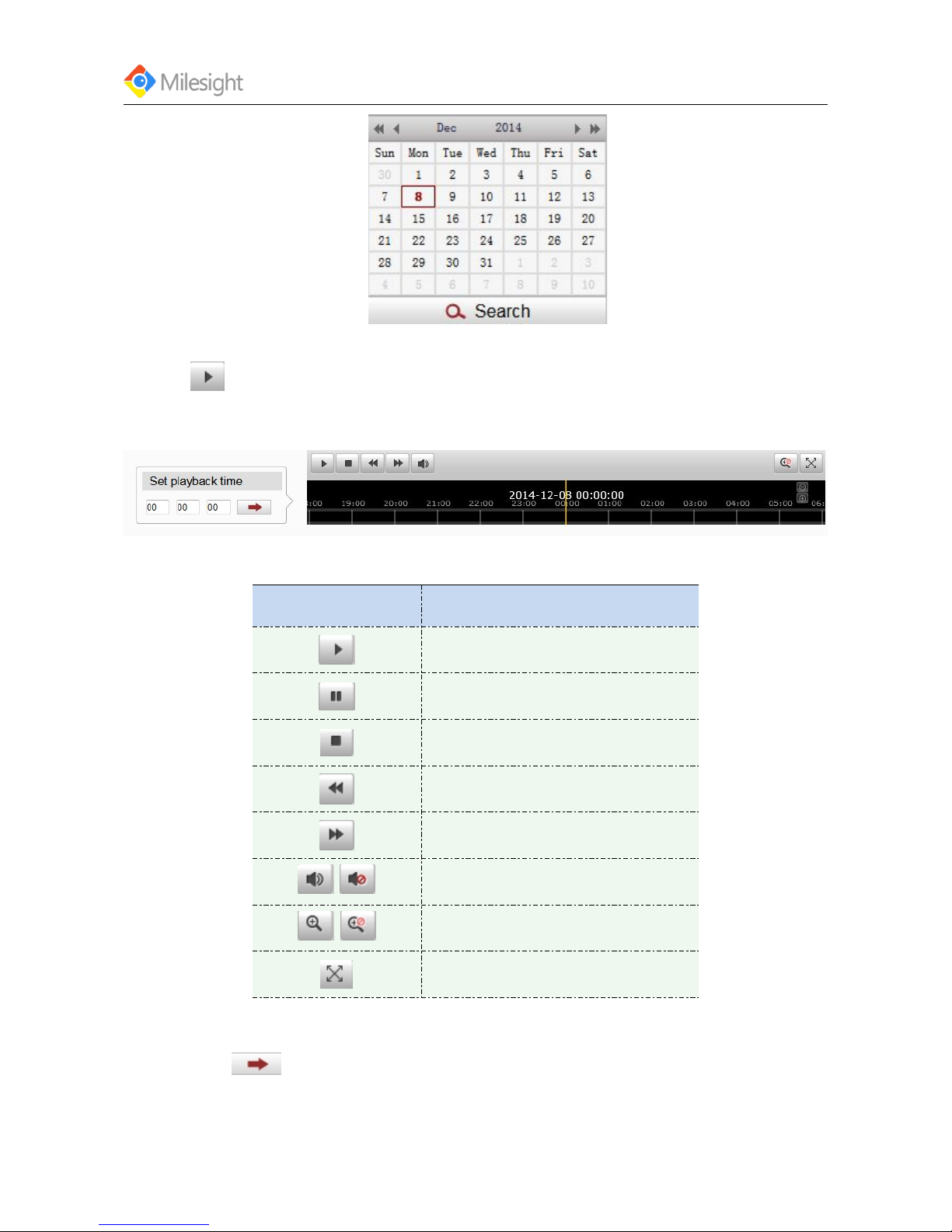

2. Select the date and click Search.
Page 32
User Manual
www.milesight.com
26
Figure 4-3 Search Video
3. Click to play the video files found on this date.
The toolbar on the buttom of playback interface can be used to contrlo playing progress.
Figure 4-4 Playback Toolbar
Table 4-2 Description of the buttons
Button Operation
Play
Pause
Stop
Speed down
Speed up
/
On/Off audio
/
Enable/Disable digital zoom
Full screen
Note:
Drag the progress bar with the mouse to locate the exact playback point.You can also input the
time and click to locate the playback point in the set playback time filed.You can also click
Page 33
User Manual
www.milesight.com
27
to zoom out/in the progress bar.
Figure 4-5 Set Payback Time
4.3 Basic Settings
4.3.1 Video

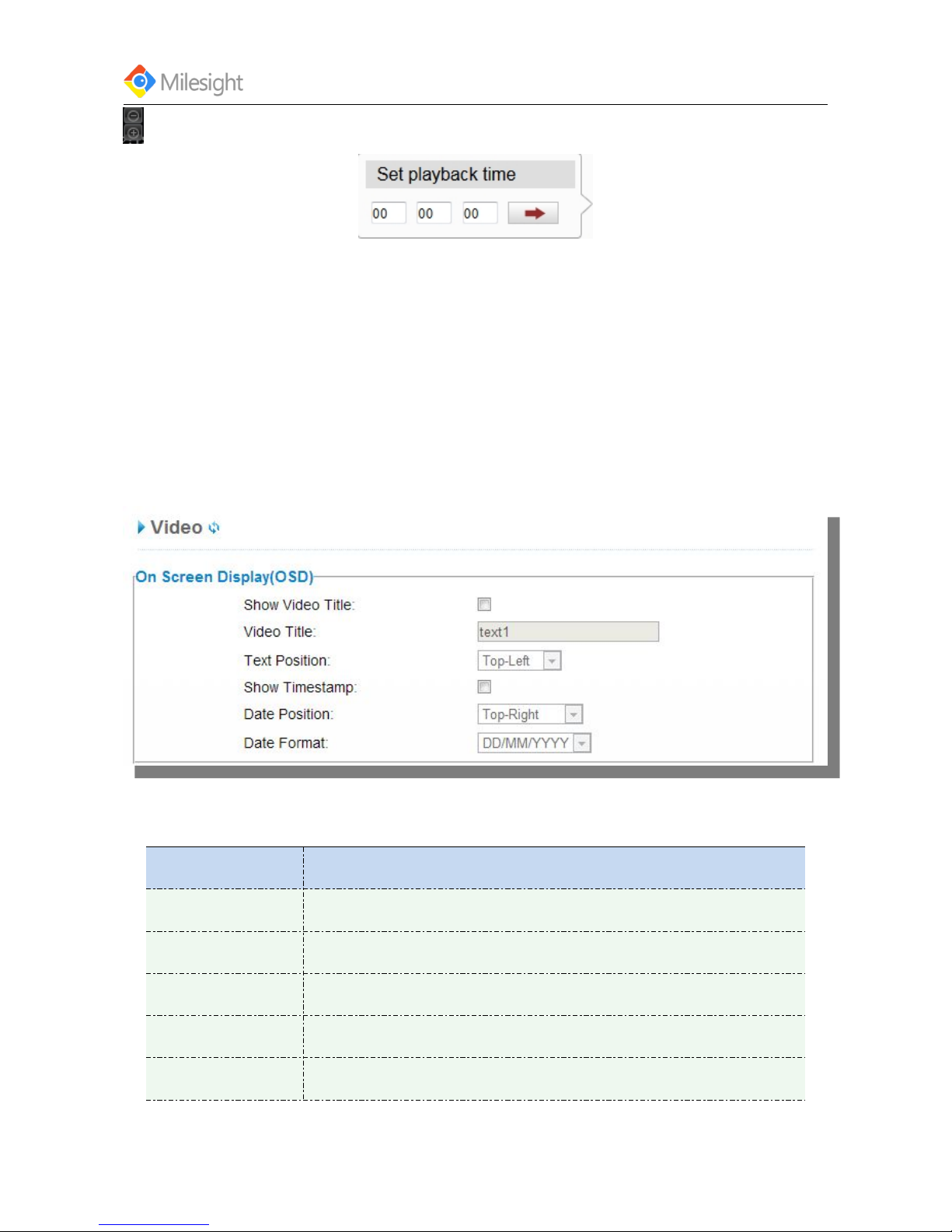

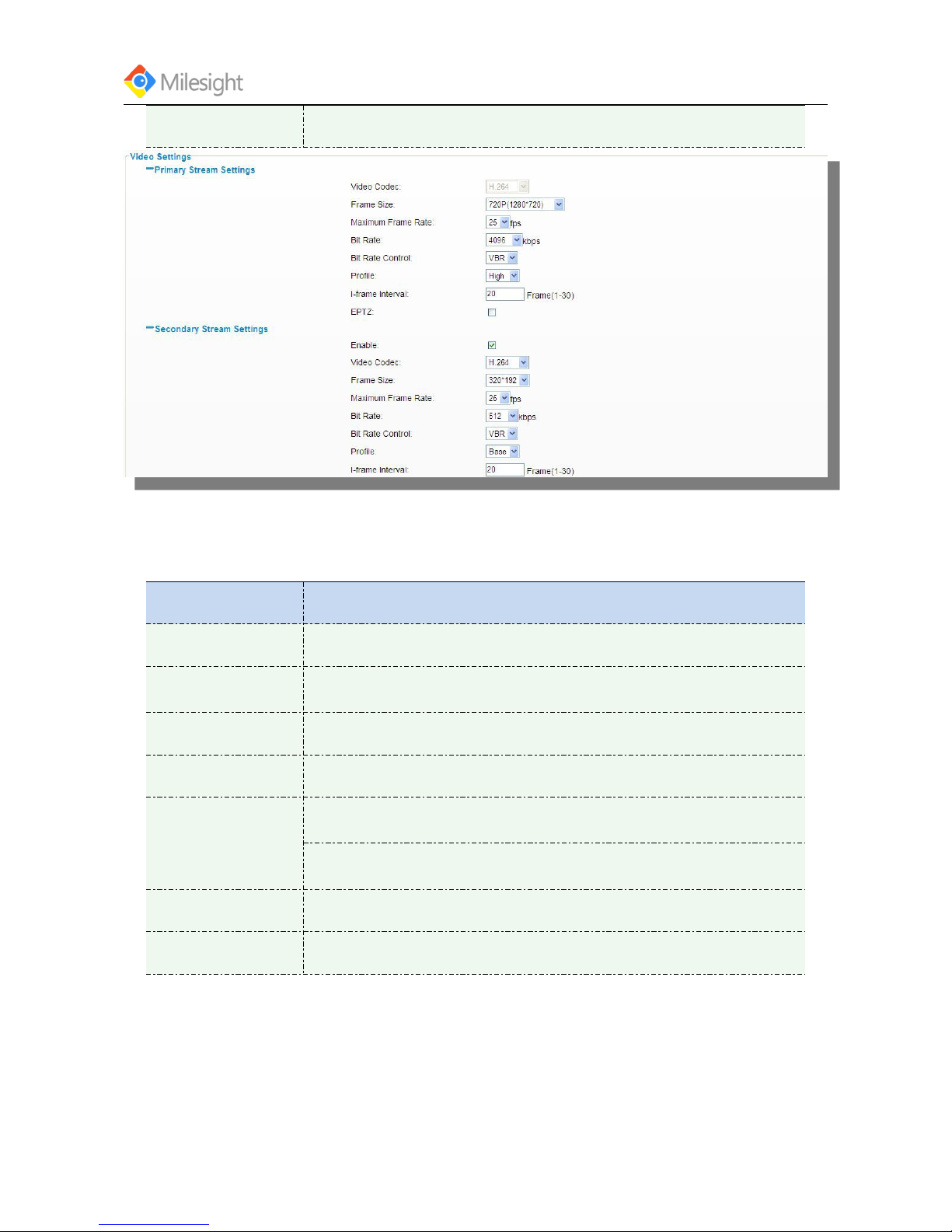

OSD (On Screen Display) content and video time can be displayed to rich the video information.
Stream parameters can also be set on this page, to adapt to different network environments and
demands.
Figure 4-6
On Screen Display(OSD)
Parameters Function Introduction
Show Video Title Check the checkbox to show video title
Video Title OSD content customized
Text Position OSD display position on the image
Show Timestamp Check the checkbox to display date on the image
Date Position Date display position on the image
Page 34
User Manual
www.milesight.com
28
Date Format The format of date
Figure 4-7
Primary Stream Settings
Parameters Function Introduction
Video Codec H.264/MPEG-4/MJPEG available (Main stream only support H.264)
Frame Size
Options include 5M(2560 × 1920), 3M(2048 × 1536), 1080P(1920×
1080), 2M(1600 ×1200), 1.3M(1280×960), 720P(1280×720),D1 (704×576)
Maximum Frame Rate Maximum refresh frame rate of per second
Bit Rate Transmitting bits of data per second
Bit Rate Control
CBR : Constant Bitrate. The rate at which a codec's output data should be
consumed is constant
VBR : Variable Bitrate. VBR files vary the amount of output date per time
segment
Profile The option of codec, select Base/Main/High according to your needs
I-frame Interval Set the I-frame interval to 1~30
Note:
The options of Frame Size are variable according to the model selected.
Page 35
User Manual
www.milesight.com
29
Secondary Stream Settings
Parameters Function Introduction
Enable Click to enable the secondary steam
Video Codec H.264/MPEG-4/MJPEG available
Frame Size
The optional resolutions of the secondary stream depend on theCodec of the
primary stream and the secondary stream
Maximum Frame Rate Maximum refresh frame rate of per second
Bit Rate Transmitting bits of data per second
Bit Rate Control
CBR : Constant Bitrate. The rate at which a codec's output data should be
consumed is constant
VBR : Variable Bitrate. VBR files vary the amount of output date per time
segment
Profile The option of codec, select Base/Main/High according to your needs
I-frame Interval Set the I-frame interval to 1~30
4.3.2 Image
Figure 4-8
Page 36
User Manual
www.milesight.com
30
Figure 4-9

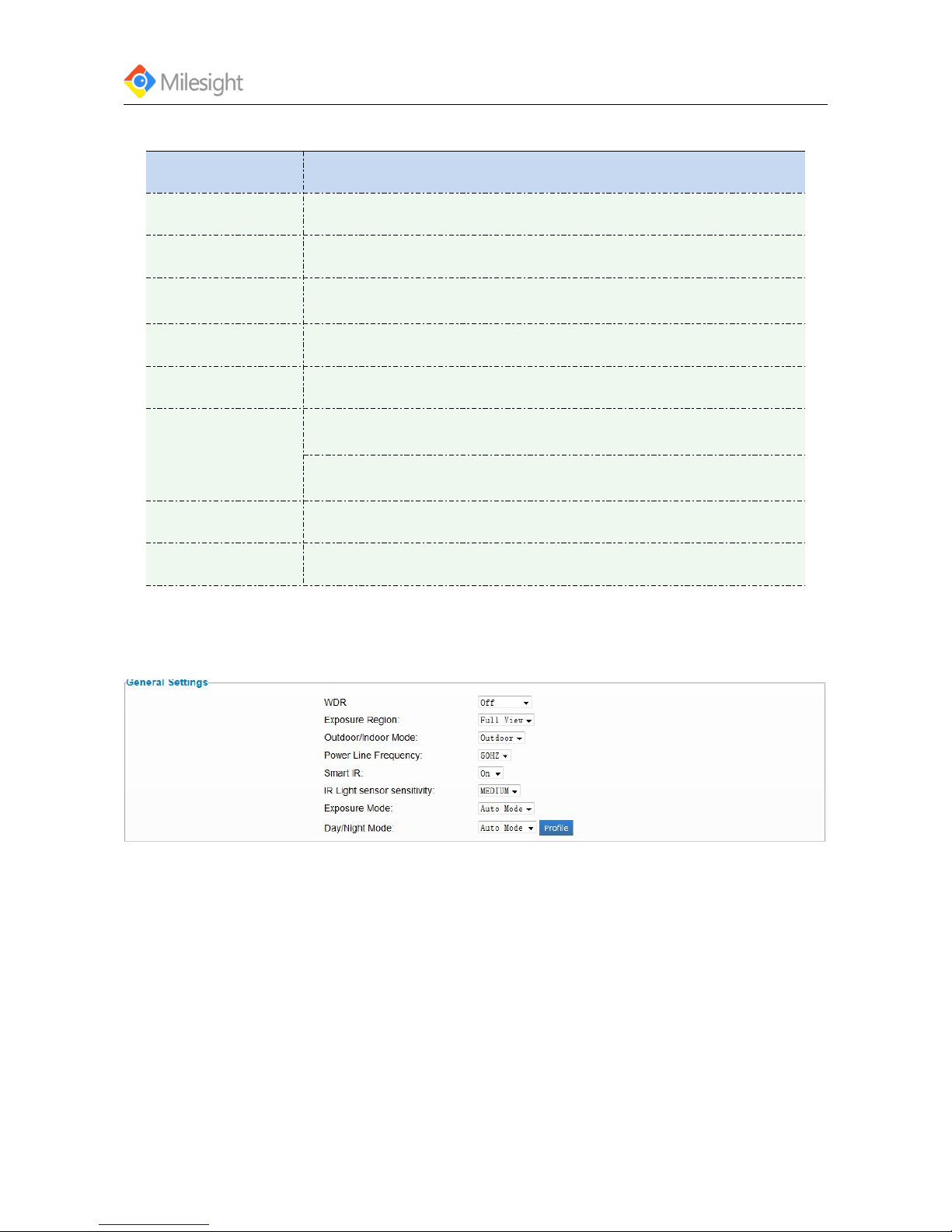

General Settings
Parameters Function Introduction
Wide Dynamic Range
This function enables the capture and display of both bright and dark areas in
the same frame, in a way that there aredetails in both areas
Off: Disable WDR function
On: Enable WDR function
Customize: Customize the time when the WDR function will be enabled
Exposure Region
Full View, Custom, and BLC are selectable
Full view: Calculate the full range of view and offer appropriate light
compensation
Custom: This option enables you to add customized windows as inclusive or
exclusive regions manually
BLC (Back Light Compensation): This option will automatically add an
inclusive region in the middle of the window and give the necessary light
compensation
Outdoor/Indoor
Mode
Select indoor or outdoor mode according to your needs
Power Line Frequency 60HZ flicker for NTSC mode and 50HZ flicker for PAL mode
Smart IR
Gives user an option to turn On/Off the IR LED.Select smart IR on, and the IR
LED changes according to the actual luminance.
Page 37
User Manual
www.milesight.com
31

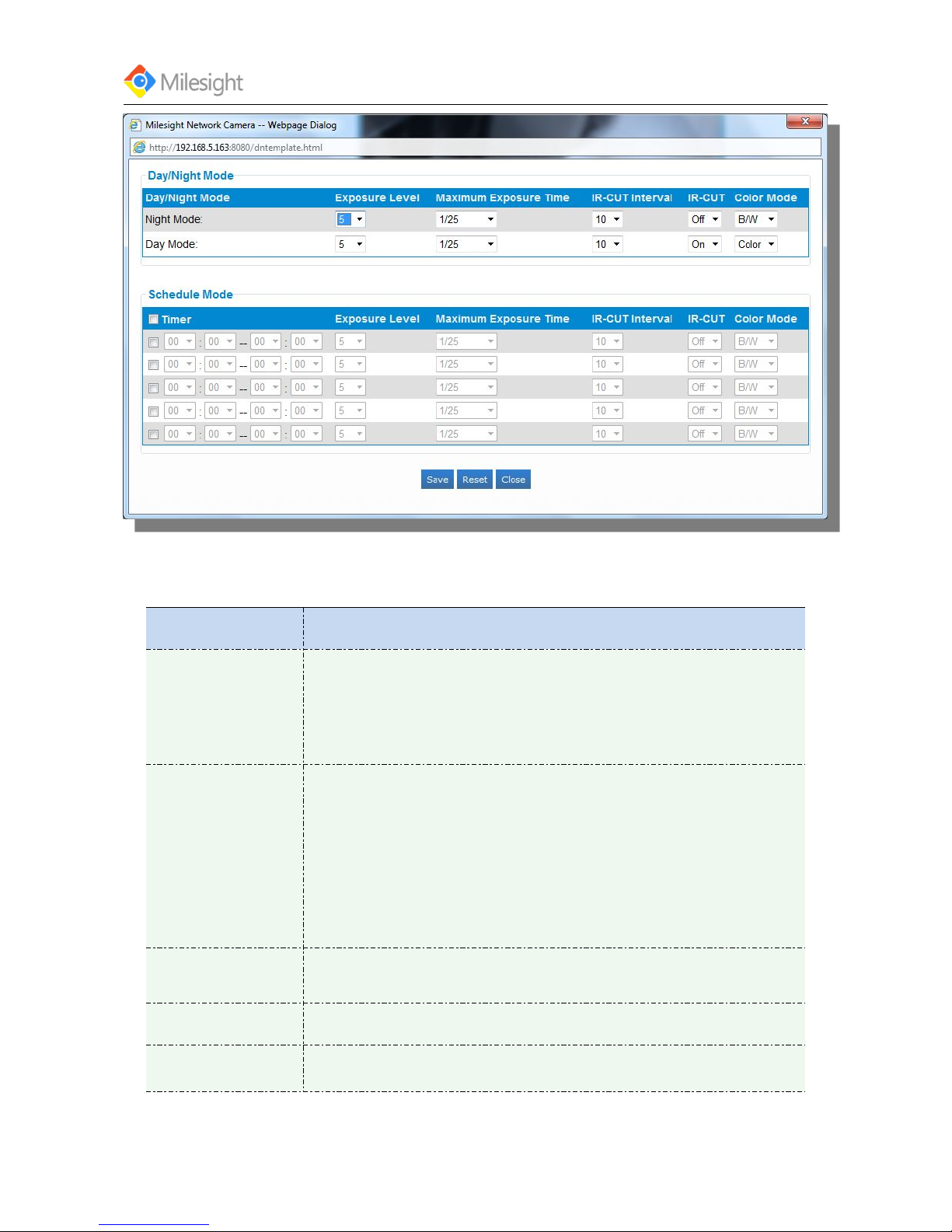

Exposure Mode
Auto mode/Cu
stomize mode.If you choose customize mode,the camera
adjusts the brightness according to the value you set.The higher the value,the
brighter the image is.
Maximum Exposure
Time
Set the maximum exposure time to 1/5~1/100000
IR-CUT Interval IR-CUT switch time between each mode
IR-CUT Choose to turn on or turn off under the mode
Color Mode Here can choose B/W or color mode under Day/Night mode
Schedule Mode
Here you can customize your special demands for different time, then the Day
mode and Night mode will switch according to your settings
Note:
Wide Dynamic Range The function is only applicable for models MS-C23XX,
MS-C33XX.
Figure 4-10

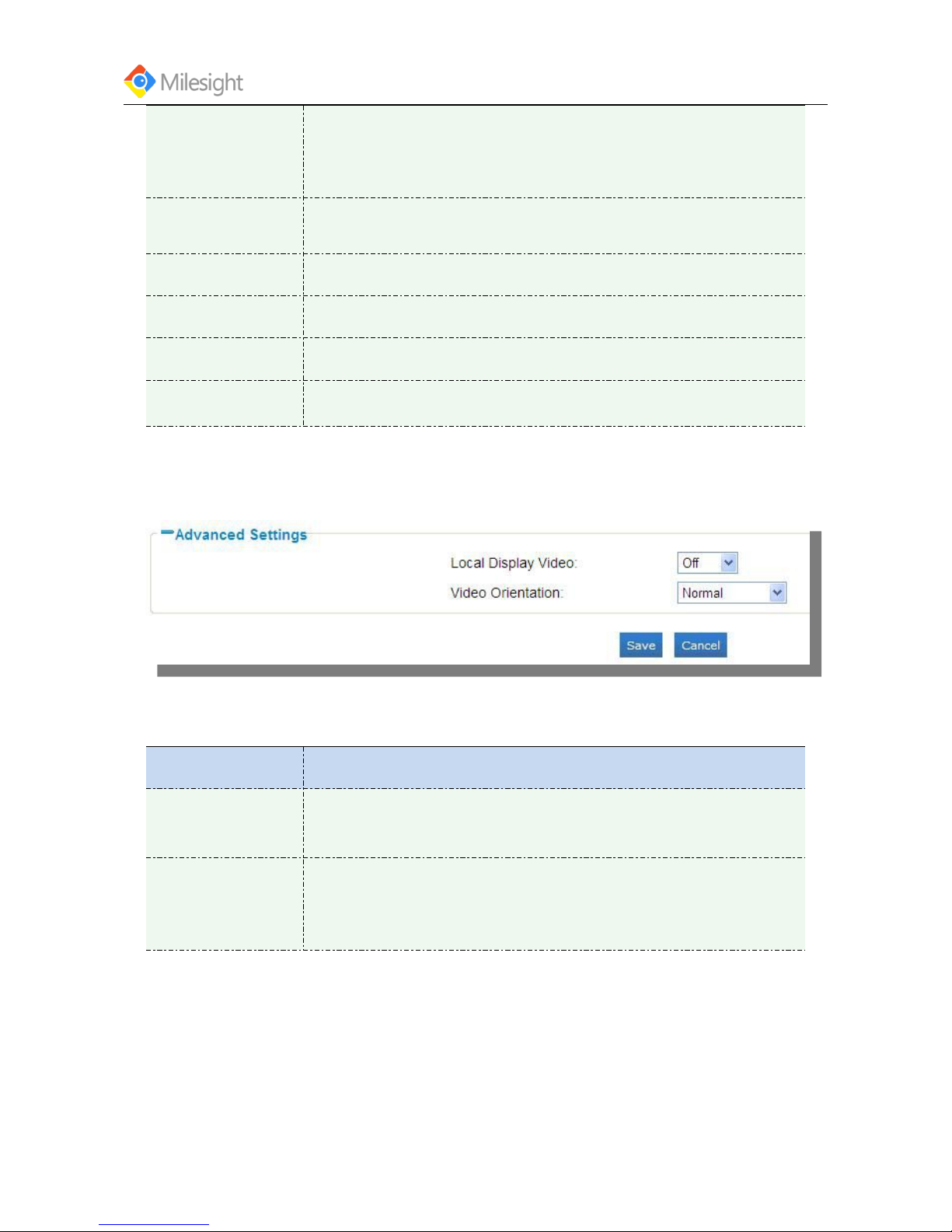

Advanced Settings
Parameters Function Introduction
Local Display Video
Off: Switch off the Video
NTSC: Switch video to NTSC standard
PAL : Switch video to PAL standard
Video Orientation
Normal: Remain the image in normal direction
Flip Horizontal: Flip the image horizontally
Flip vertical: Flip the image vertically
Rotating 180°: The images is presented upside down
4.3.3 Audio
Audio input and output can work with alarms to achieve various alarm functions. Alarm
willbetriggered when there is audio input or play the configured audio when an alarm occurs.
Page 38
User Manual
www.milesight.com
32

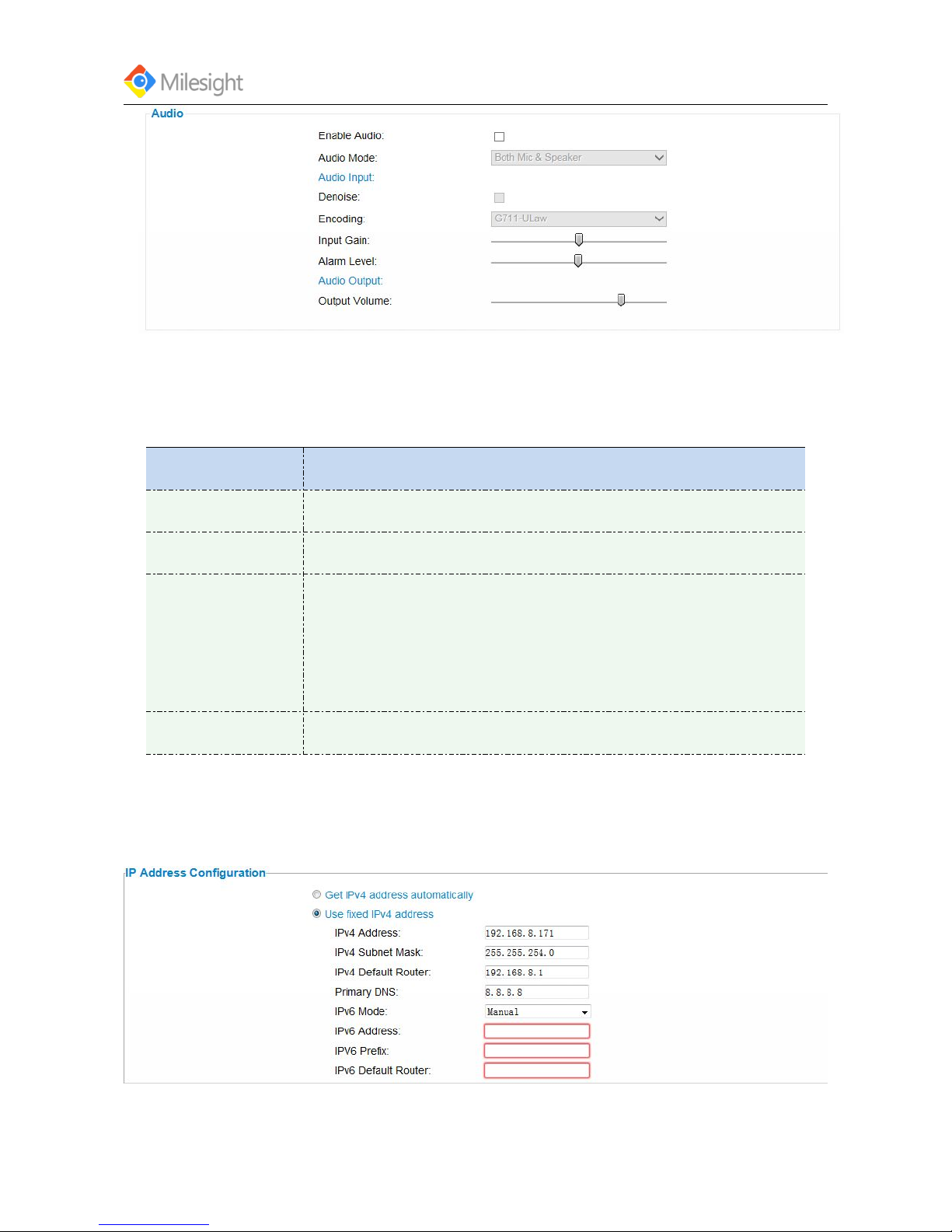

Figure 4-11
Audio
Parameters Function Introduction
Enable Audio Check on the checkbox to enable audio feature
Audio Mode Enable audio input/output
Audio Input
Denoise:Set it as On/Off.When you set the function on the noise detected can
be filtered
Encoding:G711-Ulaw,G711-Alaw and AAC LC are selectable.
Input Gain:Input audio gain level ,0-100
Alarm Level:Alarm will be triggered if voice alarm is enabled and input gained
volume is higher than the alarm level,0-100
Output Volume The volume of alarm audio output
Note: The Audio mode and audio output is only for certain modules.
4.3.4 Network
Figure 4-12
Page 39
User Manual
www.milesight.com
33
IP Address Configuration
Parameters Function Introduction
Enable DHCP Get an IP address from the DHCP server automatically
Use fixed IP
address
IPv4 Address: Address used to identify a network camera on the network
IPv4 Subnet Mask: It is used to identify the subnet wherethe network camera
is located
IPv4 Default Router: The default router address
Primary DNS: The DNS Server translates the domain name to IP address
IPv6 Mode: Choose different mode for IPv6:Manual/Route Advertisement/
DHCPv6
IPv6 Address: IPv6 Address used to identify a network camera on the
network
IPv6 Prefix: Define the prefix length of IPv6 address
IPv6 Default Router : The default router IPv6 address

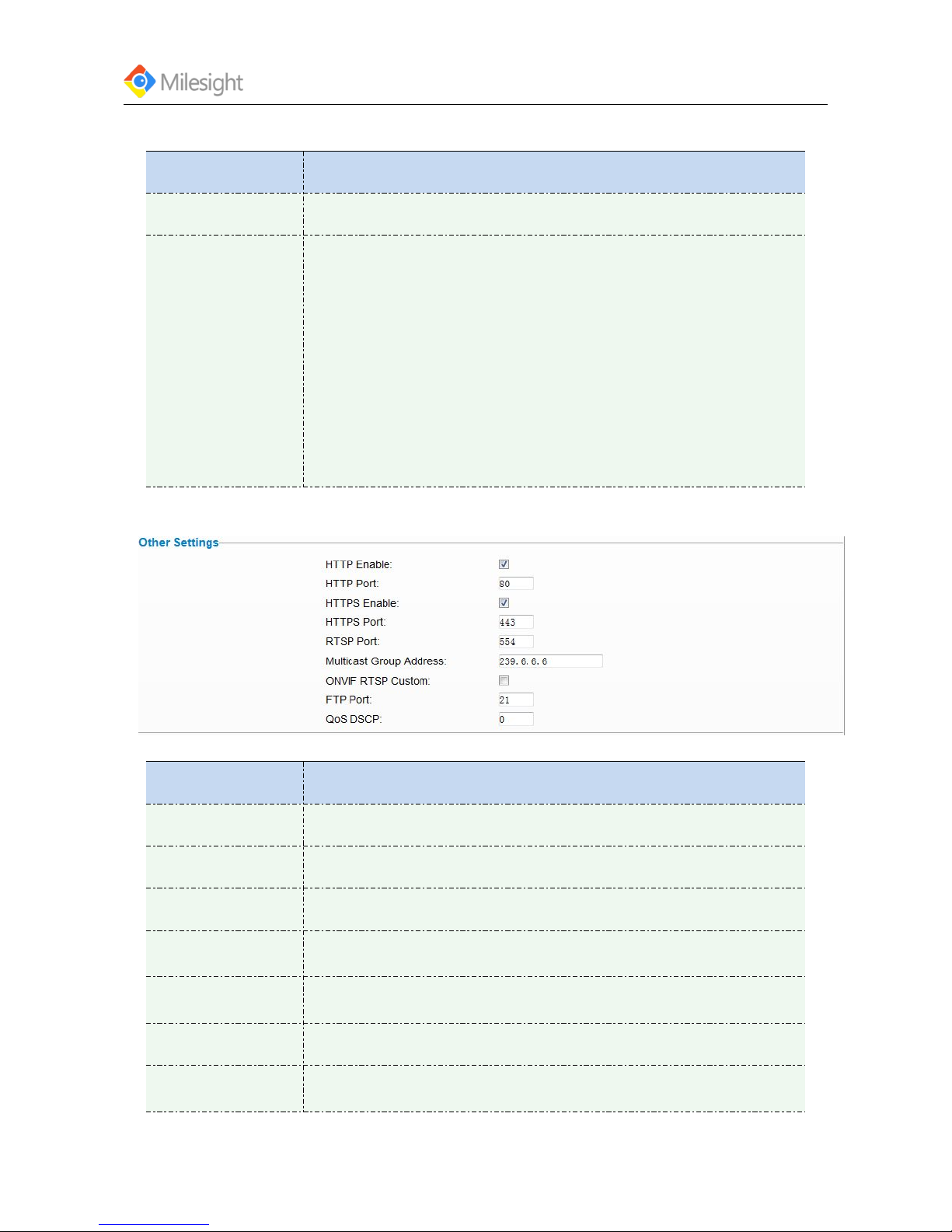

Other Settings
Figure 4-13
Parameters Function Introduction
HTTP Enable Start or stop using HTTP
HTTP Port Web GUI log on port, the default is 8080
RTSP Port Web GUI log on port via HTTPS, the default is 443
Multicast Group
Address
Support multicast
ONVIF RTSP Custom
If you want to remote access the camera via ONVIF, you need to enter your
public IP here
FTP Port The port of the FTP. Generally it is 21
QoS DSCP
The valid value range of the DSCP is 0-63.The bigger the DSCP value is ,the
higher the priority is.
Page 40
User Manual
www.milesight.com
34
Note:1)DSCP refers to the Differentiated Service Code Point;and the DSCP value is used in the IP
header to indicate the priority of the data.
2)A reboot is required for the settings to take effect.
4.3.5 Wi-Fi*

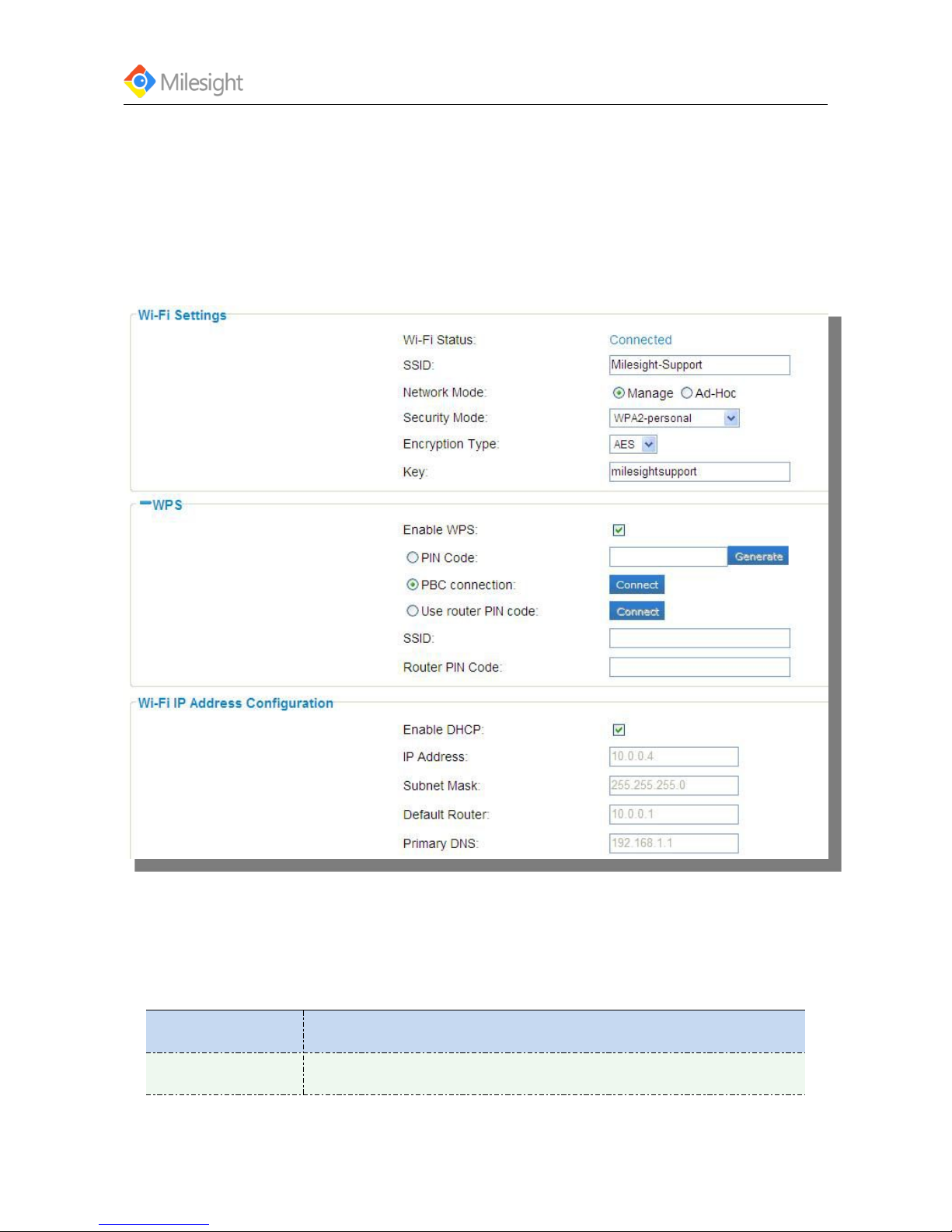

Figure 4-14
WI-FI Settings*
Parameters Function Introduction
WI-FI Status Connected/Disconnected
Page 41
User Manual
www.milesight.com
35
SSID WIFI source
Network Mode WI-FI option for Manage and Ad-Hoc mode
Key Enter the password of WI-FI connection
Security Mode Select WI-FI connection security mode
Encryption Type WI-FI encryption type
Key Password for WI-FI
WPS(Wi-Fi Protected Setup)
Originally Wi-Fi Simple Config, it’s a network security standard that allow users to easily secure a
wireless home network. the goal of the protocol is to allow home users who know little of
wireless security and may be intimidated by the available security options to set up Wi-Fi
Protected Access, as well as making it easy to add new devices to an existing network without
entering long passphrases.
PIN Method
It’s a personal identification number (PIN) has to be read from either a sticker or the display on
the new wireless device. You can add the PIN code to the router or you add the Router PIN code
on this camera.
Push-Button-Method
The user simply has to push a button, either an actual or virtual one, on both the access point
and the new wireless client device. Support of this mode is mandatory for access points and
optional for connecting devices.
Enable WPS Enable or Disable WPS
PIN Code Click on the ‘Generate’ to get a code, you need to add this PIN
code to the router
PBC Connecting Connect via PBC button, click on the PBC button on the router,
then click ‘Connect’ button again
Use Router PIN Code Enter the router PIN code here, and also with the SSID
Note:
(1) WI-FI function is only applicable for box and cube cameras if purchased, WPS need supports
from WI-FI router.
(2) If you use Fixed IP, please set the IP same segment with WI-FI router .
Page 42
User Manual
www.milesight.com
36

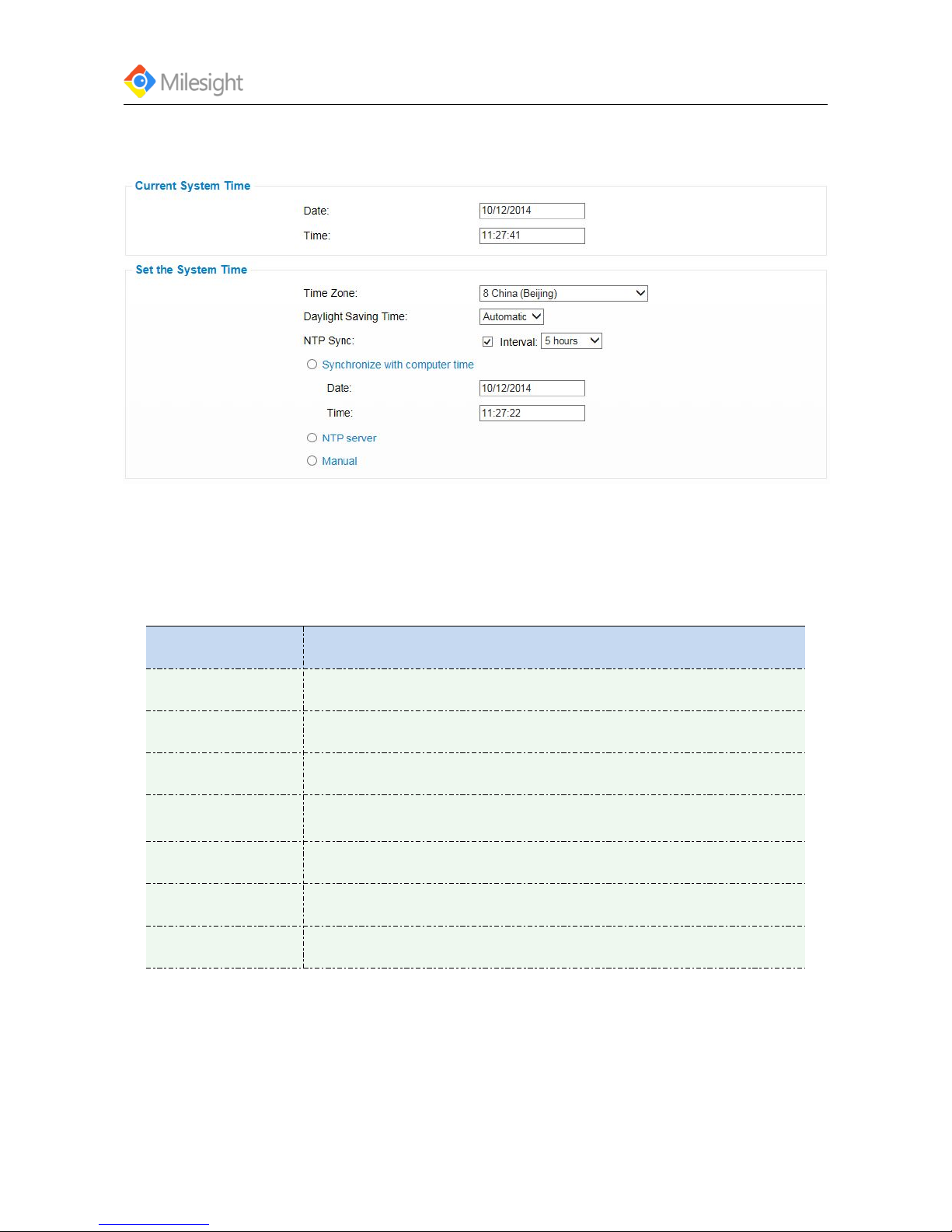

4.3.6 Date &Time
Figure 4-15
Current System Time
Current date &time of the system
Set the System Time
Parameters Function Introduction
Time Zone Choose a time zone for your location
Daylight Saving time Enable the daylight saving time
NTP Sync Regularly updated your time according to the interval time
Synchronize with
computer time
Synchronize the time with your computer
NTP server Select WI-FI connection security mode
Encryption Type Synchronize the time with configured SNTP server and selected time zone
Manual Set the system time manually
Page 43
User Manual
www.milesight.com
37
4.4 Advanced Settings
4.4.1 SIP
The Session Initiation Protocol (SIP) is a signaling communications protocol, widely used for
controlling multimedia communication sessions such asvoice and video calls over Internet
Protocol (IP) networks.
This page allows user to configure SIP related parameters.
Milesight cameras can be configured as SIP endpoint to call out when alarm trigged; or allow
permitted number to call in to check the video if the video IP phone is used.
To use this function, the settings in SIP page must be configured properly.
SIP can be achieved in two ways to get the video, the one is to dial the IP address directly, the
other one is account registration mode, the details are as follows:
Method 1: IP Direct mode
Dial on the camera’s IP address directly through SIP phone, so you can see the video (note: SIP
phone and the camera should in the same network segment)
Method2: Account registration mode
(1) Before using the SIP, you need to register an account for the camera from the SIP server;
(2) Register another user account for the SIP device from the same SIP server;
(3) Call the camera User ID from the SIP device, you will get the video on the SIP device.

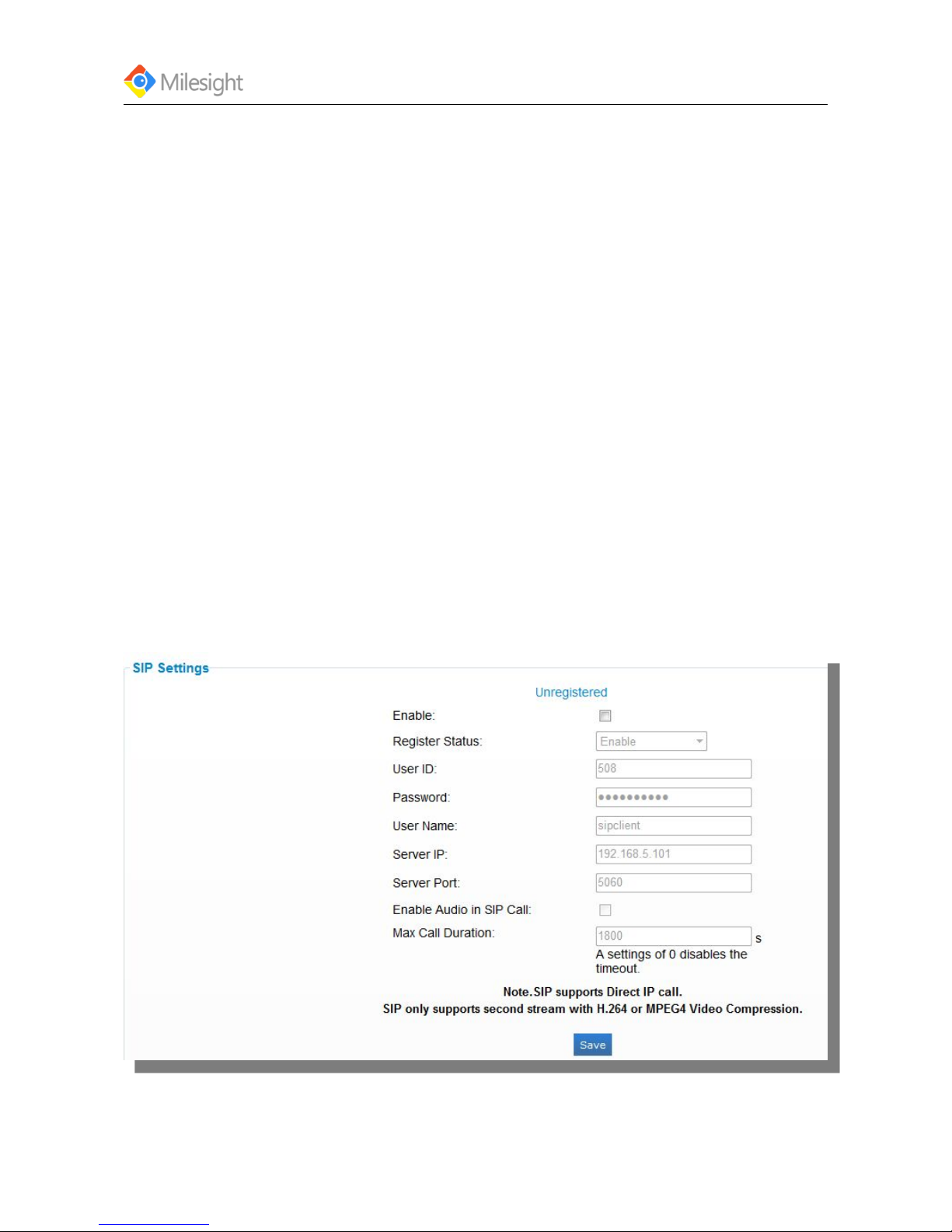

SIP Settings
Figure 4-16
Page 44
User Manual
www.milesight.com
38
Parameters Function Introduction
Unregistered/Register
ed
SIP registration status. Display “Unregistered” or “Registered”
Enable Start or stop using SIP
Register Status
Choose to use Enable mode or Disable mode. Enable mode means to use with
are sister account. Disable mode refers to use SIP without resister account,
just use the IP address to call.
User ID SIP username, or telephone number from ITSP
Password SIP account password
User Name SIP account name.
Server IP FQDN or IP of SIP server from VoIP service provider.(IPPBX)
Enable Audio in SIP
Call
Start or stop using Audio
Max Call Duration The max call duration when use SIP
Note: (1) SIP supports Directly IP call.
(2) SIP only supports second stream with H.264 or MPEG4 Video Compression.

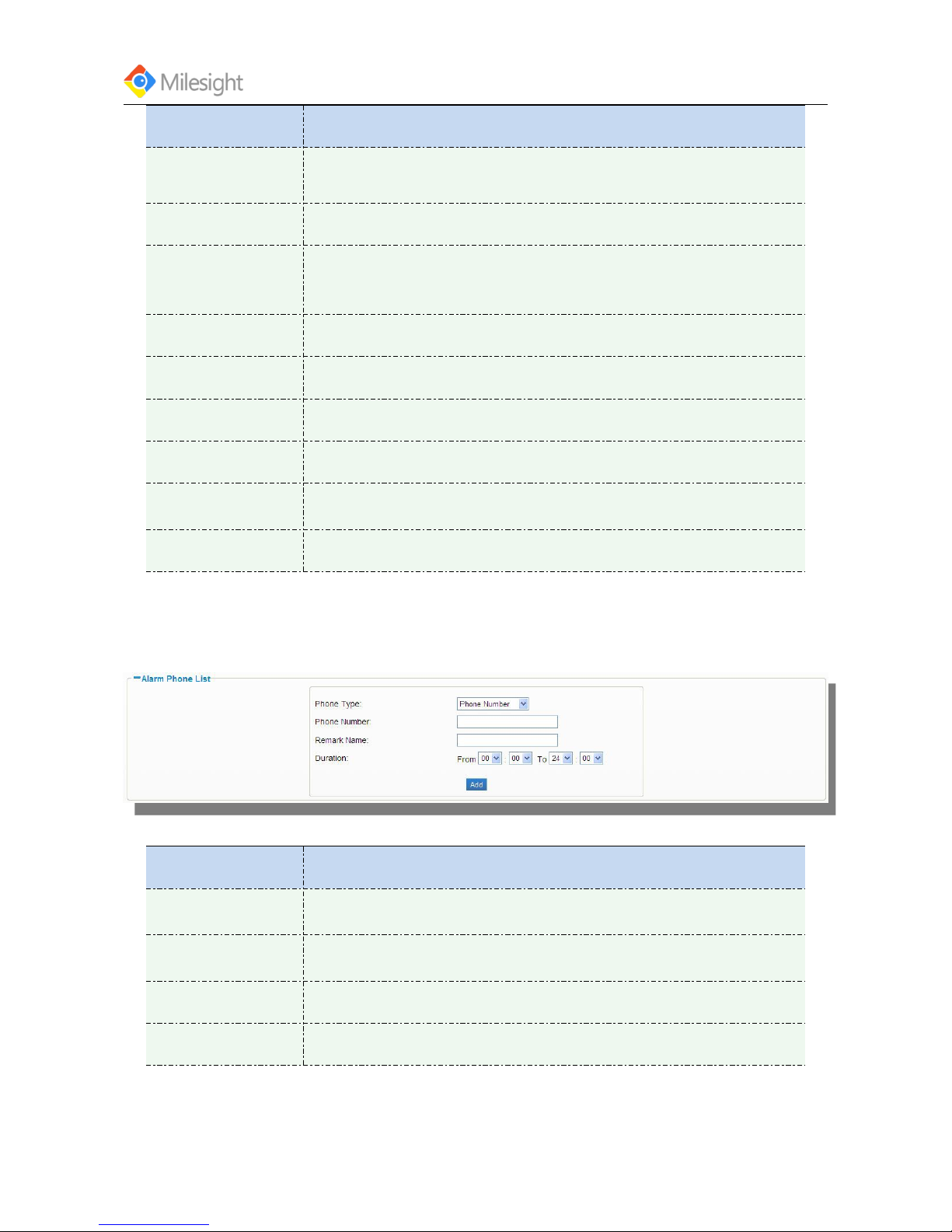

Alarm Phone List
Figure 4-17
Parameters Function Introduction
Phone Type
Phone Number (Call by phone number) & Direct IP Call (Check to accept peer
to peer IP call).
Phone Number/IP
Address
Call by phone number or IP address.
Remark Name Display name.
Duration The time schedule to use SIP.
Page 45
User Manual
www.milesight.com
39
White List
Figure 4-18
Parameters Function Introduction
Phone Type Phone Number (Call by phone number) & Direct IP Call
Phone Number/IP
Address
Including the phone number or IP address on the whitelist
Enable White List
Number Filter
When enabled, only the designated phone number or IP address can visit

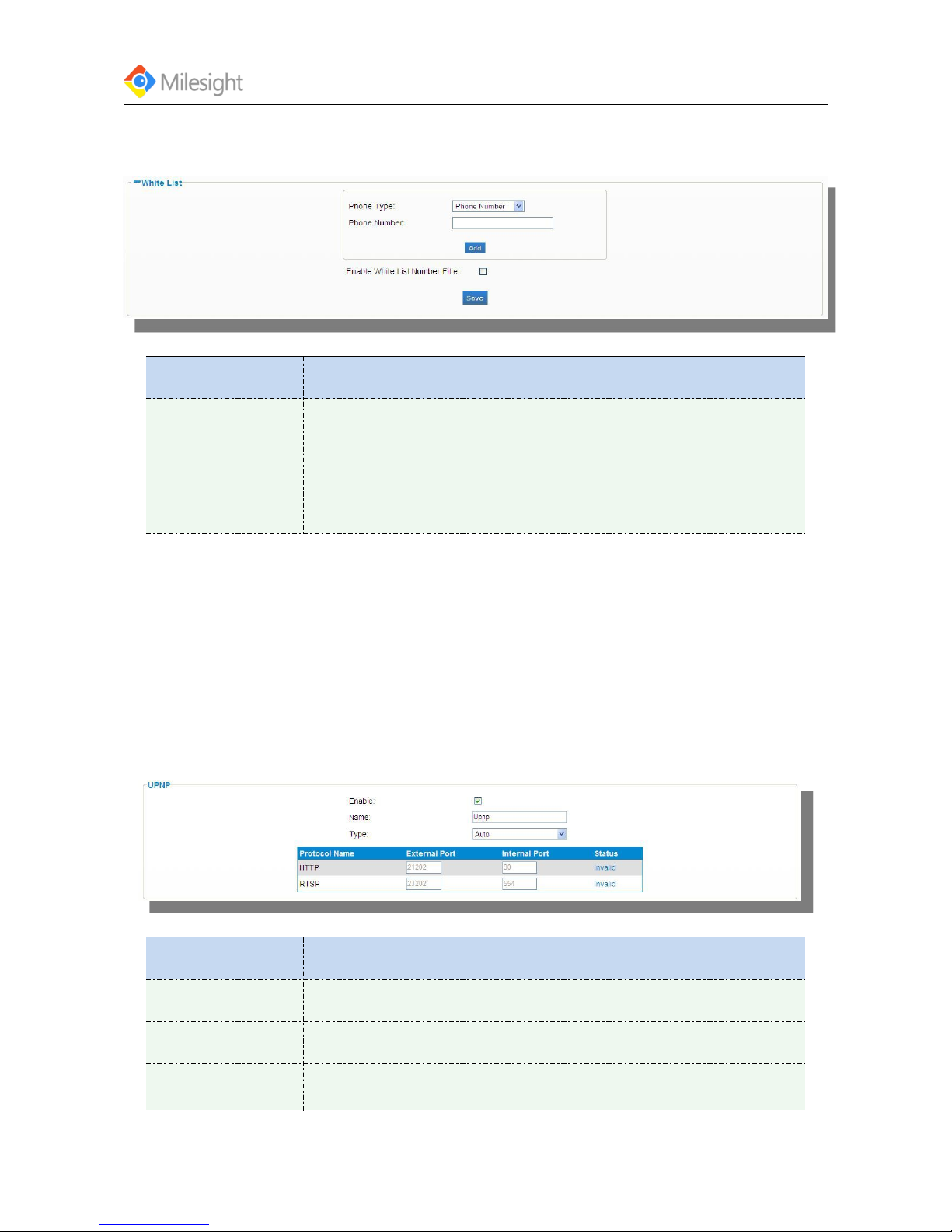

4.4.2 UPNP
Universal Plug and Play (UPNP) is a networking architecture that providescompatibility among
networking equipment, software and other hardware devices.
The UPnP protocol allows devices to connect seamlessly and to simplify theimplementation of
networks in the home and corporate environments.
With the function enabled, you don’t need to configure the port mapping for eachport, and the
camera is connected to the Wide Area Network via the router.
Figure 4-19
Parameters Function Introduction
Enable Check the checkbox to enable the UPNP function
Name The name of the device when detected online can be edited
Type
Auto: Automatically obtain the corresponding HTTP and RTSP port, without
any set
Page 46
User Manual
www.milesight.com
40
Manual: Need to manually set the appropriate HTTP port and RTSP Port.
When choose manual, you can customize the value of the port number by
yourself
4.4.3 DDNS

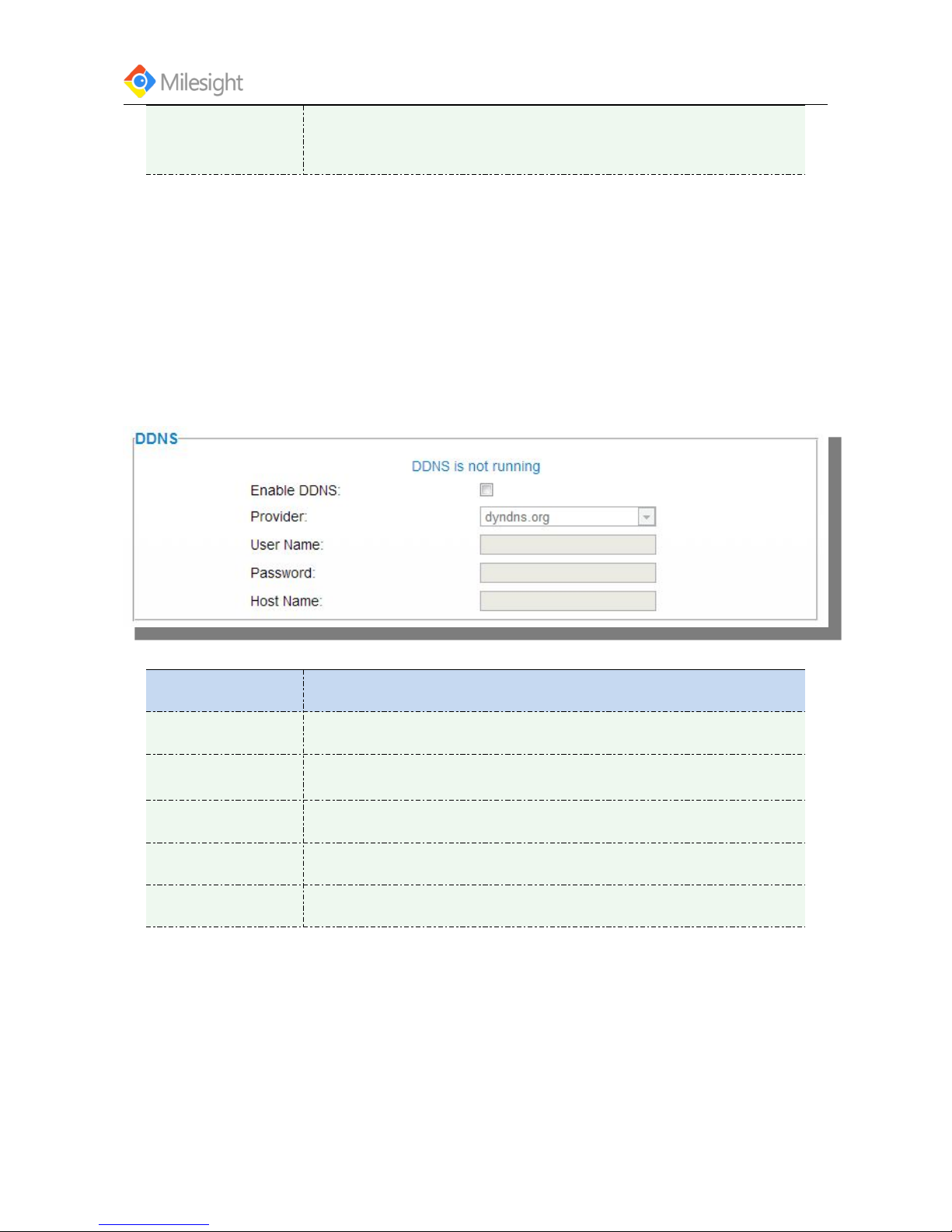

DD NS allows you to access the camera via domain names instead of IP address. It manages to
change IP address and update your domain information dynamically. You need to register an
account from the provider first.
DDNS allows you to access the camera via domain names instead of IP address. It manages to
change IP address and update your domain information dynamically. You need to register an
account from the provider
Figure 4-20
Parameters Function Introduction
Enable DDNS Check the checkbox to enable DDNS service
Provider
Support DDNS from now dyndns.org, freedns.afraid.org,www.no-ip.com,
www.zoneedit.com
User name Account name from the DDNS provider
Password Account password
Host name DDNS name enabled in the account
4.4.4 PPPoE
This camera supports the PPPoE auto dial-up function.The camera gets a public IP address by ADSL
dial-up after the camera is connected to a modem.You need to configure the PPPoE parameters of
the network camera.
Steps:
Page 47
User Manual
www.milesight.com
41
1. Enter the PPPoE setting interface:
Configure > Advanced Settings > PPPoE

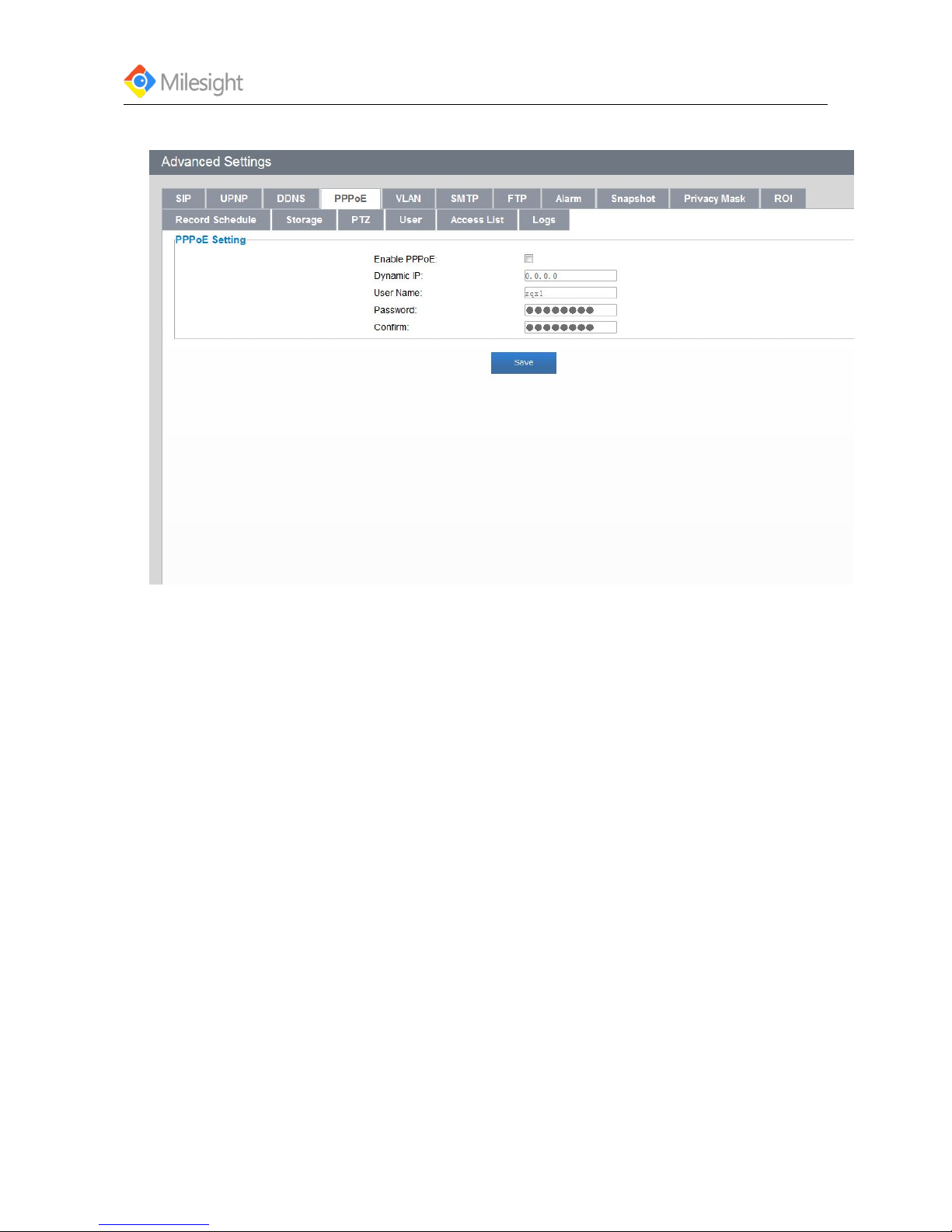

Figure 4-21
2. Check the Enable PPPoE checkbox to enable this feature.
3. Enter User name,Password and Confirm password for PPPoE access.
Note:
1) The obtained IP address is dynamically assigned via PPPoE,so the IP address always changes
after rebooting the camera.To solve the inconvenience of thedynamic IP, you need to get a domain
name from the DDNS provider (E.g.DynDns.com).Refers to 4.4.3.
2) The user name and password should be assigned by your ISP.
4.4.5 VLAN
VLAN (Virtual Local Area Network) from the logical rather than physical, the entire LAN split into
several different broadcast domains, data can only be exchanged within a VLAN.
A slightly large scale network if there are only a broadcast domain, so constantly send broadcast
packets within the network, it is easy to cause the broadcast storm network overall bandwidth
consumption, and to give the network to bring extra burden to the host.After the division of VLAN,
the data will only be broadcast in own VLAN, so you can control the broadcast storm, also can
enhance network security, simplified network management.
Routers provide the VLAN function based on port,the number of the router LAN can logically
divided into multiple VLANs.
Page 48
User Manual
www.milesight.com
42

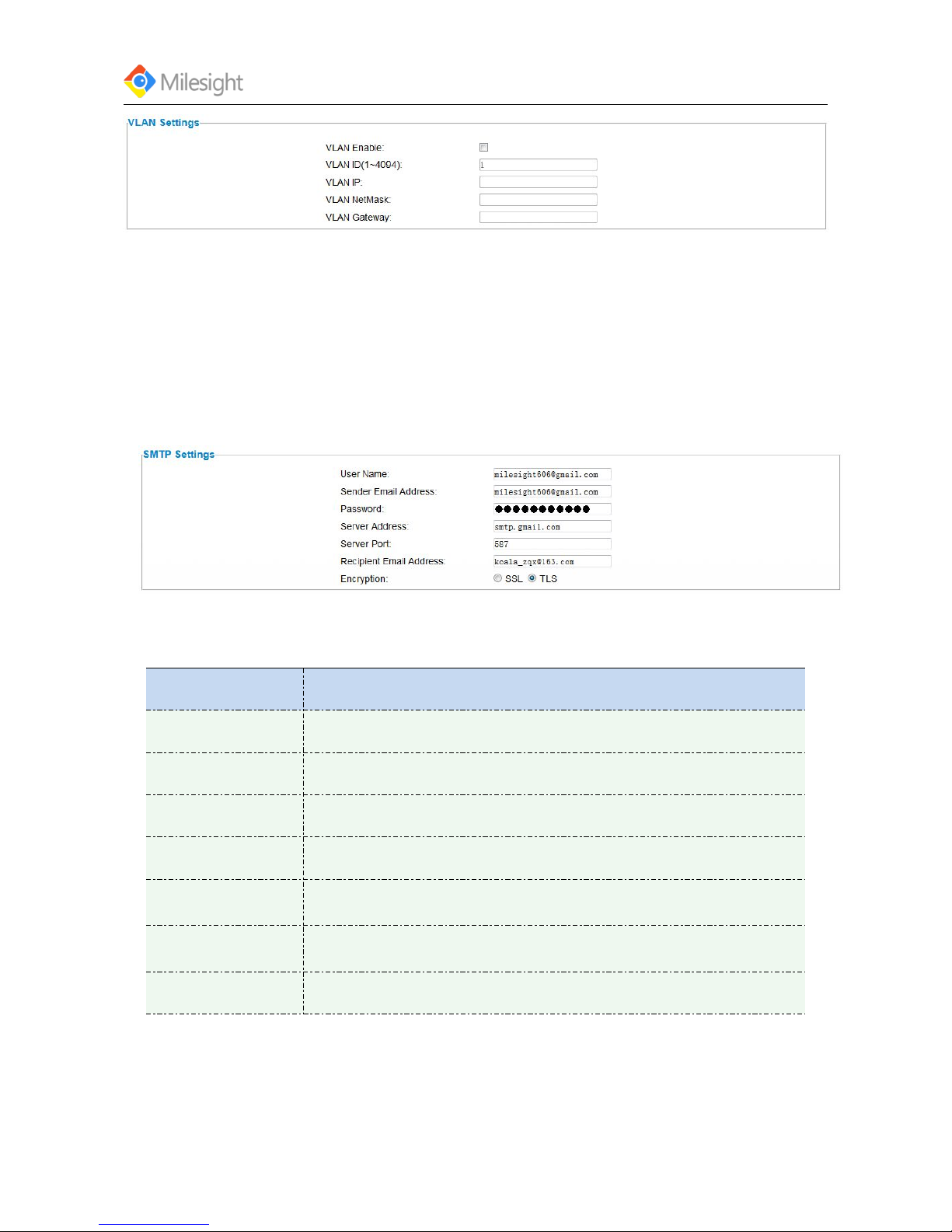

Figure 4-22
Note:
How to divide VLAN in routers,please refers to your router user manual.
4.4.6 SMTP
Alarm video files can be sent to specific mail account through SMTP server. You must configure
the SMTP settings correctly before using it.
Figure 4-23
SMTP
Parameters Function Introduction
User Name The sender's name. It is usually the same as the account name
Sender Email Address Email address to send video files attached emails
Password The password of the sender
Server Address The SMTP server IP address or host name(e.g.smtp.gmail.com)
Server Port
The port of SMTP server.The default TCP/IP port for SMTP is 25(not
secured).For SSL/TLS port depends on the mail you use
Recipient Email
Address
Email address to receive video files
Encryption Check the checkbox to enable SSL or TLS if it is required by the SMTP server.
4.4.7 FTP
Alarm video files can be sent to specific FTP server. You must configure the FTP settings correctly
Page 49
User Manual
www.milesight.com
43
before using it.

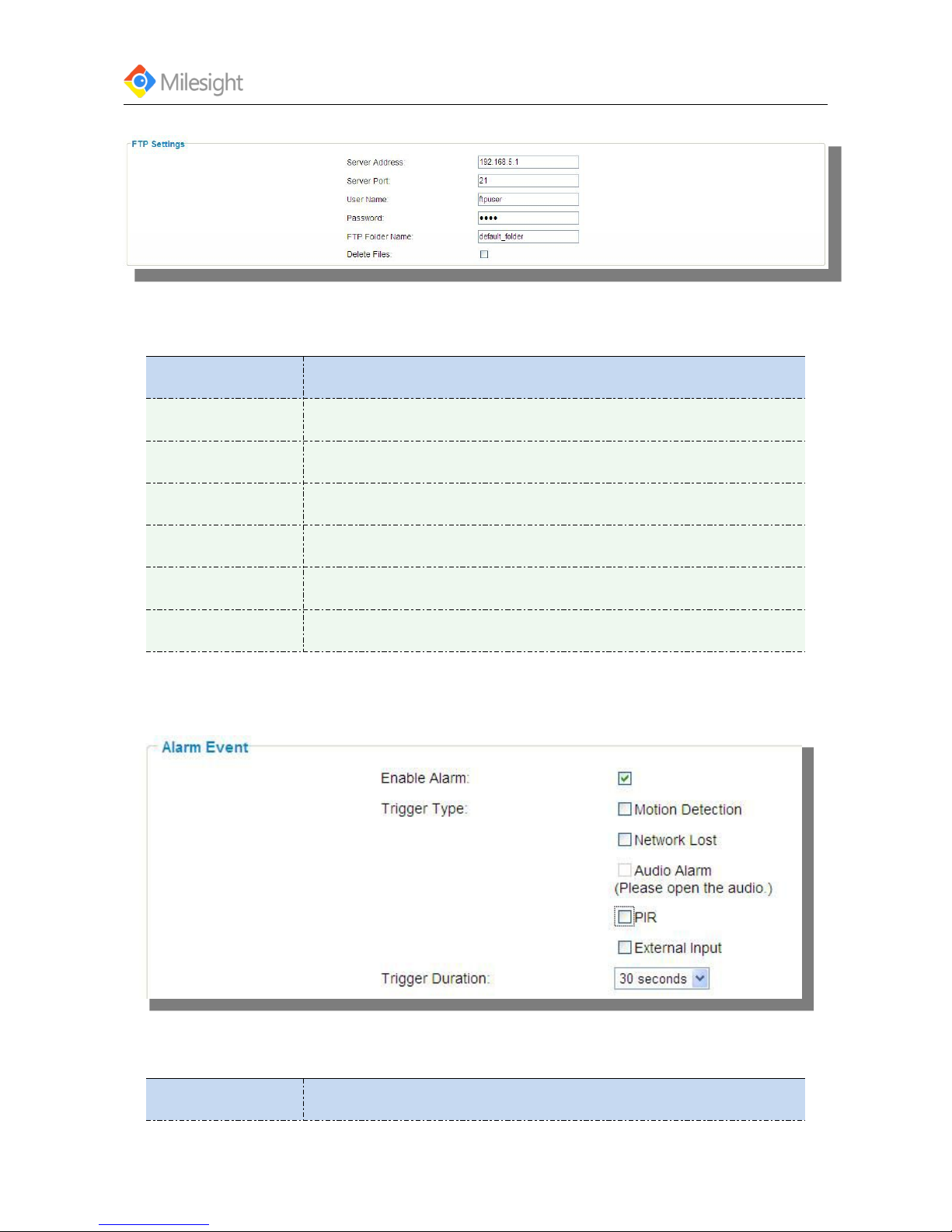

Figure 4-24
FTP
Parameters Function Introduction
Server Address FTPserver address
Server Port The port of the FTP server. Generally it is 21
User Name User name used to log on the FTP sever
Password User password
FTP Folder Name Path where video will be uploaded to on the FTP server
Delete Files Delete video files
4.4.8 Alarm
Figure 4-25
Alarm Event
Parameters Function Introduction
Page 50
User Manual
www.milesight.com
44
Enable Alarm
FTPserver address
Trigger Type
Motion Detection: Trigger alarm when any movement is detected in motion
detection monitored area. The image is divided into 4*3 areas, and you can
select your preferred areas
Network Lost: Trigger alarm when the network connection is down
Audio Alarm (Please open the audio): Trigger alarm when the input gained
volume is higher than alarm level
PIR PIR detection (only for cube camera)
External Input User password
FTP Folder Name Trigger alarm when there is external input
Trigger Duration Length of time an alarm lasts
Note:
Audio Alarm andExternal Input The functions are only applicable when the selected model has
“Audio Input” and “Alarm Input” interfaces.
Figure 4-26

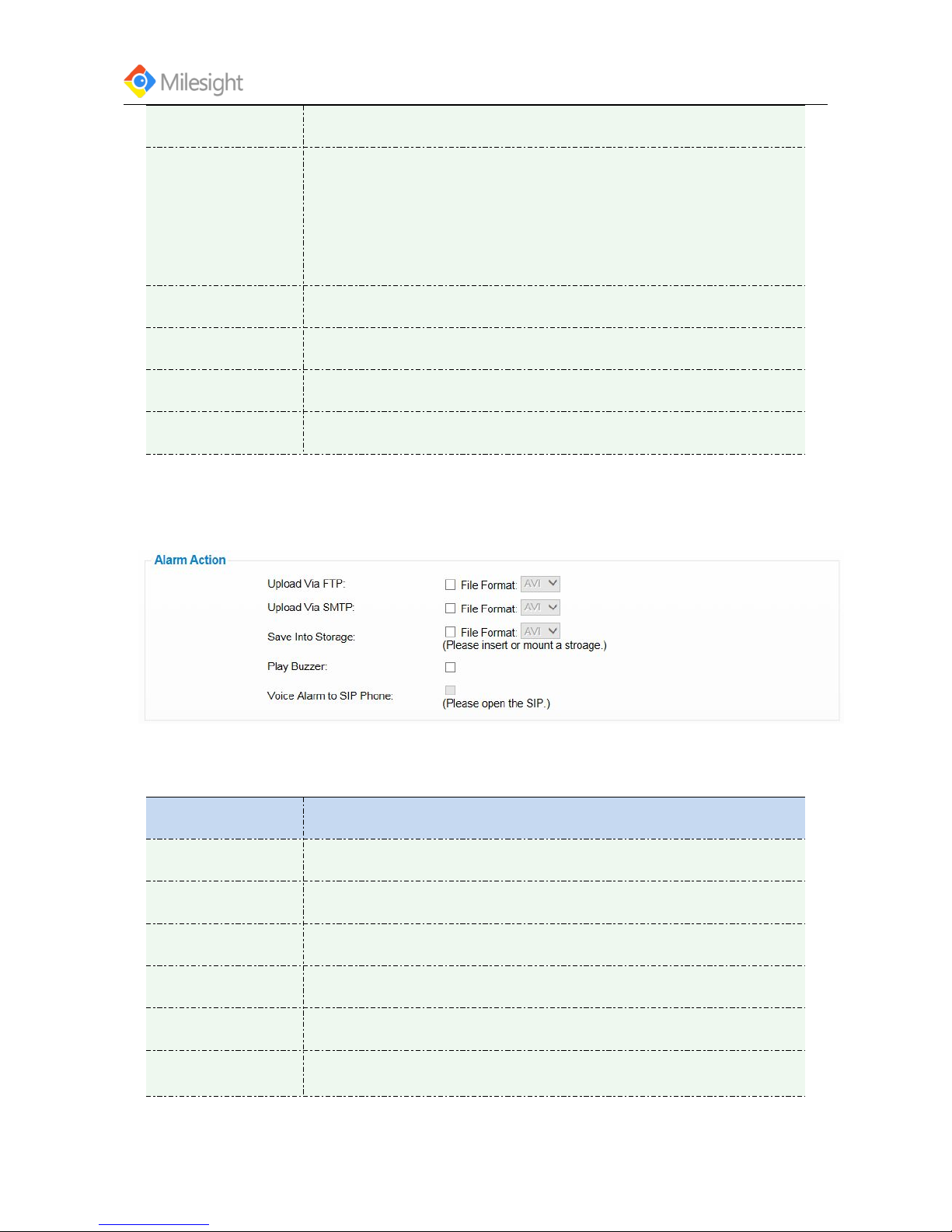

Alarm Action
Parameters Function Introduction
Upload Via FTP Upload alarm recording files to the configured FTP server
Upload Via SMTP Upload alarm recording files to SMTP with the configured format
Save Into Storage Save alarm recording files into storage
External Output Output a level signal when an alarm is triggered
Play Audio Play specific audio file when an alarm is triggered
Voice Alarm to SIP
Phone
Choose to call the sip phone when alarm is triggered
Page 51
User Manual
www.milesight.com
45
Note:
External Output and Play Audio functions are only applicable when the selected model has
“Alarm Output” and “Audio Output” interfaces.
Alarm Setting

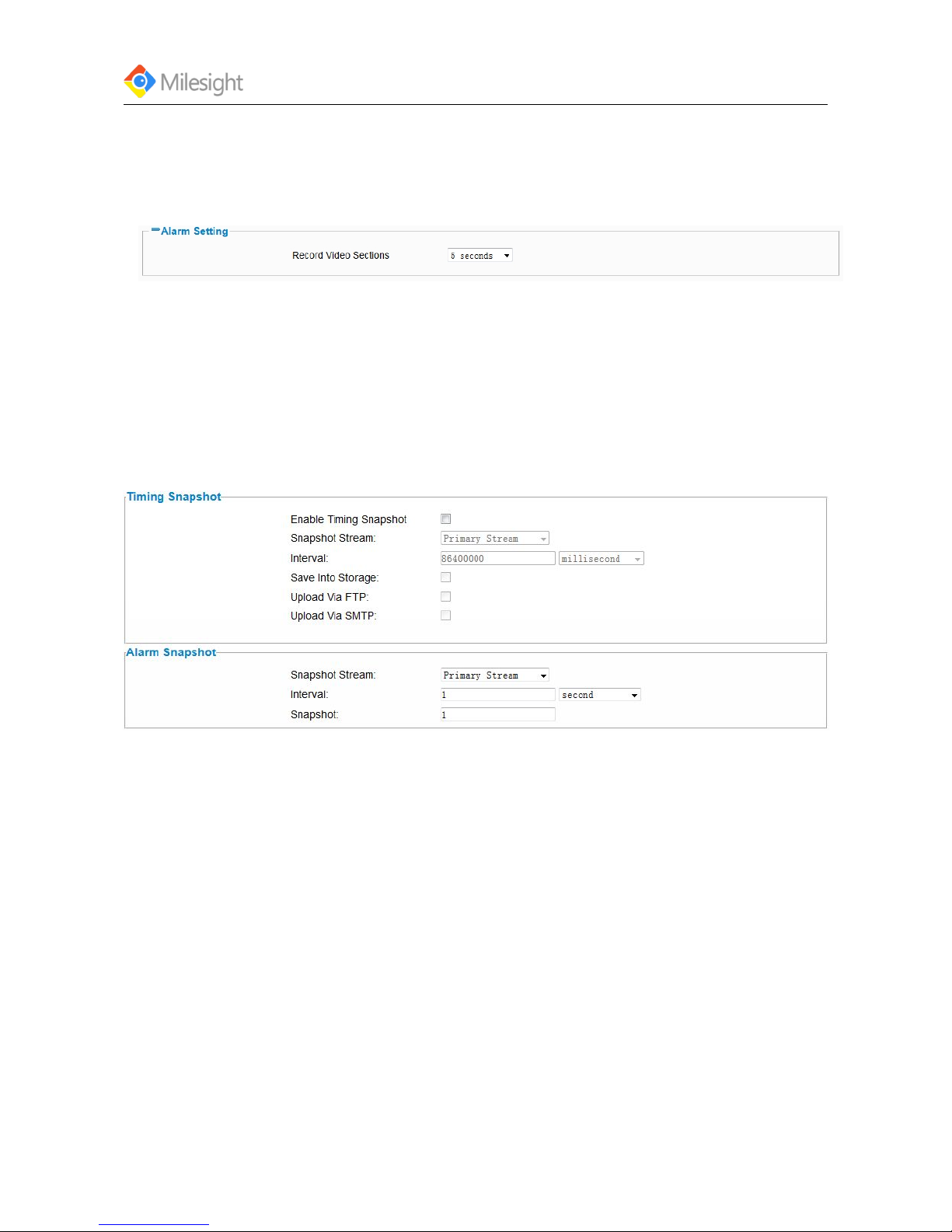

Figure 4-27
Record Video Sections Length of each video file
4.4.9 Snapshot
You can configure the timing snapshot and alarm snapshot .The captured pictures can be stored in
the SD card(if supported) or the NAS(For detailed information ,please refer to 4.4.13).You can also
upload the captured pictures to a FTP server or SMTP.
Figure 4-28
4.4.10 Privacy Masking
Privacy Masking is used to protect personal privacy by concealing parts of the image from view
with a masked area. Examples of this use would be masking windows of domestic properties or
car number plates which are not subject to surveillance.
After enabling the privacy masking, you can select a region No.1-4 and type of mask. Then draw
a square covering your sensitive area by mouse. Click “set”will bring the masking into effect.
Click ‘Clean’ to cancel a specific privacy masking area.
Page 52
User Manual
www.milesight.com
46

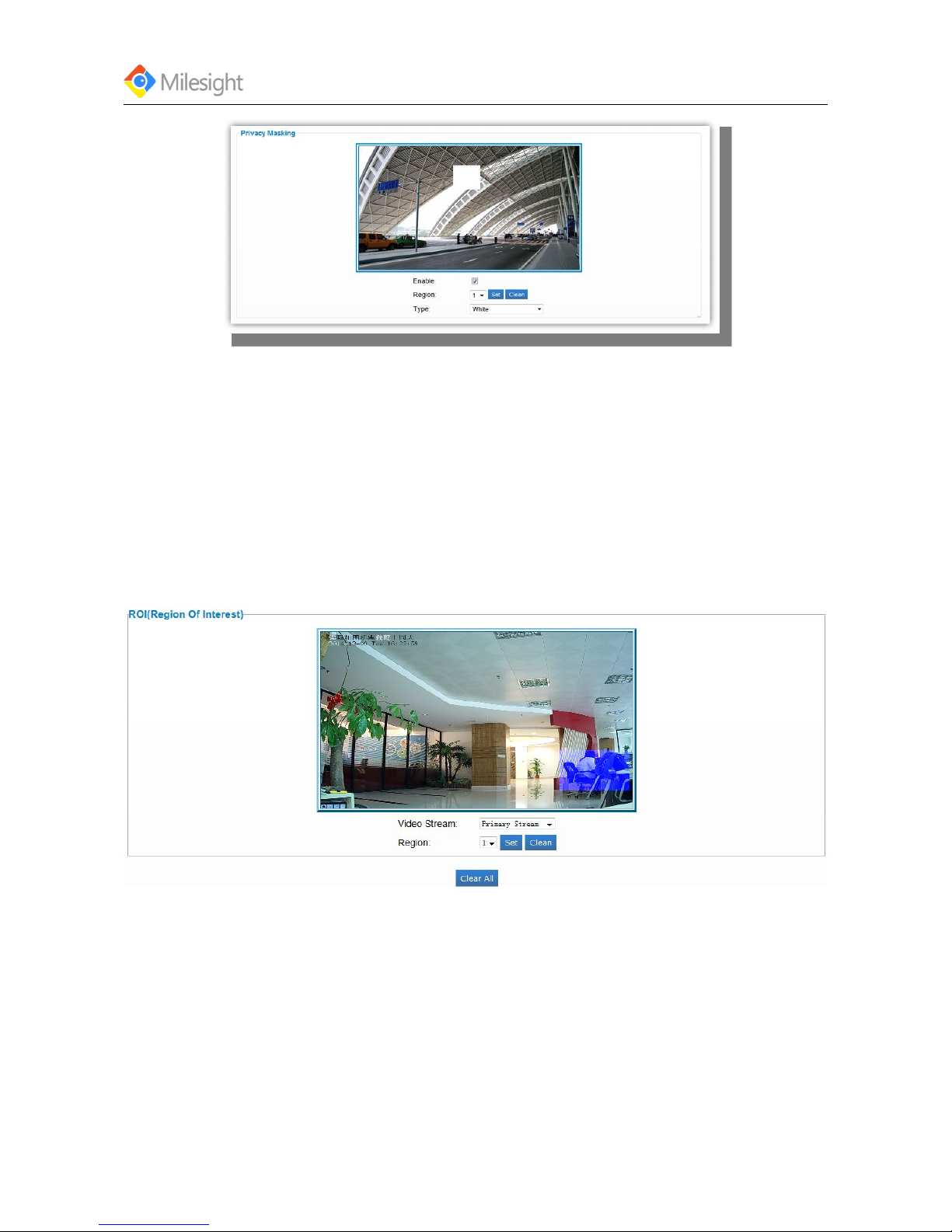

Figure 4-29
4.4.11 ROI
ROI is an image cropping feature designed to assist users in achieving bandwidth and storage
optimization. Users can select up to 4 key regions of a scene to transmit as separate streams for
targeted preview and recording.
With the Region of Interest (ROI) technology, things can be different now! By using Milesight ROI
technology can save more than 50% of bitrate and therefore demand less bandwidth and reduce
the storage usage. So according to this, you can set the small bitrate for high resolution.
Figure 4-30
Note: You can set the bitrate to small first.
4.4.12 Record Schedule
There are three kinds of recording for the cameras:manual recording ,timing recording and alarm
recording.In this section,you can follow the instructions to configure the timing recording.The
record files of timing recording are stored in the storage(Refer to 4.4.13)
Page 53
User Manual
www.milesight.com
47

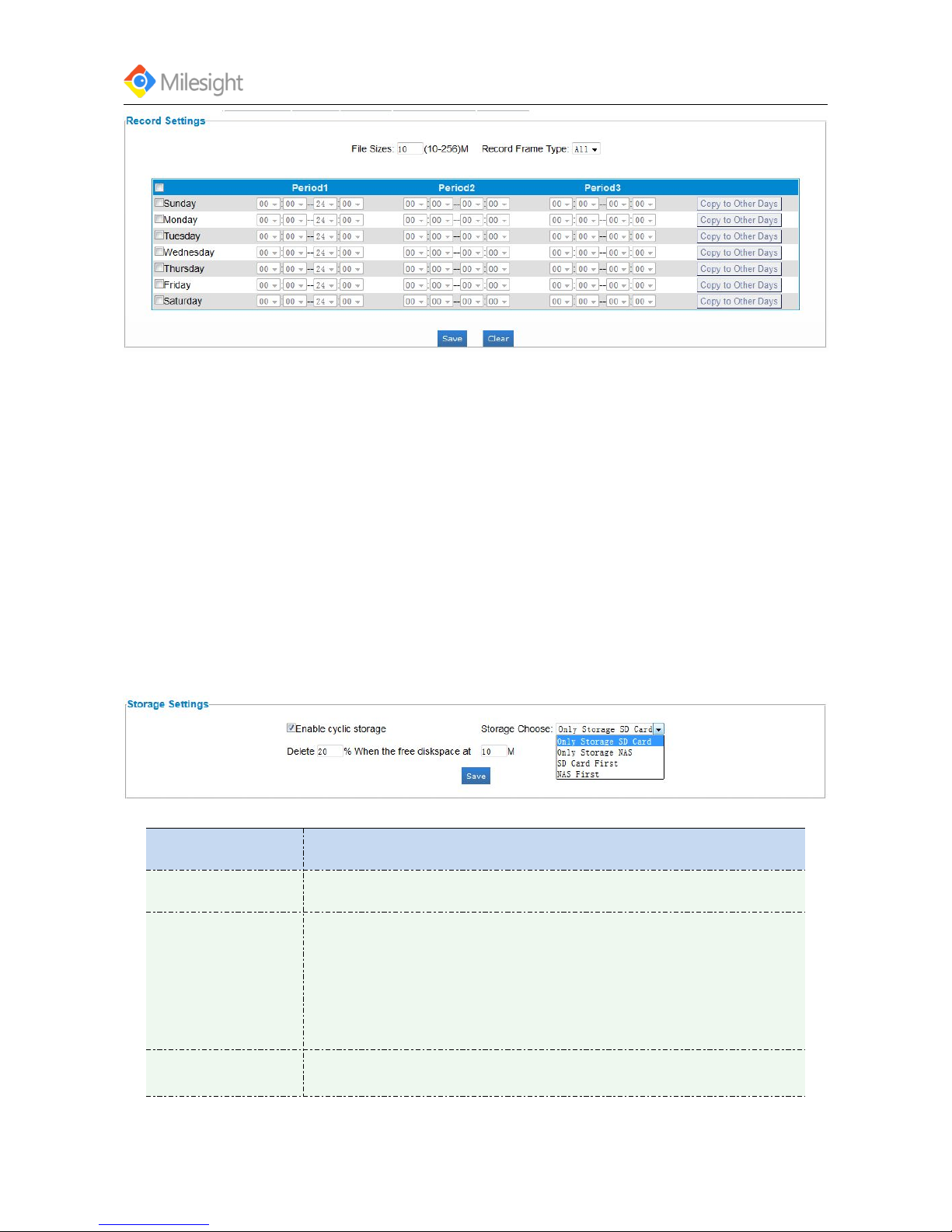

Figure 4-31
File Sizes You can set file sizes from 10 to 256M
Record Frame Type Choose the timing record type
4.4.13 Storage
Before you start:
To configure record settings,please make sure that you have the network storage device within the
network or the SD card inserted in your camera.
You can check “Enable cyclic storage” then it will delete the files when the free diskspace reach a
certain value . Choose the storage mode depends on your needs.
Storage Settings
Figure 4-32
Parameters Function Introduction
Enable cyclic storage Enable/Disable cyclic storage
Storage Choose
Only storage SD Card:Only storage files in SD card
Only storage NAS: Only storage files in NAS
SD Card first:storage files in sd card first,when the sd card is full,then it will
storage files in NAS
NAS first:storage files in NAS first,when the NAS is full ,then it will storage files
in sd card
Delete
Enable cyclic storage,when the free diskpace reach at a certain time, it will
automatically delete the files at certain percentage according to your settings
Page 54
User Manual
www.milesight.com
48
SD Card Explorer
Files will be seen on this page when they are configured to save onto SD card. You can configure
time schedules of video recording everyday and save video files to your desired location.
Note: Files are visible once SD card is inserted. Don’t insert or plug out SD card when power on
SD card video files are arranged by date, the each day files will display under the corresponding
date, from here you can copy and delete files etc. by the way of access to shared video files, such
as ftp://192.168.5.190 is consistent with the default user name and password.

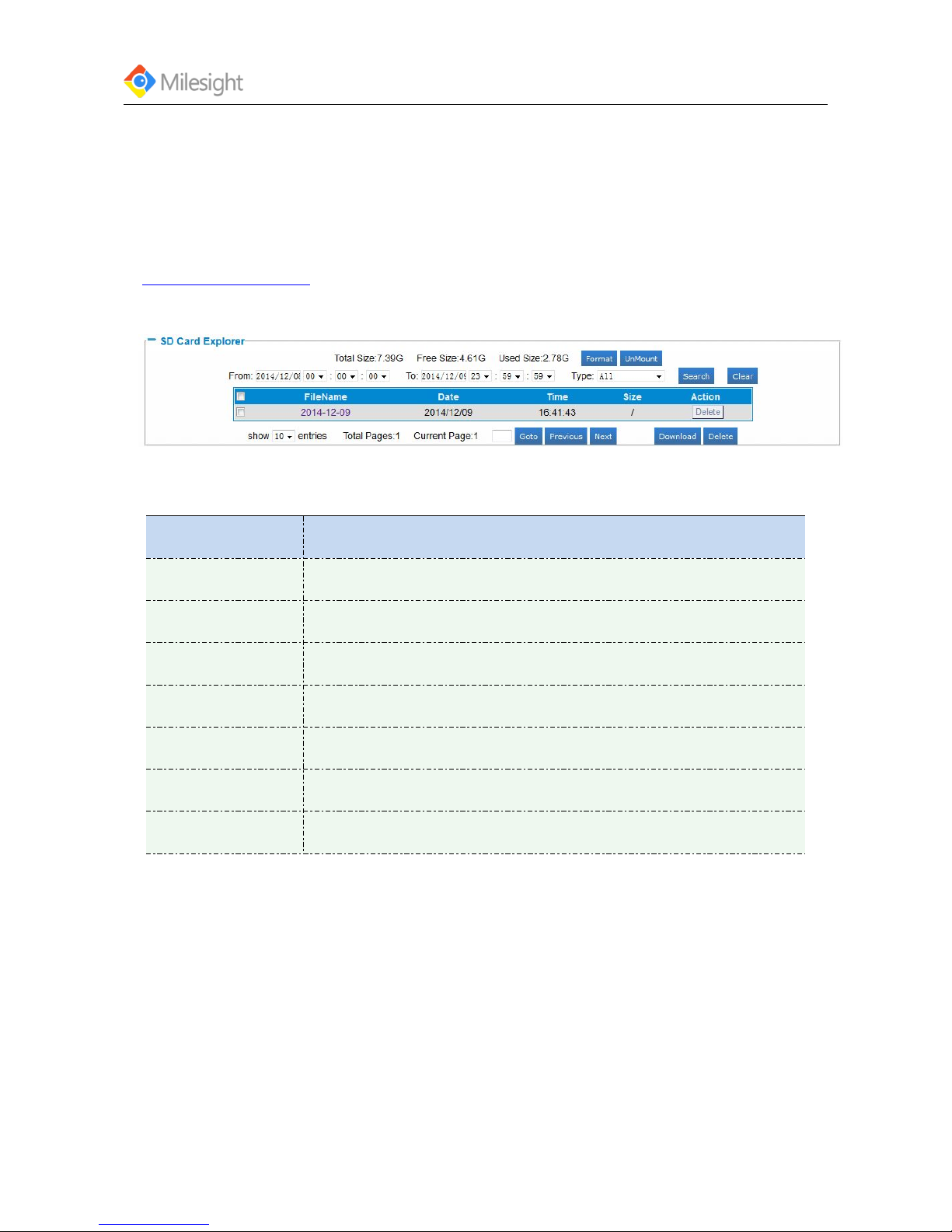

Figure 4-33
SD Card
Parameters Function Introduction
Format Format the SD card
UnMount Unmount the SD card. Once unmounted, the files will not be listed
File Name File name of the video files
Date Date files saved
Time Length of the files in seconds
Size File size
Action Delete files
NAS
The network disk should be available within the network and properly configured to store the
recorded files,etc.
NAS(Network-Attached Storage) ,connect the storage devices to the existing network,providing
data and files services.
Page 55
User Manual
www.milesight.com
49

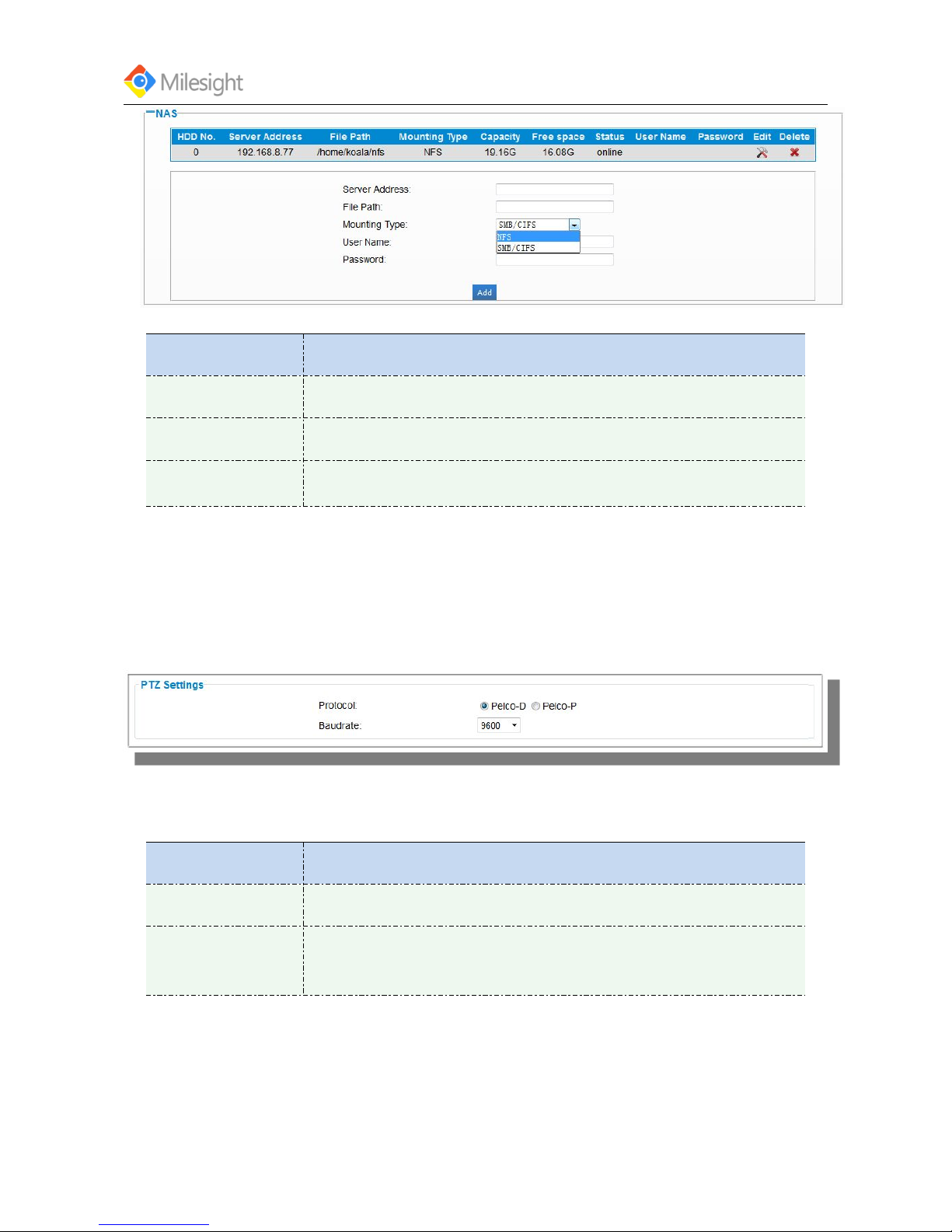

Figure 4-34
Parameters Function Introduction
Server Address IP address of NAS server
File Path Input the NAS file path
Mouting Type
NFS and SMB/CIFS are selectable.And you can set the user name and
password to guarantee the security if SMB/CIFS is selected
Note:
Up to 5 NAS disks can be connected to the camera.
4.4.14 PTZ
Figure 4-35
PTZ Settings
Parameters Function Introduction
Protocol Select the PTZ protocol your camera support
Baudrate
Select the Baudrate from the drop down menu. Baud rate is the number of
distinct symbol changes (signaling events) made to the transmission medium
per second in a digitally modulated signal or a line code
4.4.15 User
Anonymous Visit
Enabling this function allows visit for whom doesn’t have the user name and password of the
Page 56
User Manual
www.milesight.com
50
device.
Steps:
1. Enter the Anonymous visit interface:
Configuration > Advanced Settings > User > Manage privilege
Figure 4-36
2. Set the Anonymous visit permission Enable or Disable in the drop-down list to enable or
disable the anonymous visit.
3. Click Save to save the settings.
There will be a checkbox of Anonymous by the next time you logging in.

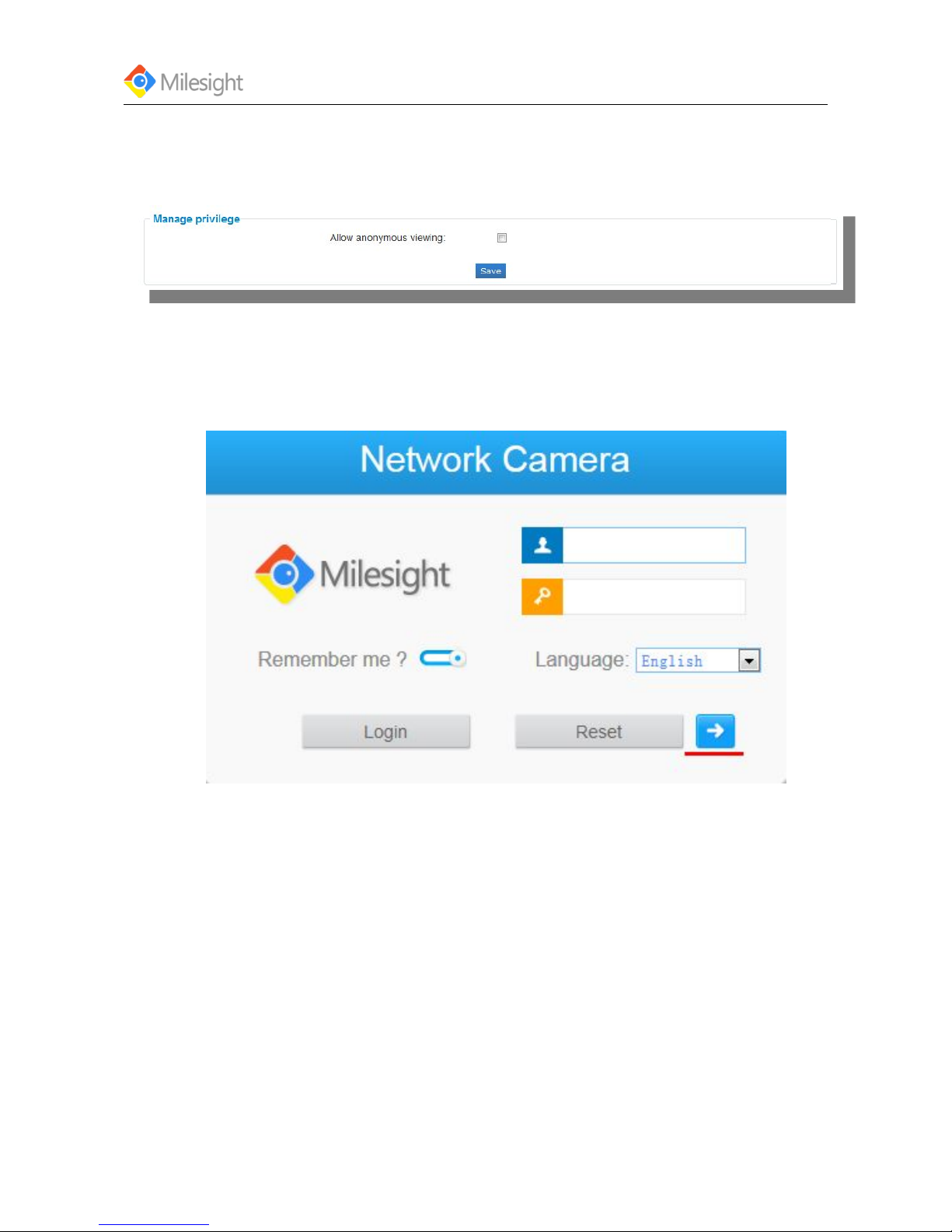

Figure 4-37
4. Click Anonymity and login.
Note:
Only live view is available for the anonymous user.
Account Managemetn:
Three privilege levels are available, including admin, operator and viewer. Up to 10 users can be
added to this system. It’s also able to log on the web with anonymous viewing, no need to enter
the username and password.
Page 57
User Manual
www.milesight.com
51

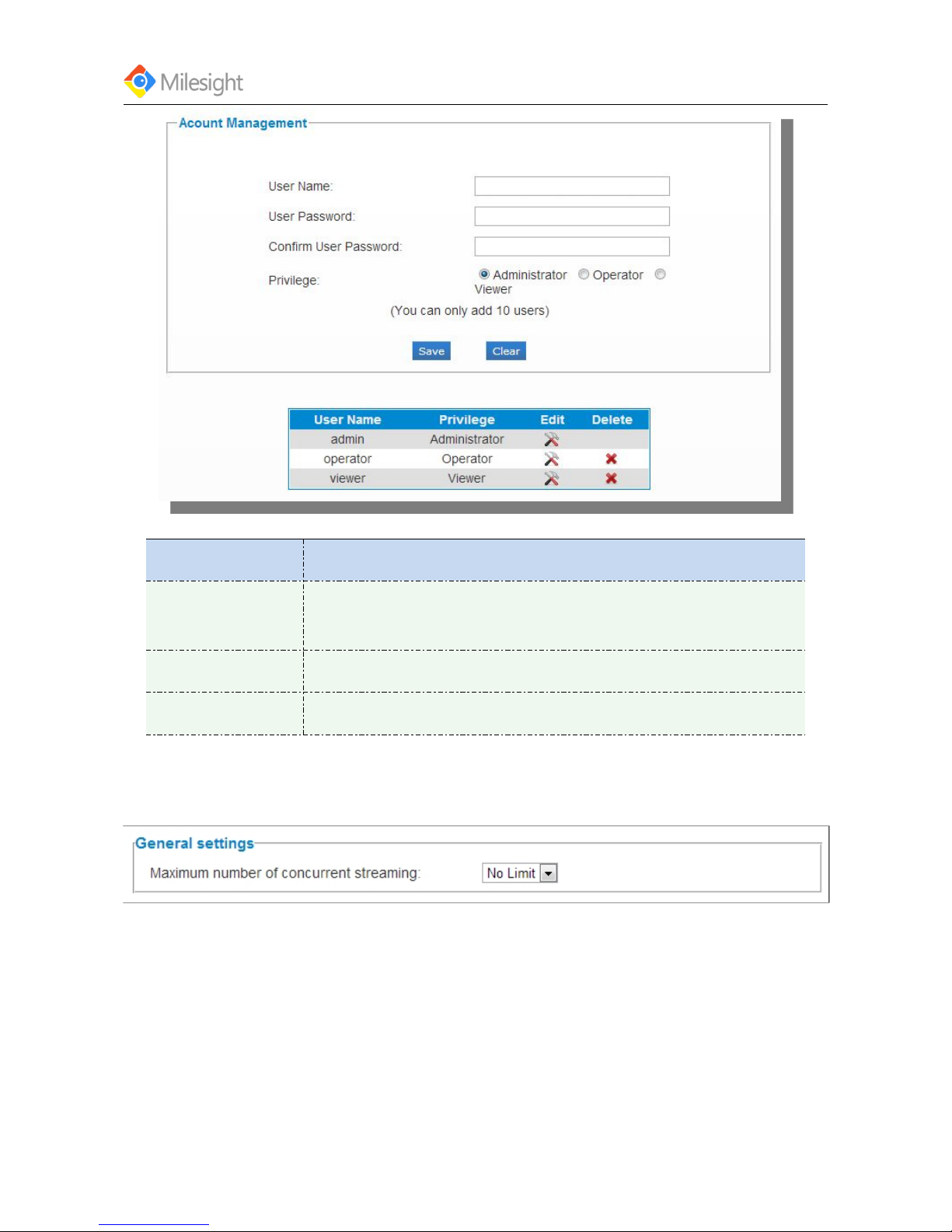

Figure 4-38
Parameters Function Introduction
Administrator
An administrator can manage all configuration pages of the device.
Including change user password, add or delete users (the default user 'admin'
cannot be deleted)
Operator An operator can manage all configuration pages except the User page
Viewer A viewer can`t change any settings
4.4.16 Access List
Figure 4-39
General Settings
Maximum number of concurrent streaming Select the maximum number of concurrent
Streaming. Options include No Limit, 1, 2, 3, 4, 5.
Filter
Page 58
User Manual
www.milesight.com
52

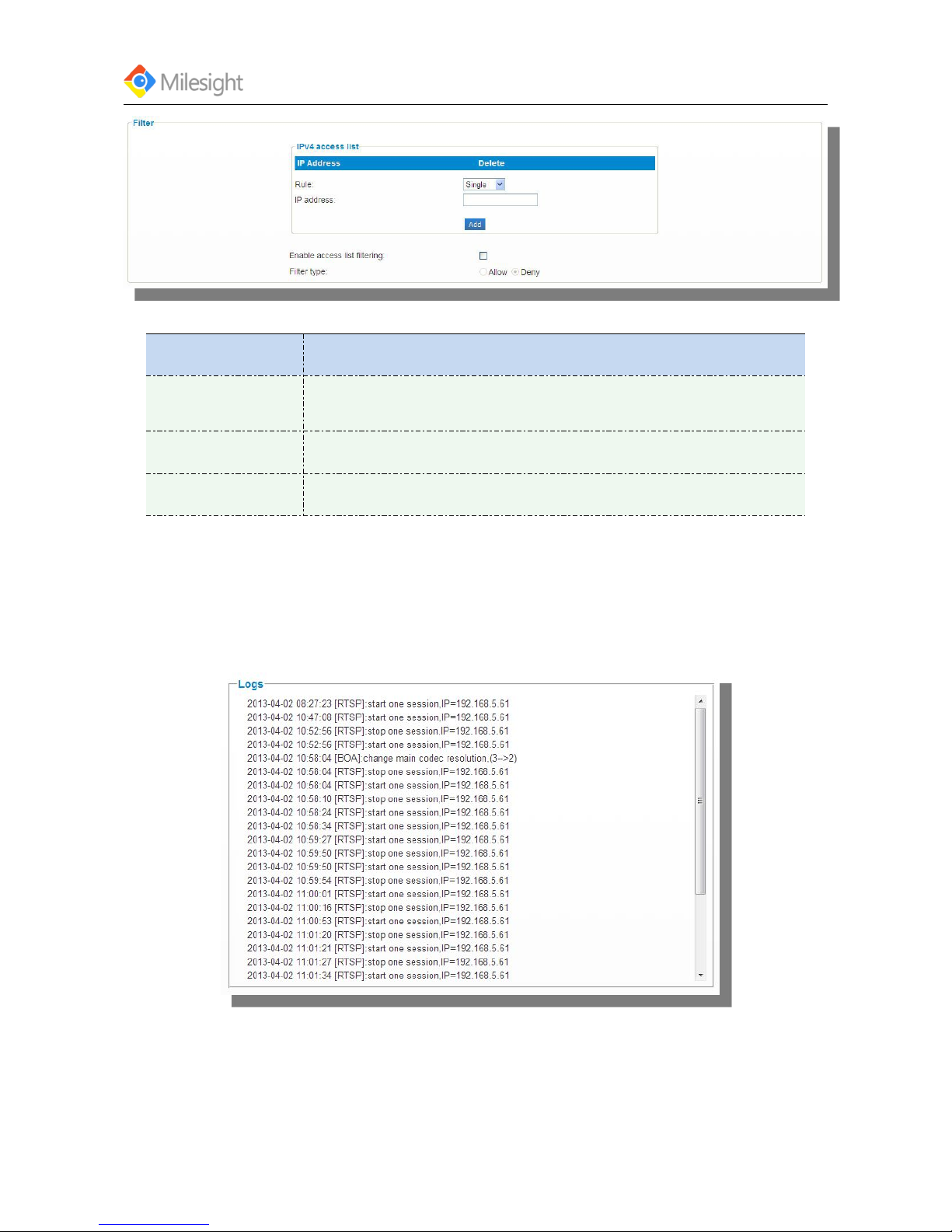

Figure 4-40
Parameters Function Introduction
Enable access list
filtering
Able to access or restrict access for some IP address
Filter type Access or restrict access
IPv4 access list The IP address to access or restrict access
4.4.17 Logs
The logs contain the information about the time and IP that has accessed the camera through
web.
Figure 4-41
Page 59
User Manual
www.milesight.com
53
4.5 System
All information about the hardware and software of the camera can be checked on this page.

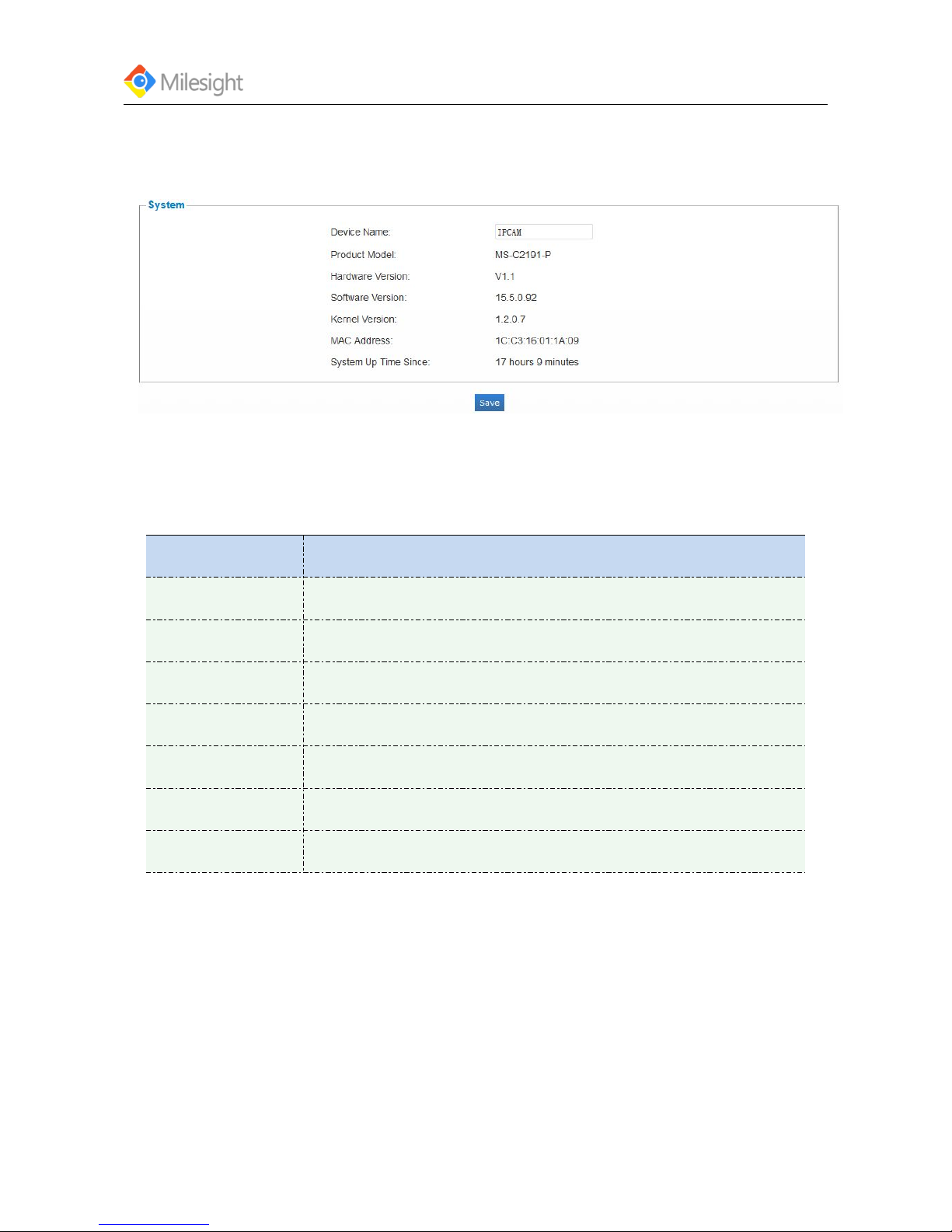

Figure 4-42
System
Parameters Function Introduction
Device Name The device name can be customized. It will be seen in file names of video files
Product Model The product model of the camera
Hardware Version The hardware version ofthe camera
Software Version The software version of the camera can be upgraded
Kernal Version The kernel version
MAC Address Media Access Control address
System Up Time Since The elapsed time since the device was last restarted
4.6 Maintenance
The software can be upgraded by the following steps
1. Browse and select the upgrading file.
2. Click the 'upgrade' button after it prompts upload file successfully. After the system reboots
successfully, the update is done.
Note: Do not disconnect the power of the deviceduring the update. The device will be restarted to complete
the upgrading.
Page 60
User Manual
www.milesight.com
54

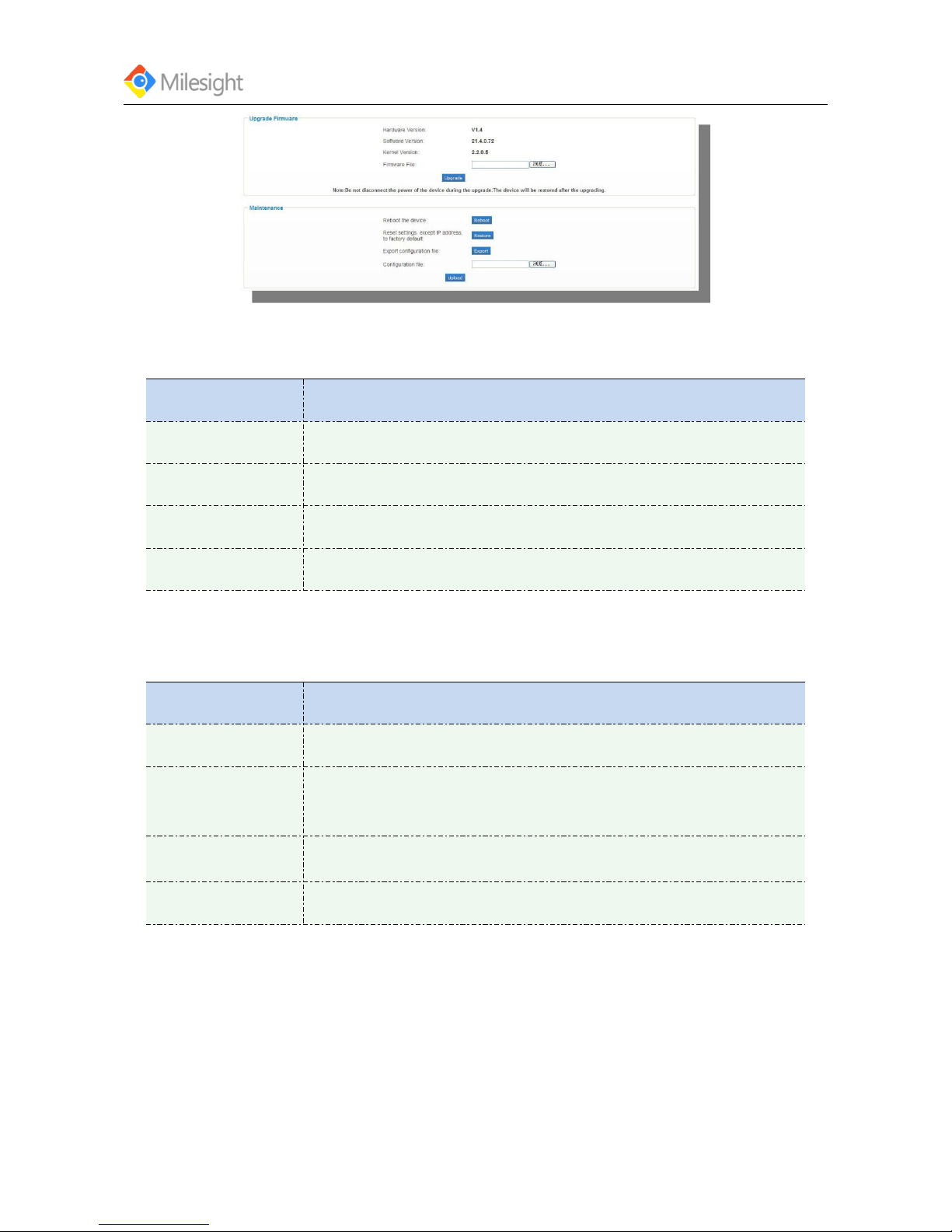

Figure 4-43
Upgrade Firmware
Parameters Function Introduction
Hardware Version The hardware version of the camera
SoftwareVersion The software version of the camera
Kernal Version The kernel version
Firmware File Select the firmware used to upgrade
Maintenance
Parameters Function Introduction
Restart the device Click 'restart' button to restart the device immediately
Restore settings,
except IP address to
Factory Default
Click 'Restore' button to restore the camera to factory defaultsettings
Export configuration
file
Click this button to export the configuration file
Configuration file Click this button to import the old configuration file
Page 61
User Manual
www.milesight.com
Chapter V Services
Milesight Technology Co., Ltd provides customers with timely and comprehensive technical
support services. End-users can contact your local dealer to obtain technical support.
Distributors and resellers can contact directly with Milesight for technical support.
Technical Support Mailbox: [email protected]
Web: http://www.milesight.com
Online Problem Submission System: http://www.milesight.com/service/feedback.asp
Address: No.23 Wanghai Road,2nd Software Park,Xiamen,China
Zip Code: 361006
TEL: +86-592-5922772
FAX: +86-592-5922775
Milesight
More in Sight
Loading...
