Milesight MS-C2961-REPB, MS-C2942-PB, MS-C2942-RPB, MS-C2961-REB, MS-C2961-ELB User Manual

...

Download

Page 1

PTZ Network Camera

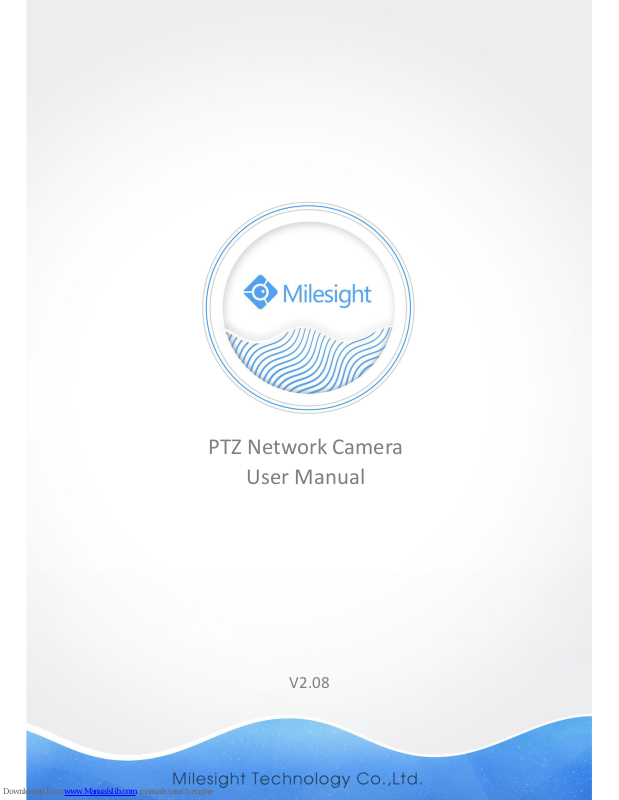

User Manual

V2.08

Page 2

Thank you for purchasing our product. If there is any questions or requests, please do not hesitate to contact your dealer.

This manual is applicable to the Milesight H.265 Network Camera, series are shown as follows, except where otherwise indicated.

This Manual explains how to use and manage Milesight network cameras on your network. Previous experience of networking will be of use when using the products. Please read this manual carefully before operation and retain it for future reference.

This manual may contain several technically incorrect places or printing errors, and the content is subject to change without notice. The updates will be added into the new version of this manual. We will readily improve or update the products or procedures described in the manual.

This manual may not be reproduced in any form or by any means to create any derivative such as translation, transformation, or adaptation without the prior written permission of Milesight Technology Co., Ltd (Hereinafter referred to as Milesight).

Milesight reserves the right to change this manual and the specifications without prior notice. The latest specifications and user documentation for all Milesight products are available on our official website www.milesight.com

Industry Canada ICES-003 Compliance:

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.

Milesight H.265 PTZ Network Camera

Type

Megapixel

2MP

4MP

5MP

(PoE) Speed Dome

Network Camera

MS-C2942-(R)(P)B

MS-C5342-(P)B

12x Mini (PoE) PTZ

Bullet Network Camera

MS-C2961-(R)E(P)B

MS-C4461-E(P)B

MS-C5361-E(P)B

12x LPR Mini (PoE) PTZ

Bullet Network Camera

MS-C2961-EL(P)B

Page 3

Safety Instruction

These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measures are divided into “Warnings” and “Cautions”

Warnings: Serious injury or death may be caused if any of these warnings is neglected. Cautions: Injury or equipment damage may be caused if any of these cautions are neglected.

Warnings: Please follow these safeguards to

prevent injury or death.

Cautions: Please follow these safeguards to prevent potential injury or material damage.

Warnings

 This installation must be conducted by a qualified service person and should strictly

comply with the electrical safety regulations of the local region;

 To avoid risk of fire and electric shock, do keep the product away from rain and moisture

before installed;

 Do not touch components such as heat sinks, power regulators, and processors, which

may be hot;

 Source with DC 12V or AC 24V;

 Please make sure the plug is firmly inserted into the power socket;

 When the product is installed on a wall or ceiling, the device should be firmly fixed;

 If the product does not work properly, please contact your dealer. Never attempt to

disassemble the camera by yourself.

Cautions

 Make sure that the power supply voltage is correct before using the camera;

 Do not store or install the device in extremely hot or cold temperatures, as well as dusty

or damp locations, and do not expose it to high electromagnetic radiation;

 Only use components and parts recommended by manufacturer;

 Do not drop the camera or subject it to physical shock;

 To prevent heat accumulation, do not block air circulation around the camera;

 Laser beams may damage image sensors. The surface of image sensors should not be

exposed to where a laser beam equipment is used;

 Use a blower to remove dust from the lens cover;

 Use a soft, dry cloth to clean the surface of the camera. Stubborn stains can be removed

using a soft cloth dampened with a small quantity of detergent solution, then wipe dry;

 Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the

surface finishes;

 Save the package to ensure availability of shipping containers for future transportation.

Page 4

EU Conformity Statement

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed

of as unsorted municipal waste in the European Union. For proper recycling, return

this product to your local supplier upon the purchase of equivalent new equipment,

or dispose of it at designated collection points. For more information see:

www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be

disposed of as unsorted municipal waste in the European Union. See the product

documentation for specific battery information. The battery is marked with this

symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or

mercury(Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

Page 5

Table of Contents

Chapter

................................................................................................................................................

1.1 Product Overview

....................................................................................................................

1.2 Key Features

............................................................................................................................

1.3 Hardware Overview

.................................................................................................................

1.4 How to Connect to Alarm Interface

.........................................................................................

1.5 How to Connect the Water-proof Connector

..........................................................................

1.6 System Requirements

..............................................................................................................

Chapter II Network Connection

............................................................................................................

2.1 Setting the Camera over the LAN

............................................................................................

2.1.1 Connect the Camera to the PC Directly

.........................................................................

2.1.2 Connect via a Switch or a Router

...................................................................................

2.2 Dynamic IP Connection

............................................................................................................

Chapter III Accessing the Network Camera

..........................................................................................

3.1 Assigning An IP Address

...........................................................................................................

3.1.1 Assigning An IP Address Using Smart Tools

...................................................................

3.1.2 Assign An IP Address via Browser

................................................................................

3.2 Accessing from the Web Browser

..........................................................................................

3.3 Accessing from Milesight VMS (Video Management Software)

...........................................

Chapter IV System Operation Guide

...................................................................................................

4.1 Live Video

..............................................................................................................................

4.1.1 Operations on Live View Page

.....................................................................................

4.1.2 3D Positioning

..............................................................................................................

4.1.3 Set / Call a preset / Patrol / Pattern

............................................................................

4.2 Playback

.................................................................................................................................

4.3 Local Settings

.........................................................................................................................

4.4 Basic Settings

.........................................................................................................................

4.4.1 Video

............................................................................................................................

4.4.2 Image

...........................................................................................................................

4.4.3 Audio

............................................................................................................................

4.4.4 Network

.......................................................................................................................

4.4.5 Date&Time

...................................................................................................................

4.5 Advanced Settings

.................................................................................................................

4.5.1 Alarm

...........................................................................................................................

4.5.2 Storage

.........................................................................................................................

4.5.3 Security

........................................................................................................................

4.5.4 SIP

................................................................................................................................

4.5.5 Smart Event

.................................................................................................................

4.5.6 PTZ

...............................................................................................................................

4.5.7 Logs

..............................................................................................................................

4.6 System

....................................................................................................................................

4.7 Maintenance

..........................................................................................................................

Chapter V Services

..............................................................................................................................

Page 6

Chapter I Product Description

1.1 Product Overview

Milesight provides a consistent range of cost-effective and reliable network cameras to fully meet your requirements. Based on embedded Linux operating system, Milesight network cameras could be easily accessed and managed either locally or remotely with great reliability. With built-in high-performance DSP video processing modules, the cameras pride on low power consumption and high stability. They support state-of-the-art H.265/ H.264/ MJPEG video compression algorithm and industry-leading HD dual-stream technology to achieve the highest level of video image quality under the limited network resources. It is fully functional, supporting for flexible and comprehensive alarm linkage mechanism, day and night auto switch, smart PTZ control and privacy masking, etc.

In practical applications, Milesight network cameras could either work independently in the LAN, or be networked to form a powerful safety monitoring system. It is widely used in fields such as finance, education, industrial production, civil defense, health care for security’s sake.

1.2 Key Features



Up to 30x Optical Zoom for Speed Dome, 12x Optical Zoom for Mini (PoE) PTZ Bullet



360° continuous pan and 0°~ 90° auto flip tilt for (PoE) Speed Dome



360° continuous pan and -45°~30° tilt for Mini (PoE) PTZ Bullet



255 Preset Points and 8 Patrols



Based on Linux OS with high reliability



H.265/ H.264/ MJPEG video compression capability



Support Smart Stream



Support ONVIF Profile S & G



Support Primary Stream/ Secondary Stream/ Tertiary Stream



ICR filter with auto switch, true day/night



Built-in WEB server, support IE/ Firefox/ Chrome/ Safari browser



UPnP protocol for the easy management of IPC



Support Milesight DDNS



3D Positioning, PTZ Motion, PTZ Limit, Scheduled Tasks and Auto Home function



White LED for Mini (PoE) PTZ Bullet



Motion Detection, Privacy Masking, Network Fault Detection and ROI



FTP upload, SMTP upload, SD card record and SIP function



G.711/AAC audio compression capability



Audio Input/Output



Three-privilege levels of users for flexible management



Micro SD/SDHC/SDXC card local storage support, expand the edge storage



Local PAL/NTSC signal output

Page 7

1.3 Hardware Overview

1. (PoE) Speed Dome Network Camera

Figure 1-3-1 (PoE) Speed Dome Network Camera

Note:

1) AC 24V and PoE are available for power supply.

2) Built-in SD card slot can be seen after removing the 4 screws and open the front panel.

Page 8

2. 12x Mini PoE PTZ Bullet Network Camera

Wall Mount: Pedestal Mount:

Mini PTZ Bullet: Mini PoE PTZ Bullet:

Figure 1-3-2 12x Mini PoE PTZ Bullet Network Camera

Note:

1) Reset Button: Press “Reset” button for 5 seconds, then the device will be restored to factory

default.

2) Only DC 12V is available for Mini PTZ Bullet power supply. DC 12V and PoE (802.3at) are

available for Mini PoE PTZ Bullet power supply.

Page 9

1.4 How to Connect to Alarm Interface

External interface of camera is as the following, you can refer to the picture to install the external alarm device:(Example for PTZ BULLET)

PIN1: Alarm Output NC/NO 24V DC 1A PIN2: Alarm Output NC/NO 24V DC 1A PIN3: Alarm Input NC/NO ≤12V PIN4: Alarm Input NC/NO ≤12V

1.5 How to Connect the Water-proof Connector

Step1: Get the network cable through the screw nut, rubber ring and the screw bolt. Step2: Insert the rubber ring into the screw bolt. Step3: Connect the screw nut to the screw bolt. Step4: Place the O-Ring on the network port connector. Step5: Connect the RJ45 to the network port connector, and tighten the screw bolt and the

connector.

Page 10

1.6 System Requirements

Operating System: Windows XP/Vista/7/8/10/Server 2000/Server 2008 CPU: 1.66GHz or higher RAM: 1G or higher Graphic memory: 128MB or more Internet protocol: TCP/IP (IPv4/IPv6) Web Browsers: Internet Explorer 8.0 and above version, Mozilla Firefox, Google Chrome and Safari.

Page 11

Chapter II Network Connection

2.1 Setting the Camera over the LAN

Connecting the camera to a switch or a router is the most common connection method. The camera must be assigned an IP address that is compatible with its LAN.

2.1.1 Connect the Camera to the PC Directly

In this method, only when the computer connected to a camera, it will be able to view the camera. The camera must be assigned a compatible IP address to the computer. Details are shown as the following figure.

Figure 2-1-1 Connect the camera to the PC directly

2.1.2 Connect via a Switch or a Router

Set network camera over the LAN via the switch or router as figure 2-1-2:

Figure 2-1-2 Connect via a switch or a Router

2.2 Dynamic IP Connection



Connecting the network camera via a router

Step1: Connect the network camera to a router; Step2: On the camera, assign a LAN IP address, a Subnet mask and a Gateway; Step3: On the router, set port forwarding. E.g. 80, 8000 and 554 ports. The steps for port

forwarding vary depending on different routers. Please look up the router's user manual for

Page 12

assistance with port forwarding; Step4: Apply a domain name from a domain name provider; Step5: Configure the DDNS settings in the setting interface of the router; Step6: Visit the camera via the domain name.

Figure 2-2 Connect the network camera via a router using dynamic IP

Page 13

Chapter III Accessing the Network Camera

The camera must be assigned an IP address to be accessible.

3.1 Assigning An IP Address

The Network Camera must be assigned an IP address to be accessible. The default IP address of Milesight Network Camera is 192.168.5.190. The default user name is “admin”, and password is “ms1234”. You can either change the IP address of the camera via Smart Tools or browser. Please connect the camera in the same LAN of your computer.

3.1.1 Assigning An IP Address Using Smart Tools

Smart Tools is a software tool which can automatically detect multiple online Milesight network cameras in the LAN, set IP addresses, and manage firmware upgrades. It’s recommended to use when assigning IP addresses for multiple cameras.

Step1: Install Smart Tools (The software could be downloaded from our website); Step2: Start Smart Tools, click the IPC Tools page, then enter the device information, such as IP

address, MAC address, Port number, Netmask, and Gateway, then all related Milesight network cameras in the same network that will be displayed. Details are shown as Figure 3-1-1;

Figure 3-1-1 Smart Tools

Page 14

Step3: Select a camera or multiple cameras according to the MAC addresses;

Figure 3-1-2 Select single camera

Figure 3-1-3 Select multiple cameras

Page 15

Step4: Type the User Name and Password (admin/ms1234 for default, please change your

password for your device security);

Figure 3-1-4 Type the User Name and Password

Step5: Change the IP address or other network values, and then click “Modify” button;

Figure 3-1-5 Modify

Page 16

Step6: Change the IP address successfully;

Figure 3-1-6 Change IP address successfully

Step7: By double clicking the selected camera or the browser of interested camera, you can access

the camera via web browser directly. The Internet Explorer window will pop up.

Figure 3-1-7 Login interface

More usage of Smart Tools, please refer to the Smart Tools User Manual.

Page 17

3.1.2 Assign An IP Address via Browser

If the network segment of the computer and that of the camera are different, please follow the steps to change the IP address: Step1: Change the IP address of computer to 192.168.5.0 segment, here are two ways as below:

a. StartControl PanelNetwork and Internet ConnectionNetwork Connection



Local Area Connection, and double click it. (Refer to Figure 3-1-8);

Figure 3-1-8 Setting Network Segment IP Address of Computer

b. Click “Advanced”, and then click “IP settings”“IP address”“Add” (See Figure

3-1-9). In the pop-up window, enter an IP address that in the same segment with Milesight network camera ( e.g. 192.168.5.61, but please note that this IP address shall not conflict with the IP address on the existing network);

Page 18

Figure 3-1-9 Setting IP Address of Computer

Step2: Start the browser. In the address bar, enter the default IP address of the camera:

http://192.168.5.190; Step3: Enter the user name and password when the LOGIN page appears;

Default user name: admin Default password: ms1234

Figure 3-1-10 Login

Step4: After login, please select “Configuration”“Basic Settings”“Network”“TCP/IP”. The

Network Settings page appears (Shown as below Figure);

Figure 3-1-11 IP Address of Camera

Step5: Change the IP address or other network values. Then click “Save” button; Step6: The change of default IP address is completed.

Page 19

3.2 Accessing from the Web Browser

The camera can be used with the most standard operating systems and browsers. The recommended browsers are Internet Explorer, Firefox, Chrome, Safari.

Access over IE Browser

Before using the browser to get access to your camera, you need to install the MsActiveX firstly. You can refer the steps as follows: Step1: Launch the IE browser and enter the IP address of the camera; Step2: Enter the User Name and Password and click “Login”;

(The default user name is “admin”, password is “ms1234”) Step3: At the first time to log in the device, the browser will prompt to install Controls, please click

“Click here to download and install controls manually” as Figure 3-2-1;

Figure 3-2-1 To download and install controls

Note：

1)During installing the controls, please keep the browsers close.

Step4: Follow the prompts to install the Controls, when it`s finished, it will pop out a window as

Figure 3-2-2. Please click “Finish” and refresh the browser, then you will see the video.

Figure 3-2-2 Finish installation

If IE9 or higher version browser is used, it is suggested that the Milesight camera web link should be added as a trusted site. See the instructions as follows: Step1: Start the IE9 or higher version browser, and select “Tools”“Internet Options”;

Page 20

Figure 3-2-3 To add the permission

Step2: Select “Security” to “Trusted”;

Figure 3-2-4 To trust the control

Step3: Enter the IP address of the camera in the blank and click “Add”;

Figure 3-2-5 Add the website to the zone

Page 21

Step4: Enter the IP address. After logging on network camera’s web GUI successfully, user is allowed to view live video as follows.

Figure 3-2-6 Live View Interface

3.3 Accessing from Milesight VMS (Video Management Software)

Milesight VMS(ONVIF compatible) is a handy and reliable application designed to work with network cameras in order to provide video surveillance, recording settings and event management functions. The interface of Milesight VMS is very easy to use, intuitive, with easy access to the most common activities, such as viewing live video, searching through recordings and exporting videos and snapshots. It's able to be integrated with other devices through ONVIF. It is designed to work on Windows XP/ 7/ 8/ Vista/ Server 2000/ Server 2008. The software could be downloaded from our website www.milesight.com. Please install Milesight VMS; then launch the program to add the camera to the channel list. For detailed information about how to use the software, please refer to user manual of Milesight VMS.

Figure 3-3-1 Milesight VMS Live View

Page 22

Chapter IV System Operation Guide

4.1 Live Video

After logging in the network camera web GUI successfully, you are allowed to view live video as follows.

Figure 4-1-1 Live view interface

4.1.1 Operations on Live View Page

Table 4-1-1 Description of the buttons

No.

Parameter

Description

PTZ Control

Navigation key is used to control the direction. The rotation

key is used for auto-rotation.

PTZ Speed

To adjust the speed of pan/tilt movements, from 1 to 10

Page 23

Click to zoom in and zoom out

Click to focus near or far of the lens.

Lens Initialization, Auxiliary Focus and Auto Iris

Lighting For 30s:

Click to open/ close the White LED for

lighting 30s.

3D Positioning: Click to enable/ disable 3D positioning.

One-touch Patrol:

Click to carry out the patrol.

Auto Home: Click to enable Auto Home.

Image Config

Brightness: Drag to adjust brightness of the image.

Contrast: Drag to adjust color and light contrast.

Saturation: Drag to adjust color saturation of the image.

Sharpness: Drag to enhance the detail of the image by

sharpening the edges in the image.

Noise Reduction Level: Drag to adjust the noise reduction

level.

Default: Drag to restore brightness, contrast and saturation

to default setup.

Configuration: Click to access the configuration page.

To choose the Stream（Primary/Secondary/Tertiary）to be

shown on the current video window.

Web Components: Support Firefox, Safari, Chrome; need to

install the component to display the view;

MJPEG: Support to display the view on Firefox, Safari,

Chrome;

(NOTE: IE chooses Web Components mode as default. In

this case, the options will not appear. )

TCP: More reliable connection;

UDP: More instantaneous connection, but if you cannot get

the live view successfully, please turn into TCP connection.

HTTP: Faster and safer connection especially in Internet

environment.

Least Delay: The most instantaneous mode in the three

modes;

Balanced: A balanced mode between Least Delay and

Best Fluency, maintains the fluency while keeps an

Page 24

acceptable delay;

Best Fluency: The most fluent mode in the three modes.

Window size

Click to display images at a window size.

Real size

Click to display images at a real size.

Full Screen

Click to display images at full-screen.

Recording

When recording, the icon will turn red.

Alarm

When an alarm of Smart Event was triggered, the icon

appears

Alarm

When an alarm of Motion Detection was triggered, the

icon appears

Alarm

Except for the two kinds of alarms above, when other

alarms were triggered, the icon appears

Click to start/stop Live View.

Capture

Click to capture the current image and save to the

configured path. The default path is

C:VMS\+-1\ IMAGE-MANUAL.

Start/Stop Recording

Click to start recording video and save to the configured

path. The default path is

C:VMS\+-1\MS_Record. Click again to stop recording.

Play Audio

Click to enable Audio Input/Output. It can also be set in

Audio configuration page.

Saving Path Settings

Click to set the saving path for captured images and video

recordings of operating on the live view.

Enable Digital Zoom

When it is enabled, you can zoom in within a specific area

of video image via your mouse wheel.

Start Talking

When it is enabled, you can start real-time talking.

Page 25

4.1.2 3D Positioning

3D Positioning allows user to use mouse clicking and dragging to control the PTZ. Steps:

1.Click on the toolbar of Live View interface.

2.Operate the 3D positioning function

 Left click a position of the Live View, the corresponding position will be moved to the

center of the Live View.

 Hold down the left mouse button and drag the mouse to the lower right or upper right on

the Live View, you can see a blue rectangle. The corresponding position will be moved to the center of the Live View and Zoom in.

 Hold down the left mouse button and drag the mouse to the lower left or upper left on

the Live View, you can see a blue rectangle. The corresponding position will be moved to the center of the Live View and Zoom out.

 The Bigger the rectangle is, the smaller zoom in/out will be acted.

4.1.3 Set / Call a preset / Patrol / Pattern

A preset is a predefined image position. You can click the call button from the preset list to quickly go to the desired image position.

Set a preset:

Step1: In the PTZ control panel, select a preset number from the preset list;

Figure 4-1-2 Set a Preset

Step2: Use the PTZ control buttons to move the lens to the interested position;

Step3: Click to save the setting of the current preset;

Step4: Click to delete the chosen preset.

Note:

Up to 237 presets can be configured (18 presets are not modifiable).

Page 26

Calling a preset:

Select a defined preset form the preset list and click to call the preset.

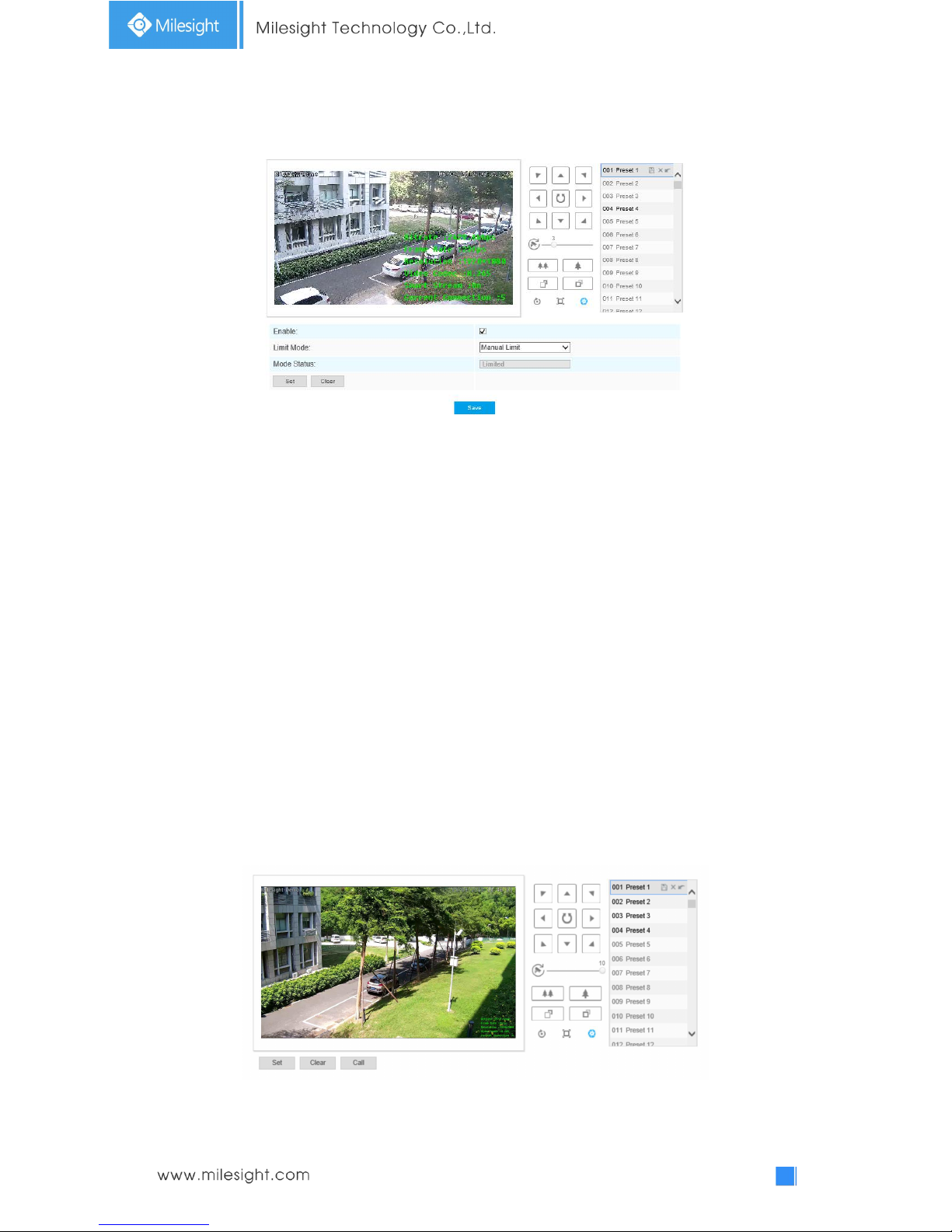

Figure 4-1-3 call a Preset

Note:

The following presets are predefined with special commands. You can only call them but can’t configure them. For example, preset 037 is the “Self Check”. If you call the preset number 037, the PTZ camera will start self check function at once.

Table 4-1-2 Special Presets

Special

Preset

Function

Special

Preset

Function

Auto Flip(Speed Dome only)

Path4

Goto Zero

Path5

Stop Scan

Path6

Auto Scan

Path7

Self Check

Path8

Patrol

Pattern1

Path1

Pattern2

Path2

Pattern3

Path3

Pattern4

Figure 4-1-4 Special Presets

Page 27

Set / Call a patrol

A patrol is a memorized series of preset function. It can be configured and called on the patrol setting list. You can customize up to 8 patrols and it can be configured with 48 presets. Before configuring the patrol, you should make sure that the presets you want to add to the patrol have been defined.

Set a patrol:

Step1: In the PTZ control panel, click to enter the patrol settings interface;

Step2: Select a patrol number, the setting icon will appear , click it;

Step3: Click to add presets to this patrol, as shown in Figure 4-1-5;

Figure 4-1-5 Configure a Patrol

Step4: Configure the preset number, patrol speed and patrol time;

Table 4-1-3 Description of Patrol Settings

Name

Description

Patrol Speed

The speed of moving from one preset to another.

Patrol Time

The duration staying on one patrol point. The PTZ camera

moves to another patrol point after the set patrol time.

Step5: Click to save the patrol settings.

Note:

A. Patrol Speed only works in Patrol mode. B. Patrol Time should be 15~120s for Mini (PoE) PTZ Bullet and 0~120s for Speed Dome.

Call a patrol:

In the PTZ control panel, select a defined patrol from the patrol list, and click to call the patrol,

as shown in Figure 4-1-6.

Page 28

Figure 4-1-6 Call a Patrol

Note:

The three buttons behind the Patrol list means: Play, Set and Delete.

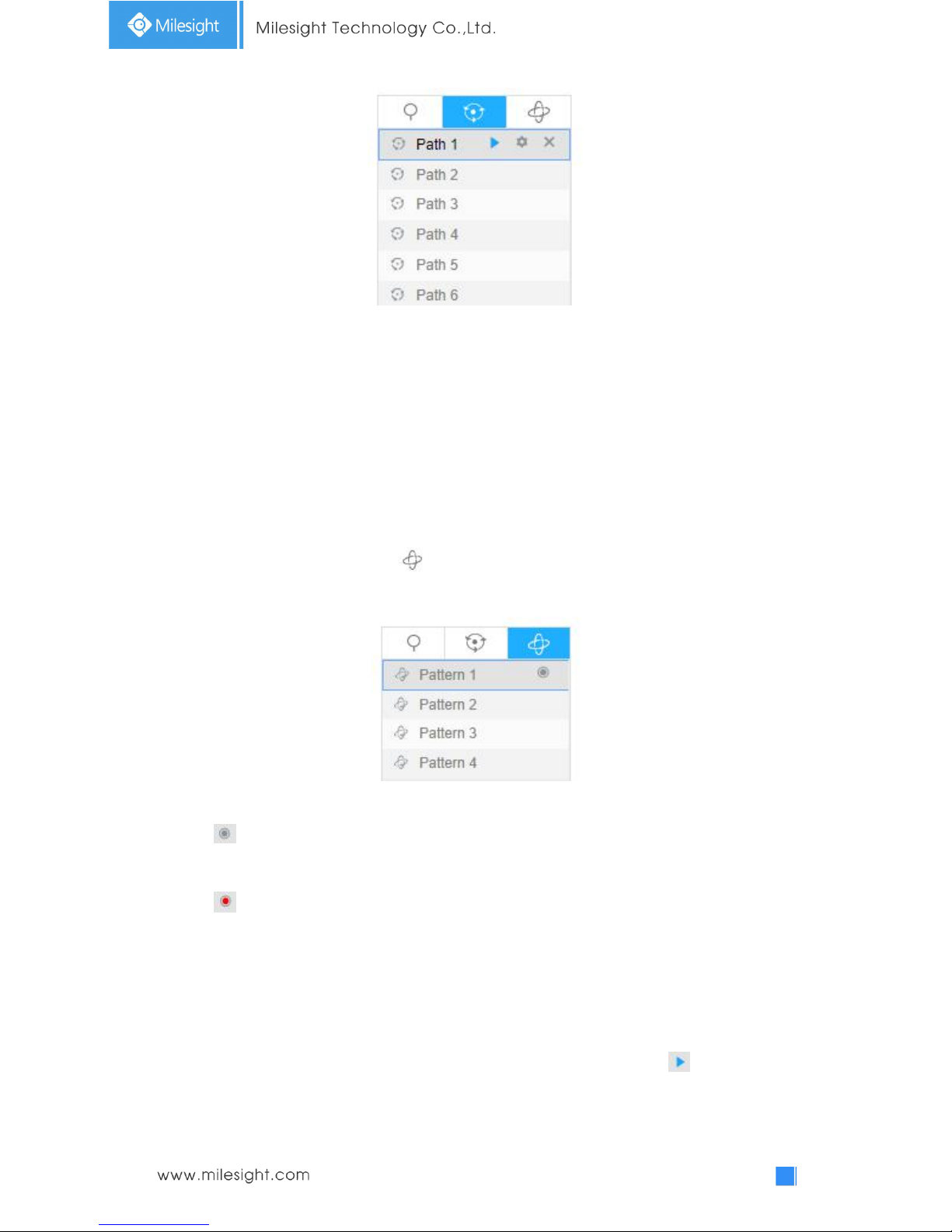

Set / Call a pattern

A pattern is a memorized series of pan, tilt, zoom and preset functions. It can be called on the pattern settings interface. There are up to 4 patterns can be set.

Set a pattern:

Step1: In the PTZ control panel, click to enter the pattern settings interface;

Step2: Select a pattern number from the pattern list as shown in Figure 4-1-7;

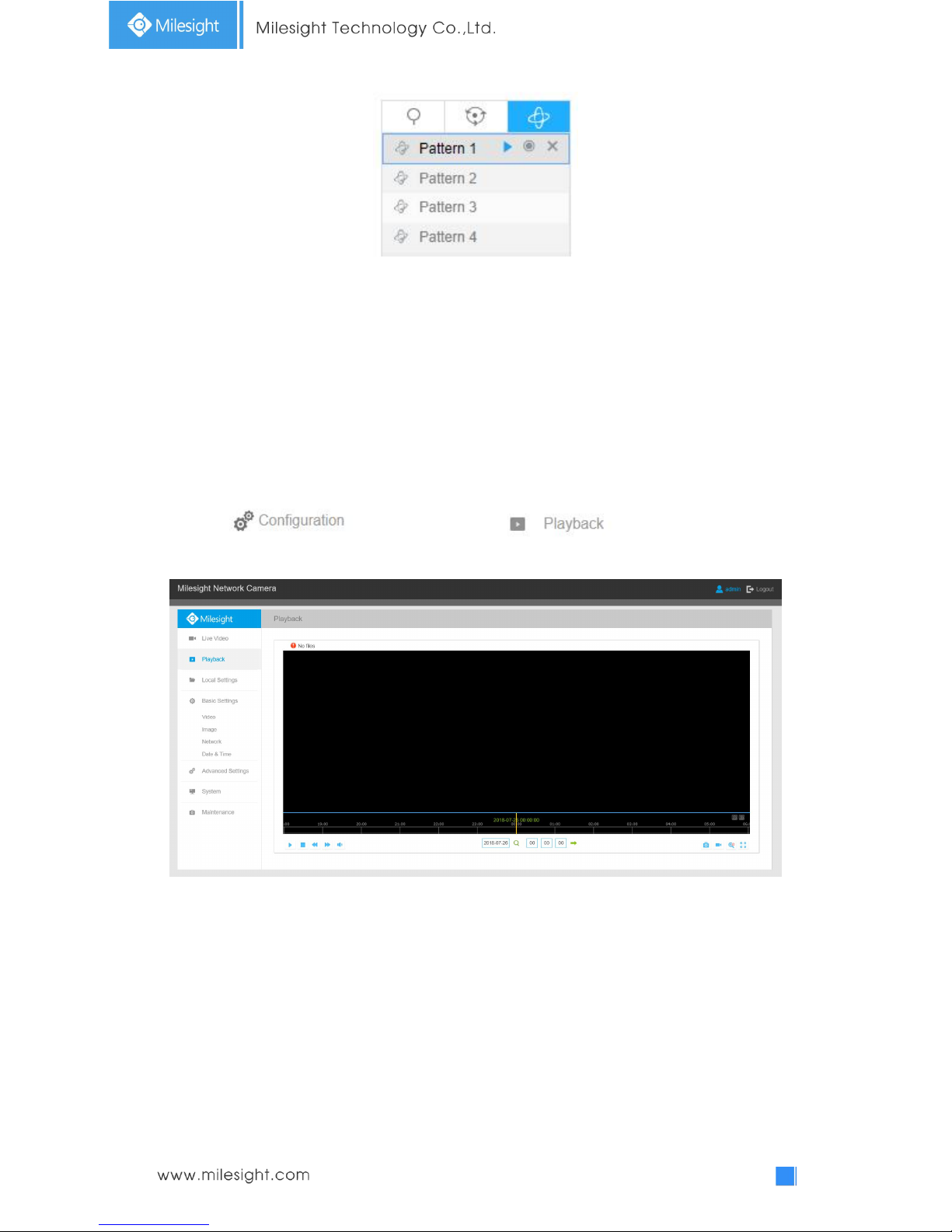

Figure 4-1-7 Set a Pattern

Step3: Click to activate recording the panning, tilting and zooming actions;

Step4: Use the PTZ controller buttons to move the lens to the interested position;

Step5: Click to save all the pattern settings.

Note:

The percentage of number on the OSD is the remaining space of pattern. Start with 100% and run out of 0%.

Call a pattern:

In the PTZ control panel, select a defined pattern from the pattern list, click to call the pattern,

as shown in Figure 4-1-8.

Page 29

Figure 4-1-8 Call a Pattern

Note:

The three button behind the Pattern list means: Play, Record and Delete. When configuring the pattern, pan and tilt are valid but the limit stops and auto flip will be invalid. Also, 3D Positioning operation is not supported.

4.2 Playback

This section explains how to view the recorded video files stored in SD cards.

Step1: Click and then click on the menu bar to enter playback interface;

Figure 4-2-1 Playback interface

Step2: Click the date button, choose the date when date window pops up;

Page 30

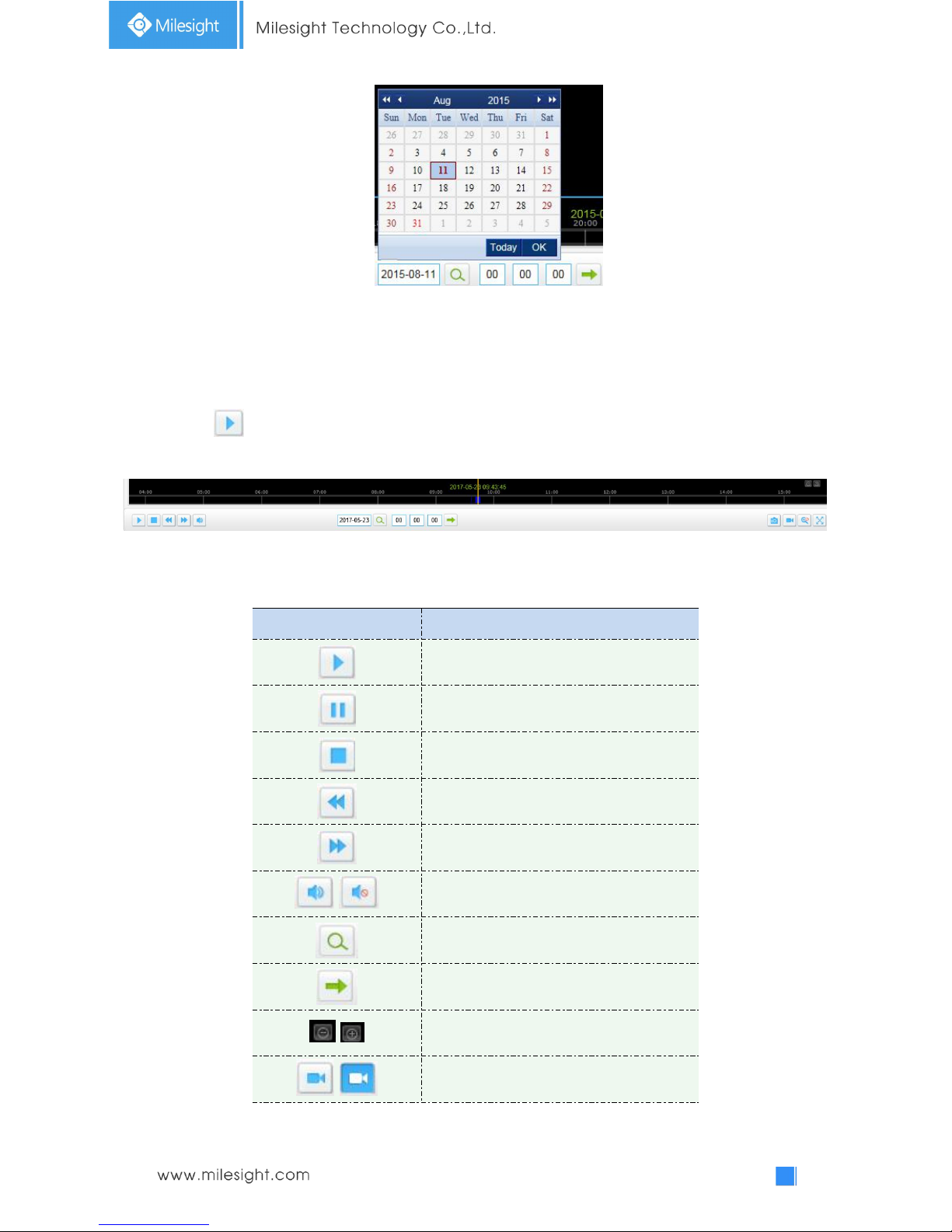

Figure 4-2-2 Search Video

Note:

The date with bright red means current date; one with a dark red number and white background means weekend day; one with a dark red number and blue background means that the date is selected now.

Step3: Click to play the video files found on this date.

The toolbar on the button of playback interface can be used to control playing progress.

Figure 4-2-3 Playback Toolbar

Table 4-2-1 Description of the buttons

Button

Operation

Play

Pause

Stop

Speed Down

Speed Up

Audio On/Off

Go To

Time Narrow/Expand

Start/Stop Recording

Page 31

Snapshot

Zoom On/Off

Full Screen

Note:

Drag the progress bar with the mouse to locate the exact playback point. You can also input the

time and click to locate the playback point in the Set Playback Time filed. You can also click

/ to zoom out/in the progress bar.

Figure 4-2-4 Set Payback Time

4.3 Local Settings

Record File Length and storage path can be customized in this setting page.

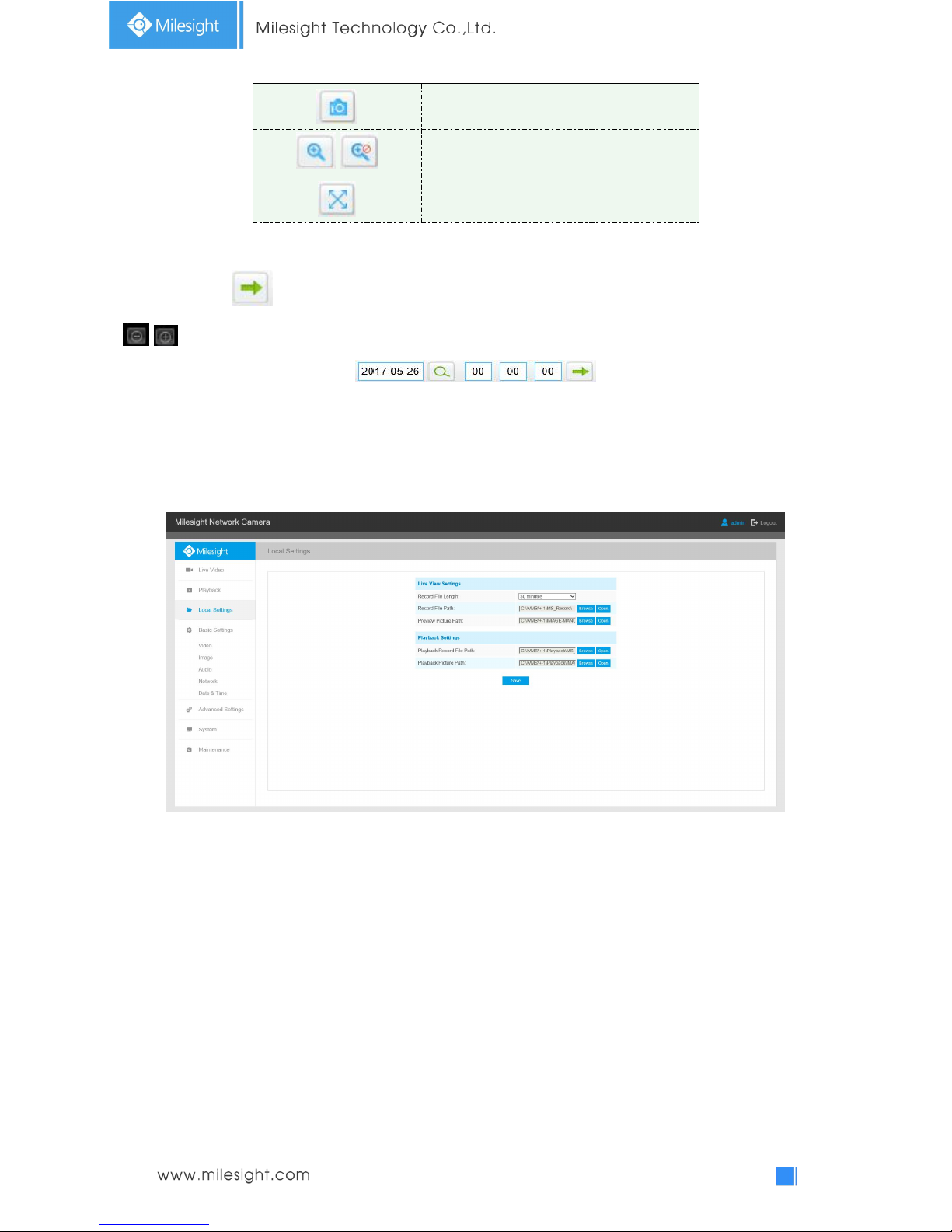

Figure 4-3-1 Local Settings

4.4 Basic Settings

4.4.1 Video

Stream parameters can be set in this module, adapting to different network environments and demands.

Primary Stream Settings

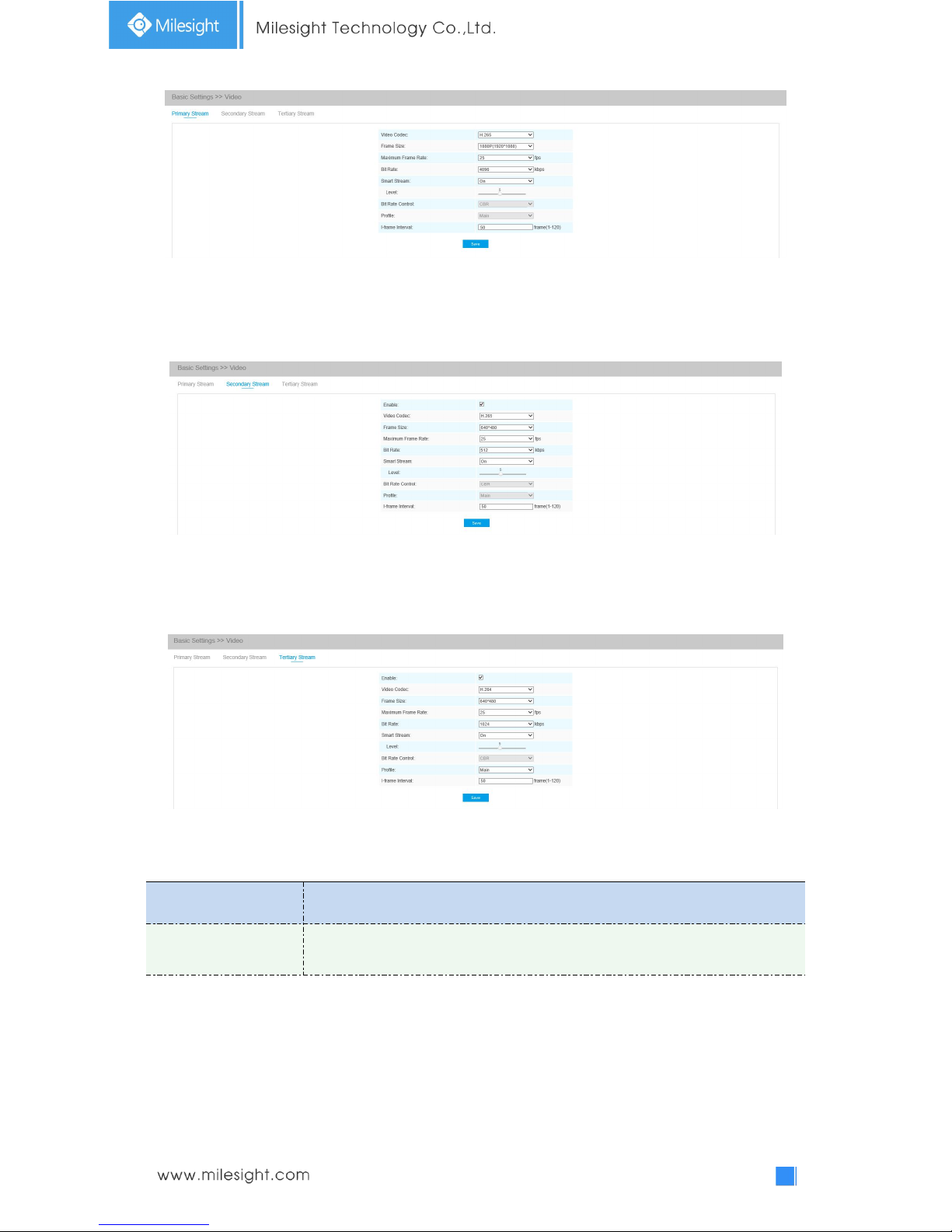

Page 32

Figure 4-4-1 Primary Stream Settings

Secondary Stream Settings

Figure 4-4-2 Secondary Stream Settings

Tertiary Stream Settings

Figure 4-4-3 Tertiary Stream Settings

Table 4-4-1 Description of the buttons

Parameters

Function Introduction

Video Codec

H.265/H.264/MJPEG are available.

Page 33

Frame Size

Options include 5M(2560*1920)(only for 5MP Mini (PoE) PTZ Bullet and Speed

Dome), 4M(2592*1520)(only for 5MP and 4MP Mini (PoE) PTZ Bullet and Speed

Dome), 3M(2304*1296), 1080P(1920*1080), 1.3M(1280*960), 720P(1280*720),

D1 (704*576).

For Secondary Stream, it includes 704*576, 640*480, 640*360, 352*288,

320*240, 320*192, 320*176.

For Tertiary Stream, it include 1920*1080, 1280*720, 704*576, 640*480,

640*360, 352*288, 320*240, 320*192, 320*176.

Maximum Frame Rate

It means maximum refresh frame rate of per second.

Bit Rate

Set the bitrate to 32~16384 Kbps. The higher value corresponds to the

higher video quality, and the higher bandwidth is required as well.

Smart Stream

Smart Stream mode remarkably reduces the bandwidth and the data storage

requirements for network cameras while ensuring the high quality of images, and

it is a 10-level adjustable codec.

It is optional to turn On/Off Smart Stream mode.

Level: Level 1~10 are available to meet your need.

Bit Rate Control

CBR: Constant Bitrate. The rate of CBR output is constant.

VBR: Variable Bitrate. VBR files vary the amount of output date per time

segment.

Image Quality

Low/Medium/High are available, this item is optional only if you select VBR.

Profile

The option is for H.264. Main/High/Basic can be selected according to your

needs.

I-frame Interval

Set the I-frame interval to 1~120, 50 for the default. The number must be a

multiple of the number of frames

JPEG Quality

Low/Medium/High/Higher are available,

this item is optional only if you select

the MJPEG

Note:

The options of [Frame Size] are variable according to the model selected.

4.4.2 Image

Display information, enhancement of image and Day/Night setting can be set in this module. OSD (On Screen Display) content and video time can be displayed to rich the image information.

Page 34

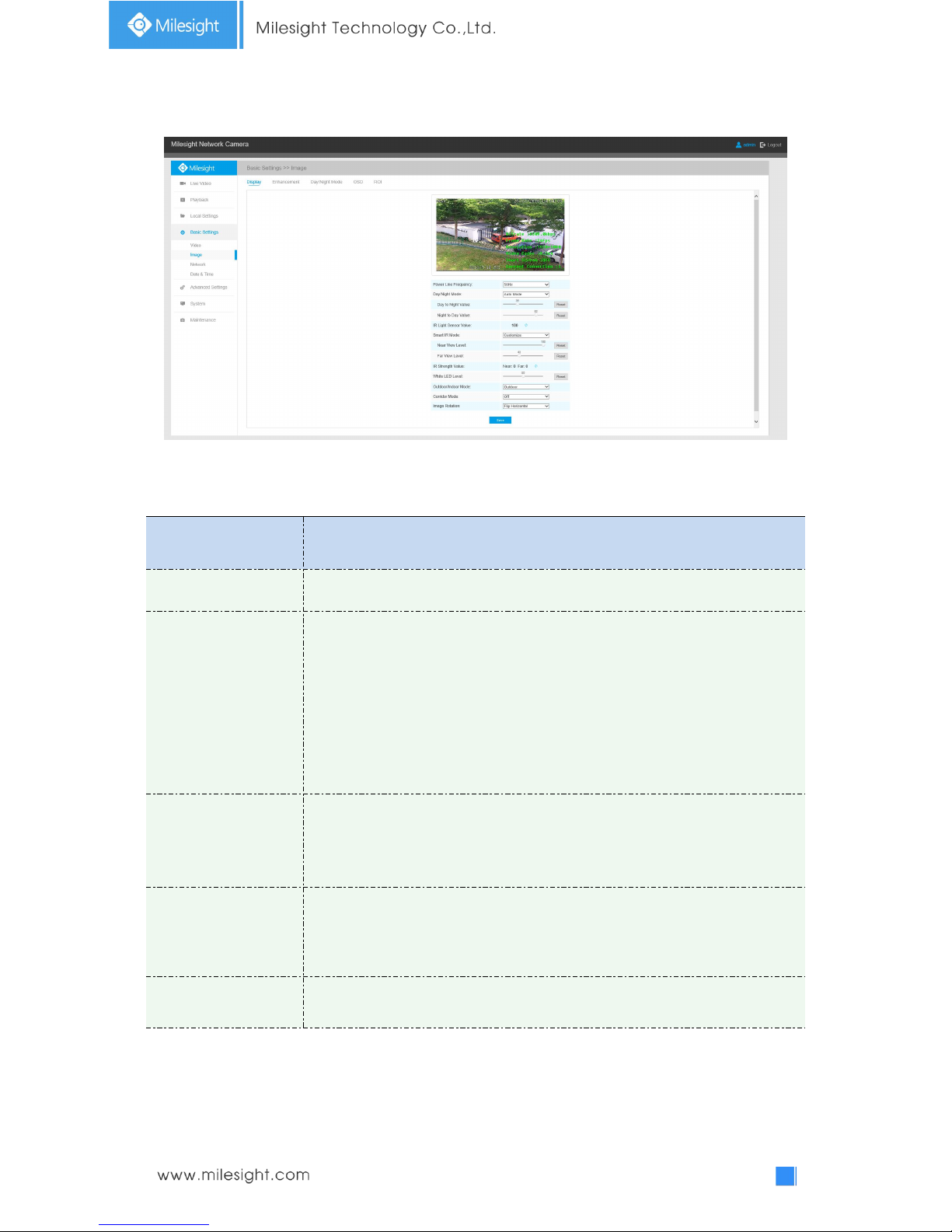

Display

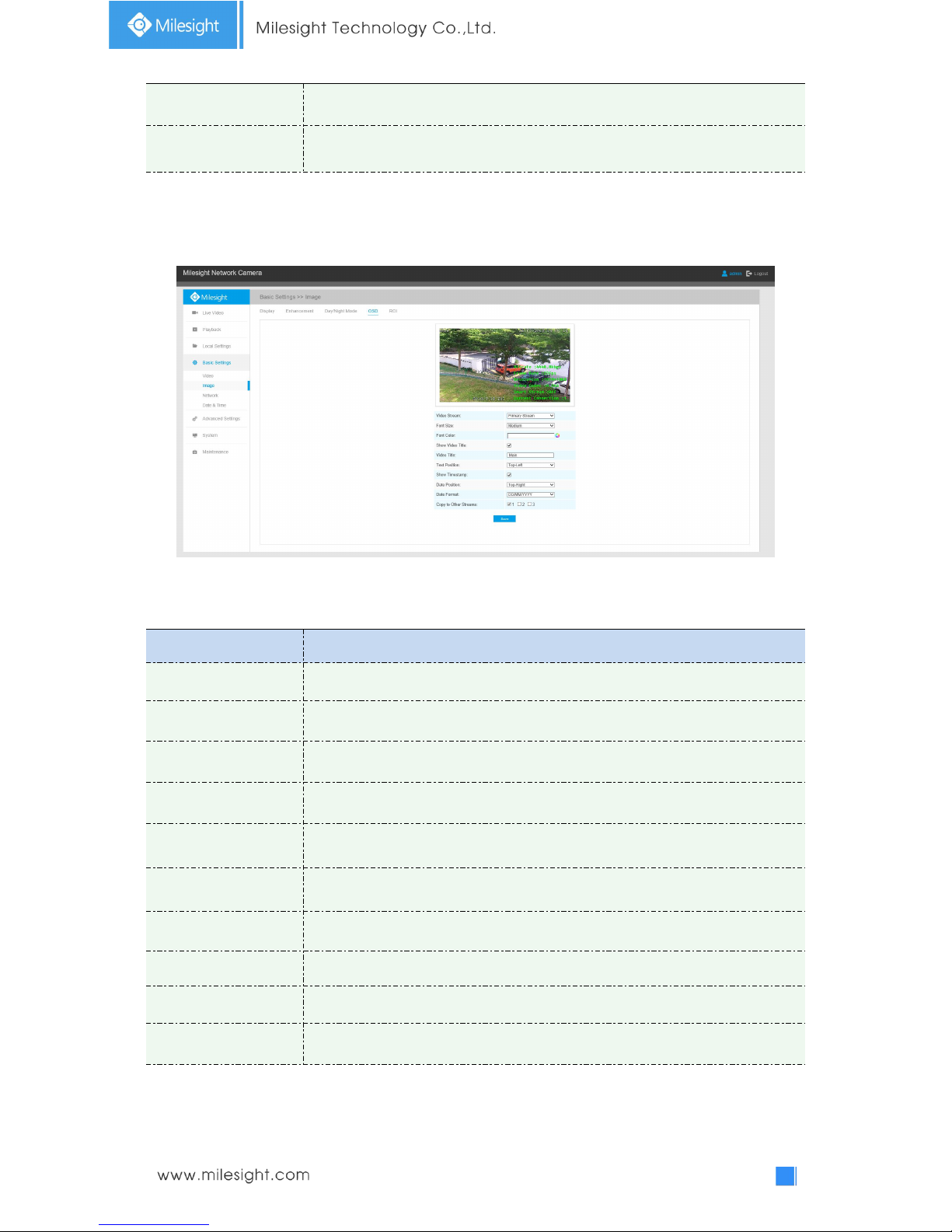

Figure 4-4-4 Display Settings

Table 4-4-2 Description of the buttons

Parameters

Function Introduction

Power Line Frequency

60HZ flicker for NTSC mode and 50HZ flicker for PAL mode

Day/Night Mode

There are several parameters such as Exposure Level, Maximum Exposure Time

and IR-CUT Interval, etc, associated with this mode.

Night Mode: Show in live view based on Night Mode settings

Day Mode: Show in live view based on Day Mode settings

Auto Mode: Show in live view based on environment, set the sensitivity for

switching Day Mode to Night Mode, or Night Mode to Day Mode

Customize: Show in live view based on your own settings’ time to start/end Night

Mode

Day To Night Value

This is the sensitivity for switching Day Mode to Night Mode. When IR Light

Sensor Current Value is lower than this value, it will switch Day Mode to Night

Mode.

Night To Day Value

This is the sensitivity for switching Night Mode to Day Mode. When IR Light

Sensor Current Value is higher than this value, it will switch Night Mode to Day

Mode.

IR Light Sensor Value

The current value of the IR light sensor

Page 35

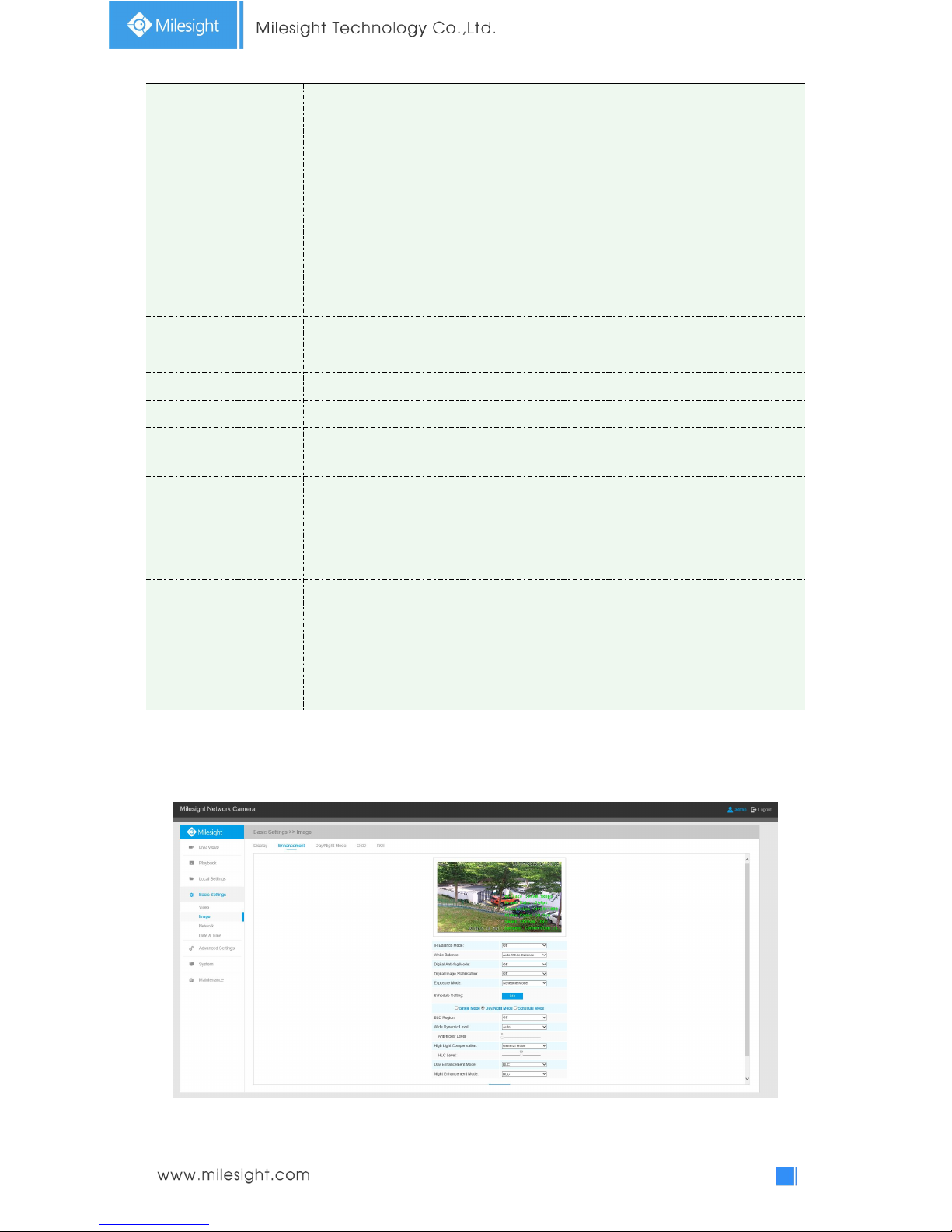

Smart IR Mode

With the combination of the High Beam and Low Beam, The IR LEDs technology

has been upgraded to provide better image clarity and quality regardless of the

object distance. Also, the Low Beam and High Beam's brightness can be adjusted

manually or automatically on the basis of the Zoom ratio. Moreover, with the IR

anti-reflection panel, the infrared light transmittance is highly increased.

Support to set the strength of the IR to Auto Mode or Customize to achieve the

best effect.

Speed Dome has 8 LED lights, 4 are High Beams and 4 are Low Beams.

And Mini PTZ Bullet has 4 LED lights, 2 are High Beams and 2 are Low Beams.

Near view level

Adjust the light strength of Low-Beams LED light level from 0 to 100.

Far view level

Adjust the light strength of High-Beams LED light level from 0 to 100.

IR Strength Value

The current value of Low-Beams LED and High-Beams LED light value

Outdoor/Indoor Mode

Select indoor or outdoor mode to meet your needs.

Corridor Mode

There are three options available, you can select one to meet your need

Off: Keep the image in normal direction

Clockwise 90°: Rotate the image by 90° clockwise

Anticlockwise 90°: Rotate the image by 90° anticlockwise

Image Rotation

There are four options available, you can select one to meet your need

Off: Keep the image in normal direction

Rotating 180°: Upside down the image

Flip Horizontal: Flip the image horizontally

Flip vertical: Flip the image vertically

Enhancement

Figure 4-4-5 Enhancement Settings

Page 36

Table 4-4-3 Description of the buttons

Parameters

Function Introduction

IR Balance Mode

There is an option to turn On/Off the IR LED.

IR Balance Mode would avoid the problem of overexposure or darkness, and

the IR LED will change according to the actual illumination.

White Balance

To restore white objects and remove color distortion cause by the light of

the environment

Auto White Balance: This option will automatically enable the White Balance

function;

Manual White Balance: Set Red Gain Level and Blue Gain Level manually;

Incandescent Lamp: Select this option when light is similar with incandescent

lamp;

Warm Light Lamp: Select this option when light is similar with warm light

lamp;

Natural Light: Select this option when there is no other light but natural light;

Fluorescent Lamp: Select this option when light is similar with Fluorescent

Lamp.

Schedule mode: Select this option that you can customize the schedule to

enable/disable above modes

Reduce Motion Blur

This function is only for H.264 series. Better image for moving objects, it may

lead worse quality for still objects

Digital Anti-fog Mode

This function is only for H.265 series. Better image effect in foggy weather,

refers to Figure 4-4-9

Digital Image Stabilisation

This function is only for H.265 series. Decrease the blur and shakiness of the

image.

Exposure Mode

Auto Mode, Manual Mode and Schedule Mode are available.

Auto Mode: The camera will adjust the brightness according to the light

environment automatically;

Manual Mode: The camera will adjust the brightness according to the value

you set, you can set the exposure time from 1~1/100000s, the higher the value

is, the brighter the image is;

Schedule Mode: You can customize the schedule to enable/disable Auto Mode

and Manual Mode.

Single Mode

Set single mode for BLC/WDR/HLC.

Day/Night Mode

Support BLC/WDR/HLC on Day Enhancement Mode/Night Enhancement Mode

separately.

Schedule Mode

Set schedule mode for BLC/WDR/HLC.

BLC Region

Off, Customize, and Centre are available (in single mode, only enable when

WDR is disable)

Off: Calculate the full range of view and offer appropriate light compensation

Customize: This option enables you to customize inclusive or exclusive region

manually

Centre: This option will automatically add an inclusive region in the middle of

the window and give the necessary light compensation

Page 37

Wide Dynamic Range

This function which can capture and display both bright and dark areas in the

same frame enables details of objects in both bright and dark areas to be

visible.

Off: Disable WDR function

On: Enable the WDR, there are Low/High/Auto three levels

Customize: Customize the schedule to enable/disable the WDR function and

set the levels with Low/High/Auto

Wide Dynamic Level

Set WDR with Low/High/Auto level

Anti-flicker Level

Reduce flickers that appear on screen in some lighting conditions and there are

10 levels of anti-flicker adjustments

High Light Compensation

This function is only for H.265 series to adjust the brightness to a normal range

when the light is strong, refers to Figure 4-4-10

Off: Disable HLC function

General Mode: Enable the general mode of HLC, and there is a setting for HLC

Level

Enhanced Mode: Enable the enhanced mode of HLC, and there is a setting for

HLC Level

Select level for HLC

Day Enhancement Mode

BLC/WDR/HLC are available.

Night Enhancement

Mode

BLC/WDR/HLC are available.

Schedule Setting

Customize the schedule to enable/disable BLC/WDR/HLC mode

Note:

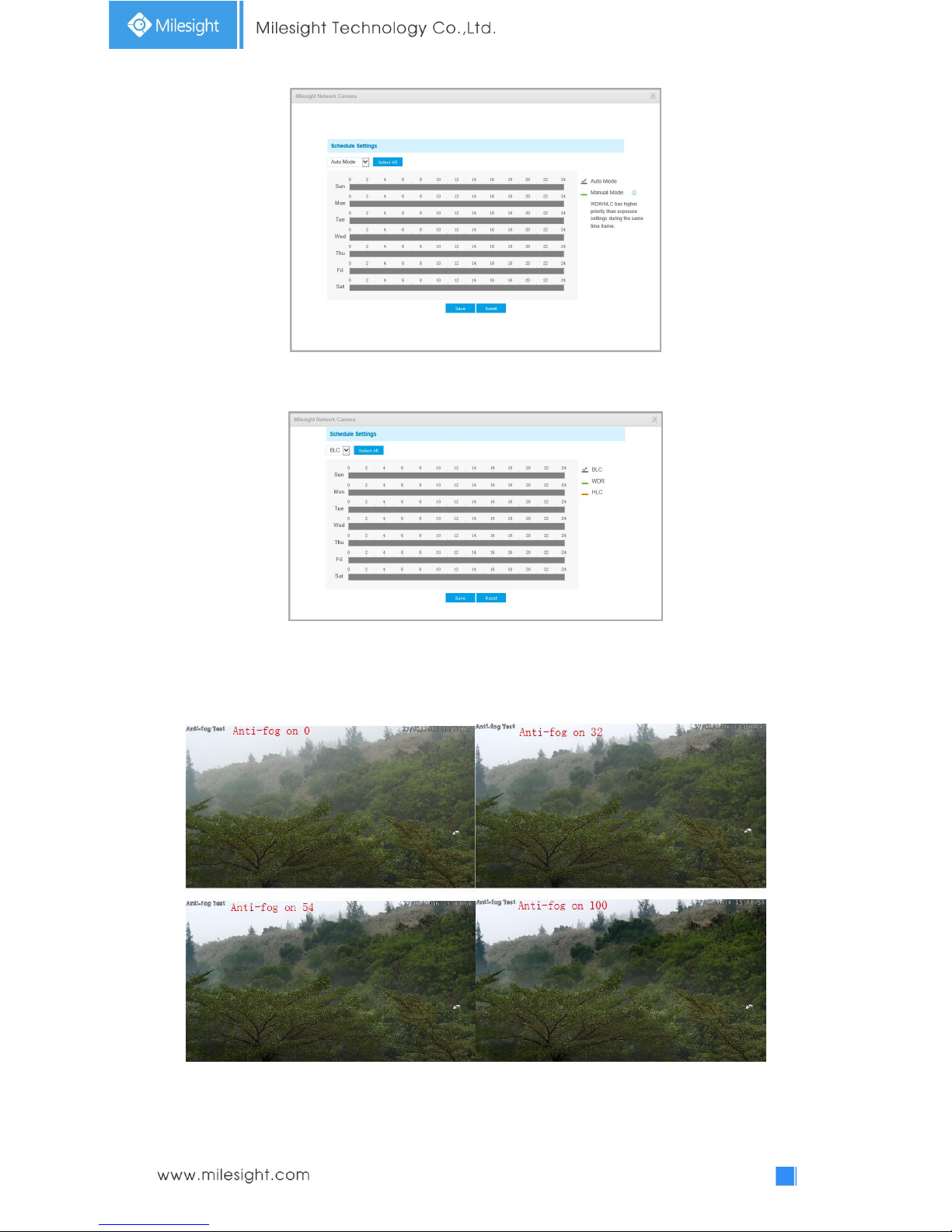

1) You can customize the schedule to enable/disable the difference White Balance modes.

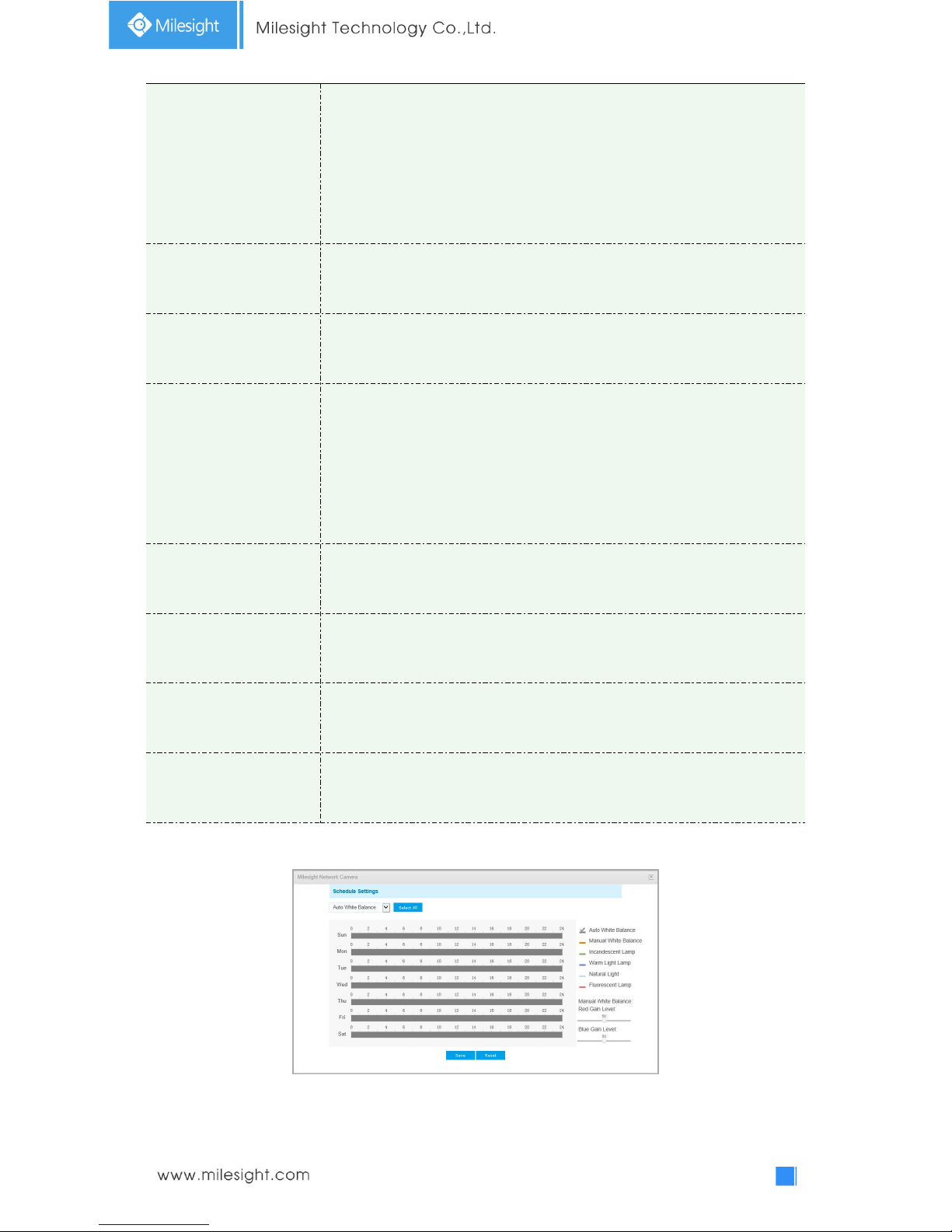

Figure 4-4-6 White Balance schedule settings

2) You can customize the schedule to enable/disable the difference exposure modes.

Page 38

Figure 4-4-7 Exposure mode schedule settings

3) You can customize the schedule to enable/disable BLC/WDR/HLC mode.

Figure 4-4-8 BLC/WDR/HLC mode schedule settings

4) WDR/HLC has higher priority than exposure settings at the same time frame.

5) Anti-fog Image.

Figure 4-4-9 Anti-fog Image

6) HLC Image.

Page 39

Figure 4-4-10 HLC Image

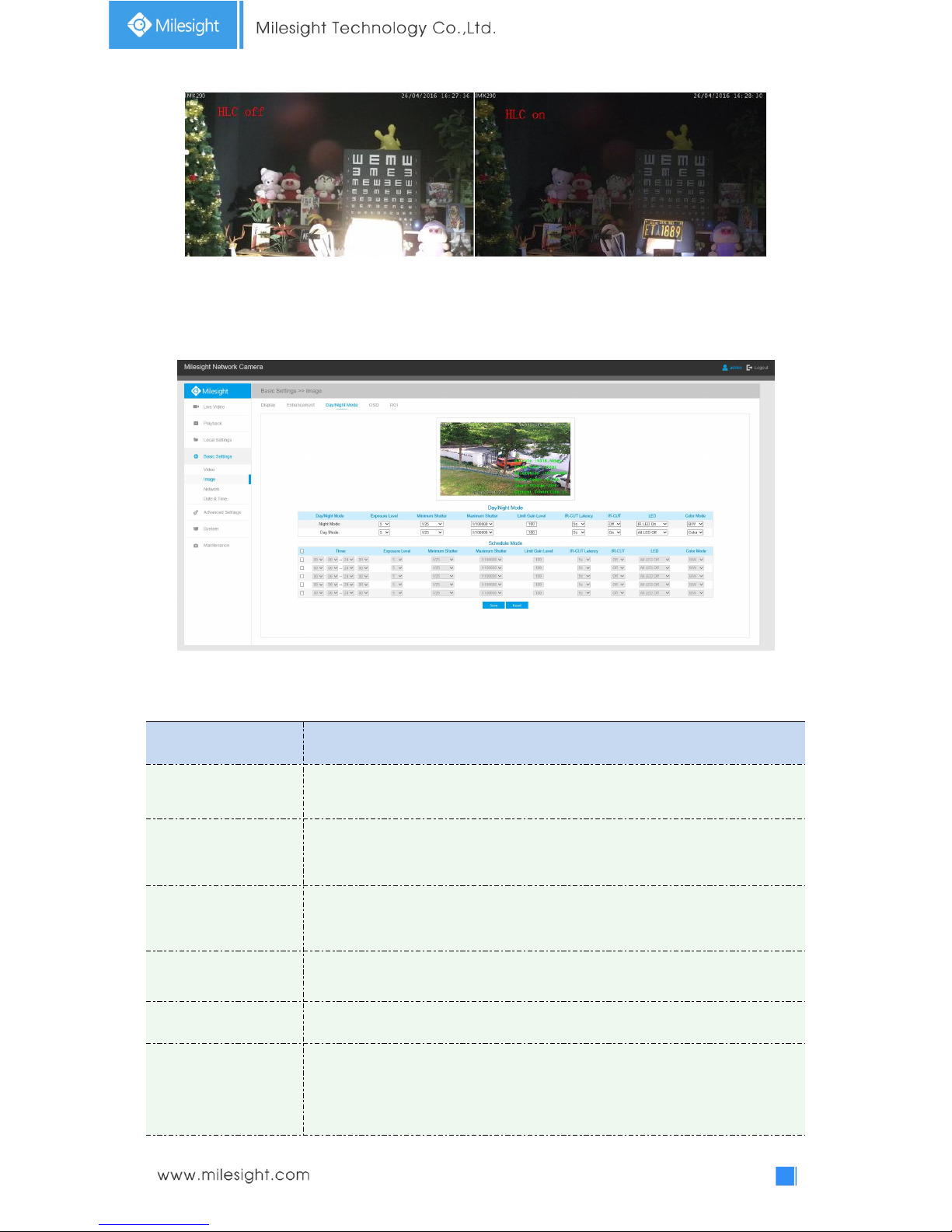

Day/Night Mode

Figure 4-4-11 Day/Night Mode Settings

Table 4-4-4 Description of the buttons

Parameters

Function Introduction

Exposure Level

Level 0~10 are available to meet your need.

Minimum Shutter

Minimum Shutter is the same as Maximum Exposure Time. Set the minimum

Shutter to 1~1/100000s

Maximum Shutter

Maximum Shutter is the same as Minimum Exposure Time. Set the maximum

Shutter to 1~1/100000s

IR-CUT Latency

The interval time of switching one mode to another.

IR-CUT

Turn on or turn off IR-CUT.

LED

Choose to turn on or turn off under this mode.

LED off: Turn off all the LEDs on the device;

IR LED on: Turn on the IR LED;

White LED on: Turn on the White LED (Only for Mini (PoE) PTZ Bullet).

Page 40

Color Mode

Select B/W or Color mode under Day/Night mode.

Schedule Mode

By this you can customize your special demands for different time, then the Day

mode and Night mode will switch automatically according to your settings.

OSD(On Screen Display)

Figure 4-4-12 OSD Settings

Table 4-4-5 Description of the buttons

Parameters

Function Introduction

Video Stream

Enable to set OSD for primary stream and secondary stream

Font Size

Smallest/Small/Medium/Large/Largest/Auto are available for title and date

Font Color

Enable to set different color for title and date

Show Video Title

Check the checkbox to show video title

Video Title

Customize the OSD content

Text Position

OSD display position on the image

Show Timestamp

Check the checkbox to display date on the image

Date Position

Date display position on the image

Date Format

The format of date

Copy to Other Streams

Copy the settings to other streams

Page 41

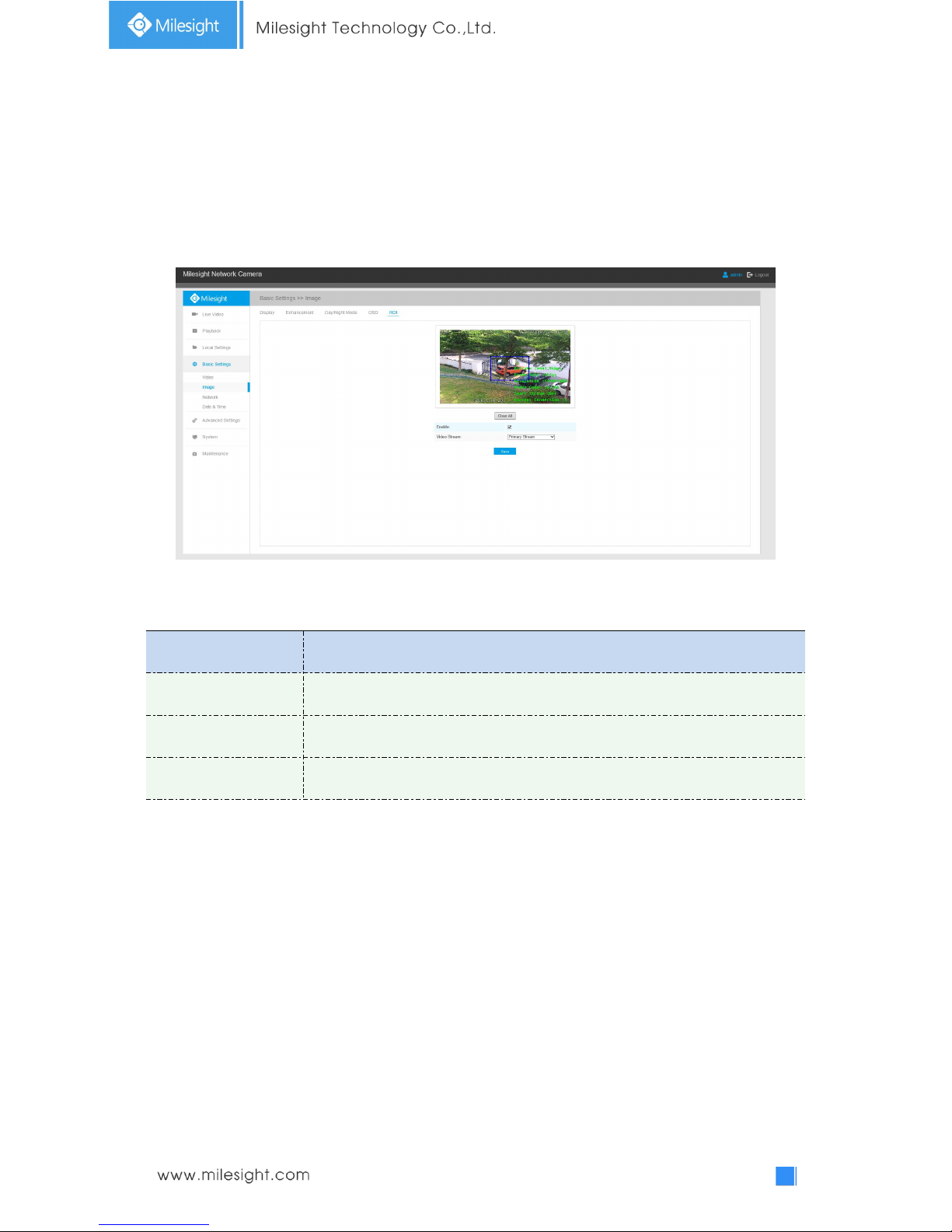

ROI

Region of interest(often abbreviate ROI), is a selected subset of samples within a dataset identified for a particular purpose. Users can select up to 3 key regions of a scene to transmit through separate streams for targeted preview and recording. By using Milesight ROI technology, more than 50% of bit rate can be saved and therefore less bandwidth demanded and the storage usage reduced. So according to this, you can set a small bit rate for high resolution.

Figure 4-4-13 ROI Settings

Table 4-4-6 Description of the buttons

Parameters

Function Introduction

Enable

Check the checkbox to enable the ROI function

Clear All

Clear all areas you drew before

Video Stream

Choose the Video Stream

Note:

You can set a low bit rate. For example, you can set a bit rate of 512Kbps and a resolution of

1080P, then you can see the image quality of ROI is more clear and fluent than the other region.

4.4.3 Audio

This audio function allows you to hear the sound from the camera or transmit your sound to the camera side. A two-way communication is also possible to be achieved with this feature. Alarm can be triggered when the audio input is above a certain alarm level you set, and configured audio can be played when an alarm occurs.

Page 42

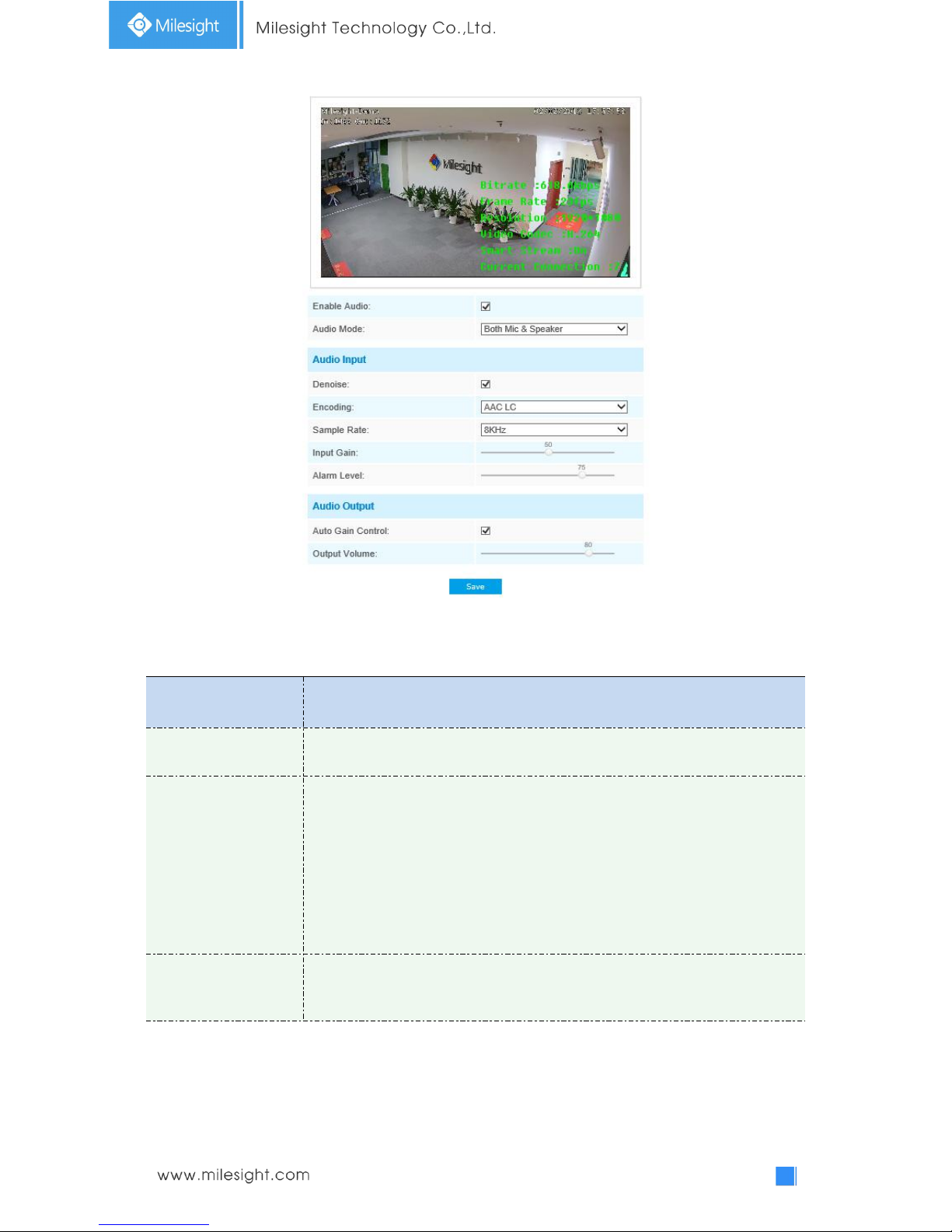

Figure 4-4-14 Audio Settings

Table 4-4-7 Description of the buttons

Parameters

Function Introduction

Enable Audio

Check on the checkbox to enable audio feature.

Audio Input

Denoise: Set it as On/Off. When you set the function on, the noise detected can

be filtered.

Encoding: G711-ULaw, G711-ALaw and AAC LC are available;

Sample Rate: There are 8KHz/16KHz two options;

Input Gain: Input audio gain level, 0-100;

Alarm Level: Alarm will be triggered if voice alarm is enabled and input gained

volume is higher than the alarm level, 0-100.

Audio Output

Auto Gain Control: Improve the quality of audio;

Output Volume: Adjust volume of output.

You can upload up to 3 audio files manually to Flash or SD Card on the Audio web page and you can also edit the audio file’s name when upload.

Page 43

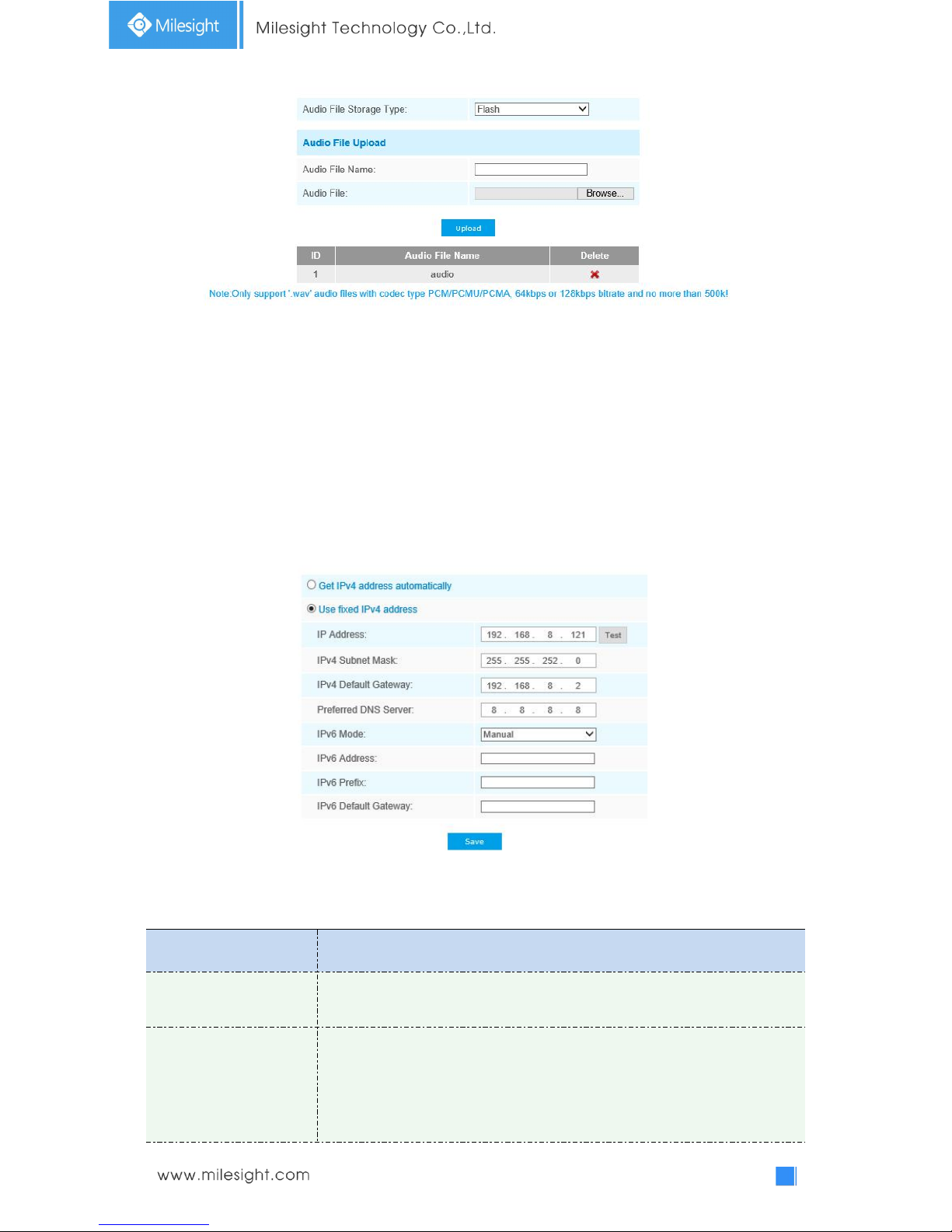

Figure 4-4-15 Audio File

Note:

Only support ‘.wav’ audio files with codec type PCM/PCMU/PCMA, 64kbps or 128 kbps and no more than 500k.

4.4.4 Network

TCP/IP

Figure 4-4-16 TCP/IP Settings

Table 4-4-8 Description of the buttons

Parameters

Function Introduction

Get IPv4 Address

Automatically

Get an IP address from the DHCP server automatically.

Use fixed IP address

IPv4 Address: It is used to identify a network camera on the network;

IPv4 Subnet Mask: It is used for identifying the subnet where the network

camera is located;

IPv4 Default Gateway: It is the default router address;

Preferred DNS Server: The DNS Server translates the domain name to IP

Page 44

address;

IPv6 Mode: Choose different mode for IPv6: Manual/Route Advertisement/

DHCPv6;

IPv6 Address: It is used to identify a network camera on the network;

IPv6 Prefix: Define the prefix length of IPv6 address;

IPv6 Default Gateway: The default router IPv6 address.

Note: The Test button is used to test if the IP is conflicting.

HTTP

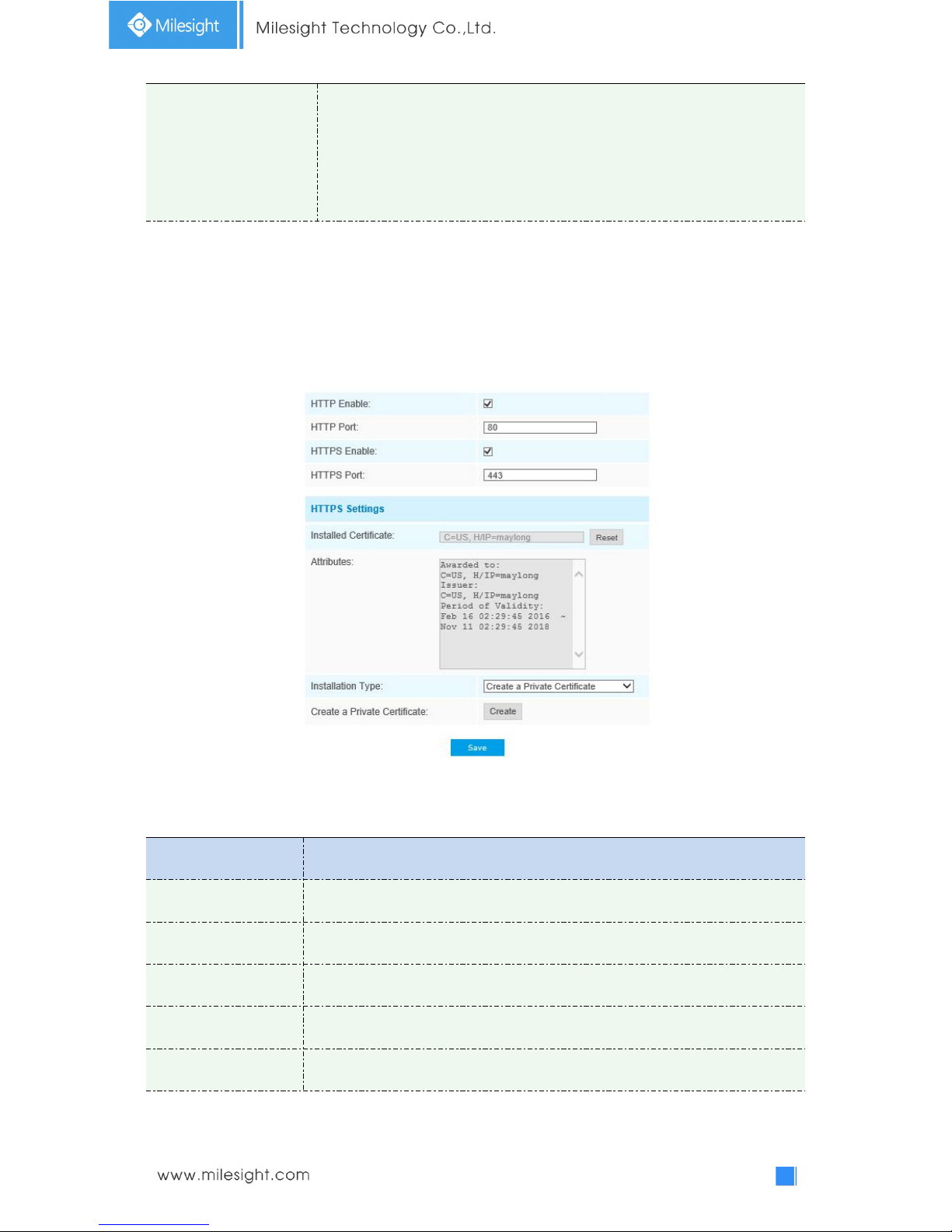

Figure 4-4-17 HTTP Settings

Table 4-4-9 Description of the buttons

Parameters

Function Introduction

HTTP Enable

Start or stop using HTTP.

HTTP Port

Web GUI login port, the default is 80, the same with ONVIF port.

HTTPS Enable

Start or stop using HTTPS.

HTTPS Port

Web GUI login port via HTTPS. the default is 443.

HTTP Settings

Upload and set the SSL certificate .

HTTP URL are as below:

Page 45

Stream

URL

Main Stream

http://username:password@IP:port/ipcam/mjpeg.cgi

Secondary Stream

http://username:password@IP:port/ipcam/mjpegcif.cgi

Tertiary Stream

http://username:password@IP:port/mjpegthird.cgi

RTSP

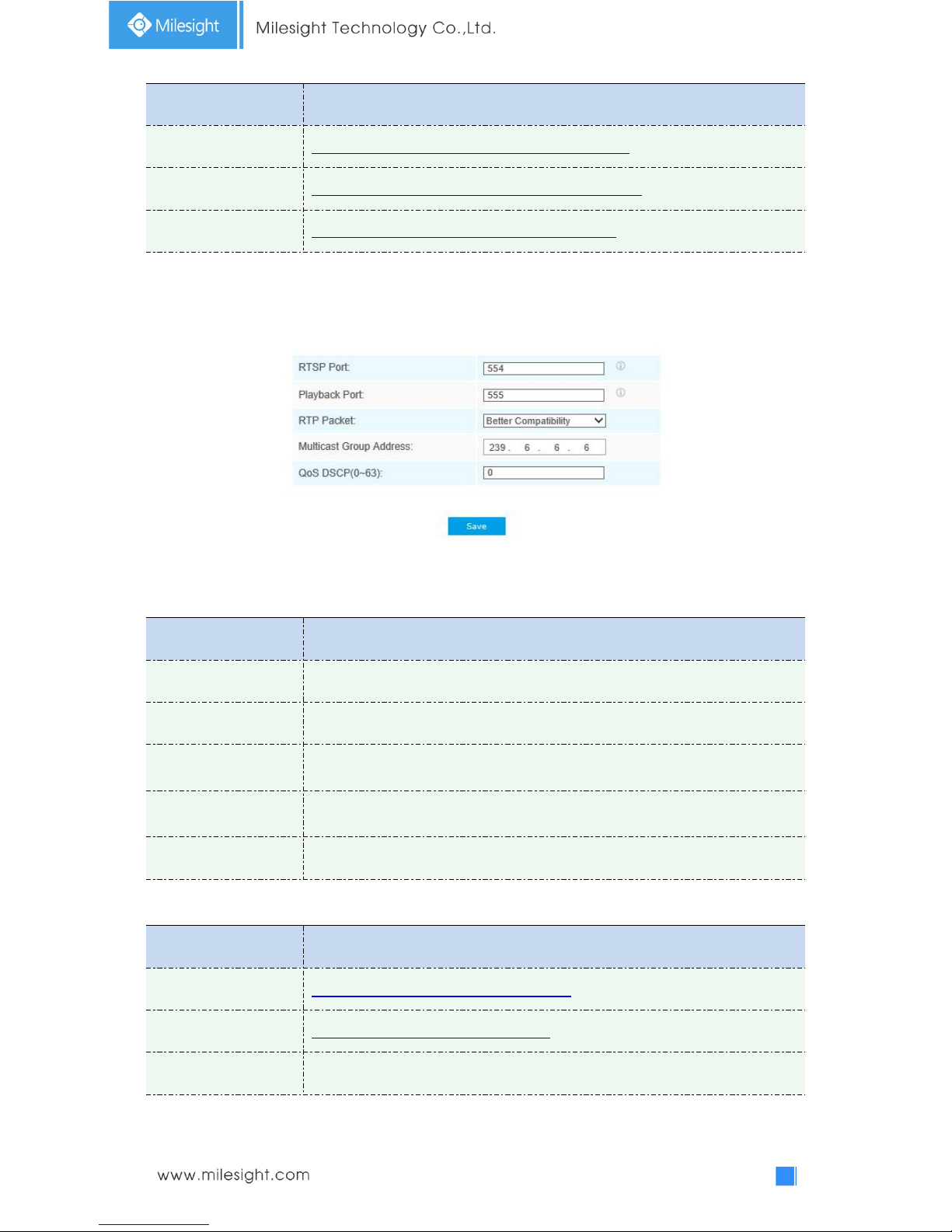

Figure 4-4-18 RTSP Settings

Table 4-4-10 Description of the buttons

Parameters

Function Introduction

RTSP Port

The port of RTSP, the default is 554.

Playback Port

The port of playback, the default is 555.

RTP Packet

There are Better Compatibility and Better Performance two options. If your

camera’s image mess up, please switch this option.

Multicast Group

Address

Support multicast function.

QoS DSCP

The valid value range of the DSCP is 0-63.

RTSP URL are as below:

Stream

URL

Main Stream

rtsp://username:password@IP:port/main

Secondary Stream

rtsp://username:password@IP:port/sub

Tertiary Stream

http://username:password@IP:port/third

Note:

Page 46

1) Get the format of RTSP URL by clicking “ ”on the right side of RTSP Port.

2) Get the playback tip by clicking “ ”on the right side of Playback Port.

3) DSCP refers to the Differentiated Service Code Point; and the DSCP value is used in the IP

header to indicate the priority of the data.

4) A reboot is required for the settings to take effect.

5) The tertiary stream is only equipped on camera whose model with “-A” or “-B”.

UPnP

Universal Plug and Play (UPnP) is a networking architecture that provides compatibility among networking equipment, software and other hardware devices. The UPnP protocol allows devices to connect seamlessly and to simplify the implementation of networks in the home and corporate environments. With the function enabled, you don’t need to configure the port mapping for each port, and the camera is connected to the Wide Area Network via the router.

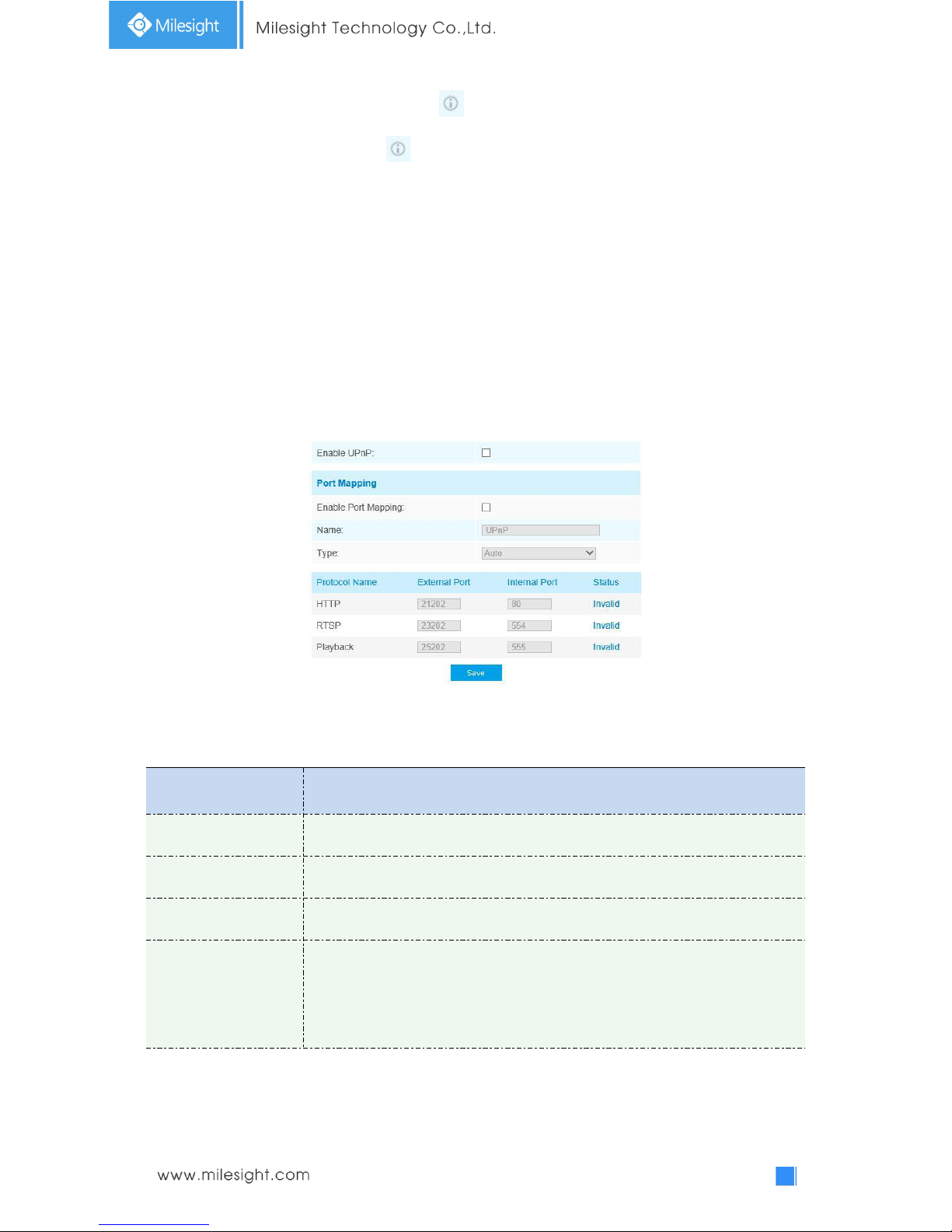

Figure 4-4-19 UPnP Settings

Table 4-4-11 Description of the buttons

Parameters

Function Introduction

Enable

Check the checkbox to enable the UPnP function

Enable Port Mapping

Check the checkbox to enable the Port Mapping

Name

The name of the device detected online can be edited

Type

Auto: Automatically obtain the corresponding HTTP and RTSP port, without any

settings

Manual: Need to manually set the appropriate HTTP port and RTSP Port. When

choose Manual, you can customize the value of the port number by yourself

Page 47

DDNS

DDNS allows you to access the camera via domain names instead of IP address. It manages to change IP address and update your domain information dynamically. You need to register an account from a provider.

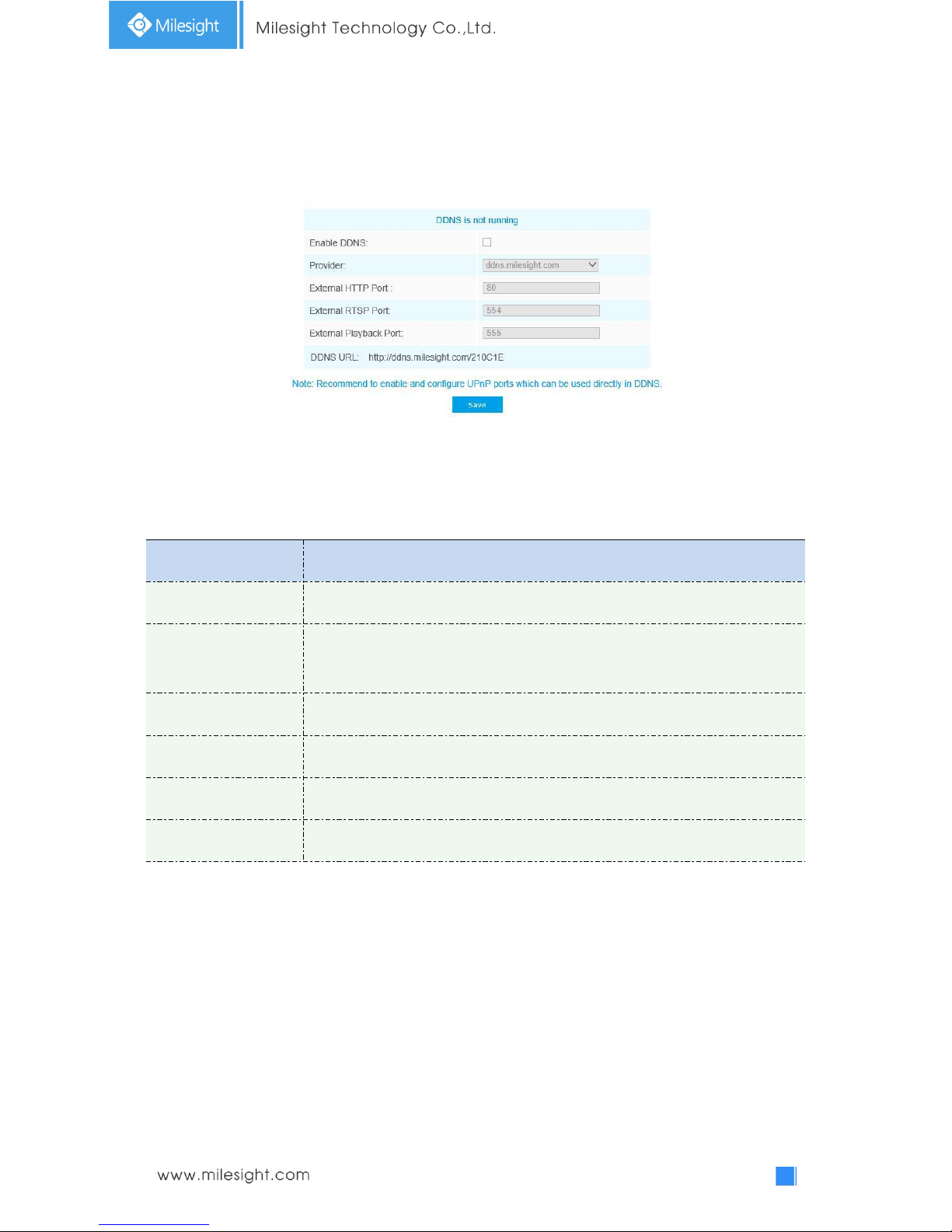

Figure 4-4-20 DDNS Settings

You can choose “ddns.milesight.com” as provider for DDNS. After enabling, you can access the device via the URL “http://ddns.milesight.com/MAC address” .

Table 4-4-12 Description of the buttons

Parameters

Function Introduction

Enable DDNS

Check the checkbox to enable DDNS service

Provider

Get support from DDNS provider: ddns.milesight.com, freedns.afraid.org,

dyndns.org, www.no-ip.com, www.zoneedit.com. You can also customize the

provider for DDNS.

Hash

A string used for verifying, only for "freedns.afraid.org"

User name

Account name from the DDNS provider, unavailable for "freedns.afraid.org"

Password

Account password, unavailable for "freedns.afraid.org"

Host name

DDNS name enabled in the account

Note:

1）Please do the Port Forwarding of HTTP Port and RTSP Port before you use Milesight DDNS.

2）Make sure that the internal and the external port number of RTSP are the same.

Page 48

Alarm video files can be sent to specific mail account through SMTP server. You must configure the email settings correctly before using it.

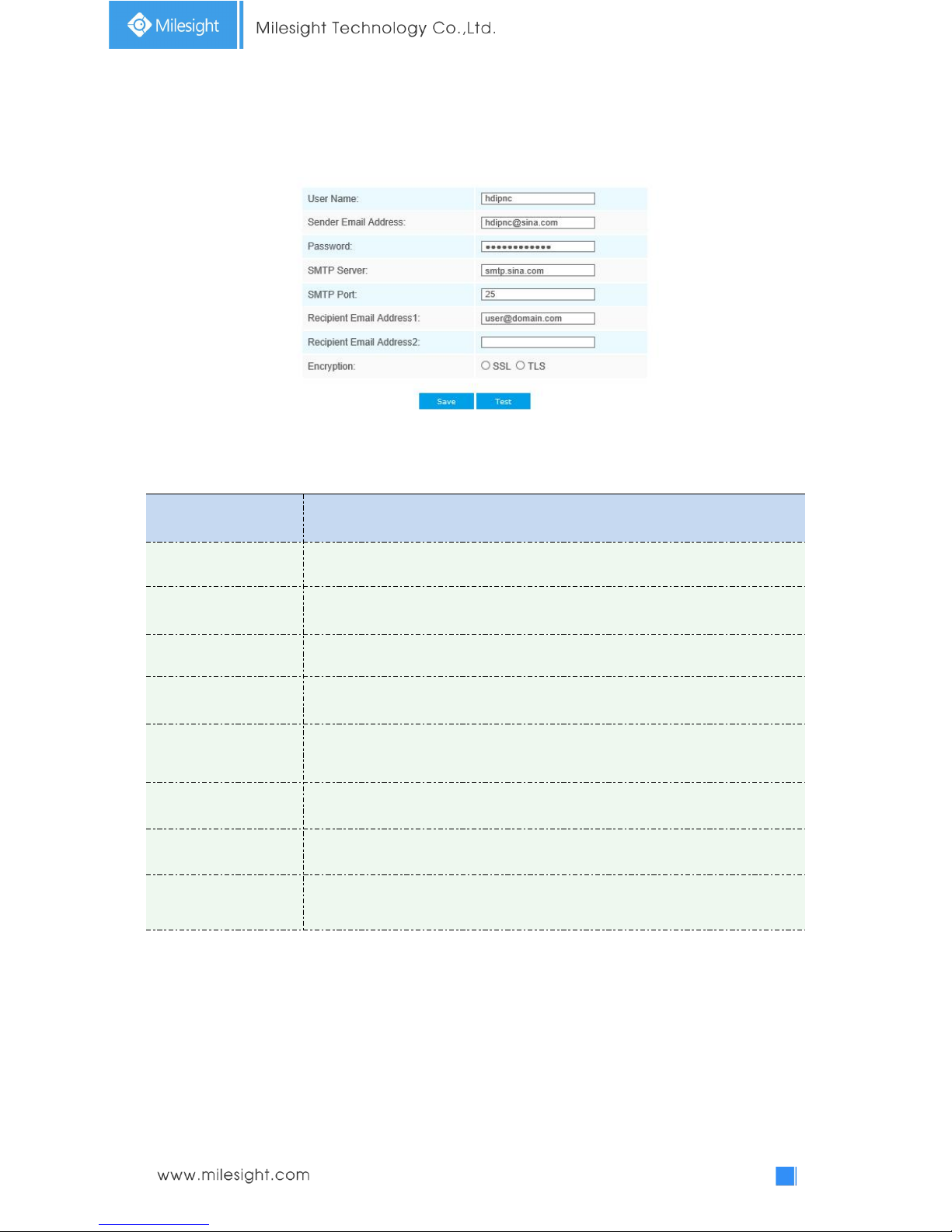

Figure 4-4-21 SMTP Settings

Table 4-4-13 Description of the buttons

Parameters

Function Introduction

User Name

The sender's name. It is usually the same as the account name

Sender Email Address

Email address to send video files attached emails

Password

The password of the sender

SMTP Server

The SMTP server IP address or host name(e.g. smtp.gmail.com)

SMTP Port

The port of SMTP server. The default TCP/IP port for SMTP is 25(not secured). For

SSL/TLS port, it depends on the mail you use

Recipient Email

Address1

Email address to receive video files

Recipient Email

Address2

Email address to receive video files

Encryption

Check the checkbox to enable SSL or TLS if it is required by the SMTP server.

Page 49

FTP

Alarm video files can be sent to specific FTP server. You must configure the FTP settings correctly before using it.

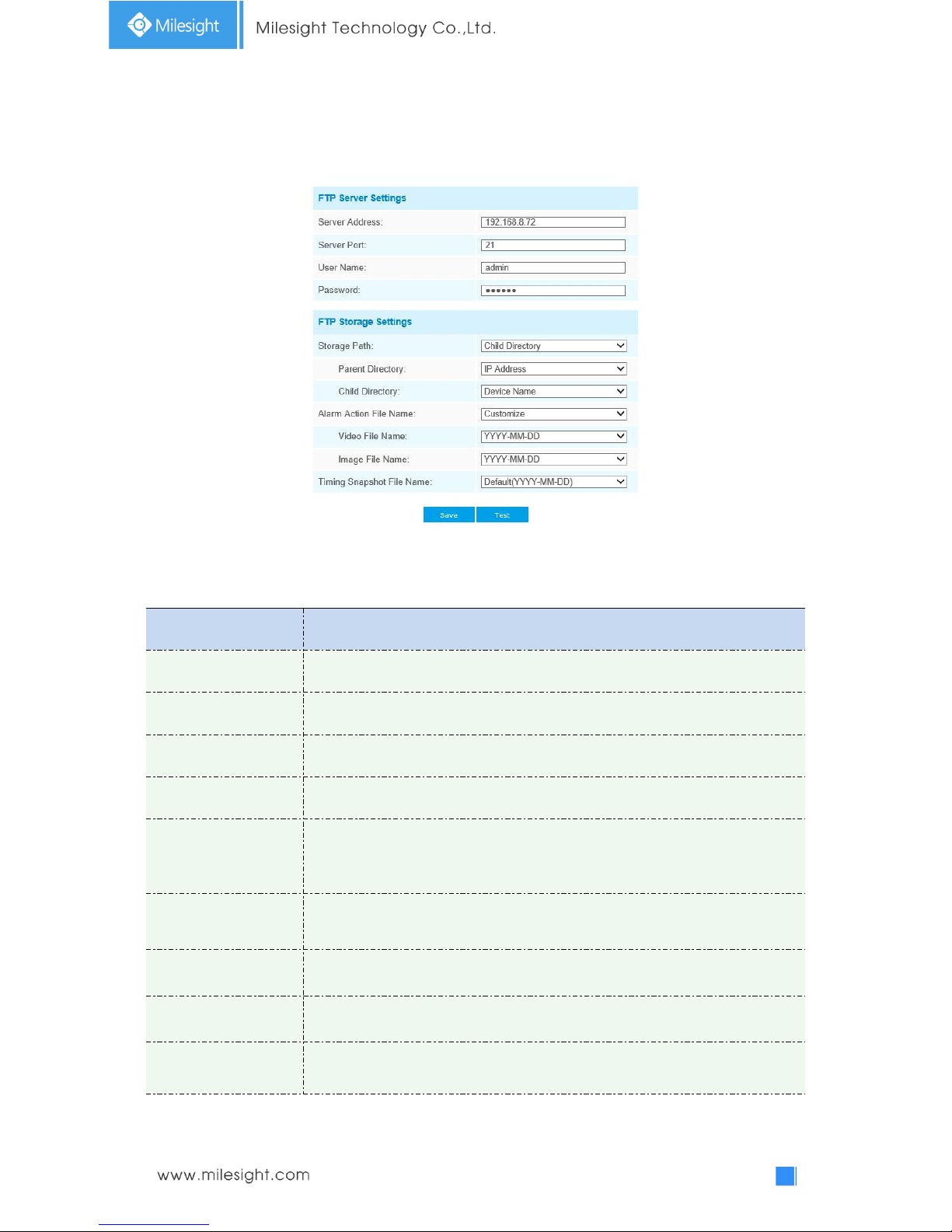

Figure 4-4-22 FTP Settings

Table 4-4-14 Description of the buttons

Parameters

Function Introduction

Server Address

FTP server address

Server Port

The port of the FTP server. Generally it is 21

User Name

User name used to log in to the FTP sever

Password

User password

Storage Path

Storage Path where video and image will be uploaded to the FTP server.

Four FTP storage path types are available, including Root Directory, Parent

Directory, Child Directory and Customize.

Parent Directory

Choose IP Address/ Device Name/ Date as the folder name of Parent Directory, or

customize the folder name.

Child Directory

Choose IP Address/ Device Name/ Date as the folder name of Child Directory, or

customize the folder name.

Multilevel Folder

Name

If the storage path is more than two levels, enter Multilevel FTP storage path here

manually.

Alarm Action File

Name

Choose the default(YYYY-MM-DD) or customize the alarm action file name.

Page 50

Video File Name

If you choose to customize the alarm action file name, YYYY-MM-DD/

MM-DD-YYYY/ DD-MM-YYYY/ Add prefix are available.

Image File Name

If you choose to customize the alarm action file name, YYYY-MM-DD/

MM-DD-YYYY/ DD-MM-YYYY/ Add prefix are available.

Timing Snapshot File

Name

Default(YYYY-MM-DD) /MM-DD-YYYY/ DD-MM-YYYY/ Add prefix/ Overwrite with

the base file name are available.

Note:

Parent Directory will be under Root Directory, and Child Directory will be under Parent

Directory.

VLAN

A virtual LAN (VLAN) is any broadcast domain that is partitioned and isolated in a computer network at the data link layer (OSI layer 2). LAN is an abbreviation of local area network. VLANs allow network administrators to group hosts together even if the hosts are not on the same network switch. This can greatly simplify network design and deployment, because VLAN membership can be configured through software. Without VLANs, grouping hosts according to their resource needs necessitates the labour of relocating nodes or rewiring data links.

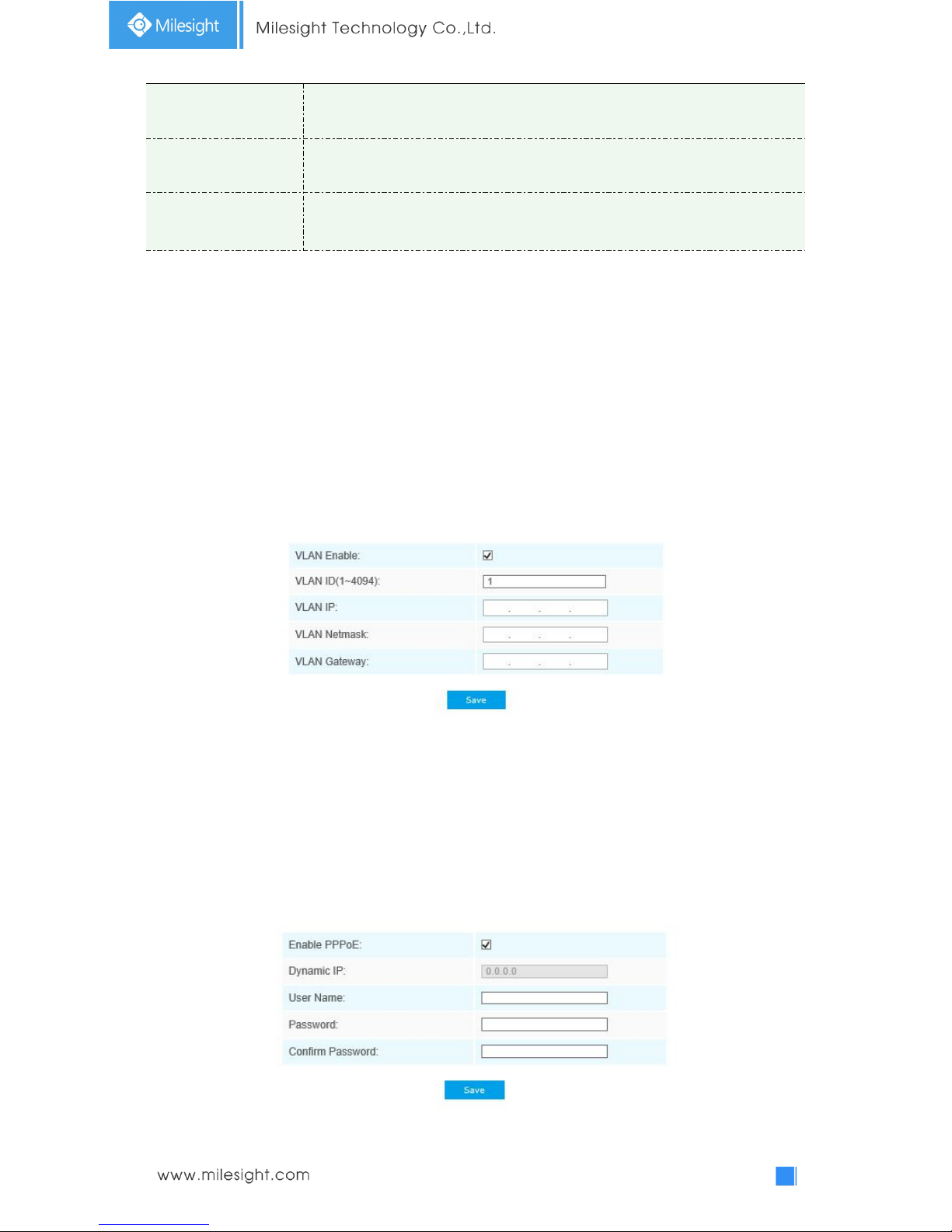

Figure 4-4-23 VLAN Settings

Note:

How to set up VLAN in switches, please refers to your switches user manual.

PPPoE

This camera supports the PPPoE auto dial-up function. The camera gets a public IP address by ADSL dial-up after the camera is connected to a modem. You need to configure the PPPoE parameters of the network camera.

Figure 4-4-24 PPPoE Settings

Page 51

Note:

1) The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes

after rebooting the camera. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (e.g. DynDns.com).

2) The user name and password should be assigned by your ISP.

SNMP

You can set the SNMP function to get camera status, parameters and alarm related information and manage the camera remotely when it is connected to the network. Before setting the SNMP, please download the SNMP software and manage to receive the camera information via SNMP port. By setting the Trap Address, the camera can send the alarm event and exception messages to the surveillance center.

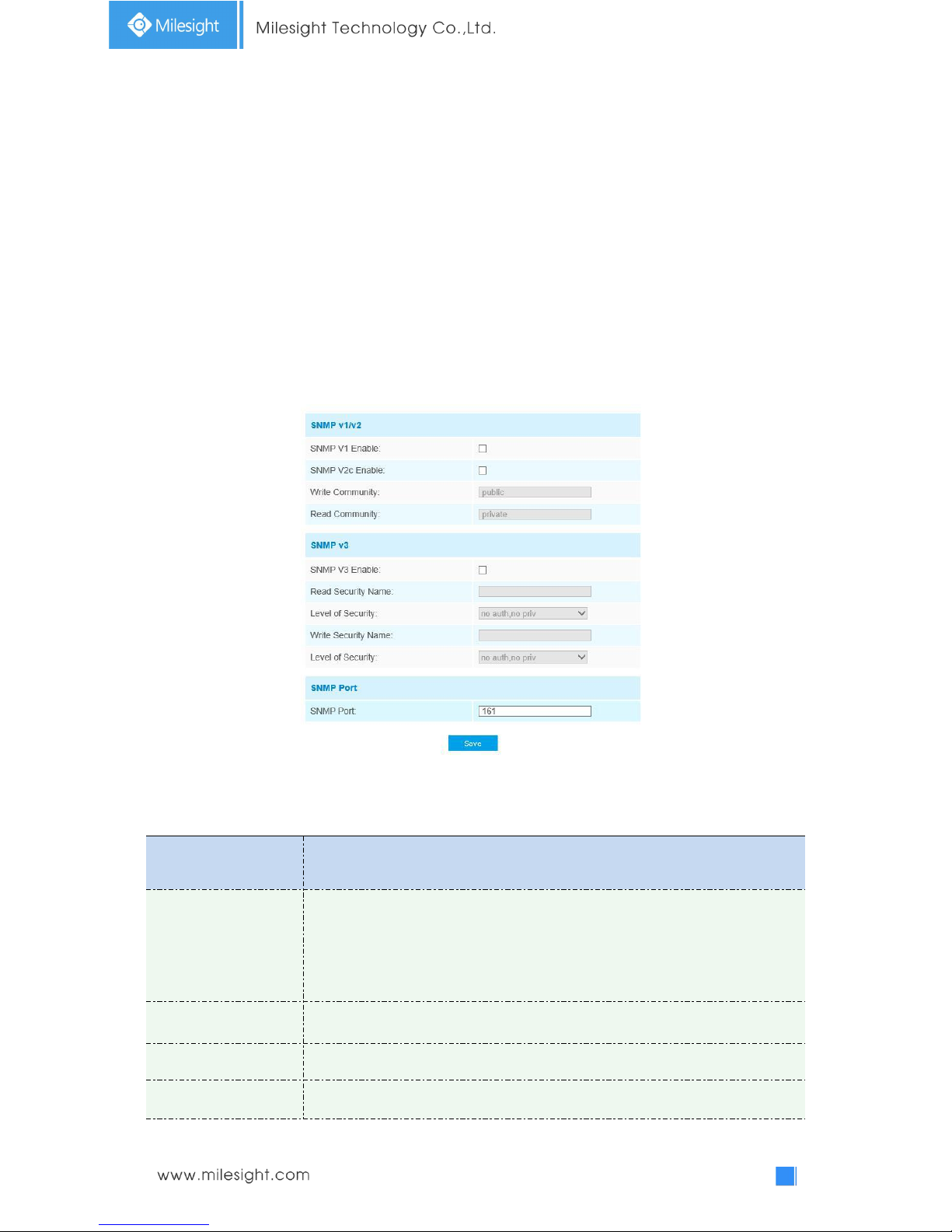

Figure 4-4-5 SNMP Settings

Table 4-4-15 Description of the buttons

Parameters

Function Introduction

SNMP v1/2/3

The version of SNMP, please select the version of your SNMP software.

SNMP v1: Provide no security

SNMP v2: Require password for access

SNMP v3: Provide encryption and the HTTPS protocol must be enabled

Write Community

Input the name of Write Community

Read Community

Input the name of Read Community

Trap Address

Set the trap address

Page 52

Trap Port

Set the trap port, the default is 162

Trap Community Name

Input the trap community name

Read Security Name

Input the name of Read Security Community

Level of Security

There are three levels available: (auth, priv), (auth, no priv) and (no auth, no priv)

Write Security Name

Input the name of Write Security Community

Level of Security

There are three levels available: (auth, priv), (auth, no priv) and (no auth, no priv)

SNMP Port

The port of SNMP, the default is 161

Note:

1) The settings of SNMP software should be the same as the settings you configure here;

2) A reboot is required for the settings to take effect.

802.1x

The IEEE 802.1X standard is supported by the network cameras, and when the feature is enabled, the camera data is secured and user authentication is needed when connecting the camera to the network protected by the IEEE 802.1X.

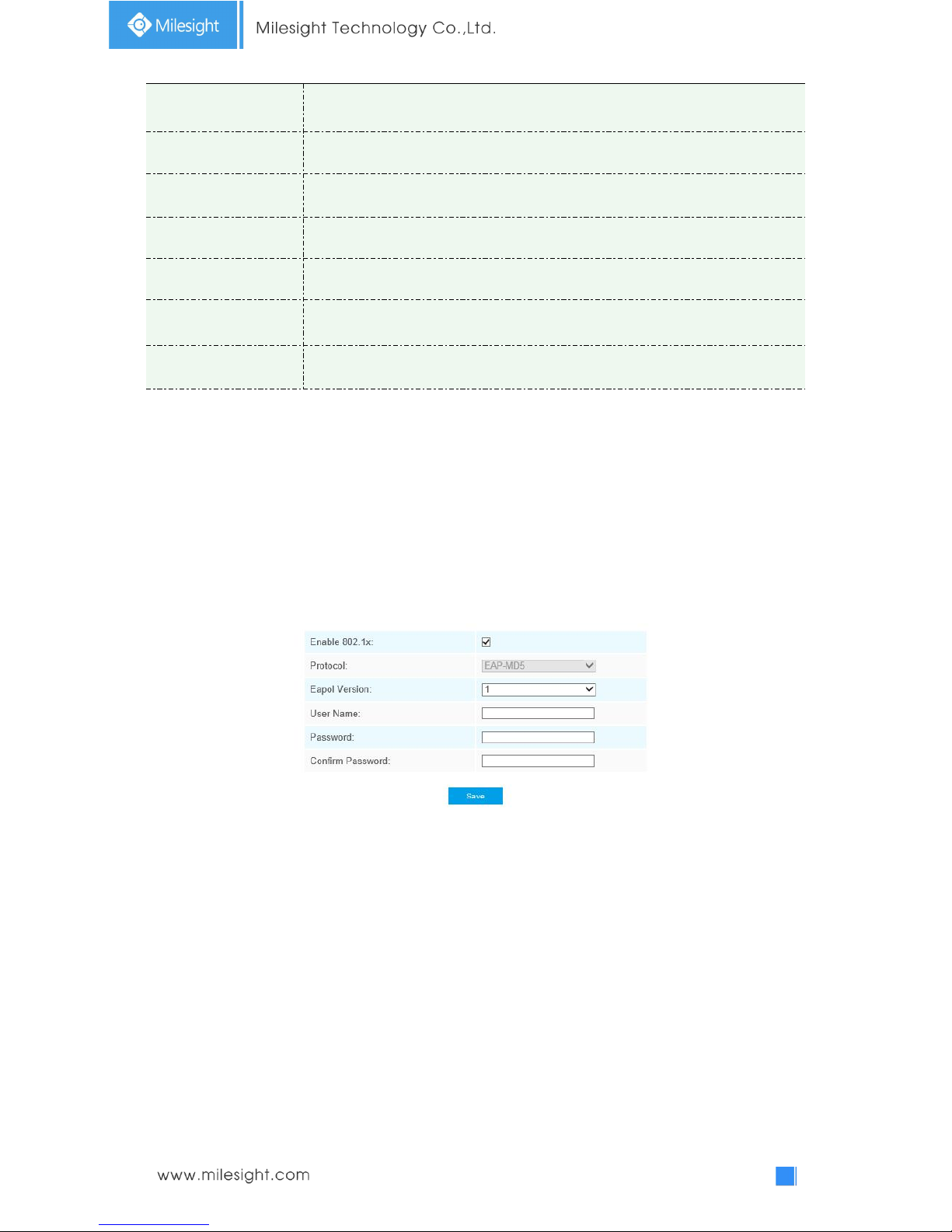

Figure 4-4-26 802.1x Settings

Page 53

4.4.5 Date&Time

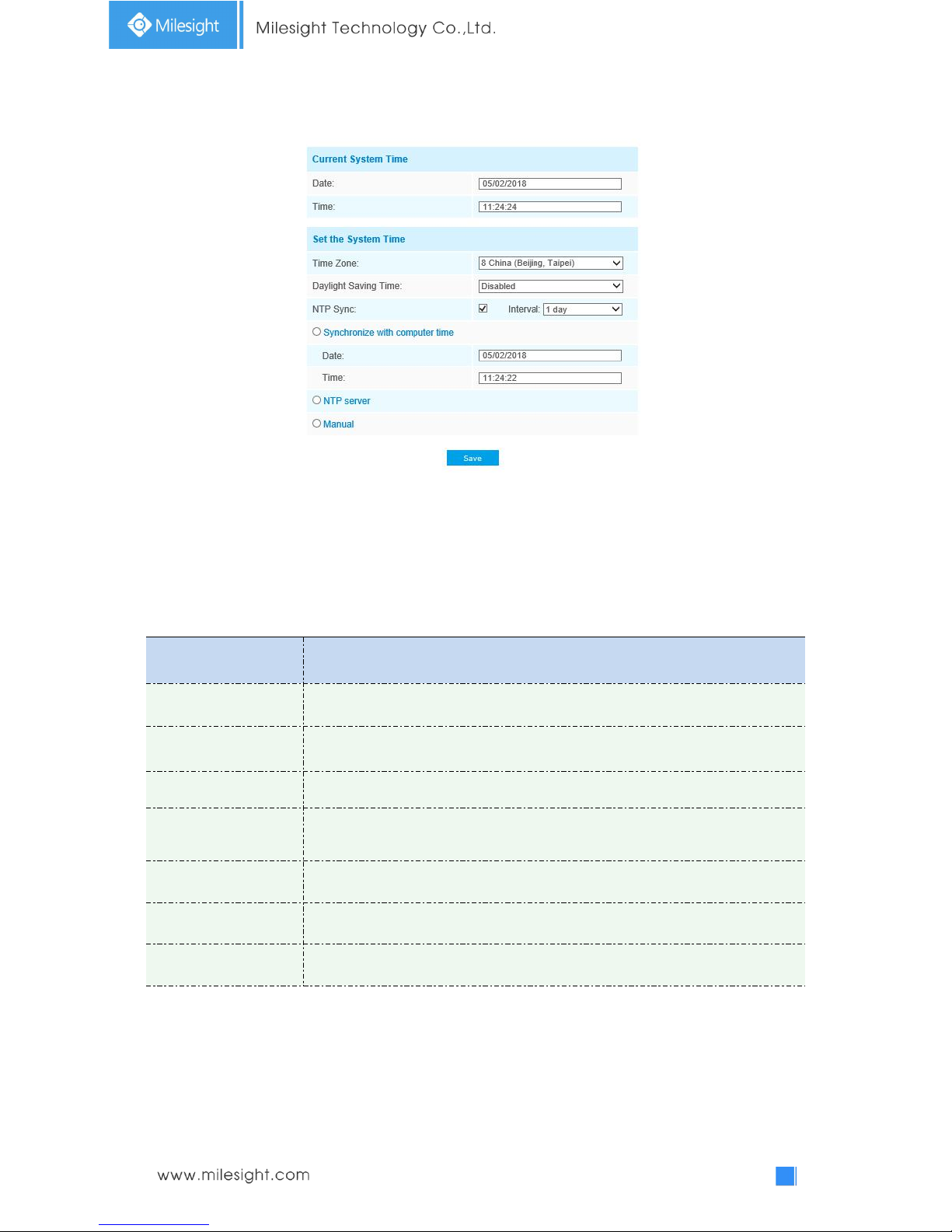

Figure 4-4-27 Date&Time Settings

Current System Time

Current date&time of the system

Set the System Time

Table 4-4-16 Description of the buttons

Parameters

Function Introduction

Time Zone

Choose a time zone for your location.

Daylight Saving time

Enable the daylight saving time.

NTP Sync

Regularly update your time according to the interval time.

Synchronize with

computer time

Synchronize the time with your computer.

NTP server

Input the address of NTP server.

Encryption Type

Synchronize the time with configured SNTP server and select time zone.

Manual

Set the system time manually.

Page 54

4.5 Advanced Settings

4.5.1 Alarm

Motion Detection

Step1: Check the checkbox to enable the motion detection; Step2: Set motion region;

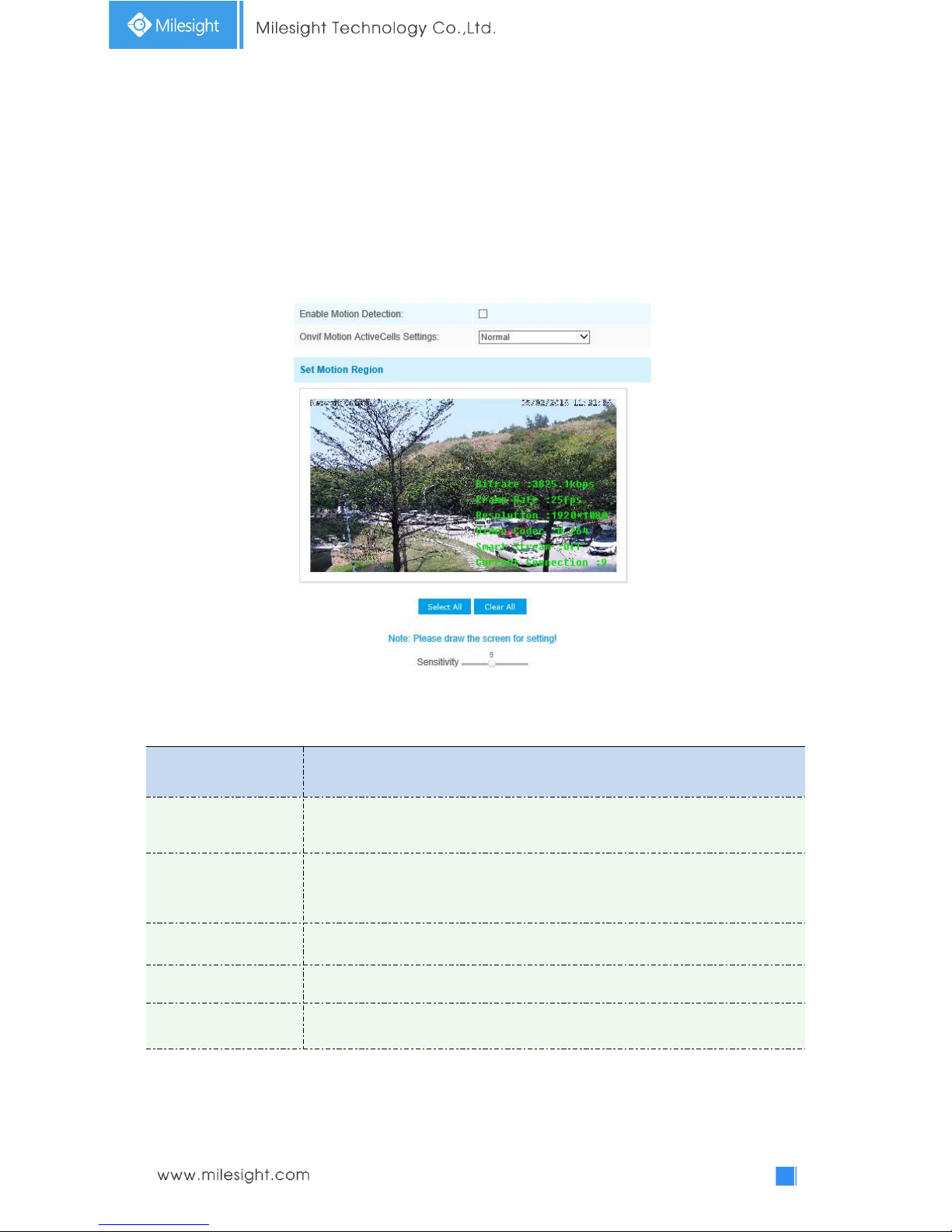

Figure 4-5-1 Motion Region Settings

Table 4-5-1 Description of the buttons

Parameters

Function Introduction

Enable Motion

Detection

Check the checkbox to enable Motion Detection function.

Onvif Motion

ActiveCells Settings

Normal and Compatible are available for the option. If the setting of motion

region of the third-party software is different from ours, please set this option to

Compatible.

Select All

Click the button, and the motion in the area will be detected.

Clear All

Click the button, and the area drawn before will be removed.

Sensitivity

Sensitivity level, 1~10

Page 55

Step3: Set motion detection schedule;

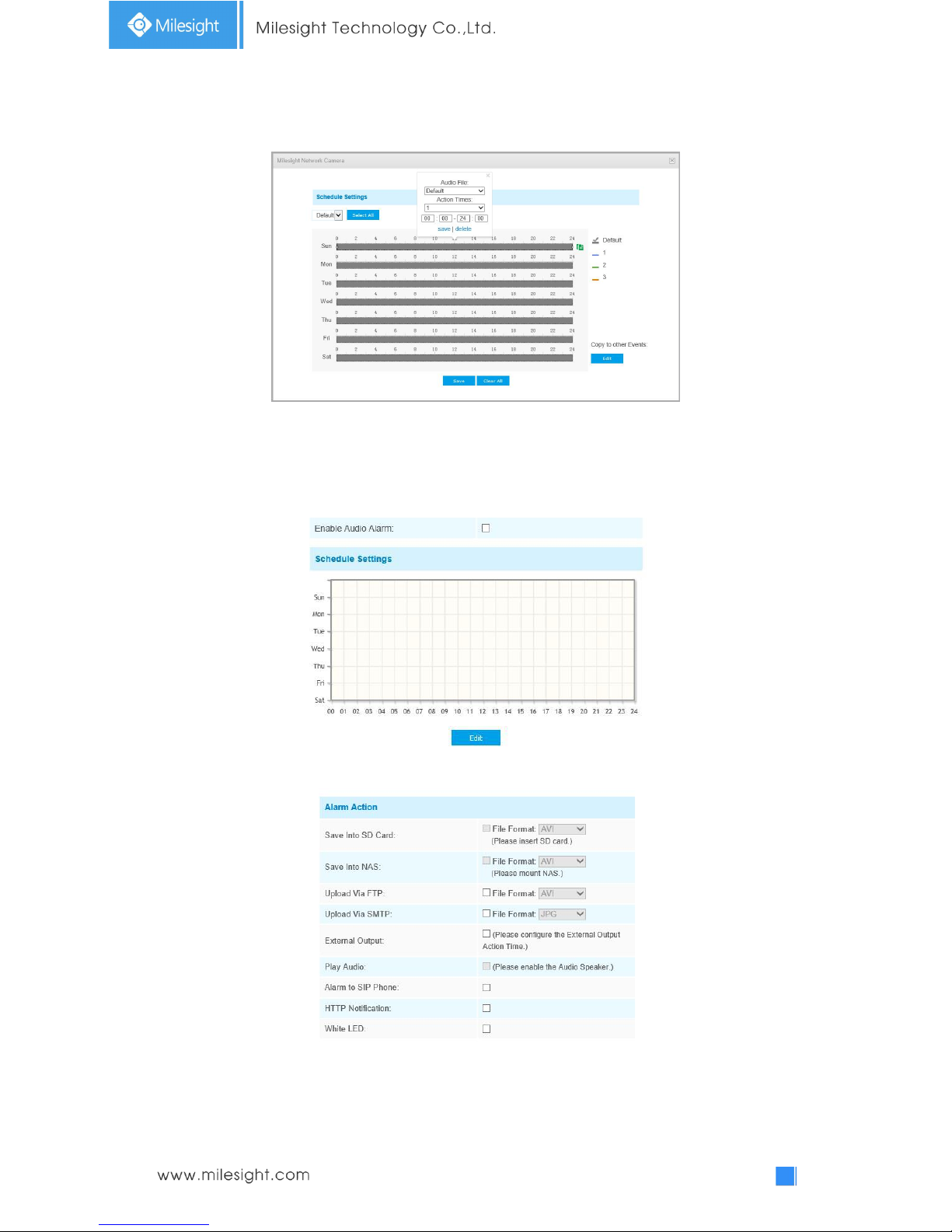

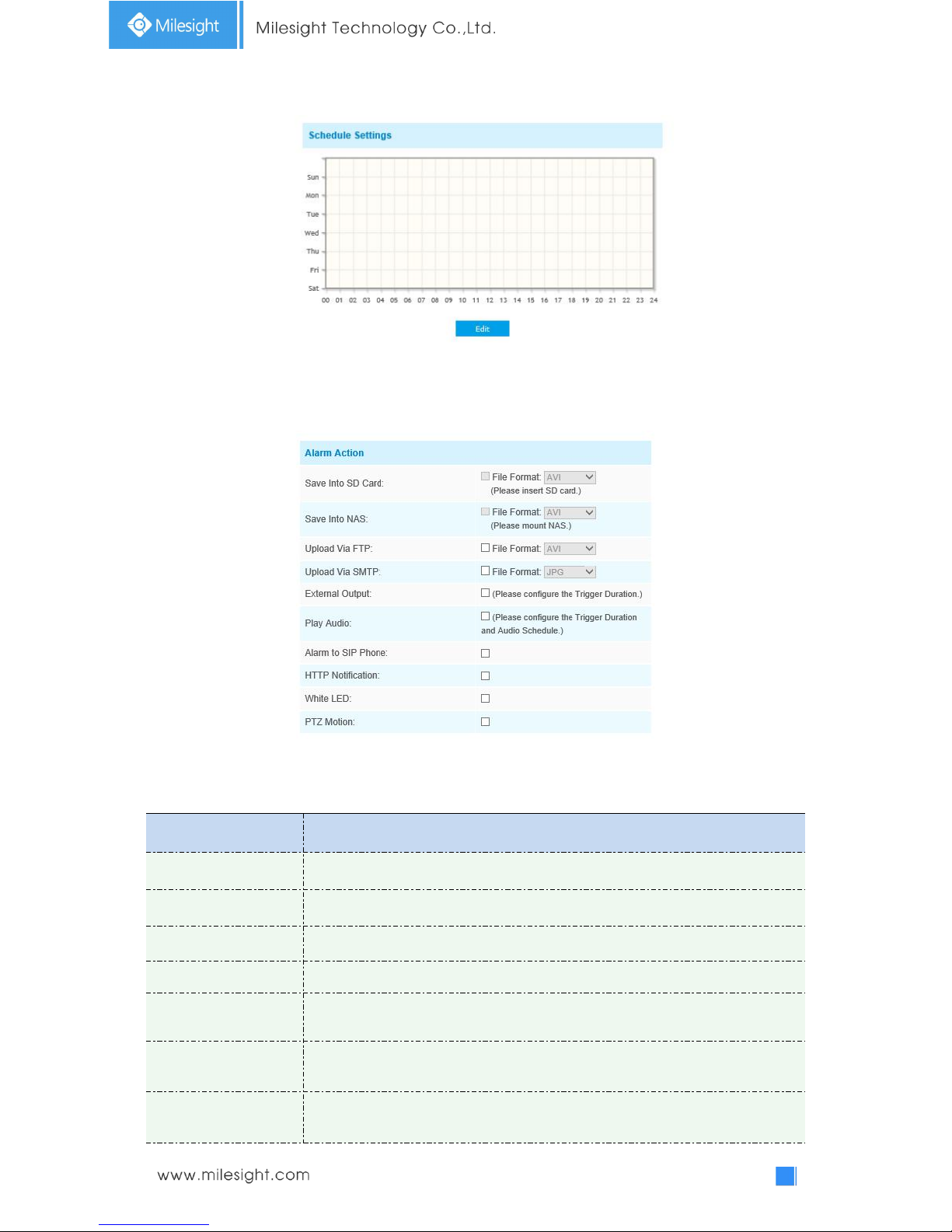

Figure 4-5-2 Schedule Settings

Step4: Set alarm action;

Figure 4-5-3 Alarm Action

Table 4-5-2 Description of the buttons

Parameters

Function Introduction

Save Into SD Card

Save alarm recording files into SD Card.

Save Into NAS

Save alarm recording files into NAS.

Upload Via FTP

Upload the recording files via FTP.

Upload Via SMTP

Upload the files via SMTP.

External Output

If the camera equips with External Output, you can enable the action after

configuring the trigger duration.

Play Audio

If the camera equips with Speaker, you can enable the action after configuring the

audio speaker.

Play Buzzer

If the camera equips with Buzzer, you can check the checkbox to enable the

function.

Page 56

Alarm to SIP Phone

Support to call the SIP phone after enable the SIP function.

HTTP Notification

Support to pop up the alarm news to specified HTTP URL.

White LED

When the alarm triggered, White LED will turn on to warning the detected

objects (Only for Mini (PoE) PTZ Bullet).

PTZ Motion

When the motion alarm triggered, PTZ Motion allows the camera move the lens

to the motion triggered position and zoom in.

Call Preset/

Call Patrol/Call Pattern

(only for External

Input)

When the motion alarm triggered, the specified preset/patrol/pattern can be

called.

NOTE:

1) The HTTP notification function is just one way for camera to send messages to VMS Software.

And it's the VMS that defines what the messages mean and decides what to do after receiving this kind of messages. So, we can use the HTTP Notification function of our cameras only if the VMS supports this kind of message format. Here the Digifort will be taken as an example to introduce the HTTP Notification function.

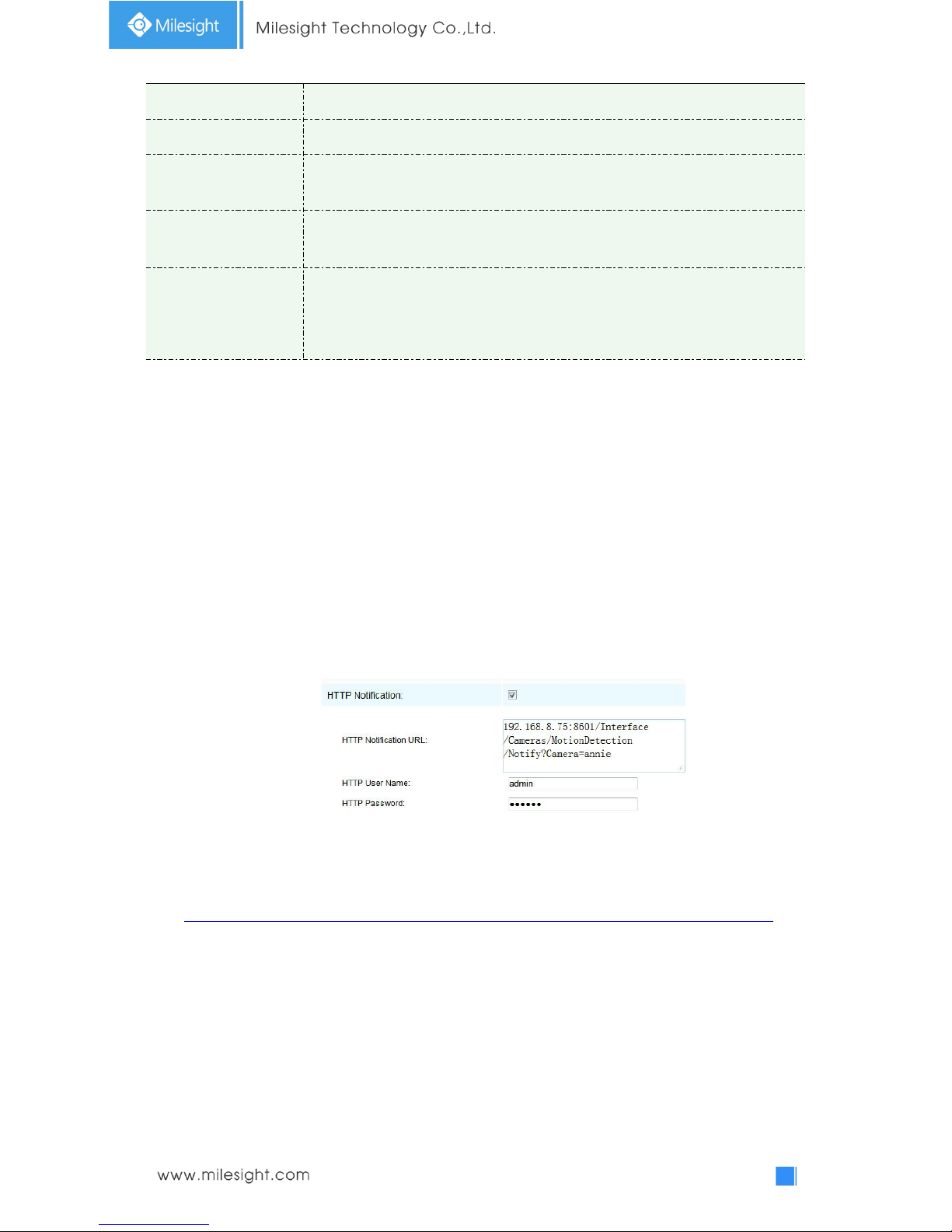

The following are the detail steps of setting for HTTP Notification in Digifort VMS and our

cameras.

Step1: Enable Alarm; set Motion Region and Detection Schedule; Step2: Confirm the HTTP Notification as Alarm Action, and fill the fields. Then save the

alarm setting;

HTTP User Name: admin (the user name of your camera) HTTP Password: ms1234 (the password of your camera) HTTP Notification URL:

http://IP:8601/Interface/Cameras/MotionDetection/Notify?Camera=CameraName

IP refers to the PC's IP where the Digifort installed. 8601 is the port for Motion signal in Digifort. CameraName is the camera name you set in Digifort VMS, like the picture shown below.

Page 57

Example:

http://192.168.8.75:8601/Interface/Cameras/MotionDetection/Notify?Camera=annie,

this url format is exactly supported by Digifort VMS, so we can set as above to our cameras and get it work well.

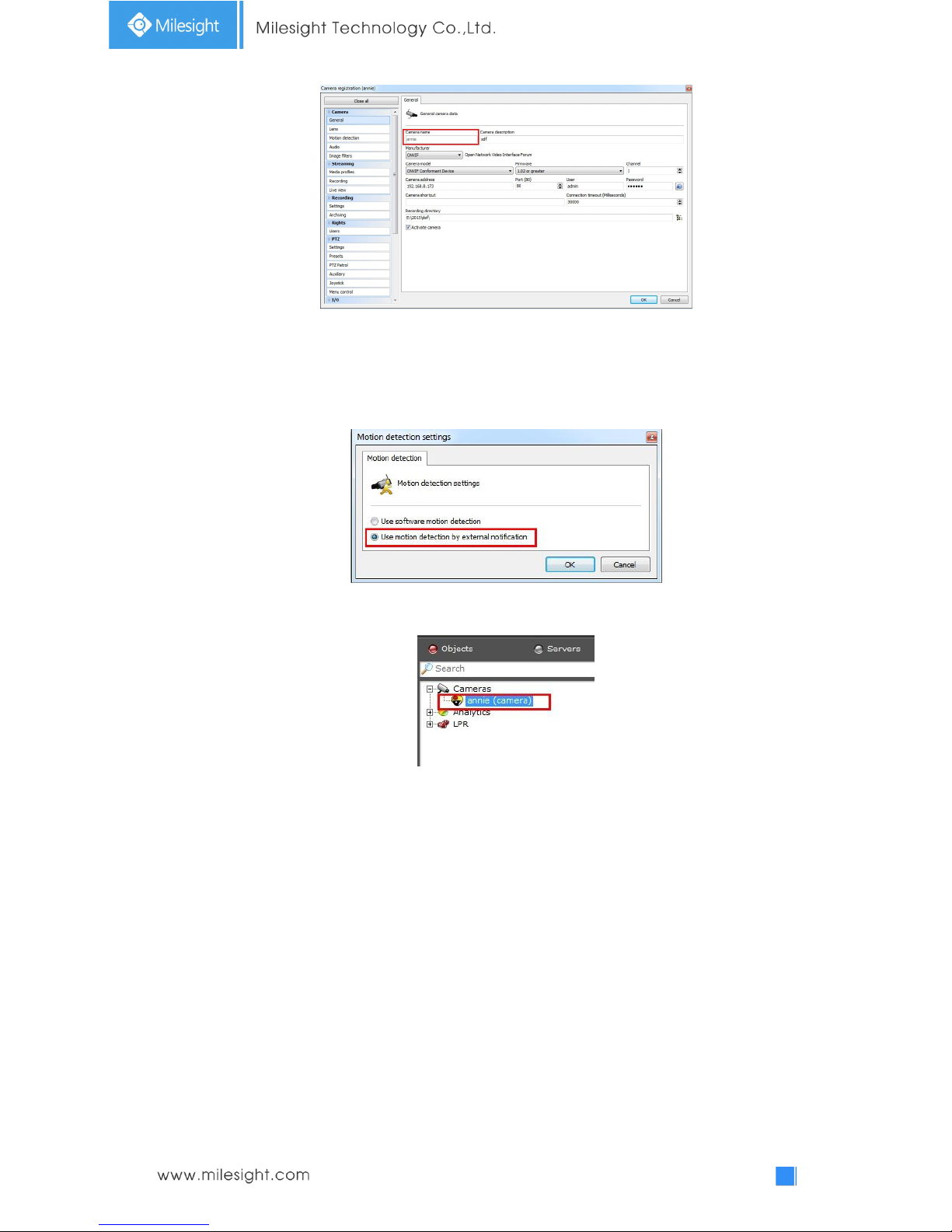

Step3: Choose use motion detection by external notification;

Step4: If successful, you can see the device icon turn yellow in the Surveillance when the

camera is under Motion Detection Alarm;

So, it's the VMS Software which decides whether we can use this function successfully. Step5: Set alarm settings.

Page 58

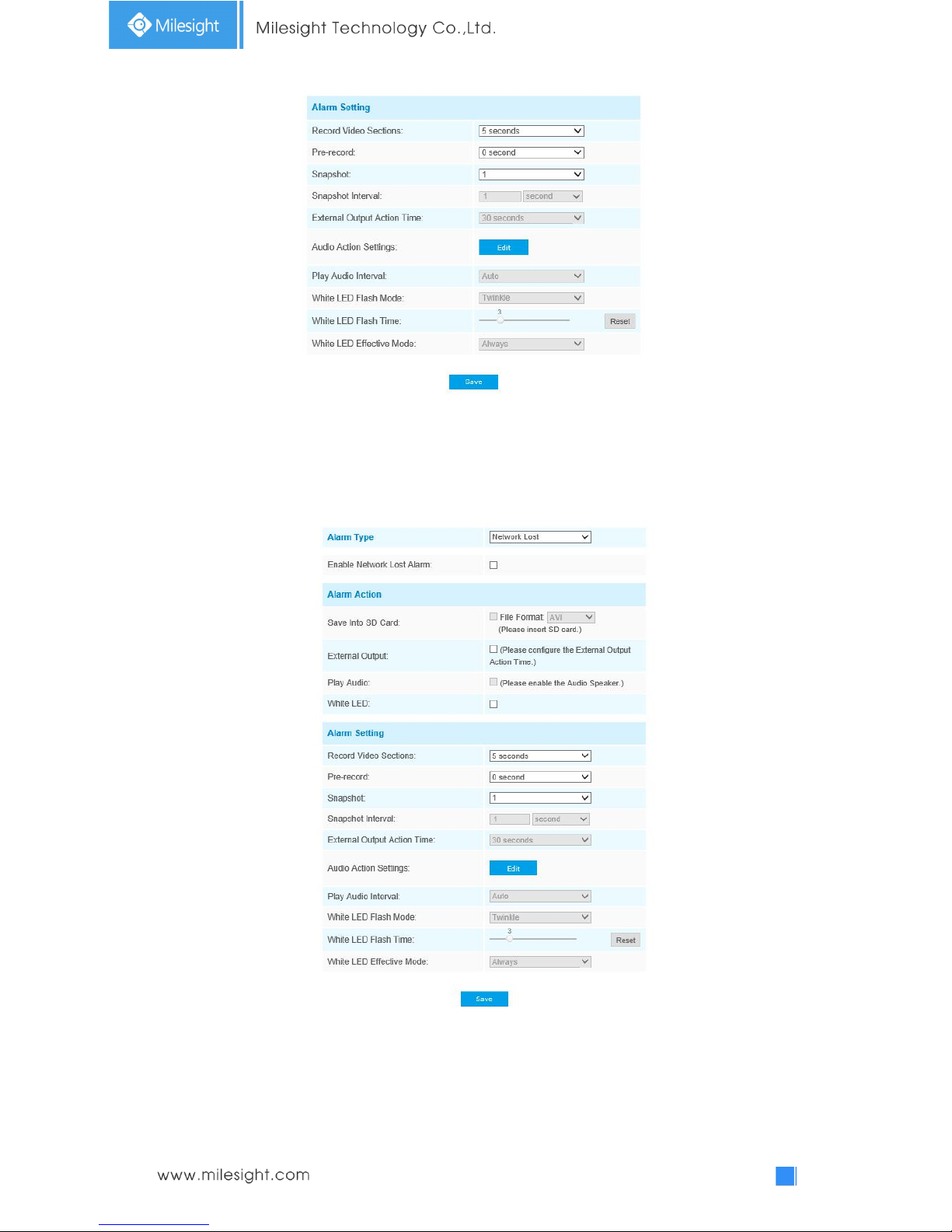

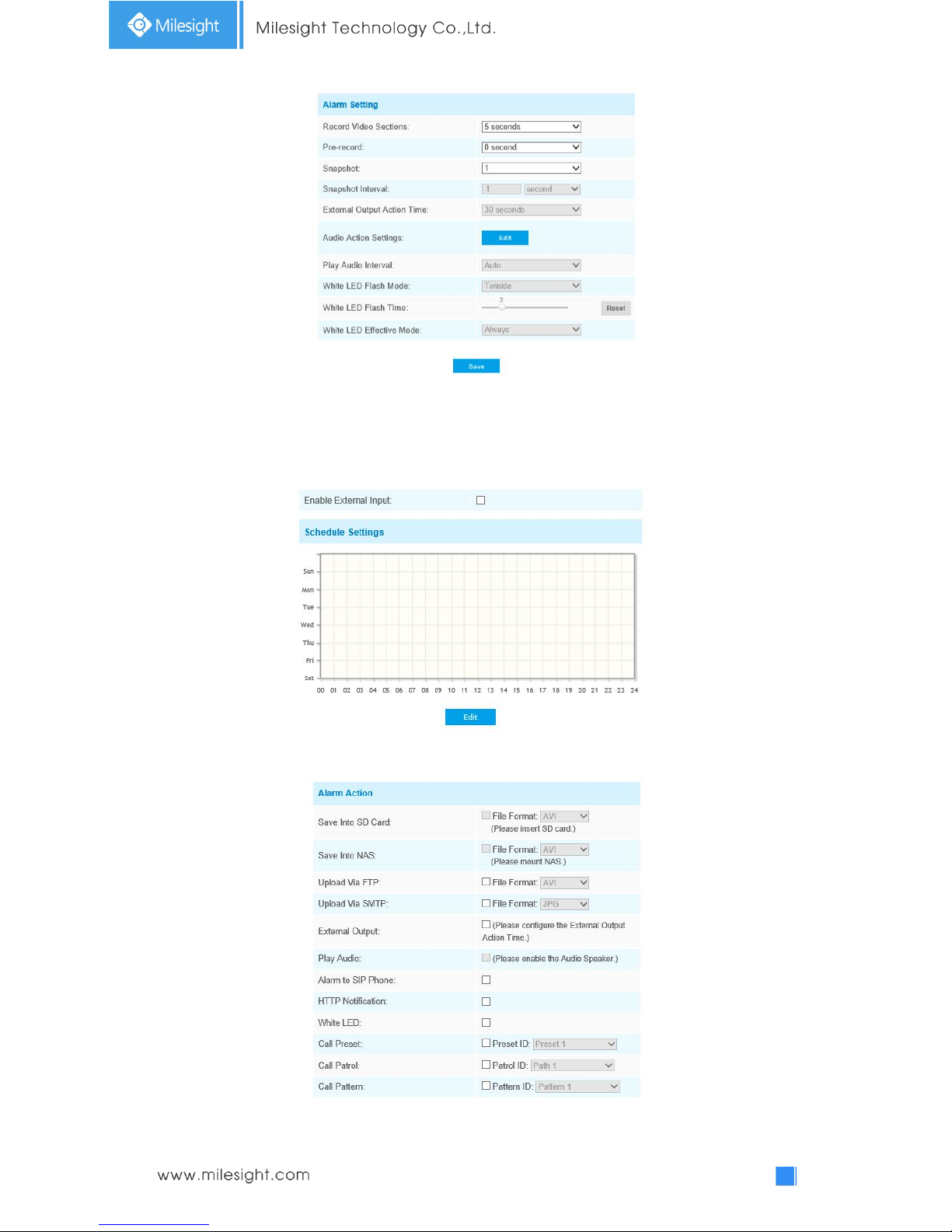

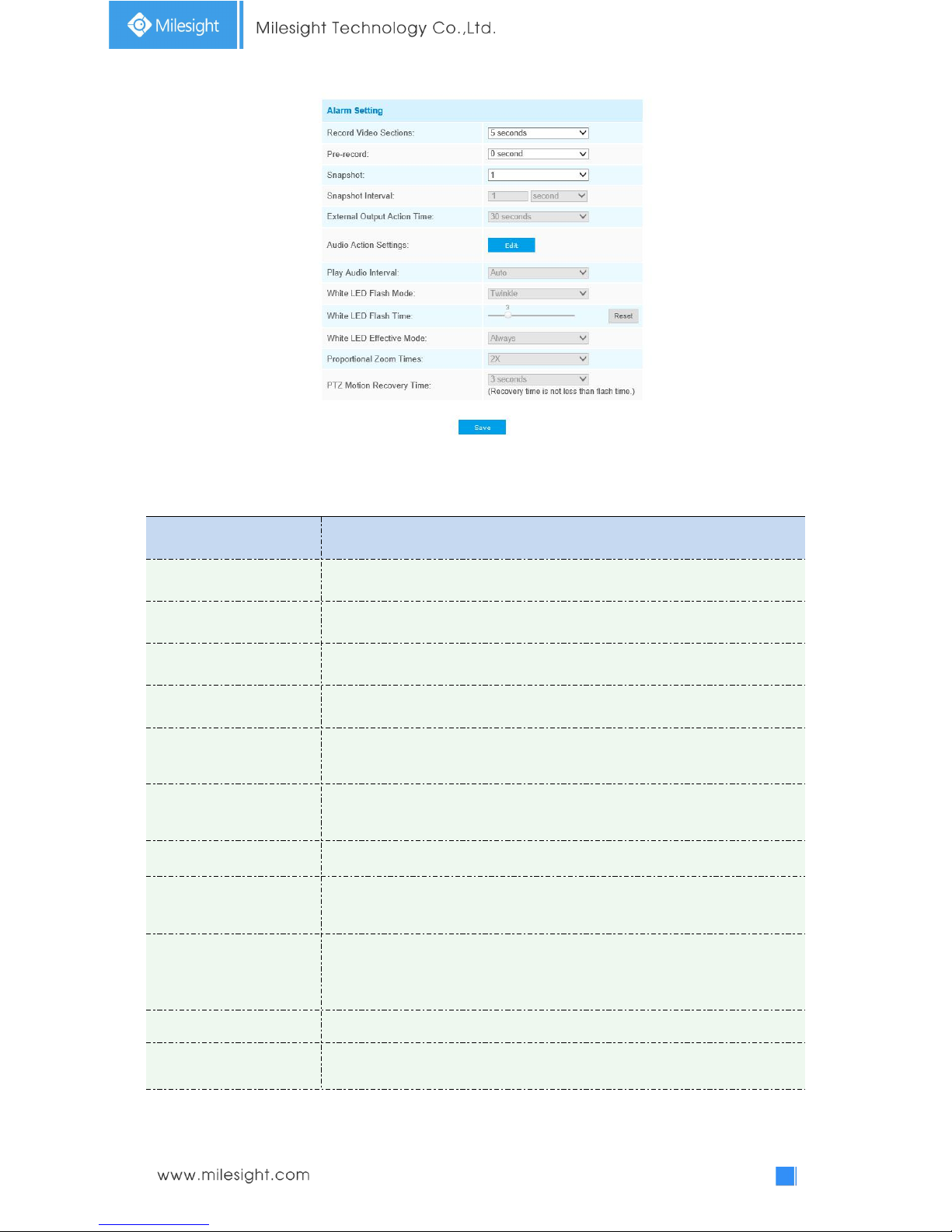

Figure 4-5-4 Alarm Settings

Table 4-5-3 Description of the buttons

Parameters

Function Introduction

Record Video Sections

Six different periods are available(5, 10, 15, 20, 25, 30 sec).

Pre-record

Reserve the record time before alarm, 0~10 sec.

Snapshot

The number of snapshot, from 1 to 5.

Snapshot Interval

It cannot be edited unless you choose more than 1 to Snapshot.

External Output Action

Time

Length of time an alarm lasts, this cannot be edited unless when you enable

the External Output on the Alarm Action firstly.

Audio Action Settings

Set the audio schedule to trigger different audio files and action times in

different time, which is corresponded to alarm action.

Play Audio Interval

Auto/ 10 seconds/ 30 seconds/ 1 minute/ 5 minutes/ 10 minutes are available.

White LED Flash Mode

Twinkle: The White LED will continuous flashing before recovered;

Always: The White LED will always open before recovered.

White LED Flash Time

The duration of flash.

Twinkle from 1 second to 10 seconds;

Always from 1 second to 60 seconds.

Proportional Zoom Times

Support to zoom proportionally when PTZ Motion is triggered.

PTZ Motion Recovery

Time

The duration of one alarm. It must be longer than flash time.

Page 59

Note:

1) Recovery time should not be less than flash time.

2) You can customize the schedule of Audio Action.

Figure 4-5-5 Audio Action schedule settings

Audio Alarm

Enable the Audio before using Audio Alarm function.

Figure 4-5-6 Schedule Settings

Page 60

Figure 4-5-7 Alarm Settings

Please refer to table 4-5-2 and 4-5-3 to get the meaning of items.

External Input

Figure 4-5-8 Schedule Settings

Page 61

Figure 4-5-9 Alarm Settings

The meaning of items please refer to table 4-5-2 and 4-5-3, here will not repeat again.

Other Alarm

Figure 4-5-10 Other Alarm

Page 62

Table 4-5-4 Description of the buttons

Parameters

Function Introduction

Alarm Type

Network Lost, Tampering and IP Address Conflicted are available

Check the checkbox to enable the alarm type you selected

Alarm Action

Save Into SD Card: Save alarm recording files into SD Card

External Output: If the camera equips with External Output, you can enable the

action after configuring the trigger duration

Play Audio: If the camera equips with Speaker, you can enable the action after

configuring the audio speaker

Play Buzzer: If the camera equips with Buzzer, you can check the checkbox to

enable the function

White LED: The White LED could flash as a warning signal when the alarm

triggered if the camera equipped with it(only for Mini (PoE) PTZ Bullet).

Alarm Setting

Record Video Sections: Six different periods are available(5, 10, 15, 20, 25, 30

sec)

Pre-record: Reserve the record time before alarm, 0~10 sec

Snapshot: The number of snapshot, 1~5

Snapshot Interval: This cannot be edited unless you choose more than 1 to

Snapshot

Trigger Duration: Length of time an alarm lasts, this cannot be edited unless

when you enable the External Output on the Alarm Action firstly

Audio Action Settings: Set the audio schedule to trigger different audio files and

action times in different time, which is corresponded to alarm action

Play Audio Interval: Auto/10 seconds/30 seconds/1 minute/5 minutes/10

minutes are available

White LED Flash Mode: Twinkle and Always are available.

White LED Flash Time: The duration of flash. Twinkle from 1 second to 10

seconds; Always from 1 second to 60 seconds.

White LED Effective Mode: Always, Light Environment and Customize are

available. Always Mode allows to keep White LED always on. Light Environment

Mode allows to set the Effective Light Intensity to turn on White LED basing on

Current Light Intensity. Customize Mode allows to set the start time and the end

time to control White LED.

External Output

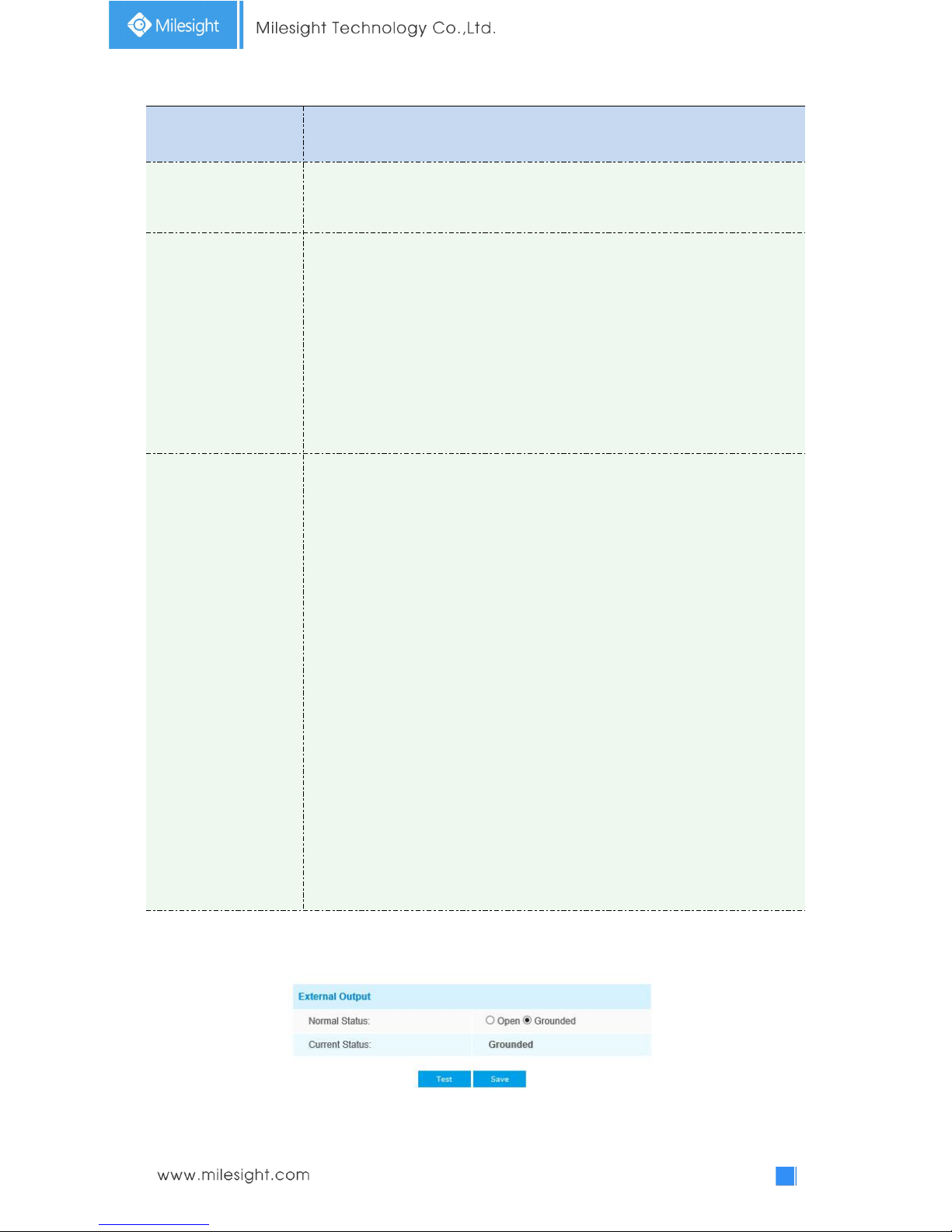

Figure 4-5-11 External Output Settings

Page 63

Please set the Normal Status firstly, when the Current Status is different with Normal Status, it will lead to the alarm.

4.5.2 Storage

Before you start:

To configure record settings, please make sure that you have the network storage device within the network or the SD card inserted in your camera. You can check “Enable Recycle storage”, then it will delete the files when the free disk space reach a certain value. Choose the storage mode according to your needs.

SD Card

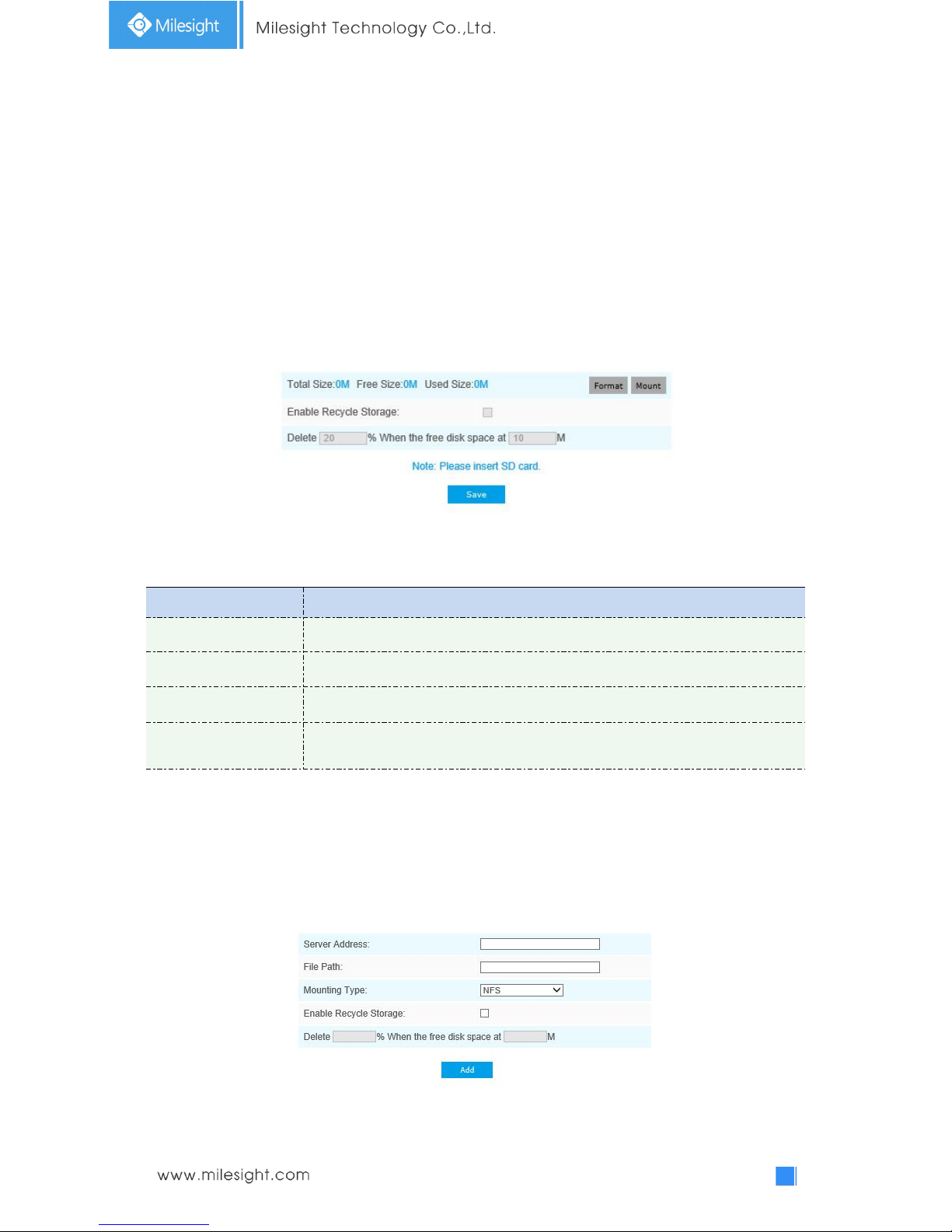

Figure 4-5-12 SD Card

Table 4-5-5 Description of the buttons

Parameters

Function Introduction

Format

Format SD card, and the files in SD card will be removed.

Mount/UnMount

Mount/Dismount SD card

Enable Recycle Storage

Enable/Disable recycle storage

Delete

Enable cyclic storage. When the free disk space reach at a certain value, it will

automatically delete the files at certain percentage according to your settings.

NAS

The network disk should be available within the network and properly configured to store the recorded files, etc. NAS (Network-Attached Storage), connecting the storage devices to the existing network, provides data and files services.

Figure 4-5-13 NAS Settings

Page 64

Table 4-5-6 Description of the buttons

Parameters

Function Introduction

Server Address

IP address of NAS server

File Path

Input the NAS file path, e.g. “\path”.

Mounting Type

NFS and SMB/CIFS are available. And you can set the user name and password to

guarantee the security if SMB/CIFS is selected.

Note:

Up to 5 NAS disks can be connected to the camera.

Record Schedule

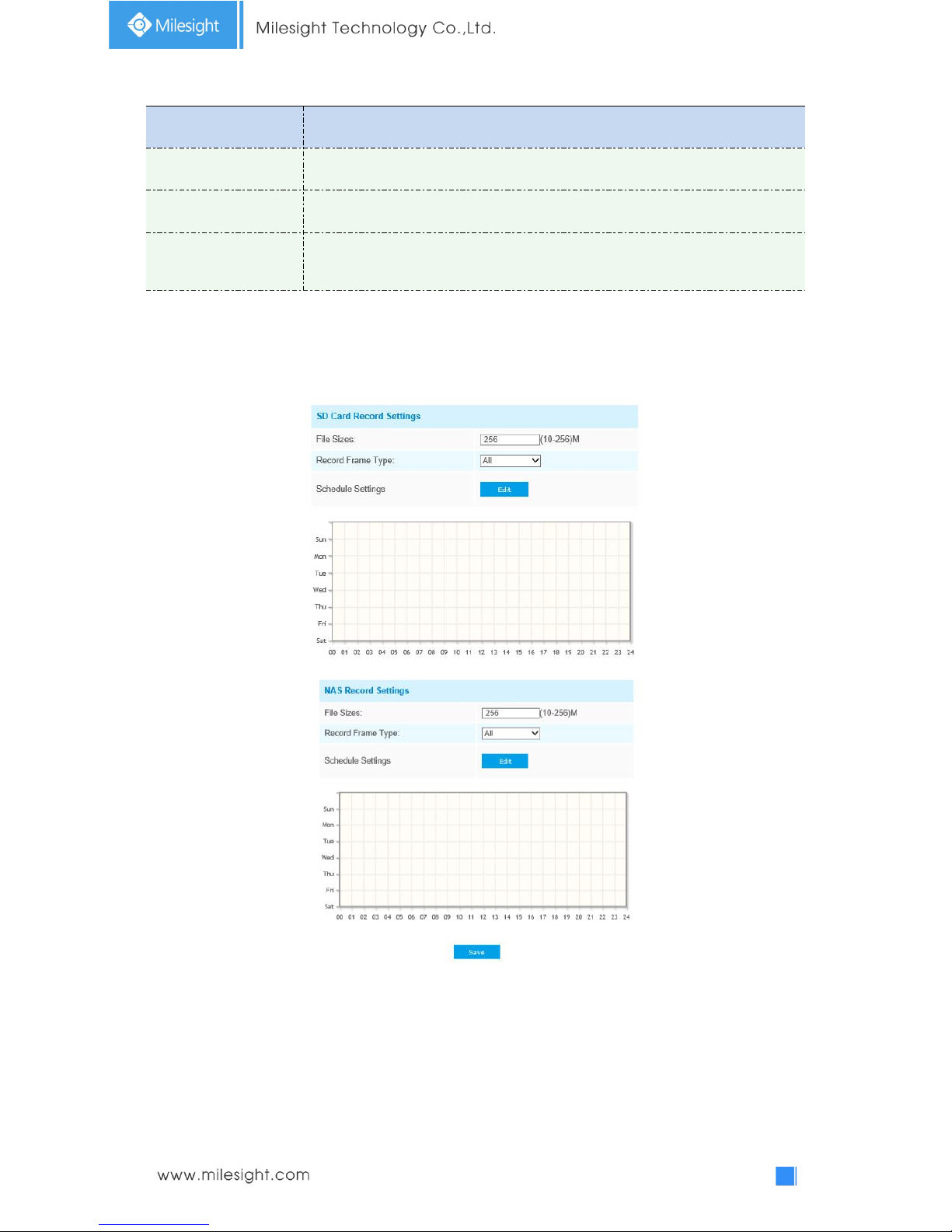

Figure 4-5-14 Record Schedule

Page 65

Table 4-5-6 Description of the buttons

Parameters

Function Introduction

Record Settings

File Sizes: Set record file size, (10-256)M

Record Frame Type: All/Key

(All: Record all the frame

Key: Only record I-frame)

Schedule Settings

Click the Edit button to edit record schedule

Note:

SD Card or NAS are available.

SD Card Explorer

Files will be viewed on this page when they are configured to save into SD card. You can set time schedule every day for recording videos and save video files to your target location. SD card video files are arranged by date. Each day files will be displayed under the corresponding date, from which you can copy and delete files etc. You can visit the files in SD card by ftp, for example, ftp://username:[email protected](User name and password are the same as the camera account and the IP followed is the IP of your device.).

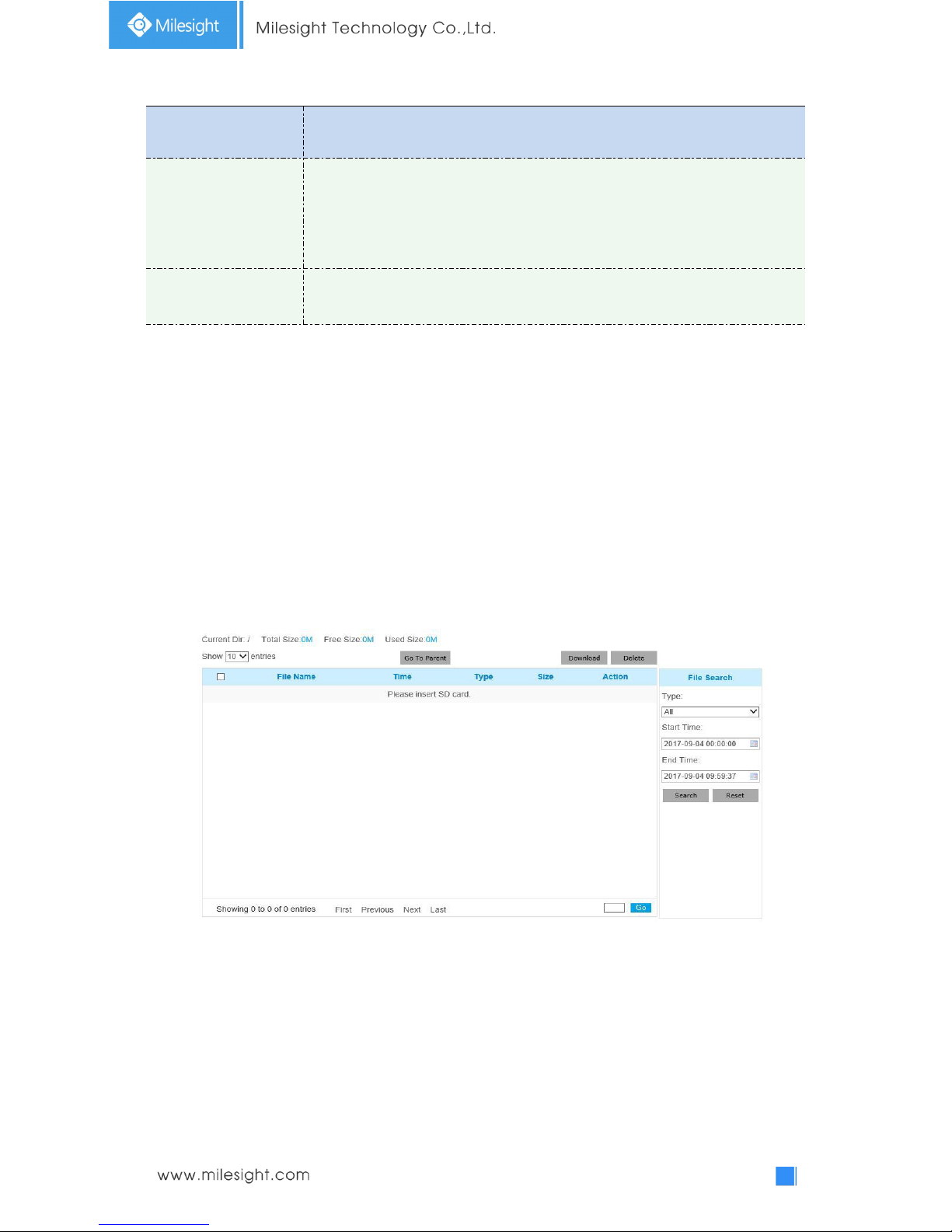

Figure 4-5-15 SD Card Explore

Note:

Files are visible once SD card is inserted. Don’t insert or plug out SD card when power on.

Page 66

Snapshot

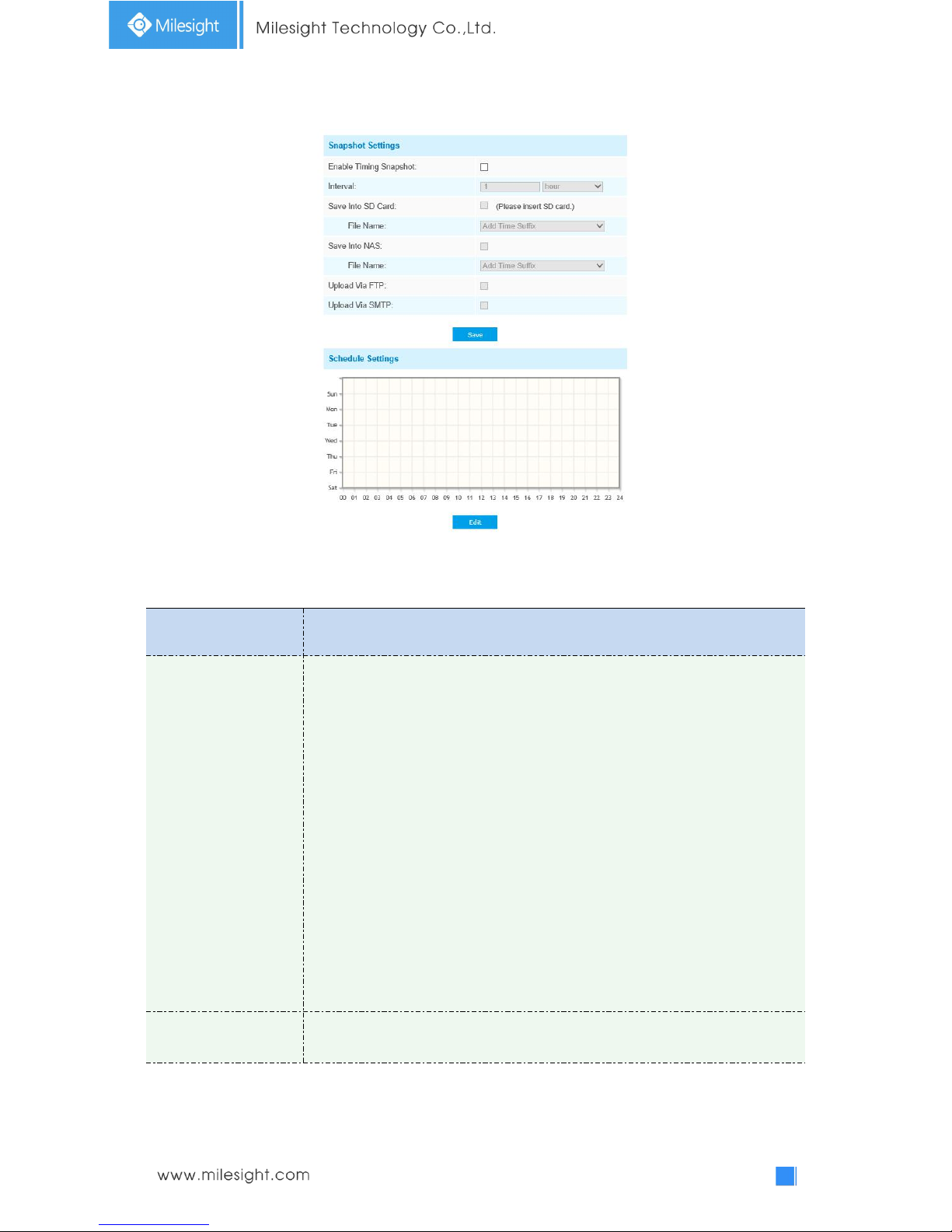

Figure 4-5-16 Snapshot

Table 4-5-7 Description of the buttons

Parameters

Function Introduction

Snapshot Settings

Enable Time Snapshot: Check the checkbox to enable the Timing Snapshot

function;

Interval: Set the snapshots interval, input the number and choose the

unit(millisecond, second, minute, hour, day);

Save Into SD Card: Save the snapshots into SD card, and choose the file name to

add time suffix or overwrite the base file name;

Save Into NAS: Save the snapshots into NAS, and choose the file name to add

time suffix or overwrite the base file name;

Upload Via FTP: Upload the snapshots via FTP;

Upload Via SMTP: Upload the snapshots via SMTP.

Please note:

If you choose to add time suffix, every snapshot picture will be saved, but if you

choose to overwrite the base file name, only one latest picture will be saved.

When you choose add overwrite the base file name to SD Card or NAS, it will

create a file named “Snapshot” to place the snapshot.

Schedule Settings

Click the Edit button to edit record schedule.

Page 67

4.5.3 Security

User

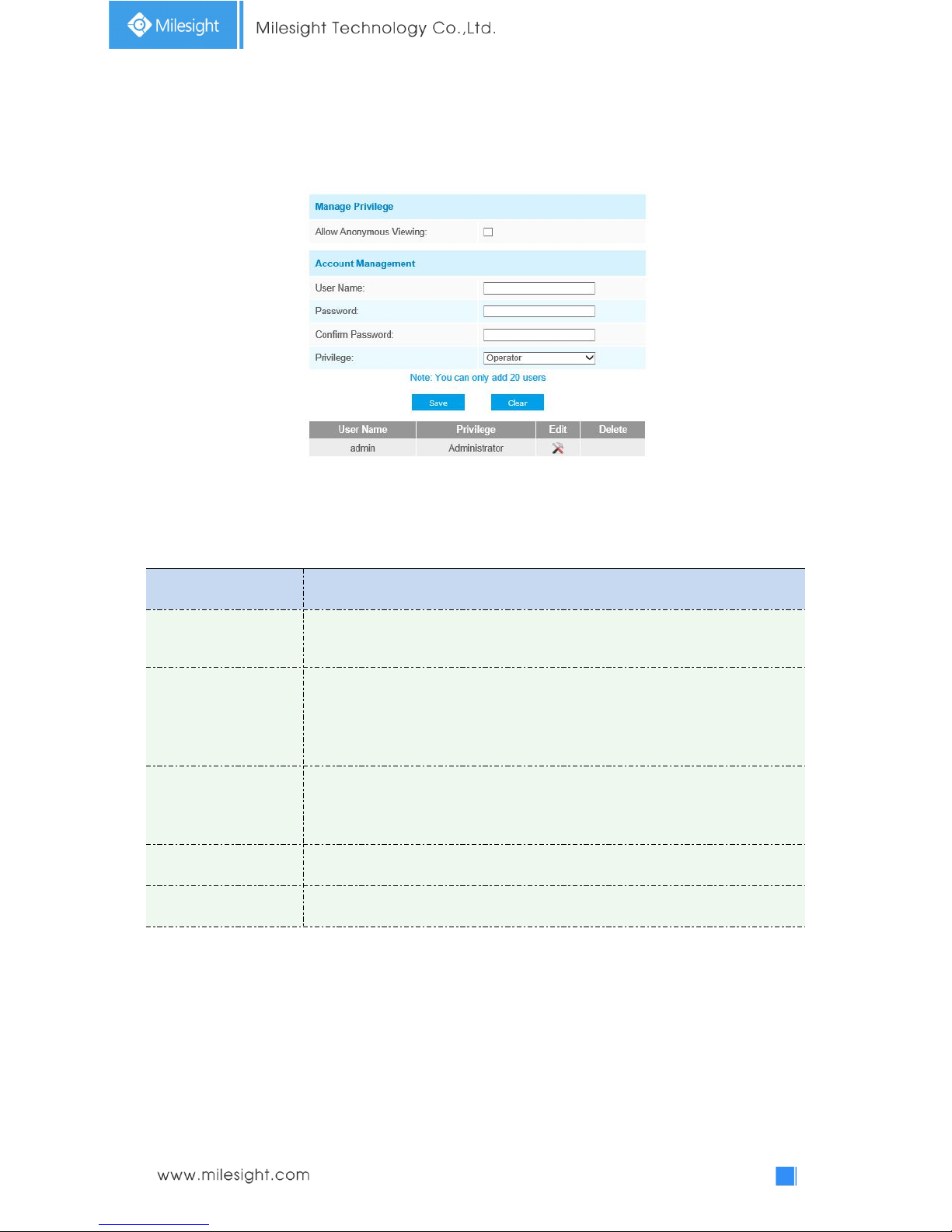

Figure 4-4-17 User Settings

Table 4-5-8 Description of the buttons

Parameters

Function Introduction

Manage Privilege

Allow anonymous viewing: Check the checkbox to enable visit from whom

doesn’t have account of the device.

Account Management

User Name: Input user name for creating an account;

User Password: Input password for the account;

Confirm User Password: Confirm the password;

Privilege: Set the privilege for the account.

Administrator

An administrator can manage all configuration pages of the device, including the

change of user password, and the addition or deletion of users (the default user

“admin” cannot be deleted).

Operator

An operator can manage all configuration pages except the User page.

Viewer

A viewer can`t change any settings.

Note:

1) For versions after 54, the Operator and Viewer users are closed by default. But you still can

add on the User page.

2) You can only add 20 users.

Page 68

Access List

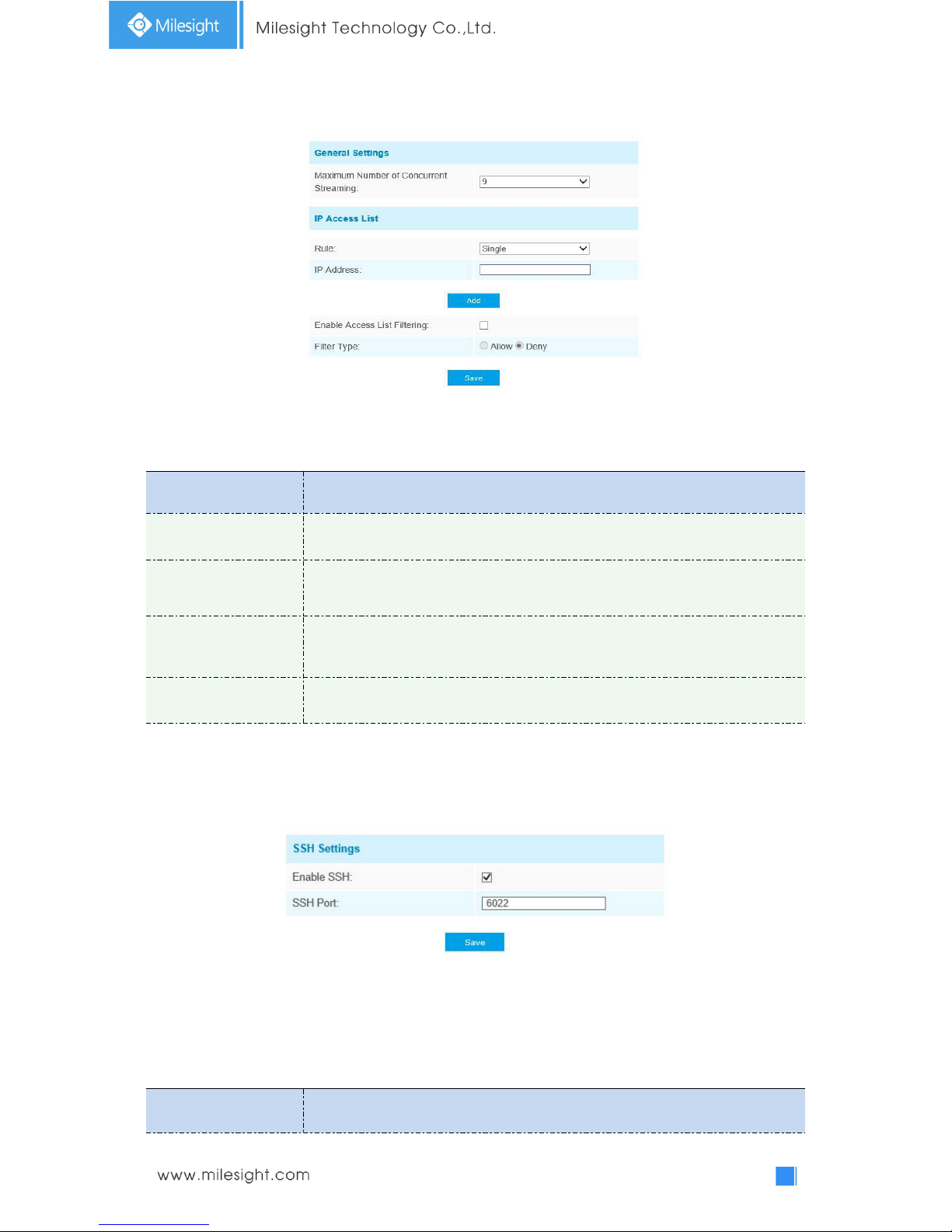

Figure 4-5-18 Access List

Table 4-5-9 Description of the buttons

Parameters

Function Introduction

General Settings

Maximum number of concurrent streaming: Select the maximum number of

concurrent streaming. Options include Number Limit, 1~9.

IP access list

Rule: Single, Network and Range are available;

IP address: Input the address to get the access to the device.

Enable access list

filtering

Able to access or restrict access for some IP address.

Filter type

Access or restrict access

Security Service

Figure 4-5-19 Security Service

Table 4-5-10 Description of the buttons

Parameters

Function Introduction

Page 69

SSH Settings

Secure Shell (SSH) has many functions: it can replace Telnet and also provides a

secure channel for FTP, POP, even for PPP.

4.5.4 SIP

The Session Initiation Protocol(SIP) is a signaling communications protocol, widely used for controlling multimedia communication sessions such as voice and video calls over Internet Protocol(IP) networks. This page allows user to configure SIP related parameters. Milesight cameras can be configured as SIP endpoint to call out when alarm triggered; or allow permitted number to call in to check the video if the video IP phone is used. To use this function, the settings in SIP page must be configured properly. There are two ways to get video through SIP, one is to dial the IP address directly, the other is account registration mode. the details are as follows: Method 1: IP Direct mode Dial on the camera’s IP address directly through SIP phone, so you can see the video.

Note: SIP phone and the camera should in the same network segment.

Method2: Account registration mode

1) Before using the SIP, you need to register an account for the camera from the SIP server;

2) Register another user account for the SIP device from the same SIP server;

3) Call the camera User ID from the SIP device, you will get the video on the SIP device.

SIP Settings

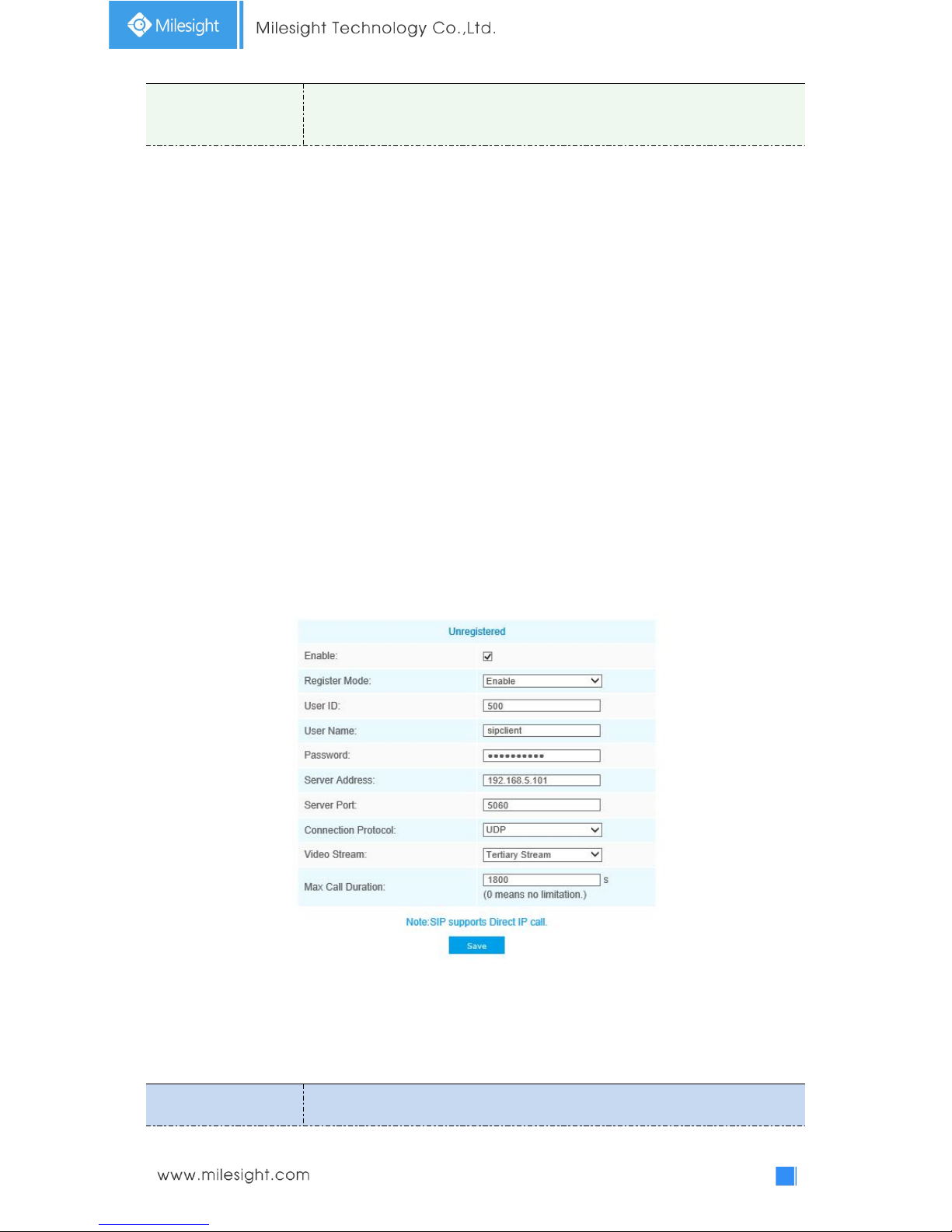

Figure 4-5-20 SIP Settings

Table 4-5-11 Description of the buttons

Parameters

Function Introduction

Page 70

Unregistered/

Registered

SIP registration status. Display “Unregistered” or “Registered”

Enable

Start or stop using SIP

Choose to use Enable mode or Disable mode. Enable mode means to use SIP with

the IP address to call.

User ID

SIP ID

User Name

SIP account name

Password

SIP account password

Server Address

Sever IP address

Server Port

Sever port

Connection

Protocol

UDP/TCP

Video Stream

Choose the video stream

Max Call Duration

The max call duration when use SIP

Note:

1) SIP supports Directly IP call;

2) SIP only supports second stream with H.265/H.264 Video Compression.

Alarm Phone List

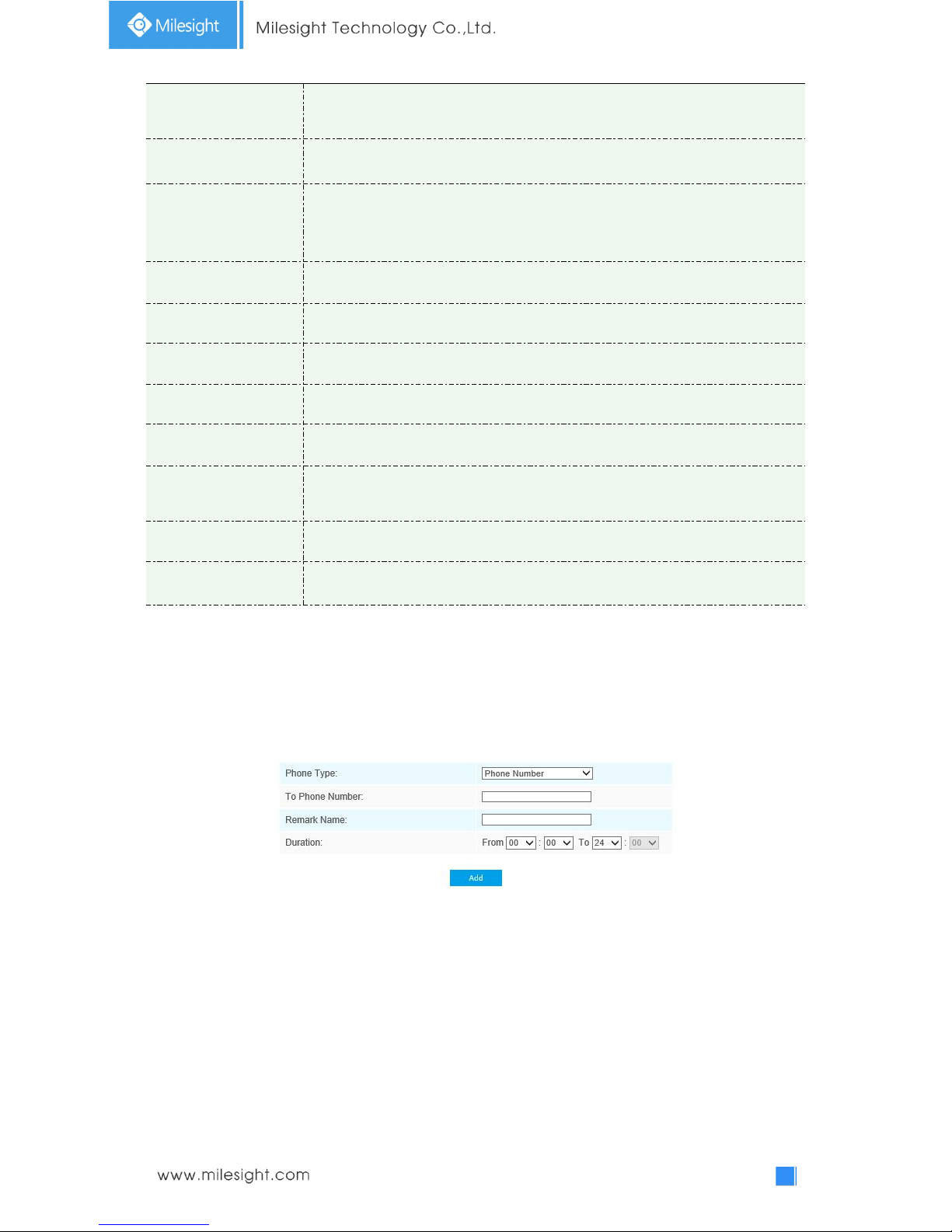

Figure 4-5-21 Alarm Phone List

Page 71

Table 4-5-12 Description of the buttons

Parameters

Function Introduction

Phone Type

Phone Number(Call by phone number) & Direct IP Call(Check to accept peer to

peer IP call).

To Phone Number/

IP Address

Call by phone number or IP address.

Remark Name

Display name.

Duration

The time schedule to use SIP.

White List

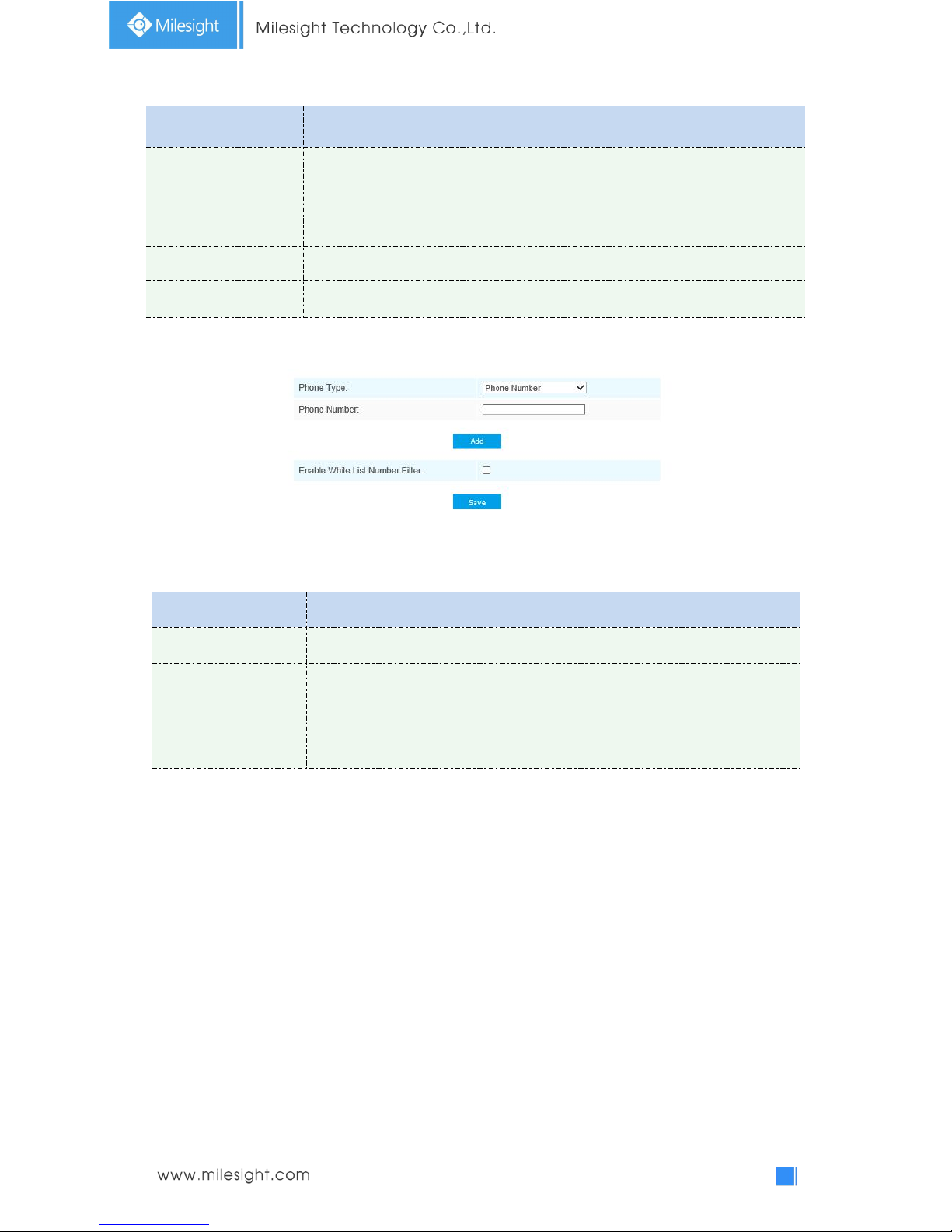

Figure 4-5-22 White List

Table 4-5-13 Description of the buttons

Parameters

Function Introduction

Phone Type

Phone Number(Call by phone number) & Direct IP Call

Phone Number/

IP Address

Including the phone number or IP address on the white list

Enable White List

Number Filter

When enabled, it can only visited by the designated phone number or IP

address.

4.5.5 Smart Event

Smart Event uses Milesight Video Content Analysis technology. This technical capability is used in a wide range of domains including entertainment, health-care, retail, automotive, transport, home automation, safety and security. Milesight VCA provides advanced, accurate smart video analysis for Milesight network cameras. It enhances the performance of network cameras through 8 detection modes which are divided into basic function and advanced function, enabling the comprehensive surveillance function and quicker response of cameras to different monitoring scenes. (Note: Please ask license from Milesight sales)

Region Entrance

Region entrance helps to protect a special area from potential threat of suspicious person’s or object’s entrance. An alarm will be triggered when objects enter the selected regions by enabling region entrance.

Page 72

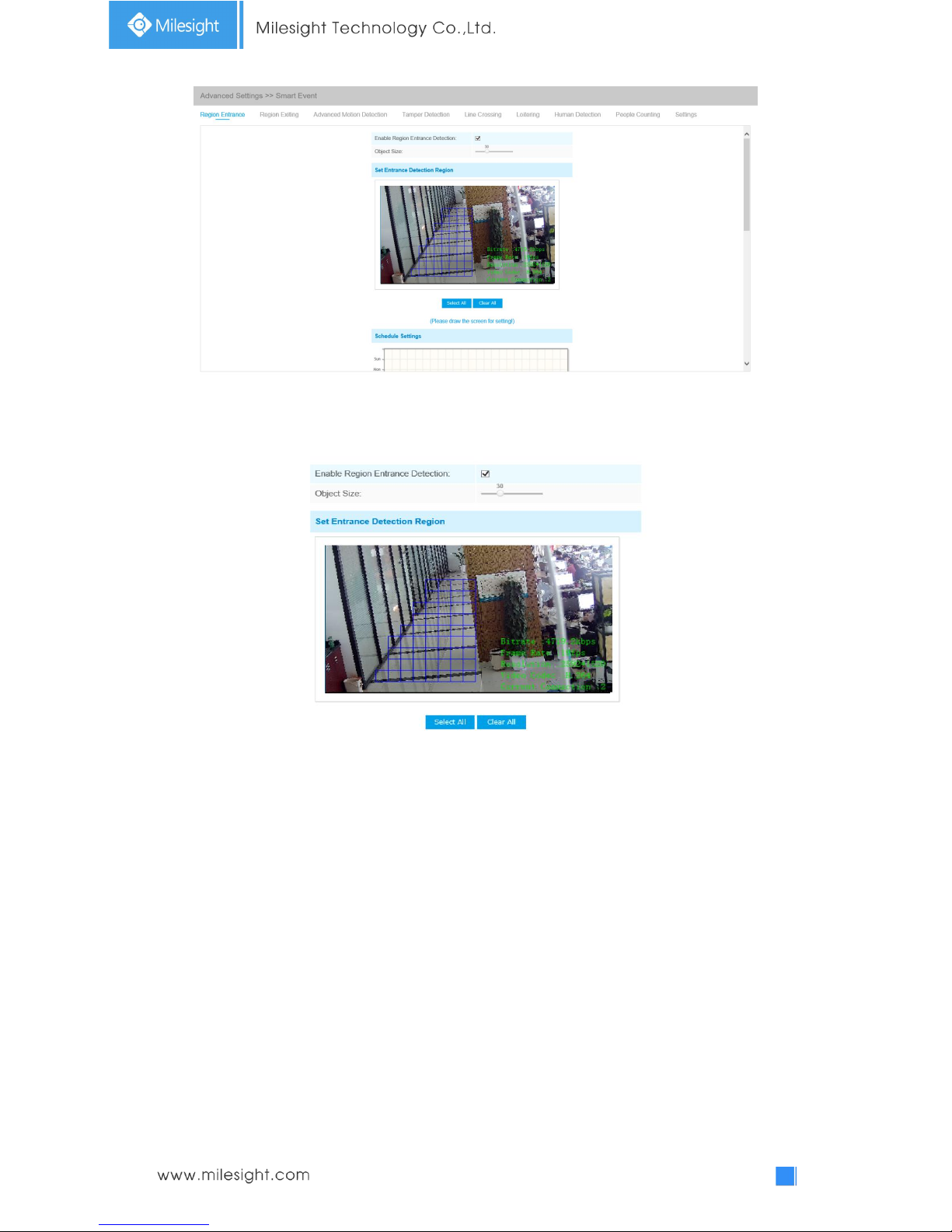

Figure 4-5-23 Region Entrance

Step1: Set detecting object size; Step2: Set entrance detection region;

Figure 4-5-24 Set Entrance Detection Region

Step3: Set detection schedule; Step4: Set alarm action; Step5: Set alarm settings.

Note:

The “Object Size” can be set to define whether an object is big enough for triggering the alarm when enter into the selected region.

Region Exiting

Region exiting is to make sure that any person or object won't exit the area that is being monitored. Any exit of people or objects will trigger an alarm.

Page 73

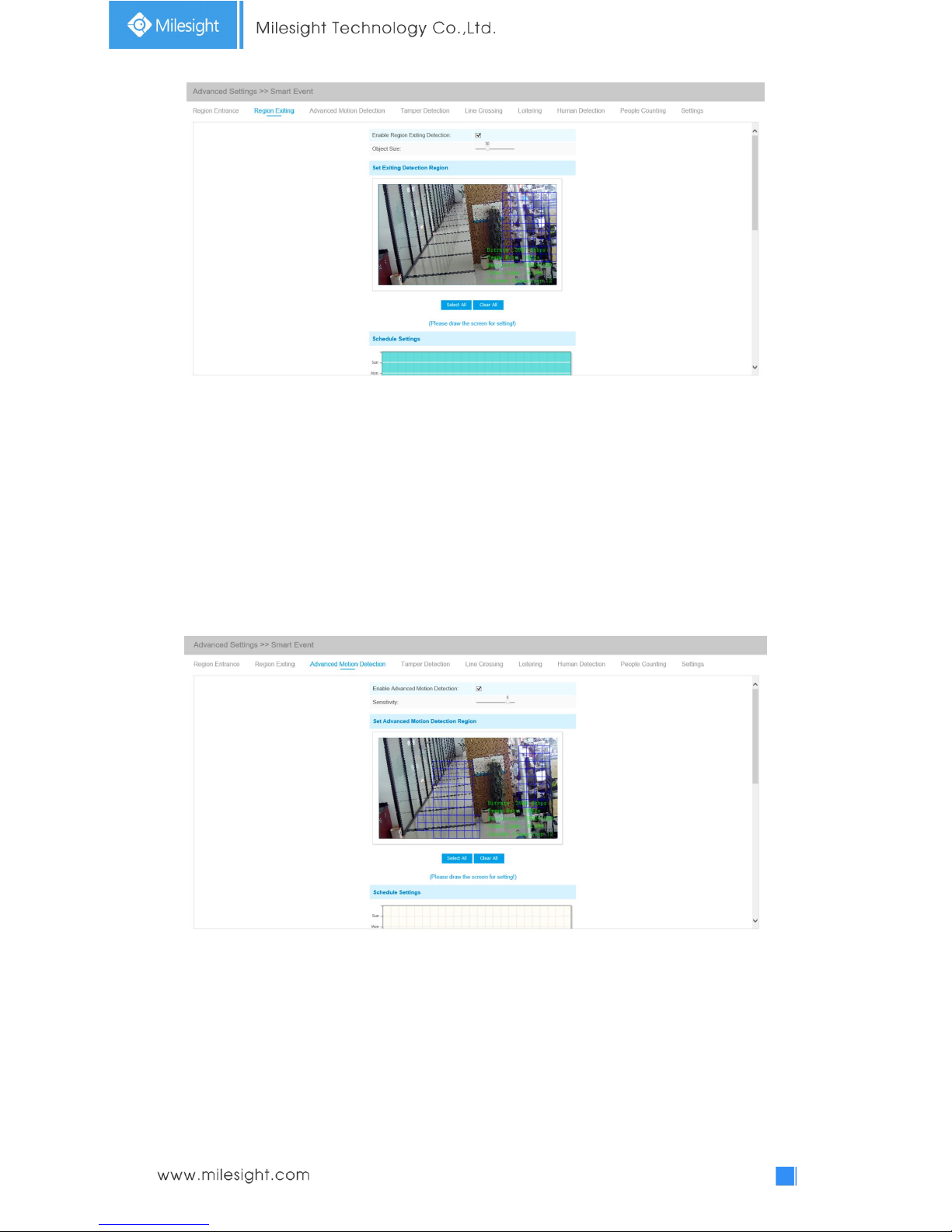

Figure 4-5-25 Set Region Exiting

Step1: Set detecting object size; Step2: Set exiting detection region; Step3: Set detection schedule; Step4: Set alarm action; Step5: Set alarm settings.

Advanced Motion Detection

Different from traditional motion detection, Milesight advanced motion detection can filter out “noise” such as lighting changes, natural tree movements, etc. When an object moves in the selected area, it will trigger alarm.

Figure 4-5-26 Set Advanced Motion Detection

Step1: Set detecting sensitivity; Step2: Set advanced motion detection region; Step3: Set detection schedule; Step4: Set alarm action; Step5: Set alarm settings.

Page 74

Note:

The sensitivity can be configured to detect various movement according to different requirements. When the level of sensitivity is low, slight movement won’t trigger the alarm.

Tamper Detection

Tamper Detection is used to detect possible tampering like the camera being unfocused, obstructed or moved. This functionality alerts security staff immediately when any above-mentioned actions occur.

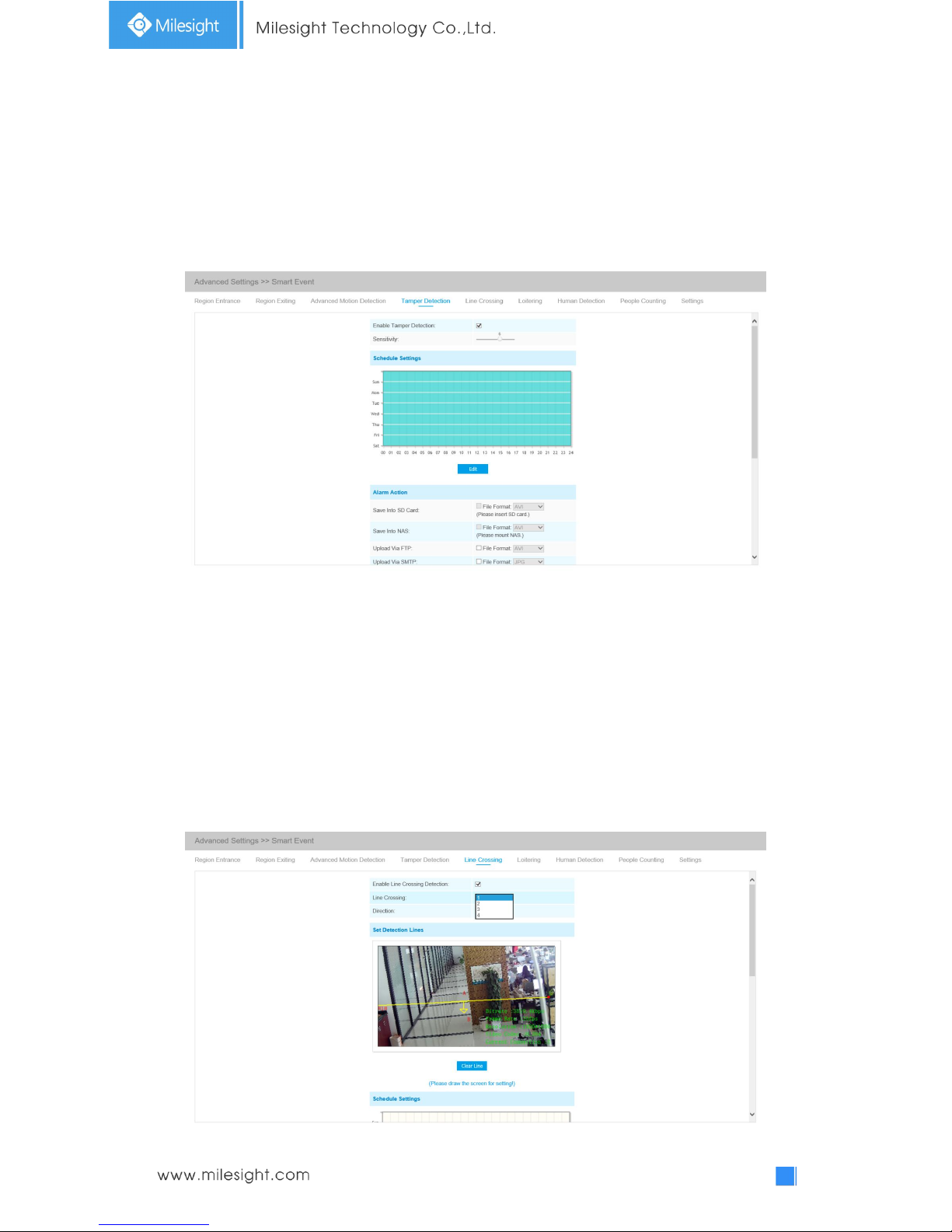

Figure 4-5-27 Set Tamper Detection

Step1: Set detecting sensitivity; Step2: Set detection schedule; Step3: Set alarm action; Step4: Set alarm settings.

Line Crossing

Line Crossing detection is designed to work in most indoor and outdoor environment. An event will be triggered every time when the camera detects objects crossing a defined virtual line. Settings steps are shown as follows: Step1: Choose detection line number and define its direction;

Figure 4-5-28 Set Detection Lines

Page 75

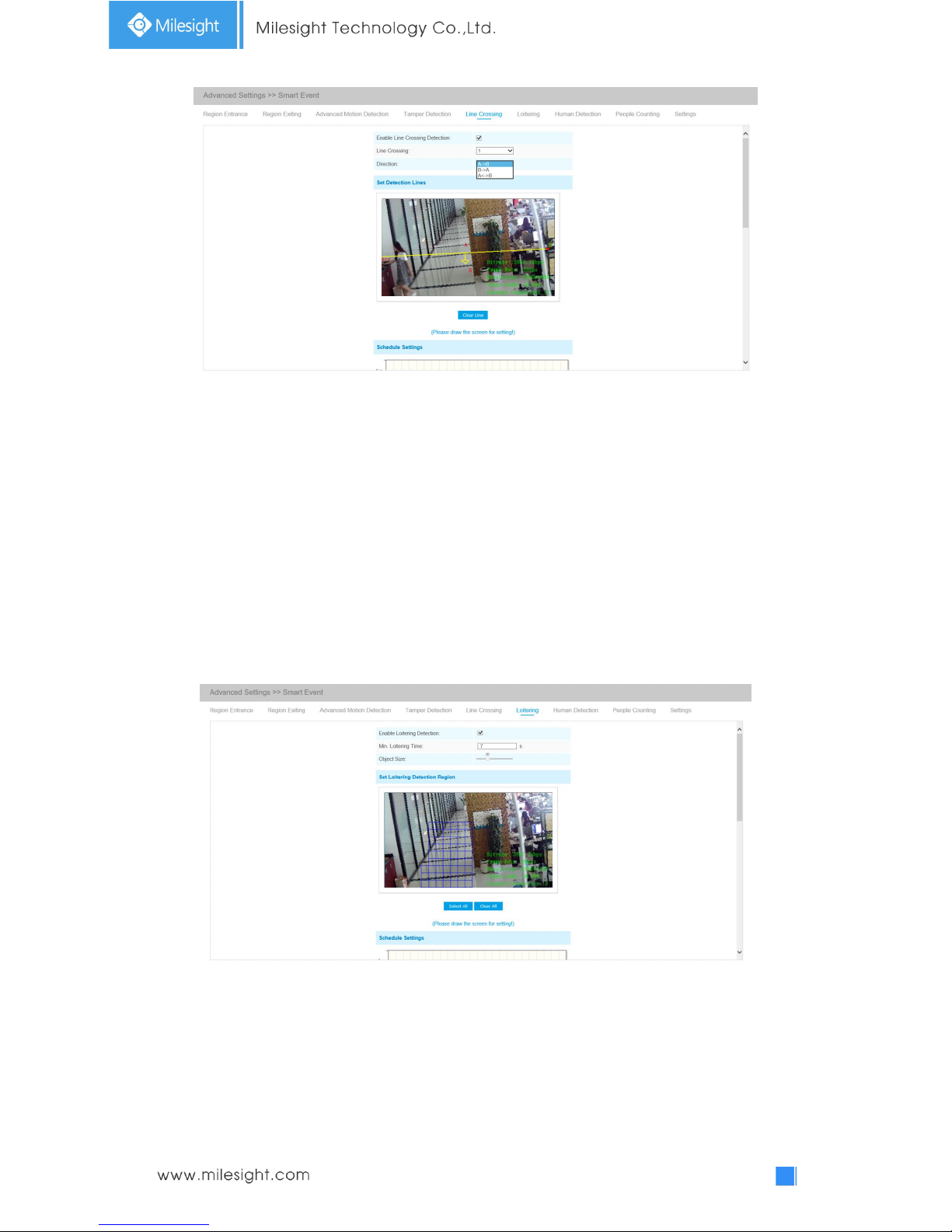

Figure 4-5-29 Set Line Direction

Step2: Draw detection lines; Step3: Set detection schedule; Step4: Set alarm action; Step5: Set alarm settings.

Note:

Milesight allows to set up to four lines at a time. There are three direction modes to choose for triggering alarm. “A→B” means when there is any object crossing the line from the “A” side to the “B” side, the alarm will be triggered. “B→A” vice versa. “A ↔ B” means that the alarm will be triggered when objects cross line from either side.

Loitering

When objects are loitering in a defined area for a specific period of time, it would trigger an alarm.

Figure 4-5-30 Set Loitering Detection

Step1: Set minimum loitering time; Step2: Set object size; Step3: Set loitering detection region; Step4: Set detection schedule;

Page 76

Step5: Set alarm action; Step6: Set alarm settings.

Note:

After setting minimum loitering time from 3s to 300s, any objects loitering in the selected area over the minimum loitering time will trigger the alarm. Also Milesight loitering allows to set “Object Size”. Only the object bigger than the set size will trigger the alarm.

Human Detection

Human detection is used for figuring out whether an object is a human or not. Once human detection is enabled, when there is an object appearing in the detecting area, an ID will show on the frame. If the object is a person, it will mark as “person”. When the Show Tracks is enabled, the tracks of the moving object will show on the screen.

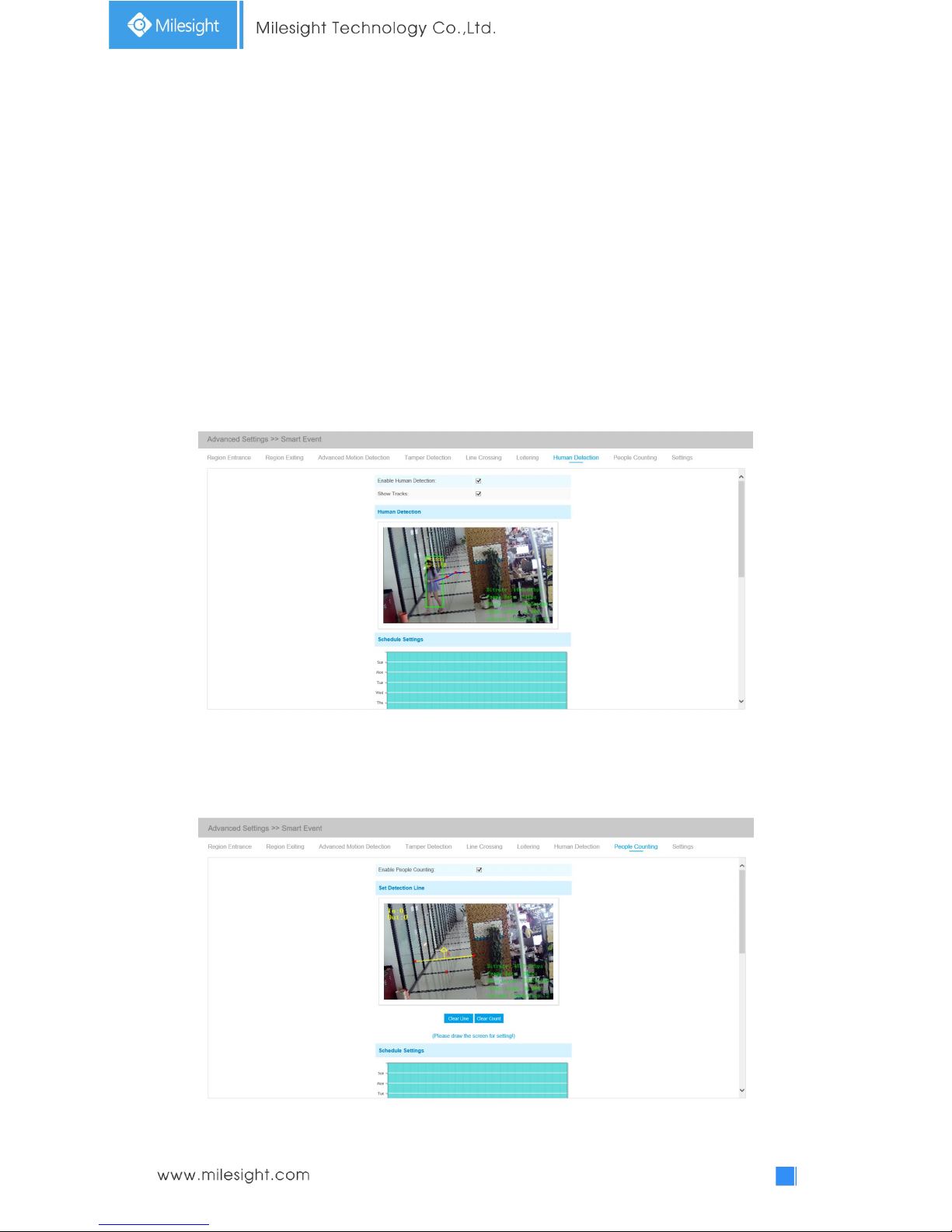

Figure 4-5-31 Set Human Detection

People Counting

People counting is able to count that how many people enter or exit during the setting period.

Figure 4-5-32 Set Detection Line

Page 77

Step1: Set detection line; Step2: Set detection schedule; Step3: Set counting OSD;

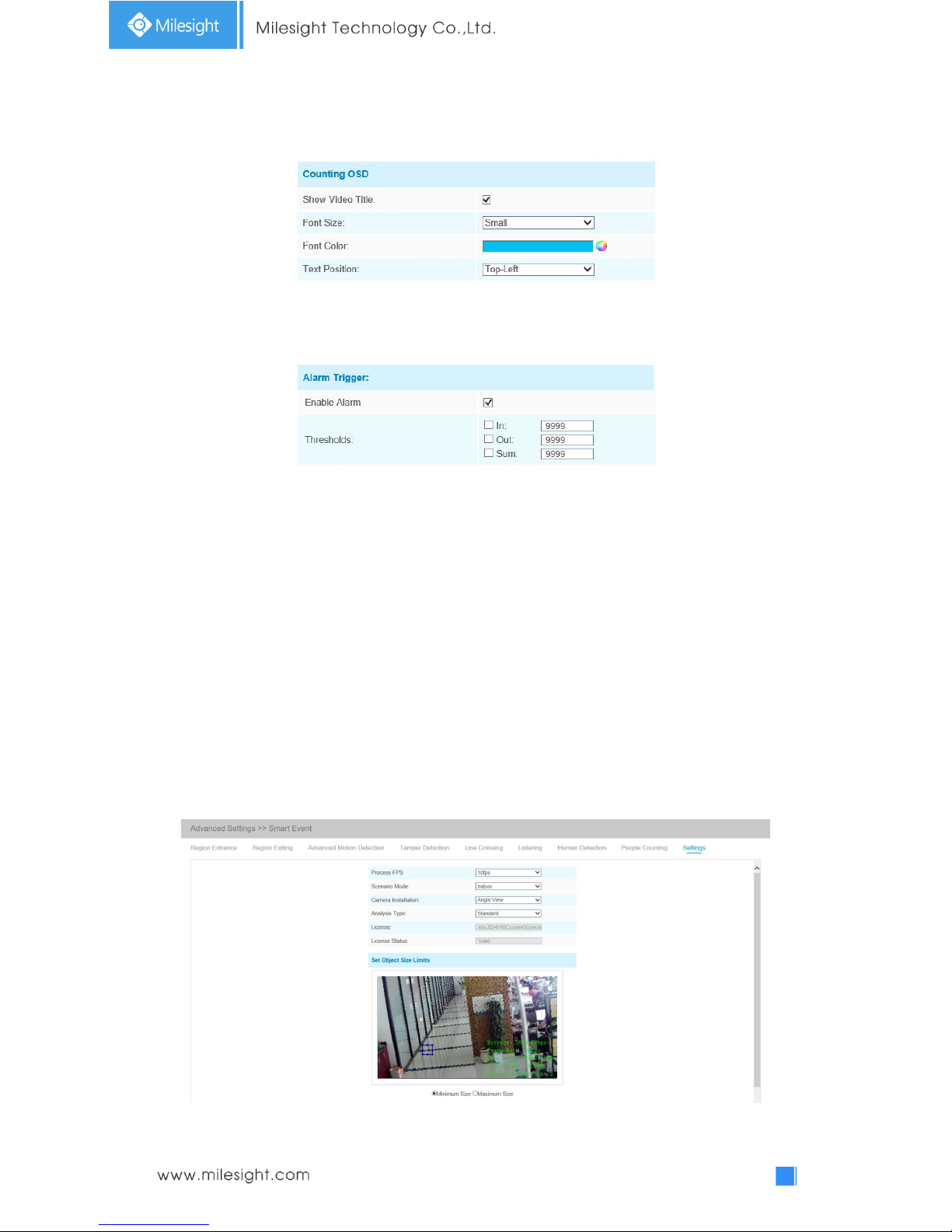

Figure 4-5-33 Set Counting OSD

Step4: Set alarm trigger;

Figure 4-5-34 Set Alarm Trigger

Step5: Set alarm action; Step6: Set alarm settings.

Note:

1) Enable people counting need to enable human detection first;

2) Crossing along the direction of the arrow will record as “In”, opposite is “Out”;

3) Alarm will be triggered when the thresholds reaches to a certain value from 1 to 9999.

Setting

Milesight VCA provides the primary setting for the whole VCA functions. “Minimum Size” is to set the whether an object is big enough to trigger other settings. The frame you draw on the screen means that only if the object size is bigger than the frame, the settings for other VCA functions will take effect. Maximum Size means opposite, the frame you draw on the screen stands for that only if the object size is smaller than the frame, the settings for other VCA functions will take effect.

Figure 4-5-35 Smart Event Settings

Page 78

Table 4-5-14 Description of the buttons

Parameters

Function Introduction

Process FPS

Five different periods are available(5, 10, 15, 20, 25, fps) for process fps

Scenario Mode

Select Indoor or Outdoor mode to meet your needs

Camera Installation

Select camera installation view, including Angle View, Horizontal View and

Overhead View

Analysis Type

Select Standard or Advanced analysis type

License

Generated by camera’s information

License Status

Show present license status, including Valid, Invalid, Expired, Unactivated

4.5.6 PTZ

PTZ Settings provides you to configure the functions and parameters about Pan/Tilt/Zoom. PTZ parameters are mainly include the Basic parameters, Auto Home, Config Clear, PTZ Limit, Initial Position(Mini PTZ Bullet) and Scheduled Tasks.

Basic

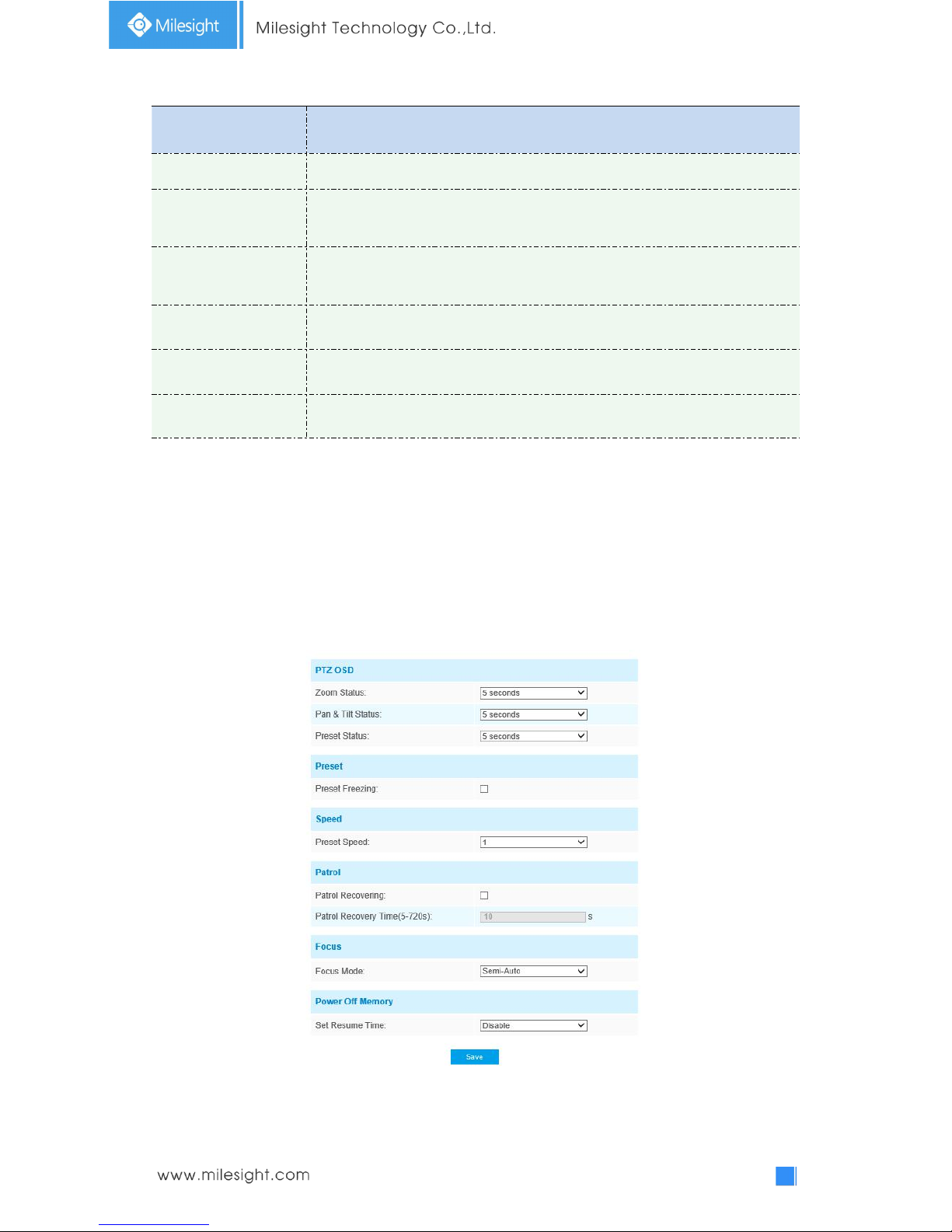

Figure 4-5-36 Basic Settings of PTZ

Page 79

Table 4-5-15 Description of the buttons

Parameters

Function Introduction

Zoom Status

Configure the OSD parameter, and you can set the Zoom status OSD with Close/

Always open/ 2s/ 5s/ 10s.

Pan&Tilt Status

Configure the OSD parameters, and you can set the Pan&Tilt status OSD with

Close/ Always open/ 2s/ 5s/ 10s.

Preset Status

Configure the OSD parameters, and you can set the Preset status OSD with Close/

Always open/ 2s/ 5s/ 10s.

Preset Freezing

If you enabled Preset Freezing, the live view of preset position will be showed

directly instead of showing both the moving path to the position and the live

view. It can also reduce the use of bandwidth in a digital network system

Preset Speed

It determines the speed of calling presets. Level 1~10 are available.

Manual Speed

(Speed Dome)

It determines the PTZ speed of Manually control. Low/ Medium/ High are

available.

Scan Speed

(Speed Dome)

It determines the speed of Auto Scan. Level 1~10 are available.

Patrol Recovering

(Mini PTZ Bullet)

Click to enable Patrol Recovering.

Patrol Recovery Time

(Mini PTZ Bullet)

Set time for Patrol Recovering, which is between 5 and 720 seconds.

Focus Mode

Three focus modes are available: Auto/ Semi-Auto/ Manual.

Minimum focus

Distance

(Speed Dome)

Set the minimum focus distance to adjust the step length of each focus. 1 meter,

1.5 meters, 3 meters, 6 meters, 10 meters, 20 meters are available.

Set Resume Time

If the camera stop working for a longer time than predefined,

the position of it will be recorded. And it will resume the position after it restart

from a power-off. You can set the resume time to 30 seconds, 60 seconds, 300

seconds or 600 seconds to record its position.

Page 80

Auto Home

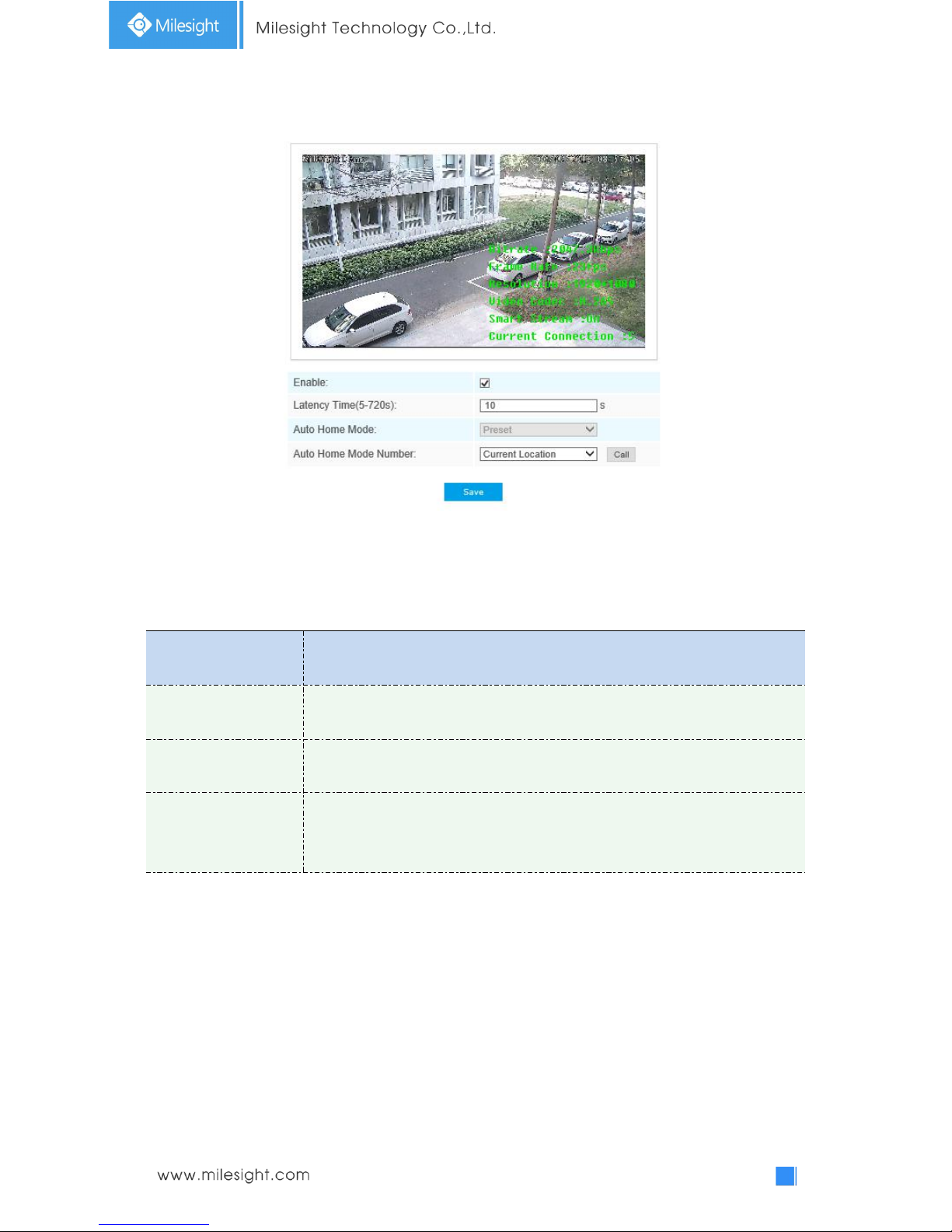

Figure 4-5-37 Auto Home

Auto Home allows the PTZ camera to return to a predefined Home Position automatically after a period of latency time. Check the checkbox to enable the Auto Home mode.

Table 4-5-16 Description of the buttons

Parameters

Function Introduction

Latency Time

Set a latency time to trigger Auto Home mode, 5-720s.

Auto Home Mode

Preset: A preset point will take effect when triggering the Auto Home.

Auto Home Mode

Number

Select a predefined preset in the list, press “Call” to check the location. Also

support to select current location.

Page 81

PTZ Limit

The PTZ camera can be programmed to move within the configurable PTZ Limits(Left/Right).

Figure 4-5-38 PTZ Limit

Step1: Check the checkbox to enable the PTZ Limit function. Step2: Choose the limit mode as Manual limit or scanning limit.



Manual Limit:

When Manual limit stops are set, you can operate the PTZ control panel manually only in the limited surveillance area.



Scan Limit:

When Scan limit stops are set, the auto scan is performed only in the limited surveillance area.

Step3: Click the PTZ controller buttons to set the left/right limit stops; you can also call the defined

presets and set them as the limits of the PTZ camera.

Step4: Click Set to save the limits or Clear to clear the limits.

Initial Position

You can configure the Initial Position for Mini PTZ Bullet as a zero point. Step1: Click the PTZ control buttons as the Initial Position of the Mini PTZ bullet,you can also call a

defined preset and set it as the Initial Position. Step2: Click Set to save the position as the Initial Position.

Figure 4-5-39 Initial Position interface

Page 82

Table 4-5-17 Description of the buttons

Parameters

Function Introduction

Set

Click to set the current position as a Initial Position

Clear

Clear the Initial Position to default settings.

Call

Click to call the Initial Position.

Note:

This function is only for Mini (PoE) PTZ Bullet.

Privacy Mask

Privacy mask enables to cover certain areas on the live video to prevent certain spots in the surveillance area from being viewed and recorded. The mask area does not move as the lens moves. You can set eight mask areas at most.

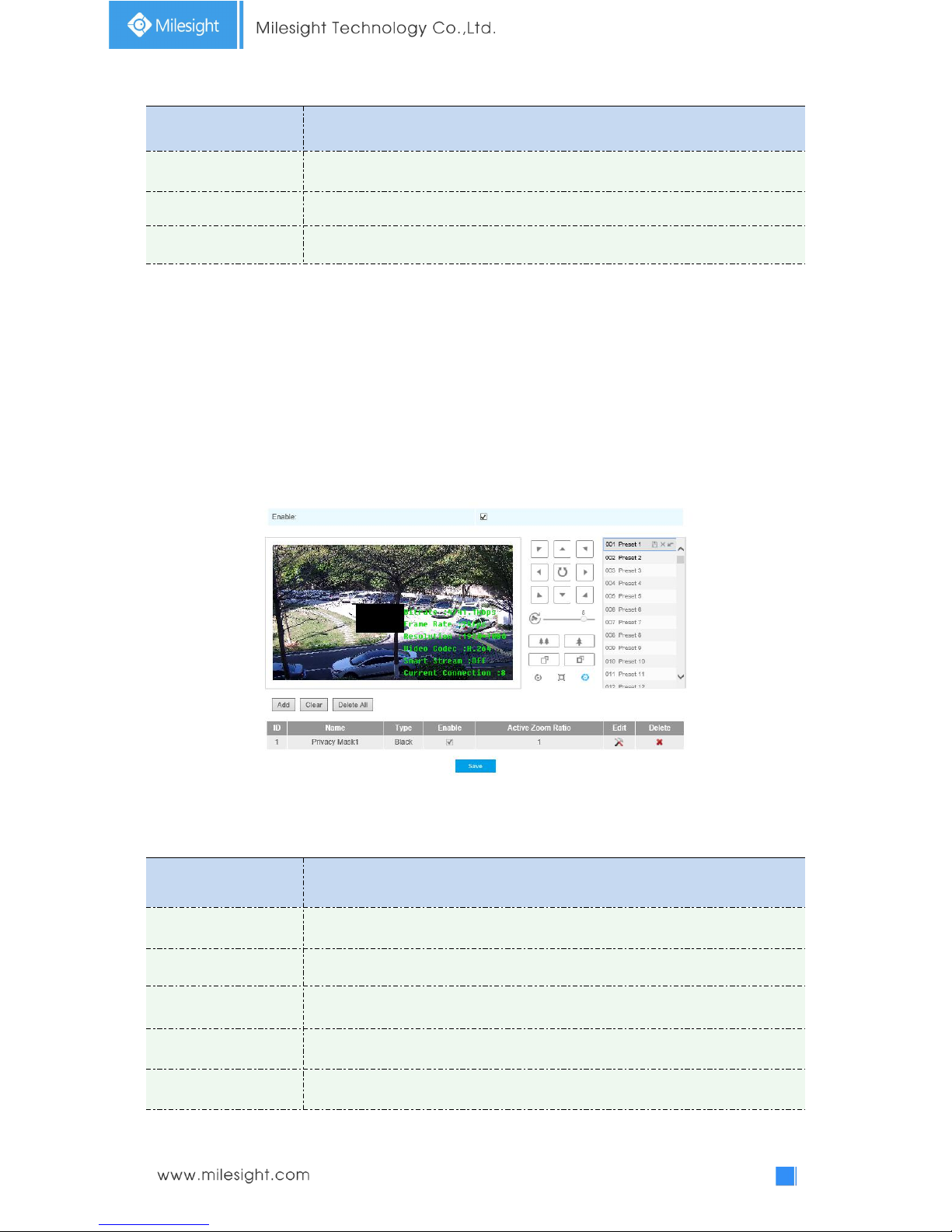

Figure 4-5-40 Privacy Mask

Table 4-5-18 Description of the buttons

Parameters

Function Introduction

Enable

Check the checkbox to enable the Privacy Mask function

Add

Add the current drawing area as Privacy Mask

Clear

Clear the current drawing area

Clear All

Clear all areas you drew before

Name

Support to customize the name of Privacy Mask

Page 83

Type

Select the color for the privacy areas, there are eight colors available: White,

Black, Blue, Yellow, Green, Brown, Red, Violet

Active Zoom Ratio

Set the value of Active Zoom Ratio according to your need, and then the mask will

only appear when the zoom ratio is greater than the predefined value

Scheduled Tasks

You can configure the PTZ camera to perform a certain action automatically in a user-defined time period. Step1: Enter the Scheduled Task Settings interface:

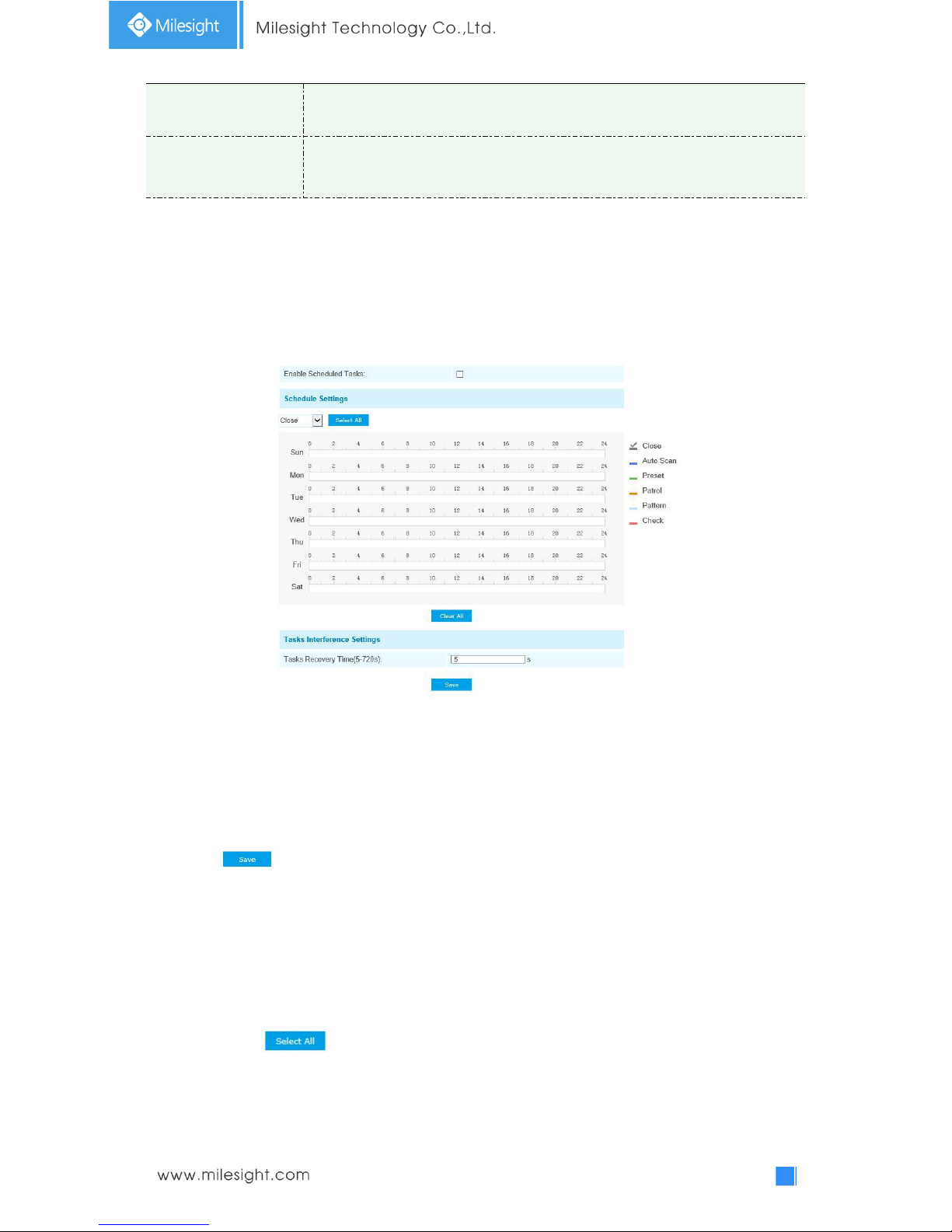

Figure 4-5-41 Scheduled Task interface

Step2: Check the checkbox to Enable Scheduled Task. Step3: Set the schedule and task details. Step4: Set the Task Recovery Time(from 5 to 720 seconds). You can set the time(a period of

inactivity) before the PTZ camera starts the schedule and task details.

Step5: Click button to save all the configurations.

Note:

1) The time of each task cannot be overlapped. Up to 10 tasks can be configured for each day.

2) The Scheduled Tasks function is prior to Auto Home function. When these two functions are set at the same time, only the Scheduled Tasks function takes effect.

3) You can click button to select or close all schedule of different kinds of tasks.

Page 84

Config Clear

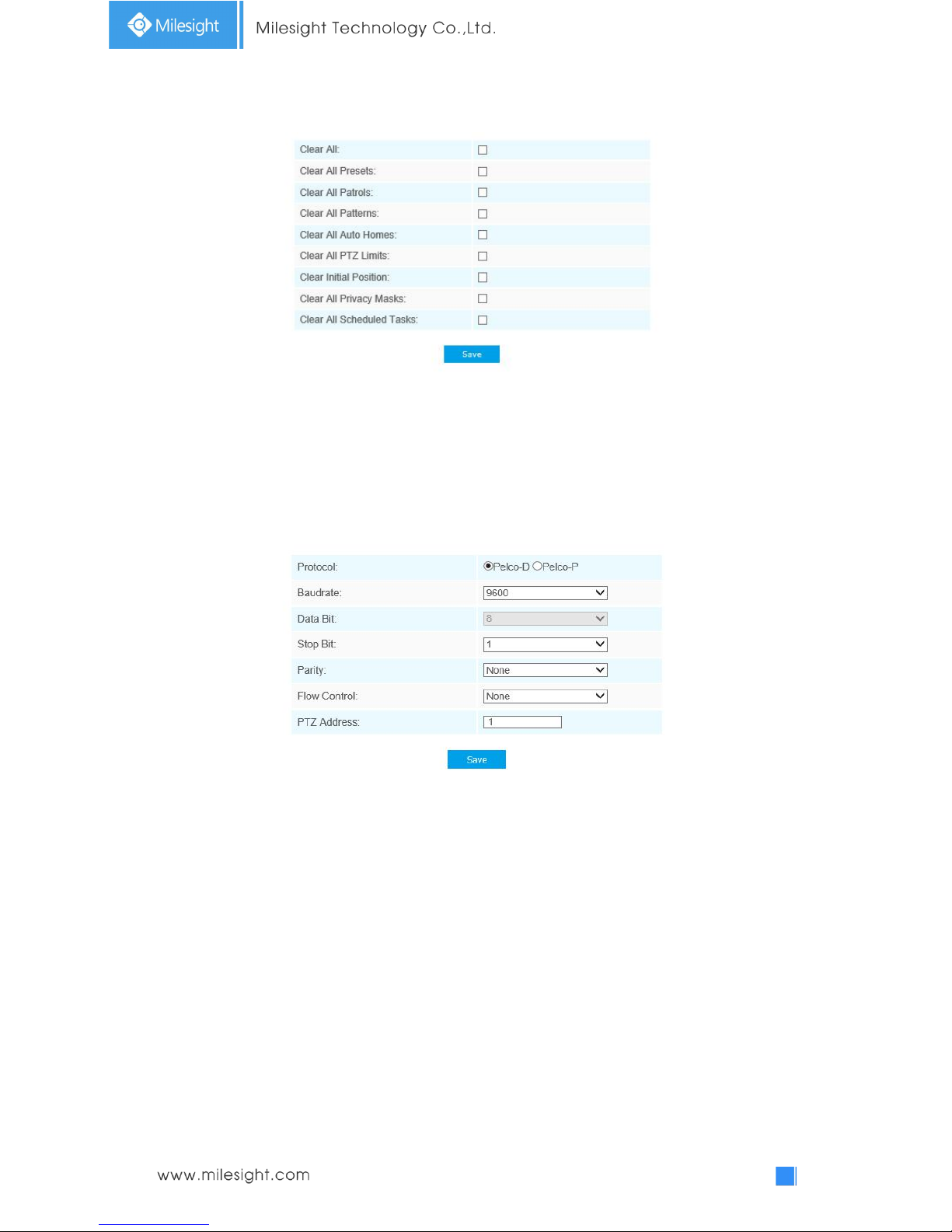

Figure 4-5-42 Config Clear

Here you can clear PTZ configurations, including all PTZ configurations, Presets, Patrols, Patterns, Auto Homes, PTZ Limits , Initial Position(Mini PTZ Bullet), Privacy Masks and Scheduled Tasks.

RS485

Figure 4-5-43 RS485

Here you can clear configure RS485 serial port to control the PTZ of Speed Dome. Protocol, Baudrate, Data Bit, Stop Bit, Parity, Flow Control, PTZ Address should be exactly the same as those of the control device.

Note:

This function is only for Speed Dome.

4.5.7 Logs

The logs contain the information about the time and IP that has accessed the camera through web.

Page 85

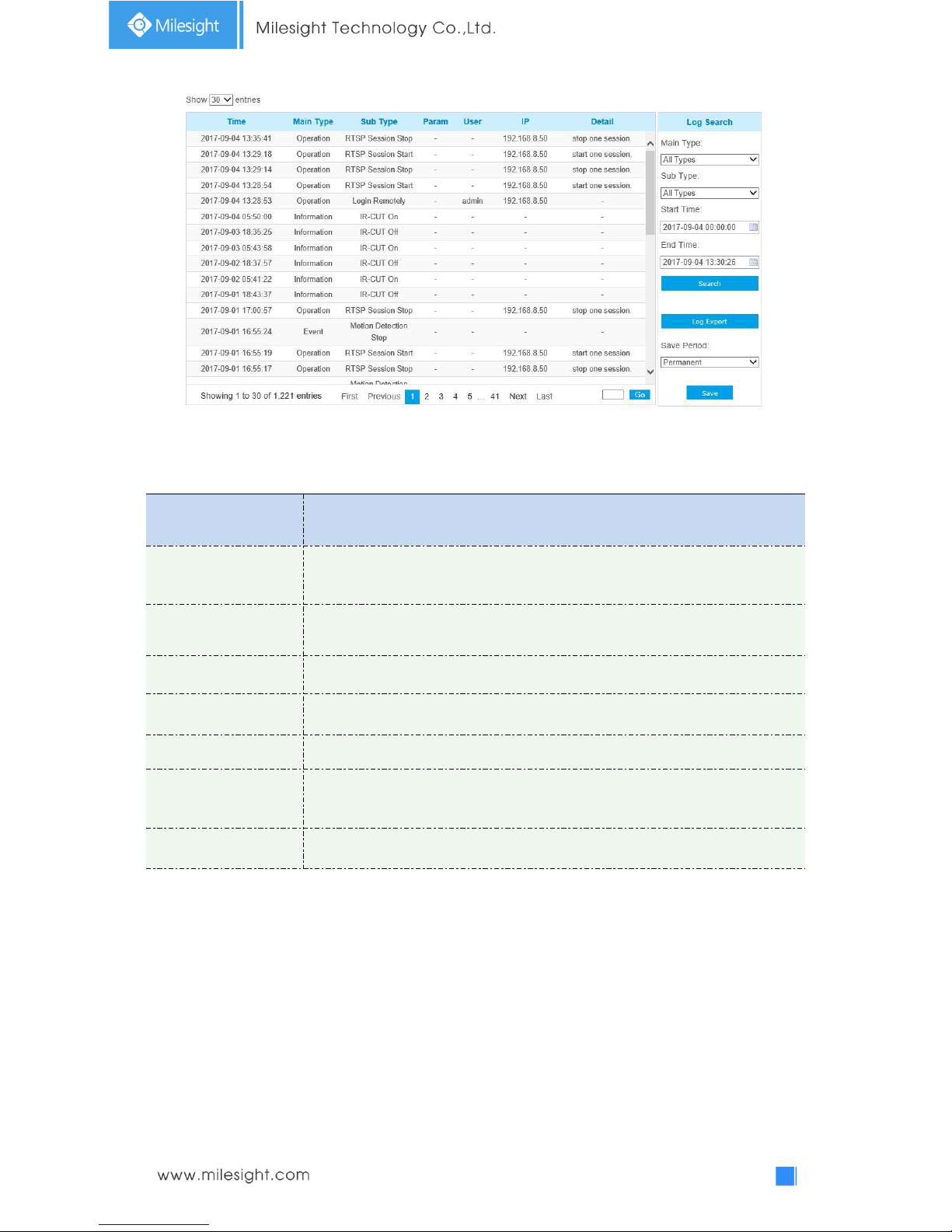

Figure 4-5-44 Logs

Table 4-5-19 Description of the buttons

Parameters

Function Introduction

Main Type

There are five main log types: All Type, Event, Operation, Information,

Exception.

Sub Type

On the premise that main type has been selected, select the sub type to narrow

the range of logs.

Start Time

The time log starts

End Time

The time log ends

Log Export

Export the logs

Save Period

Set the period of log saving. There are eight options to choose: Permanent and

30/60/120/180/240/300/360 Days.

Input the number of logs’ page.

4.6 System

All information about the hardware and software of the camera can be checked on this page.

Page 86

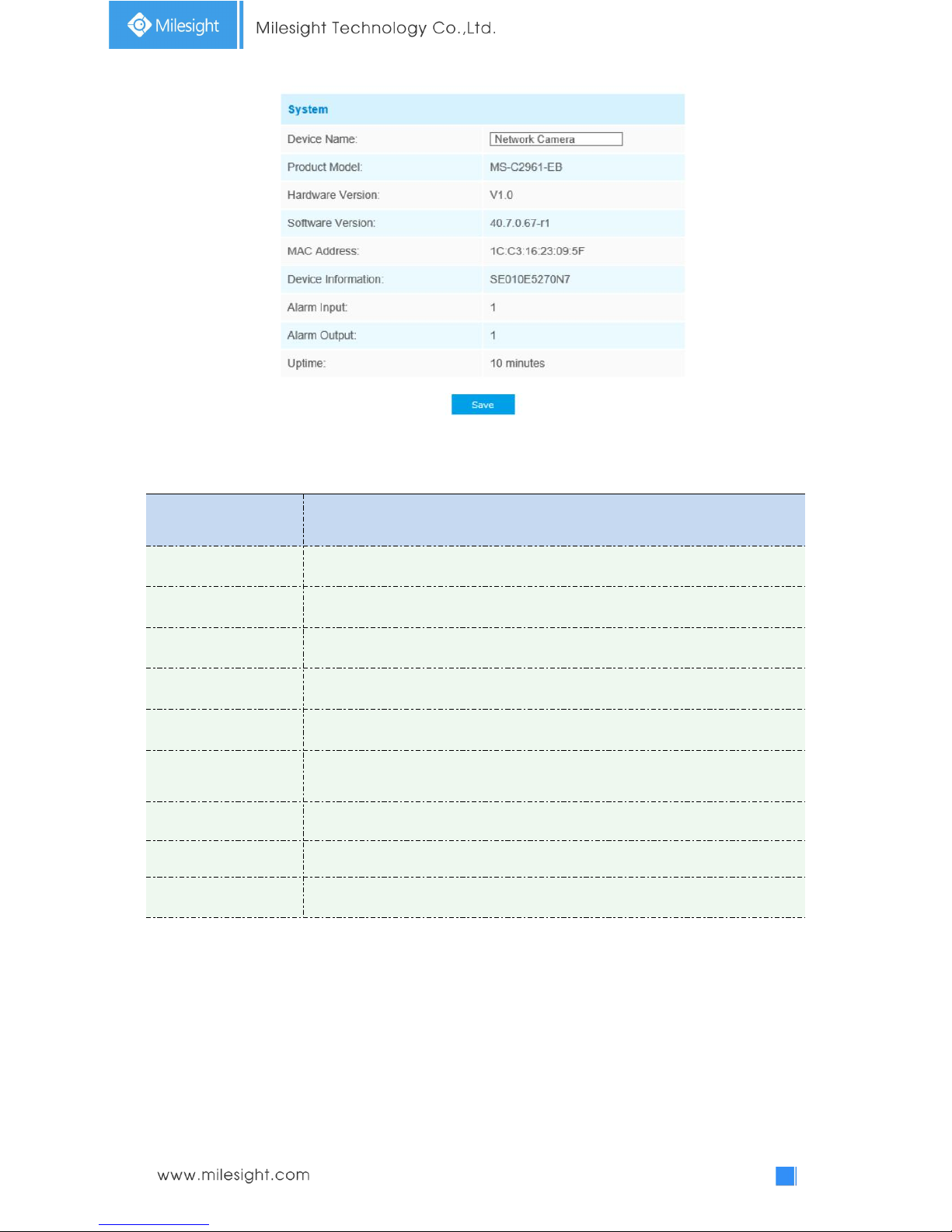

Figure 4-6-1 System Information

Table 4-6-1 Description of the parameters

Parameters

Function Introduction

Device Name

The device name can be customized. It will be seen in file names of video files.

Product Model

The product model of the camera

Hardware Version

The hardware version of the camera

Software Version

The software version of the camera can be upgraded

MAC Address

Media Access Control address

Device Information

The device information, including information about alarm I/O and clipper chip

Alarm Input

The number of Alarm Input interface

Alarm Output

The number of Alarm Output interface

Uptime

The elapsed time since the last restarted of the device

Note：

The Alarm Input/Alarm Output will appear only when the camera have alarm input/output

interface.

Page 87

4.7 Maintenance

4.7.1 System Maintenance

The software can be upgraded by the following steps: Step1: Browse and select the upgrading file; Step2: Click the “upgrade” button after it prompts upload file successfully. After the system

reboots successfully, the update is done.

Note:

Do not disconnect the power of the device during the update. The device will be restarted to

complete the upgrading.

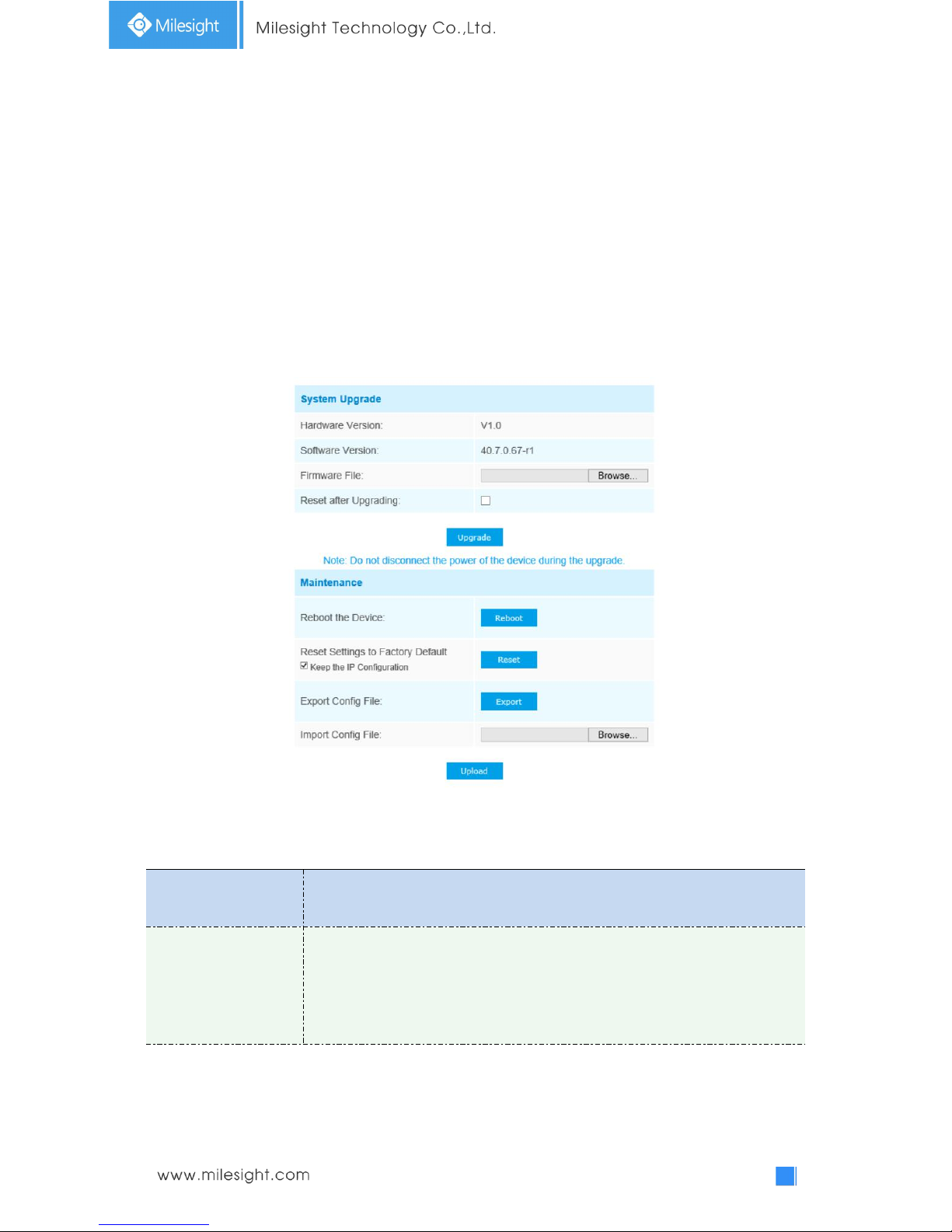

Figure 4-7-1 Maintenance

Table 4-7-1 Description of the buttons

Parameters

Function Introduction

System Upgrade

Hardware Version: The hardware version of the camera;

Software Version: The software version of the camera;

Kernel Version: The kernel version;

Firmware File: Select the firmware used to upgrade.

Page 88

Maintenance

Reboot the device: Click “Reboot” button to restart the device immediately

Reset settings: Click “Reset” button to reset the camera to factory default

settings

Keep the IP Configuration: Select this option to keep the IP configuration when

resetting the camera

Export Config File: Click this button to export the configuration file

Import Config File: Click this button to import the old configuration file

4.7.2 Auto Reboot

Set the date and time to enable Auto Reboot function. The device will restart at the time you set.

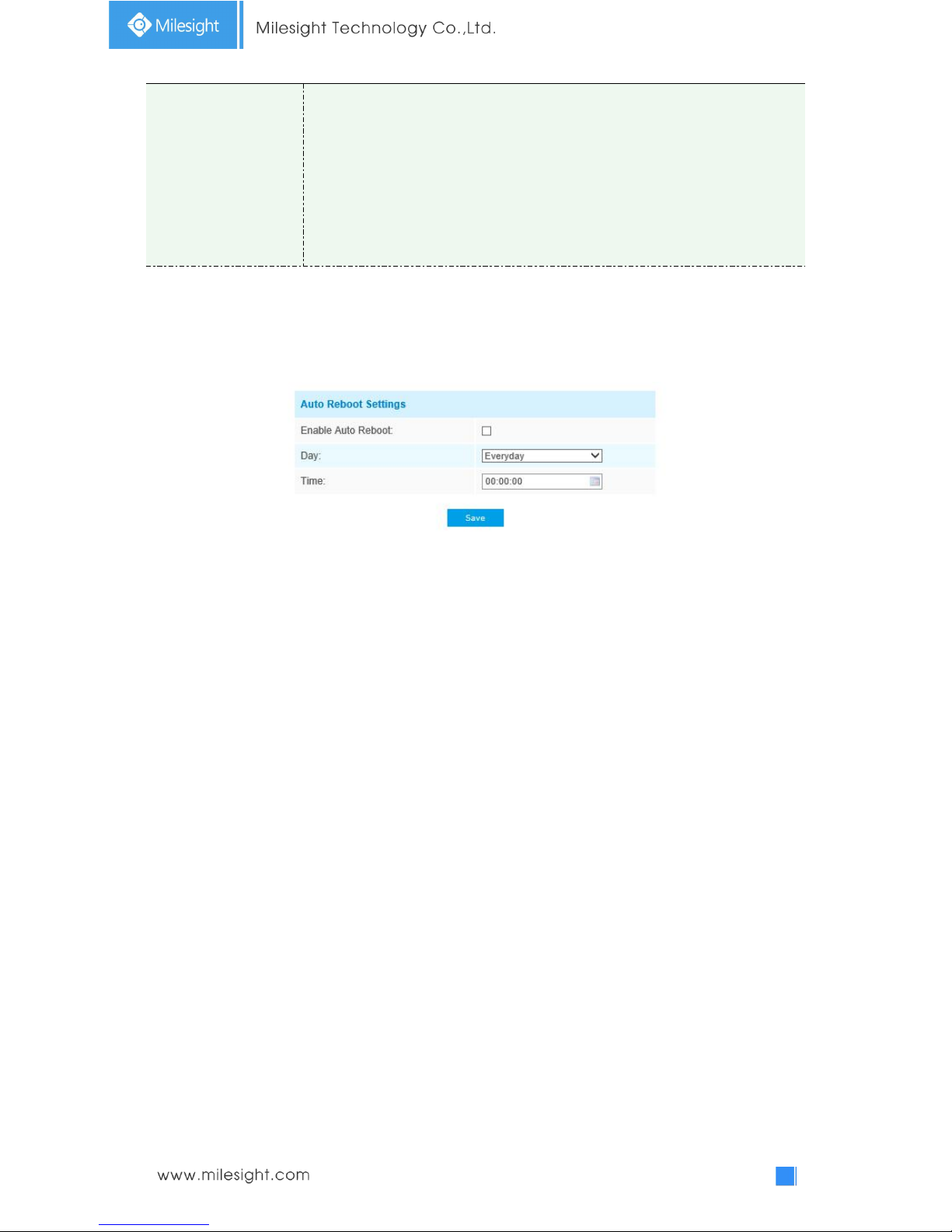

Figure 4-7-2 Auto Reboot

Page 89

Chapter V Services

Milesight Technology Co., Ltd provides customers with timely and comprehensive technical support services. End-users can contact your local dealer to obtain technical support. Distributors and resellers can contact directly with Milesight for technical support.

Technical Support Mailbox: [email protected] Web: http://www.milesight.com Online Problem Submission System: http://www.milesight.com/service/feedback.asp

MILESIGHT USA

TEL: +1-800-561-0485

Add: 220 NE 51stST Oakland Park, FL 33334, USA

MILESIGHT KOREA

TEL: +82-2-839-3335

Add: 9F/901, Star Valley B/D Digital-ro 9gil 99, Geumcheon-gu, Seoul, Korea

MILESIGHT CHINA

TEL: +86-592-5922772

Add: No.23 Wanghai Road,2nd Software Park, Xiamen, China

Milesight

Better Inside, More in Sight
