Milesight MS-C2942-B, MS-C2942-RB, MS-C3742-B, MS-C4461-EB, MS-C2961-EB User Manual

User Manual

1

F

PTZ Network Camera

User Manual

V1.05

Thank you for purchasing our product. If there is any question or request, please do not hesitate
to contact your dealer.

This manual is applicable to the Milesight H.265 Network Camera, series shown as follows, except
where otherwise indicated.

This Manual explains how to use and manage Milesight network cameras on your network.
Previous experience of networking will be of use when using the products. Please read this manual
carefully before operation and retain it for future reference.

This manual may contain several technically incorrect places or printing errors, and the content is
subject to change without notice. The updates will be added into the new version of this manual.
We will readily improve or update the products or procedures described in the manual.

Copyright Statement

This manual may not be reproduced in any form or by any means to create any derivative such as
translation, transformation, or adaptation without the prior written permission of Milesight
Technology Co., Ltd (Hereinafter referred to as Milesight).

Milesight reserves the right to change this manual and the specifications without prior notice. The
latest specifications and user documentation for all Milesight products are available on our official
website www.milesight.com

Industry Canada ICES-003 Compliance:

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.

Milesight H.265 PTZ Network Camera

Type

Megapixel

2.0MP

3.0MP

4.0MP

Speed Dome

Network Camera

MS-C2942-(R)B

MS-C3742-B

-

Mini PTZ Bullet

Network Camera

MS-C2961-EB

-

MS-C4461-EB

Safety Instruction

These instructions are intended to ensure that user can use the product correctly to avoid danger
or property loss. The precaution measures are divided into “Warnings” and “Cautions”

Warnings: Serious injury or death may be caused if any of these warnings is neglected.
Cautions: Injury or equipment damage may be caused if any of these cautions are neglected.

Warnings: Please follow these safeguards to

prevent injury or death.

Cautions: Please follow these safeguards to
prevent potential injury or material damage.

Warnings

 This installation must be conducted by a qualified service person and should strictly

comply with the electrical safety regulations of the local region;

 To avoid risk of fire and electric shock, do keep the product away from rain and moisture

before installed;

 Do not touch components such as heat sinks, power regulators, and processors, which

may be hot;

 Source with DC 12V or AC 24V;

 Please make sure the plug is firmly inserted into the power socket;

 When the product is installed on a wall or ceiling, the device should be firmly fixed;

 If the product does not work properly, please contact your dealer. Never attempt to

disassemble the camera by yourself.

Cautions

 Make sure that the power supply voltage is correct before using the camera;

 Do not store or install the device in extremely hot or cold temperatures, as well as dusty

or damp locations, and do not expose it to high electromagnetic radiation;

 Only use components and parts recommended by manufacturer;

 Do not drop the camera or subject it to physical shock;

 To prevent heat accumulation, do not block air circulation around the camera;

 Laser beams may damage image sensors. The surface of image sensors should not be

exposed to where a laser beam equipment is used;

 Use a blower to remove dust from the lens cover;

 Use a soft, dry cloth to clean the surface of the camera. Stubborn stains can be removed

using a soft cloth dampened with a small quantity of detergent solution, then wipe dry;

 Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the

surface finishes;

 Save the package to ensure availability of shipping containers for future transportation.

EU Conformity Statement

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed

of as unsorted municipal waste in the European Union. For proper recycling, return

this product to your local supplier upon the purchase of equivalent new equipment,

or dispose of it at designated collection points. For more information see:

www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be

disposed of as unsorted municipal waste in the European Union. See the product

documentation for specific battery information. The battery is marked with this

symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or

mercury(Hg). For proper recycling, return the battery to your supplier or to a designated
collection point. For more information see: www.recyclethis.info.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

1

Table of Contents

Chapter I Product Description

..............................................................................................................

2

1.1 Product Overview

....................................................................................................................

2

1.2 Key Features

............................................................................................................................

2

1.3 Hardware Overview

.................................................................................................................

3

1.4 System Requirements

..............................................................................................................

5

Chapter II Network Connection

............................................................................................................

6

2.1 Setting the Camera over the LAN

............................................................................................

6

2.1.1 Connect the Camera to the PC Directly

.........................................................................

6

2.1.2 Connect via a Switch or a Router

...................................................................................

6

2.2 Dynamic IP Connection

............................................................................................................

6

Chapter III Accessing the Network Camera

..........................................................................................

8

3.1 Assigning An IP Address

...........................................................................................................

8

3.1.1 Assigning An IP Address Using Smart Tools

...................................................................

8

3.1.2 Assign An IP Address via Browser

................................................................................

11

3.2 Accessing from the Web Browser

..........................................................................................

14

3.2.1 Access over IE Browser

................................................................................................

14

3.3 Accessing from Milesight VMS (Video Management Software)

...........................................

16

Chapter IV System Operation Guide

...................................................................................................

17

4.1 Live Video

..............................................................................................................................

17

4.1.1 Operations on Live View Page

.....................................................................................

17

4.1.2 3D Positioning

..............................................................................................................

19

4.1.3 Setting / Calling a preset / Patrol / Pattern

.................................................................

20

4.2 Playback

.................................................................................................................................

24

4.3 Basic Settings

.........................................................................................................................

25

4.3.1 Video

............................................................................................................................

25

4.3.2 Image

...........................................................................................................................

27

4.3.3 Audio

............................................................................................................................

32

4.3.4 Network

.......................................................................................................................

34

4.3.5 Date&Time

...................................................................................................................

37

4.4 Advanced Settings

.................................................................................................................

38

4.4.1 Image

...........................................................................................................................

38

4.4.2 Network

.......................................................................................................................

39

4.4.3 Alarm

...........................................................................................................................

44

4.4.4 Storage

.........................................................................................................................

50

4.4.5 Security

........................................................................................................................

54

4.4.6 SIP

................................................................................................................................

56

4.4.7 PTZ

...............................................................................................................................

58

4.4.8 Logs

..............................................................................................................................

62

4.5 System

....................................................................................................................................

63

4.6 Maintenance

..........................................................................................................................

65

Chapter V Services

..............................................................................................................................

66

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

2

Chapter I Product Description

1.1 Product Overview

Milesight provides a consistent range of cost-effective and reliable network cameras to fully
meet your requirements. Based on embedded Linux operating system, Milesight network
cameras could be easily accessed and managed either locally or remotely with great reliability.
With built-in high-performance DSP video processing modules, the cameras pride on low power
consumption and high stability. They support state-of-the-art H.265/H.264/MJPEG video
compression algorithm and industry-leading HD dual-stream technology to achieve the highest
level of video image quality under the limited network resources. It is fully functional, supporting
for flexible and comprehensive alarm linkage mechanism, day and night auto switch, smart PTZ
control and privacy masking, etc.

In practical applications, Milesight network cameras could either work independently in the LAN,
or be networked to form a powerful safety monitoring system. It is widely used in fields such as
finance, education, industrial production, civil defense, health care for security’s sake.

1.2 Key Features



30x AF Lens for Speed Dome, 12x AF Lens for Mini PTZ Bullet



360° continuous pan and 0°~ 90° auto flip tilt for Speed Dome



340° pan and -45°~30° tilt for Mini PTZ Bullet



255 Preset Points and 8 Patrols



Based on Linux OS with high reliability



H.265/H.264/MJPEG video compression capability



Support ONVIF Profile S



Support three streams



ICR filter with auto switch, true day/night



Built-in WEB server, support IE/ Firefox/ Chrome/ Safari browser



UPnP protocol for the easy management of IPC



Support Milesight DDNS



3D Positioning, PTZ Motion, PTZ Limit, Scheduled Tasks and Auto Home function



White LED for Mini PTZ Bullet



Motion Detection, Privacy Masking, Network Fault Detection and ROI



FTP upload, SMTP upload, SD card record and SIP function



G.711/AAC audio compression capability



Audio Input/Output



Three-privilege levels of users for flexible management



Micro SD/SDHC/SDXC card local storage support, expand the edge storage



Local PAL/NTSC signal output

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

3

1.3 Hardware Overview

1. Speed Dome Network Camera

Figure 1-3-1 Speed Dome Network Camera

Note:

1) DC 12V and AC 24V are available for power supply.

2) Built-in SD card slot can be seen after removing the 4 screws and open the front panel.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

4

2. Mini PTZ Bullet Network Camera

Figure 1-3-2 Mini PTZ Bullet Network Camera

Note:

1) Only DC 12V is available for power supply.

Screw-in Vent

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

5

1.4 System Requirements

Operating System: Windows XP/Vista/7/8/10/Server 2000/Server 2008
CPU: 1.66GHz or higher
RAM: 1G or higher
Graphic memory: 128MB or more
Internet protocol: TCP/IP (IPv4/IPv6)
Web Browsers: Internet Explorer 8.0 and above version, Mozilla Firefox, Google Chrome and Safari.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

6

Chapter II Network Connection

2.1 Setting the Camera over the LAN

Connecting the camera to a switch or a router is the most common connection method. The
camera must be assigned an IP address that is compatible with its LAN.

2.1.1 Connect the Camera to the PC Directly

In this method, only when the computer connected to a camera, it will be able to view the camera.
The camera must be assigned a compatible IP address to the computer. Details are shown as the
following figure.

Figure 2-1-1 Connect the camera to the PC directly

2.1.2 Connect via a Switch or a Router

Set network camera over the LAN via the switch or router as figure 2-1-2:

Figure 2-1-2 Connect via a switch or a Router

2.2 Dynamic IP Connection



Connecting the network camera via a router

Step1: Connect the network camera to a router;
Step2: On the camera, assign a LAN IP address, a Subnet mask and a Gateway;
Step3: On the router, set port forwarding. E.g. 80, 8000 and 554 ports. The steps for port

forwarding vary depending on different routers. Please look up the router's user manual for

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

7

assistance with port forwarding;
Step4: Apply a domain name from a domain name provider;
Step5: Configure the DDNS settings in the setting interface of the router;
Step6: Visit the camera via the domain name.

Figure 2-2 Connect the network camera via a router using dynamic IP

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

8

Chapter III Accessing the Network Camera

The camera must be assigned an IP address to be accessible.

3.1 Assigning An IP Address

The Network Camera must be assigned an IP address to be accessible. The default IP address of
Milesight Network Camera is 192.168.5.190. The default user name is “admin”, and password is
“ms1234”.
You can either change the IP address of the camera via Smart Tools or browser. Please connect the
camera in the same LAN of your computer.

3.1.1 Assigning An IP Address Using Smart Tools

Smart Tools is a software tool which can automatically detect multiple online Milesight network
cameras in the LAN, set IP addresses, and manage firmware upgrades. It’s recommended to use
when assigning IP addresses for multiple cameras.

Step1: Install Smart Tools (The software could be downloaded from our website);
Step2: Start Smart Tools, click the IPC Tools page, then enter the device information, such as IP

address, MAC address, Port number, Netmask, and Gateway, then all related Milesight
network cameras in the same network that will be displayed. Details are shown as Figure
3-1-1;

Figure 3-1-1 Smart Tools

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

9

Step3: Select a camera or multiple cameras according to the MAC addresses;

Figure 3-1-2 Select single camera

Figure 3-1-3 Select multiple cameras

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

10

Step4: Type the User Name and Password (admin/ms1234 for default, please change your

password for your device security);

Figure 3-1-4 Type the User Name and Password

Step5: Change the IP address or other network values, and then click “Modify” button;

Figure 3-1-5 Modify

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

11

Step6: Change the IP address successfully;

Figure 3-1-6 Change IP address successfully

Step7: By double clicking the selected camera or the browser of interested camera, you can access

the camera via web browser directly. The Internet Explorer window will pop up.

Figure 3-1-7 Login interface

More usage of Smart Tools, please refer to the Smart Tools User Manual.

3.1.2 Assign An IP Address via Browser

If the network segment of the computer and that of the camera are different, please follow the
steps to change the IP address:

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

12

Step1: Change the IP address of computer to 192.168.5.0 segment, here are two ways as below:

a. StartControl PanelNetwork and Internet ConnectionNetwork Connection



Local Area Connection, and double click it. (Refer to Figure 3-1-8);

Figure 3-1-8 Setting Network Segment IP Address of Computer

b. Click “Advanced”, and then click “IP settings”“IP address”“Add” (See Figure

3-1-9). In the pop-up window, enter an IP address that in the same segment with
Milesight network camera ( e.g. 192.168.5.61, but please note that this IP address
shall not conflict with the IP address on the existing network);

Figure 3-1-9 Setting IP Address of Computer

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

13

Step2: Start the browser. In the address bar, enter the default IP address of the camera:

http://192.168.5.190;
Step3: Enter the user name and password when the LOGIN page appears;

Default user name: admin
Default password: ms1234

Figure 3-1-10 Login

Step4: After login, please select “Configuration”“Basic Settings”“Network”“TCP/IP”. The

Network Settings page appears (Shown as below Figure);

Figure 3-1-11 IP Address of Camera

Step5: Change the IP address or other network values. Then click “Save” button;
Step6: The change of default IP address is completed.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

14

3.2 Accessing from the Web Browser

The camera can be used with the most standard operating systems and browsers. The
recommended browsers are Internet Explorer, Firefox, Chrome, Safari.

3.2.1 Access over IE Browser

Before using the browser to get access to your camera, you need to install the MsActiveX firstly.
You can refer the steps as follows:
Step1: Launch the IE browser and enter the IP address of the camera;
Step2: Enter the User Name and Password and click “Login”;

(The default user name is “admin”, password is “ms1234”)
Step3: At the first time to log in the device, the browser will prompt to install Controls, please click

“Click here to download and install controls manually” as Figure 3-2-1;

Figure 3-2-1 To download and install controls

Note：

1)During installing the controls, please keep the browsers close.

Step4: Follow the prompts to install the Controls, when it`s finished, it will pop out a window as

Figure 3-2-2. Please click “Finish” and refresh the browser, then you will see the video.

Figure 3-2-2 Finish installation

If IE9 or higher version browser is used, it is suggested that the Milesight camera web link should
be added as a trusted site. See the instructions as follows:
Step1: Start the IE9 or higher version browser, and select “Tools”“Internet Options”;

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

15

Figure 3-2-3 To add the permission

Step2: Select “Security” to “Trusted”;

Figure 3-2-4 To trust the control

Step3: Enter the IP address of the camera in the blank and click “Add”;

Figure 3-2-5 Add the website to the zone

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

16

Step4: Enter the IP address. After logging on network camera’s web GUI successfully, user is
allowed to view live video as follows.

Figure 3-2-6 Live View Interface

3.3 Accessing from Milesight VMS (Video Management Software)

Milesight VMS(ONVIF compatible) is a handy and reliable application designed to work with
network cameras in order to provide video surveillance, recording settings and event management
functions. The interface of Milesight VMS is very easy to use, intuitive, with easy access to the
most common activities, such as viewing live video, searching through recordings and exporting
videos and snapshots. It's able to be integrated with other devices through ONVIF. It is designed to
work on Windows XP/7/8/Vista/ Server 2000/ Server 2008. The software could be downloaded
from our website www.milesight.com.
Please install Milesight VMS; then launch the program to add the camera to the channel list. For
detailed information about how to use the software, please refer to user manual of Milesight VMS.

Figure 3-3-1 Milesight VMS Live View

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

17

Chapter IV System Operation Guide

4.1 Live Video

After logging in the network camera web GUI successfully, you are allowed to view live video as
follows.

Figure 4-1-1 Live view interface

4.1.1 Operations on Live View Page

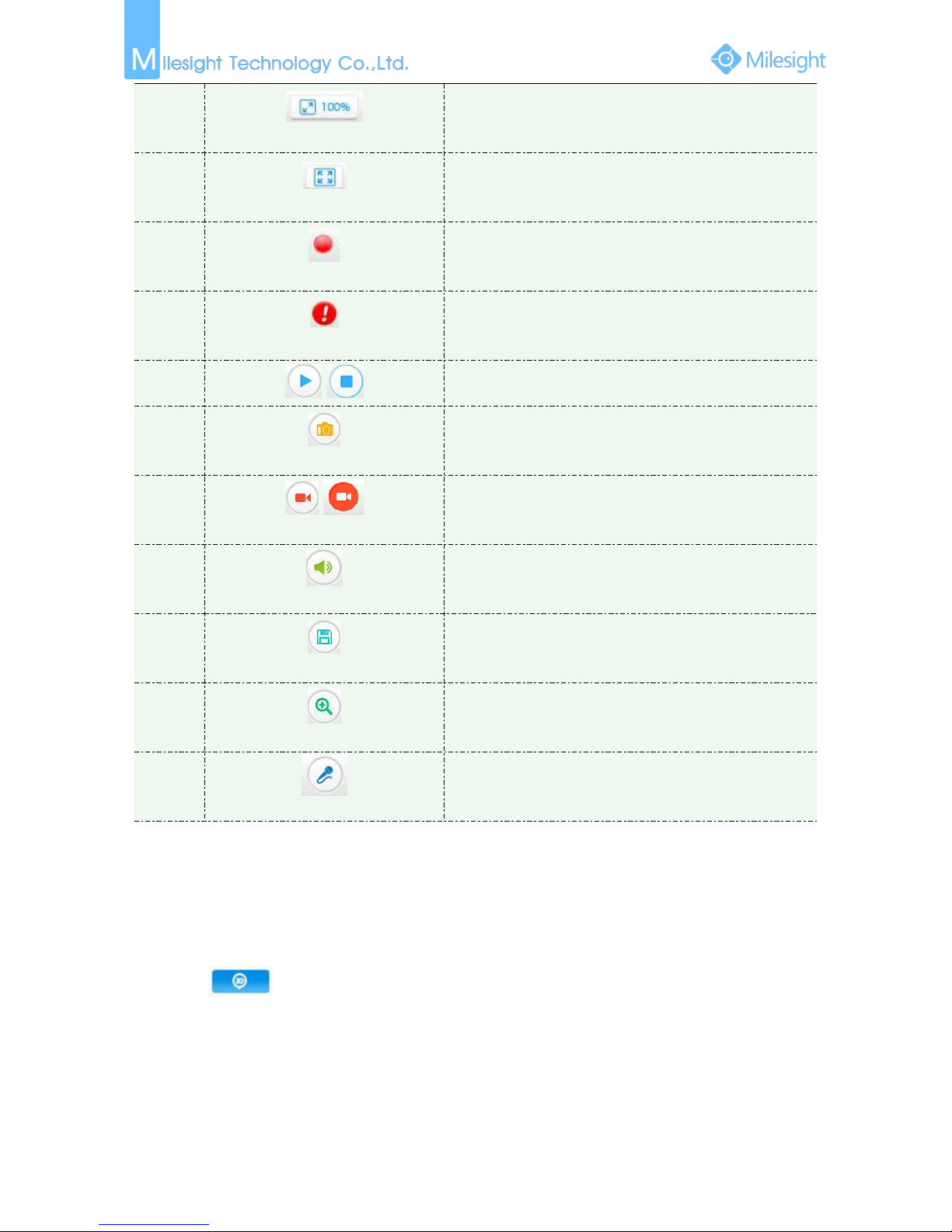

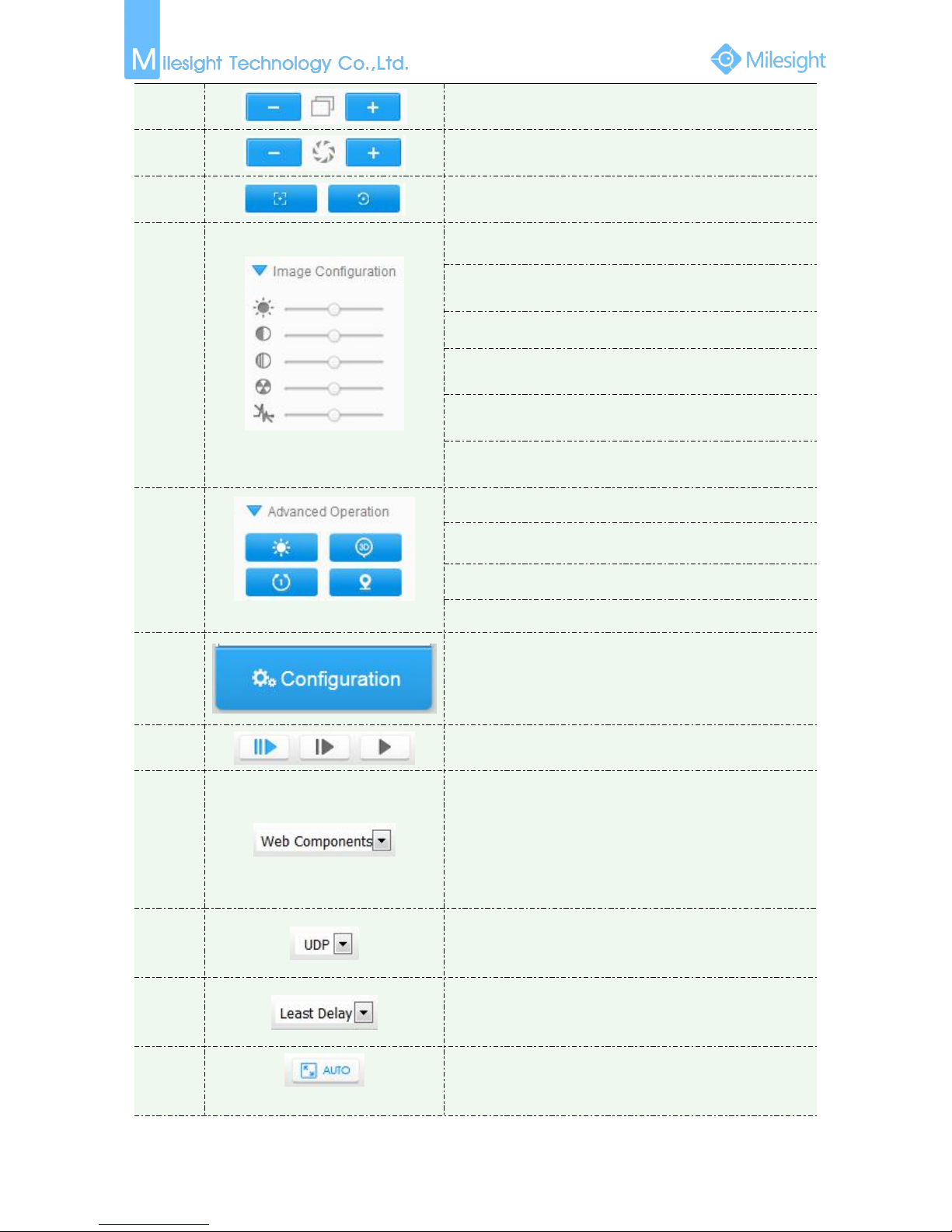

Table 4-1-1 Description of the buttons

No.

Parameter

Description

1

PTZ Control

Navigation key is used to control the direction. The rotation

key is used for auto-rotation.

PTZ Speed

To adjust the speed of pan/tilt movements, from 1 to 10

2

Click to zoom in and zoom out

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

18

3

Click to focus near and far of the lens.

4

Click to adjust the size of Iris.

5

Auxiliary Focus and Lens Initialization

6

Image Configuration

Brightness: Drag to adjust brightness of the image.

Contrast: Drag to enhance the differences in color and light

between parts of an image.

Saturation: Drag to adjust color saturation of the image.

Sharpness: Drag to enhance the detail of the image by

sharpening the edges in the image.

Noise Reduction Level: Drag to adjust the noise reduction

level.

Default Settings: Drag to restore brightness, contrast and

saturation to default setup.

7

Advanced Operation

Light:

Click to open/ close the supplementary lighting.

3D Positioning: Click to enable/ disable 3D positioning.

One-touch Patrol: Click to carry out the patrol.

Auto Home:

Click to enable Auto Home.

8

Configuration: Click to access the configuration page.

9

To choose the Stream（Primary/Secondary/Tertiary）to be

shown on the current video window.

10

Web Components: Support Firefox, Safari, Chrome; need to

install the component to display the view;

MJPEG: Support to display the view on Firefox, Safari,

Chrome;

(NOTE: IE chooses Web Components mode as default. In

this case, the options will not appear. )

11

TCP: More reliable connection;

UDP: More instantaneous connection, but if you cannot get

the live view successfully, please turn into TCP connection.

12

Least Delay: Most instantaneous mode in the three modes;

Balanced: Combine the fluent with timely characters;

Best Fluency: Most fluent mode in the three modes.

13

Window size

Click to display images at a window size.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

19

14

Real size

Click to display images at a real size.

15

Full Screen

Click to display images at full-screen.

16

Recording

When recording, the icon will turn red.

17

Alarm

When an alarm causes recording, the icon will turn red.

18

/

Click to start/stop Live View.

19

Capture

Click to capture the current image and save to the

configured path. The default path is

C:VMS\+-1\ IMAGE-MANUAL.

20

/

Start/Stop Recording

Click to start recording video and save to the configured

path. The default path is

C:VMS\+-1\MS_Record. Click again to stop recording.

21

Play Audio

Click to enable Audio Input/Output. It can also be set in

Audio configuration page.

22

Saving Path Settings

Click to set the saving path for captured images and video

recordings of operating on the live view.

23

Enable Zoom

When it is enabled, you can zoom in within a specific area

of video image via your mouse wheel.

24

Start talking

Click to start talking via microphone. Click again to stop

talking.

4.1.2 3D Positioning

3D Positioning allows user to use the mouse with click and drag to control the PTZ.
Steps:

1.Click on the toolbar of Live View interface.

2.Operate the 3D positioning function

 Left click a position of the Live View, the corresponding position will be moved to the

center of the Live View.

 Hold down the left mouse button and drag the mouse to the lower right or upper right on

the Live View, you can see a red rectangle. The corresponding position will be moved to
the center of the Live View and Zoom in.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

20



Hold down the left mouse button and drag the mouse to the lower left or upper left on

the Live View, you can see a red rectangle. The corresponding position will be moved to
the center of the Live View and Zoom out.



The Bigger the rectangle is, the smaller zoom in/out will be acted.

4.1.3 Setting / Calling a preset / Patrol / Pattern

A preset is a predefined image position. You can click the call button from the preset list to quickly
go to the desired image position.

Setting a preset:

Step1: In the PTZ control panel, select a preset number from the preset list;

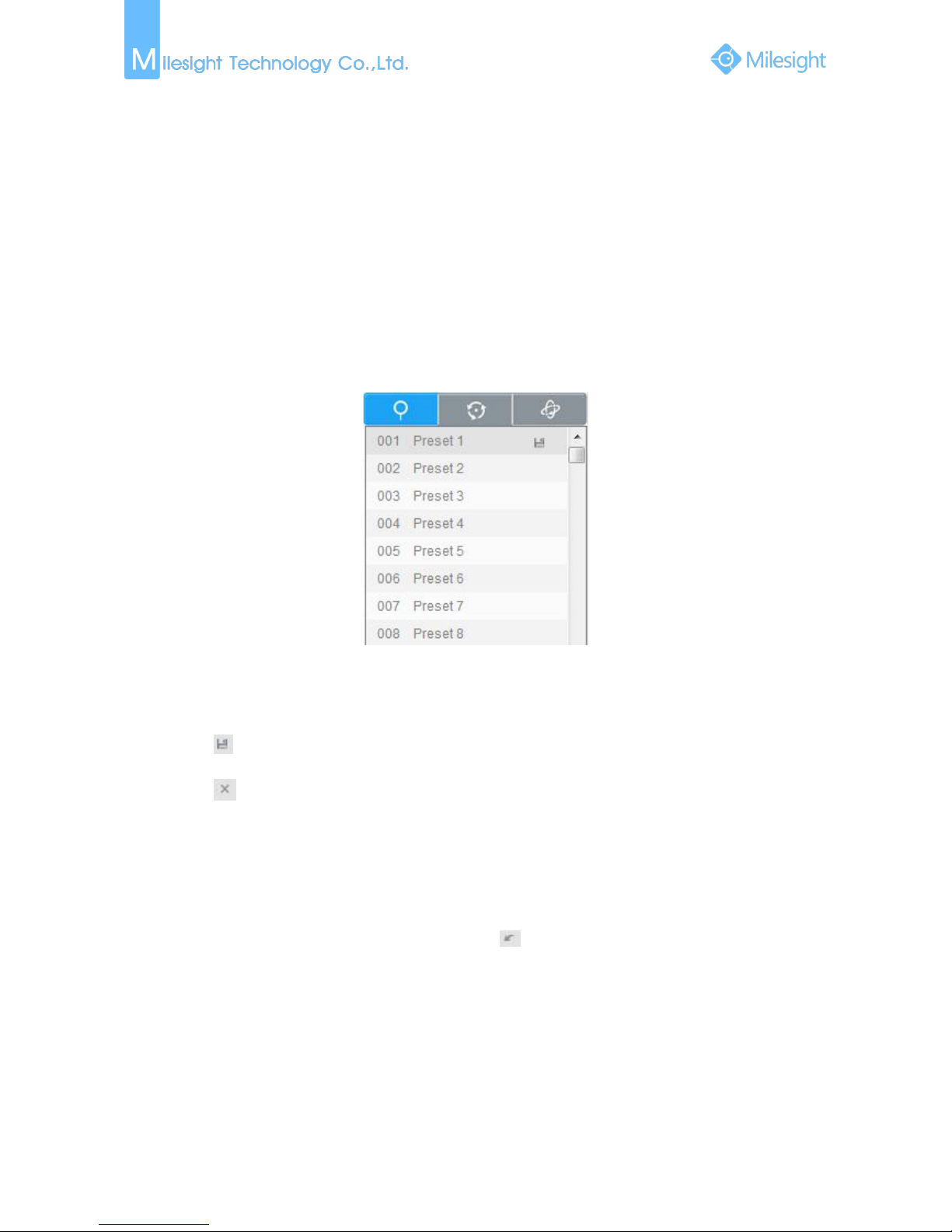

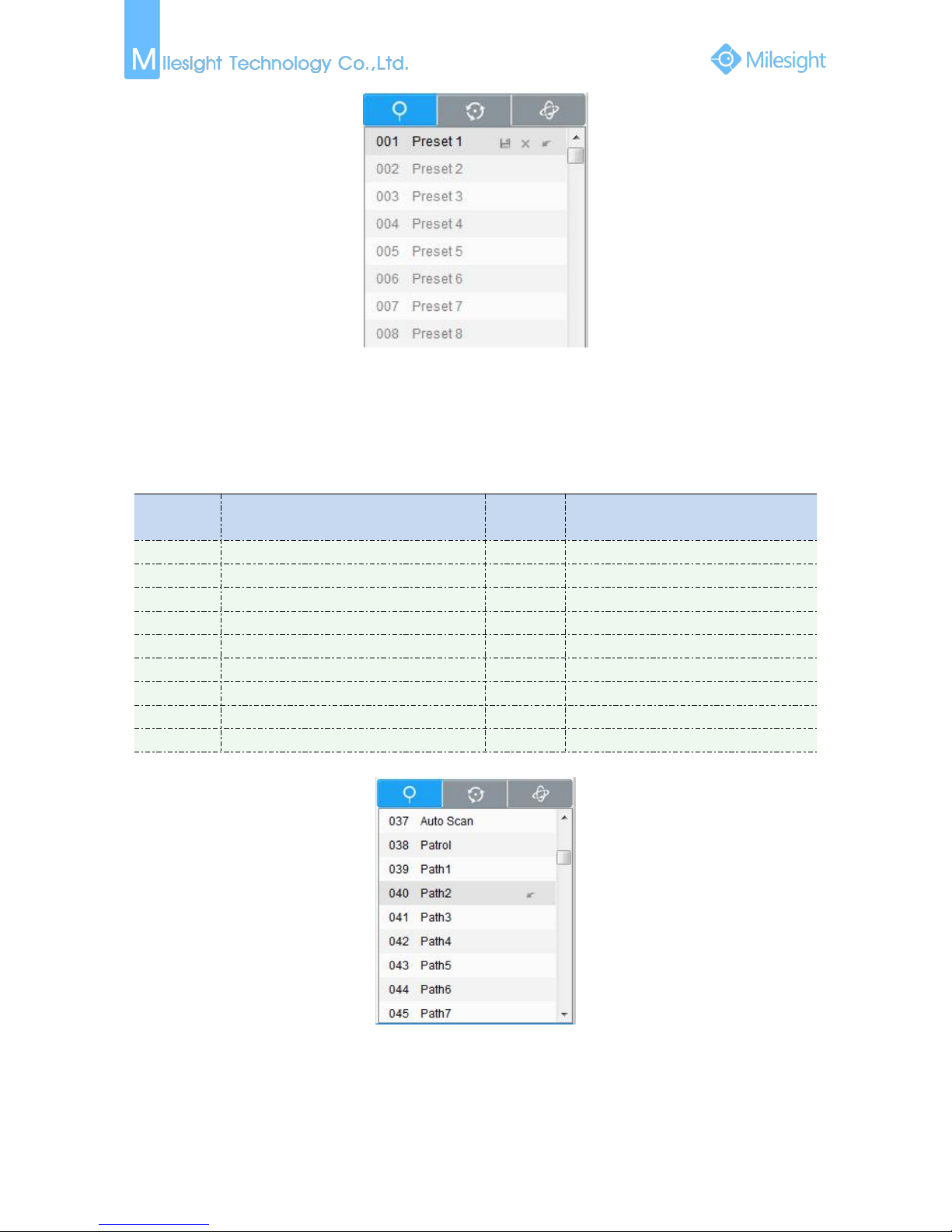

Figure 4-1-2 Setting a Preset

Step2: Use the PTZ control buttons to move the lens to the interested position;

Step3: Click to save the setting of the current preset;

Step4: Click to delete the chosen preset.

Note:

Up to 237 presets can be configured (18 presets are not modifiable).

Calling a preset:

Select a defined preset form the preset list and click to call the preset.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

21

Figure 4-1-3 calling a Preset

Note:

The following presets are predefined with special commands. You can only call them but can’t
configure them. For example, preset 035 is the “Self Check”. If you call the preset number 035, the
PTZ camera will start self check function at once.

Table 4-1-2 Special Presets

Special

Preset

Function

Special

Preset

Function

33

Auto Flip(Speed Dome only)

42

Path4

34

Goto Zero

43

Path5

35

Self Check

44

Path6

35

Stop Scan

45

Path7

37

Auto Scan

46

Path8

38

Patrol

47

Pattern1

39

Path1

48

Pattern2

40

Path2

49

Pattern3

41

Path3

50

Pattern4

Figure 4-1-4 Special Presets

Setting / Calling a patrol

A patrol is a memorized series of preset function. It can be configured and called on the patrol
setting list. You can customize up to 8 patrols and it can be configured with 48 presets. Before

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

22

configuring the patrol, you should make sure that the presets you want to add to the patrol have
been defined.

Setting a patrol:

Step1: In the PTZ control panel, click to enter the patrol settings interface;

Step2: Select a patrol number, the setting icon will appear , click it;

Step3: Click to add presets to this patrol, as shown in Figure 4-1-5;

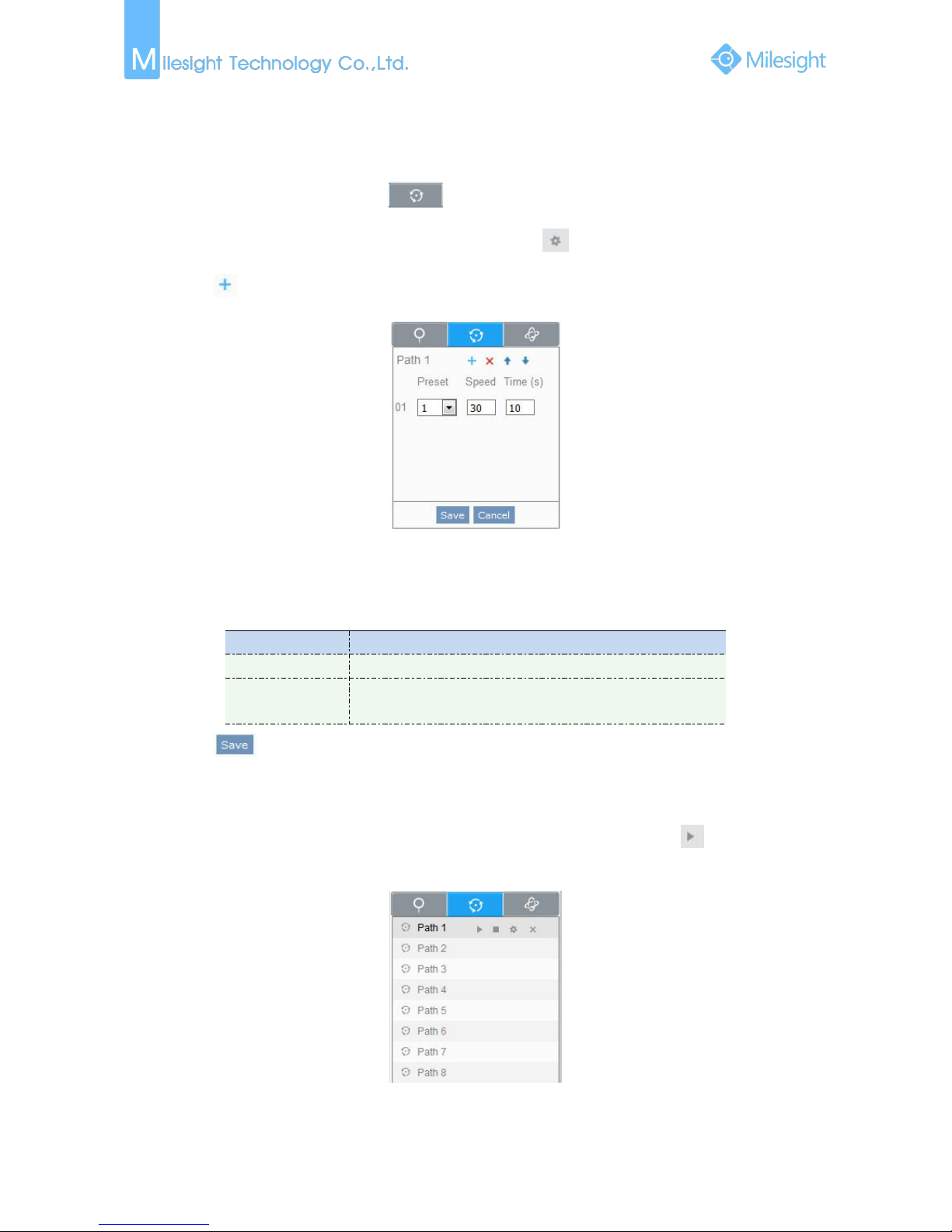

Figure 4-1-5 Configure a Patrol

Step4: Configure the preset number, patrol speed and patrol time;

Table 4-1-3 Description of Patrol Settings

Name

Description

Patrol Speed

The speed of moving from one preset to another.

Patrol Time

The duration staying on one patrol point. The PTZ camera

moves to another patrol point after the set patrol time.

Step5: Click to save the patrol settings.

Calling a patrol:

In the PTZ control panel, select a defined patrol from the patrol list, and click to call the patrol,

as shown in Figure 4-1-6.

Figure 4-1-6 Calling a Patrol

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

23

Note:

The four buttons behind the Patrol list means: Play, Stop, Set and Delete.

Setting / Calling a pattern

A pattern is a memorized series of pan, tilt, zoom and preset functions. It can be called on the
pattern settings interface. There are up to 4 patterns can be set.

Setting a pattern:

Step1: In the PTZ control panel, click to enter the pattern settings interface;

Step2: Select a pattern number from the pattern list as shown in Figure 4-1-7;

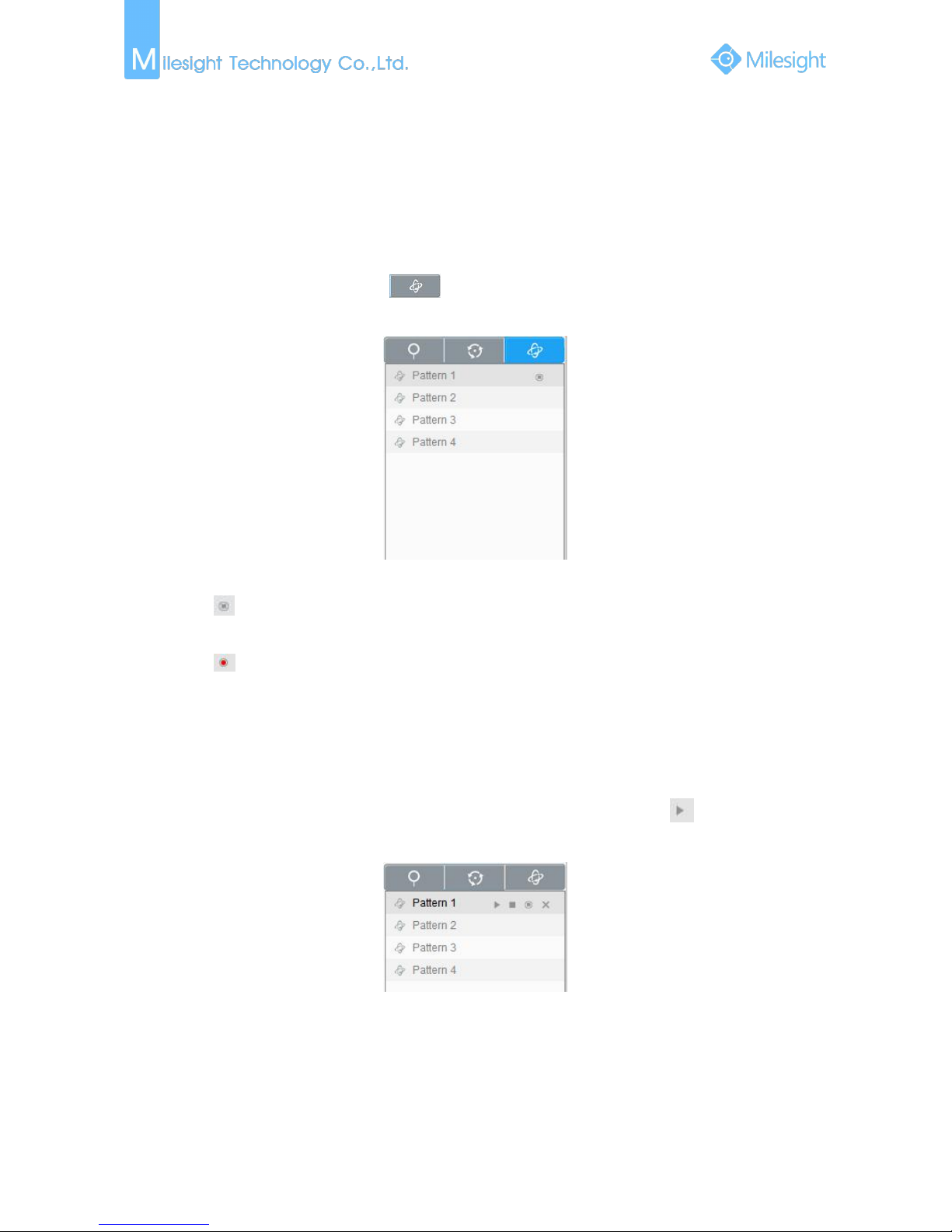

Figure 4-1-7 Setting a Pattern

Step3: Click to activate recording the panning, tilting and zooming actions;

Step4: Use the PTZ controller buttons to move the lens to the interested position;
Step5: Click to save all the pattern settings.

Note:

The percentage of number on the OSD is the remaining space of pattern. Start with 100% and run
out of 0%.

Calling a pattern:

In the PTZ control panel, select a defined pattern from the pattern list, click to call the pattern,

as shown in Figure 4-1-8.

Figure 4-1-8 Calling a Pattern

Note:

The four button behind the Patrol list means: Play, Stop, Record and Delete.
When configuring the pattern, pan and tilt are valid but the limit stops and auto flip will be invalid.
Also, 3D Positioning operation is not supported.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

24

4.2 Playback

This section explains how to view remotely the recorded video files stored in SD cards.

Step1: Click and then click on the menu bar to enter

playback interface;

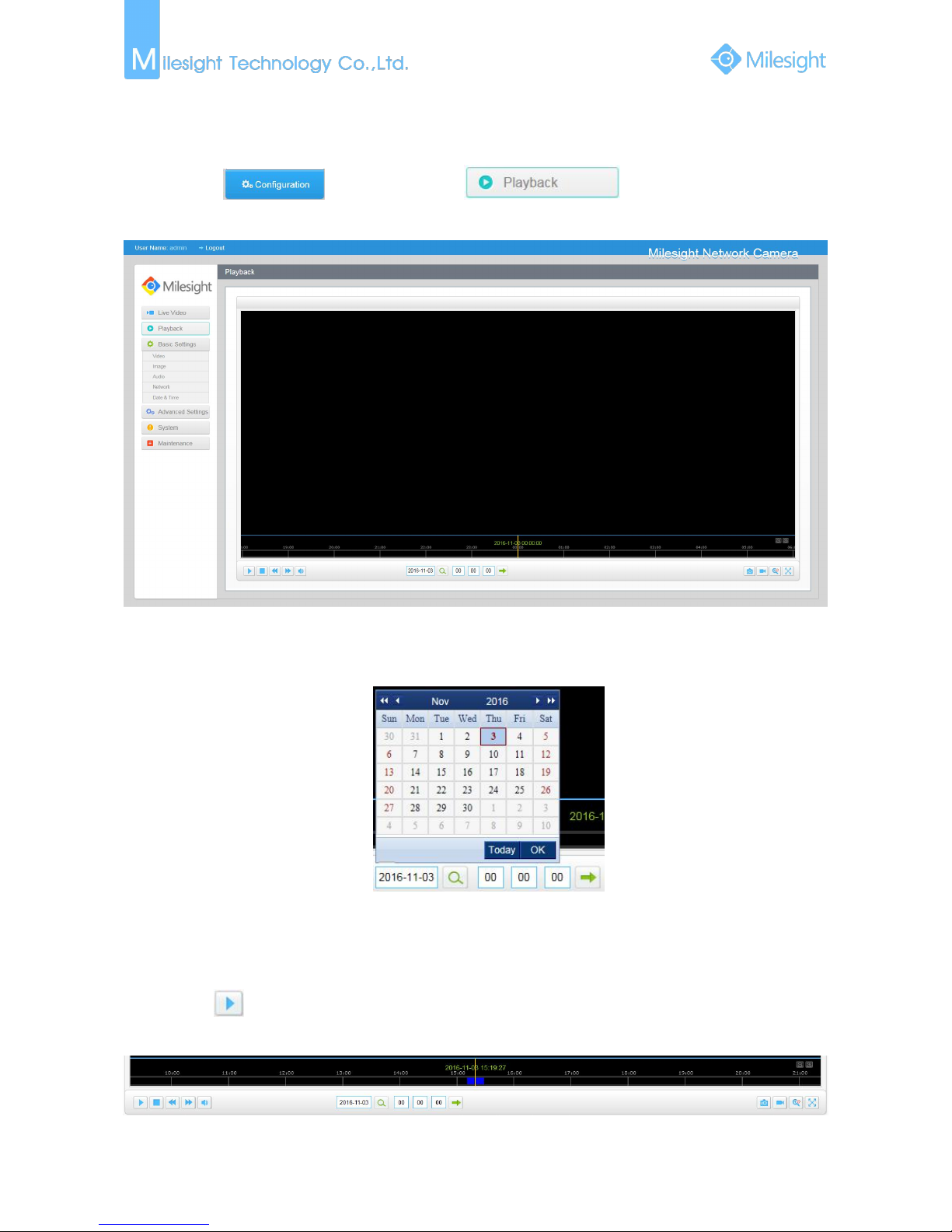

Figure 4-2-1 Playback interface

Step2: Click the date button, choose the date when date window pops up;

Figure 4-2-2 Search Video

Note:

The date with deep red means there is recorded file in this day; one with light red means weekend
day; one with blue background means the date is selected now.

Step3: Click to play the video files found on this date.

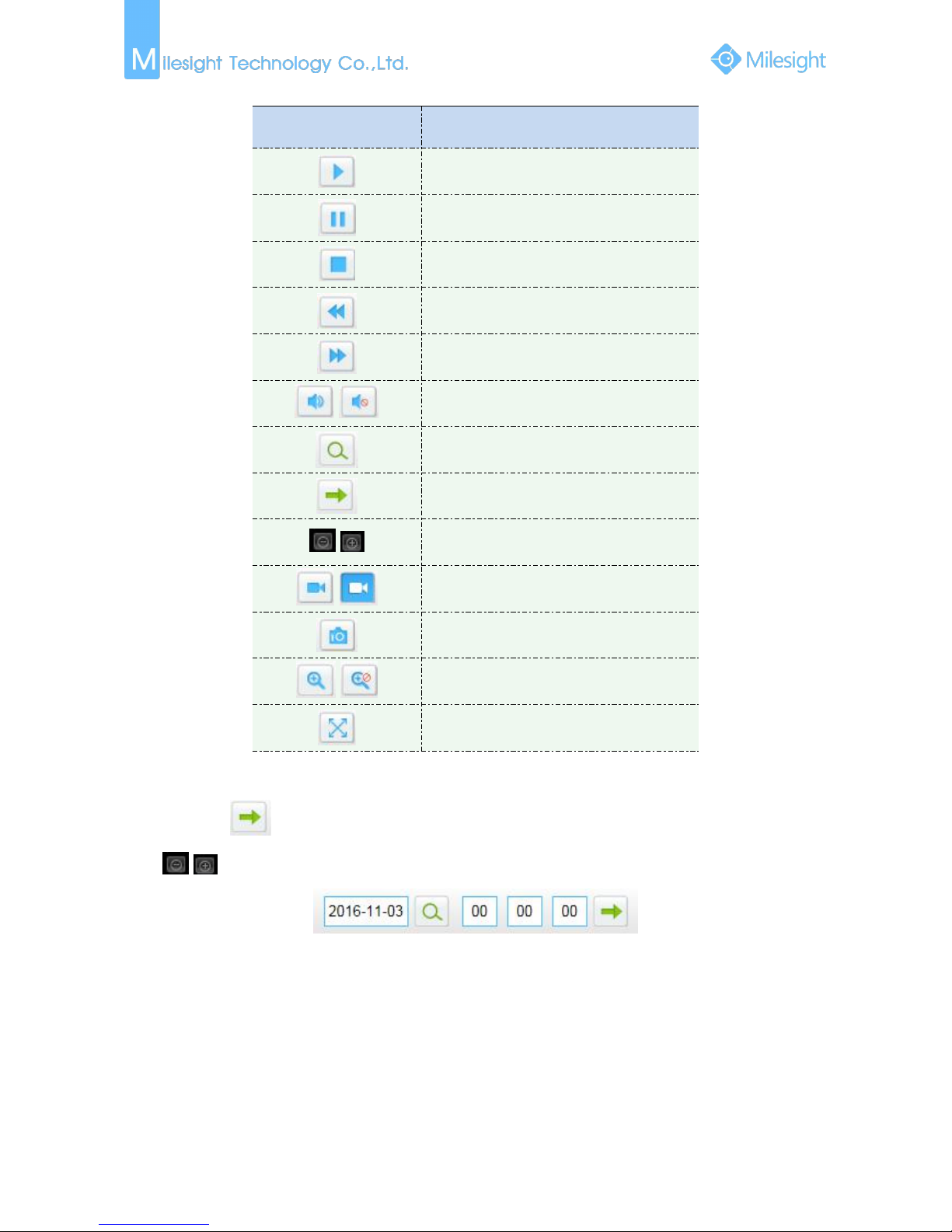

The toolbar on the button of playback interface can be used to control playing progress.

Figure 4-2-3 Playback Toolbar

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

25

Table 4-2-1 Description of the buttons

Button

Operation

Play

Pause

Stop

Slow Forward

Fast Forward

/

Audio On/Off

Search

Go To

/

Time Narrow/Expand

/

Start/Stop Recording

Snapshot

/

Digital Zoom On/Off

Full Screen

Note:

Drag the progress bar with the mouse to locate the exact playback point. You can also input the

time and click to locate the playback point in the Set Playback Time filed. You can also

click / to zoom out/in the progress bar.

Figure 4-2-4 Set Payback Time

4.3 Basic Settings

4.3.1 Video

Stream parameters can be set in this module, adapting to different network environments and
demands.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

26

Primary Stream Settings

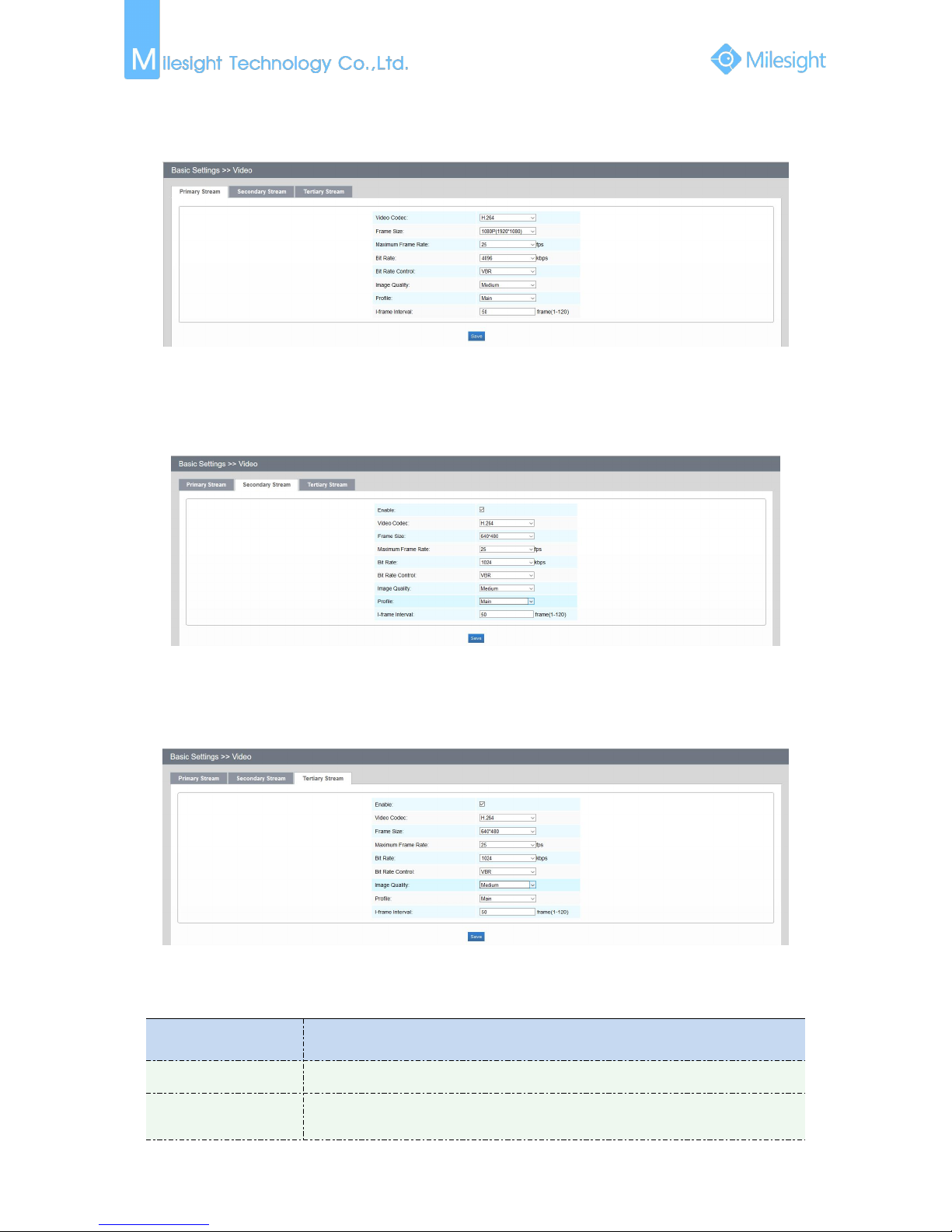

Figure 4-3-1 Primary Stream Settings

Secondary Stream Settings

Figure 4-3-2 Secondary Stream Settings

Tertiary Stream Settings

Figure 4-3-3 Tertiary Stream Settings

Table 4-3-1 Description of the buttons

Parameters

Function Introduction

Video Codec

H.265/H.264/MJPEG are available.

Frame Size

Options include 4M(2592*1520) (only for 4MP Mini PTZ Bullet), 3M(2048*1536),

1080P(1920*1080), 1.3M(1280*960), 720P(1280*720), D1 (704*576).

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

27

For Secondary Stream, it includes 704*576, 640*480, 640*360, 352*288,

320*240, 320*192, 320*176.

For Tertiary Stream, it include 1920*1080, 1280*720, 704*576, 640*480,

640*360, 320*240, 320*192, 320*176.

Maximum Frame Rate

It means maximum refresh frame rate of per second.

Bit Rate

Set the bitrate to 32~16384 Kbps. The higher value corresponds to the

higher video quality, and the higher bandwidth is required as well.

Bit Rate Control

CBR: Constant Bitrate. The rate of CBR output is constant.

VBR: Variable Bitrate. VBR files vary the amount of output date per time

Segment.

Image Quality

Low/Medium/High are available, this item is optional only if you select VBR.

Profile

The option is for H.264. Main/High/Basic can be selected according to your

needs.

I-frame Interval

Set the I-frame interval to 1~120, 50 for the default. The number must be a

multiple of the number of frames

JPEG Quality

Low/Medium/High/Higher are available,

this item is optional only if you select

the MJPEG

Note:

1) The options of [Frame Size] are variable according to the model selected.

4.3.2 Image

Display information, enhancement of image and Day/Night setting can be set in this module. OSD
(On Screen Display) content and video time can be displayed to rich the image information.

Display

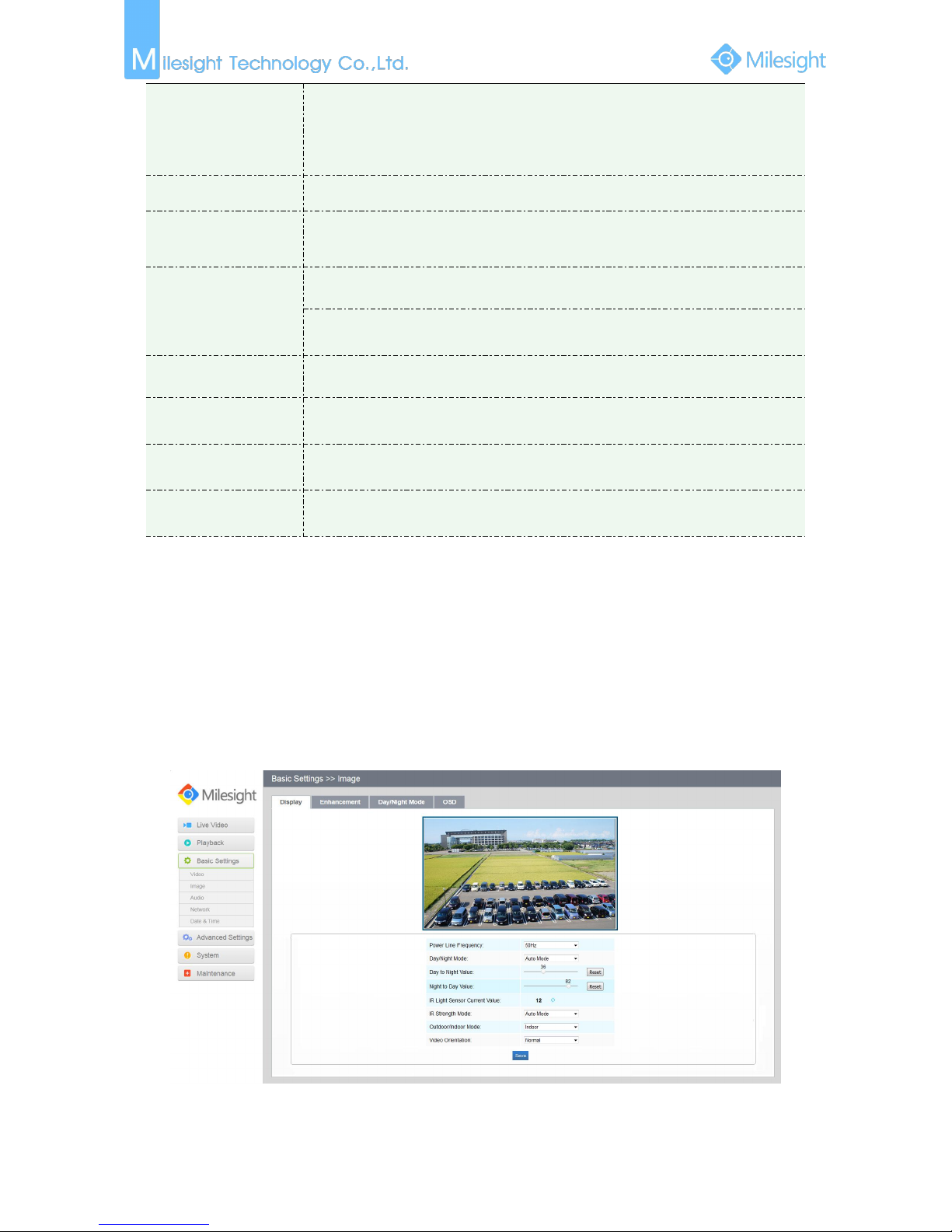

Figure 4-3-4 Display Settings

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

28

Table 4-3-2 Description of the buttons

Parameters

Function Introduction

Power Line Frequency

60HZ flicker for NTSC mode and 50HZ flicker for PAL mode

Day/Night Mode

There are several parameters such as Exposure Level, Maximum Exposure Time

and IR-CUT Interval, etc, associated with this mode.

Night Mode: Shown in live view based on Night Mode settings

Day Mode: Shown in live view based on Day Mode settings

Auto Mode: Shown in live view based on environment, set the sensitivity for

switching Day Mode to Night Mode, or Night Mode to Day Mode

Customize: Shown in live view based on your own settings’ time to start/end

Night Mode

Day To Night Value

This is the sensitivity for switching Day Mode to Night Mode. When IR Light

Sensor Current Value is lower than this value, it will switch Day Mode to Night

Mode.

Night To Day Value

This is the sensitivity for switching Night Mode to Day Mode. When IR Light

Sensor Current Value is higher than this value, it will switch Night Mode to Day

Mode.

IR Light Sensor Current

Value

The current value of the IR light sensor

IR Strength Mode

Set the strength of the IR to Auto Mode or Customize to achieve the best effect.

Speed Dome has 8 LED lights, 4 are High Beams and 4 are Low Beams.

And Mini PTZ Bullet has 4 LED lights, 2 are High Beams and 2 are Low Beams.

Near view level

Adjust the light strength of Low-Beams LED light level from 0 to 100.

Far view level

Adjust the light strength of High-Beams LED light level from 0 to 100.

Outdoor/Indoor Mode

Select indoor or outdoor mode to meet your needs.

Video Orientation

There are six options, in which you can select one to meet your need.

Normal: Remain the image in normal direction;

Flip Horizontal: Flip the image horizontally;

Flip vertical: Flip the image vertically;

Rotating 90°: The images is presented rotating 90°;

Rotating 180°: The images is presented upside down;

Rotating 270°: The images is presented rotating 270°.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

29

Enhancement

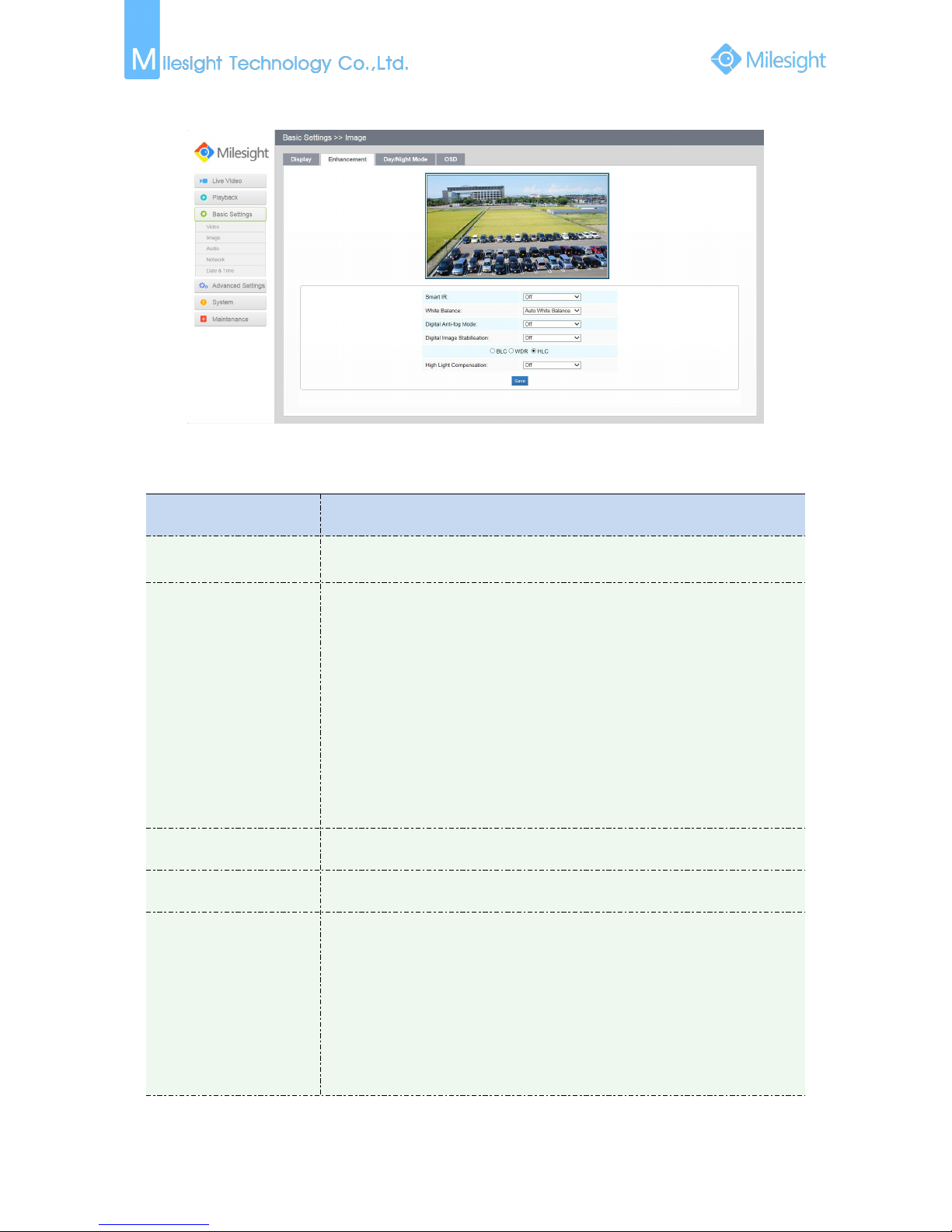

Figure 4-3-5 Enhancement Settings

Table 4-3-3 Description of the buttons

Parameters

Function Introduction

Smart IR

There is an option to turn On/Off the IR LED. Turn smart IR on, and the IR LED

will change according to the actual illumination.

White Balance

To restore white objects and remove color distortion because of the light

of the environment

Auto White Balance: This option will automatically enable the White Balance

function;

Manual White Balance: Set Red Gain Level and Blue Gain Level manually;

Incandescent Lamp: Select this option when light near that of incandescent

lamp;

Warm Light Lamp: Select this option when light near that of warm light lamp;

Natural Light: Select this option when there is no else light but natural light;

Fluorescent Lamp: Select this option when light near that of Fluorescent Lamp.

Digital Anti-fog Mode

Better image effect in foggy weather, refers to Figure 4-3-7.

Digital Image Stabilisation

Better image effect when image shaking

Exposure Region

(BLC)

Off, Customize, and Centre are available, which are only enable when WDR is

disable.

Off: This option will calculate the full range of view and offer appropriate light

compensation;

Customize: This option allows you to add customized windows as inclusive or

exclusive regions manually;

Centre: This option will automatically add an inclusive region in the middle of

the window and give the necessary light compensation.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

30

Exposure Mode

(BLC)

Auto mode/Customize mode. If you choose customize mode, the camera

adjusts the brightness according to the value as set. The higher the value, the

brighter the image.

Wide Dynamic Range

(WDR)

This function enables the capture and display of both bright and dark areas in

the same frame. There are details in both areas in this way.

Off: Disable WDR function;

On: Enable the WDR. there are Low/High/Auto three levels;

Customize: Customize the schedule to enable/disable the WDR function and

set the levels with Low/High/Auto.

High Light Compensation

(HLC)

Adjust the brightness to a normal range when the light is strong, refers to

Figure 4-3-8.

Off: Disable HLC function;

General Mode: Enable the HLC with general mode, and there is a setting for

HLC Level;

Enhanced Mode: Enable the HLC with enhanced mode, and there is a setting

for HLC Level.

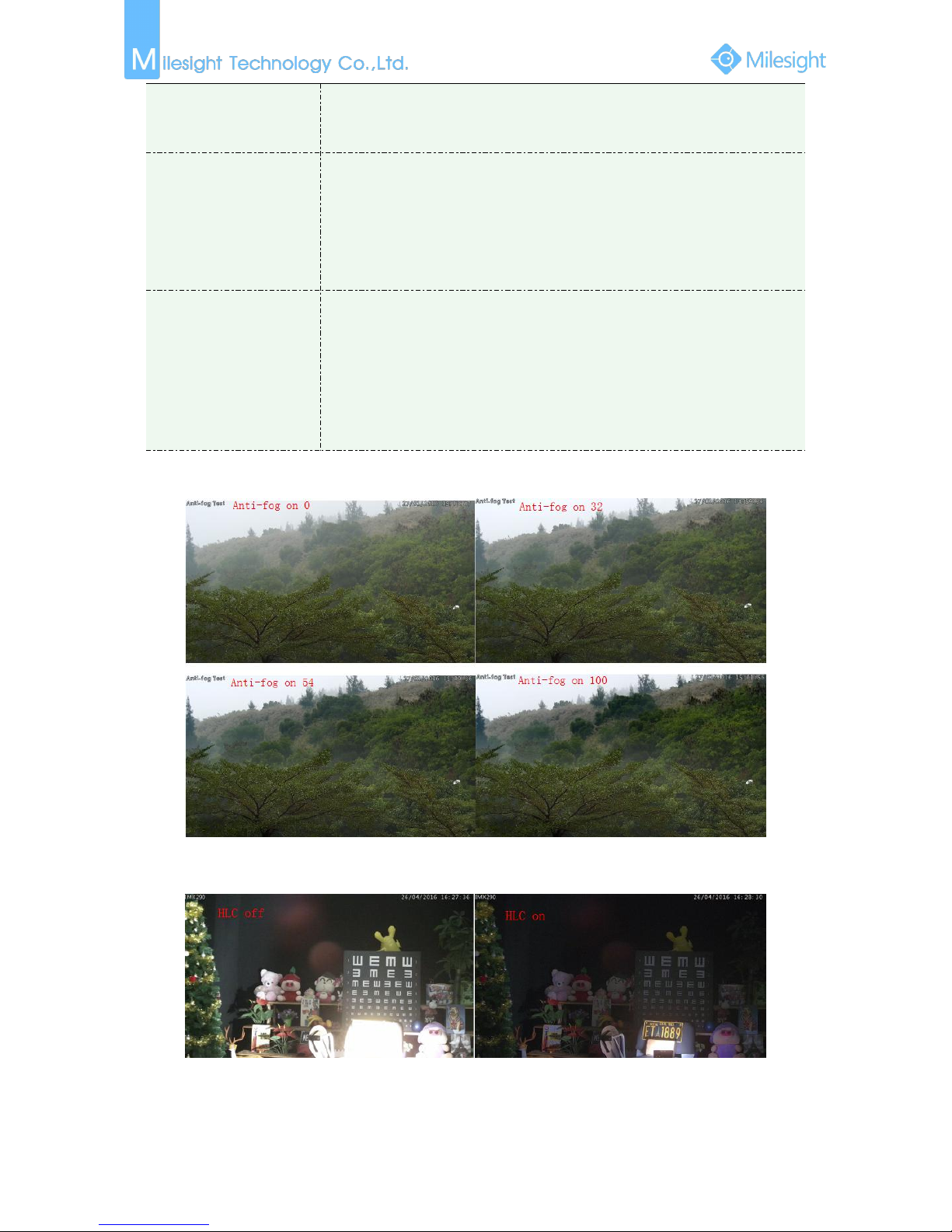

Figure 4-3-6 Anti-fog Image

Figure 4-3-7 HLC Image

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

31

Day/Night Mode

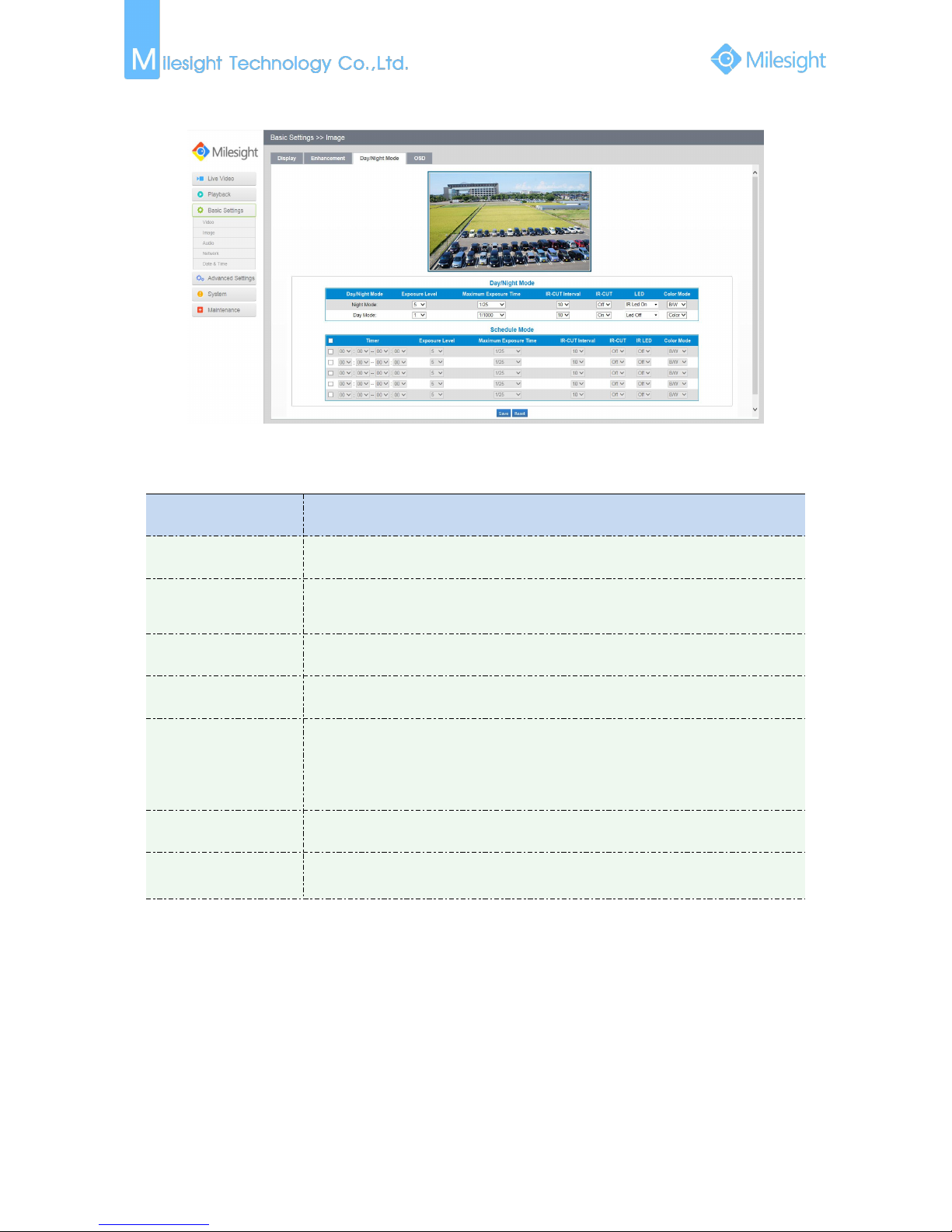

Figure 4-3-8 Day/Night Mode Settings

Table 4-3-4 Description of the buttons

Parameters

Function Introduction

Exposure Level

Level 0~10 are available to meet your need.

Maximum Exposure

Time

Set the maximum exposure time to 1/5~1/100000.

IR-CUT Interval

Keep the mode from switching.

IR-CUT

Choose to turn on or turn off under this mode.

LED

Choose to turn on or turn off under this mode.

LED off: Turn off all the LEDs on the device;

IR LED on: Turn on the IR LED;

White LED on: Turn on the White LED (Only for Mini PTZ Bullet).

Color Mode

Select B/W or Color mode under Day/Night mode.

Schedule Mode

By this you can customize your special demands for different time, then the Day

mode and Night mode will switch automatically according to your settings.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

32

OSD(On Screen Display)

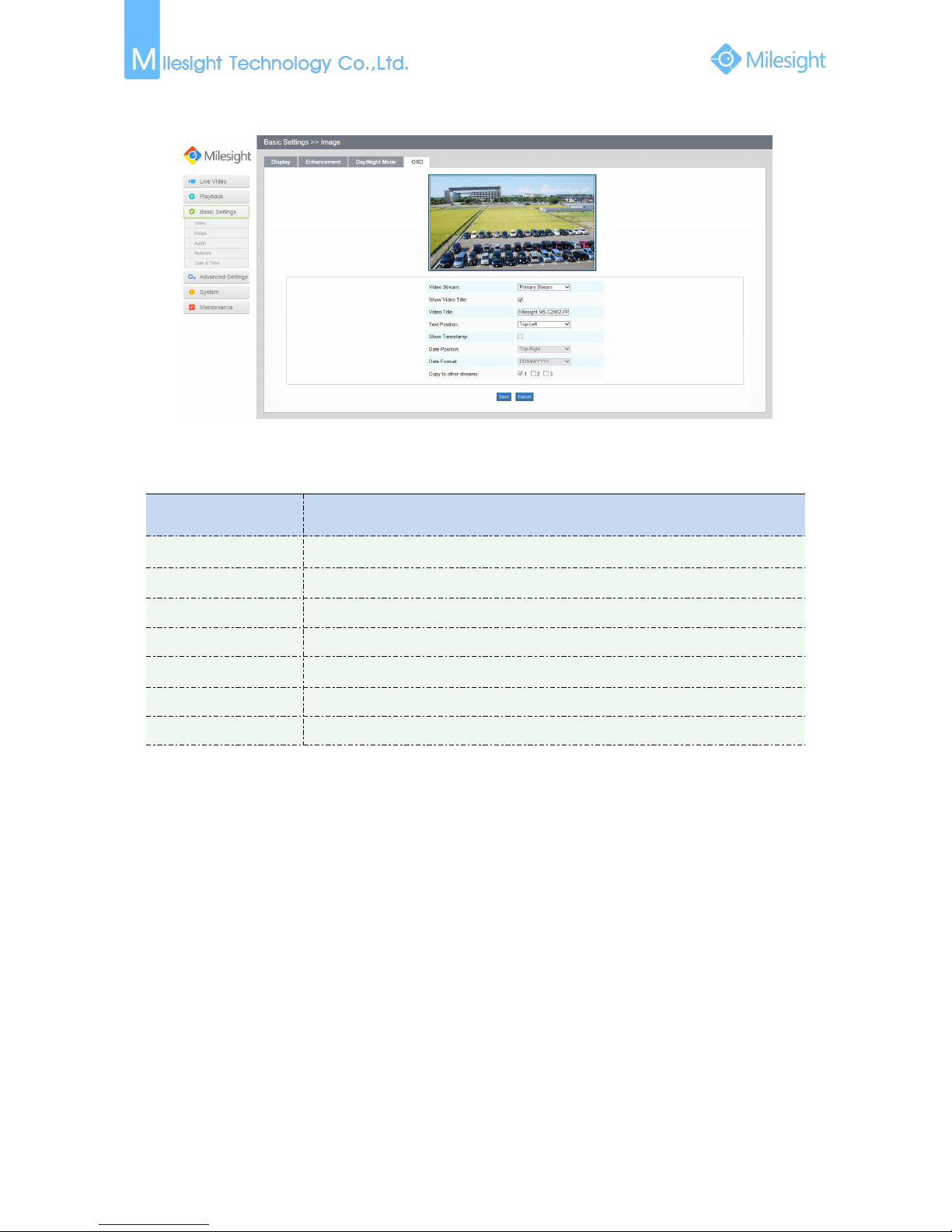

Figure 4-3-9 OSD Settings

Table 4-3-5 Description of the buttons

Parameters

Function Introduction

Show Video Title

Check the checkbox to show video title

Video Title

OSD content customized

Text Position

OSD display position on the image

Show Timestamp

Check the checkbox to display date on the image

Date Position

Date display position on the image

Date Format

The format of date

Copy to other streams

Copy the settings to other streams

4.3.3 Audio

This audio function allows you to hear the sound from the camera or transmit your sound to the
camera side. A two-way communication is also possible to be achieved with this feature. Alarm can
be triggered when the audio input is above a certain alarm level you set, and configured audio can
be played when an alarm occurs.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

33

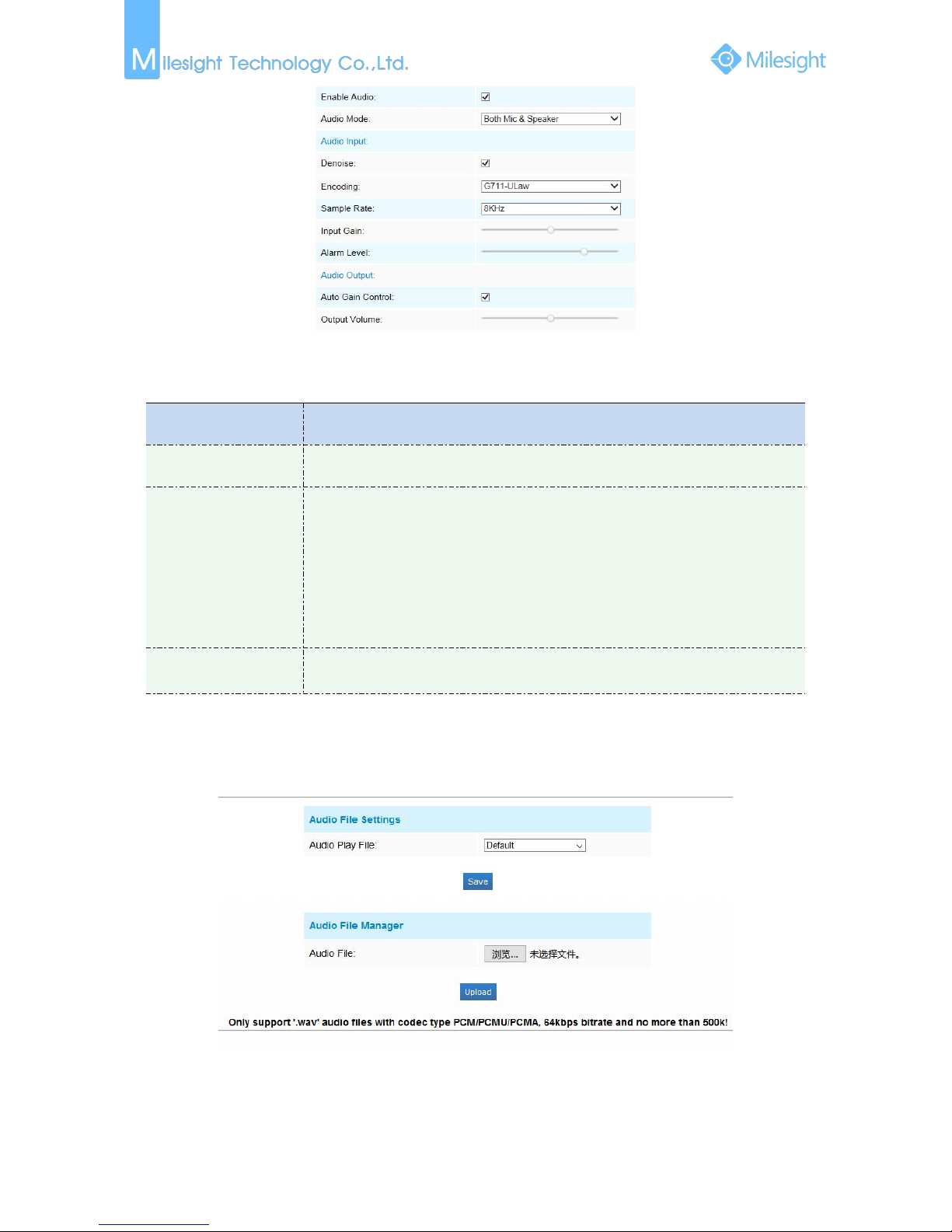

Figure 4-3-10 Audio Settings

Table 4-3-6 Description of the buttons

Parameters

Function Introduction

Enable Audio

Check on the checkbox to enable audio feature.

Audio Input

Denoise: Set it as On/Off. When you set the function on, the noise detected can

be filtered.

Encoding: G711-ULaw, G711-ALaw and AAC LC are available;

Sample Rate: There are 8KHz/16KHz two options;

Input Gain: Input audio gain level, 0-100;

Alarm Level: Alarm will be triggered if voice alarm is enabled and input gained

volume is higher than the alarm level, 0-100.

Audio Output

Auto Gain Control: Improve the quality of audio;

Output Volume: Adjust volume of output.

You can upload audio file manually on Audio web page and choose the Audio File you want as the
Play File. The Play File is corresponded to Play Audio function in Alarm Action.

Figure 4-3-11 Audio File

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

34

4.3.4 Network

TCP/IP

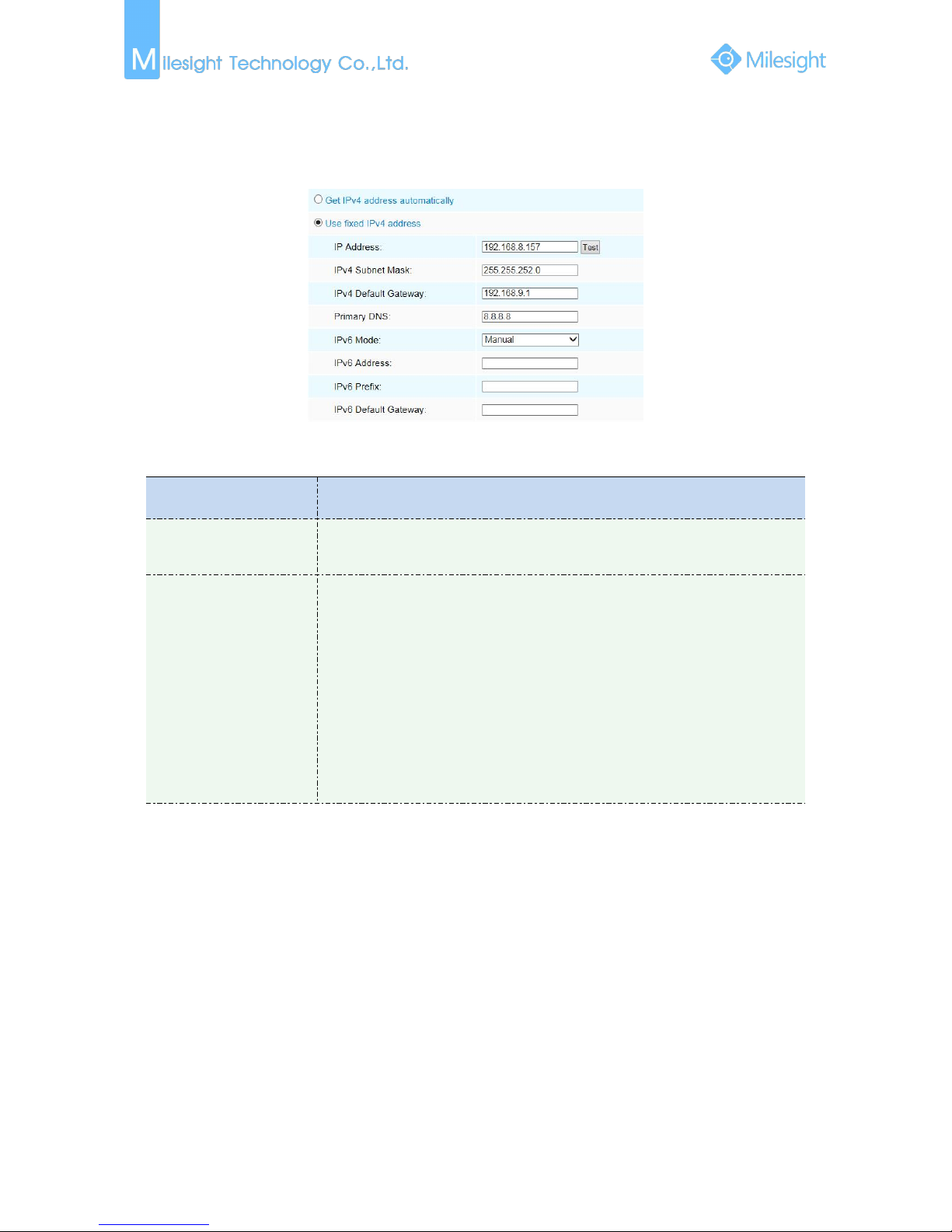

Figure 4-3-12 TCP/IP Settings

Table 4-3-7 Description of the buttons

Parameters

Function Introduction

Get IPv4 Address

Automatically

Get an IP address from the DHCP server automatically.

Use fixed IP address

IPv4 Address: It is used to identify a network camera on the network;

IPv4 Subnet Mask: It is used for identifying the subnet where the network

camera is located;

IPv4 Default Router: It is the default router address;

Primary DNS: The DNS Server translates the domain name to IP address;

IPv6 Mode: Choose different mode for IPv6: Manual/Route Advertisement/

DHCPv6;

IPv6 Address: It is used to identify a network camera on the network;

IPv6 Prefix: Define the prefix length of IPv6 address;

IPv6 Default Router: The default router IPv6 address.

Note:
The Test button is used to test if the IP is conflicting.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

35

HTTP

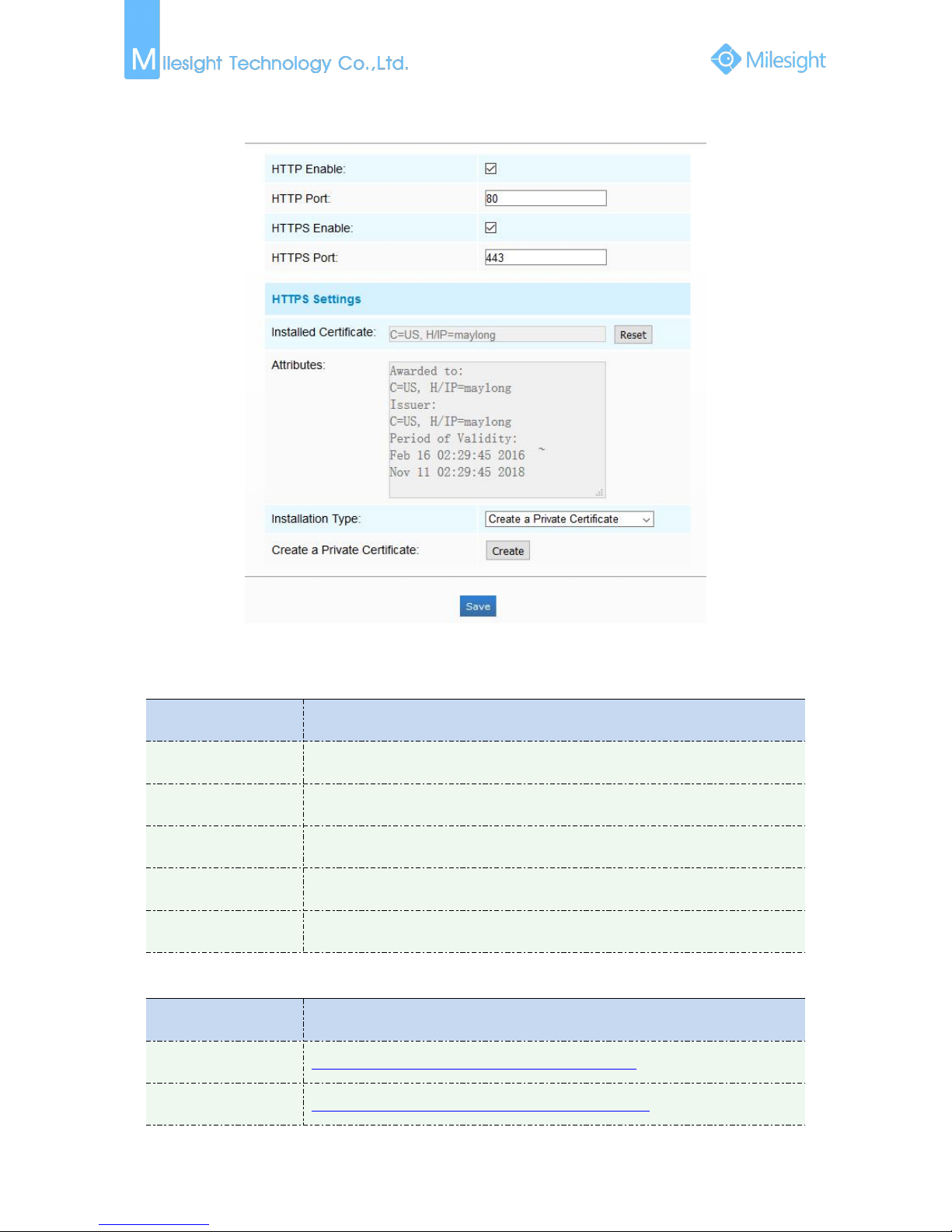

Figure 4-3-13 HTTP Settings

Table 4-3-8 Description of the buttons

Parameters

Function Introduction

HTTP Enable

Start or stop using HTTP.

HTTP Port

Web GUI login port, the default is 80, the same with ONVIF port.

HTTPS Enable

Start or stop using HTTPS.

HTTPS Port

Web GUI login port via HTTPS. the default is 443.

HTTP Settings

Upload and set the SSL certificate .

HTTP URL are as below:

Stream

URL

Main Steam

http://username:password@IP:port/ipcam/mjpeg.cgi

Secondary Stream

http://username:password@IP:port/ipcam/mjpegcif.cgi

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

36

Tertiary Stream

http://username:password@IP:port/mjpegthird.cgi

RTSP

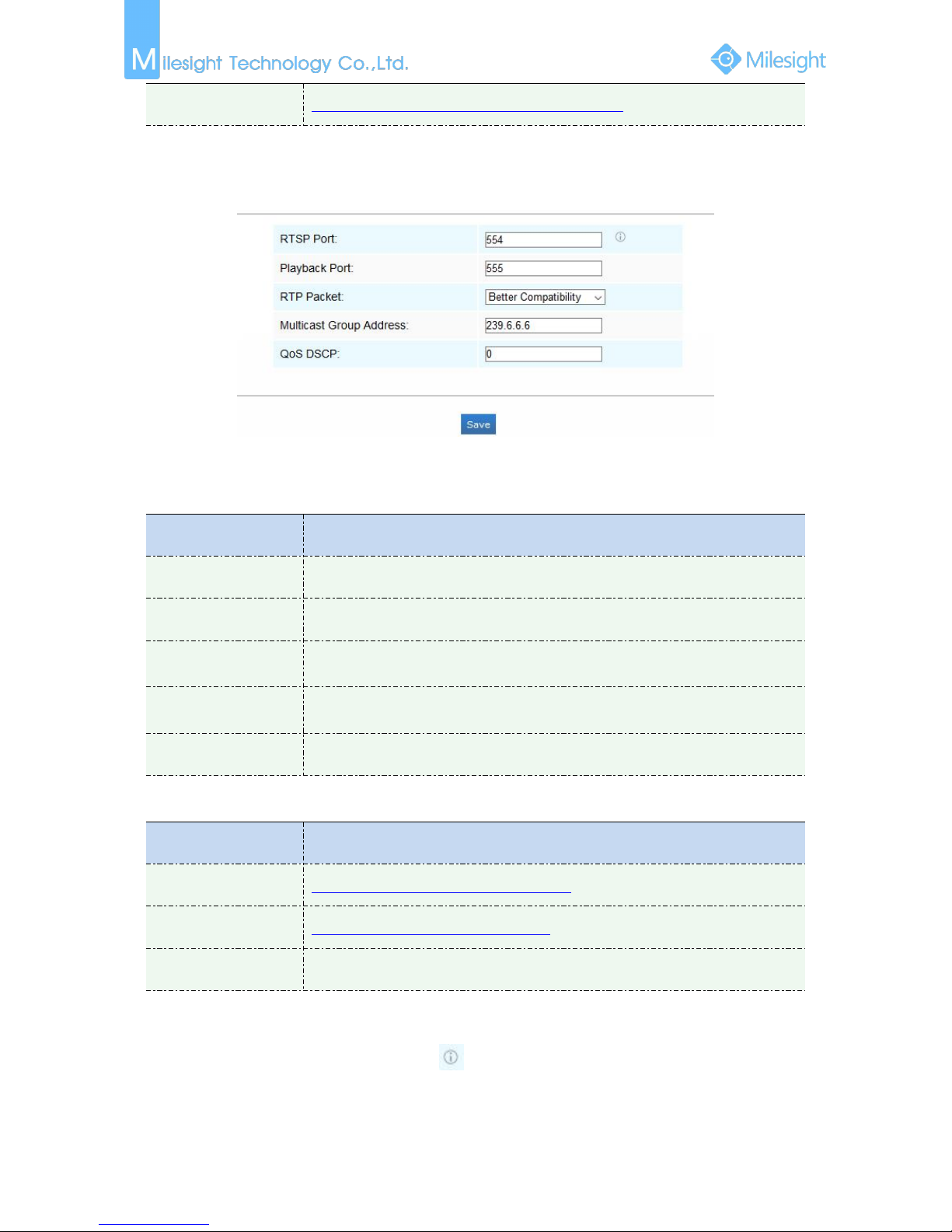

Figure 4-3-14 RTSP Settings

Table 4-3-8 Description of the buttons

Parameters

Function Introduction

RTSP Port

The port of RTSP, the default is 554.

Playback Port

The port of playback, the default is 555.

RTP Packet

There are Better Compatibility and Better Performance two options. If your

camera’s image mess up, please switch this option.

Multicast Group

Address

Support multicast function.

QoS DSCP

The valid value range of the DSCP is 0-63.

RTSP URL are as below:

Stream

URL

Main Steam

rtsp://username:password@IP:port/main

Secondary Stream

rtsp://username:password@IP:port/sub

Tertiary Stream

http://username:password@IP:port/third

Note:

1) Get the format of RTSP URL by clicking “ ”on the right side of RTSP Port.

2) DSCP refers to the Differentiated Service Code Point; and the DSCP value is used in the IP

header to indicate the priority of the data.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

37

3) A reboot is required for the settings to take effect.

4) The tertiary stream is only equipped on camera whose model with “-A” or “-B”.

4.3.5 Date&Time

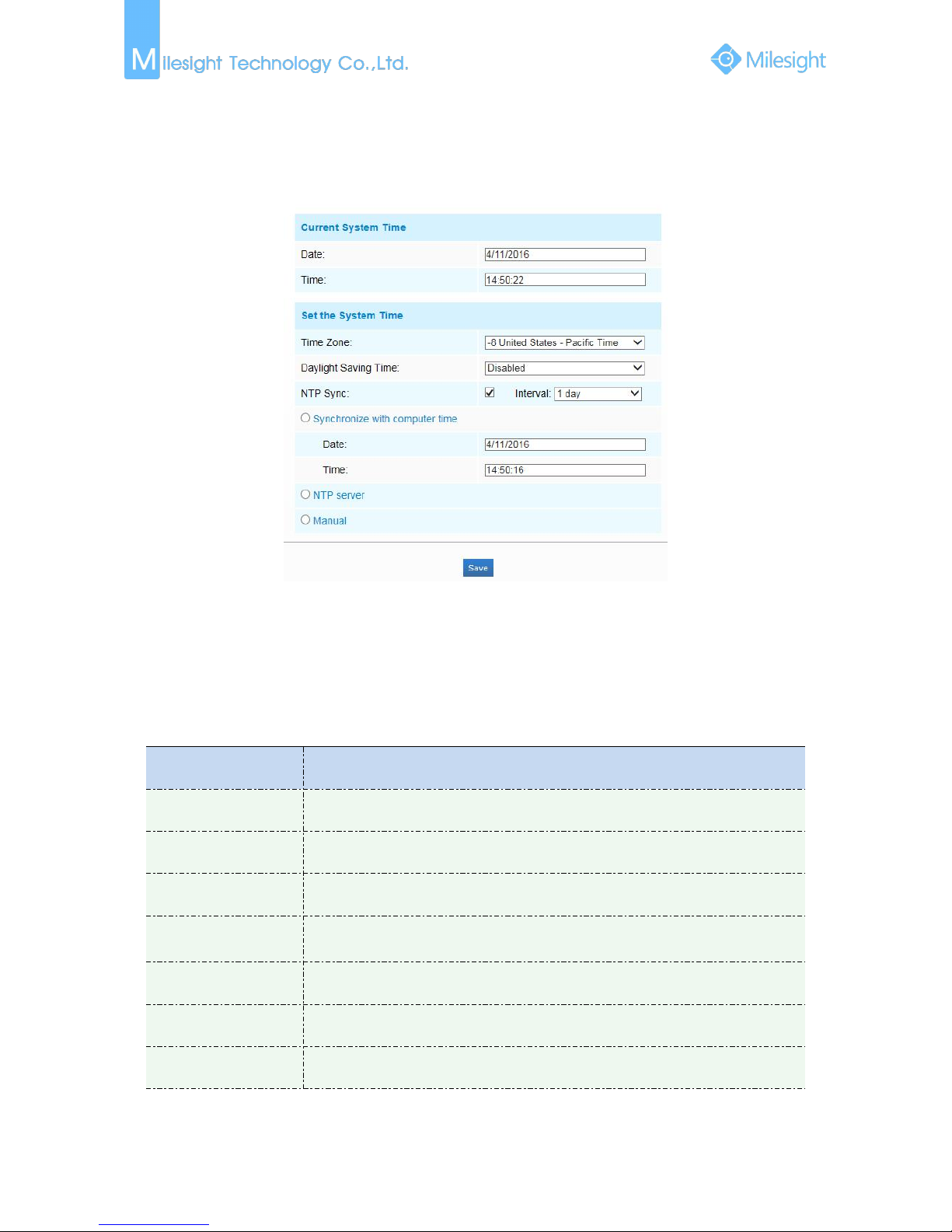

Figure 4-3-15 Date&Time Settings

Current System Time

Current date&time of the system

Set the System Time

Table 4-3-9 Description of the buttons

Parameters

Function Introduction

Time Zone

Choose a time zone for your location.

Daylight Saving time

Enable the daylight saving time.

NTP Sync

Regularly update your time according to the interval time.

Synchronize with

computer time

Synchronize the time with your computer.

NTP server

Input the address of NTP server.

Encryption Type

Synchronize the time with configured SNTP server and select time zone.

Manual

Set the system time manually.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

38

4.4 Advanced Settings

4.4.1 Image

There are two more modules(Privacy Mask and ROI) in Advanced Settings than those in Basic
Settings. The same parts will not repeat again. Please refer to 4.3.2 if you are in need.

Privacy Mask

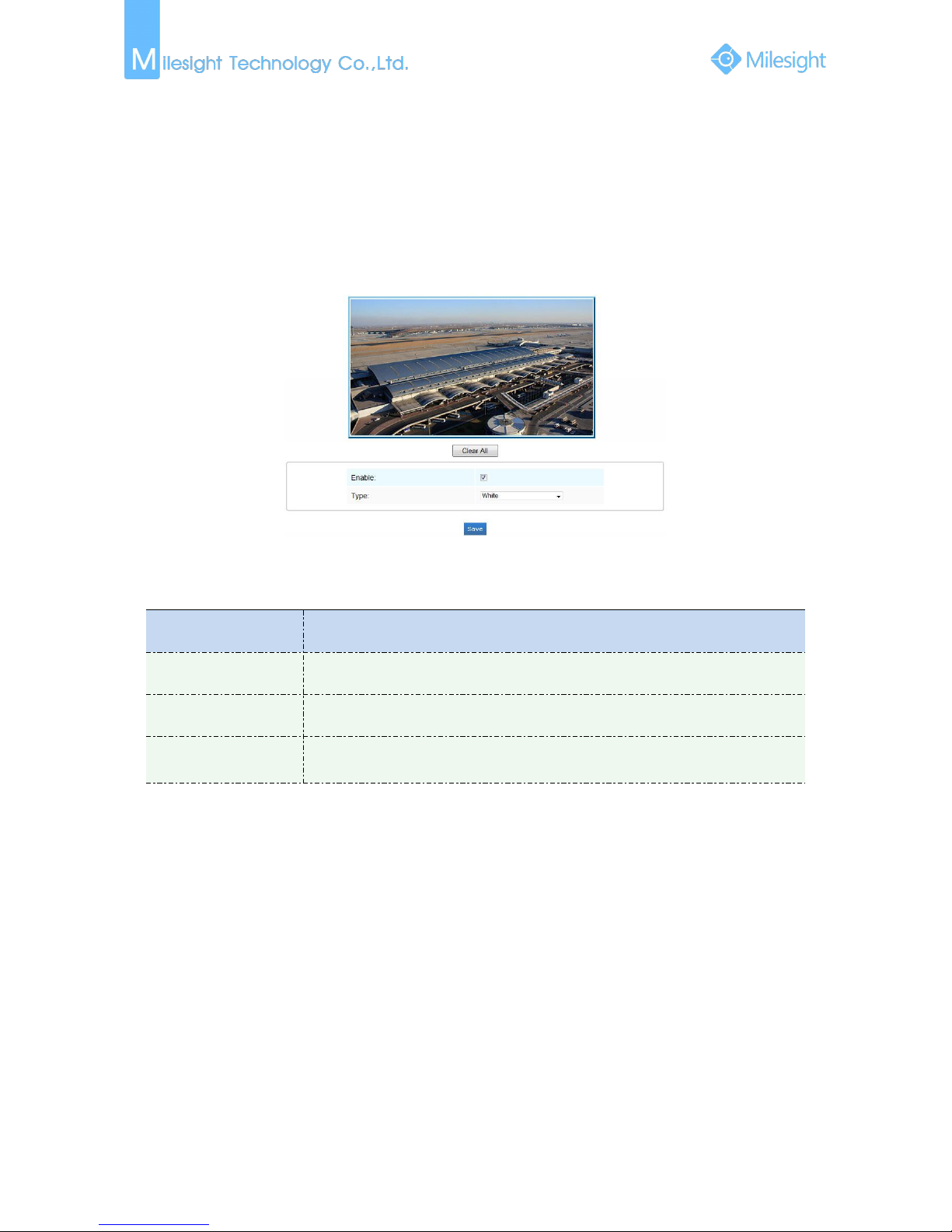

Figure 4-4-1 Privacy Mask

Table 4-4-1 Description of the buttons

Parameters

Function Introduction

Enable

Check the checkbox to enable the Privacy Mask function.

Clear All

Clear all areas you drew before.

Type

Select the color to use for the privacy areas. There are three colors available:

White, Black, Blue.

ROI

A region of interest(often abbreviated ROI) is a selected subset of samples within a dataset
identified for a particular purpose. Users can select up to 3 key regions of a scene to transmit as
separate streams for targeted preview and recording.
By using Milesight ROI technology, more than 50% of bit rate can be saved. Therefore less
bandwidth are demanded and the storage usage are reduced. So according to that, you can set a
small bit rate for high resolution.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

39

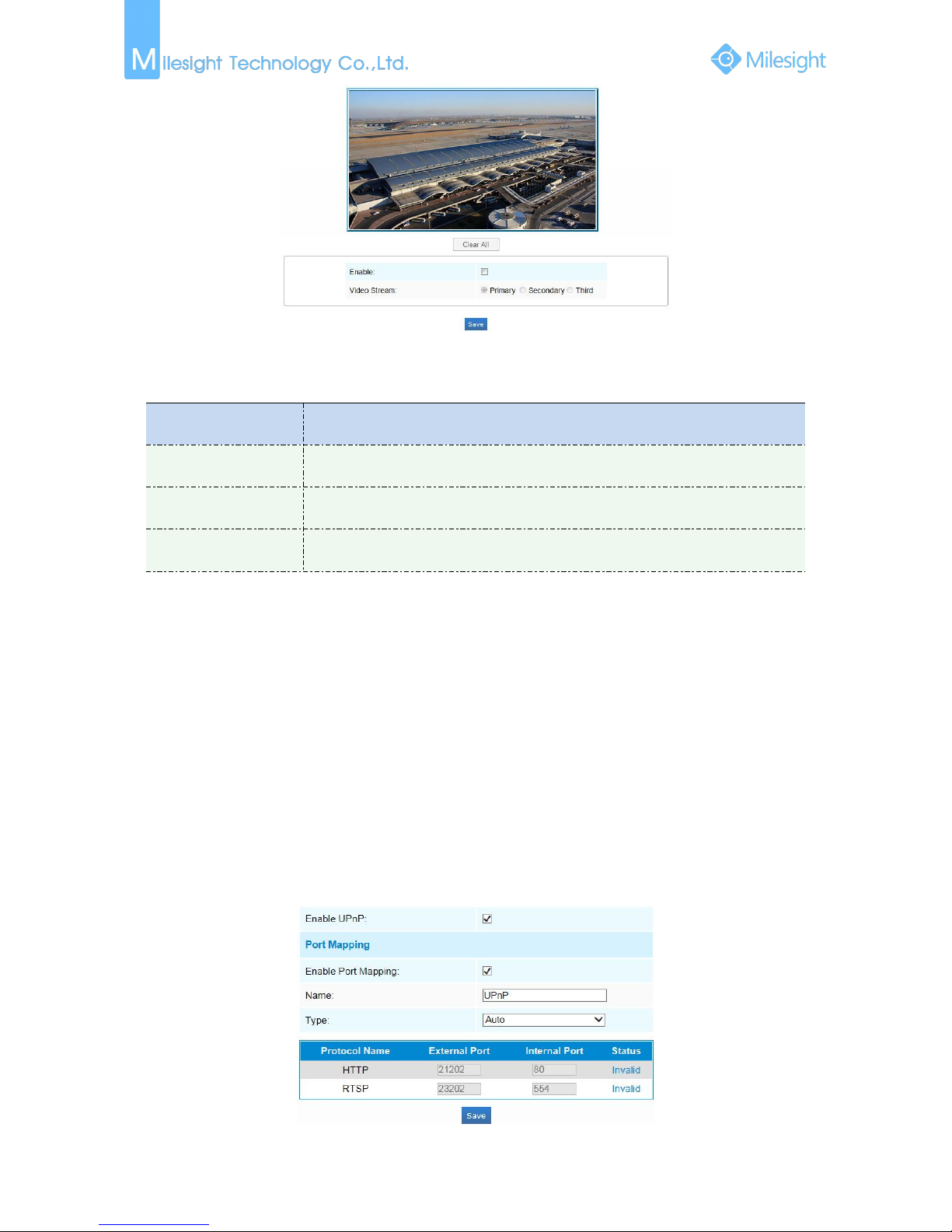

Figure 4-4-2 ROI Settings

Table 4-4-2 Description of the buttons

Parameters

Function Introduction

Enable

Check the checkbox to enable the ROI function.

Clear All

Clear all areas you drew before.

Video Stream

Choose the Video Stream.

Note:

ROI will be more obvious in the case of low bit rate.

4.4.2 Network

There are more several modules in Advanced Settings than those in Basic Settings. The same parts
will not repeat again. Please refer to 4.3.2 if you are in need.

UPnP

Universal Plug and Play (UPnP) is a networking architecture that provides compatibility among
networking equipment, software and other hardware devices. The UPnP protocol allows devices
to connect seamlessly and to simplify the implementation of networks in the home and corporate
environments. With the function enabled, you don’t need to configure the port mapping for each
port, and the camera is connected to the Wide Area Network via the router.

Figure 4-4-3 UPnP Settings

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

40

Table 4-4-3 Description of the buttons

Parameters

Function Introduction

Enable

Check the checkbox to enable the UPnP function.

Enable Port Mapping

Check the checkbox to enable the Port Mapping.

Name

The name of the device detected online can be edited.

Type

Auto: Automatically obtain the corresponding HTTP and RTSP port, without any

settings;

Manual: Need to manually set the appropriate HTTP port and RTSP Port. When

choose Manual, you can customize the value of the port number by yourself.

DDNS

DDNS allows you to access the camera via domain names instead of IP address. It manages to
change IP address and update your domain information dynamically. You need to register an
account from a provider. .

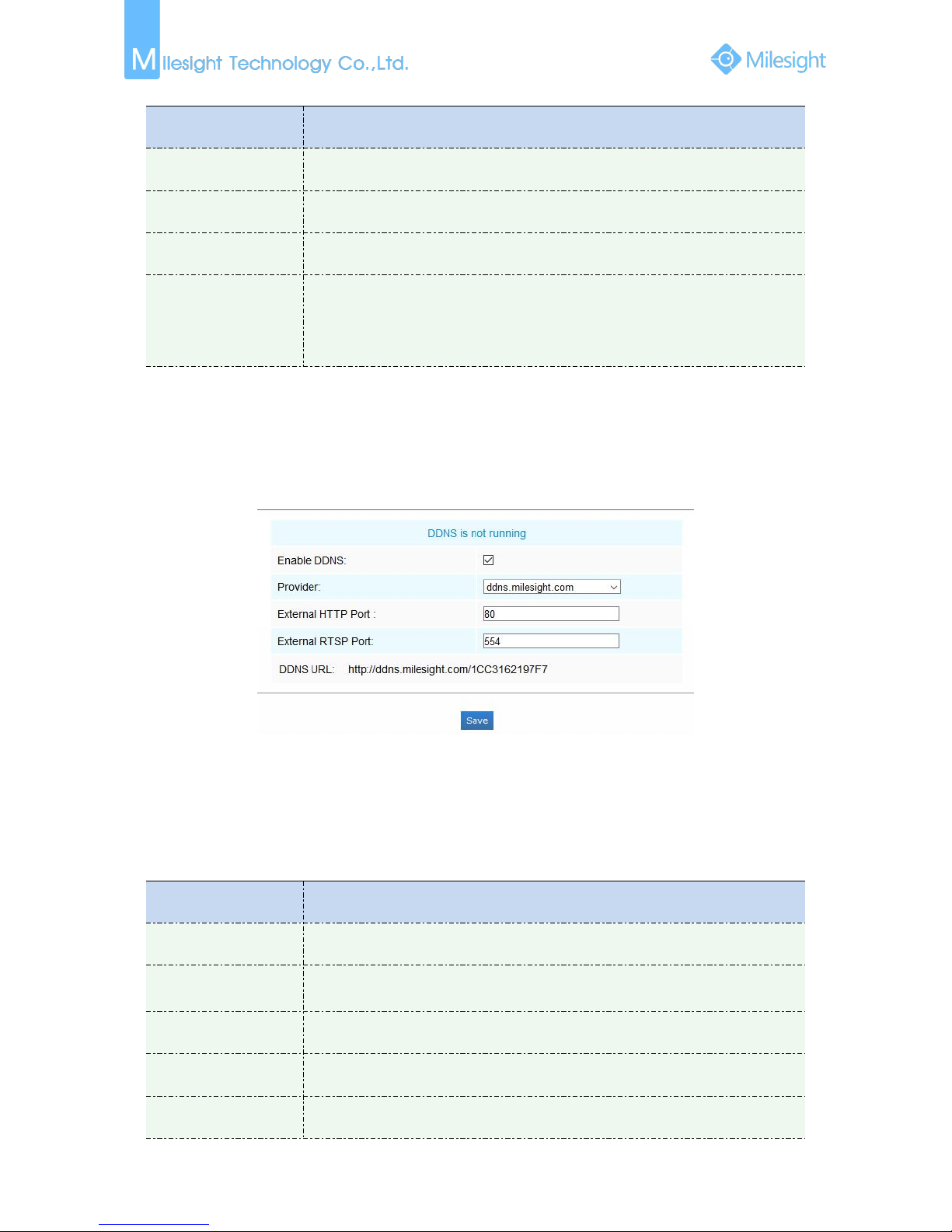

Figure 4-4-4 DDNS Settings

You can choose “ddns.milesight.com” as provider for DDNS. After enabling, you can access the
device via the URL “http://ddns.milesight.com/MAC address” .

Table 4-4-4 Description of the buttons

Parameters

Function Introduction

Enable DDNS

Check the checkbox to enable DDNS service.

Provider

Support DDNS from now dyndns.org, freedns.afraid.org, www.no-ip.com,

www.zoneedit.com.

Hash

A string used for verifying, only for "freedns.afraid.org"

User name

Account name from the DDNS provider, unavailable for "freedns.afraid.org"

Password

Account password, unavailable for "freedns.afraid.org"

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

41

Host name

DDNS name enabled in the account

Note:

1）Please do the Port Forwarding of HTTP Port and RTSP Port before you use Milesight DDNS.

2）Make sure that the internal and the external port number of RTSP are the same.

SMTP

Alarm video files can be sent to specific mail account through SMTP server. You must configure the
SMTP settings correctly before using it.

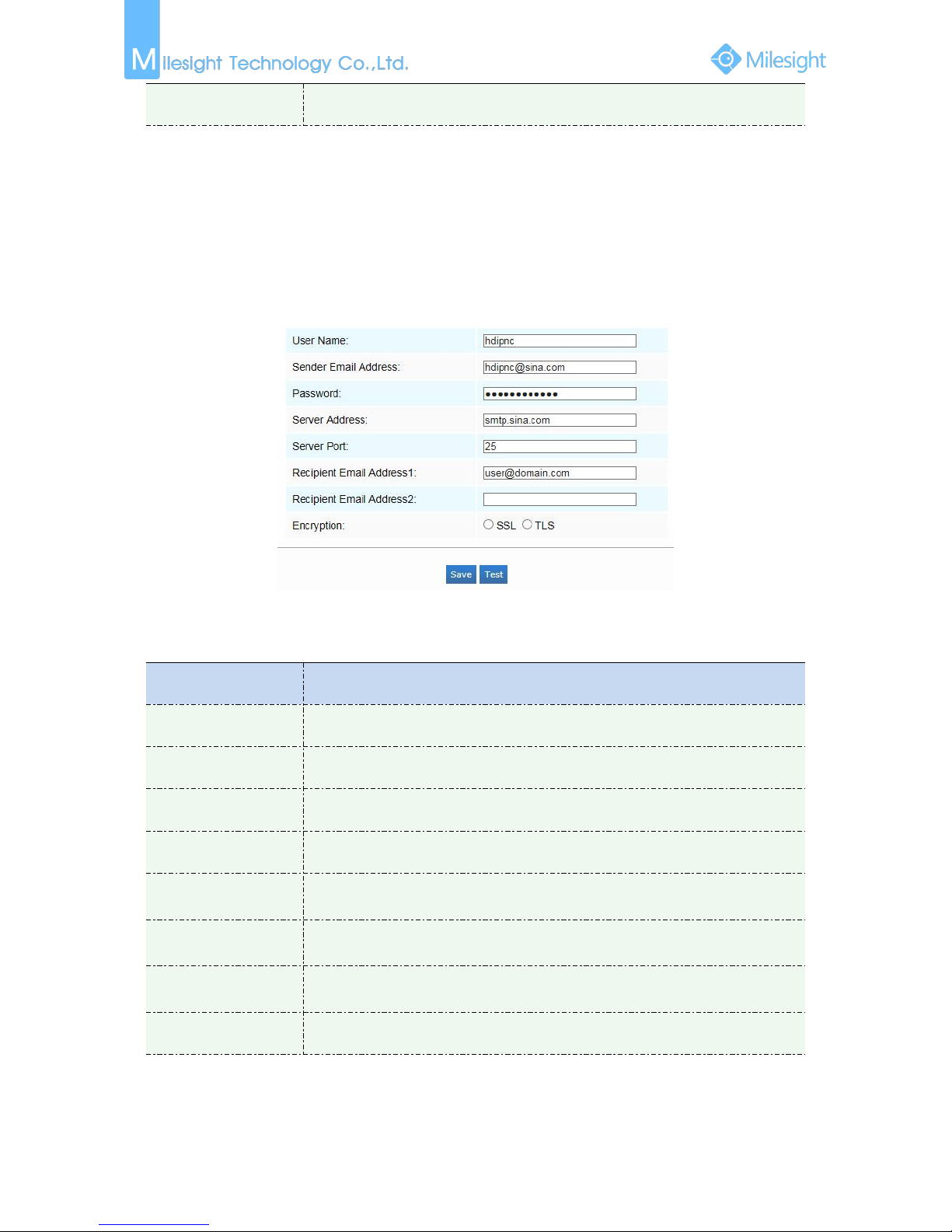

Figure 4-4-5 SMTP Settings

Table 4-4-5 Description of the buttons

Parameters

Function Introduction

User Name

The sender's name. It is usually the same as the account name.

Sender Email Address

Email address to send video files attached emails

Password

The password of the sender

Server Address

The SMTP server IP address or host name(e.g. smtp.gmail.com).

Server Port

The port of SMTP server. The default TCP/IP port for SMTP is 25(not secured). For

SSL/TLS port, it depends on the mail you use.

Recipient Email

Address1

Email address to receive video files

Recipient Email

Address2

Email address to receive video files

Encryption

Check the checkbox to enable SSL or TLS if it is required by the SMTP server.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

42

FTP

Alarm video files can be sent to specific FTP server. You must configure the FTP settings correctly
before using it.

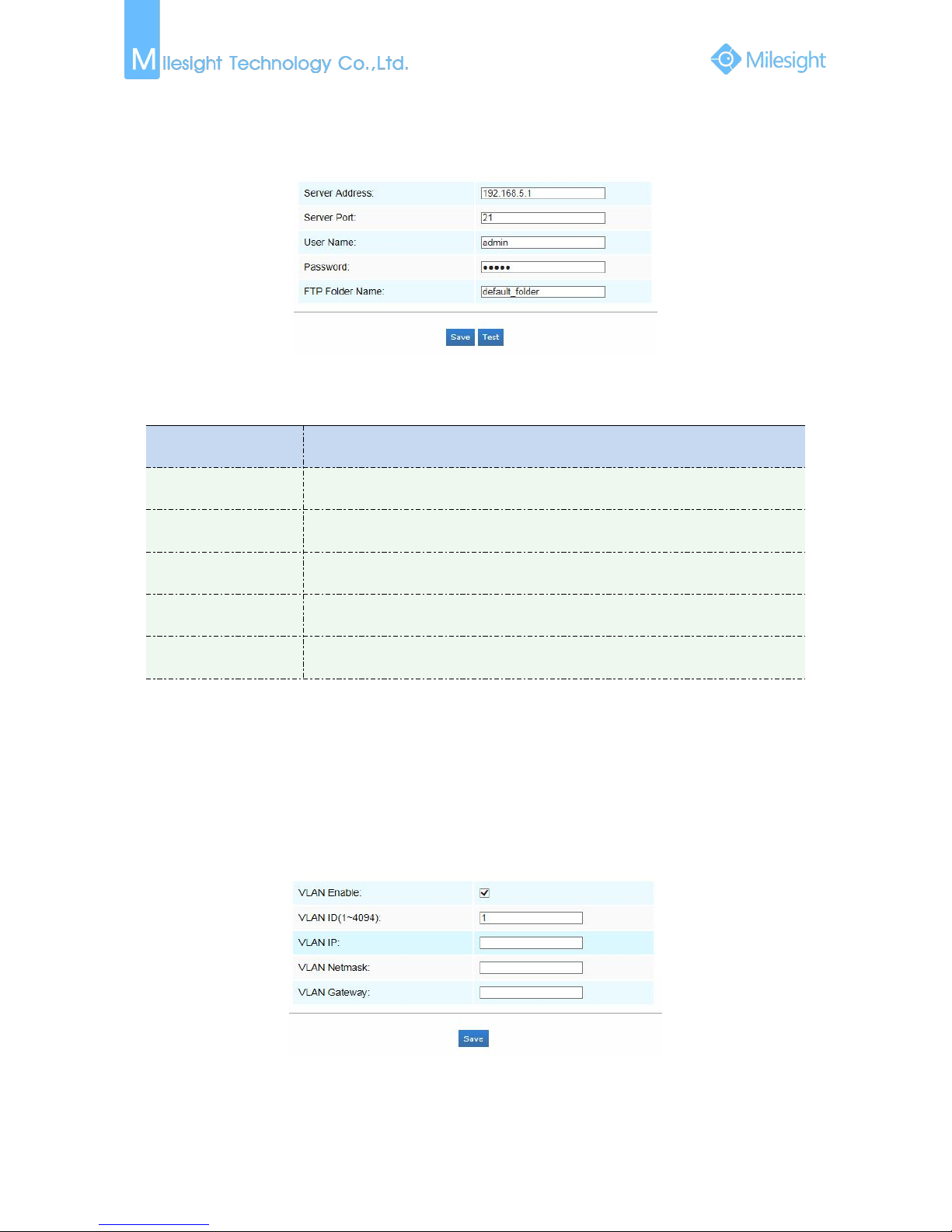

Figure 4-4-6 FTP Settings

Table 4-4-6 Description of the buttons

Parameters

Function Introduction

Server Address

FTP server address

Server Port

The port of the FTP server. Generally it is 21.

User Name

User name used to log in to the FTP sever

Password

User password

FTP Folder Name

Path where video will be uploaded to on the FTP server

VLAN

A virtual LAN (VLAN) is any broadcast domain that is partitioned and isolated in a computer
network at the data link layer (OSI layer 2). LAN is an abbreviation of local area network. VLANs
allow network administrators to group hosts together even if the hosts are not on the same
network switch. This can greatly simplify network design and deployment, because VLAN
membership can be configured through software. Without VLANs, grouping hosts according to
their resource needs necessitates the labour of relocating nodes or rewiring data links.

Figure 4-4-7 VLAN Settings

Note:

How to set up VLAN in switches, please refers to your switches user manual.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

43

PPPoE

This camera supports the PPPoE auto dial-up function. The camera gets a public IP address by ADSL
dial-up after the camera is connected to a modem. You need to configure the PPPoE parameters of
the network camera.

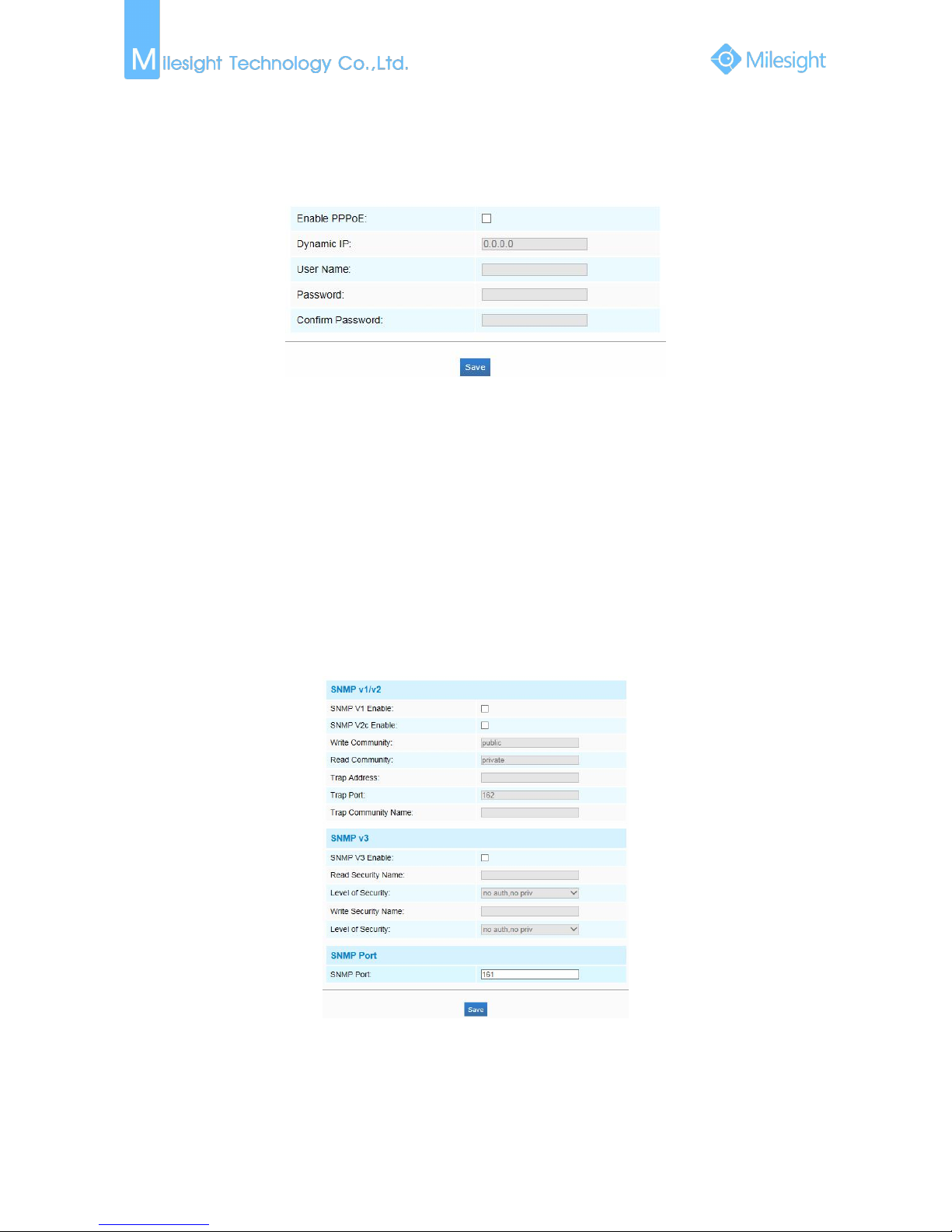

Figure 4-4-8 PPPoE Settings

Note:

1) The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes

after rebooting the camera. To solve the inconvenience of the dynamic IP, you need to get a
domain name from the DDNS provider (e.g. DynDns.com).

2) The user name and password should be assigned by your ISP.

SNMP

You can set the SNMP function to get camera status, parameters and alarm related information
and manage the camera remotely when it is connected to the network.
Before setting the SNMP, please download the SNMP software and manage to receive the camera
information via SNMP port. By setting the Trap Address, the camera can send the alarm event and
exception messages to the surveillance center.

Figure 4-4-9 SNMP Settings

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

44

Table 4-4-7 Description of the buttons

Parameters

Function Introduction

SNMP v1/2/3

The version of SNMP, please select the version of your SNMP software.

SNMP v1: Provide no security;

SNMP v2: Require password for access;

SNMP v3: Provide encryption and the HTTPS protocol must be enabled.

Write Community

Input the name of Write Community.

Read Community

Input the name of Read Community.

Trap Address

Set the trap address.

Trap Port

Set the trap port, the default is 162.

Trap Community Name

Input the trap community name.

Read Security Name

Input the name of Read Security Community.

Level of Security

There are three levels available: (auth, priv), (auth, no priv) and (no auth, no priv).

Write Security Name

Input the name of Write Security Community.

Level of Security

There are three levels available: (auth, priv), (auth, no priv) and (no auth, no priv).

SNMP Port

The port of SNMP, the default is 161

Note:

1) The settings of SNMP software should be the same as the settings you configure here;

2) A reboot is required for the settings to take effect.

4.4.3 Alarm

Motion Detection

Motion Detection is a feature which can trigger alarm actions of recording videos when the motion
occurred in the surveillance scene.
Step1: Check the checkbox to enable the motion detection;
Step2: Set motion region;

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

45

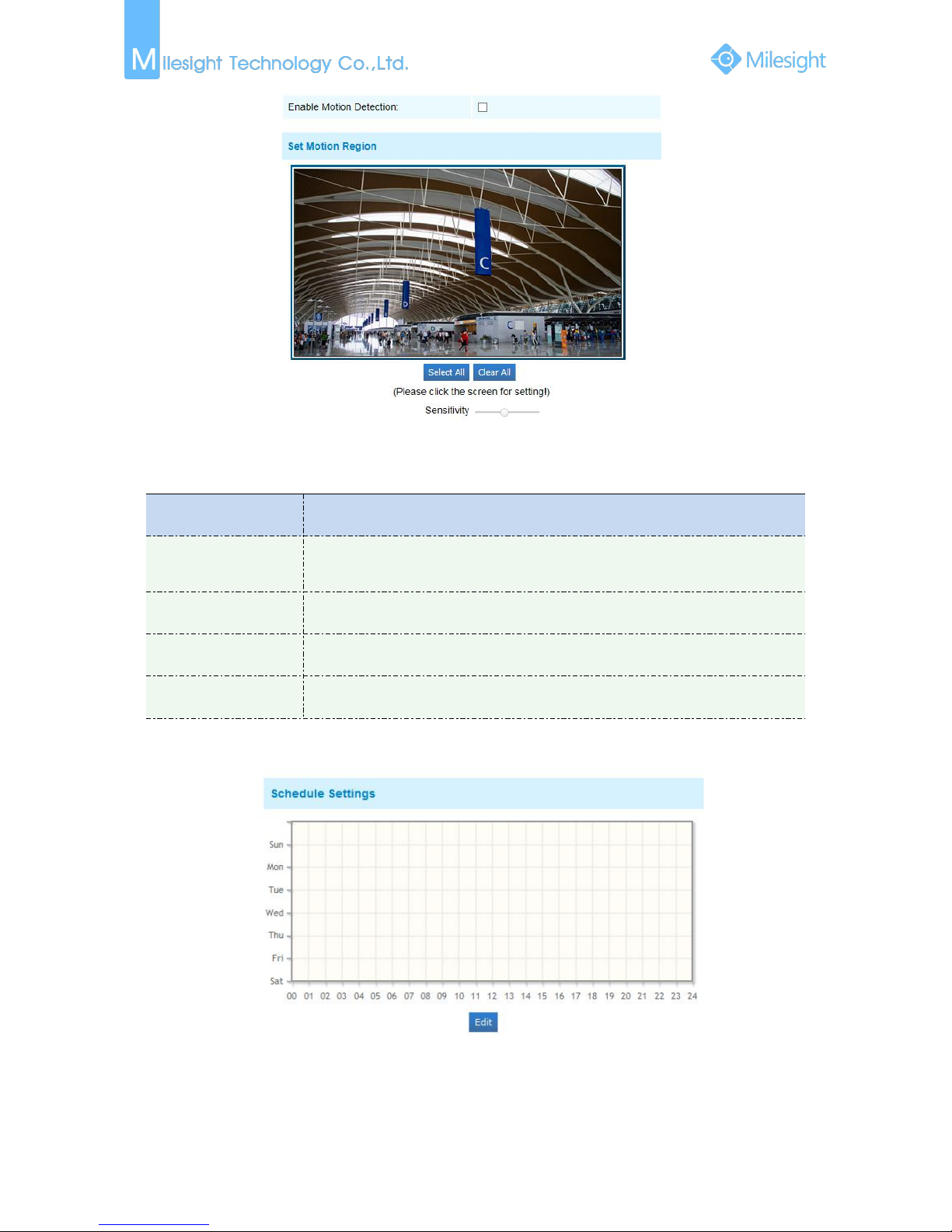

Figure 4-4-10 Motion Region Settings

Table 4-4-8 Description of the buttons

Parameters

Function Introduction

Enable Motion

Detection

Check the checkbox to enable Motion Detection function.

Select All

Click the button, and the motion in the area will be detected.

Clear All

Click the button, and the area drawn before will be removed.

Sensitivity

Sensitivity level, 1~10

Step3: Set motion detection schedule;

Figure 4-4-11 Schedule Settings

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

46

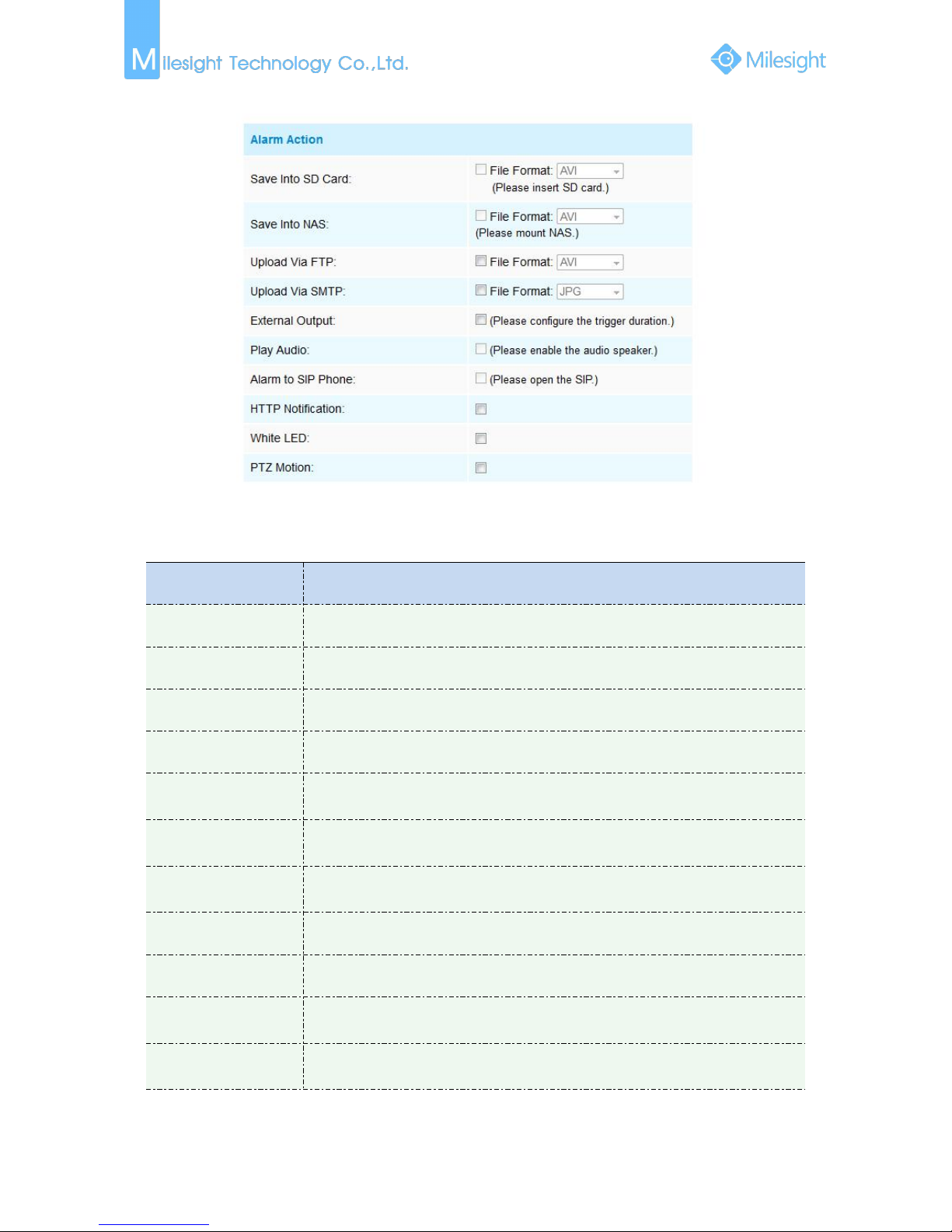

Step4: Set alarm action;

Figure 4-4-12 Alarm Action

Table 4-4-9 Description of the buttons

Parameters

Function Introduction

Save Into SD Card

Save alarm recording files into SD Card.

Save Into NAS

Save alarm recording files into NAS.

Upload Via FTP

Upload the recording files via FTP.

Upload Via SMTP

Upload the files via SMTP.

External Output

If the camera equips with External Output, you can enable the action after

configuring the trigger duration.

Play Audio

If the camera equips with Speaker, you can enable the action after configuring the

audio speaker.

Play Buzzer

If the camera equips with Buzzer, you can check the checkbox to enable the

function.

Alarm to SIP Phone

Support to call the SIP phone after enable the SIP function.

HTTP Notification

Support to pop up the alarm news to specified HTTP URL.

White LED

When the alarm triggered, White LED will turn on to warning the detected

objects

(Only for Mini PTZ Bullet).

PTZ Motion

When the motion alarm triggered, PTZ Motion allows the camera move the lens

to the motion triggered position and zoom in.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

47

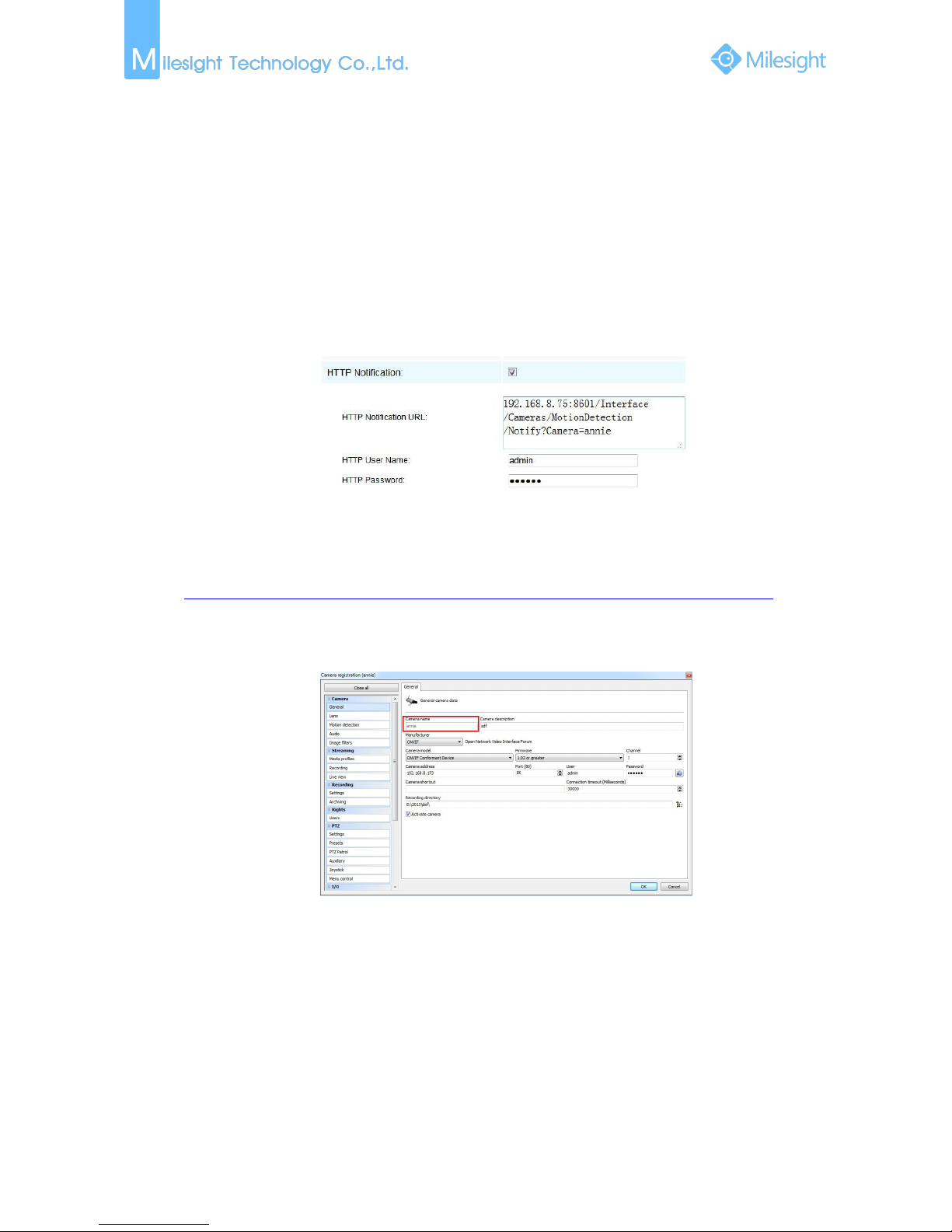

NOTE:

1) The HTTP notification function is just one way for camera to send messages to VMS Software.

And it's the VMS that defines what the messages mean and decides what to do after receiving
this kind of messages. So, we can use the HTTP Notification function of our cameras only if the
VMS supports this kind of message format.
Here the Digifort will be taken as an example to introduce the HTTP Notification function.

The following are the detail steps of setting for HTTP Notification in Digifort VMS and our

cameras.

Step1: Enable Alarm; set Motion Region and Detection Schedule;
Step2: Confirm the HTTP Notification as Alarm Action, and fill the fields. Then save the

alarm setting;

HTTP User Name: admin (the user name of your camera)
HTTP Password: ms1234 (the password of your camera)
HTTP Notification URL:

http://IP:8601/Interface/Cameras/MotionDetection/Notify?Camera=CameraName

IP refers to the PC's IP where the Digifort installed.
8601 is the port for Motion signal in Digifort.
CameraName is the camera name you set in Digifort VMS, like the picture shown below.

Example:

http://192.168.8.75:8601/Interface/Cameras/MotionDetection/Notify?Camera=annie,

this url format is exactly supported by Digifort VMS, so we can set as above to our
cameras and get it work well.

Step3: Choose use motion detection by external notification;

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

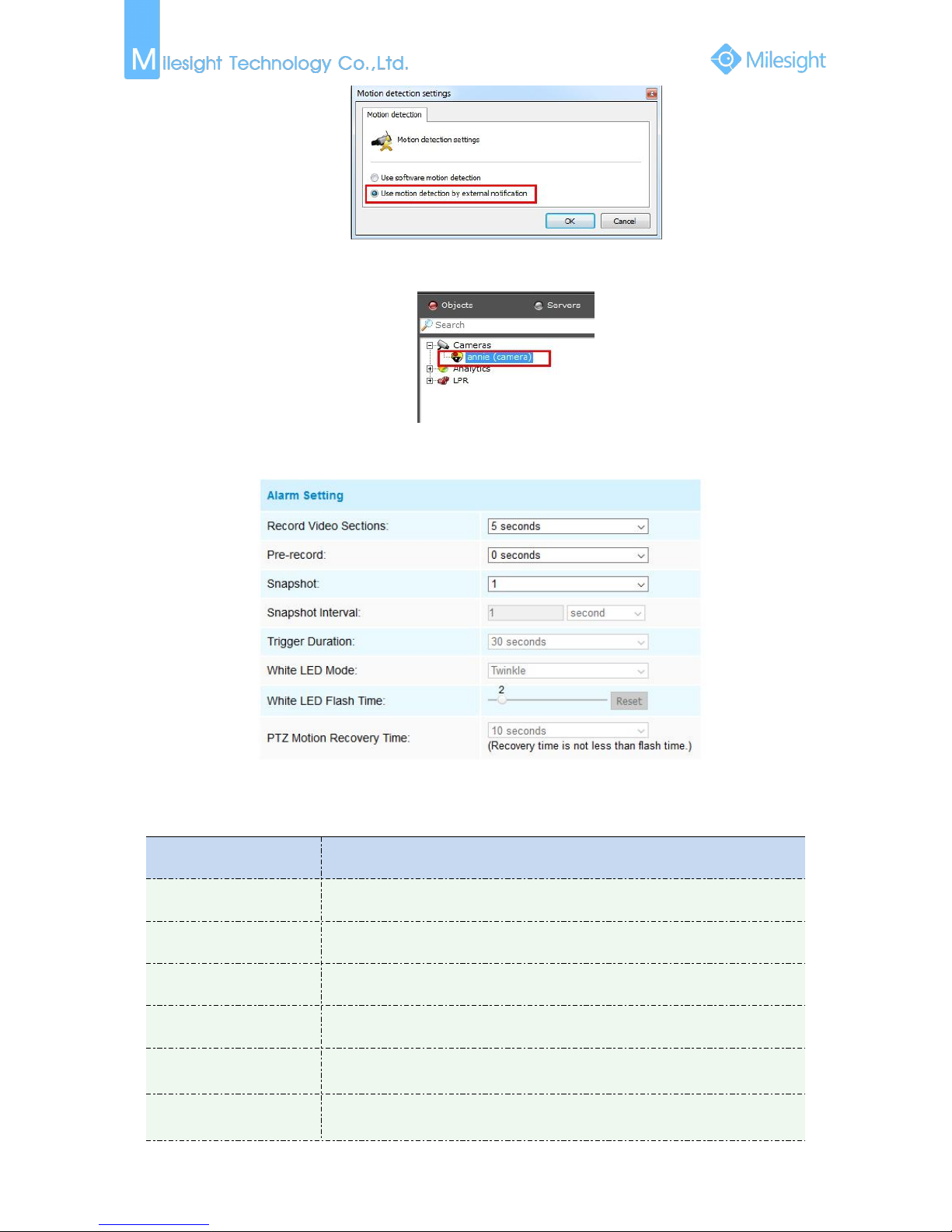

48

Step4: If successful, you can see the device icon turn yellow in the Surveillance when the

camera is under Motion Detection Alarm;

So, it's the VMS Software which decides whether we can use this function successfully.
Step5: Set alarm settings.

Figure 4-4-13 Alarm Settings

Table 4-4-10 Description of the buttons

Parameters

Function Introduction

Record Video Sections

Six different periods are available(5, 10, 15, 20, 25, 30 sec).

Pre-record

Reserve the record time before alarm, 0~10 sec.

Snapshot

The number of snapshot, from 1 to 5.

Snapshot Interval

It cannot be edited unless you choose more than 1 to Snapshot.

Trigger Duration

Length of time an alarm lasts, this cannot be edited unless when you enable

the External Output on the Alarm Action firstly.

White LED Mode

Twinkle: The White LED will continuous flashing before recovered;

Always: The White LED will always open before recovered.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

49

White LED Flash Time

The duration of flash.

Twinkle from 1 second to 10 seconds;

Always from 1second to 60 seconds.

PTZ Motion Recovery

Time

The duration of one alarm. It must be longer than flash time.

Audio Alarm

Enable the Audio before using Audio Alarm function.

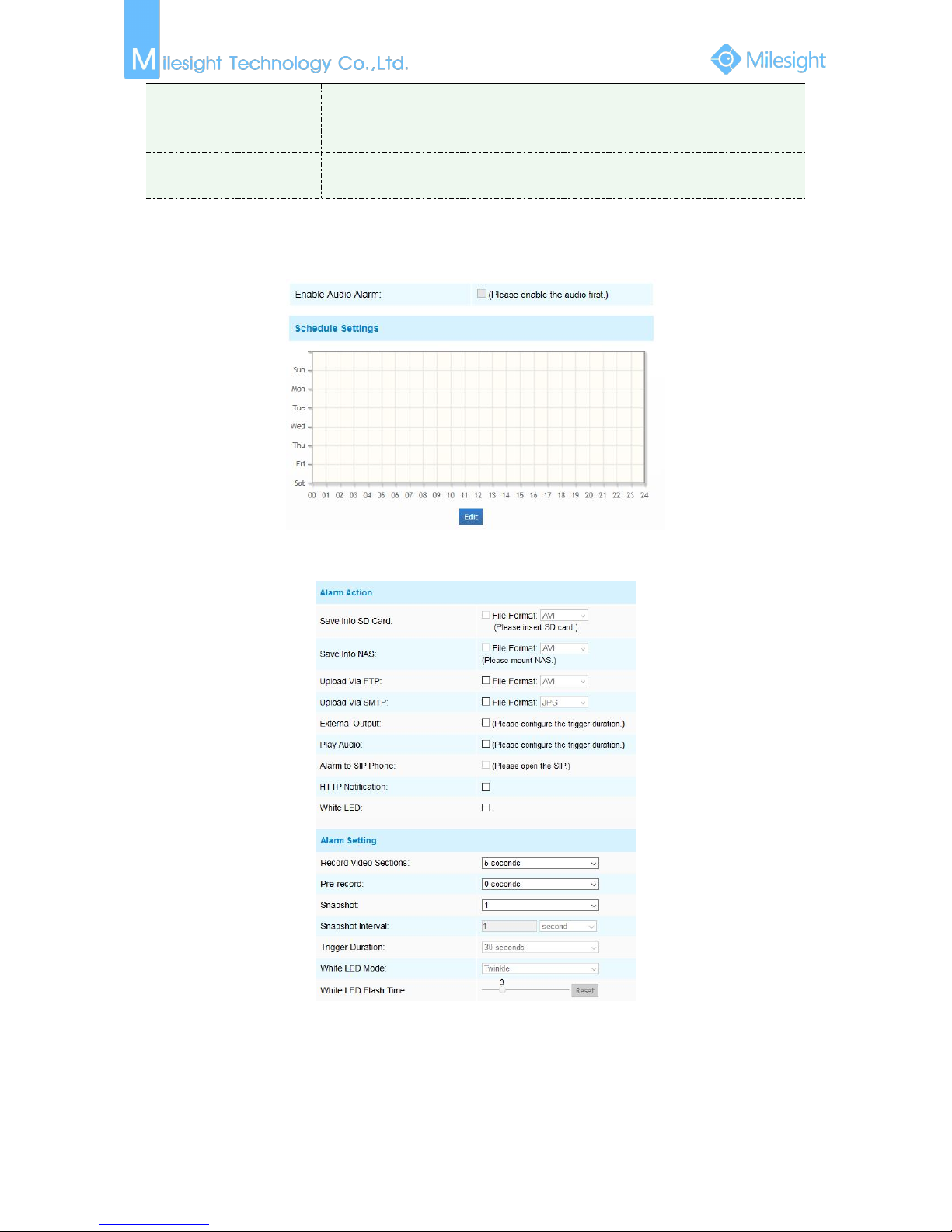

Figure 4-4-14 Schedule Settings

Figure 4-4-15 Alarm Settings

Please refer to table 4-4-8 and 4-4-9 to get the meaning of items.

Region Detection

Region Detection is a more exact motion detection.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

50

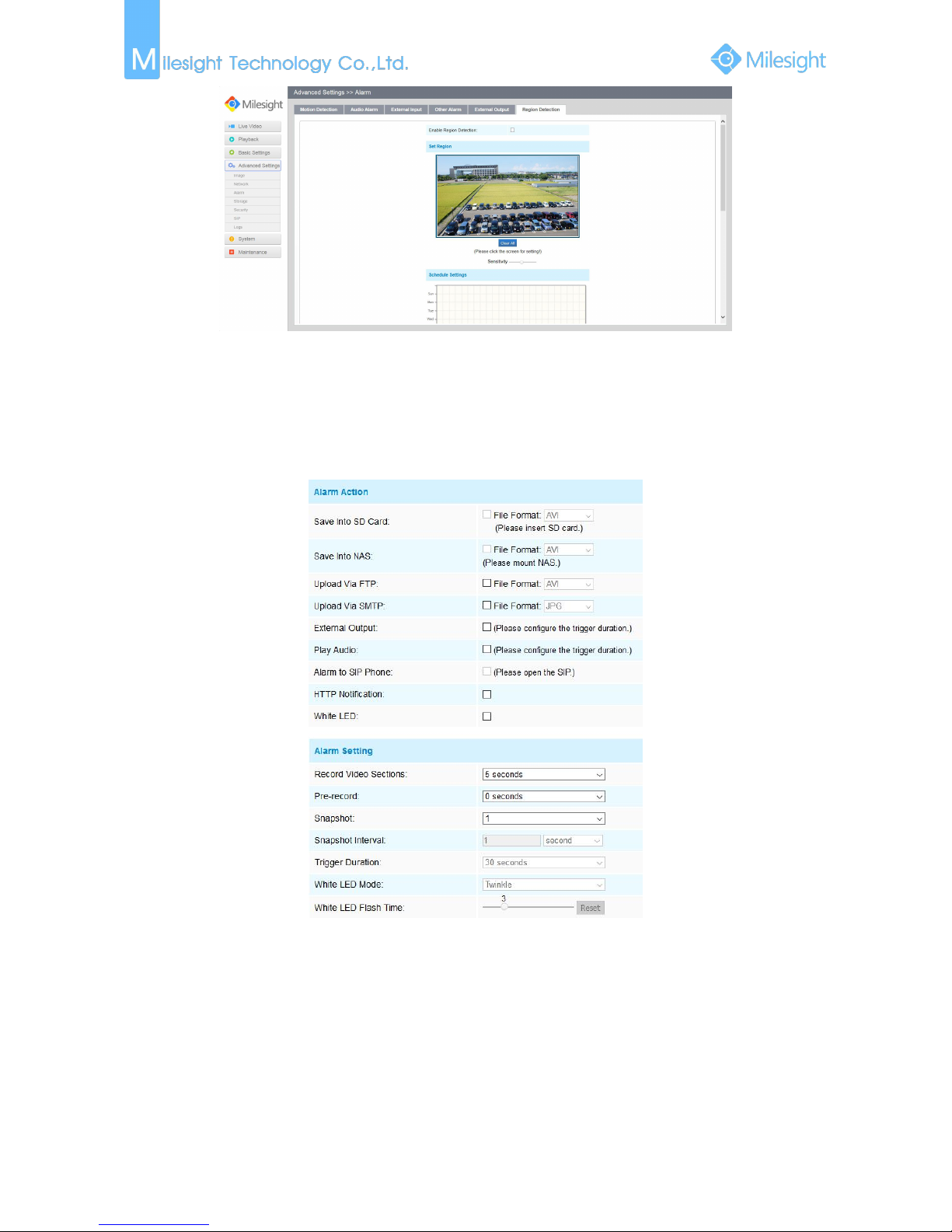

Figure 4-4-16 Region Detection Settings

Step1: Set region and sensitivity;
Step2: Set region detection schedule;
Step3: Set alarm action;
Step4: Set alarm settings.

Figure 4-4-17 Alarm Settings

Please refer to table 4-4-8 and 4-4-9 to get the meaning of items.

4.4.4 Storage

Before you start:

To configure record settings, please make sure that you have the network storage device within the
network or the SD card inserted in your camera.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

51

You can check “Enable Recycle storage”, then it will delete the files when the free disk space reach
a certain value. Choose the storage mode according to your needs.

SD Card

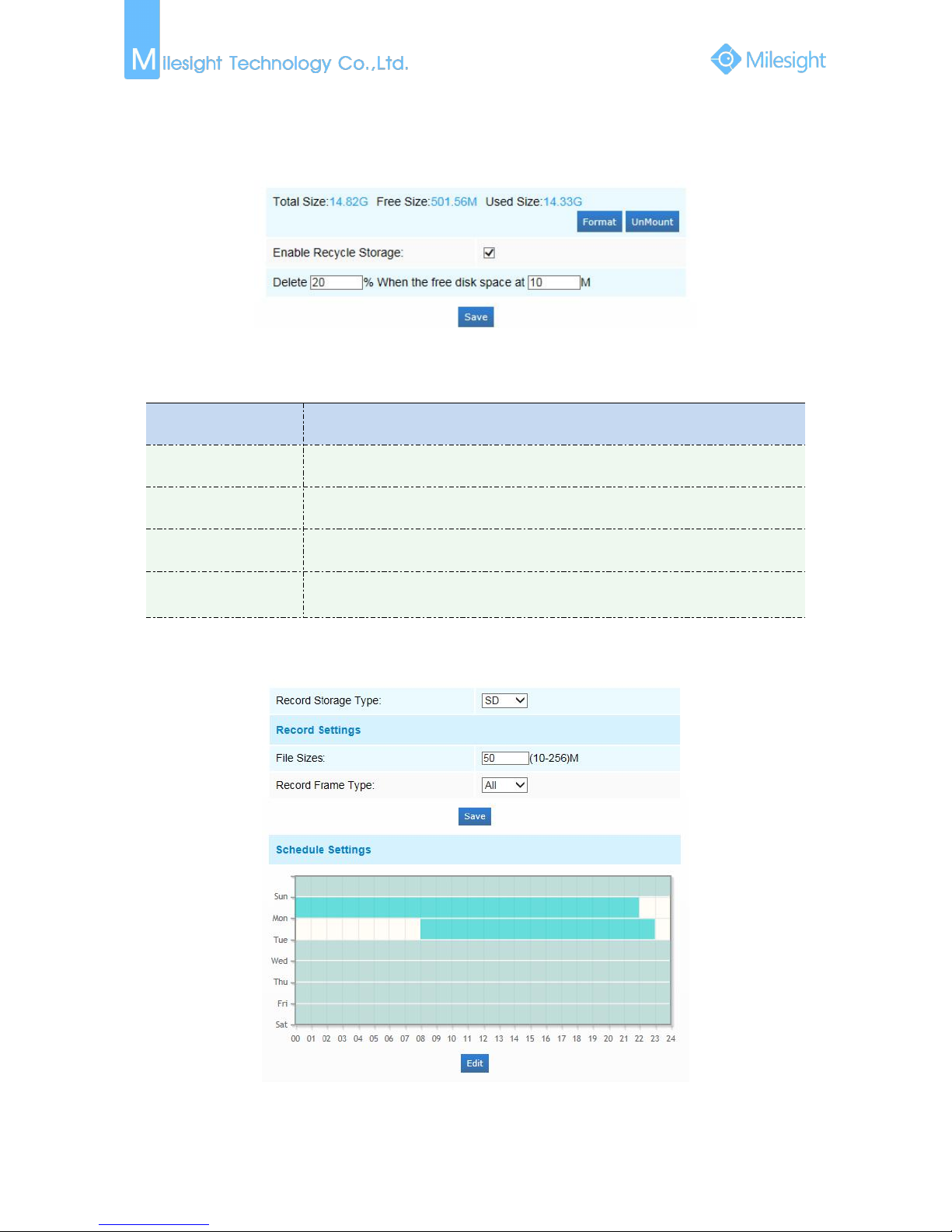

Figure 4-4-18 SD Card

Table 4-4-11 Description of the buttons

Parameters

Function Introduction

Format

Format SD card, and the files in SD card will be removed.

Mount/UnMount

Mount/Dismount SD card

Enable cyclic storage

Enable/Disable cyclic storage

Delete

Enable cyclic storage. When the free disk space reach at a certain time, it will

automatically delete the files at certain percentage according to your settings.

Record Schedule

Figure 4-4-19 Record Schedule

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

52

Table 4-4-12 Description of the buttons

Parameters

Function Introduction

Record Storage Type

SD or NAS are available.

Record Settings

File Sizes: Set record file size, (10-256)M

Record Frame Type: All/Key

(All: Record all the frame

Key: Only record I-frame)

Schedule Settings

Click the Edit button to edit record schedule.

NAS

The network disk should be available within the network and properly configured to store the
recorded files, etc.
NAS (Network-Attached Storage), connecting the storage devices to the existing network, provides
data and files services.

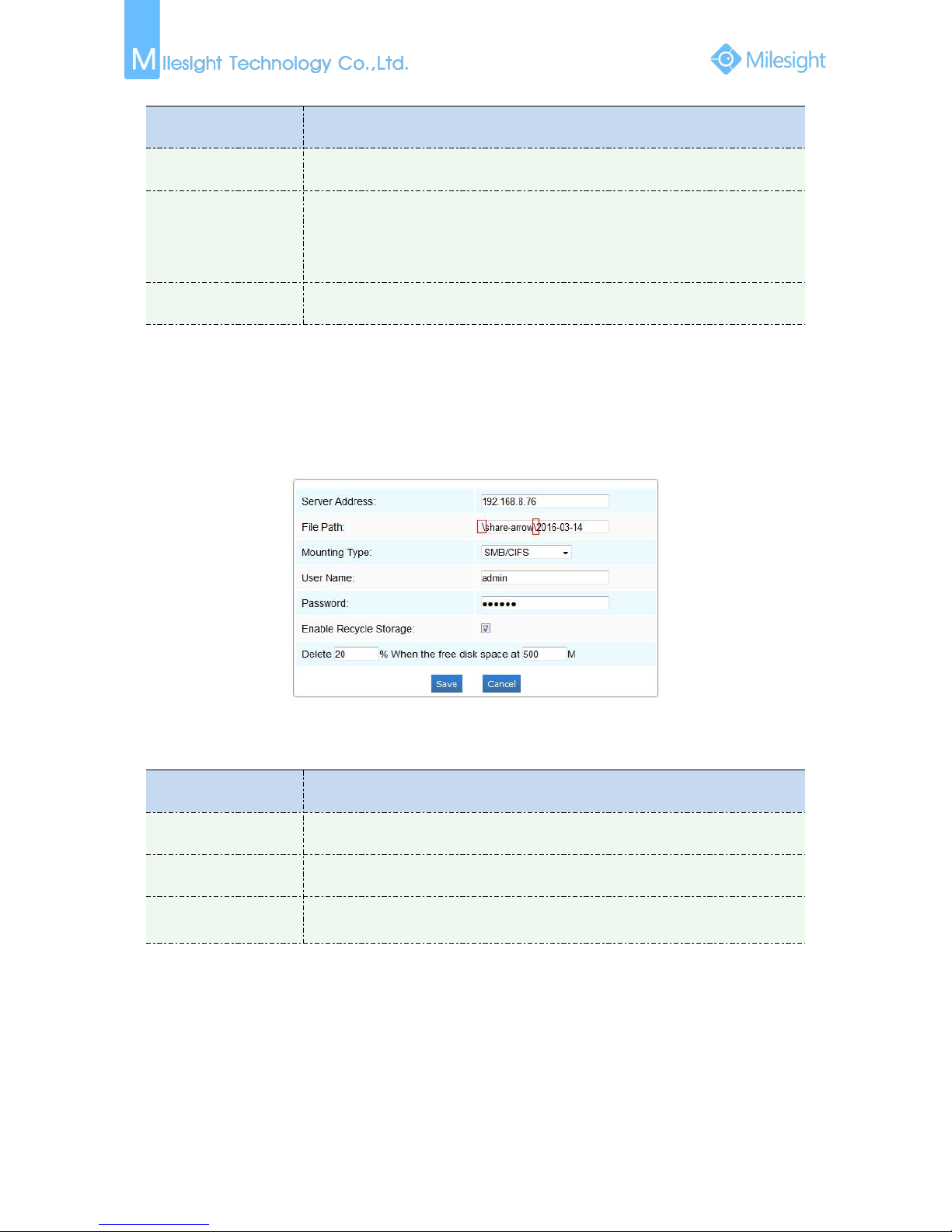

Figure 4-4-20 NAS Settings

Table 4-4-13 Description of the buttons

Parameters

Function Introduction

Server Address

IP address of NAS server

File Path

Input the NAS file path, e.g. “\path”.

Mounting Type

NFS and SMB/CIFS are available. And you can set the user name and password to

guarantee the security if SMB/CIFS is selected.

Note:

Up to 5 NAS disks can be connected to the camera.

SD Card Explorer

Files will be viewed on this page when they are configured to save into SD card. You can configure
time schedules of video recording everyday and save video files to your target location.

Note:

Files are visible once SD card is inserted. Don’t insert or plug out SD card when power on.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

53

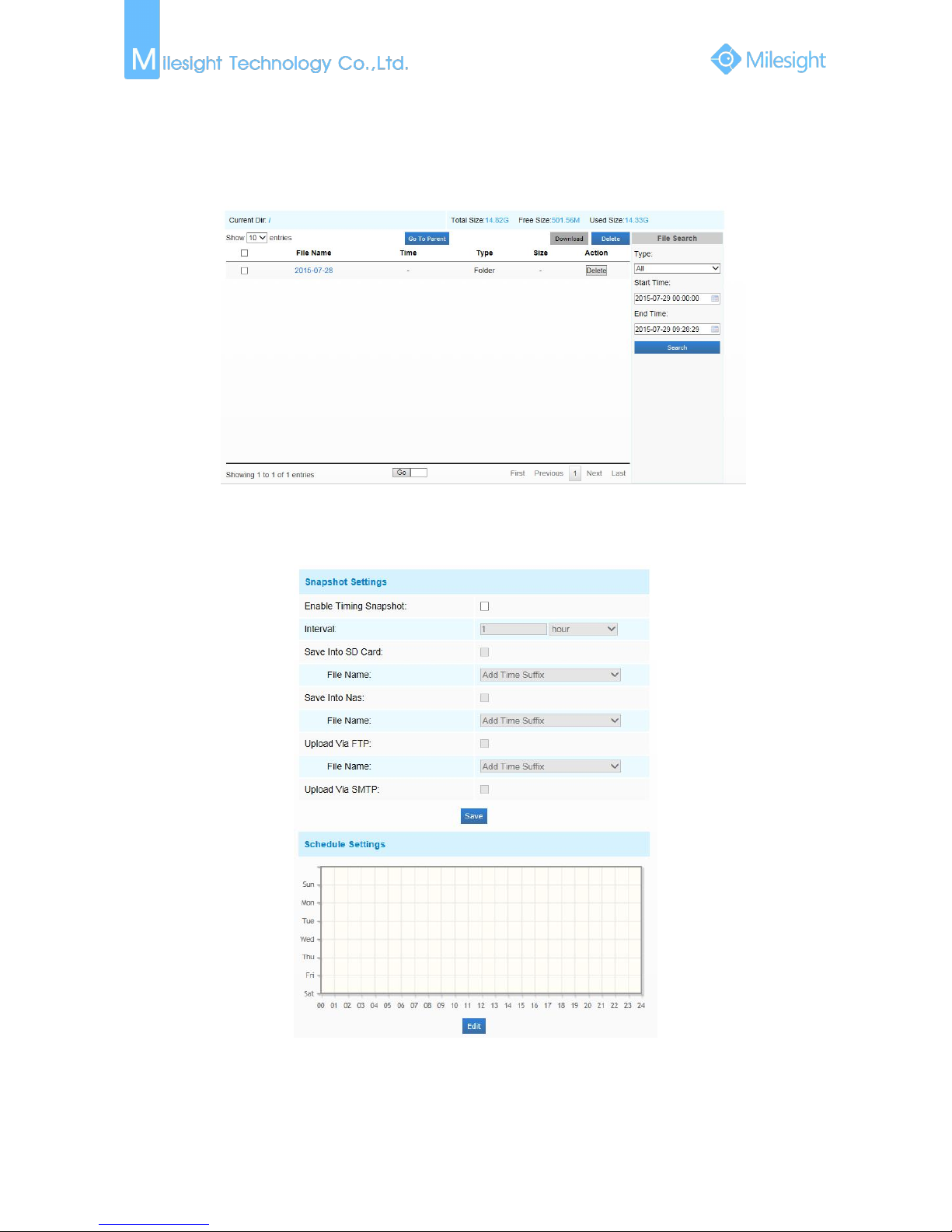

SD card video files are arranged by date. Each day files will be displayed under the corresponding
date, from which you can copy and delete files etc. You can visit the files in SD card by ftp, for
example, ftp://username:[email protected](User name and password are the same as the
camera account and the IP followed is the IP of your device.).

Figure 4-4-21 SD Card Explore

Snapshot

Figure 4-4-22 Snapshot

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

54

Table 4-4-14 Description of the buttons

Parameters

Function Introduction

Snapshot Settings

Enable Time Snapshot: Check the checkbox to enable the Timing Snapshot

function;

Interval: Set the snapshots interval, input the number and choose the

unit(millisecond, second, minute, hour, day);

Save Into SD Card: Save the snapshots into SD card, and choose the file name to

add time suffix or overwrite the base file name;

Save Into NAS: Save the snapshots into NAS, and choose the file name to add

time suffix or overwrite the base file name;

Upload Via FTP: Upload the snapshots via FTP, and choose the file name to add

time suffix or overwrite the base file name;

Upload Via SMTP: Upload the snapshots via SMTP.

Please note:

There will be every snapshot picture if you choose to add time suffix. And if you

choose to overwrite the base file name, only the latest picture can be saved to

replace the previous pictures. When you choose to add overwrite the base file

name to SD, it will create a file named “Snapshot” to place the snapshot while

the NAS and FTP wont.

Schedule Settings

Click the Edit button to edit record schedule.

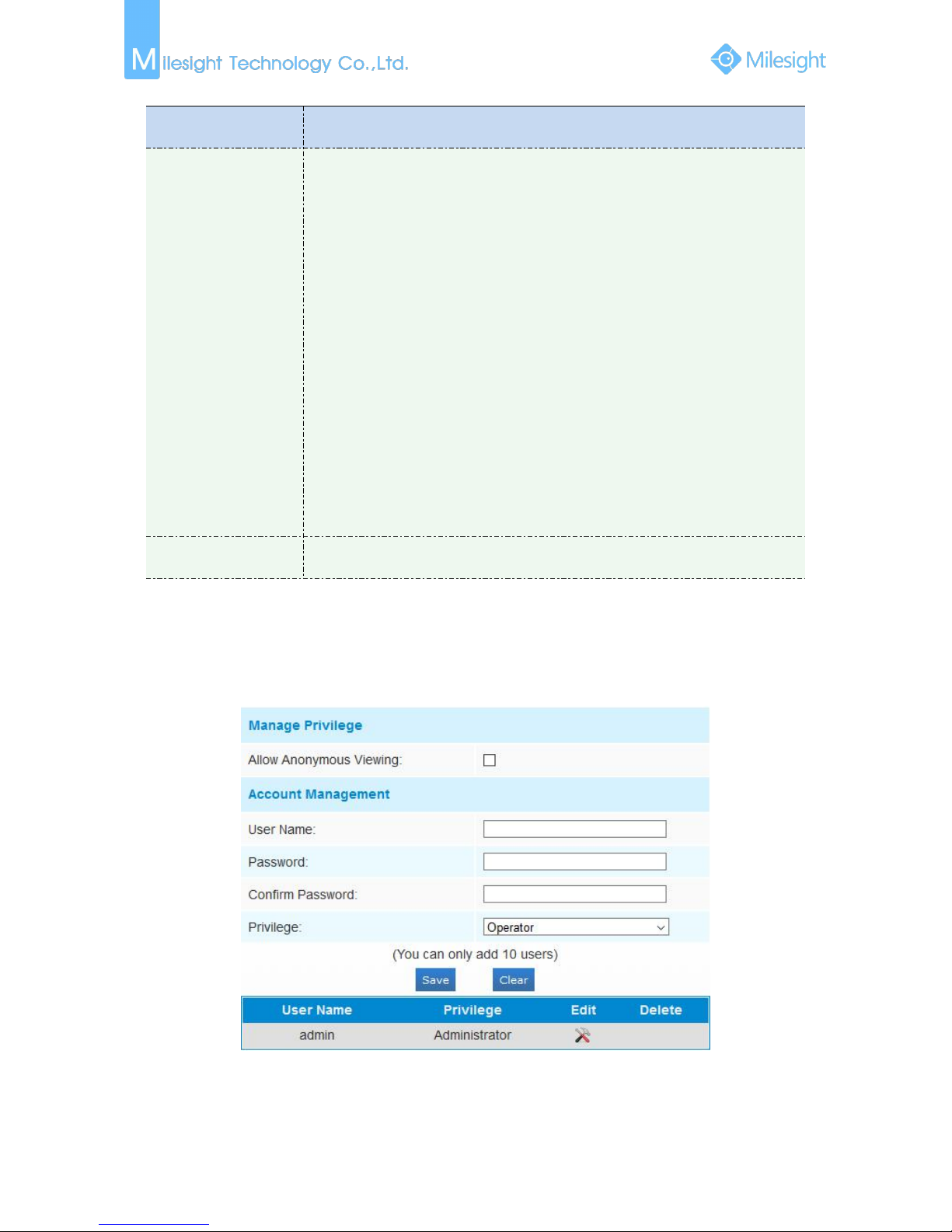

4.4.5 Security

User

Figure 4-4-23 User Settings

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

55

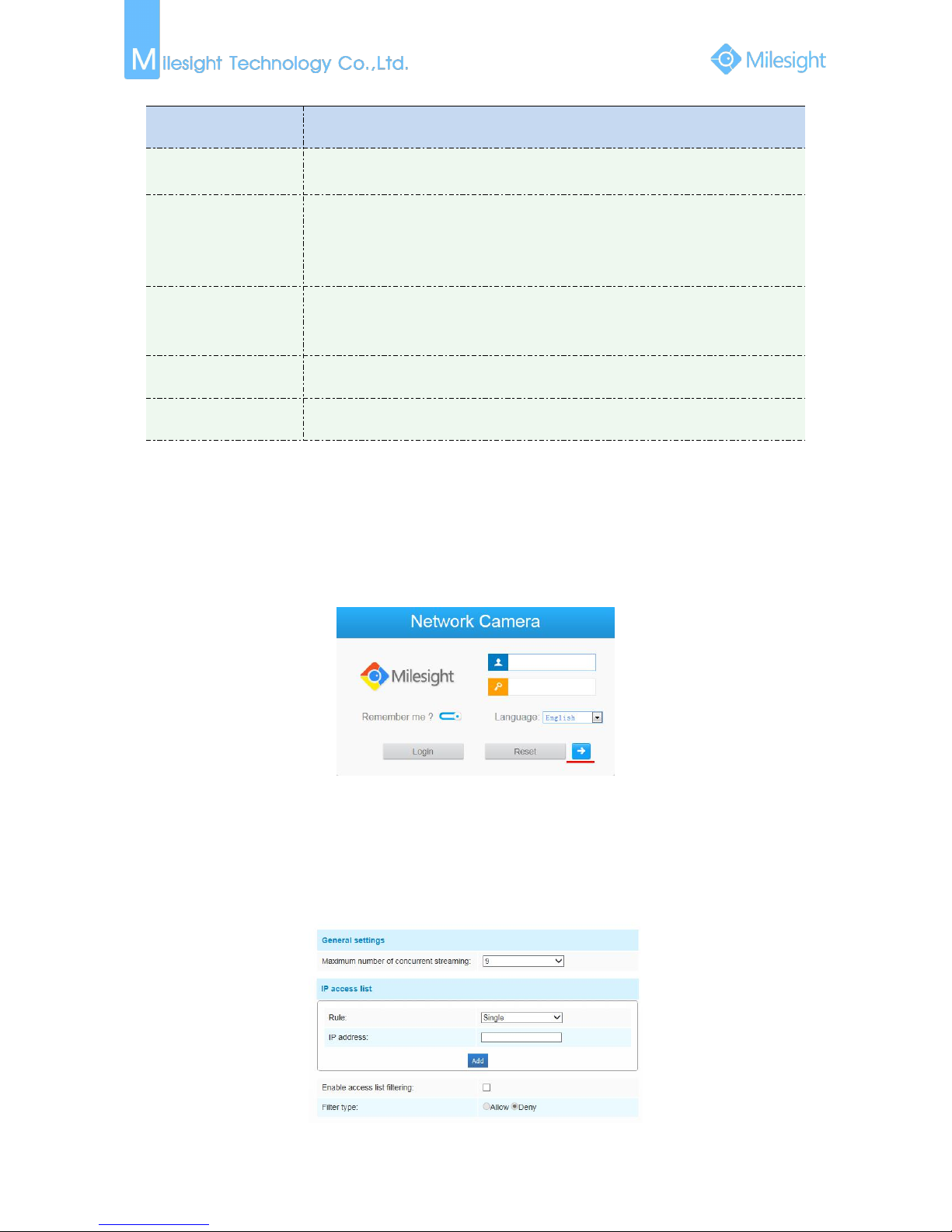

Table 4-4-15 Description of the buttons

Parameters

Function Introduction

Manage Privilege

Allow anonymous viewing: Check the checkbox to enable visit from whom

doesn’t have account of the device.

Account Management

User Name: Input user name for creating an account;

User Password: Input password for the account;

Confirm User Password: Confirm the password;

Privilege: Set the privilege for the account.

Administrator

An administrator can manage all configuration pages of the device, including the

change of user password, and the addition or deletion of users (the default user

“admin” cannot be deleted).

Operator

An operator can manage all configuration pages except the User page.

Viewer

A viewer can`t change any settings.

Note:

For versions after 54, the Operator and Viewer users are closed by default. But you still can add on
the User page.

Anonymous Visit

Set the Anonymous visit permission Enable or Disable in the drop-down list to enable or disable
the anonymous visit. There will be a checkbox of Anonymous next time you logging in.

Figure 4-4-24 Log in interface

Click Anonymity and log in.

Note:

Only Live View is available for the anonymous user.

Access List

Figure 4-4-25 Access List

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

56

Table 4-4-16 Description of the buttons

Parameters

Function Introduction

General Settings

Maximum number of concurrent streaming: Select the maximum number of

concurrent streaming. Options include Number Limit, 1~9.

IP access list

Rule: Single, Network and Range are available;

IP address: Input the address to get the access to the device.

Enable access list

filtering

Able to access or restrict access for some IP address.00

Filter type

Access or restrict access

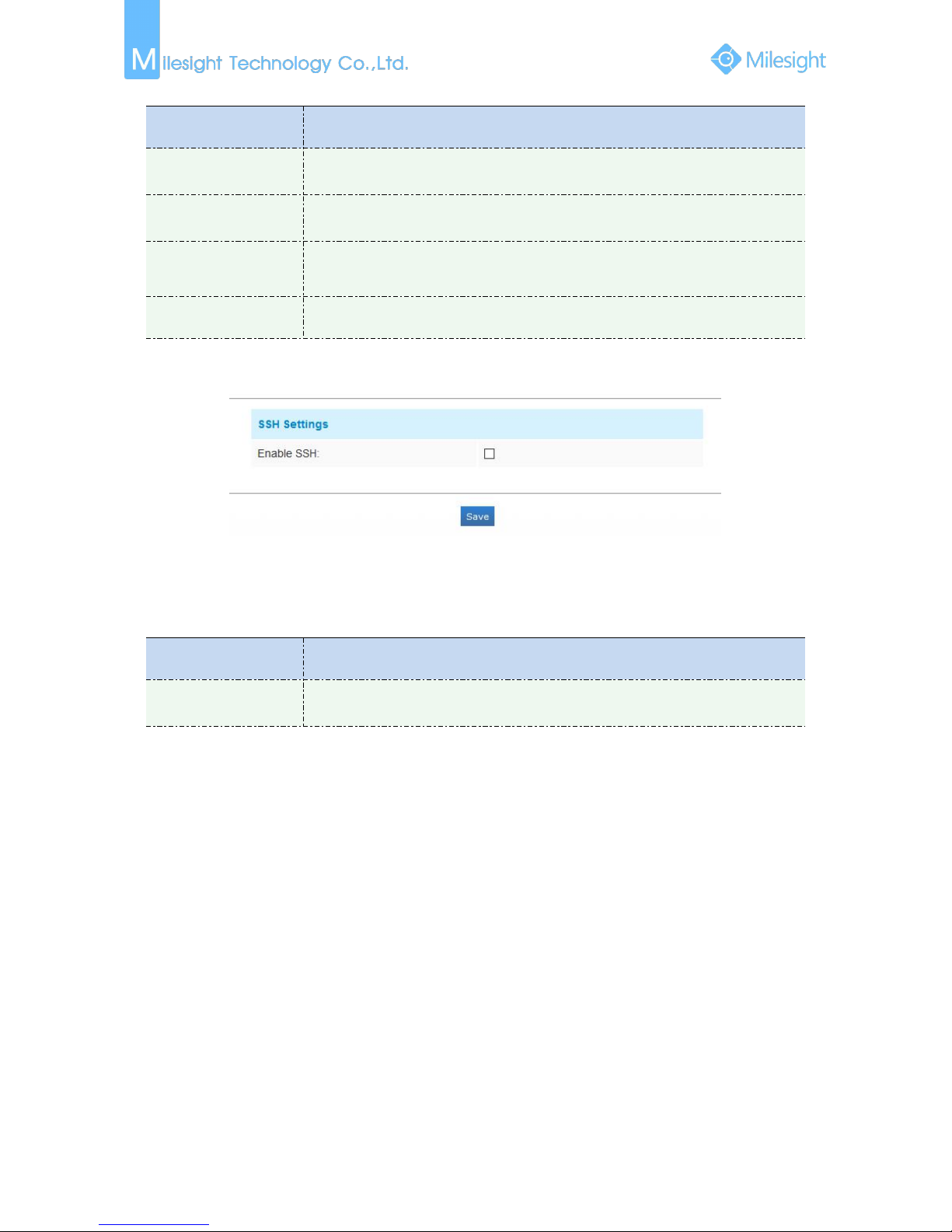

Security Service

Figure 4-4-26 Security Service

Table 4-4-17 Description of the buttons

Parameters

Function Introduction

SSH Settings

Secure Shell (SSH) has many functions: it can replace Telnet and also provides a

secure channel for FTP, POP, even for PPP.

4.4.6 SIP

The Session Initiation Protocol(SIP) is a signaling communications protocol, widely used for
controlling multimedia communication sessions such as voice and video calls over Internet
Protocol(IP) networks. This page allows user to configure SIP related parameters. Milesight
cameras can be configured as SIP endpoint to call out when alarm triggered; or allow permitted
number to call in to check the video if the video IP phone is used. To use this function, the settings
in SIP page must be configured properly. SIP can be achieved in two ways to get the video, one is to
dial the IP address directly, the other is account registration mode. the details are as follows:
Method 1: IP Direct mode
Dial on the camera’s IP address directly through SIP phone, so you can see the video.

Note:
SIP phone and the camera should in the same network segment.

Method2: Account registration mode

1) Before using the SIP, you need to register an account for the camera from the SIP server;

2) Register another user account for the SIP device from the same SIP server;

3) Call the camera User ID from the SIP device, you will get the video on the SIP device.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

57

SIP Settings

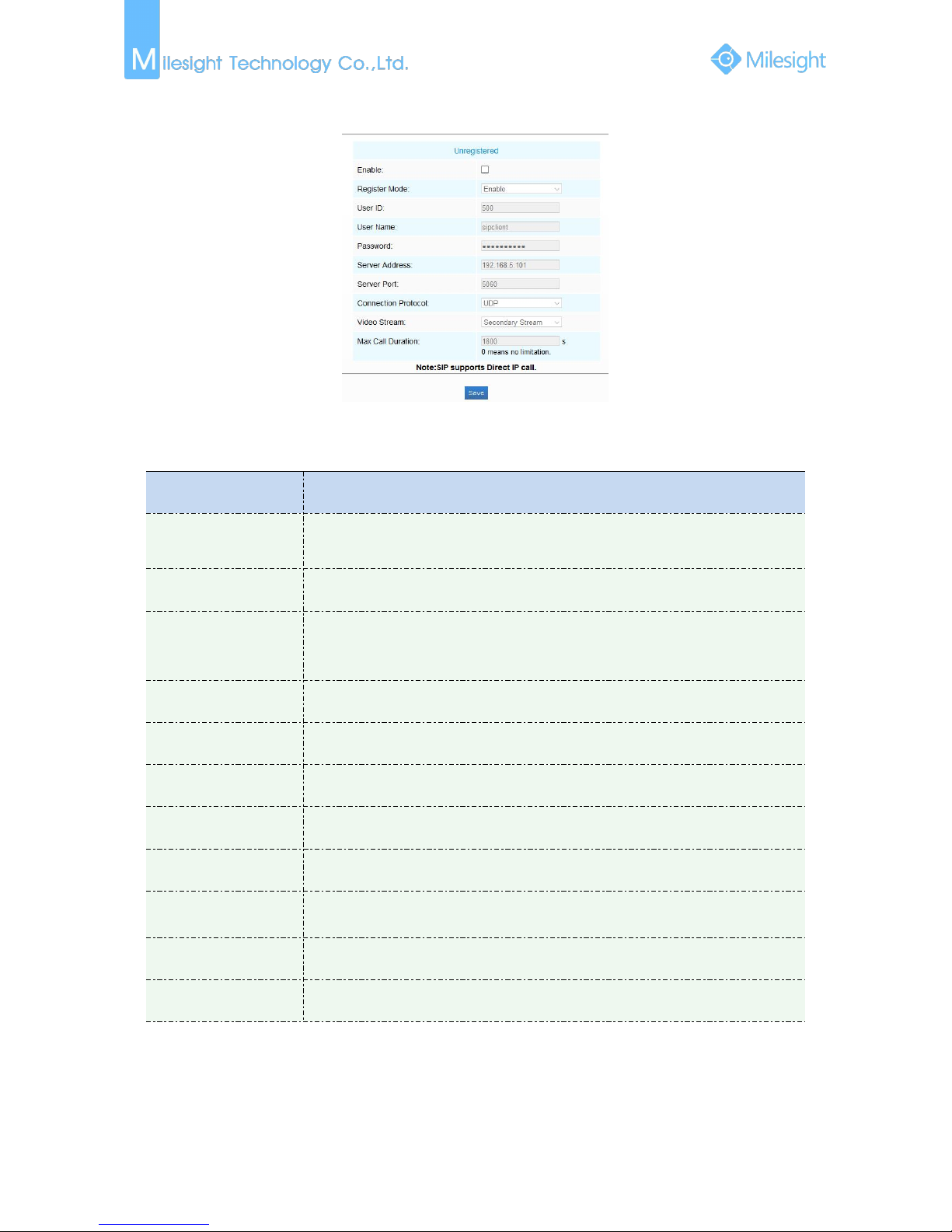

Figure 4-4-27 SIP Settings

Table 4-4-17 Description of the buttons

Parameters

Function Introduction

Unregistered/

Registered

SIP registration status. Display “Unregistered” or “Registered”

Enable

Start or stop using SIP

Register Mode

Choose to use Enable mode or Disable mode. Enable mode means to use SIP with

register account. Disable mode refers to use SIP without register account, just use

the IP address to call.

User ID

SIP ID

User Name

SIP account name

Password

SIP account password

Server Address

Sever IP address

Server Port

Sever port

Connection

Protocol

UDP/TCP

Video Stream

Choose the video stream

Max Call Duration

The max call duration when use SIP

Note:

1) SIP supports Directly IP call;

2) SIP only supports second stream with H.265/H.264 Video Compression.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

58

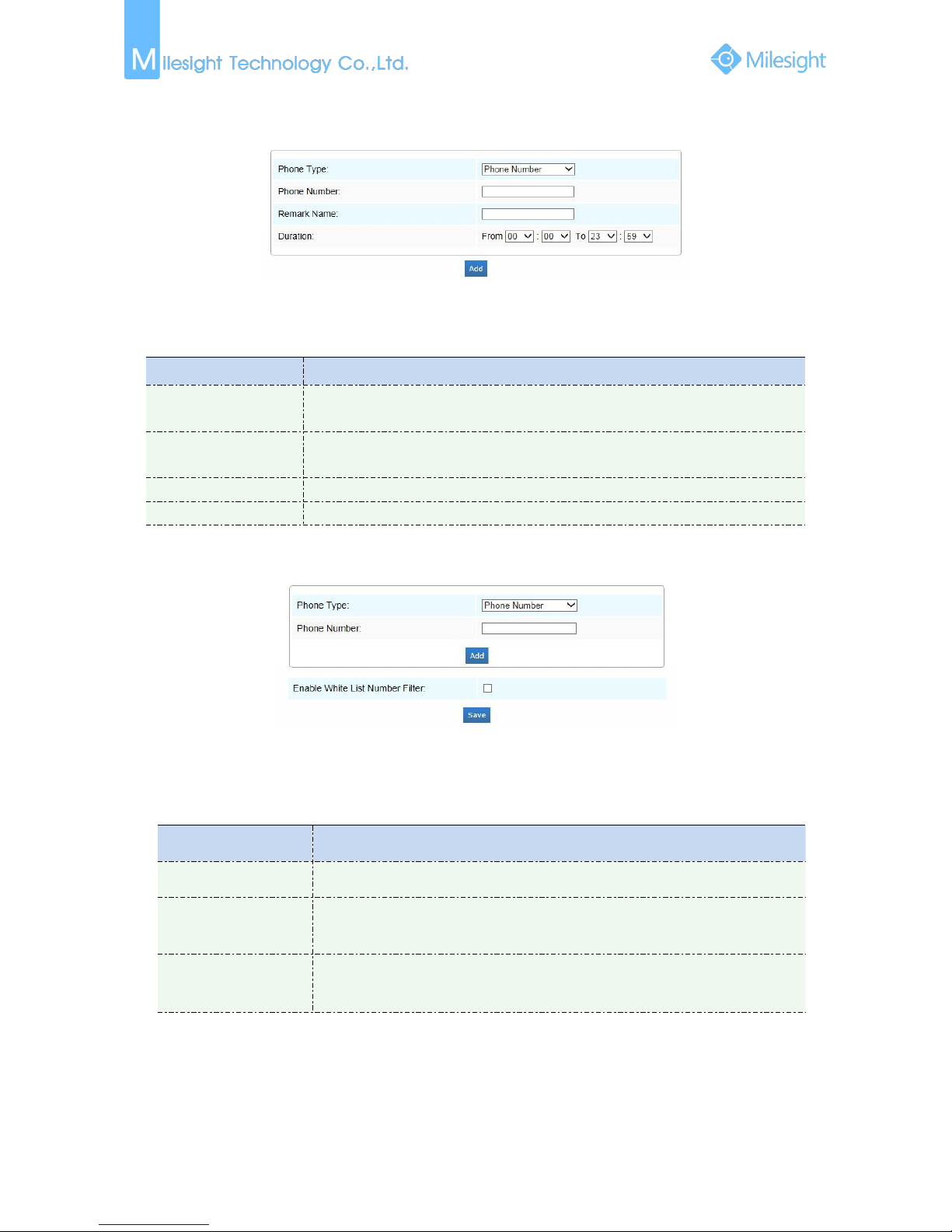

Alarm Phone List

Figure 4-4-28 Alarm Phone List

Table 4-4-18 Description of the buttons

Parameters

Function Introduction

Phone Type

Phone Number(Call by phone number) & Direct IP Call(Check to accept peer to

peer IP call).

Phone Number/

IP Address

Call by phone number or IP address.

Remark Name

Display name.

Duration

The time schedule to use SIP.

White List

Figure 4-4-29 White List

Table 4-4-19 Description of the buttons

4.4.7 PTZ

PTZ Settings provides you to configure the functions and parameters about Pan/Tilt/Zoom.
PTZ parameters are mainly include the Basic parameters, Auto Home, Config Clear, PTZ Limit and

Parameters

Function Introduction

Phone Type

Phone Number(Call by phone number) & Direct IP Call

Phone Number/

IP Address

Including the phone number or IP address on the white list

Enable White List

Number Filter

When enabled, it can only visited by the designated phone number or IP

address.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

59

Scheduled Tasks.

Basic

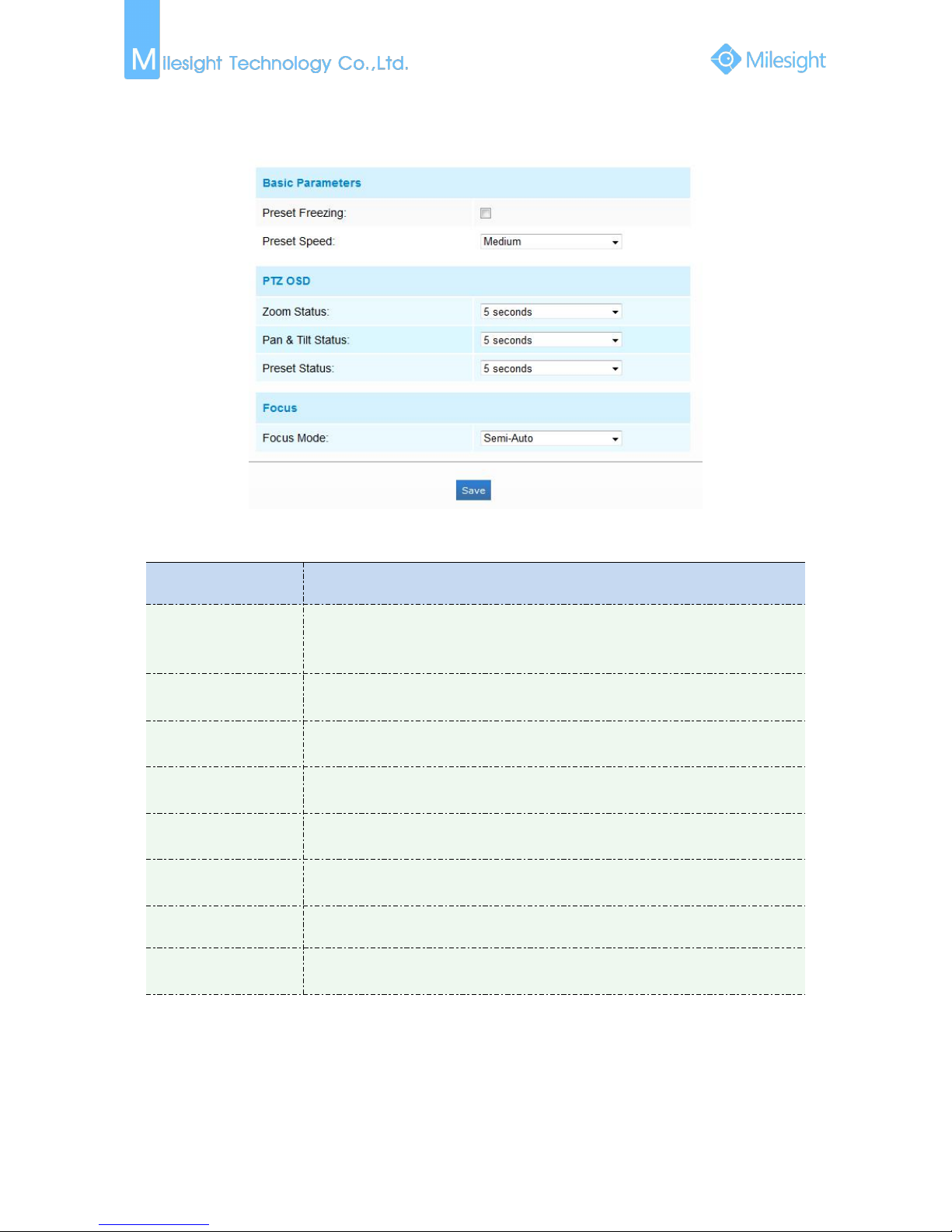

Figure 4-4-30 Basic Settings of PTZ

Table 4-4-20 Description of the buttons

Parameters

Function Introduction

Preset Freezing

Before showing the preset Live View, it will not show the moving path if you

enable Preset Freezing. It can also reduce the use of bandwidth in a digital

network system

Preset Speed

(Mini PTZ Bullet)

It will decide the speed of calling presets. Low/ Medium/ High are available.

Manual Speed

(Speed Dome)

It will decide the PTZ speed of Manually control. Low/ Medium/ High are

available.

Zoom Status

Configure the OSD parameter, and you can set the Zoom status OSD with Close/

Always open/ 2s/ 5s/ 10s.

Pan&Tilt Status

Configure the OSD parameters, and you can set the Pan&Tilt status OSD with

Close/ Always open/ 2s/ 5s/ 10s.

Preset Status

Configure the OSD parameters, and you can set the Preset status OSD with Close/

Always open/ 2s/ 5s/ 10s.

Focus Mode

Three focus modes are available: Auto/ Semi-Auto/ Manual.

Minimum focus

Distance

Set the minimum focus distance to adjust the step length of each focus.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

60

Auto Home

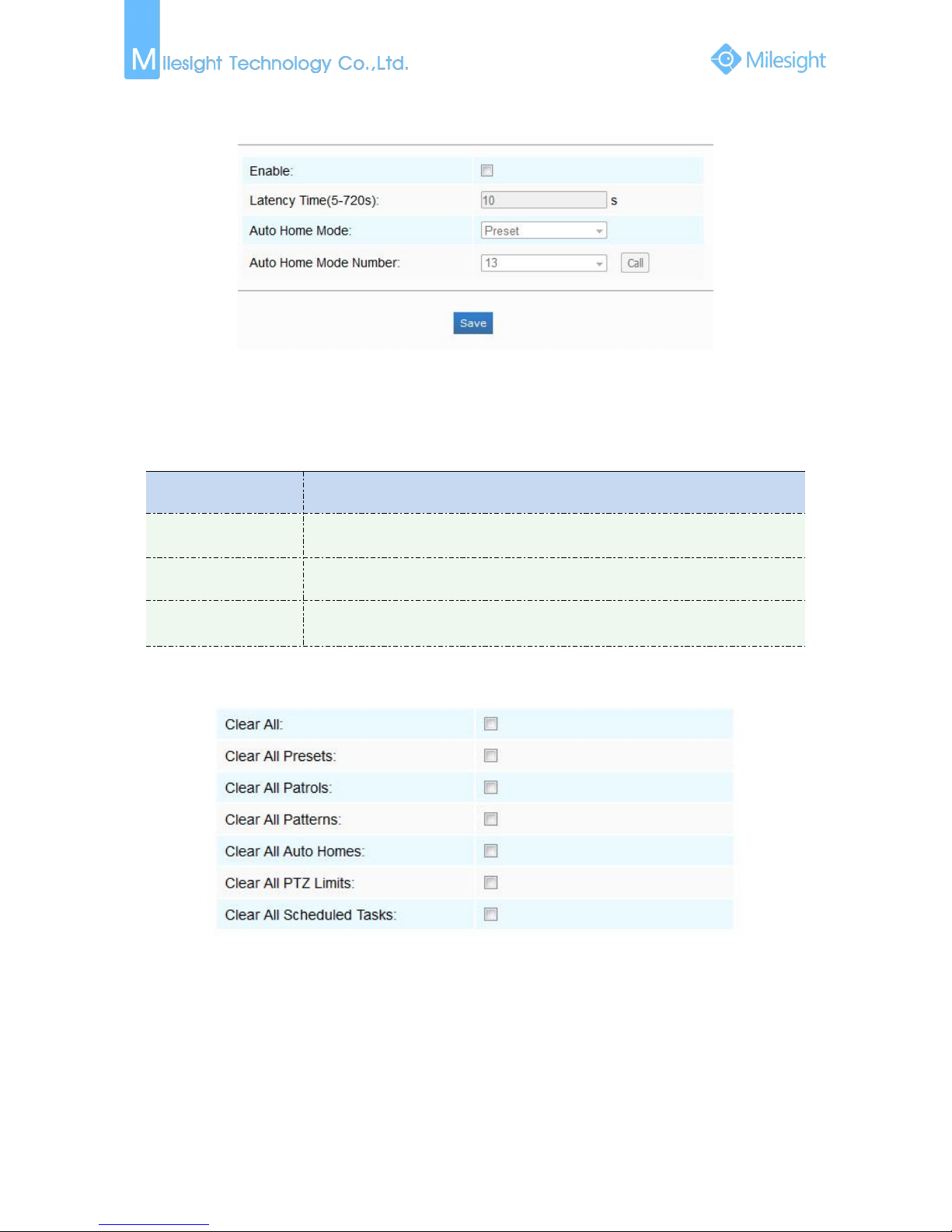

Figure 4-4-31 Auto Home

Auto Home allows the PTZ camera to return to a predefined Home Position automatically after a
period of latency time. Check the checkbox to enable the Auto Home mode.

Table 4-4-21 Description of the buttons

Parameters

Function Introduction

Latency Time

Set a latency time to trigger Auto Home mode, 5-720s.

Auto Home Mode

Preset: A preset point will take effect when triggering the Auto Home.

Auto Home Mode

Number

Select a predefined preset in the list, press “Call” to check the location.

Config Clear

Figure 4-4-32 Config Clear

Here you can clear PTZ configurations, including all PTZ configurations, presets, patrols, patterns,
Auto Homes, PTZ Limits and Scheduled Tasks.

PTZ Limit

The PTZ camera can be programmed to move with in the configurable PTZ Limits(Left/Right).

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

61

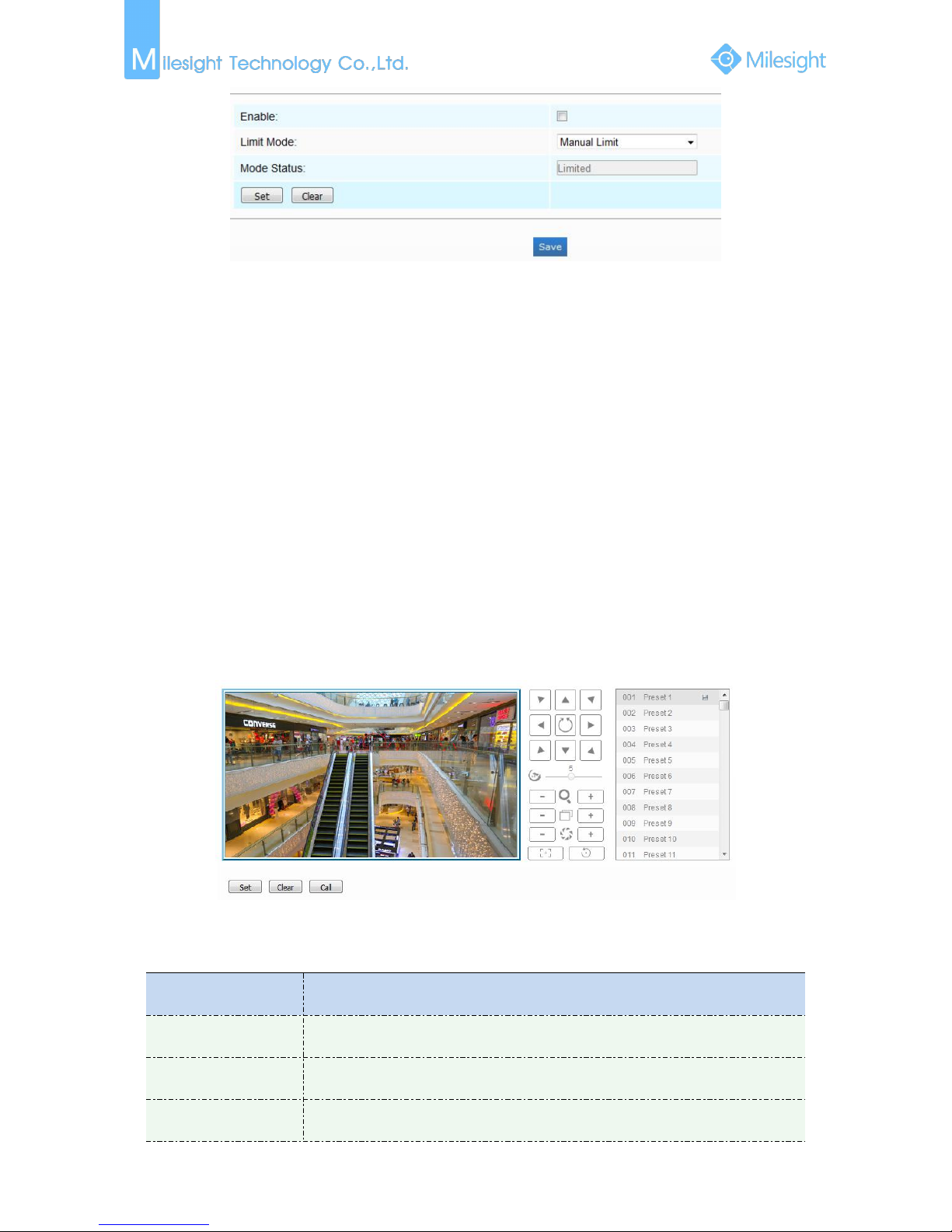

Figure 4-4-33 PTZ Limit

Step1: Check the checkbox to enable the PTZ Limit function.
Step2: Choose the limit mode as Manual limit or scanning limit.



Manual limit:

When Manual limit stops are set, you can operate the PTZ control panel manually only in
the limited surveillance area.



Scan limit:

When scan limit stops are set, the auto scan is performed only in the limited surveillance
area.

Step3: Click the PTZ controller buttons to set the left/right limit stops; you can also call the

defined presets and set them as the limits of the PTZ camera.

Step4: Click Set to save the limits or Clear to clear the limits.

Initial Position

You can configure the Initial Position for Mini PTZ Bullet as a zero point.
Step1: Click the PTZ control buttons as the Initial Position of the Mini PTZ bullet,you can also call a

defined preset and set it as the Initial Position.
Step2: Click Set to save the position as the Initial Position.

Figure 4-4-34 Initial Position interface

Table 4-4-22 Description of the buttons

Parameters

Function Introduction

Set

Click to set the current position as a Initial Position

Clear

Clear the Initial Position to default settings.

Call

Click to call the Initial Position.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

62

Scheduled Tasks

You can configure the PTZ camera to perform a certain action automatically in a user-defined time
period.
Step1: Enter the Scheduled Task Settings interface:

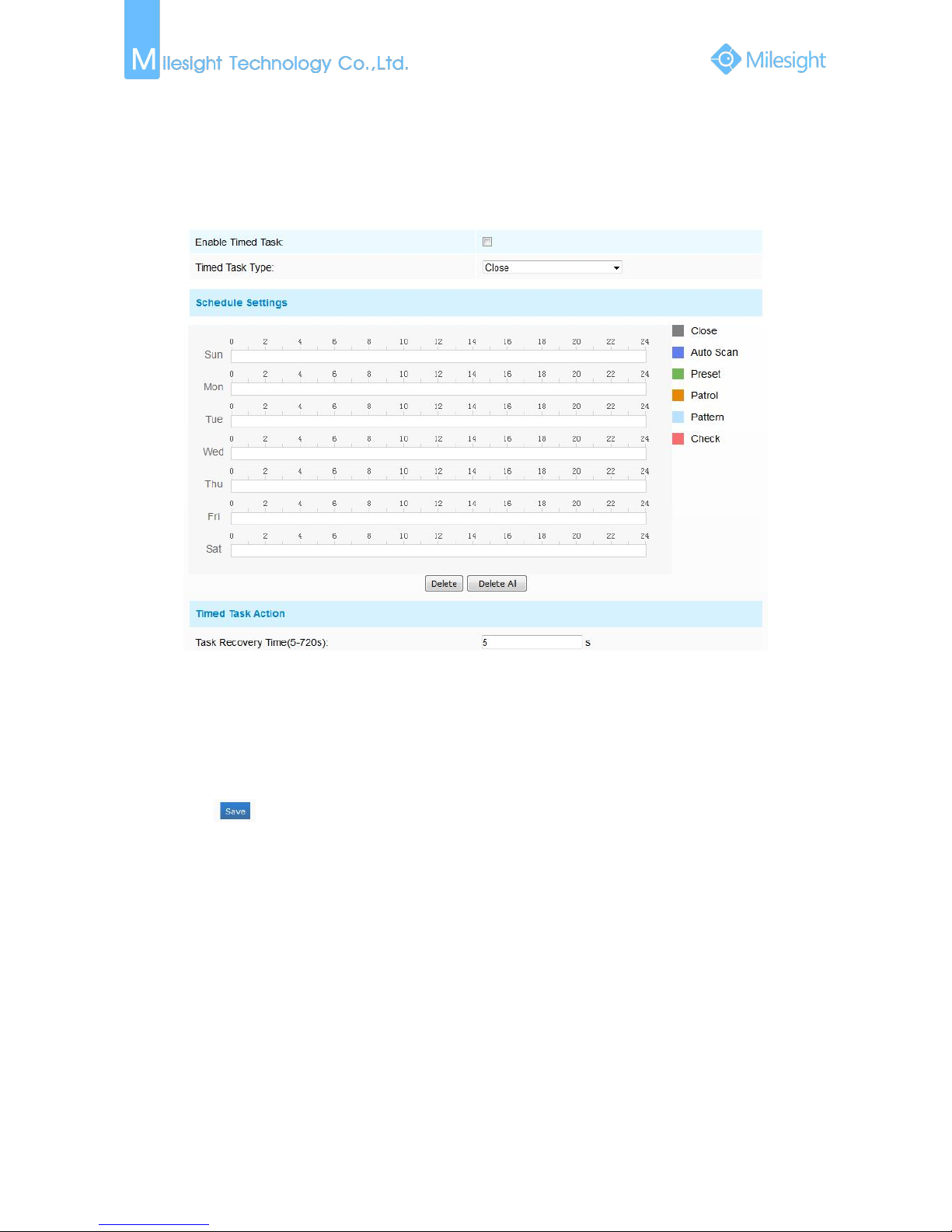

Figure 4-4-35 Scheduled Task interface

Step2: Check the checkbox of Enable Scheduled Task.
Step3: Set the schedule and task details.
Step4: Set the Task Recovery Time(from 5 to 720 seconds). You can set the time(a period of

inactivity) before the PTZ camera starts the schedule and task details.

Step5: Click button to save all the configurations.

Note:

1) The time of each task cannot be overlapped. Up to 10 tasks can be configured for each day.

2) The Scheduled Tasks function is prior to Auto Home function. When these two functions are
set at the same time, only the Scheduled Tasks function takes effect.

4.4.8 Logs

The logs contain the information about the time and IP that has accessed the camera through web.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

63

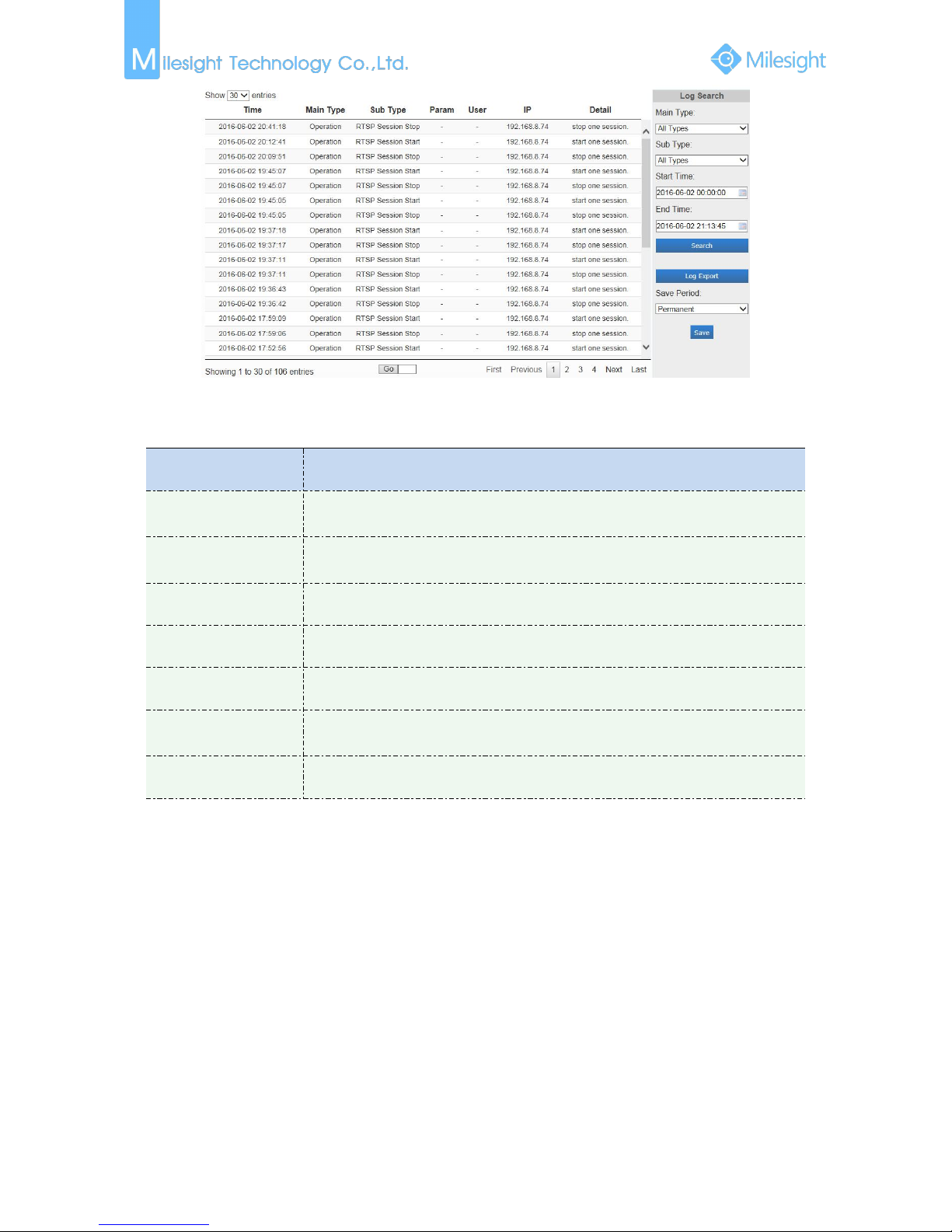

Figure 4-4-36 Logs

Table 4-4-23 Description of the buttons

Parameters

Function Introduction

Main Type

There are five main log types: All Type, Event, Operation, Information,

Exception.

Sub Type

On the premise that main type has been selected, select the sub type to narrow

the range of logs.

Start Time

The time log starts

End Time

The time log ends

Log Export

Export the logs

Save Period

Set the period of log saving. There are eight options to choose: Permanent and

30/60/120/180/240/300/360 Days.

Go

Input the number of logs’ page.

4.5 System

All information about the hardware and software of the camera can be checked on this page.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

64

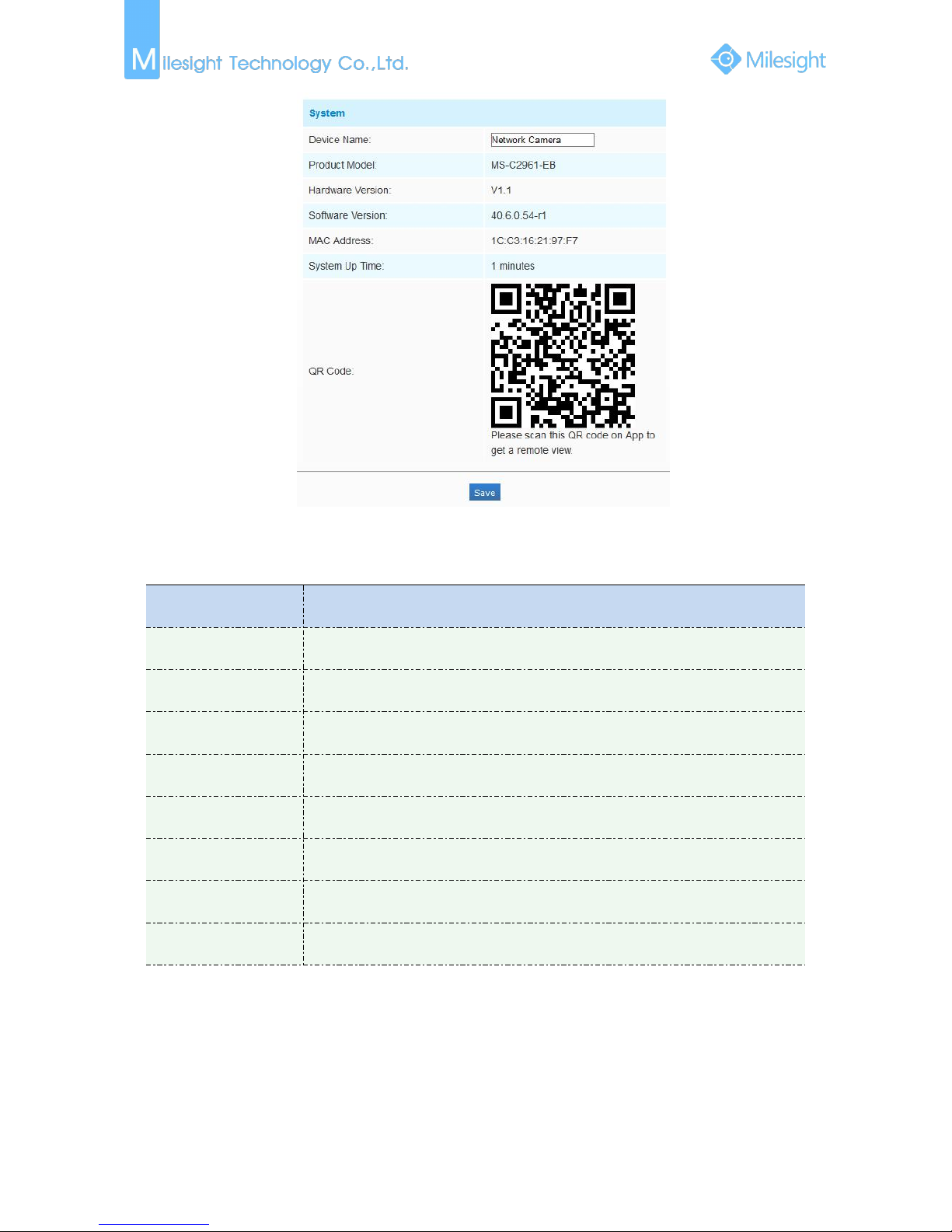

Figure 4-5-1 System Information

Table 4-5-1 Description of the parameters

Parameters

Function Introduction

Device Name

The device name can be customized. It will be seen in file names of video files.

Product Model

The product model of the camera

Hardware Version

The hardware version of the camera

Software Version

The software version of the camera can be upgraded

Kernel Version

The kernel version

MAC Address

Media Access Control address

System Up Time

The elapsed time since the last restarted of the device

QR Code

Directly add the device on Milesight APP by scanning it.

Note：

1) The QR code will appear after the P2P of IP camera is activated.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

65

4.6 Maintenance

The software can be upgraded by the following steps:
Step1: Browse and select the upgrading file;
Step2: Click the “upgrade” button after it prompts upload file successfully. After the system

reboots successfully, the update is done.

Note:

1) Do not disconnect the power of the device during the update. The device will be restarted to

complete the upgrading.

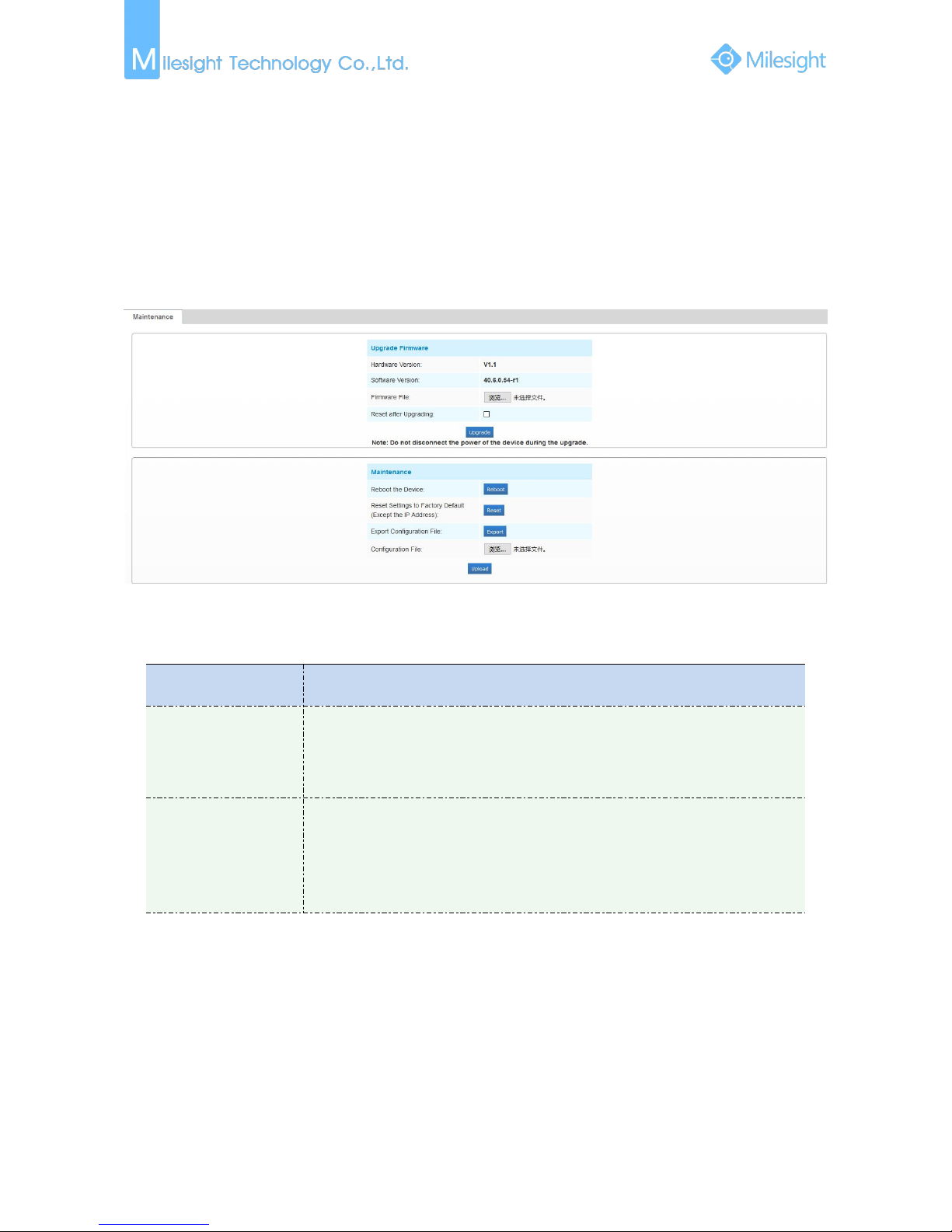

Figure 4-5-2 Maintenance

Table 4-5-2 Description of the buttons

Parameters

Function Introduction

Upgrade Firmware

Hardware Version: The hardware version of the camera;

Software Version: The software version of the camera;

Kernel Version: The kernel version;

Firmware File: Select the firmware used to upgrade.

Maintenance

Reboot the device: Click “Reboot” button to restart the device immediately;

Reset settings, except IP address to Factory Default: Click “Reset” button to reset

the camera to factory default settings;

Export configuration file: Click this button to export the configuration file;

Configuration file: Click this button to import the old configuration file.

File Format：MS-QR-JS-04 Rev1.0 Durability Date：1Year

66

Chapter V Services

Milesight Technology Co., Ltd provides customers with timely and comprehensive technical
support services. End-users can contact your local dealer to obtain technical support. Distributors
and resellers can contact directly with Milesight for technical support.

Technical Support Mailbox: [email protected]
Web: http://www.milesight.com
Online Problem Submission System: http://www.milesight.com/service/feedback.asp
Address: No.23 Wanghai Road,2nd Software Park, Xiamen, China
Zip Code: 361006
TEL: [phone]
FAX: [phone]

Milesight

More in Sight
