MilDef Crete RF9 Users Manual

NOTEBOOK COMPUTER

RF9

Preliminary

User’s Guide

Notice

The company reserves the right to revise this publication or to change its
contents without any notice. Information contained herein is for reference
only and does not constitute a commitment on the part of the
manufacturer or any subsequent vendor. They assume no responsibility
or liability for any errors or inaccuracies that may appear in this
publication nor are they in anyway responsible for any loss or damage
resulting from the use (or misuse) of this publication.

Any of the software described in this manual is sold or licensed "as is".
Should the programs prove defective following purchase, the buyer (and
not the manufacturer, its distributor, or its dealer) assumes the entire
cost of all necessary servicing, repair and any incidental or
consequential damages resulting from any software defects.

Brand and product names mentioned in this publication may or may not
be copyrights and/or registered trademarks of their respective
companies. They are mentioned for identification purposes only and are
not intender as an endorsement of that product or its manufacturer.

Copyright © 2010 CReTE Systems Inc

Trademarks

All other brand and product names are trademarks or registered
trademarks of their respective companies.

I

Regulatory Information/ Disclaimers

Installation and use of this computer must be in strict accordance with
the instructions included in the user documentation provided with the
product. Any changes or modifications (including the antennas) made to
this device that are not expressly approved by the manufacturer may
void the user’s authority to operate the equipment.

The manufacturer is not responsible for any radio or television
interference caused by unauthorized modification of this device, or the
substitution of the connecting cables and equipment other than
manufacturer specified. It is the responsibility of the user to correct any
interference caused by such unauthorized modification, substitution or
attachment. Manufacturer and its authorized resellers or distributors will
assume no liability for any damage or violation of government
regulations arising from failing to comply with these guidelines.

II

FCC (Federal Communications Commission) Statement

This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation.

This equipment generates, uses, and radiates radio frequency energy. If
not being installed and used in accordance with the instructions, it may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:

z Re-orient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

z Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:

z This device may not cause harmful interference, and
z This device must accept any interference received, including

interference that may cause undesired operation.

FCC Caution

To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment. (Example - use
only shielded interface cables when connecting to computer or
peripheral devices).

III

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and
operated with a minimum distance of 20 centimeters between the
radiator and your body.

This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.

The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be
co-located or operating in conjunction with any other antenna or
transmitter.

III

CE

Products with the CE Marking comply with both the EMC Directive
(89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the
Commission of the European Community.

Compliance with these directives implies conformity to the following
European Norms:

EN55022 (CISPR 22) Radio Frequency Interference
EN55024 (EN61000-4-2, EN61000-4-3, EN61000-4-4,

EN61000-4-5, EN61000-4-6, EN61000-4-8,
EN61000-4-11, EN61000-3-2, EN61000-3-3)
Generic Immunity Standard

LVD EN 60950 Product Safety, IEC 60950-1: 2005

R&TTE (CE) Manual Regulatory Requirement

WLAN - IEEE 802.11a/b/g/n

802.11a/b/g/n Restrictions:
European standards dictate maximum radiated transmit power of
100mW EIRP and frequency range 2.400-2.4835 GHz. In France, the
equipment must be restricted to the 2.4465-2.4835 GHz frequency range
and must be restricted to indoor use.

III

CE Declaration of Conformity

It is confirmed to comply with the requirements set out in the Council
Directive on the approximation of the laws of the member states relating
to Electromagnetic Compatibility (89/336/EEC), Low-voltage Directive
(73/23/EEC), the Amendment Directive (93/68/EEC), and the
procedures given in European Council Directive (99/5/EC and
89/3360EEC).

The equipment was passed, and the equipment test was performed
according to the following European standards:

EN 300 328 V1.7.1:2006
EN 301 893 V1.4.1(2007-07)
EN 301 V1.8.1 2008-04 / EN 301 489-17 V1.3.2 2008-04
EN 50371:2002
EN 60950-1: 2005

UL, TÜV

AC Adapter (TÜV includes EN60950 LVD)

VI

Environmental Information, Material Safety & Recycling

All materials used in the manufacturing of this equipment are recyclable
or environmentally friendly.

Please recycle the packing materials by the local regulations at the end
of the product's service life.

Notice:

z The equipment may still contain tiny amount of hazardous

substances for health and environment, though those are below
control level.

z To avoid spreading such substances into the eco system, and to

minimize the pressure on the natural, you are encouraged to use the
appropriate take-back for reusing or recycling most of the materials
in a safe way after the service life.

z The crossed bin symbol indicates proper disposal is required.
z For more information on collection, reuse and recycling, please

consult the local or regional waste administration for more
information.

z You can also contact with the dealer for more information on the

environmental details of the equipment.

VII

CONTENTS

CHAPTER ONE- GETTING STARTED .........................................................................1

U

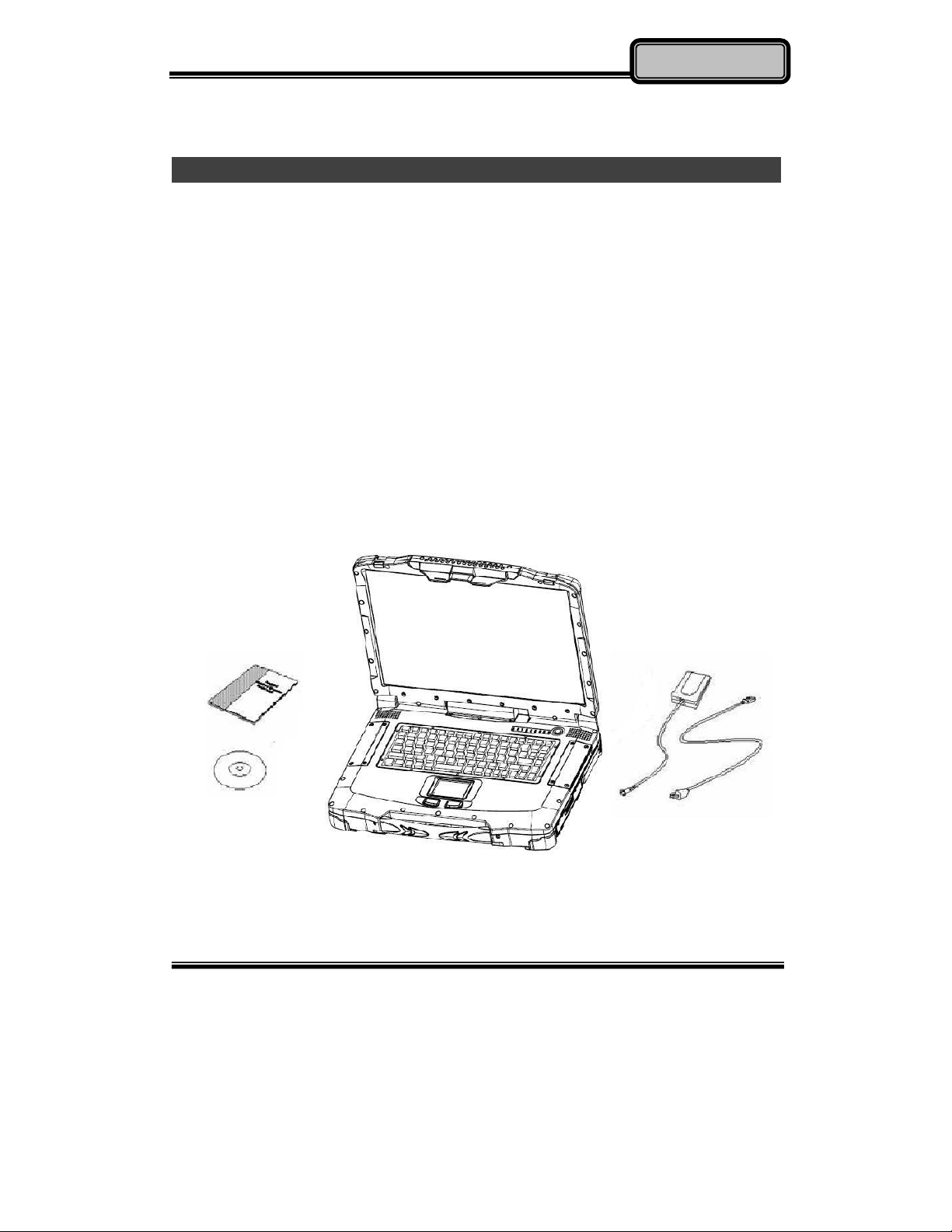

NPACKING...................................................................................................................1

Q

UICK OPERATION ........................................................................................................2

A

PPEARANCE OVERVIEW ...............................................................................................3

CHAPTER TWO- OPERATING INFORMATION...........................................................8

W

ORKPLACE .................................................................................................................8

R

UGGEDNESS ............................................................................................................... 8

S

HUT DOWN ................................................................................................................10

S

LEEP/ HIBERNATE......................................................................................................10

H

ARD DISK DRIVE (HDD) ............................................................................................12

ODD

(OPTICAL DISK DEVICE) ......................................................................................12

E

XPRESS AND PCMCIA CARDS ................................................................................... 13

DVI ............................................................................................................................13

RTC ........................................................................................................................... 13

R

EPLACING MODULES..................................................................................................14

WIRELESS DEVICES (OPTIONAL) (TBD)........................................................................15

AC

ADAPTER...............................................................................................................16

B

ATTERY..................................................................................................................... 17

CHAPTER FOUR- BIOS SETUP.................................................................................21

AIN MENU................................................................................................................. 21

M
SATA

PORT 1 SUB-MENU ...........................................................................................23

SATA

PORT 2 SUB-MENU ...........................................................................................24

A

DVANCED MENU ........................................................................................................25

SIO

SMC27 CONFIGURATION SUB-MENU...............................................................28

S

ECURITY MENU .........................................................................................................30

RF

INTERFACE CONTROL SUB-MENU ...........................................................................32

B

OOT MENU................................................................................................................33

E

XIT MENU.................................................................................................................. 34

CHAPTER FIVE- SPECIFICATION .............................................................................35

CPU...........................................................................................................................35

M

EMORY.....................................................................................................................35

D

ISPLAY...................................................................................................................... 35

K

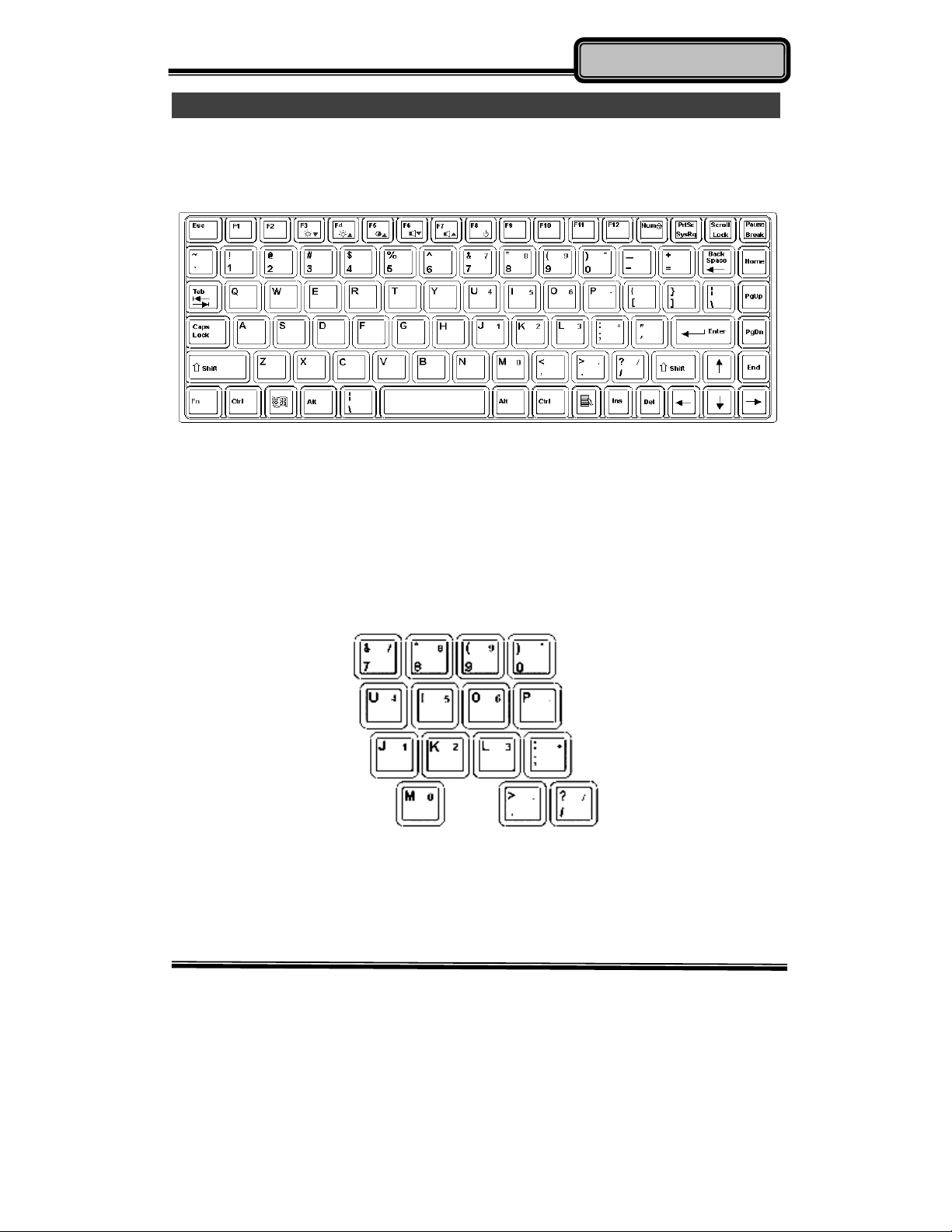

EYBOARD..................................................................................................................36

T

OUCH PAD.................................................................................................................36

H

ARD DISK DRIVE........................................................................................................36

DVD

SUPER MULTI DRIVE ...........................................................................................36

AC

ADAPTER...............................................................................................................37

B

ATTERY..................................................................................................................... 38

S

YSTEM UNIT DIMENSIONS AND WEIGHT ......................................................................38

M

ATERIALS AND RECYCLING ........................................................................................39

E

NVIRONMENTAL .........................................................................................................39

CHAPTER SIX- OPTIONAL DEVICES........................................................................40

M

EMORY CARD ...........................................................................................................40

V

EHICLE ADAPTER....................................................................................................... 40

ND

2

BATTERY ...............................................................................................................40

ND

2

HDD .....................................................................................................................41

ODD

(OPTICAL DISK DRIVE)........................................................................................41

H

EATER ......................................................................................................................41

LAN

AND MODEM CARD ..............................................................................................41

W

IRELESS LAN CARD ................................................................................................. 41

KB

DUST COVER.........................................................................................................42

PCMCIA
B

UILT-IN VEHICLE ADAPTER .........................................................................................42

D

UAL-BAY BATTERY CHARGER ....................................................................................43

COVER.........................................................................................................42

CHAPTER SEVEN- UTILITIES AND DRIVERS..........................................................44

C

HIPSET DRIVER .........................................................................................................45

G

RAPHIC CONTROLLER................................................................................................ 45

A

UDIO.........................................................................................................................45

M

INI PCI-E 1G RTL8111B LAN DRIVER ..................................................................... 45

M

INI PCI INT8100 LAN DRIVER ..................................................................................46

M

ODEM DRIVER (OPTIONAL) ........................................................................................ 46

T

OUCH PANEL (OPTIONAL)...........................................................................................46

W

IRELESS LAN DRIVER (TBD) (OPTIONAL)..................................................................46

GPS

DRIVER (TBD) (OPTIONAL).................................................................................. 46

WWAN
W

DRIVER (TBD) (OPTIONAL) .............................................................................46

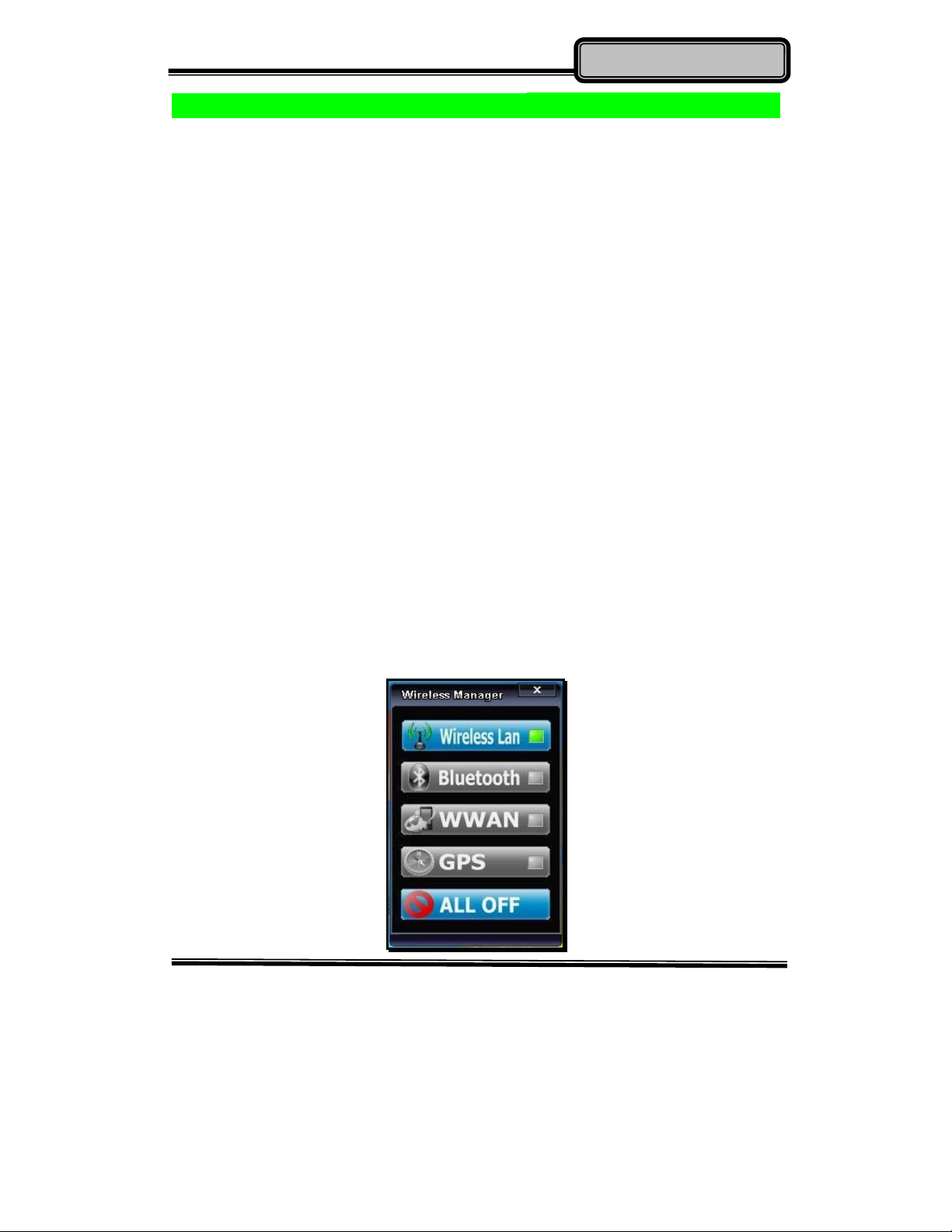

IRELESS MANAGER...................................................................................................47

CHAPTER EIGHT– MAINTENANCE AND SERVICE.................................................48

C

LEANING ...................................................................................................................48

T

ROUBLESHOOTING .....................................................................................................48

RMA

SERVICE ............................................................................................................ 49

Getting Started

Chapter One- Getting Started

Unpacking

The following components are along with your notebook computer. If there
is any missing or damaged, please contact with your dealer immediately.

z Computer Unit
z Removable HDD (Hard Disk Drive)
z Removable ODD (Optical Disk Drive)
z AC Adapter
z AC Power Cord
z Utility DVD
z User Guide
z Carrying Bag

Chapter One - 1

Getting Started

Quick Operation

z Loosen the battery screw, remove the battery insulation sheet, and

mount the battery.

z Connect the AC adapter with the computer and start charging the

battery for at least 10 minutes.

z Turn ON the computer by pressing the Power Switch.

Notice:
z When ambient temperature is under +5℃ (This is the default setting

for this computer.), the system may not boot up immediately. System
will beep with LED heater light flashing to remind the user while
heater working. Also, the frequency of the LED will become faster to
remind the user while the temperature is approaching to be suitable.
After 5~15 minutes, the system will boot up automatically.

z Under an emergency situation, it is able to skip heating for booting up

the system immediately by pressing the power switch for >9 seconds.
The speaker will also beep with a special sound. (It is not guaranteed
all devices on the computer are possible to work properly.)

z Press the power switch again during the heating process will shut

down the computer.

z Driver or application software installation may be necessary for

further operation.

z The following procedures will help to Turn OFF the computer:

1. Press power switch to “Shut Down”, “Sleep”* or “Hibernate”*
dependending on operating system (OS) and power management
settings.

2. Press power switch for 4 seconds for a “Hard” power off. But the
system will shut down immediately without saving any data or
parameters.

3. Click Start → Shut Down in Windows to Turn OFF.

Note:

¾ Some operating systems may not support the above-mentioned

functions.

Chapter One - 2

Getting Started

Appearance Overview

LCD Panel Open

3

○

1

○

5

○

2

○

4

○

1. Optional: Embedded Antennas (from left to right) -
WLAN-L, GPS, Bluetooth, WLAN-R

2. LED Indicators and Power Switch:

Heater HDD in Use
BT/WLAN/GPS
Keyboard Number Lock
Keyboard Caps Lock
Keyboard Scroll Lock

Secondary Battery Charging
Primary Battery Charging
Power Indicator
Power Switch

3. Touchpad

4. Touchpad Right and Left Button

5. Optional: RF Devices All ON/OFF

Chapter One - 3

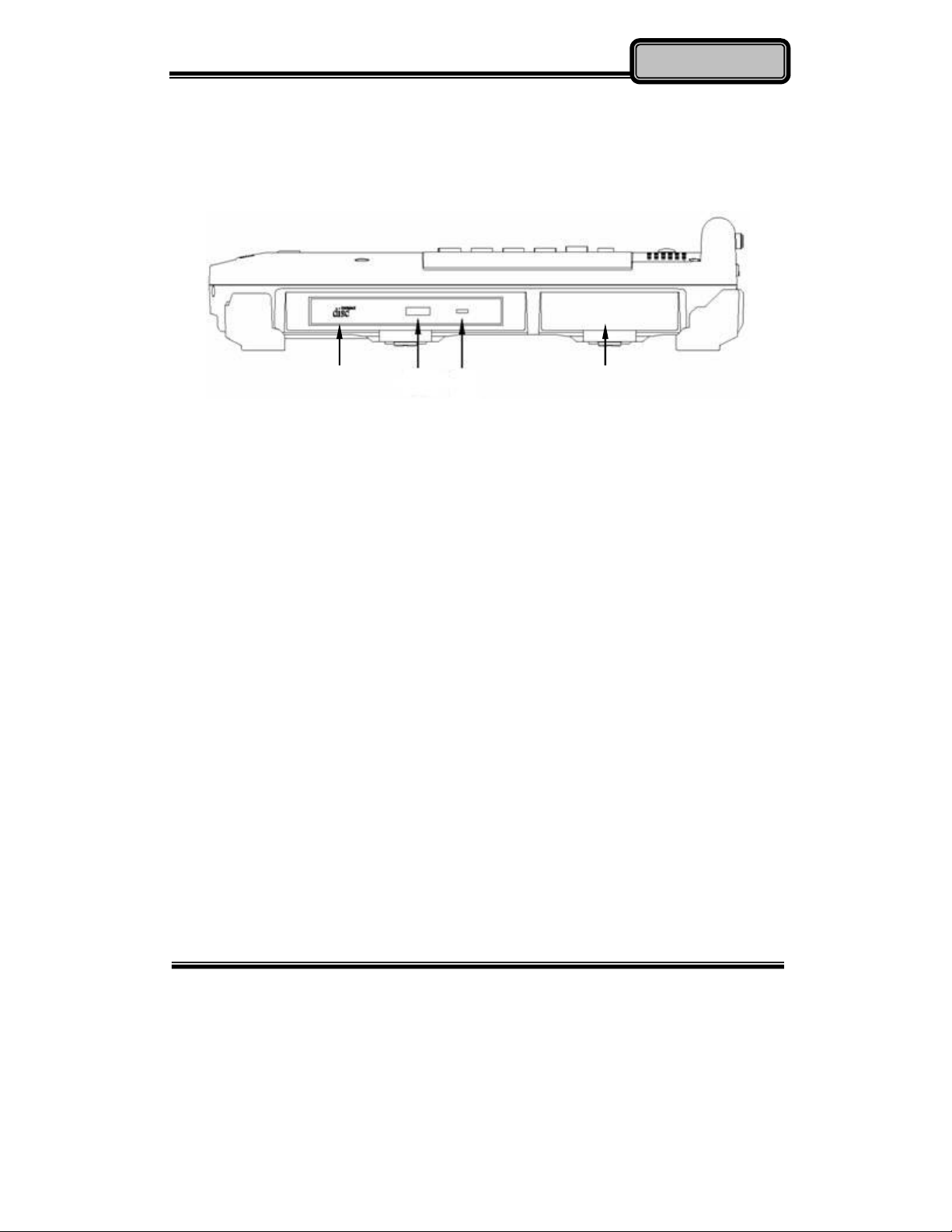

Right View

Getting Started

1

○

2 ○3

○

1. Flex Bay:

a. Standard: SATA ODD

b. Optional: 2nd SATA HDD or 2nd Battery

2. Eject Button

3. In-use Indicator Light

4. 1st SATA HDD

4

○

Chapter One - 4

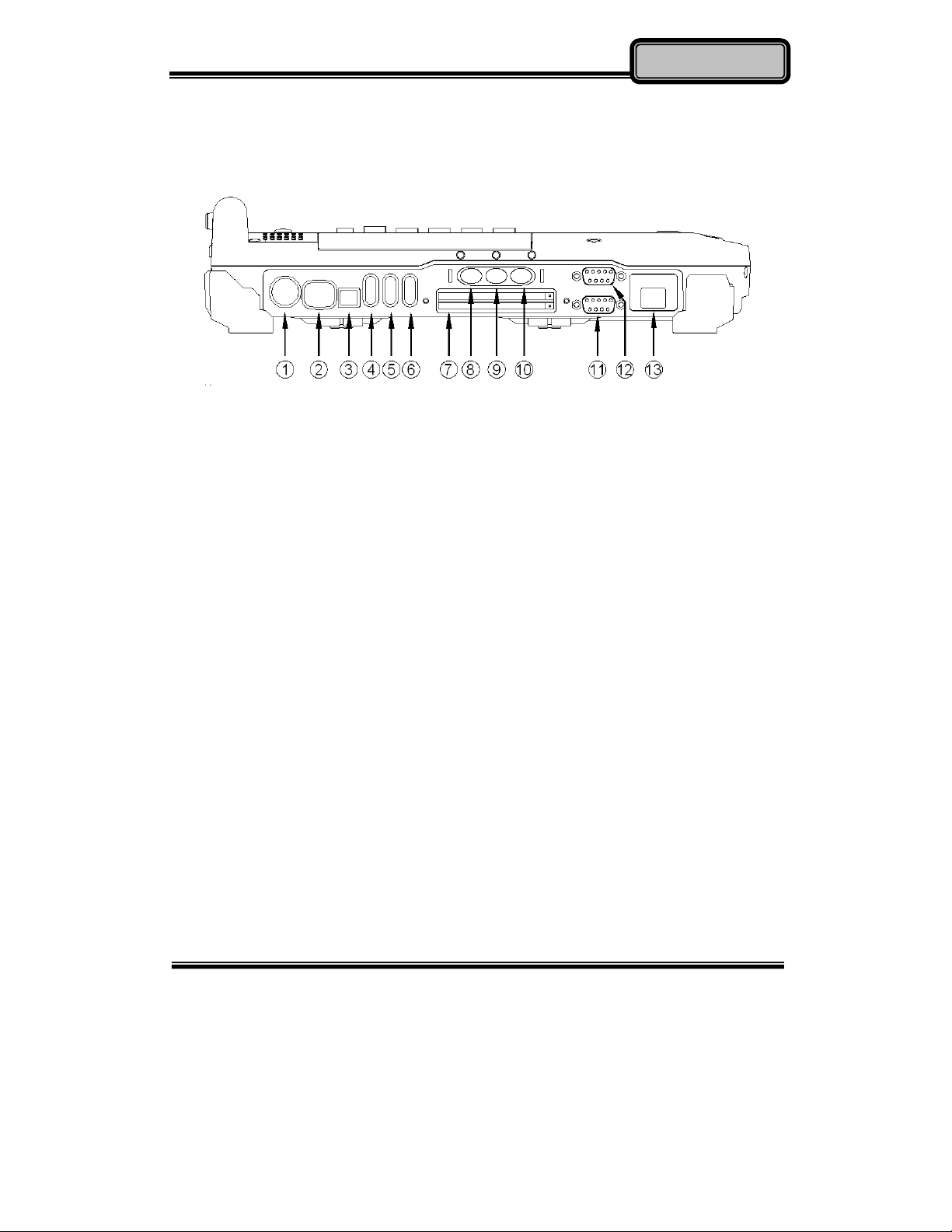

Left View

1. PS/2 port (KB + Mouse)

Getting Started

2. LAN RJ45

3. IEEE1394 port (Fire Wire)

4. USB Port (Universal Serial Bus)

5. USB Port (Universal Serial Bus)

6. USB Port (Universal Serial Bus)

7. Express Card Slot x 1 & PCMCIA II Slot x 1

Optional: PCMCIA II Slots x 2

8. External Speaker & Ear phone Jack

9. Line In Jack

10. Microphone Jack

11. Optional: COM 3 Port

12. Optional: COM 4 Port

13. Optional: Modem RJ11 Jack

Chapter One - 5

Getting Started

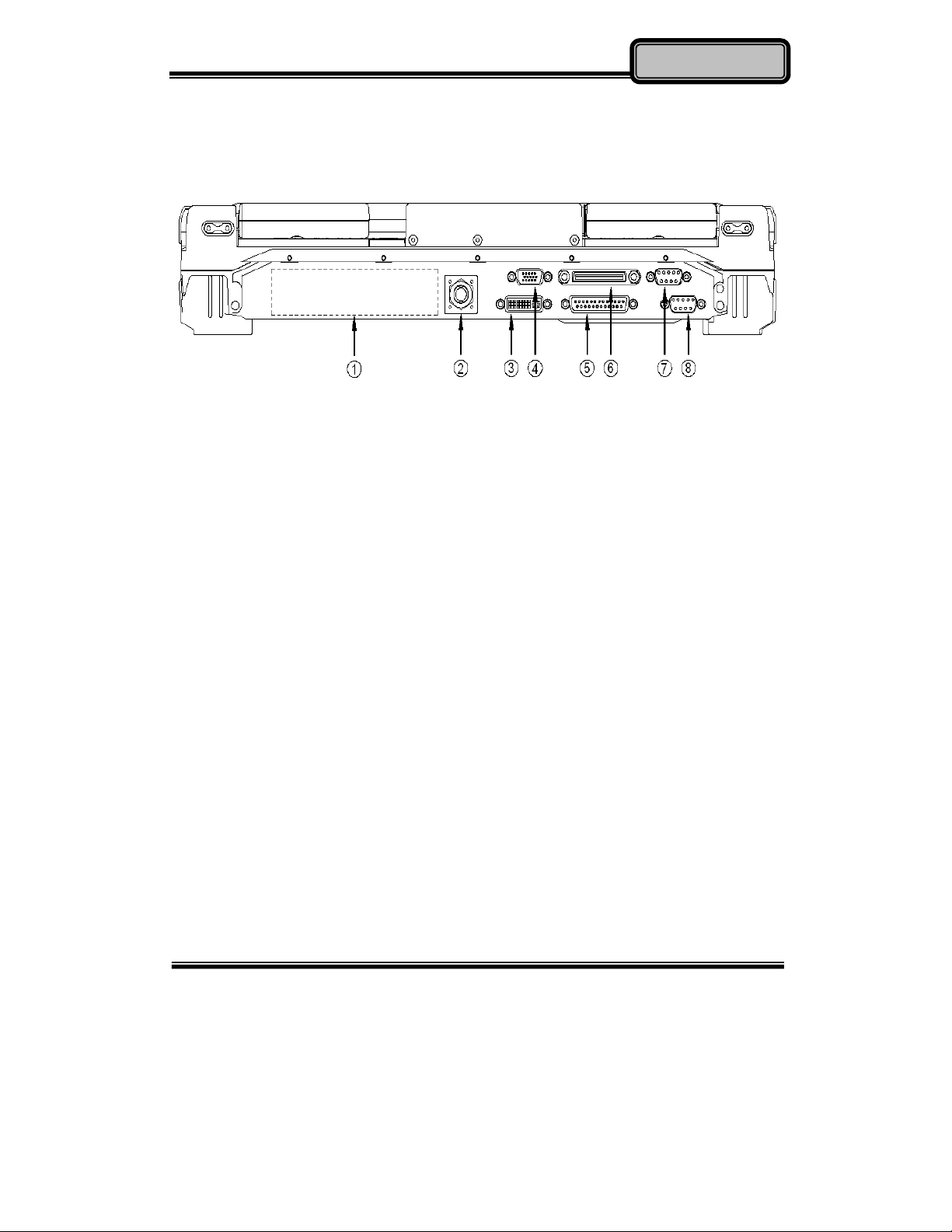

Rear View

1. Optional: Military Connector Port (Maximum Military Connectors x 3)

2. DC Power Jack

3. External DVI Port

4. External RGB Monitor Port

5. Printer Port

6. Docking Port

7. Serial Port COM2

8. Serial Port COM1

Chapter One - 6

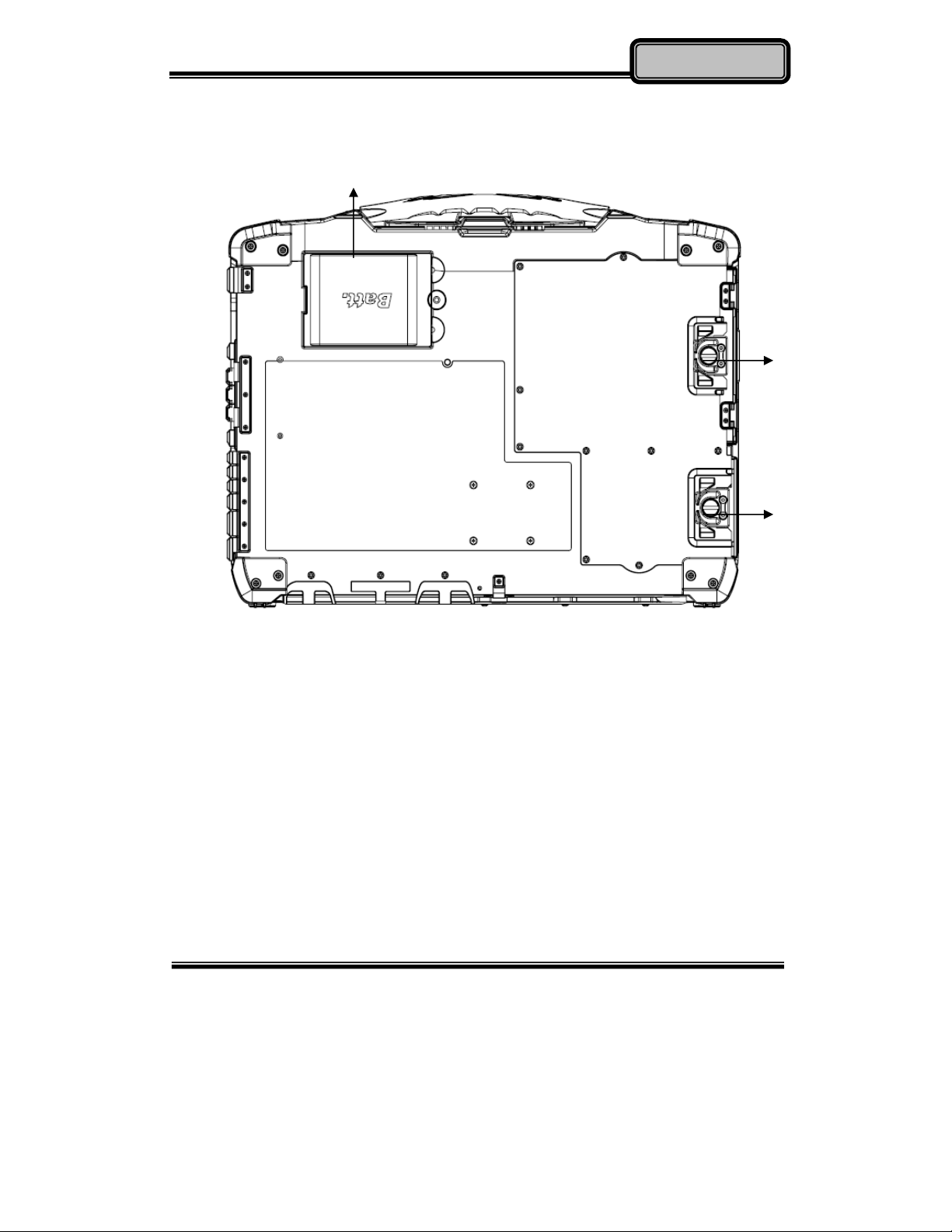

Bottom View

Getting Started

1

○

2

○

3

○

1. Primary Battery

2. ODD Latch

3. HDD Latch

Chapter One - 7

Operating Information

Chapter Two- Operating Information

Workplace

A clean and moisture-free environment is preferred. Make room for air
circulation. Remember to avoid areas from:

z Sudden or extreme changes in temperature.
z Extreme heat.
z Strong electromagnetic fields (near television set, motor rotation area,

etc.).

z Dust or high humidity.

If it is necessary to work in a hostile environment, please regularly
maintain your notebook computer by cleaning dust, water, and etc. to
keep it in an optimal condition.

Ruggedness

This notebook computer is designed with rugged features such as
vibration, shock, dust, and rain/ water protection. However, it is still
necessary to provide appropriate protection while operating in harsh
environments.

The notebook computer is also designed to withstand rainfall from top with
mild wind blowing only. Please keep the keyboard facing up, i.e. normal
operating direction, to maintain water resistance. NEVER immerse the
unit in water, or spray water at an upside-down system. Doing so may
cause permanent damage.

The D-sub connector caps on the rear of the computer are for dust and
shock protection. The connectors are sealed internally. Other I/O ports

Chapter Two - 8

Operating Information

and devices on the left or right must have caps tightly closed or cable
inlets sealed while being exposed to water or dust.

There are optional gaskets for DB-9 and DB-25 connectors. You may
install them to improve rain/ dust/ moisture resistance on your commercial
type cable. Insert the packing into the male connector (with pins) and
fasten the screws.

All connectors will be corroded if being exposed to water or moisture.
Corrosion is accelerated if the power is ON. Please take proper
water-resistant measures for cable connections.

The DC jack and cables are sealed and may be operated with water
splashing while attached. All port covers should be in place when no cable
is attached.

Operating System

This notebook computer is compatible with most operating systems (OS).
However, not all functions are 100% compatible. For example, ACPI,
Smart Battery, and etc. are not available on DOS, and other non-Microsoft
OS. Consequently “Standby”, “Hibernation”, “Battery Gauge”, and etc.
would not work under such operating systems.

Boot Up and POST

Boot up

The computer turns ON and loads the operating system (such as
Windows) into the system memory. This start-up procedure is called “boot
up”.

The ROM BIOS Power on Self-Test (POST)

Each time the computer powers on, it automatically performs a self-test of
its memory and hardware devices.

Chapter Two - 9

Operating Information

Shut down

Before shutting down, please always remember to save the unfinished
works and close the application for preventing from any possible data loss
or HDD damage.

“Shut down” will totally turn OFF the power of your notebook computer. If
you want to start your notebook computer again, you need to press the
power switch.

Sleep/ Hibernate

Sleep

Under “Sleep” mode, the system will temporarily save your work into RAM.
You are able to do enter “Sleep” mode by directly clicking from your OS.
Or, you can do the “Sleep” Mode settings in your OS. If you want to start
your notebook computer again, all you need to press any key.

Hibernate

Under “Hibernate” mode, the system will save your work into HDD. You
are able to do enter “Hibernate” mode by directly clicking from your OS. Or,
you can do the “Hibernate” Mode in your OS. If you want to start your
handheld computer again, you need to press the power switch.

Note:

¾ Standby/Hibernate/Resume works with both AC adapter and

battery. The power management functions may not work under
non-ACPI operating systems.

¾ If you work under Windows 7 (64 bit) with external KB or

mouse, please do the Windows Setting as follows:

1. External Mouse: Device Manager → Mice and other
pointing devices → HID- compliant → Power Management

→

Disable “Allow this device to wake the computer”

2. External KB: Device Manager → Keyboards → HID-

→

compliant

Power Management → Disable “Allow this

device to wake the computer”

Chapter Two - 10

Operating Information

Keyboard

The keyboard is functionally equivalent to a full size desktop keyboard. A
sample layout is shown below.

The Numeric Keypad

The numeric keypad functions are the same as an electronic calculator. It
is embedded in the main keyboard, with the numeric figures printed on the
upper right of their respective keys. There are keys for the digits 0~9, the
decimal point ( . ), addition ( + ), subtraction ( - ), multiplication ( * ), and
division ( / ) in the keypad.

To activate the keypad, press the Num Lock key. There are 15 keys
switching from alphabetic to numeric. Press Num Lock again to return.

Chapter Two - 11

Operating Information

Keyboard Backlight (Optional)

Press [Fn] [F5] key for approximately 1 second to turn the keyboard
backlight ON or OFF.

Hard Disk Drive (HDD)

The Hard Disk Drive (HDD) is a 2.5” type/9.5mm height standard SATA
interface data storage device.

HDD and ODD are removable. This design provides convenience and
security. They can ONLY be removed when the power is OFF.

Note:

NEVER drop your HDD, ODD or expose them to high temperature,
high humidity, or any hazardous environment. NEVER try to
disassemble the module. Static discharge may destroy your device
and data. Always pick up the modules by touching the case only.

ODD (Optical Disk Device)

There is a 5.25” type/12.7mm height standard SATA interface ODD. The
actual device will depend on the model you purchased. The ODD may be
used as a boot device if properly set in the BIOS.

The ODD accepts a variety of standard 12cm CDs, DVD-ROM (Single
Layer, Dual Layer), DVD-Video, DVD-R*10 (1.4 GB, 2.8 GB, 4.7GB),
DVD-RW (Ver.1.1/1.2 1.4 GB, 2.8 GB, 4.7 GB, 9.4 GB), DVD-R DL (8.5
GB), DVD-RAM (1.4 GB, 2.8 GB, 4.7 GB, 9.4 GB), +R (4.7 GB), +R DL
(8.5 GB), +RW (4.7 GB), CD-Audio, CD-ROM (XA compatible), CD-R,
Photo CD (multiple session compatible), Video CD, CD EXTRA, CD-RW,
CD-TEXT and etc. Do not use the IDE-interface ODD; it may cause the
computer malfunction.

The following procedure assumes that all the necessary ODD utilities
were installed on the computer. For ODD utility installation, please refer to
“Utilities and Drivers”. ODD also can be removed and swapped with the

nd

battery or 2nd SATA HDD.

2

Chapter Two - 12

Operating Information

Put disk into the ODD

While the power is ON, push the ejecting button of ODD. The tray will
release. Then gently pull the tray out. Put the disk with its label facing up
on the holder and push the tray back into the cabinet. Any dirt on the data
side of the disk may cause to the erroneous read. Please avoid touching
the data side.

Read from the ODD

The ODD may be designated as drive D: or higher depending on your
configuration. You may access to it in DOS or Windows. Please avoid
shock or vibration when the optical device is active.

Express and PCMCIA Cards

The computer supports one PCMCIA II and one Express card or two
PCMCIA II cards. To remove the card, push the button on the right of the
card to eject it. The ejecting button can hide into the compartment by
pushing it inward gently.

DVI

LCD and DVI monitor can simultaneously display under Windows. Before
entering Windows, the system will detect DVI as the first priority.

Windows setting:

Control panel -> Intel(R) Extreme Graphics -> Display Selection

Display resolution of notebook LCD and DVI monitor must be identical.

RTC

Battery backed up RTC (Real Time Clock/Calendar) is built in an on-board
CMOS (Complementary Metal Oxide Semiconductor) chip. The RTC
keeps track of the time and date while the computer is off. The CMOS chip
also stores system setup information.

RTC battery is also recharged when AC adapter is attached. Recharge
the computer approximately once per month to ensure RTC operation.

Chapter Two - 13

4

Operating Information

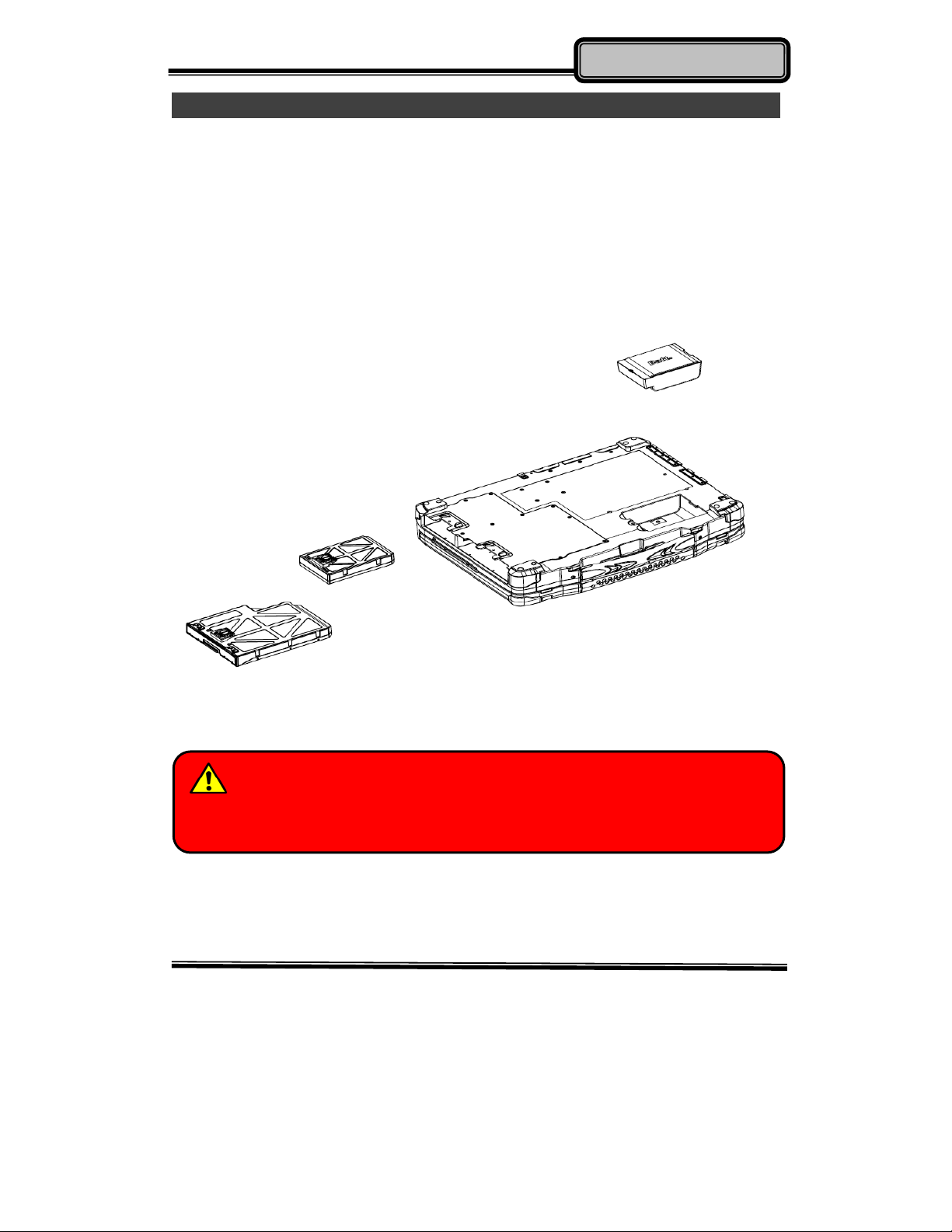

Replacing Modules

To remove the modules:

1. Turn OFF the computer or hibernate.

2. Disconnect all cables from the computer.

3. Use a coin to turn and loose the screws on the modules.

4. Remove the battery from the compartment.

5. Push the latch knob to release the ODD or HDD module and push
them outward.

6. Remove the module from the computer.

To re-install the modules:
Gently push the module into the slot. Fasten the screw to fix the module.

Caution

You must turn the power OFF before replacing the ODD and HDD
modules.

Chapter Two - 1

5

Operating Information

Wireless Devices (Optional) (TBD)

Before using wireless devices, please turn “ON” the Wireless Devices All
ON/OFF Switch, and then use the Wireless Manager to do the rest
settings.

The following instructions are only for the models with optional Wireless
Devices (Wireless LAN/ Bluetooth/ WWAN/ GPS) and taking the systems
working under Windows 7/ 64-bit OS for example.

Wireless LAN

1. Driver & Utility Installation:

a. Install the Chipset Driver first:
Insert the Utility DVD into the ODD. Click infinst_autol.exe in the
directory of “RX9\Drivers\Chipset\Win7(64-bit)”, and then follow the
prompt to complete installation.
b. Then, install the Wireless Manager utility:
Insert the Utility DVD into the ODD. Click setup.exe in the directory of
Utilities\Wireless Manager then follow the prompt to complete installation.

2. Launch the Wireless Manager:

a. Launch the Wireless Manager.
b. Click “Wireless LAN” for enabling the Wireless LAN function (click

again for disabling the WLAN function). Once the Wireless LAN starts up,
the RF LED will turn on accordingly. Please see the illustration as below
(with Wireless LAN function “ON”):

Chapter Two - 1

Managing Power

Chapter Three- Managing Power

AC Adapter

The AC adapter performs two functions:

z It powers the computer from an external AC source.
z It charges the computer battery.

The adapter automatically detects the AC line voltage (100V or 240V) and
adjusts accordingly.

The following are recommended when using the AC adapter:

z Use a properly grounded AC outlet.
z Use one AC outlet exclusively for the computer. Having other

appliances on the same line may cause interference.

z Use a power strip with built-in surge protection.

Connecting the AC adapter:

z Plug the AC cord to the adapter.
z Plug the other end of the AC cord into the wall outlet. Make sure the

green LED on the adapter turns on.

z Attach the DC plug into the power jack of the computer; turn the lock

ring clockwise to secure it.

AC Adapter Indicator:

The green LED indicates that AC power is ready.

Chapter Two - 16

Managing Power

Battery

The power source will automatically switch to battery when the external
power source (AC adapter or optional vehicle adapter) is disconnected.

Battery Low

When the battery is nearly exhausted, the computer gives the following
“Battery Low” warnings:

z Windows battery low warning (when operating system is Windows)
z The power LED flashes.

Once the Battery Low warning occurs, please:

z Save and close the files you are currently working on.
z Plug in the AC adapter to recharge the battery.

Charging the Battery

Plug in the AC adapter (or optional vehicle adapter) to start the battery
charging. If the battery is already full, the sense circuitry will stop high
current charge within several minutes.

There are two LED indicators next to the power indicator for the Primary
and Secondary battery respectively. Indicator turns ON when the battery
is charging and turns OFF when the battery charging is completed.

To charge the Secondary battery, simply install it into the computer and
attach the AC adapter. The internal charger will charge the Primary
battery first. The Secondary battery will be charged once the Primary
battery charges full. Optional Dual Battery Charger can charge the
Primary and Secondary batteries externally.

Chapter Two - 17

Managing Power

Battery Charging Notice

The followings are the detailed information for charging the Primary and
Secondary batteries under AC and DC modes:

AC mode:
z When the Power Status is changed and AC mode is detected, the

Primary battery will be charged.

z Until the Primary Battery is finished charging, then it will continue to

charge the Secondary Battery fully also.

z When batteries are all full, the EC (embedded controller) will be

turned off.

z If there is no Power Status change, until the capacity is down below

90%, a natural discharging occurs, and then recharge again.

DC mode:
z When DC mode is detected, it will discharge the Secondary Battery

until the capacity is below 10%, and then switch to the Primary
Battery for continuing discharging.

z When the capacity of the Primary Battery is below 10%, the Low

Battery LED will flash.

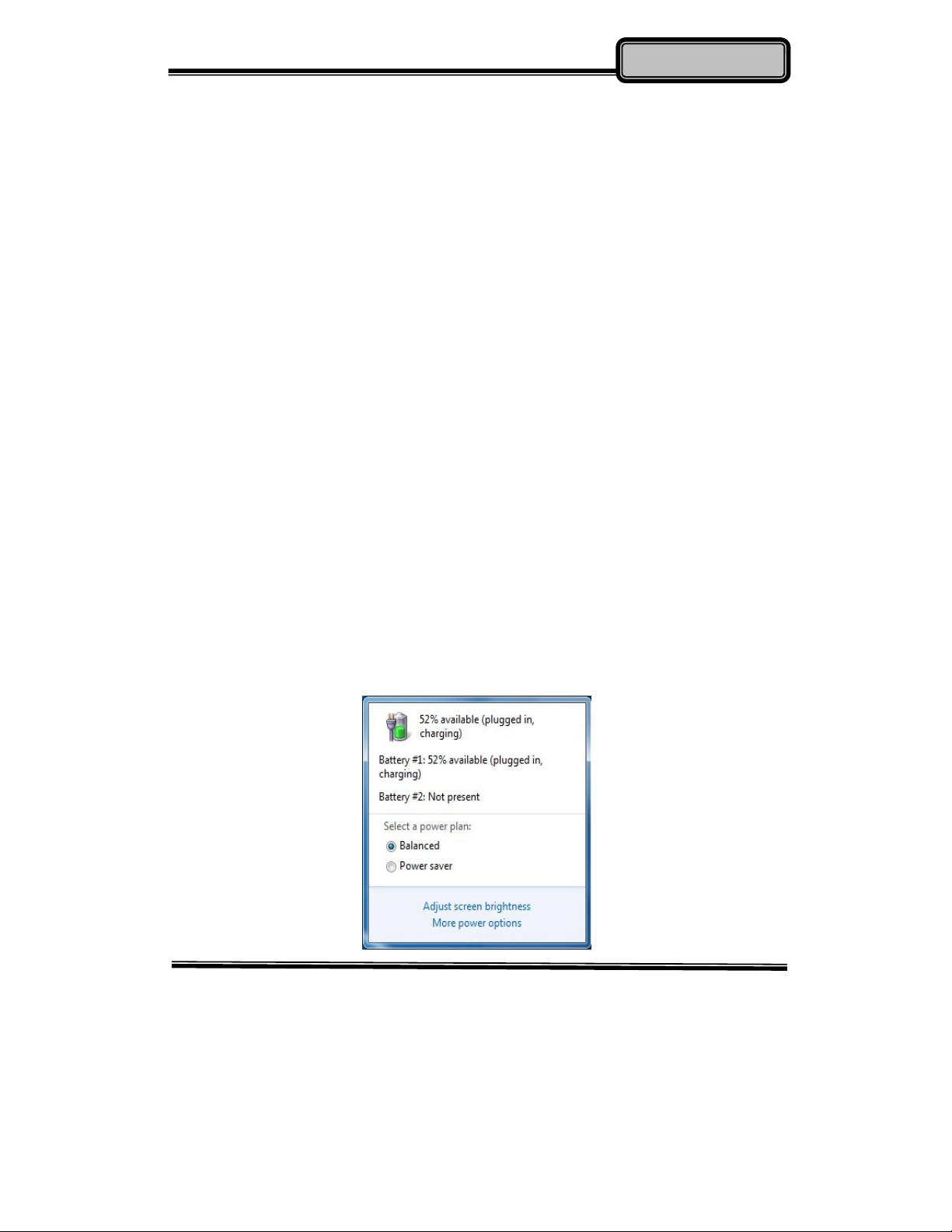

Battery Gauge

You may check battery status from battery gauge in Windows. Click the
power/battery icon to reveal the battery gauge window.

Chapter Two - 18

Managing Power

Battery Power Saving Tips

The computer comes with an intelligent power-saving feature. You may
extend the battery life by:
z Setup power saving functions in Operating System Power Management

options (e.g. Windows Power Options).

z Lower the intensity of the display by brightness control.
z Use standby option when computer is temporarily not in use.
z Shut down the computer when it will not be for a long-time use.

Replacing Battery

When the battery is nearly exhausted, there are two ways to keep your
handheld computer working. Connect the AC adapter and the power cord
designed for this handheld computer to start charging is one method;
directly replace a charged battery designed for this handheld computer may
be the other one.

Note:

¾ Always remember to turn OFF the power before replacing the

battery.

Power Conservation

This computer consumes much less power than conventional computers.
However, power consumption may be reduced by configuring the Power
Management Setup properly.

It is recommended the power saving functions to be enabled even when not
running on battery power. Power Management will not degrade performance
while saving power.

Chapter Three - 19

Managing Power

Supporting ACPI

Your notebook computer supports ACPI (Advanced Configuration and
Power Interface) for power management. With ACPI and an ACPI-compliant
operating system such as Windows, the feature will allow you to reduce the
power consumption for energy saving. By supporting ACPI, the AC adapter
LED and the Power indicator LED will show in different ways. The followings
are the detailed description.

Sleep:

AC adapter LED is ON (while connecting with power)
Power LED indicator is ON; Other LED indicators are OFF

Under Hibernation:

AC adapter LED is ON (while connecting with power)
Power LED indicator is OFF; Other LED indicators are OFF

Shutdown:

AC adapter LED is ON (while connecting with power)
Power LED indicator is OFF; Other LED indicators are OFF

Chapter Three - 20

BIOS Setu

p

Chapter Four- BIOS Setup

Press [F2] at boot up to enter BIOS setup. Use arrow keys to select options
and [+/-] to modify them. When finished, move to” Exit” and press [Enter]
then confirm save by pressing [Y].

Main Menu

Phoenix SecureCore (tm) Setup Utility

Main Advanced Security Boot Exit

System Time: [15:48:04]

System Date: [10/02/2010]

► SATA Port 1 [Auto]
► SATA Port 2 [Auto]

System Memory: 632 KB
Extended Memory: 1012736KB

Item Specific Help

<Tab>, <Shift-Tab>, or
<Enter> selects field.

F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit

Note:

¾ The contents may vary depending on computer configurations.

Main Menu Selections

You can make the following selections on the Main Menu. Use the
sub-menus for other selections.

Feature Options Description

System Time HH:MM:SS Set the system time Hour, Minute, Second.
System Date MM/DD/YYYY Set the system date Month, Day, Year.
SATA Port 1~2 None

Auto-detect the device, then show the
device.

Chapter Four - 21

BIOS Setu

p

General Help Window

Pressing <F1> or <Alt-H> at any menu brings up the General Help
window that describes the detailed keys and functions for setup.

The scroll bar on the right of any window indicates that there is more than
one page of information in the window. Use <PgUp> and <PgDn> to
display all the pages. Pressing <Home> and <End> displays the first and
last page. Pressing <Enter> displays each page and then exits the
window. Press <Esc> to exit the current window.

Chapter Four - 22

BIOS Setu

p

SATA Port 1 Sub-Menu

Phoenix SecureCore (tm) Setup Utility

Main

SATA Port 1 [Auto)]

Type: [Auto]

LBA Format

Total Sectors: 78140160
Maximum Capacity: 40008MB

Multi-Sector Transfers: [16 Sectors]
LBA Mode Control: [Enabled]

32 Bit I/O: [Disabled]
Transfer Mode: [FPIO 4/ DMA 2 ]

Ultra DMA Mode: [Mode 5]

F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit

Item Specific Help

User = you enter
parameters of hard-disk
drive installed at this
connection.
Auto = autotypes
hard-disk drive installed
here.
CD-ROM = a CD-ROM
drive is installed here.
ATAPI Removable =
removable disk drive is
installed here.

SATA Port 1 Sub-Menu Selections

You can make the following selections on the SATA Port 1 Sub-Menu.

Feature Options Description

32 Bit I/O: Enabled

Disabled

This setting enables or disables 32 bit IDE
data transfers.

Chapter Four - 23

4

BIOS Setu

p

SATA Port 2 Sub-Menu

Phoenix SecureCore (tm) Setup Utility

Main

SATA Port 2 [Auto]

Type: [Auto]

Multi-Sector Transfers: [Disabled]
LBA Mode Control: [Disabled]

32 Bit I/O: [Disabled]
Transfer Mode: [Standard ]

Ultra DMA Mode: [Mode 5]
SMART Monitoring: Disabled

F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc

Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit

Item Specific Help

User = you enter
parameters of hard-disk
drive installed at this
connection.
Auto = autotypes
hard-disk drive installed
here.
CD-ROM = a CD-ROM
drive is installed here.
ATAPI Removable =
removable disk drive is
installed here.

SATA Port 2 Sub-Menu Selections

You can make the following selections on the SATA Port 2 Sub-Menu.

Feature Options Description

32 Bit I/O Enabled

Disabled

This setting enables or disables 32 bit
IDE data transfers.

Chapter Four - 2

5

BIOS Setu

p

Advanced Menu

Phoenix SecureCore (tm) Setup Utility

Main Advanced Security Boot Exit

Boot-time Diagnostic Screen: [Enabled]
QuickBoot Mode: [Enabled]
IGD - Boot Type: [VBT Default]
PS/2 Mouse [Auto Detect]
PCI Express Port #1 [Enabled]

Device 29 USB 2.0 Enable: [Enabled]
Passive Cooling Trip Point: [87 C]
Core Multi-Processing: [Enabled]
Intel(R) SpeedStep (tm) [Enabled]
CX States [Enabled]
PCI Hot-Plug Resources [Enabled]
► SIO SMC227 CONFIGURATION

F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit

Item Specific Help

Display the diagnostic
screen during boot

Warning

Incorrect settings may cause system malfunction. To correct it, restore
the Setup Default with <F9>.

Chapter Four - 2

BIOS Setu

p

Advanced Menu Selections

You can make the following selections on the Advanced Menu.

Feature Options Description

Boot-time
Diagnostic Screen

QuickBoot Mode Enable

IGD - Boot Type VBT Default

PS/2 Mouse Auto Detect

PCI Express Port
#1

Device 29 USB

2.0 Enable
Passive Cooling

Trip Point

Core
Multi-Processing

Enable
Disabled

Disabled

CRT
LFP
CRT+LFP
EFP
CRT+EFP

Disabled
Enabled

Enabled
Auto
Disabled

Enable
Disabled

15 C/23 C/31 C/39 C/
47 C/55 C/63 C/71 C/
79 C/87 C/95 C/103 C/
109 C/111C
Disabled

Enable
Disabled

Display the diagnostic screen during
boot

Allows the system to skip certain tests
while booting. This will decrease the time
needed to boot the system.

Select the Video Device that will be
activated during POST

“Disabled” prevents any installed PS/2
mouse from functioning, but frees up IRQ

12. “Enabled” forces the PS/2 mouse
port to be enabled regardless if a mouse
is present. “Auto Detect” will enable the
PS/2 mouse only if present. “OS
Controlled” only displayed if the OS
controls the mouse.

Disabled – Port always disabled. (If Port

#1 is disabled), then the rest
of the Ports will also be

disabled.)
Enabled – Port always enabled.
Auto – Only enable if card found.

Enables Device 29 USB 2.0 functionality.

This value controls the temperature of
the ACPI Passive Trip Point – the point in
which the OS will begin throttling the
CPU.

Note: When the DTS is enabled, only
values below 97C are valid.

Determines whether the 2nd core is
enabled.

Disabled = 2nd core is disabled.
Enabled = 2nd core is enabled.

Chapter Four - 26

BIOS Setu

p

Feature Options Description

Intel(R)
SpeedStep (tm)

CX States Enabled

SIO SMC227
CONFGURATION

Enable
Disabled

Disabled

Allows more than two freq. range to be
supported

Enable CPU C-states: Main switch for
C0, C1, C2, C3, C4, Deep C4, C6

These items control the configuration of
various National 393 SIO devices.

Warning

Make sure internal COMx mode settings must be with the same type of
the external connected devices. Otherwise it may cause serial
components damage in either side.

Chapter Four - 27

BIOS Setu

p

SIO SMC27 CONFIGURATION Sub-Menu

Phoenix SecureCore (tm) Setup Utility

Advanced

SIO SMC227 CONFIGURATION

COM1 port: [3F8-IRQ 4]

COM1 mode: [COM1]

COM2 port: [2F8-IRQ 3]

COM2 mode: [COM2]

COM3 port: [3E8-IRQ 10]

COM3 mode: [COM3]

COM4 port: [2E8-IRQ 5]

COM4 mode: [COM4]

Printer1: [378-IRQ 3]

Printer1 mode: [Standard]

Printer2: [Disabled]

F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit

Item Specific Help

Configure COM1 using
device options:

[Disabled]
No configuration

[3F8-IRQ 4]
Set the base I/O

address for COM1

SIO SMC27 CONFIGURATION Sub-Menu Selections

You can make the following selections on the SIO SMC27
CONFIGURATION Sub-Menu.

Feature Options Description

COM1 port 3F8-IRQ 4

Disabled

COM1 mode COM1

TTL1

COM2 port 2F8-IRQ 3

Disabled

COM2 mode COM2

Configure COM1 using device options:
[Disabled]
No configuration
[3F8-IRQ 4]
Set the base I/O address for COM1

Configure UART mode options:
[COM1]: External Device
[TTL1]: Internal Device
Configure COM2 using device options:

[Disabled]
No configuration
[2F8-IRQ 3]

Set the base I/O address for COM2

Configure UART mode options:

Chapter Four - 28

BIOS Setu

p

Feature Options Description

TTL2 [COM2]: External Device

[TTL2]: Internal Device

COM3 port 3E8-IRQ 10

Disabled

COM3 mode COM3

TTL3

COM4 port 2E8-IRQ 5

Disabled

COM4 mode COM4

TTL4

Printer1 378-IRQ 7

Disabled

Printer1 mode Standard

ECP
EPP

Printer2 Disabled

3BC

Configure COM3 using device options:
[Disabled]
No configuration
[3E8-IRQ 10]

Set the base I/O address for COM3
Configure UART mode options:
[COM3]: External Device
[TTL3]: Internal Device
Configure COM4 using device options:

[Disabled]
No configuration
[2E8-IRQ 5]

Set the base I/O address for COM4
Configure UART mode options:
[COM4]: External Device
[TTL4]: Internal Device
Configure Printer1 device options:

[Disabled]
No configuration
[378-IRQ 7]

Set the base I/O address for Printer1
Configure Printer1 mode options:
Standard
EPP
ECP
Configure Printer2 device options:
[Disabled]
No configuration
[3BC]
Set the base I/O address for Printer2

Chapter Four - 29

BIOS Setu

p

Security Menu

Warning

If you forget user/supervisor password, the computer has to send back
to manufacturer and replace Flash ROM to make it work again.

Phoenix SecureCore (tm) Setup Utility

Main Advanced Security Boot Exit

Supervisor Password Is: Clear
User Password Is: Clear

Set Supervisor Password [Enter]
Set User Password [Enter]

Diskette access: [Supervisor]
Fixed disk boot sector:
[Normal]

Password on boot: [Disabled]

AC97 Audio Interface: [Auto]

Cardbus/1394 Interface [Auto]
►RF Interface Control

F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit

Item Specific Help

Supervisor Password
controls access to the
setup utility.

Note:

¾ Once you enter the incorrect password for three times, “System

Disabled” will show on the screen. Please press the power switch for
more than 5 seconds to shut down the computer. After shutting
down, you are able to restart the system to enter the password
again,

Chapter Four - 30

p

Security Menu Selections

You can make the following selections on the Security Menu.

Feature Options Description

Set Supervisor
Password

Enter

Supervisor Password controls access to
the setup utility.

BIOS Setu

Fixed disk boot
sector

AC97 Audio
Interface

Cardbus/1394
Interface

USB Interface
Control

PCIe Interface
Control

RF Interface
Control

Normal
Write Protect

Auto
Disabled
Enabled

Auto
Disabled
Enabled

RF Security Control:

Write protects the boot sector on the
hard disk to protect against viruses.

Control Detection of the AC97 Device.

Cardbus Device Function Disable/
Enable

These items control various ICH USB
Devices.

These items control various ICH PCI
Express Devices.

Wireless LAN
WWAN
GPS
BlueTooth

Chapter Four - 31

BIOS Setu

p

RF Interface Control Sub-Menu

Phoenix SecureCore (tm) Setup Utility

Security

RF Interface Control

Wireless LAN: [Disabled]

WWAN: [Disabled]

GPS: [Disabled]

BlueTooth: [Disabled]

F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit

Item Specific Help

Wireless LAN Control

RF Interface Control Sub-Menu Selections

You can make the following selections on the RF Interface Control
Sub-Menu.

Feature Options Description

Wireless LAN Enabled

Disabled

WWAN Enabled

Disabled

GPS Enabled

Disabled

BlueTooth Enabled

Disabled

Wireless LAN Control

WWAN Control

GPS Control

BlueTooth Control

Chapter Four - 32

BIOS Setu

p

Boot Menu

Phoenix SecureCore (tm) Setup Utility

Main Advanced Security Boot Exit

Boot priority order:

1: USB FDC:

2: IDE CD:
3: USB KEY:
4: IDE HDD: FUJITSU MHW2040BH – (PM)
5: Legacy Network Card
6: PCI BEV: IBA GE Slot 00C8 v1322
7:
8:

Excluded from boot order:

: USB HDD:
: USB CDROM:
: USB ZIP:
: USB LS120:
: PCI SCSI:
: Other USB:
: PCI:
: Legacy
:1394 CDROM

F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc

Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit

The system will try to boot from device on top then the 2nd and so on. If
there is more than one device in each category, only the device on top of
sub-menu can boot up.

Item Specific Help

Keys used to view or
configure devices:
Up and Down arrows
select a device.
<+> and <–> moves the
device up or down.
<f> and <r> specifies the
device fixed or removable.
<x> exclude or include the
device to boot.
<Shift + 1> enables or
disables a device.
<1 – 4> Loads default
boot sequence.

Chapter Four - 33

4

BIOS Setu

p

Exit Menu

Phoenix SecureCore (tm) Setup Utility

Main Advance Security Boot Exit

Exit Saving Changes

Exit Discarding Changes

Load Setup Defaults

Discard Changes

Save Changes

F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults

Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit

Esc

Exit Menu Selections

You can make the following selections on the Exit Menu.

Feature Options Description

Exit Saving
Changes

Exit Discarding
Changes

Load Setup
Defaults

Discard
Changes

Save Changes Save Setup Data to CMOS

Load default values for all SETUP items.

Exit System Setup and save your
changes to CMOS.

Exit utility without saving Setup data to
CMOS.

Load previous values from CMOS for all
SETUP items.

Item Specific Help

Exit System Setup and
save your changes to
CMOS.

Chapter Four - 3

Specification

Chapter Five- Specification

CPU

z Intel® Core™ Duo Processor (Penryn) T9400 2.26 GHz

CPU runs at multiple speeds depending on the CPU type and operating
system. Also, CPU speed switches automatically by detecting AC adapter/
battery operation and busy state.

Memory

z System memory: Standard: 1GB

Expandable: 8GB

z Cache memory: Internal Level 6 MB
z Graphic memory: Shared system memory from 32M to 1695 MB

Chipset

z North Bridge: Mobile Intel® GM45 Express chipset Cantiga (G) MCH
z South Bridge: Intel® ICH9M-Enhanced

Display

z Type: 17.1” Active TFT Color
z Resolution: 1440 x 900 pixels
z Mode: WXGA+
z Color: 18 bit, 256K colors
z Brightness: 160~200nits

Chapter Five - 35

Specification

Keyboard

z Number of keys: 87 Keys (standard 87-key w/o backlight)
89 keys (optional rubber 89-key with backlight)
z Key travel: 2.8 mm (standard 87-key w/o backlight)

1.5 mm (optional rubber 89-key with backlight)

Touchpad

z Type: Resistive type
z Compatible: PS/2
z Lifetime: Over 5,000,000 strokes lifetime

Hard Disk Drive

z Type: 2.5” (Removable)
z Height: 9.5mm
z Interface: SATA

DVD Super Multi Drive

z Type: 5.25” (Removable)
z Height: 12.7mm
z Interface: SATA

Chapter Five - 36

Specification

I/O Ports

z PS/2 x1 (KB + mouse)
z USB 2.0 x 3
z IEEE1394 Fire Wire x 1
z LAN RJ45 x 1
z Optional: Modem RJ11 Port x 1
z PCMCIA type I/II x 1;Express card (PCI-e) x 1

Optional: PCMCIA Type I/II x 2

z Audio Jack x 3 (Mic/Line in/Earphone)
z DB9 x 2 (COM1/2)
z DB9 x 2 (Optional: COM3/4)
z Printer DB25 x 1
z Docking Conn. x 1 (Optional: Military type)
z RGB DB15 x 1
z DVI x 1
z Optional: Military Connector Port X 2

AC Adapter

z AC Input: 100 - 240 V
z Frequency: 50/60 Hz
z DC Output: 19V
z Maximum Power: 90 Watts Max. Output
z Dimension: 130mm (W) x 60mm (D) x 34mm (H)
z Weight: 430 g (0.9 lb.)

Chapter Five - 37

Specification

Battery

Primary Battery:

Type: 9 x 18650 cells Lithium Ion
Capacity: 11.1V 7200mAH
Dimension: 103 mm (W) x 73 mm (D) x 38 mm (H)
Weight: 435 g

2nd Battery (Optional):

Type: 9 x 18650 cells Lithium Ion
Capacity: 11.1V 7200mAH
Dimension: 150 mm(W) x 90 mm(D) x 20 mm(H)
Weight: 560 g

System Unit Dimensions and Weight

Width: 413 mm
Depth: 316.5 mm
Height: 77.2 mm
Weight: 5.5Kg (including ODD and primary battery)

Note:

¾ Weight varies depending on system configurations.

Chapter Five - 38

Specification

Materials and Recycling

Materials of the computer are as follows:
z Cabinet: Aluminum Alloy ADC-12,

Magnesium Alloy AZ91D,
UL grade PC+ABS GE C6200 or TN-3813BW

z Bracket: Aluminum 5052, Steel with Nickel Plating, or

Stainless Steel S304

z Cushion pad: Silicon Rubber, TPE
z PCB: FR-4, UL 94V0
z Battery: Rechargeable Lithium Ion, 9 Cells per Pack
z Packing: Carton- Unbleached Paper

Cushion- Recyclable EPE
Carrying bag- Recyclable PE Fiber
User Guide- Recycled/Recyclable Paper

Please recycle the parts according to the local regulations.

Environmental

z Temperature: -20 ~ +50ºC (-4 ~ +122ºF) operating

-40 ~ +70ºC (-40 ~ +158ºF) storage

z Humidity: 5~95% Non-condensing operating

95% maximum storage

z Altitude: 0 ~ 4,572 meters (0 ~ 15,000 feet) operating2

Chapter Five - 39

Optional Devices

Chapter Six- Optional Devices

Memory Card

The memory card will expand your memory to facilitate better system
performance. 1GB, 2GB, and 4GB SO-DIMM DDR3 memory cards are
acceptable:

MXM II Graphic Card

Besides the standard graphic controller, an optional MXM II card (memory:
256MB) is also available to enhance the displaying ability of your notebook
computer. It supports OpenGL® 2.1 and Direct X® 10.

Vehicle Adapter

z Input Voltage: 12~32V
z Input Current: 9A max
z Output Voltage: 19V
z Output Current: 4A
z Wiring: Cigarette lighter/ Truck battery
z Application: Car or Truck installation

2nd Battery

A Lithium Ion rechargeable 2nd battery may install into the DVD Super Multi
Drive-compartment. It shares the same capacity of primary battery and
smart battery compliance.
The computer’s internal charger can detect 2nd battery and perform charging
accordingly.

Chapter Six - 40

Optional Devices

2nd HDD

z Swappable with ODD, set as SATA primary slave drive.

ODD (Optical Disk Drive)

z Swappable ODD for disks playing
z Compatible with VCD-ROM, DVD-ROM, and etc.

Heater

RF9 provides a heater kit for enabling the unit to work under the low
temperature, the heater will first heat the HDD up to the temperature set by
the user, and the system will boot after then. Also, the heater will keep
monitoring the temperature of the HDD. Once the temperature becomes
lower, the heater will heat up again to maintain the temperature set by the
user.

LAN and Modem Card

z 10Mb/100Mb/1Gb LAN Card
z 56Kbps V.92 Modem Modem Card

Wireless LAN Card

z IEEE 802.11 a/b/g/n wireless LAN card

Bluetooth

z USB interface, Bluetooth® v2.1 + EDR system is backward compatible

with v1.1/1.2/2.0 devices.

Chapter Six - 41

Optional Devices

WWAN

z USB interface, HSDPA/UMTS 3.5G

GPS

z USB interface, Ublox LEA-5H

KB Dust Cover

z KB Dust Cover is available for standard Keyboard.

PCMCIA Cover

Besides the attached PCMCIA rubber cover, there is an optional cover with
a metal frame that can be fixed by using screws. The cover provides
protection from dust or water for cabled PCMCIA cards. Users may seal the
cable outlet after installation.

Built-in Vehicle Adapter

Converting power from car lighters or truck batteries to DC +19V, they are
the same output ratings as AC adapters. It can power the system and
charge the batteries simultaneously.

Caution

Remove or disconnect the adapter when leaving the vehicle to avoid
battery exhaustion.

Chapter Six - 42

Optional Devices

Dual-Bay Battery Charger

This charger provides two bays for the Primary and Secondary Batteries
respectively. It accepts power from AC adapter or vehicle adapter and
charged batteries. It takes approximately 6 hours to fully charge both
batteries.

COM 3/4 Card and Additional Serial Ports

z Supporting RS232, TTL, RS422, and RS485 formats.

Military Connector/ Military Serial Connector

z Military connectors x 2 are available.
z 37 pin MIL-DTL-38999 military serial connector, carrying max. 4 COM

port signals is available.

Chapter Six - 43

4

Utilities & Drivers

Chapter Seven- Utilities and Drivers

The Utility DVD includes all the drivers for the installed devices in your
notebook computer. Please consult the dealer if there is any driver missing.

Also, through Device Manager in Windows, you are able to perform “Driver
Update” or check if there are still drivers for the devices needed to be
installed.

Check readme.txt file on utility DVD to get the newest information before
starting to install drivers.

Note:

¾ Most device drivers are available in Windows.

¾ The Utility DVD includes most drivers of the computer’s installed

devices. Consult dealer if any driver is missing.

¾ Re-install drivers or perform “Driver Update” to replace the

Windows default drivers.

¾ Check readme.txt file on Utility DVD to get the newest

information before starting to install drivers.

Chapter Seven - 4

5

Utilities & Drivers

Chipset Driver

Windows 7/Enterprise 64-bit Drivers Installation:

The Windows 7/Enterprise 64-bit will automatically install the driver.

Graphic Controller

RF9 supports Intel® GM45 giving you a flexible, programmable architecture
that supports 2D, 3D and advanced 3D graphics, high-definition video
decode, and image processing. Please follow the installation as below to
use well with Intel® GM45.

Insert the Utility DVD into the ODD. Click "setup.exe" in the directory of
"RX9\Drivers\Win7(64bit)\VGA", and then follow prompt to complete driver
installation. Windows may recommend using their driver, but you should
confirm to change the factory bundled driver.

Audio

RF9 provides a high-quality audio sound effect for user to enjoy better
sound quality. To activate this function, please follow the installation as
below.

Insert the Utility DVD into the ODD. Click"Vista_R221.exe" in the directory of
"RX9\Drivers\Win7(64bit)\Audio", and then follow the prompt to complete
installation.

Mini PCI-E 1G RTL8111B LAN Driver

The Windows 7/Enterprise 64-bit will automatically install the driver.

Chapter Seven - 4

Utilities & Drivers

Mini PCI INT8100 LAN Driver

The Windows 7/Enterprise 64-bit will automatically install the driver.

Modem Driver (Optional)

The Windows 7/ Enterprise 64-bit will automatically install the driver.

Touch Panel (Optional)

There is a high sensitive touch panel for RF9 to be equipped with. Please
follow the installation as below.

Enter BIOS Setup screen and set COM1 port as “TTL1”. (COM1 has
multiple connectivity, so it’s necessary to setup. The optional COM4 may be
configured as touch screen and doesn’t need to configure the BIOS.)

Afterwards, please cancel the prompt of installation wizard to setup the
driver from the Utility DVD “RX9\Drivers\Win7(64bit)\PenMount Universal
Driver v2.1.0.263\setup.exe), and follow the prompt to complete installation
and then restart.

Wireless LAN Driver (TBD) (Optional)

Bluetooth Driver (TBD) (Optional)

GPS Driver (TBD) (Optional)

WWAN Driver (TBD) (Optional)

Chapter Seven - 46

Utilities & Drivers

Wireless Manager

Wireless Manager is an exclusive utility designed and developed for the
Wireless Devices of your notebook computer. Through Wireless Manager,
turning the power ON or OFF become more convenient for being one of the
power-saving tips.

Read from the Utility DVD. Click Setup.exe in the directory of
RX9\Utilities\Win7(64bit)Wirelessmanager then follow the prompt to
complete installation.

Chapter Seven - 47

Maintenance & Service

Chapter Eight– Maintenance and Service

Cleaning

ALWAYS turn OFF the power, unplug the power cord and remove the
battery before cleaning.

The exterior of the system and display may be wiped with a clean, soft, and
lint-free cloth. If there is difficulty removing dirt, apply non-ammonia,
non-alcohol based glass cleaner to the cloth and wipe.

An air gun is recommended for cleaning water and dust. For salty water
please clean with fresh water then blow-dry with an air gun. Be sure not to
turn the computer up side down while there is water being applied.

Troubleshooting

Should the computer fail to function properly, the troubleshooting steps
below may be followed.

z Check AC/vehicle adapter, battery, and the power source.
z Minimize the configuration, i.e. remove extra peripherals and devices.
z Remove the modules one by one (HDD, CD-ROM, Battery, etc.).
z Remove the software suspected.
z Set BIOS fail-safe default.
z Re-install operating system and application software.

Chapter Eight - 48

Maintenance & Service

RMA Service

If troubleshooting steps are unsuccessful, consult your dealer for RMA.
Shipping instructions:

1. Remove any personal disks or other media.

2. Use the original shipping container and packing materials, if possible.

3. If the original packing materials are not available, wrap the equipment
with soft material (e.g. PU/PE form) then put the wrapped equipment
into a hard cardboard shipping box.

4. Include a sheet with the following information: (Note: Please keep a
copy of this sheet for your records)

z Name
z Address
z Unit serial number
z Place and date of purchase or the original invoice number
z Date of failure
z A DETAILED Description of the problems you have encountered
z A list of the hardware/software configuration, if applicable.

5. Clearly mark the outside of the shipping box with the RMA #. If RMA #
is not present on the shipping box, receiving will be unable to identify it
and it might be returned.

6. Unless prior arrangements have been made, the customer is
responsible for all shipping costs. Unauthorized use of the company’s
shipping accounts is not permitted.

Chapter Eight - 49

Recycled/ Recyclable

Printed in Taiwan

G630902000
