MilDef Crete DS11 Users Manual

TABLET COMPUTER

DS11

USER’S GUIDE

(Preliminary Version)

Notice

Copyright© 2014, MilDef Crete Inc. All rights reserved.

No part of this publication may be reproduced and modified without the written permission of
MilDef Crete Inc.

MilDef Crete Inc. reserves the right to make changes in the products or the product
specifications without any prior notice. Customers are advised to contact MilDef Crete Inc.
for updated product information.

MilDef Crete Inc. makes no representations or warranties, either expressed or implied, with
respect to the contents hereof and specifically disclaims any warranties for the correctness
of this book, nor any license grant of MilDef Crete Inc.'s patents or intellectual properties.
MilDef Crete Inc. assumes no liability for customer's loss or damage caused by using this
document.

Trademarks

Trademark Acknowledgments
Intel® is a registered trademark of Intel Corp.

All product and company names are trademarks or registered trademarks of their respective
holders.

I

Revision History:

Revision Date Changes Author

II

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.

Regulatory Information/Disclaimers

Installation and use of this computer must be in strict accordance with the instructions

included in the user documentation provided with the product. Any changes or modifications

(including the antennas) made to this device that are not expressly approved by the

manufacturer may void the user’s authority to operate the equipment.

The manufacturer is not responsible for any radio or television interference caused by

unauthorized modification of this device, or the substitution of the connecting cables and

equipment other than manufacturer specified. It is the responsibility of the user to correct

any interference caused by such unauthorized modification, substitution or attachment.

Manufacturer and its authorized resellers or distributors will assume no liability for any

damage or violation of government regulations arising from failing to comply with these

guidelines.

III

FCC (Federal Communications Commission) Statement

This equipment has been tested and found to comply with the limits for a Class-B digital

device pursuant part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses, and radiates radio frequency energy. If not being installed

and used in accordance with the instructions, it may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

 Re-orient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

 Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

 This device may not cause harmful interference.

 This device must accept any interference received, including interference that may

cause undesired operation.

FCC Caution:

To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment. (Example - use only
shielded interface cables when connecting to computer or peripheral
devices).

IV

CE

Products with the CE Marking comply with both the EMC Directive (2004/108/EC) and the

Low Voltage Directive (2006/95/EC) issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European Norms:

EN55022 CISPR 22 Radio Frequency Interference
EN55024 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6,

EN61000-4-8, EN61000-4-11, EN61000-3-2, EN61000-3-3, Generic Immunity

Standard

LV D EN 60950-1:2006+A11:2009+A1:2010+A12 :2011+A2:2013

R&TTE (CE) Manual Regulatory Requirement

WLAN - IEEE 802.11a/b/g/n

802.11a/b/g/n Restrictions:

European standards dictate maximum radiated transmit power of 100mW E

and frequency range 2.400-2.4835 GHz.

IRP

V

CE Declaration of Conformity

It is confirmed to comply with the requirements set out in the Council Directive on the
approximation of the laws of the member states relating to Electromagnetic Compatibility
(2004/108/EC), Low-voltage Directive (2006/95/EC), the Amendment Directive
(93/68/EEC), and the procedures given in European Council Directive (99/5/EC and
2004/108/EC ).

The equipment was passed, and the equipment test was performed according to the
following European standards:

EN 300 328 V1.8.1 (2012)
EN 301 893 V1.7.1 (2012)
EN 301 489-1 V1.9.2 (2011)
EN 301 489–3 V1.6.1 (2013)
EN 301 489-17 V2.2.1 (2012)
EN300440-1 V1.6.1 2010
EN300440-2 V1.4.1 2010

UL, TÜV
AC Adapter (TÜV includes LVD EN60950)

VI

Power Conservation

This tablet computer consumes less power compared to conventional consumer computers.

The power consumption may be further reduced by properly configuring the Power

Management Setup.

It is recommended that the power saving features be enabled even when not running on

battery power. Power Management features can conserve power without degrading system

performance.

Power Safety

There are specific power requirements for your tablet computer:

 Only use an approved AC adapter designed for this tablet computer.

 There is a 3-prong grounded plug for the AC adapter. The 3rd prong is an important

mechanism for ensuring product safety. Please do not neglect the importance of this

mechanism. If you are unable to access a compatible outlet, please hire a qualified

electrician to install a compatible outlet for you.

 When unplugging the AC power cord, please make sure to disconnect the cord by

pulling from the plug head instead of pulling from the wire to prevent wire damage.

 Make sure the power outlet and any other extension cord(s) you use can support the

total current load of all the connected devices.

 Before cleaning the tablet computer, please make sure it is disconnected from any

external power source.

Warning

Before any upgrade procedures, make sure the power is turned off, and all the
cables are disconnected (including telephone lines). Also, it is advisable to
remove your battery to prevent your tablet computer from accidentally turning on.

VII

Battery Precautions

 Only use batteries designed for this tablet computer. Using incompatible battery types

may cause explosion, leakage or damage to the computer.

 Do not remove the battery from the computer while the computer is powered on.

 Do not continuously use a battery that has been dropped, or that appears damaged (e.g.

bent or twisted) in any way. Even if the computer is able to continuously work with a

damaged battery, the circuit damage may occur and possibly cause fire.

 Always use the charger designed for this computer to recharge the battery. Incorrect

recharging may cause the battery to explode.

 Do not try to service a battery by yourself. For battery service or replacement, please

contact your service representatives.

 Please dispose of damaged battery promptly and carefully. Explosion or leakage may

occur, if the battery is exposed to fire, improperly handled or discarded.

Battery Disposal & Caution

The product that you have purchased contains a rechargeable
battery. The battery is recyclable. At the end of its service life,
under various state and local laws, it may be illegal to dispose of
this battery into the municipal waste stream. Check with your local
solid waste officials for details in your area for recycling options or
proper disposal. Danger of explosion may possibly occur, if the
battery is incorrectly replaced. Replace only with the same or the
equivalent battery recommended by the manufacturer. Discard the
used battery according to the manufacturer’s instructions.

VIII

Environmental Information, Material Safety & Recycling

All materials used in the manufacturing of this equipment are recyclable or environmentally

friendly. Please recycle the packing materials in accordance with local regulations at the end

of the product's service life.

Notice:

 The equipment may contain insignificant amount of hazardous substances for health

and environment below control level.

 To avoid spreading such substances into the eco system and to minimize the pressure

on the natural environment, you are encouraged to reuse or recycle most of the

materials in a safe way after the product’s service life.

 For more information on collection, reuse and recycle of materials, please consult local

or regional waste administrations for more information. You can also contact your

dealer for more information on the environmental details of the equipment.

 The symbol of the crossed out wheeled bin indicates that the product

(electrical and electronic equipment) should not be placed in municipal waste.

Please check local regulations for disposal of electronic products.

IX

TABLE OF CONTENTS

CHAPTER 1 - GETTING STARTED............................................................... 1

UNPACKING ..................................................................................................................1

APPEARANCE OVERVIEW ...............................................................................................2

READY FOR USE............................................................................................................7

CHAPTER2 - OPERATING INFORMATION.................................................. 9

START USING YOUR TABLET COMPUTER.........................................................................9

STOP USING YOUR TABLET COMPUTER ........................................................................10

WORKING WITH POWER BUTTON (HEATER KIT) .............................................................11

INSTALLING OPERATING SYSTEM ..................................................................................12

USING BUTTONS AND INDICATORS ................................................................................12

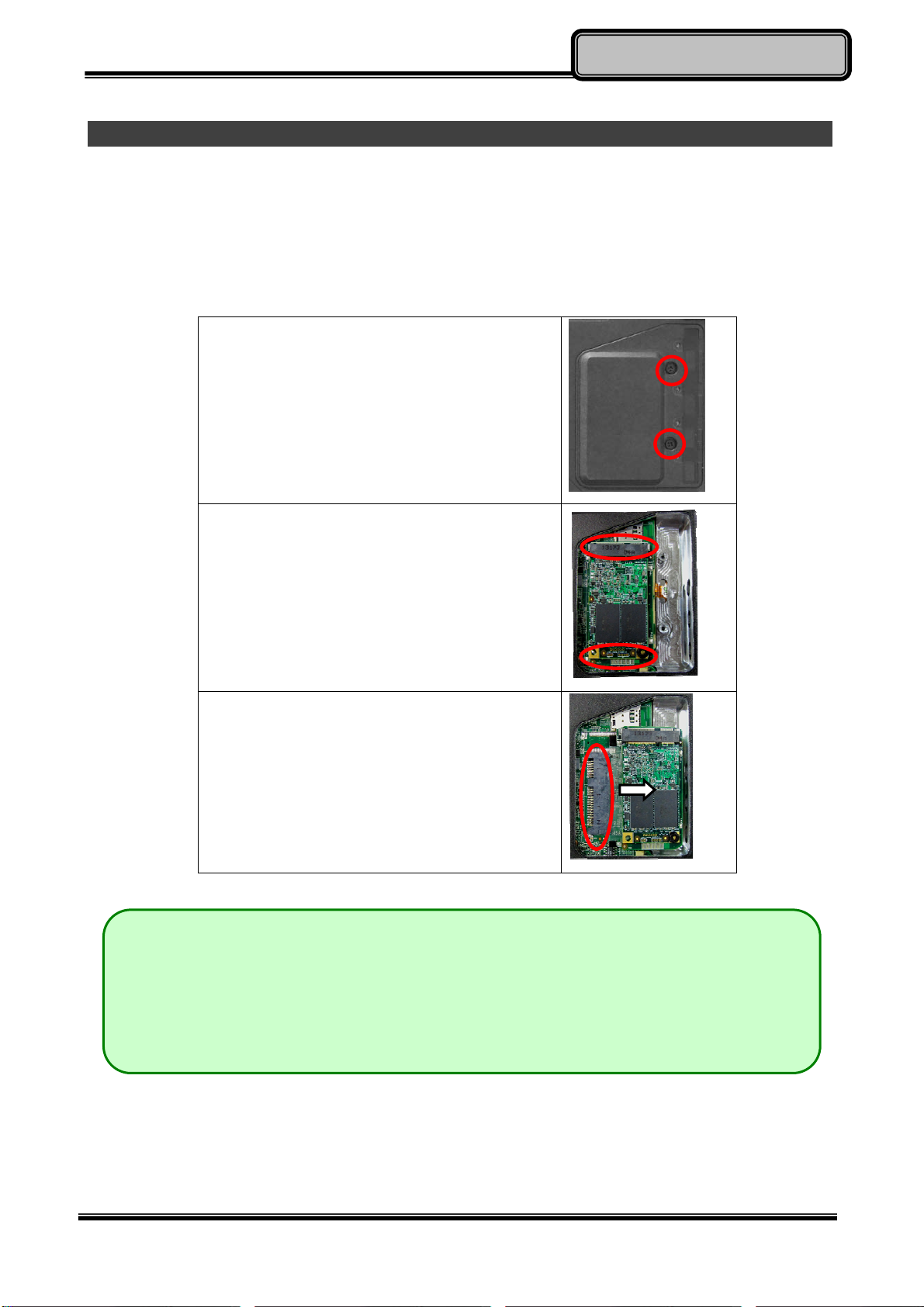

SING MSATA SSD....................................................................................................16

U
U

SING MICRO SD CARDS .............................................................................................17

®

INTEL

OPERATING WIRELESS DEVICES...................................................................................19

RAPID START TECHNOLOGY ..............................................................................18

CHAPTER3- MANAGING POWER.............................................................. 24

AC ADAPTER ..............................................................................................................24

BATTERY ....................................................................................................................25

ACPI SUPPORT ..........................................................................................................28

USB FAST CHARGING .................................................................................................29

CHAPTER 4 - BIOS SETUP......................................................................... 30

MAIN MENU ................................................................................................................30

ADVANCED MENU........................................................................................................31

RUSTED COMPUTING SUB-MENU ................................................................................33

T
SATA

SATA CONFIGURATION SUB-MENU SELECTIONS ...........................................................34

INTEL (R) RAPID START TECHNOLOGY SUB-MENU .........................................................35

USB CONFIGURATION SUB-MENU ................................................................................36

USB CONFIGURATION SUB-MENU SELECTIONS .............................................................36

RF DEVICE CONTROL CONFIGURATION SUB-MENU........................................................37

EC THERMAL CONTROL SUB-MENU..............................................................................38

CHIPSET MENU ...........................................................................................................39

CHIPSET MENU SELECTIONS ........................................................................................39

PCH-IO CONFIGURATION SUB-MENU...........................................................................39

BOOT MENU ...............................................................................................................41

BOOT MENU SELECTIONS ............................................................................................41

SECURITY MENU .........................................................................................................42

SAVE & EXIT MENU .....................................................................................................43

CONFIGURATION SUB-MENU ..............................................................................34

CHAPTER 5 – DRIVERS AND APPLICATIONS ......................................... 44

CHIPSET .....................................................................................................................44

VGA ..........................................................................................................................45

AUDIO ........................................................................................................................46

INTEL ME ...................................................................................................................47

INTEL RAPID STORAGE TECHNOLOGY ...........................................................................48

WIRELESS POWER MANAGER.......................................................................................49

TOUCH PAD ................................................................................................................50

TURBO BOOST MONITOR .............................................................................................51

GIGABIT LAN (OPTION) ...............................................................................................52

2ND GIGABIT LAN (OPTION) ........................................................................................53

WIFI (OPTION) ............................................................................................................54

LUETOOTH (OPTION) .................................................................................................55

B
GPS

(OPTION)............................................................................................................56

(OPTION)............................................................................................................57

TPM
USB3.0

(FOR WINDOWS 7) .........................................................................................58

CHAPTER 6 – SPECIFICATIONS................................................................ 59

PLATFORM..................................................................................................................59

CPU ..........................................................................................................................59

PCH ..........................................................................................................................59

MEMORY ....................................................................................................................59

TOUCH SCREEN ..........................................................................................................59

STORAGE ...................................................................................................................59

BUTTONS/FUNCTION KEYS...........................................................................................59

AUDIO ........................................................................................................................60

I/O PORTS ..................................................................................................................60

DIMENSIONS AND WEIGHT............................................................................................61

POWER.......................................................................................................................61

ENVIRONMENTAL, SAFETY & EMC................................................................................61

OPERATING & STORAGE TEMPERATURE........................................................................62

ATERIALS AND RECYCLING ........................................................................................62

M

CHAPTER 7 – OPTIONAL DEVICES .......................................................... 63

OMMUNICATION.........................................................................................................63

C
M

EMORY CARD ...........................................................................................................63

SECURITY ...................................................................................................................63

MIL. FISCHER CONNECTOR ..........................................................................................63

EXTERNAL USB KEYBOARD .........................................................................................64

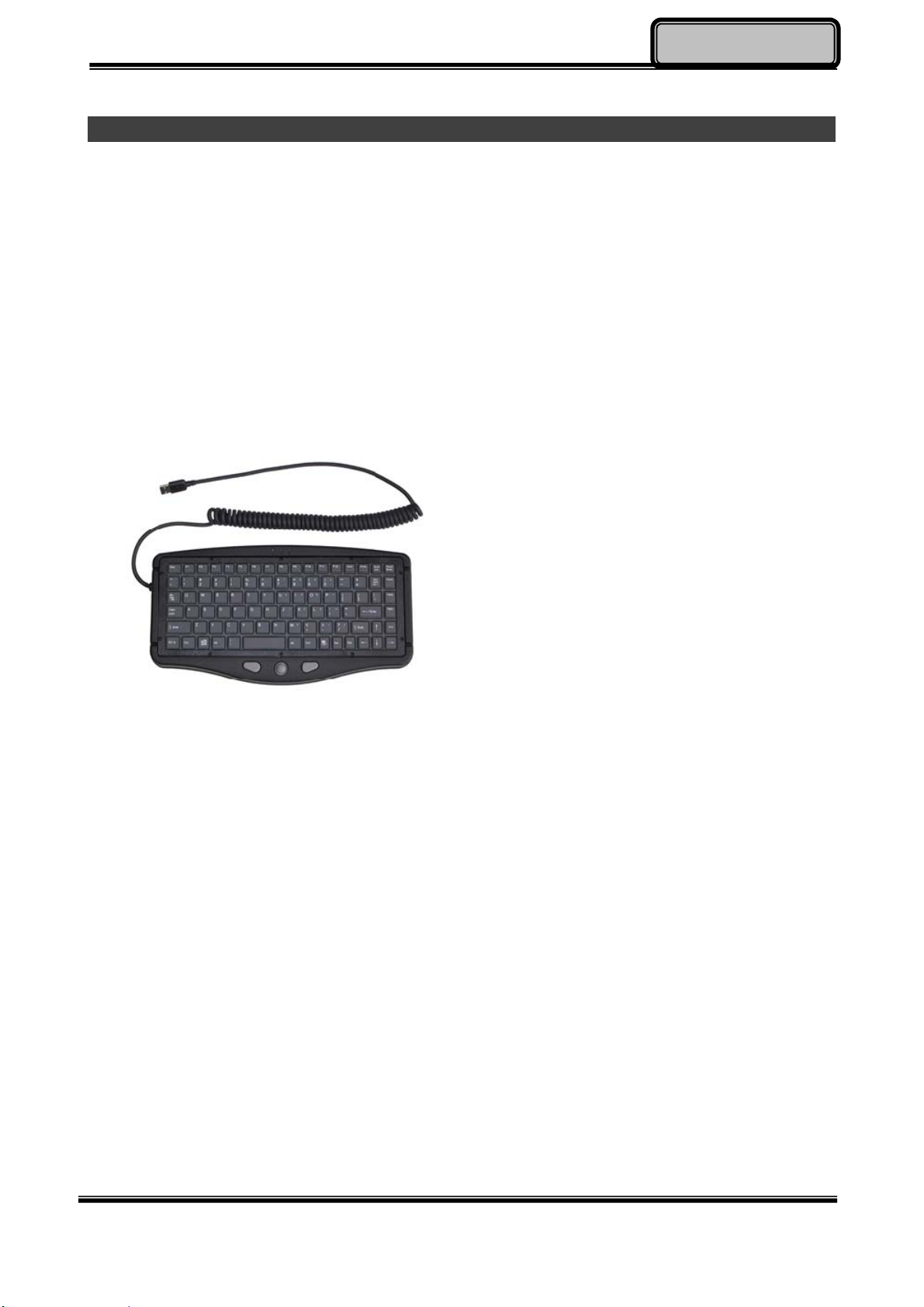

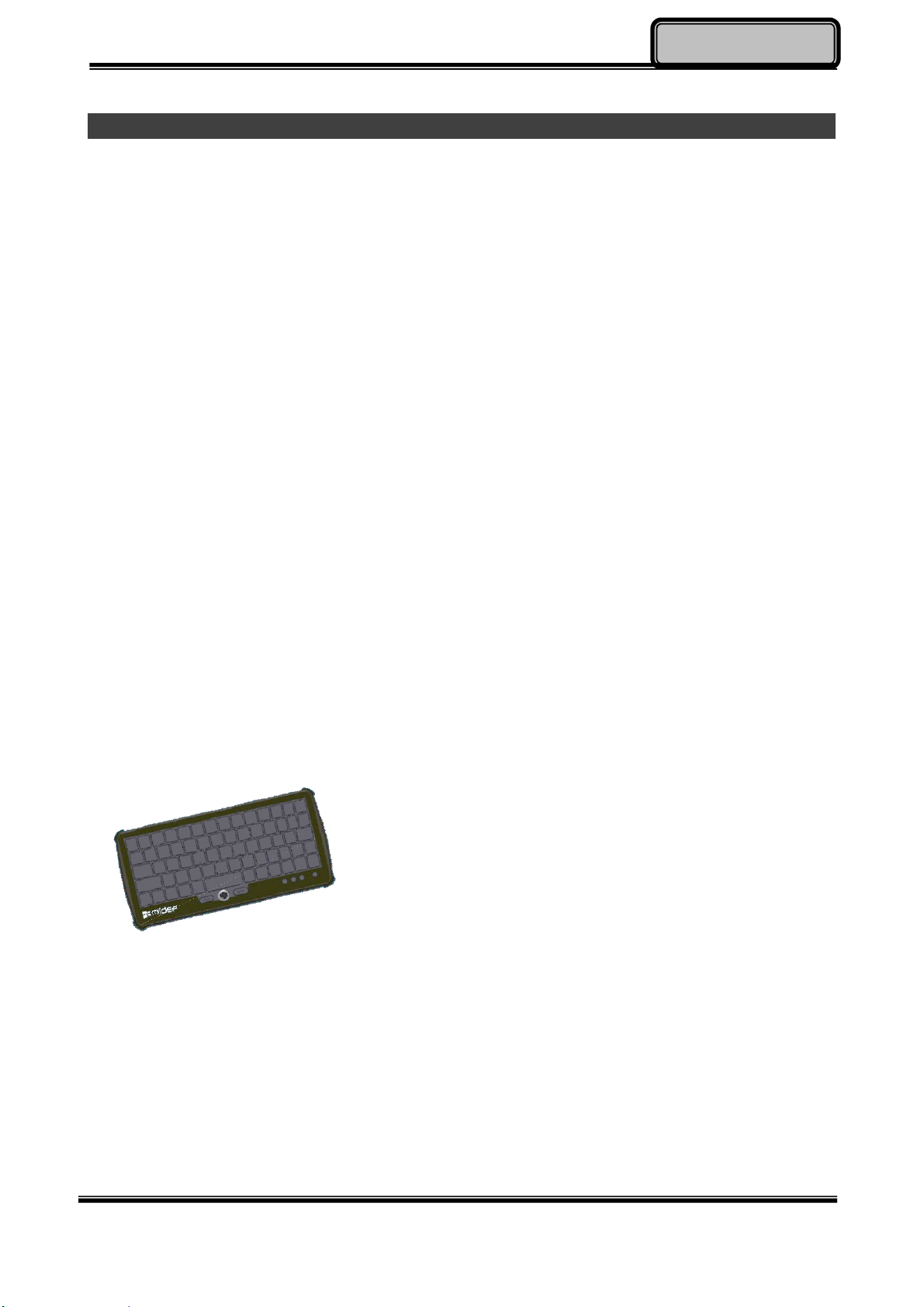

MINI KEYBOARD KBD ..................................................................................................65

CHAPTER 8 – MAINTENANCE AND SERVICE.......................................... 66

CLEANING...................................................................................................................66

ROUBLESHOOTING.....................................................................................................66

T
RMA

SERVICE ............................................................................................................67

GettingStarte

d

Chapter 1 - Getting Started

Unpacking

The following components come with your computer. If anything is missing or damaged,
please notify the dealer immediately.

 Computer unit

 AC Adapter

 AC Power Cord

 Utility DVD

 Quick Guide

 Carrying Bag

Chapter One - 1

GettingStarte

d

Appearance Overview

Note:

 The following illustrations show the tablet mounted on optional devices,

which may not appear on your devices.

Front

4

6

5

3

2

2

1

1. Power Button

2. Function keys & Input Lock Key (Please refer to “Using Indicators and Keyboard” for

more details)

3. LED Indicators

4. Touch Screen

5. Light sensor

6. Embedded digital Mic

Chapter One - 2

d

Rear

GettingStarte

2

1

1. Removable battery pack

2. Removable mSATA SSD

3.

HD Audio & mono Speaker

3

Chapter One - 3

d

Left

GettingStarte

1

1. Optional Fischer I/O

2. Standard: Mini HDMI x 1/USB3.0 x 2

Optional:

- GLAN x 1/Mini DisplayPort x 1/USB3.0 x 1

- GLAN x 1/Mini HDMI x 1/USB3.0 x 1

2

Chapter One - 4

d

Right

GettingStarte

1

1. DC-In 12~32V with BVA

- Default: Fischer 3-pin connector

2. Kensington cable lock slot

2

Chapter One - 5

GettingStarte

d

Top

1

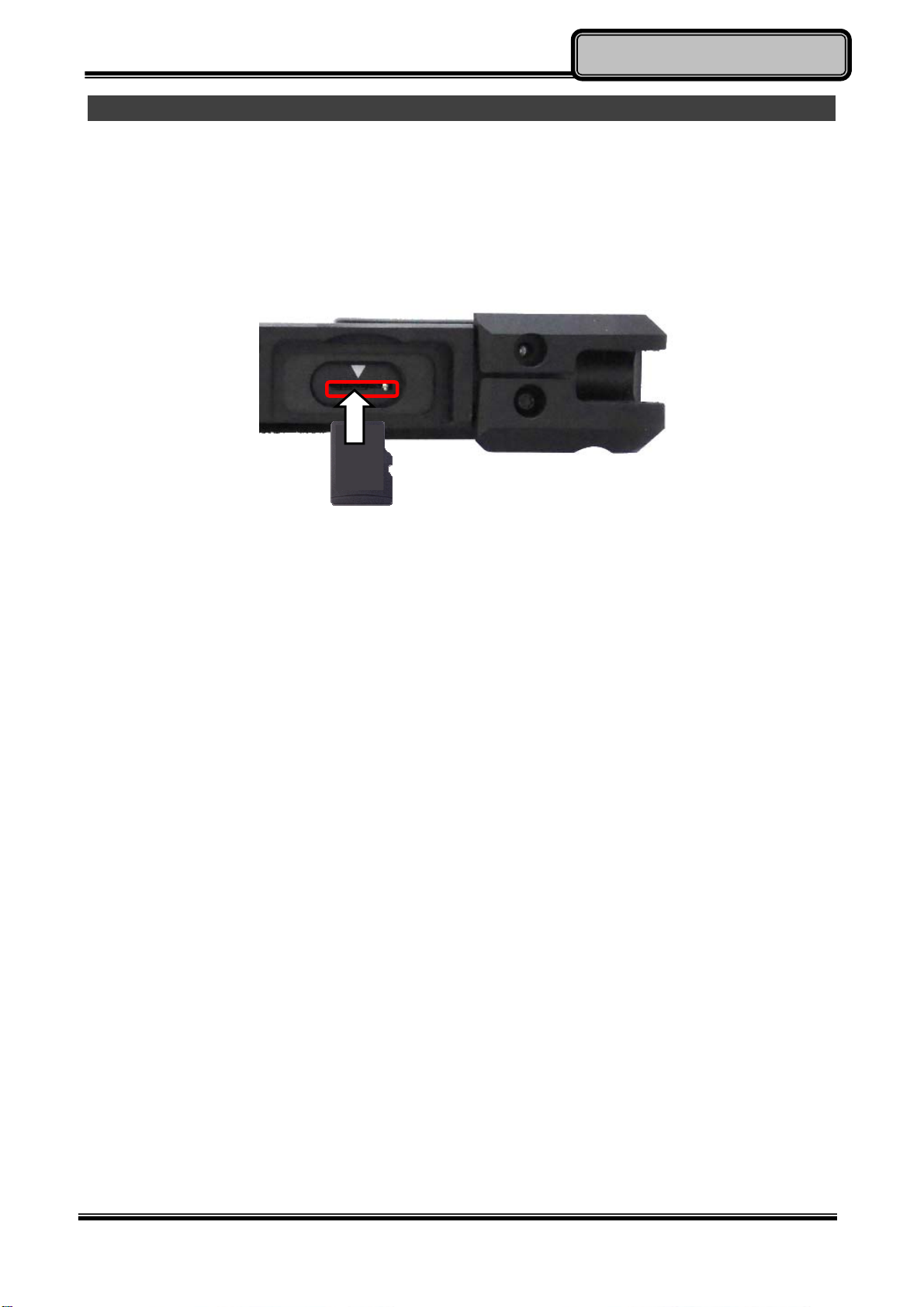

1. Micro SD Card Slot

2. Optional Built-in Wi-Fi Antenna

3. Optional Built-in GPS Antenna

Bottom

2

1

3

2

1. Docklight connector

2. Optional Built-in Wi-Fi/BT Antenna

Chapter One - 6

GettingStarte

d

Ready for Use

After taking a quick look at your tablet computer, the following illustrations will get you ready

for using it.

1. Mounting the Battery

A. Mount the battery into the battery bay.

B. Turn the battery lock counter-clockwise

and lock firmly with a flat-head
screwdriver or a coin.

2. Connecting the AC Adapter

B

A

A. Insert the DC Jack firmly.

B. Plug the AC cord into the AC adapter.

C. Plug the AC power plug into an

electrical outlet.

Chapter One - 7

GettingStarte

d

3. Turning ON the Power

A. Make sure the battery is securely mounted. Connect all power cords properly.
B. Turn on the power of your tablet computer by pressing and holding the Power Button

(approx. 2 seconds) until the SSD/ Heater Indicator lights on.

Note:

 The power is able to turn ON without any battery mounted once all the

power cords are connected.

4. Turning Off the Power

Directly tap “Shut down” from your OS to turn OFF the power of your tablet computer. If your

tablet computer stops responding, press and hold the power button for 4~5 seconds to

“Force Shut down” your tablet computer.

Note:

 Directly turning off the power of your tablet computer by “Force Shut

down” will cause all unsaved data to be lost and is not recommended.

Chapter One - 8

OperatingInformation

Chapter2 - Operating Information

Start Using Your Tablet Computer

Always turn on your tablet computer by using the power button. This is the standard

operating procedure to start using your tablet computer. After turning on the power of your

tablet computer, it will start with the Operating System (OS) installed.

Boot Up

When you turn on the power, your computer will start to load the OS into the system memory.

This start-up procedure is called “boot up”.

Power On Self-Test (POST)

Each time your computer is turned on, the BIOS will automatically perform a self-test of CPU,

memory, hardware devices, and so on.

Chapter Two - 9

OperatingInformation

Stop Using Your Tablet Computer

Each time when you finish working with your tablet computer, there are several ways to stop

your tablet computer from operating.

Shut down

Directly click “Shut down” from your OS to turn OFF the power of your computer. Before

shutting down, please do remember to save unfinished works and close your applications to

prevent your SSD from suffering possible data loss or damage. “Shut down” will turn OFF

power of your computer. If you want to start your computer again, you need to turn it ON

again by pressing the power button.

Sleep

Under “Sleep” mode, the system will temporarily save your work into the computer’s RAM. If

you want to start your computer again, please press the power button to resume. Under

Windows 8, you can enter this mode by directly clicking:

Move your mouse to the upper-right or lower-right corner of the screen, and then
click “Settings” => Click “Power” => Click “Sleep”.

Hibernate

Under “Hibernate” mode, the system will save your work into SSD. If you want to start your

computer again, you need to press and hold the power button (approx. 2 sec.) until the

SSD/Heater indicator lights on. Under Windows 8, you can enter “Hibernate” mode by

directly clicking:

Move your mouse to the upper-right or lower-right corner of the screen, and then
click “Settings” => Click “Power” => Click “Hibernate”.

Force Shut Down

In the event that your tablet computer hangs or stops responding, you can perform a force

shut down by pressing and holding the power button for 4~5 seconds. Please note that any

unsaved work or data will be lost this way.

Chapter Two - 10

OperatingInformation

Working with Power Button (Heater Kit)

Your tablet computer is equipped with a heater kit to enable work under low temperature.

The heater will heat up the HDD to the temperature set by the user before booting the

system. Also, the heater will constantly monitor HDD temperature. Once the temperature

becomes lower, the heater will heat up again to maintain the temperature set by user.

Note:

 When ambient temperature is under +5 °C (the default setting for your tablet computer),

the system may not boot up immediately. System will beep with HDD LED light flashing

orange to indicate that the heater is in operation. The LED will blink faster as the HDD

temperature approaches operational temperature. After 5~15 minutes, the system will

boot up automatically.

 In emergency situations, you can skip the heating process by pressing and holding the

power button for 9~11 seconds then release. The speaker will beep with a special

sound to signify that the heating process has been skipped (Please note that not all

devices are guaranteed to work properly in this case).

 Press the power button again during the heating process will shut down the computer.

The following is a list of functions associated with your tablet computer’s power button:

1. Press and hold for 12 seconds, then release:

USB port is enabled and you can set a new value in Heater AP.

2. Press and hold for 9 ~ 11 seconds:

The system will skip heating process and force boot up.

3. Press and hold for 5 ~ 8 seconds:

Enable/Disable the sound of Heater.

4. Press and hold the power button for 4 seconds under OS:

Shut down the system.

5. Press the power button:

a. Power on the system.

b. Force Shut Down (If pressed while the heating process is underway).

c. Sleep/Hibernate (Dependent on OS settings).

Chapter Two - 11

OperatingInformation

Installing Operating System

Your computer is designed to operate with Microsoft Windows 7 or Windows 8 32 / 64-bit

Operating System. Please connect your computer with an external USB-interface drive to

start the OS installation.

Note:

 A USB hub may be required during installation to connect with an external

USB-interface ODD, as the System USB port may not supply enough power.
Please connect your USB hub with extra power supply to complete the
installation.

Using Buttons and Indicators

Your tablet computer is designed with backlight buttons for easy and quick operations. Also,

each LED indicator shows different meanings. The description of each LED indicator and

button functions are provided for your operational reference.

LED Indicators

LED Indicator Description

Power/ S3 Indicator:

Green/ Flashing Green

mSATA SSD/ Heater Indicator:
Green/ Orange

Charger/ Battery Low Indicator:
Orange/ Flashing Orange

Chapter Two - 12

OperatingInformation

1st Layer buttons

Before using the functions of 1st layer buttons, please make sure that the [Fn Lock]
indicator is OFF.

A list of functions of 1st layer buttons is provided below for operational reference:

Button Description

Esc

Ctrl

Alt

Enter

Del

Increase brightness

Decrease brightness

Turn the screen clockwise

Increase volume

Decrease volume

For functions such as cancel or interrupt running programs,
or for BIOS Selection

Press and hold Ctrl with other keys for combination key
functions

Press and hold Alt with other keys for combination key
functions

Command for operation

The function of deletion

Chapter Two - 13

OperatingInformation

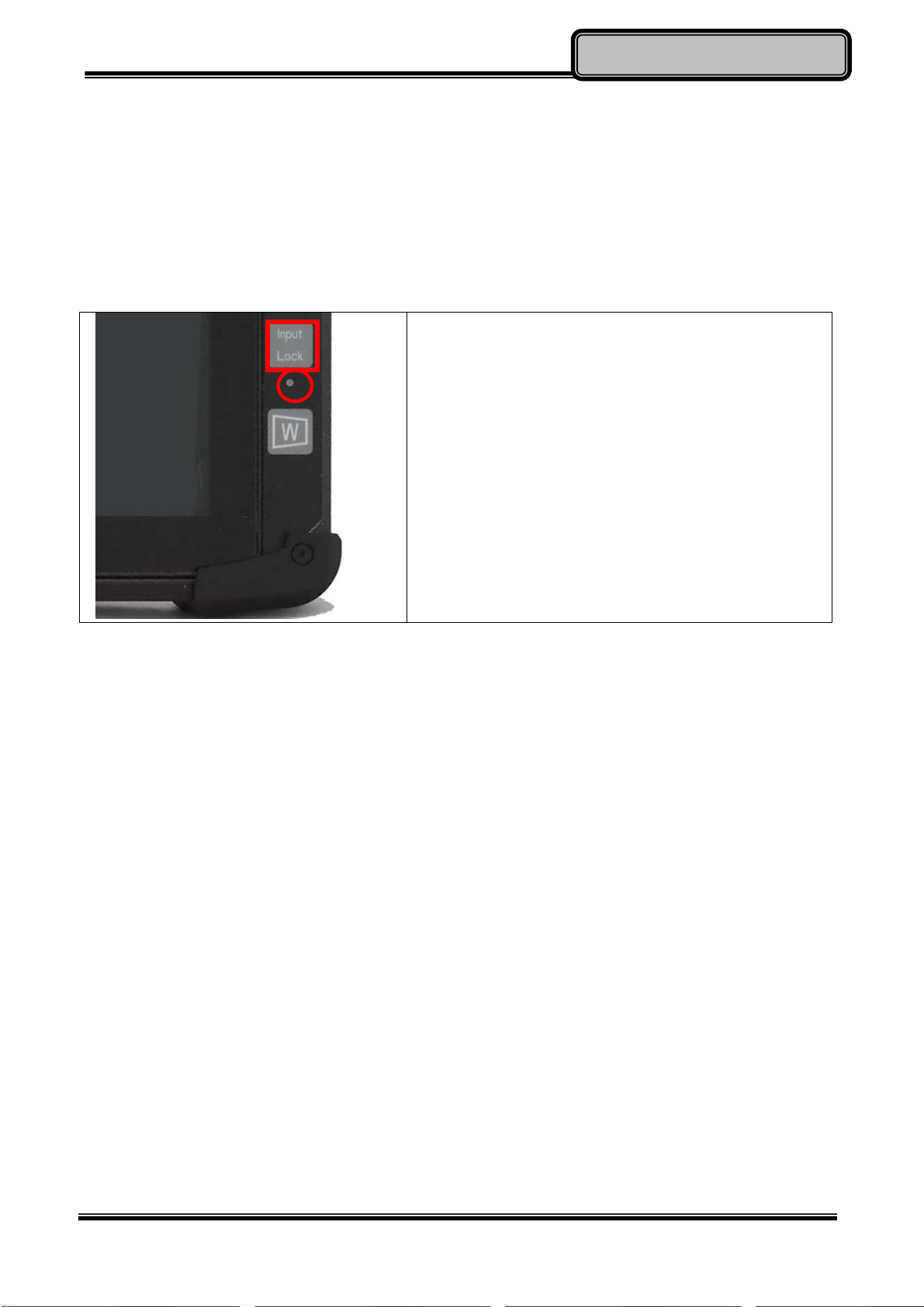

2nd Layer Buttons

To perform 2nd layer buttons (functions printed in blue on buttons), press the [Fn Lock]

button first, and the Fn Lock indicator will be on, and then press the buttons you would like
to perform.

A list of functions on 2nd layer button is provided below for operational reference:

Button Description

Windows 8.1:

Default: Simulate right click the mouse on the start button

[A1]:

Windows 7:

Default: Windows Mobility Center

[A2]:

[A3]:

Plus (+) Sign

Minus (-) Sign

Up Arrow (↑) Key

Down Arrow (↓) Key

Left Arrow (←) Key

Right Arrow (→) Key

Tab

Note:

 When press Fn Lock key, you can only perform the functions printed in blue

Default: Open the Ease of Access Center

Default: Enter into Lock Screen

For BIOS value change or other "plus" functions

For BIOS value change or other "minus" functions

For BIOS Select or other "move up" options

For BIOS Select or other "move down" options

For BIOS Select or other "move left" options

For BIOS Select or other "move right" options

Tabulation

Chapter Two - 14

OperatingInformation

Input Lock key

To prevent from unexpected input by buttons and touch screen, you can press Input Lock

key. When Input Lock function is on, the input from devices including buttons and touch

screen will be locked. To cancel the input lock function, just press the Input Lock key again

and the indicator will be turned off.

1. Press the Input Lock key (as the rectangle
one)

2. Input Lock Indicator will light on (as the circled
one)

3. Press the Input Lock key again to cancel the
function.

Chapter Two - 15

OperatingInformation

Using mSATA SSD

Your tablet is equipped with removable mSATA SSD for data storage. The mSATA SSD is
user removable for convenience. It can ONLY be removed while power is OFF. To remove

the mSATA SSD module, please follow the steps below:

1. Loosen the screws on Back Door

Cover, and then remove the cover.

2. Hold the two ends of the mSATA SSD

module.

3. Remove the mSATA SSD module from

the connector.

Note:

 Do not expose mSAT A SSD directly to high temperature, high humidity, and

other hazardous environment. NEVER try to disassemble the module. Static
discharge may destroy your device and data.

Chapter Two - 16

OperatingInformation

Using micro SD Cards

Your tablet computer is equipped with a micro SD card slot. The slot supports SDHC, SDXC,

UHS-1 type micro SD crds. To avoid damages caused by misinsertion, please insert your
micro SD card into the card slot properly with the connectors facing down, as shown below.

Chapter Two - 17

OperatingInformation

Intel® Rapid Start Technology

Your tablet computer can operate Intel® Rapid Start Technology when SSD is installed. This

technology enables your system resume time not only to be as fast as wake-up time from

S3 (Sleep) mode, but also to be more energy saving.

Before using Intel Rapid Storage Technology, please check the following system

requirements:

System Requirement:

 Intel QM77 Express Chipset-based desktop board

 Intel Ivy Bridge i7-3667U

 Solid State Drive (SSD)

 Operating system

- Microsoft Windows 7 or 8 (32- or 64-bit edition) in Legacy mode

- Microsoft Windows 7 or 8 (64-bit edition) in UEFI mode

Note:

 Intel® Rapid Storage Technology Driver should be installed and can

be found in Utility DVD.

 Please refer to the User Guide from Intel official website for setting

up the function. There are two kinds of User Guide, “Intel® Rapid
Start Technology User Guide for UEFI Mode” and “Intel® Rapid
Start Technology User Guide.” The former is for UEFI mode, while
the latter is for legacy mode.

 Please remember to enable Rapid Start Technology from BIOS

Advanced Menu.

 To cancel the Rapid Start Technology, please disable the function

from BIOS Advanced Menu.

Chapter Two - 18

OperatingInformation

Operating Wireless Devices

For your ease of operations, you can turn on/off your wireless devices through the
proprietary software application - “Device Power Manager”.

Note:

 Depending on the configuration of your tablet computer, your Device Power

Manager menu may appear differently from the screenshots provided in this
section.

 When you adjust User Account Control (UAC), a security feature in Windows,

the setting value of Device Power Manager will be affected. So, once there is
any adjustment on UAC, please uninstall Device Power Manager and reinstall
it again.

Bluetooth (Option)

The Bluetooth module provides your tablet computer with a short-range wireless

communication protocol to connect with other compatible devices via the pre-installed

embedded antenna. To activate your Bluetooth functions, please follow the instructions

below.

1. Driver & Application Installation

a. Install the Bluetooth driver first. Read from the Utility DVD and find the directory

listed in the readme file to finish installation.

b. Install the Device Power Manager application. Read from the Utility DVD and find

the directory listed in the readme file to finish installation.

Chapter Two - 19

OperatingInformation

2. Launch the Device Power Manager

After launching the utility, please tap “Bluetooth” to enable the Bluetooth function (tap

again to disable). Once the Bluetooth function starts up, the wireless LED indicator

(color blue) will turn on and the Bluetooth icon will show up in the operating system

accordingly.

Once the Bluetooth function starts up, the wireless device LED indicator will turn on (color

blue) and the Bluetooth icon will appear in the OS accordingly.

Chapter Two - 20

OperatingInformation

Wireless LAN (Option)

Wireless LAN is an optional wireless communication module for your tablet computer. An

embedded antenna will be pre-installed in your tablet computer to access the internet

wirelessly. To activate your Wireless LAN function, please follow the illustrations below:

1. Driver & Application Installation

a. Install the Chipset Driver first. Read from the Utility DVD and find the directory

listed in the readme file to finish installation.

b. Then, install the Device Power Manager application. Read from the Utility DVD and

find the directory listed in the readme file to finish installation.

2. Launch the Device Power Manager

After launching the utility, please tap “Wireless LAN” for enabling the Wireless LAN

function (tap again to disable).

Once the Wireless LAN function starts up, the wireless device LED indicator will turn on

(color blue) and the Wireless LAN icon will appear in the OS accordingly.

Chapter Two - 21

OperatingInformation

GPS (Option)

GPS is an optional module for your tablet computer. This GPS module supports both GPS

and GLONASS systems. An embedded antenna is pre-installed in your tablet computer to

support the functions of your GPS and GLONASS.

1. Driver & Application Installation

a. Install the Device Power Manager application:

Read from the Utility DVD and find the directory listed in the readme file to finish

installation.

b. Install the GPS driver:

GPS (Driver): Read from the Utility DVD and find the directory listed in the readme

file to finish installation.

2. Navigation & Mapping Software Installation

Please install your 3rd party navigation and mapping software after installing your GPS

driver. Refer to your navigation and mapping software manual for installation and

procedures on application setup and access. Once the GPS function starts up, the

wireless device LED indicator will turn on (color blue).

Chapter Two - 22

OperatingInformation

Chapter Two - 23

ManagingPower

Chapter3- Managing Power

AC Adapter

The AC adapter performs two functions:

- It powers the computer from an external AC source.

- It charges the computer battery.

The adapter automatically detects the AC line voltage (110V or 220V) and adjusts

accordingly.

The following are recommended when using the AC adapter:

- Use a properly grounded AC outlet.

- Use one AC outlet exclusively for the computer. Having other appliances on the same

line may cause interference.

- Use a power strip with built-in surge protection.

Connect the AC adapter:

- Plug the AC cord to the adapter.

- Plug the other end of the AC cord into the wall outlet. Make sure the green LED on the

adapter turns on.

- Attach the DC plug into the power jack of the computer; turn the lock ring clockwise to

secure it.

AC Adapter Indicator

The green LED indicates that AC power is ready.

Chapter Three - 24

ManagingPower

Battery

The computer will automatically switch to battery when the external power source (AC

adapter or optional vehicle adapter) is disconnected.

Battery Power Saving Tips

The computer comes with an intelligent power-saving feature. You may extend the battery

life by:

- Setup power saving functions in Operating System Power Management options (e.g.

Windows Power Options).

- Lower the intensity of the display by brightness control.

- Turn the computer into standby (by Sleep or Power button) when it is temporarily not in

use.

- Shut down the computer when it will not be in use for longer period of time.

Battery Low

When the battery is nearly exhausted, the computer gives the following “Battery Low”

warnings:

- Windows battery low warning.

- The power LED flashes.

Once the “Battery Low” warning occurs, please:

- Save and close the files you are currently working on then shut down the computer.

- Plug in AC or vehicle adapter to recharge the battery.

Chapter Three - 25

ManagingPower

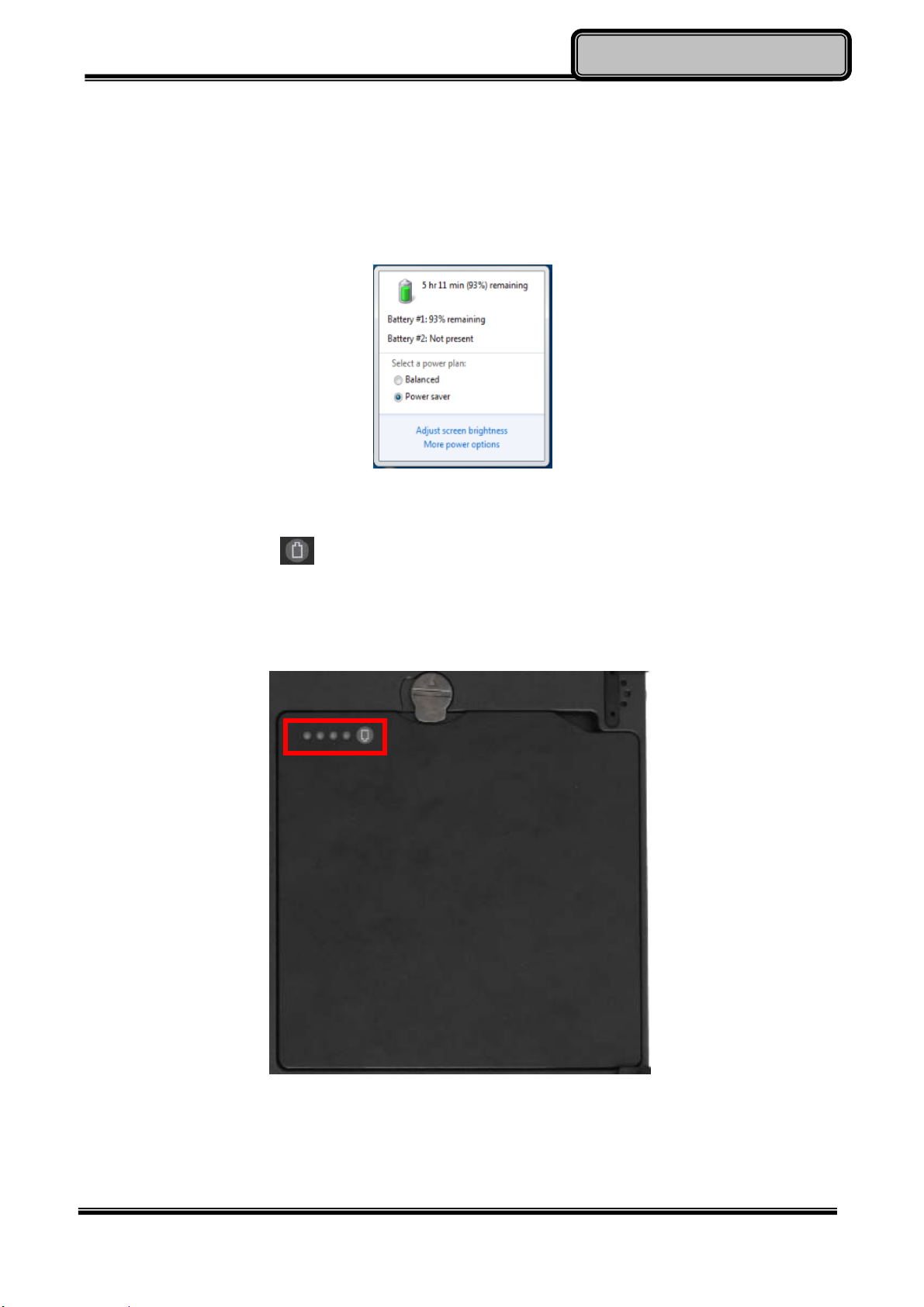

Battery Level

You may check battery status from Operating System. In Windows, you can click the

power/battery icon to reveal the battery gauge window. The following is the illustration of

Battery Gauge in Windows OS.

An alternative way to check the battery level is by viewing the battery gauge on the battery

pack. By pressing the button, indicators will be on. The more indicators are on, the

more power remains in the battery. In other words, if the capacity of the battery pack is full,

all indicators will be on, and if the capacity is nearly drained, all indicators will be off.

Chapter Three - 26

ManagingPower

Note:

 Battery characteristic varies depending on factors such as ambient

temperature, charging method, load current, aging, etc. For example, the
chemicals of the battery are more inactive at low temperature, thus decreases
the output power.

 The battery gauge should only be used as a reference. Please do not expect it

to show the exact amount of the power remaining. There is no memory effect
on Lithium Ion battery cells. However, discharge the battery to nearly empty
every month will help calibrating the internal gauge.

Chapter Three - 27

ManagingPower

ACPI Support

Your computer supports ACPI (Advanced Configuration and Power Interface) for power

management. With ACPI and an ACPI-compliant operating system (such as Microsoft

Windows), this feature will allow you to reduce the power consumption and conserve

energy. By supporting ACPI, the AC adapter LED and the Power indicator LED will show in

different ways. The followings are detailed descriptions of LED indicators and their

meanings:

Sleep:

AC adapter LED is ON (while connecting with power)
Power LED indicator is flashing; other LED indicators are OFF

Hibernate:

AC adapter LED is ON (while connecting with power)
Power LED indicator is OFF; other LED indicators are OFF

Shut down:

AC adapter LED is ON (while connecting with power)
Power LED indicator is OFF; other LED indicators are OFF

Chapter Three - 28

ManagingPower

USB Fast Charging

Your tablet supports USB fast charging feature, enabling to quickly charge your

fast-charging compatible devices. But note, fast charging is not supported in every power

mode. The following table shows details for USB Charging information:

Mode USB 3.0 Charging Features

AC Fast charging supports

Power off

Battery No charging

AC Normal charging

Power on

Battery Normal charging

AC Fast charging supports

S3

Battery Fast charging supports

Chapter Three - 29

Optional Devices

BIOSSetup

Chapter 4 - BIOS Setup

Press [F2] + [Delete] at boot up to enter BIOS setup. Use arrow keys to select options and
[+/-] to modify them. When finished, move to “Exit” and press [Enter] then confirm save by
pressing [Y].

Main Menu

Aptio Setup Utility

Main Advanced Chipset Boot Security Save & Exit

BIOS Information
BIOS Vendor
Core Version
Compliancy
Project Version
Build Date and Time
EC Version

System Language [English]

System Date [Wed 06/19/2013]
System Time [16:19:20]

Access Level Administrator

Choose the system
default language

→←: Select Screen

↑↓: Select Item

Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

Note:

 The contents may vary depending on computer configurations.
 Incorrect settings may cause system malfunction. To correct it, restore the

Optimized Defaults with F3.

Main Menu Selections

You can make the following selections on the Main Menu. Use the sub-menus for other
selections.

Feature Options Description

System Date MM/DD/YYYY

Set the system date Month, Day,
Year.

System Time HH:MM:SS

Set the system time Hour, Minute,
Second.

Chapter Four - 30

Optional Devices

BIOSSetup

Advanced Menu

Aptio Setup Utility

Main Advanced Chipset Boot Security Save & Exit

► Trusted Computing
► CPU Configuration
► SATA Configuration
► Thermal Configuration
► Intel (R) Rapid Start Technology
► USB Configuration
► Super IO Configuration
► RF Device Configuration
► EC Thermal Control
► AC IN BOOT Control
► USB CHARGE Control
► Intel (R) Smart Connect Technology
► Network Stack Configuration
► CPU PPM Configuration

Trusted Computing
Setting

→←: Select Screen

↑↓: Select Item

Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

Chapter Four - 31

Advanced Menu Selections

You can make the following selections on the Advanced Menu.

Feature Options Description

Optional Devices

BIOSSetup

Trusted
Computing

SATA
Configuration

Disabled
Enabled

SATA Mode Selection
Serial ATA Port 0
Software Preserve

Intel (R) Rapid
Start Technology

USB
Configuration

Super IO
Configuration

RF Device
Control

Disabled
Enabled

Disabled
Enabled

Serial Port 0~3
Configuration

Disabled
Enabled

TPM Support

SATA Mode Selection: IDE, AHCI,
RAID

Enable or disable Intel (R) Rapid Start
Technology.

Legacy USB Support
USB3.0 Support
XHCI Hand-off
EHCI Hand-off

GPS, BLUETOOTH, WLAN

EC Thermal

Thermal cooling trip point

Control
AC IN BOOT

Control
USB Charge

Control
Intel Smart

Connect

Disabled
Enabled

Disabled
Enabled

Disabled
Enabled

Technology
Network Stack

Configuration
CPU PPM

Configuration

Disabled
Enabled

Disabled
Enabled

AC IN Boot setting

Enable/Disable ISCT Configuration

Enable/Disable UEFI Network Stack

Enable/Disable Intel SpeedStep

Chapter Four - 32

Trusted Computing Sub-Menu

Aptio Setup Utility

Advanced

Configuration

Security Device Support [Disable]

Current Status Information

SUPPORT TURNED OFF

Optional Devices

BIOSSetup

Enables or Disables
BIOS support for
security device. O.S.
will not show Security
Device. TCG EFI
protocol and INT1A
interface will not be
available.

→←: Select Screen

↑↓: Select Item

Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

Chapter Four - 33

SATA Configuration Sub-Menu

Aptio Setup Utility

Advanced

SATA Mode Selection [AHCI]

SATA Test Mode [Disabled]
Aggressive LPM Support [Enabled]
SATA Controller Speed [Gen3]

Serial ATA Port 0 Empty
Software Preserve Unknown
Serial ATA Port 1 Empty
Software Preserve Unknown
Serial ATA Port 2 SATA SSD (120.0
Software Preserve SUPPORTED

Optional Devices

Determine how SATA
controller(s) operate.

→←: Select Screen

↑↓: Select Item

Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

BIOSSetup

SATA Configuration Sub-Menu Selections

You can make the following selections on the SATA configuration sub-menu.

Feature Options Description

SATA Mode
Selection

SATA Test Mode Disabled

Aggressive LPM
Support

SATA Controller
Speed

Port 0 Disabled

Hot Plug Disabled

IDE
AHCI
RAID

Enabled
Disabled

Enabled
Gen1

Gen2
Gen3

Enabled

Enabled

Determine how SATA
controller(s) operate

Enable or disable Test Mode

Enable PCH to aggressively enter
link power state

Indicates the maximum speed the
SATA controller can support

Enable or Disable SATA Port

Designates this port as Hot
Pluggable

Chapter Four - 34

Intel (R) Rapid Start Technology Sub-Menu

Aptio Setup Utility

Advanced

Intel (R) Rapid Start Technology [Disabled]

Optional Devices

BIOSSetup

Enables or disable Intel
(R) Rapid Start
Technology

: Select Screen

→←

↑↓: Select Item

Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

Chapter Four - 35

USB Configuration Sub-Menu

Aptio Setup Utility

Advanced

USB Configuration

USB Devices:
1 point

Legacy USB Support [Enabled]

USB3.0 Support [Enabled]
XHCI Hand-off [Enabled]
EHCI Hand-off [Disabled]

Optional Devices

Enables Legacy USB
support.
AUTO option disables
legacy support if no USB
devices are connected.
Disable option will keep
USB devices available
only for EFI applications

: Select Screen

→←

↑↓: Select Item

Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

BIOSSetup

USB Configuration Sub-Menu Selections

You can make the following selections on the USB configuration sub-menu.

Feature Options Description

Legacy USB
enabled

Usn3.0
Support

XHCI Hand-off Disabled

EHCI Hand-off Disabled

Disabled
Enabled

Disabled
Enabled

Enabled

Enabled

Enables Legacy USB support.
AUTO option disables legacy
support if no USB devices are
connected. DISABLE option will
keep USB devices available only
for EFI applications.

Enable/Disable USB3.0 (XHCI)
Controller support.

This is a workaround for OSes
without XHCI hand-off support.
This XHCI ownership change
should be claimed by XHCI driver.

This is a workaround for OSes
without EHCI hand-off support.
This EHCI ownership change
should be claimed by EHCI driver.

Chapter Four - 36

RF Device Control Configuration Sub-Menu

Aptio Setup Utility

Advanced

RF Device Control

GPS STATUS Present

GPS [Enabled]

BT STATUS Present

BLUETOOTH [Enabled]

WLAN STATUS Present

WLAN [Enabled]

Optional Devices

RF Device Control Setting

→←: Select Screen

↑↓: Select Item

Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

BIOSSetup

RF Device Control Configuration Sub-Menu Selections

You can make the following selections on the RF Security Control sub-menu.

Feature Options Description

Wireless LAN Disabled

Enabled

GPS Disabled

Enabled

BlueTooth Disabled

Enabled

Wireless Lan Control
Enabled Wireless function

GPS Control
Enabled GPS function

BlueTooth Control
Enabled Blue Tooth function

Chapter Four - 37

EC Thermal Control Sub-Menu

Aptio Setup Utility

Advanced

EC Thermal Control

User mode [Normal mode - 87 C]

EC Thermal Control
Setting

→←: Select Screen

↑↓: Select Item

Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

Optional Devices

BIOSSetup

EC Thermal Control Sub-Menu Selections

You can make the following selections on the EC Thermal Control sub-menu.

Feature Options Description

User mode Tablet mode – 79 C

Normal mode – 87 C
High Performance mode – 95 C

Chapter Four - 38

Optional Devices

BIOSSetup

Chipset Menu

Aptio Setup Utility

Main Advanced Chipset Boot Security Save & Exit

► PCH-IO Configuration

► System Agent (SA) Configuration

PCH Parameters

→←: Select Screen

↑↓: Select Item

Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

Chipset Menu Selections

You can make the following selections on the Chipset sub-menu.

Feature Options Description

PCH-IO Configuration PCH Parameter
System Agent (SA)

Configuration

System Agent (SA)
Parameters

PCH-IO Configuration Sub-Menu

Aptio Setup Utility

Chipset

Intel PCH RC Version 1.6.0.0
Intel PCH SKU Name QM77
Intel PCH Rev ID 04/C1

► PCI Express Configuration
► USB Configuration
► PCH Azaliz Configuration

PCI Express
Configuration settings

→←: Select Screen

↑↓: Select Item

Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

Chapter Four - 39

Optional Devices

BIOSSetup

PCH-IO Configuration Sub-Menu Selections

You can make the following selections on the PCH-IO Configuration sub-menu.

Feature Options Description

PCI Express
Configuration

USB
Configuration

PCH Azaliz
Configuration

Disabled
Enabled

Disabled
Enabled

Disabled
Enabled

PCI Express Configuration settings

USB Configuration settings

PCH Azaliz Configuration settings

Chapter Four - 40

Optional Devices

BIOSSetup

Boot Menu

Aptio Setup Utility

Main Advanced Chipset Boot Security Save & Exit

Boot mode select [Legacy]

Boot Option Priorities

Boot Option #1 [Hard Disk: SATA SSD...]
Boot Option #2 [CD/DVD]
Boot Option #3 [USB Hard Disk]
Boot Option #4 [USB CD/DVD]
Boot Option #5 [USB Key]
Boot Option #6 [USB Floppy]
Boot Option #7 [Network]

► CSM parameters

► Hard Disk Drive BBS Priorities

Set boot mode
LEGACY/UEFI

→←: Select Screen

↑↓: Select Item

Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

The system will try to boot from device on top then the 2nd and so on. If there is more than
one device in each category, only the device on top of sub-menu can boot up.

Boot Menu Selections

You can make the following selections on the Boot menu.

Feature Options Description

Boot mode
select

LEGACY
UEFI

Select boot mode LEGACY/UEFI

Boot Option #1 Sets the system boot order
Boot Option #2 Sets the system boot order
CSM

parameters
Hard Drive BBS

Priorities

OpROM execution, boot options
filter, etc.

Set the Boot Device Priority
sequence from available Hard
Disk Drives

Chapter Four - 41

Optional Devices

BIOSSetup

Security Menu

Aptio Setup Utility

Main Advanced Chipset Boot Security Save & Exit

Password Description

If ONLY the Administrator’s password is set, then this
only limits access to Setup and is only asked for when
entering Setup.
If ONLY the User’s password is set, then this is a
power on password and must be entered to boot or
enter Setup. In Setup the User will have Administrator
rights.
The password length must be in the following range;
Minimum length 3
Maximum length 20

Administrator Password

User Password

HDD Security Configuration:

PO: SATA SSD

Set Administrator
Password

→←: Select Screen

↑↓: Select Item

Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

Security Menu Selections

You can make the following selections on the Security Menu.

Feature Options Description

Administrator
Password

Enter New
Password
Confirm New
Password

Controls detection of
Processor Serial No. System
must be reset or restarted from
power-on for settings to take
effect.

User password

Enter New
Password

Supervisor Password controls
access to the setup utility.

Confirm New
Password

HDD 0: SATA
SSD

Enter New
Password

User Password controls
access to the system at boot.

Confirm New
Password

Chapter Four - 42

Optional Devices

BIOSSetup

Save & Exit Menu

Aptio Setup Utility

Main Advanced Chipset Boot Security Save & Exit

Save Changes and Exit

Discard Changes and Exit
Save Changes and Reset
Discard Changes and Reset

Save Options

Save Changes
Discard Changes

Restore Defaults
Save as User Defaults
Restore User Defaults

Boot Override

PO: MRMAJAA128GTSM2IDO

Exit system setup after
saving the changes

→←: Select Screen

↑↓: Select Item

Enter: Select
+/–: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

Chapter Four - 43

DriversandApplications

Optional Devices

Chapter 5 – Drivers and Applications

The Utility DVD includes all the drivers for the installed devices in your tablet computer.

Please consult the dealer if there is any driver missing. Also, through Device Manager in

Windows, you are able to perform “Driver Update” or check if there are still drivers for the

devices needed to be installed. Please check the readme file on Utility DVD to get the latest

information before installing device drivers.

Note:

 Please install the chipset driver first.
 The installation directory in this section is for reference only. Please check

the readme file on Utility DVD to get the latest directory information.

 If the system requests for reboot after installing drivers, please reboot your

tablet computer first before installing other drivers.

Chipset

Windows 8.1/Ultimate 64-bit:

Run "infinst_autol.exe" in the directory of "\Drivers\Chipset\Windows 8_1", and then follow
the instructions to install.

Windows 8.1/Ultimate 32-bit:

Run "infinst_autol.exe" in the directory of "\Drivers\Chipset\Windows 8_1", and then follow
the instructions to install.

Windows 8/Ultimate 64-bit:

Run "infinst_autol.exe" in the directory of "\Drivers\Chipset\Windows 8", and then follow the
instructions to install.

Windows 8/Ultimate 32-bit:

Run "infinst_autol.exe" in the directory of "\Drivers\Chipset\Windows 8", and then follow the
instructions to install.

Windows7/Ultimate 64-bit:

Run "Setup.exe" in the directory of "\Drivers\Chipset\Windows 7", and then follow the
instructions to install.

Windows7/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\Chipset\Windows 7", and then follow the
instructions to install.

Chapter Five - 44

DriversandApplications

Optional Devices

VGA

Windows 8.1/Ultimate 64-bit:

Run "Setup.exe" in the directory of "\Drivers\VGA(Intel_HD4000)\Windows 8_1
(64-bit)\win64_153322", and then follow the instructions to install.

Windows 8.1/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\VGA(Intel_HD4000)\Windows 8_1
(32-bit)\win64_153322", and then follow the instructions to install.

Windows 8/Ultimate 64-bit:

Run "Setup.exe" in the directory of "\Drivers\VGA(Intel_HD4000)\Windows 8
(64-bit)\Win64_15313", and then follow the instructions to install.

Windows 8/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\VGA(Intel_HD4000)\Windows 8
(32-bit)\Win32_15313", and then follow the instructions to install.

Windows 7/Ultimate 64-bit:
Run "Setup.exe" in the directory of "\Drivers\VGA(Intel_HD4000)\Windows 7

(64-bit)\Win64_15319", and then follow the instructions to install.

Windows 7/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\VGA(Intel_HD4000)\Windows 7
(32-bit)\Win32_15319", and then follow the instructions to install.

Chapter Five - 45

DriversandApplications

Optional Devices

Audio

Windows 8.1/Ultimate 64-bit:

Run "Setup.exe" in the directory of "\Drivers\Audio\Windows
7_8_8.1\Win7_Win8_Win81_R273", and then follow the instructions to install.

Windows 8.1/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\Audio\Windows
7_8_8.1\6777_PG360_Win8_Win7_Vista_XP", and then follow the instructions to install.

Windows 8/Ultimate 64-bit:

Run "Setup.exe" in the directory of "\Drivers\Audio\Windows
7_8\6777_PG360_Win8_Win7_Vista_XP", and then follow the instructions to install.

Windows 8/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\Audio\Windows
7_8\6777_PG360_Win8_Win7_Vista_XP", and then follow the instructions to install.

Windows 7/Ultimate 64-bit:

Run "Setup.exe" in the directory of "\Drivers\Audio\Windows
7_8\6777_PG360_Win8_Win7_Vista_XP", and then follow the instructions to install.

Windows 7/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\Audio\Windows
7_8\6777_PG360_Win8_Win7_Vista_XP", and then follow the instructions to install.

Chapter Five - 46

DriversandApplications

Optional Devices

Intel ME

Windows 8.1/Ultimate 64-bit:

Run "Setup.exe" in the directory of "\Drivers\Intel_ME_8.1\Windows 7_8_8.1", and then
follow the instructions to install.

Windows 8.1/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\Intel_ME_8.1\Windows 7_8_8.1", and then
follow the instructions to install.

Windows 8/Ultimate 64-bit:

Run "Setup.exe" in the directory of "\Drivers\Intel_ME_8.1\Windows 7_8", and then follow
the instructions to install.

Windows 8/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\Intel_ME_8.1\Windows 7_8", and then follow
the instructions to install.

Windows 7/Ultimate 64-bit:

Run "Setup.exe" in the directory of "\Drivers\Intel_ME_8.1\Windows 7_8", and then follow
the instructions to install.

Windows 7/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\Intel_ME_8.1\Windows 7_8", and then follow
the instructions to install.

Chapter Five - 47

DriversandApplications

Optional Devices

Intel Rapid Storage Technology

Windows 8.1/Ultimate 64-bit:

Run "SetupRST.exe" in the directory of "Drivers\Intel Rapid Storage Technology\Windows
7_8_.81\12.9", and then follow the instructions to install.

Windows 8.1/Ultimate 32-bit:

Run "SetupRST.exe" in the directory of "Drivers\Intel Rapid Storage Technology\Windows
7_8_.81\12.9", and then follow the instructions to install.

Windows 8/Ultimate 64-bit:

Run "SetupRST.exe" in the directory of "Drivers\Intel Rapid Storage Technology\Windows
7_8", and then follow the instructions to install.

Windows 8/Ultimate 32-bit:

Run "SetupRST.exe" in the directory of "Drivers\Intel Rapid Storage Technology\Windows
7_8", and then follow the instructions to install.

Windows 7/Ultimate 64-bit:

Run "SetupRST.exe" in the directory of "Drivers\Intel Rapid Storage Technology\Windows
7_8", and then follow the instructions to install.

Windows 7/Ultimate 32-bit:

Run "SetupRST.exe" in the directory of "Drivers\Intel Rapid Storage Technology\Windows
7_8", and then follow the instructions to install.

Chapter Five - 48

DriversandApplications

Optional Devices

Wireless Power Manager

Windows 8.1/Ultimate 64-bit:

Run "setup.exe" in the directory of "\Utilities\10_0_2_5\", and then follow the instructions to
install.

Windows 8.1/Ultimate 32-bit:

Run "setup.exe" in the directory of "\Utilities\10_0_2_5\", and then follow the instructions to
install.

Windows 8/Ultimate 64-bit:

Run "setup.exe" in the directory of "\Utilities\10_0_2_5\", and then follow the instructions to
install.

Windows 8/Ultimate 32-bit:

Run "setup.exe" in the directory of "\Utilities\10_0_2_5\", and then follow the instructions to
install.

Windows 7/Ultimate 64-bit:

Run "setup.exe" in the directory of "\Utilities\10_0_2_5\", and then follow the instructions to
install.

Windows 7/Ultimate 32-bit:

Run "setup.exe" in the directory of "\Utilities\10_0_2_5\", and then follow the instructions to
install.

Chapter Five - 49

DriversandApplications

Optional Devices

Touch Pad

Windows 8.1/Ultimate 64-bit:

Run "Setup.exe" in the directory of "\Drivers\Touch Pad (ETD)\Windows
7_8_8.1\ETD11.10.13.6_ps2drv_WHQL", and then follow the instructions to install.

Windows 8.1/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\Touch Pad (ETD)\Windows
7_8_8.1\ETD11.10.13.6_ps2drv_WHQL", and then follow the instructions to install.

Windows 8/Ultimate 64-bit:

Run "Setup.exe" in the directory of "\Drivers\Touch Pad (ETD)\Windows
7_8\ETD11.10.13.6_ps2drv_WHQL", and then follow the instructions to install.

Windows 8/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\Touch Pad (ETD)\Windows
7_8\ETD11.10.13.6_ps2drv_WHQL", and then follow the instructions to install.

Windows 7/Ultimate 64-bit:

Run "Setup.exe" in the directory of "\Drivers\Touch Pad (ETD)\Windows
7_8\ETD11.10.13.6_ps2drv_WHQL", and then follow the instructions to install.

Windows 7/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\Touch Pad (ETD)\Windows
7_8\ETD11.10.13.6_ps2drv_WHQL", and then follow the instructions to install.

Chapter Five - 50

DriversandApplications

Optional Devices

Turbo Boost Monitor

Windows 8.1/Ultimate 64-bit:

Run "Setup.exe" in the directory of "\Drivers\Turbo Boost Monitor\Windows 7_8_8.1", and
then follow the instructions to install.

Windows 8.1/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\Turbo Boost Monitor\Windows 7_8_8.1", and
then follow the instructions to install.

Windows 8/Ultimate 64-bit:

Run "Setup.exe" in the directory of "\Drivers\Turbo Boost Monitor\Windows 7_8", and then
follow the instructions to install.

Windows 8/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\Turbo Boost Monitor\Windows 7_8", and then
follow the instructions to install.

Windows 7/Ultimate 64-bit:

Run "Setup.exe" in the directory of "\Drivers\Turbo Boost Monitor\Windows 7_8", and then
follow the instructions to install.

Windows 7/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\Turbo Boost Monitor\Windows 7_8", and then
follow the instructions to install.

Chapter Five - 51

DriversandApplications

Optional Devices

Gigabit LAN (Option)

Windows 8.1/Ultimate 64-bit:

Run "PROWinx64.exe" in the directory of "\Drivers\Intel_82579LM\Windows 8_1 (64-bit)",
and then follow the instructions to install.

Windows 8.1/Ultimate 32-bit:

Run "PROWinx32.exe" in the directory of "\Drivers\Intel_82579LM\Windows 8_1 (32-bit)",
and then follow the instructions to install.

Windows 8/Ultimate 64-bit:

Run "PROWinx64.exe" in the directory of "\Drivers\Intel_82579LM\Windows 8 (64-bit)", and
then follow the instructions to install.

Windows 8/Ultimate 32-bit:

Run "PROWinx32.exe" in the directory of "\Drivers\Intel_82579LM\Windows 8 (32-bit)", and
then follow the instructions to install.

Windows 7/Ultimate 64-bit:

Run "PROWinx64.exe" in the directory of "\Drivers\Intel_82579LM\Windows 7 (64-bit)", and
then follow the instructions to install.

Windows 7/Ultimate 32-bit:

Run "PROWin32.exe" in the directory of "\Drivers\Intel_82579LM\Windows 7 (32-bit)", and
then follow the instructions to install.

Chapter Five - 52

DriversandApplications

Optional Devices

2nd Gigabit LAN (Option)

Windows 8.1/Ultimate 64-bit:

Run "setup.exe" in the directory of "\Drivers\Mini PCI-E 1G RTL8111E LAN\Windows
7_8_8.1\Install_Win7_7046_07202011", and then follow the instructions to install.

Windows 8.1/Ultimate 32-bit:

Run "setup.exe" in the directory of "\Drivers\Mini PCI-E 1G RTL8111E LAN\Windows
7_8_8.1\Install_Win7_7046_07202011", and then follow the instructions to install.

Windows 8/Ultimate 64-bit:

Run "setup.exe" in the directory of "\Drivers\Mini PCI-E 1G RTL8111E LAN\Windows
7_8\Install_Win7_7046_07202011", and then follow the instructions to install.

Windows 8/Ultimate 32-bit:

Run "setup.exe" in the directory of "\Drivers\Mini PCI-E 1G RTL8111E LAN\Windows
7_8\Install_Win7_7046_07202011", and then follow the instructions to install.

Windows 7/Ultimate 64-bit:

Run "setup.exe" in the directory of "\Drivers\Mini PCI-E 1G RTL8111E LAN\Windows
7_8\Install_Win7_7046_07202011", and then follow the instructions to install.

Windows 7/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\Mini PCI-E 1G RTL8111E LAN\Windows
7_8\Install_Win7_7046_07202011", and then follow the instructions to install.

Chapter Five - 53

DriversandApplications

Optional Devices

WiFi (Option)

Windows 8.1/Ultimate 64-bit:

Run "Wireless_15.6_De64.exe" in the directory of "\Drivers\Mini PCI-E WiFi 6235\Windows
8_1 (64-bit)", and then follow the instructions to install.
*: Then into the“Wireless Power Manager”to turn on the WLAN device.

Windows 8.1/Ultimate 32-bit:

Run "Wireless_15.6_De32.exe" in the directory of "\Drivers\Mini PCI-E WiFi 6235\Windows
8_1 (32-bit)", and then follow the instructions to install.
*: Then into the“Wireless Power Manager”to turn on the WLAN device.

Windows 8/Ultimate 64-bit:

Run "Wireless_15.6_De64.exe" in the directory of "\Drivers\Mini PCI-E WiFi 6235\Windows
8 (64-bit)", and then follow the instructions to install.
*: Then into the“Wireless Power Manager”to turn on the WLAN device.

Windows 8/Ultimate 32-bit:

Run "Wireless_15.6_De32.exe" in the directory of "\Drivers\Mini PCI-E WiFi 6235\Windows
8 (32-bit)", and then follow the instructions to install.
*: Then into the“Wireless Power Manager”to turn on the WLAN device.

Windows 7/Ultimate 64-bit:

Run "Wireless_15.3.1_Ds64.exe" in the directory of "\Drivers\Mini PCI-E WiFi
6235\Windows 7 (64-bit)", and then follow the instructions to install.

*: Then into the“Wireless Power Manager”to turn on the WLAN device.

Windows 7/Ultimate 32-bit:

Run "Wireless_15.3.1_Ds32.exe" in the directory of "\Drivers\Mini PCI-E WiFi
6235\Windows 7 (32-bit)", and then follow the instructions to install.

*: Then into the“Wireless Power Manager”to turn on the WLAN device.

Chapter Five - 54

DriversandApplications

Optional Devices

Bluetooth (Option)

Windows 8.1/Ultimate 64-bit:

*: First into the "Wireless Power Manager" to turn on the Bluetooth device.
Run "BT_2.6.1211_e64.exe" in the directory of "\Drivers\Bluetooth\Windows 8_1 (64-bit)",
and then follow the instructions to install.

Windows 8.1/Ultimate 32-bit:

*: First into the "Wireless Power Manager" to turn on the Bluetooth device.
Run "BT_2.6.1211_e32.exe" in the directory of "\Drivers\Bluetooth\Windows 8_1 (32-bit)",
and then follow the instructions to install.

Windows 8/Ultimate 64-bit:

*: First into the "Wireless Power Manager" to turn on the Bluetooth device.
Run "BT_2.6.1211_e64.exe" in the directory of "\Drivers\Bluetooth\Windows 8 (64-bit)", and
then follow the instructions to install.

Windows 8/Ultimate 32-bit:

*: First into the "Wireless Power Manager" to turn on the Bluetooth device.
Run "BT_2.6.1211_e32.exe" in the directory of "\Drivers\Bluetooth\Windows 8 (32-bit)", and
then follow the instructions to install.

Windows 7/Ultimate 64-bit:

*: First into the "Wireless Power Manager" to turn on the Bluetooth device.
Run "BT_2.2_s64.exe" in the directory of "\Drivers\Bluetooth\Windows 7 (64-bit)", and then
follow the instructions to install.

Windows 7/Ultimate 32-bit:

*: First into the "Wireless Power Manager" to turn on the Bluetooth device.
Run "BT_2.2_s32.exe" in the directory of "\Drivers\Bluetooth\Windows 7 (32-bit)", and then
follow the instructions to install.

Chapter Five - 55

DriversandApplications

Optional Devices

GPS (Option)

Windows 8.1/Ultimate 64-bit:

*: First into the "Wireless Power Manager" to turn on the GPS device.
Run "ubloxGnss_sensor_windows_3264_v2.1.0.5.exe" in the directory of
"\Drivers\GPS(u-blox)\Windows 7_8_8.1", and then follow the instructions to install.

Windows 8.1/Ultimate 32-bit:

*: First into the "Wireless Power Manager" to turn on the GPS device.
Run "ubloxGnss_sensor_windows_3264_v2.1.0.5.exe" in the directory of
"\Drivers\GPS(u-blox)\Windows 7_8_8.1", and then follow the instructions to install.

Windows 8/Ultimate 64-bit:

*: First into the "Wireless Power Manager" to turn on the GPS device.
Run "ubloxGnss_sensor_windows_3264_v2.1.0.5.exe" in the directory of
"\Drivers\GPS(u-blox)\Windows 7_8", and then follow the instructions to install.

Windows 8/Ultimate 32-bit:

*: First into the "Wireless Power Manager" to turn on the GPS device.
Run "ubloxGnss_sensor_windows_3264_v2.1.0.5.exe" in the directory of
"\Drivers\GPS(u-blox)\Windows 7_8", and then follow the instructions to install.

Windows 7/Ultimate 64-bit:

*: First into the "Wireless Power Manager" to turn on the GPS device.
Run "ubloxGnss_sensor_windows_3264_v2.1.0.5.exe" in the directory of

"\Drivers\GPS(u-blox)\Windows 7_8", and then follow the instructions to install.

Windows 7/Ultimate 32-bit:

*: First into the "Wireless Power Manager" to turn on the GPS device.
Run "ubloxGnss_sensor_windows_3264_v2.1.0.5.exe" in the directory of

"\Drivers\GPS(u-blox)\Windows 7_8", and then follow the instructions to install.

Chapter Five - 56

DriversandApplications

Optional Devices

TPM (Option)

Windows 8.1/Ultimate 64-bit:

*: First into the "BIOS" to turn on the TPM device.
Run "Setup.exe" in the directory of "\Drivers\TPM\Windows 7_8_8.1", and then follow the
instructions to install.

Windows 8.1/Ultimate 32-bit:

*: First into the "BIOS" to turn on the TPM device.
Run "Setup.exe" in the directory of "\Drivers\TPM\Windows 7_8_8.1", and then follow the
instructions to install.

Windows 8/Ultimate 64-bit:

*: First into the "BIOS" to turn on the TPM device.
Run "Setup.exe" in the directory of "\Drivers\TPM\Windows 7_8", and then follow the
instructions to install.

Windows 8/Ultimate 32-bit:

*: First into the "BIOS" to turn on the TPM device.
Run "Setup.exe" in the directory of "\Drivers\TPM\Windows 7_8", and then follow the
instructions to install.

Windows 7/Ultimate 64-bit:

*: First into the "BIOS" to turn on the TPM device.
Run "Setup.exe" in the directory of "\Drivers\TPM\Windows 7_8", and then follow the
instructions to install.

Windows 7/Ultimate 32-bit:

*: First into the "BIOS" to turn on the TPM device.
Run "Setup.exe" in the directory of "\Drivers\TPM\Windows 7_8", and then follow the
instructions to install.

Chapter Five - 57

DriversandApplications

Optional Devices

USB3.0 (For Windows 7)

Windows 7/Ultimate 64-bit:

Run "Setup.exe" in the directory of "\Drivers\USB3.0\Windows 7\Intel(R) USB 3.0
eXtensible Host Controller Driver PV(HF7) 1.0.7.248", and then follow the instructions to
install.

Windows 7/Ultimate 32-bit:

Run "Setup.exe" in the directory of "\Drivers\USB3.0\Windows 7\Intel(R) USB 3.0
eXtensible Host Controller Driver PV(HF7) 1.0.7.248", and then follow the instructions to
install.

Note:

 USB3.0 driver is required when DS11 installs Windows 7.

Chapter Five - 58

Specifications

Chapter 6 – Specifications

Platform

Intel® Chief River Platform

CPU

Intel® Ivy Bridge i7-3537U

- 4 MB Intel Smart Cache Memory

PCH

Intel® Panther Point QM77

Memory

4/8GB System Memory

- Industrial grade

- DDR3 SO-DIMM x 1, 1600MHz

Touch Screen

Type: 10.1” WXGA (16:10)
Resolution: 1280 x 800 pixels
Brightness (min.~ typ.): 1000 nits
Capacitive Multi-Touch Screen
Optional Invisible mode on/off

Storage

• Removable mSATA SSD

• 128GB/256GB/512GB

• Industrial Grade

Buttons/Function Keys

• Power button (front side)

• Membrane Function Keys with LED Backlight

Chapter Six - 59

Specifications

Audio

• HD Audio and mono Speakers

• Embedded Digital Mic

I/O Ports

 Std. Mini HDMI x 1/USB3.0 x 2 ((the rightmost USB port, with a lightening mark on the

cap, supports fast charging function)

 Optional:

- GLAN x 1/ Mini DisplayPort x 1/USB3.0 x 1

- GLAN x 1/Mini HDMI x 1/USB3.0 x 1

 Optional Fischer I/O:

Choose 1~4 out of 7 as below:

- USB 2.0 x 1

- VGA x 1

- COM (RS232/RS422) x 2

- GLAN x 1

- Audio X 1

- Sealed Headset (Headphone out/Mic-in Combo) x 1

 Docklite Connector: 32-pin POGO (Hot Swappable)

 Standard Micro SD card slot

 DC power jack

Chapter Six - 60

Specifications

Dimensions and Weight

Width: 280mm (11”)
Depth: 186mm (7.3”)
Height: 20mm (0.79”)
Weight: Kg ( lb)*

*Without battery, mSATA module, and all RF modules. Battery weight: approx. 300g.

Note:

 Weight varies depending on system configurations.

Power

Easily-removable Battery Pack:

Type: 6 x 18650 cells Lithium Ion
Capacity: 11.1V/ 4400mAh (3S2P)
Dimensions: 138 mm (W) x 136 mm (D) x 9.7 mm (H)
Weight: Approx. 300 gram (0.66 lb.)

AC Adapter

Input Voltage: AC 100 - 240V
Frequency: 50/60 Hz
Output Voltage: DC 19V
Maximum Power: 90 Watts
Dimensions: 133 mm (W) x 58mm (D) x 30mm (H)
Weight: Approx. 400 g (0.88 lb.)

DC-In:

12~32V with BVA

- Fischer 3 pin Connector

Environmental, Safety & EMC

CE, FCC, WEEE, REACH, IP65, MIL-STD-810G, MIL-STD-461F

Chapter Six - 61

Specifications

Operating & Storage Temperature

Operating Temp.:

- Std: I: 0 °C ~ +40 °C

M: -20 °C ~ +55 °C*

- Optional: -30 °C ~ +55 °C*
*LCD with Heater

Storage Temp.: -40 °C ~ +70 °C

Materials and Recycling

Materials of the computer are as follows:

Magnesium case: AL6061T6
PCB: FR-4, UL 94V0

Battery: Rechargeable Lithium Ion cells

Packing: Carton: Unbleached paper

Cushion: Recyclable PE

Carrying bag: Recyclable PE Fiber

Quick Guide: Paper

Please recycle the parts according to local regulations.

Chapter Six - 62

OptionalDevices

Chapter 7 – Optional Devices

Communication

 WiFi/Bluetooth:

- Intel® Centrino® Advanced-N 6235, Dual Band

- Board Form Factor: PCIe Half Mini Card

- Wi-Fi Certified: 802.11 a/b/g/n

- Bluetooth: Supports BT 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)

- Interface: PCIe (WiFi)/USB (BT)

 GPS: u-blox Neo-M8 (USB interface)

 2

nd

Gigabit LAN: 1Gbps (internal Mini PCIe Card)

Memory Card

The memory card will expand main memory to facilitate better system performance. The

cards are available as following: 4/8GB DDR3 DRAM 1600MHz (Max. total memory 8 GB).

Security

TPM (Trusted Platform Module) version 1.2

Mil. Fischer Connector

Optional Fischer connectors provide solutions for users to operate the device in harsh

environment. Signals designed for usage include USB2.0, VGA, RS232 or RS422, GLAN,

and Audio.

Chapter Seven - 63

OptionalDevices

External USB Keyboard

An optional 89-key external USB keyboard with LED backlight and IP rating of IP54 is

available for your tablet computer. The detailed specification is provided below:

 89-key layout emulates 101/102-key KB

 Life: >1 million times, water/dust protection up to IP54

 Back-light illumination (backlight device: green LED)

 PS/2 compatible Trackpoint and mouse buttons

 Dimensions: 323.4 mm (W) x 172 mm (D) x 25 mm (H)

 Weight: 1.1 kg

Track point

The track point is functionally equivalent to a mouse. Pushing the track point may move the
cursor on the screen. The 2 buttons act same as mouse buttons.

Backlight
Press [I-O] key for approximately 1 second turns keyboard backlight ON or OFF.

Chapter Seven - 64

OptionalDevices

Mini Keyboard KBD

Mini Keyboard KBD is designed for all models. KBD also brings convenience of use through

multi-language keyboard versions and USB interface. The detailed specification is provided

below:

 USB interface with 30 cm USB cable

 66-Key design with function keys to simulate standard keyboards.

 StickPointer to simulate mouse and keypad

 Currently support versions:

English (UI), English (UK), German (DE), Swedish (SV) and Russian (RU) 5 versions.

 LED Backlight

 Caps Lock, Number Lock, Scroll Lock, and Smart Card Reader LED Indicators

 Magnesium Alloy Case (Black)

 Operating Temperature: -20 ~ 50ºC (-4 ~ 122ºF)

 Storage Temperature: -40 ~ 70ºC (-40 ~ 158ºF)

 Optional Built-in Smart Card Reader

 Dimensions: 190 mm (W) x 90 mm (D) x 12 mm (H)

 Weight: 170 g

Chapter Seven - 65

MaintenanceandService

Chapter 8 – Maintenance and Service

Cleaning

ALWAYS turn OFF the power, unplug the power cord and remove the battery before

cleaning.

The exterior of the system and display may be wiped with a clean, soft, and lint-free cloth.

If there is difficulty removing dirt, apply non-ammonia, non-alcohol based glass cleaner to

the cloth and wipe.

An air gun is recommended for cleaning water and dust. For salty water please clean with

fresh water then blow-dry with an air gun.

Troubleshooting

Should the tablet computer fail to function properly, the troubleshooting steps below may

be followed.

 Power Problems:

When I turn on the Tablet computer, it does not respond.

- If you are using battery power, check if the battery is charged

- If you are using AC power, ensure that the connection of AC adapter is correct.

I cannot return from Hibernation while on battery power

- The battery might be drained. Please plug the tablet into AC power.

- Hard reset the device by pressing the power button for 4 seconds

Unexpected or improper shutdown causes BIOS to reset to Optimized Default

- This could be a power problem. Please connect the AC power adapter to fix the

abnormal shutdown problem.

 Minimize the configuration, i.e. remove extra peripherals and devices.

 Remove the modules one by one (HDD, Battery, etc.).

 Remove the software suspected.

 Set BIOS fail-safe default.

 Re-install operating system and application software.

Chapter Eight - 66

MaintenanceandService

RMA Service

If troubleshooting solutions are unsuccessful, consult your dealer for RMA.

Shipping instructions:

1. Remove any personal add-on devices or other media.

2. Use the original shipping container and packing materials, if possible.

3. If the original packing materials are not available, wrap the equipment with soft

material (e.g. PU/PE form) then put the wrapped equipment into a hard cardboard

shipping box.

4. Include a sheet with the following information: (Note: Please keep a copy of this sheet

for your records.)

- Name

- Address

- Unit serial number

- Place and date of purchase or the original invoice number

- Date of failure

- A DETAILED description of the problems you have encountered including: The

operating system, the add-on device installed (if any), the application software, the

failure phenomenon, etc.

- A list of the hardware/software configuration, if applicable.

5. Clearly mark the outside of the shipping box with the RMA #. If an RMA # is not

present on the shipping box, receiving will be unable to identify it and it might be

returned.

6. Unless prior arrangements have been made, the customer is responsible for all

shipping costs. Unauthorized use of the company’s shipping accounts is not

permitted.

Chapter Eight - 67
