Page 1
ECLIPSE
PROJECT
CONCEALED HINGES
FOR INTERNAL DOORS
Open, Close, Live
Page 2
Page 3

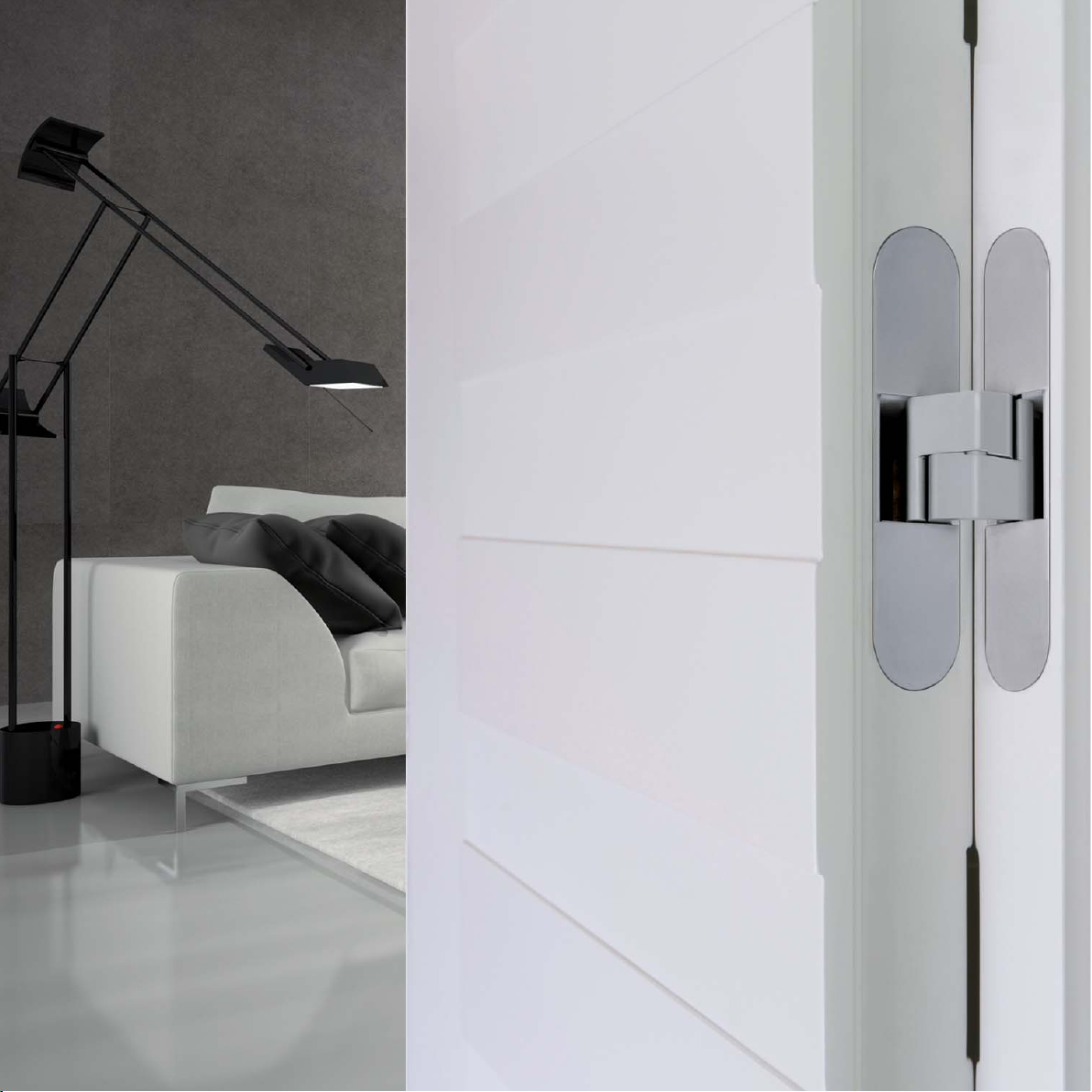

CONCEALED HINGES
ECLIPSE
INVISIBLE FROM OUTSIDE,
IMPROVES THE DOOR DESIGN
AGB introduces the ECLIPSE project:
the range of concealed hinges for
internal doors combines design,
technological functionalities and
installation simplicity.
This quality has been possible thanks
to the knowledge grown up by AGB in
70 years of experience.
Page 4
AGB: A PARTNER WITH AN INTEGRATED VISION
OF THE DOOR SYSTEM
A COMPLETE SUPPLIER
unique reference
for quality and
service
all the
accessories
for the door
THE KNOW-HOW OF A SPECIALIST
reduced time
of management
customised
accessories kit
CUSTOMISATION
hinges and locks
with your logo
MADE IN ITALY
customised
fi nishes
70 years’
experience
4
better
solutions
strict tests in
AGB
Lab
three plants
in Italy
research,
design and
creation
partnership and
collaboration for
development
Page 5
ADVANTAGES OF THE ECLIPSE RANGE
FOR ALL THE INTERNAL DOORS
ADJUSTMENTS
The adjustments of the Eclipse range
have been created to ensure a longlasting stability and simplicity of use
(just one key for all adjustments), as
the cyclic tests demonstrate, according
to the regulation EN 1935, and the EAD
regulations 020001-01-0405.
FINISHES
The Eclipse range offers up to 10 nishes.
It is possible to customise the hinges
nish without changing the high level of
corrosion resistance.
All nishes have been tested in salt spray
according to the regulation EN 9227.
RANGE
Few codes to be managed, many
applications for doors in wood and
aluminium, re resistant, reversible and
ush doors to the wall. A complete range
with speci c jigs for every model.
SIMPLICIT Y OF MANAGEMENT
AND INSTALLATION
The whole Eclipse range is made up of
non-handed hinges. Moreover, sash and
frame parts can be installed separately
during production and joined on-site.
The management of orders, warehouse and
installation become more simple and fast.
5

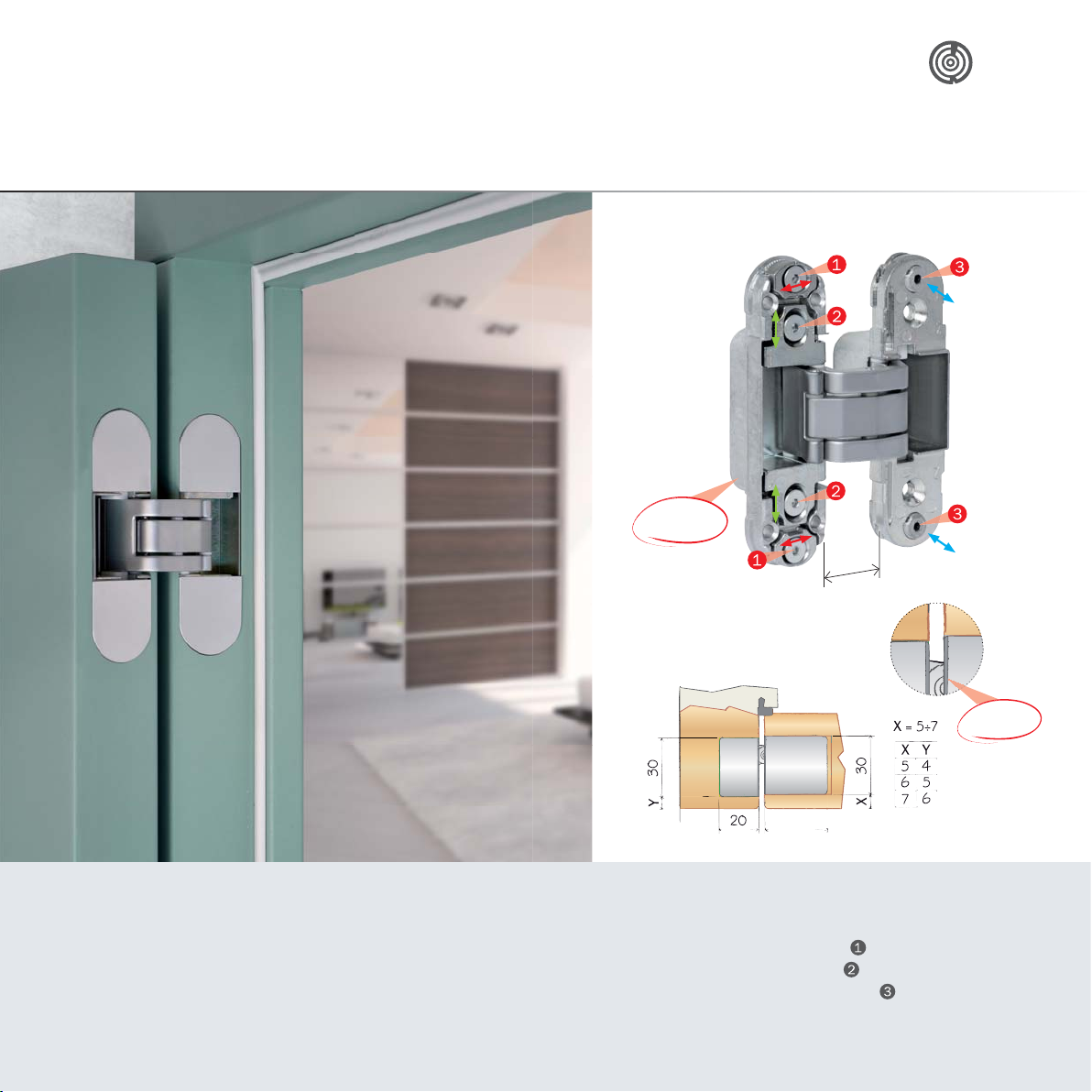

Page 6
ECLIPSE 2.0
●
●
●
Hinge for ush doors
for wooden
doors
Frame part Sash part
20 mm
depth
19,5
Flush
covers
34
●
The covers hide the screws and preserve the
door design even when the sash is open.
●
Flush covers in plastic material.
● Three adjustments completely independent
using a unique 3 mm Allen key:
- pressure adjustment ±1 mm ;
- vertical adjustment ± 2 mm ;
- horizontal adjustment ± 1,5 mm .
6

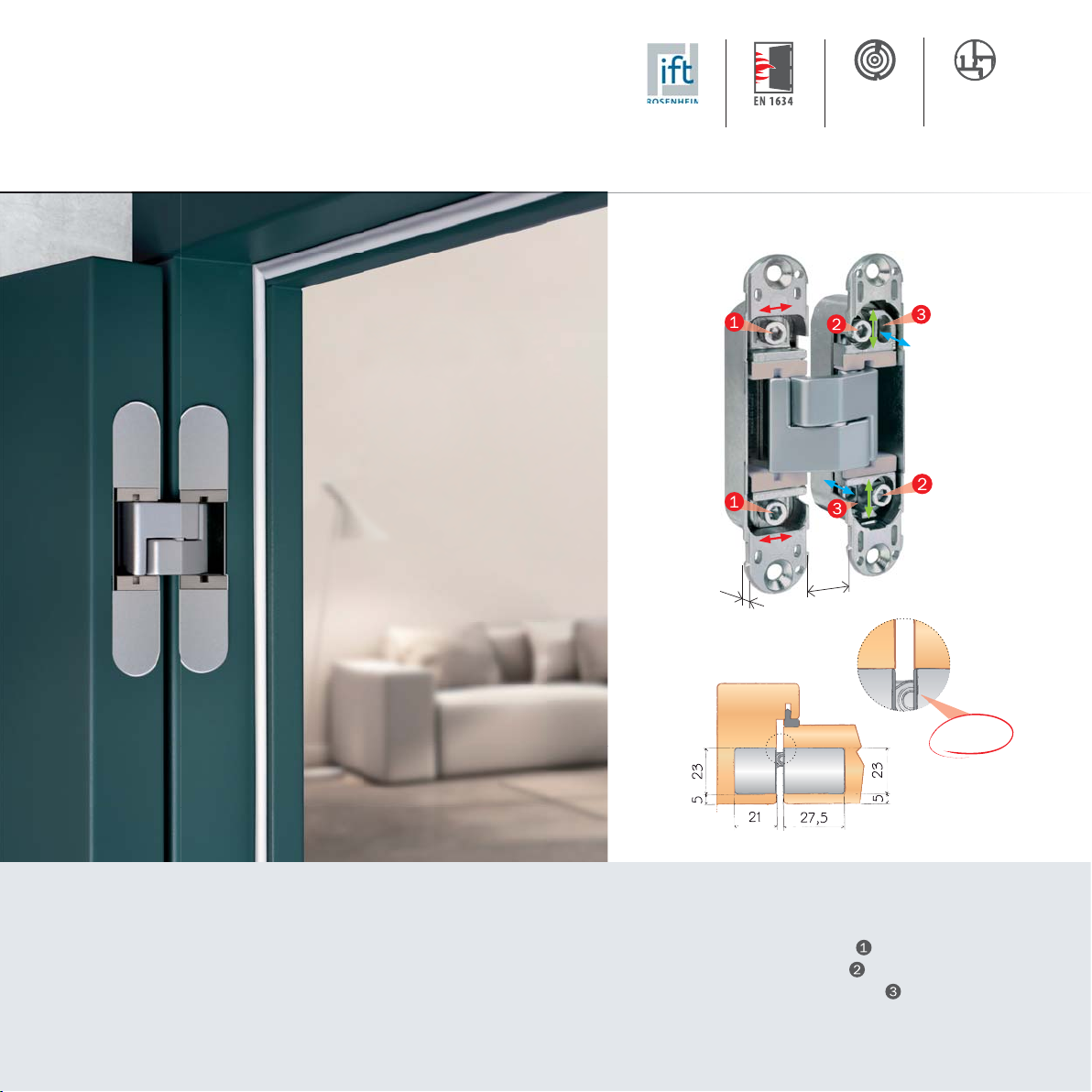

Page 7

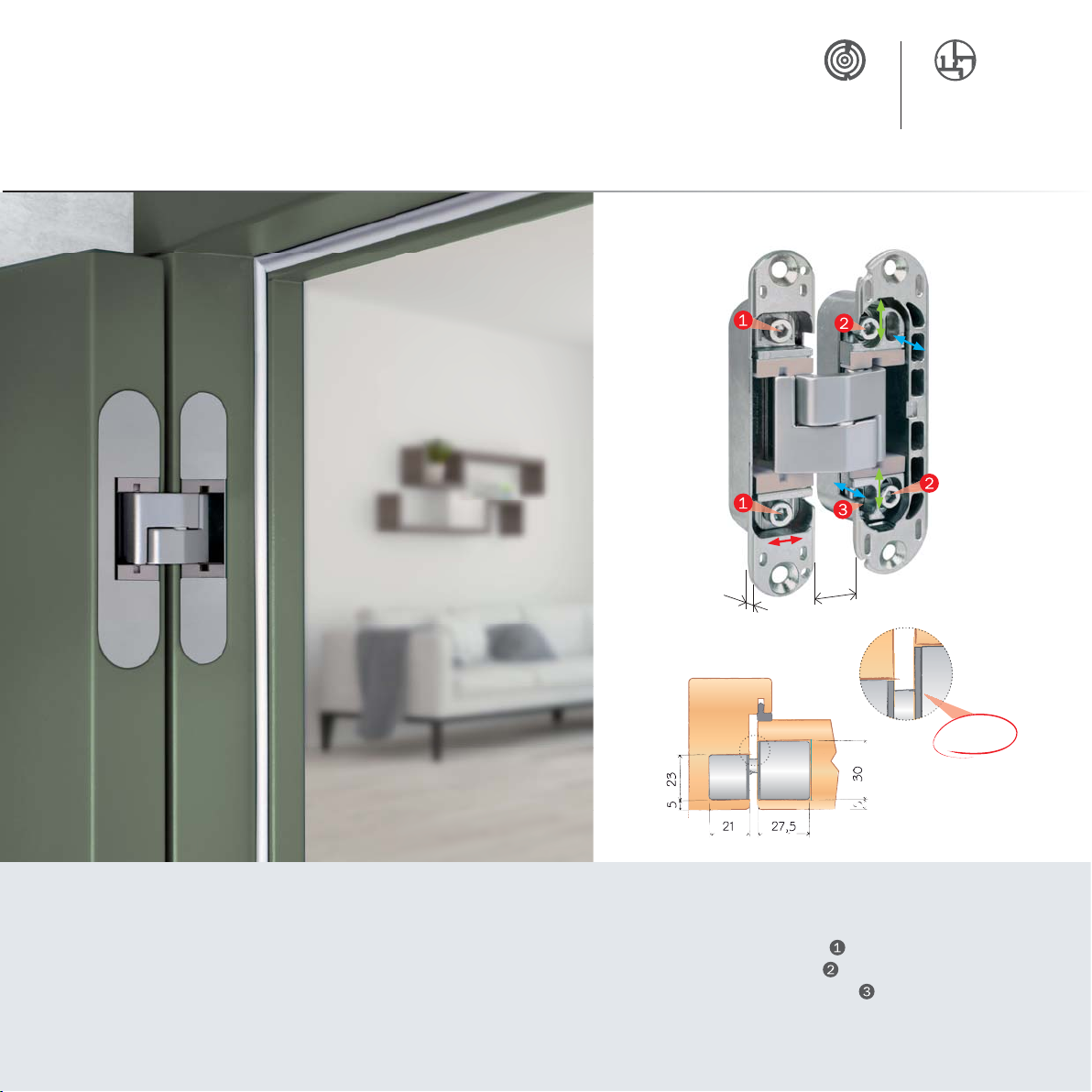

ECLIPSE 3.0
●
●
●
●
Hinge for ush doors with or without rebate
for wooden
doors
Frame part Sash part
for aluminium
doors
●
Ideal even for aluminium frames, thanks to the
4 mm thickness of the hinge fastening.
●
Completely invisible thanks to reduced dimensions.
●
Covers in plastic material with coverplate.
4
23
5
20,5
● Three adjustments completely independent
27
14
Covers with
coverplate
23
5
23
5
20,5
27
using a unique 3 mm Allen key:
- pressure adjustment ±1 mm ;
- vertical adjustment ± 2 mm ;
- horizontal adjustment ± 1,5 mm .
23
5
30
7

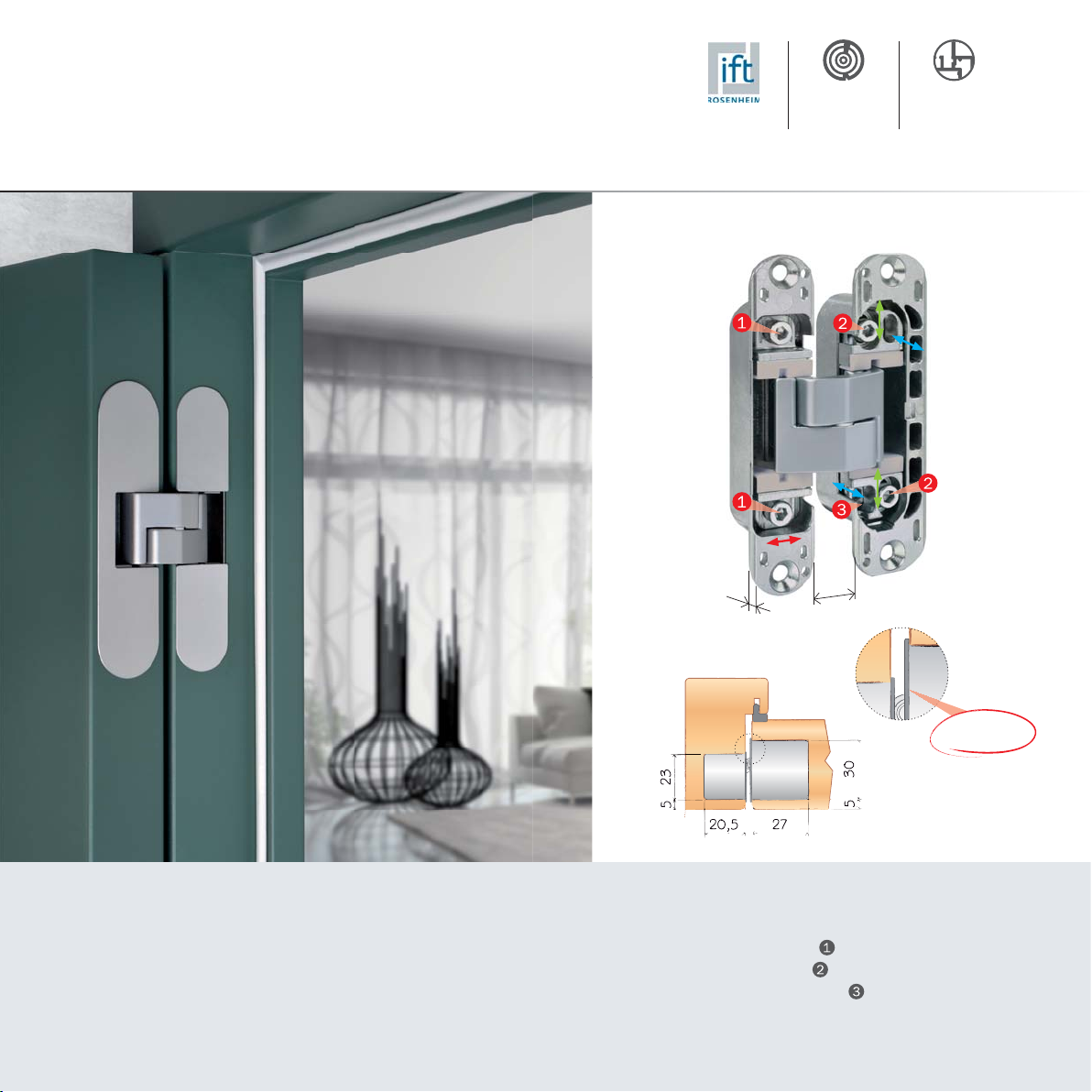

Page 8
●

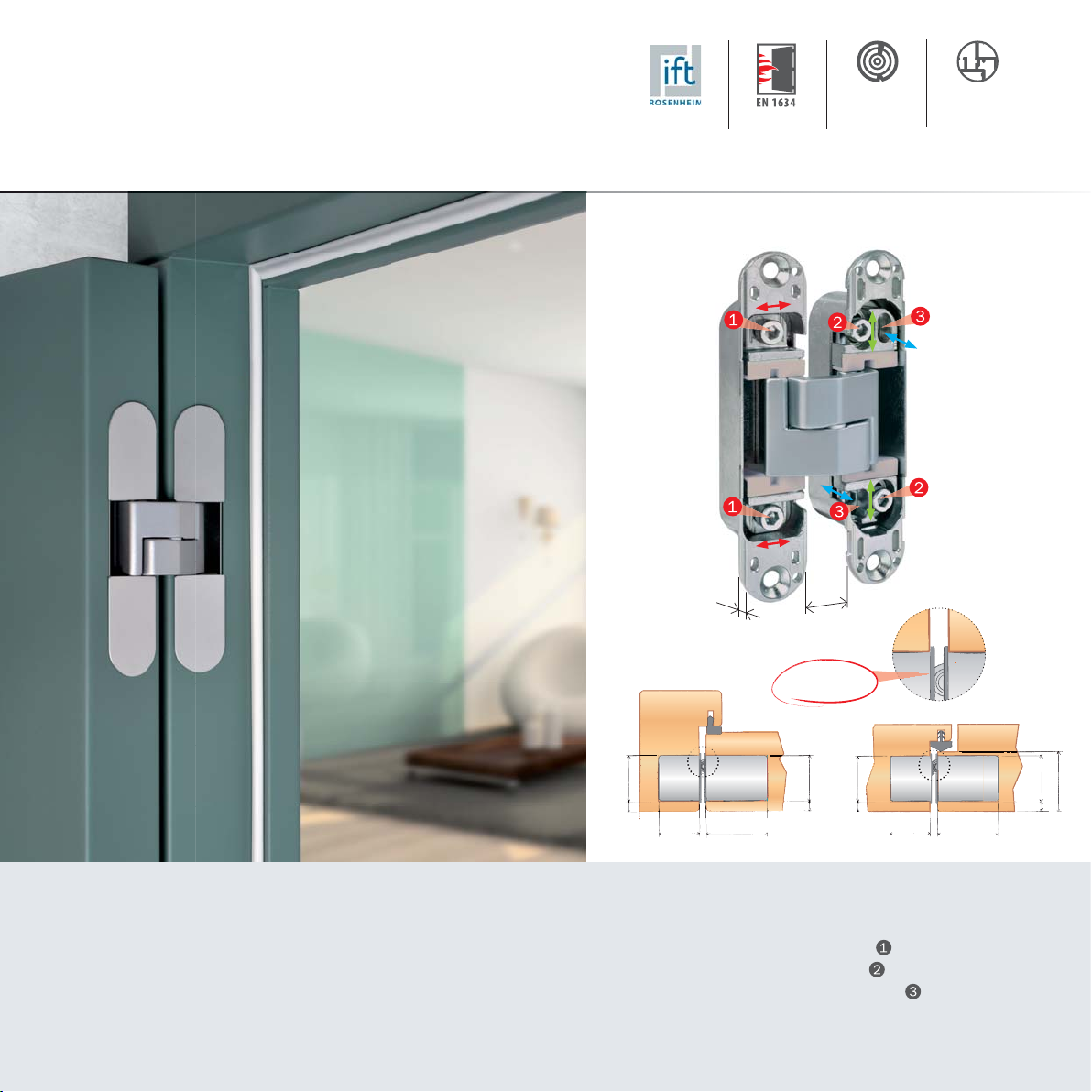

ECLIPSE 3.2
●
●
●
Hinge with metal covers
for ush doors with or without rebate
for wooden
doors
Frame part Sash part
for aluminium
doors
14
Flush
covers
●
Ideal even for aluminium frames, thanks to
the 4 mm thickness of the hinge fastening.
●
Completely invisible thanks to reduced
dimensions.
4
● Three adjustments completely independent
using a unique 3 mm Allen key:
- pressure adjustment ±1 mm ;
- vertical adjustment ± 2 mm ;
- horizontal adjustment ± 1,5 mm .
●
Flush metal and plastic covers.
8
Page 9
●
●
●
●
ECLIPSE 3.3
Hinge with metal covers for ush doors
with or without rebate and reduced frame
for wooden
doors
Frame part Sash part
for aluminium
doors
●
Reduced depth on frame side for applications
on minimal wooden and aluminium pro les.
●
Completely invisible thanks to reduced
dimensions.
●
Flush metal covers.
4
18
18 27
● Three adjustments completely independent
14
Flush
covers
using a unique 3 mm Allen key:
- pressure adjustment ±1 mm ;
- vertical adjustment ± 2 mm ;
- horizontal adjustment ± 1,5 mm .
Page 10
●
●
●
ECLIPSE 3.1
●
Hinge for ush doors with 38-40 mm thicknesses
and covers with coverplate
for wooden
doors
Frame part Sash part
for aluminium
doors
1010
●
Covers in plastic material with coverplate.
●
It allows to keep the handle height unchanged,
even turning the sash vertically.
●
With the same milling of the frame, it allows to
realise ush doors with and without rebate, in
wood or aluminium frame.
4
● Three adjustments completely independent
14
Covers with
coverplate
using a unique 3 mm Allen key:
- pressure adjustment ±1 mm ;
- vertical adjustment ± 2 mm ;
- horizontal adjustment ± 1,5 mm .
Page 11
●
●
●
●
ECLIPSE 3.4
Hinge for ush doors with 38-40 mm thicknesses
and ush covers
for wooden
doors
Frame part Sash part
for aluminium
doors
●
Flush covers in plastic material.
●
It allows to keep the handle height unchanged,
even turning the sash vertically.
●
With the same milling of the frame, it allows to
realise ush doors with and without rebate, in
wood or aluminium frame.
4
● Three adjustments completely independent
14
Flush
covers
using a unique 3 mm Allen key:
- pressure adjustment ±1 mm ;
- vertical adjustment ± 2 mm ;
- horizontal adjustment ± 1,5 mm .
Page 12

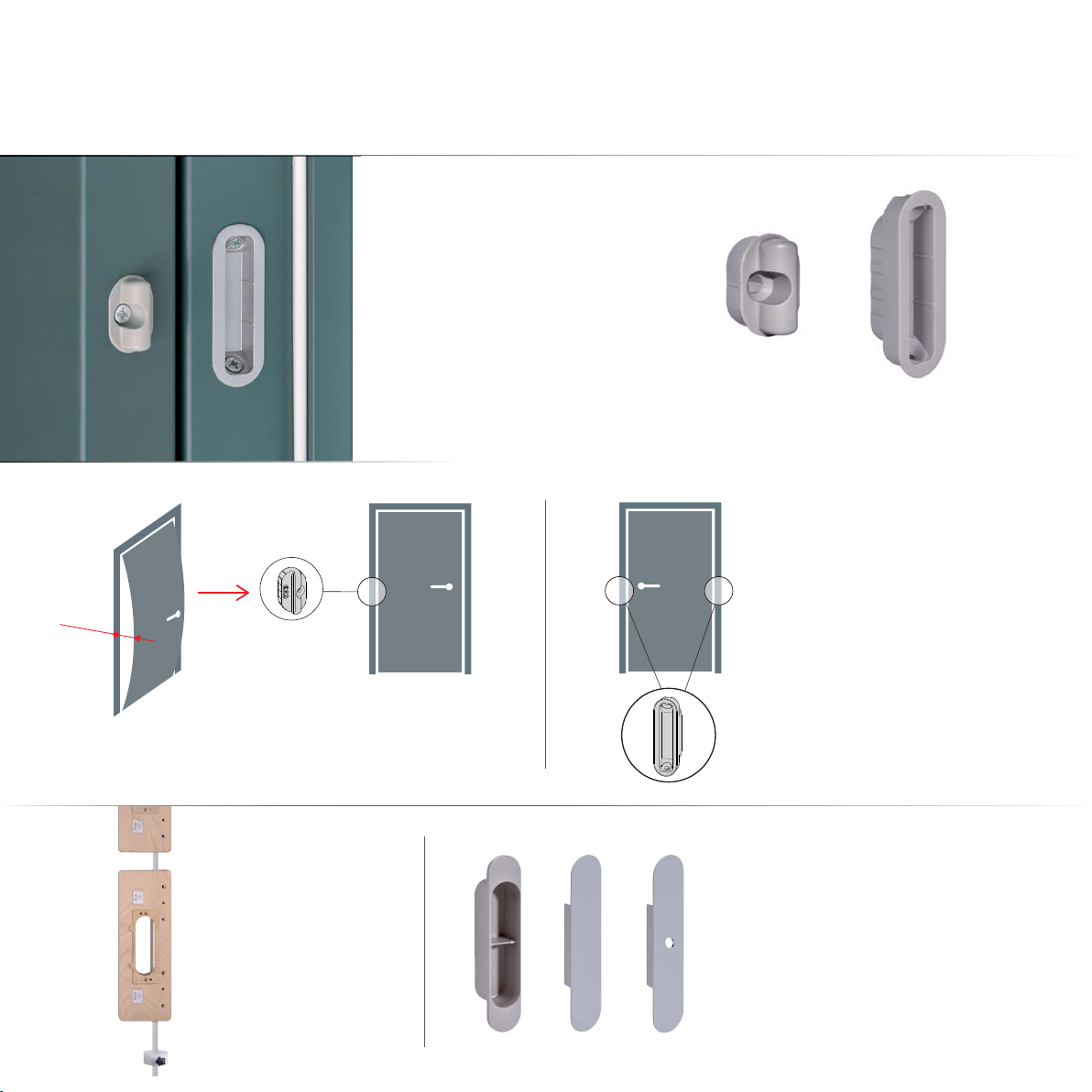

ACCESSORIES FOR INTERNAL DOORS
BEAK
The beak avoids sash
deformations caused by
humidity or high heights.
The beak is compatible with:
Minimal Plus, Minimal,
Easy-Fix, Easy-Matic and
Alutop.
Sash part Frame part
12
12
3 mm
The beak allows to get back
possible sash deformations
up to 3 mm.
JIGS
Single and double
jigs available for
every model.
The frame milling of
lock and hinge sides
is the same.
FRAME CAPS FOR ECLIPSE
3.0, 3.1, 3.2 AND 3.4
In flush doors, the frame cap allows
to cover the hole of the frame part to
prevent dirt intrusion during the installation to the wall.
Page 13

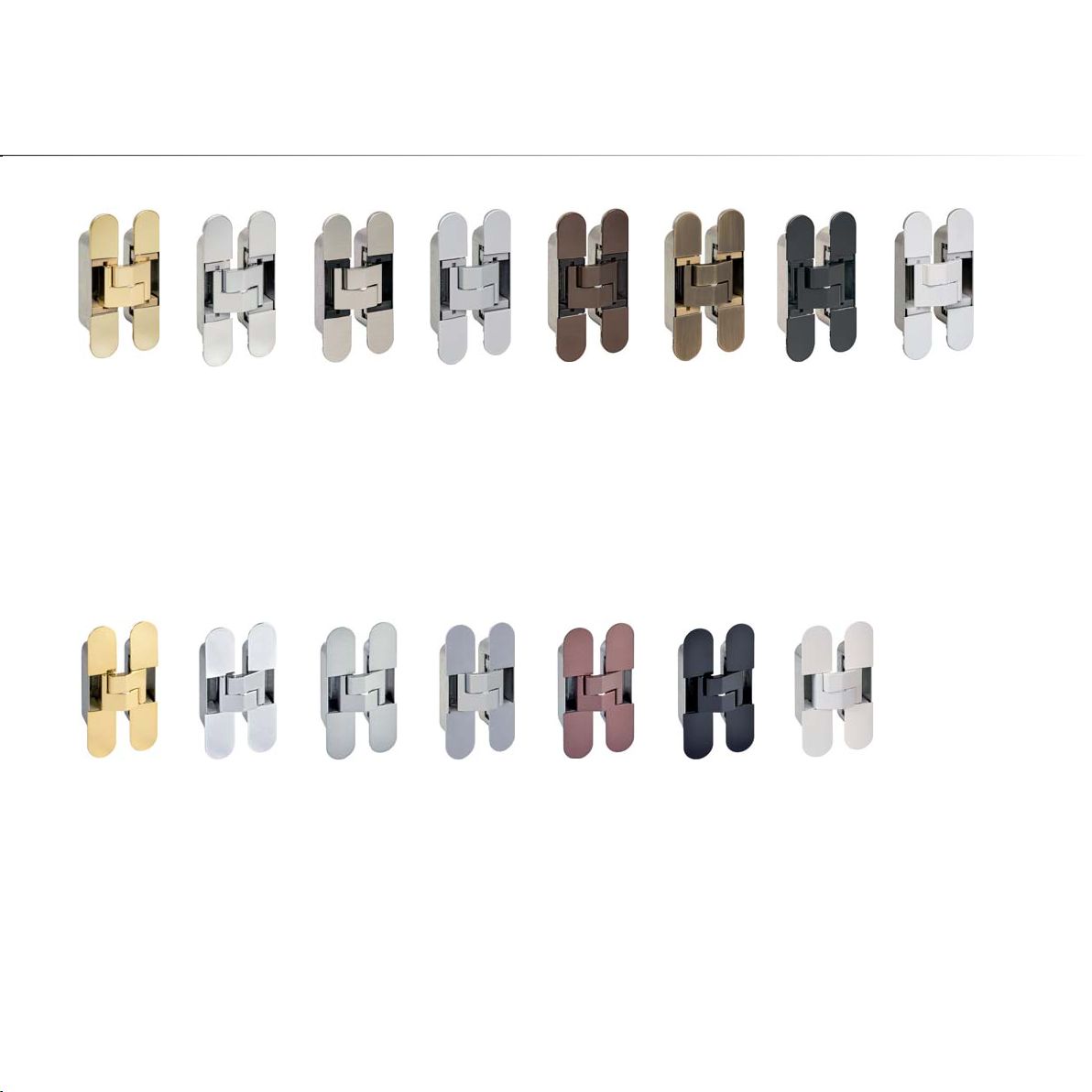

AVAILABLE RANGE OF FINISHES
0603 13 9134 22
72
93
FINISHES FOR METAL COVERS
03. Enamelled brass plated I 06. Nickel plated I 13. Satin nickel plated I 34. Matt chromium plated I
22. Enamelled bronze plated I 72. Matt antique brass plated I 93. Black I 91. White RAL 9010.
03 06 34 2244 93 91
FINISHES FOR COVERS IN PLASTIC MATERIAL
03. Enamelled brass plated I 06. Nickel plated I 34. Matt chromium plated I 44. Grey I
22. Enamelled bronze plated I 93. Black I 91. White RAL 9010.
Page 14

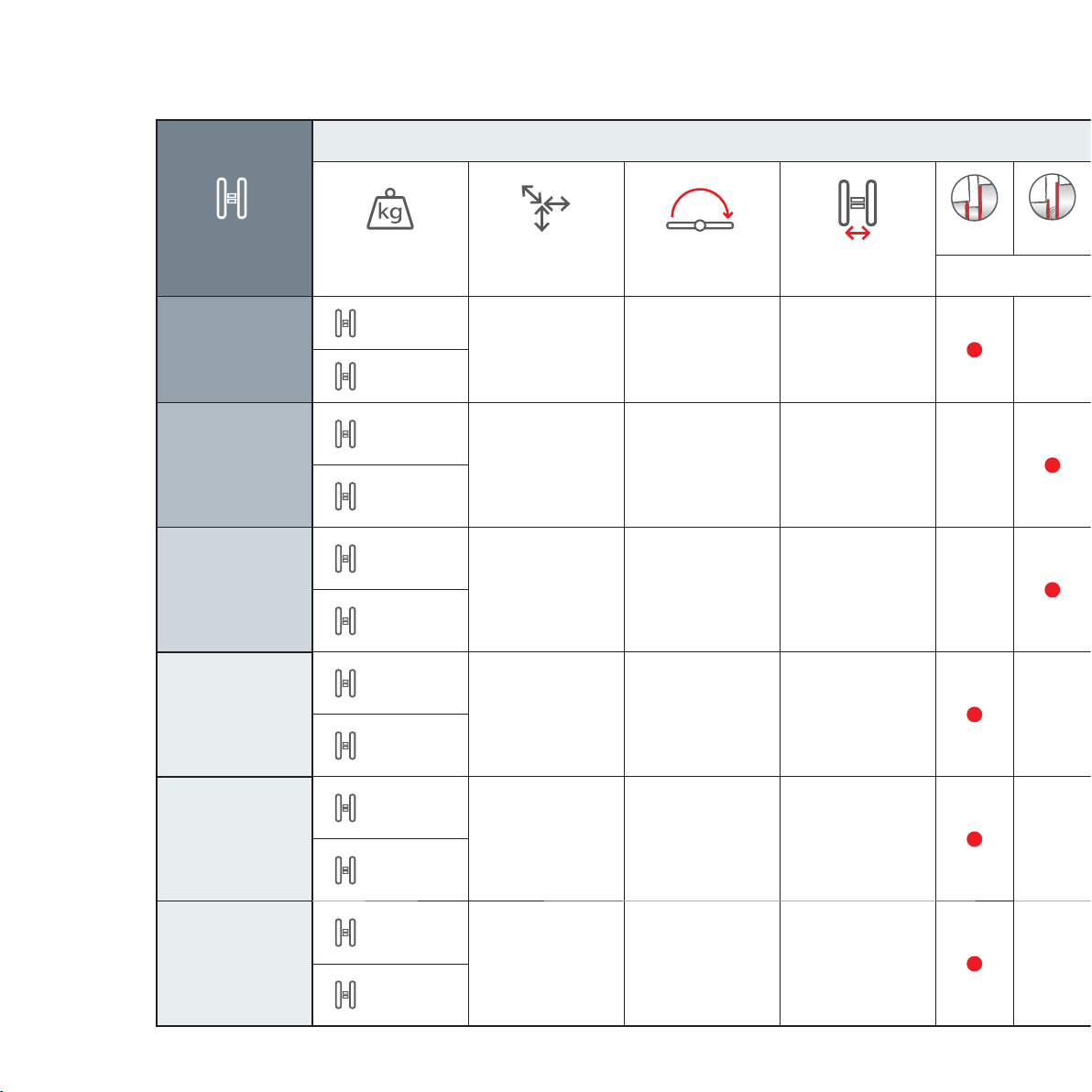

GUIDE TO CHOOSE THE ECLIPSE HINGE
TECHNICAL INFORMATION
ECLIPSE
Models
2.0
3.0
3.1
3.2
CAPACITY ADJUSTMENTS OPENING MAX. EXTENSION
x 3 = 60 kg
3 180° 19,5 mm
x 2 = 40 kg
x 3 = 60 kg
3 180° 14 mm
x 2 = 40 kg
x 3 = 60 kg
3 180° 14 mm
x 2 = 40 kg
x 3 = 60 kg
3 180° 14 mm
x 2 = 40 kg
FLUSH
COVERS
APPLICATION
SURFACE
MOUNTED
14
3.3
3.4
x 3 = 60 kg
3 180° 14 mm
x 2 = 40 kg
x 3 = 60 kg
3 180° 14 mm
x 2 = 40 kg
Page 15

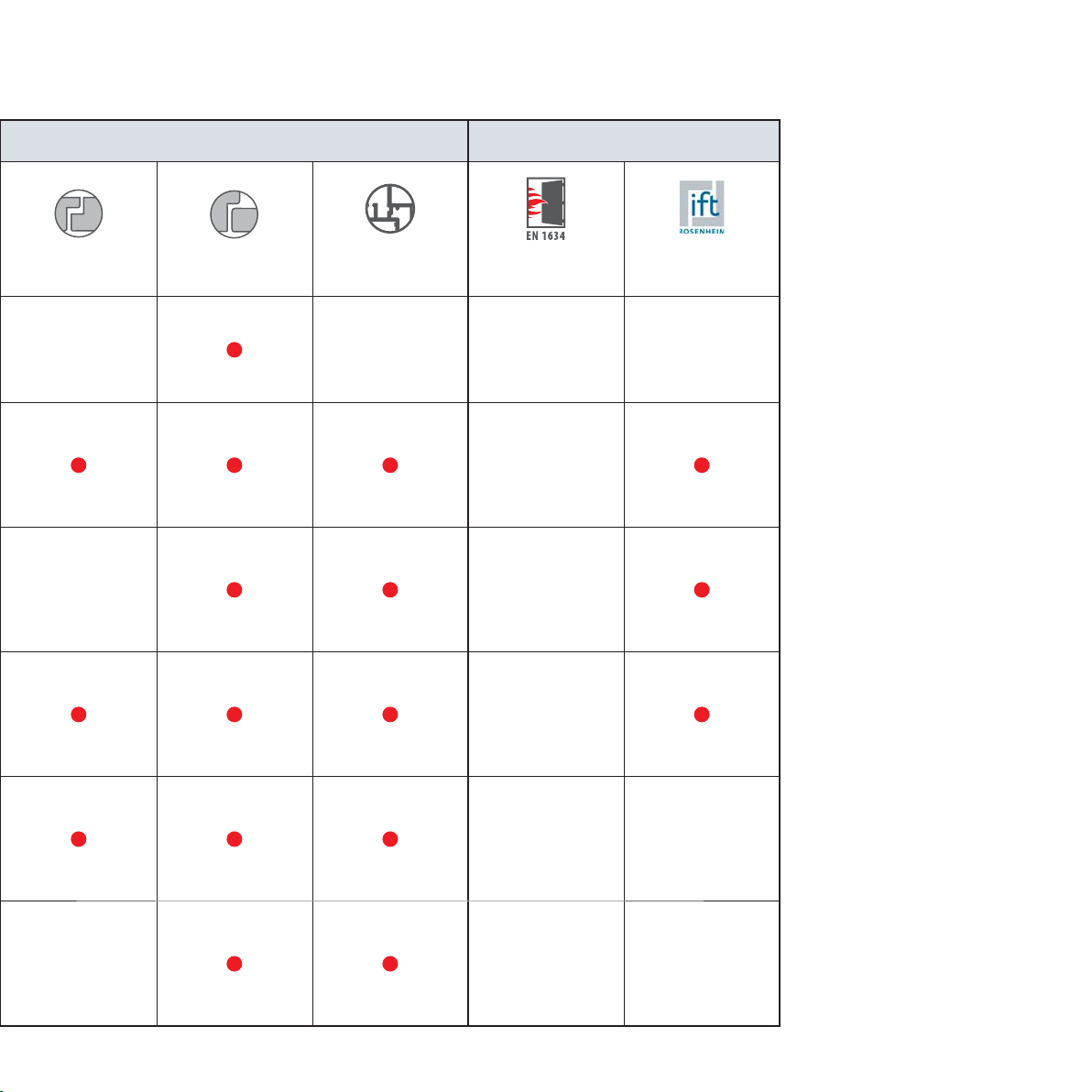

APPLICATIONS CERTIFICATIONS
FLUSH DOORS
WITH REBATE
FLUSH DOORS
WITHOUT REBATE
ALUMINIUM
FLUSH DOORS
FIRE AND SMOKE
RESISTANT DOORS
30 min
30 min
EAD 020001-01-0405
EN 1935
Page 16
Open, Close, Live
Alban Giacomo spa
Via A. De Gasperi, 75
36060 Romano d’Ezzelino (VI) Italy
+39 0424 832 832
www.agb.it - [email protected]
Z90150.02.26 - 09.18 - Communications Dept. - Printed in Italy
