MILAN VORTEX WIRELESS DOOR SENSOR
USER MANUAL
Page 2
SLBD01
Milan Vortex Wireless Door Sensor
User Manual
Promoting Secure Living
Offered by
www.milanity.com
Page 3
Table of contents
1. Introduction
2. Product Description
3. Features and Specifications
4. Installation
5. Warranty Policy
Page 4
1. Introduction
Features
Specifications
Compact in size and easy to install
Z-
Wave enabled wireless sensor
Enables electronic monitoring
of doors and windows through
If an intruder enters a protected area, siren will sound and
Thank you for purchasing Milanity’s digital living products. We have designed and developed our
products with emphasis on ease-of-use and cost-effectiveness. This manual contains information on
the features and specifications of this product and its installation procedures. When this product is
installed and used in the intended manner, you will be able to enjoy the vast benefits that Milan
Digital Living Experience (DLE) has to offer.
2. Product Description
The Milan Vortex Wireless Door Sensor is used to monitor the open/close status of the door on which
it is installed. This product needs to be paired with a Milan Infoway using a web-based configuration
tool called Milan Infomap (see separate instructions for using this software).
3. Features and Specifications
The following are the key features and specifications of this product:
the Milan DLE app Magnetic separation trigger function
SMS or email alerts will be sent Hidden tamper prevention trigger
Easy to integrate with Milan Infoway using Milan Infomap Low Battery Detection
When integrated with Milan DLE, it is possible to trigger
actions such as turning on lights or opening curtains when a
door opens Tamper Switch
Operating Temperature: -15 C~60 C
100 feet line-of-sight
LED Status Indicator
Working Voltage: 3V
Frequency: 865.2 MHz (India)
Page 5
4. Installation
It is easy to install the Milan Vortex Wireless Door Sensor.

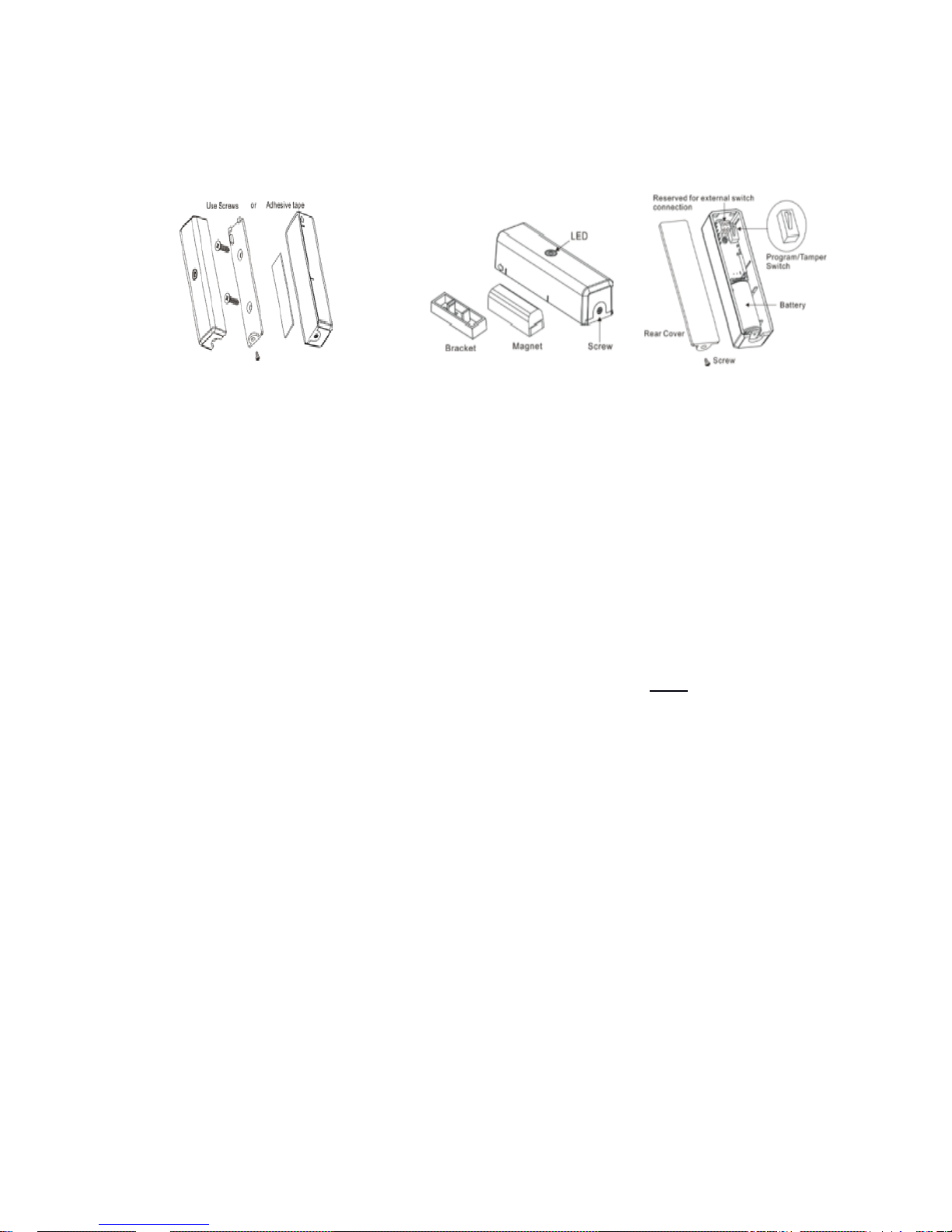

Figure 1: Milan Vortex Wireless Door Sensor
Step 1: Release the cover tab to open the cover and insert the battery in its compartment. The LED
will now begin to flash slowly
Step 2: Integrate the Milan Vortex Wireless Door Sensor with a Milan Infoway
a. Ensure that the Milan Infoway is functional
b. Open Milan Infomap configuration tool in a web browser (see separate instructions for using
this software)
c. Click on the “Security” tab from the Milan Infomap menu
d. Click on the “Wireless Security” tab from the Milan Infomap menu
e. Click the “Add” button
f. Press the Program Switch (see Figure 1) at the back of the sensor twice in quick succession
g. Check if this sensor has been added to the list of wireless sensors in Milan Infomap (when
successfully added you will see the Product Name, Manufacturer, Product Type and the
Node ID)
h. If the sensor has not been added to Milan Infomap, please repeat steps f and g above
ensuring that the Milan Infomap is still in the Add mode in the Wireless tab
i. Should you ever need to remove this sensor from your Milan DLE, please follow the same
steps as above except select the “Remove” button in step e above
Step 3: Install Milan Vortex Wireless Door Sensor in the desired place with adhesive tape or with
screws on the Door / Door Frame. You can now experience the benefits of Milan DLE offered
by this product.
Page 6
5. Warranty Policy
This Limited Warranty offered to the original purchaser only applies to products purchased directly
from a Milanity authorized partner by the original purchaser. Milanity warrants this product for one
(1) year from the date of purchase with respect to defects arising from materials or workmanship,
with the exceptions as stated below.
This Limited Warranty does not cover damages resulting from misuse, accident, modifications or
alterations to the hardware or software, tampering, using the product in an unsuitable environment,
improper maintenance or failure to use the product as specified in the instructions.
All Rights Reserved. © 2015 Milanity. All non-Milan DLE brands and product names are trademarks or
registered trademarks of their respective companies. Product appearance and/or specifications are
subject to change without notice.
