MiLAN SLBR01 User Manual

MILAN VORTEX WIRELESS REPEATER

USER MANUAL

SLBR01

Milan Vortex Wireless Repeater

User Manual

Promoting Secure Living

Offered by

www.milanity.com

1. Introduction

2. Product Description

3. Features and Specifications

4. Installation

5. Warranty Policy

Table of contents

1. Introduction

Features

Specifications

Compact

in size

Wireless frequency

865.2 MHz

(India)

Thank you for purchasing Milanity’s digital living products. We have designed and developed our
products with emphasis on ease-of-use and cost-effectiveness. This manual contains information on
the features and specifications of this product and its installation procedures. When this product is
installed and used in the intended manner, you will be able to enjoy the vast benefits that Milan
Digital Living Experience (DLE) has to offer.

2. Product Description

The Milan Vortex Wireless Repeater acts as a signal repeater and sends the signal to longer range,
such that multiple devices results in more possible routes. This product needs to be paired with a
Milan Infoway using a web-based configuration tool called Milan Infomap (see separate instructions
for using this software)

3. Features and Specifications

The following are the key features and specifications of this product:

Easy to install and configure

Operating voltage 5V/DC – 12V/DC

It repeats/extends the Z-Wave (wireless)
signal and helps improve the reliability

Operating range
and accuracy of the Z-Wave network
Operating Temperature
Dimensions

LED status indicator
Power Level Controller
Auto/Manual Inclusion

Up to 200 meters line-of-

sight

-15°C ~ 60°C (5°F ~ 140°F)
82*32*10 mm

4. Installation

It is easy to install the Milan Vortex Wireless Repeater.

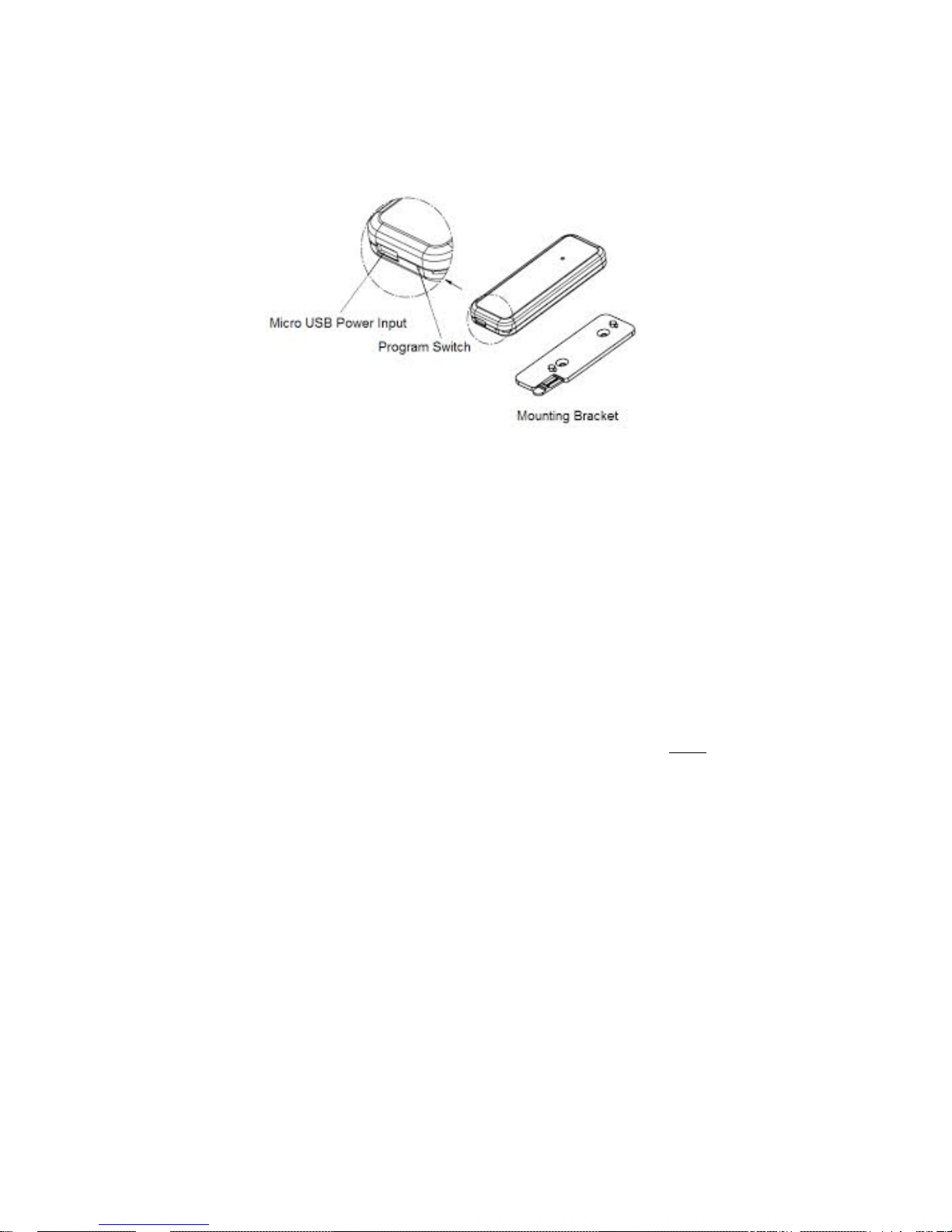

Figure 1: Milan Vortex Wireless Repeater

Step 1: Press and release the cover tab to open the cover and plug in the micro USB power adapter. The

LED will now begin to flash slowly

Step 2: Integrate the Milan Vortex Wireless Repeater with a Milan Infoway

a. Ensure that the Milan Infoway is functional
b. Open Milan Infomap configuration tool in a web browser (see separate instructions for using

this software)
c. Click on the “Security” tab from the Milan Infomap menu
d. Click on the “Wireless Security” tab from the Milan Infomap menu
e. Click the “Add” button
f. Press the Program Switch (see Figure 1) at the bottom of the device twice in quick

succession
g. Check if this device has been added to the list of wireless devices in Milan Infomap (when

successfully added you will see the Product Name, Manufacturer, Product Type and the

Node ID)
h. If the device has not been added to Milan Infomap, please repeat steps f and g above

ensuring that the Milan Infomap is still in the Add mode in the Wireless tab
i. Should you ever need to remove this device from your Milan DLE, please follow the same

steps as above except select the “Remove” button in step e above

Step 3: Plug in the Milan Vortex Wireless Repeater where a Z-Wave signal boost is necessary to extend

its range. You can now experience the benefits of Milan DLE offered by this product.

5. Warranty Policy

This Limited Warranty offered to the original purchaser only applies to products purchased directly
from a Milanity authorized partner by the original purchaser. Milanity warrants this product for one

(1) year from the date of purchase with respect to defects arising from materials or workmanship,

with the exceptions as stated below.
This Limited Warranty does not cover damages resulting from misuse, accident, modifications or

alterations to the hardware or software, tampering, using the product in an unsuitable environment,
improper maintenance or failure to use the product as specified in the instructions.

All Rights Reserved. © 2015 Milanity. All non-Milan DLE brands and product names are trademarks or
registered trademarks of their respective companies. Product appearance and/or specifications are
subject to change without notice.
