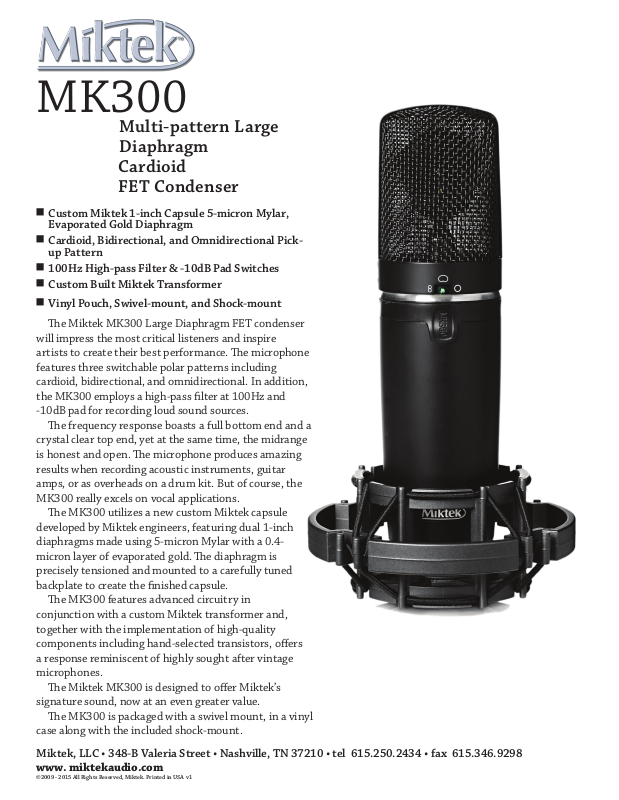

Miktek MK300 User Manual
MK300
Multi-pattern Large
Diaphragm
Cardioid
FET Condenser
Custom Miktek 1-inch Capsule 5-micron Mylar, 7
Evaporated Gold Diaphragm
Cardioid, Bidirectional, and Omnidirectional Pick- 7
up Pattern
100Hz High-pass Filter & -10dB Pad Switches 7
Custom Built Miktek Transformer 7
Vinyl Pouch, Swivel-mount, and Shock-mount 7
e Miktek MK300 Large Diaphragm FET condenser
will impress the most critical listeners and inspire
artists to create their best performance. e microphone
features three switchable polar patterns including
cardioid, bidirectional, and omnidirectional. In addition,
the MK300 employs a high-pass filter at 100Hz and
-10dB pad for recording loud sound sources.
e frequency response boasts a full bottom end and a
crystal clear top end, yet at the same time, the midrange
is honest and open. e microphone produces amazing
results when recording acoustic instruments, guitar
amps, or as overheads on a drum kit. But of course, the
MK300 really excels on vocal applications.
e MK300 utilizes a new custom Miktek capsule
developed by Miktek engineers, featuring dual 1-inch
diaphragms made using 5-micron Mylar with a 0.4micron layer of evaporated gold. e diaphragm is
precisely tensioned and mounted to a carefully tuned
backplate to create the finished capsule.
e MK300 features advanced circuitry in
conjunction with a custom Miktek transformer and,
together with the implementation of high-quality
components including hand-selected transistors, offers
a response reminiscent of highly sought after vintage
microphones.
e Miktek MK300 is designed to offer Miktek’s
signature sound, now at an even greater value.
e MK300 is packaged with a swivel mount, in a vinyl
case along with the included shock-mount.
Miktek, LLC • 348-B Valeria Street • Nashville, TN 37210 • tel 615.250.2434 • fax 615.346.9298
www. miktekaudio.com
©2009 - 2015 All Rights Reserved, Miktek. Printed in USA v1
MK300
Multi-pattern Large Diaphragm
Cardioid FET Condenser
Specifications
Type 7 . . . . . . . . . . . . . . Large Diaphragm Cardioid FET Condenser
Polar Pattern 7 . . . . . . . . . Cardioid
Frequency Response 7 . . . . . 20-20000Hz
Sensitivity 7 . . . . . . . . . . -29 dBV/Pa
Equivalent Noise Level 7 . . . 13, 18, 22dB
Dynamic Range 7 . . . . . . . 105dB
S/N Ratio 7 . . . . . . . . . . . 81, 76, 72dB
Max. SPL 7 . . . . . . . . . . . 127dB
Power Supply 7 . . . . . . . . . 48V Phantom
www. miktekaudio.com
Nashville, TN 37203
tel 615.250.2434 • fax 615.346.9298
©2009 - 2015 All Rights Reserved, Miktek. Printed in USA v1
MK300 Polar Response
MK300 Frequency Response
Specifications subject to change
