MC132x
High Speed CMOS GigE Vision Camera
Mikrotron GmbH
Landshuter Str. 20-22
D-85716 Unterschleißheim
Germany
Tel.: +49 89 726342 00
Fax: +49 89 726342 99
info@mikrotron.de
www.mikrotron.de
MC132x Users Manual Rev. 0.22
Camera-Firmware:
B2.02-V2.02-F0.71
Kamera ID Nr.: MC1324 .. MC1327
Copyright © 2006 Mikrotron GmbH
General MC132x Users Manual Rev. 0.22
2
Table of contents
1 General..........................................................................................................................4
1.1 For customers in the U.S.A..................................................................................................................................... 4
1.2 For customers in Canada......................................................................................................................................... 4
1.3 Pour utilisateurs au Canada..................................................................................................................................... 4
1.4 Life Support Applications....................................................................................................................................... 4
1.5 Declaration of conformity....................................................................................................................................... 5
1.6 Warranty Note.........................................................................................................................................................6
1.7 Remarks, Warnings.................................................................................................................................................6
2 Introduction...................................................................................................................7
2.1 Top level specifications........................................................................................................................................... 7
2.2 Electronic „Freeze Frame“ Shutter.......................................................................................................................... 7
2.3 Differences between the camera types.................................................................................................................... 8
2.4 Using the camera..................................................................................................................................................... 8
3 Hardware.......................................................................................................................9
3.1 GigE Vision® Interface...........................................................................................................................................9
3.1.1 Serial interface.................................................................................................................................................... 9
3.2 Power supply........................................................................................................................................................... 9
3.3 Status LED.............................................................................................................................................................. 9
4 Getting started.............................................................................................................10
4.1 First steps .............................................................................................................................................................. 10
5 Initial setup .................................................................................................................11
5.1 Serial number and firmware revision.................................................................................................................... 11
5.2 PowerUpProfile..................................................................................................................................................... 11
5.3 Camera Profile ......................................................................................................................................................11
5.4 Factory profile....................................................................................................................................................... 11
5.5 User profiles.......................................................................................................................................................... 11
6 Configuration..............................................................................................................12
6.1 Commands............................................................................................................................................................. 12
6.1.1 Table of commands.......................................................................................................................................... 13
6.2 Read camera information...................................................................................................................................... 13
6.2.1 Read serial number and firmware revision....................................................................................................... 13
6.2.2 Read identifier.................................................................................................................................................. 14
6.2.3 Read camera settings........................................................................................................................................ 14
6.2.4 Reading camera temperature............................................................................................................................ 15
6.3 Profile processing.................................................................................................................................................. 15
6.3.1 Write user profile.............................................................................................................................................. 15
6.3.2 Load user profile .............................................................................................................................................. 15
6.3.3 Load factory profile.......................................................................................................................................... 16
6.4 Image quality......................................................................................................................................................... 16
6.4.1 FPN................................................................................................................................................................... 16
6.4.2 Gain.................................................................................................................................................................. 16
6.4.3 Black Level....................................................................................................................................................... 16
6.5 Image size and position......................................................................................................................................... 16
6.5.1 Address of the first line ....................................................................................................................................17
6.5.2 Number of lines................................................................................................................................................ 17
6.5.3 Address of the first pixel of a line.................................................................................................................... 17
6.5.4 Address of the last pixel of a line..................................................................................................................... 17
6.5.5 Tracking ...........................................................................................................................................................18
6.6 Clock selection...................................................................................................................................................... 18
6.6.1 Arbitrary selection of sensor and pixel clock................................................................................................... 18
6.6.2 Table selection of clock frequencies................................................................................................................. 18
6.6.3 Image Format/Speed change............................................................................................................................ 19
6.7 Exposure control................................................................................................................................................... 19
6.7.1 Type of exposure.............................................................................................................................................. 19
6.7.2 Frame rate with synchronous exposure ............................................................................................................20
General MC132x Users Manual Rev. 0.22
3
6.7.3 Synchronous operation without shutter ............................................................................................................21
6.7.4 Synchronous operation with shutter .................................................................................................................21
6.7.5 External synchronisation with synchronous exposure...................................................................................... 21
6.7.6 Frame rate with asynchronous exposure...........................................................................................................22
6.7.7 Asynchronous exposure, shutter control by pulse width.................................................................................. 22
6.7.8 Asynchronous exposure, shutter control by timer............................................................................................ 22
6.8 Firmware............................................................................................................................................................... 22
6.8.1 Update firmware microcontroller application...................................................................................................22
6.8.2 Update FPGA firmware.................................................................................................................................... 23
6.8.3 Firmware update procedure.............................................................................................................................. 23
6.8.4 Reset and configuration of the internal FPGA.................................................................................................. 24
6.9 Horizontal pixelbinning.........................................................................................................................................24
6.10 Vertical pixelbinning............................................................................................................................................. 24
6.11 Digital shading correction..................................................................................................................................... 24
6.12 Digital gain............................................................................................................................................................ 25
6.13 External clock input .............................................................................................................................................. 25
6.14 Polarity of EXP-signal ..........................................................................................................................................25
6.15 Test image............................................................................................................................................................. 25
6.16 Image counter........................................................................................................................................................ 25
6.17 ImageBLITZ® shutter release...............................................................................................................................26
6.17.1 ImageBLITZ® processing........................................................................................................................... 26
6.17.2 ImageBLITZ® programming...................................................................................................................... 26
6.17.3 ImageBLITZ® registers ..............................................................................................................................29
6.17.4 ImageBLITZ® setup.................................................................................................................................... 29
7 MC13xx configuration tool........................................................................................30
7.1 Basic Configuration............................................................................................................................................... 30
7.2 ImageBLITZ® Configuration............................................................................................................................... 31
8 Mechanical dimensions ..............................................................................................32
8.1 Camera body MC132x.......................................................................................................................................... 32

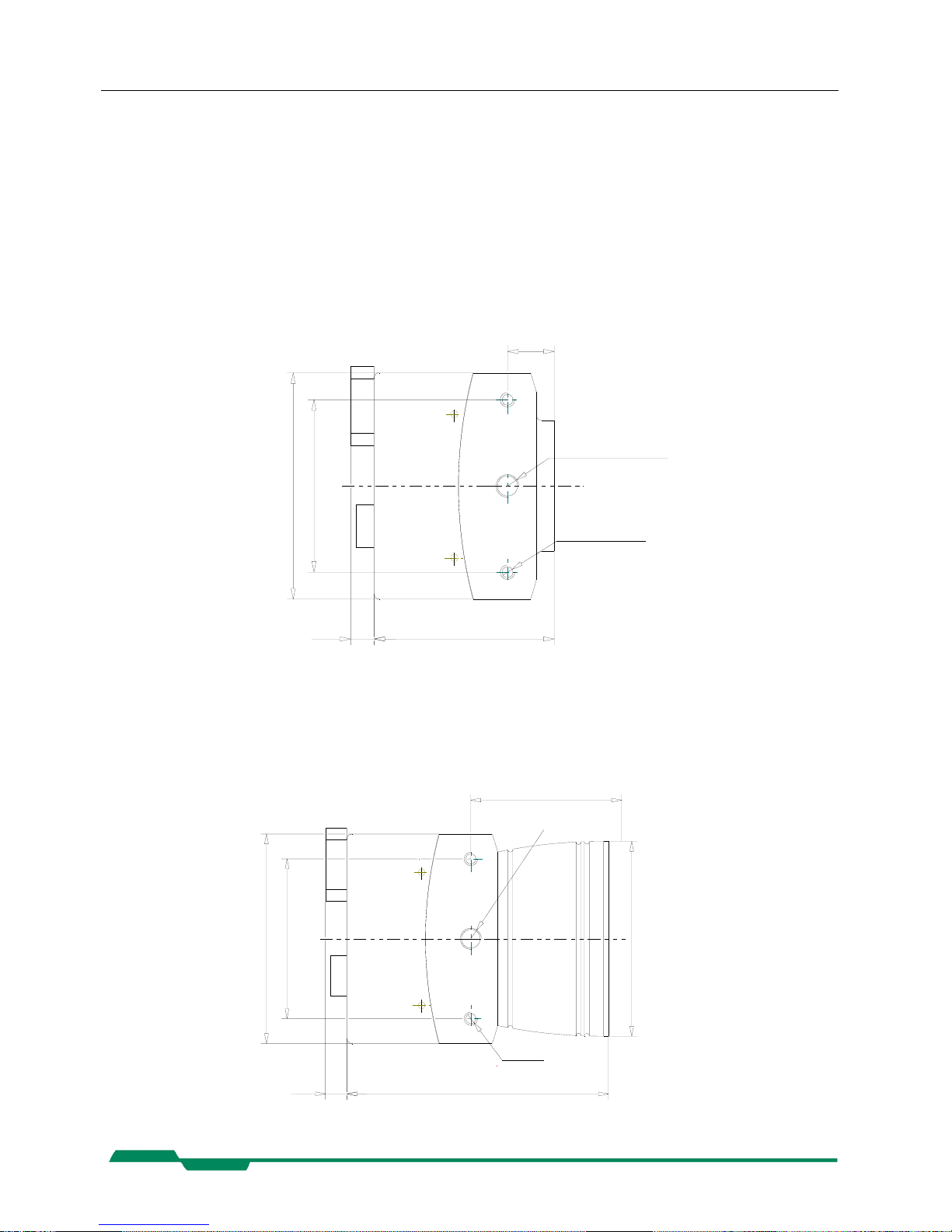

8.1.1 Dimensioned drawing, side view of MC1324/25............................................................................................. 32
8.1.2 Dimensioned drawing, side view of MC1326/27............................................................................................. 32
8.1.3 Dimensioned drawing, front view of MC1324/25............................................................................................ 33
8.1.4 Dimensioned drawing, front view of MC1326/27............................................................................................ 33
8.1.5 Dimensioned drawing, rear view of MC132x .................................................................................................. 34
8.2 Lens adjustment .................................................................................................................................................... 34
8.2.1 Lens adaption ................................................................................................................................................... 34
8.2.2 Adjustable lens adapter, only for camera models with C-mount flange........................................................... 34
8.2.3 Lens selection for camera types with C-mount flange (see table overview of cameras).................................. 34
9 Technical Data............................................................................................................35
9.1 Spectral response................................................................................................................................................... 36
9.2 Sensitive area of a pixel ........................................................................................................................................37
9.3 Connector pinning................................................................................................................................................. 38
9.3.1 Gigabit Ethernet Connector.............................................................................................................................. 38
9.3.2 Circular power connector, 12-pin..................................................................................................................... 38
9.4 Frequency selection............................................................................................................................................... 39
9.4.1 Table of clock frequency codes........................................................................................................................ 39
9.5 Programming sequence, factory profile f3............................................................................................................ 42
9.6 Timing................................................................................................................................................................... 43
9.6.1 Pixel clock........................................................................................................................................................ 43
9.6.2 Line Valid (LVAL, DVAL)..............................................................................................................................43
9.6.3 Frame Valid (FVAL)........................................................................................................................................ 44
9.6.4 Exposure Signal EXP, to be input on TRIG..................................................................................................... 44
9.6.5 Synchronous exposure with external synchronisation via TRIG...................................................................... 45
General MC132x Users Manual Rev. 0.22
4
alfunc-
s us-
1 General
1.1 For customers in the U.S.A.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. The
shielded interface cable recommended in this manual must be used with this equipment in order to
comply with the limits for a computing device pursuant to Subpart J of Part 15 of FCC Rules.
1.2 For customers in Canada
This apparatus complies with the Class A limits for radio noise emissions set out in Radio Interference
Regulations.
1.3 Pour utilisateurs au Canada
Cet appareil est conforme aux normes Classe A pour bruits radioélectriques, spécifiées dans le Règlement sur le brouillage radioélectrique.
1.4 Life Support Applications
These products are not designed for use in life support appliances, devices, or systems where m
tion of these products can reasonably be expected to result in personal injury. Mikrotron customer
ing or selling these products for use in such applications do so at their own risk and agree to fully indemnify Mikrotron for any damages resulting from such improper use or sale.
General MC132x Users Manual Rev. 0.22
5
1.5 Declaration of conformity
Manufacturer: Mikrotron GmbH
Address: Landshuter Str. 20-22
85716 Unterschleissheim
Deutschland
Product: camera MC1324, MC1325, MC1326, MC1327
The dedicated products conform to the requirements of the Council Directives 2004/108/EG for the
approximation of the laws of the Member States relating to electromagnetic consistency. The following
standards were consulted for the conformity testing with regard to electromagnetic consistency.
EC regulation Description
EN 61000-6-3 Electromagnetic compatibility
EN 61000-6-1 Immunity
Unterschleissheim, August 04th. 2006
Mikrotron GmbH
Dipl.-Ing. Bernhard Mindermann
President of Mikrotron
General MC132x Users Manual Rev. 0.22
6
1.6 Warranty Note
Do not open the body of the camera. The warranty becomes void if the body is opened.
1.7 Remarks, Warnings
This document contains important remarks and warnings. See the corresponding symbols:
L
Important remark
*
Attention, Warning
Introduction MC132x Users Manual Rev. 0.22
7
2 Introduction
The CMOS high speed camera MC132x is a high resolution camera with 1280 x 1024 pixel. Benefits of
CMOS technology are high speed, random access to pixels with free programmability and low power.
The camera uses industry-standard C-Mount lenses. The sensor diagonal is 1,25“ with square pixels
measuring 12µm.
Free programmability means that the user is free to define the region of interest by size and position and
the speed of data output. The frame rate can be selected between 25 fps and several thousand fps
depending on resolution and video data width.
With a resolution of 1280 x 1024 pixel, 80 fps can be output via the Gigabit Ethernet Interface. Parameter sets are called “profiles” and stored in non volatile memory.
2.1 Top level specifications
• high resolution: 1.280 x 1.024 pixel CMOS sensor
with 1300 A/D converters
• up to 1.024 gray levels
• up to 80 full frames/s
up to 500 frames/s using data reduction alghorithms
• arbitrary region of interest
• high sensitivity
• 12μm square pixels
• electronic “Freeze Frame” shutter
• low blooming
• programmable via serial link
• patented ImageBLITZ® image trigger
• asynchronous trigger
• download customer specific FPGA preprocessing firmware
• small, compact housing
• wide power supply range
2.2 Electronic „Freeze Frame“ Shutter
Preceding exposure, the contents of all light sensitive elements is cleared. When exposure terminates,
accumulated charge is transferred to an analog memory associated which each pixel. It stays there until
it is read out (and discharged) by the A/D conversion cycle.
As all light sensitive elements are exposed at the same time, even fast moving objects are captured
without geometric distortion.
Introduction MC132x Users Manual Rev. 0.22
2.3 Differences between the camera types
The CMOS cameras are available in different versions depending on the supported features monochrome/color or Base/Full Camera Link ® interface, lens connection to C-mount or changeable lens
adapter C-mount/F-mount.
Features
Type
Data
width
(bits)
Color/
Mono
Max BWidth C/F-Mount
lens adaption
max. frame rate@
1280 x 1024
ImageBLITZ®
Image preprocessing
supported
MC1324 8 M 110 Mbyte/s C 80 fps + +
MC1325 8 C 110 Mbyte/s C 80 fps + +
MC1326 8 M 110 Mbyte/s F 80 fps + +
MC1327 8 C 110 Mbyte/s F 80 fps + +
Table 2.3-1
+ ... supported
- ... not supported
2.4 Using the camera
There are no serviceable parts inside the camera.. The camera may not be opened, otherwise guarantee
is lost.
Use dry, soft lens-cleaning tissue for cleaning lenses and, if necessary, the sensors window.
8
Hardware MC132x Users Manual Rev. 0.22
9
3 Hardware
3.1 GigE Vision® Interface
GigE Vision® is designed for digital cameras in machine vision applications. This interface can transfer
data at a rate of 110 Mbytes/sec.
3.1.1 Serial interface
3.2 Power supply
The camera needs a DC supply voltage between 8 … 24 V at a power consumption of 5,0 Watt max.
See also Connector pinning .
*
Before applying power to the camera we strongly recommend to verify the used pins of the
power connector, the polarity (+/-) of the leads and the supply voltage.
The camera may only be used with a supply voltage according to the camera specification.
Connecting a lower or higher supply voltage, AC voltage, reversal polarity or using wrong
pins of the power connector may damage the camera. If doing so, the warranty will expire
immediately.
3.3 Status LED
A dual colour LED on the camera backplane shows the operating condition of the MC132x.
LED orange... The MC132x is configuring the internal FPGA. No other activity is possible.
LED green... The MC132x is fully operational.
LED off... If LED is off, despite the camera is powered, the FPGA configuration data is re-
loaded via the serial interface and stored in internal EEPROM. No other activity
is possible.
LED red... red LED that the FPGA could not be loaded because of wrong FPGA configura-
tion data. Try to
reload configuration data.
Getting started MC132x Users Manual Rev. 0.22
10
4 Getting started
Before starting to operate the camera, make sure that the following equipment is available:
• Camera MC132x
• C-Mount/F-Mount Lens
• Mikrotron Support CD
• Image processing system, e.g.: PC and Software
L
For GigE Interface the Intel MT1000 Chipset is recommended
Additional items:
• 1 GigE cable (CAT6 recommended)
• 1 Power supply 12VDC, 0.5A min
• 1 power cable
L
To specify cables see chapter Connector pinning.
4.1 First steps
1. Switch off the image processing system
2. Connect GigE cable between camera and PC.
3. Connect power cable.
4. Unscrew dust protection cover, screw in lens.
5. Switch on the image processing system and camera power supply
Initial setup MC132x Users Manual Rev. 0.22
11
5 Initial setup
The MC132x is delivered with initial parameters and therefore does not need to be configured via the
serial link.
5.1 Serial number and firmware revision
Serial number and firmware revision is provided in MC132x non volatile memory. Use :v command
(Read serial number and firmware revision) to read serial number and firmware revision. The serial
number is also marked on the type plate of the camera.
5.2 PowerUpProfile
The PowerUpProfile is the contents of all camera registers to be loaded from non-volatile memory after
power up.
5.3 Camera Profile
The actual set of parameters is called Camera Profile. All changes of parameters by the serial link is
reflected in the Camera Profile. On command the Camera Profile is saved to 8 user profiles or one PowerUpProfile. It is loaded from 8 user profiles or 8 factory profiles or the PowerUpProfile. The camera
profile is volatile and must be stored to the PowerUpProfile to be reactivated on next poer up.
5.4 Factory profile
The factory profile can be read but not written by the user. They are factory preset to the settings described in the next chapter (user profiles).
5.5 User profiles
The user can store up to eight PowerUpProfiles in non volatile memory. All load or write commands
exchange data between the PowerUpProfile and one of the four user profiles.
Profil-Nr. Video data
width
/Mbyte/s
resolution
/ pixel
frequency
/fps
0 48,5 100 x 100 4.852
1 58,2 240 x 240 1.011
2 62,1 640 x 480 202
3 61,6 1280 x 1024 47
4 48,5 100 x 100 4.852
5 58,2 240 x 240 1.011
6 62,1 640 x 480 202
7 61,6 1280 x 1024 47
Table 5-1
Configuration MC132x Users Manual Rev. 0.22
12
6 Configuration
The MC132x has 15 FPGA registers, r1..rfh , each 10 bit wide, eight D/A registers, a1..a8, 8-bit wide,
and one clock select register, 4 bit wide. The contents of all the above registers is called a profile. There
is space in non volatile memory for 17 profiles: one PowerUpProfile, 8 user profiles and 8 factory profiles.
Any change of a specific register through the serial interface is immediately processed and written to
the volatile part of the memory and gets lost when power goes down. A command must be used to store
the actual setting in non volatile memory. After power-up the PowerUpProfile is loaded from the nonvolatile to the volatile part of the memory.
A load or write command exchanges data between the PowerUpProfile and one of the eight user profiles. The eight factory profiles can be read but not be written by any command. All values are given in
hexadecimal notation, e.g.: 0xff or 0ffh = 255.
6.1 Commands
ASCII strings are used to change camera parameters. All commands start with a colon, followed by one
selection character and a value in hexadecimal notation with two or three ASCII characters.
After a command has been recognized, processing is immediate, for all commands but the save type
commands (:px). These need a EEPROM write time of app 1ms. An answer is provided with read type
commans (:v, :w, :W) or, if the command “command acknowledge flag” is set, after processing of each
command an ACK or NAK character. Processing of wrong command is stopped immediately on recognizing the error. A new command must start with a colon.
Configuration MC132x Users Manual Rev. 0.22
6.1.1 Table of commands
Syntax Range Answer Description
:a<n><xx> <n> = 1...8
<xx> = 0...ff
h
-- Set one of eight analog voltages
for the sensor
:A<n> <n> =
„y“,“Y“,“n“,“N
“
En- or disable a command ac-
knowledge or not acknowledge
(ACK or NAK)
:b<n> <n> = 0...4 -- Select baud rate:
0=9600 Bd (default setting),
1=19.2 kBd,
2=38.4 kBd, 3=56.8 kBd, 4=115.2
kBd
:c -- -- RESET and new Initialization of
the camera, new load of PowerUpProfile. Duration: some seconds
:e... -- -- Transmit & save a new FPGA
configuration
:f<n> <n> = 0...7 -- Reload one of eight, factory de-
fined and calibrated profiles to
PowerUpProfile.
:g<n> <n> = 0...7 -- Reload one of eight user profiles
to PowerUpProfile
:p<n> <n> = 0...7 -- Save PowerUpProfile to one of
eight user profiles, allow app. 1ms
save time.
:r<n> <n> = 1...f
h
-- Write a FPGA - register
:S 6 Byte Code -- Program sensor and pixel clock
directly.
:t<n><m> <n> = 00..7f
h
<m> = 00..ff
h
-- Short setting of X- position in
units of 10 pixel and Y-position in
units of 4 lines.
:T -- +50.5 Read temperature
:v -- #12345- V1.10-F1.29 Read serial number (#), microcon-
troller - version (V...) and FPGA version (F...).
:V -- 1324000003433 Read identifier
:w -- camera
profile: 44 bytes in
hex
Read actual PowerUpProfile, data
output in hex
:W -- Camera
profile: 44 bytes in
ASCII
Read actual PowerUpProfile, data
output in ASCII
6.2 Read camera information
6.2.1 Read serial number and firmware revision
The serial number and the firmware revision can be read with the :v command.
Command: :v
Response(e.g.): #01234-B2.02-V2.02-F0.71
Serial number
of the camera
13
FPGA firmware version
Microcontroller bootloader Microcontroller application
firmware version firmware version
Configuration MC132x Users Manual Rev. 0.22
6.2.2 Read identifier
The identifier offer information about the camera type and camera functions. It consists of 8 bytes,
which are delivered as 16 ascii characters.
Command: :V
Response (e.g.): 1324000003040303
definition of additional functions or features, 4 bytes
reserved bytes
camera type, e.g. 1324 = MC1324
Definition of functions or features: not yet used
6.2.3 Read camera settings
The actual camera settings can be read out. The answer are the values of all camera registers.
Command: :w Output as hexadecimal digits
(44 Bytes)
:W Output as ASCII-String
Example for ":w" (output as hex digits, 44 Databytes + CR + LF):
6d6448c66500650061008541898c0000
03f f03f f0000007f 0030000000000000
000000000000000000000000↵
CR+LF
Example for ":W" (output as ASCII string, 91 Bytes total, 88 databytes, 1x CR preceding the databytes,
1x CR after 32 ASCII-characters and 1x CR after 64 ASCII- characters):
↓6d6448c66500650061008541898c0000↓
03f f03f f0000007f 0030000000000000↓
CR
000000000000000000000000
Assignment of data to camera parameters:
6d6448c665006500 61008541898c 0000
03f f03f f0000007f 0030000000000000
analog settings
Codes for pixeland Sensorclock
000000000000000000000000↵
image size & position
transmitted bytes:
A1 A2 A3 A4 A5 A6 A7 A8 Sa1 Sa2 Sa3 Sb1 Sb2 Sb3
R1h R1l ... R15h R15l↵
A1...A8 analog settings
Sa1 Sa2 Sa3 3 Bytes frequency codes of pixelclock (see 6.7)
Sb1 Sb2 Sb3 3 Byte frequency codes for sensorclock (see 6.7)
R1…R15 image size & position
R1h ... high Byte Register1
Abb. description hex. Code
CR carriage return 0d
LF line feed 0a
R1l ... low Byte Register1
↵ ... CR+LF (0dh + 0ah)
14
Configuration MC132x Users Manual Rev. 0.22
6.2.4 Reading camera temperature
To control the temperature inside , the camera disposes of an internal temperature sensor. The temperature inside the camera can be read out in steps of 0.5°. The value is delivered in ASCII characters
signed.
Command: :T
Response(e.g.): +34.0
The temperature sensor is able to deliver values of –128°C to +128°C.
*
Take care that the temperature of the camera does not exceed the specified case
temperture range.
6.3 Profile processing
All camera settings are loaded or stored as complete data blocks (= Profiles). There are 17 profiles, the
Camera profile, the PowerUpProfile, eight factory profiles and eight user profiles.
user
profile 0
user
profile 1
user
profile n
user
profile 7
:p0
factory
profiles
0...7
f0..7
PowerUpProfile
:pc
:gc
or power on
:g7
camera profile (programs to camera logic)
configuration commands
:a..z[parameter]
:gn
:
g
1
:
g
0
:p1
:pn
:p7
6.3.1 Write user profile
The PowerUpProfile is transferred to one of the eight user profiles.
Command: :p<n> <n> = 0 ... 7,c
L
Issue this command only, if the PowerUpProfile was
successfully tested.
6.3.2 Load user profile
Load one of eight user profiles to the PowerUpProfile.
Command: :g<n> <n> = 0 ... 7, c
15
Configuration MC132x Users Manual Rev. 0.22
16
6.3.3 Load factory profile
The eight factory profiles can be read but not changed by the user.
Command: :f<n> <n> = 0 ... 7
6.4 Image quality
There are three D/A converter to influence image quality: FPN, Gain, and Black up. FPN, Gain and
especially Black might be adjusted if sensor clock changes. All three parameters are stored in nonvolatile memory as part of the selected profile.
6.4.1 FPN
The Fixed Pattern Noise setting reduces the fixed pattern noise that is typical to CMOS sensors. This
level might be changed if the sensor clock frequency is changed. For adjustment set the lens out of focus and to a medium grey level. Lower FPN until a heavy pattern appears. Then raise by a few points.
Command: :a1<x1x0> <x1x0> : Range, typ. 55h ... 80h
Response: none
6.4.2 Gain
This is the threshold for the A/D converters. Its standard value is 66h for app. 1V. One step is app.
10mV. To increase the gain the value of a2 must be lowered.
Command: :a2<x1x0> <x1x0> : Range,
typ. 30h ... 80h
6.4.3 Black Level
Change Black Level if sensor clock changes. Increase this parameter until grey values in no light condition (closed lens) are close to zero.
Command: :a5<x
1x0
> <x1x0>: Range, typ. 00h ...ffh
Response: none
6.5 Image size and position
Image size and position within the sensor is defined by four parameters:
Bit(s) Description
r1[9..0] Number of first line, 0..3FD
h
r3[9..0] Number of lines, 0..3FF
h
r4[6..0] Address/10 of the first pixel
r5[6..0] Address/10 of the last pixel
Table 6.5-1
Configuration MC132x Users Manual Rev. 0.22
17
6.5.1 Address of the first line
Register r1 defines the first line to be displayed.
Command: :r1<x2x1x0>
<x2x1x0> ... Range 000h ...3fdh
Response: none
Example: :r1100
100h = image starts at line 257
L
If dual column binning is activated, r1 is doubled
within the camera logic.
6.5.2 Number of lines
Register r3 defines the number of lines to output.
Command: :r3<x2x1x0>
<x
2x1x0
> ... Range 000 h ...3ffh
Response: none
Example: :r3200 200h = display 513 lines
L
The sum of r1 and r3 must be ≤ 0x3ff/1023 or
0x1ff/511 if dual column binning is activated!
6.5.3 Address of the first pixel of a line
Register r4 defines the leftmost pixel. The value is the pixel address divided by ten.
Command: :r4<x2x1x0>
<x2x1x0> ... Range 000h ...7fh
Response: none
Calculation of the value of r4:
Value of r4 = Pixel-Nr./10
6.5.4 Address of the last pixel of a line
Register r4 defines the rightmost pixel. The value is the pixeladress divided by ten.
Command: :r5<x2x1x0>
<x
2x1x0
> ... Range 000h ...07fh
Response: none
Calculation of the value of r5:
Value of r5 = Pixel-Nr./10
L
The difference r5 - r4 must be in the range: 0 ≤ r5-r4 ≤ 7fh .
Configuration MC132x Users Manual Rev. 0.22
18
6.5.5 Tracking
For rapid window movement even at slow baud rates a short command is provided..
command: :t<n>,<m>
<m> = X-position in pixel/10,
range 00h ...07fh
<n> = Y-position in lines / 4,
range 00h ...0ffh
Response: none
6.6 Clock selection
The MC132x is equipped with a 2-channel programmable clock synthesizer. One channel controls clock
frequency of the sensor (sensorclock, F
sens
), the other controls the frequency of the pixel clock (pixel-
clock, F
pix
). These independent clocks allow an always optimal ratio depending on the product of (im-
age size x image frequency) and the data rate on the output.
As the sensor outputs 10 pixel per clock a sensor clock of 6.6MHz could be chosen. Because the sensor
can run up to a clock frequency of 66 MHz only 1/10 of the sensors possible speed would be used. To
make use of the maximum sensor clock and maintaining the maximum data rate on the output, just 120
(1280/10 rounded to steps of 10) from the possible 1280 pixel per line can be selected.
Therefore the ratio of F
sens
and F
pix
depends on the selected line length:
F
sens
<= (F
pix
• 1280) / (5 • line length)
or if 100 pixel line length is chosen:
F
sens
= (33 • 1280) / (5 • 100) = 70,4 MHz
As this exceeds the maximum sensor clock frequency, F
sens
is chosen as 66 MHz and F
pix
as 33 MHz.
6.6.1 Arbitrary selection of sensor and pixel clock
Sensor and pixel clock can be set to any value, the product of: (sensor clock • line length/1280) must
always be smaller (about 10%) than the qoutient: (pixel clock / 2).
command :S <x0>
<x
0
> ... 6 characters, as described in chapter Frequency selection
6.6.2 Table selection of clock frequencies
To simplify clock selection when using video data width of 2, clocks can be selected from a table with
15 entries, each entry being optimized for four regions of line length. (see table in 9.4).
Example: 240 < line length <= 640 Pixel, clock selection s9
pixelclock: 30,0 MHz
sensorclock: 11,2 MHz
resulting max. datarate on the 16-Bit output:
30,0 MHz/s * 2 Byte = 60,0 Mbyte/sec.
Configuration MC132x Users Manual Rev. 0.22
This is valid for a line length between 250 and 640 pixel.
command :s <x0>
<x0> ... range 0 ... f (hex)
*
Before selecting the data rate of the camera check
the maximum data rate of the GigE Connection,
which must be higher (or at least the same).
6.6.3 Image Format/Speed change
There are several steps necessary for a change of image format:
i. Disable sensor controller with :r6[4] = 0.
ii. Set image size with (:r1,:r2, :r3, :r4, :r5).
iii. If new sensor clock = old sensor clock:
1. Do not set pixel clock nor sensor clock.
iv. If new sensor clock > old sensor clock:
1. Set new pixel clock (:S6…..), then new sensor clock (:S4….).
v. If new sensor clock < old sensor clock:
1. Set new sensor clock (:S4…..), then new pixel clock (:S6….).
vi. Reenable sensor controller (:r6[4]=1).
6.7 Exposure control
Exposure control is selected with register r6[7..4] and register r2[9..0].
Bit(s) Description
r6[7..4] Type of exposure
r2[9..0] Exposure time
table 6-1
6.7.1 Type of exposure
The MC132x can expose the images synchronous or asynchronous. An external signal on CC1 can be
used to synchronize MC132x cameras to each other or to an external event.
6.7.1.1 Synchronous exposure
Synchronous exposure means that the next image is exposed, while the current image is output. This
mode provides fastest frame rate while maintaining maximum exposure time as long as 1/frame rate. If
an external synchronization signal is input on CC1 its frequency range can be between 30Hz and the
selected free running frame rate. Use MC13xx camera configuration tool for selection.
19
Configuration MC132x Users Manual Rev. 0.22
20
6.7.1.2 Asynchronous exposure
With asynchronous exposure, an external signal starts exposure, and the exposed image is output imme-
diately after the exposure ends. Exposure time is defined either by an internal timer or by the width of
the external EXP (CC1) signal. The time between two consecutive EXP (CC1) edges can be indefinite.
Frame rate = 1/(exposure time + image output time). Image output time equals the selected free running
frame rate. Use MC13xx camera configuration tool for selection.
The following registers select exposure type:
Register Bits :r6[7..4] :r7[8] :rf[0]
camera stop xxx0 x x
Synchronous without elec-
tronic shutter
0001 0 0
Synchronous with electronic
shutter
0011 0 0
Synchronous with electronic
shutter and external synchronisation signal, positive edge
0011 0 1
Synchronous with electronic
shutter and external synchronisation signal, negative edge
0011 1 1
Asynchronous, pulsewidth,
positive edge
1011 0 0
Asynchronous, pulsewidth,
negative edge
1011 1 0
Asynchronous, timer, positive
edge
1111 0 0
Asynchronous, timer, negative edge
1111 1 0
Table 6.7-1
6.7.2 Frame rate with synchronous exposure
The frame rate with synchronous exposure is direct proportional to the selected number of lines.
The time for one line is:
Tzz = 1/F
sens
• 136 [sec]
Tzz ...time/line
F
sens
... Sensorclock
Frame rate: = 1 / (time/line • number of lines+1) or:
= F
sens
/ (136 • (r3[9..0] +2))
Dependencies between image size and frame rate for typical clock frequencies are given in the following table:
image size
100x100 240x240 640x480 1280x1024
Senso rclock (MHz) 66 33 13,2 6,6
Time/line [µs] 2,06 4,12 10,3 20,6
Frames/s 4.852 1.011 202 47
Table 6.7-2
Configuration MC132x Users Manual Rev. 0.22
21
6.7.3 Synchronous operation without shutter
Without electronic shutter the exposure time is 1 / frame rate.
6.7.4 Synchronous operation with shutter
In the sensor is implemented a freeze frame shutter, which allows to reduce the exposure time in steps
of one line. The minimum value of the exposure time is the duration of 2 line periods, which is determined by the value of r2 (min. 001h).
Command: :r2<x2x1x0>
<x2x1x0> ... Range 001h ...3ffh
Response: none
Exposure time TB :
Tt
B
= r2 • TZZ -T
ZZ
/ 2
T
B
... exposure time in s B
r2 ... value of register 2
T
ZZ
... time/line
T
zz
= 1/F
sens
* 136 [s]
Ttzz ... Time/line
F
sens
... sensor clock
Typical exposure times:
Sensor clock
frequency (MHz)
Time/line
(µsec)
r2
@ 1/5.000 s
r2
@ 1/10.000 s
66 2,06 97 49
33 4,12 49 24
13,2 10,3 19 10
6,6 20,6 10 5
Table 6.7-3
6.7.5 External synchronisation with synchronous exposure
MC132x cameras can be synchronized to an external signal that is input on the EXP (TRIG) signal. The
strobe output signal of a MC132x “master camera” can be used for that purpose.
See timing diagram:
Synchronous exposure with external synchronisation via TRIG
The cameras frame rate must be set to a frequency slightly higher than the maximum frequency of the
synchronization signal. The minimum frequency should be higher than 30Hz.
Command: :rf<0|1>
<0> ... deselect external sync signal
<1> ... select external sync signal
Response: none
Make sure that a sync signal is present on EXP/CC1 before this command is issued or the “trigger on
CC1” button is pressed on the MC13xx camera configuration tool.
The polarity of the sync signal can be selected with the _Polarity_of_EXP-signal
Configuration MC132x Users Manual Rev. 0.22
22
6.7.6 Frame rate with asynchronous exposure
The frame rate with asynchronous exposure = Frame rate with synchronous exposure – (1 / exposure
time).
6.7.7 Asynchronous exposure, shutter control by pulse width
This operating mode is selected with register 6:
:r6[7..4] = 0xb
Exposure time depends on the width of the external EXP – signal.
6.7.8 Asynchronous exposure, shutter control by timer
This operating mode is selected with register 6:
:r6[7..4] = 0xf
The asynchronous exposure time is dependent on :r2[9..0]. The exposure timer counts as many lines as
are defined in register :r2[9..0].
Exposure time:
TB = 1/F
sens
* 136 • (1+r2[9..0]) [Sec]
TB ... exposure time
F
sens
.. sensor clock
example: sensor clock = 66MHz
value of r2[9..0] = 6
T
B
= 136 • 6 • 15 ns = 12,2 µs
6.8 Firmware
The camera possesses programmable devices, which are working with some firmware packages. New
cameras were programmed with all needed firmware packages and will not need any update.
For customized firmware or additional features the camera offers the possibility to update some of the
firmware versions. The procedure of updating depends on the firmware package.
*
Do not update more than 1 firmware at the same time.
In case of updating more than 1 firmware, please start with application program,
then fpga program follows.
6.8.1 Update firmware microcontroller application
The microcontroller works with 2 programs, the bootloader and the application program.
The bootloader is the basic program of the microcontroller, which ensures some basic functions (e.g.
communication, loading application program) and cannot be changed or updated. In standard use of the
camera it will never work in the bootloader program and the version cannot be read out. It’s only used
for updating the application program.
Configuration MC132x Users Manual Rev. 0.22
23
The application program is the active microcontroller program in the camera, which supports communication, data handling and fpga program updates.
See description of update procedure in chapter “Firmware update procedure”.
6.8.2 Update FPGA firmware
MC132x’s logic is integrated into a FPGA (Field Programmable Gate Array), which’s configuration is
stored in an EEPROM. Upon power up or a command the FPGA is loaded with this configuration. Configuration data can be downloaded via the serial interface. Mikrotron may provide configuration files
(*.ibf) on request.
After download of configuration data, this data is permanently stored in EEPROM and the FPGA is
configured with the new data. Besides a power cycle, the :c command can be used to reconfigure the
FPGA with the internally stored configuration data.
See description of update procedure in chapter “
Firmware update procedure”.
6.8.3 Firmware update procedure
Before you disable the loaded firmware please ensure that you have a adequate application firmware
version to load (e.g. MC132x….A202.ibf for application firmware, MC132x…F070.ibf for fpga firmware).
(1) Start camera and test communication, e.g. with tool press “info camera” and wait for response
(serial no. and firmware)
(2) Select in menu “Write” “Write string to camera” and write command
- for application firmware update: :ERASEAPP <ENTER>
- for fpga firmware update: :ERASEEPCS1 <ENTER>
which erases the program and for application firmware will restart the camera.
*
After this command the camera may not be able to deliver any images,
load/send/store register or profile data. The status led of the camera will turn to red.
(3) For application firmware update only:
The camera now starts with the bootloader program. It is displayed during start by the status led
which blink one time during power up.
Test communication, e.g. with MC13xx in menu “Write string to camera” and command :v.
Response (e.g.): B2.02
(4) Select in menu “Write” “Write file to camera” and choose application file MC132x*.ibf) and
open it. The file transfer will start immediately. If the camera recognizes a newfirmware
it will switch off the status led.
*
Download of *.ibf file via serial link takes app. 1,5 - 2 min depending on the used
camera. There should be no loss of power or communication during this time!
(5) Wait until file transfer is finished and the status led turns on. If the upload of the file was
successful, the led will turn to green, otherwise it will be red.
Configuration MC132x Users Manual Rev. 0.22
24
(6) Verify version string by reading serial no. and firmware versions (command: :v). The new
firmware version will be displayed as part of the version string. If the version is identical to
the expected the camera is ready to use for capturing images.
6.8.4 Reset and configuration of the internal FPGA
The command :c executes a reset in the camera. The FPGA will be reconfigured and all internal registers reloaded with the last saved PowerUpProfile. The FPGA is also configured after each power up.
Command: :c
Response: none
6.9 Horizontal pixelbinning
Pixelbinning adds the gray values of two adjacent pixels and outputs it as one pixel with double sensitivity. In X-direction only 512 pixels are needed to cover the sensors full size.
To retain aspect ratio, every second line is discarded, if this feature is not disabled by setting Bit 8 of
register 6 (:r61xx) or vertical pixelbinning is activated.
Command: :r7010
Response: none
If discarding of every other line is not disabled (:r61xx), the contents of :r1 is doubled in camera logic.
To address a specific line on the sensor, the value written into :r1 has to be divided by two and :r3 must
not exceed 1ffh.
Example:
To output 256 lines from line 128, set r1 = 63 and r3 = 255 (=0xff).
6.10 Vertical pixelbinning
Vertical pixelbinning adds the gray values of two superimposed pixel of a column. This doubles sensitivity and vertical field of view. To retain aspect ratio, in addition
horizontal binning must be activated.
To activate, set bit 2 in register 6.
Command example: :r6034
Response: none
6.11 Digital shading correction
For the best possible image quality even at the sensors clock limit, and non uniform lighting, the
MC132x can store gray levels along one line and subtract these from all lines of an image.
To setup shading correction set: :r6[1] = 0.
Then a uniform object should be used together with the desired lighting, exposure mode and time and
lens. The lens should be closed so that the remaining light level along the center line of the image is as
close to zero as possible, but not reaching zero.
Then set :r6[1] = 1.
Configuration MC132x Users Manual Rev. 0.22
25
The gray levels along the center line of the image are saved in volatile memory and then subtracted
form all lines of the following images, as long as this bit remains set.
6.12 Digital gain
Out of the 10-bits sensor data either the most significant 8 bits (gain 1), or bits 8..1 (gain 2), or the least
significant 8 bits (gain 4) are selected.
Command: :r700x
x = 0: gain 1
x = 4: gain 2
x = 8: gain 4
6.13 External clock input
MC132x frequency synthesizer can use the Camera Link® used to synchronize several MC132x to one
master clock.
To activate set Bit 9 of register 7.
Command example: :r7200
response: none
*
If the external reference clock is different from
3.6864 MHz, the codes for the clock synthesizer have
to be recalculated.
6.14 Polarity of EXP-signal
The polarity of the EXP-signal can be positive- or negative active.
Use :r7[8] to select.
Negativ = :r7[8] = 1
Positiv = :r7[8] = 0
Command example: :r7100
Response: none
6.15 Test image
For testing of camera logic and video data transmission, sensor data can be replaced by an internal gray
scale pattern with pixel values of 0..127. Use digital gain command to see pixel values of 0..255.
Command example: :r7040 r7[6]
Response: none
6.16 Image counter
If a sequence of frames is to be recorded for long time at a high frame rate, it can be useful to mark the
images for later identification or check for completeness.
Configuration MC132x Users Manual Rev. 0.22
26
MC132x has a 16-Bit image counter whose count can replace the first two pixel of every image. The
image counter is cleared with every low to high transition of r7[1], the camera enable bit. It is incremented by every new image.
Command example: :r7002 r7[1]
Response: none
6.17 ImageBLITZ® shutter release
ImageBLITZ can replace an external signal (e.g.: a light barrier) to release the shutter. Like a light barrier, ImageBLITZ is used to capture fast moving objects on the exact same position on the image.
Contrary to the light barrier, ImageBLITZ uses the same information as condition to release the shutter
as the then exposed image.
ImageBLITZ defines one specific line or a part of the 1024 lines as trigger window. This is true even if
the selected image size is less 1024 lines or outside of the selected image area.
After activation of ImageBLITZ and after issuing the EXP signal as an enable signal, the MC131x
hardware checks the gray values in the trigger window at a repetition rate that is defined by the exposure time selected with bits 3..0 of r6.
If a selectable number of pixels along that trigger window exceed or fall short of a selectable threshold,
one single image is exposed and output.
To adjust ImageBLITZ®, the trigger line can be superimposed to the image. Within the selected line, 10
pixel are displayed as a dotted black- and white line as long as the selected threshold is not passed.
ImageBLITZ is configured with the registers r8..rCh:
6.17.1 ImageBLITZ® processing
When ImageBLITZ® is activated with :r7
h
[0] = 1:
1. Wait for an active edge on the EXP input.
2. The MC13xx exposes a line, that was chosen with :rC[9..0] and is called trigger line, for an
exposure time defined by :r2[9..0]. It compares the intensity of a group of 10 pixel along the
selected trigger line against an adjustable threshold (:rA
h
[7..0], Range: 255..0).
3. The number of exceedings (:rAh[8] = 0) or fall backs (:rAh[8] = 1), are counted, and the result is compared to a second threshold (:rBh[6..0], Range: 127..0).
4. Each time this threshold is exceeded (release condition); an “inhibit counter” (:rDh[9..0],
Range 1..255) is loaded.
5. The inhibit counter” :rDh[9..0] is counted down, each time the “release condition” was not
reached. Once this “inhibit counter” has expired, a new image is exposed and output.After
image is output, repeat at 1.
6.17.2 ImageBLITZ® programming
ImageBLITZ® is programmed by registers r8..rDh and activated with r7[0].
Configuration MC132x Users Manual Rev. 0.22
6.17.2.1 Address of trigger line
The register rCh determines the vertical position of the trigger line in the image.
command: :rCh <x2x1x0>
<x2x1x0> ... range 00h ...3ffh
Response: none
Example: :rc100
100h = 256
L
In pixelbinning mode the value of rC is internally
doubled. The value must not be higher than
1ffh/511.
6.17.2.2 Leftmost pixel of the trigger line
The value of register r8 / 10 is the number of the leftmost pixel in the trigger line.
Command: :r8<x2x1x0>
<x2x1x0> ... range 000h ...07fh
Response: none
Calculation of r8:
Value of r8 = pixel number / 10
6.17.2.3 Rightmost pixel of the trigger line
The end of the trigger line is determined by the value of register r9.
Command: :r9<x
2x1x0
>
<x
2x1x0
> ... range 000h ...7fh
Response: none
Calculation of r9:
Value of r9 = pixel number / 10
6.17.2.4 Threshold level, mark trigger line
The threshold level is set by register rAh . The pixel values along the trigger line are compared with this
value.
Command: :rA
h
<x2x1x0>
<x
1x0
> ... range 0 ..ffh
<x2> = 0: pixel gray level > threshold level,
trigger line not visible
27
Configuration MC132x Users Manual Rev. 0.22
28
1: pixel gray level < threshold level,
trigger line not visible
2: pixel gray level > threshold level,
trigger line visible
3: pixel gray level < threshold level,
trigger line visible
Response: none
The trigger line is displayed as dashed, black and white line. One dash has a length of 10 pixel. The
trigger line is only displayed in parts of the line where the pixel fulfill the trigger requirements.
Under normal operation conditions the trigger line will be visible only in parts. The number of dashes
may be counted and used for the setting of register rBh.
6.17.2.5 Release condition
Register rB
h
contains the release condition.
The release condition is determined by the number of pixels along the triggerline that fulfill the trigger
requirements.
Command: :rB
h
<x
9..0
>
<x
6..0
> = 0 ..7fh, number of pixel that match the trigger requirements
<x
8..7
= 0: correction value 0 for the X - position of output window
<x
8..7
= 1: correction value 4 for the X - position of output window
<x
8..7
= 2: correction value 8 for the X - position of output window
<x
8..7
= 3: correction value 12 for the X - position of output window
Response: none
6.17.2.6 Release Inhibit
The Release Inhibit function is defined with :rD
h
. It tells ImageBLITZ how often sequentially the “re-
lease condition” must not be met, before an image is output.
This feature allows to trigger an object only once on the dark- to bright edge of the scene. This avoids
retriggering, once the trigger condition was met and the object is still visible within the triggerline after
the image has been output.
Command: :rD
h
<x
7..0
>
<x
7..0
> = 0 ..ffh, number of fulfilled,
sequentially trigger conditions
Response: none
Configuration MC132x Users Manual Rev. 0.22
29
6.17.3 ImageBLITZ® registers
Register Bit Description
r7 0 = 1: activate ImageBLITZ®
r8 6..0 First pixel mod. 10
r9 6..0 Last pixel mod. 10
rA
h
7..0
8
9
Exposure threshold
1: bright object triggers
0: dark object triggers
1: make triggerline visible
rB
h
6..0
8..7
9
Number of exceedings or fall backs, release condition,
X – tracking correction
X – tracking enable.
rC
h
9..0 Address of triggerline
rD
h
7..0 exposure limitation, number of exposures without
exposure condition until an image is captured
Table 6.17-1
Registers r1..r7 are programmed according to image size and position and for Asynchronous operation,
timer .
Register Bit Description
r1, r3..r5 Image size and position
r2
r6
9..0
7..4
Async operation, timer
0fh
Table 6.17-2
6.17.4 ImageBLITZ® setup
The MC131x is configured for
asynchronous operation with timer , registers r8, r9 and rCh are loaded
for the desired position of the trigger line. Register rB
h
is loaded with 0, register rAh with 201
h,
so that
the trigger line is visible.
L
If the image is zoomed down for display by an application program, every other line may be omitted and the
trigger line may then disappear.
ImageBLITZ® is enabled with Register r7 Bit1=1.
Now position the trigger line with the registers r8, r9 and rCh across the object that is used for the shutter release..
Clear Bit 8 in Register rAh if a bright objects releases the shutter, set rAh[8] if dark objects release the
shutter. While the trigger line is placed across the object, raise threshold with rAh[7..0] until as many
dashes from the trigger line disappear as are loaded in Register rBh [6..0]. This is called the release condition.
If it is expected that the release condition is met more than once for a single object, load rBh [9..7] with
a number of exposed lines that will not met the release condition before exposing one image.
MC13xx configuration tool MC132x Users Manual Rev. 0.22
7 MC13xx configuration tool
The MC13xx configuration tool must be installed on a Windows PC. (Win9x, WinNT, Win2K, WinXP)
by means of the setup software. See also www.mikrotron.de to download the latest version.
This software provides an almost self explaining user interface to modify any camera parameter. The
description of the parameters follows the marked chapters in this user manual.
To use this tool with the camera MC13xx the serial interface is integrated in the Camera Link® interface. You do not need any other additional cable.
7.1 Basic Configuration
File: Save or read settings to or from file.
Set: Select com port. If Inspecta-4D and the cor-
rect cable is used, the MC13xx can be written to
but not being read from.
Load, Write, Read: Profile processing
FPN, Gain, black level: Adjusting image
Clocks, frame rate: Clock selection
1.st col…num. of rows: Adjusting Image
Shutter: Type of exposure
Frame count (6.17),
gray scale (6.16),
invert trigger (6.15),
extern clock (6.14),
digital gain (6.13)
pixelbinning……(
6.10)
Info camera:
Read serial number and firmware version
Tx:
Display control strings
Rx:
Display response
30
MC13xx configuration tool MC132x Users Manual Rev. 0.22
7.2 ImageBLITZ® Configuration
1st Col, Num Of Col., Row ( Position of TriggerLine ):
r8, r9 and rC
Threshold:
rA
Release Condition:
rB
Release Inhibit:
rD
Line Visible:
rA Bit 8
ImageBLITZ Active:
r7 Bit 0
Bright Object Triggers:
rA Bit 9
31
Mechanical dimensions MC132x Users Manual Rev. 0.22
8 Mechanical dimensions
8.1 Camera body MC132x
The camera body has (without lens) has very compact. To fasten the camera there are two mounting
holes M4x7mm and one tripod connection on each side available.
8.1.1 Dimensioned drawing, side view of MC1324/25
all dimensions im mm
48
63
W1/4"x7 (4x)
M4x7 (8x)
6.5
12.9
50.2
8.1.2 Dimensioned drawing, side view of MC1326/27
32
48
63
W1/4"x7 (4x)
M4x7 (8x)
58.6
6.5
45.3
78.6
Mechanical dimensions MC132x Users Manual Rev. 0.22
8.1.3 Dimensioned drawing, front view of MC1324/25
63mm
63mm
8.1.4 Dimensioned drawing, front view of MC1326/27
63mm
67.5mm
63mm
33
Mechanical dimensions MC132x Users Manual Rev. 0.22
8.1.5 Dimensioned drawing, rear view of MC132x
22
35.8
42.8
0.9
8.2 Lens adjustment
8.2.1 Lens adaption
In dependence of the camera model the MC132x camera are prepared for either C-mount or F-mount
connection (see table
overview of cameras).
Camera types with F-mount adaption may be converted to C-mount adaption by exchanging the lens
mount flange of the camera, which is attached with 4 screws. The C-mount lens flange is not scope of
delivery of the F-mount camera types and is offered separately.
8.2.2 Adjustable lens adapter, only for camera models with C-mount flange
For fine adjustment of the focal length a lens adapter with an adjustment range of ± 1 mm is provided.
Use the three screws nearby the sensor window to fasten the lens adapter after a proper adjustment together with the chosen lens.
8.2.3 Lens selection for camera types with C-mount flange (see table
overview of cameras)
Due to the size of the sensor use C-Mount lenses with the largest possible optical diameter or an adapter
for lenses like F-Mount, especially for lenses with a focal length < 25mm..
34
Technical Data MC132x Users Manual Rev. 0.22
35
9 Technical Data
MC1324 MC1326
MC1325 MC1327
Monochrome
Bayer Filter
Number of pixel 1280 x 1024
Pixel size 12 x 12 µm
Active area 15,36 (H) x 12,29 (V) mm
Fill factor 40%
Sensitivity at 550 nm @ Vref
= 1V (a2 = 66h)
1600LSB/lux-sec
Spectral response 400..800nm
Shutter Electronic „Freeze Frame“ Shutter
Trigger Asynchronous shutter, shutter time
selectable with internal timer or by
pulse width of trigger signal
Internal Dynamic 59 dB
Power supply 8 ... 24 V
Power consumption max.
Thermal resistance typ.
5 W
0.17°/W
Serial data link 9,6 – 115 KBd, 8 bits, 1 stop bit, no
parity
Digital video
GigE Vision® Interface
Pleora GigE IPort Interface
Case temperature +5..50°C
Shock & vibration 70g, 7grms
Dimensions
(WxHxD)
63 x 64,7 x 56,27 mm
Case temperature +5 ... +50° C
Weight ca. 300 g
Lens mount
MC1324/25
MC1326/27
C-Mount
F-Mount
Table 8.2-1
Technical Data MC132x Users Manual Rev. 0.22
9.1 Spectral response
36
Technical Data MC132x Users Manual Rev. 0.22
9.2 Sensitive area of a pixel
Pixel size: 12 x 12 µm
Fill factor: 40 %
Sensitive area: 10,5 x 6,5 µm
Sensitive Area
6.5
µm
10.5
µm
12
µm
12
µm
37
Technical Data MC132x Users Manual Rev. 0.22
9.3 Connector pinning
9.3.1 Gigabit Ethernet Connector
9.3.2 Circular power connector, 12-pin
pin signal pin signal
1 GND 7
2 VCC 8
3 STROBE_GND 9
4 STROBE 10
5 TRIG_GND 11 VCC
6 TRIG 12 GND
Table 9.3-1
Manufacturer: Hirose
Order no.: HR10A-10R-12P
*
Before applying power to the camera we strongly recommend to verify the used pins of the
power connector, the polarity (+/-) of the leads and the supply voltage.
The camera may only be used with a supply voltage according to the camera specification.
Connecting a lower or higher supply voltage, AC voltage, reversal polarity or using wrong
pins of the power connector may damage the camera. If doing so, the warranty will expire
immediately.
38
Technical Data MC132x Users Manual Rev. 0.22
39
9.4 Frequency selection
Depending on the selected line length and the datarate of the GigE interface the frequency selection
table can provide an optimal ratio of sensor /pixel clock. The pixel clock is only dependent on the
selected step and not on the linelength.
The sensor clock is dependent on both the selected step, the line length and the data width. The tables
show the selectable frequencies and the correponding codes to program the synthesizer accordingly.
9.4.1 Table of clock frequency codes
For free programming of the clock frequencies of pixel and sensor clock the following table can be
used. All codes in the table show the code for sensor clock. The code for pixel clock is the same but
starts with “6”.
Example: Adjustment 1 MHz
Command for sensor clock: :S41bb0b
Command for pixel clock: :S61bb0b
*
Pixel and sensor clock must be adjusted in dependence of the used camera mode as described
in chapter frequency selection. Undefined settings may lead to functional faults or can damage the camera.
Technical Data MC132x Users Manual Rev. 0.22
40
Frequency / MHz Code Frequency / MHz Code Frequency / MHz Code
Wanted Real Wanted Real Wanted Real
1.0 1.001 41bb0b 24.5 24.488 416905 48.0 47.923 409081
1.5 1.497 409301 25.0 24.986 41dd07 48.5 48.538 413084
2.0 2.002 41ba8b 25.5 25.498 41408a 49.0 48.976 416885
2.5 2.501 412685 26.0 26.010 41f090 49.5 49.503 416c85
3.0 2.995 409281 26.5 26.496 41c08e 50.0 49.971 41dc87
3.5 3.502 408e03 27.0 27.034 404c81 50.5 50.475 41580b
4.0 4.005 41ba0b 27.5 27.506 41788b 51.0 50.995 41400a
4.5 4.501 41f20b 28.0 28.017 408c83 51.5 51.610 404801
5.0 5.003 412605 28.5 28.508 41c48d 52.0 52.019 41f010
5.5 5.483 41d208 29.0 29.000 41cc8d 52.5 52.477 41d80f
6.0 5.990 409201 29.5 29.491 405481 53.0 52.992 41c00e
6.5 6.502 41f190 30.0 29.983 41dc8d 53.5 53.453 406802
7.0 7.004 408d83 30.5 30.497 416089 54.0 54.067 404c01
7.5 7.495 41dd8d 31.0 31.027 41888a 54.5 54.445 41740b
8.0 8.010 41b98b 31.5 31.502 416c89 55.0 55.012 41780b
8.5 8.499 414187 32.0 32.043 41b88b 55.5 55.513 41f40f
9.0 9.003 41f18b 32.5 32.507 417889 56.0 56.033 408c03
9.5 9.492 419188 33.0 32.914 41e88c 56.5 56.525 405001
10.0 10.006 412585 33.5 33.513 418489 57.0 57.016 41c40d
10.5 10.506 40d983 34.0 33.997 414087 57.5 57.508 409003
11.0 10.967 41d188 34.5 34.518 419089 58.0 57.999 41cc0d
11.5 11.520 40bd82 35.0 35.021 408c82 58.5 58.491 41d00d
12.0 11.981 409181 35.5 35.482 412886 59.0 58.982 405401
12.5 12.493 41dd87 36.0 36.013 41f08b 59.5 59.509 41b80c
13.0 13.005 41f110 36.5 36.495 418088 60.0 59.965 41dc0d
13.5 13.517 404d01 37.0 36.864 406c81 60.5 60.457 409803
14.0 14.008 408d03 37.5 37.478 40e884 61.0 60.993 416009
14.5 14.500 41cd0d 38.0 37.970 419088 61.5 61.440 405801
15.0 14.991 41dd0d 38.5 38.502 416c87 62.0 62.054 41880a
15.5 15.514 41890a 39.0 39.014 41f08a 62.5 62.423 41f00d
16.0 16.022 41b90b 39.5 39.497 412085 63.0 63.004 416c09
16.5 16.457 41e90c 40.0 40.024 412485 63.5 63.520 41b40b
17.0 16.998 414107 40.5 40.550 407881 64.0 64.087 41b80b
17.5 17.510 408d02 41.0 41.011 415886 64.5 64.512 408002
18.0 18.007 41f10b 41.5 41.472 40a882 65.0 65.015 417809
18.5 18.432 406d01 42.0 42.025 40d883 65.5 65.536 413407
19.0 18.985 419108 42.5 42.561 41f089 66.0 65.829 41e80c
19.5 19.507 41f10a 43.0 43.008 408081 66.5 66.355 406001
20.0 20.012 412505 43.5 43.500 40e083 67.0 67.025 418409
20.5 20.506 415906 44.0 43.868 41d088 67.5 67.489 41d00b
21.0 21.012 40d903 44.5 44.605 41d888 68.0 67.994 414007
21.5 21.504 408101 45.0 44.974 40e883 68.5 68.462 40f805
22.0 21.934 41d108 45.5 45.466 408881 69.0 69.036 419009
22.5 22.487 40e903 46.0 46.080 40bc82 69.5 69.515 40fc05
23.0 23.040 40bd02 46.5 46.541 418886 70.0 70.042 408c02
23.5 23.501 40c102 47.0 47.002 40c082
24.0 23.962 409101 47.5 47.514 41c487
Technical Data MC132x Users Manual Rev. 0.22
41
9.4.1.1 Respective codes for the clock synthesizer
Each frequency pair corresponds to two hexadecimal codes that are used to program the synthesizer.
These are also obtained on a read Camera Profile ( :w ) command.
Codes
Step
Pixel codes
in MHz
Sensor codes
(MHz) for:
10 < Linelength <= 100
Pixel
Sensor codes
(MHz) for:
100 < Line
length <=
240 Pixel
Sensor codes
(MHz) for:
240 < Line
length <=
640 Pixel
Sensor codes
(MHz) for:
640 < Line
length <=
1280 Pixel
0 612505 406d01 407182 416a85 416705
1 612505 416905 407181 40ee05 41be8b
2 612505 414088 41f988 41de09 407a81
3 612505 406c81 407102 416a05 416685
4 612505 41f489 41f10c 407182 405201
5 61fd09 416885 407101 40ed85 413207
6 616905 41f00f 416906 41f98b 410a05
7 61748b 414008 41f908 41dd89 407a01
8 61f08e 41e80c 41e890 41d188 40e203
9 61dc8d 40f405 40f487 411984 41da08
a 617489 -- 407082 416985 416605
b 610085 -- 407c82 40c105 41898c
c 61b489 -- 41f08c 407102 405181
d 61f489 -- 407081 40ed05 413187
e 60c005 -- 41f888 41dd09 41d589
f 617409 -- 407002 416905 416585
Table 9.4-1
There is a 3-byte code for each frequency. The code for the sensor clock is set to sb1…3 of a returned
PowerUpProfile (command :w).
The code of the pixel frequency corresponds to sa1…3.
Example: return of frequency codes
On command :w following answer was returned:
6d774ac800006a1c61788b41da080003ff3ff00007f030000000000000000000000000000↵
61dc8d... Sa1...3, pixel clock (see code of table 20 )
61dc8d = step 9, equivalent to 30,0 MHz
41da08... Sb1...3, sensor clock
according to table 20, mode 3
41da08= step9, equivalent to 5,6 MHz
07f.. Line length 1280 pixel
Technical Data MC132x Users Manual Rev. 0.22
42
9.5 Programming sequence, factory profile f3
Example: resolution: 1.280 x 1.024 pixel
frame rate: 48 fps
pixel clock: 35,3 MHz sensor clock: 6,65 MHz
shutter: full frame , exposure time: 21 ms
Strings: :a16d
:a277
:a34a
:a4c8
:a5xx xx... may be any value 00h ... ffh
:a600
:a76a
:a81c
:r6000
:r1000
:r23ff
:r33ff
:r4000
:r507f
:r7000
:r6030
:r8000
:r9000
:ra000
:rb000
:rc000
:rd000
:re000
:rf000
:sb
Technical Data MC132x Users Manual Rev. 0.22
9.6 Timing
9.6.1 Pixel clock
FVAL
LVAL
Data
tdh = 4.5 ±1 ns
Pixel clock
Tclk, 12..~200ns
The above illustration shows hold time of video data, LVAL and FVAL signal to rising edge of pixel
clock.
9.6.2 Line Valid (LVAL, DVAL)
LVAL,
DVAL
Tldvh
Tldvl
LVAL and DVAL are connected internally in the camera. The timing for the LVAL / DVAL signal
shown in multiples of the pixel clock depend on the ratio of sensor/pixel clock, on selected line length,
and on video data width. Tldvh is always the same for a specific setting of the above parameters, Tldvl
my vary by one clock from line to line. The LVAL / DVAL signal is also output while FVAL is
inactive.
43
Technical Data MC132x Users Manual Rev. 0.22
9.6.3 Frame Valid (FVAL)
44
The rising edge of FVAL marks that line, that is programmed in Register r1.
FVAL
tfdv
tfdvl
tfdvh
Tfdvh is equal to the value programmed in Register r3 multiplied with time/line. Tfdvl in synchronous
mode is equal to one time/line.
9.6.4 Exposure Signal EXP, to be input on TRIG
The EXP signal is positive active if register 7, Bit 8 = 0, negativ active if register 7, Bit 8 = 1. EXP Signal may not be asserted while the previous image is output (FDV active)
The sensors exposure starts and the strobe output activates (texp, (1) three sensor clocks after the active
edge of the EXP signal (tshut), and ends up to 135 sensor clocks after deactivation (2).
1)
LDV
2)
image n-1 image n
exp. image n
texp
FDV
EXP
1) The active edge of the EXP signal clears the horizontal counter.
2) End of exposure time is synchronised with the internal
horizontal counter.
EXP is also used as enable signal for ImageBLITZ shutter release.
Technical Data MC132x Users Manual Rev. 0.22
9.6.5 Synchronous exposure with external synchronisation via TRIG
t
exp(n
)
(n-1)
t
exp(n+1
)
(n)
t
sync
LVAL
FVAL
STROBE
TRIG
t
45
exp
: Exposure time selectable with register :r2
t
sync
: The synchronisation frequency must be smaller than the framerate to which the MC13xx is set and
greater 30Hz.
Loading...
