Compact multimedia development system rich with on-board peripherals
for all-round development on TM4C123GH6PZ device
mikromedia
™
for Tiva™ C Series
Page 2
I want to express my thanks to you for being interested in our products and for having
condence in MikroElektronika.
The primary aim of our company is to design and produce high quality electronic products
and to constantly improve the performance thereof in order to better suit your needs.
The Tiva™ C Series , ARM® and Windows® logos and product names are trademarks of Texas Instruments®, ARM® Holdings and Microsoft® in the U.S.A. and other countries.
TO OUR VALUED CUSTOMERS
Nebojsa Matic
General Manager
Introduction to mikromedia for Tiva™ C Series 4
Package Contains 5
Key Features 6
System Specication 7
1. Power supply 8
Battery power supply 8
USB power supply 8
2. TM4C123GH6PZ microcontroller 10
Key microcontroller features 10
3. Programming the microcontroller 11
Programming with mikroBootloader 12
step 1 – Connecting mikromedia 12
step 2 – Browsing for .HEX le 13
step 3 – Selecting .HEX le 13
step 4 – Uploading .HEX le 14
step 5 – Finish upload 15
Programming with mikroProg™ programmer 16
4. Reset Button 18
5. Crystal oscillator 20
6. MicroSD Card Slot 22
7. Touch Screen 24
8. Audio Module 26
9. USB connection 28
10. Accelerometer 30
11. Flash Memory 32
12. Pads 34
13. Pinout 35
14. Dimensions 36
15. Mikromedia accessories 37
What’s next? 38
Page 3
Table of Contents
Page 4
The mikromedia for Tiva™ C Series is a compact
development system with lots of on-board peripherals
which allow development of devices with multimedia
contents. The central part of the system is a 32-bit
ARM® Cortex™-M4 TM4C123GH6PZ microcontroller.
The mikromedia for Tiva™ C Series features integrated
modules such as stereo MP3 codec, TFT 320x240
touch screen display, accelerometer, MMC/SD card
slot, 8 Mbit ash memory, battery charger. The
board also contains MINI-B USB connector, two 1x26
connection pads and other. It comes pre-programmed
with USB HID bootloader, but can also be programmed
with external programmers, such as mikroProg™ for
Tiva™ C Series or other programmers. Mikromedia is
compact and slim, and perfectly ts in the palm of
your hand, which makes it a convenient platform for
mobile devices.
Introduction to mikromedia for Tiva™ C Series
Page 5
01
02
04 05
03
06
Damage resistant
protective box
mikromedia for Tiva
™
C Series
development system
mikromedia for Tiva
™
C Series
user’s guide
mikromedia for Tiva™ C Series
schematic and pinout
USB cable
Package Contains
Two 1x26 male headers
and one 1x5 header
Page 6
02
Key Features
16
17
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
RESET button
Connection Pads
TFT 320x240 display
USB MINI-B connector
Charge indication LED
Li-Polymer battery connector
Power indication LED
3.5mm headphone connector
Power supply regulator
VS1053 Stereo mp3 coder/decoder
Tiva
™
C Series ARM® Cortex™-M4 TM4C123GH6PZ
Crystal oscillator
Accelerometer
Serial Flash memory
microSD Card Slot
Cortex Debug connector
mikroProg™ connector
03
01
Page 7
06
07
08
09
10
11
12
13
14
04
05
17
15
System Specication
power supply
Via USB cable (5V DC)
board dimensions
81.2 x 60.5 mm (3.19 x 2.38 inch)
weight
~50g (0.11lbs)
power consumption
56 mA with erased MCU (when on-board modules are inactive)
CAUTION: Electrostatic Sensitive Device
Permanent damage may occur on devices subjected to high energy
electrostatic discharges which readily accumulate on the human
body or test equipment and can discharge without detection.
16
Page 8
1. Power supply
You can power up the board using the MINI-B
USB cable provided in the package. On-board
voltage regulators provide the appropriate
voltage levels to each component on the
board. Power LED (GREEN) will indicate the
presence of a power supply.
You can also power the board with a Li-Polymer battery,
using the on-board battery connector. On-board battery
charger circuit MCP73832 enables you to charge the
battery over the USB connection. LED diode (RED) will
indicate when the battery is charging. Charging current is
~250mA and charging voltage is 4.2V DC.
Battery power supply
USB power supply
Figure 1-1: Connecting
USB power supply
Figure 1-2: Connecting Li-Polymer battery
Page 9
VCC-BAT
CN4
BATT CONN
C34
2.2uF
VCC-3.3V
E4
10uF
R26
100K
VCC-1.8V
1
2
3
5
4
Vin
GND
EN ADJ
Vout
U5
AP7331-ADJ
R29
27K4
R30
1K
D1
PMEG3010ER
VCC-SYSVCC-BAT
VCC-USB
R34
10K
M1
DMP2160UW
VCC-SYS VCC-3.3V
E9
10uF
E10
10uF
R47
2K2
3
1
2
GND
Vin
Vout
REG1
LD29080DT33
POWER
LD2
VCC-3.3V
VCC-BAT
R46
3K9
Charging Current approx. 250mA
R37
4K7
VCC-3.3V
E7 10uF C41
2.2uF
R35
100K
R31
100K
VCC-BAT
VCC-SYS
R43
10K
R39
10K
VCC-3.3V
R42
10K
R41
1K
VCC-3.3V
E8
10uF
R38
10K
VCC-3.3V
R33
100K
1
2
3 4
5
STAT
VSS
VBAT VDD
PROG
U6
MCP73832
LD1
CHARGE
Q4
BC846
Q5
BC846
VSENSE
STAT
VCC-1.8VVREF-1.8
FP4
VCC-3.3VAVCC
FP1
C5
100nF
C9
100nF
HDR1
M1X26
VCC-3.3V
VCC-SYS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
HDR2
M1X26
VCC-3.3V
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
Figure 1-3: Power supply schematics
DATA BUS
Page 10
The mikromedia for Tiva™ C Series development board comes
with the ARM® Cortex™-M4 TM4C123GH6PZ microcontroller.
This high-performance 32-bit microcontroller with its integrated
modules and in combination with other on-board modules is ideal
for multimedia applications.
Key microcontroller features
- Up to 100 DMIPS Operation;
- 32-bit architecture;
- 256KB of Flash;
- 32KB of SRAM, 2KB EEPROM;
- 69 I/O pins;
- Internal oscillator 16MHz, 30kHz, PLL;
- 16/32 bit and 32/64 Timers;
- Ethernet, UART, SPI, I2C, CAN, ADC etc.
TM4C123GH6PZ
80 MHz
ARM
Cortex M4(F)
ROM
JTAG/SWD
DMA
GPIOs
EEPROM
USB OTG
SSI
CAN
PWM
QEI
ADC
FLASH
SRAM
UART
I2C
ETHERNET
MAC/PHY
HIBERNAT.
MODULE
SYSTEM
CONTROL
AND
CLOCKS
WATCHDOG
TIMERS
GENERAL
PURPOSE
TIMERS
EXTERNAL
PERIPHERIAL
INTERFACE
ANALOG
COMPARATORS
ADVANCED PERFORMANCE BUS
ADVANCED HIGH PERFORMANCE BUS
AHB
APB
2. TM4C123GH6PZ microcontroller
Page 11
01
02
Over USB mikroBootloader
Using mikroProg
™
for Tiva or other external programmers
Figure 3-1:
TM4C123GH6PZ
ARM
®
Cortex™-M4
Microcontroller
The microcontroller can be programmed in two ways:
3. Programming the microcontroller
Page 12
01
02
Programming with mikroBootloader
Figure 3-2: USB HID mikroBootloader window
step 1 – Connecting mikromedia
01
02
The microcontroller is preprogrammed with USB HID Bootloader,
which can be used to upload new device rmware. To transfer
rmware .HEX le from a PC to an MCU you need to use the mik-
roBootloader USB HID application, which can be downloaded from:
Upon download, unzip the package to a desired location and start
the mikroBootloader application:
In order to start, connect the USB cable or (if already
connected) press the Reset button on your board.
Click the Connect button within 5s to enter the bootloader
mode, otherwise the existing program will execute.
www.mikroe.com/downloads/get/2090/
mikrobootloader_tiva_tm4c123gh6p_v130.zip
Page 13
01
01
02
step 3 – Selecting .HEX le step 2 – Browsing for .HEX le
Figure 3-3: Browse for HEX Figure 3-4: Selecting HEX
01 01
02
01
Click the Browse for HEX button and from a
pop-up window (Figure 3.4) choose the .HEX le
you wish to upload to your MCU’s memory.
Select the .HEX le using the Open dialog window.
Click the Open button.
Page 14
01
01

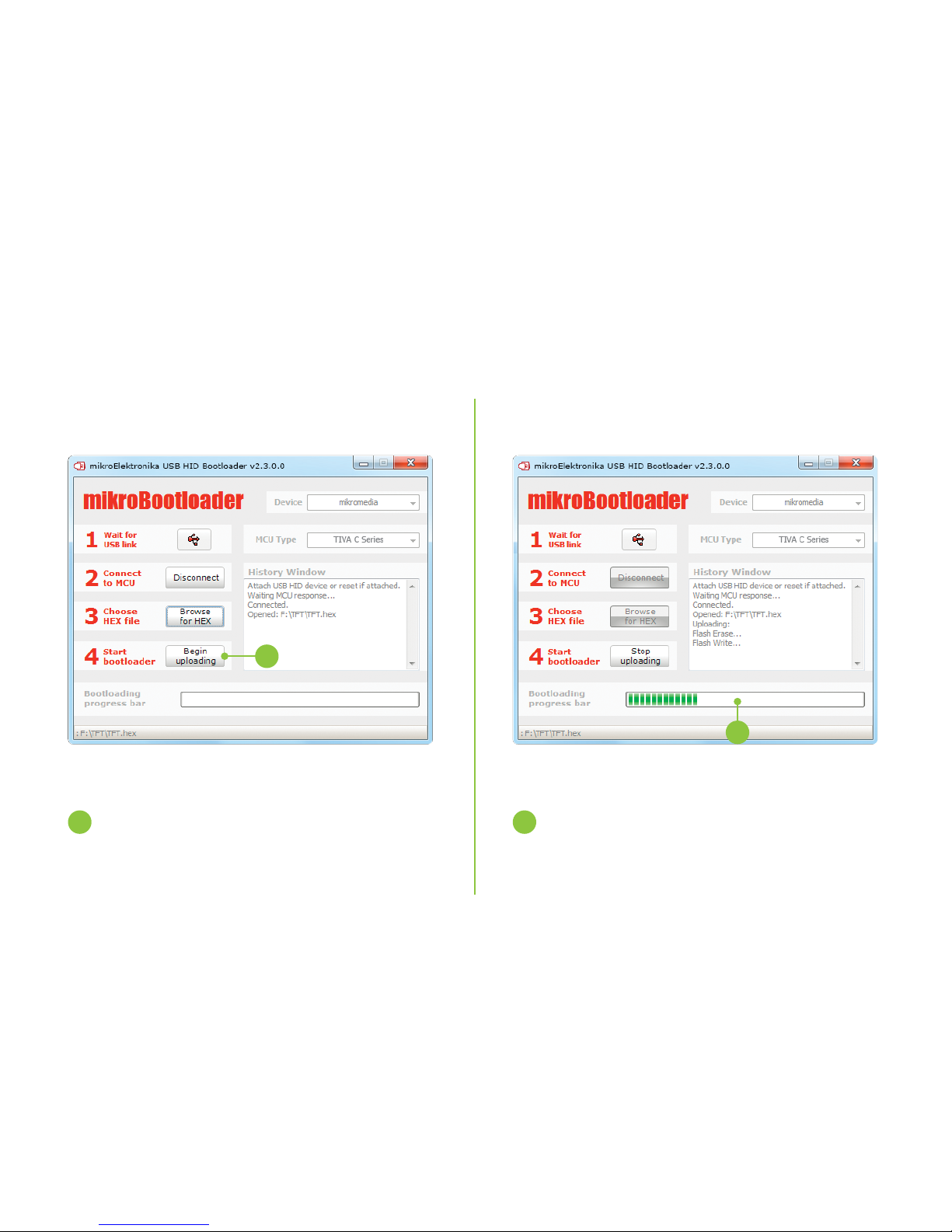

step 4 – Uploading .HEX le
Figure 3-5: Begin uploading Figure 3-6: Progress bar
01 01
In order to upload the .HEX le click the
Begin uploading button.
Monitor the upload process via the progress bar.
Page 15
01
step 5 – Finish upload
Figure 3-7: Restarting MCU Figure 3-8: mikroBootloader ready for next job
01
01
Click the OK button after uploading is nished.
The board will be automatically reset and after 5
seconds your new program will execute.
Page 16
The microcontroller can be programmed with the external mikroProg™ programmer and mikroProg™ Suite for ARM® software. The external
programmer is connected to the development system via JTAG/SWD connector. mikroProg™ is a fast USB 2.0 programmer with hardware
Debugger support. It supports ARM® Cortex™-M4 microcontrollers from Tiva™ C Series. Outstanding performance, easy operation and elegant
design are its key features. The board also contains a Cortex Debug connector which can be used with other external programmers.
Programming with mikroProg™ programmer
VCC-3.3V
C2
22pF
C3
22pF
X1
16MHz
AVCC
TCK-PC0
TMS-PC1
TDI-PC2
TDO-PC3
30
29
28
27
34
33
58
57
56
55
54
53
52
46
36
35
42
43
44
45
37
50
9
48
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
38
39
40
41
47
71
31
51
70
26
25
76
75
74
73
TM4C123GH6PZ
81
82
83
848586
87
88
89
90
91
92
93
94
95
96
97
98
99
100
PA7
PA6
GND
VDD
PF2
PF1
VDD
GND
VDDA
VREFA+
PJ1
PJ0
VDD
VDD
VDD
PF3
XOSC0
GNDX
XOSC1
VBAT
GND
PK3
PB5
PE7
PE6
VDD
PG7
PG6
PC1/TMS/SWDIO
PC2/TDI
PD3
PD2
PD5
PD4
PE5
PE4
GND
PB4
PE3
PA2
PC6
PC7
GND
VDD
PH3
PH2
USBVBUS/PB1
USBID/PB0
HIB
OSC0
PE1
PJ2
GNDA
VDDC
PD6
PD7
PD0
PD1
PA1
PA0
PC4
PC5
PK0
WAKE
OSC1
PG2
PK2
PK1
GND
PF4
PF5
PF7
PG1
VDDC
PH1
PH0
PE0
PF6
PF0
PG3
GND
PC0/TCK/SWCLK
PA5
PA4
PA3
PE2
VREFA-
PG0
RST
PB2
PH5
PH7
PB3
PG4
PG5
PH6
PH4
VDD
GND
PC3/TDO/SWO
U1 TM4C123GH6PZ
VDDC
VDDC
C6
10pF
C7
10pF
X2
32.768KHz
RESET#
CN7
VCC-3.3V
6
8
109
7
5
1 2
3 4
CN3
VCC-3.3V
1 2
3 4
5 6
7 8
9 10
CN6
R53 100
R54 100
R55 100
R56 100
PC0
PC1
PC2
PC3
RESET#
TCK-PC0
TMS-PC1
TDI-PC2
TDO-PC3
RESET#
TCK-PC0
TMS-PC1
TDI-PC2
TDO-PC3
C46
100nF
VCC-3.3V
C47
100nF
VCC-3.3V
C48
100nF
VCC-3.3V
C14
100nF
E1
10uF
VCC-3.3VVCC-3.3V
C15
100nF
C16
100nF
VCC-3.3VVCC-3.3V
C17
100nF
VCC-3.3V
C18
100nF
VCC-3.3V
C11
100nF
VDDC
C10
1uF
VDDC
C13
100nF
VDDC
C12
1uF
VDDC
HDR2
M1X26
VCC-3.3V
PC0
PC1
PC2
PC3
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
Page 17
Figure 3-10: mikroProg™ programmer connection schematic
decoupling
capacitors
mikromedia for Tiva™ C Series is equipped with a reset button, which is located at the top of the front side (Figure 4-2). If you want to
reset the circuit, press the reset button. It will generate a low voltage level on the microcontroller reset pin (input). In addition, a reset
can be externally provided through pin 27 on side headers (Figure 4-3).
4. Reset Button
Figure 4-2:
Frontal reset button
Page 18
Page 19
R1
10K
VCC-3.3V
C1
R2
100
T1
VCC-3.3V
C2
22pF
C3
22pF
X1
16MHz
AVCC
30
29
28
27
34
33
58
57
56
55
54
53
52
46
36
35
42
43
44
45
37
50
9
48
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
38
39
40
41
47
71
31
51
70
26
25
76
75
74
73
TM4C123GH6PZ
81
82
83
848586
87
88
89
90
91
92
93
94
95
96
97
98
99
100
PA7
PA6
GND
VDD
PF2
PF1
VDD
GND
VDDA
VREFA+
PJ1
PJ0
VDD
VDD
VDD
PF3
XOSC0
GNDX
XOSC1
VBAT
GND
PK3
PB5
PE7
PE6
VDD
PG7
PG6
PC1/TMS/SWDIO
PC2/TDI
PD3
PD2
PD5
PD4
PE5
PE4
GND
PB4
PE3
PA2
PC6
PC7
GND
VDD
PH3
PH2
USBVBUS/PB1
USBID/PB0
HIB
OSC0
PE1
PJ2
GNDA
VDDC
PD6
PD7
PD0
PD1
PA1
PA0
PC4
PC5
PK0
WAKE
OSC1
PG2
PK2
PK1
GND
PF4
PF5
PF7
PG1
VDDC
PH1
PH0
PE0
PF6
PF0
PG3
GND
PC0/TCK/SWCLK
PA5
PA4
PA3
PE2
VREFA-
PG0
RST
PB2
PH5
PH7
PB3
PG4
PG5
PH6
PH4
VDD
GND
PC3/TDO/SWO
U1 TM4C123GH6PZ
VDDC
VDDC
C6
10pF
C7
10pF
X2
32.768KHz
CN7
HDR2
M1X26
VCC-3.3V
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
RST
C46
100nF
VCC-3.3V
C47
100nF
VCC-3.3V
C48
100nF
VCC-3.3V
C14
100nF
E1
10uF
VCC-3.3VVCC-3.3V
C15
100nF
VCC-3.3V
C16
100nF
VCC-3.3V
C17
100nF
VCC-3.3V
C18
100nF
VCC-3.3V
C11
100nF
VDDC
C10
1uF
VDDC
C13
100nF
VDDC
C12
1uF
VDDC
Figure 4-3: Reset circuit schematic
decoupling
capacitors
Figure 5-1:
16MHz crystal
oscillator
5. Crystal oscillator
The use of crystal in all other schematics is implied even if it is purposely left out, because of the schematics clarity.
NOTE:
mikromedia for Tiva
™
C Series is equipped with a 16MHz
crystal oscillator (X1) circuit that provides an external clock
waveform to the microcontroller OSC0 and OSC1 pins. This base
frequency is suitable for further clock multipliers and is ideal for generation
of the necessary USB clock, which ensures proper operation of bootloader and
your custom USB-based applications. Board also contains 32.768kHz Crystal
oscillator (X2) which provides external clock for the internal hibernation module.
Page 20
Page 21
VCC-3.3V
C2
22pF
C3
22pF
X1
16MHz
AVCC
30
29
28
27
34
33
58
57
56
55
54
53
52
46
36
35
42
43
44
45
37
50
9
48
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
38
39
40
41
47
71
31
51
70
26
25
76
75
74
73
TM4C123GH6PZ
81
82
83
848586
87
88
89
90
91
92
93
94
95
96
97
98
99
100
PA7
PA6
GND
VDD
PF2
PF1
VDD
GND
VDDA
VREFA+
PJ1
PJ0
VDD
VDD
VDD
PF3
XOSC0
GNDX
XOSC1
VBAT
GND
PK3
PB5
PE7
PE6
VDD
PG7
PG6
PC1/TMS/SWDIO
PC2/TDI
PD3
PD2
PD5
PD4
PE5
PE4
GND
PB4
PE3
PA2
PC6
PC7
GND
VDD
PH3
PH2
USBVBUS/PB1
USBID/PB0
HIB
OSC0
PE1
PJ2
GNDA
VDDC
PD6
PD7
PD0
PD1
PA1
PA0
PC4
PC5
PK0
WAKE
OSC1
PG2
PK2
PK1
GND
PF4
PF5
PF7
PG1
VDDC
PH1
PH0
PE0
PF6
PF0
PG3
GND
PC0/TCK/SWCLK
PA5
PA4
PA3
PE2
VREFA-
PG0
RST
PB2
PH5
PH7
PB3
PG4
PG5
PH6
PH4
VDD
GND
PC3/TDO/SWO
U1 TM4C123GH6PZ
VDDC
VDDC
C6
10pF
C7
10pF
X2
32.768KHz
CN7
C46
100nF
VCC-3.3V
C47
100nF
VCC-3.3V
C48
100nF
VCC-3.3V
C14
100nF
E1
10uF
VCC-3.3VVCC-3.3V
C15
100nF
VCC-3.3V
C16
100nF
VCC-3.3V
C17
100nF
VCC-3.3V
C18
100nF
VCC-3.3V
C11
100nF
VDDC
C10
1uF
VDDC
C13
100nF
VDDC
C12
1uF
VDDC
Figure 5-2: Crystal oscillator schematic
decoupling
capacitors
Figure 6-1:
microSD card slot
6. microSD Card Slot
Page 22
mikromedia for Tiva™ C Series contains a microSD card slot for using microSD cards in your projects. It enables you to store large
amounts of data externally, thus saving microcontroller memory. MicroSD cards use Serial Peripheral Interface (SPI) for communication
with the microcontroller.
Page 23
VCC-3.3V
C2
22pF
C3
22pF
X1
16MHz
AVCC
R49 27
R50 27
SCK0-PA2
MOSI0-PA5
30
29
28
27
34
33
58
57
56
55
54
53
52
46
36
35
42
43
44
45
37
50
9
48
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
38
39
40
41
47
71
31
51
70
26
25
76
75
74
73
TM4C123GH6PZ
81
82
83
848586
87
88
89
90
91
92
93
94
95
96
97
98
99
100
PA7
PA6
GND
VDD
PF2
PF1
VDD
GND
VDDA
VREFA+
PJ1
PJ0
VDD
VDD
VDD
PF3
XOSC0
GNDX
XOSC1
VBAT
GND
PK3
PB5
PE7
PE6
VDD
PG7
PG6
PC1/TMS/SWDIO
PC2/TDI
PD3
PD2
PD5
PD4
PE5
PE4
GND
PB4
PE3
PA2
PC6
PC7
GND
VDD
PH3
PH2
USBVBUS/PB1
USBID/PB0
HIB
OSC0
PE1
PJ2
GNDA
VDDC
PD6
PD7
PD0
PD1
PA1
PA0
PC4
PC5
PK0
WAKE
OSC1
PG2
PK2
PK1
GND
PF4
PF5
PF7
PG1
VDDC
PH1
PH0
PE0
PF6
PF0
PG3
GND
PC0/TCK/SWCLK
PA5
PA4
PA3
PE2
VREFA-
PG0
RST
PB2
PH5
PH7
PB3
PG4
PG5
PH6
PH4
VDD
GND
PC3/TDO/SWO
U1 TM4C123GH6PZ
VDDC
VDDC
C6
10pF
C7
10pF
X2
32.768KHz
C18
100nF
VCC-3.3V
C46
100nF
VCC-3.3V
C47
100nF
VCC-3.3V
C48
100nF
VCC-3.3V
C14
100nF
C15
100nF
C16
100nF
C17
100nF
E1
10uF
VCC-3.3VVCC-3.3V VCC-3.3VVCC-3.3VVCC-3.3V
C11
100nF
VDDC
C10
1uF
VDDC
C13
100nF
VDDC
C12
1uF
VDDC
MISO0-PA4
SD-CS#
SD-CD#
CN7
R27
10K
VCC-MMC
R28
10K
VCC-MMC
R32
27
VCC-3.3V
E5
10uF
C40
100nF
FP2
FERRITE
1
2
4
5
6
7
CS
Din
+3.3V
SCK
GND
Dout
CD
GND
CN2
microSD
C43
1uF
SD-CS#
SD-CD#
MOSI0-PA5
MISO0-PA4
SCK0-PA2
Figure 6-2: microSD Card Slot module connection schematic
decoupling
capacitors
The development system features a
TFT 320x240 display covered with a
resistive touch panel. Together they
form a functional unit called a touch
screen. It enables data to be entered
and displayed at the same time. The
TFT display is capable of showing
graphics in 262.144 dierent colors.
7. Touch Screen
Page 24
Figure 7-1
Touch Screen
Page 25
VCC-3.3V
C2
22pF
C3
22pF
X1
16MHz
AVCC
30
29
28
27
34
33
58
57
56
55
54
53
52
46
36
35
42
43
44
453750
9
48
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
38
39
40
41
47
71
31
51
70
26
25
76
75
74
73
TM4C123GH6PZ
81
82
83
848586
87
88
89
90
91
92
93
94
95
96
97
98
99
100
PA7
PA6
GND
VDD
PF2
PF1
VDD
GND
VDDA
VREFA+
PJ1
PJ0
VDD
VDD
VDD
PF3
XOSC0
GNDX
XOSC1
VBAT
GND
PK3
PB5
PE7
PE6
VDD
PG7
PG6
PC1/TMS/SWDIO
PC2/TDI
PD3
PD2
PD5
PD4
PE5
PE4
GND
PB4
PE3
PA2
PC6
PC7
GND
VDD
PH3
PH2
USBVBUS/PB1
USBID/PB0
HIB
OSC0
PE1
PJ2
GNDA
VDDC
PD6
PD7
PD0
PD1
PA1
PA0
PC4
PC5
PK0
WAKE
OSC1
PG2
PK2
PK1
GND
PF4
PF5
PF7
PG1
VDDC
PH1
PH0
PE0
PF6
PF0
PG3
GND
PC0/TCK/SWCLK
PA5
PA4
PA3
PE2
VREFA-
PG0
RST
PB2
PH5
PH7
PB3
PG4
PG5
PH6
PH4
VDD
GND
PC3/TDO/SWO
U1 TM4C123GH6PZ
VDDC
VDDC
C6
10pF
C7
10pF
X2
32.768KHz
C14
100nF
C15
100nF
C16
100nF
C17
100nF
E1
10uF
VCC-3.3VVCC-3.3VVCC-3.3V VCC-3.3VVCC-3.3V
C18
100nF
VCC-3.3V
C46
100nF
VCC-3.3V
C47
100nF
VCC-3.3V
C48
100nF
VCC-3.3V
C11
100nF
VDDC
C10
1uF
VDDC
C13
100nF
VDDC
C12
1uF
VDDC
T-D7
T-D1-PF1
T-D2-PF2
T-D3-PF3
T-D0-PF0
T-D4
T-D5
T-D6
LCD-XL
LCD-YD
LCD-BLED
DRIVEA
DRIVEB
LCD-RST
LCD-RS
LCD-CS#
PMRD
PMWR
CN7
R19
10K
VCC-SYS
LCD-RST
LCD-RS
LCD-CS#
LCD-YU
LCD-XL
LCD-YD
LCD-XR
VCC-3.3V
E6
10uF
R36
10K
VCC-3.3V
R21
10K
LCD-RST
LCD-CS#
VCC-3.3V
LCD-BLED
R25
12
VCC-3.3V
PMRD
PMWR
VCC-3.3V
Q6
BC856
Q7
BC846
R58
10K
R57
1K
R60
10K
R59
4K7
VCC-3.3V
Q8
BC856
R61
10K
Q9
BC846
R62
10K
C44
100nF
R63
100K
Q10
BC846
R65
10K
C49
100nF
R66
100K
R64
4K7
VCC-3.3V
LCD-XR
LCD-YU
LCD-XL
LCD-YD
DRIVEA
DRIVEB
Q3
BC846
Q2
BC846
Q1
BC846
R20
1K
T-D7
T-D4
T-D5
T-D6
2
15
12
35
11
36
3
4
5
6
14
7
8
9
13
43
33
10
37
38
39
40
44
45
46
34
1
47
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
41
42
LED-K
LED-A1
LED-A2
LED-A3
LED-A4
IM0
IM3
IM2
IM1
RESET
VSYNC
HSYNC
DOTCLK
ENABLE
DB0
DB1
DB2
DB3
DB4
DB5
DB6
DB7
DB8
DB9
DB10
DB11
DB12
DB13
DB14
DB15
DB16
DB17
SDO
SDI
RD
WR
RS
CS
TE
VCC-IO
VCC
VCC
GND
XR
YD
XL
YU
TFT1
MI0283QT- 9A
T-D1-PF1
T-D2-PF2
T-D3-PF3
T-D0-PF0
VCC-1.8V
VCC-1.8V
Figure 7-2: Touch Screen connection schematic
decoupling
capacitors
mikromedia for Tiva™ C Series features a stereo audio codec VS1053. This module
enables audio reproduction by using stereo headphones connected to the system
via a 3.5mm connector CN1. All functions of this module are controlled by the
microcontroller over Serial Peripheral Interface (SPI).
8. Audio Module
Figure 8-2: 3.5mm
headphones jack
Figure 8-1: On-board
VS1053 MP3 codec
Page 26
Page 27
VCC-3.3V
C2
22pF
C3
22pF
X1
16MHz
AVCC
R49 27
R50 27
SCK0-PA2
MOSI0-PA5
30
29
28
27
34
33
58
57
56
55
54
53
52
46
36
35
42
43
44
453750
9
48
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
38
39
40
41
47
71
31
51
70
26
25
76
75
74
73
TM4C123GH6PZ
81
82
83
848586
87
88
89
90
91
92
93
94
95
96
97
98
99
100
PA7
PA6
GND
VDD
PF2
PF1
VDD
GND
VDDA
VREFA+
PJ1
PJ0
VDD
VDD
VDD
PF3
XOSC0
GNDX
XOSC1
VBAT
GND
PK3
PB5
PE7
PE6
VDD
PG7
PG6
PC1/TMS/SWDIO
PC2/TDI
PD3
PD2
PD5
PD4
PE5
PE4
GND
PB4
PE3
PA2
PC6
PC7
GND
VDD
PH3
PH2
USBVBUS/PB1
USBID/PB0
HIB
OSC0
PE1
PJ2
GNDA
VDDC
PD6
PD7
PD0
PD1
PA1
PA0
PC4
PC5
PK0
WAKE
OSC1
PG2
PK2
PK1
GND
PF4
PF5
PF7
PG1
VDDC
PH1
PH0
PE0
PF6
PF0
PG3
GND
PC0/TCK/SWCLK
PA5
PA4
PA3
PE2
VREFA-
PG0
RST
PB2
PH5
PH7
PB3
PG4
PG5
PH6
PH4
VDD
GND
PC3/TDO/SWO
U1 TM4C123GH6PZ
VDDC
VDDC
C6
10pF
C7
10pF
X2
32.768KHz
C14
100nF
C15
100nF
C16
100nF
C17
100nF
E1
10uF
VCC-3.3VVCC-3.3VVCC-3.3V VCC-3.3VVCC-3.3V
C18
100nF
VCC-3.3V
C46
100nF
VCC-3.3V
C47
100nF
VCC-3.3V
C48
100nF
VCC-3.3V
C11
100nF
VDDC
C10
1uF
VDDC
C13
100nF
VDDC
C12
1uF
VDDC
MISO0-PA4
MP3-CS#
MP3-DREQ
MP3-RST#
MP3-DCS
CN7
C30
100nF
C31
100nF
VCC-1.8V VCC-1.8V
C33
100nF
C32
100nF
VCC-1.8V VCC-1.8V
C35
100nF
C36
100nF
VCC-3.3V
C37
100nF
VCC-3.3V
C38
100nF
VCC-3.3V VCC-3.3V
C39
100nF
VCC-3.3V
C45
1uF
VCC-3.3V
C26
22pF
C25
22pF
R14 1M
R22
10K
R24 10K
R6
10K
R15
10K
X3
12.288MHz
C24
1uF
GPIO
LEFT
RIGHT
GBUF
E3 10uF
E2 10uF
CN1
PHONEJACK
LEFT
RIGHT
C28
10nF
C29
47nF
C27
10nF
R18
10
R1610R17
10
R11 10
R13 10
R8
470
C23
3.3nFR9100K
R5
470
C21
3.3nFR7100K
L
R
R23
27
2
34567
11
12
13
14
25
24
23
22
21
18
17
16
15
8
1
19
9
1027
2620282930313233343536
37
38
39
40
41
42
43
44
45
46
47
48
MCP/LN1
MICN
XRESET
DGND0
CVDD0
IOVDD0
CVDD1
DREQ
GPIO2
GPIO3
GPIO6
GPIO7
XDCS/BSYNC
IOVDD1
VC0
DGND1
XTAL0
XTAL1
IOVDD2
DGND2
DGND3
DGND4
XCS
CVDD2
GPIO5
RX
TX
SCLK
SISOCVDD3
XTEST
GPIO0
GPIO1
GND
GPIO4
AGND0
AVDD0
AVDD2
AGND1
AGND2
AGND3
LN2
LEFT
RCAP
AVDD1
GBUF
RIGHT
VS1053
U3
VCC-1.8V VCC-3.3V
R5110R52
10
MP3-CS#
MP3-DREQ
MP3-RST#
MP3-DCS
MOSI0-PA5
MISO0-PA4
SCK0-PA2
HDR2
M1X26
VCC-3.3V
L
R
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
Figure 8-3: Audio module connection schematic
decoupling
capacitors
decoupling
capacitors
ARM® Cortex™-M4 TM4C123GH6PZ microcontroller has an integrated USB module, which
enables you to implement USB communication functionality to your mikromedia board. Connection
with target USB host is done over MINI-B USB connector which is positioned next to the battery connector.
9. USB connection
Figure 9-1:
Connecting USB
cable to MINI-B USB
connector
Page 28
Page 29
VCC-3.3V
C2
22pF
C3
22pF
X1
16MHz
AVCC
USB-DET
USB-D_N
USB-D_P
30
29
28
27
34
33
58
57
56
55
54
53
52
46
36
35
42
43
44
45
37
50
9
48
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
38
39
40
41
47
71
31
51
70
26
25
76
75
74
73
TM4C123GH6PZ
81
82
83
848586
87
88
89
90
91
92
93
94
95
96
97
98
99
100
PA7
PA6
GND
VDD
PF2
PF1
VDD
GND
VDDA
VREFA+
PJ1
PJ0
VDD
VDD
VDD
PF3
XOSC0
GNDX
XOSC1
VBAT
GND
PK3
PB5
PE7
PE6
VDD
PG7
PG6
PC1/TMS/SWDIO
PC2/TDI
PD3
PD2
PD5
PD4
PE5
PE4
GND
PB4
PE3
PA2
PC6
PC7
GND
VDD
PH3
PH2
USBVBUS/PB1
USBID/PB0
HIB
OSC0
PE1
PJ2
GNDA
VDDC
PD6
PD7
PD0
PD1
PA1
PA0
PC4
PC5
PK0
WAKE
OSC1
PG2
PK2
PK1
GND
PF4
PF5
PF7
PG1
VDDC
PH1
PH0
PE0
PF6
PF0
PG3
GND
PC0/TCK/SWCLK
PA5
PA4
PA3
PE2
VREFA-
PG0
RST
PB2
PH5
PH7
PB3
PG4
PG5
PH6
PH4
VDD
GND
PC3/TDO/SWO
U1 TM4C123GH6PZ
VDDC
VDDC
C6
10pF
C7
10pF
X2
32.768KHz
C14
100nF
VCC-3.3V
C15
100nF
VCC-3.3V
C16
100nF
VCC-3.3V
C17
100nF
VCC-3.3V
C18
100nF
VCC-3.3V
C46
100nF
VCC-3.3V
C47
100nF
VCC-3.3V
C48
100nF
VCC-3.3V
E1
10uF
VCC-3.3V
C11
100nF
VDDC
C10
1uF
VDDC
C13
100nF
VDDC
C12
1uF
VDDC
USB-ID
CN7
VCC-USB
C42
10nF
FP3
FERRITE
R40 100
1
2
3
4
5
GND
ID
D+
D-
VBUS
CN5
USB MINIB
USB-DET
R45
100K
USB-D_N
USB-D_P
USB-ID
Figure 9-2: USB module connection schematic
decoupling capacitors
Page 30
Figure 10-1:
Accelerometer
module
10. Accelerometer
You can set the accelerometer address to 0 or 1 by re-soldering
the SMD jumper (zero-ohm resistor) to the appropriate position.
Jumper is placed in address 1 position by default.
On-board ADXL345 accelerometer is used to
measure acceleration in three axes: x, y and z. The
accelerometer function is dened by the user in the program
loaded into the microcontroller. Communication between the
accelerometer and the microcontroller is performed via the I2C interface.
Page 31
VCC-3.3V
C2
22pF
C3
22pF
X1
16MHz
AVCC
30
29
28
27
34
33
58
57
56
55
54
53
52
46
36
35
42
43
44
45
37
50
9
48
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
38
39
40
41
47
71
31
51
70
26
25
76
75
74
73
TM4C123GH6PZ
81
82
83
848586
87
88
89
90
91
92
93
94
95
96
97
98
99
100
PA7
PA6
GND
VDD
PF2
PF1
VDD
GND
VDDA
VREFA+
PJ1
PJ0
VDD
VDD
VDD
PF3
XOSC0
GNDX
XOSC1
VBAT
GND
PK3
PB5
PE7
PE6
VDD
PG7
PG6
PC1/TMS/SWDIO
PC2/TDI
PD3
PD2
PD5
PD4
PE5
PE4
GND
PB4
PE3
PA2
PC6
PC7
GND
VDD
PH3
PH2
USBVBUS/PB1
USBID/PB0
HIB
OSC0
PE1
PJ2
GNDA
VDDC
PD6
PD7
PD0
PD1
PA1
PA0
PC4
PC5
PK0
WAKE
OSC1
PG2
PK2
PK1
GND
PF4
PF5
PF7
PG1
VDDC
PH1
PH0
PE0
PF6
PF0
PG3
GND
PC0/TCK/SWCLK
PA5
PA4
PA3
PE2
VREFA-
PG0
RST
PB2
PH5
PH7
PB3
PG4
PG5
PH6
PH4
VDD
GND
PC3/TDO/SWO
U1 TM4C123GH6PZ
VDDC
VDDC
C6
10pF
C7
10pF
X2
32.768KHz
SCL0-PB2
SDA0-PB3
CN7
C20
100nF
C19
100nF
VCC-3.3V
R3
10KR410K
VCC-3.3V
ACC ADDRESS
1
2
3
VCC
GND
Res
4
GND
5
GND
6
VCC
7
CS
8
INT1
9
INT2
10
NC
11
Res
12
ADD
13
SDA
14
SCL
U2
ADXL345
VCC-3.3V
VCC-3.3V VCC-3.3V
1
2
3
J1
SDA0-PB3
SCL0-PB2
C14
100nF
C15
100nF
C16
100nF
C17
100nF
E1
10uF
VCC-3.3VVCC-3.3V VCC-3.3VVCC-3.3VVCC-3.3V
C18
100nF
VCC-3.3V
C46
100nF
VCC-3.3V
C47
100nF
VCC-3.3V
C48
100nF
VCC-3.3V
C11
100nF
VDDC
C10
1uF
VDDC
C13
100nF
VDDC
C12
1uF
VDDC
Figure 10-2: Accelerometer connection schematic
decoupling
capacitors
Figure 11-1:
Flash memory module
11. Flash Memory
Since multimedia applications are getting increasingly demanding, it
is necessary to provide additional memory space to be used for storing
more data. The ash memory module enables the microcontroller to use
additional 8Mbit ash memory. It is connected to the microcontroller via the
Serial Peripheral Interface (SPI).
Page 32
Page 33
VCC-3.3V
C2
22pF
C3
22pF
X1
16MHz
AVCC
R49 27
R50 27
SCK0-PA2
MOSI0-PA5
30
29
28
27
34
33
58
57
56
55
54
53
52
46
36
35
42
43
44
45
37
50
9
48
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
38
39
40
41
47
71
31
51
70
26
25
76
75
74
73
TM4C123GH6PZ
81
82
83
848586
87
88
89
90
91
92
93
94
95
96
97
98
99
100
PA7
PA6
GND
VDD
PF2
PF1
VDD
GND
VDDA
VREFA+
PJ1
PJ0
VDD
VDD
VDD
PF3
XOSC0
GNDX
XOSC1
VBAT
GND
PK3
PB5
PE7
PE6
VDD
PG7
PG6
PC1/TMS/SWDIO
PC2/TDI
PD3
PD2
PD5
PD4
PE5
PE4
GND
PB4
PE3
PA2
PC6
PC7
GND
VDD
PH3
PH2
USBVBUS/PB1
USBID/PB0
HIB
OSC0
PE1
PJ2
GNDA
VDDC
PD6
PD7
PD0
PD1
PA1
PA0
PC4
PC5
PK0
WAKE
OSC1
PG2
PK2
PK1
GND
PF4
PF5
PF7
PG1
VDDC
PH1
PH0
PE0
PF6
PF0
PG3
GND
PC0/TCK/SWCLK
PA5
PA4
PA3
PE2
VREFA-
PG0
RST
PB2
PH5
PH7
PB3
PG4
PG5
PH6
PH4
VDD
GND
PC3/TDO/SWO
U1 TM4C123GH6PZ
VDDC
VDDC
C6
10pF
C7
10pF
X2
32.768KHz
C15
100nF
C16
100nF
C17
100nF
VCC-3.3VVCC-3.3V VCC-3.3V
C18
100nF
VCC-3.3V
C46
100nF
VCC-3.3V
C47
100nF
VCC-3.3V
C48
100nF
VCC-3.3V
C14
100nF
E1
10uF
VCC-3.3VVCC-3.3V
C13
100nF
VDDC
C11
100nF
VDDC
C10
1uF
VDDC
C12
1uF
VDDC
MISO0-PA4
FLASH-CS#
CN7
C22
100nF
R10
10K
VCC-3.3V
1
2
3
54
6
7
8
CS
SDO
WP
GND SDI
SCK
HOLD
VCC
U4
M25P80
R12 27
VCC-3.3V
FLASH-CS#
MOSI0-PA5
MISO0-PA4
SCK0-PA2
Figure 11-2: Flash memory module connection schematic
decoupling
capacitors
Page 34
VCC-3.3V
C2
22pF
C3
22pF
X1
16MHz
AVCC
U0Rx-PA0
U0Tx-PA1
R49 27
R50 27
SCK0-PA2
MOSI0-PA5
30
29
28
27
34
33
58
57
56
55
54
53
52
46
36
35
42
43
44
453750
9
48
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
38
39
40
41
47
71
31
51
70
26
25
76
75
74
73
TM4C123GH6PZ
81
82
83
848586
87
88
89
90
91
92
93
94
95
96
97
98
99
100
PA7
PA6
GND
VDD
PF2
PF1
VDD
GND
VDDA
VREFA+
PJ1
PJ0
VDD
VDD
VDD
PF3
XOSC0
GNDX
XOSC1
VBAT
GND
PK3
PB5
PE7
PE6
VDD
PG7
PG6
PC1/TMS/SWDIO
PC2/TDI
PD3
PD2
PD5
PD4
PE5
PE4
GND
PB4
PE3
PA2
PC6
PC7
GND
VDD
PH3
PH2
USBVBUS/PB1
USBID/PB0
HIB
OSC0
PE1
PJ2
GNDA
VDDC
PD6
PD7
PD0
PD1
PA1
PA0
PC4
PC5
PK0
WAKE
OSC1
PG2
PK2
PK1
GND
PF4
PF5
PF7
PG1
VDDC
PH1
PH0
PE0
PF6
PF0
PG3
GND
PC0/TCK/SWCLK
PA5
PA4
PA3
PE2
VREFA-
PG0
RST
PB2
PH5
PH7
PB3
PG4
PG5
PH6
PH4
VDD
GND
PC3/TDO/SWO
U1 TM4C123GH6PZ
VDDC
VDDC
C6
10pF
C7
10pF
X2
32.768KHz
10uF
VCC-3.3V
C14
100nF
C15
100nF
C16
100nF
C17
100nF
E1
VCC-3.3VVCC-3.3VVCC-3.3V VCC-3.3V
C18
100nF
VCC-3.3V
C46
100nF
VCC-3.3V
C47
100nF
VCC-3.3V
C48
100nF
VCC-3.3V
C11
100nF
VDDC
C10
1uF
VDDC
C13
100nF
VDDC
C12
1uF
VDDC
MISO0-PA4
SCL0-PB2
SDA0-PB3
AN-PE3
AN-PE2
AN-PE1
AN-PE0
AN-PD7
AN-PD6
AN-PD5
INT-PH0
INT-PH1
INT-PH2
INT-PH3
PC7
PC6
SCL2-PG0
SDA2-PG1
SCK1-PD0
MISO1-PD2
MOSI1-PD3
PWM-PH4
PWM-PH5
PWM-PH6
PWM-PH7
PG5
PG4
PG2
T-D1-PF1
T-D2-PF2
T-D3-PF3
T-D0-PF0
LCD-BLED
DRIVEA
DRIVEB
PJ2
PB5
CN7
VREF-1.8
HDR1
M1X26
VCC-3.3V
VCC-SYS
MOSI0-PA5
MISO0-PA4
SCK0-PA2
SCL2-PG0
SDA2-PG1
SCK1-PD0
MISO1-PD2
MOSI1-PD3
INT-PH0
INT-PH1
INT-PH2
INT-PH3
AN-PE3
AN-PE2
AN-PE1
AN-PE0
AN-PD7
AN-PD6
AN-PD5
PC7
PC6
PJ2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
HDR2
M1X26
VCC-3.3V
RST
L
R
SCL0-PB2
SDA0-PB3
U0Rx-PA0
U0Tx-PA1
PWM-PH4
PWM-PH5
PWM-PH6
PWM-PH7
PG5
PG4
PG2
PC0
PC1
PC2
PC3
PB5
T-D1-PF1
T-D2-PF2
T-D3-PF3
T-D0-PF0
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
R2
100
RST
Most microcontroller pins are available for further connectivity via two 1x26 rows of
connection pads on both sides of the mikromedia board. They are designed to match
additional shields, such as Battery Boost shield, Gaming, PROTO shield and others.
Pads HDR2 Pads HDR1Figure 12-1: Connecting pads schematics
12. Pads
decoupling
capacitors
Page 35
SPI LinesInterrupt LinesAnalog Lines
Digital lines
I2C Lines
UART lines
PWM lines
VSYS
RST Reset pinSystem power supply
GND
GND Reference Ground
Reference Ground
PD5
L
PD6
R
left ch.
right ch.
PWM lines
Digital I/O lines
Digital I/O lines
SPI Lines
Interrupt Lines
Analog Lines
PD7
PH4
PE3
PH5
PE2
PH6
PE1
PH7
PE0
PC0
PH0
PC1
PH1
PC3
PH2
PC2
PH3
PB5
PJ2
PG5
PG0
PG4
PG1
PG2
PC7
PF0
PD0
PF1
PD2
PF2
PD3
PF3
PC6
PA0 RX
PA2
PA1 TX
SCK
PA4
PB2
SCL2
SDI
PA5
PB3 SDA2
SDO
3.3V
3.3V 3.3V power supply
3.3V power supply
GND
GND Reference Ground
Reference Ground
Pin functions Pin functions
audio out
UART Lines
I
2
C Lines
13. Pinout
Page 36
14. Dimensions
73.66
81.15
63.5
2.672.54
36.58
55.88
60.45
1.6
63
2.03
3195
2900
4
157
7
276
2380
2200
50.2
1976
2500
1440
105
100
80
8.89
350
7.62
300
3.2
126
57.6
2268
69.3
2728
43.2
1700
Legend
Page 37
15. mikromedia accessories
We have prepared a set of
extension boards pin-compatible
with your mikromedia, which
enable you to easily expand
your board’s basic functionality.
We call them mikromedia
shields. But we also oer other
accessories, such as Li-polymer
battery, stacking headers, wire
jumpers and more.
04
01 02
03
Gaming shield
Connect shield BatteryBoost shield PROTO shield
06 07
Li-Polymer battery Wire Jumpers
05
mikroBUS
™
shield
Page 38
What’s next?
You still don’t have an appropriate compiler? Locate ARM® compiler that suits you best
on our website:
Choose between mikroC™, mikroBasic™ and mikroPascal™ and download fully functional
demo version, so you can start building your rst applications.
Once you have chosen your compiler, and since you already got the board, you are ready to start writing your rst
projects. Visual TFT software enables you to quickly create your GUI. It will automatically generate code compatible
with МikroElektronika compilers. Visual TFT is rich with examples, which are an excellent starting point for your future
projects. Download it from the link bellow:
You have now completed the journey through each and every feature of mikromedia for Тiva
™
C Series board. You got to know its modules and
organization. Now you are ready to start using your new board. We are suggesting several steps which are probably the best way to begin.
Find useful projects and tutorials on the Libstock website (http://www.libstock.com/). Join our Forum (http://www.mikroe.com/forum/) and get
help from a large ecosystem of users.
Compiler
Visual TFT
http://www.mikroe.com/arm/compilers/
http://www.mikroe.com/visualtft/
DISCLAIMER
All the products owned by MikroElektronika are protected by copyright law and international copyright treaty. Therefore, this manual is to be treated as any
other copyright material. No part of this manual, including product and software described herein, may be reproduced, stored in a retrieval system, translated or
transmitted in any form or by any means, without the prior written permission of MikroElektronika. The manual PDF edition can be printed for private or local use,
but not for distribution. Any modication of this manual is prohibited.
MikroElektronika provides this manual ‘as is’ without warranty of any kind, either expressed or implied, including, but not limited to, the implied warranties or
conditions of merchantability or tness for a particular purpose.
MikroElektronika shall assume no responsibility or liability for any errors, omissions and inaccuracies that may appear in this manual. In no event shall
MikroElektronika, its directors, ocers, employees or distributors be liable for any indirect, specic, incidental or consequential damages (including damages for
loss of business prots and business information, business interruption or any other pecuniary loss) arising out of the use of this manual or product, even if
MikroElektronika has been advised of the possibility of such damages. MikroElektronika reserves the right to change information contained in this manual at any
time without prior notice, if necessary.
TRADEMARKS
The MikroElektronika name and logo, the MikroElektronika logo, mikroC
™
, mikroBasic™, mikroPascal™, mikroProg™, mikroBUS™, Click Boards™, EasyMx PRO™
and mikromedia
™
are trademarks of MikroElektronika. All other trademarks mentioned herein are property of their respective companies.
All other product and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are only
used for identication or explanation and to the owners’ benet, with no intent to infringe.
Copyright © 2014 MikroElektronika. All Rights Reserved.
HIGH RISK ACTIVITIES
The products of MikroElektronika are not fault – tolerant nor designed, manufactured or intended for use or resale as on – line control equipment in
hazardous environments requiring fail – safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems,
air trac control, direct life support machines or weapons systems in which the failure of Software could lead directly to death, personal injury or
severe physical or environmental damage (‘High Risk Activities’). MikroElektronika and its suppliers specically disclaim any expressed or implied
warranty of tness for High Risk Activities.
If you want to learn more about our products, please visit our website at www.mikroe.com
If you are experiencing some problems with any of our products or just need additional
information, please place your ticket at www.mikroe.com/support
If you have any questions, comments or business proposals,
do not hesitate to contact us at oce@mikroe.com
mikromedia for Tiva C Series Manual
ver. 1.00
0 100000 026236
Loading...
