A motorized development platform
I want to express my thanks to you for being interested in our products and for having condence in
MikroElektronika.
The primary aim of our company is to design and produce high quality electronic products and to
constantly improve the performance thereof in order to better suit your needs.
We hope you’ll have great fun with the Buggy, and that it’ll be a great learning experience as well.
To our valued customers
Nebojsa Matic,
Owner and General Manager
of MikroElektronika
5
Table of contents
Introduction 6
Package contains 7
It has the look and the features 8
Assembling 10
Choose your driver 17
clicker 2 & mikromedia pinout 18
clicker 2 – a click™ board two-seater 19
Lights 20
Motors 20
Power supply 21
mikroBUS™ sockets 22
click™ boards 23

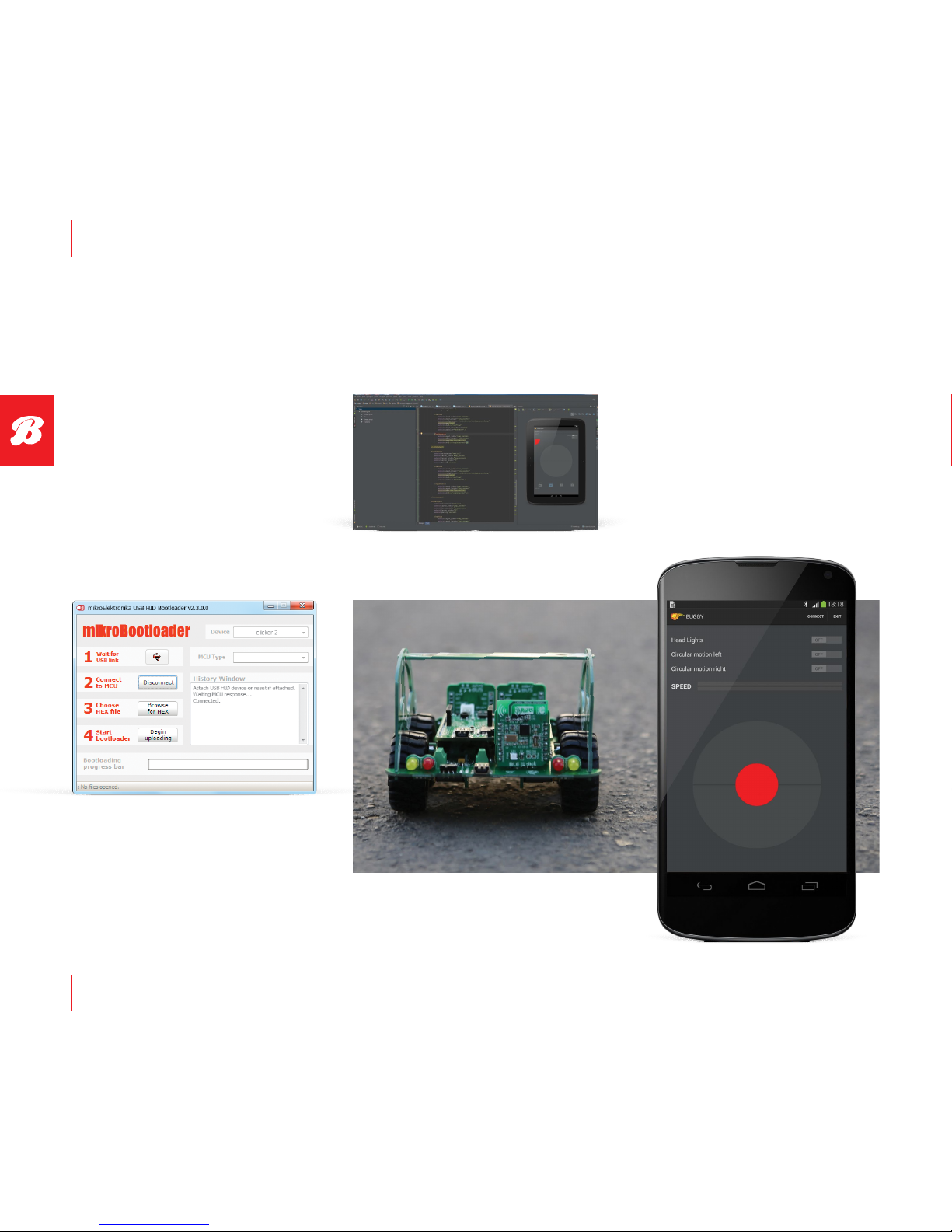

Firmware 24
Android app 24
Schematic 25
What’s Next? 26
6
A motorized development platform
Introduction
For years we have been honing our expertise in designing
powerful and easy to use hardware development tools. Our
reputation was forged, in part, on our range of mikromedia
boards and the ever-growing line of click
™
boards. This time,
we’ve put all that experience to use, and put it on wheels —
the Buggy is a four-wheel robotics workstation that takes
advantage of all the innovations we came up with in
recent years: it employs a clicker 2 / mikromedia pinout that
makes it compatible with a wide range of microcontroller
architectures. Then we added mikroBUS
™
sockets giving
you the choice of over 100 click
™
boards to enhance the
four-wheeler and make it your own with various sensors and
communication boards. We also published a free Android App
for remotely controlling the Buggy and we made the code
available to you. Finally, we took great care to provide you with
the relevant documentation to make it easy to start working
on your Buggy projects right away. Hence this manual. Enjoy.
Package dimensions:
L 277mm, W 232mm, H 56mm
Package weight:
~800-850g
139 mm
5 472.44 mils
42 mm
1 653.54 mils
108.5 mm
4 271.65 mils
61 mm
2 401.57 mils
84 mm
3 307.08 mils
Open source
Android App to
jump-start your
development
Three additional
click
™
board sockets,
additional outputs,
mounting holes
Four-wheel
clicker 2 or
mikromedia
workstation
Power supply
3.7V, 2000mAh LiPo battery
7
Package contains
The kit contains 1) the main panel with circuitry, motors, lights, and the mikromedia connector; 2) a pair of battery holder tabs; 3) two side panels and a horizontal
bar; 4) three mikroBUS
™
plates; and 5) four wheels.
hoizontal bar
the main panel
with circuitry,
motors, lights
2 x side panels
3 x mikroBUS
™
plates
Mini USB cable
4 x removable wheels
LiPo
battery
8
A motorized development platform

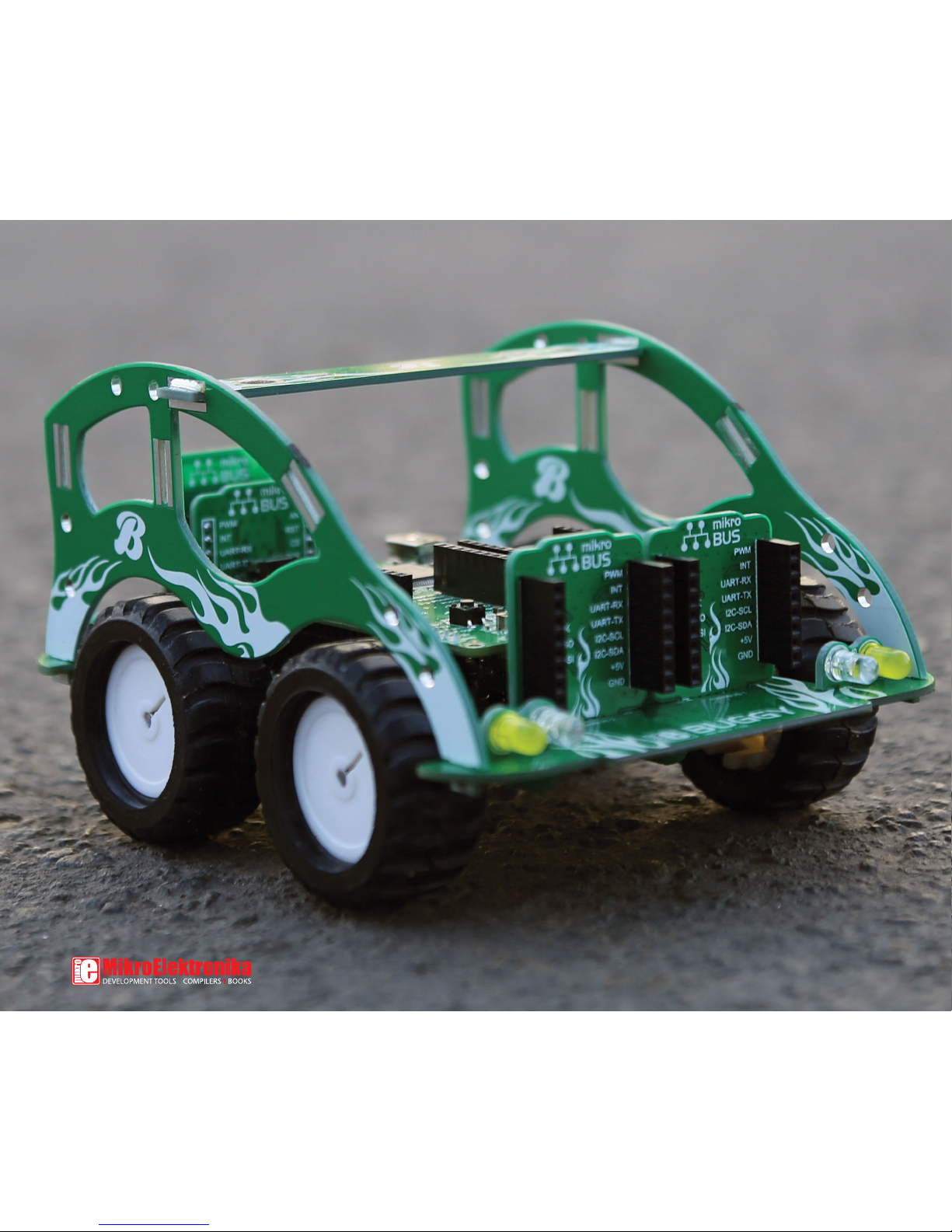

It has the looks...
Top bar with mounting
holes for antennas
Two mikroBUS
™
socket
plates on the front
Front (main
beam) headlight
Front signal light
Removable wheels
Multiple slots for
soldering the top bar
9
... and the features
Rear mikroBUS
™
socket plate
Power screw terminal
(5 and 3.3V)
Rear and stop light
Rear signal light
Analog input screw
terminals (shared with
mikroBUS
™
sockets 2 & 3)
Mini USB connector for
charging the battery
ON/OFF switch
10
A motorized development platform
Assembly
With basic soldering skills you’ll assemble the Buggy in no time. Check out
the “package contains” section on page 7 to make sure you have everything
prepared. Then proceed with step 1 and all the way through.
11

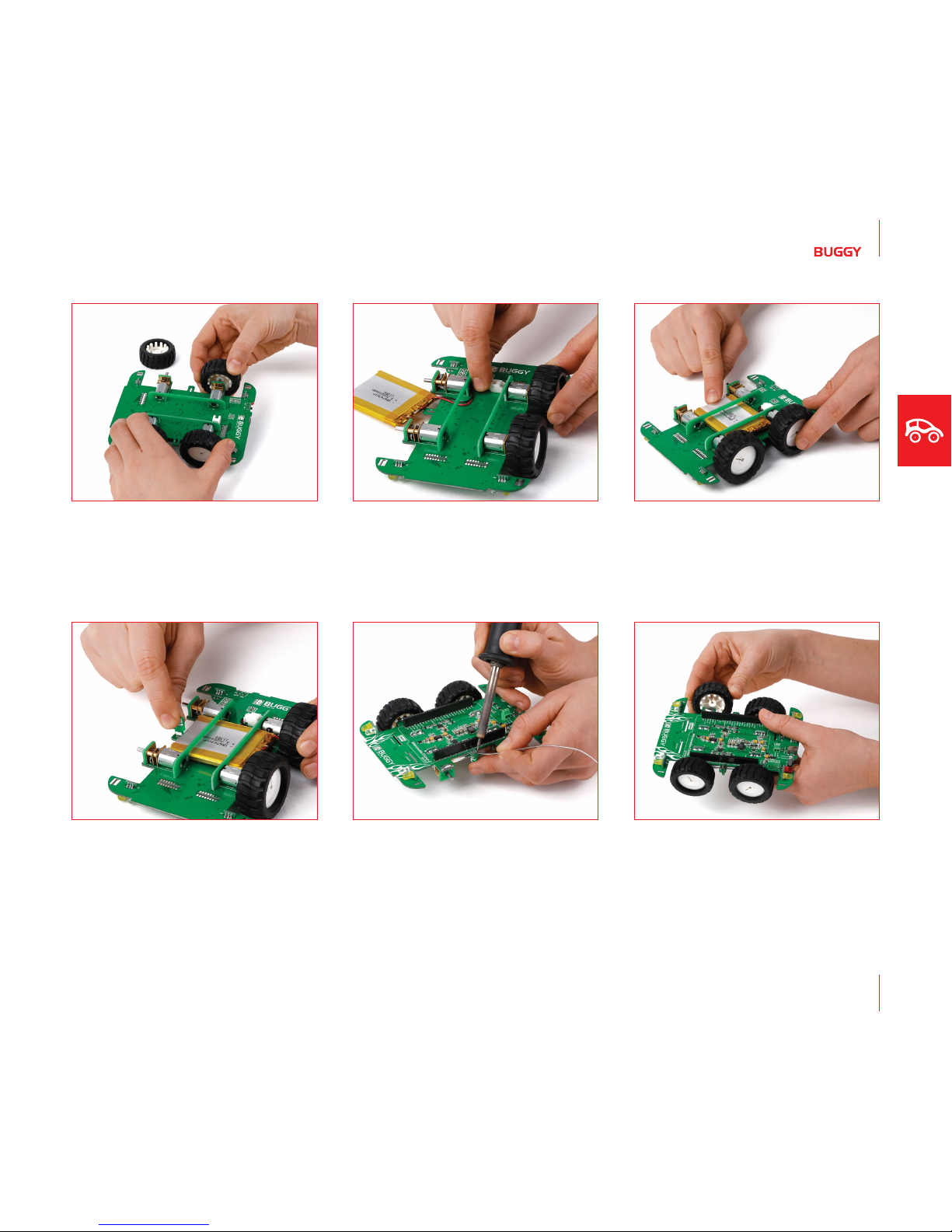

STEP 1 - Remove wheels from one side
The Buggy’s main board is packed in the box with
wheels attached. Remove both wheels from the
left side of the board, by pulling on them.
STEP 4 - Insert battery holder tabs
Look for the two smallest pieces of PCB in the
box. Those are the supporting tabs that keep the
battery in place. Pick either one and place it in the
sockets on either side of the board, so that the
curved side is facing outwards
STEP 2 - Connect the battery
Pull the battery wire under the rail and attach it
to the battery connector.
STEP 5 - Solder battery holder tabs
Hold the battery-holder tab and ip the
main board so that the battery is now facing
downwards. Solder the tab. Repeat step 4 and 5
for the second battery-holder tab.
STEP 3 - Insert the battery
Push the whole battery under the rail. Be careful not
to pinch the wire. The battery should t squarely
between Buggy’s four motors.
STEP 6 - Reattach the wheels
The axle and the socket on the wheel are not
completely round, so be careful to correctly align
them before pushing the wheel towards the axle.
12
A motorized development platform
STEP 7 - Insert mikroBUS™ socket plates
The Buggy comes with three additional
mikroBUS
™
socket plates. Pick either one and slip
it inside one of the three slits on the main board,
marked mikroBUS 1, mikroBUS 2, and mikroBUS 3.
STEP 10 - Attach top bar
The top bar connects the two side panels and
keeps the Buggy rigid, while also providing slots for
soldering additional electronics. Notice that each
side panel has four dierent slots for placing the
top bar. You can use whichever one suits you best.
STEP 8 - Solder mikroBUS™ socket plates
While holding the mikroBUS™ socket plate inside
the slit with your nger, ip the Buggy. Solder
the plates, making sure to cover each of the eight
contact points. Repeat steps 7 and 8 for the
remaining two plates.
STEP 11 - Solder top bar
Solder the top bar to each side panel. You can
always unsolder it later if you’d like to to change
its position.
STEP 9 - Set side panels in place
Next, position the two side panels. You won’t be
soldering them yet, but pay attention to place the
panels in the correct direction: the lower part faces
forward, where the white and yellow LEDs are.
STEP 12 - Solder side panels
With the top bar soldered, ip the Buggy. Solder
the two side panels to the main board; there are
two contact points for each panel, one in each
corner of the main board. Now ip the Buggy back
on its wheels. You’re done assembling!
www.mikroe.com/buggy
A motorized development platform
www.mikroe.com/buggy
17
clicker 2
click
™
board
mikromedia
Choose your driver
Now that you’ve assembled the Buggy, the only remaining thing is to put a microcontroller in the driver’s seat. You have two types of choices: (1) clicker 2 is a
compact development platform with a MCU and two mikroBUS
™
sockets (2) mikromedia is a multimedia development system with a 320x240 TFT touchscreen and
a rich set of onboard modules. Both of these boards are available for dierent microcontroller architectures.
If you want to remotely
control your Buggy, you’ll
also need a communications
click
™
board with a wireless
transceiver module (Wi-Fi or
Bluetooth work well).
18
A motorized development platform

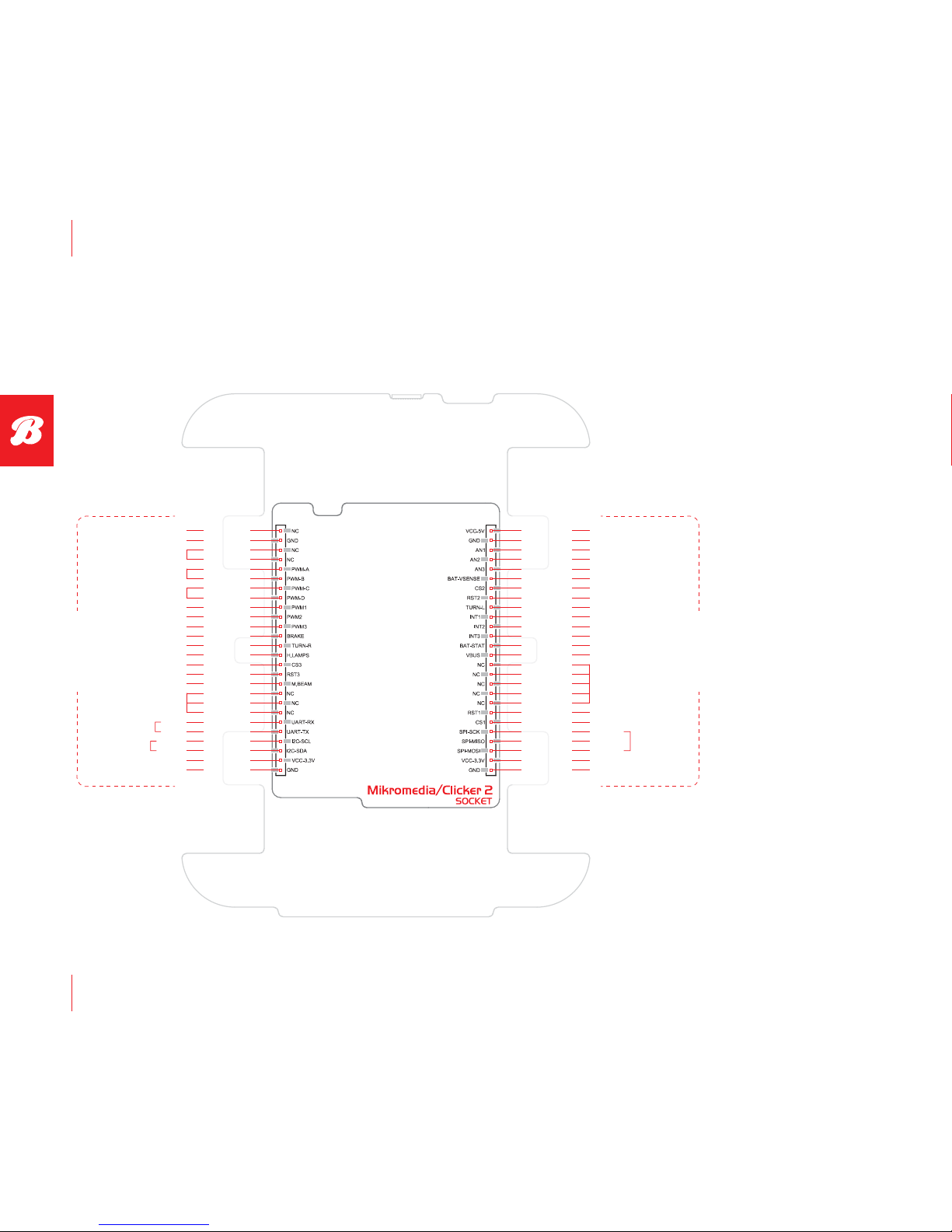

clicker 2 & mikromedia pinout
5VNC
NC
NC
Not connected
Not connected
Left side motors control
Right side motors control
mikroBUS 1 PWM pin
mikroBUS 2 PWM pin
mikroBUS 3 PWM pin
Brake lights
Right signal lights
Low intensity lights
mikroBUS 3 CS pin
mikroBUS 3 RST pin
main beam headlights
System power supply
GNDGND
Reference Ground Reference Ground
mikroBUS 1 AN pin
mikroBUS 2 AN pin
mikroBUS 3 AN pin
mikroBUS 2 CS pin
mikroBUS 2 RST pin
mikroBUS 1 INT pin
mikroBUS 2 INT pin
mikroBUS 3 INT pin
mikroBUS 1 RST pin
mikroBUS 1 CS pin
left signal light
battery sensing pin
battery charging status
USB power supply
Not connected
Not connected
AN1
AN2
AN3PWM-A
BAT -
VSENSE
PWM-B
CS2
PWM-C
RST2PWM-D
TURN-LPWM1
INT1PWM2
INT2PWM3
INT3BRAKE
BAT -STATTURN-R
VBUSH.LAMPS
NCCS3
NCRST3
NCM.BEAM
NCNC
NCNC
RST1NC
CS1UART
SPIUART
SPII
2
C
SPII
2
C
3.3V3.3V
3.3V power supply
GNDGND
Reference Ground
SPI Lines
RX
TX
SCK
SCL
MISO
SDA
MOSI
UART Lines
I
2
C Lines
3.3V power supply
Reference Ground
Pin functions
The Buggy carries a standard clicker 2/mikromedia
pinout with a pair of 1x26
connection pads. However,
to make the Buggy easier
to program, some of the
pins have descriptive labels
that point out their functions in relations to the motors, lights and so on.
Pin functions
19
clicker 2 – a click™ board two-seater
Available for several MCU architectures, clicker 2 is a compact development kit with two mikroBUS™ sockets for click™ board connectivity. You can use it to quickly
build your own gadgets with unique functionalities and features. It’s an ideal Buggy driver because it lets you leverage the huge potential of click
™
boards, our
constantly expanding range of over 100 add-on boards.
20
A motorized development platform
LDW
1
0
2
FR
FRONT RIGHT LIGHTS
LDY
VCC VCC
VCC
LDY
1
0
2
FL
LDW
VCC VCC
VCC
LDR
1
0
2
RR
LDY
VCC VCC
VCC
LDY
1
0
2
RL
LDR
VCC VCC
VCC
FRONT LEFT LIGHTS
REAR RIGHT LIGHTS
REAR LEFT LIGHTS
The Buggy has a dierential motor drive. The four DC motors
are split by left and right axis (controlled by DRV833RTY motor
drivers, U6 and U7, one for each side). Steering takes place when
you vary the relative rate of rotation between the left and right
side. This type of steering is simpler to manipulate if you’ll be
writing your own rmware for the Buggy. Also, when one pair
of wheels is put in reverse while the other is in normal gear, the
Buggy will start to spin, which wouldn’t be possible otherwise.
Just like a real car, the Buggy has a set
of front and rear lights for signaling and
for lighting the way. These lights are
routed in a way that makes them easier
to program should you develop your own
rmware for the Buggy. They’re grouped
in three sets based on function: (1)
The pair of white LEDs on the front are
headlights, with two modes of brightness;
(2) The red LED brake lights on the rear
also have two brightness levels; and (3)
the two pair of yellow LED signal lights
are grouped by left and right side. Pins for controling Buggy’s light
LED schematics
Highlighted above are the ve pins that
control the lights. TURN L and TURN R
regulate the signal lights. H.LAMPS turns
on the headlights and rear lights at low
intensity. Activate both the M.BEAM and
H.LAMPS at the same time for brighter
headlights. For brighter rear lights (stop
lights), activate the BRAKE and H.LAMPS
at the same time.
To prevent the motors from drawing too much current from the
battery (and in doing so prevent the other components from
functioning properly) a few resistors are placed to limit current
draw. Each motor can draw a maximum of 400 mA, for a total of
1.6 A for all four motors.
Lights Motors
HEADLAMPS
TURN_R
BRAKE
HDR2
MAIN BEAM
TURN_L
HDR1
VCC-5V
D3
PMEG3010ER
U6U7
PWM-A
and PWM-B
pins control
the left
side motors
PWM-C and
PWM-D
pins control
the right
side motors
21
Power supply
Battery charger
The Buggy runs on a 3.7V 2000mA battery.
Once you install the battery, there’s no need to
take it out; charge it through the Buggy’s USB
port. A miniature single-cell, fully integrated LiIon, Li-Polymer charge management controller.
MCP73832 enables that. A red power indication
LED will signalize when the battery is charging.
Once charged, it’ll turn o.
ON/OFF switch
The ON/OFF switch on the rear of the Buggy,
between the USB port and the left rear lights,
controls the main power supply. A clicker 2 board
also has its own ON/OFF switch, which should
be kept in the ON position in order for the main
power supply switch to work. A green LED will
indicate the presence of a power supply. When
removing the clicker 2, keep both switches OFF.
Screw teminals
The Buggy’s expandability is not limited to
mikroBUS
™
sockets and click™ boards. You can
attach a variety of sensors and antennas to its
top bar. A pair of screw terminals will allow you
to connect those additional components to the
main power supply. Both 3.3V and 5V outputs
are available. There’s an additional pair of screw
terminals that are analog inputs.
22
A motorized development platform
mikroBUS™ sockets
Enhancing the Buggy with various sensors and communication modules
is easy — you just plug a MikroElektronika click
™
board into one of the 3+2
available mikroBUS
™
sockets and you’re good to go.
mikroBUS
™
is a specially designed pinout standard with SPI, I2C, Analog,
UART, Interrupt, PWM, Reset and Power supply pins. It has two 1x8 headers,
each with VCC and GND power supply pads.
The Buggy comes with three mikroBUS
™
sockets, two in the front, one in
the rear. If you connect a clicker 2 board to the Buggy you’ll get two more
sockets for a total o ve mikroBUS
™
sockets.
There are more than a 100 click
™
boards available. Each click™ board comes
with a single module, and these vary from sensors to displays, audio to motor
control, communication to ber optics, even speech recognition. Learn more about the mikroBUS
™
standard at www.mikroe.com/mikrobus
Vertical mikroBUS
™
socket schematic
AN
RST
CS
SCK
MISO
MOSI
3.3V
GND
PWM
INT
RX
TX
SCL
SDA
5V
GND
VCC-3.3V VCC-5V
SPI-MOSI
AN-MB
RST-MB
CS-MB
SPI-SCK
SPI-MISO
PWM-MB
UART-RX
UART-TX
INT-MB
I2C-SCL
I2C-SDA
AN
RST
CS
SCK
MISO
MOSI
3.3V
GND
PWM
INT
RX
TX
SCL
SDA
5V
GND
2
1
345
678
15
16
1413121110
9
(H1/H2/H3)
VmBUS HEADER
AN-MB
VCC-5VVCC-3.3V
CS-MB
PWM-MB
INT-MB
I2C-SCL
I2C-SDA
RST-MB
SPI-SCK
SPI-MISO
SPI-MOSI
UART-RX
UART-TX
VCC-3.3V VCC-5V
SPI-MOSI
AN-MB
RST-MB
CS-MB
SPI-SCK
SPI-MISO
PWM-MB
UART-RX
UART-TX
INT-MB
I2C-SCL
I2C-SDA
Rear mikroBUS™ plateFront mikroBUS™ plates
23
click™ boards are plug-and-play!
microSD click
™
Proximity click
™
BUZZ click
™
MPU 9DOF click
™
nRF C click
™
For a few years now, MikroElektronika has been expanding
their range of click
™
boards. Almost each month several
new click
™
boards are released, carrying all types of
sensors and communication modules. There are over a
100 click
™
boards to choose from. You’ll be able to expand
your Buggy with additional functionality with literally
zero hardware conguration. Just plug and play.
For the complete list of available click
™
boards, please visit:
www.mikroe.com/click
BLE P click
™
WiFi PLUS click
™
GSM click
™
BlueTooth click
™
GPS click
™
24
A motorized development platform
Firmware Android application
A free open-source Android App for driving the
Buggy is available from mikroe.com/buggy. The App
talks to the Buggy through a wireless transceiver
click
™
board (Bluetooth or Wi-Fi). It’s a great starting
point to develop your own original applications for
the Buggy, just open the project in your Android
SDK of choice (for example Android Studio, shown
here). But rst, spend some time driving the Buggy
around from your smartphone or tablet, just for fun.
Install the app on your smartphone or tablet
and take your Buggy to the road
If your clicker 2 board came with the Buggy as
part of a kit, then you’re all set — the rmware
compatible with the Android app shown on the
right is already installed.
If you’ve purchased only the Buggy by itself, no
problem. Clicker 2 and mikromedia boards have a
USB-HID bootloader which makes it easy to install
the rmware. All you have to do is download the
mikroBootloader application for your clicker 2 or
mikromedia board, along with the rmware, all
available from www.mikroe.com/buggy.
Then turn o the Buggy, detach the clicker 2
board, plug it to your computer via USB, and follow
the simple 4-step procedure in mikroBootloader.
If you’re making your own custom rmware for the
Buggy in mikroC
™
, mikroBasic™ or mikroPascal™,
you’ll also upload it with the mikroBootloader.
mikrobootloader application
Edit the code for the Buggy App and make it
your own — shown here is Android Studio, a
popular Android platform IDE
25
Vbat
R62
3K9
Charging Current approx. 250mA
E1010uF
R61
10K
R59
2K2
3
2
1 5
4
STAT
VSS
VBAT VDD
PROG
U11
MCP73832
C80
2.2uF
VCC-IN
R57
2K2
R60
10K
R58
10K
BAT-STAT
R56
10K
VCC-3.3V
Q1
BC846
Q2
BC846
LD2
CHARGE
E1
10uF
VCC-IN
VCC-IN
VCC-IN
Q8
BC846
AN-MB115
16
14
131210
11
9
1234657
8
H1
16PIN HOLDER
VCC-5VVCC-3.3V
RST-MB1
CS-MB1SPI-SCK
SPI-MISO
SPI-MOSI
PWM-MB1
INT-MB1
UART-RX
UART-TX
I2C-SCL
I2C-SDA
15
16
141312
10
11
9
1234657
8
H2
16PIN HOLDER
VCC-5VVCC-3.3V
UART-RX
UART-TX
AN-MB2RST-MB2
CS-MB2SPI-SCK
SPI-MISO
SPI-MOSI
I2C-SCL
I2C-SDA
PWM-MB2
INT-MB2INT-MB3
15
16
1413121011
9
1
234
657
8
H3
16PIN HOLDER
VCC-5VVCC-3.3V
SPI-SCK
SPI-MISO
SPI-MOSI
UART-RX
UART-TX
I2C-SCL
I2C-SDA
AN-MB3
PWM-MB3
CS-MB3
RST-MB3
1
0
2
RL
LIGHTS HOLDER
1
0
2
FR
LIGHTS HOLDER
1
0
2
FL
LIGHTS HOLDER
1
0
2
RR
LIGHTS HOLDER
FRONT
REAR
LEFT
LEFT
RIGHT
RIGHT
R30
2K2
R33
1K
R32
1K
R31
2K2
1
2
3
R1
R2
Q3
PDTC114EU
1
2
3
R1
R2
Q4
PDTC114EU
1
2
3
R1
R2
Q5
PDTC114EU
1
2 3
R1
R2
Q6
PDTC114EU
HEADLAMPS
TURN_L
TURN_R
1
2 3
R1
R2
Q7
PDTC114EU
R34
220
BRAKE
VCC-3.3V
1
2
3
R1
R2
Q9
PDTC114EU
MAIN BEAM
R8
1K
C3
100nF
3.3V VOLTAGE REGULATOR
E2
10uF
R1
82K
R2
5K6
6
234
5
SHDN
GND
VOUT
ADJ
1
VIN
GND
U1
MCP1826
R6
12K
VCC-5V E4
10uF
C4
100nF
C5
22uF
VCC-3.3V
D2
PMEG3010ER
LD1
R5
470
POWER
VCC-5V
RX
TX
SDA
SCL
PWM
VCC-3.3V
PWM-C
PWM-D
PWM-A
PWM-B
PWM-MB1
PWM-MB2
HEADLAMPS
TURN_R
BRAKE
UART-RX
UART-TX
I2C-SCL
I2C-SDA
PWM-MB3
CS-MB3
RST-MB3
HDR2
MAIN BEAM
AN
INT
VCC-3.3V
SCK
SDI
SDO
INT-MB1
INT-MB2
RST-MB2
CS-MB2
CS-MB1
RST-MB1
BAT-VSENSE
INT-MB3
BAT-STAT
TURN_L
AN-MB1
AN-MB2
SPI-SCK
SPI-MISO
SPI-MOSI
AN-MB3
HDR1
USB-VBUS
VCC-5V
D3
PMEG3010ER
CN2
CN1
VCC-3.3VVCC-5V
CN3
AN-MB2
AN-MB3
VCC-IN
Vbat
CN5
R46
100K
R41
100K
L2
1.5uH
R43
1K
C66
22uF
C71
100nF
C70
10pF
C67
22uF
C68
22uF
R45
10K
VCC-5V
E7
10uFE810uF
R49
100K
R51
100K
R54
100K
BAT-VSENSE
C69
22uF
VIN
PWR-EN
PWR-EN
123
SW1
JS202011AQN
R4
100K
C72
1uF
C79
100nF
C140
10nF
C141
100pF
FP1
VIN
10
9
8
7
65
4
3
2
1
PG
VIN
L1
EN
PS
VAUX
GND
FB
L2
VOUT
PGND
U2
TPS63060
D1
PMEG3010ER
VCC-IN
R7
10K
C1
1uF
USB-VBUS
R10
8K2
Vusb_IN
1
2
3
4
5
GND
ID
D+
D-
VBUS
CN4
USB MINIB
R9
100K
J1A
VIN
M2
DMP2305U
R11
15K
Vbat
C34
2.2uF
C31
22uF
Vbat
C32
100nF
Vbat
C33
10nF
R39
0.5
R38
0.5
PWM-C
PWM-D
PWM-A
PWM-B
R37
10K
VCC- 3.3V
1
4
3
2
H9
MOTOR_HLD_PADS
1
4
3
2
H11
MOTOR_HLD_PADS
1
2
3
4
567
8
9
10
11
12
131415
16
nSLEEP
AOUT2
AISEN
AOUT1
BOUT2
BISEN
BOUT1
nFAULT
VCP
BIN2
AIN1
AIN2
VINT
GND
VM
BIN1
GND
U7
DRV8833RTY
Vbat
C30
2.2uF
C27
22uF
Vbat
C28
100nF
Vbat
C29
10nF
R36
0.5
R35
0.5
R3
10K
VCC- 3.3V
1
4 3
2
H4
MOTOR_HLD_PADS
1
4
3
2
H5
MOTOR_HLD_PADS
1
2
3
4
567
8
9
10
11
12
131415
16
nSLEEP
AOUT2
AISEN
AOUT1
BOUT2
BISEN
BOUT1
nFAULT
VCP
BIN2
AIN1
AIN2
VINT
GND
VM
BIN1
GND
U6
DRV8833RTY
VCC- 5V
VCC- 3.3V
Vbat
VCC- IN
213
4
MOTOR
21
34
MOTOR
M
2 1
3 4
MOTOR
2
1
3
4
MOTOR
FRONT
LEFT
(FL)
REAR
RIGHT
(RR)
REAR
LEFT
(RL)
FRONT
RIGHT
(FR)
M
M
M
Schematic
26
A motorized development platform
Community
If you want to nd answers to your questions on many
interesting topics we invite you to visit our forum at
www.mikroe.com/forum and browse through
more than 150 thousand posts. You are likely to
nd just the right information. On the other hand,
if you want to download free projects and libraries,
or share your own code, please visit the Libstock
™
website. With user proles, you can get to know
other programmers, and subscribe to receive
notications on their code.
Support
We all know how important it is to be able to rely on
someone in moments when we are stuck with our
projects, facing a deadline, or when we just want
to ask a simple, basic question that’s pulling us
back for a while. We do understand how important
this is to people; our Support Department is one
of the pillars upon which our company is based.
MikroElektronika oers Free Tech Support to
the end of product lifetime, so if something goes
wrong, we are ready and willing to help!
Compilers
You still don’t have an appropriate compiler? Locate
the compiler that suits you best on our website
(see link below).
Choose between mikroC
™
, mikroBasic™ and
mikroPascal
™
, and download a fully functional
demo version, so you can begin building your
applications.
www.mikroe.com/compilers www.libstock.com www.mikroe.com/support
What’s Next?
You have now completed the journey through each and every feature of the Buggy.You got to know its features, supported microcontrollers and other
expandability options. Now you are ready to start building your own robotic vehichle. We are suggesting several steps which are probably the best way to
begin. We invite you to join our community. You will find very useful projects and tutorials and can get help from a large ecosystem of users. Welcome!
1 2 3
27
DISCLAIMER
All the products owned by MikroElektronika are protected by copyright law and international copyright treaty. Therefore, this manual is to be treated as any
other copyright material. No part of this manual, including product and software described herein, may be reproduced, stored in a retrieval system, translated or
transmitted in any form or by any means, without the prior written permission of MikroElektronika. The manual PDF edition can be printed for private or local use,
but not for distribution. Any modication of this manual is prohibited.
MikroElektronika provides this manual ‘as is’ without warranty of any kind, either expressed or implied, including, but not limited to, the implied warranties or
conditions of merchantability or tness for a particular purpose.
MikroElektronika shall assume no responsibility or liability for any errors, omissions and inaccuracies that may appear in this manual. In no event shall MikroElektronika,
its directors, ocers, employees or distributors be liable for any indirect, specic, incidental or consequential damages (including damages for loss of business prots
and business information, business interruption or any other pecuniary loss) arising out of the use of this manual or product, even if MikroElektronika has been advised
of the possibility of such damages. MikroElektronika reserves the right to change information contained in this manual at any time without prior notice, if necessary.
HIGH RISK ACTIVITIES
The products of MikroElektronika are not fault – tolerant nor designed, manufactured or intended for use or resale as on – line control equipment in
hazardous environments requiring fail – safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air
trac control, direct life support machines or weapons systems in which the failure of Software could lead directly to death, personal injury or severe
physical or environmental damage (‘High Risk Activities’). MikroElektronika and its suppliers specically disclaim any expressed or implied warranty of
tness for High Risk Activities.
TRADEMARKS
The MikroElektronika name and logo, mikroC™, mikroBasic™, mikroPascal™, Visual TFT™, Visual GLCD™, mikroProg™, Ready™, MINI™, mikroBUS™, EasyPIC™, EasyAVR™,
Easy8051
™
, click™ boards and mikromedia™ are trademarks of MikroElektronika. All other trademarks mentioned herein are property of their respective companies.
All other product and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are only
used for identication or explanation and to the owners’ benet, with no intent to infringe.
Copyright © 2015 MikroElektronika. All Rights Reserved.
ver. 1.02
BUGGY manual
0 100000 027523
If you want to learn more about our products, please visit our website at www.mikroe.com
If you are experiencing some problems with any of our products or just need additional
information, please place your ticket at www.mikroe.com/support
If you have any questions, comments or business proposals,
do not hesitate to contact us at oce@mikroe.com
Loading...
