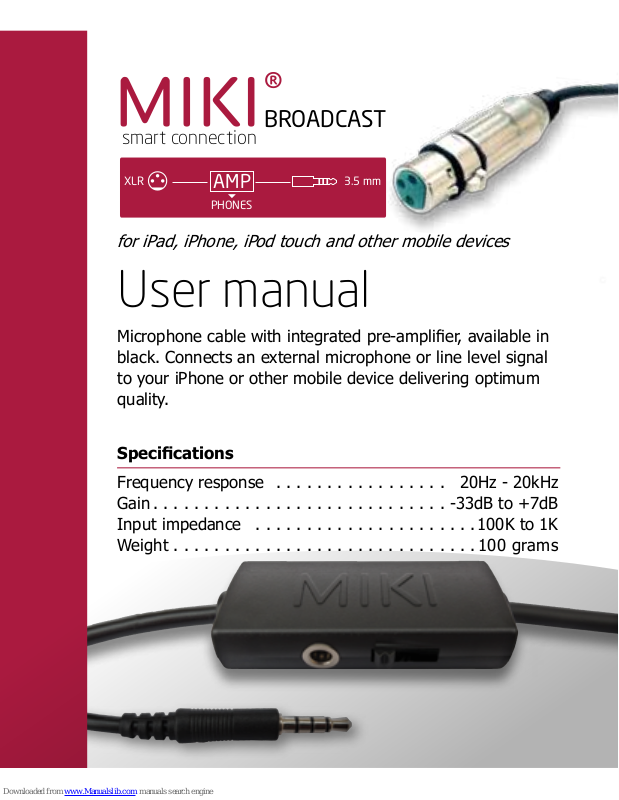

Miki XLR Connector, MIC Pre-amplifier User Manual

for iPad, iPhone, iPod touch and other mobile devices

User manual

Microphone cable with integrated pre-amplier, available in

black. Connects an external microphone or line level signal
to your iPhone or other mobile device delivering optimum
quality.

Specications

Frequency response ................. 20Hz - 20kHz

Gain .............................-33dB to +7dB

Input impedance ......................100K to 1K

Weight ..............................100 grams

AMP

3.5 mm

PHONES

XLR

smart connection

BROADCAST

XLR Connector

Connect any dynamic microphone to this cable. Battery­powered microphones - those using replaceable AA
batteries - can also be used (not possible for phantom-
powered microphones).

MIC Pre-amplier

Insert your headphone into the 3.5 mm headphone socket.

Sensitivity switch

HI LO LINE
maximum gain attenuation of 10dB attenuation of 40dB

3.5 mm Jack Plug

Insert into your phone’s headset input

Step 1

Use the sensitivity

switch

on the
MIKI cable to ensure the phone’s
input is not overloaded at the
loudest volumes.
Try to get the volume level to
peak between -20dB and -10dB.

Step 2

Then use the Mic level in LUCI
Live to increase the volume level
if required.

Proper care

Do not expose the MIKI to extreme temperatures.

Warranty information

Technica Del Arte b.v. warrants this product to be free of
defects in material or workmanship for a period of 2 years
from the date of the original purchase from an authorized
LUCI distributor or reseller. Technica Del Arte will repair or
replace the defective product at its discretion if returned
within the warranty period. This warranty is in lieu of all other
warranties, expressed or implied, including, but not limited

to, any implied warranty of merchantability or tness for a

particular purpose.

Technical support

For all LUCI Software check out the LUCI manuals at the
support page of www.luci.eu. For technical assistance go to
https://support.technicadelarte.com.
